1 1 Exercise Two The Digital Camera Fastedd @ Helpful Notes 2004

2 2 Get to Know your Mouse Left mouse button Used for most operations such as selecting icons, menus and graphic entities. Right mouse button Brings up additional options Select in the tutorial means using the left mouse button. The Esc key on your keyboard is used to cancel a command.

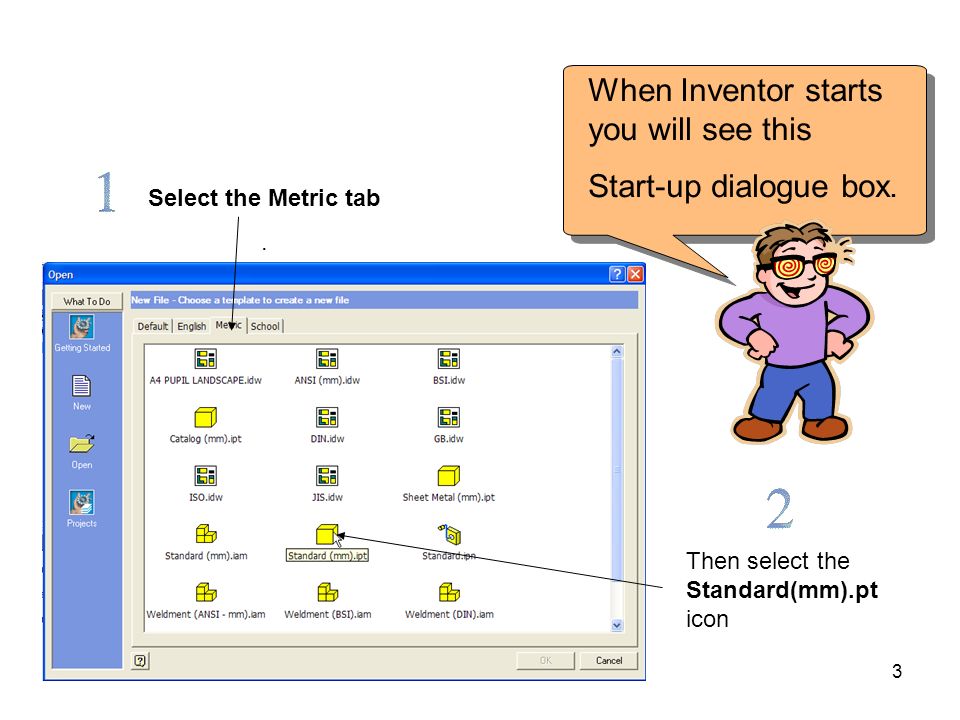

3 3 When Inventor starts you will see this Start-up dialogue box. Select the Metric tab. Then select the Standard(mm).pt icon

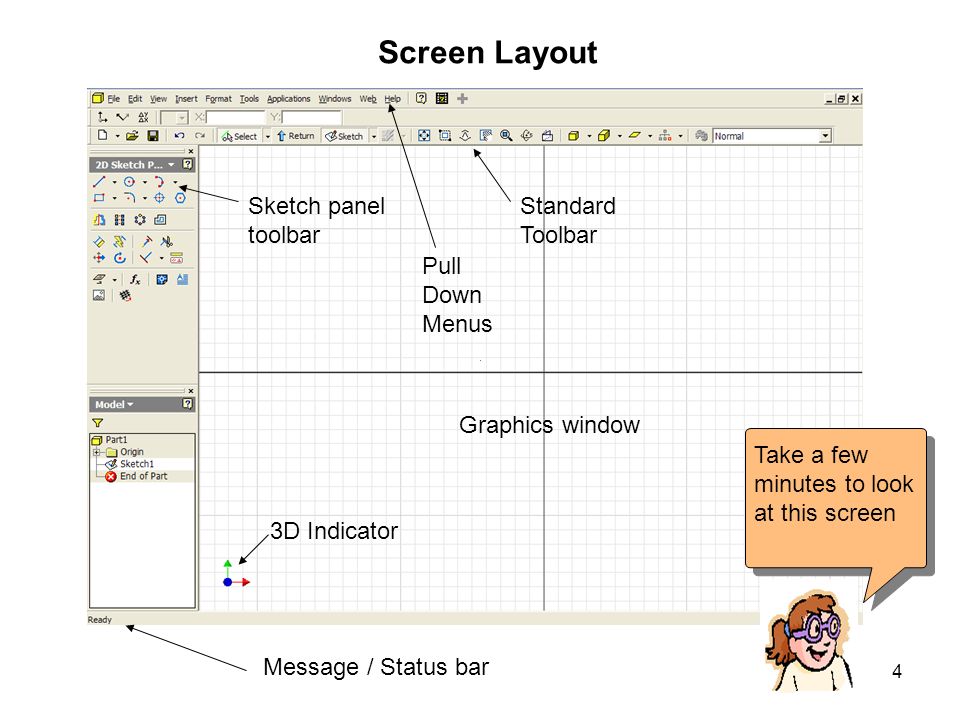

4 4 Screen Layout Sketch panel toolbar 3D Indicator Message / Status bar Graphics window Take a few minutes to look at this screen Standard Toolbar Pull Down Menus

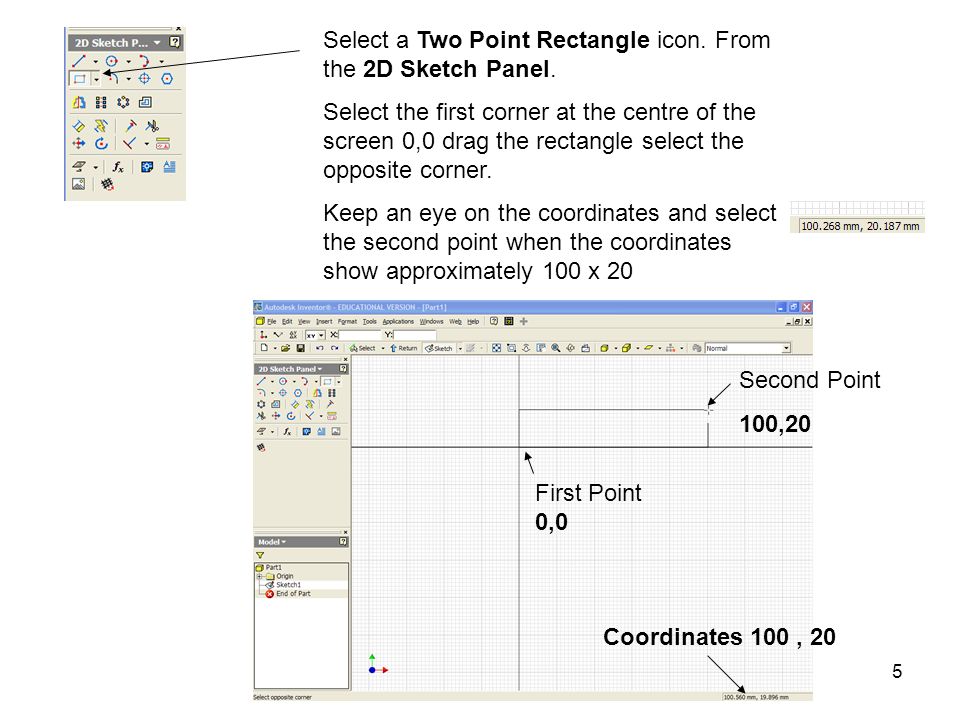

5 5 Select a Two Point Rectangle icon. From the 2D Sketch Panel. Select the first corner at the centre of the screen 0,0 drag the rectangle select the opposite corner. Keep an eye on the coordinates and select the second point when the coordinates show approximately 100 x 20 First Point 0,0 Second Point 100,20 Coordinates 100, 20

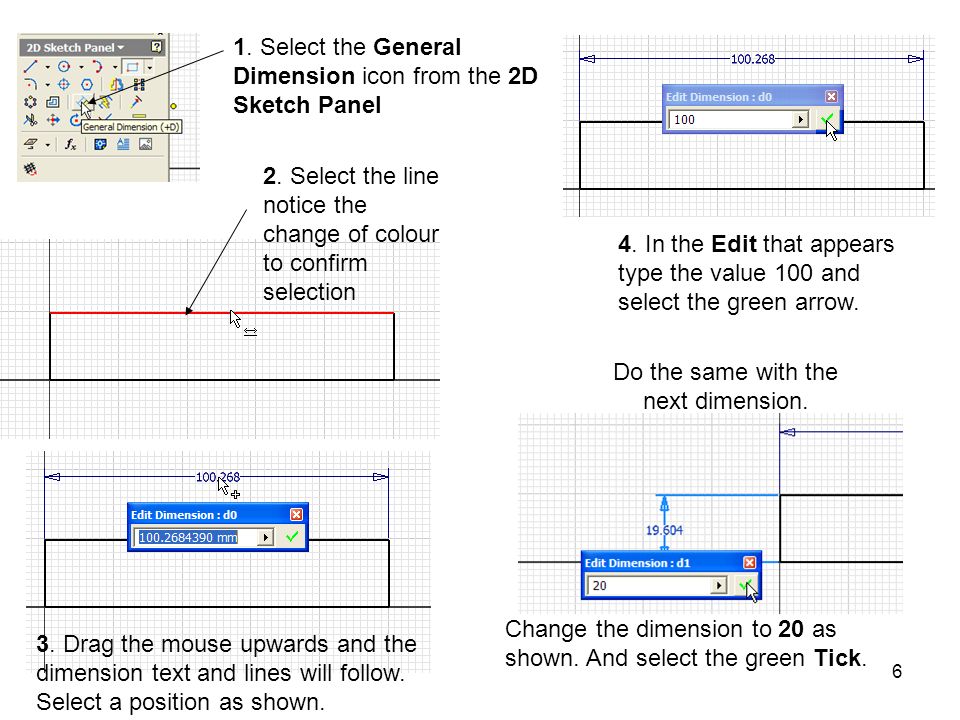

6 6 1. Select the General Dimension icon from the 2D Sketch Panel 2. Select the line notice the change of colour to confirm selection 3. Drag the mouse upwards and the dimension text and lines will follow. Select a position as shown. 4. In the Edit that appears type the value 100 and select the green arrow. Change the dimension to 20 as shown. And select the green Tick. Do the same with the next dimension.

7 7 Press the Right mouse key and select Isometric View from the pull down menu. This is sometimes called the safe view you can always return to it by selecting Isometric View. If the view is to close up select the Zoom icon. Select the screen near the view you will now be able to Zoom in or out by dragging the mouse up or down. Zoom Cursor

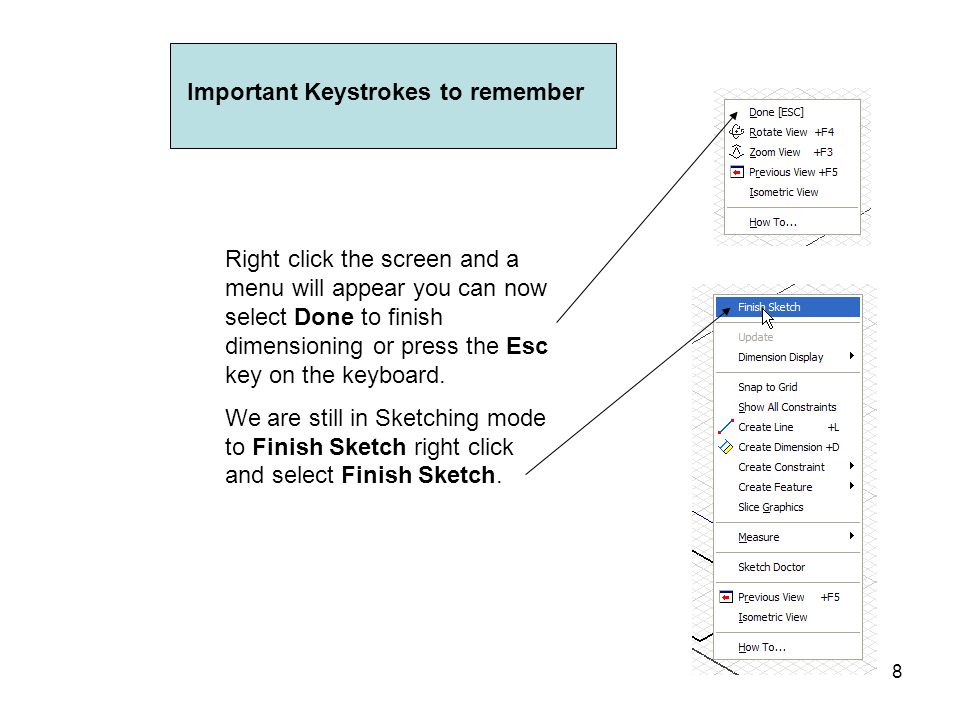

8 8 Right click the screen and a menu will appear you can now select Done to finish dimensioning or press the Esc key on the keyboard. We are still in Sketching mode to Finish Sketch right click and select Finish Sketch. Important Keystrokes to remember

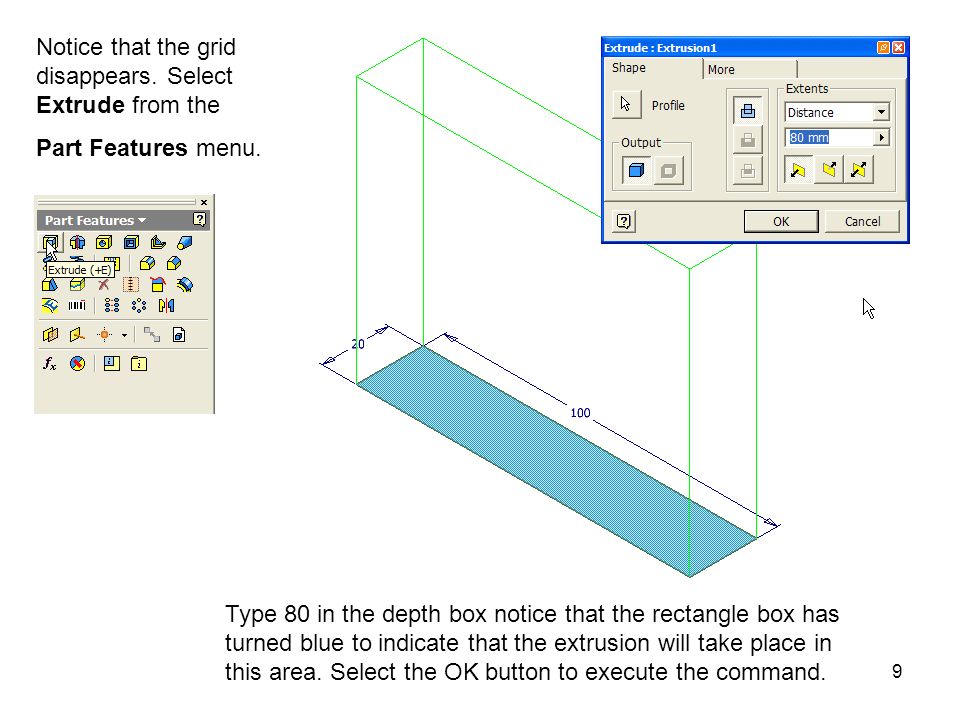

9 9 Notice that the grid disappears. Select Extrude from the Part Features menu. Type 80 in the depth box notice that the rectangle box has turned blue to indicate that the extrusion will take place in this area. Select the OK button to execute the command.

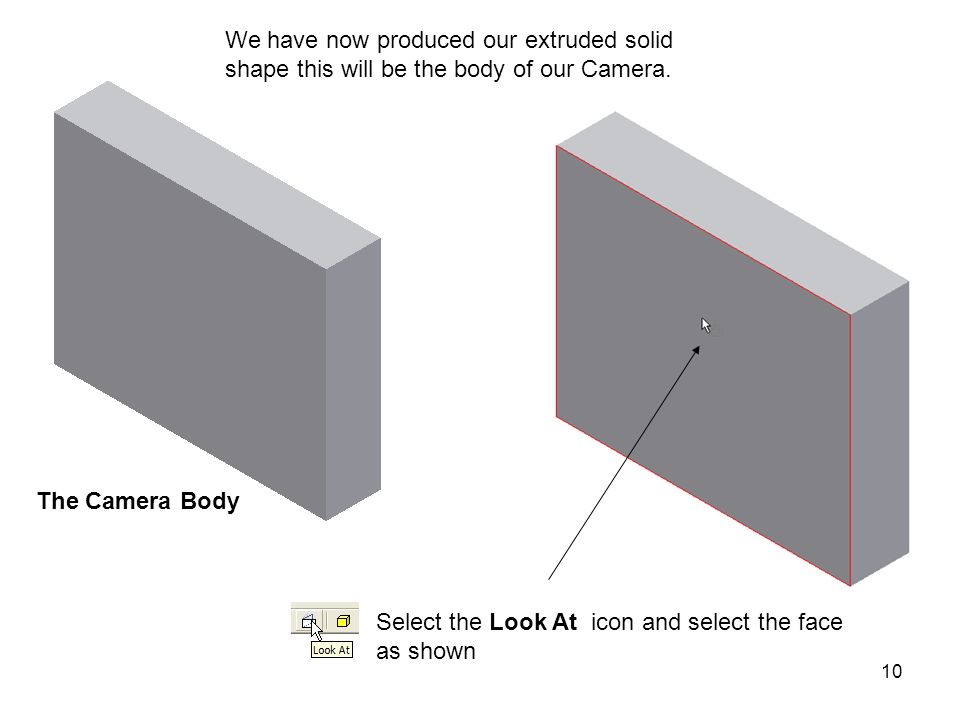

10 10 We have now produced our extruded solid shape this will be the body of our Camera. Select the Look At icon and select the face as shown The Camera Body

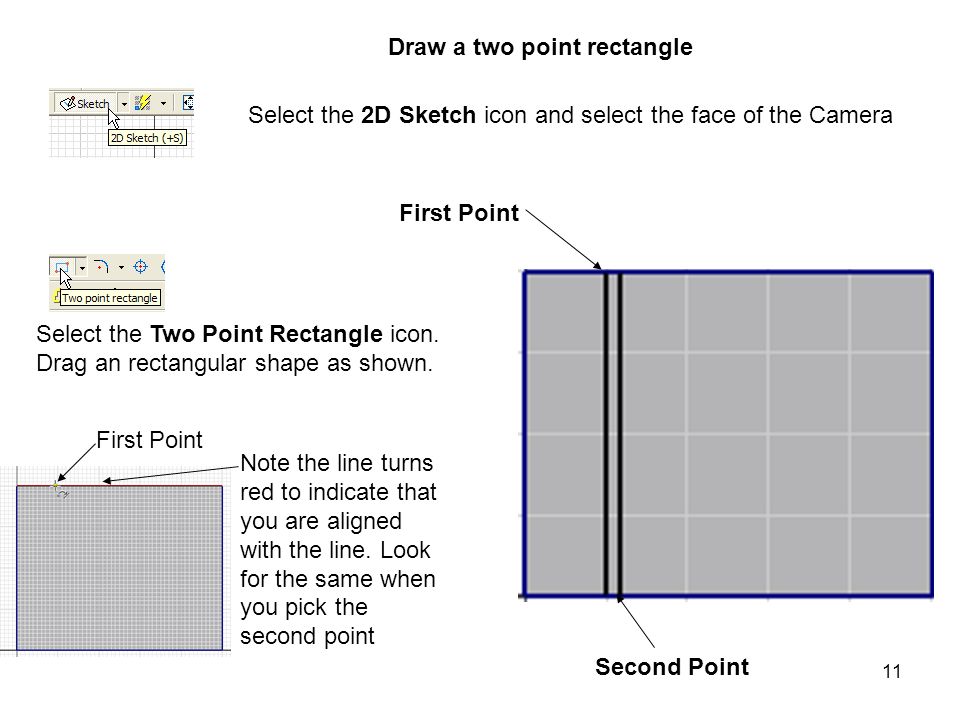

11 11 Select the Two Point Rectangle icon. Drag an rectangular shape as shown. First Point Second Point Select the 2D Sketch icon and select the face of the Camera Note the line turns red to indicate that you are aligned with the line. Look for the same when you pick the second point First Point Draw a two point rectangle

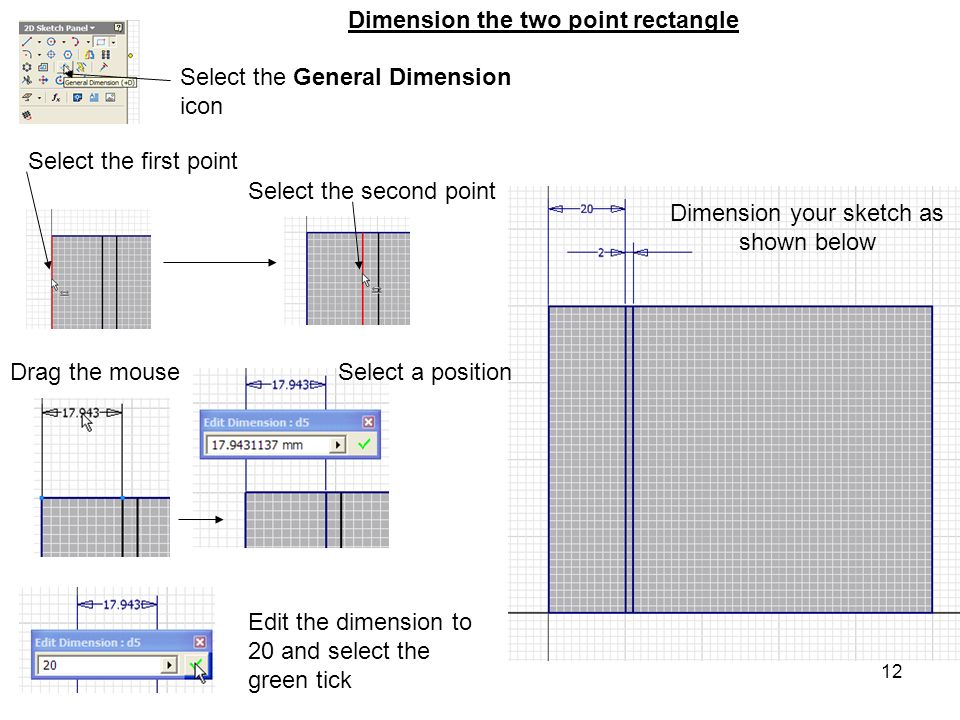

12 12 Select the first point Select the second point Drag the mouseSelect a position Edit the dimension to 20 and select the green tick Dimension your sketch as shown below Dimension the two point rectangle Select the General Dimension icon

13 13 Press Esc. and Right click the mouse on the screen select Finish Sketch from the pull down menu. Right click again and select Isometric View Select Extrude from the Part Features menu. Select the arrow and move through the profiles till you get the one shown. Then press the green square in the middle. Set the depth to 2 You now have more than one profile right click and Select Other from the menu. Select other profile will appear Select OK to complete the task. Make sure Cut is selected Select this button Try this if you cant select the Rectangle for the Profile Select Profile

14 14 Hopefully you have managed to get this far ?

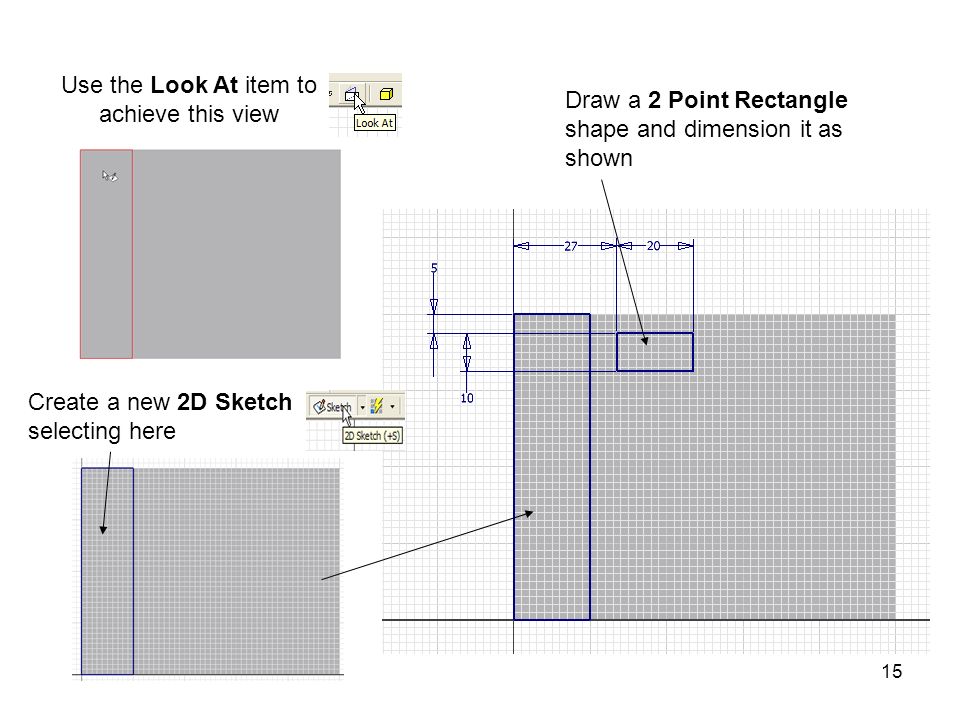

15 15 Use the Look At item to achieve this view Draw a 2 Point Rectangle shape and dimension it as shown Create a new 2D Sketch selecting here

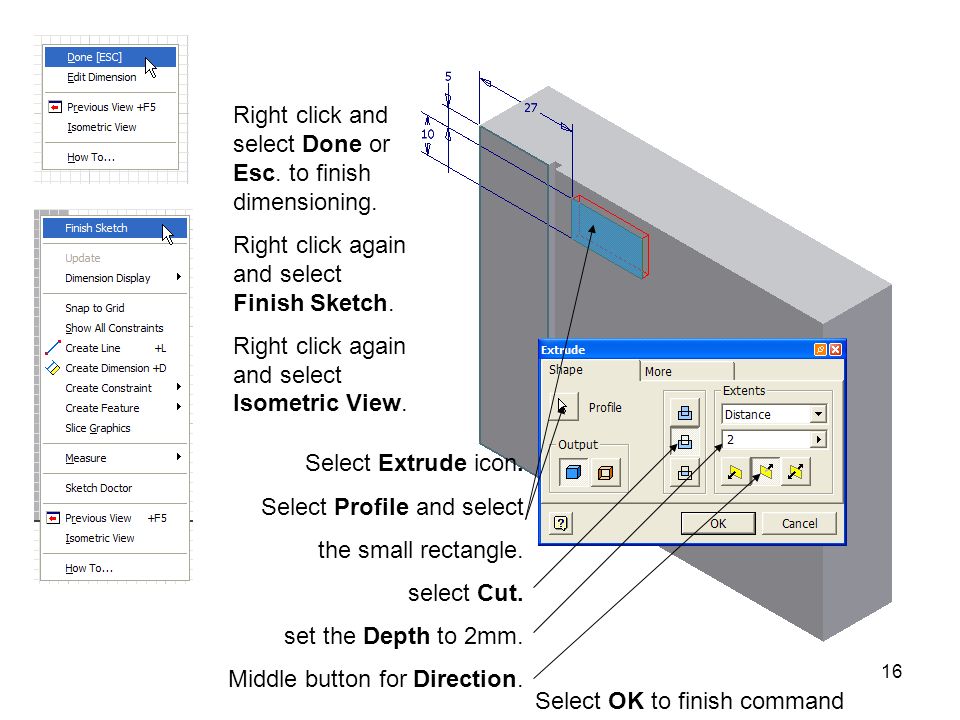

16 16 Right click and select Done or Esc. to finish dimensioning. Right click again and select Finish Sketch. Right click again and select Isometric View. Select Extrude icon. Select Profile and select the small rectangle. select Cut. set the Depth to 2mm. Middle button for Direction. Select OK to finish command

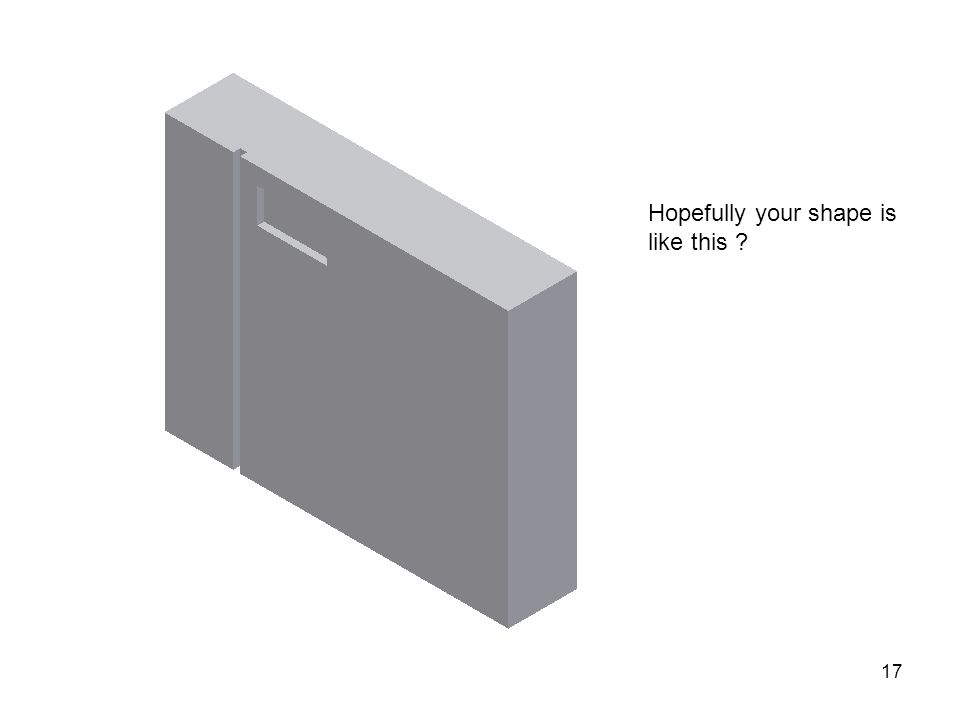

17 17 Hopefully your shape is like this ?

18 18 Select the Look At icon and select the front face to give the same view as shown. You may need to Zoom & Pan. Select 2D Sketch and select this face. Select Centre point circle. Drag two circles placing them approximately as shown using the general dimension icon dimension the circle centres. Touch the circle and edit the dimension to 8 and 15.

19 19 Right click your mouse and select Done or Esc. Right click and Select Finish Sketch. Right click and select Isometric View. Select Extrude from the Part Features menu. Select the two circles as the Profiles to extrude. select Cut. set the Depth to 2mm. Middle button for Direction Select OK to finish the command.

20 20 Your camera body should look like this.

21 21 Select Look At icon and select the front face. To end up with the shown view. Select the 2D Sketch icon and select the front surface as shown. Position and dimension the Centre Point Circle as shown.

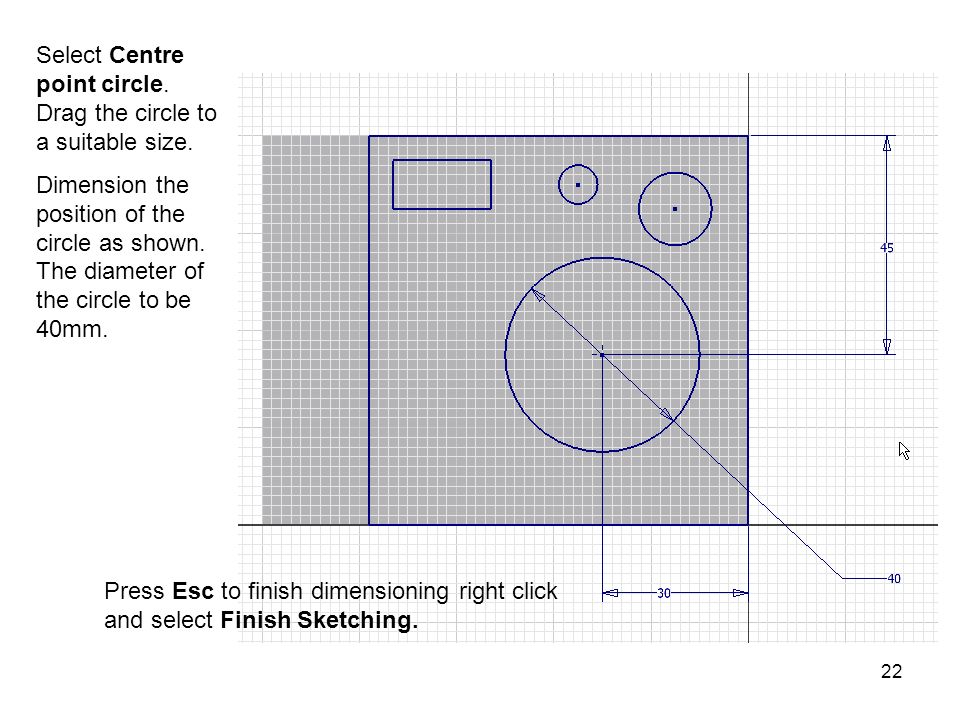

22 22 Select Centre point circle. Drag the circle to a suitable size. Dimension the position of the circle as shown. The diameter of the circle to be 40mm. Press Esc to finish dimensioning right click and select Finish Sketching.

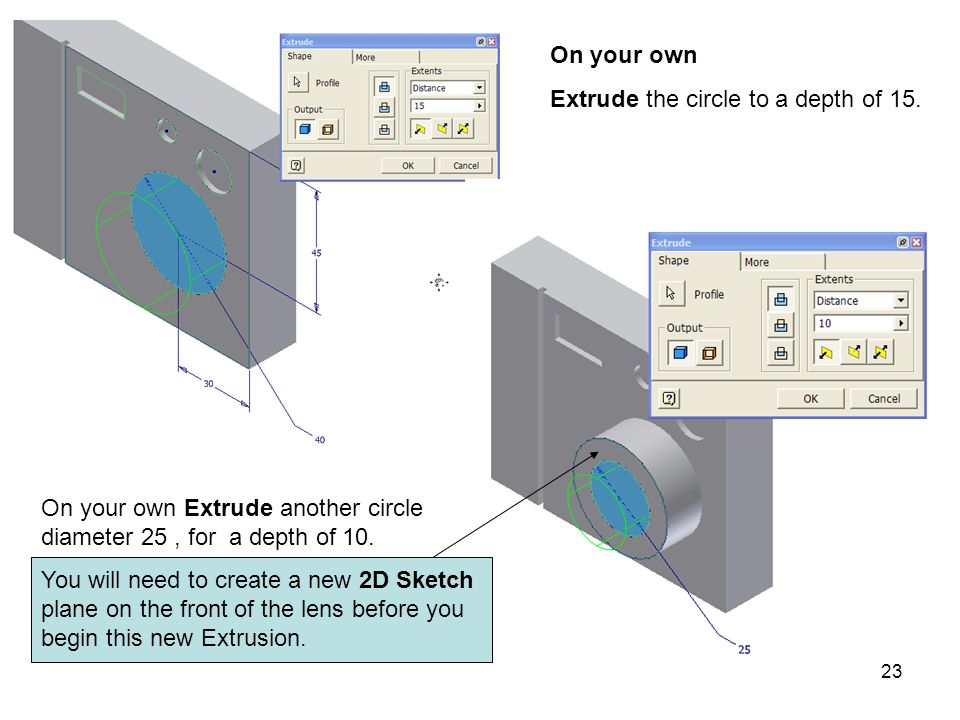

23 23 On your own Extrude the circle to a depth of 15. On your own Extrude another circle diameter 25, for a depth of 10. You will need to create a new 2D Sketch plane on the front of the lens before you begin this new Extrusion.

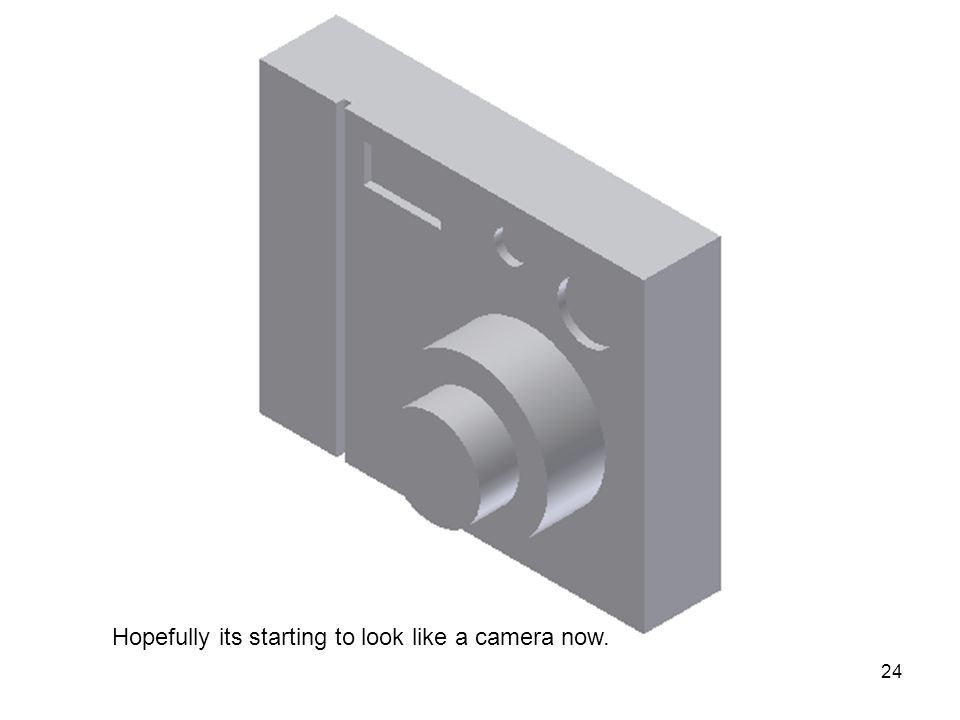

24 24 Hopefully its starting to look like a camera now.

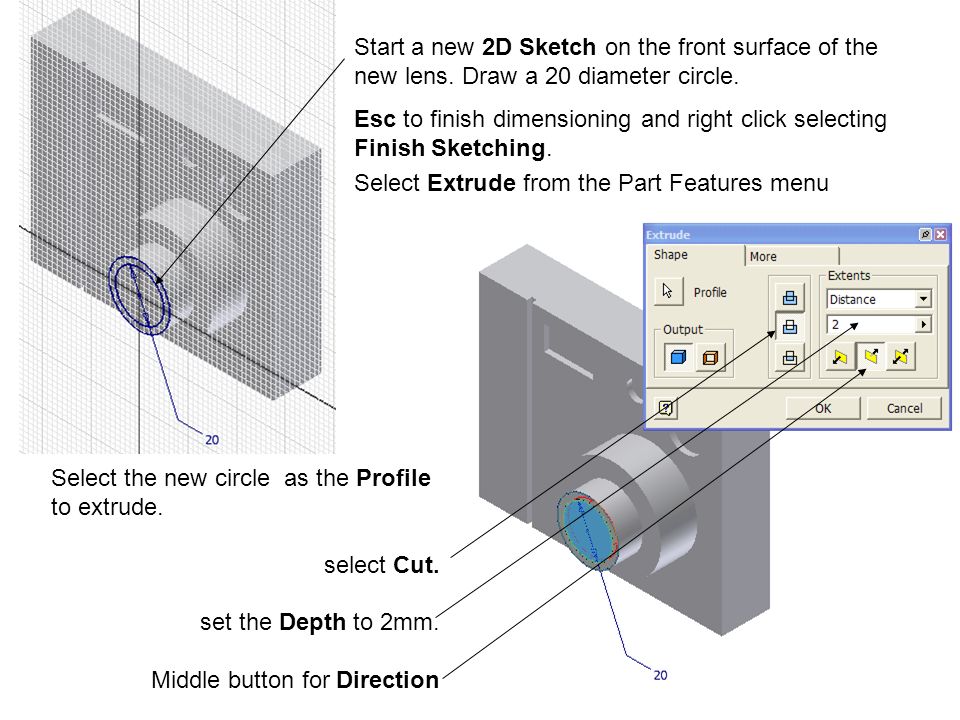

25 25 Start a new 2D Sketch on the front surface of the new lens. Draw a 20 diameter circle. Esc to finish dimensioning and right click selecting Finish Sketching. Select the new circle as the Profile to extrude. select Cut. set the Depth to 2mm. Middle button for Direction Select Extrude from the Part Features menu

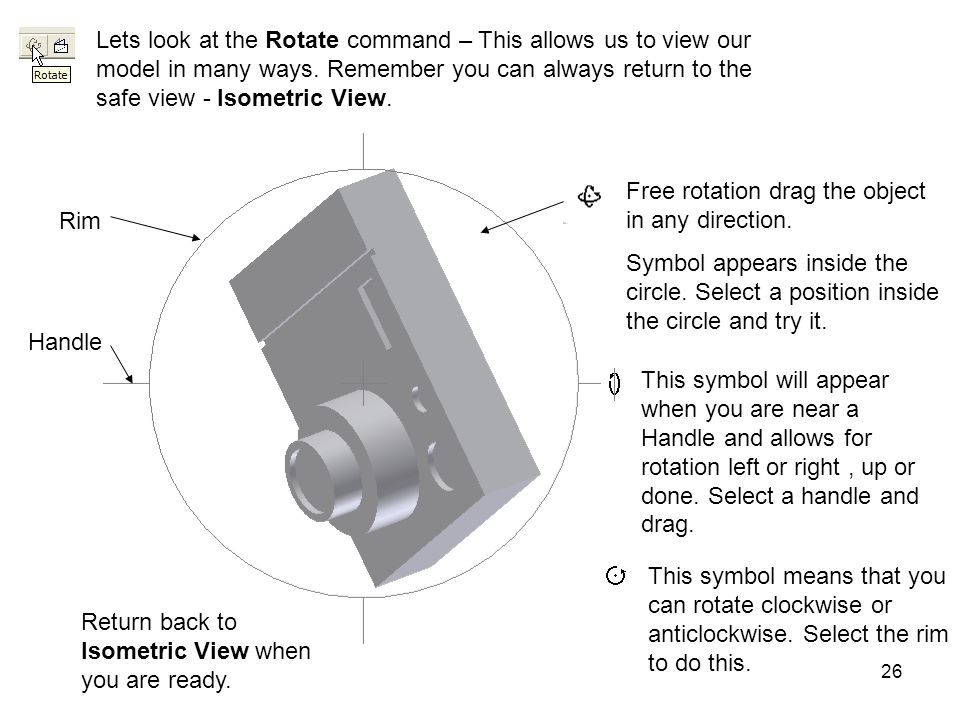

26 26 Free rotation drag the object in any direction. Symbol appears inside the circle. Select a position inside the circle and try it. This symbol will appear when you are near a Handle and allows for rotation left or right, up or done. Select a handle and drag. This symbol means that you can rotate clockwise or anticlockwise. Select the rim to do this. Lets look at the Rotate command – This allows us to view our model in many ways. Remember you can always return to the safe view - Isometric View. Rim Handle Return back to Isometric View when you are ready.

27 27 Lets add some buttons to the top of the camera. Select the top of the camera for a New 2D Sketch plane. Place a Centre point circle on the top. Drag a diameter and dimension the position as shown. The circle diameter to be 10mm. Esc to finish dimensioning. Right click anywhere on the screen and select Finish Sketching.

28 28 Select the new circle as the Profile to extrude. select Join. set the Depth to 2mm. First button for Direction Select OK to complete the command. Select Extrude from the Part Features menu.

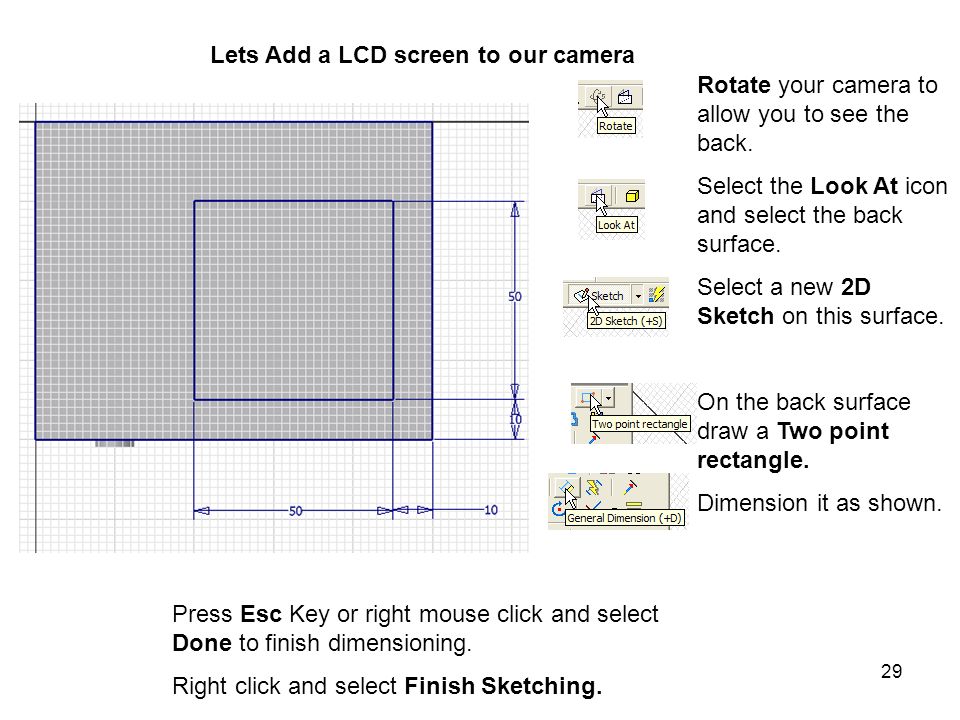

29 29 Rotate your camera to allow you to see the back. Select the Look At icon and select the back surface. Select a new 2D Sketch on this surface. On the back surface draw a Two point rectangle. Dimension it as shown. Lets Add a LCD screen to our camera Press Esc Key or right mouse click and select Done to finish dimensioning. Right click and select Finish Sketching.

30 30 Rotate the view to get the same position as shown. Select Extrude from the Part Features menu. The LCD profile should turn blue if not select it as the Profile to extrude. select Cut. set the Depth to 2mm. Middle button for Direction

31 31 Hope you have got this far. Use the Rotate command to view the model

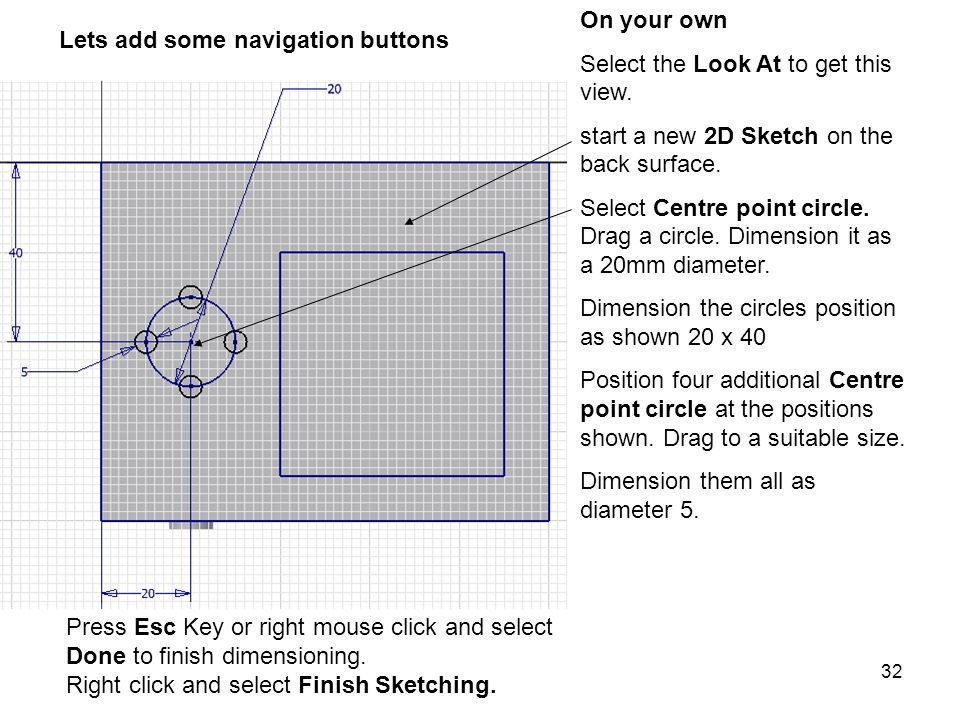

32 32 On your own Select the Look At to get this view. start a new 2D Sketch on the back surface. Select Centre point circle. Drag a circle. Dimension it as a 20mm diameter. Dimension the circles position as shown 20 x 40 Position four additional Centre point circle at the positions shown. Drag to a suitable size. Dimension them all as diameter 5. Lets add some navigation buttons Press Esc Key or right mouse click and select Done to finish dimensioning. Right click and select Finish Sketching.

33 33 Select Extrude from the Part Features menu. The navigation buttons profile should turn blue. If not select it as the Profile to extrude. select Join. set the Depth to 2mm. First button for Direction Select OK to finish the command

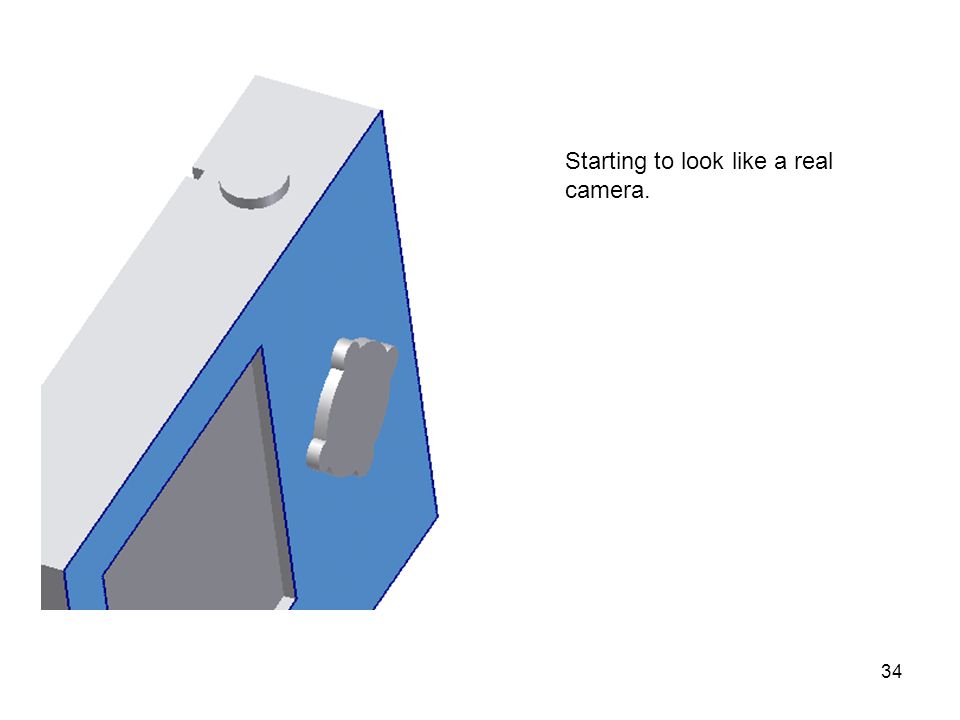

34 34 Starting to look like a real camera.

35 35 Lets remove some sharp edges Select Fillet from the Part Features Menu. In the Fillet dialogue box,set the radius option to a radius of 1. Do not select OK yet. In Select Mode select EDGE. Select inside the Edges box (0 selected) to begin selecting the edges. Select all the edges around the Navigation button. Select OK to complete the command. You may need to Zoom & Pan to see the Navigation button feature. This should b the result if all goes well.

36 36 Select the Fillet icon Change the Radius to 2 and select Feature under Select mode. This means that all sharp edges of that feature will be filleted. Select Edges and select one Edge, all the rest of the camera bodies edges will be selected. Select OK to finish.

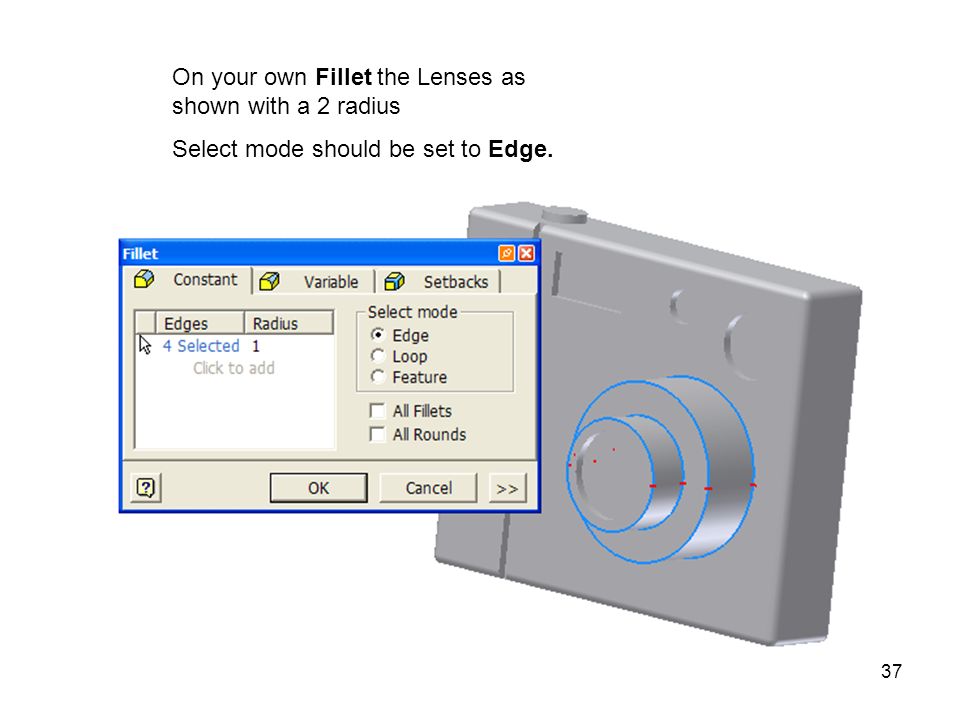

37 37 On your own Fillet the Lenses as shown with a 2 radius Select mode should be set to Edge.

38 38 Use Rotate to look at your Model. If you got this far Well Done

39 39 Lets add some materials to our model Lets select all the glass, remember to hold down the ctrl key to select past the first lens. Right click and choose Properties from the pull down menu. Remember by choosing properties you are selecting a material for a single face of the model ctrl key helps us to select more than one face.

40 40 You can choose any of the material in the list. I have chosen Black for the lenses and Chrome for the rest of the body.

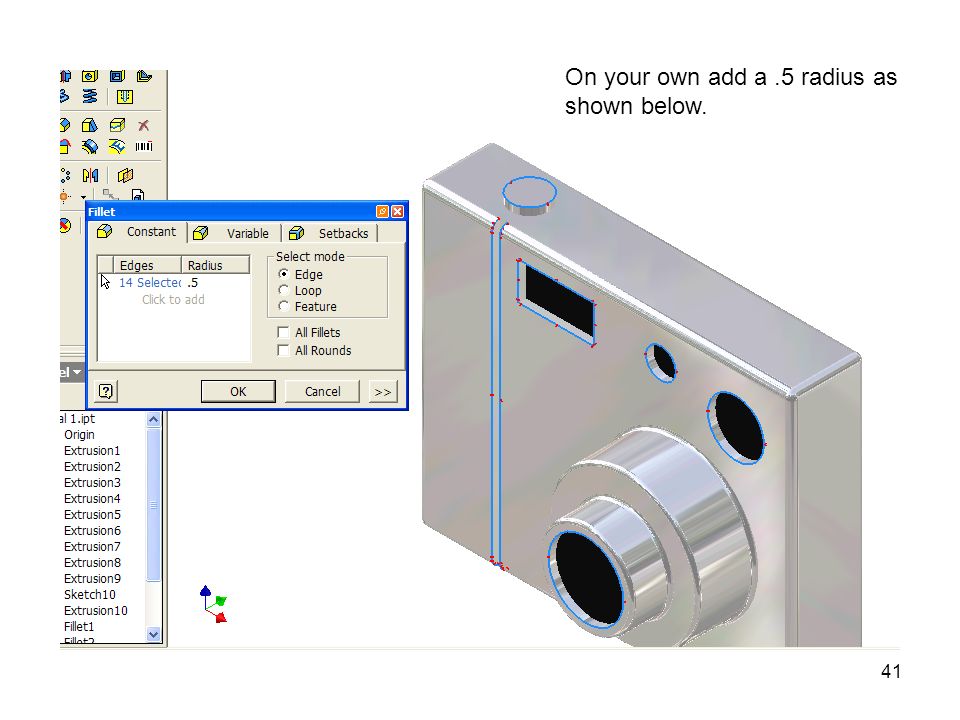

41 41 On your own add a.5 radius as shown below.

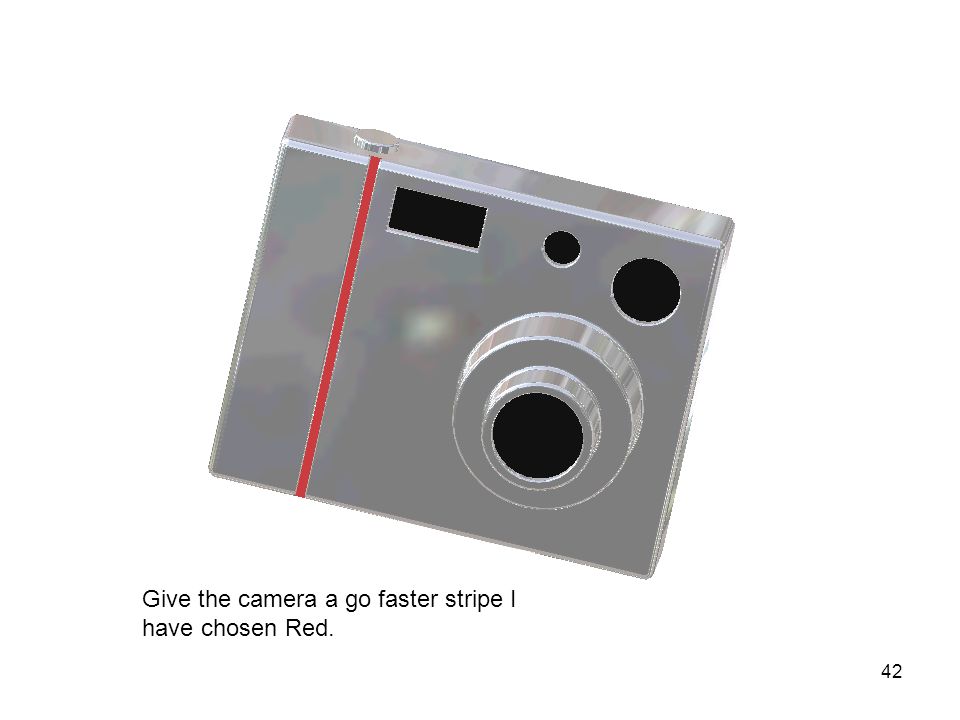

42 42 Give the camera a go faster stripe I have chosen Red.

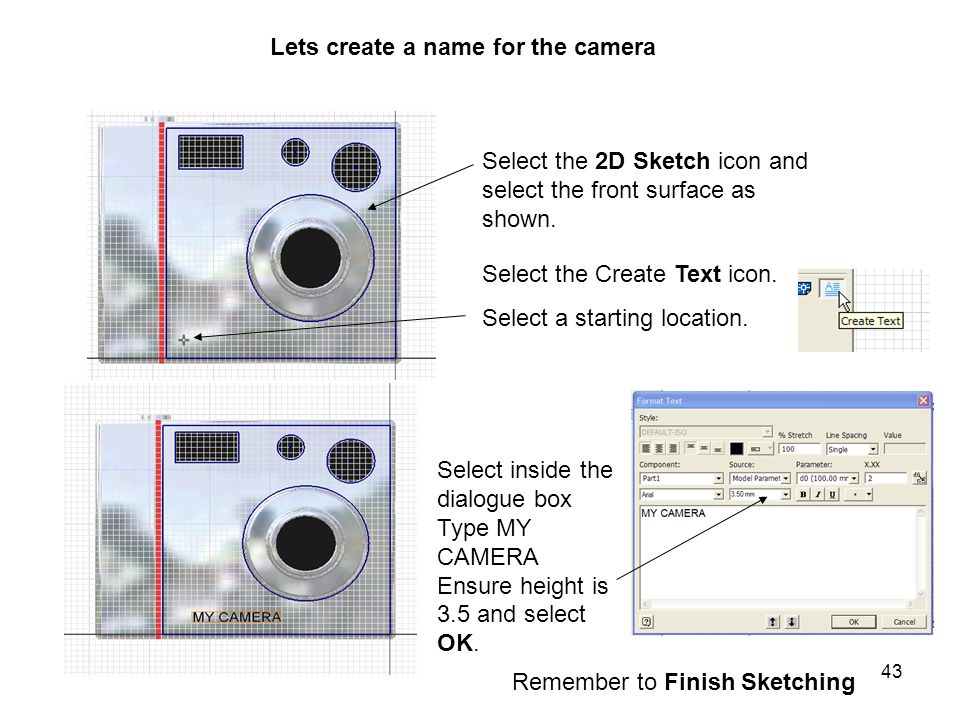

43 43 Lets create a name for the camera Select the 2D Sketch icon and select the front surface as shown. Select the Create Text icon. Select a starting location. Select inside the dialogue box Type MY CAMERA Ensure height is 3.5 and select OK. Remember to Finish Sketching

44 44 Select Emboss from the Part Features menu. Use the Select Other to identify the text for the Profile. In the Emboss dialogue box set depth to 1mm. Select Emboss from face button. Select OK. Make sure the text has been selected for the Profile This is how it should look. Lets give the camera a raised name.

45 45 Hope your camera looks like this ? If it does Well Done.

46 46 Lets make an Orthographic Drawing for manufacture

47 47 Start a New file. Select the Metric tab. Select the template A4 PUPIL LANDSCAPE.idw Please note that you can use BSI.idw if the above template is not available. BSI stands for British Standards Institute.

48 48 Your drawing sheet A4 PUPIL LANDSCAPE.idw may look like this

49 49 Select Format menu and then Standards. The dialogue box looks pretty intimidating. We need to ensure that the Projection is set to Third angle of projection select the button with the Third angle projection symbol And press Apply.

50 50 Choose Front from Orientation. The drawing will appear on the screen and you can select an approximate position as shown. Select the Base View Icon from Drawing View Panel.

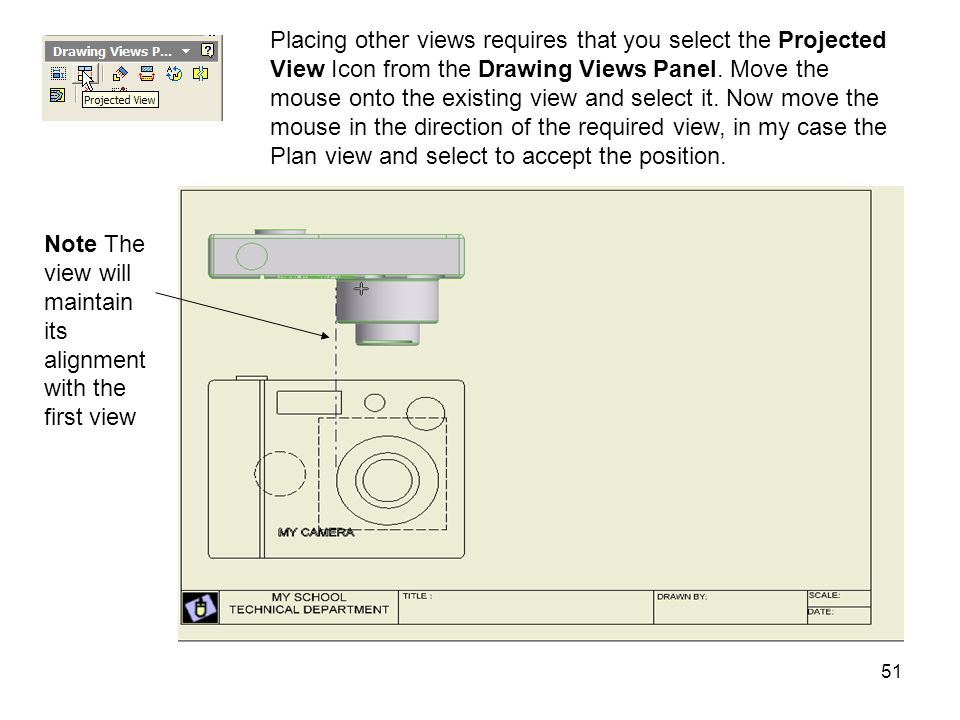

51 51 Placing other views requires that you select the Projected View Icon from the Drawing Views Panel. Move the mouse onto the existing view and select it. Now move the mouse in the direction of the required view, in my case the Plan view and select to accept the position. Note The view will maintain its alignment with the first view

52 52 As we are still in the Projected View command. Move the cursor across and observe that the Isometric view will appear. Right click the mouse button and select approx position as shown. Select Create from the menu. The views will appear in the boxes.

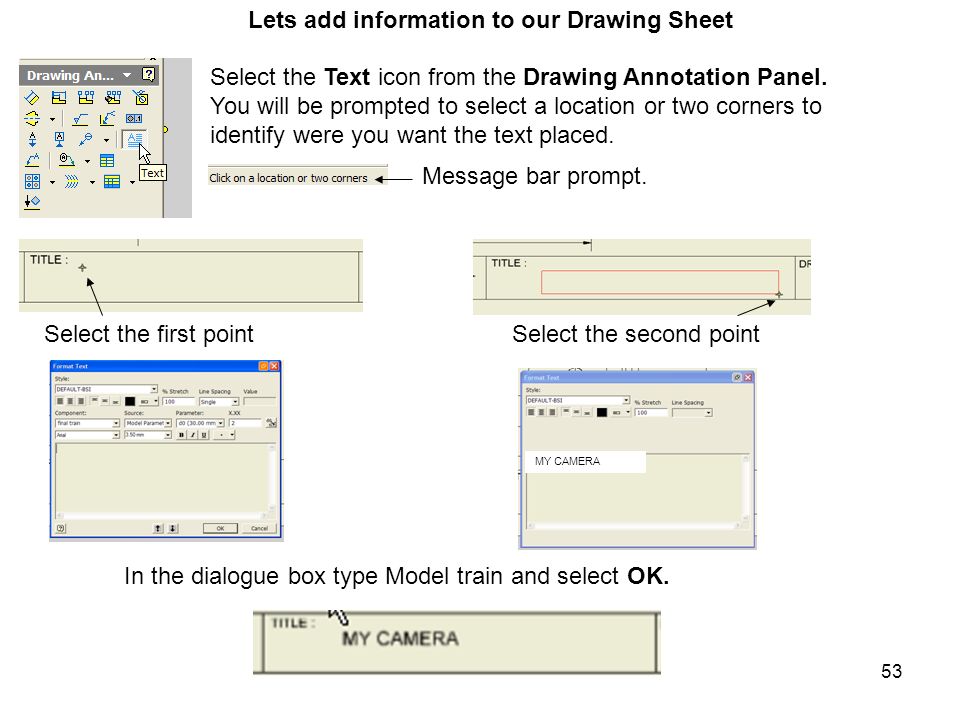

53 53 Select the Text icon from the Drawing Annotation Panel. You will be prompted to select a location or two corners to identify were you want the text placed. Message bar prompt. Select the first pointSelect the second point In the dialogue box type Model train and select OK. MY CAMERA Lets add information to our Drawing Sheet

54 54 On your own Complete the other titles the same way.

55 55 From the Drawing Annotations menu select The General Dimension icon. Note dimensioning works the same way as in Sketch mode. We need to change menus. Select the down arrow as shown and select Drawing Annotation Panel Lets add some dimensions

56 56 Drag the mouse down the dimension and line will follow. Select the position of the finished dimension. Select the top line Select the bottom line Steps for Dimensioning the Orthographic Drawing

57 57 On your own Dimension the drawing as shown

58 Fastedd's Handy Notes58 Fastedd @ Helpful Notes 2004
