1. 1 Chapter 8 Measuring Reaction Rate

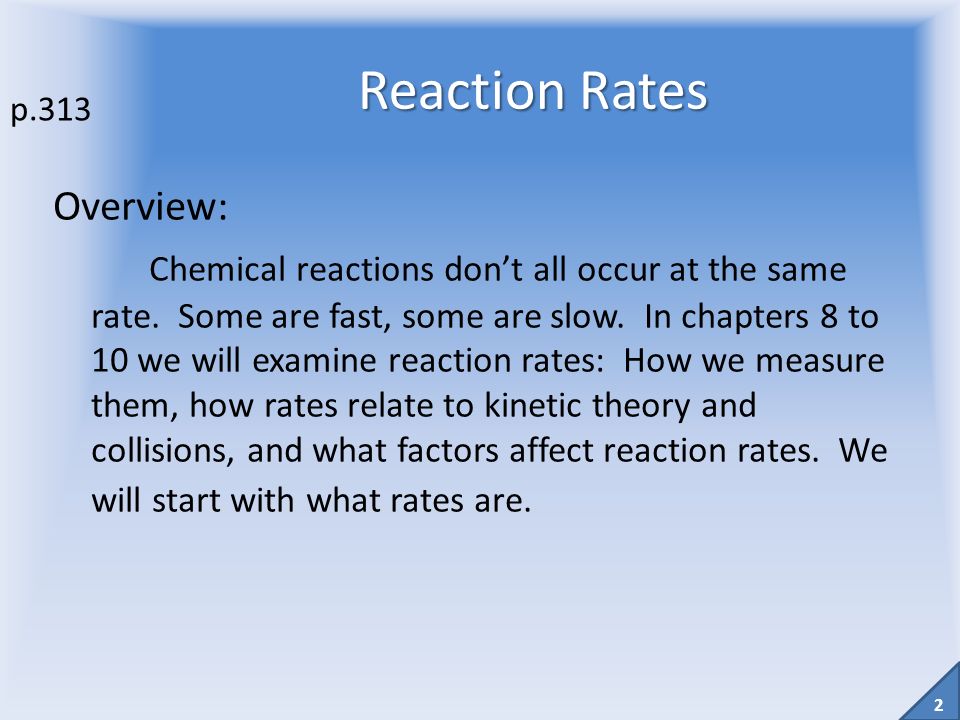

2. 2 Reaction Rates Overview: Chemical reactions don’t all occur at the same rate. Some are fast, some are slow. In chapters 8 to 10 we will examine reaction rates: How we measure them, how rates relate to kinetic theory and collisions, and what factors affect reaction rates. We will start with what rates are. p.313

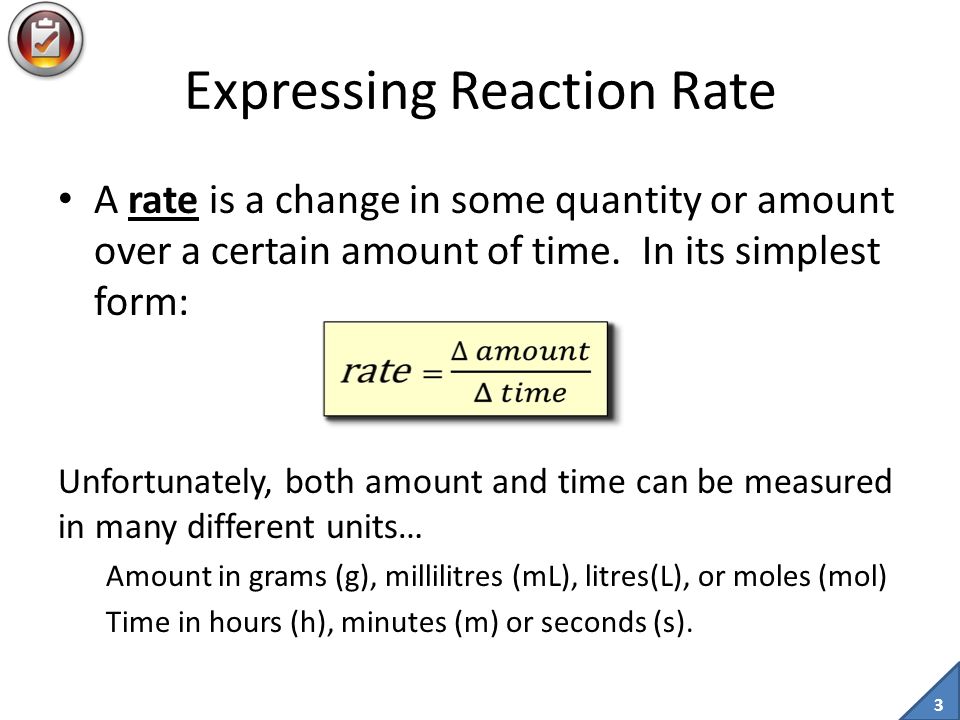

3. 3 Expressing Reaction Rate A rate is a change in some quantity or amount over a certain amount of time. In its simplest form: Unfortunately, both amount and time can be measured in many different units… Amount in grams (g), millilitres (mL), litres(L), or moles (mol) Time in hours (h), minutes (m) or seconds (s).

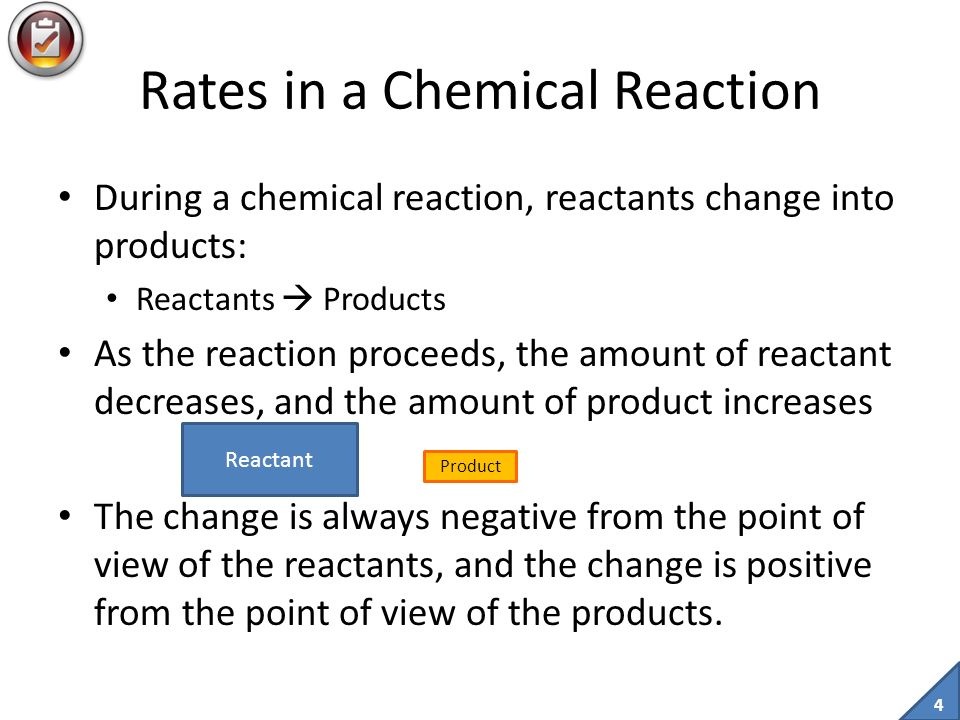

4. 4 Rates in a Chemical Reaction During a chemical reaction, reactants change into products: Reactants  Products As the reaction proceeds, the amount of reactant decreases, and the amount of product increases The change is always negative from the point of view of the reactants, and the change is positive from the point of view of the products. Reactant Product

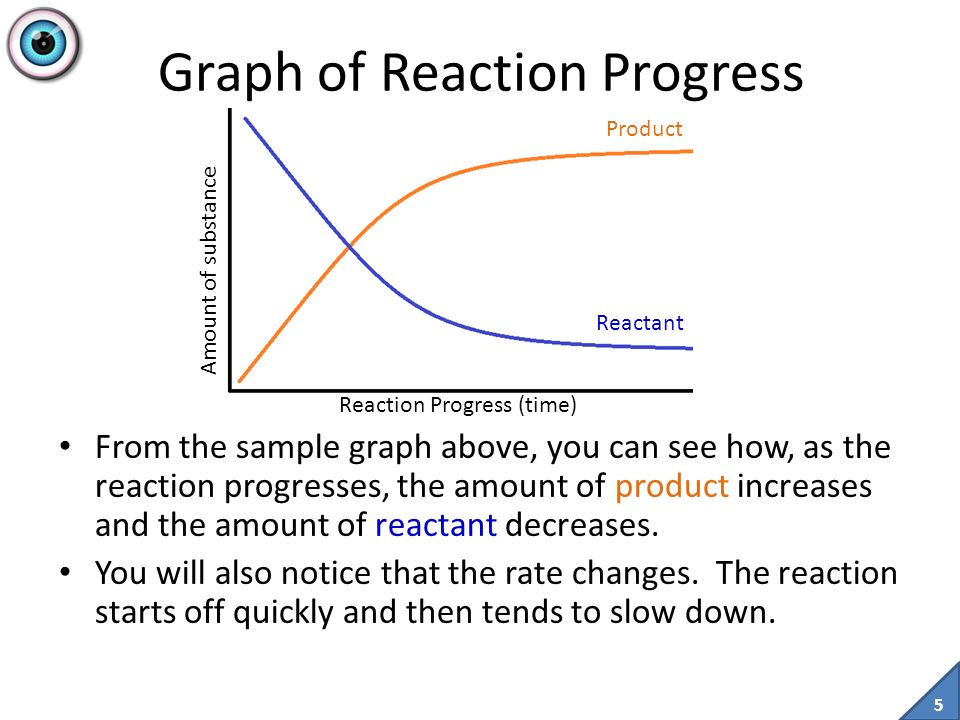

5. 5 Graph of Reaction Progress From the sample graph above, you can see how, as the reaction progresses, the amount of product increases and the amount of reactant decreases. You will also notice that the rate changes. The reaction starts off quickly and then tends to slow down. Reactant Product Reaction Progress (time)Amount of substance

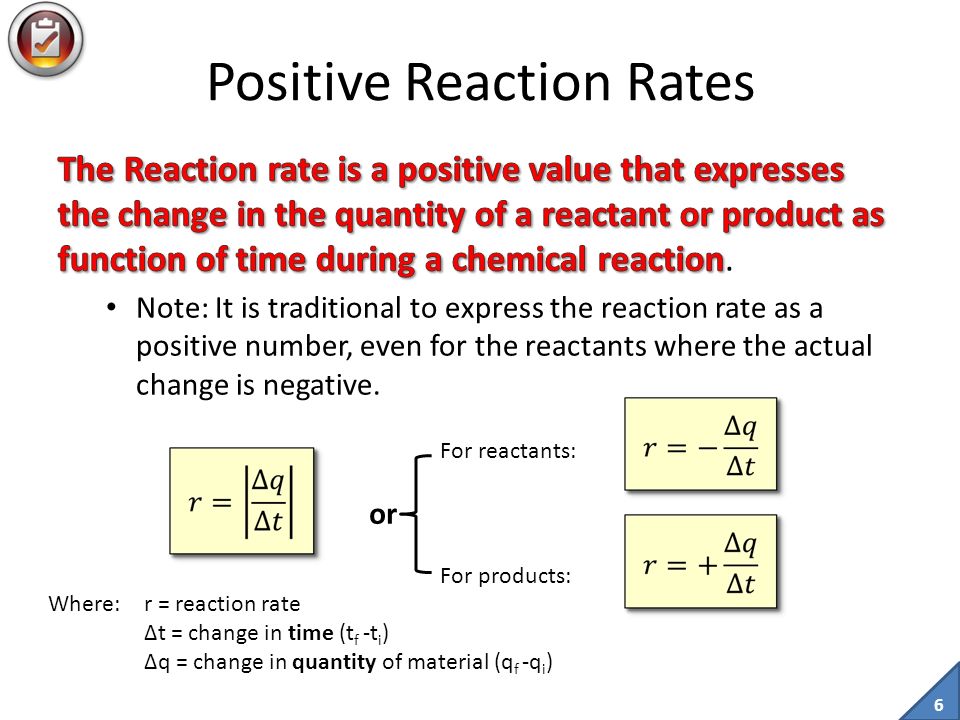

6. 6 Positive Reaction Rates For reactants: or For products: Where: r = reaction rate Δt = change in time (t f -t i ) Δq = change in quantity of material (q f -q i )

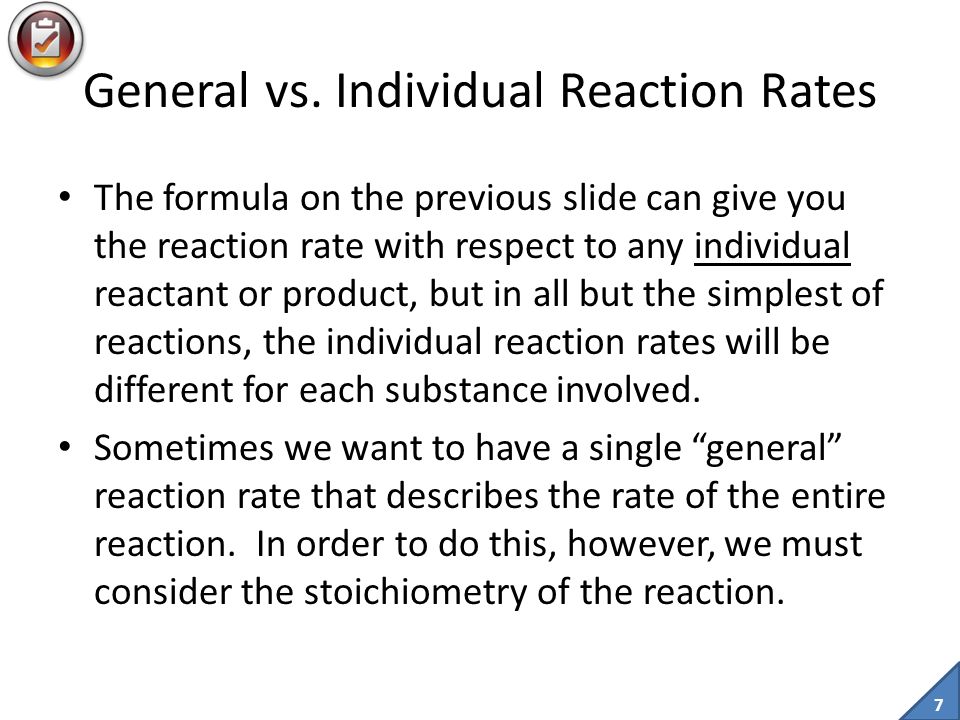

7. 7 General vs. Individual Reaction Rates The formula on the previous slide can give you the reaction rate with respect to any individual reactant or product, but in all but the simplest of reactions, the individual reaction rates will be different for each substance involved. Sometimes we want to have a single “general” reaction rate that describes the rate of the entire reaction. In order to do this, however, we must consider the stoichiometry of the reaction.

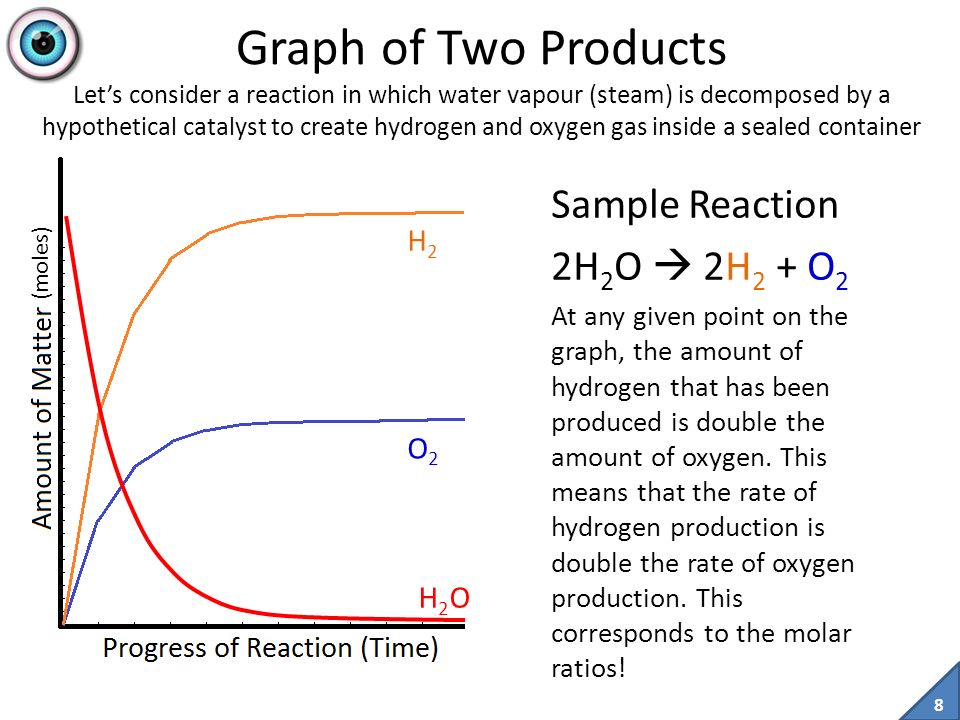

8. 8 Graph of Two Products Let’s consider a reaction in which water vapour (steam) is decomposed by a hypothetical catalyst to create hydrogen and oxygen gas inside a sealed container Sample Reaction 2H 2 O  2H 2 + O 2 At any given point on the graph, the amount of hydrogen that has been produced is double the amount of oxygen. This means that the rate of hydrogen production is double the rate of oxygen production. This corresponds to the molar ratios! H2H2 O2O2 (moles) H2OH2O

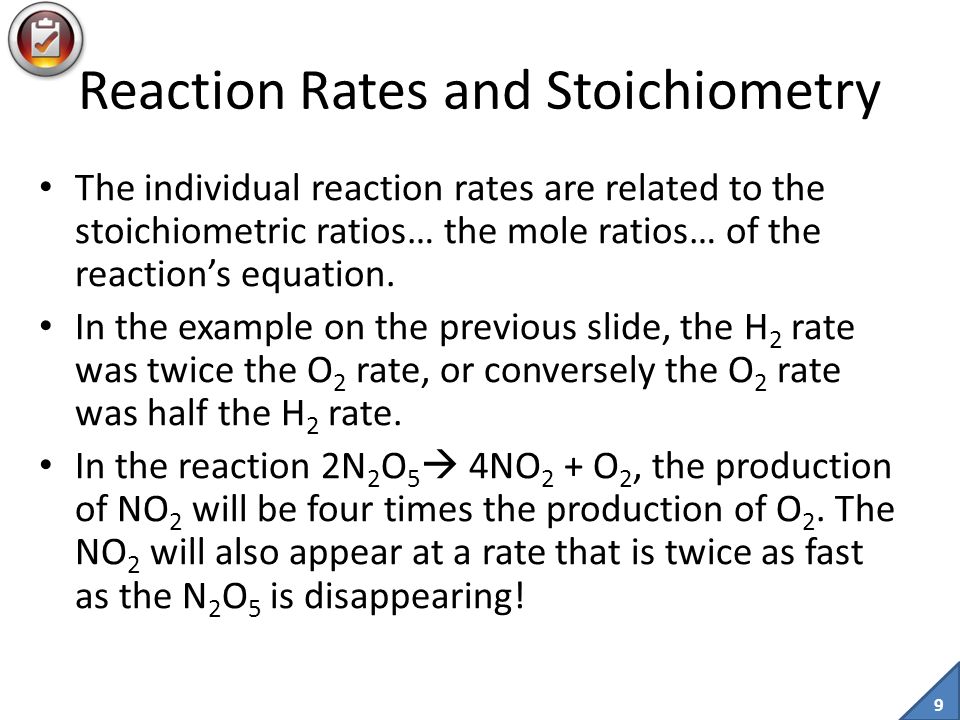

9. 9 Reaction Rates and Stoichiometry The individual reaction rates are related to the stoichiometric ratios… the mole ratios… of the reaction’s equation. In the example on the previous slide, the H 2 rate was twice the O 2 rate, or conversely the O 2 rate was half the H 2 rate. In the reaction 2N 2 O 5  4NO 2 + O 2, the production of NO 2 will be four times the production of O 2. The NO 2 will also appear at a rate that is twice as fast as the N 2 O 5 is disappearing!

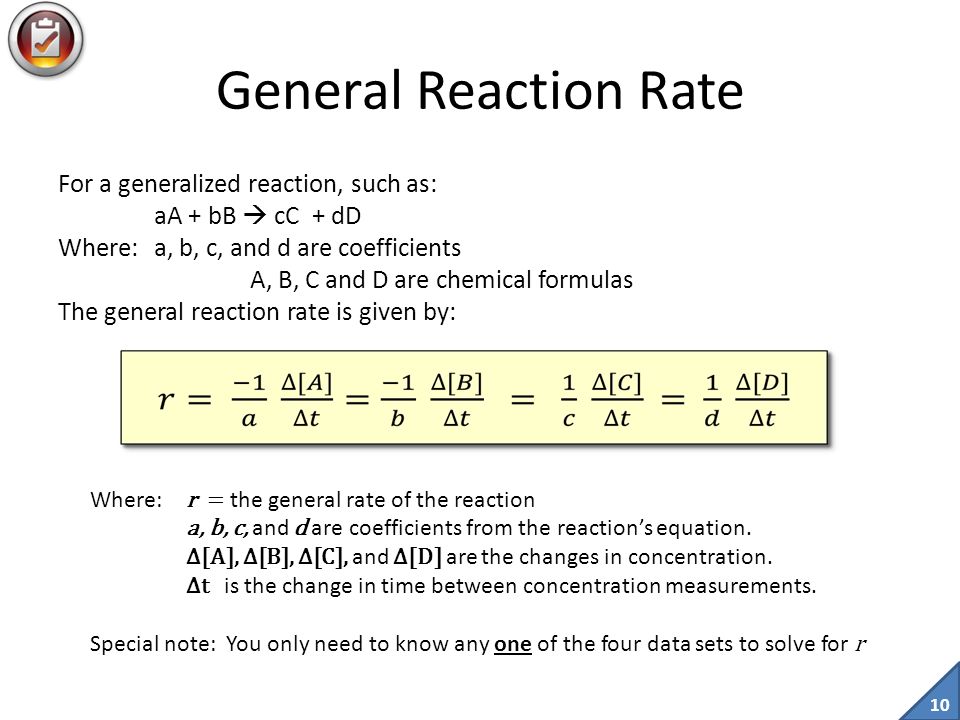

10. 10 General Reaction Rate For a generalized reaction, such as: aA + bB  cC + dD Where: a, b, c, and d are coefficients A, B, C and D are chemical formulas The general reaction rate is given by: Where: r = the general rate of the reaction a, b, c, and d are coefficients from the reaction’s equation. Δ[A], Δ[B], Δ[C], and Δ[D] are the changes in concentration. Δt is the change in time between concentration measurements. Special note: You only need to know any one of the four data sets to solve for r

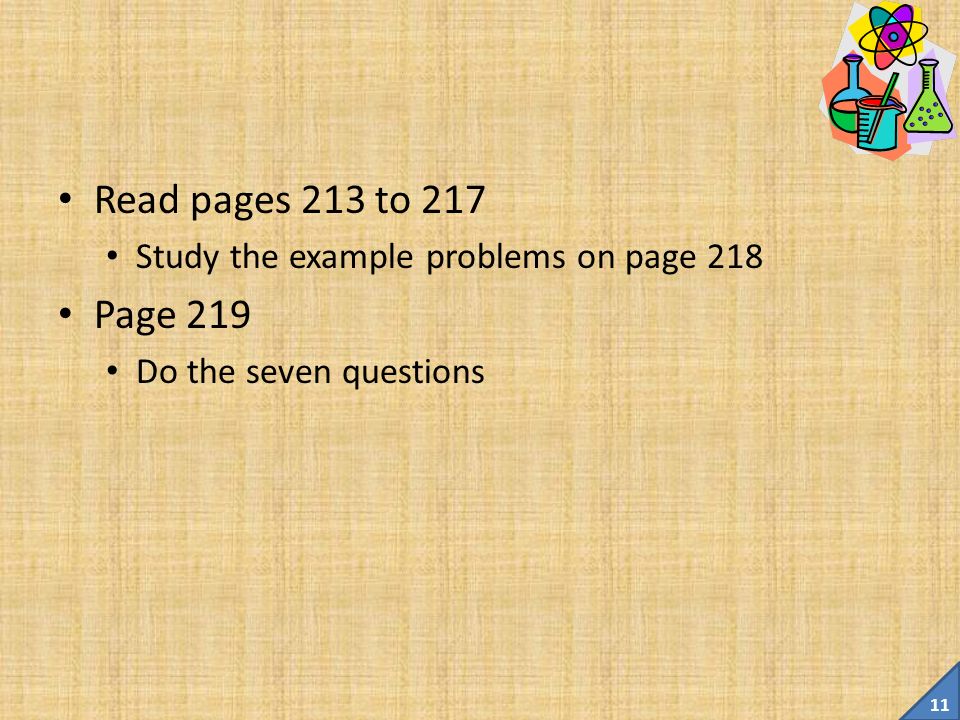

11. 11 Read pages 213 to 217 Study the example problems on page 218 Page 219 Do the seven questions

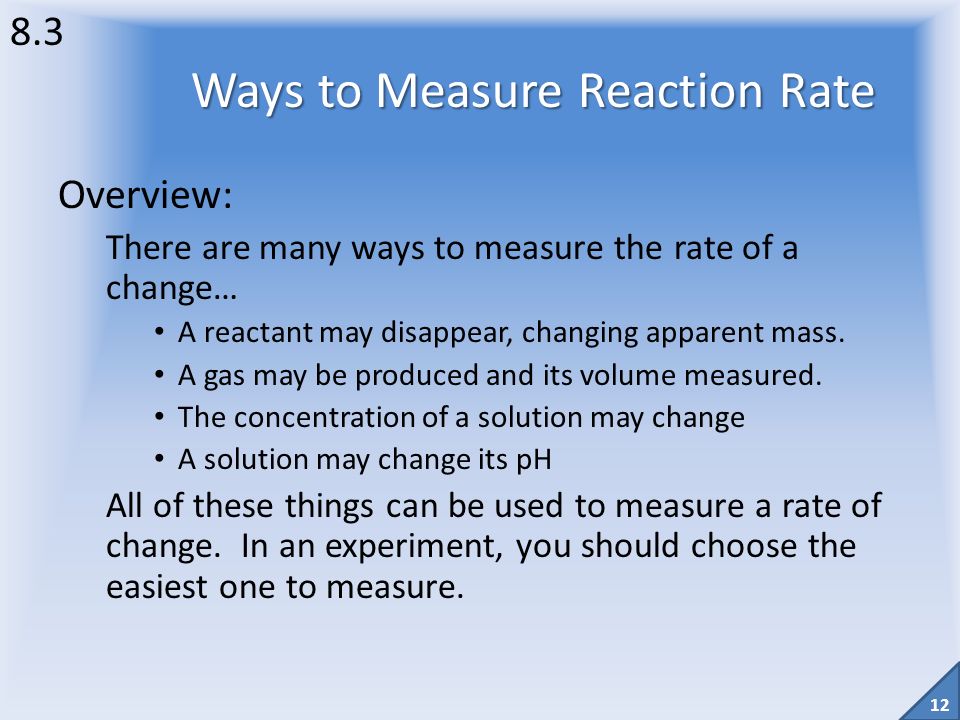

12. 12 Ways to Measure Reaction Rate Overview: There are many ways to measure the rate of a change… A reactant may disappear, changing apparent mass. A gas may be produced and its volume measured. The concentration of a solution may change A solution may change its pH All of these things can be used to measure a rate of change. In an experiment, you should choose the easiest one to measure. 8.3

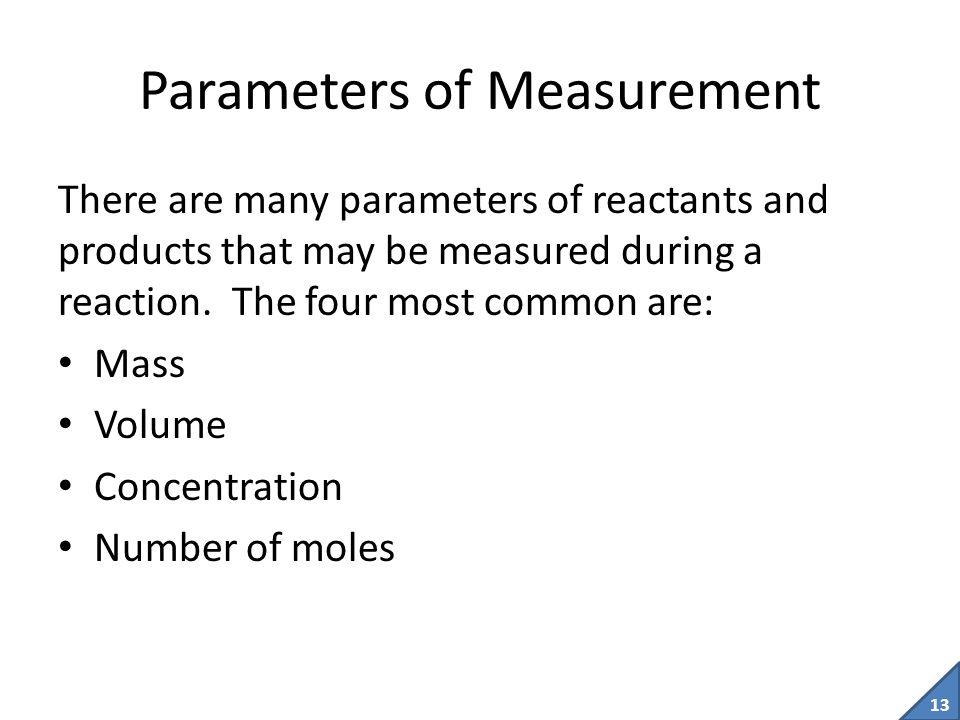

13. 13 Parameters of Measurement There are many parameters of reactants and products that may be measured during a reaction. The four most common are: Mass Volume Concentration Number of moles

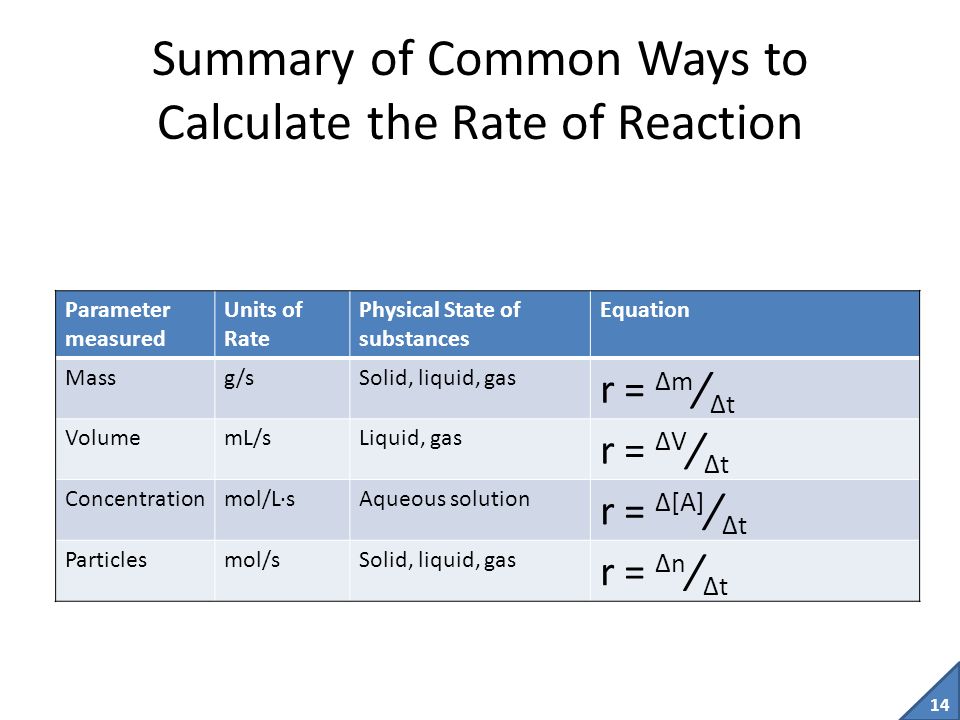

14. 14 Summary of Common Ways to Calculate the Rate of Reaction Parameter measured Units of Rate Physical State of substances Equation Massg/sSolid, liquid, gas r = Δm / Δt VolumemL/sLiquid, gas r = ΔV / Δt Concentrationmol/L∙sAqueous solution r = Δ[A] / Δt Particlesmol/sSolid, liquid, gas r = Δn / Δt

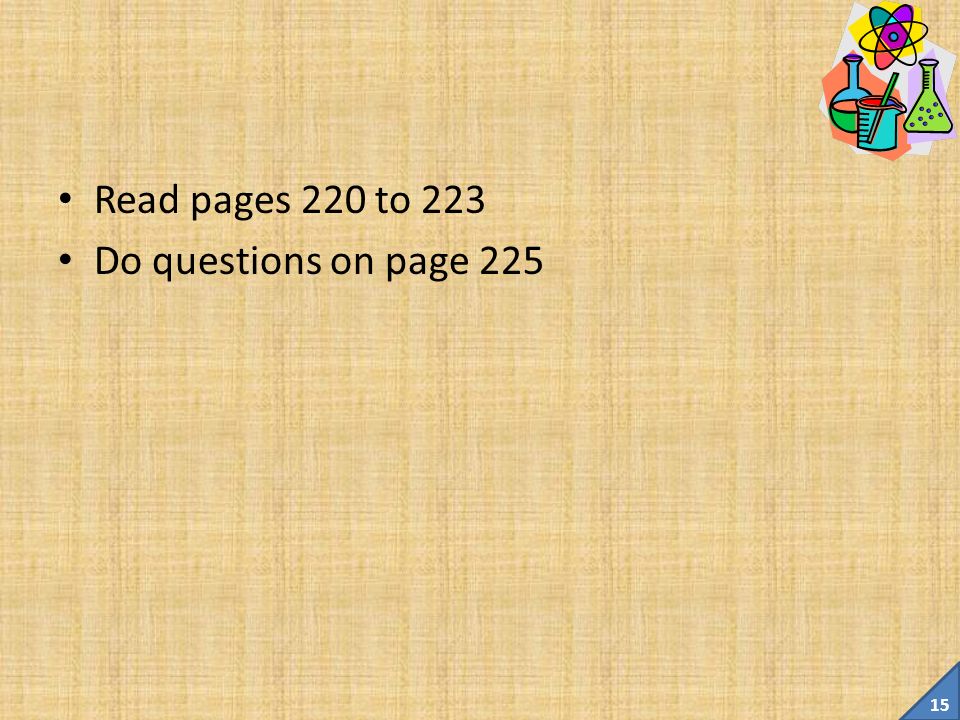

15. 15 Read pages 220 to 223 Do questions on page 225

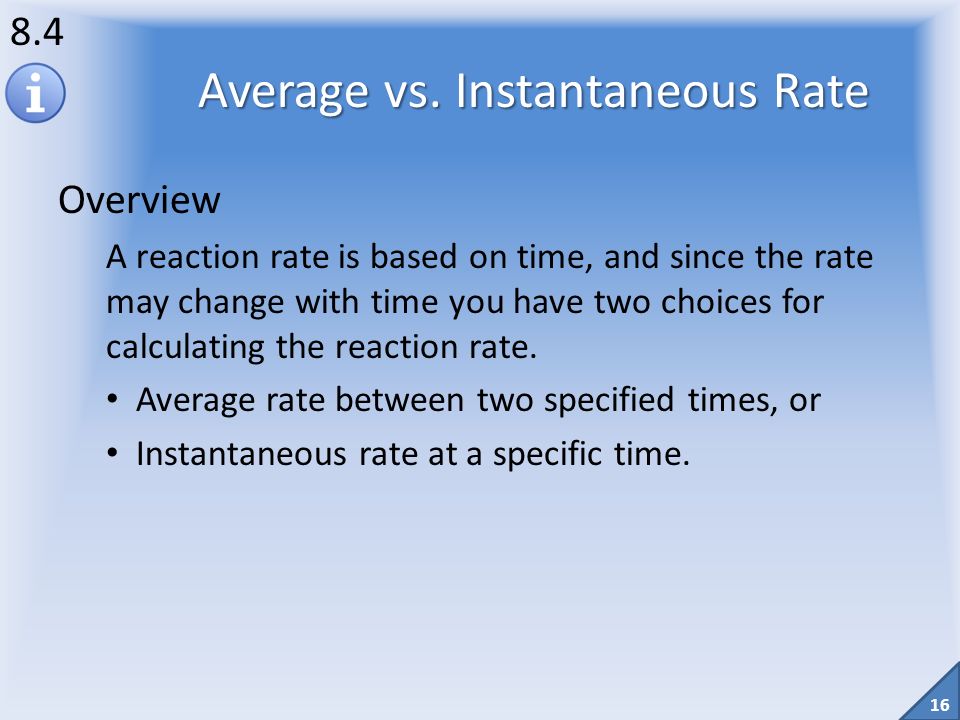

16. 16 Average vs. Instantaneous Rate Overview A reaction rate is based on time, and since the rate may change with time you have two choices for calculating the reaction rate. Average rate between two specified times, or Instantaneous rate at a specific time. 8.4

17. 17 Comparison of Average and Instantaneous Rates Average rate is found by picking two points in time and calculating the slope of the secant between them. Instantaneous rate is found by picking one point, and drawing a tangent. The slope of the tangent is then calculated. Time Amount ΔtΔt ΔtΔt ΔAΔA ΔAΔA secant tangent 2 4 7

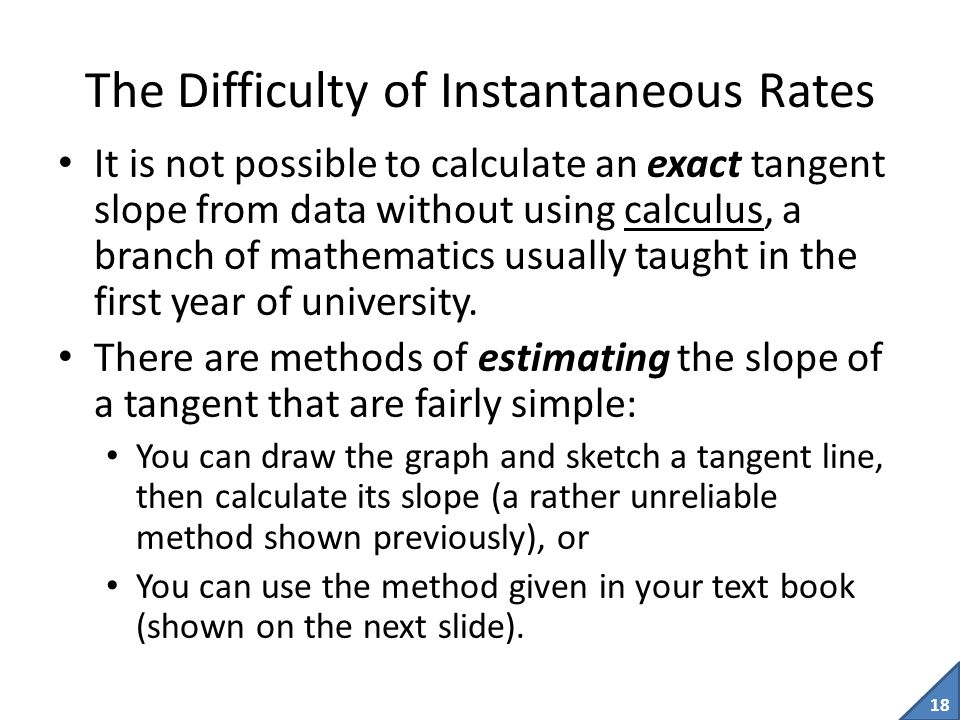

18. 18 The Difficulty of Instantaneous Rates It is not possible to calculate an exact tangent slope from data without using calculus, a branch of mathematics usually taught in the first year of university. There are methods of estimating the slope of a tangent that are fairly simple: You can draw the graph and sketch a tangent line, then calculate its slope (a rather unreliable method shown previously), or You can use the method given in your text book (shown on the next slide).

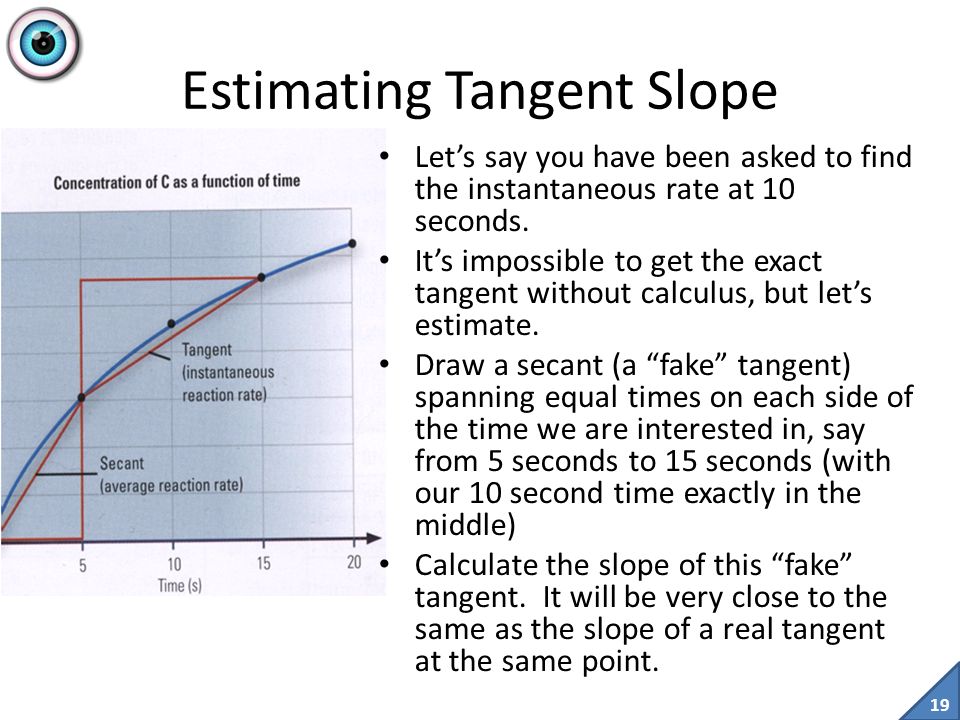

19. 19 Estimating Tangent Slope Let’s say you have been asked to find the instantaneous rate at 10 seconds. It’s impossible to get the exact tangent without calculus, but let’s estimate. Draw a secant (a “fake” tangent) spanning equal times on each side of the time we are interested in, say from 5 seconds to 15 seconds (with our 10 second time exactly in the middle) Calculate the slope of this “fake” tangent. It will be very close to the same as the slope of a real tangent at the same point.

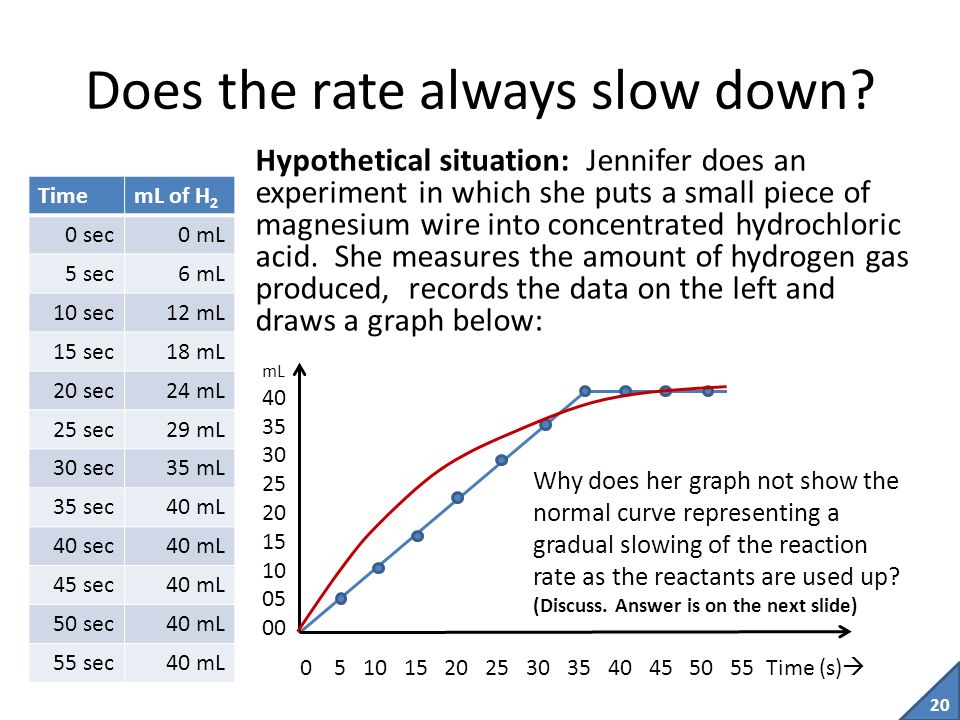

20. 20 Does the rate always slow down? Hypothetical situation: Jennifer does an experiment in which she puts a small piece of magnesium wire into concentrated hydrochloric acid. She measures the amount of hydrogen gas produced, records the data on the left and draws a graph below: TimemL of H 2 0 sec0 mL 5 sec6 mL 10 sec12 mL 15 sec18 mL 20 sec24 mL 25 sec29 mL 30 sec35 mL 35 sec40 mL 40 sec40 mL 45 sec40 mL 50 sec40 mL 55 sec40 mL 0 5 10 15 20 25 30 35 40 45 50 55 Time (s)  mL 40 35 30 25 20 15 10 05 00 Why does her graph not show the normal curve representing a gradual slowing of the reaction rate as the reactants are used up? (Discuss. Answer is on the next slide)

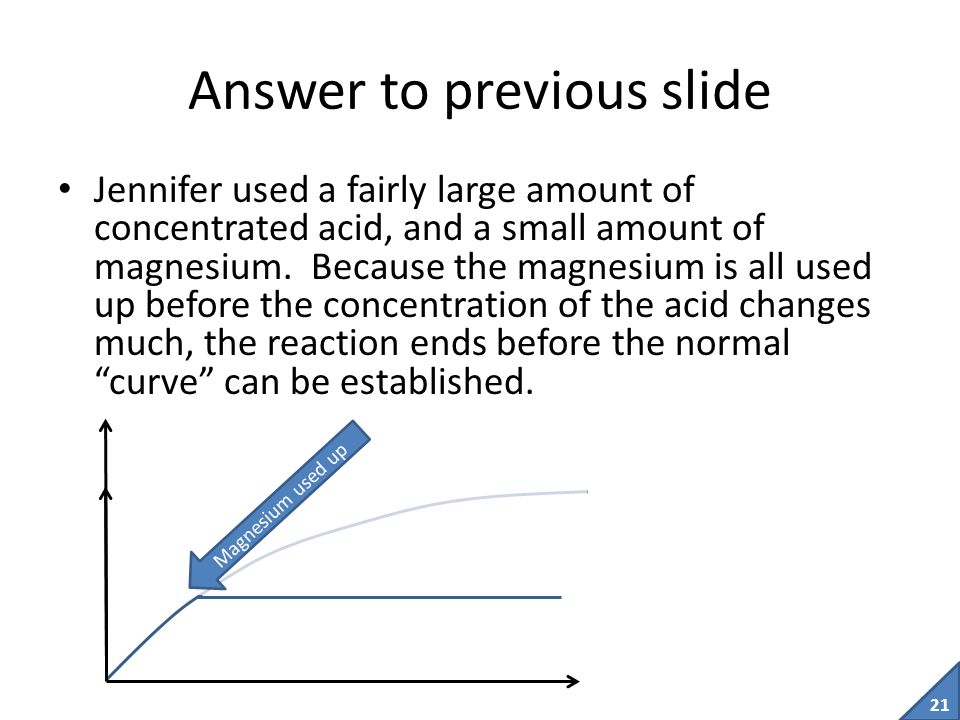

21. 21 Answer to previous slide Jennifer used a fairly large amount of concentrated acid, and a small amount of magnesium. Because the magnesium is all used up before the concentration of the acid changes much, the reaction ends before the normal “curve” can be established. Magnesium used up

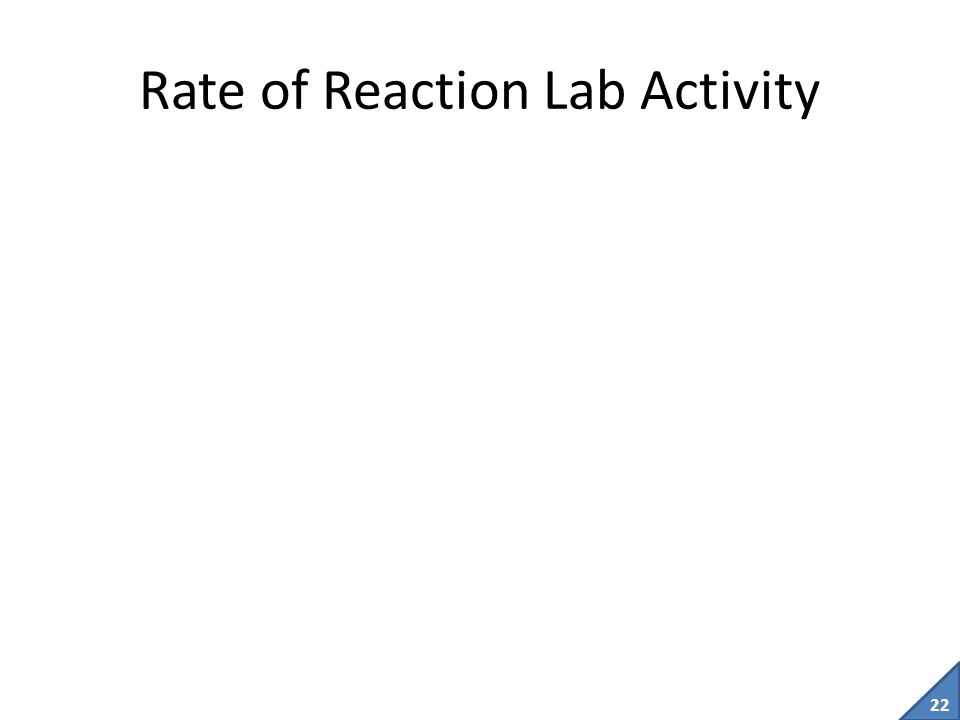

22. 22 Rate of Reaction Lab Activity

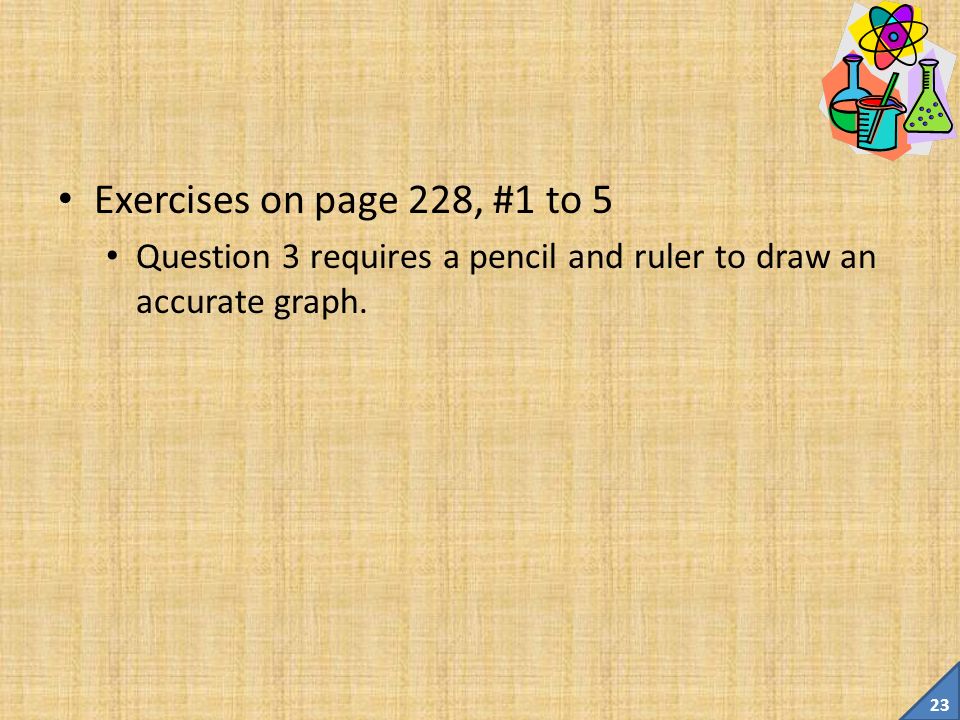

23. 23 Exercises on page 228, #1 to 5 Question 3 requires a pencil and ruler to draw an accurate graph.

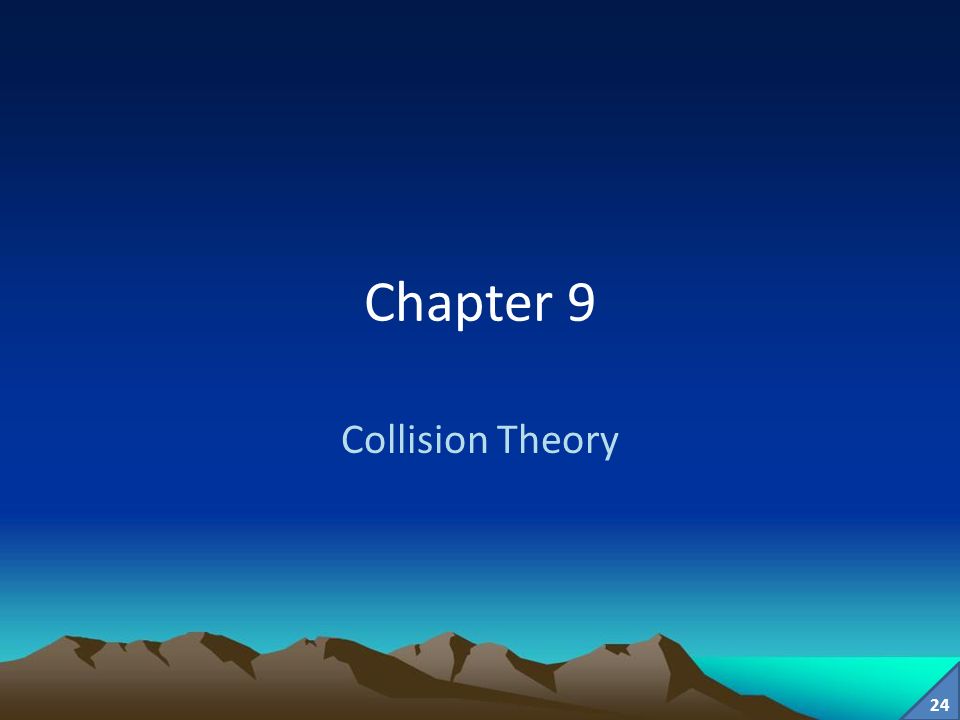

24. 24 Chapter 9 Collision Theory

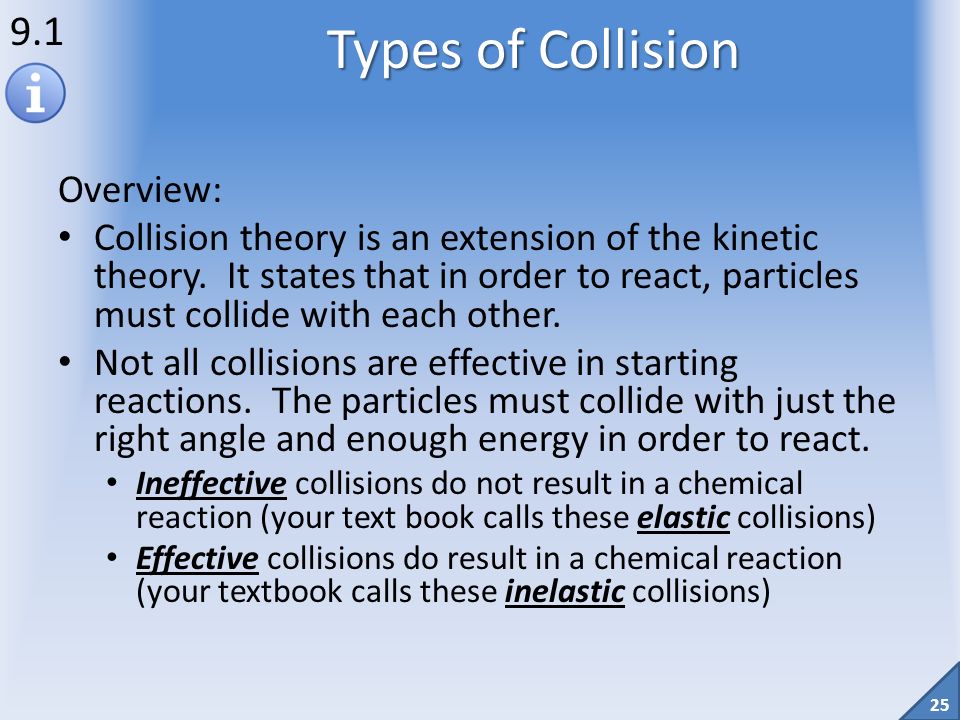

25. 25 Types of Collision Overview: Collision theory is an extension of the kinetic theory. It states that in order to react, particles must collide with each other. Not all collisions are effective in starting reactions. The particles must collide with just the right angle and enough energy in order to react. Ineffective collisions do not result in a chemical reaction (your text book calls these elastic collisions) Effective collisions do result in a chemical reaction (your textbook calls these inelastic collisions) 9.1

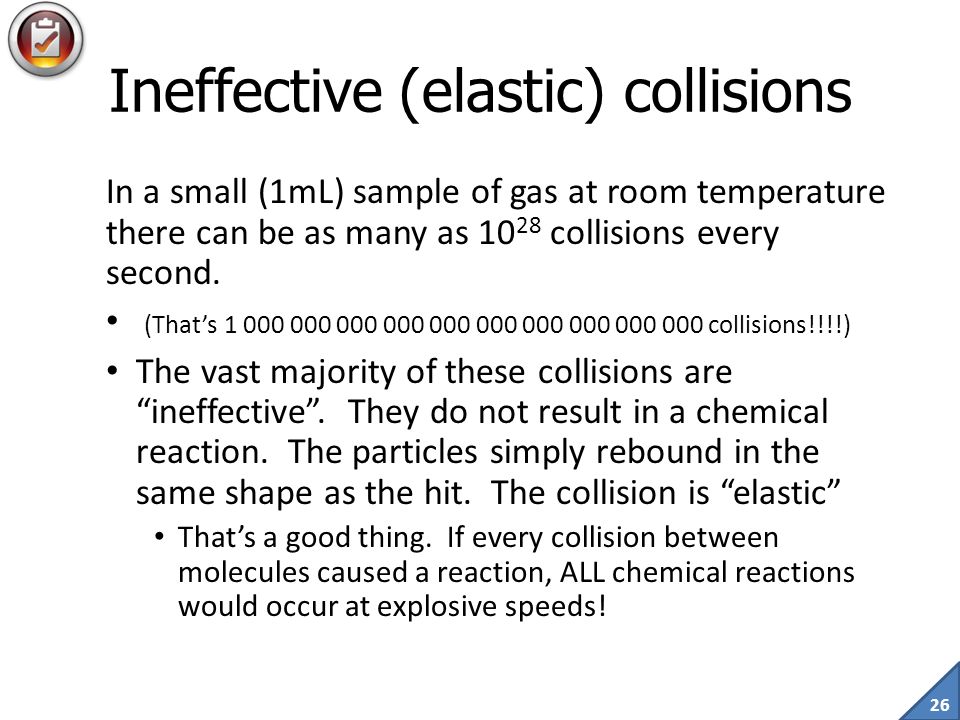

26. 26 Ineffective (elastic) collisions In a small (1mL) sample of gas at room temperature there can be as many as 10 28 collisions every second. (That’s 1 000 000 000 000 000 000 000 000 000 000 collisions!!!!) The vast majority of these collisions are “ineffective”. They do not result in a chemical reaction. The particles simply rebound in the same shape as the hit. The collision is “elastic” That’s a good thing. If every collision between molecules caused a reaction, ALL chemical reactions would occur at explosive speeds!

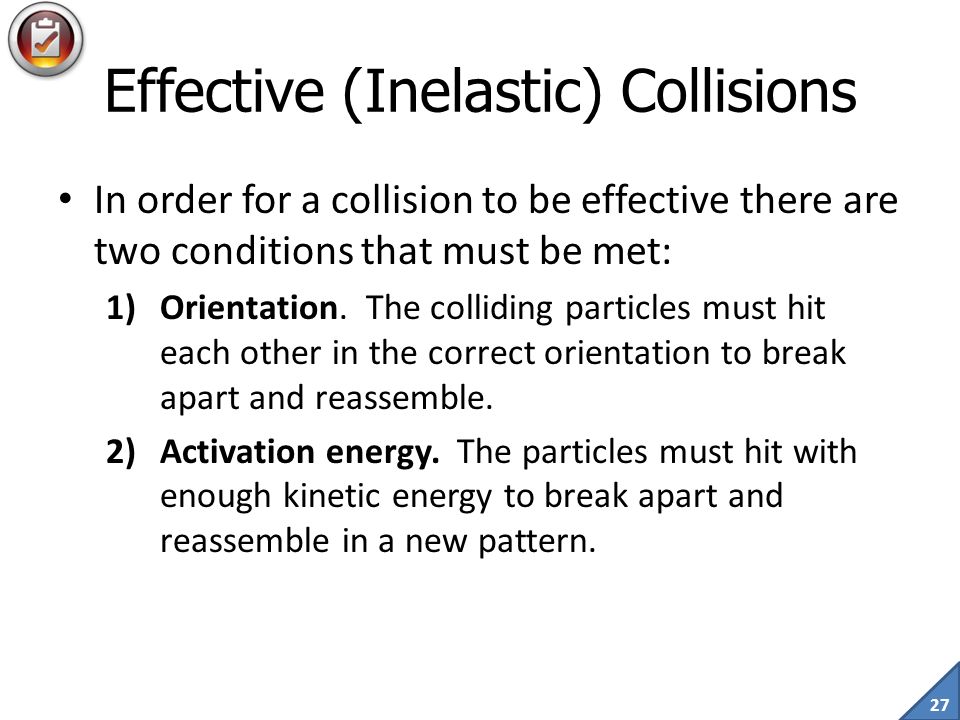

27. 27 Effective (Inelastic) Collisions In order for a collision to be effective there are two conditions that must be met: 1)Orientation. The colliding particles must hit each other in the correct orientation to break apart and reassemble. 2)Activation energy. The particles must hit with enough kinetic energy to break apart and reassemble in a new pattern.

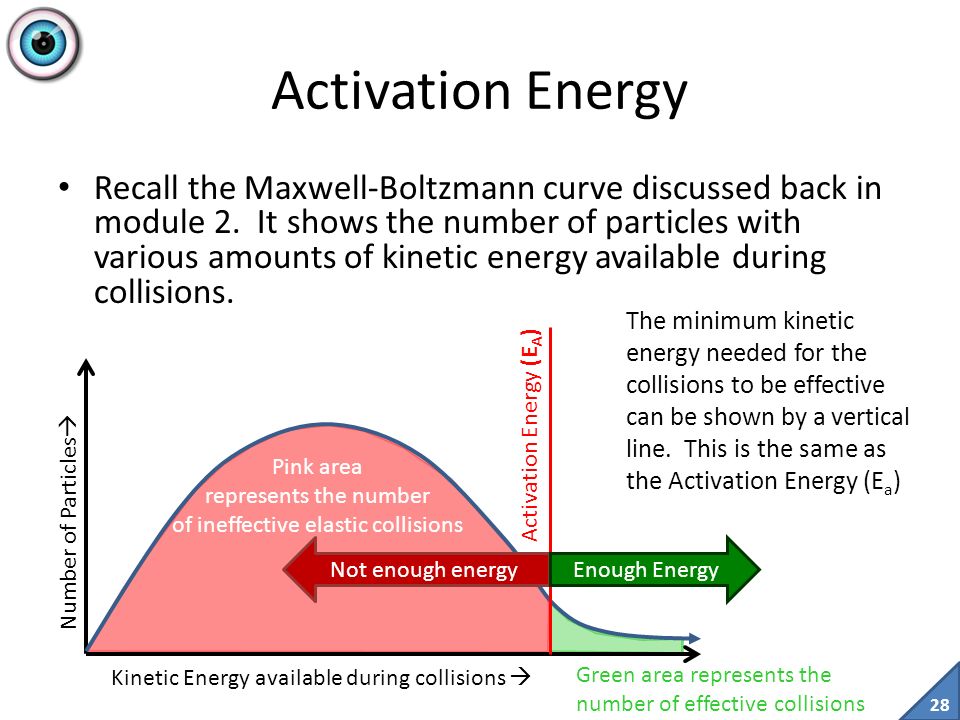

28. 28 Pink area represents the number of ineffective elastic collisions Activation Energy Recall the Maxwell-Boltzmann curve discussed back in module 2. It shows the number of particles with various amounts of kinetic energy available during collisions. Kinetic Energy available during collisions  Number of Particles  The minimum kinetic energy needed for the collisions to be effective can be shown by a vertical line. This is the same as the Activation Energy (E a ) Activation Energy (E A ) Not enough energyEnough Energy Green area represents the number of effective collisions

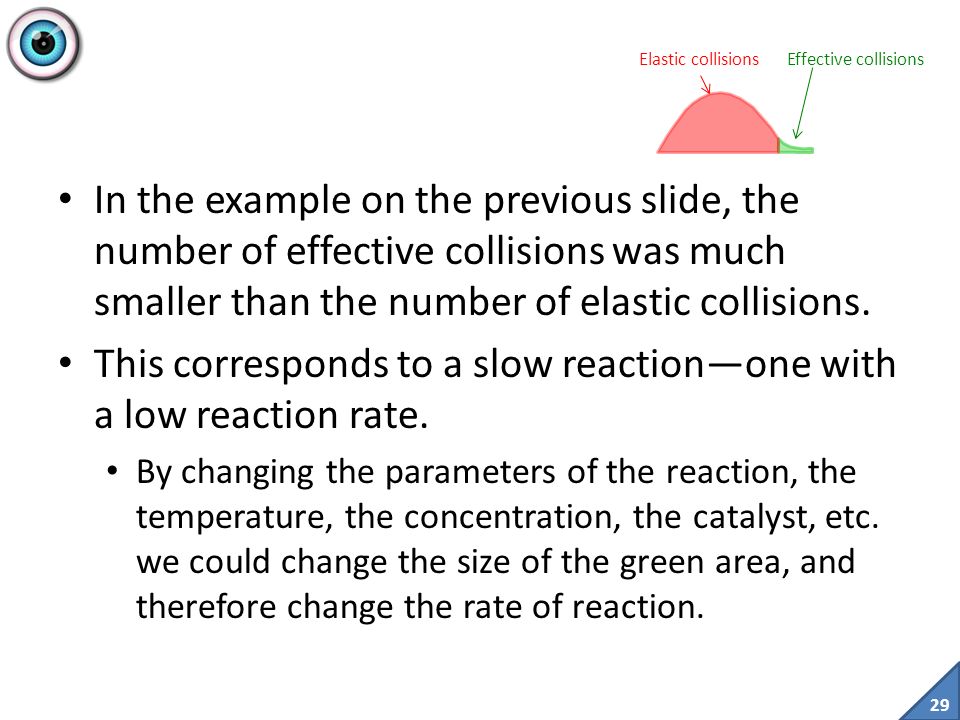

29. 29 In the example on the previous slide, the number of effective collisions was much smaller than the number of elastic collisions. This corresponds to a slow reaction—one with a low reaction rate. By changing the parameters of the reaction, the temperature, the concentration, the catalyst, etc. we could change the size of the green area, and therefore change the rate of reaction. Effective collisions Elastic collisions

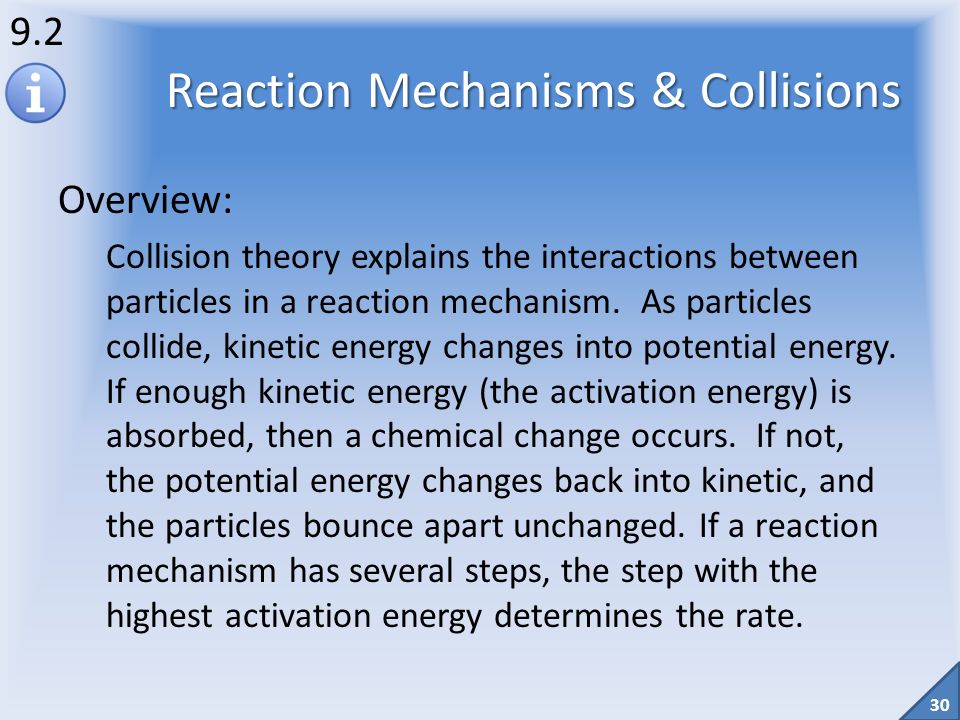

30. 30 Reaction Mechanisms & Collisions Overview: Collision theory explains the interactions between particles in a reaction mechanism. As particles collide, kinetic energy changes into potential energy. If enough kinetic energy (the activation energy) is absorbed, then a chemical change occurs. If not, the potential energy changes back into kinetic, and the particles bounce apart unchanged. If a reaction mechanism has several steps, the step with the highest activation energy determines the rate. 9.2

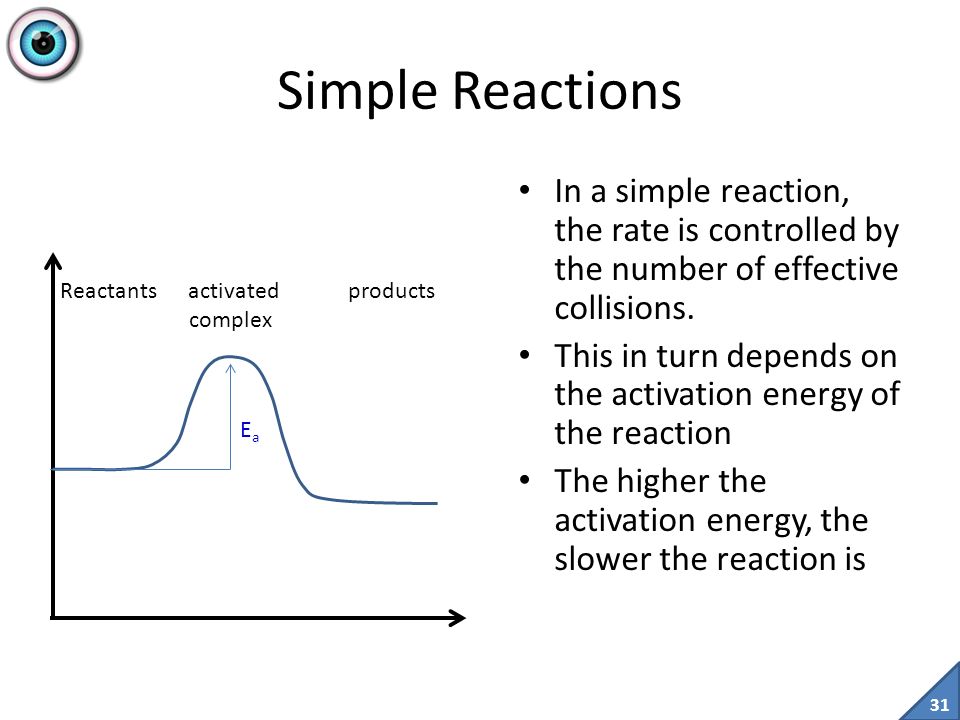

31. 31 Simple Reactions In a simple reaction, the rate is controlled by the number of effective collisions. This in turn depends on the activation energy of the reaction The higher the activation energy, the slower the reaction is Reactants activated products complex EaEa

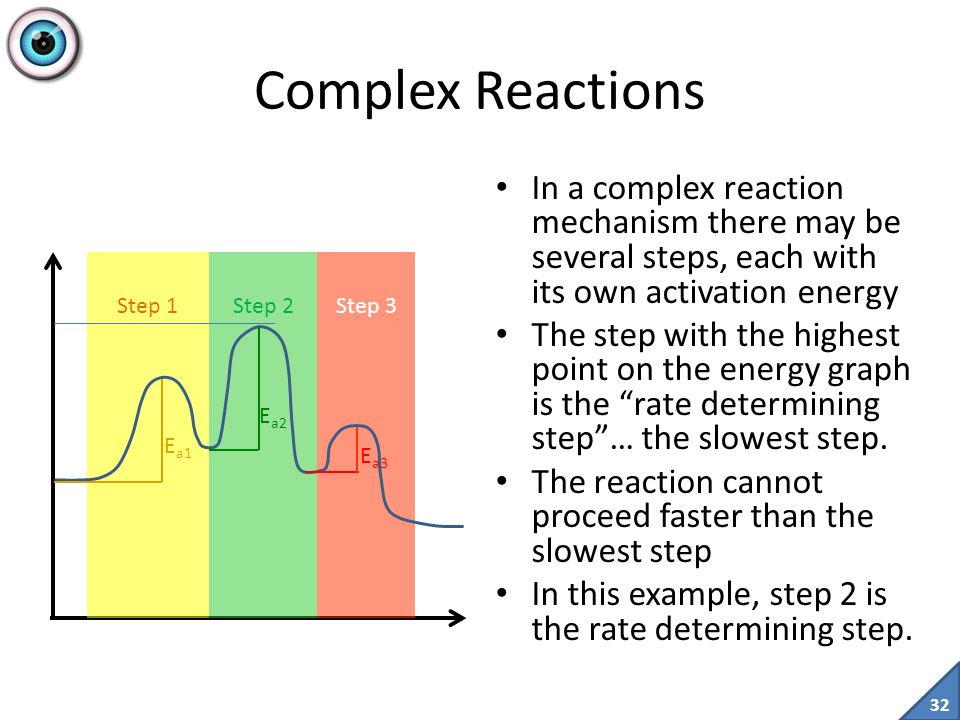

32. 32 Complex Reactions In a complex reaction mechanism there may be several steps, each with its own activation energy The step with the highest point on the energy graph is the “rate determining step”… the slowest step. The reaction cannot proceed faster than the slowest step In this example, step 2 is the rate determining step. Step 1Step 2Step 3 E a1 E a2 E a3

33. 33 Chapter 10 Factors that Affect Reaction Rates

34. 34 Factors That Affect Reaction Rates Overview: The rate of a chemical reaction can be affected, and even controlled, by several factors. We keep food in a refrigerator to slow down the reactions that cause spoilage. We grind up reactants into fine powders to make reactions happen faster. We can heat materials to speed up reactions, we can control the concentration of reactants and sometimes we add catalysts to hasten reactions. 10.1

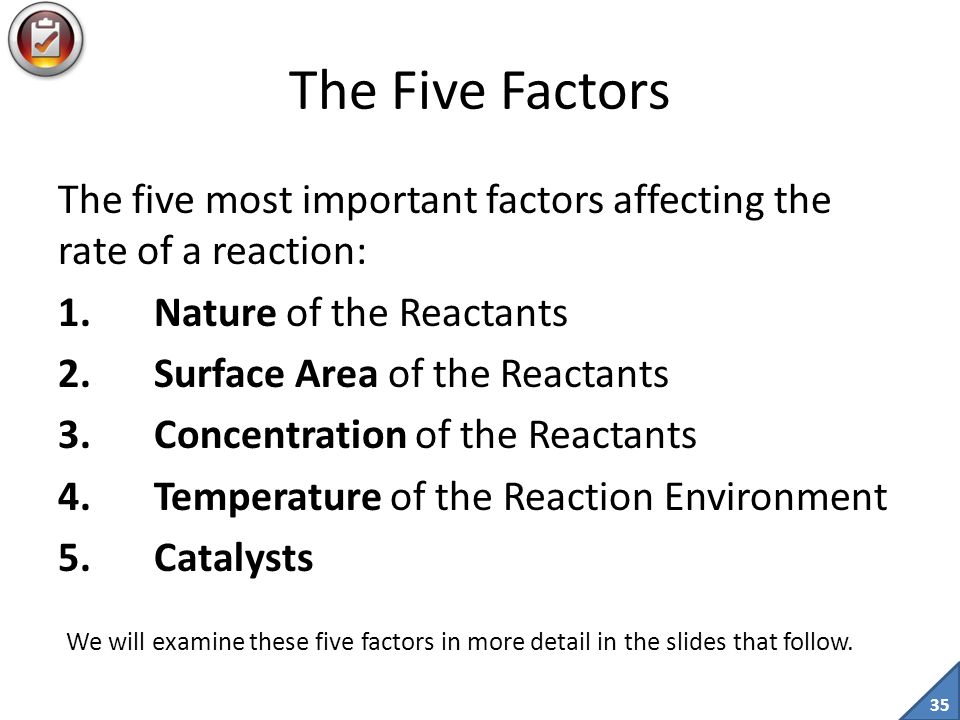

35. 35 The Five Factors The five most important factors affecting the rate of a reaction: 1.Nature of the Reactants 2.Surface Area of the Reactants 3.Concentration of the Reactants 4.Temperature of the Reaction Environment 5.Catalysts We will examine these five factors in more detail in the slides that follow.

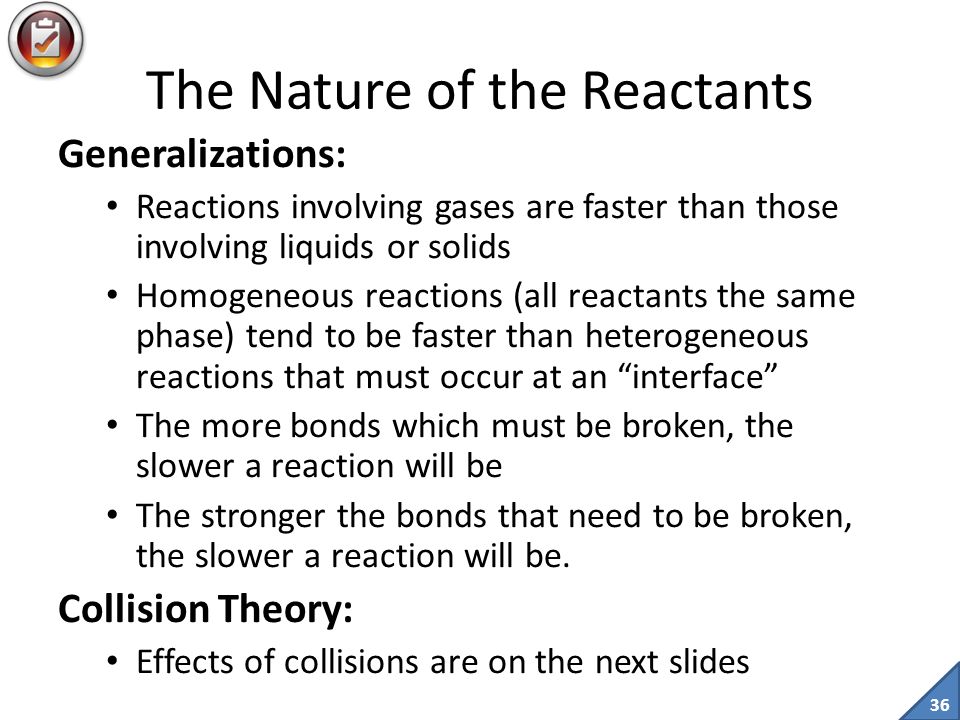

36. 36 The Nature of the Reactants Generalizations: Reactions involving gases are faster than those involving liquids or solids Homogeneous reactions (all reactants the same phase) tend to be faster than heterogeneous reactions that must occur at an “interface” The more bonds which must be broken, the slower a reaction will be The stronger the bonds that need to be broken, the slower a reaction will be. Collision Theory: Effects of collisions are on the next slides

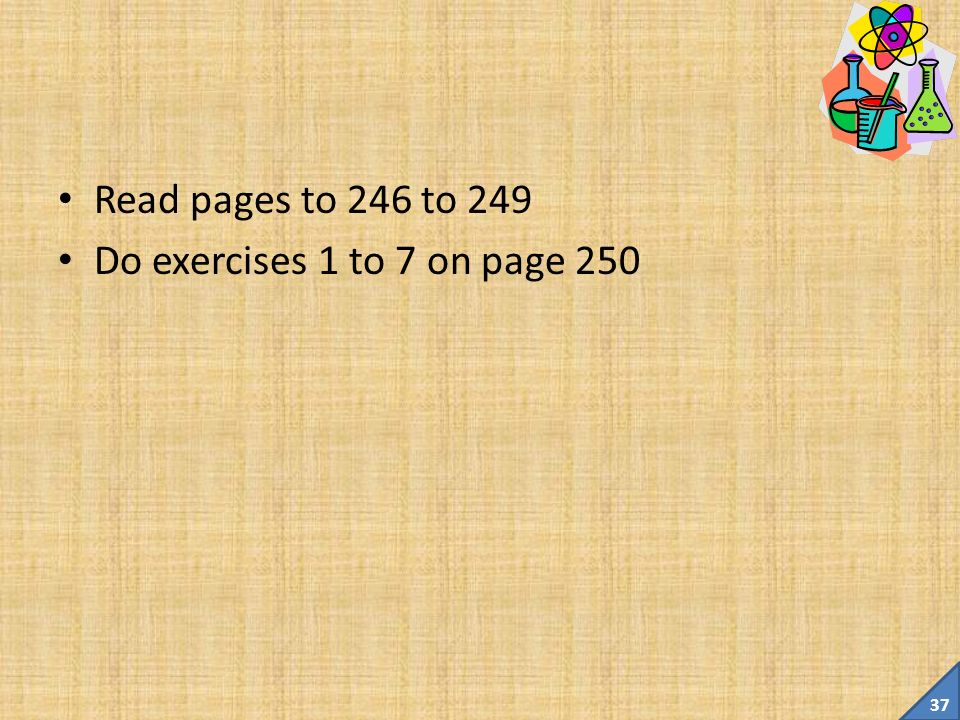

37. 37 Read pages to 246 to 249 Do exercises 1 to 7 on page 250

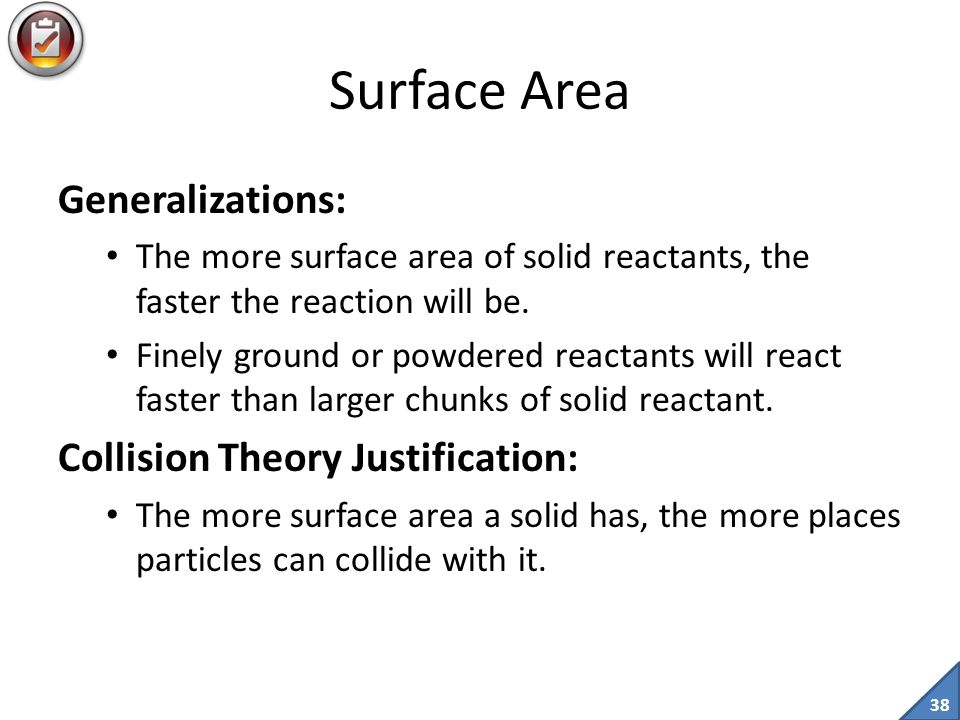

38. 38 Surface Area Generalizations: The more surface area of solid reactants, the faster the reaction will be. Finely ground or powdered reactants will react faster than larger chunks of solid reactant. Collision Theory Justification: The more surface area a solid has, the more places particles can collide with it.

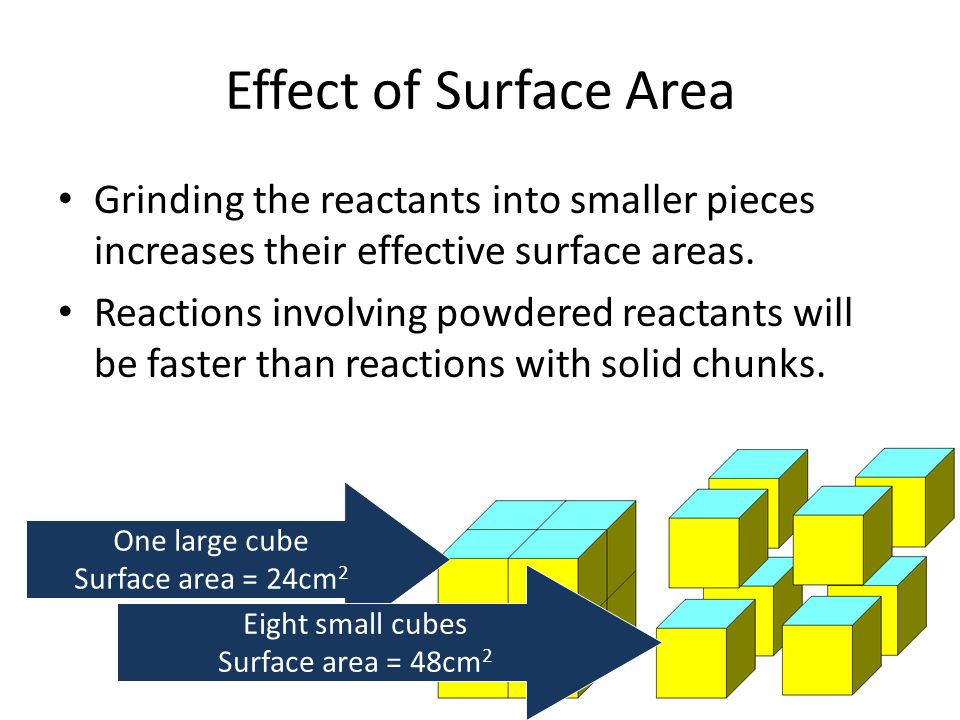

39. 39 Effect of Surface Area Grinding the reactants into smaller pieces increases their effective surface areas. Reactions involving powdered reactants will be faster than reactions with solid chunks. One large cube Surface area = 24cm 2 Eight small cubes Surface area = 48cm 2

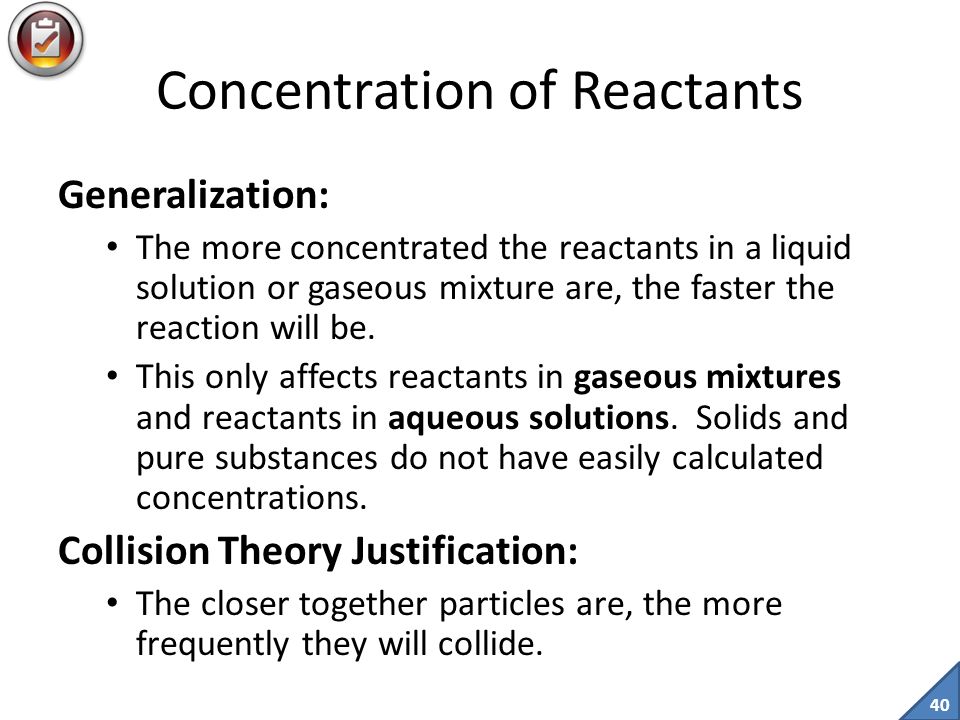

40. 40 Concentration of Reactants Generalization: The more concentrated the reactants in a liquid solution or gaseous mixture are, the faster the reaction will be. This only affects reactants in gaseous mixtures and reactants in aqueous solutions. Solids and pure substances do not have easily calculated concentrations. Collision Theory Justification: The closer together particles are, the more frequently they will collide.

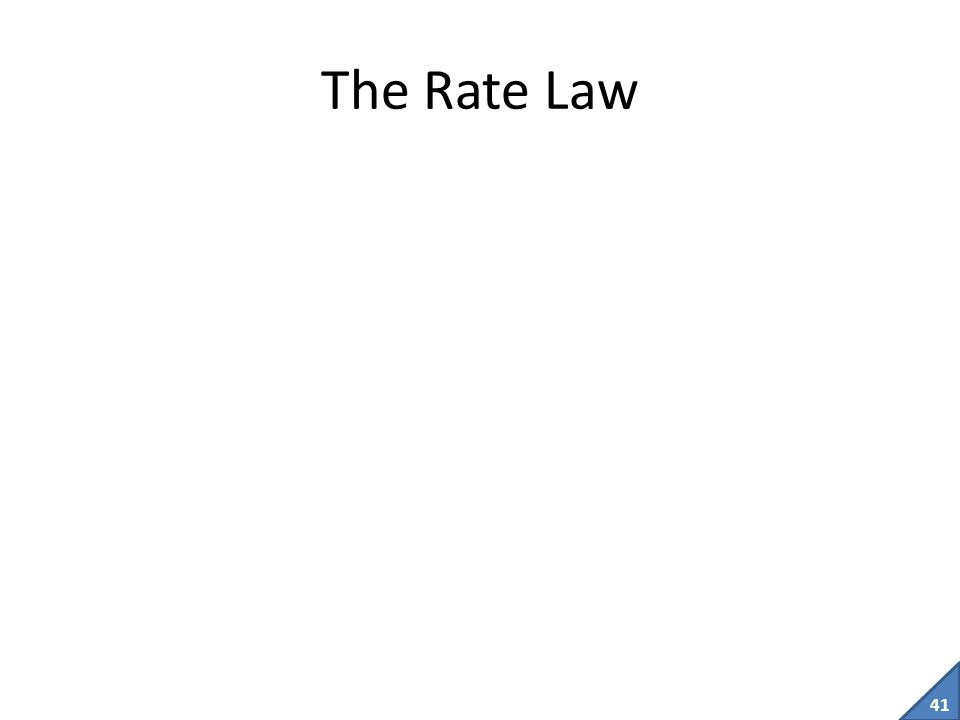

41. 41 The Rate Law

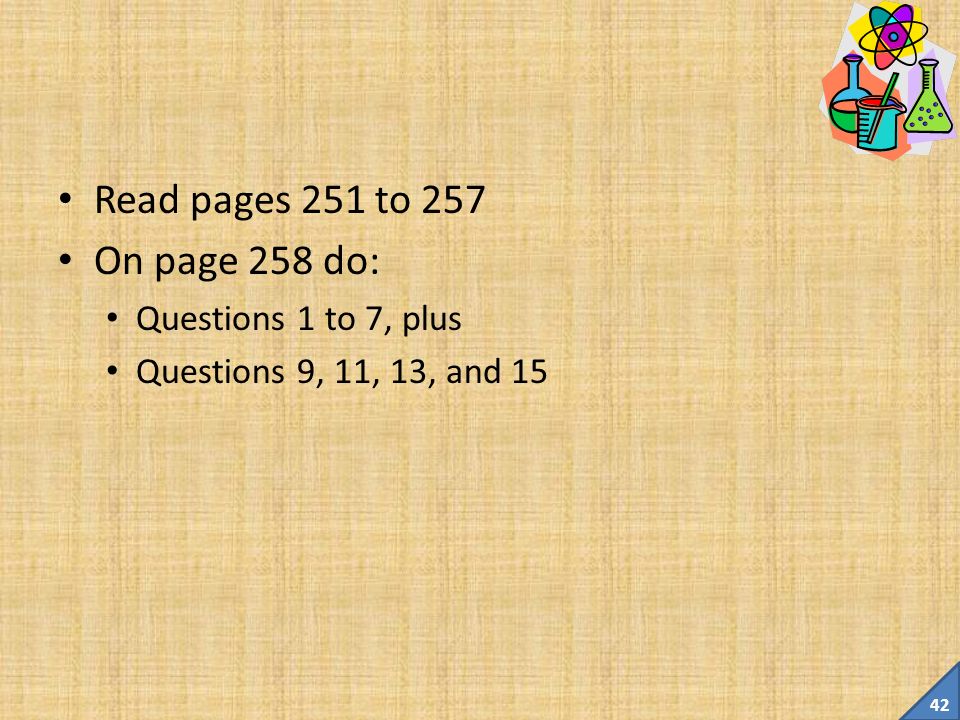

42. 42 Read pages 251 to 257 On page 258 do: Questions 1 to 7, plus Questions 9, 11, 13, and 15

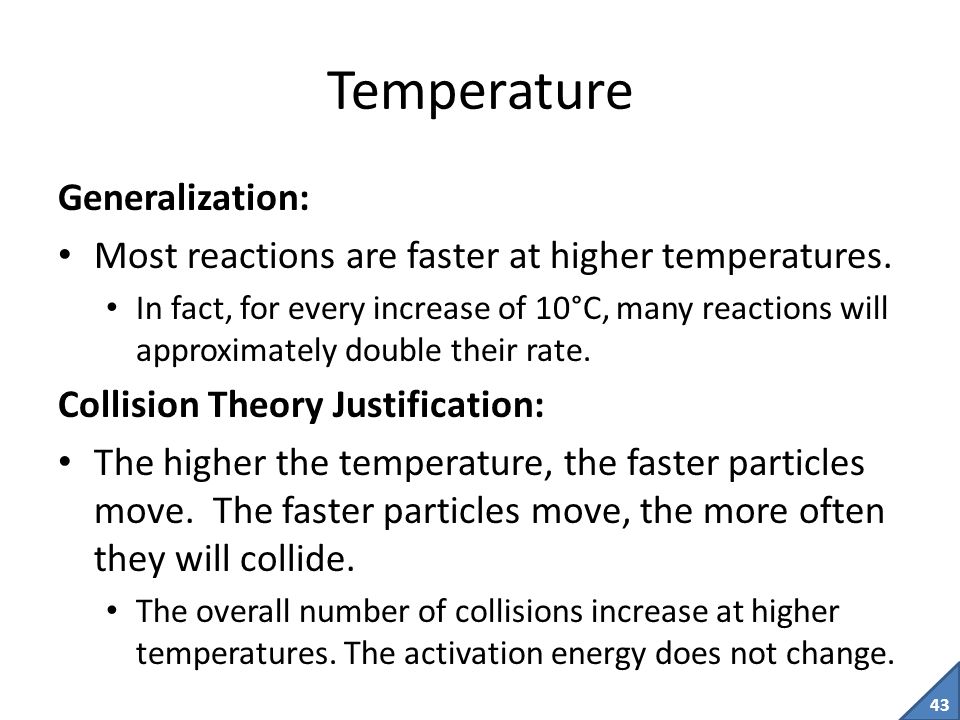

43. 43 Temperature Generalization: Most reactions are faster at higher temperatures. In fact, for every increase of 10°C, many reactions will approximately double their rate. Collision Theory Justification: The higher the temperature, the faster particles move. The faster particles move, the more often they will collide. The overall number of collisions increase at higher temperatures. The activation energy does not change.

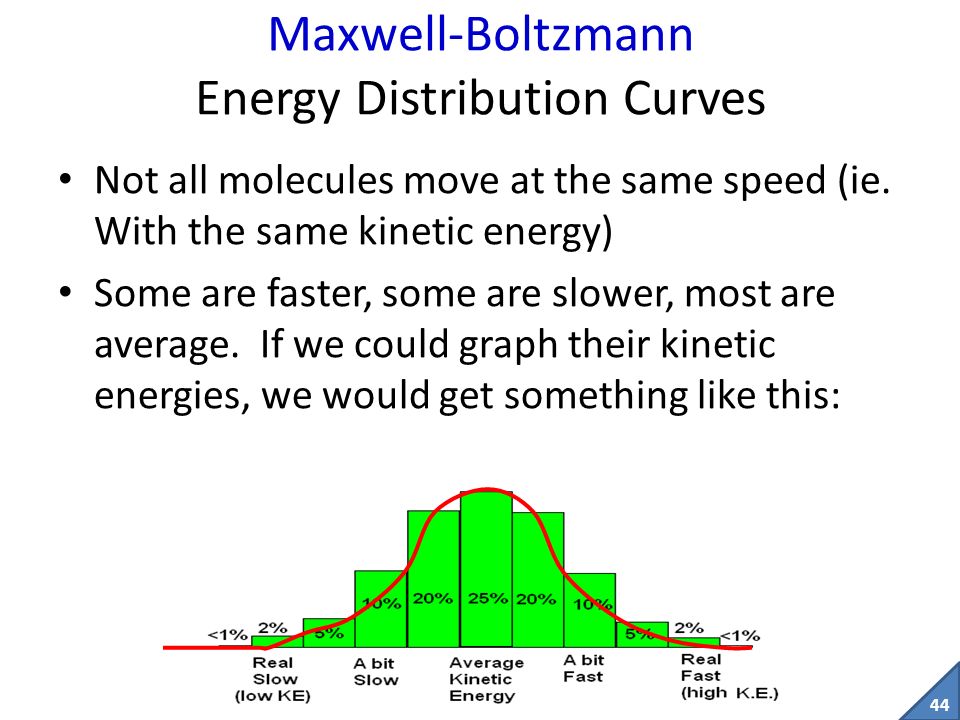

44. 44 Maxwell-Boltzmann Energy Distribution Curves Not all molecules move at the same speed (ie. With the same kinetic energy) Some are faster, some are slower, most are average. If we could graph their kinetic energies, we would get something like this:

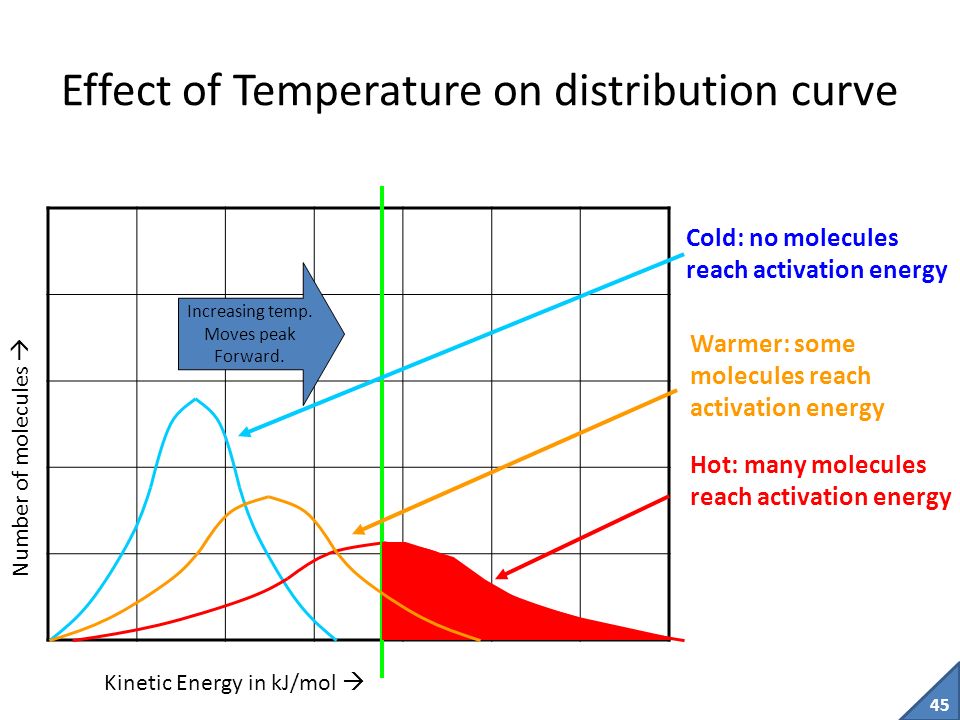

45. 45 Effect of Temperature on distribution curve Kinetic Energy in kJ/mol  Number of molecules  Cold: no molecules reach activation energy Warmer: some molecules reach activation energy Hot: many molecules reach activation energy Increasing temp. Moves peak Forward.

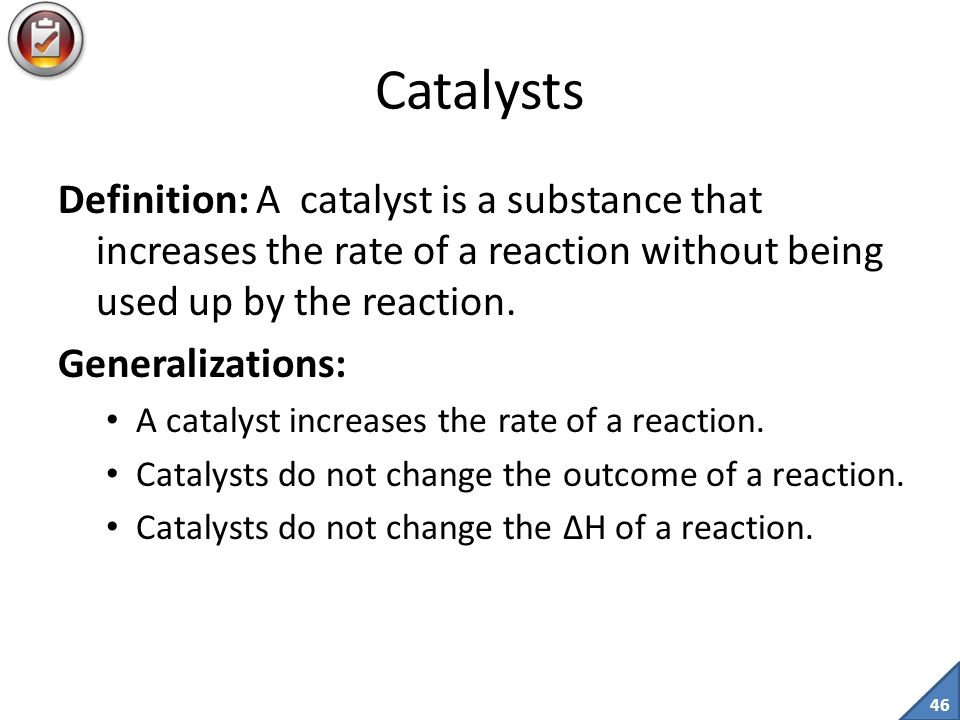

46. 46 Catalysts Definition: A catalyst is a substance that increases the rate of a reaction without being used up by the reaction. Generalizations: A catalyst increases the rate of a reaction. Catalysts do not change the outcome of a reaction. Catalysts do not change the ΔH of a reaction.

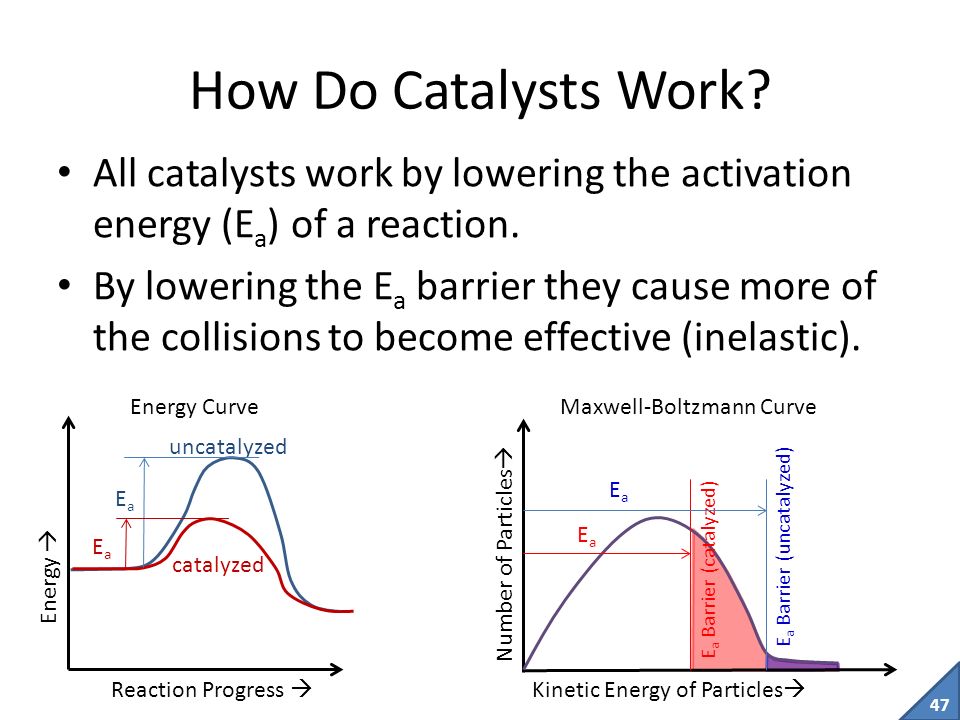

47. 47 How Do Catalysts Work? All catalysts work by lowering the activation energy (E a ) of a reaction. By lowering the E a barrier they cause more of the collisions to become effective (inelastic). uncatalyzed catalyzed Reaction Progress  Energy  EaEa EaEa Kinetic Energy of Particles  Number of Particles  E a Barrier (uncatalyzed) E a Barrier (catalyzed) EaEa EaEa Maxwell-Boltzmann CurveEnergy Curve

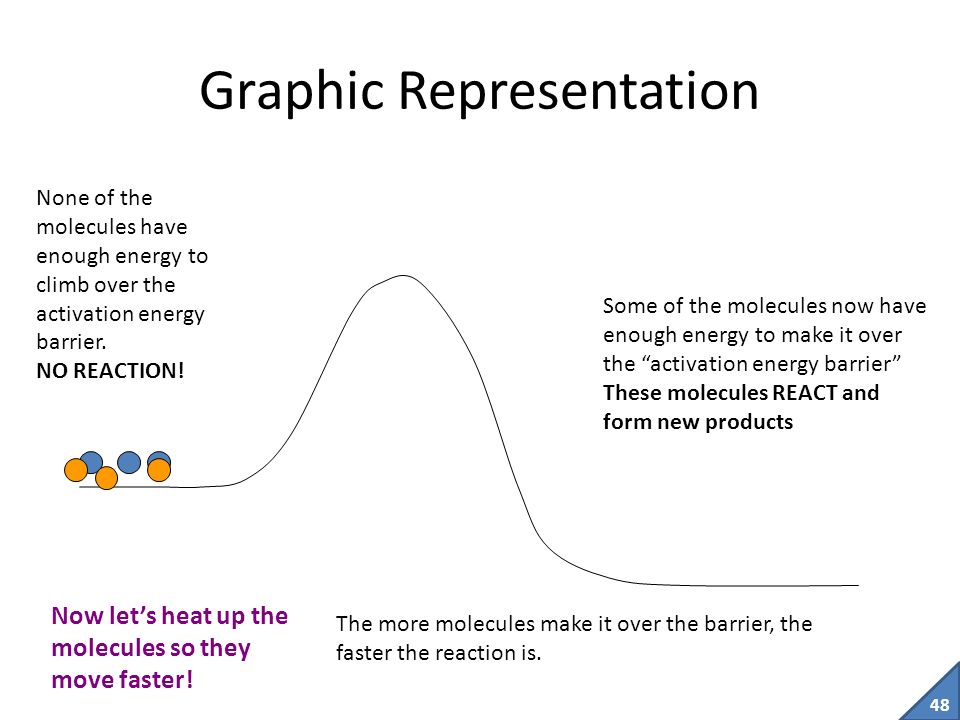

48. 48 Graphic Representation None of the molecules have enough energy to climb over the activation energy barrier. NO REACTION! Now let’s heat up the molecules so they move faster! Some of the molecules now have enough energy to make it over the “activation energy barrier” These molecules REACT and form new products The more molecules make it over the barrier, the faster the reaction is.

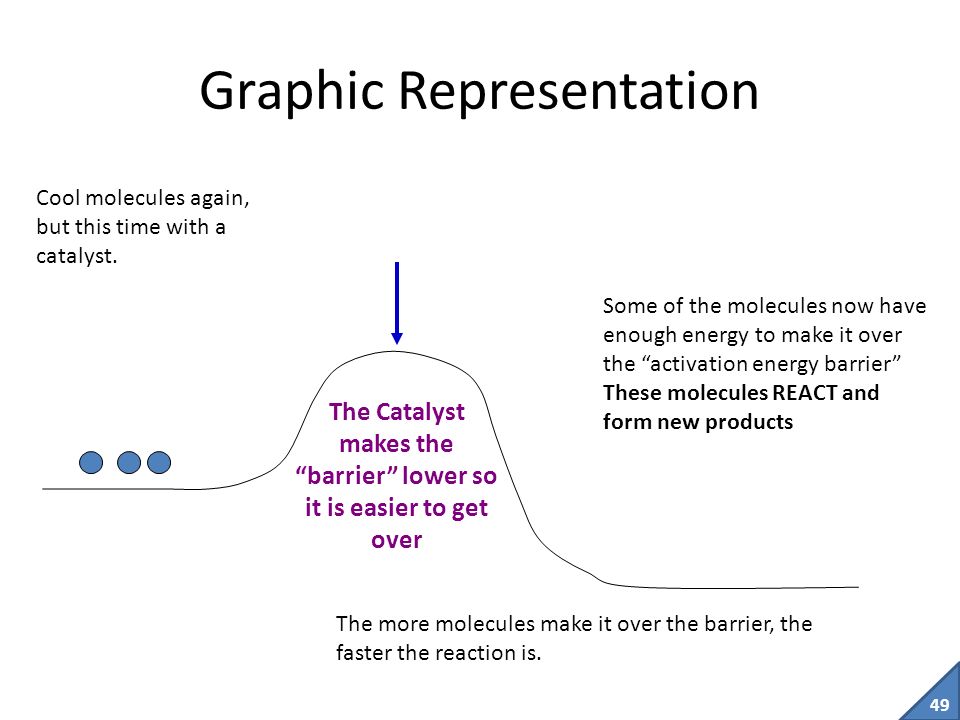

49. 49 Graphic Representation Cool molecules again, but this time with a catalyst. The Catalyst makes the “barrier” lower so it is easier to get over Some of the molecules now have enough energy to make it over the “activation energy barrier” These molecules REACT and form new products The more molecules make it over the barrier, the faster the reaction is.

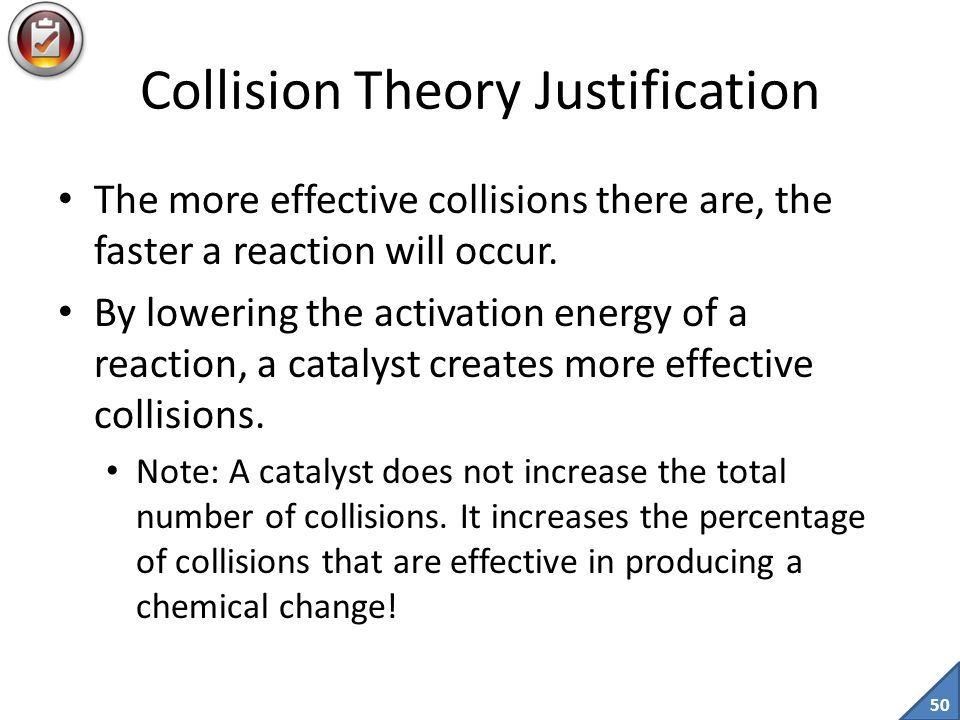

50. 50 Collision Theory Justification The more effective collisions there are, the faster a reaction will occur. By lowering the activation energy of a reaction, a catalyst creates more effective collisions. Note: A catalyst does not increase the total number of collisions. It increases the percentage of collisions that are effective in producing a chemical change!

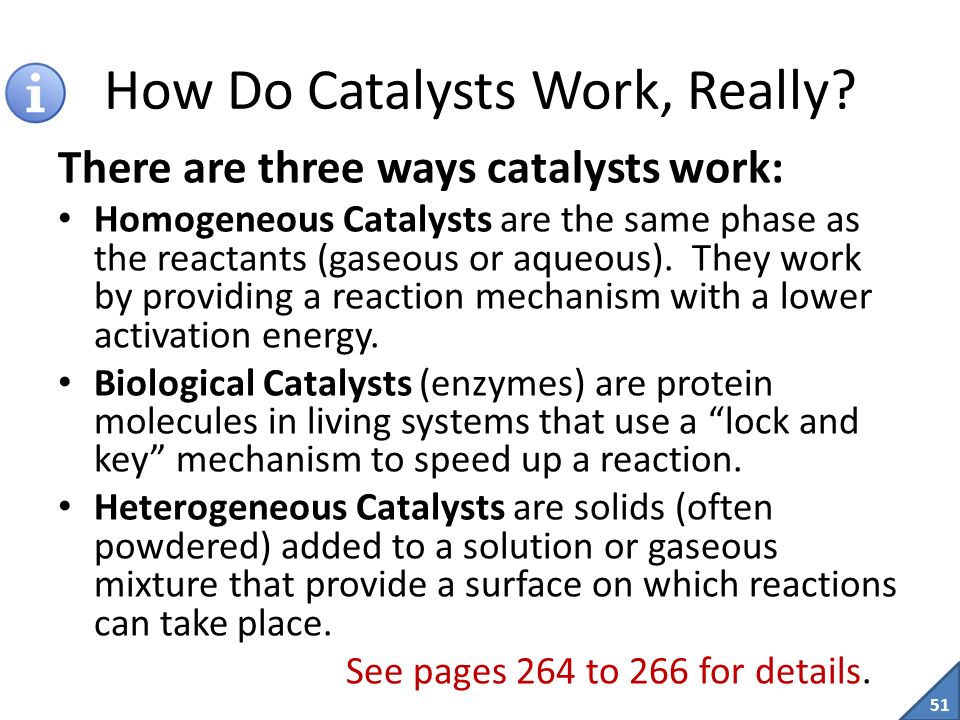

51. 51 How Do Catalysts Work, Really? There are three ways catalysts work: Homogeneous Catalysts are the same phase as the reactants (gaseous or aqueous). They work by providing a reaction mechanism with a lower activation energy. Biological Catalysts (enzymes) are protein molecules in living systems that use a “lock and key” mechanism to speed up a reaction. Heterogeneous Catalysts are solids (often powdered) added to a solution or gaseous mixture that provide a surface on which reactions can take place. See pages 264 to 266 for details.

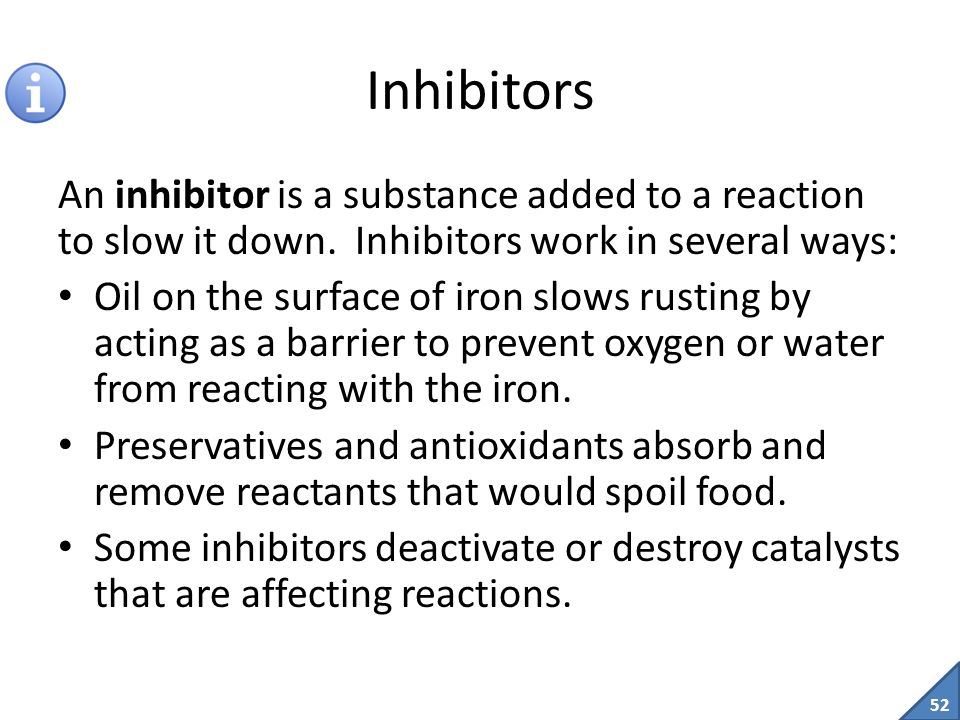

52. 52 Inhibitors An inhibitor is a substance added to a reaction to slow it down. Inhibitors work in several ways: Oil on the surface of iron slows rusting by acting as a barrier to prevent oxygen or water from reacting with the iron. Preservatives and antioxidants absorb and remove reactants that would spoil food. Some inhibitors deactivate or destroy catalysts that are affecting reactions.

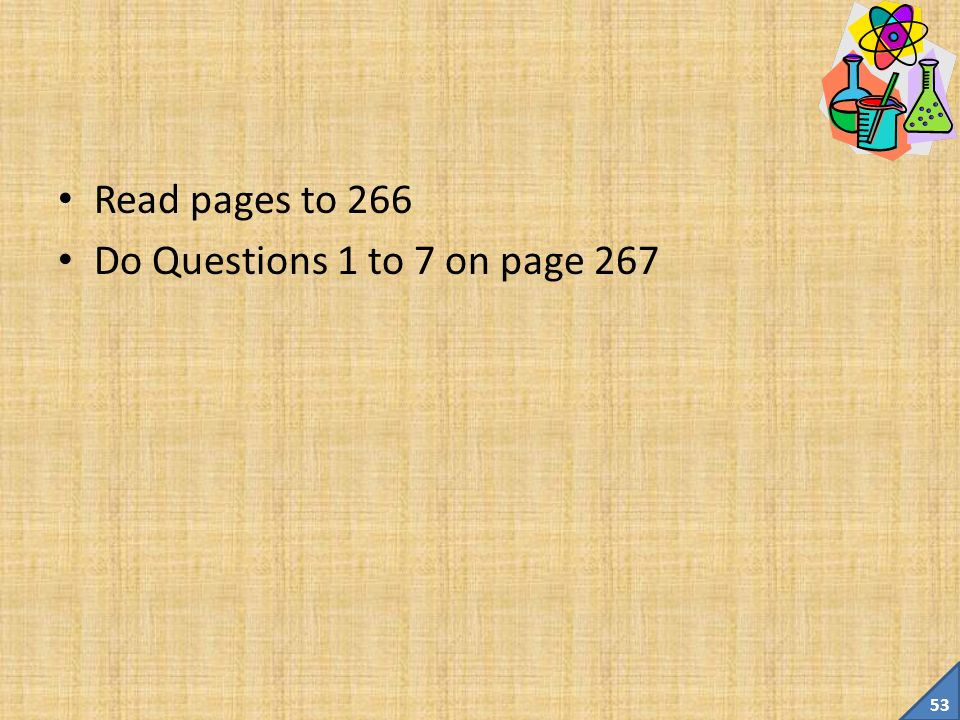

53. 53 Read pages to 266 Do Questions 1 to 7 on page 267
