WAVES Chapter 12 Physics Waves transfer what? ENERGY!!!!

Similar presentations


Presentation on theme: "WAVES Chapter 12 Physics Waves transfer what? ENERGY!!!!"— Presentation transcript:

1

2 WAVES Chapter 12 Physics

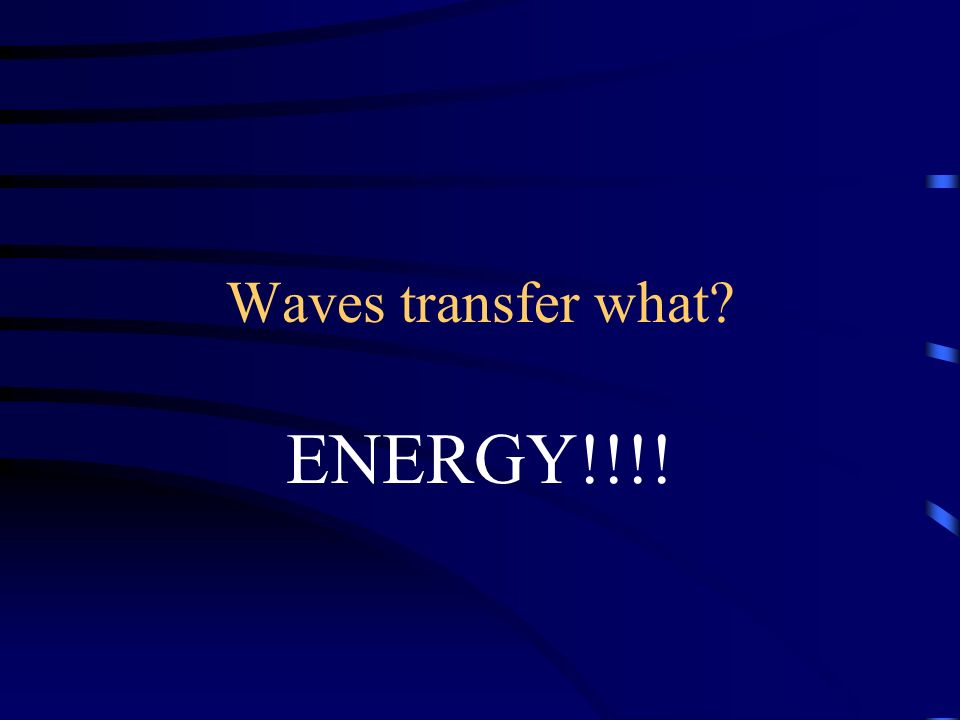

3 Waves transfer what? ENERGY!!!!

4 What are the two main types of waves? MECHANICAL WAVES ELECTROMAGNETIC WAVES

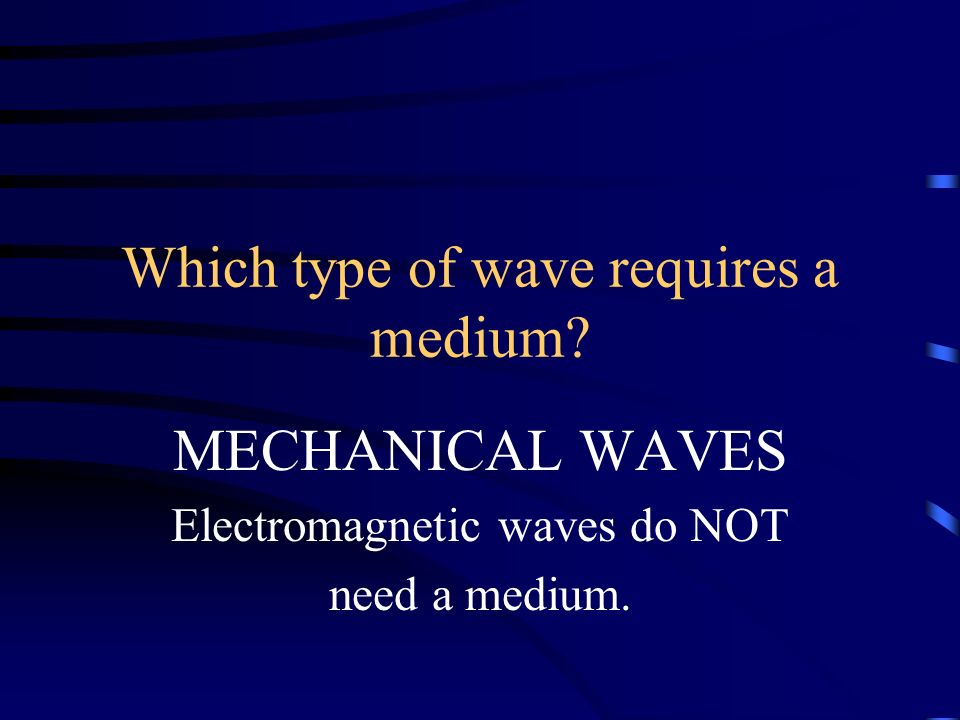

5 Which type of wave requires a medium? MECHANICAL WAVES Electromagnetic waves do NOT need a medium.

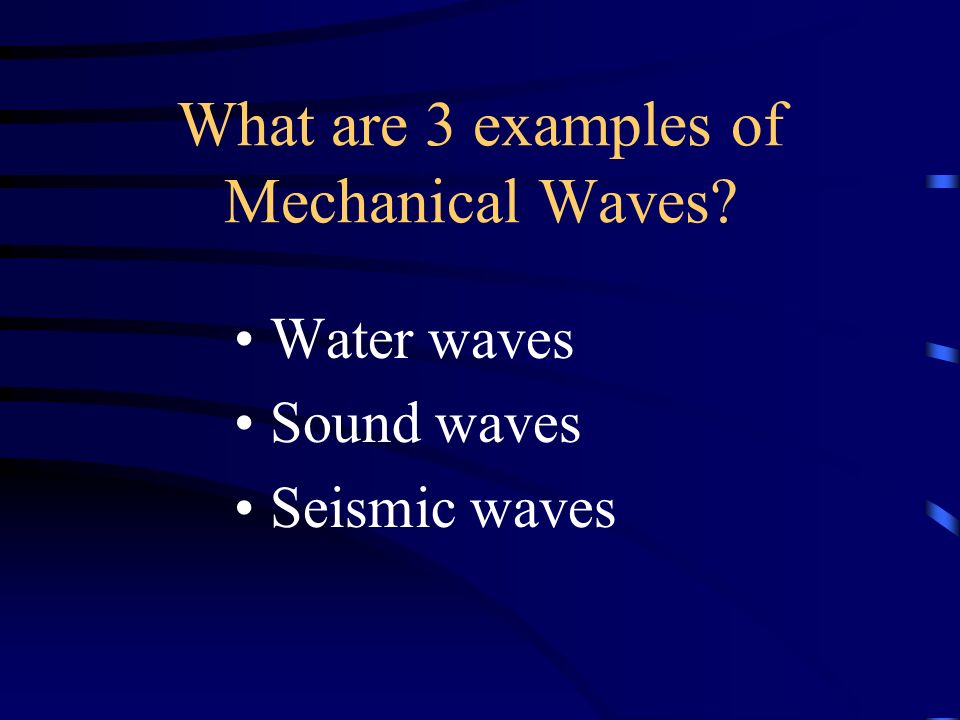

6 What are 3 examples of Mechanical Waves? Water waves Sound waves Seismic waves

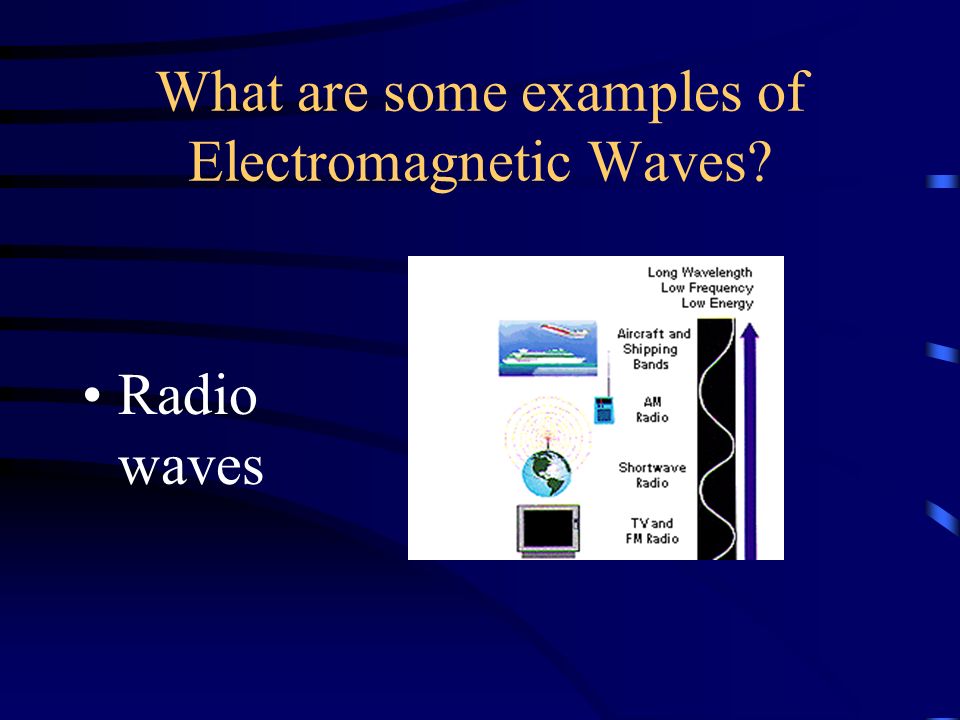

7 What are some examples of Electromagnetic Waves? Radio waves

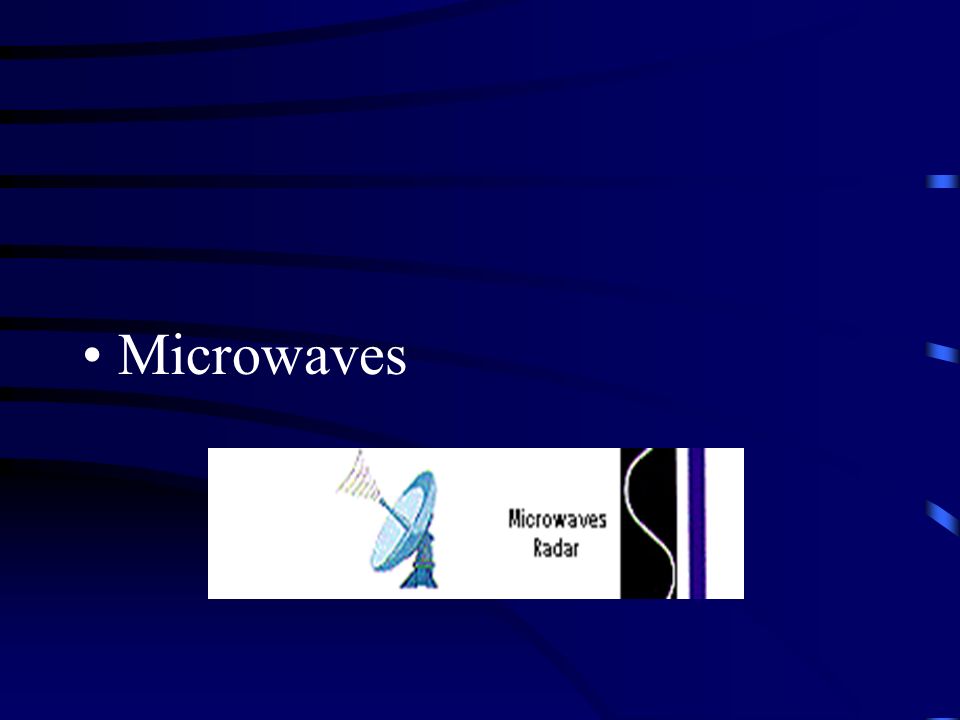

8 Microwaves

9 Infrared light Visible light Ultraviolet light

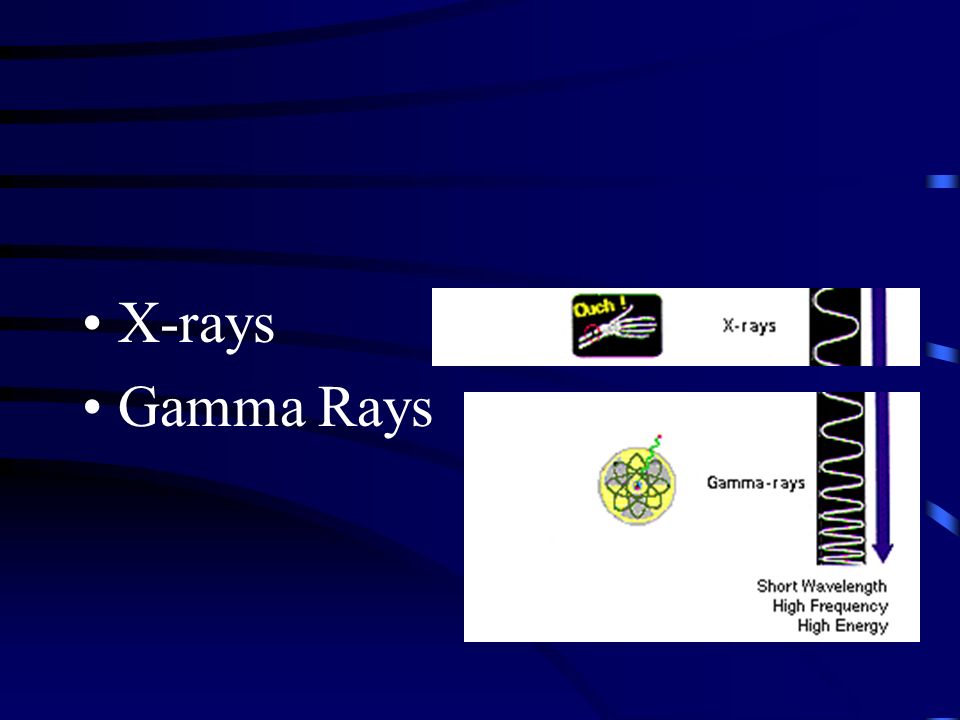

10 X-rays Gamma Rays

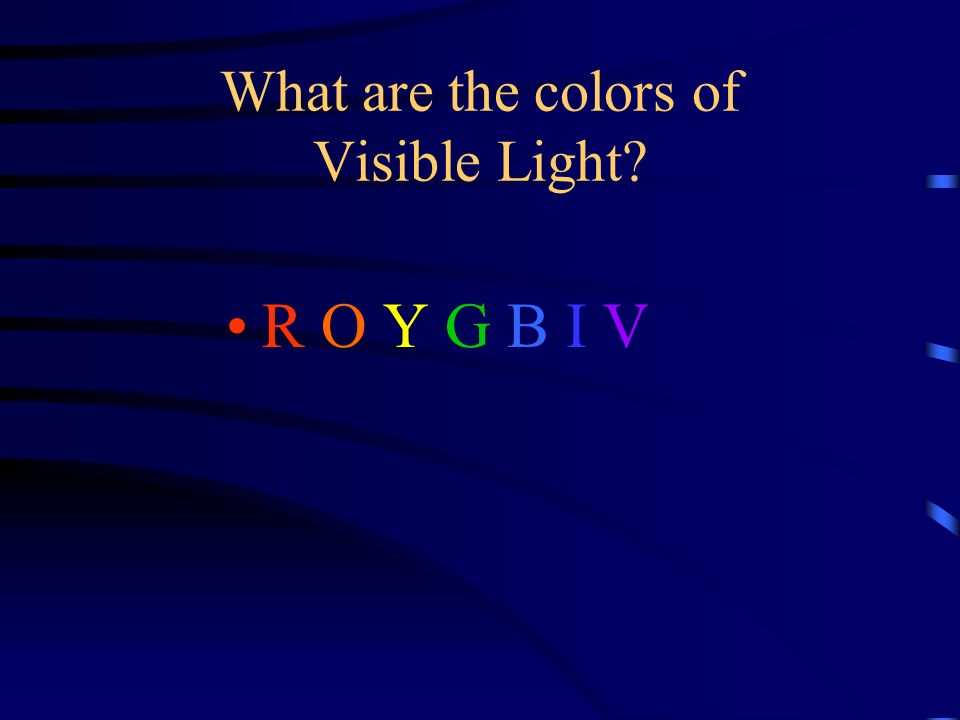

11 What are the colors of Visible Light? R O Y G B I V

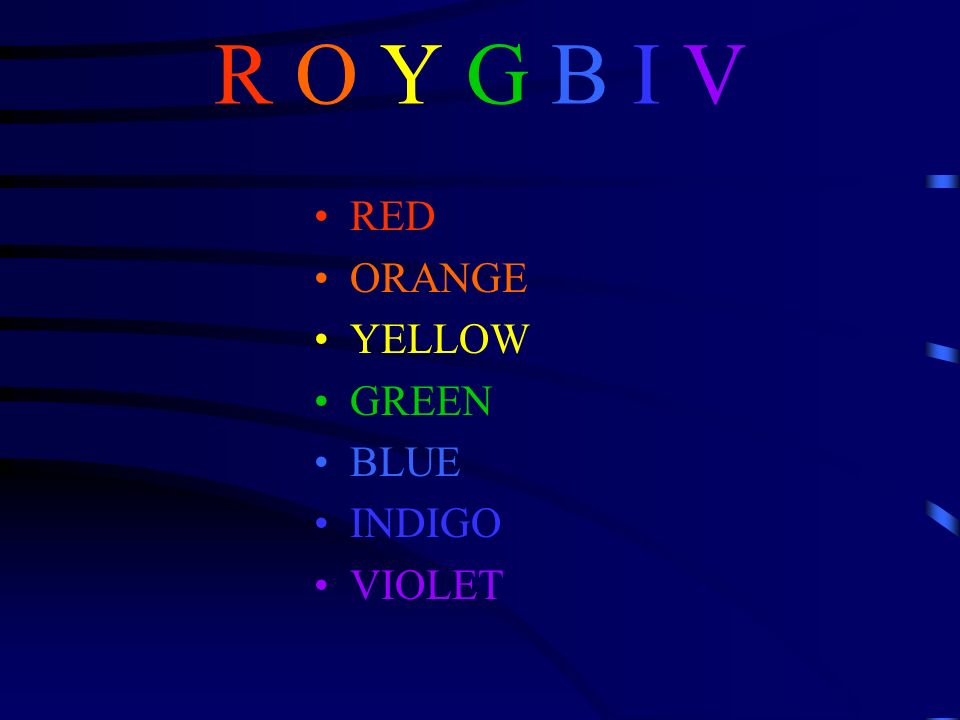

12 R O Y G B I VR O Y G B I V RED ORANGE YELLOW GREEN BLUE INDIGO VIOLET

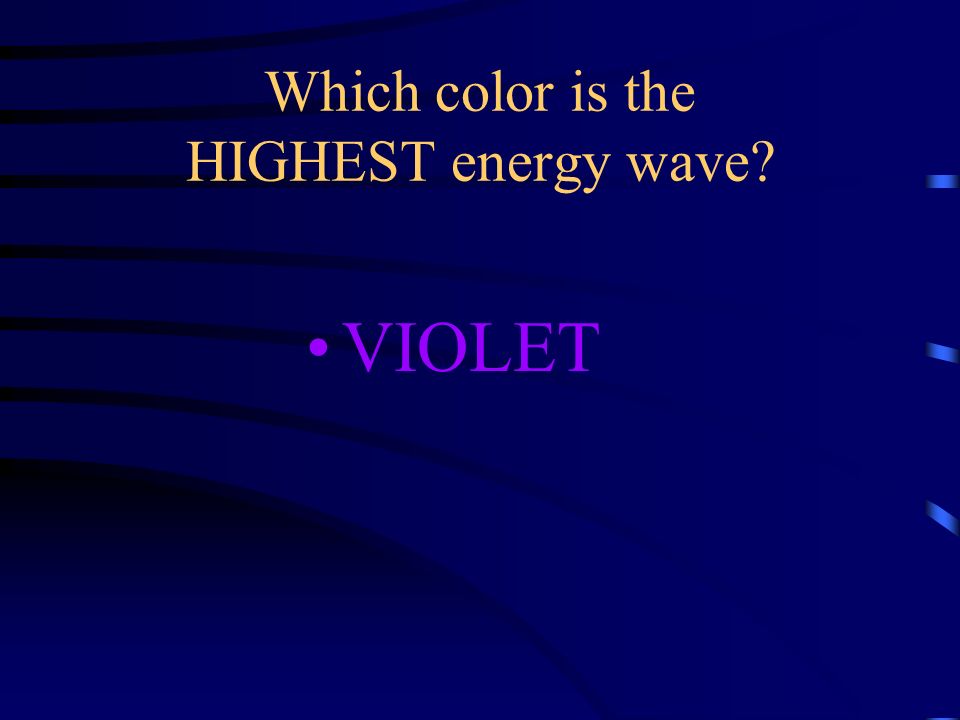

13 Which color is the HIGHEST energy wave? VIOLET

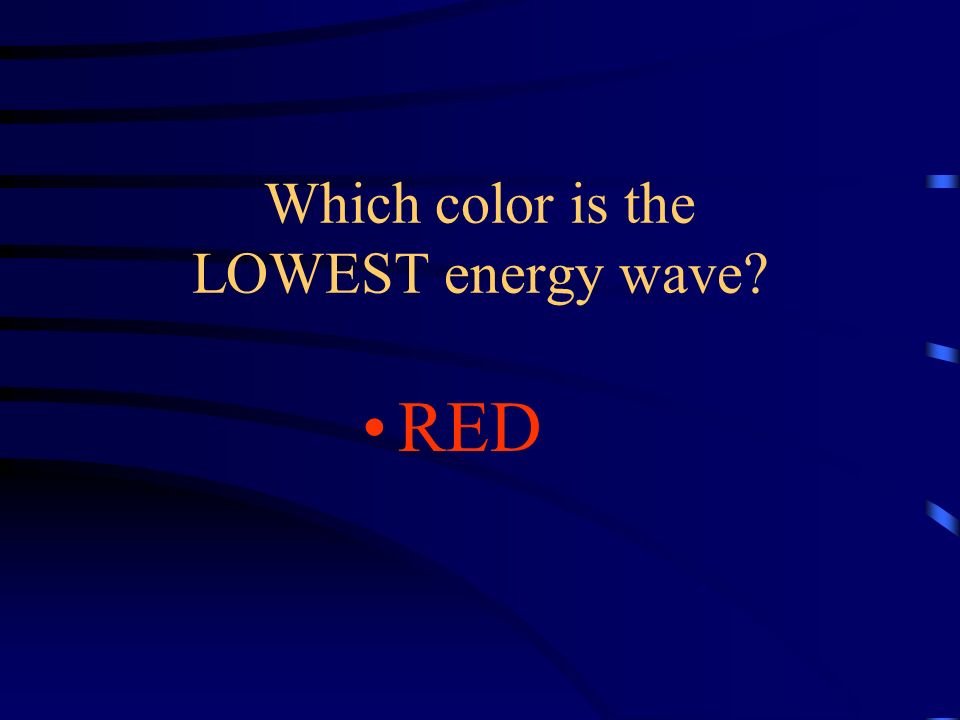

14 Which color is the LOWEST energy wave? RED

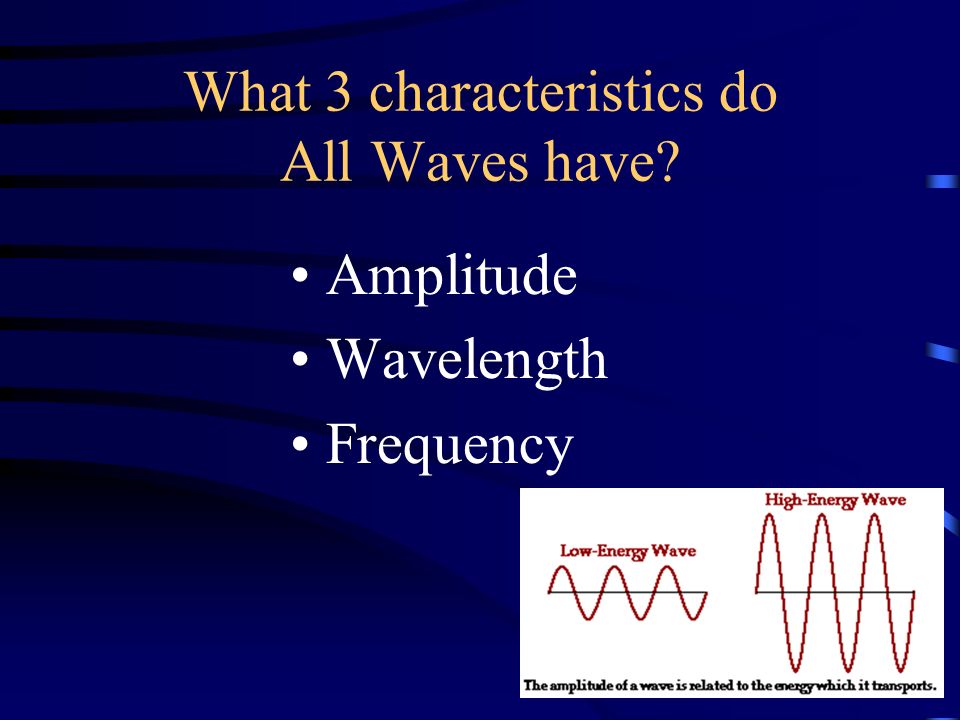

15 What 3 characteristics do All Waves have? Amplitude Wavelength Frequency

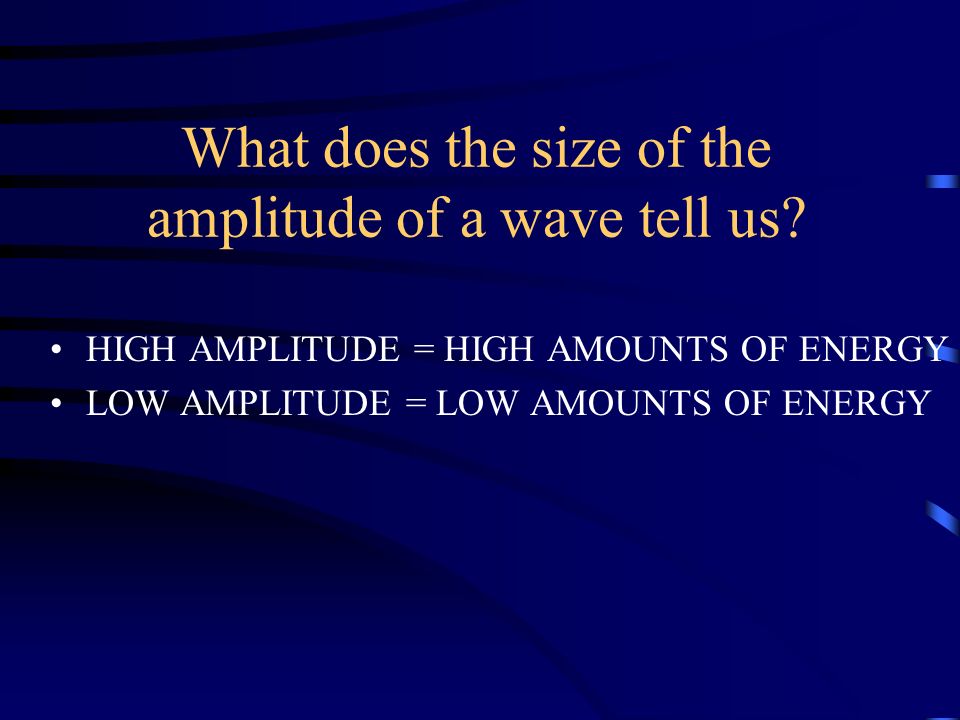

16 What does the size of the amplitude of a wave tell us? HIGH AMPLITUDE = HIGH AMOUNTS OF ENERGY LOW AMPLITUDE = LOW AMOUNTS OF ENERGY

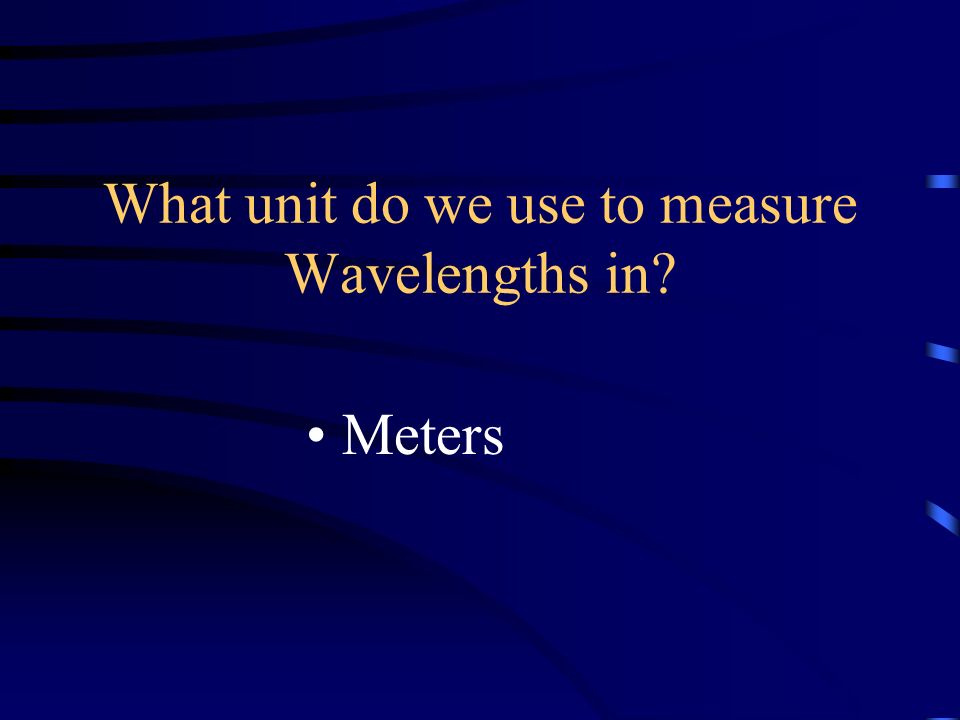

17 What unit do we use to measure Wavelengths in? Meters

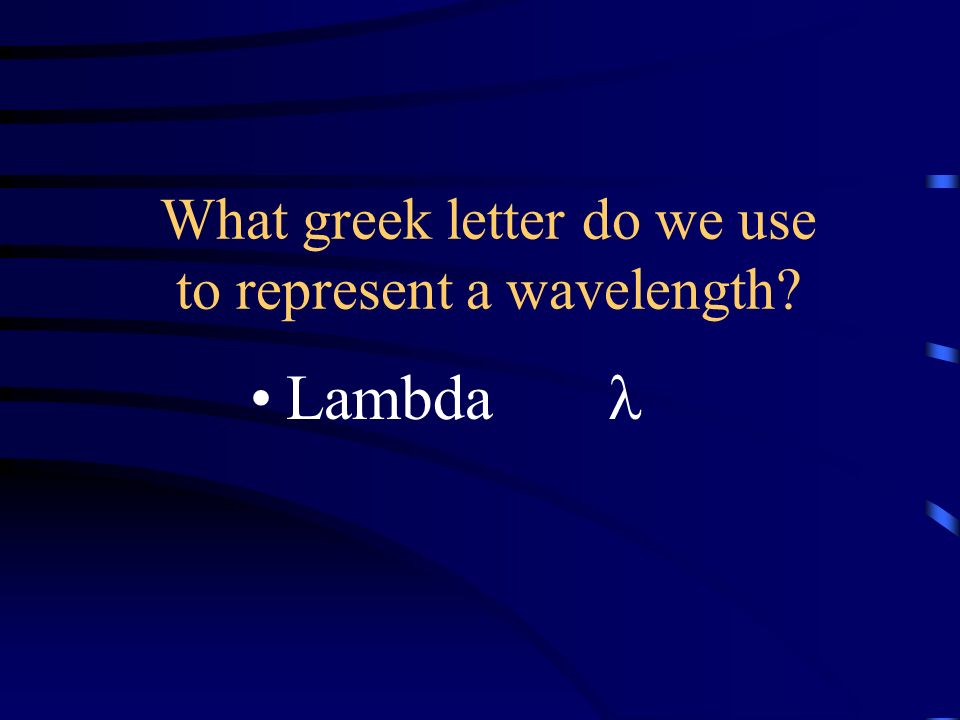

18 What greek letter do we use to represent a wavelength? Lambda

19 What are the 3 units we can use for Frequency of a wave? Waves / second Cycles / second 1/s = Hertz (Hz)

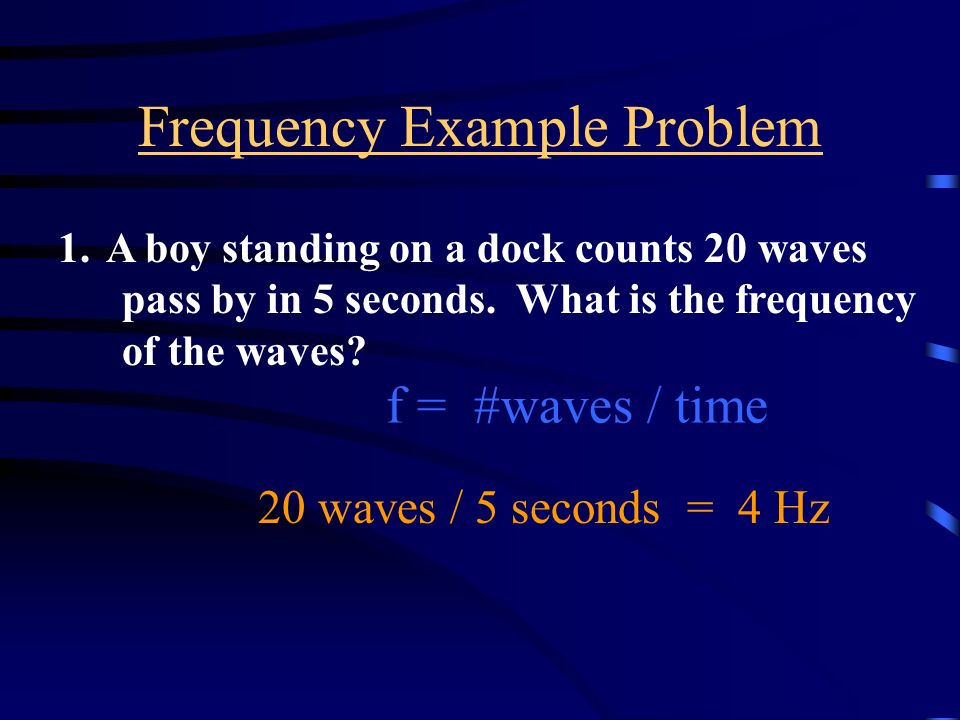

20 Frequency Example Problem 1.A boy standing on a dock counts 20 waves pass by in 5 seconds. What is the frequency of the waves? f = #waves / time 20 waves / 5 seconds = 4 Hz

21 Frequency Example Problem #2 2.If the frequency of the waves is increased to 8 Hz, how many waves will pass by the boy in 2 seconds? f = #waves / time 8 Hz = #waves / 2 seconds 8 Hz x 2 seconds = 16 waves

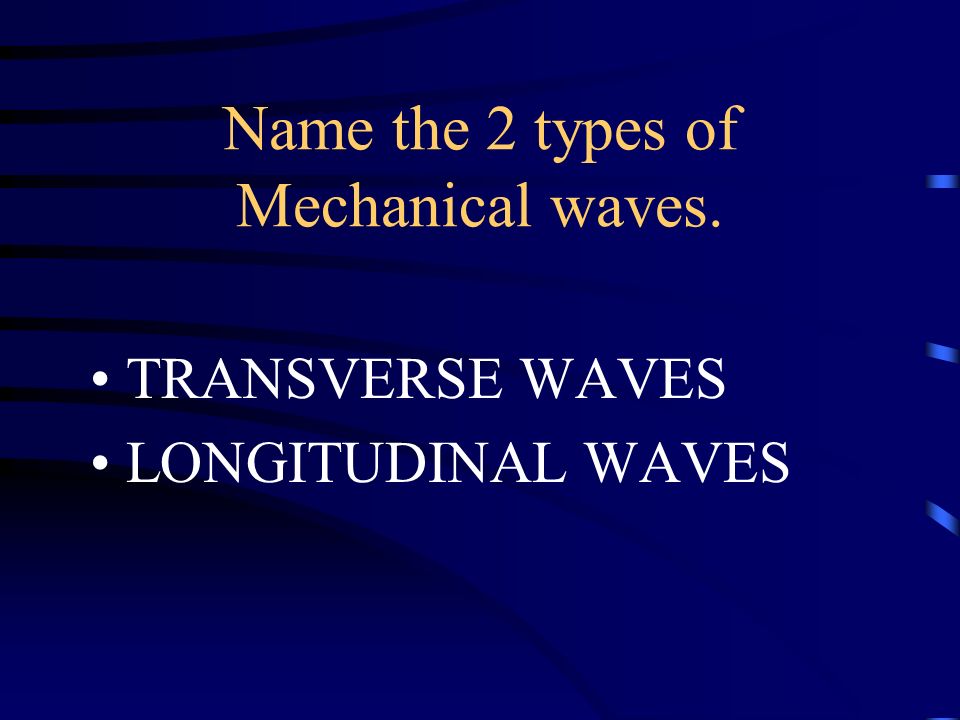

22 Name the 2 types of Mechanical waves. TRANSVERSE WAVES LONGITUDINAL WAVES

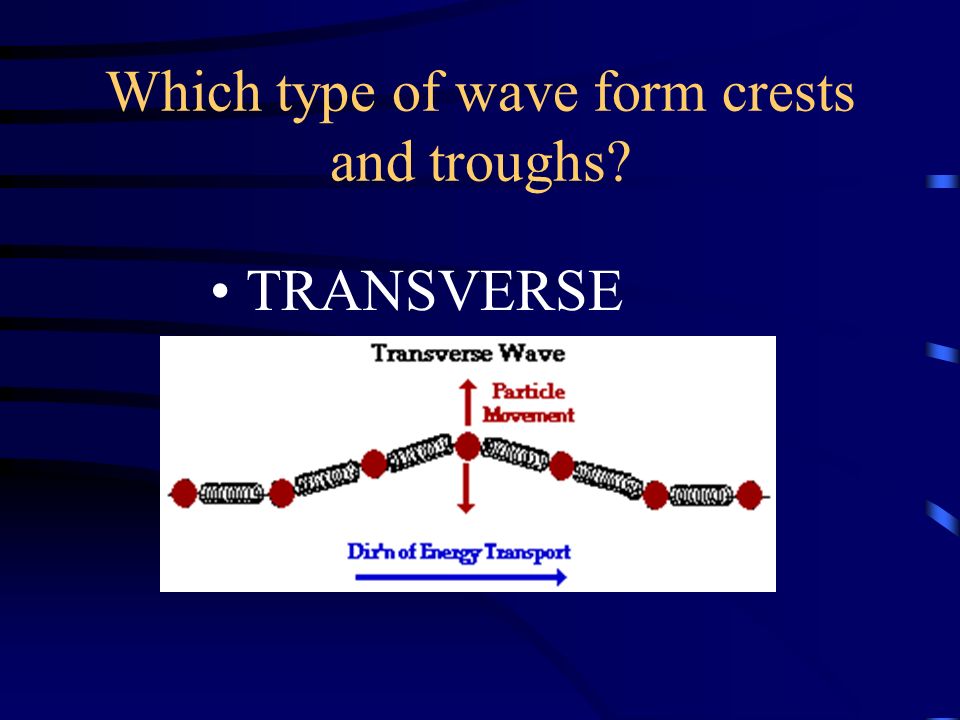

23 Which type of wave form crests and troughs? TRANSVERSE

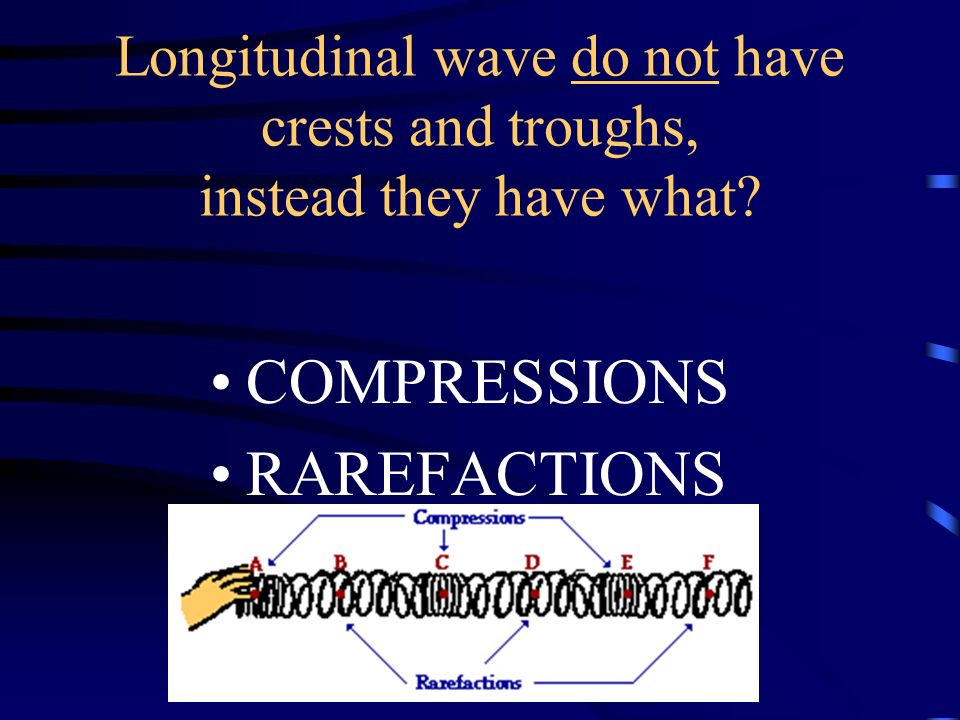

24 Longitudinal wave do not have crests and troughs, instead they have what? COMPRESSIONS RAREFACTIONS

25 How does the medium move when a longitudinal wave moves through it? The medium vibrates horizontally.

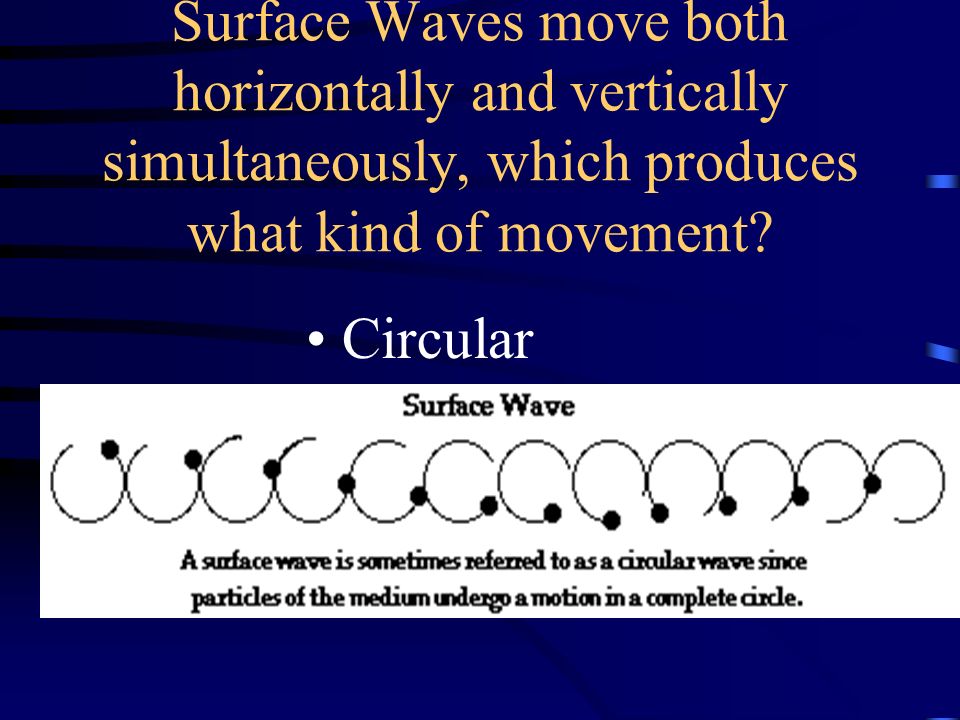

26 Surface Waves move both horizontally and vertically simultaneously, which produces what kind of movement? Circular

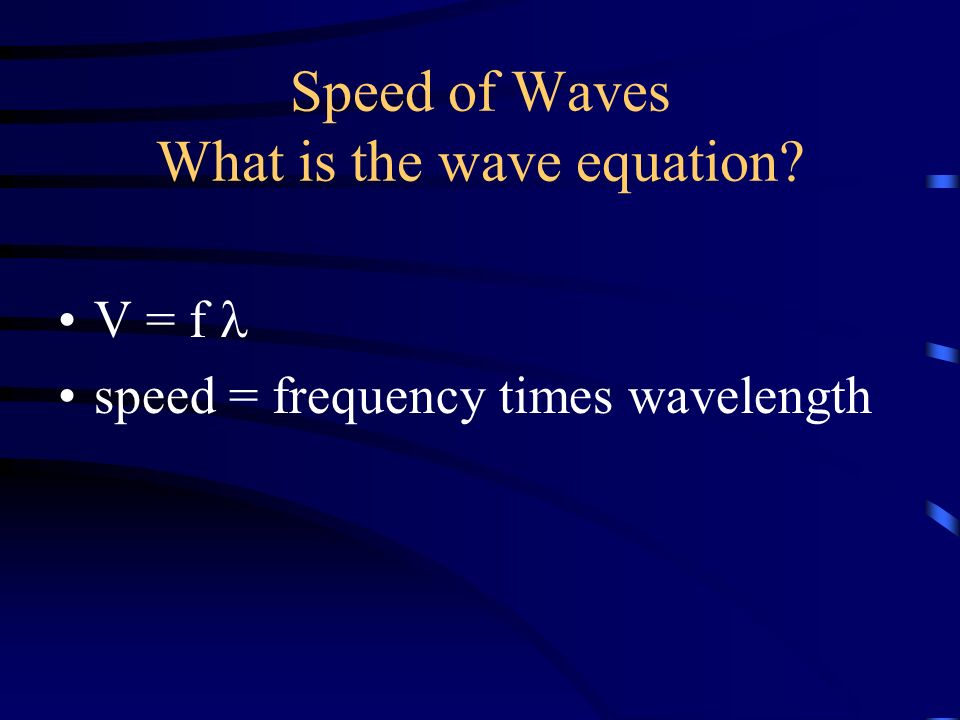

27 Speed of Waves What is the wave equation? V = f speed = frequency times wavelength

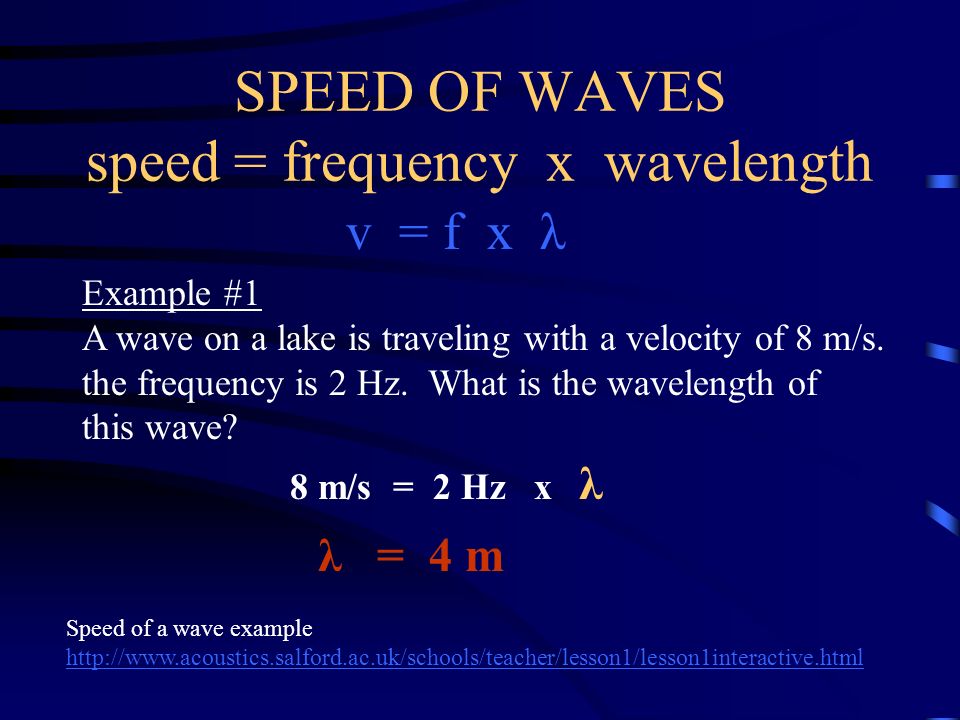

28 SPEED OF WAVES speed = frequency x wavelength v = f x λ Example #1 A wave on a lake is traveling with a velocity of 8 m/s. the frequency is 2 Hz. What is the wavelength of this wave? 8 m/s = 2 Hz x λ λ = 4 m Speed of a wave example http://www.acoustics.salford.ac.uk/schools/teacher/lesson1/lesson1interactive.html

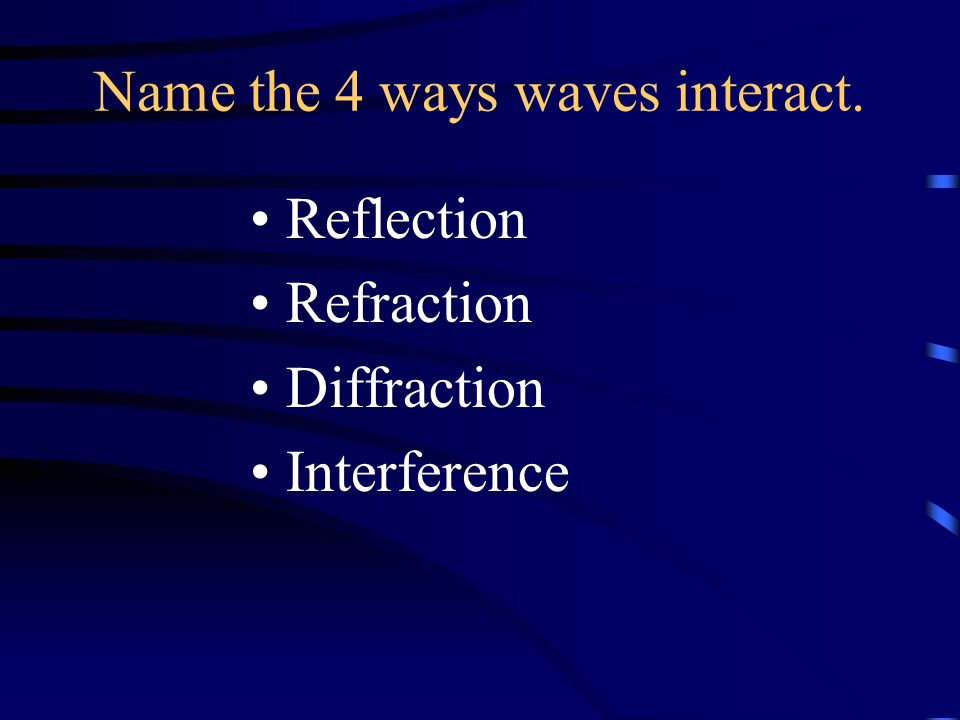

29 Name the 4 ways waves interact. Reflection Refraction Diffraction Interference

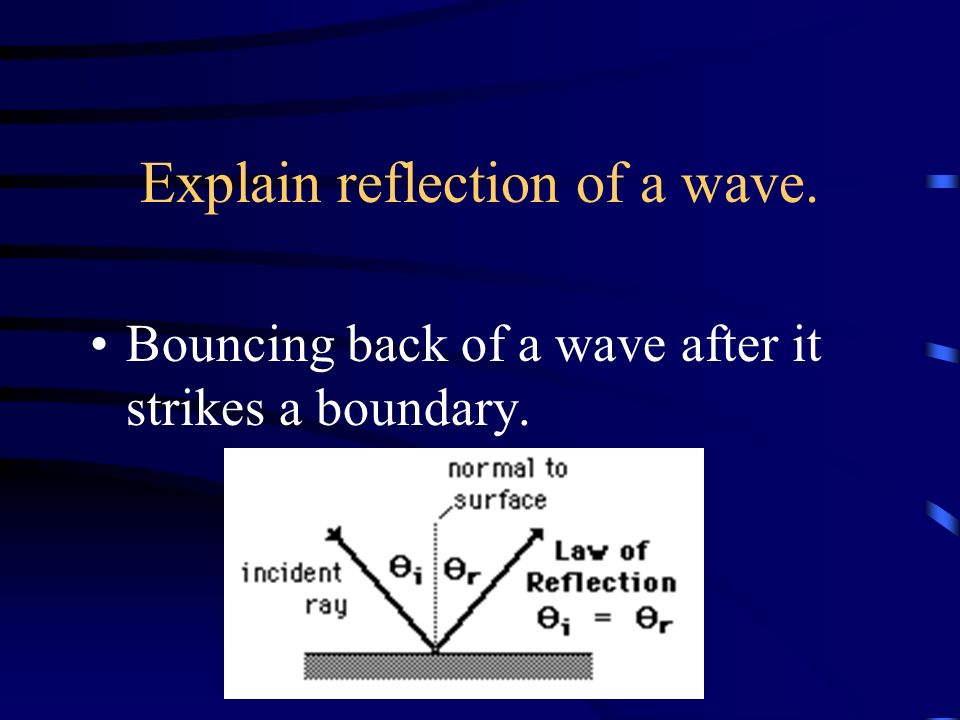

30 Explain reflection of a wave. Bouncing back of a wave after it strikes a boundary.

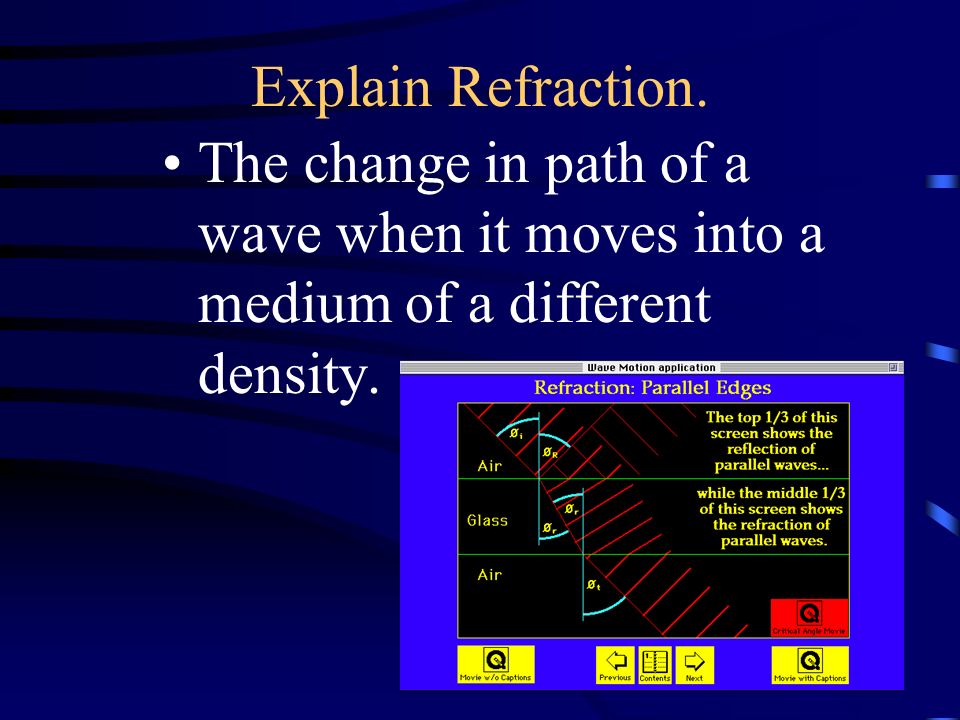

31 Explain Refraction. The change in path of a wave when it moves into a medium of a different density.

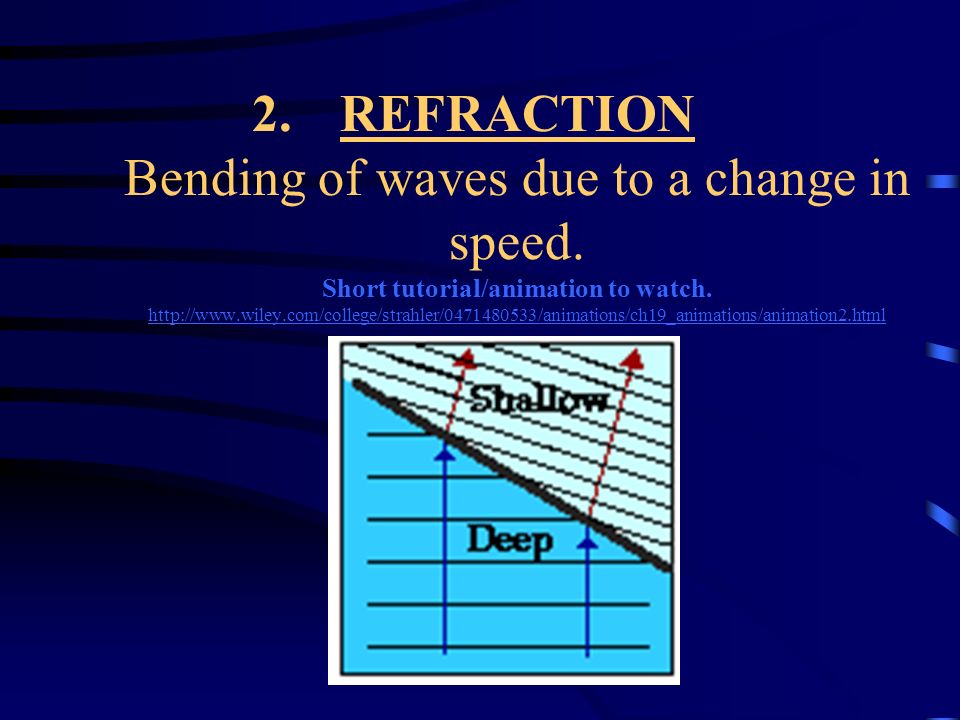

32 2.REFRACTION Bending of waves due to a change in speed. Short tutorial/animation to watch. http://www.wiley.com/college/strahler/0471480533/animations/ch19_animations/animation2.html http://www.wiley.com/college/strahler/0471480533/animations/ch19_animations/animation2.html

33 Explain Diffraction. The curving of waves around barriers and ability of waves to spread out in circular pattern after passing through a narrow opening. See picture below.

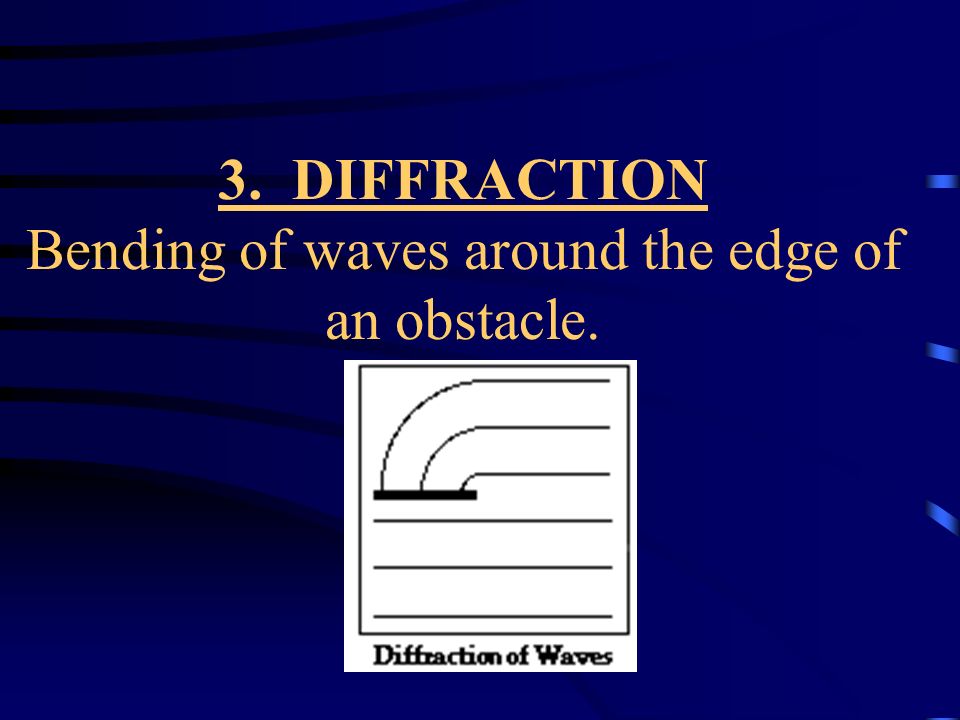

34 3. DIFFRACTION Bending of waves around the edge of an obstacle.

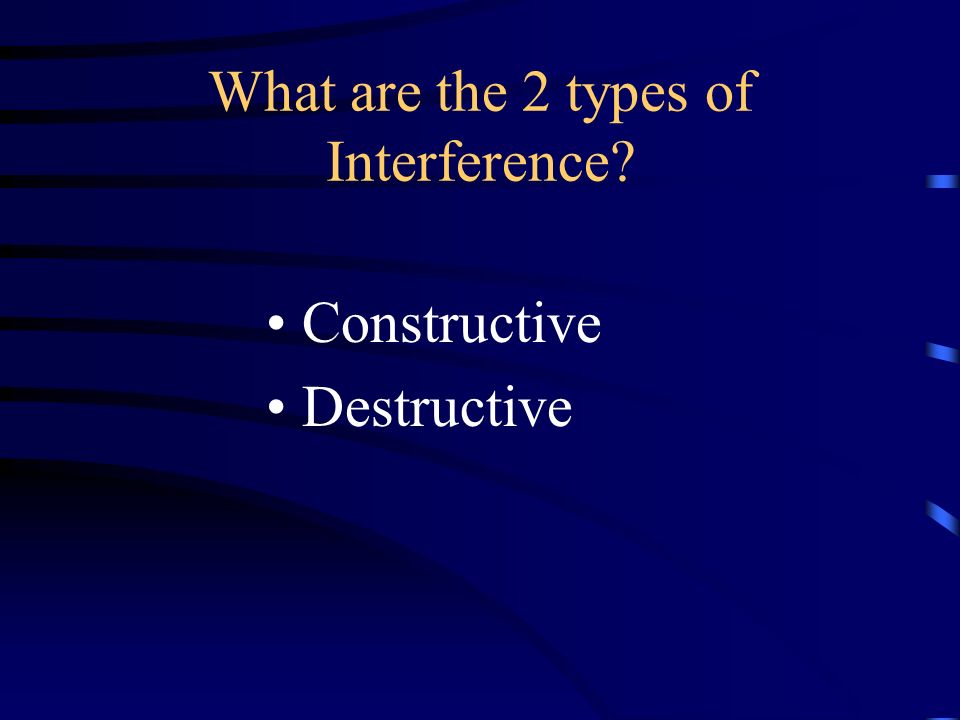

35 What are the 2 types of Interference? Constructive Destructive

36 Which of the pictures below is an example of Constructive Interference? The picture on the left is constructive interference. The picture on the right is destructive interference.

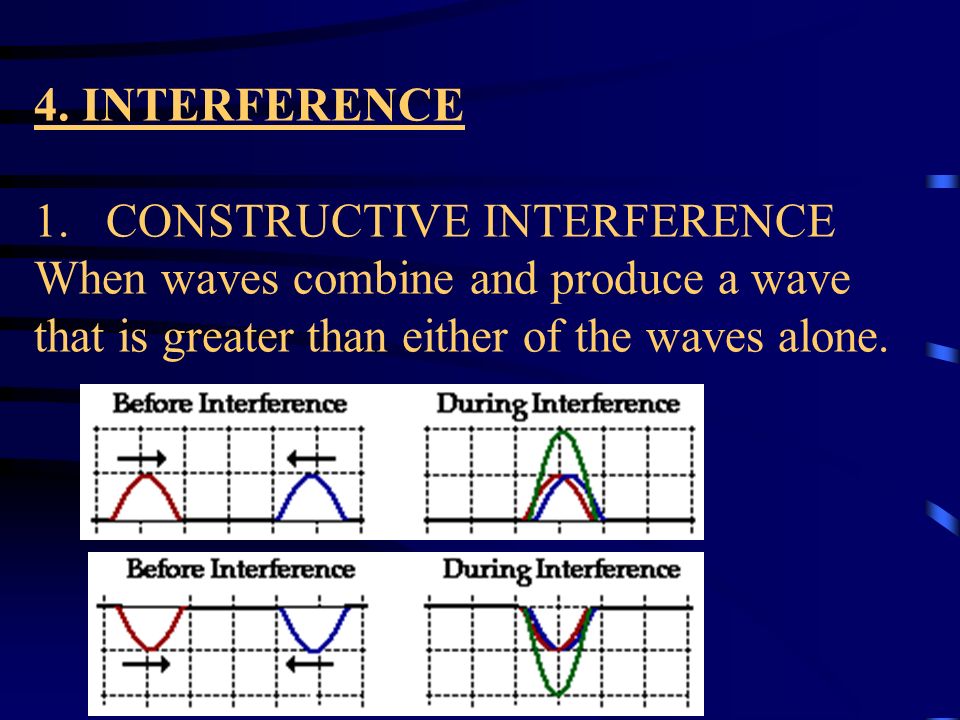

37 4. INTERFERENCE 1. CONSTRUCTIVE INTERFERENCE When waves combine and produce a wave that is greater than either of the waves alone.

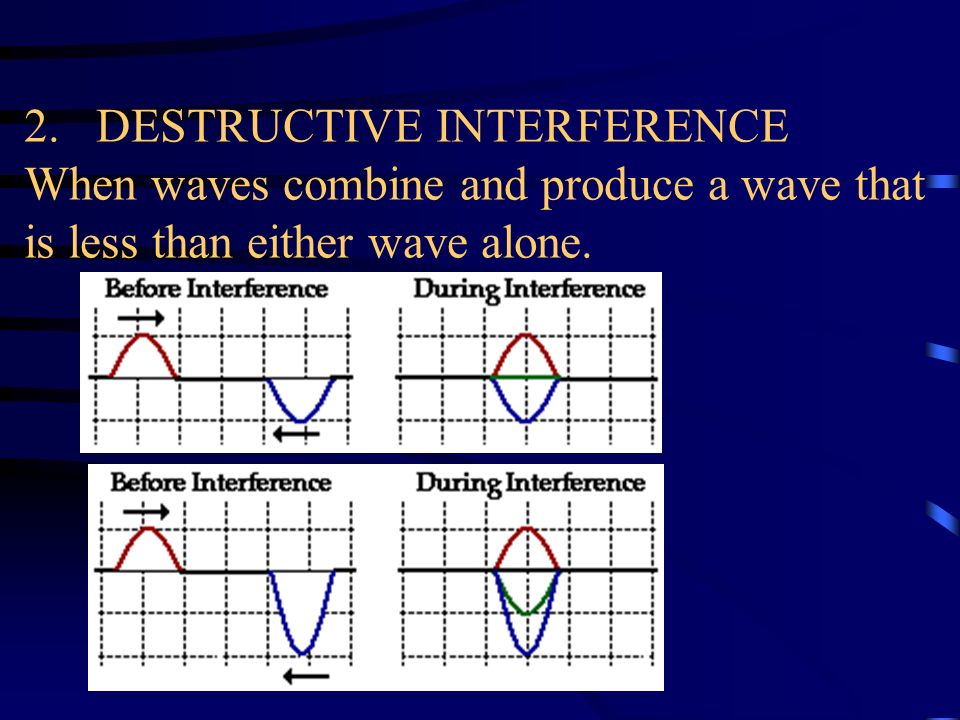

38 2. DESTRUCTIVE INTERFERENCE When waves combine and produce a wave that is less than either wave alone.

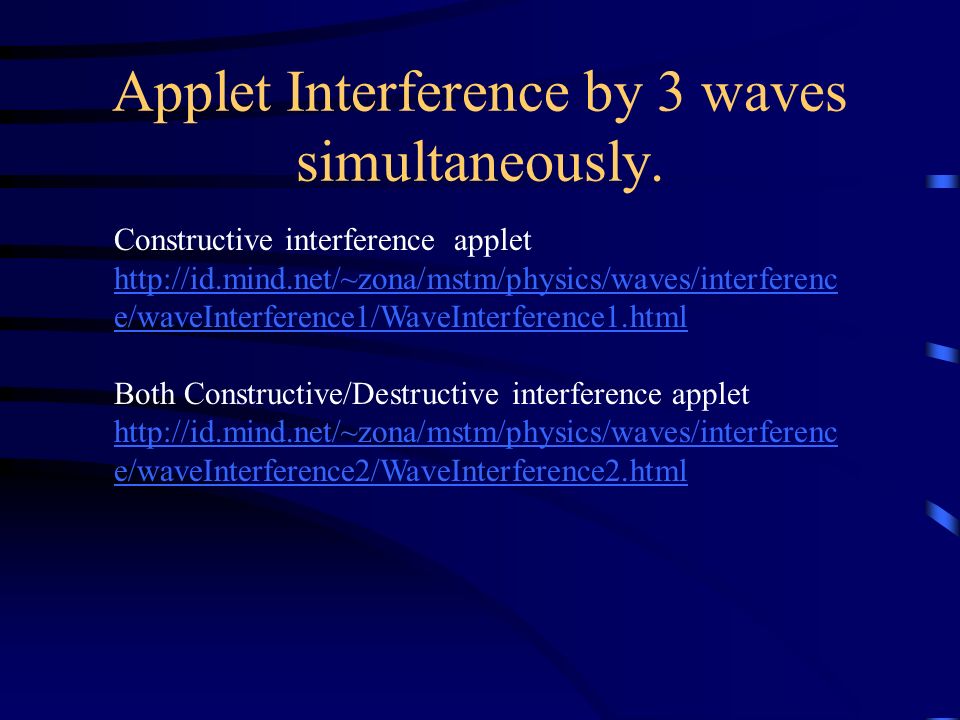

39 Applet Interference by 3 waves simultaneously. Constructive interference applet http://id.mind.net/~zona/mstm/physics/waves/interferenc e/waveInterference1/WaveInterference1.html Both Constructive/Destructive interference applet http://id.mind.net/~zona/mstm/physics/waves/interferenc e/waveInterference2/WaveInterference2.html

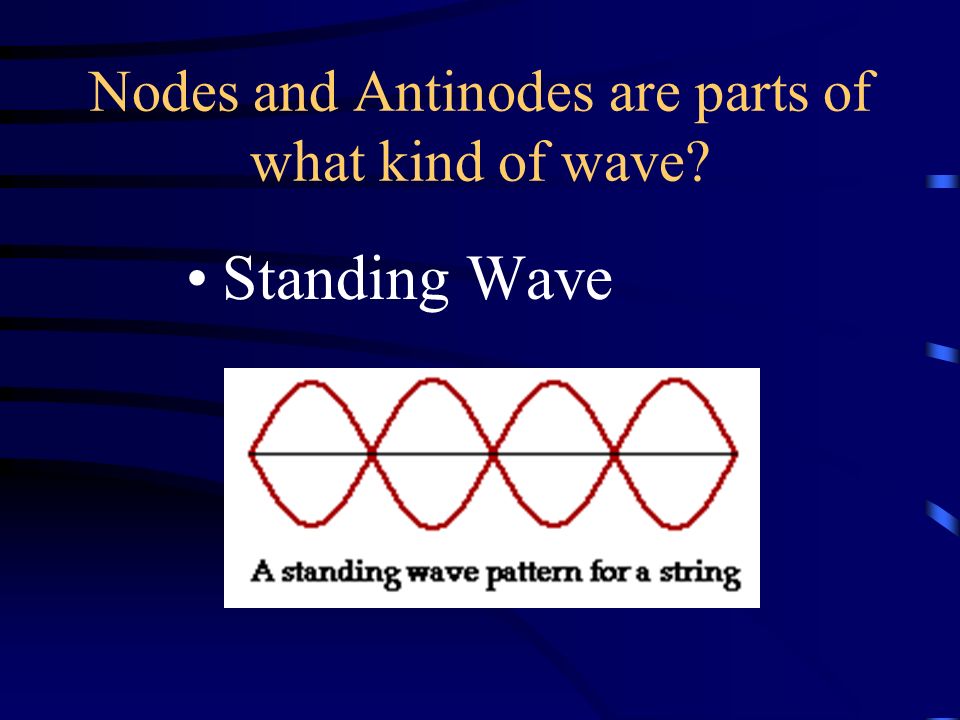

40 Nodes and Antinodes are parts of what kind of wave? Standing Wave

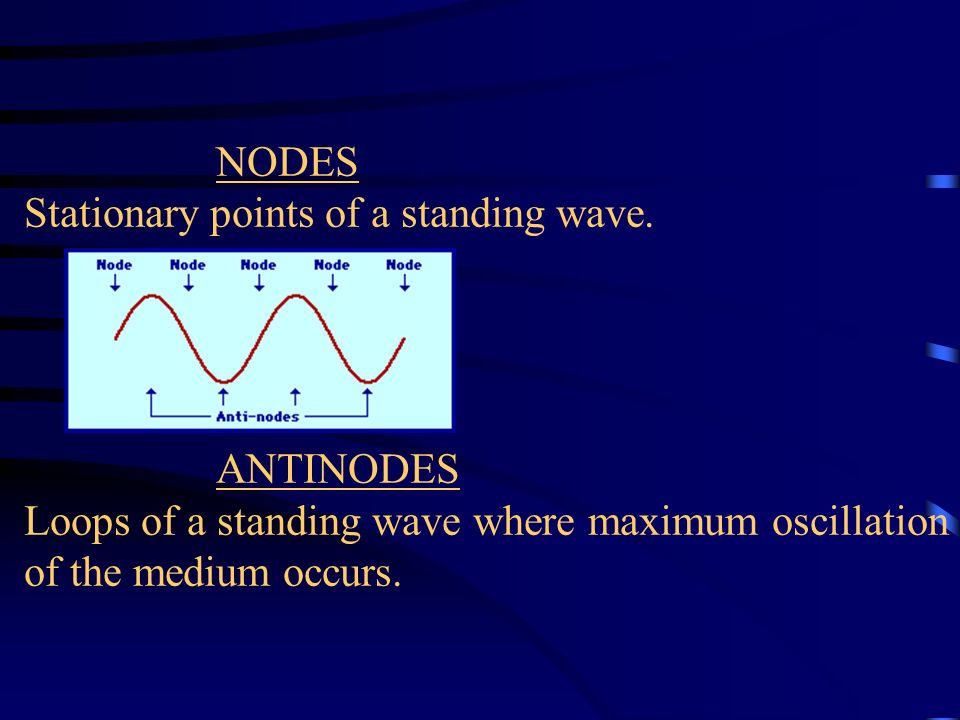

41 NODES Stationary points of a standing wave. ANTINODES Loops of a standing wave where maximum oscillation of the medium occurs.

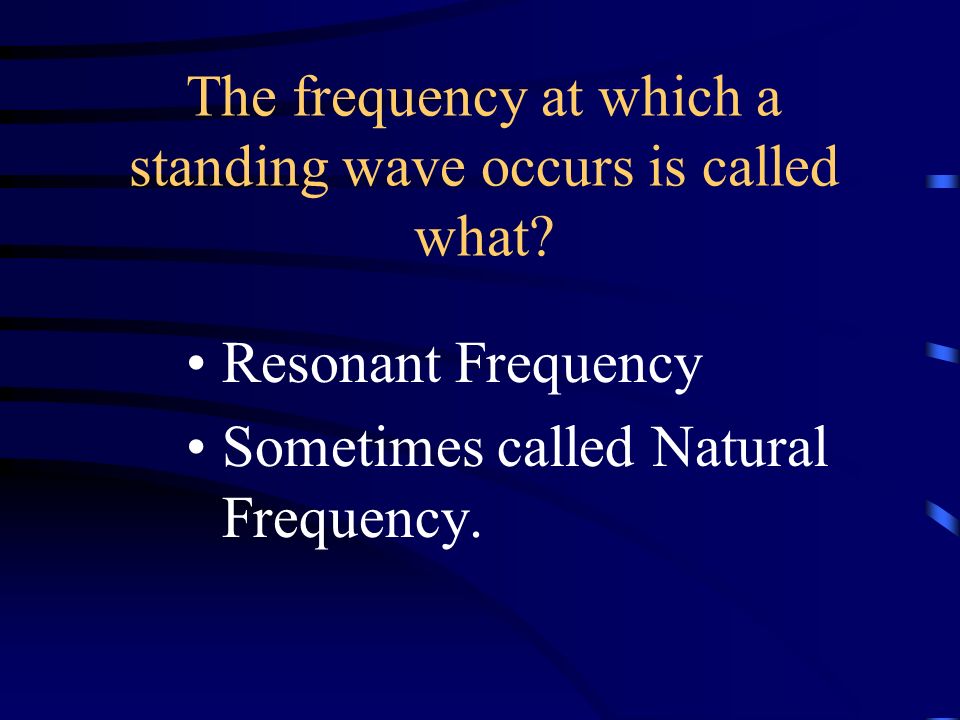

42 The frequency at which a standing wave occurs is called what? Resonant Frequency Sometimes called Natural Frequency.

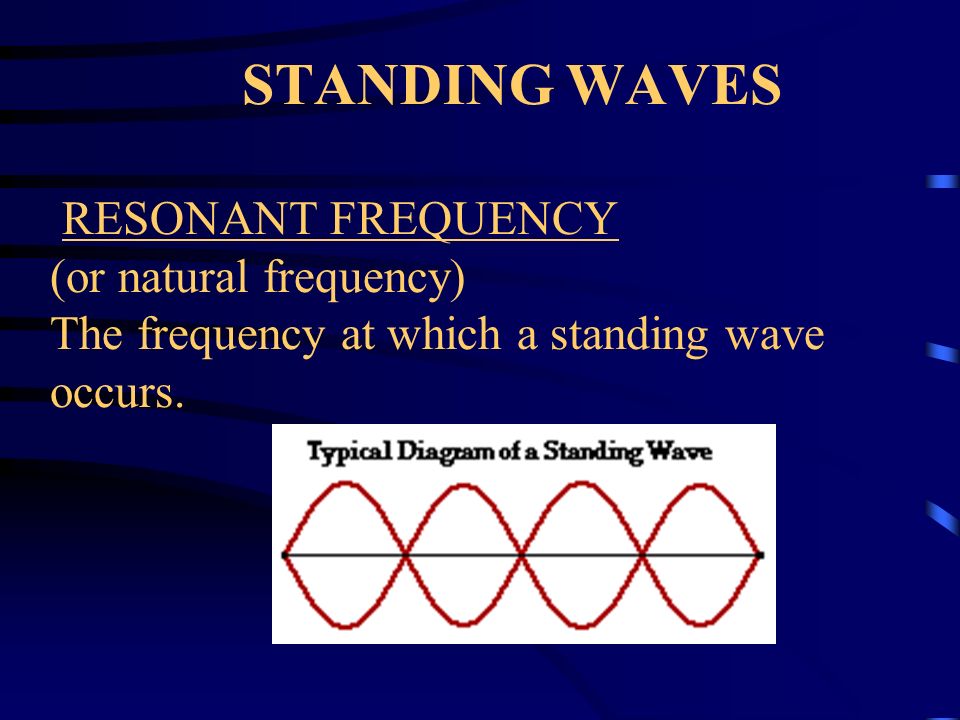

43 STANDING WAVES RESONANT FREQUENCY (or natural frequency) The frequency at which a standing wave occurs.

44
