1 Hydro Energy the source of clean renewable energy.

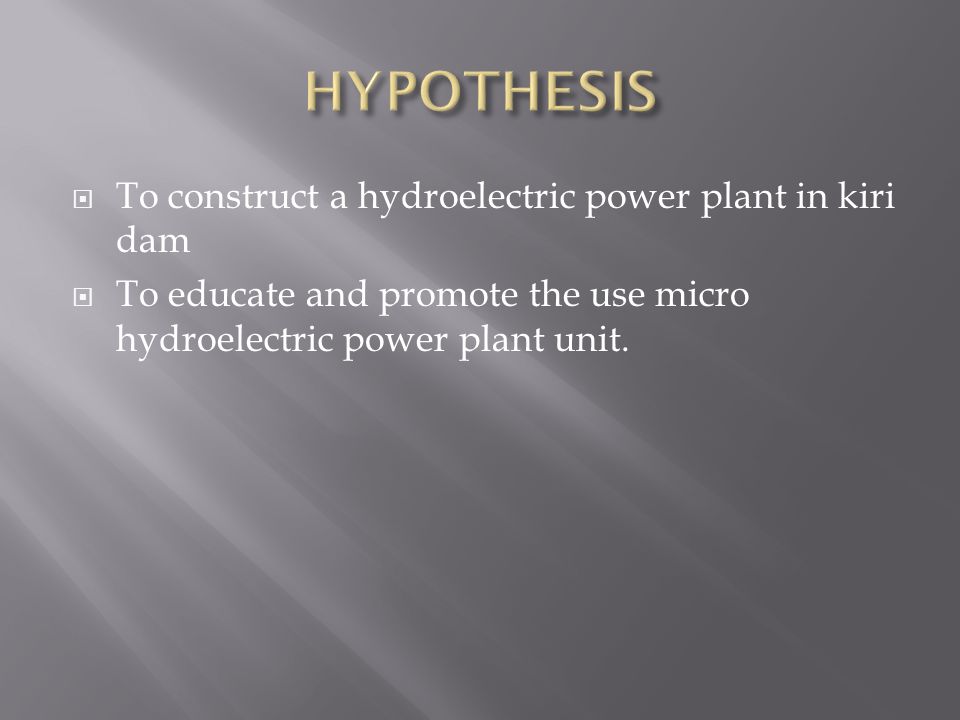

2  To construct a hydroelectric power plant in kiri dam  To educate and promote the use micro hydroelectric power plant unit.

3

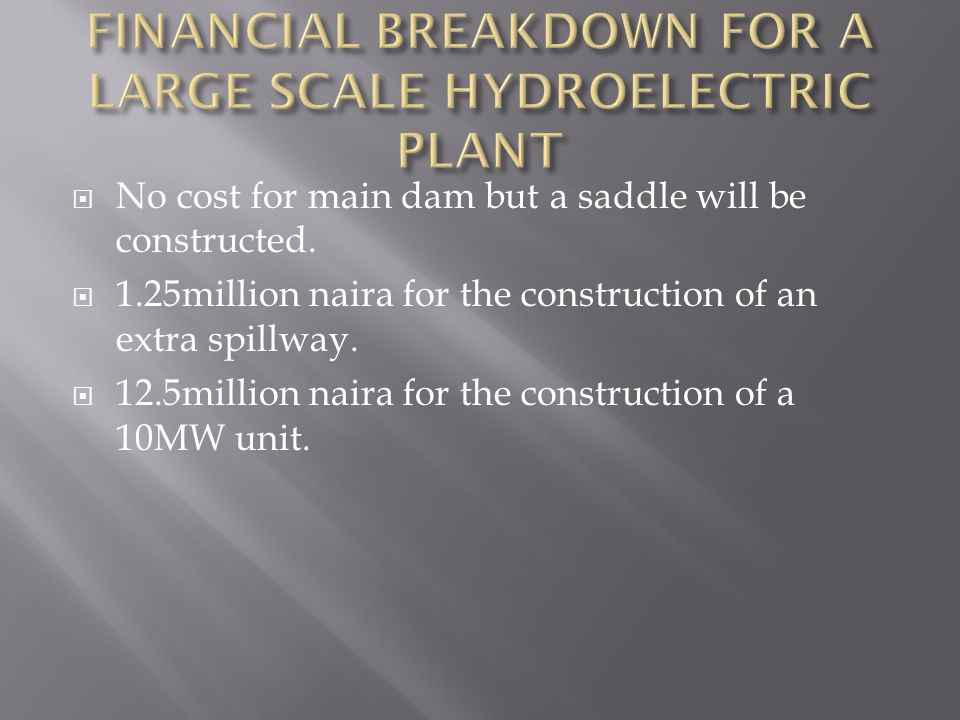

4  No cost for main dam but a saddle will be constructed.  1.25million naira for the construction of an extra spillway.  12.5million naira for the construction of a 10MW unit.

5

6  Where there is no low-flowing river available, a water reservoir can be used.  4 PVC pipes 4*750 = #3 000  4 valves and 4 joint heads 8*300 = #2 400  A small turbine #6 500  ES&D stream engine DC Gen #17 000  2 AGM batteries #32 000  Other accessories #35 000

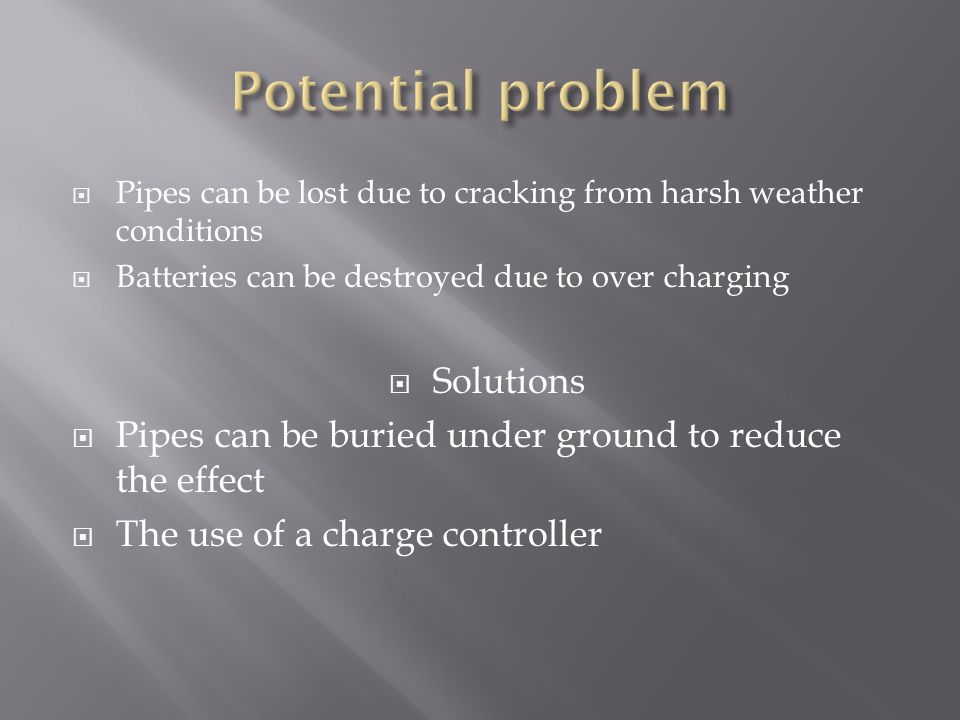

7  Pipes can be lost due to cracking from harsh weather conditions  Batteries can be destroyed due to over charging  Solutions  Pipes can be buried under ground to reduce the effect  The use of a charge controller
