1. 1 TeraGrid Data Transfer Jeffrey P. Gardner Pittsburgh Supercomputing Center gardnerj@psc.edu

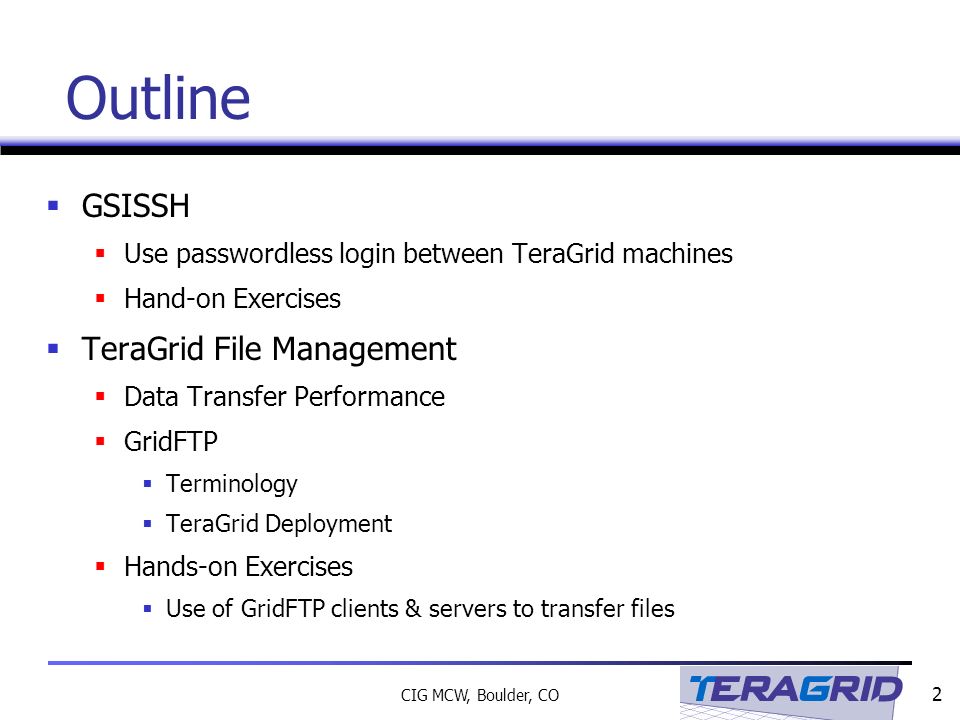

2. 2 CIG MCW, Boulder, CO Outline  GSISSH  Use passwordless login between TeraGrid machines  Hand-on Exercises  TeraGrid File Management  Data Transfer Performance  GridFTP  Terminology  TeraGrid Deployment  Hands-on Exercises  Use of GridFTP clients & servers to transfer files

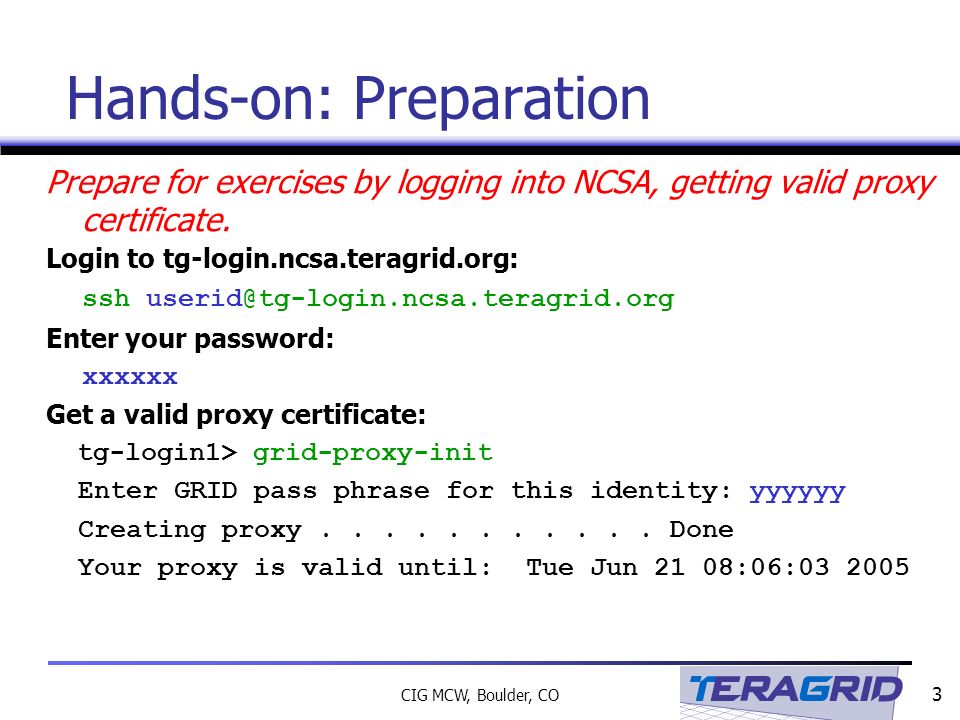

3. 3 CIG MCW, Boulder, CO Hands-on: Preparation Prepare for exercises by logging into NCSA, getting valid proxy certificate. Login to tg-login.ncsa.teragrid.org: ssh userid@tg-login.ncsa.teragrid.org Enter your password: xxxxxx Get a valid proxy certificate: tg-login1> grid-proxy-init Enter GRID pass phrase for this identity: yyyyyy Creating proxy........... Done Your proxy is valid until: Tue Jun 21 08:06:03 2005

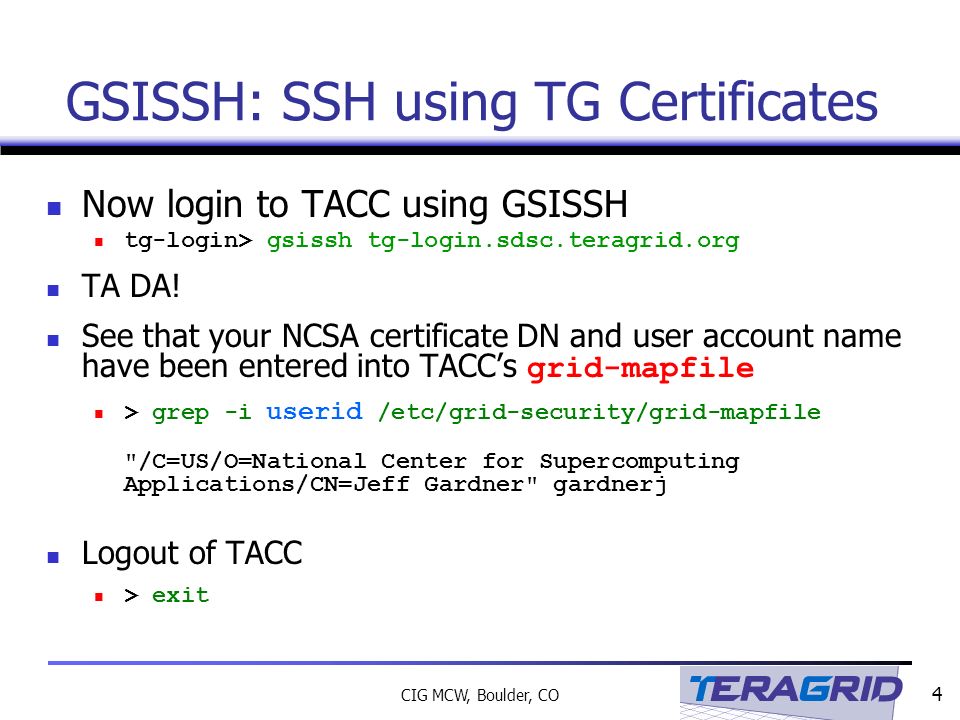

4. 4 CIG MCW, Boulder, CO GSISSH: SSH using TG Certificates Now login to TACC using GSISSH tg-login> gsissh tg-login.sdsc.teragrid.org TA DA! See that your NCSA certificate DN and user account name have been entered into TACC’s grid-mapfile > grep -i userid /etc/grid-security/grid-mapfile "/C=US/O=National Center for Supercomputing Applications/CN=Jeff Gardner" gardnerj Logout of TACC > exit

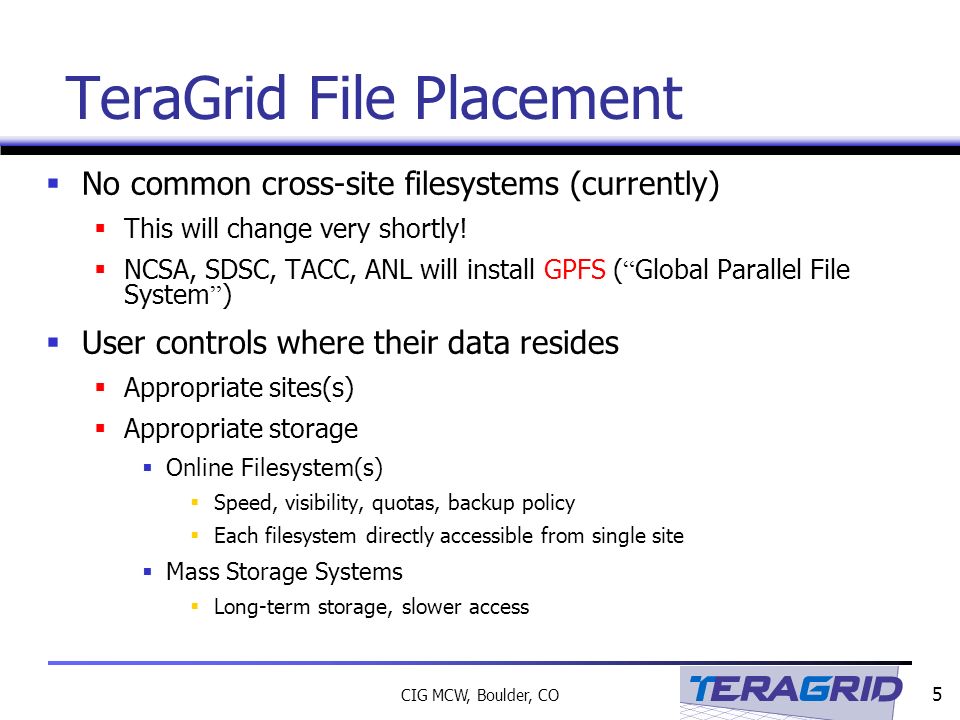

5. 5 CIG MCW, Boulder, CO TeraGrid File Placement  No common cross-site filesystems (currently)  This will change very shortly!  NCSA, SDSC, TACC, ANL will install GPFS ( “ Global Parallel File System ” )  User controls where their data resides  Appropriate sites(s)  Appropriate storage  Online Filesystem(s)  Speed, visibility, quotas, backup policy  Each filesystem directly accessible from single site  Mass Storage Systems  Long-term storage, slower access

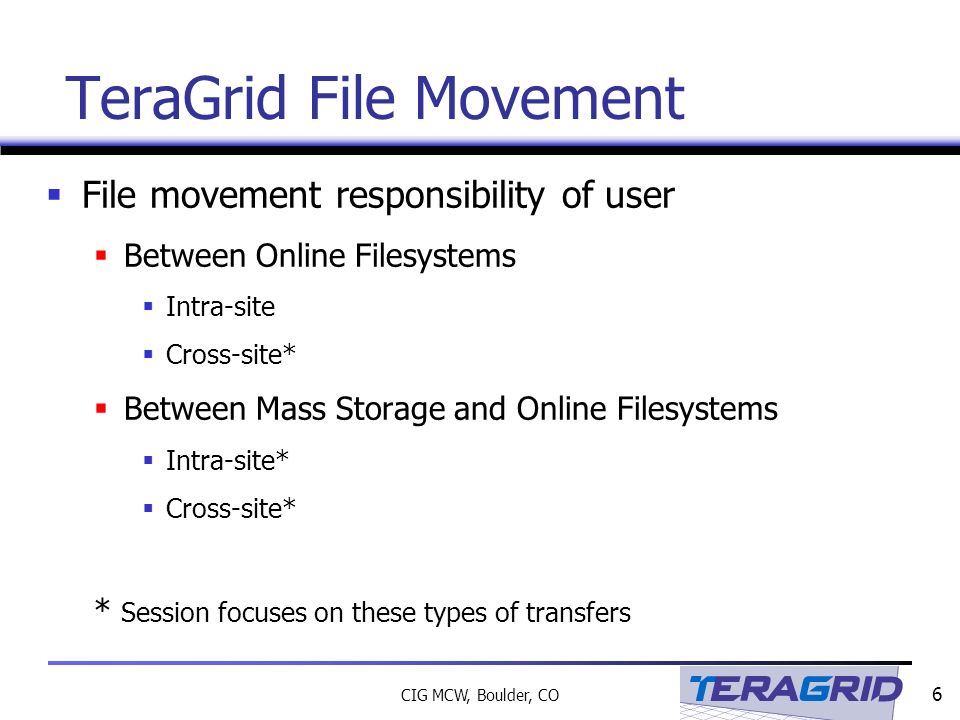

6. 6 CIG MCW, Boulder, CO TeraGrid File Movement  File movement responsibility of user  Between Online Filesystems  Intra-site  Cross-site*  Between Mass Storage and Online Filesystems  Intra-site*  Cross-site* * Session focuses on these types of transfers

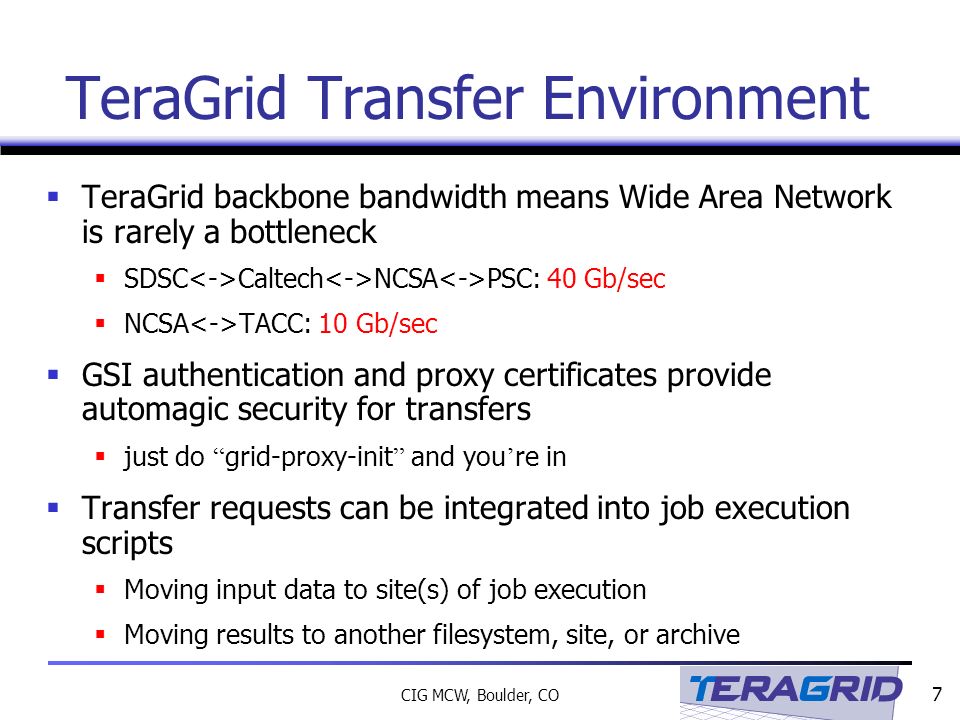

7. 7 CIG MCW, Boulder, CO TeraGrid Transfer Environment  TeraGrid backbone bandwidth means Wide Area Network is rarely a bottleneck  SDSC Caltech NCSA PSC: 40 Gb/sec  NCSA TACC: 10 Gb/sec  GSI authentication and proxy certificates provide automagic security for transfers  just do “ grid-proxy-init ” and you ’ re in  Transfer requests can be integrated into job execution scripts  Moving input data to site(s) of job execution  Moving results to another filesystem, site, or archive

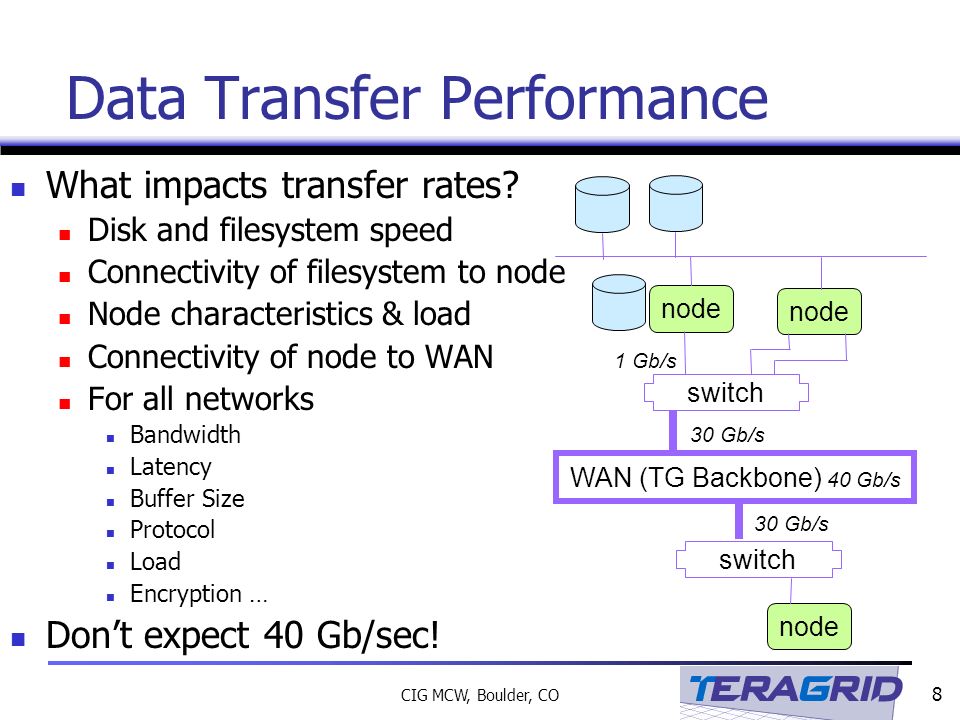

8. 8 CIG MCW, Boulder, CO Data Transfer Performance What impacts transfer rates? Disk and filesystem speed Connectivity of filesystem to node Node characteristics & load Connectivity of node to WAN For all networks Bandwidth Latency Buffer Size Protocol Load Encryption … Don’t expect 40 Gb/sec! node WAN (TG Backbone) 40 Gb/s switch node 30 Gb/s 1 Gb/s switch 30 Gb/s node

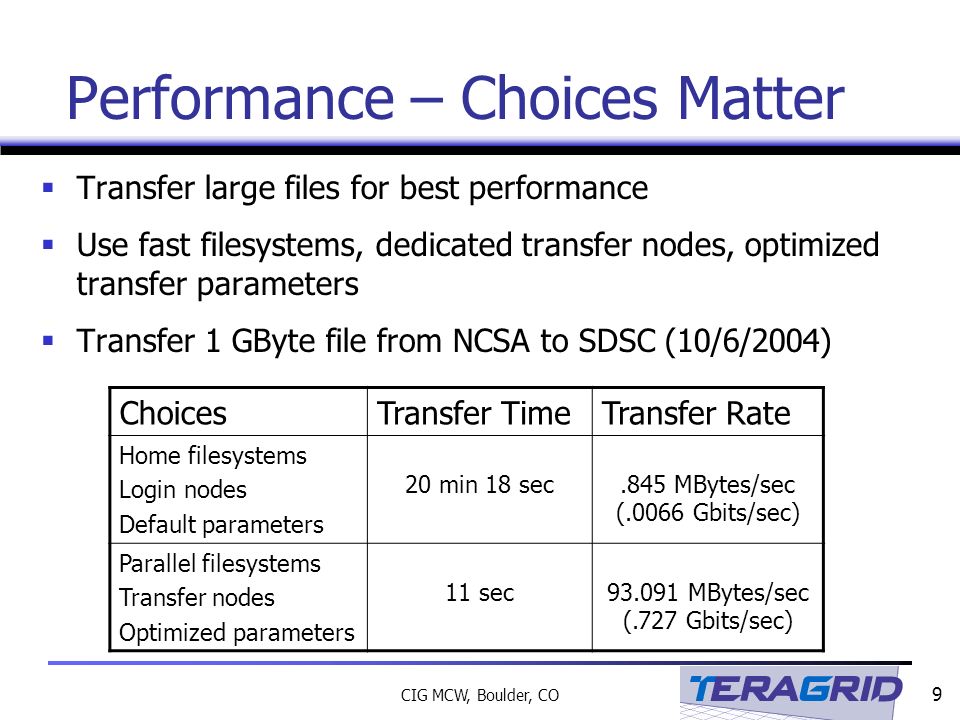

9. 9 CIG MCW, Boulder, CO Performance – Choices Matter  Transfer large files for best performance  Use fast filesystems, dedicated transfer nodes, optimized transfer parameters  Transfer 1 GByte file from NCSA to SDSC (10/6/2004) ChoicesTransfer TimeTransfer Rate Home filesystems Login nodes Default parameters 20 min 18 sec.845 MBytes/sec (.0066 Gbits/sec) Parallel filesystems Transfer nodes Optimized parameters 11 sec93.091 MBytes/sec (.727 Gbits/sec)

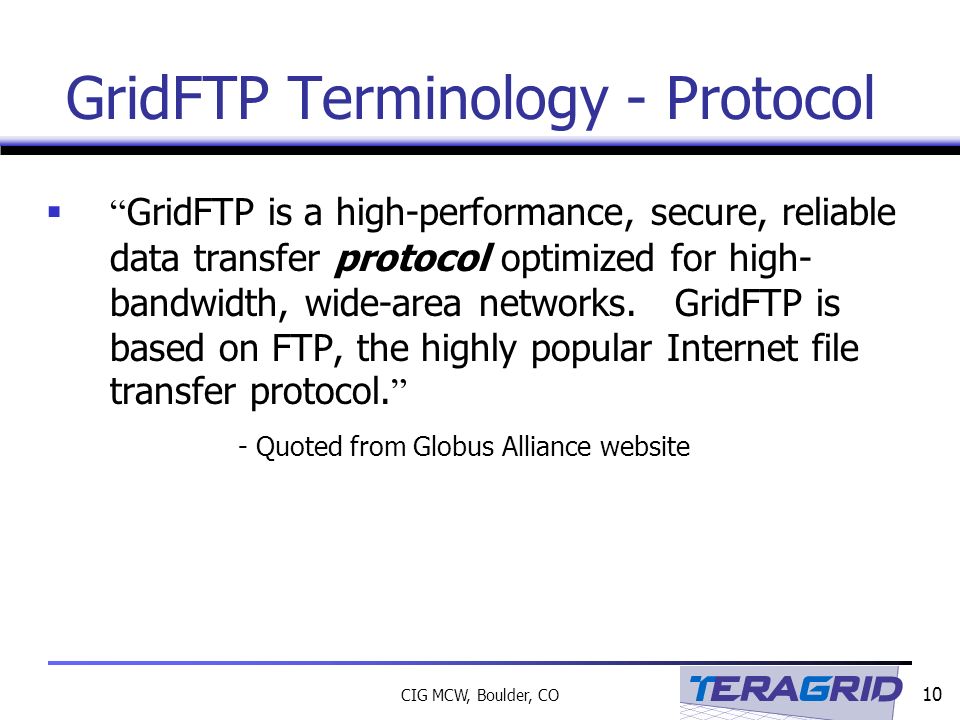

10. 10 CIG MCW, Boulder, CO GridFTP Terminology - Protocol  “ GridFTP is a high-performance, secure, reliable data transfer protocol optimized for high- bandwidth, wide-area networks. GridFTP is based on FTP, the highly popular Internet file transfer protocol. ” - Quoted from Globus Alliance website

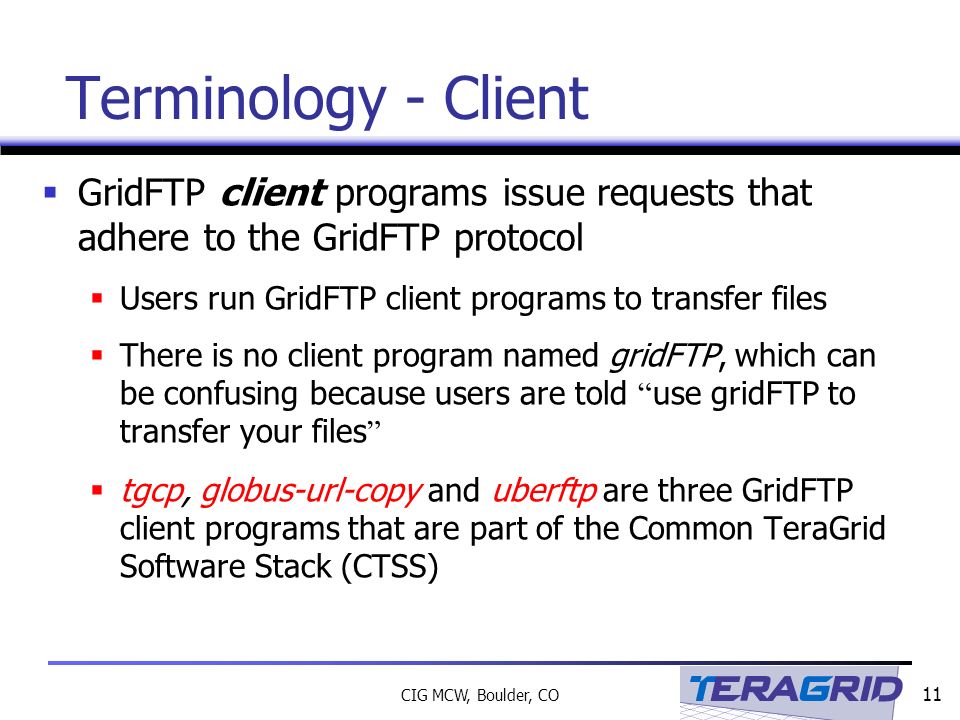

11. 11 CIG MCW, Boulder, CO Terminology - Client  GridFTP client programs issue requests that adhere to the GridFTP protocol  Users run GridFTP client programs to transfer files  There is no client program named gridFTP, which can be confusing because users are told “ use gridFTP to transfer your files ”  tgcp, globus-url-copy and uberftp are three GridFTP client programs that are part of the Common TeraGrid Software Stack (CTSS)

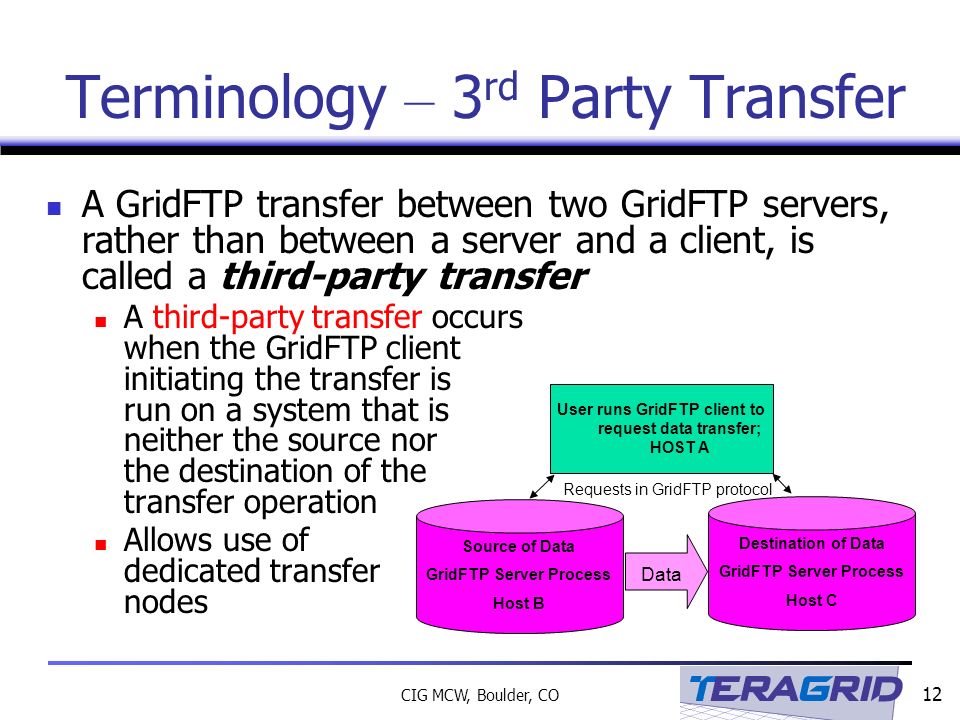

12. 12 CIG MCW, Boulder, CO Terminology – 3 rd Party Transfer A GridFTP transfer between two GridFTP servers, rather than between a server and a client, is called a third-party transfer A third-party transfer occurs when the GridFTP client initiating the transfer is run on a system that is neither the source nor the destination of the transfer operation Allows use of dedicated transfer nodes User runs GridFTP client to request data transfer; HOST A Source of Data GridFTP Server Process Host B Data Requests in GridFTP protocol Destination of Data GridFTP Server Process Host C

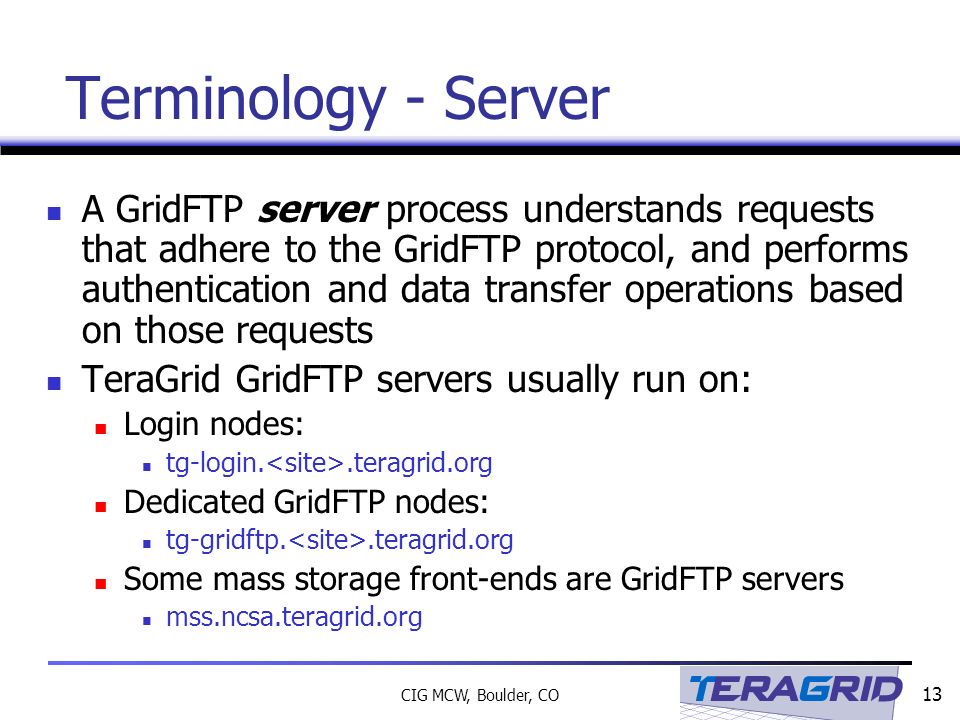

13. 13 CIG MCW, Boulder, CO Terminology - Server A GridFTP server process understands requests that adhere to the GridFTP protocol, and performs authentication and data transfer operations based on those requests TeraGrid GridFTP servers usually run on: Login nodes: tg-login..teragrid.org Dedicated GridFTP nodes: tg-gridftp..teragrid.org Some mass storage front-ends are GridFTP servers mss.ncsa.teragrid.org

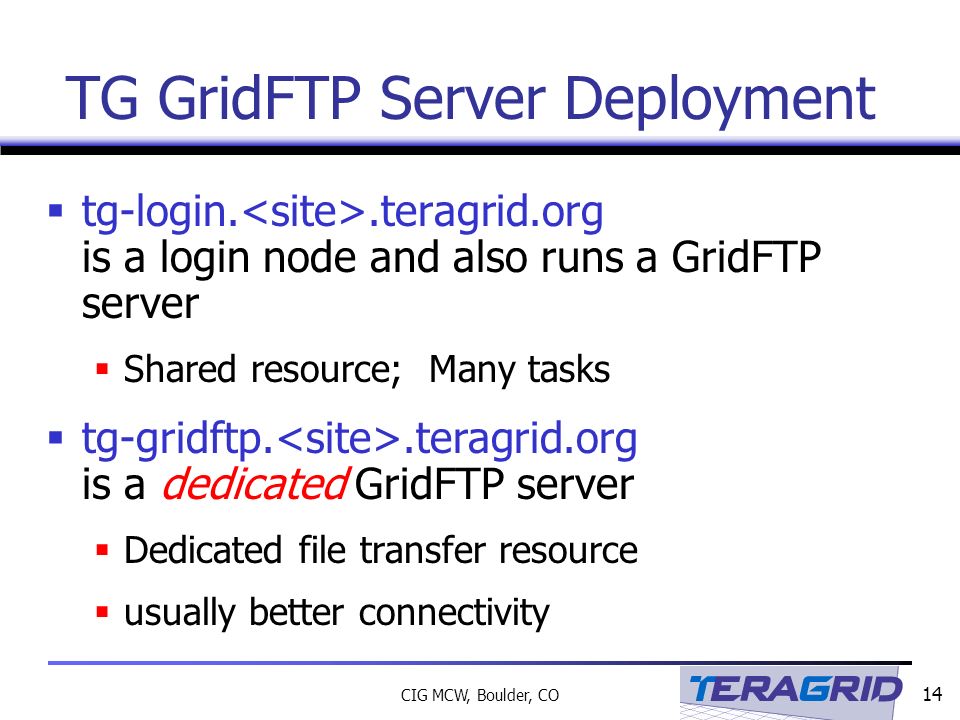

14. 14 CIG MCW, Boulder, CO TG GridFTP Server Deployment  tg-login..teragrid.org is a login node and also runs a GridFTP server  Shared resource; Many tasks  tg-gridftp..teragrid.org is a dedicated GridFTP server  Dedicated file transfer resource  usually better connectivity

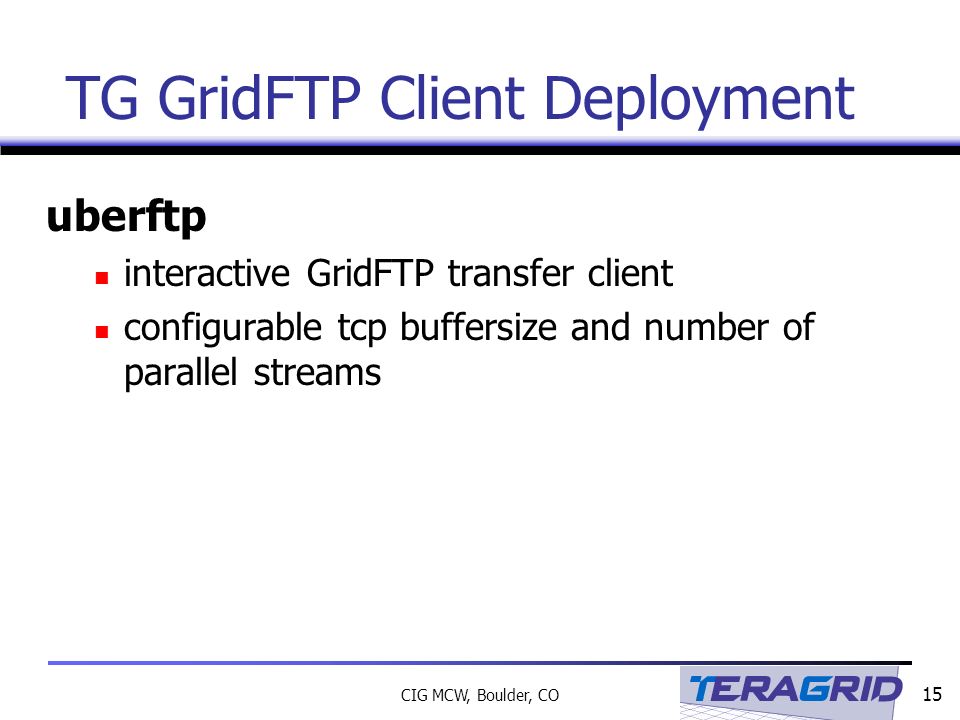

15. 15 CIG MCW, Boulder, CO TG GridFTP Client Deployment uberftp interactive GridFTP transfer client configurable tcp buffersize and number of parallel streams

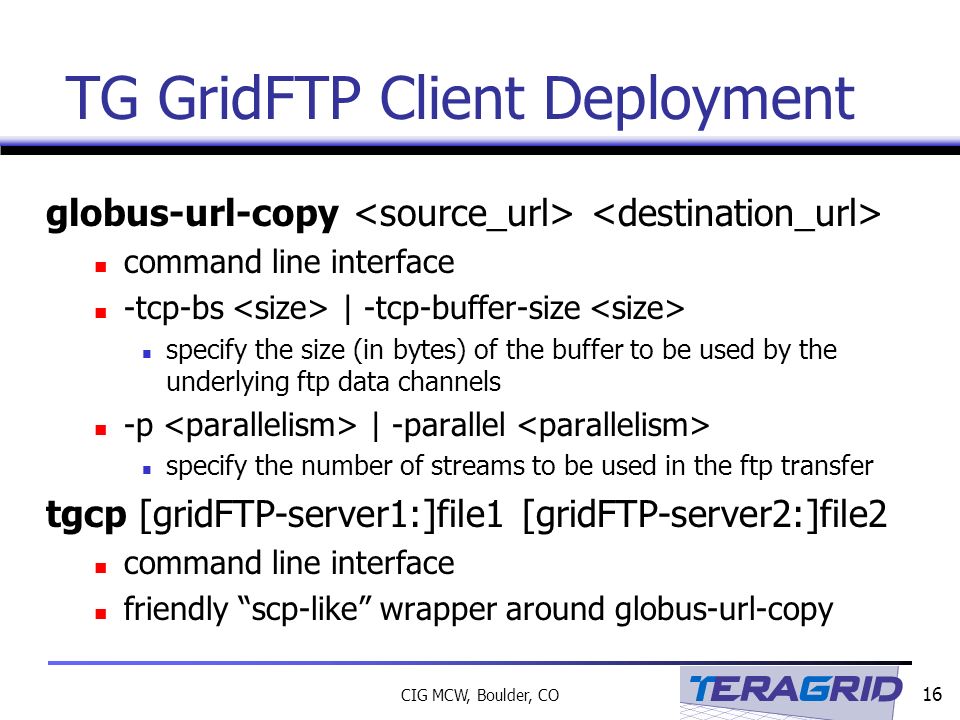

16. 16 CIG MCW, Boulder, CO TG GridFTP Client Deployment globus-url-copy command line interface -tcp-bs | -tcp-buffer-size specify the size (in bytes) of the buffer to be used by the underlying ftp data channels -p | -parallel specify the number of streams to be used in the ftp transfer tgcp [gridFTP-server1:]file1 [gridFTP-server2:]file2 command line interface friendly “scp-like” wrapper around globus-url-copy

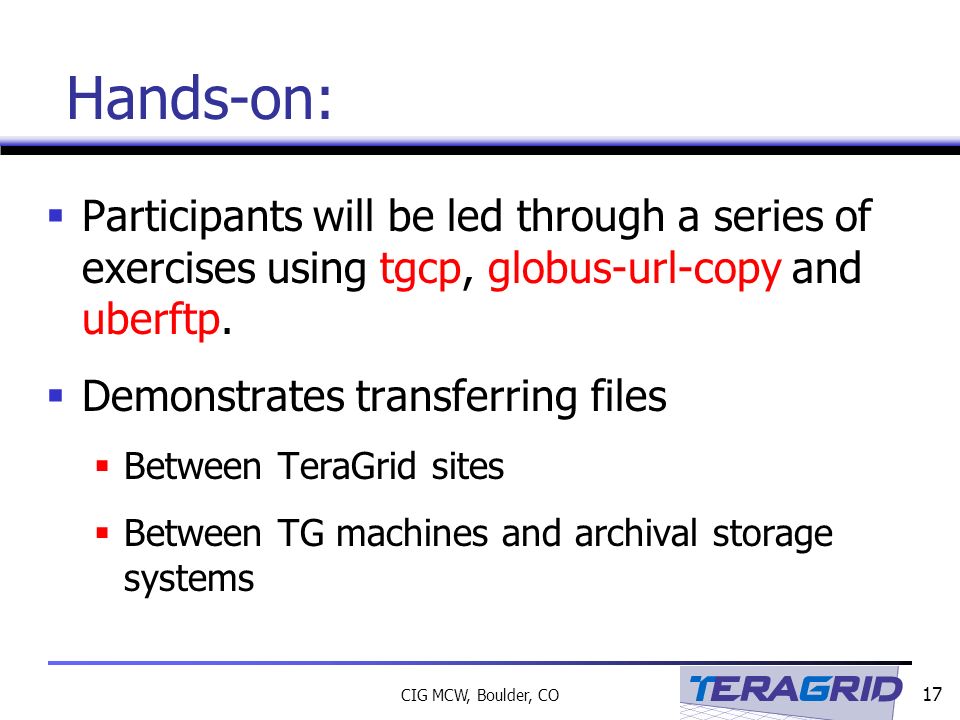

17. 17 CIG MCW, Boulder, CO Hands-on:  Participants will be led through a series of exercises using tgcp, globus-url-copy and uberftp.  Demonstrates transferring files  Between TeraGrid sites  Between TG machines and archival storage systems

18. 18 CIG MCW, Boulder, CO Hands-on preparation:  Login to tg-login.ncsa.teragrid.org if you have not already done so  Get the test data file: wget http://www.psc.edu/~gardnerj/test.file

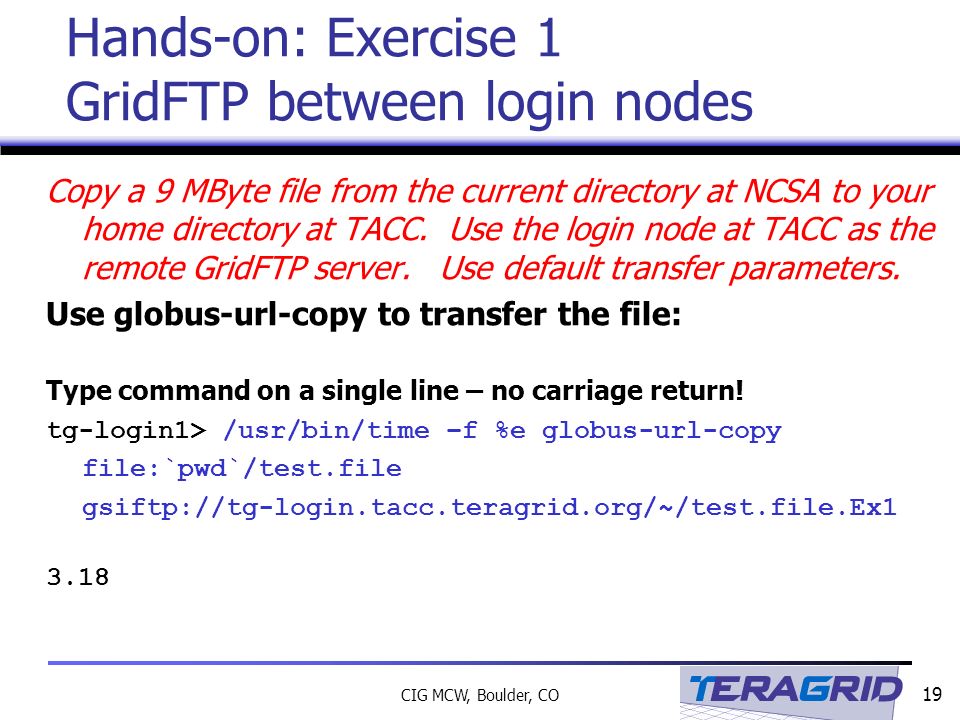

19. 19 CIG MCW, Boulder, CO Hands-on: Exercise 1 GridFTP between login nodes Copy a 9 MByte file from the current directory at NCSA to your home directory at TACC. Use the login node at TACC as the remote GridFTP server. Use default transfer parameters. Use globus-url-copy to transfer the file: Type command on a single line – no carriage return! tg-login1> /usr/bin/time –f %e globus-url-copy file:`pwd`/test.file gsiftp://tg-login.tacc.teragrid.org/~/test.file.Ex1 3.18

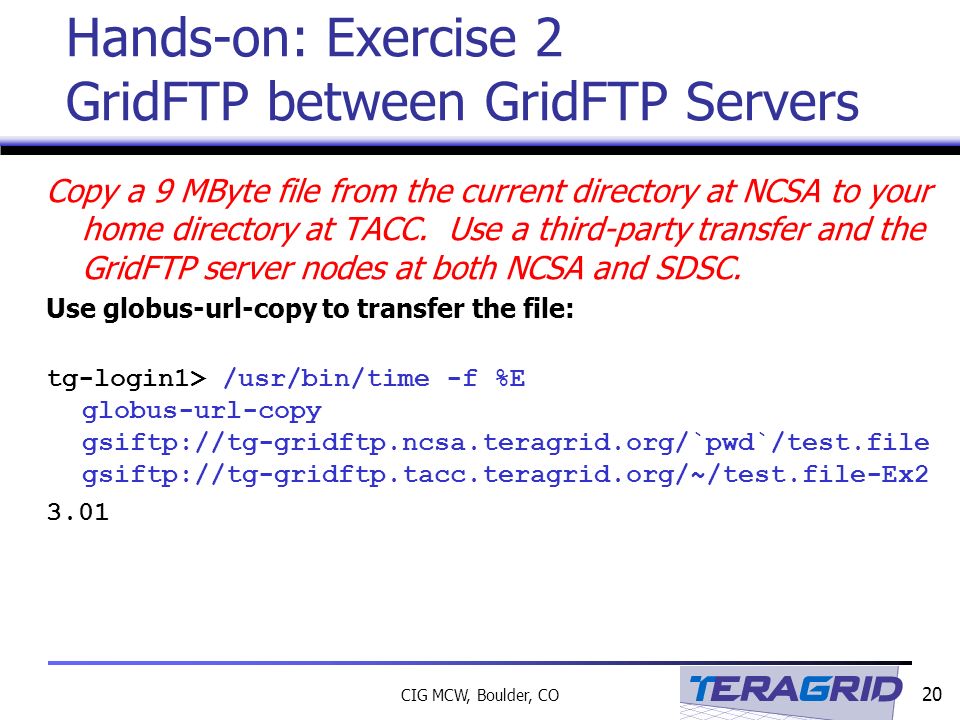

20. 20 CIG MCW, Boulder, CO Hands-on: Exercise 2 GridFTP between GridFTP Servers Copy a 9 MByte file from the current directory at NCSA to your home directory at TACC. Use a third-party transfer and the GridFTP server nodes at both NCSA and SDSC. Use globus-url-copy to transfer the file: tg-login1> /usr/bin/time -f %E globus-url-copy gsiftp://tg-gridftp.ncsa.teragrid.org/`pwd`/test.file gsiftp://tg-gridftp.tacc.teragrid.org/~/test.file-Ex2 3.01

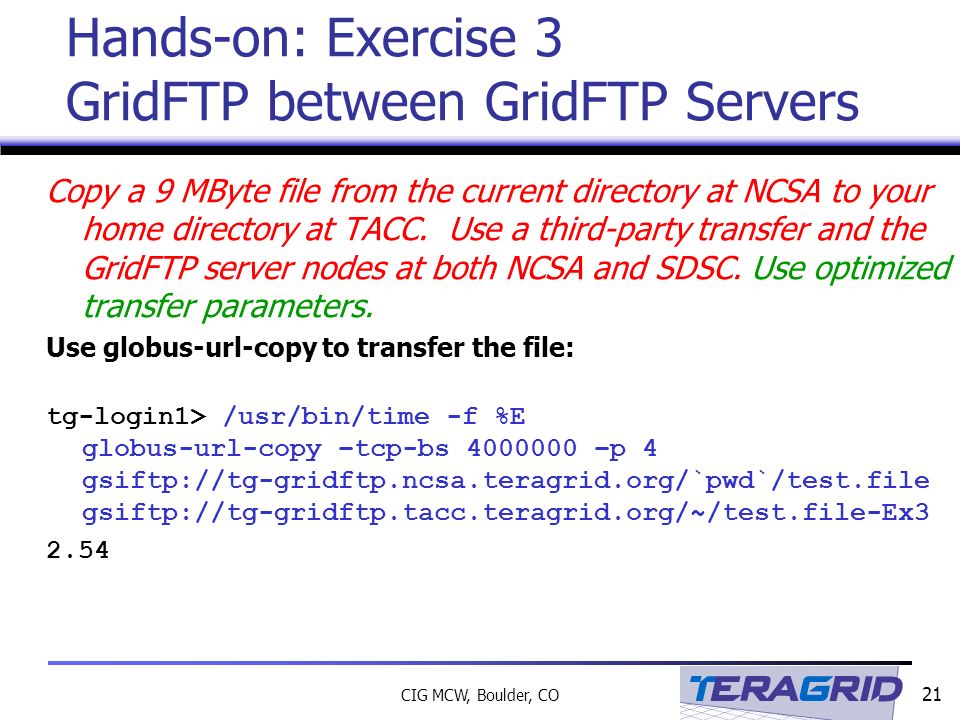

21. 21 CIG MCW, Boulder, CO Hands-on: Exercise 3 GridFTP between GridFTP Servers Copy a 9 MByte file from the current directory at NCSA to your home directory at TACC. Use a third-party transfer and the GridFTP server nodes at both NCSA and SDSC. Use optimized transfer parameters. Use globus-url-copy to transfer the file: tg-login1> /usr/bin/time -f %E globus-url-copy –tcp-bs 4000000 –p 4 gsiftp://tg-gridftp.ncsa.teragrid.org/`pwd`/test.file gsiftp://tg-gridftp.tacc.teragrid.org/~/test.file-Ex3 2.54

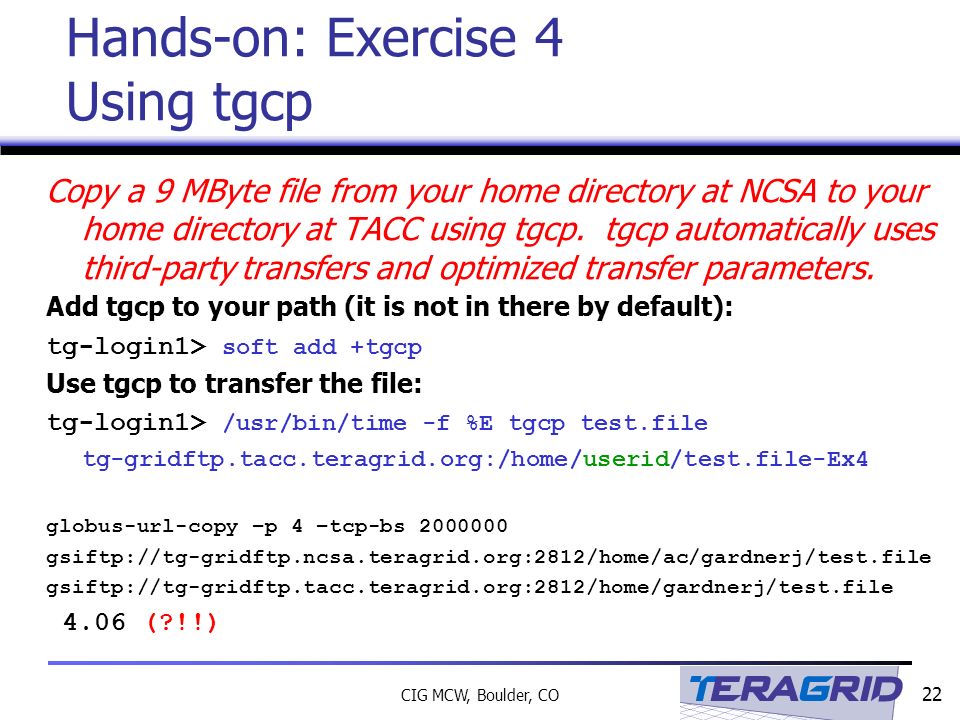

22. 22 CIG MCW, Boulder, CO Hands-on: Exercise 4 Using tgcp Copy a 9 MByte file from your home directory at NCSA to your home directory at TACC using tgcp. tgcp automatically uses third-party transfers and optimized transfer parameters. Add tgcp to your path (it is not in there by default): tg-login1> soft add +tgcp Use tgcp to transfer the file: tg-login1> /usr/bin/time -f %E tgcp test.file tg-gridftp.tacc.teragrid.org:/home/userid/test.file-Ex4 globus-url-copy –p 4 –tcp-bs 2000000 gsiftp://tg-gridftp.ncsa.teragrid.org:2812/home/ac/gardnerj/test.file gsiftp://tg-gridftp.tacc.teragrid.org:2812/home/gardnerj/test.file 4.06 (?!!)

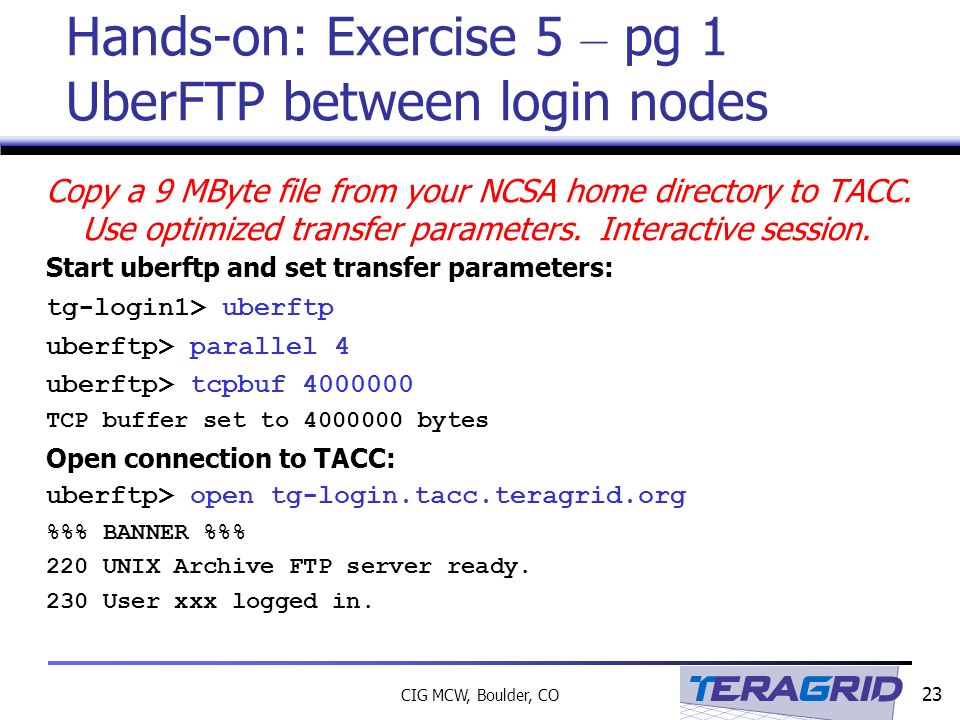

23. 23 CIG MCW, Boulder, CO Hands-on: Exercise 5 – pg 1 UberFTP between login nodes Copy a 9 MByte file from your NCSA home directory to TACC. Use optimized transfer parameters. Interactive session. Start uberftp and set transfer parameters: tg-login1> uberftp uberftp> parallel 4 uberftp> tcpbuf 4000000 TCP buffer set to 4000000 bytes Open connection to TACC: uberftp> open tg-login.tacc.teragrid.org %% BANNER %% 220 UNIX Archive FTP server ready. 230 User xxx logged in.

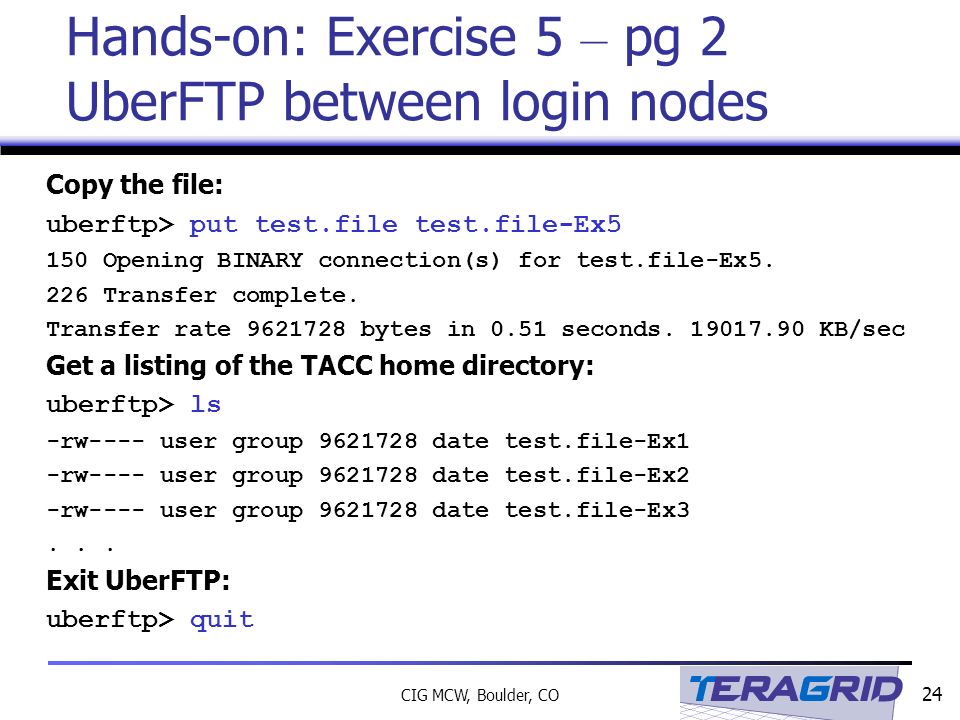

24. 24 CIG MCW, Boulder, CO Hands-on: Exercise 5 – pg 2 UberFTP between login nodes Copy the file: uberftp> put test.file test.file-Ex5 150 Opening BINARY connection(s) for test.file-Ex5. 226 Transfer complete. Transfer rate 9621728 bytes in 0.51 seconds. 19017.90 KB/sec Get a listing of the TACC home directory: uberftp> ls -rw---- user group 9621728 date test.file-Ex1 -rw---- user group 9621728 date test.file-Ex2 -rw---- user group 9621728 date test.file-Ex3... Exit UberFTP: uberftp> quit

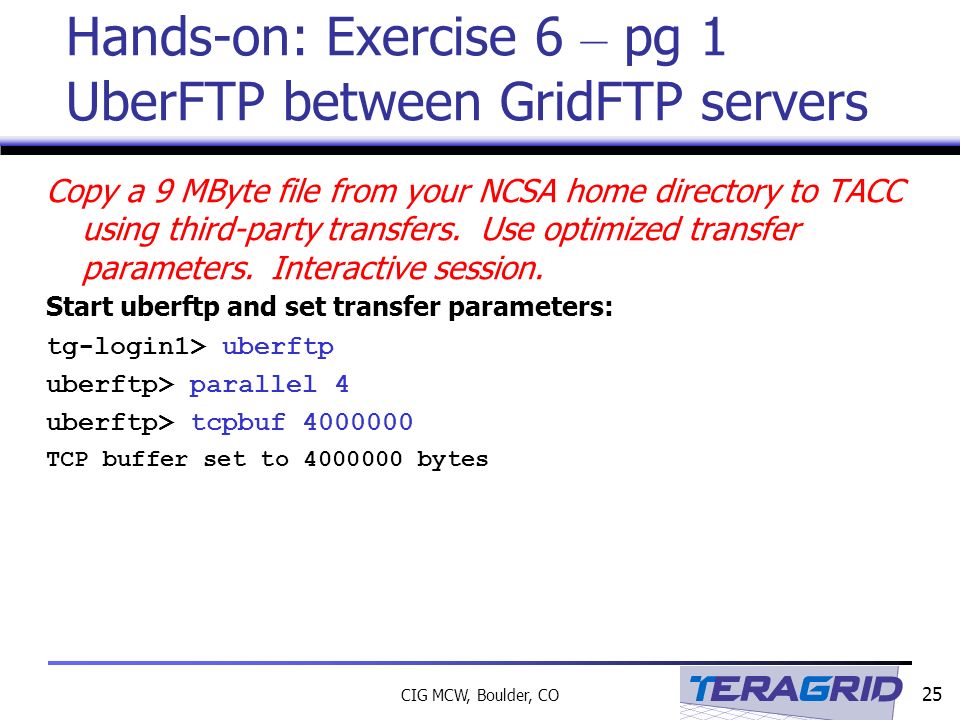

25. 25 CIG MCW, Boulder, CO Hands-on: Exercise 6 – pg 1 UberFTP between GridFTP servers Copy a 9 MByte file from your NCSA home directory to TACC using third-party transfers. Use optimized transfer parameters. Interactive session. Start uberftp and set transfer parameters: tg-login1> uberftp uberftp> parallel 4 uberftp> tcpbuf 4000000 TCP buffer set to 4000000 bytes

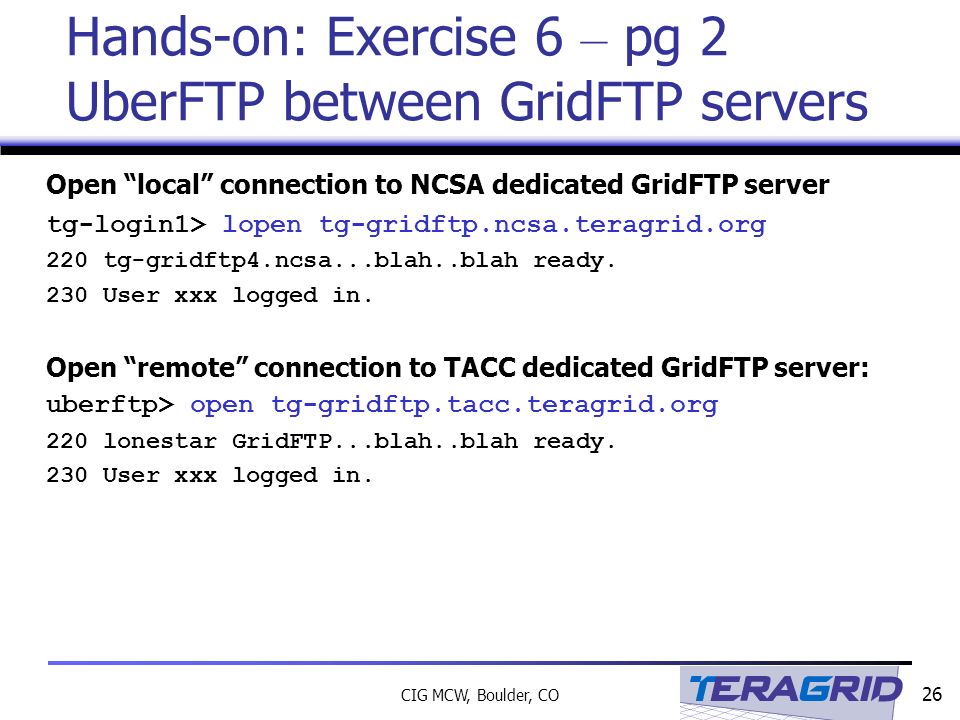

26. 26 CIG MCW, Boulder, CO Hands-on: Exercise 6 – pg 2 UberFTP between GridFTP servers Open “local” connection to NCSA dedicated GridFTP server tg-login1> lopen tg-gridftp.ncsa.teragrid.org 220 tg-gridftp4.ncsa...blah..blah ready. 230 User xxx logged in. Open “remote” connection to TACC dedicated GridFTP server: uberftp> open tg-gridftp.tacc.teragrid.org 220 lonestar GridFTP...blah..blah ready. 230 User xxx logged in.

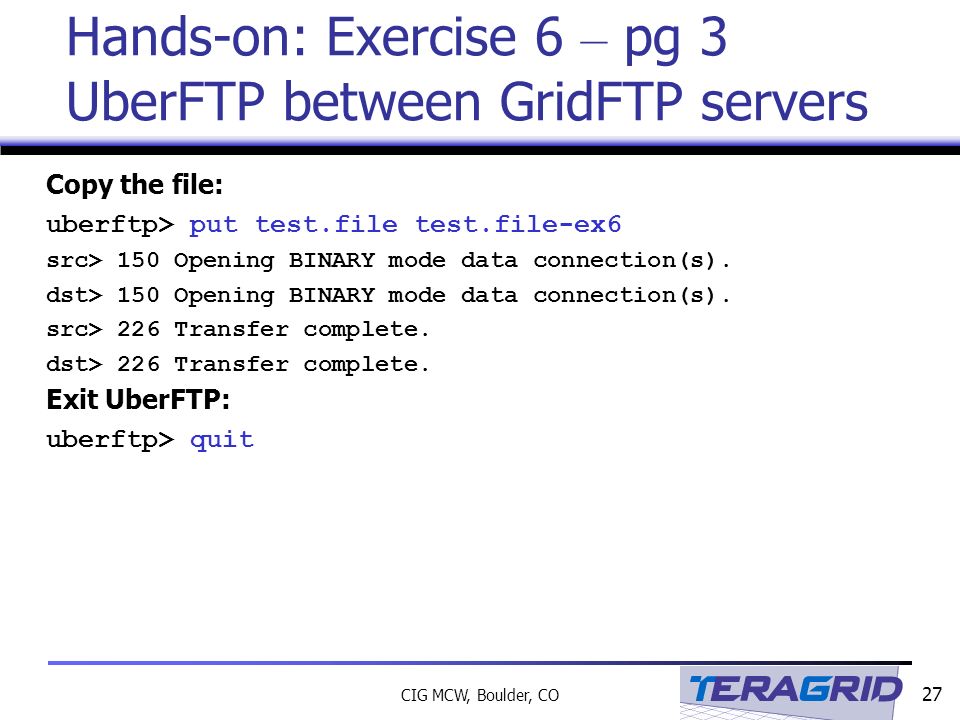

27. 27 CIG MCW, Boulder, CO Hands-on: Exercise 6 – pg 3 UberFTP between GridFTP servers Copy the file: uberftp> put test.file test.file-ex6 src> 150 Opening BINARY mode data connection(s). dst> 150 Opening BINARY mode data connection(s). src> 226 Transfer complete. dst> 226 Transfer complete. Exit UberFTP: uberftp> quit

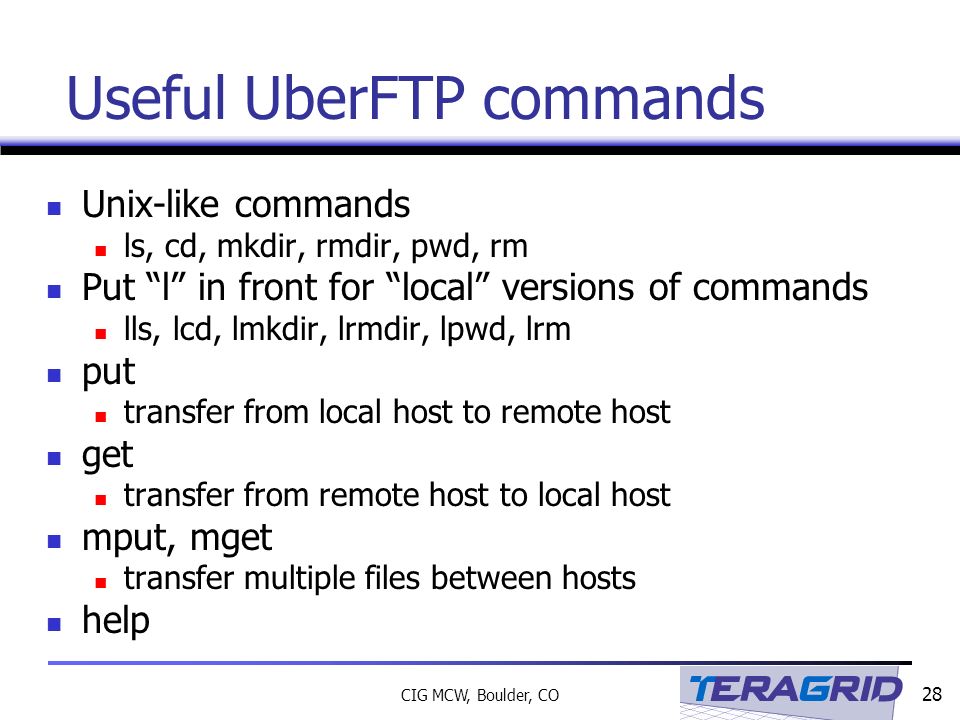

28. 28 CIG MCW, Boulder, CO Useful UberFTP commands Unix-like commands ls, cd, mkdir, rmdir, pwd, rm Put “l” in front for “local” versions of commands lls, lcd, lmkdir, lrmdir, lpwd, lrm put transfer from local host to remote host get transfer from remote host to local host mput, mget transfer multiple files between hosts help

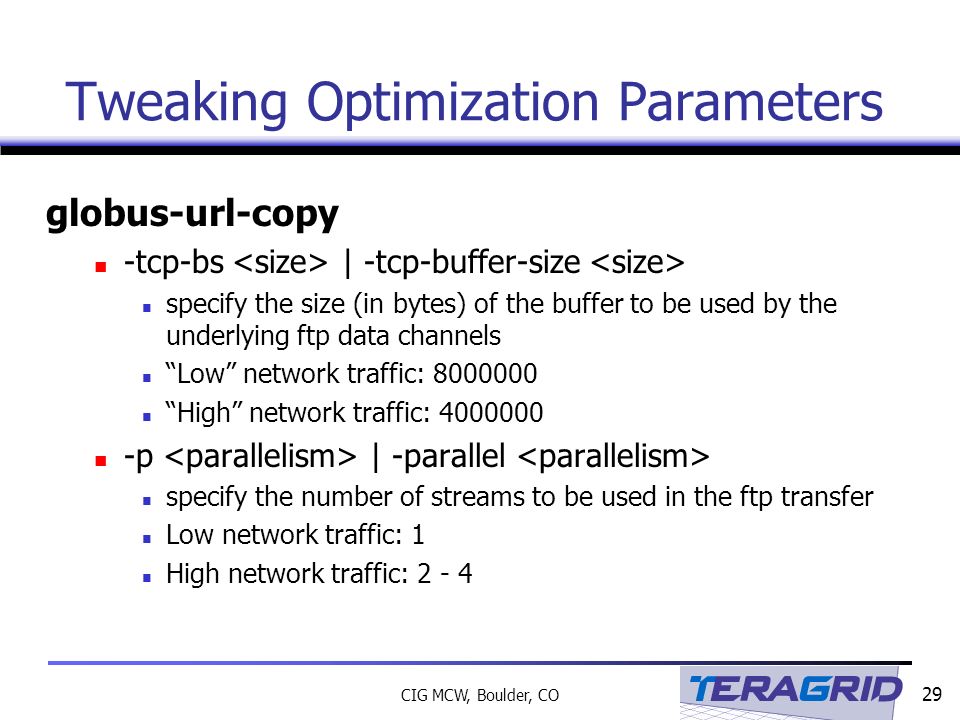

29. 29 CIG MCW, Boulder, CO Tweaking Optimization Parameters globus-url-copy -tcp-bs | -tcp-buffer-size specify the size (in bytes) of the buffer to be used by the underlying ftp data channels “Low” network traffic: 8000000 “High” network traffic: 4000000 -p | -parallel specify the number of streams to be used in the ftp transfer Low network traffic: 1 High network traffic: 2 - 4

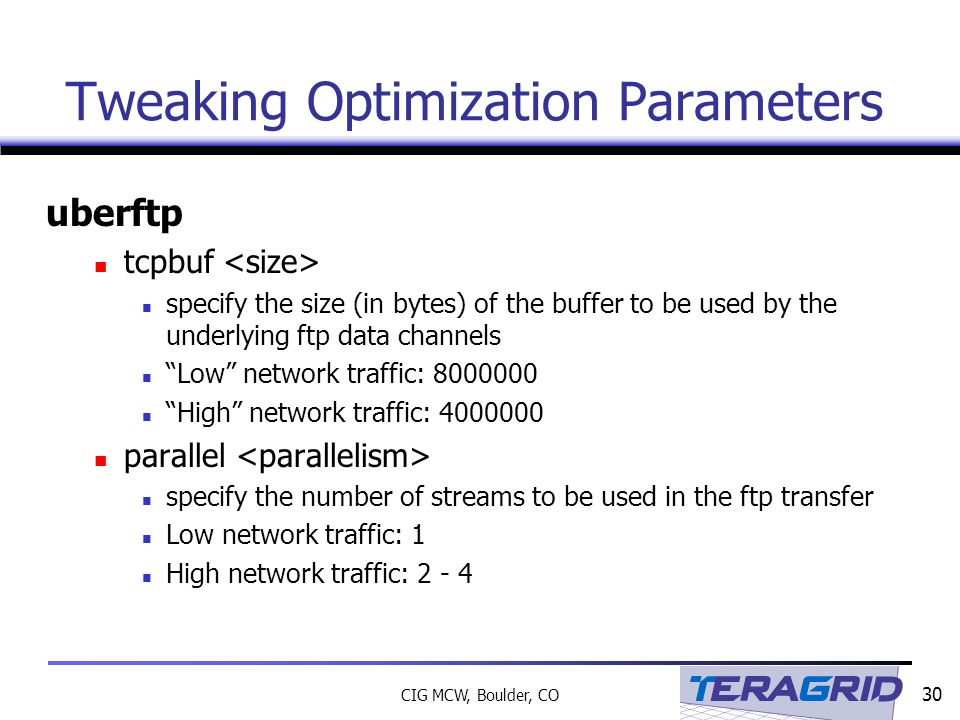

30. 30 CIG MCW, Boulder, CO Tweaking Optimization Parameters uberftp tcpbuf specify the size (in bytes) of the buffer to be used by the underlying ftp data channels “Low” network traffic: 8000000 “High” network traffic: 4000000 parallel specify the number of streams to be used in the ftp transfer Low network traffic: 1 High network traffic: 2 - 4

31. 31 CIG MCW, Boulder, CO Using Robotic-Tape Archival Resources NCSA Mass Storage System (MSS) Accessible using GridFTP to mss.ncsa.teragrid.org TACC SGI Data Migration Facility (DMF) Accessible by simply placing files in $ARCHIVE directory SDSC HPSS archival storage system Use HSI from SDSC cluster only PSC “Golem” Accessible using GridFTP to tg-gridftp.psc.teragrid.org

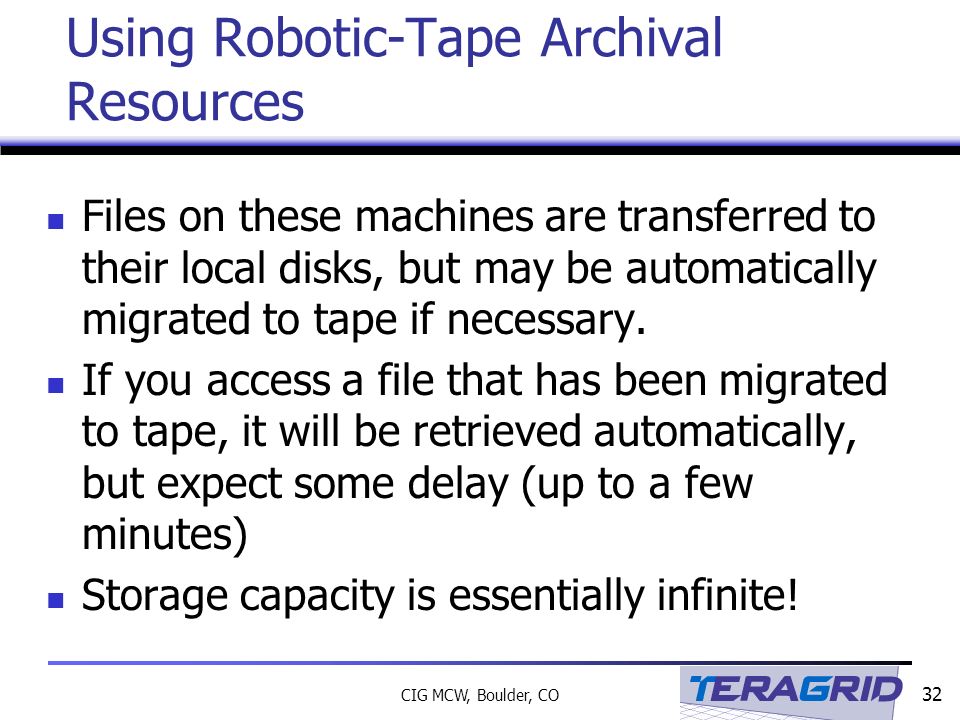

32. 32 CIG MCW, Boulder, CO Using Robotic-Tape Archival Resources Files on these machines are transferred to their local disks, but may be automatically migrated to tape if necessary. If you access a file that has been migrated to tape, it will be retrieved automatically, but expect some delay (up to a few minutes) Storage capacity is essentially infinite!

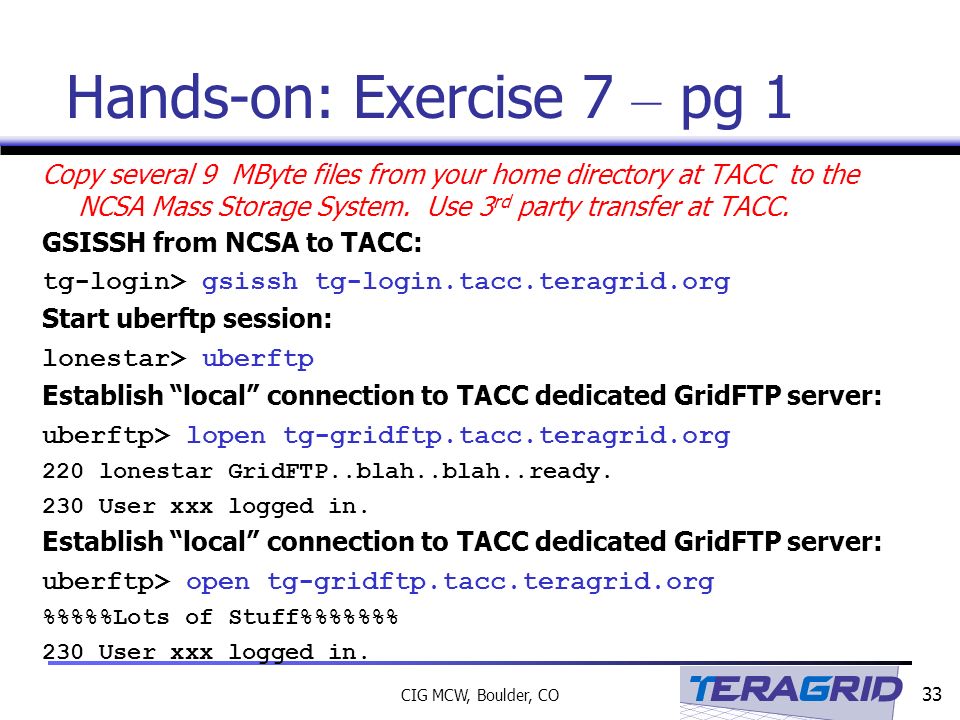

33. 33 CIG MCW, Boulder, CO Hands-on: Exercise 7 – pg 1 Copy several 9 MByte files from your home directory at TACC to the NCSA Mass Storage System. Use 3 rd party transfer at TACC. GSISSH from NCSA to TACC: tg-login> gsissh tg-login.tacc.teragrid.org Start uberftp session: lonestar> uberftp Establish “local” connection to TACC dedicated GridFTP server: uberftp> lopen tg-gridftp.tacc.teragrid.org 220 lonestar GridFTP..blah..blah..ready. 230 User xxx logged in. Establish “local” connection to TACC dedicated GridFTP server: uberftp> open tg-gridftp.tacc.teragrid.org %%%Lots of Stuff%%%% 230 User xxx logged in.

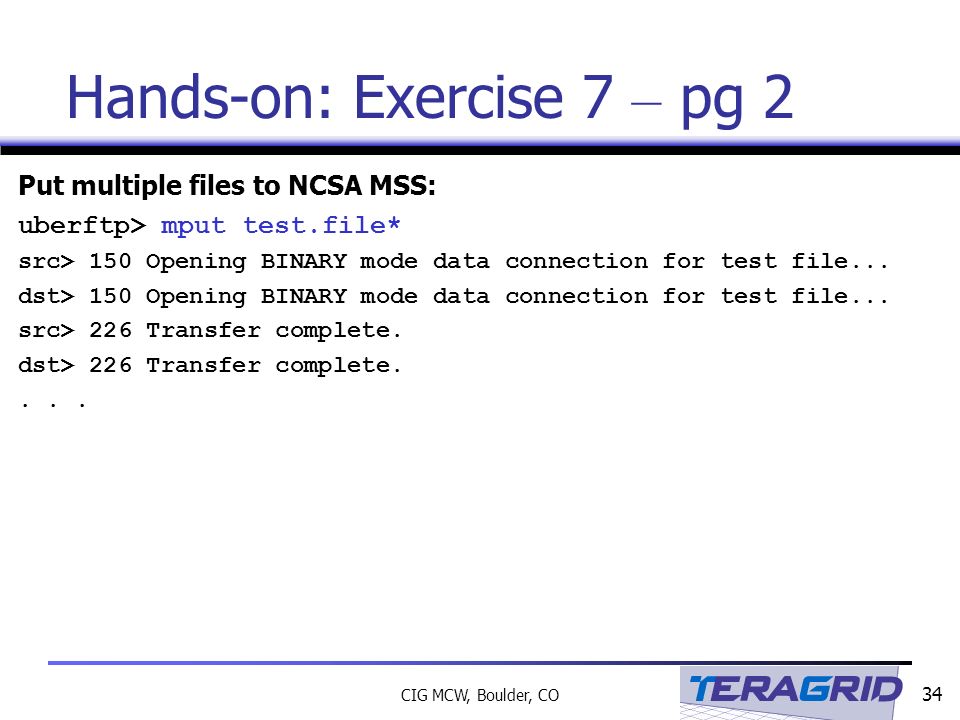

34. 34 CIG MCW, Boulder, CO Hands-on: Exercise 7 – pg 2 Put multiple files to NCSA MSS: uberftp> mput test.file* src> 150 Opening BINARY mode data connection for test file... dst> 150 Opening BINARY mode data connection for test file... src> 226 Transfer complete. dst> 226 Transfer complete....

35. 35 CIG MCW, Boulder, CO Hands-on: Exercise 7 – pg 3 Get a listing of the Mass Storage System directory: uberftp> ls -rw---- user group DK common 9621728 date test.file-Ex1 -rw---- user group DK common 9621728 date test.file-Ex2 -rw---- user group DK common 9621728 date test.file-Ex3... Quit uberftp: uberftp> quit File is on disk. AR used to indicate file on tape.

36. 36 CIG MCW, Boulder, CO Using PSC “Golem” tg-gridftp.psc.teragrid.org maps directly onto Golem’s filesystem. Example: tg-login1> globus-url-copy –tcp-bs 4000000 –p 4 gsiftp://tg-gridftp.ncsa.teragrid.org/`pwd`/test.file gsiftp://tg-gridftp.psc.teragrid.org/~/test.file

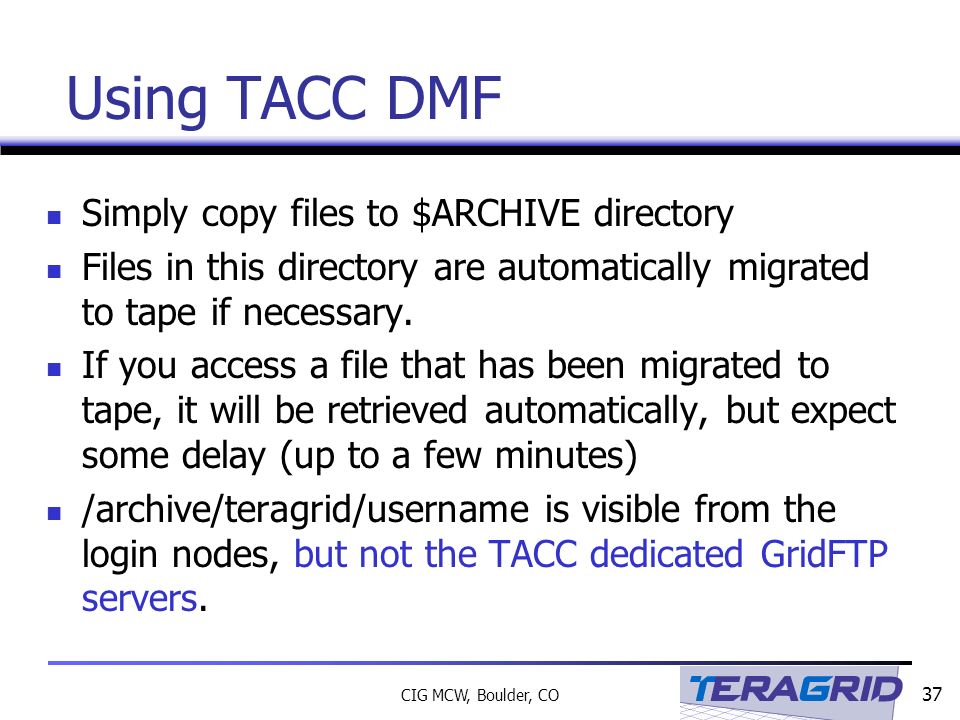

37. 37 CIG MCW, Boulder, CO Using TACC DMF Simply copy files to $ARCHIVE directory Files in this directory are automatically migrated to tape if necessary. If you access a file that has been migrated to tape, it will be retrieved automatically, but expect some delay (up to a few minutes) /archive/teragrid/username is visible from the login nodes, but not the TACC dedicated GridFTP servers.

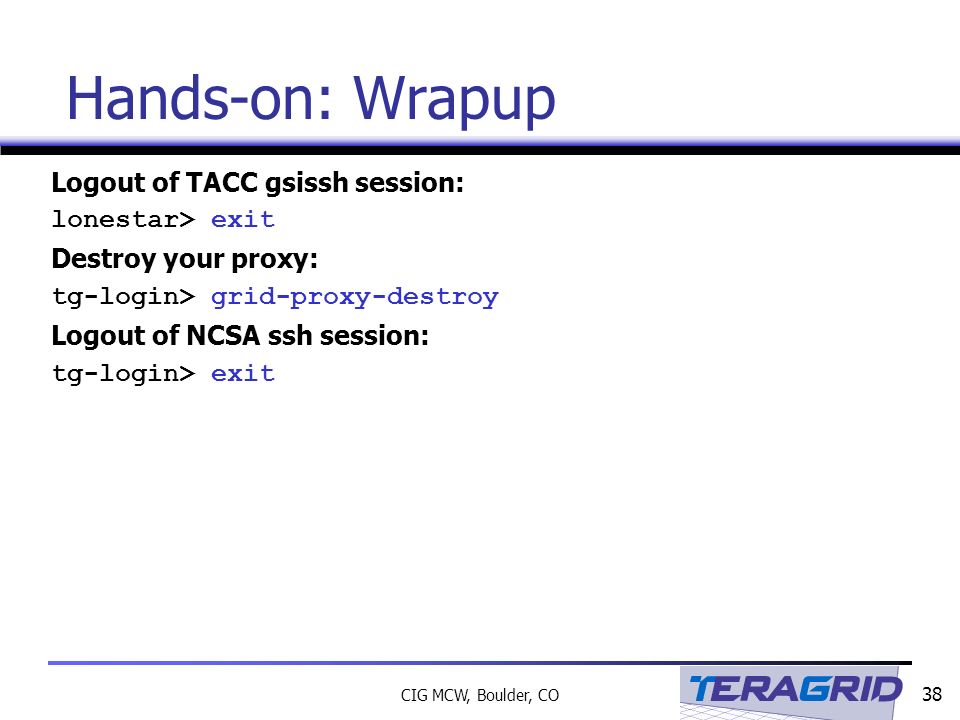

38. 38 CIG MCW, Boulder, CO Hands-on: Wrapup Logout of TACC gsissh session: lonestar> exit Destroy your proxy: tg-login> grid-proxy-destroy Logout of NCSA ssh session: tg-login> exit

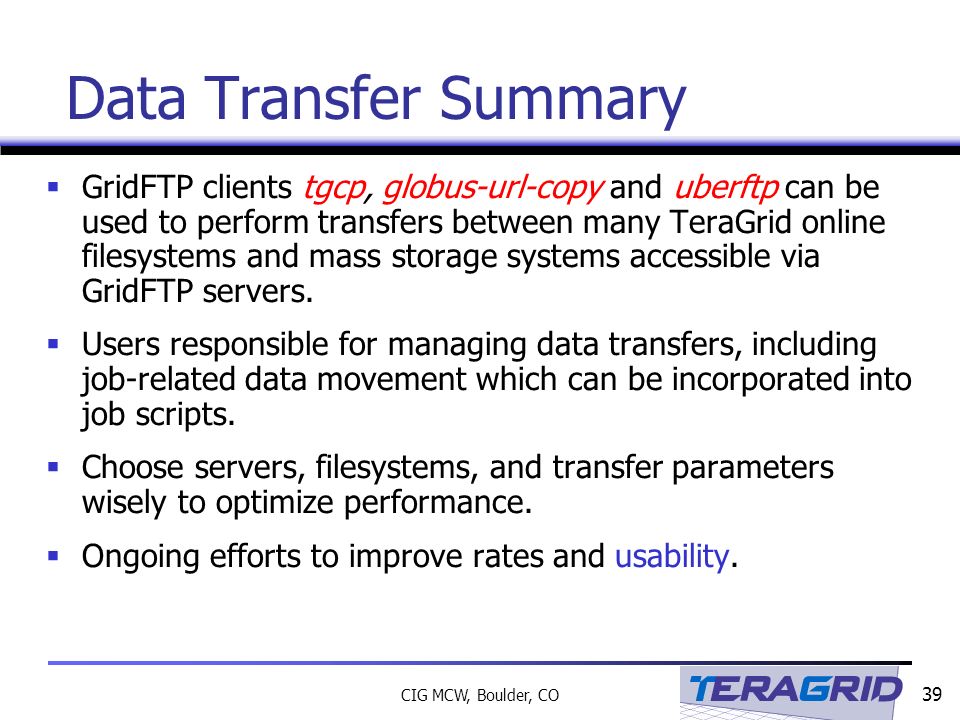

39. 39 CIG MCW, Boulder, CO Data Transfer Summary  GridFTP clients tgcp, globus-url-copy and uberftp can be used to perform transfers between many TeraGrid online filesystems and mass storage systems accessible via GridFTP servers.  Users responsible for managing data transfers, including job-related data movement which can be incorporated into job scripts.  Choose servers, filesystems, and transfer parameters wisely to optimize performance.  Ongoing efforts to improve rates and usability.

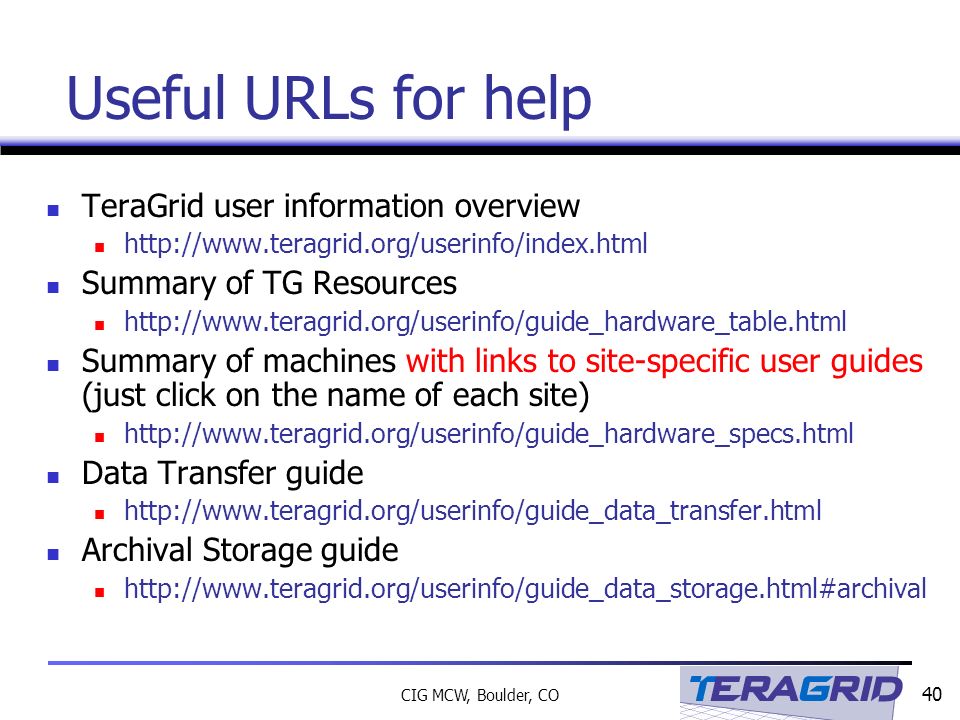

40. 40 CIG MCW, Boulder, CO Useful URLs for help TeraGrid user information overview http://www.teragrid.org/userinfo/index.html Summary of TG Resources http://www.teragrid.org/userinfo/guide_hardware_table.html Summary of machines with links to site-specific user guides (just click on the name of each site) http://www.teragrid.org/userinfo/guide_hardware_specs.html Data Transfer guide http://www.teragrid.org/userinfo/guide_data_transfer.html Archival Storage guide http://www.teragrid.org/userinfo/guide_data_storage.html#archival
