1. 15 ELECTROMAGNETIC MACHINES Magnetic field patterns Investigate patterns of magnetic fields lines around magnets, wires and coils

2. Faraday’s law Investigate the laws of electromagnetic induction

3. Transformer design Review principles of transformer operation Explain optimisation of transformer design in the context of magnetic circuits

4. Eddy currents and Lenz’s law Observe and explain the effects of eddy currents in terms of Lenz’s law

5. Dynamos and generators Explain the operation of dynamos and generators in terms of laws of electromagnetic induction Learn how generator design is optimised for maximum output

6. The catapult effect Observe and explain the forces on a current-carrying wire in a magnetic field Explain how this effect is used in d.c. electric motors

7. Building electric motors Build and test a simple d.c. Motor Compare advantages and disadvantages of d.c. motors versus induction motors

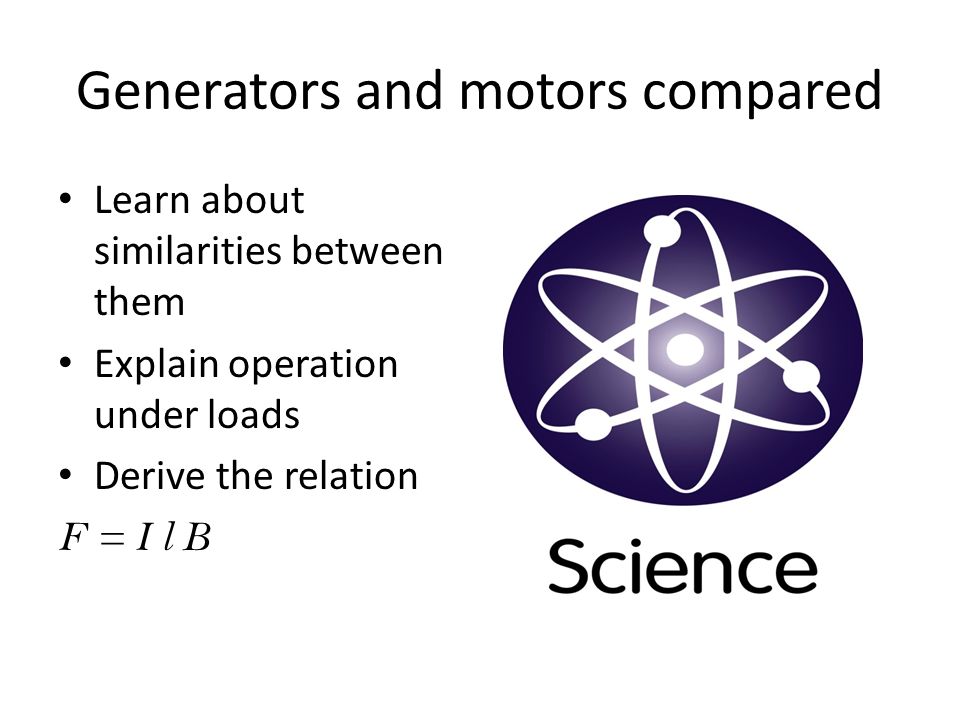

8. Generators and motors compared Learn about similarities between them Explain operation under loads Derive the relation F = I l B

9. Starter: Electromagnetism revision Generate questions from these answers: The product of the flux multiplied by the number of turns. Rate of change of flux linkage. Because the direction of the EMF opposes the change producing it. To minimise energy losses due to eddy currents. Measure the gradient of the graph of flux against time. As short and fat as possible. As short and straight as possible. In phase with the alternating current. 90 o out of phase with the flux. Because eddy currents circulate in the rotor, generating their own magnetic fields which interact with the rotating flux. As small an air gap as possible.
