1. Measurement of Routing Switch-over Time with Redundant Link Masaki Hirabaru (NICT), Teruo Nakai (KDDI), Yoshitaka Hattori (KDDI), Motohiro Ishii (QIC), and Yasuichi Kitamura (NICT) August 25, 2005 NOC-Network Engineering Session Advanced Network Conference in Taipei

2. Motivations Research Networks are getting complicated in the AP region.  Situation: many redundant (back-up) links with dynamic routing (instead of SONET or L-2 redundancy)  Evaluation: how fast they can switch over in case of outages  Improvement: how we can minimize service disruption time Two Cases APII Fukuoka-Tokyo Path over JGN II (Japan Domestic Part) JP-US Path over JGN II / TransPAC2 (at Tokyo)

3. Routing Switchover from Link A to B Time Failure Link ALink B Resume packets reorder Service Disruption Failure Detection Routing Transient Test Packet Train

4. Kwangju Busan Fukuoka Korea 2.5G SONET KOREN Taegu Daejon Seoul XP Genkai XP Fukuoka Japan 1,000km APII/JGNII Case 1: APII Seoul-Tokyo Connection Tokyo XP JGNII TransPAC2 Southern Route (10G) Northern Route (1G) 10G JGN II : L2 Service No Fault Detection! => L3 User-side Detection

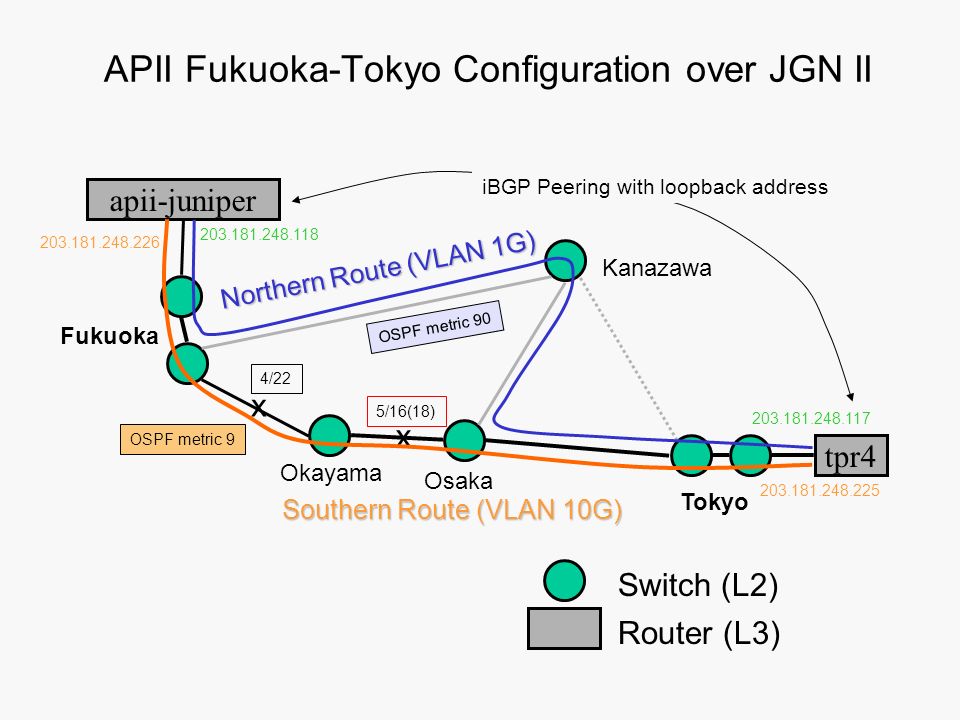

5. APII Fukuoka-Tokyo Configuration over JGN II Kanazawa Tokyo tpr4 apii-juniper Osaka Okayama Fukuoka 4/22 5/16(18) x x Northern Route (VLAN 1G) Southern Route (VLAN 10G) 203.181.248.225 203.181.248.117 203.181.248.226 203.181.248.118 OSPF metric 90 OSPF metric 9 iBGP Peering with loopback address Switch (L2) Router (L3)

6. Detecting Switchover Period #1 (APII) 810 packets / sec = 10 Mbps (MTU 1500B UDP) ~ 1ms resolution Fukuoka -> Tokyo: time 2005/04/22 02:07:46-02:08:23 JST gap 37.1s loss 30264 time 2005/04/22 04:02:38-04:03:15 JST gap 36.8s loss 29975 Tokyo->Fukuoka: (Unsuccessful measurement) 2005-04-22 Tokyo -> Fukuoka Northern Route Traffic Graph Tokyo -> Fukuoka Southern Route Traffic Graph two maintenance outages

7. OSPF Hello Intervals Default: hello interval 10 secs dead interval 40 secs Proposal: hello interval 1 sec (minimum) dead interval 4 secs OSPF adjacency will be lost while parameters are inconsistent among peers. Another way would be using BFD available JUNOS 7.X.

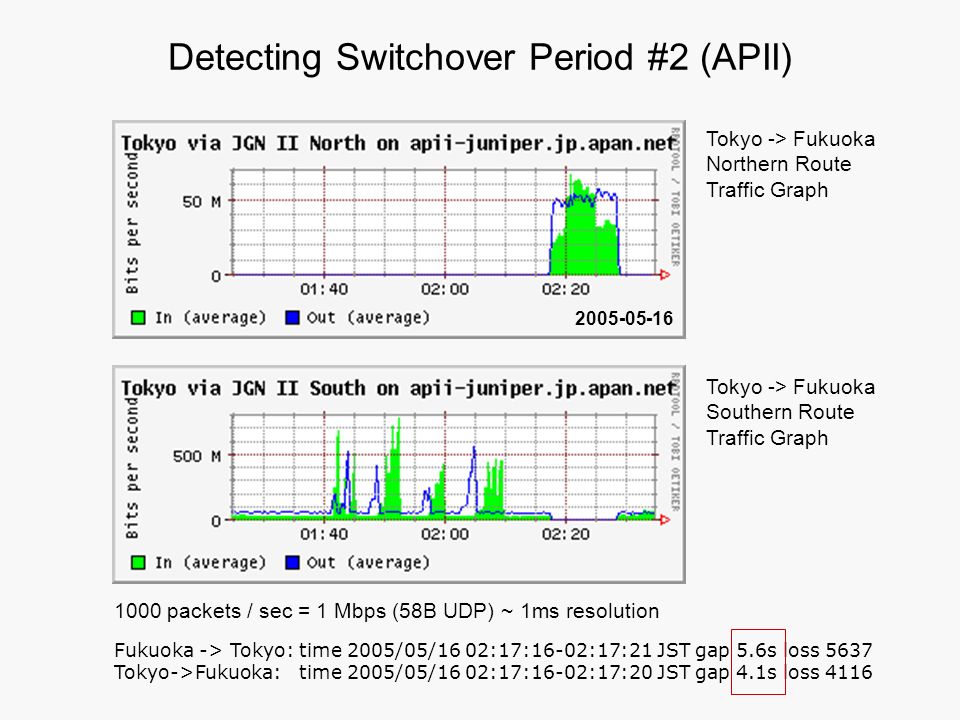

8. Detecting Switchover Period #2 (APII) 1000 packets / sec = 1 Mbps (58B UDP) ~ 1ms resolution Fukuoka -> Tokyo: time 2005/05/16 02:17:16-02:17:21 JST gap 5.6s loss 5637 Tokyo->Fukuoka: time 2005/05/16 02:17:16-02:17:20 JST gap 4.1s loss 4116 2005-05-16 Tokyo -> Fukuoka Northern Route Traffic Graph Tokyo -> Fukuoka Southern Route Traffic Graph

9. Tokyo Michigan TransPAC2 JGN II Case 2: JP-US Connection over TransPAC2 / JGN II Packets are sent at Michigan Routes are injected at Tokyo packets routes

10. AS22388 losang 198.32.8.94 snvang 198.32.8.1 dnvrng 198.32.8.13 kscyng 198.32.8.81 iplsng 198.32.8.77 chinng 198.32.11.97 192.122.183.13 transpac-chi 192.203.116.9 206.220.240.154 AS11537 AS22388 192.122.182.18 tpr4 203.181.248.218 tpr5 192.203.116.146 133.69.35.1 AS22335 AS237 transpac-la 207.231.240.136 ge-2-3-0x986 192.122.183.197 192.122.182.18 v-bin-arbl 192.122.183.93 206.220.240.161 80ms 141.211.0.0/16 56ms 5ms Ann Arbor - Chicago AS7660 Tokyo - Michigan L3 Configuration JGN II Int’l and TransPAC2: - SONET OC-192 unprotected - L2 fault detection provided ge-1-1-0x984 192.122.183.93

11. Detecting Switchover Period #3 (TransPAC2) 100 packets / sec = 100 Kbps (58B UDP) ~ 10ms resolution LA -Tokyo TransPAC2 Traffic Graph Time Failure TransPAC2JGN II Resume 7/30 607 ms 8/02 647 ms 5-10 packets reorders in 5-10 ms * Announce /24 into the both JGN II and TransPAC2

12. Detecting Switchover Period #4 (JGN II) 100 packets / sec = 100 Kbps (58B UDP) ~ 10ms resolution Time Failure JGN IITransPAC2 Resume 7/29 1448 ms 8/03 837ms no reorders * Announce /24 into the both JGN II and TransPAC2 BGP down (Tokyo) 45 ms (7/29) 1773 ms (8/03)

13. Detecting Switchover Period #5 (TransPAC2) 100 packets / sec = 100 Kbps (58B UDP) ~ 10ms resolution Time Failure TransPAC2JGN II Resume 8/05 512 ms No packets reorders * Announce /24 for JGN II and /25 for TransPAC2 133.69.35.0/24 and 133.69.35.0/25

14. Artificial Route Change 1) Keep announce a /24 route from Tokyo 2) Announce the /25 route to another link, then 3) Withdraw the /25 route Tokyo Chicago A Packet (before) Michigan Time A Time s Tokyo Chicago W Packet (after) Michigan Time w Time s Time AD = Time S – Time A Time WD = Time S – Time W Packet (after) Packet (before)

15. A-1 Flap TransPAC 2 JGN II TransPAC2 AW /24 /25 Time AD 196 msTime WD 193 ms A-2 Flap JGN II JGN II TransPAC2 AW /24 /25 Time AD 2106 msTime WD 1922 ms

16. Route Propagation Delays (1) Delays from Tokyo to Oregon Routeview 2152 2153 22388 7660 : 6 secs (via LA) 293 10764 22388 7660 : 5 secs (via LA) 10876 3701 4600 11537 22388 7660 7660 7660 : 23 secs (via CHI) 2152 2153 11537 22388 7660 7660 7660 : 36 secs (via CHI) No BGP Updates available in Abilene?

17. Route Propagation Delays (2) - Tokyo to Seoul: BGP Peering Topology - busan daejon seoul tokyo4 tokyo5 koganei generator (A / W) 2-hour intervals monitor AS7660 AS64582 133.69.36.0/24 http://mrtg.koganei.itrc.net/cgi-bin/bgproute2.cgi Acknowledgement to JaeHwa Lee @ KOREN AS17579 AS2907 AS11537 AS2523 JGNII TransPAC2 10G AS9270 fukuoka

18. Route Propagation Delays (2) - Results - Time Location 2005/08/20 20:00:00 2005/08/21 00:00:00 2005/08/21 04:00:00 2005/08/21 08:00:00 2005/08/21 12:00:00 2005/08/21 16:00:00 Koganei32685866 Tokyo (5/4)7 / 13036 / 5256 / 142177 / 119812 / 116670 / 335 Fukuoka28265101373290 Busan401658329765172529652103 Seoul7316689296393375230282129 Announce delays (unit is millisecond) Time Location 2005/08/20 22:00:00 2005/08/21 02:00:00 2005/08/21 06:00:00 2005/08/21 10:00:00 2005/08/21 14:00:00 2005/08/21 18:00:00 Koganei312391121 Tokyo (5/4)6 / 180711 / 156726 / 103812 / 1395115 / 13355 / 1295 Fukuoka20781737107314653681415 Busan20971700615831484244811427 Seoul6256532210625101534245064532 Withdraw delays (unit is millisecond)

19. Summary Avoid Ethernet multiple access device (L2 switch) If no, decrease Hello (heartbeat) intervals, or use BDF Inject alternates routes with longer prefixes Loop-free alternates and fast reroute (future work) Fast route propagation has been not well considered Need overseas test points continuous 0.1Mbps traffic (10ms resolution) Millisecond-order event timestamps (BGP updates, link failure, etc…) Less restriction for IP options and ICMP Global IP addresses for routers Harmful route dampening Route exits controlled by BGP Community Abilene / StarLight Router Proxy is helpful to check the routes.
