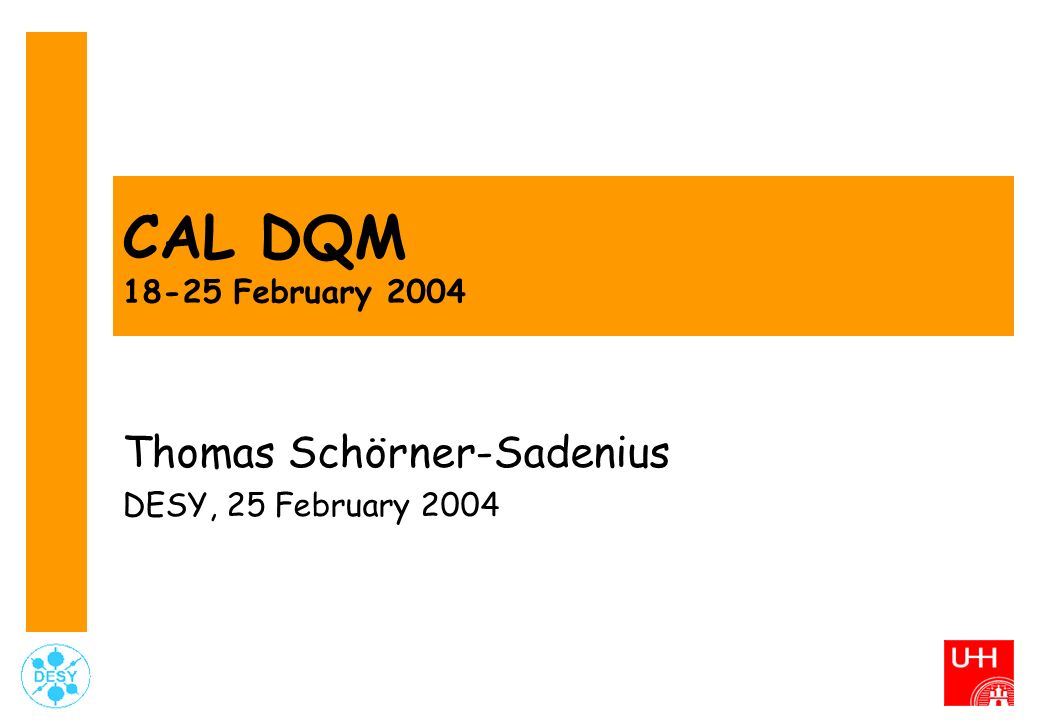

1 CAL DQM 18-25 February 2004 Thomas Schörner-Sadenius DESY, 25 February 2004

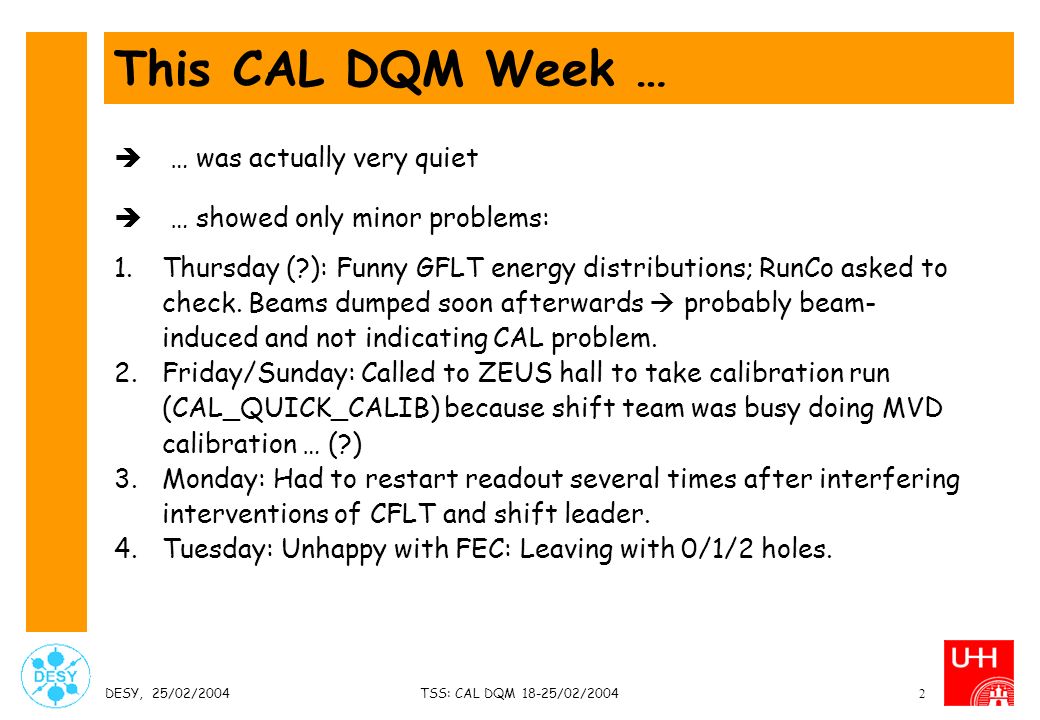

2 DESY, 25/02/2004TSS: CAL DQM 18-25/02/20042 This CAL DQM Week …  … was actually very quiet  … showed only minor problems: 1.Thursday (?): Funny GFLT energy distributions; RunCo asked to check. Beams dumped soon afterwards  probably beam- induced and not indicating CAL problem. 2.Friday/Sunday: Called to ZEUS hall to take calibration run (CAL_QUICK_CALIB) because shift team was busy doing MVD calibration … (?) 3.Monday: Had to restart readout several times after interfering interventions of CFLT and shift leader. 4.Tuesday: Unhappy with FEC: Leaving with 0/1/2 holes.

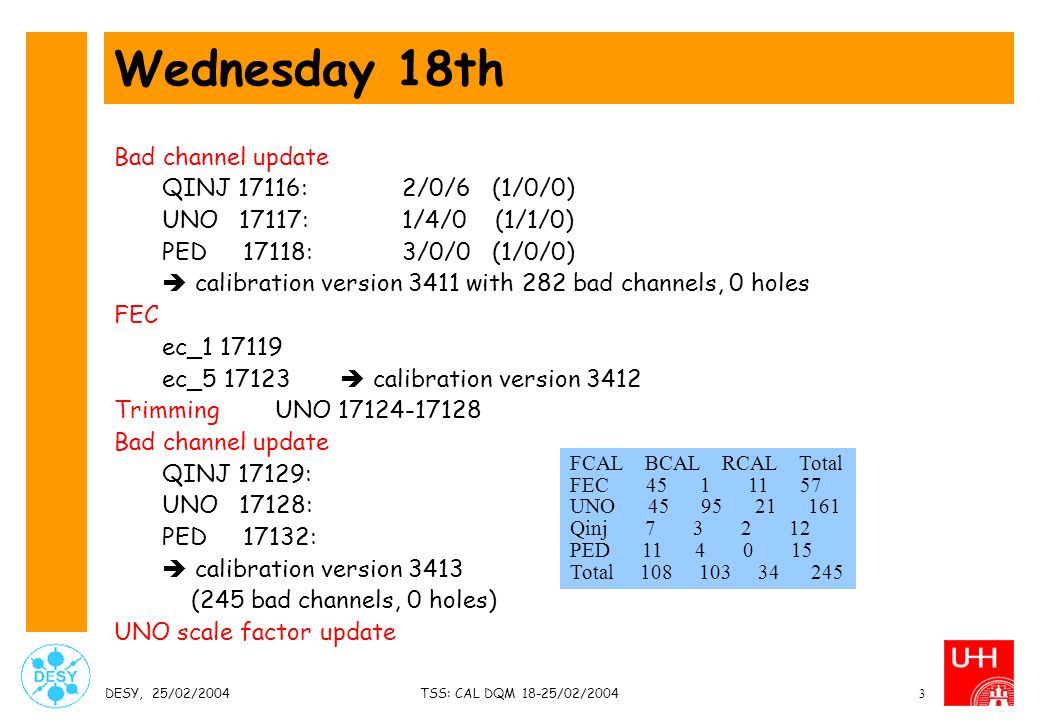

3 DESY, 25/02/2004TSS: CAL DQM 18-25/02/20043 Wednesday 18th Bad channel update QINJ 17116: 2/0/6 (1/0/0) UNO 17117:1/4/0 (1/1/0) PED 17118:3/0/0 (1/0/0)  calibration version 3411 with 282 bad channels, 0 holes FEC ec_1 17119 ec_5 17123  calibration version 3412 Trimming UNO 17124-17128 Bad channel update QINJ 17129: UNO 17128: PED 17132:  calibration version 3413 (245 bad channels, 0 holes) UNO scale factor update FCAL BCAL RCAL Total FEC 45 1 11 57 UNO 45 95 21 161 Qinj 7 3 2 12 PED 11 4 0 15 Total 108 103 34 245

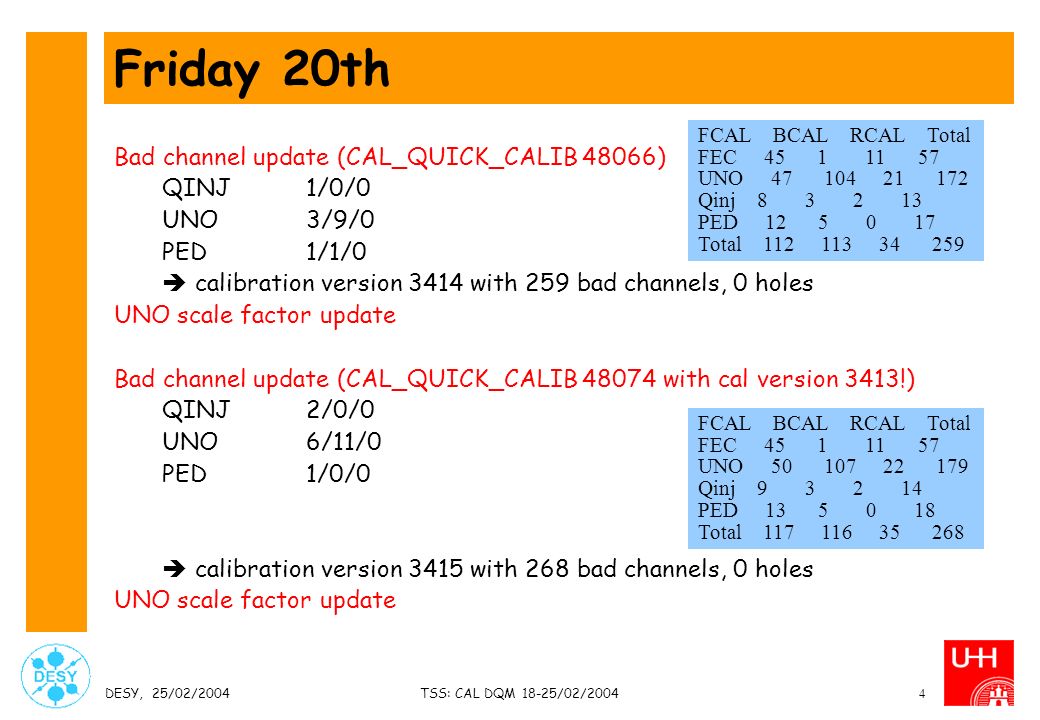

4 DESY, 25/02/2004TSS: CAL DQM 18-25/02/20044 Friday 20th Bad channel update (CAL_QUICK_CALIB 48066) QINJ 1/0/0 UNO 3/9/0 PED 1/1/0  calibration version 3414 with 259 bad channels, 0 holes UNO scale factor update Bad channel update (CAL_QUICK_CALIB 48074 with cal version 3413!) QINJ 2/0/0 UNO 6/11/0 PED 1/0/0  calibration version 3415 with 268 bad channels, 0 holes UNO scale factor update FCAL BCAL RCAL Total FEC 45 1 11 57 UNO 47 104 21 172 Qinj 8 3 2 13 PED 12 5 0 17 Total 112 113 34 259 FCAL BCAL RCAL Total FEC 45 1 11 57 UNO 50 107 22 179 Qinj 9 3 2 14 PED 13 5 0 18 Total 117 116 35 268

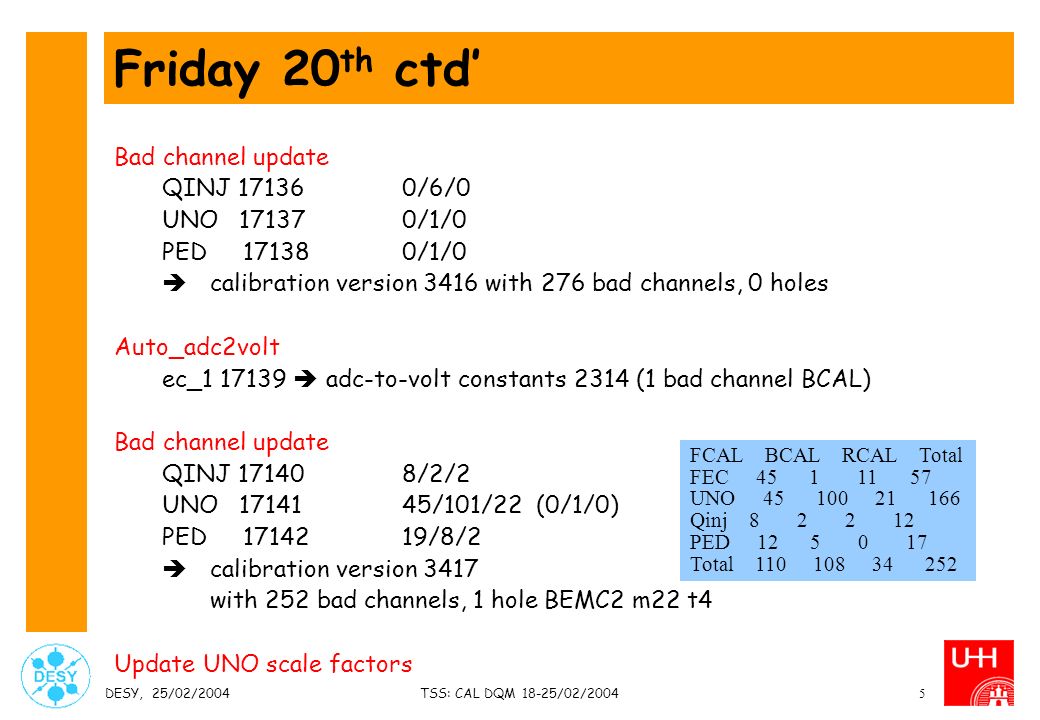

5 DESY, 25/02/2004TSS: CAL DQM 18-25/02/20045 Friday 20 th ctd’ Bad channel update QINJ 17136 0/6/0 UNO 17137 0/1/0 PED 171380/1/0  calibration version 3416 with 276 bad channels, 0 holes Auto_adc2volt ec_1 17139  adc-to-volt constants 2314 (1 bad channel BCAL) Bad channel update QINJ 17140 8/2/2 UNO 17141 45/101/22 (0/1/0) PED 1714219/8/2  calibration version 3417 with 252 bad channels, 1 hole BEMC2 m22 t4 Update UNO scale factors FCAL BCAL RCAL Total FEC 45 1 11 57 UNO 45 100 21 166 Qinj 8 2 2 12 PED 12 5 0 17 Total 110 108 34 252

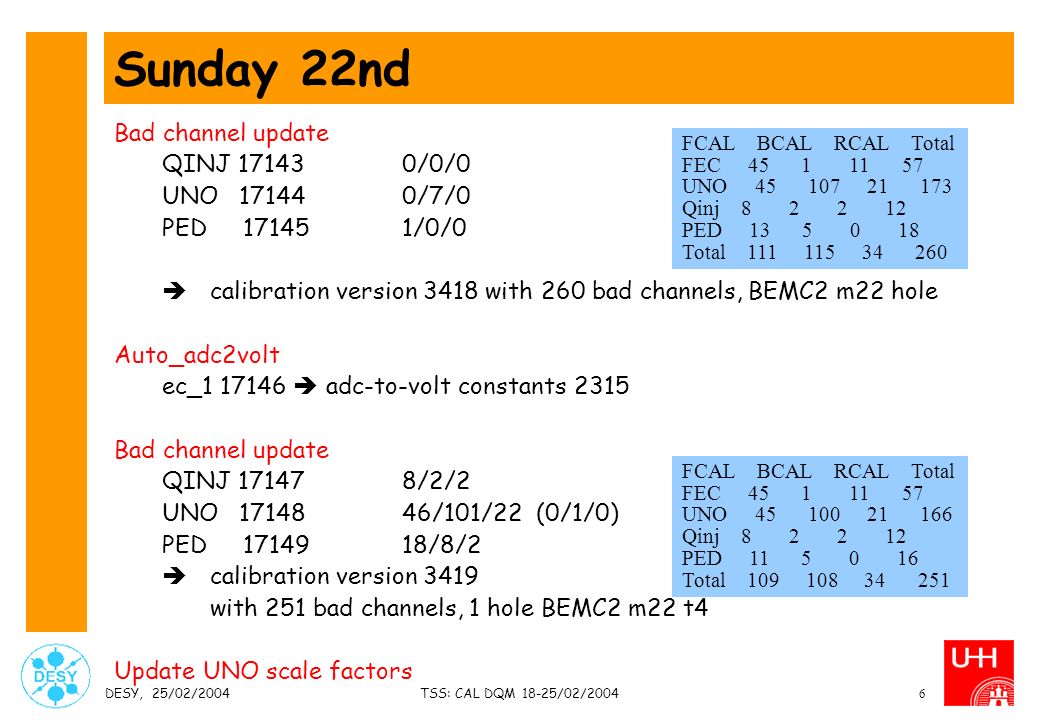

6 DESY, 25/02/2004TSS: CAL DQM 18-25/02/20046 Sunday 22nd Bad channel update QINJ 17143 0/0/0 UNO 17144 0/7/0 PED 171451/0/0  calibration version 3418 with 260 bad channels, BEMC2 m22 hole Auto_adc2volt ec_1 17146  adc-to-volt constants 2315 Bad channel update QINJ 17147 8/2/2 UNO 17148 46/101/22 (0/1/0) PED 1714918/8/2  calibration version 3419 with 251 bad channels, 1 hole BEMC2 m22 t4 Update UNO scale factors FCAL BCAL RCAL Total FEC 45 1 11 57 UNO 45 107 21 173 Qinj 8 2 2 12 PED 13 5 0 18 Total 111 115 34 260 FCAL BCAL RCAL Total FEC 45 1 11 57 UNO 45 100 21 166 Qinj 8 2 2 12 PED 11 5 0 16 Total 109 108 34 251

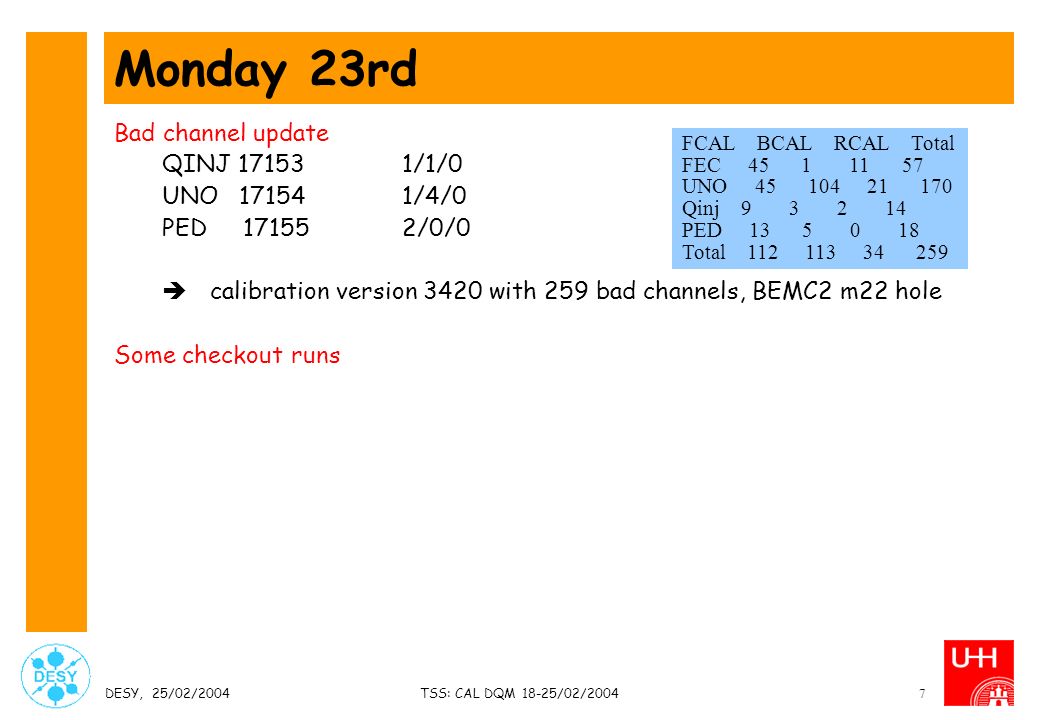

7 DESY, 25/02/2004TSS: CAL DQM 18-25/02/20047 Monday 23rd Bad channel update QINJ 17153 1/1/0 UNO 17154 1/4/0 PED 171552/0/0  calibration version 3420 with 259 bad channels, BEMC2 m22 hole Some checkout runs FCAL BCAL RCAL Total FEC 45 1 11 57 UNO 45 104 21 170 Qinj 9 3 2 14 PED 13 5 0 18 Total 112 113 34 259

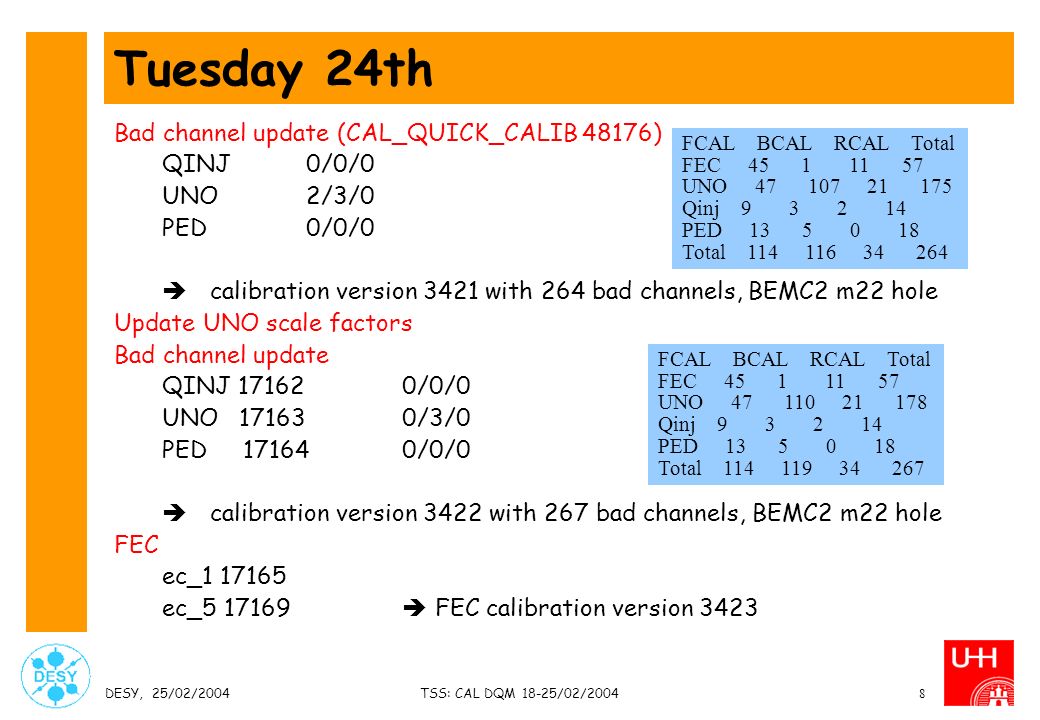

8 DESY, 25/02/2004TSS: CAL DQM 18-25/02/20048 Tuesday 24th Bad channel update (CAL_QUICK_CALIB 48176) QINJ 0/0/0 UNO 2/3/0 PED 0/0/0  calibration version 3421 with 264 bad channels, BEMC2 m22 hole Update UNO scale factors Bad channel update QINJ 171620/0/0 UNO 171630/3/0 PED 171640/0/0  calibration version 3422 with 267 bad channels, BEMC2 m22 hole FEC ec_1 17165 ec_5 17169  FEC calibration version 3423 FCAL BCAL RCAL Total FEC 45 1 11 57 UNO 47 107 21 175 Qinj 9 3 2 14 PED 13 5 0 18 Total 114 116 34 264 FCAL BCAL RCAL Total FEC 45 1 11 57 UNO 47 110 21 178 Qinj 9 3 2 14 PED 13 5 0 18 Total 114 119 34 267

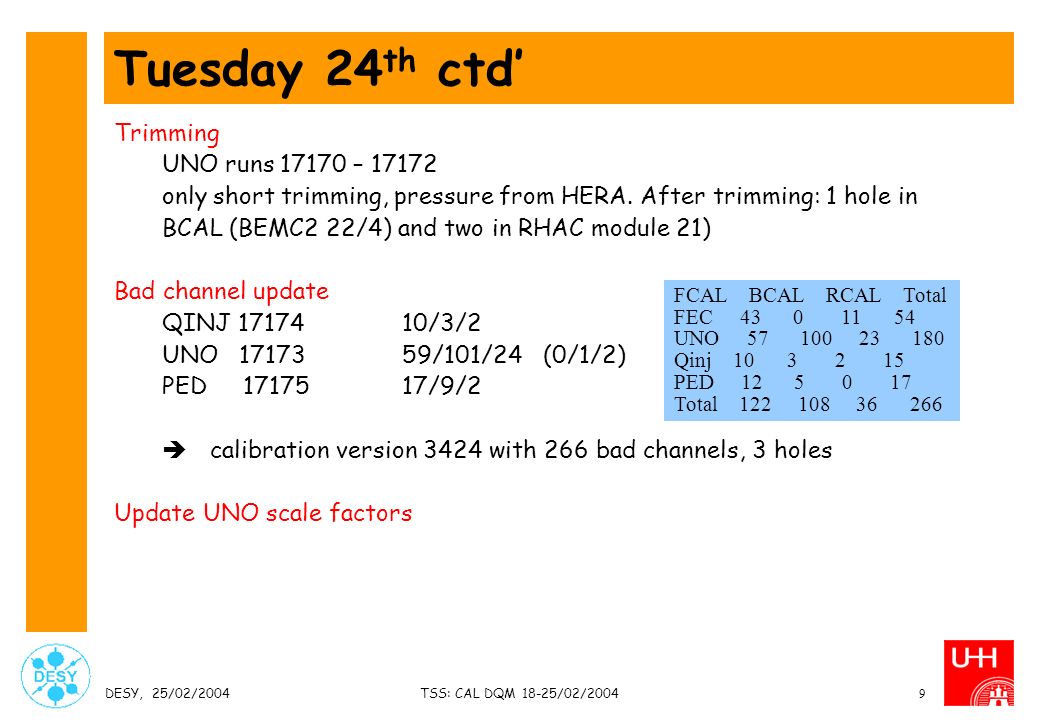

9 DESY, 25/02/2004TSS: CAL DQM 18-25/02/20049 Tuesday 24 th ctd’ Trimming UNO runs 17170 – 17172 only short trimming, pressure from HERA. After trimming: 1 hole in BCAL (BEMC2 22/4) and two in RHAC module 21) Bad channel update QINJ 1717410/3/2 UNO 1717359/101/24 (0/1/2) PED 1717517/9/2  calibration version 3424 with 266 bad channels, 3 holes Update UNO scale factors FCAL BCAL RCAL Total FEC 43 0 11 54 UNO 57 100 23 180 Qinj 10 3 2 15 PED 12 5 0 17 Total 122 108 36 266

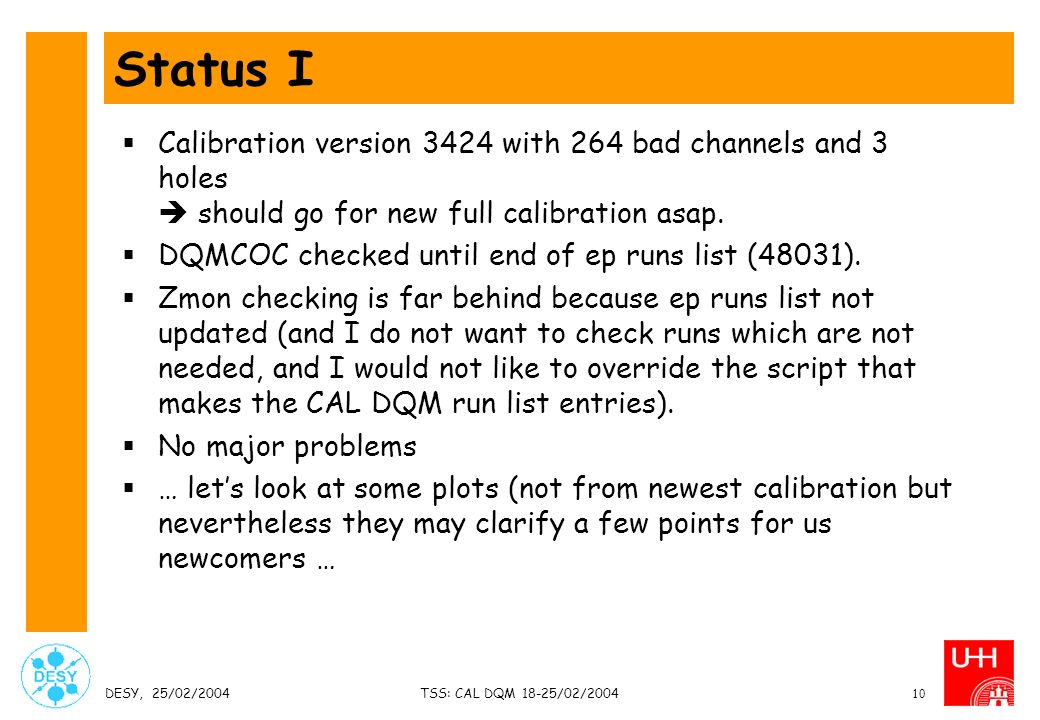

10 DESY, 25/02/2004TSS: CAL DQM 18-25/02/200410 Status I  Calibration version 3424 with 264 bad channels and 3 holes  should go for new full calibration asap.  DQMCOC checked until end of ep runs list (48031).  Zmon checking is far behind because ep runs list not updated (and I do not want to check runs which are not needed, and I would not like to override the script that makes the CAL DQM run list entries).  No major problems  … let’s look at some plots (not from newest calibration but nevertheless they may clarify a few points for us newcomers …

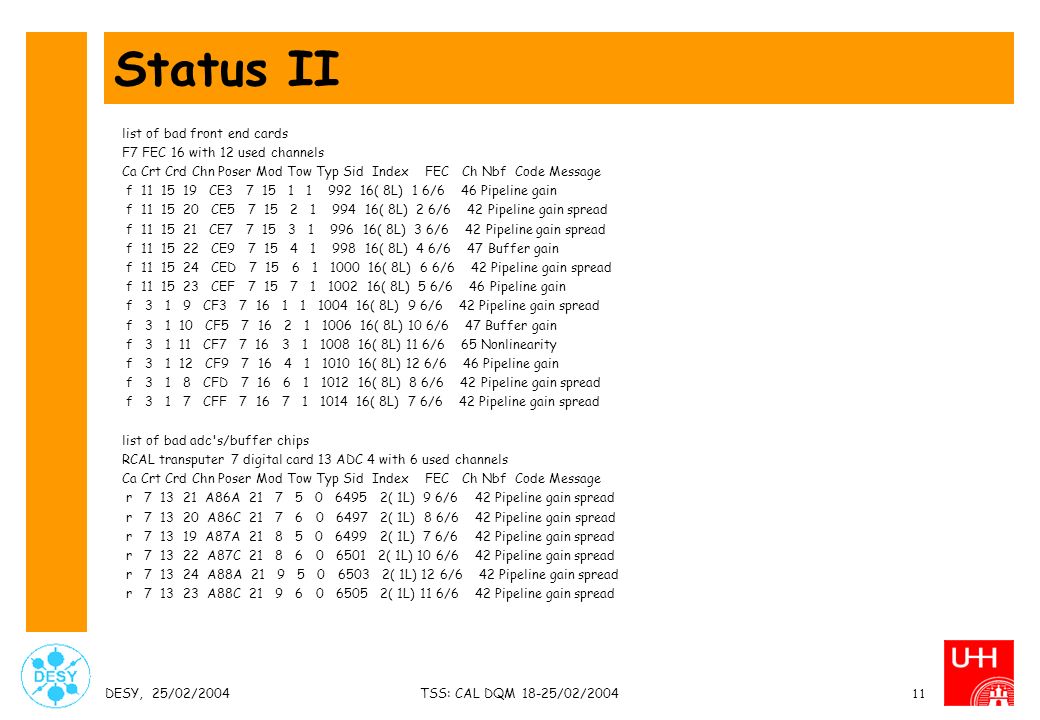

11 DESY, 25/02/2004TSS: CAL DQM 18-25/02/200411 Status II list of bad front end cards F7 FEC 16 with 12 used channels Ca Crt Crd Chn Poser Mod Tow Typ Sid Index FEC Ch Nbf Code Message f 11 15 19 CE3 7 15 1 1 992 16( 8L) 1 6/6 46 Pipeline gain f 11 15 20 CE5 7 15 2 1 994 16( 8L) 2 6/6 42 Pipeline gain spread f 11 15 21 CE7 7 15 3 1 996 16( 8L) 3 6/6 42 Pipeline gain spread f 11 15 22 CE9 7 15 4 1 998 16( 8L) 4 6/6 47 Buffer gain f 11 15 24 CED 7 15 6 1 1000 16( 8L) 6 6/6 42 Pipeline gain spread f 11 15 23 CEF 7 15 7 1 1002 16( 8L) 5 6/6 46 Pipeline gain f 3 1 9 CF3 7 16 1 1 1004 16( 8L) 9 6/6 42 Pipeline gain spread f 3 1 10 CF5 7 16 2 1 1006 16( 8L) 10 6/6 47 Buffer gain f 3 1 11 CF7 7 16 3 1 1008 16( 8L) 11 6/6 65 Nonlinearity f 3 1 12 CF9 7 16 4 1 1010 16( 8L) 12 6/6 46 Pipeline gain f 3 1 8 CFD 7 16 6 1 1012 16( 8L) 8 6/6 42 Pipeline gain spread f 3 1 7 CFF 7 16 7 1 1014 16( 8L) 7 6/6 42 Pipeline gain spread list of bad adc's/buffer chips RCAL transputer 7 digital card 13 ADC 4 with 6 used channels Ca Crt Crd Chn Poser Mod Tow Typ Sid Index FEC Ch Nbf Code Message r 7 13 21 A86A 21 7 5 0 6495 2( 1L) 9 6/6 42 Pipeline gain spread r 7 13 20 A86C 21 7 6 0 6497 2( 1L) 8 6/6 42 Pipeline gain spread r 7 13 19 A87A 21 8 5 0 6499 2( 1L) 7 6/6 42 Pipeline gain spread r 7 13 22 A87C 21 8 6 0 6501 2( 1L) 10 6/6 42 Pipeline gain spread r 7 13 24 A88A 21 9 5 0 6503 2( 1L) 12 6/6 42 Pipeline gain spread r 7 13 23 A88C 21 9 6 0 6505 2( 1L) 11 6/6 42 Pipeline gain spread

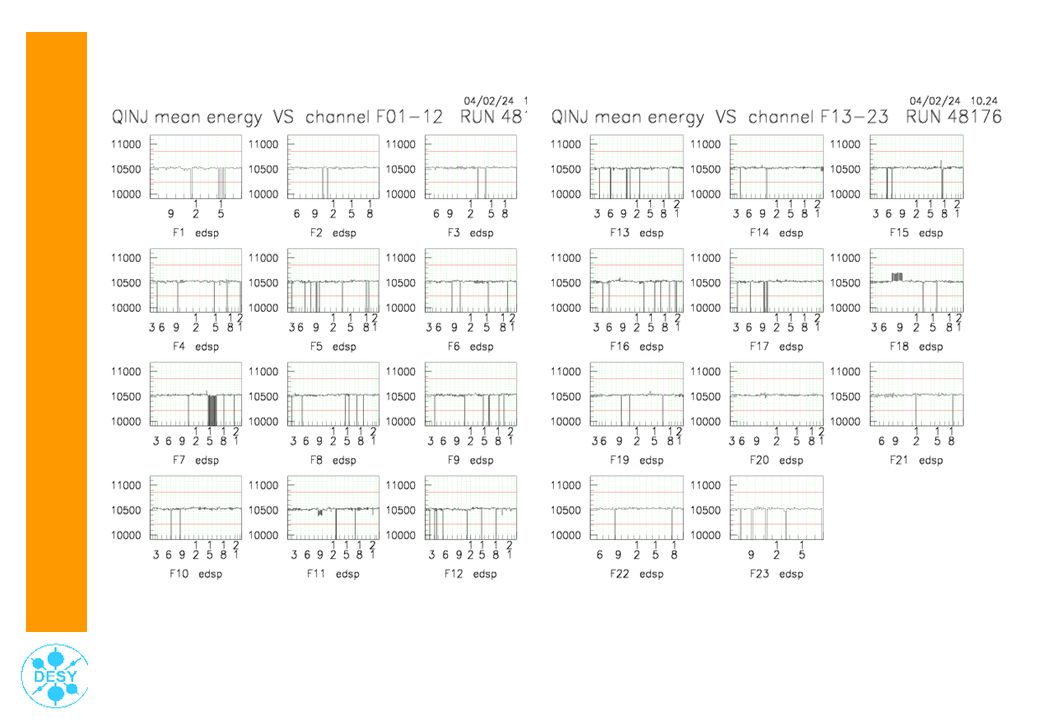

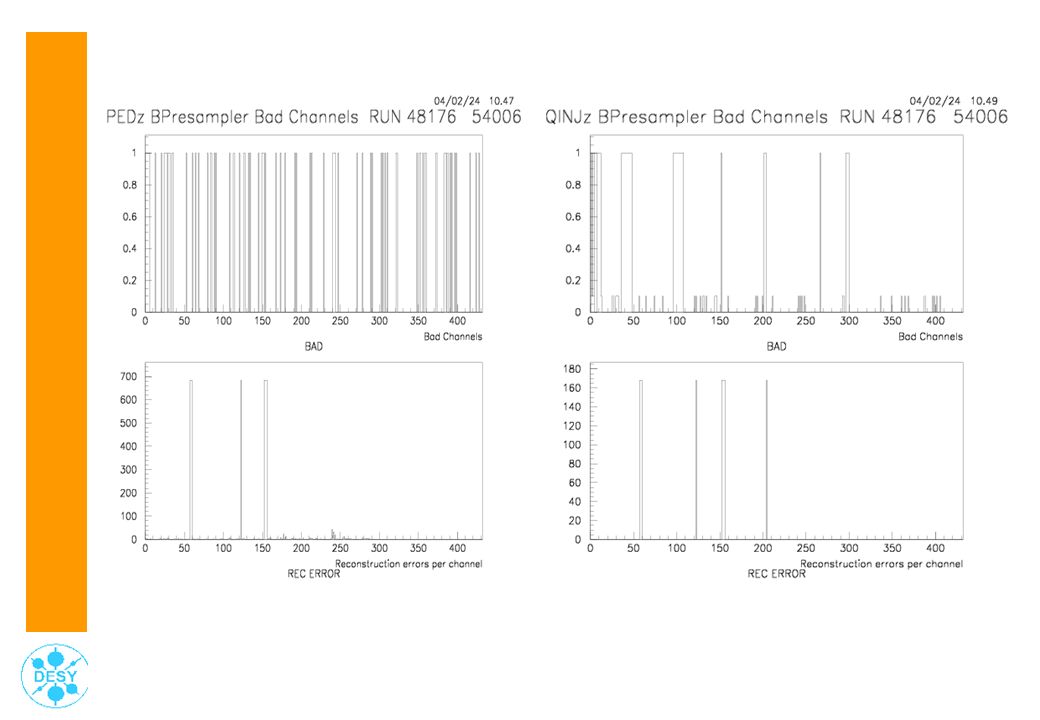

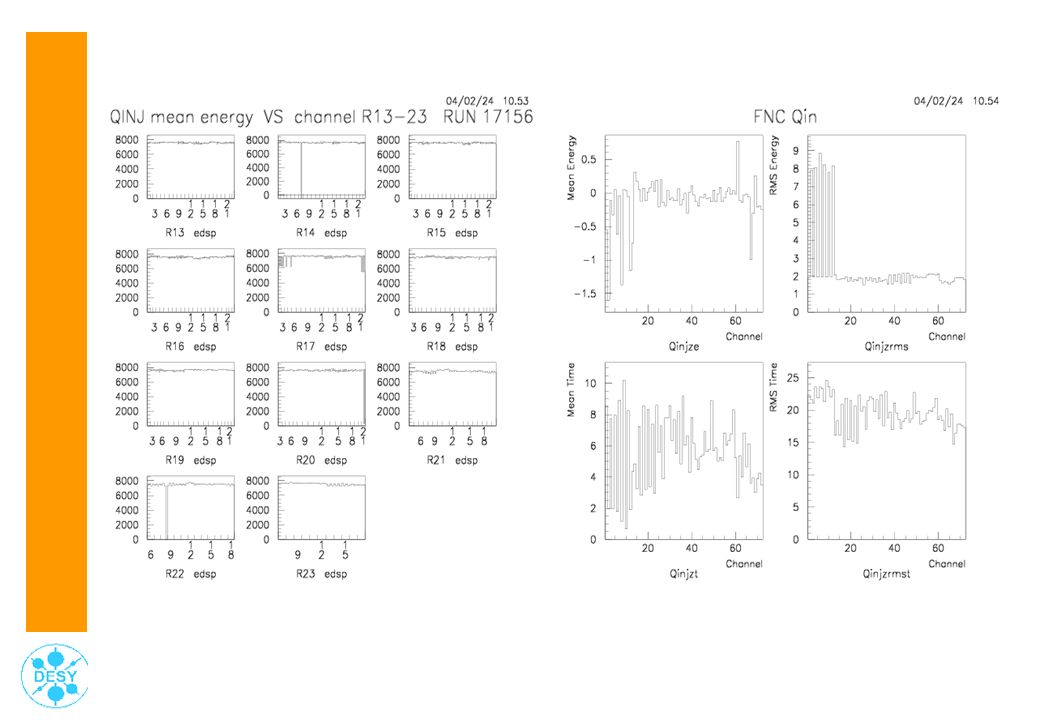

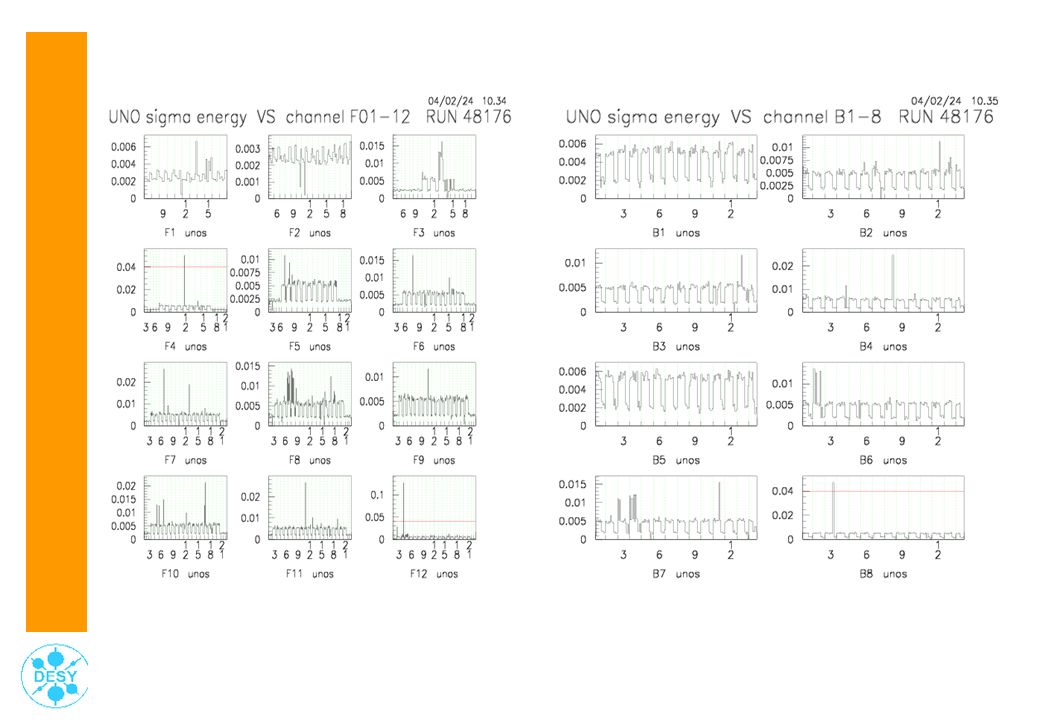

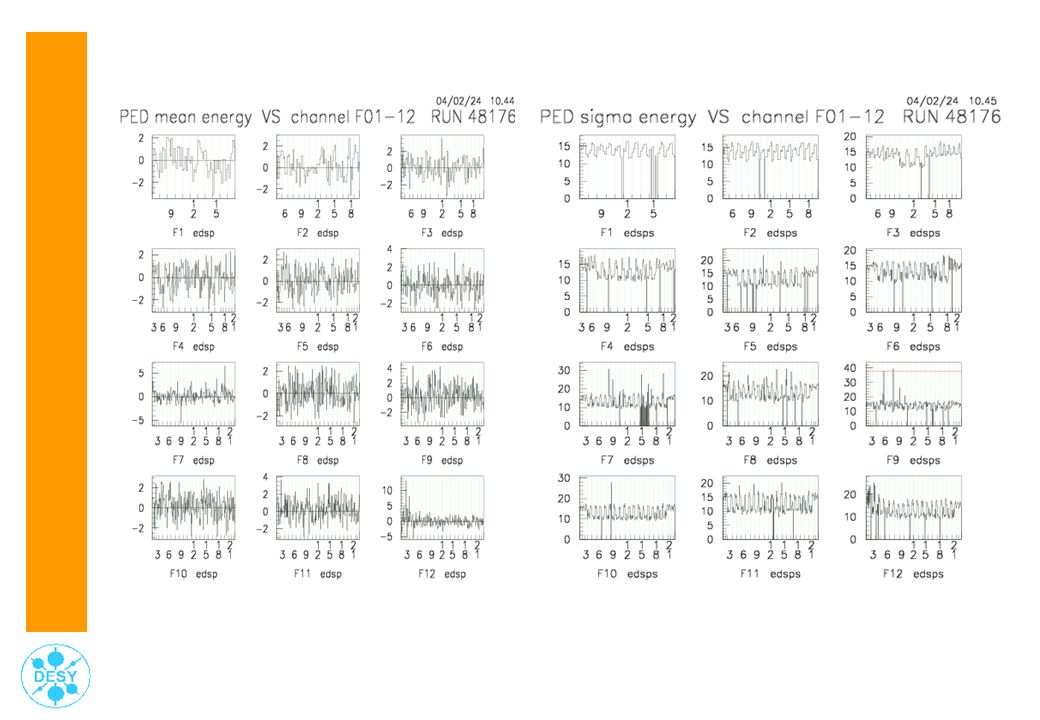

12 DESY, 25/02/2004TSS: CAL DQM 18-25/02/200412

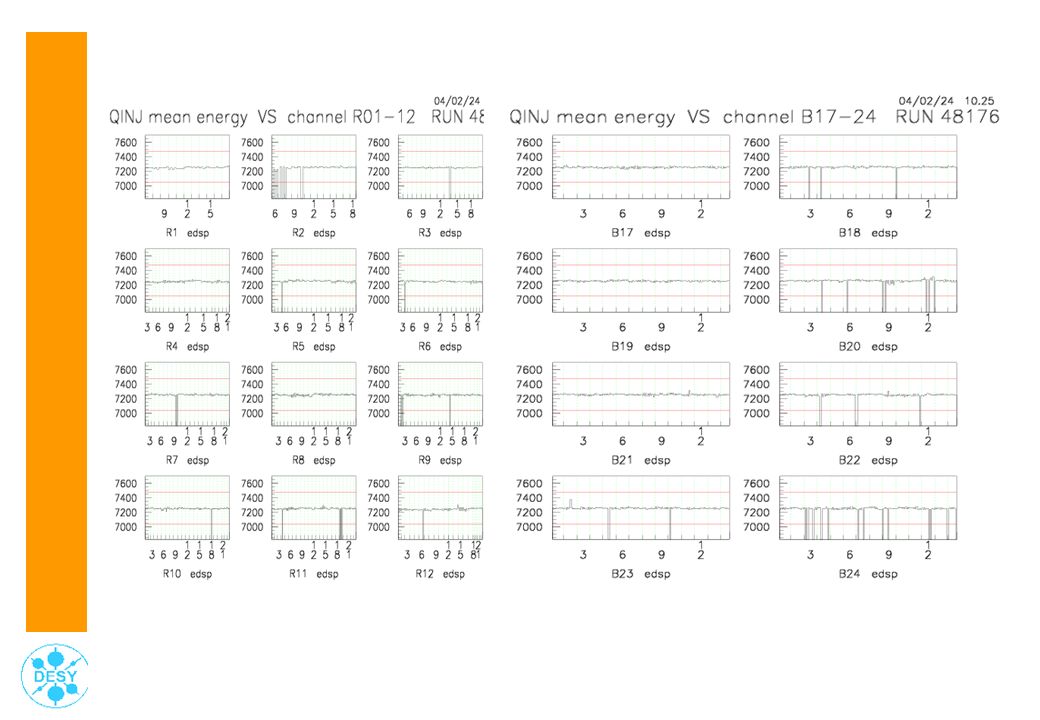

13 DESY, 25/02/2004TSS: CAL DQM 18-25/02/200413

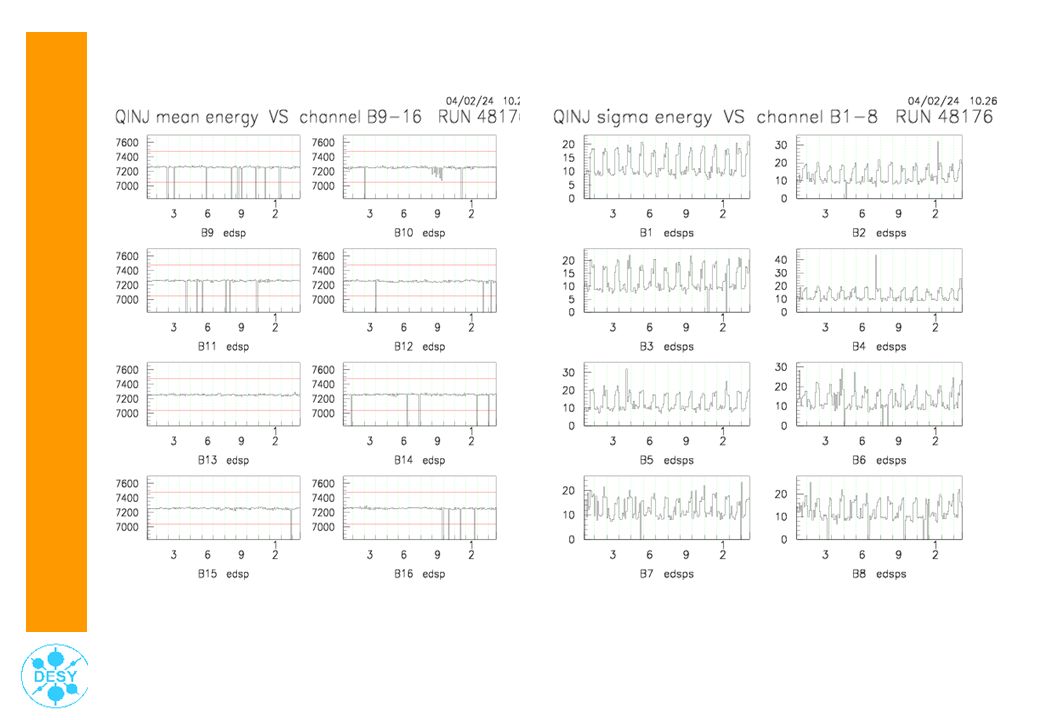

14 DESY, 25/02/2004TSS: CAL DQM 18-25/02/200414

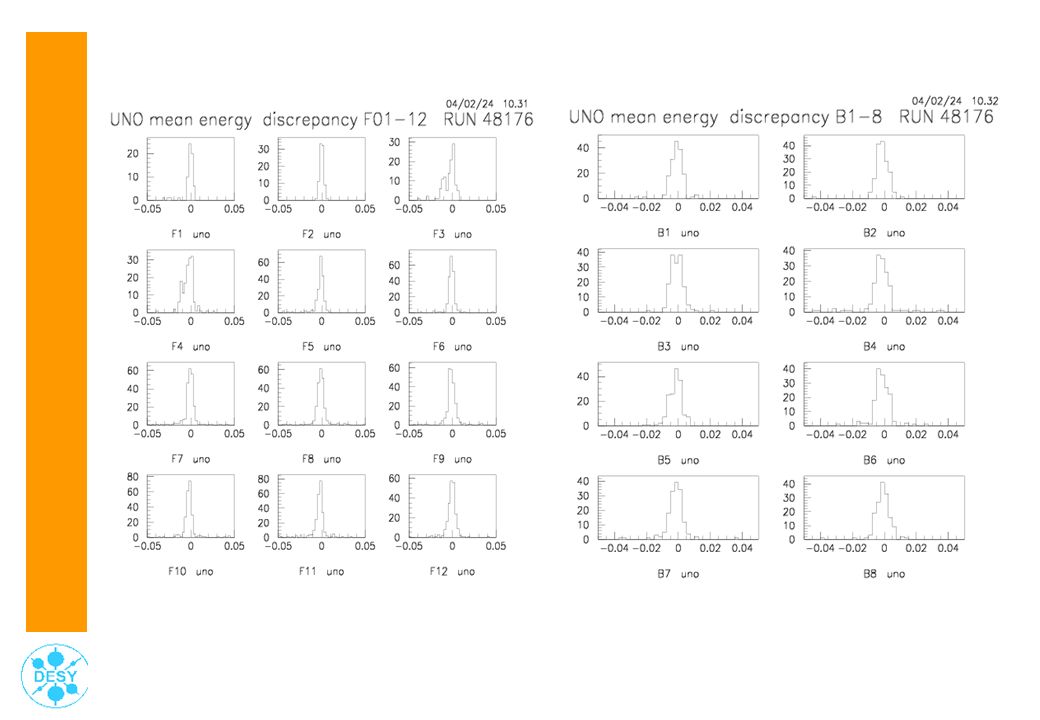

15 DESY, 25/02/2004TSS: CAL DQM 18-25/02/200415

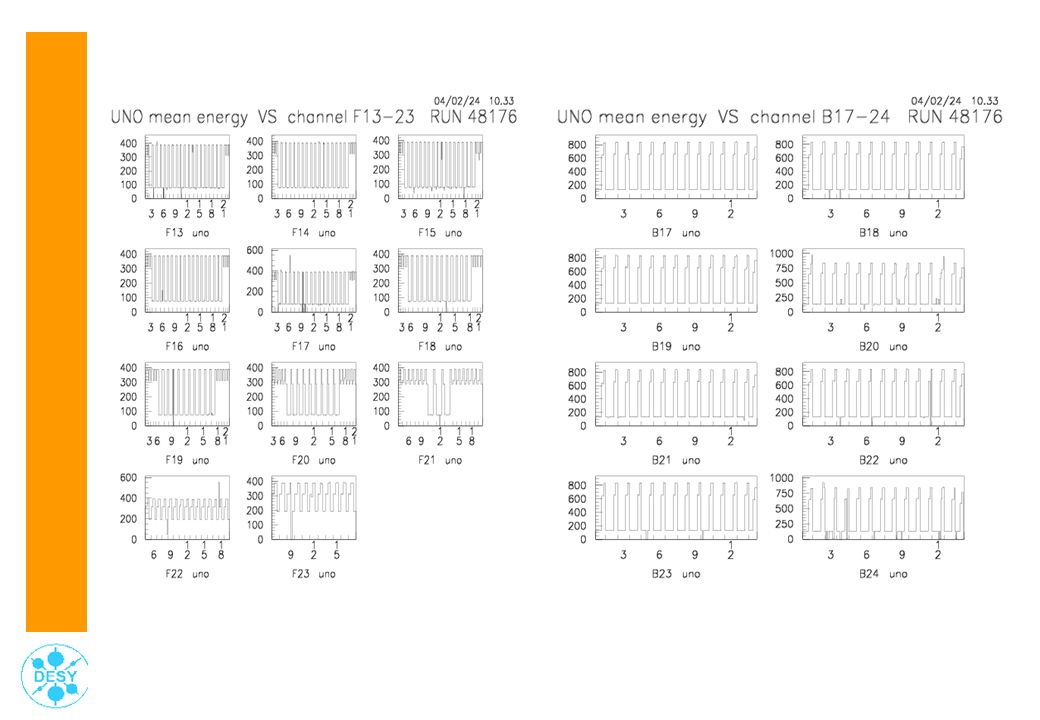

16 DESY, 25/02/2004TSS: CAL DQM 18-25/02/200416

17 DESY, 25/02/2004TSS: CAL DQM 18-25/02/200417

18 DESY, 25/02/2004TSS: CAL DQM 18-25/02/200418

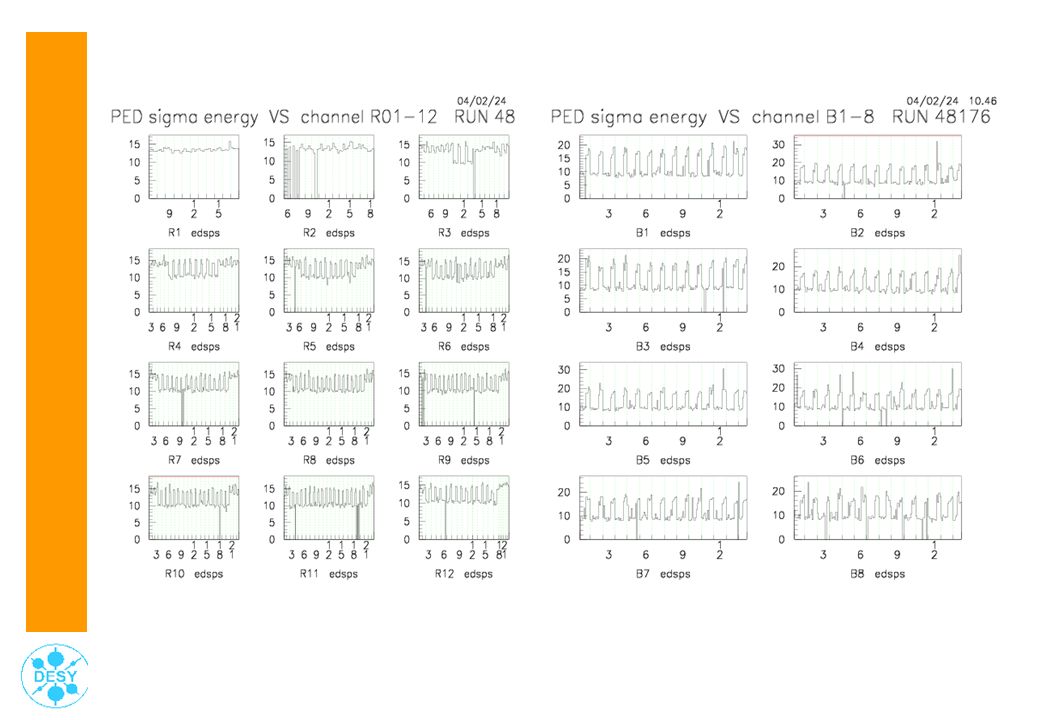

19 DESY, 25/02/2004TSS: CAL DQM 18-25/02/200419

20 DESY, 25/02/2004TSS: CAL DQM 18-25/02/200420

21 DESY, 25/02/2004TSS: CAL DQM 18-25/02/200421

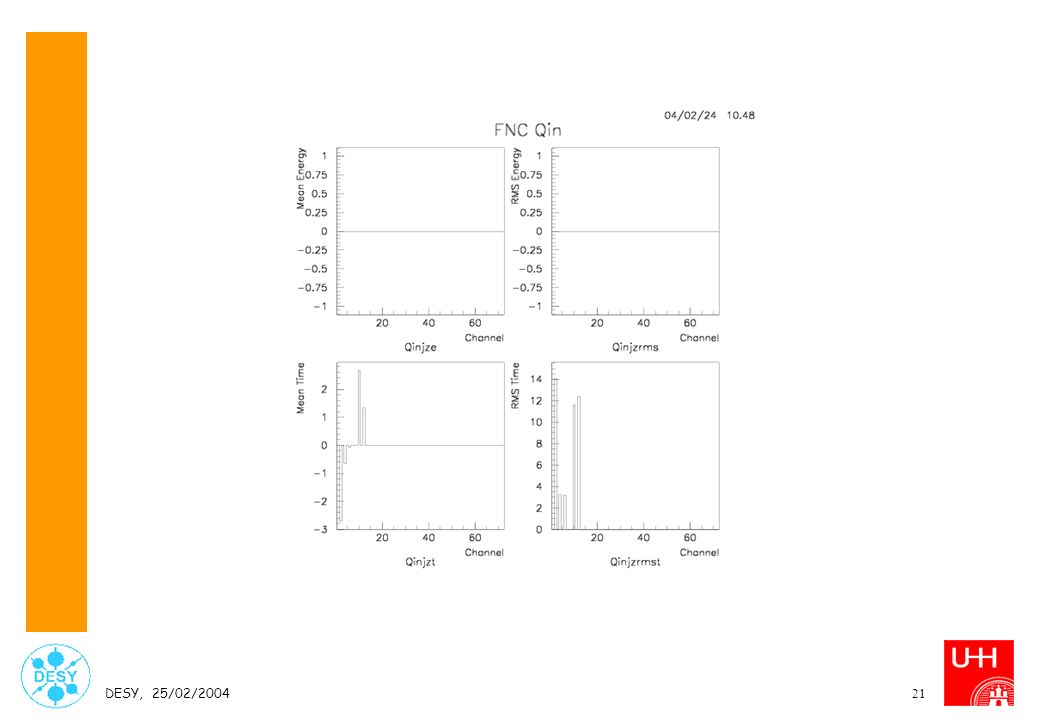

22 DESY, 25/02/2004TSS: CAL DQM 18-25/02/200422

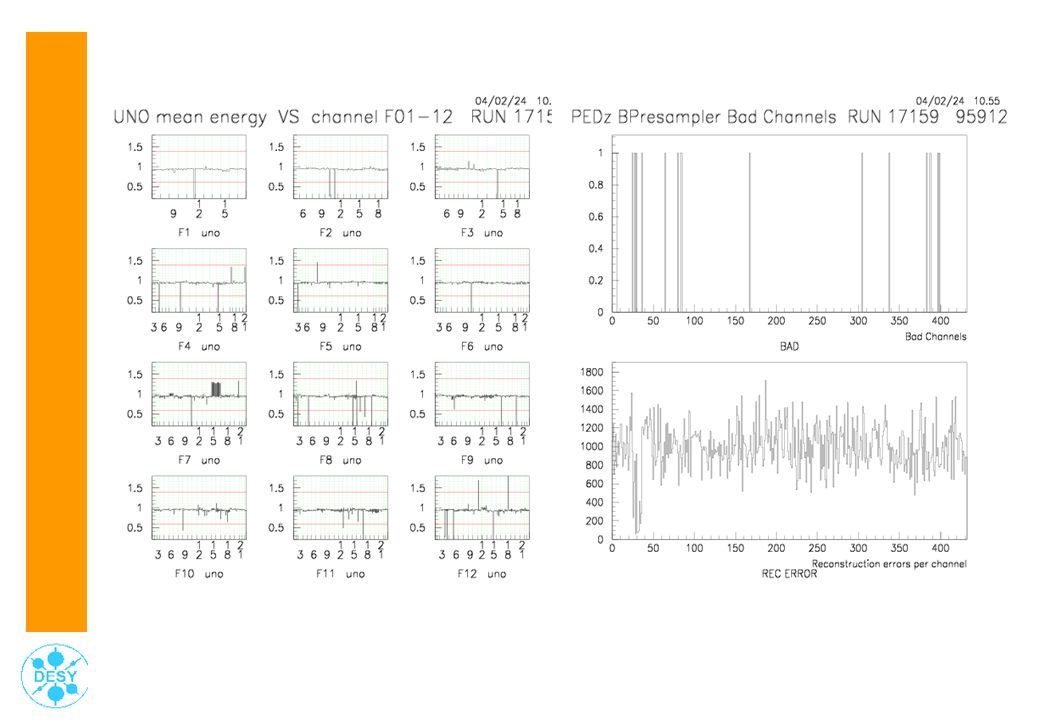

23 DESY, 25/02/2004TSS: CAL DQM 18-25/02/200423

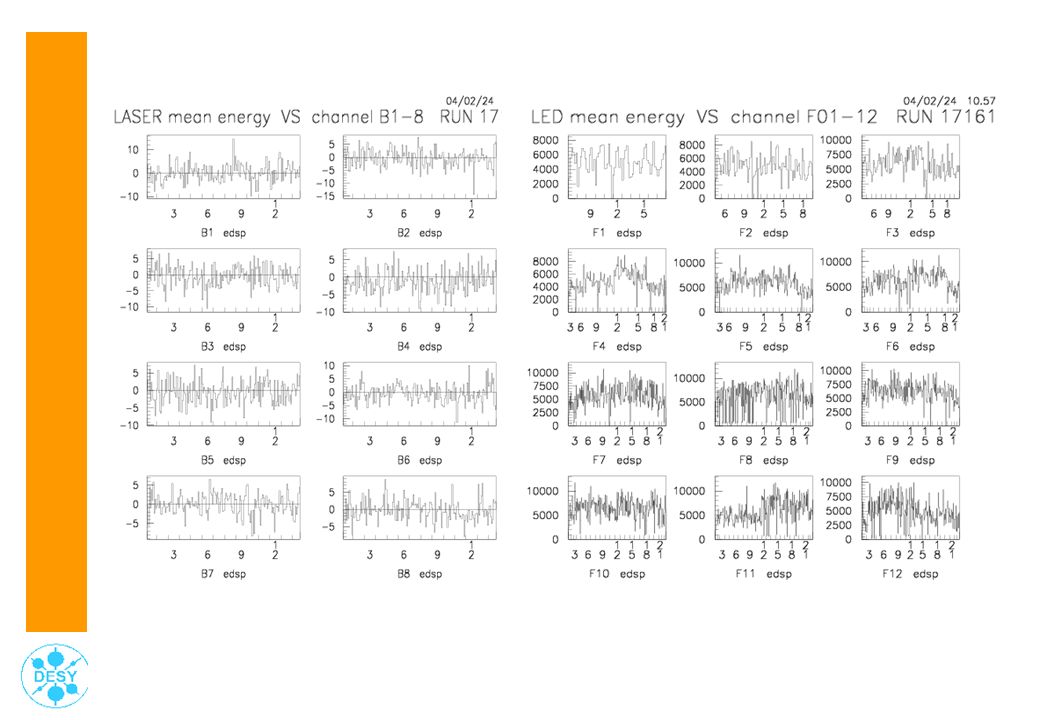

24 DESY, 25/02/2004TSS: CAL DQM 18-25/02/200424

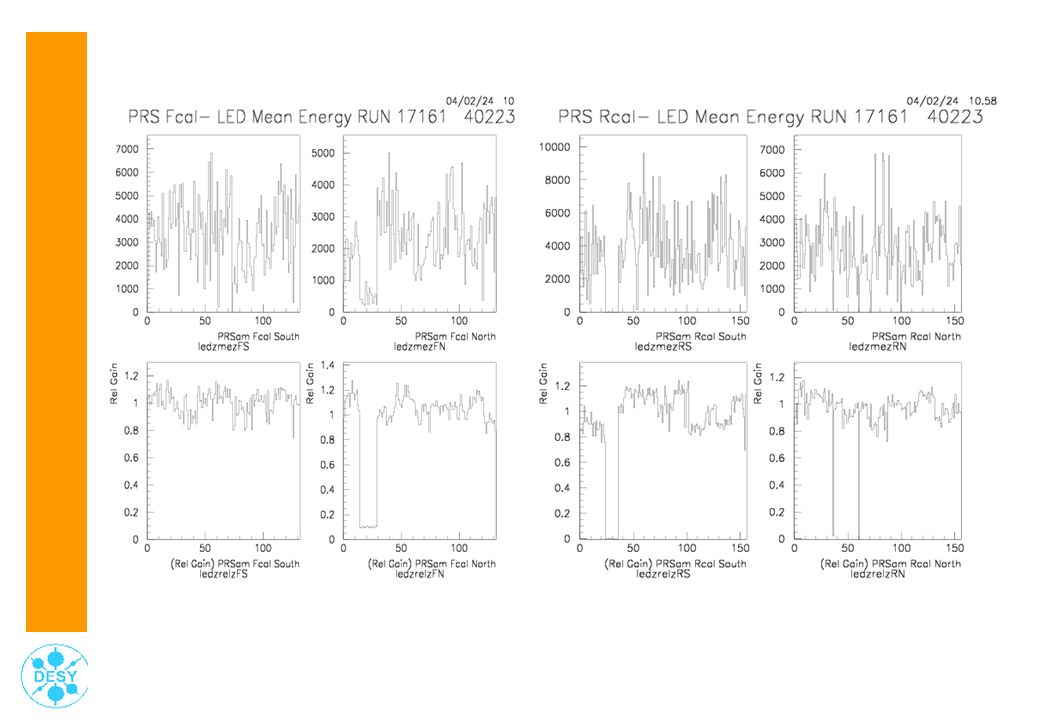

25 DESY, 25/02/2004TSS: CAL DQM 18-25/02/200425

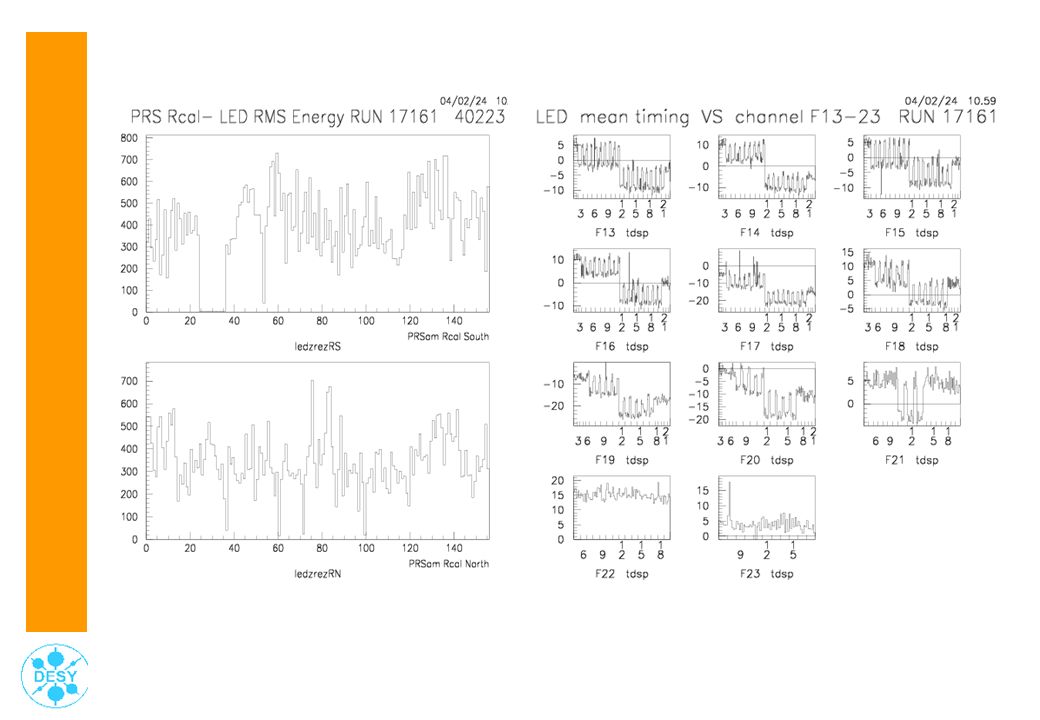

26 DESY, 25/02/2004TSS: CAL DQM 18-25/02/200426
