EE2010 Fundamentals of Electric Circuits Lecture 11 Network Theorems: Norton’s Theorem
2

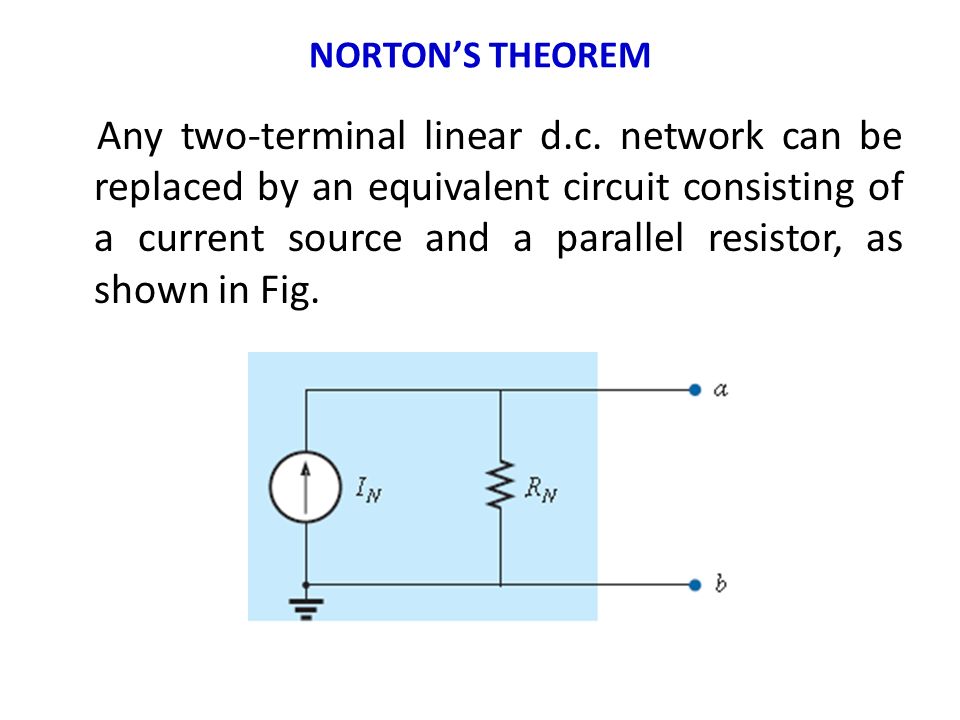

NORTON’S THEOREM Any two-terminal linear d.c. network can be replaced by an equivalent circuit consisting of a current source and a parallel resistor, as shown in Fig.
3

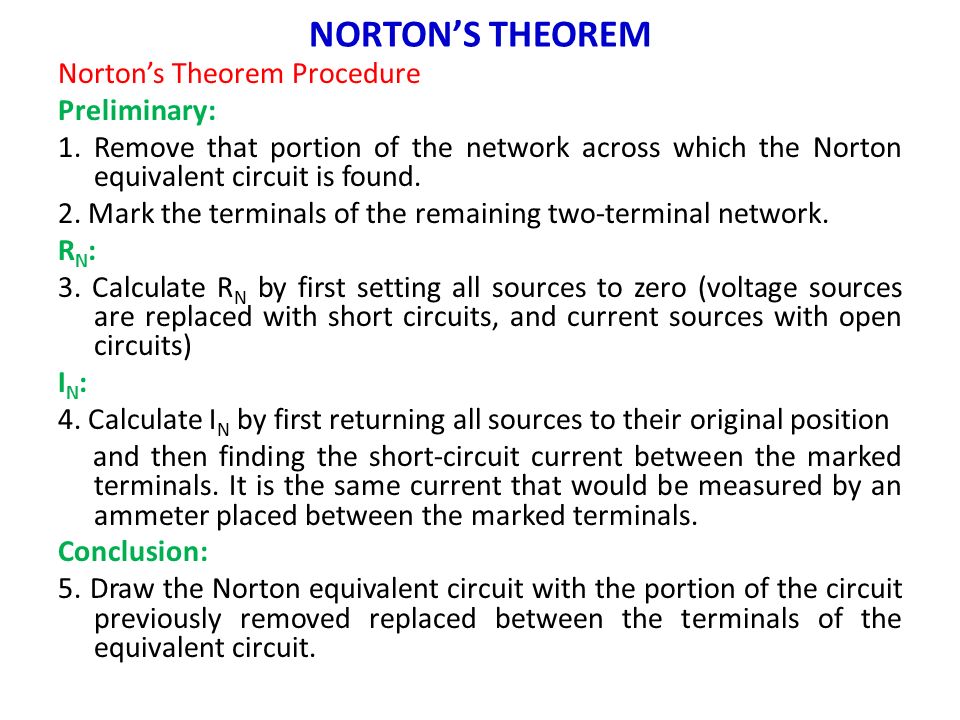

Norton’s Theorem Procedure Preliminary: 1. Remove that portion of the network across which the Norton equivalent circuit is found. 2. Mark the terminals of the remaining two-terminal network. R N : 3. Calculate R N by first setting all sources to zero (voltage sources are replaced with short circuits, and current sources with open circuits) I N : 4. Calculate I N by first returning all sources to their original position and then finding the short-circuit current between the marked terminals. It is the same current that would be measured by an ammeter placed between the marked terminals. Conclusion: 5. Draw the Norton equivalent circuit with the portion of the circuit previously removed replaced between the terminals of the equivalent circuit. NORTON’S THEOREM
4

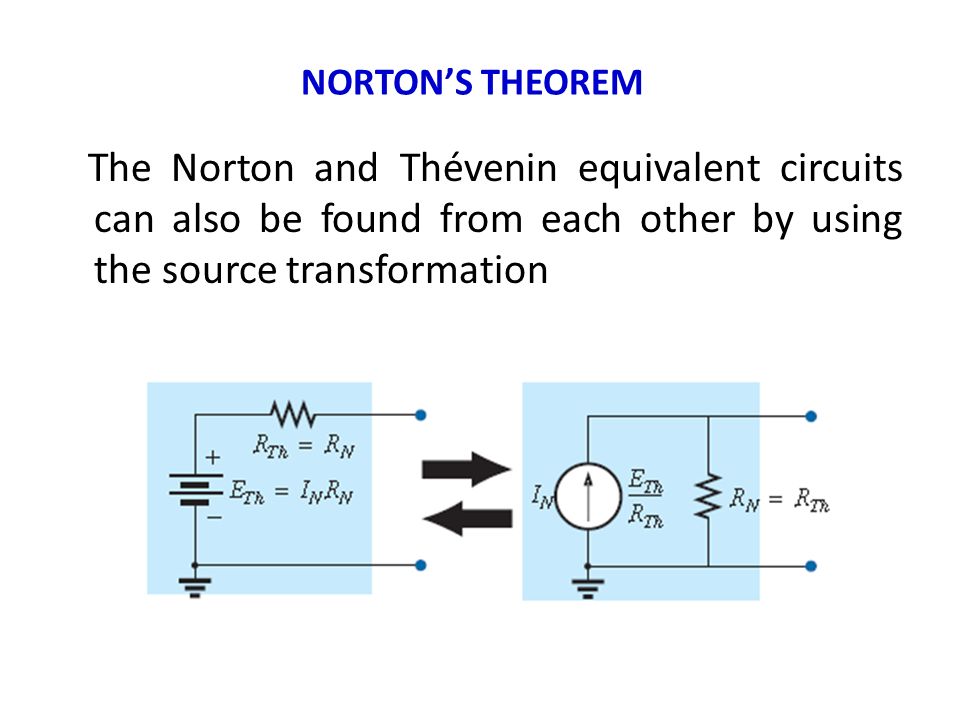

The Norton and Thévenin equivalent circuits can also be found from each other by using the source transformation NORTON’S THEOREM
5

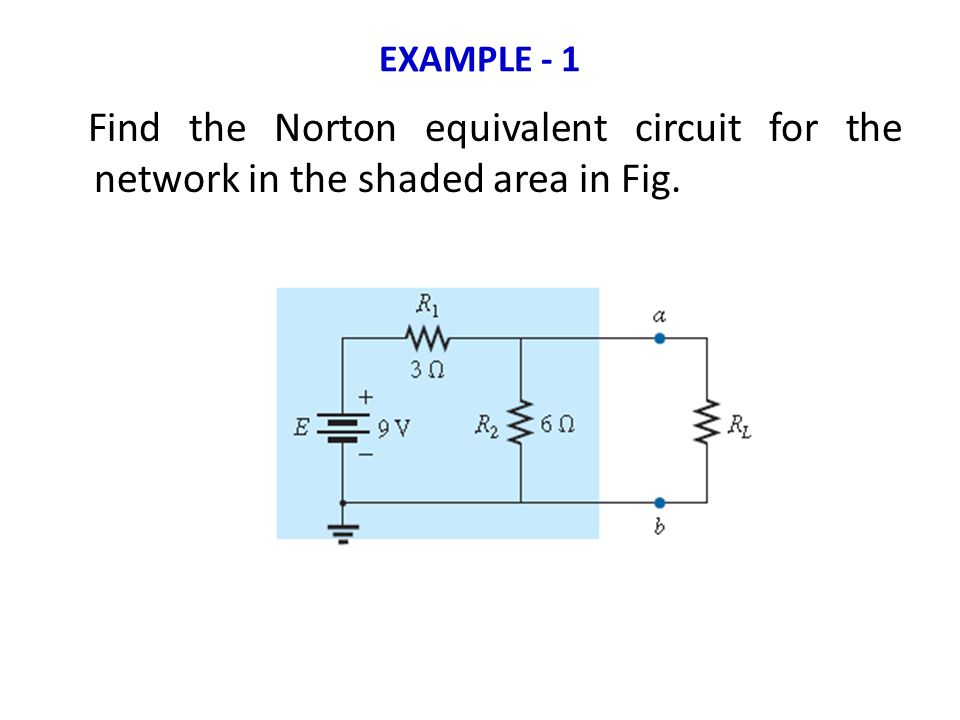

EXAMPLE - 1 Find the Norton equivalent circuit for the network in the shaded area in Fig.
6

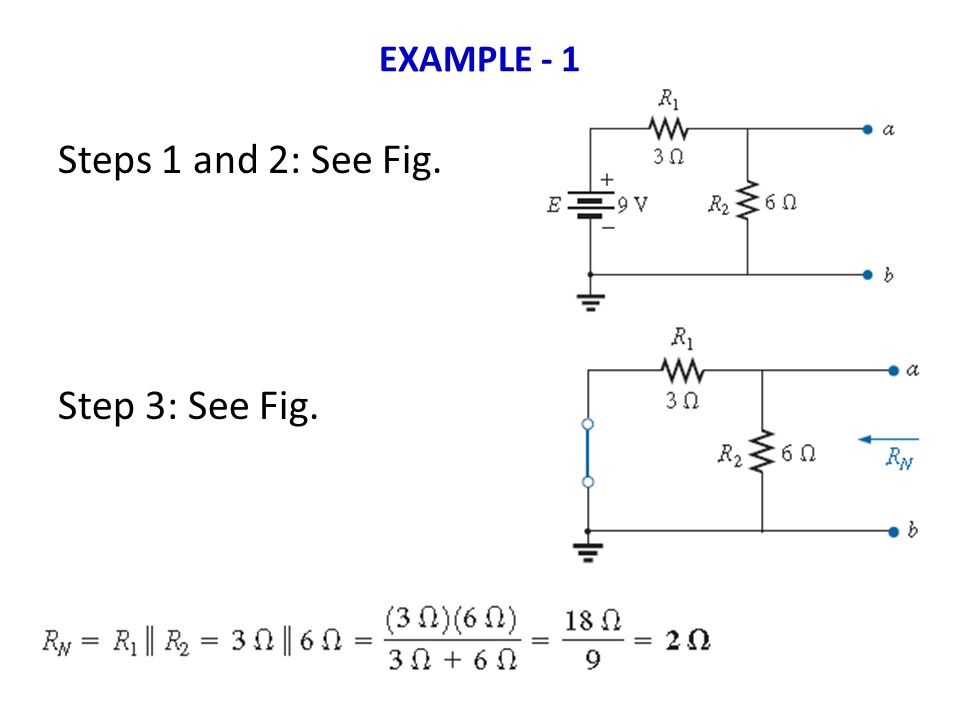

Steps 1 and 2: See Fig. Step 3: See Fig. EXAMPLE - 1
7

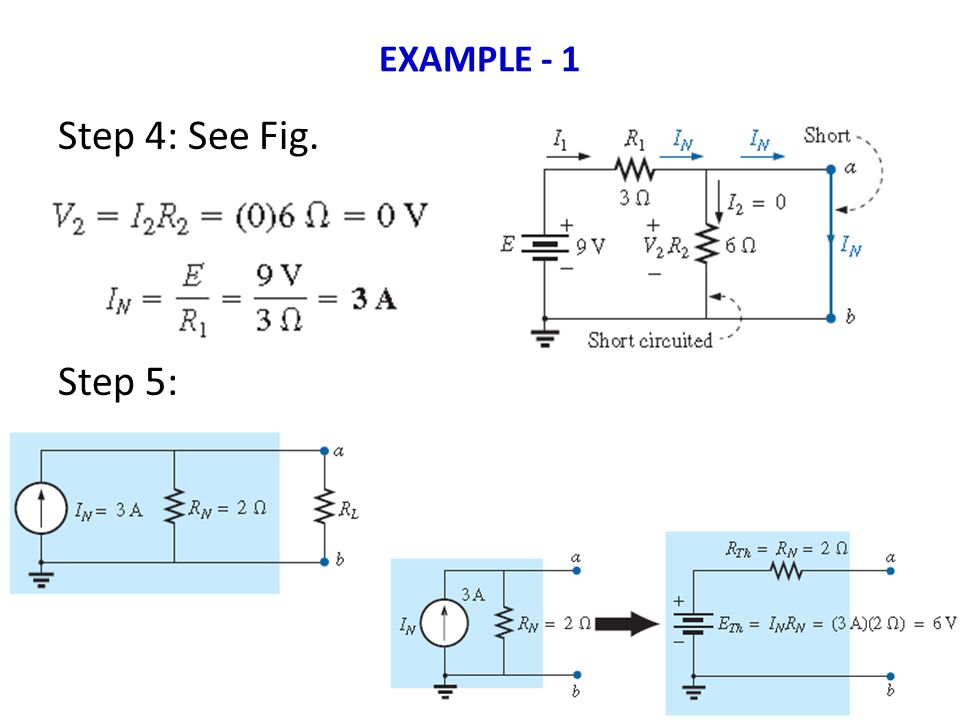

Step 4: See Fig. Step 5: EXAMPLE - 1
8

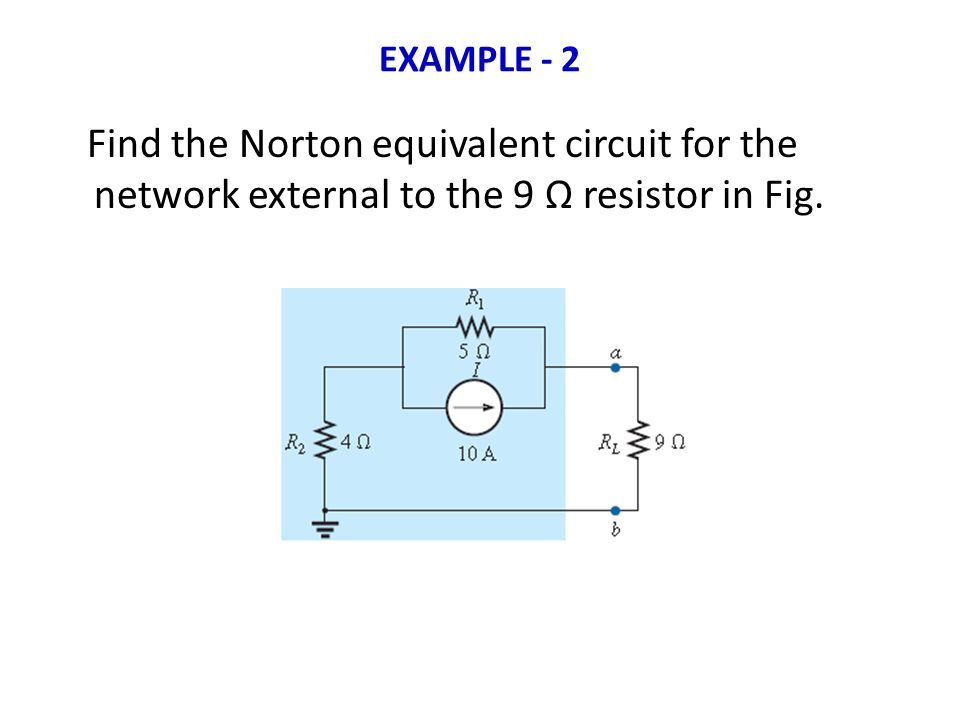

Find the Norton equivalent circuit for the network external to the 9 Ω resistor in Fig. EXAMPLE - 2
9
Solution: Steps 1 and 2: Step 3: EXAMPLE - 2
10

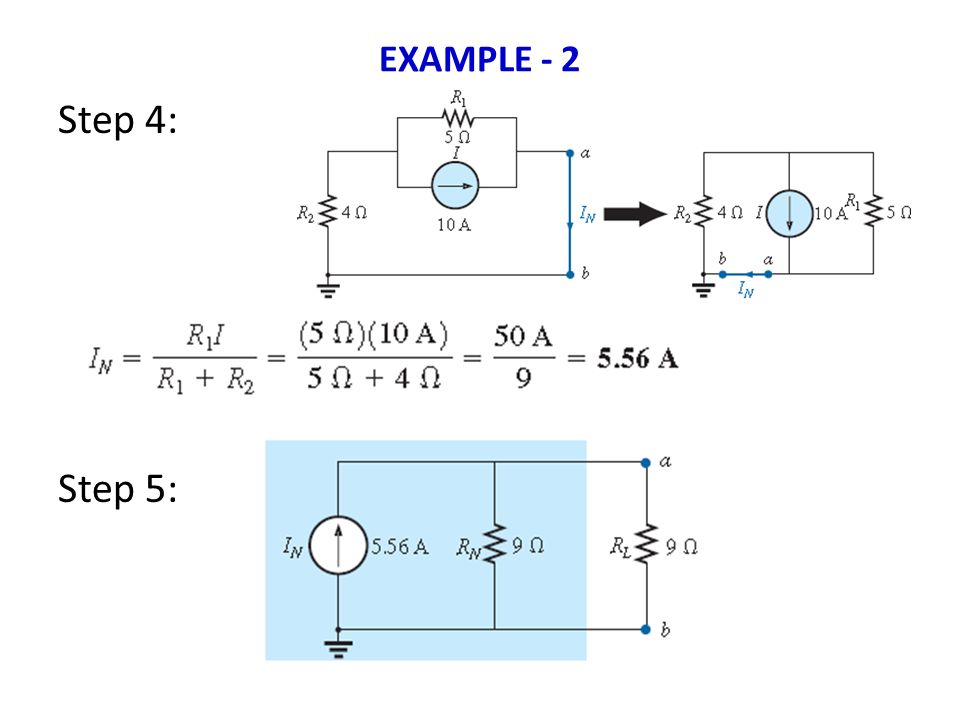

Step 4: Step 5: EXAMPLE - 2
11

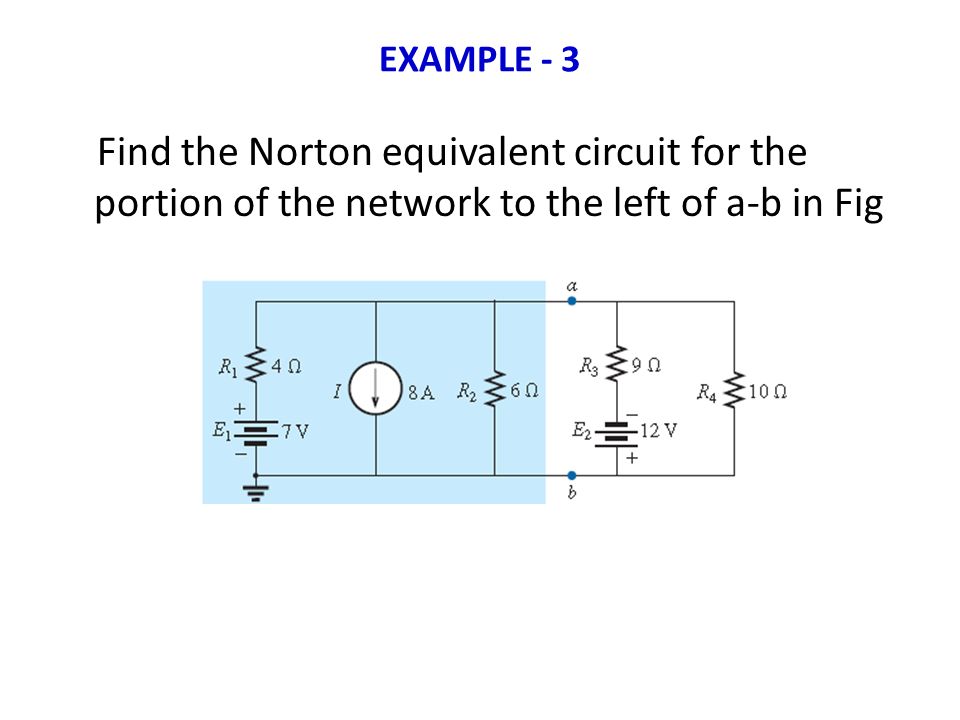

Find the Norton equivalent circuit for the portion of the network to the left of a-b in Fig EXAMPLE - 3
12

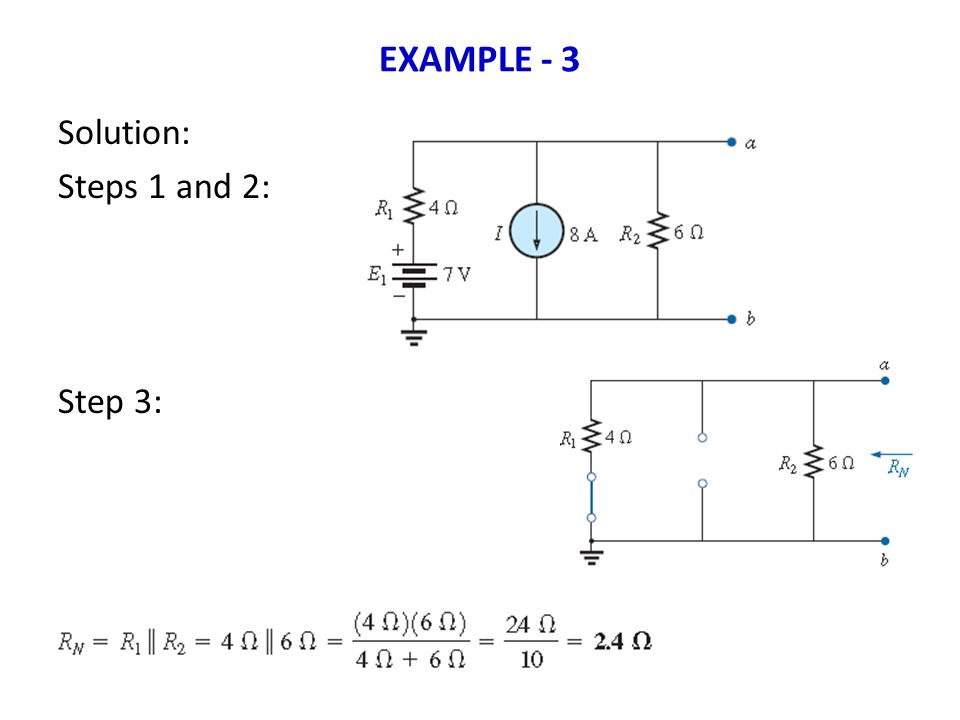

Solution: Steps 1 and 2: Step 3: EXAMPLE - 3
13

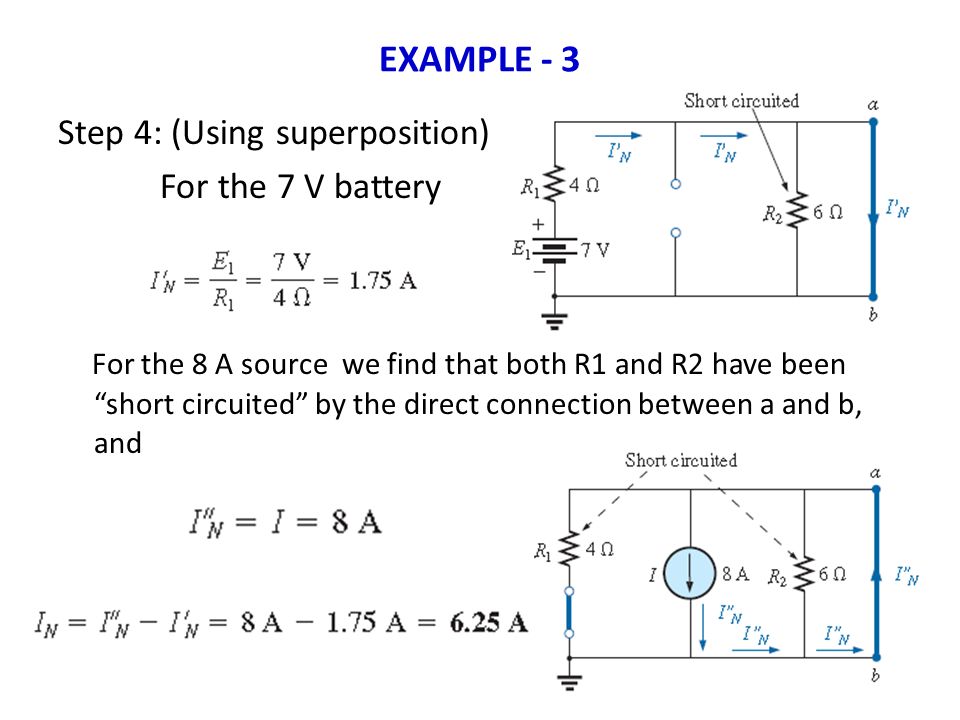

Step 4: (Using superposition) For the 7 V battery For the 8 A source we find that both R1 and R2 have been “short circuited” by the direct connection between a and b, and EXAMPLE - 3
14

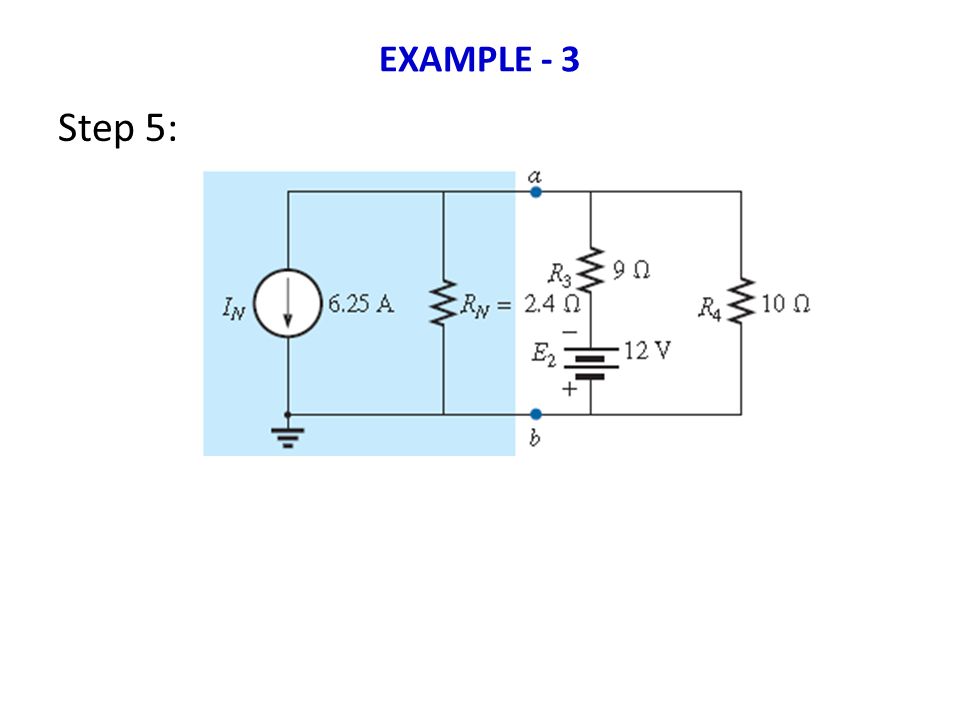

Step 5: EXAMPLE - 3
15

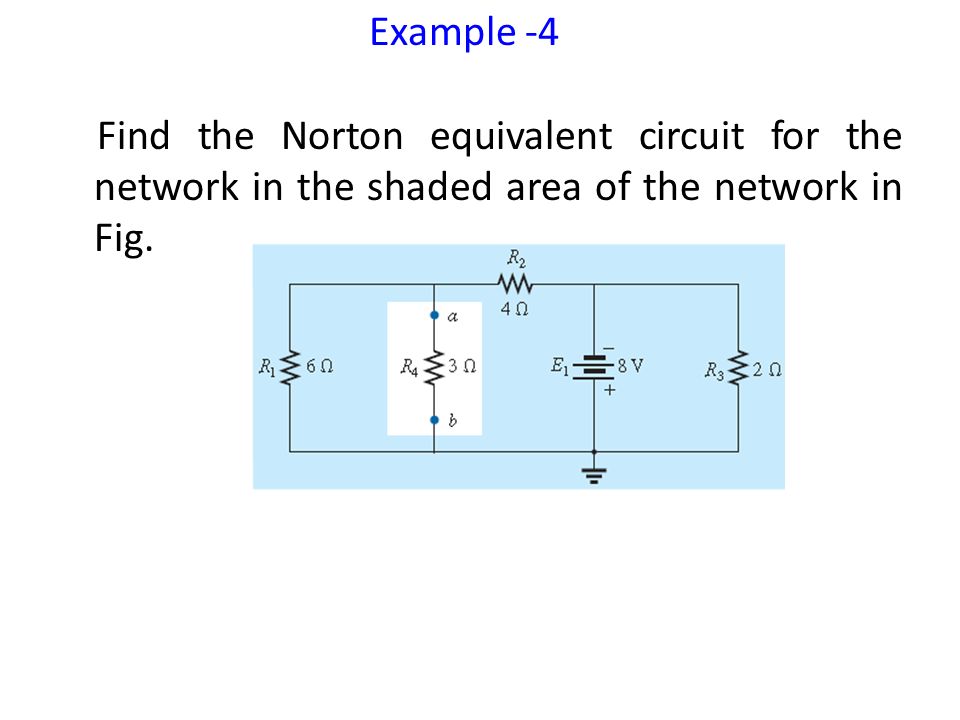

Find the Norton equivalent circuit for the network in the shaded area of the network in Fig. Example -4
16

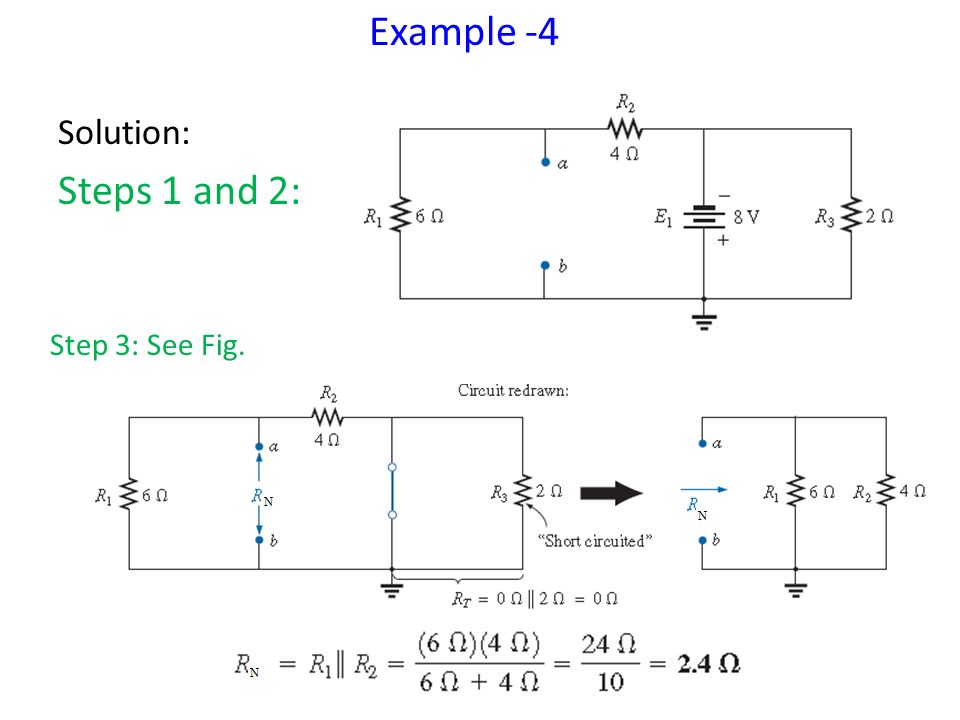

Solution: Steps 1 and 2: Step 3: See Fig. Example -4
17

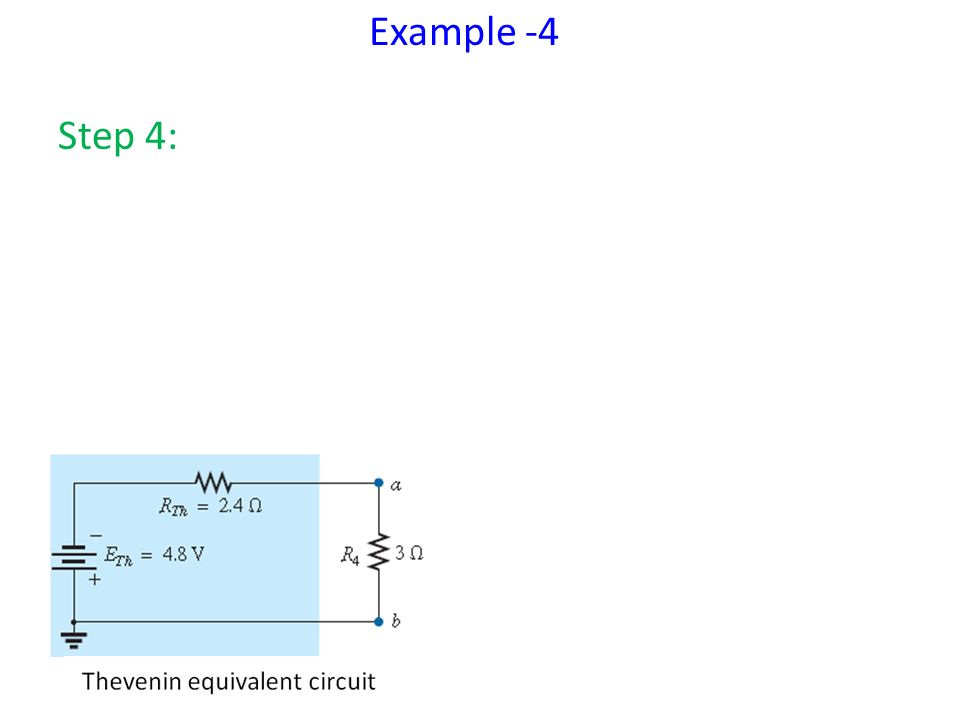

Step 4: Example -4
