1
Lecture 5 Source Transformation Thevenin Equivalent Circuit Norton Equivalent Circuit

2

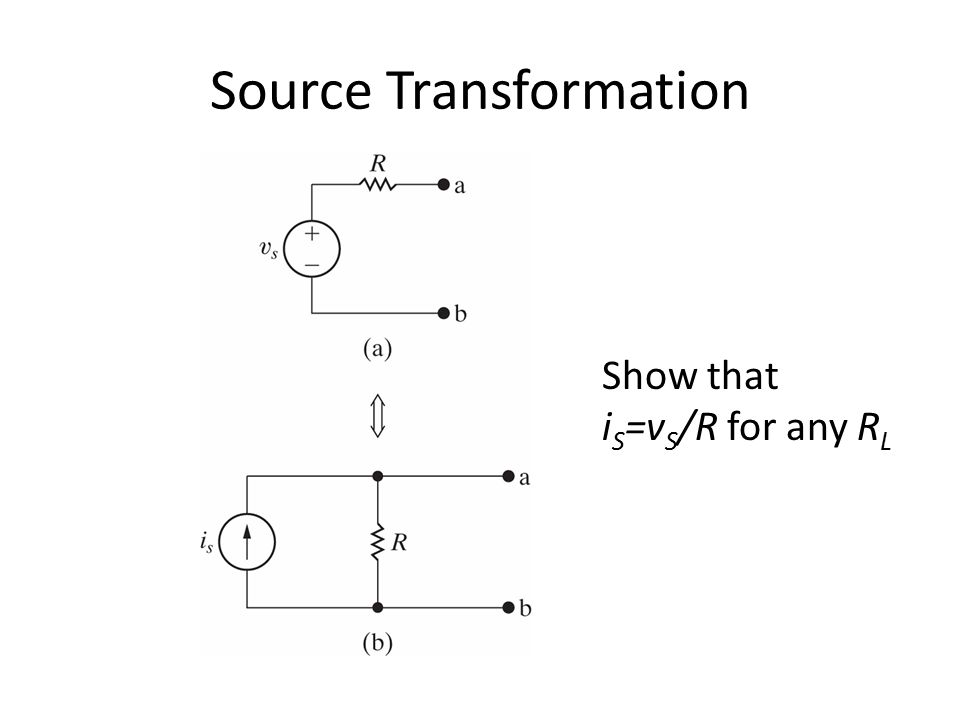

Source Transformation Show that i S =v S /R for any R L

3

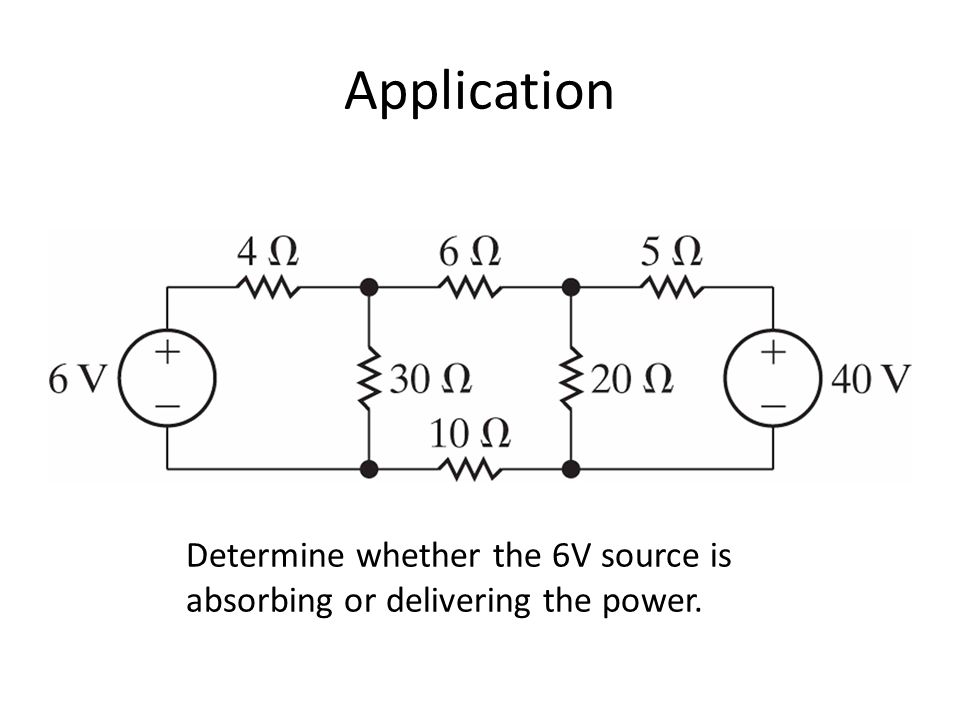

Application Determine whether the 6V source is absorbing or delivering the power.

4
Step-by-step simplification

5
Redundant Resistor (1) Prove that the left circuit and the right circuit are equivalent for any load resistor.

6

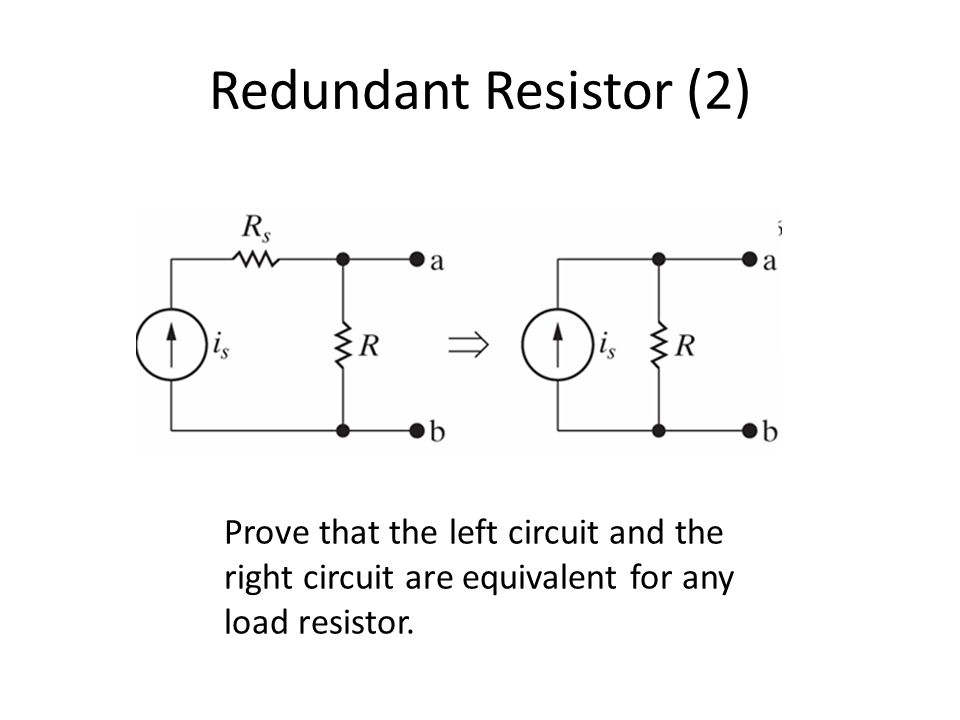

Redundant Resistor (2) Prove that the left circuit and the right circuit are equivalent for any load resistor.

7
Example 4.9

8

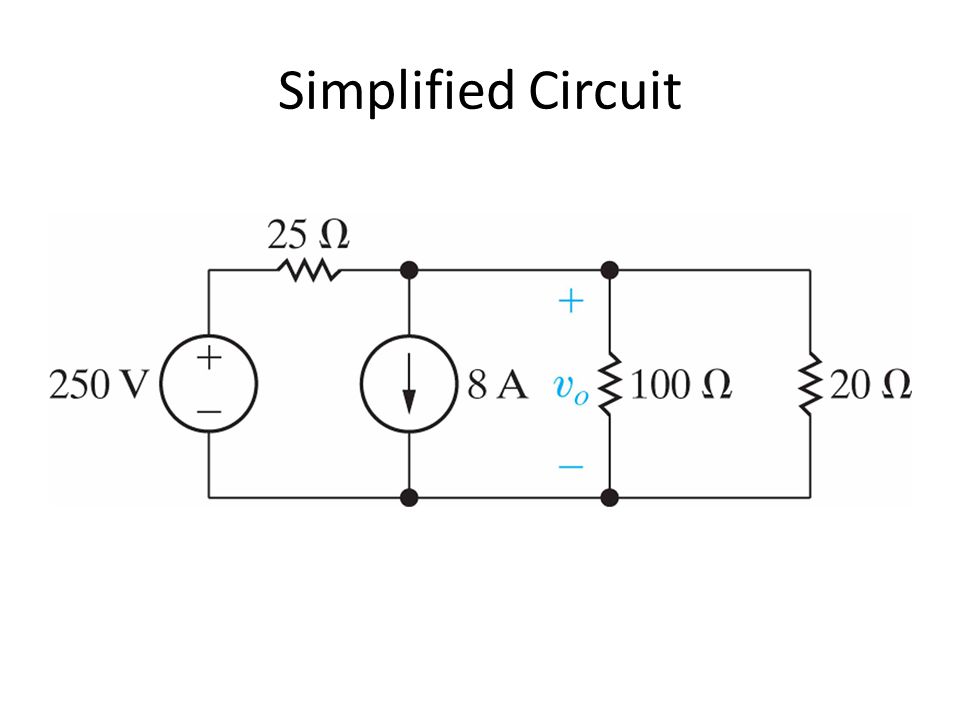

Simplified Circuit

9
Thevenin Equivalent Circuit

10
V Th If R L =∞, then V ab =V TH If R L =0, the short circuit current from a to b (i.e. i ab ) should equal to i sc =V Th /R TH. So R TH =V Th /i sc

11

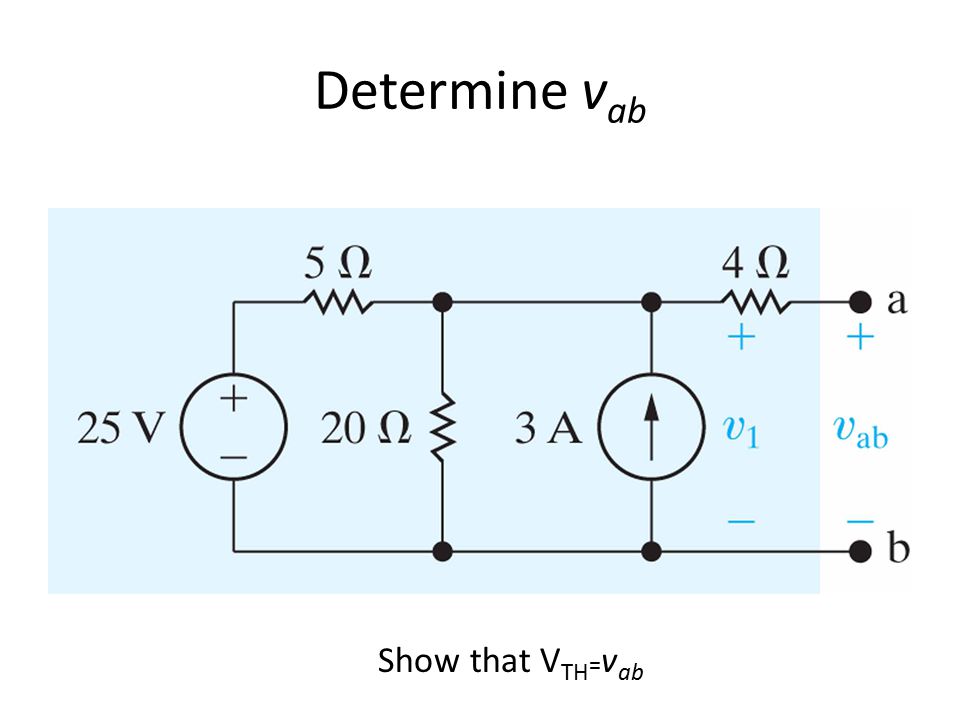

Determine v ab Show that V TH = v ab

12
Determine i SC and R TH

13
Example 4.10 Determine the Thevenin Equivalent Voltage

14

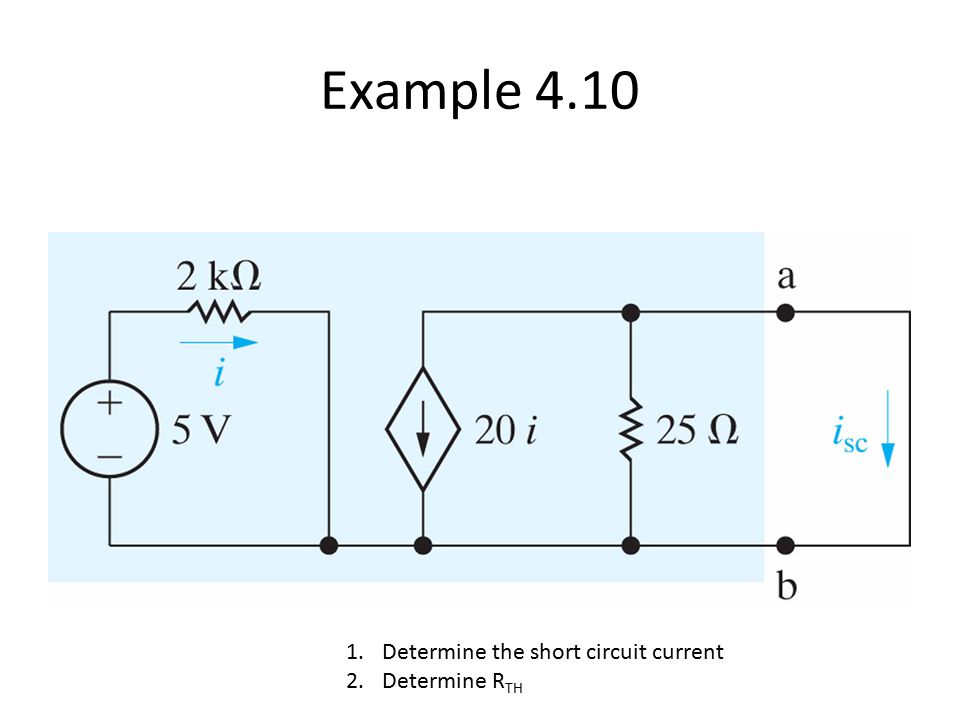

Example 4.10 1.Determine the short circuit current 2.Determine R TH

15

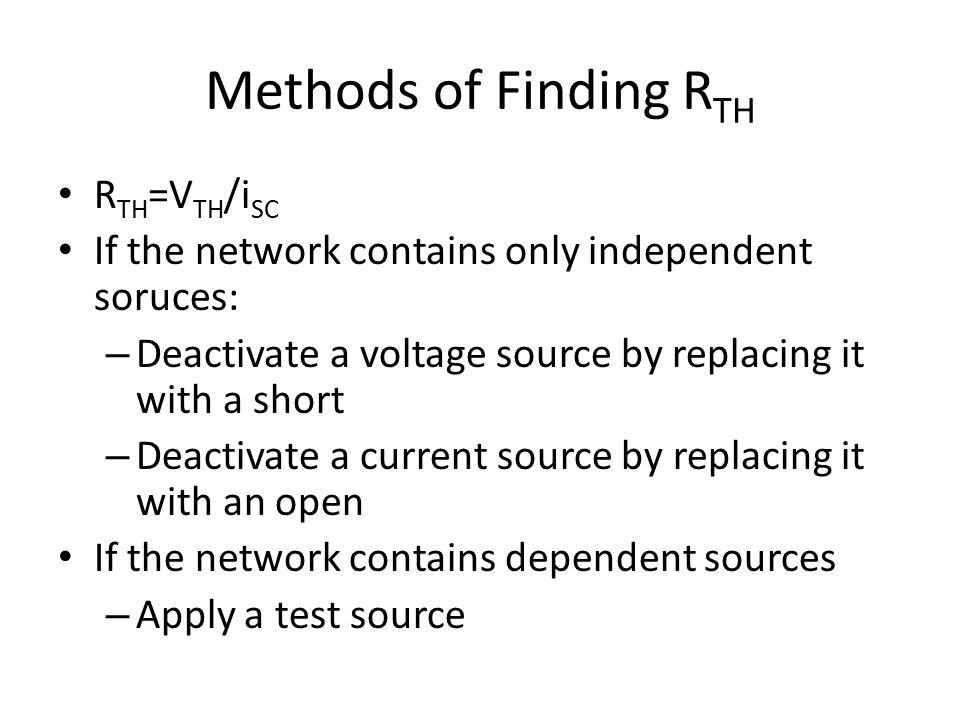

Methods of Finding R TH R TH =V TH /i SC If the network contains only independent soruces: – Deactivate a voltage source by replacing it with a short – Deactivate a current source by replacing it with an open If the network contains dependent sources – Apply a test source

16

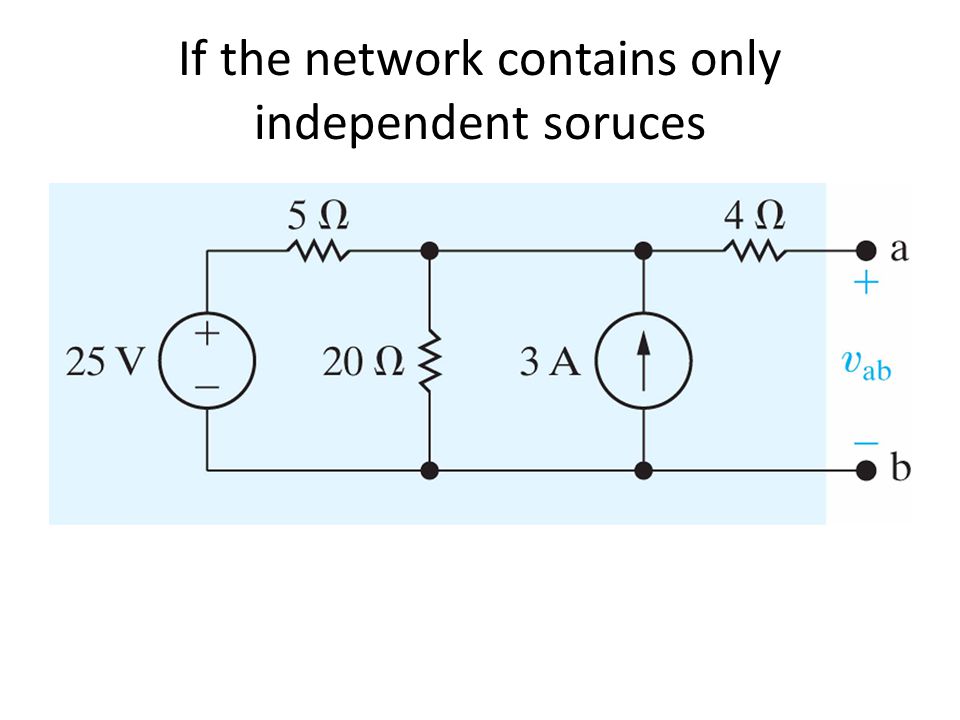

If the network contains only independent soruces

17

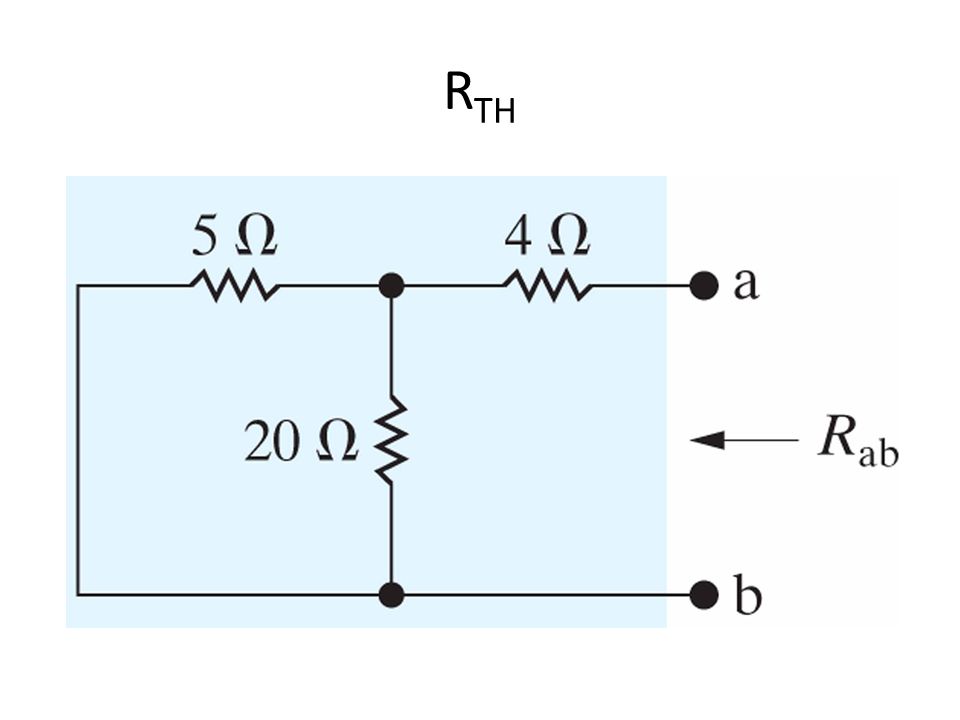

R TH

19

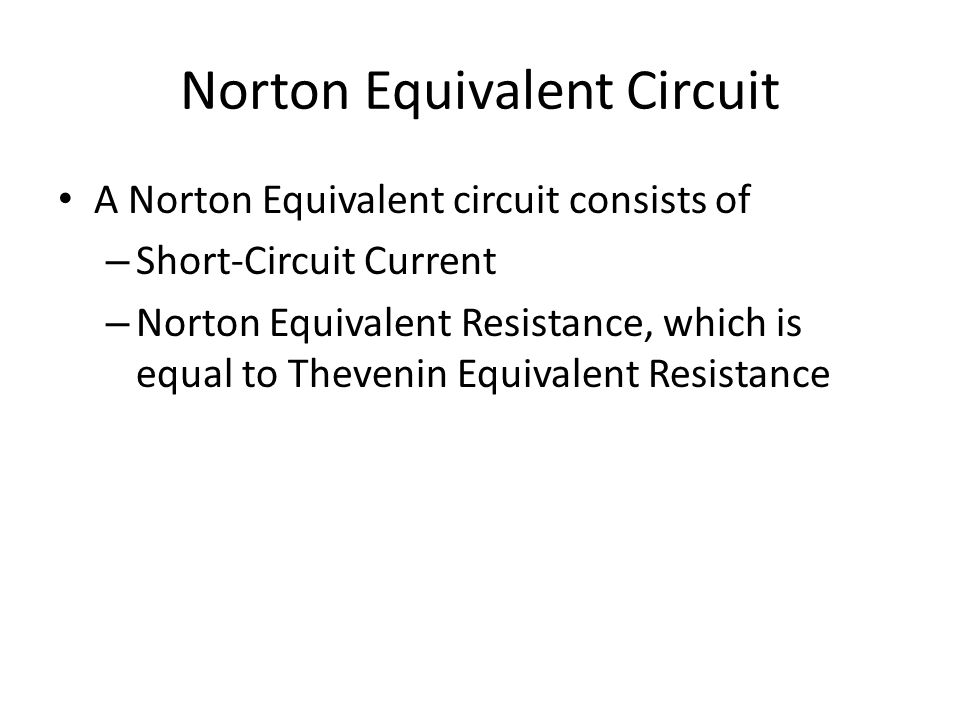

Norton Equivalent Circuit A Norton Equivalent circuit consists of – Short-Circuit Current – Norton Equivalent Resistance, which is equal to Thevenin Equivalent Resistance

20
Derivation of Norton Equivalent Circuit

21
Extra Credit Assignment Derive 4.1-4.3

22

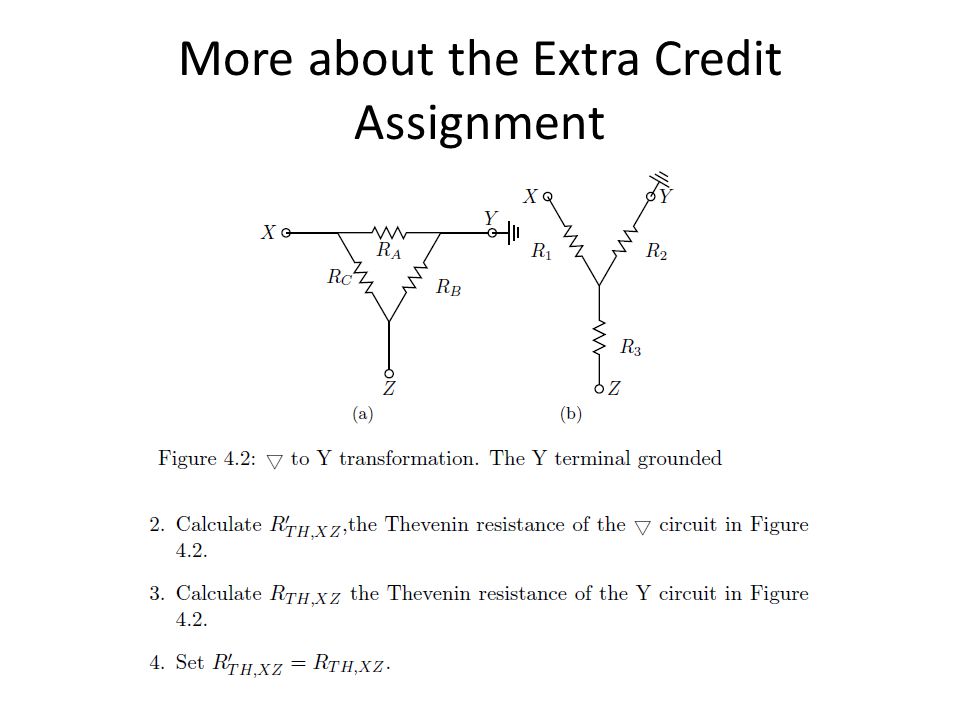

More about the Extra Credit Assignment
