1 Geometric Solids and Surface Area Geometry Regular Program SY 2014-2015 Sources: Discovering Geometry (2008) by Michael Serra Geometry (2007) by Ron Larson

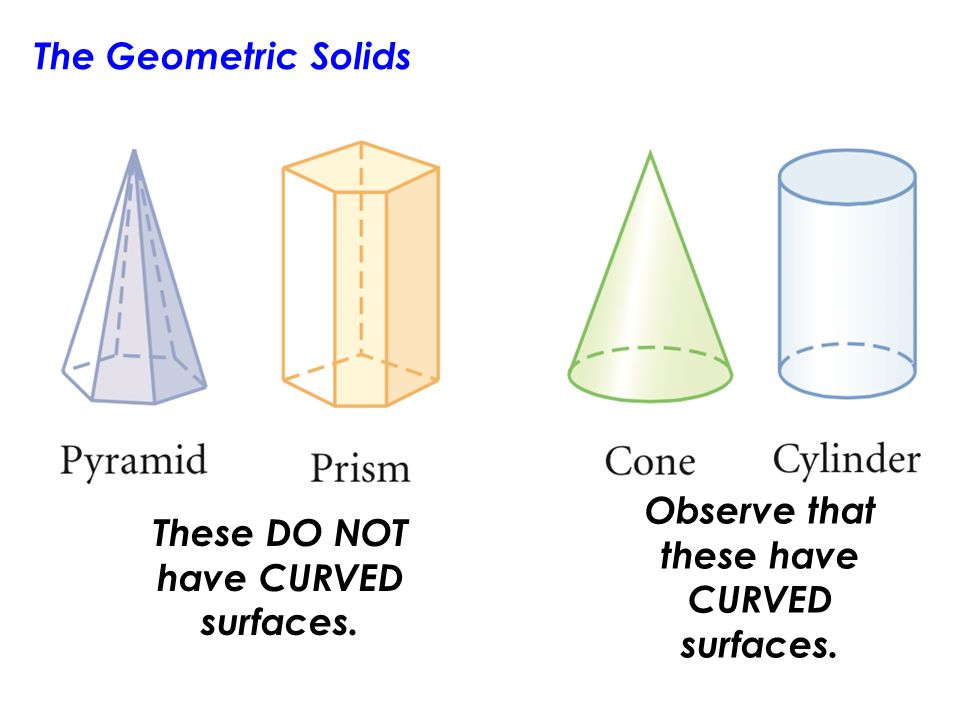

2 The Geometric Solids Observe that these have CURVED surfaces. These DO NOT have CURVED surfaces.

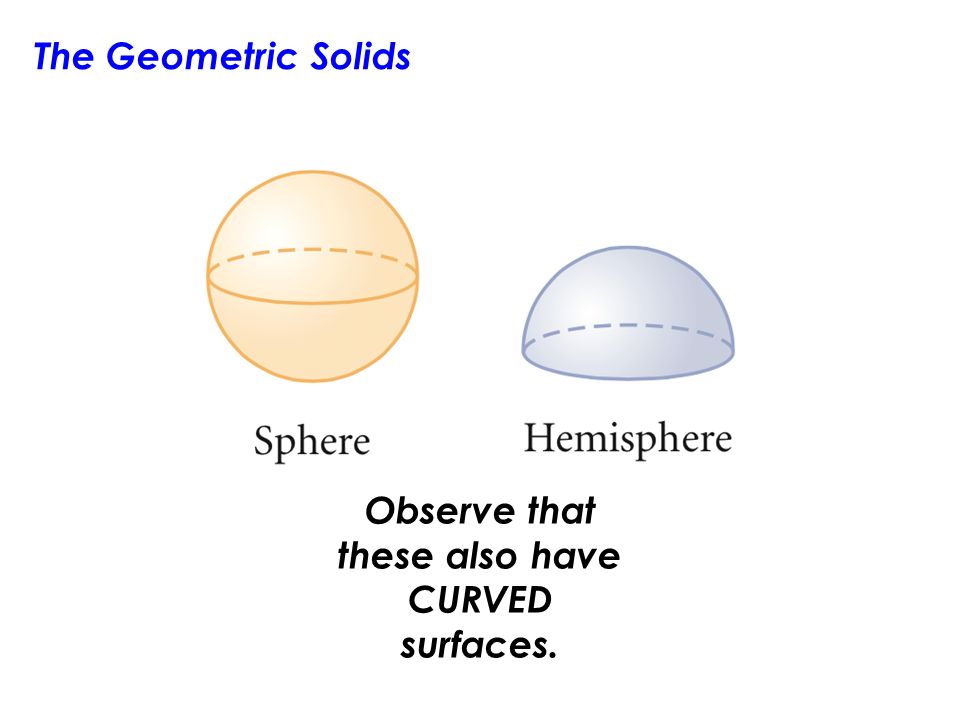

3 The Geometric Solids Observe that these also have CURVED surfaces.

4 The Geometric Solids A solid formed by polygons that enclose a single region of space is called a POLYHEDRON (pl. polyhedra) FACE – each polygonal surface EDGE – segment where 2 polygons intersect VERTEX – point where 3 or more edges intersect

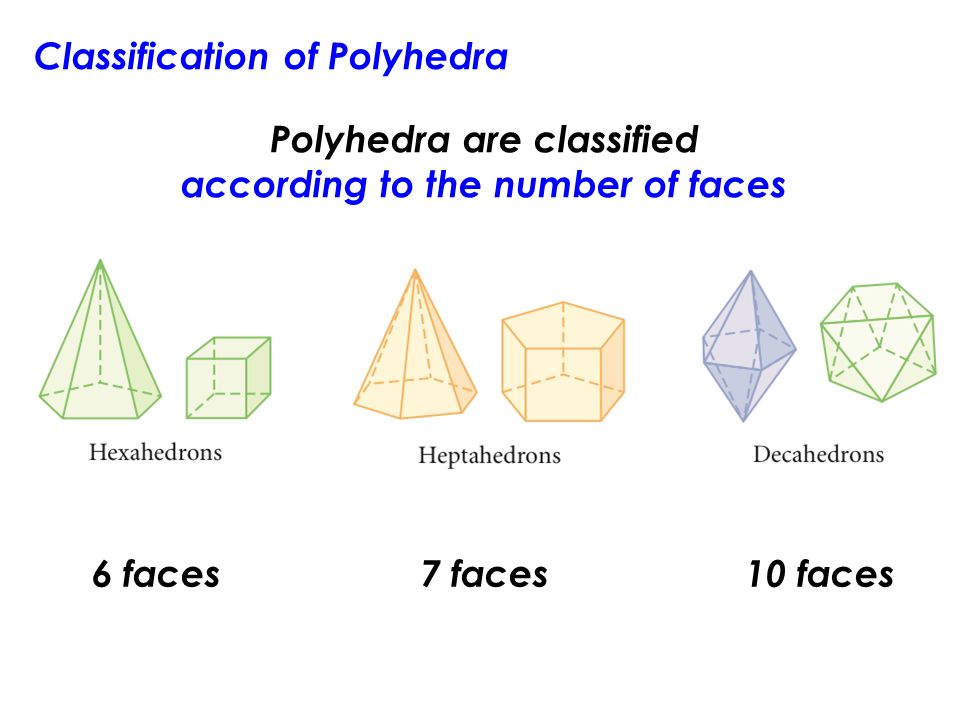

5 Classification of Polyhedra Polyhedra are classified according to the number of faces 6 faces7 faces10 faces

6 Classification of Polyhedra How many faces does a tetrahedron have ? REGULAR POLYHEDRON – a polygon whose faces are congruent regular polygons

7 Which are polyhedra?

8 PRISM Has 2 parallel & congruent bases base Other faces are LATERAL faces, which are parallelograms LATERAL EDGES

9 PRISM - classified according to base

10 PRISM RIGHT vs OBLIQUE Lateral faces are rectangles.Lateral faces: NOT rectangles.

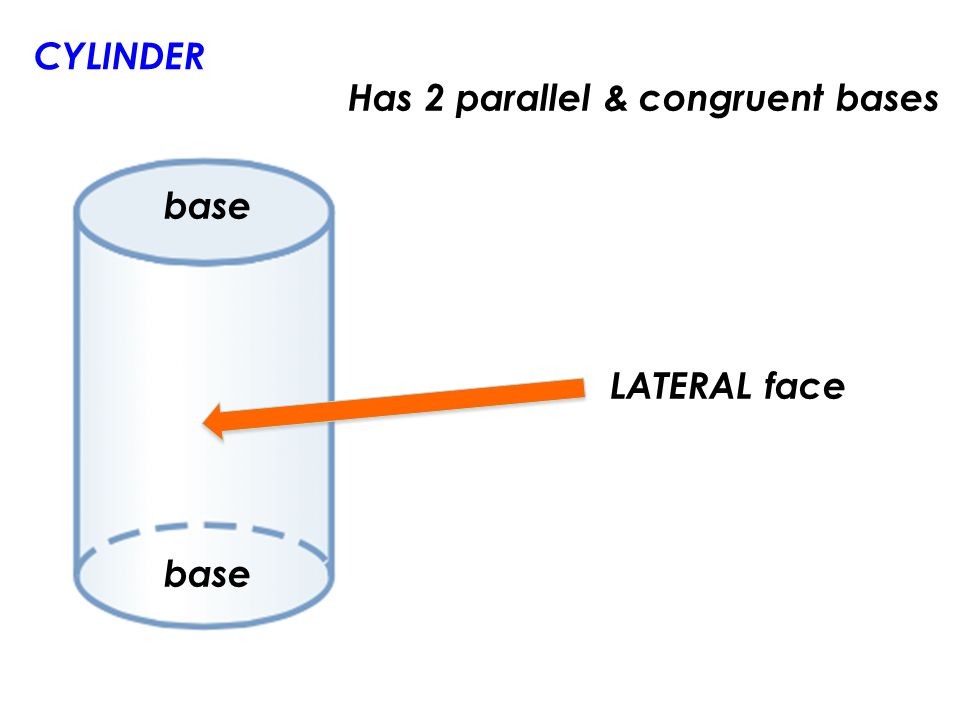

11 CYLINDER Has 2 parallel & congruent bases base LATERAL face

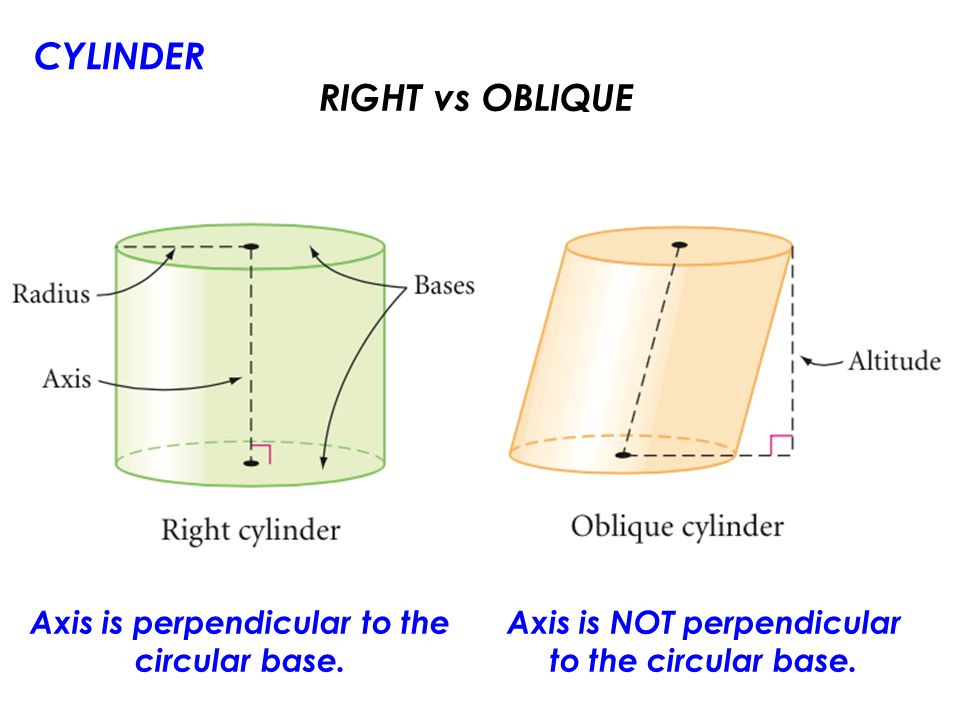

12 CYLINDER RIGHT vs OBLIQUE Axis is perpendicular to the circular base. Axis is NOT perpendicular to the circular base.

13 PYRAMID Has only 1 base base LATERAL faces are triangles. LATERAL EDGES Vertex of pyramid

14 PYRAMID - classified according to base Which of these pyramids are right? Oblique?

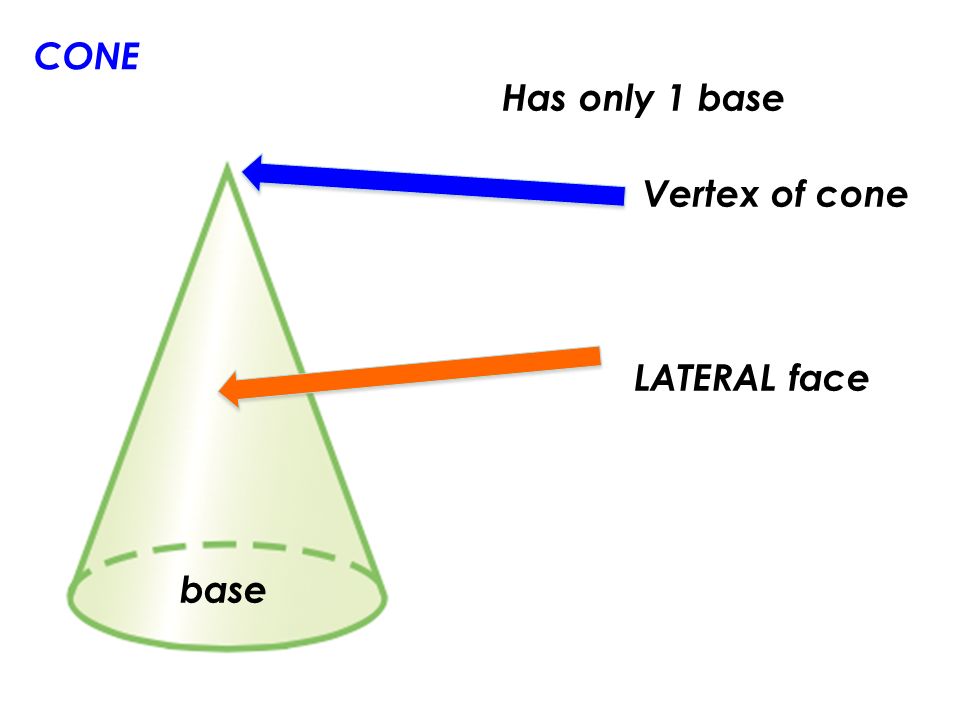

15 CONE Has only 1 base base LATERAL face Vertex of cone

16 CONE RIGHT vs OBLIQUE

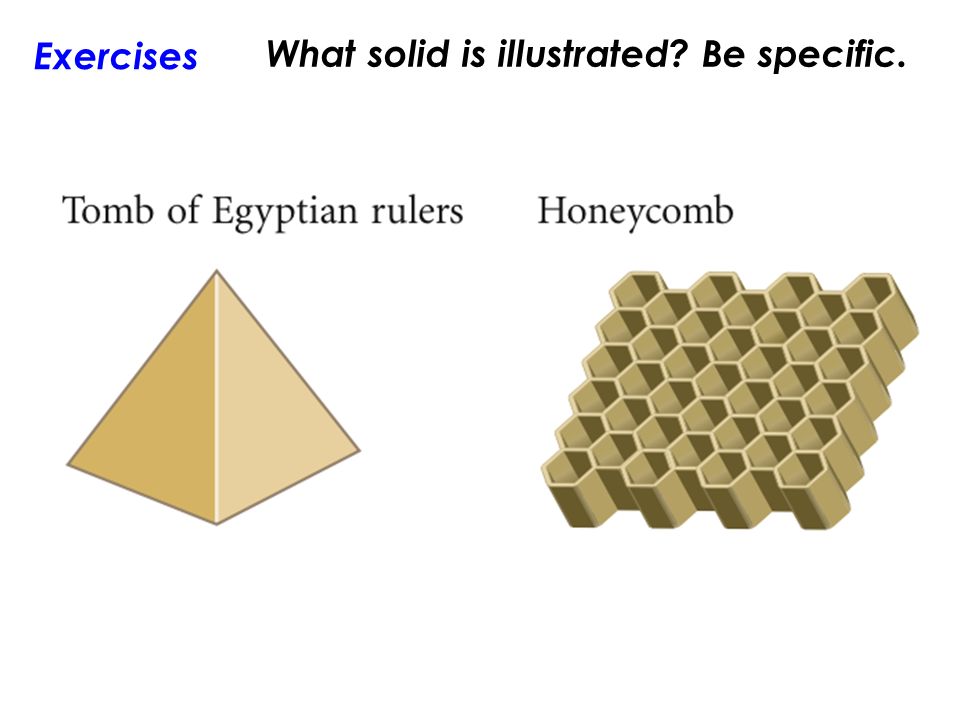

17 Exercises What solid is illustrated? Be specific.

18 Exercises What solid is illustrated? Be specific.

19 Exercises What solid is illustrated? Be specific.

20 What is SURFACE AREA? The surface area of any given solid is the SUM of the areas of ALL EXPOSED and TANGIBLE faces that enclose the solid.

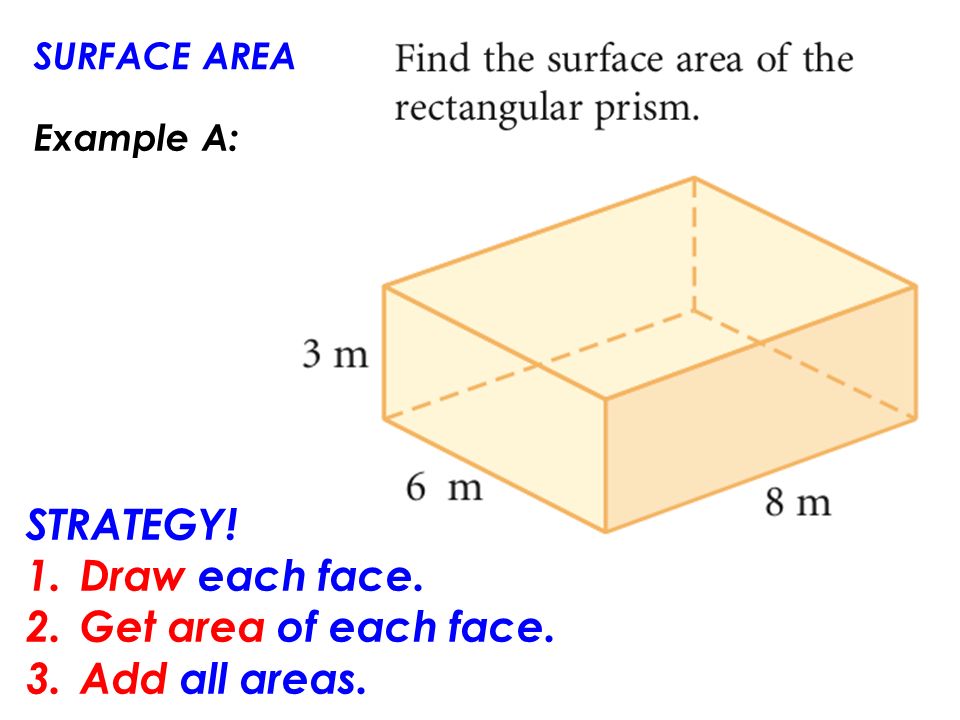

21 SURFACE AREA Example A: STRATEGY! 1.Draw each face. 2.Get area of each face. 3.Add all areas.

22 SURFACE AREA Solution:

23 SURFACE AREA Solution:

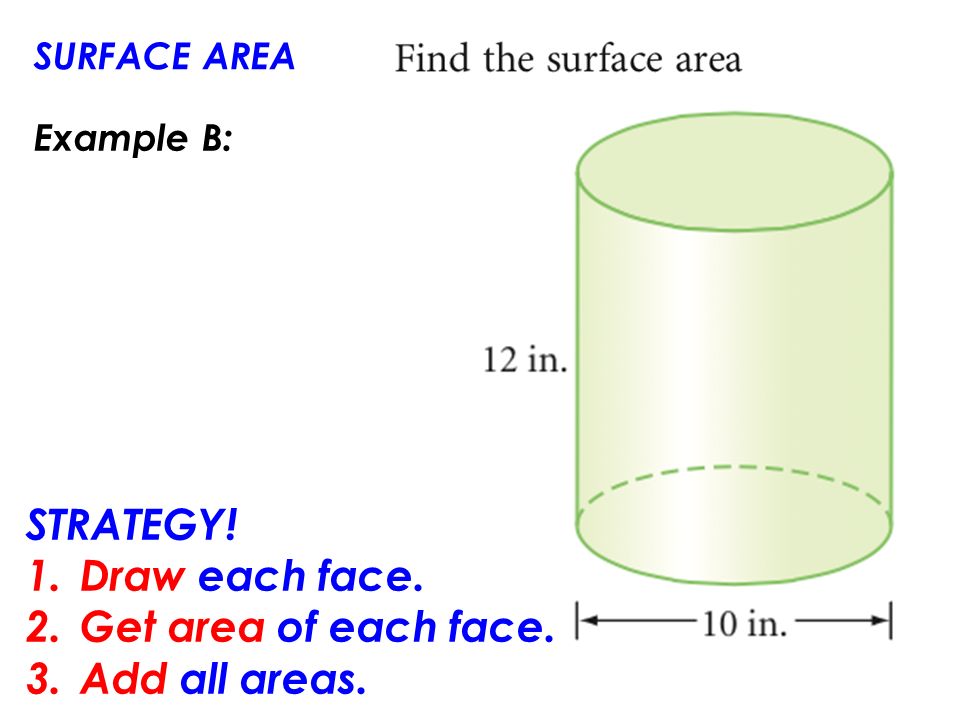

24 SURFACE AREA Example B: STRATEGY! 1.Draw each face. 2.Get area of each face. 3.Add all areas.

25 SURFACE AREA Solution:

26 SURFACE AREA Solution:

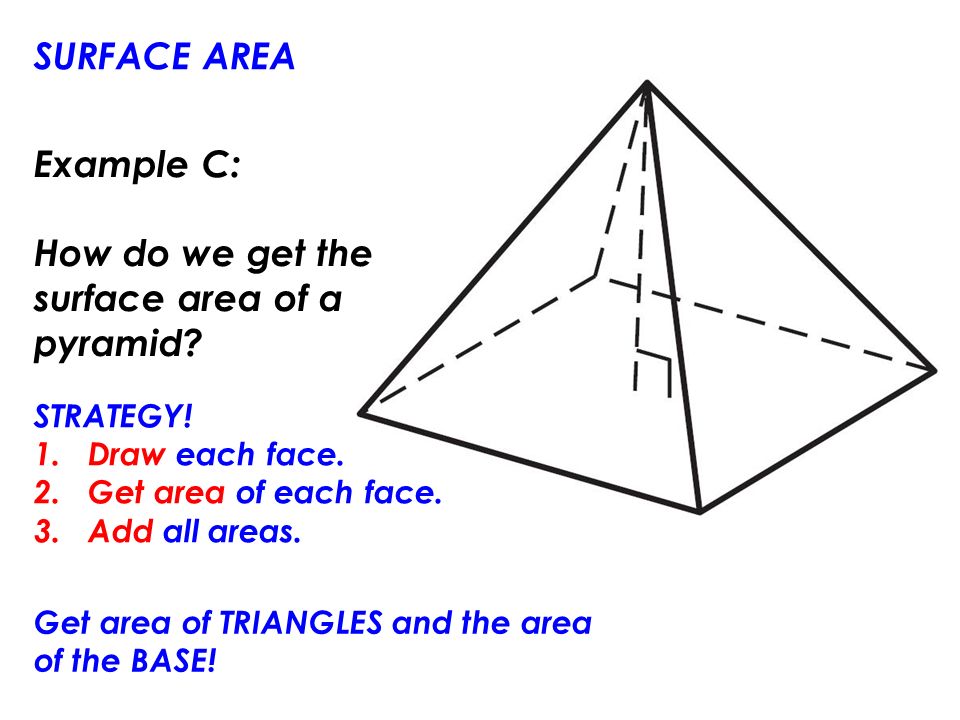

27 SURFACE AREA Example C: How do we get the surface area of a pyramid? STRATEGY! 1.Draw each face. 2.Get area of each face. 3.Add all areas. Get area of TRIANGLES and the area of the BASE!

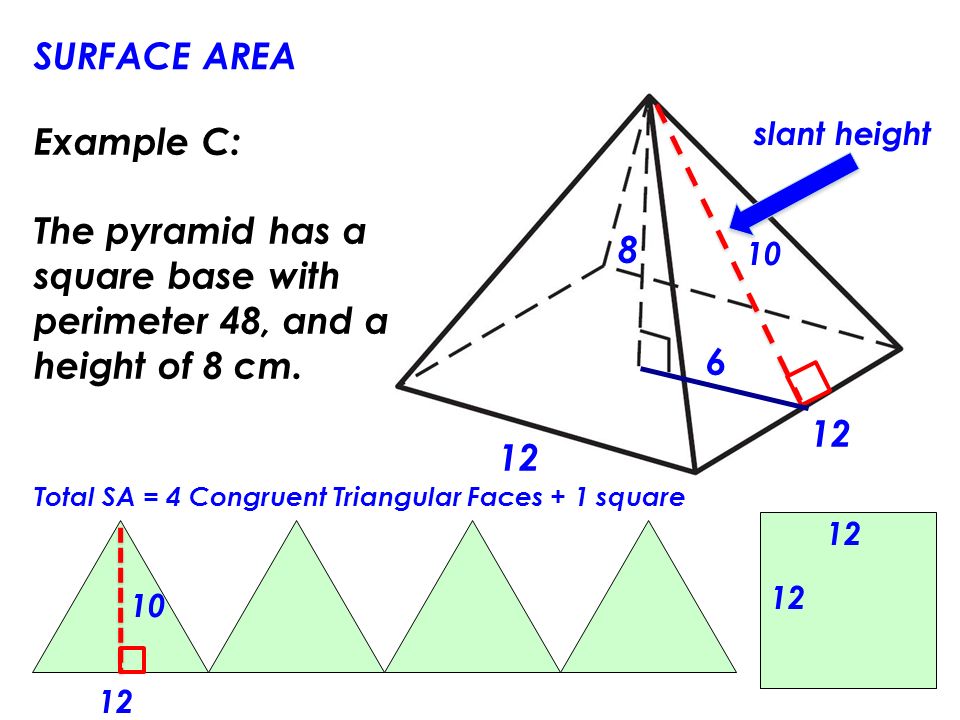

28 SURFACE AREA Example C: The pyramid has a square base with perimeter 48, and a height of 8 cm. 8 12 6 slant height 10 12 Total SA = 4 Congruent Triangular Faces + 1 square 12

29 SURFACE AREA Example D: Is there a formula to get the surface area of a right pyramid with a regular base? Solution: Lateral Area + Base Area

30 SURFACE AREA

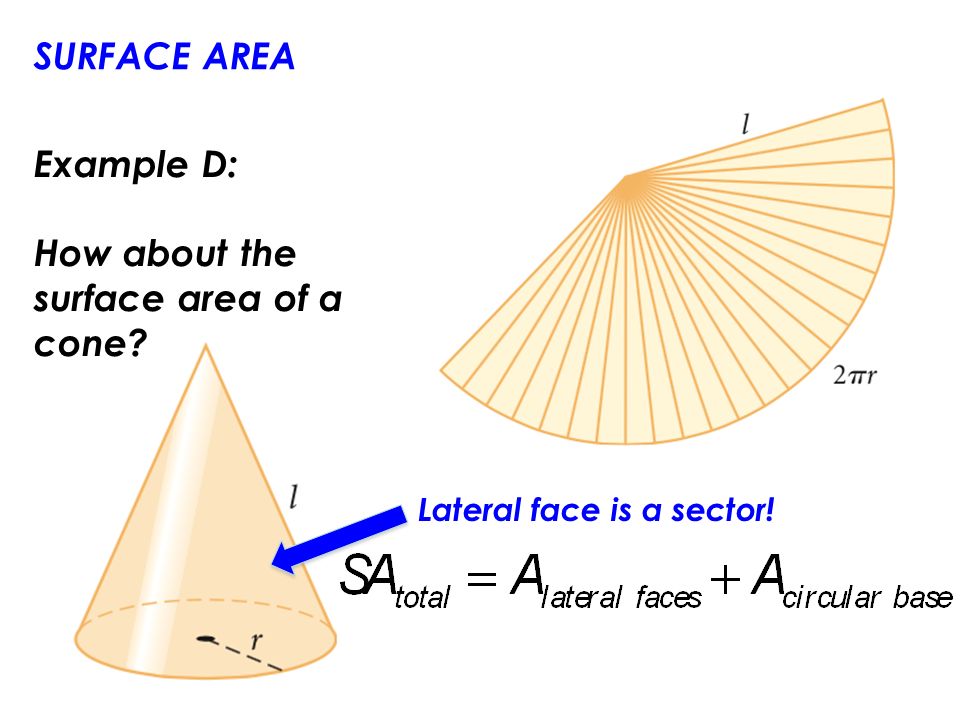

31 Example D: How about the surface area of a cone? Lateral face is a sector!

32 SURFACE AREA

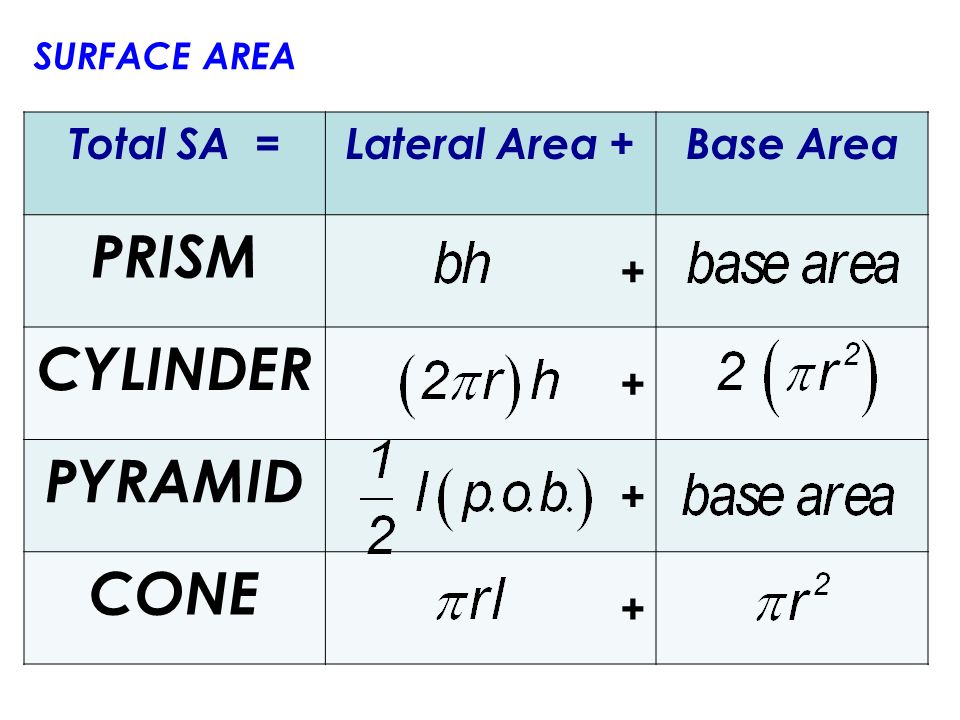

33 Total SA =Lateral Area +Base Area PRISM + CYLINDER + PYRAMID + CONE + SURFACE AREA
