1. MOBILITY BILL DEFRAYMENT
Hanmant R. Kumbhar
Seat No : 1836
Roll No :MC11041

2. Contents Introduction About Company 14 Activity Diagram
Existing System
Operating Environment
Proposed System
Objective of System
Modules
Module Description
ERD
Object Diagram
Class Diagram
Use Case Diagram
14 Activity Diagram
15. Sequence Diagram
16. Component Diagram
17. Deployment Diagram
18. Table Design
19. Data Dictionary
20. Input Screens
Output Screens
Test Procedures
23. Future Scope
24. Conclusions
Bibliography
26. Q &A
27. Thanking

3. TECHFLOSYS TECHONOLOGY PVT.LTD
“Our mission is to provide complete technology solution to our customers and provide competency, partnership, collaboration and trust-based relation”.
Specialization in scalable web application.
Client server application development
We are experts in developing web applications , web 2.0 tools and online social communities.

4. Existing System
To pay the Bills we need to go for the different government departments for example like Telephone Bill, Water Bill and Electrical Bill, Postpaid mobile bill.
Also need to make separate time schedule to pay the Bills and we have to wait in the line until we get a chance.
IF there is system which provide facility to pay the all bill payment under one roof then people are comfortable to pay the bill.

5. Proposed System
Payment of Electricity Bill, Water Bill & Telephone Bill through Mobile, Postpaid mobile bill.
Pay as well as the view the status of our bills.
Credit card validation for customer payment.
Provide hassle free one-stop solution to the citizen and hence reducing the wastage of their valuable time

6. OPERATING ENVIRONMENT-H/W & S/W
Hardware requirements:
Pentium processor : 233 MHZ
RAM Capacity : MB
Hard Disk : 80GB and above
Keyboard : Standards
Monitor : 15’’ Color
Software requirements:
Operating System : Windows 7
Technology : Java
Web Technologies : Html, JavaScript,CSS
IDE : Net Beans 7.4
Web Server : Apache Tomcat
Database : Oracle
Java Version : J2SDK1.5

7. Objective of System
Software is always being a part of the large system. The work beings by establish requirement for all system elements and then allocating some subjects of these requirement of software, this system is essential when software must interface with other elements such as hardware people and database.
To reduce workload of staff.
To reduce the delay in processing time.
To reduce the delay in bill generation.
To provide the user-friendliness in all possible ways.

8. MODULES New Account Creations. Telephone Bill Payments.
Water Bill Payments.
Electricity Bill Payments.
Approvals.
Messages.
Searching Techniques.
Bill Maintenance.
Customer Interface

9. MODULE DESCRIPTION New Account Creation:
In this module user has to register by providing his/her personal details. Then he/she will be provided login user id and password through which user can access the system. Any user can open his/her account by registration.

10. Telephone Bill Payment:
This contains a page that user has to fill the details about telephone bill payment .User has to provide the bill number, credit card number etc then pay the bill which is specified in the bill slip of a particular user.

11. Water Bill Payment:
This contains a page that user has to fill the details about water bill payment .User has to provide the bill number, credit card number etc then pay the bill which is specified in the bill slip of a particular user.

12. Electric Bill Payment:
This contains a page that user has to fill the details about electricity bill payment .User has to provide the bill number, credit card number and specified amount etc then pay the bill which is specified in the bill slip of a particular user.

13. Approvals:
In this module the administrator approves by checking the card number sent by the user is valid or not. If valid then the administrator accepts the request sent by the customer otherwise rejects.

14. Messages:
In this module the administrator can send messages to single user or multiple users. Administrator will send messages to user if user is not paying bills in time.

15. Searching Techniques:
Search by connection type
Search by Due Date
Search by Bill Number
Search by ID
Unpaid Bills

16. Class Diagram

17. Use Case Diagram

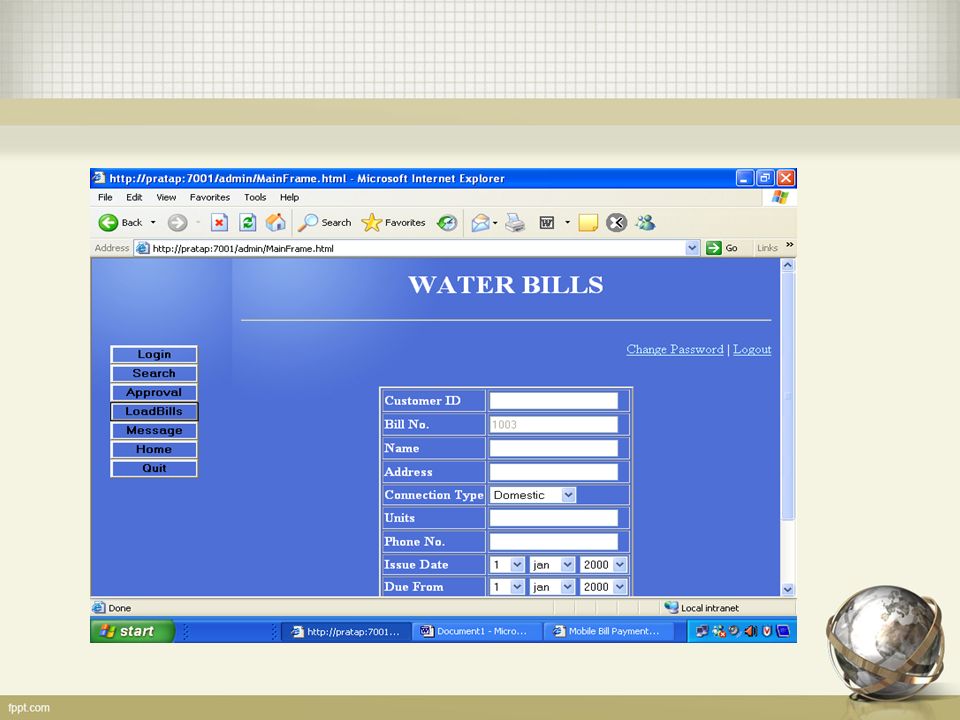

19. INPUT SCREEN

20. Send Message To Customer

23. OUTPUT SCREEN
