1. Seamless MPLS draft-leymann-mpls-seamless-mpls-03.txt Nicolai Leymann, Thomas Beckhaus (DT) Wim Henderickx (Alcatel-Lucent) Clarence Filsfils (Cisco) Dirk Steinberg (Steinberg Consulting) Bruno Decraene (FT) Hannes Gredler, Maciek Konstantynowicz (Juniper) 80th IETF, Prague, Czech Republic

2. draft-leymann-mpls-seamless- mpls-03 Architecture Changes Moving Forward

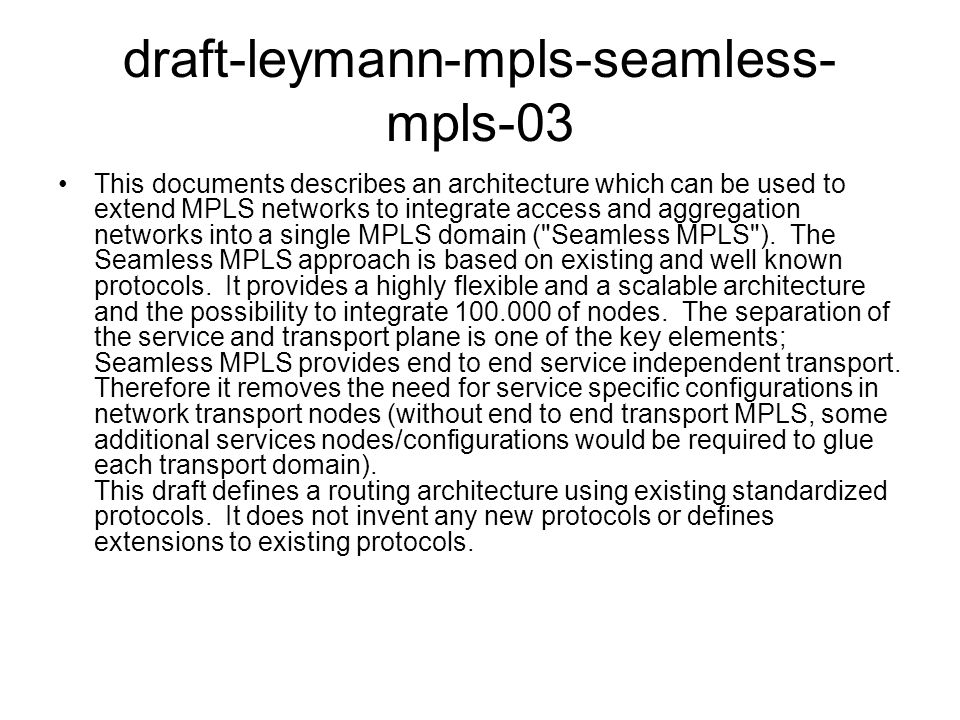

3. draft-leymann-mpls-seamless- mpls-03 This documents describes an architecture which can be used to extend MPLS networks to integrate access and aggregation networks into a single MPLS domain ("Seamless MPLS"). The Seamless MPLS approach is based on existing and well known protocols. It provides a highly flexible and a scalable architecture and the possibility to integrate 100.000 of nodes. The separation of the service and transport plane is one of the key elements; Seamless MPLS provides end to end service independent transport. Therefore it removes the need for service specific configurations in network transport nodes (without end to end transport MPLS, some additional services nodes/configurations would be required to glue each transport domain). This draft defines a routing architecture using existing standardized protocols. It does not invent any new protocols or defines extensions to existing protocols.

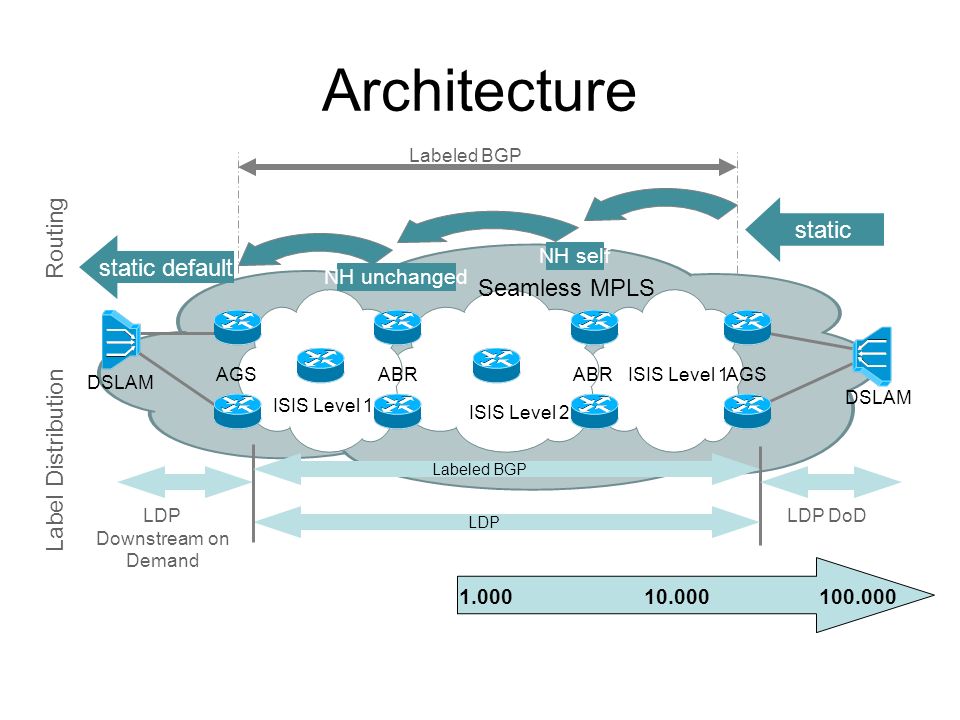

4. Architecture AGS DSLAM ABR AGS DSLAM ISIS Level 2 ISIS Level 1 static static default NH self NH unchanged LDP LDP Downstream on Demand LDP DoD Labeled BGP Routing Label Distribution Seamless MPLS 1.000 10.000100.000

5. Use Cases PW for Business P2P Service Core Network Use Case #1 Redundancy in the access AN Service Creation for Residential Customers AN PW towards SC for RC AGN ABR

6. Changes -02 to -03 Updates: –5.1.8.4. Local Protection using Anycast –5.1.8.5. Assessing loss of connectivity upon any failure –5.1.8.6. Network Resiliency and Simplicity –Removed appendix A (already covered in the main text) –Added Maciek/Hannes (Juniper) as new authors

7. Changes -02 to -03 House-Keeping: –Several editorial changes –Fixed typos –Integrated/addressed several comments from various individual submissions (mainly for clarification)

8. Moving Forward Working Group Adoption

9. Thank You
