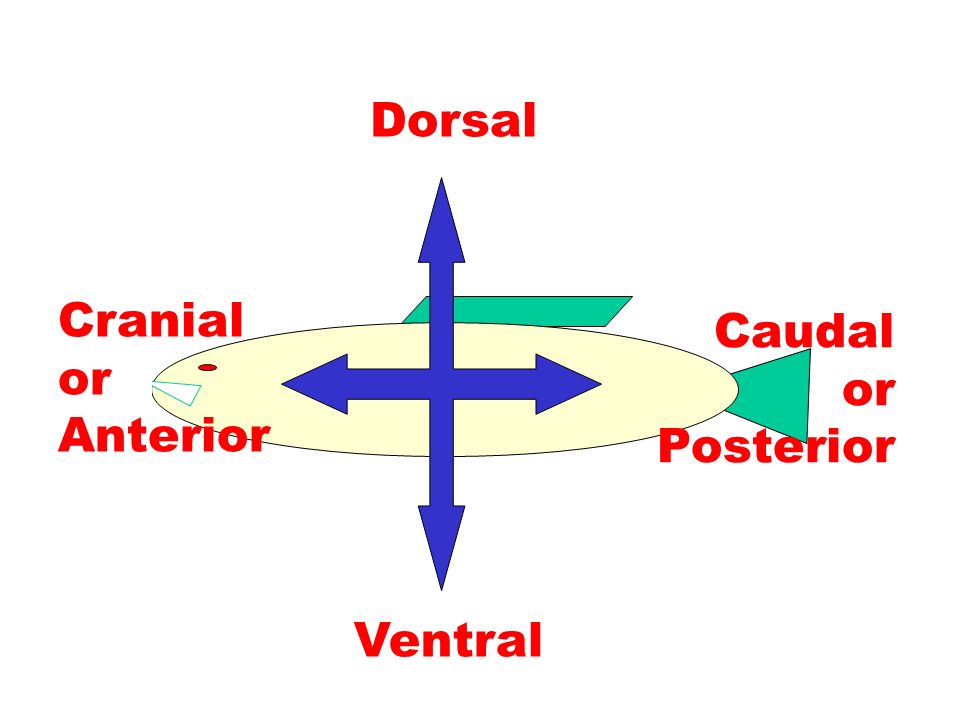

2. Caudal or Posterior Cranial or Anterior Dorsal Ventral

3. Tilapia Anatomy Dorsal Fin Caudal Fin Caudal Fin Anal Fin Pelvic Fin Pelvic Fin Pectoral Fin Pectoral Fin Operculum Lateral Line

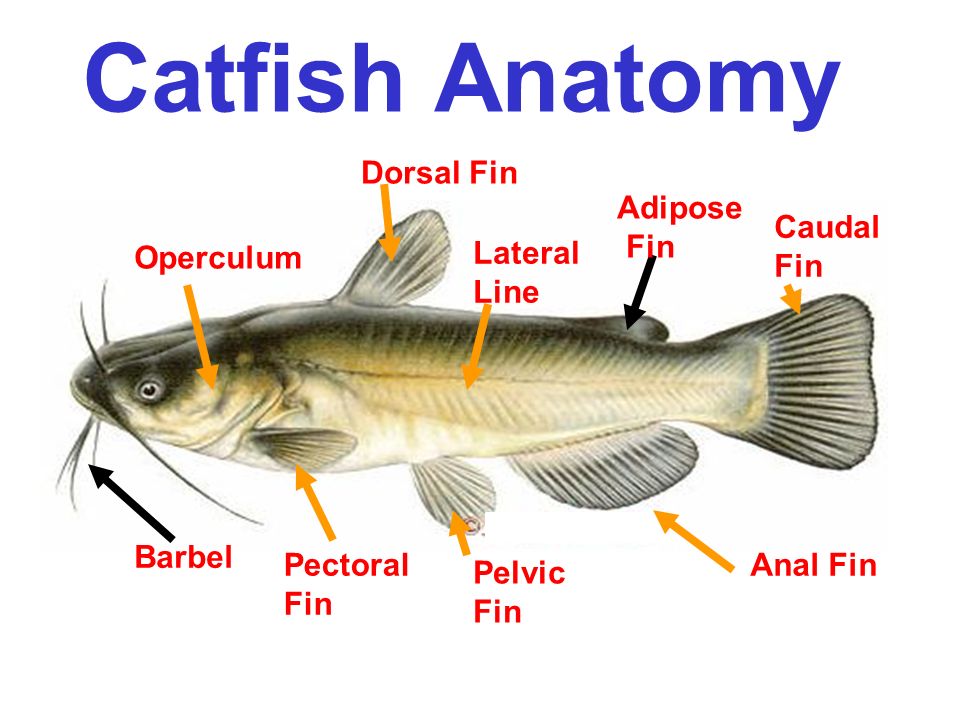

4. Catfish Anatomy Dorsal Fin Adipose Fin Caudal Fin Anal Fin Pelvic Fin Pectoral Fin Barbel Operculum Lateral Line

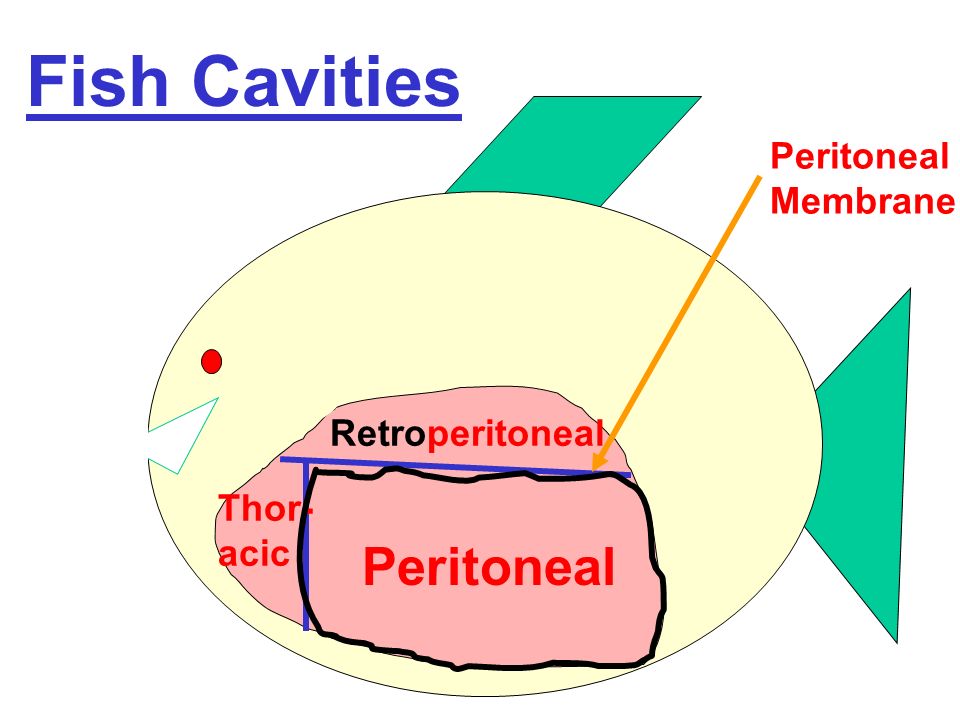

5. Retroperitoneal Thor- acic Peritoneal Fish Cavities Peritoneal Membrane

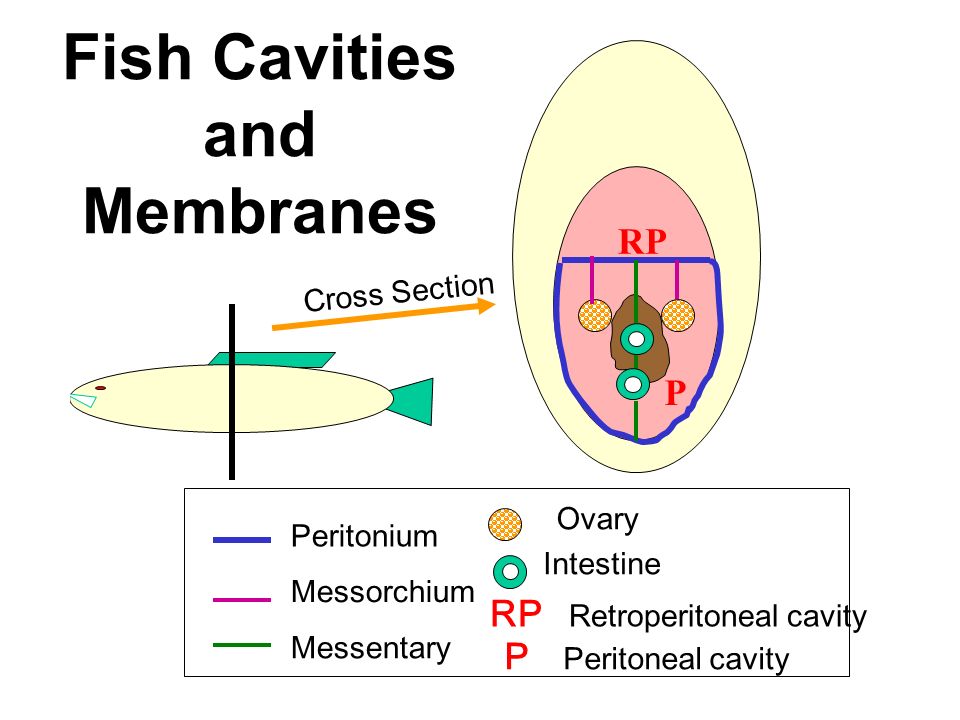

6. Fish Cavities and Membranes Peritonium Messorchium Messentary Ovary Intestine RP Retroperitoneal cavity RP P Peritoneal cavity P Cross Section

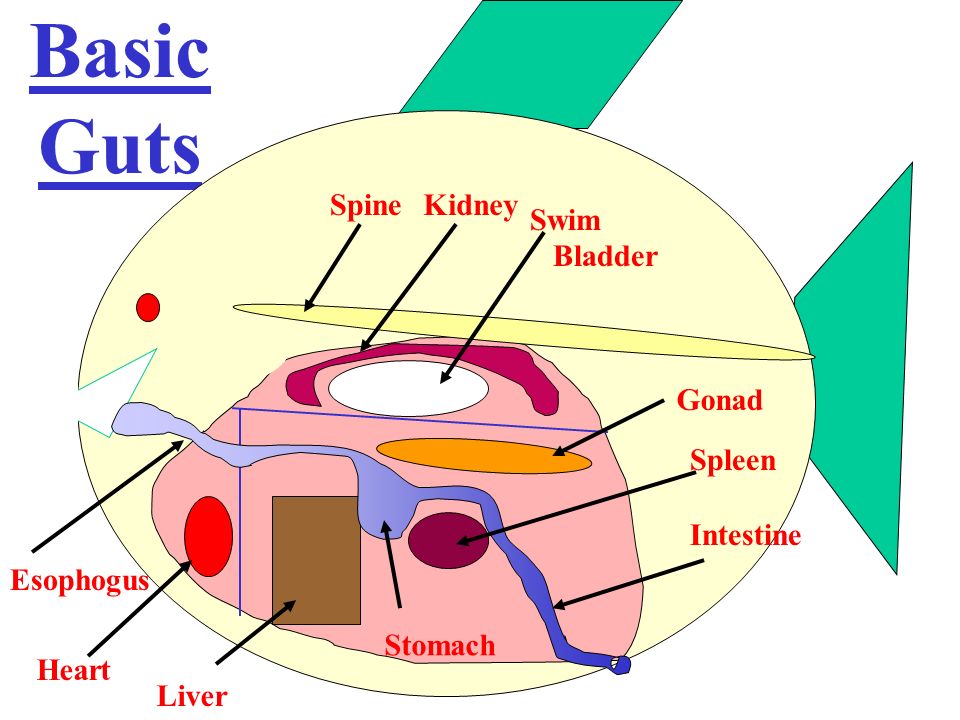

7. Basic Guts SpineKidney Swim Bladder Gonad Spleen Intestine Stomach Esophogus Heart Liver

8. Gill Heart LiverIntestine Fat Liver

9. Dark peritoneum Heart Liver Gall Bladder Spleen Intestine

10. Intestine Gill Heart Liver SwimBladder Testis Spleen

11. Kidney Swim Bladder Opened

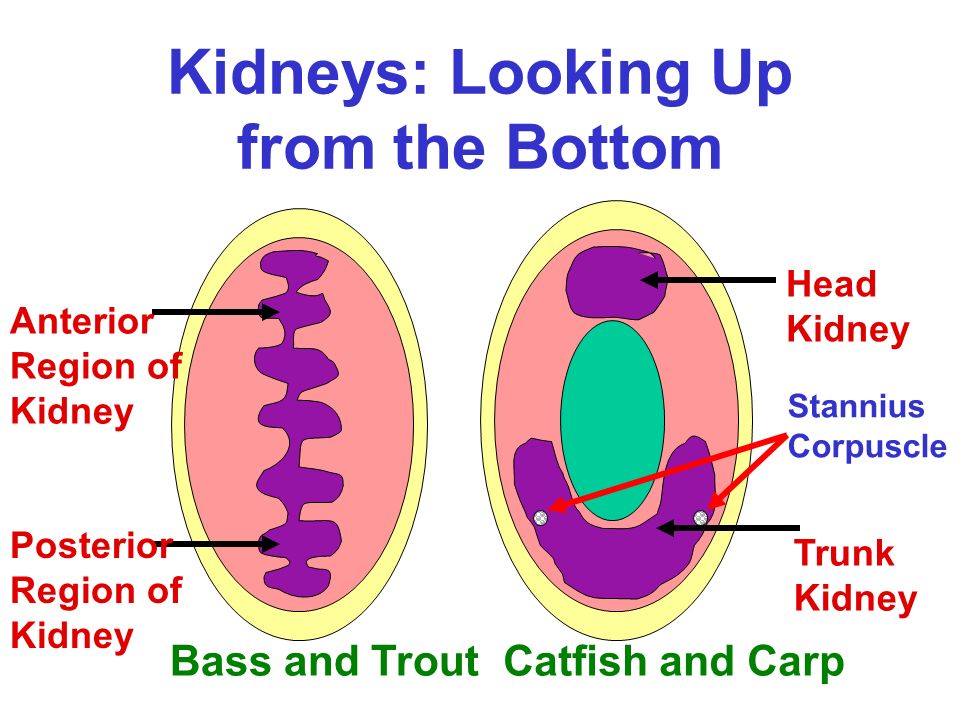

12. Kidneys: Looking Up from the Bottom Bass and TroutCatfish and Carp Anterior Region of Kidney Posterior Region of Kidney Head Kidney Trunk Kidney Stannius Corpuscle

13. Trunk Kidney: Urine/Osmoregulation Head/Anterior Kidney: Makes blood cells

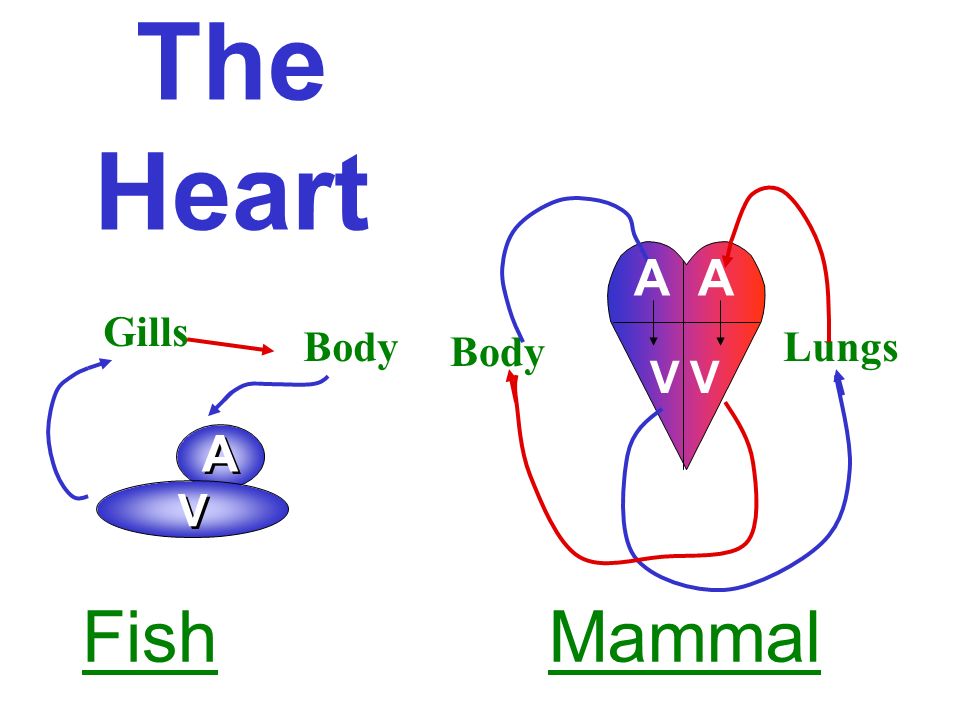

14. The Heart Lungs Body Gills Body FishMammal AA A A V V VV

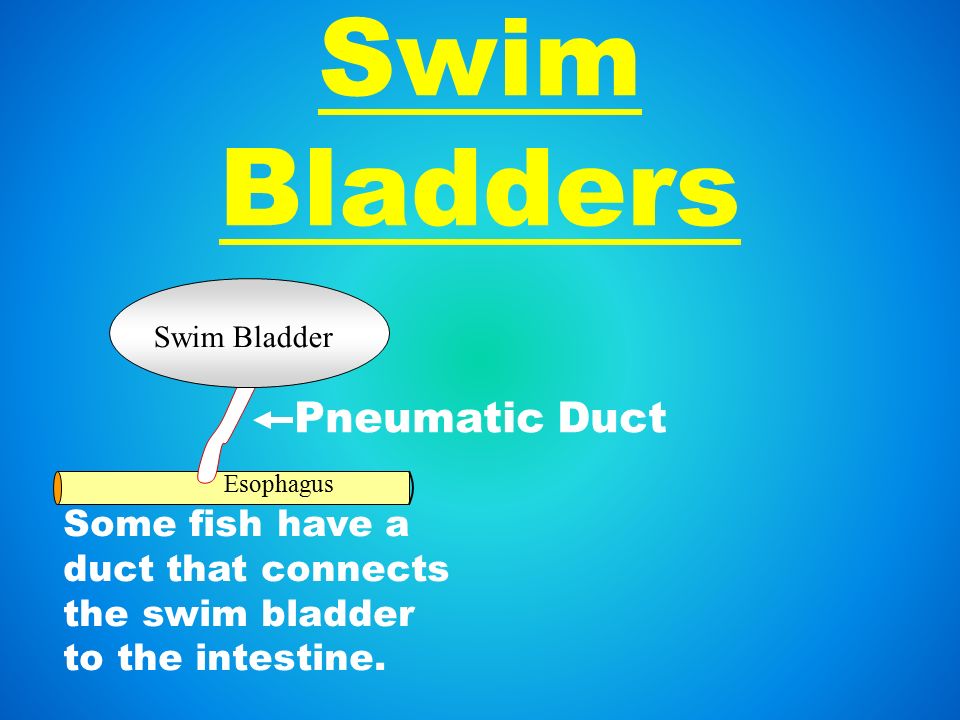

15. Swim Bladders Swim Bladder Esophagus Some fish have a duct that connects the swim bladder to the intestine. Pneumatic Duct

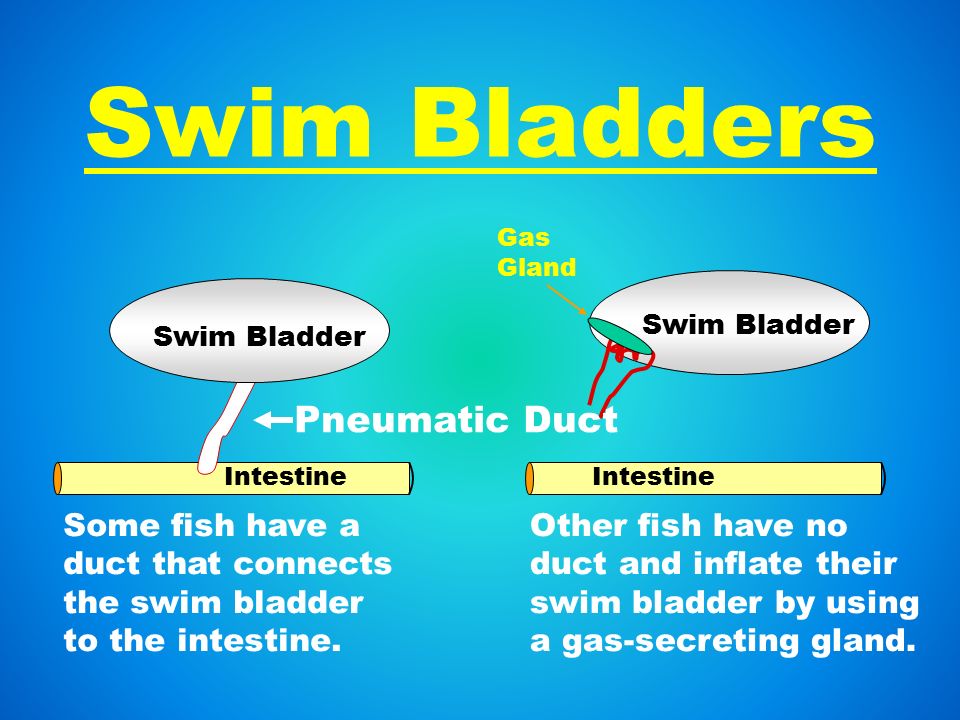

16. Swim Bladders Swim Bladder Intestine Swim Bladder Intestine Some fish have a duct that connects the swim bladder to the intestine. Other fish have no duct and inflate their swim bladder by using a gas-secreting gland. Gas Gland Pneumatic Duct

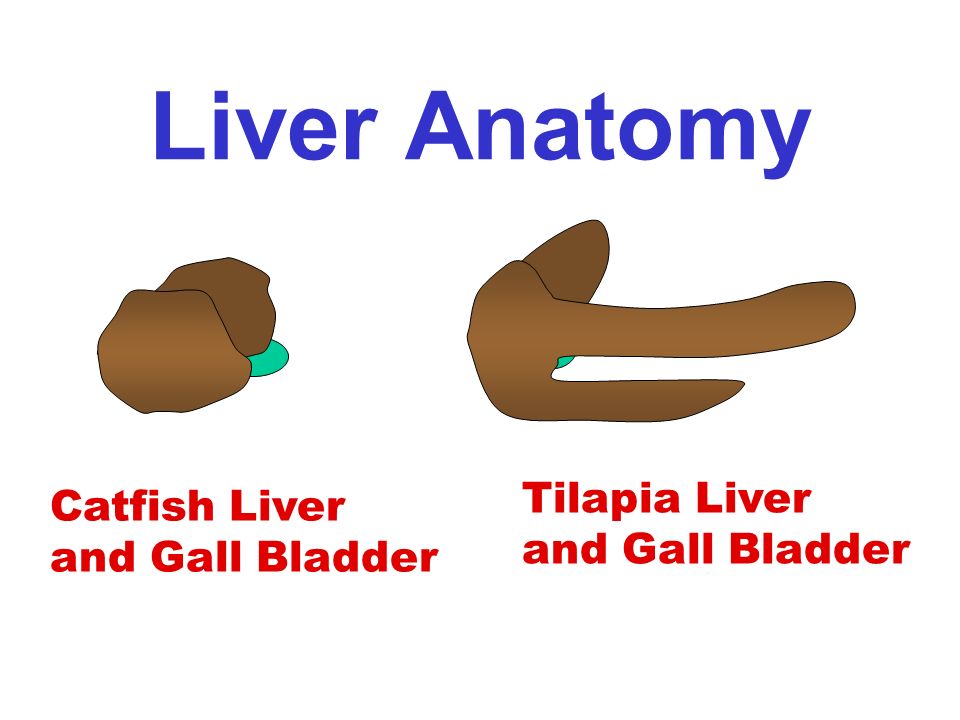

17. Liver Anatomy Catfish Liver and Gall Bladder Tilapia Liver and Gall Bladder

18. Liver: -Modifies food -Storage

19. Gall Bladder: Bile for digestion of fats

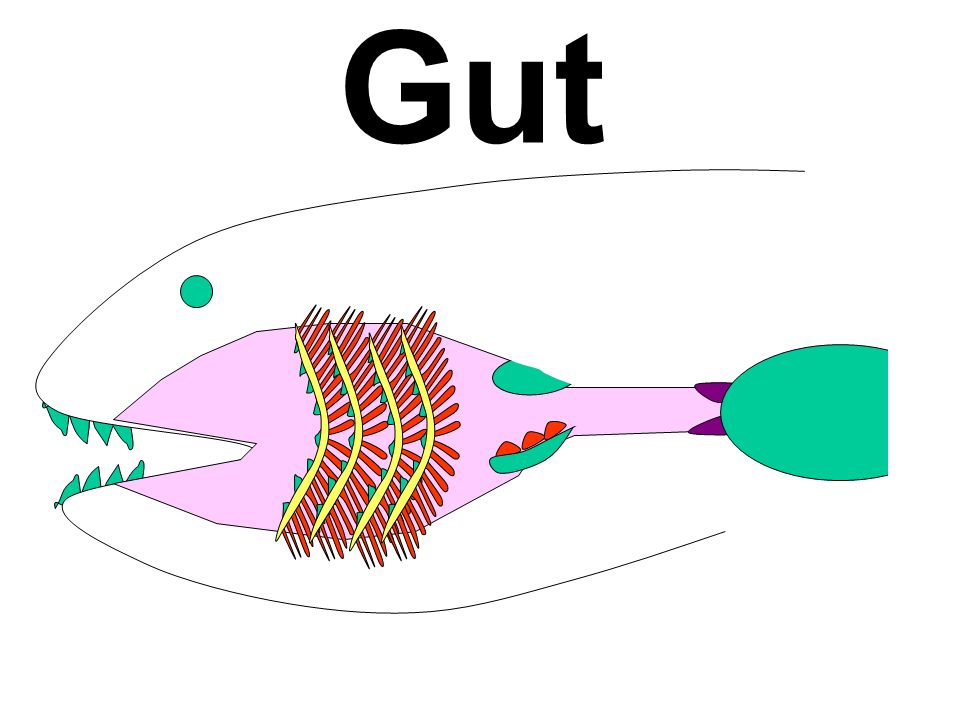

20. Gut

21. Basic Gut Anatomy Mouth Pharynx Esophagus Stomach Valve Proximal Intestine Distal Intestine Valve Vent What is missing (mammals)? What are the functions?

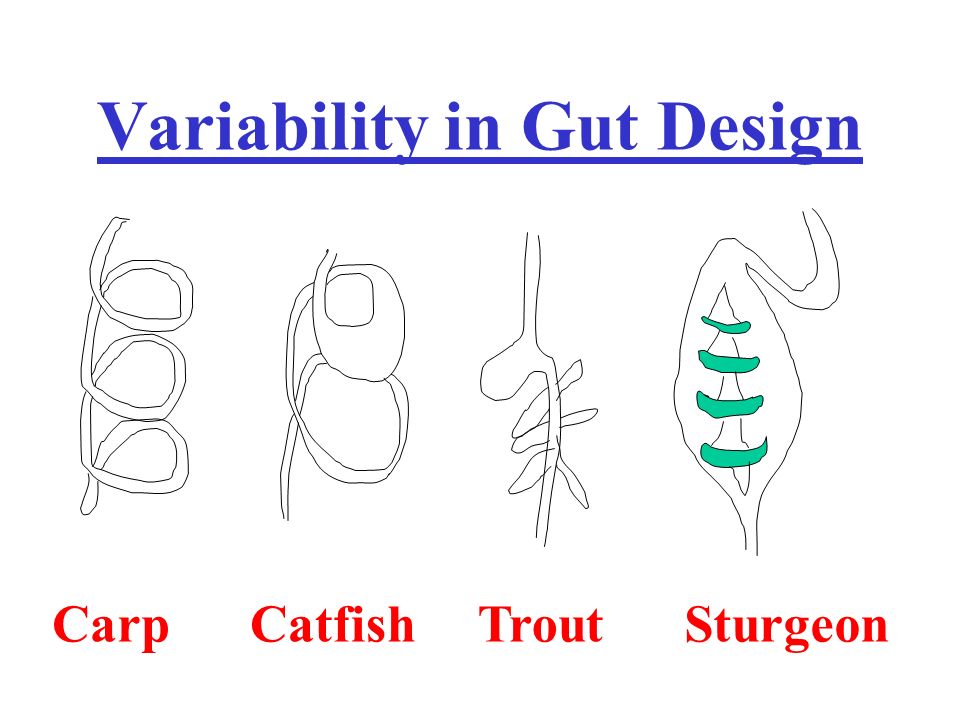

22. Variability in Gut Design CarpCatfishTroutSturgeon

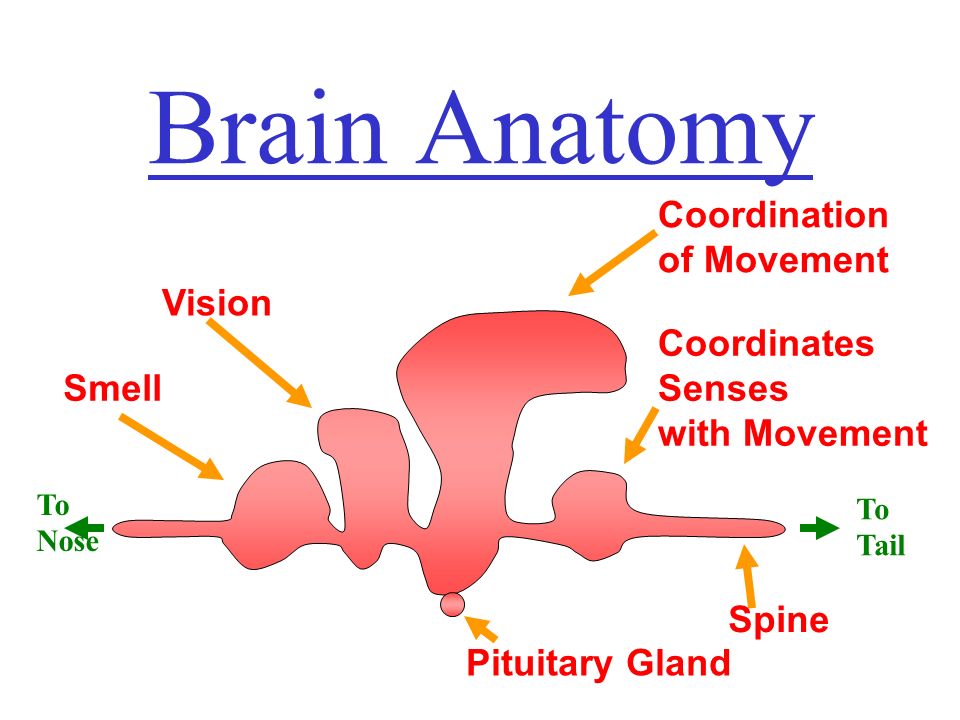

24. Brain Anatomy Coordination of Movement Coordinates Senses with Movement Vision Smell Pituitary Gland Spine To Tail To Nose

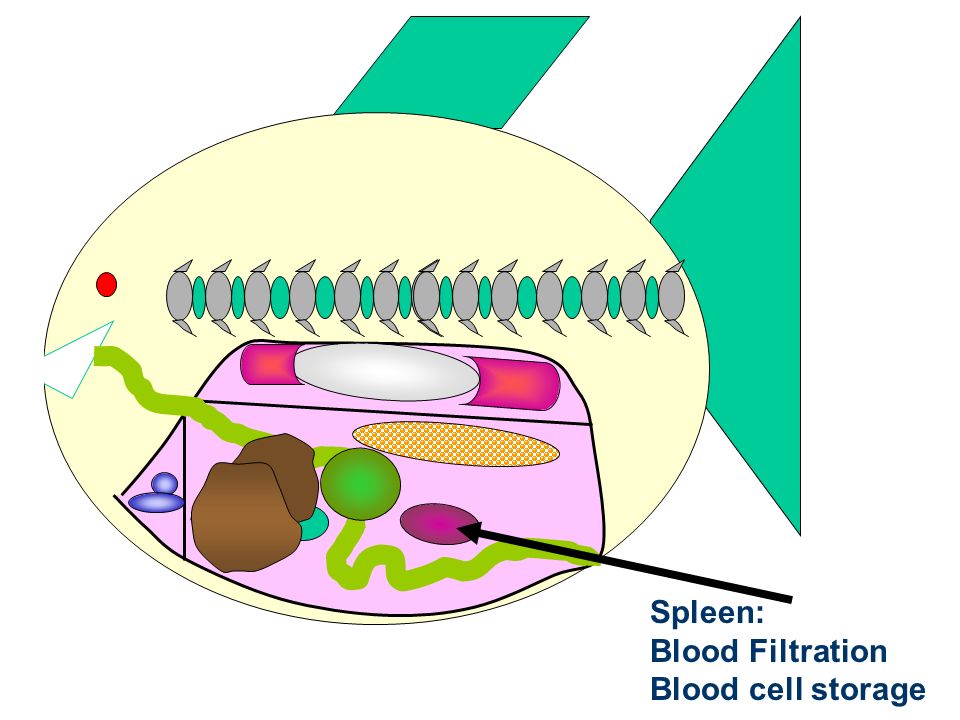

25. Spleen: Blood Filtration Blood cell storage

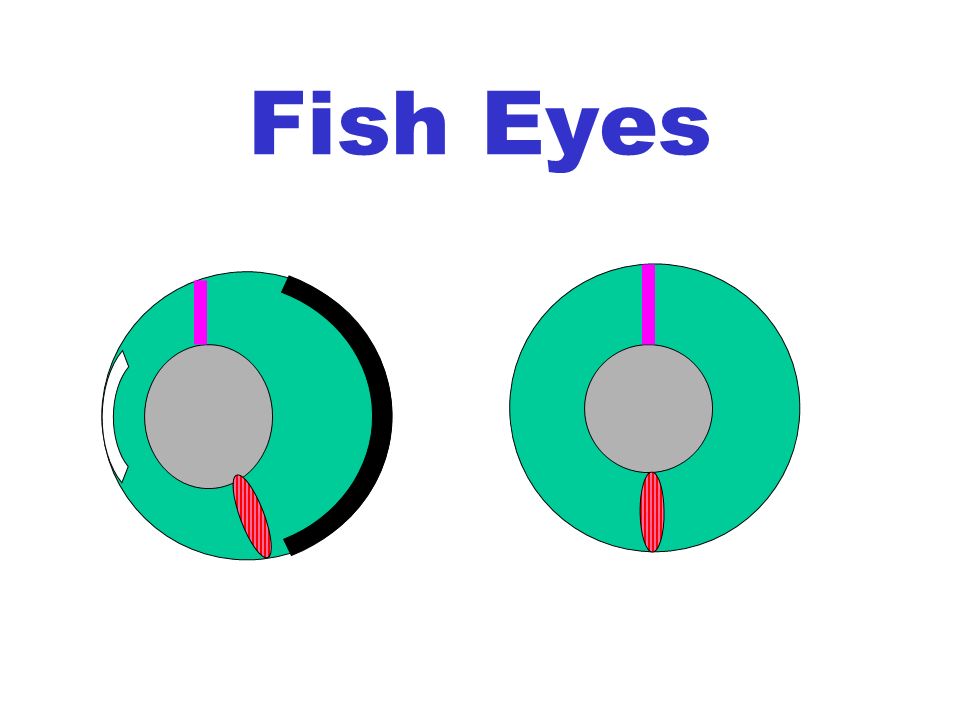

26. Fish Eyes

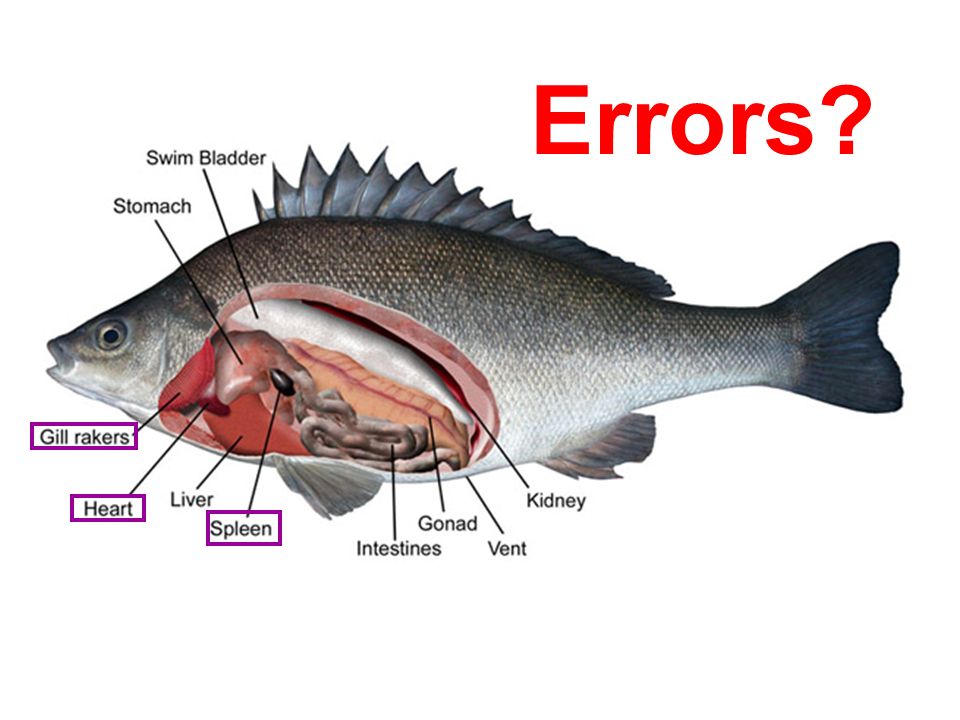

27. Errors?

37. Retroperitoneal Peritoneal Thoracic Review

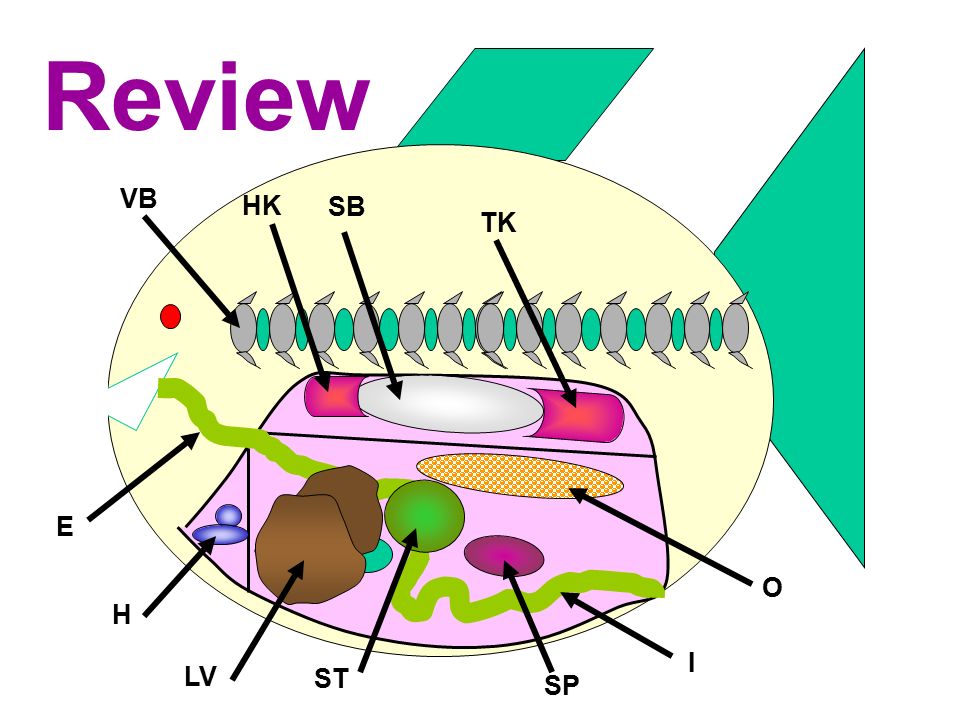

38. VB SB TK E H LV ST SP I O HK Review

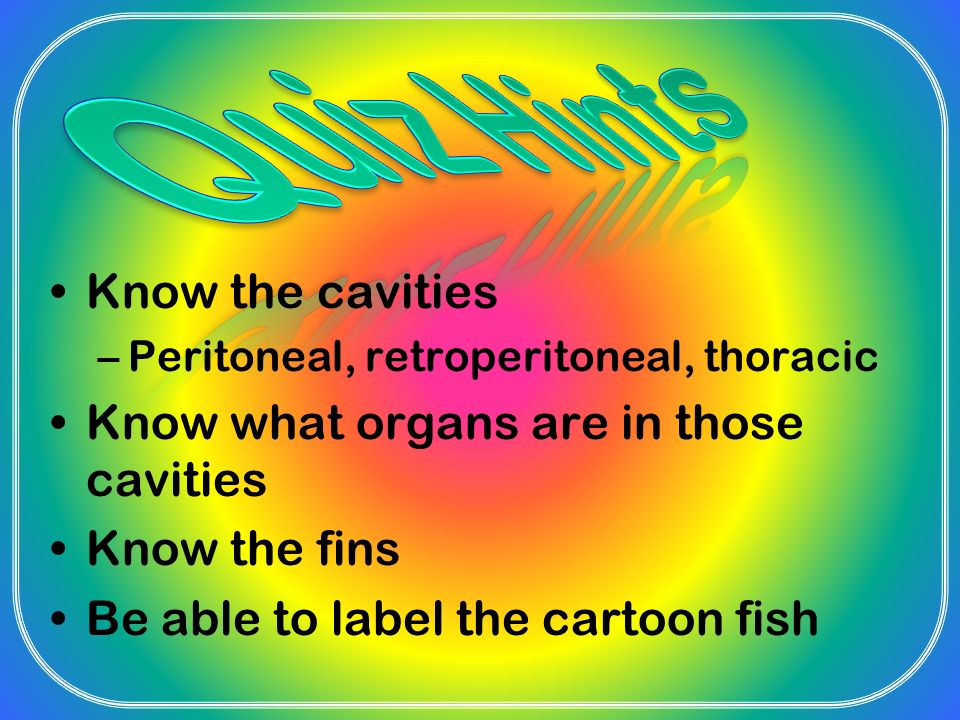

39. Know the cavities –Peritoneal, retroperitoneal, thoracic Know what organs are in those cavities Know the fins Be able to label the cartoon fish
