1 Welcome it is a great day to learn about the Brain

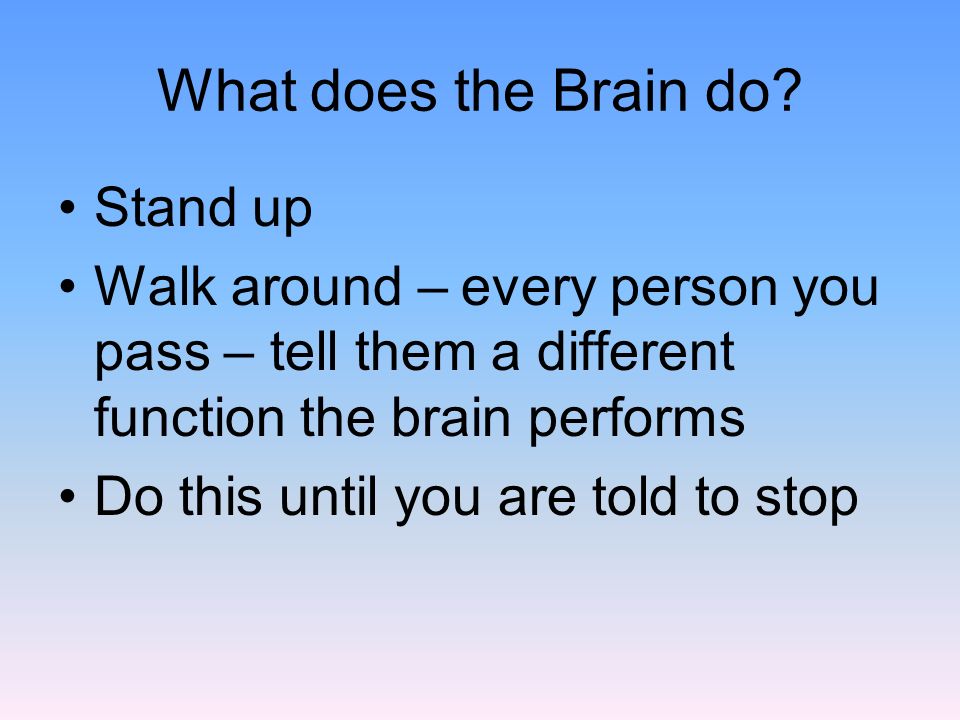

2 What does the Brain do? Stand up Walk around – every person you pass – tell them a different function the brain performs Do this until you are told to stop

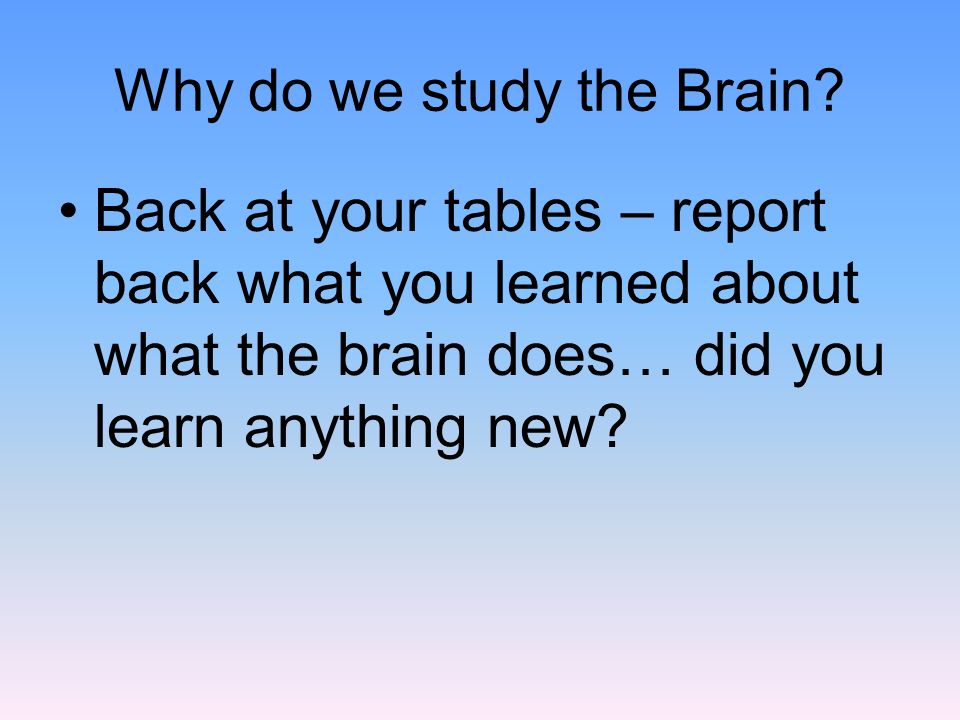

3 Why do we study the Brain? Back at your tables – report back what you learned about what the brain does… did you learn anything new?

4 We are going to start small and go big

5 Neurons: The Building Blocks of the Nervous System Module 7: Neural and Hormonal Systems

6 What are the primary parts of a typical neuron? Nervous system Neurons Dendrites Soma Axon Terminal branches of Axon Myelin Sheath

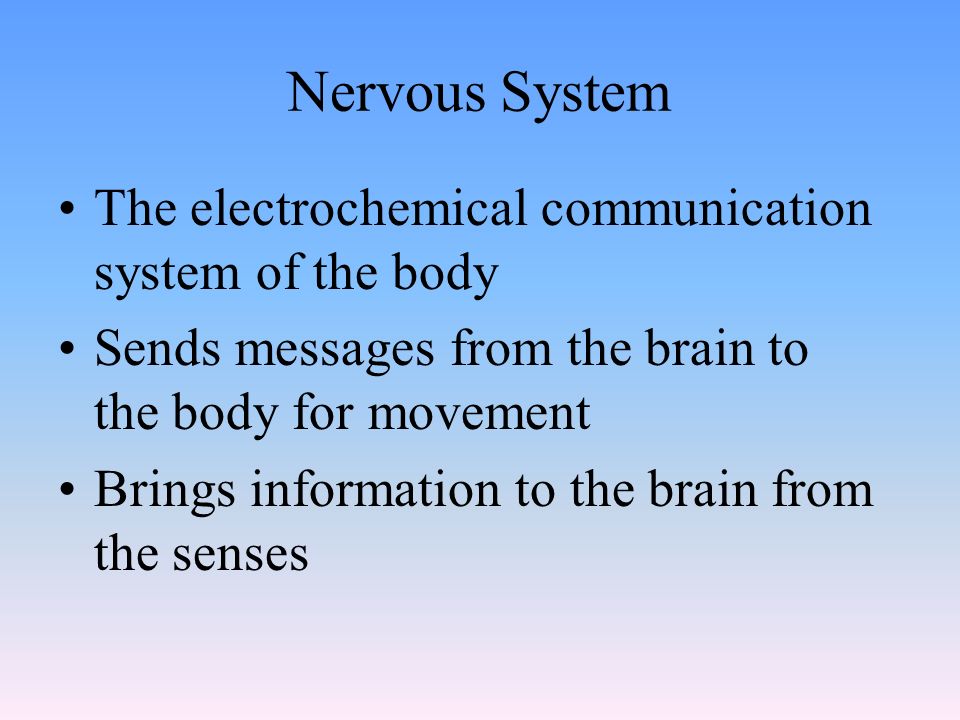

7 Nervous System The electrochemical communication system of the body Sends messages from the brain to the body for movement Brings information to the brain from the senses

8 Neuron The basic building block of the nervous system -- a nerve cell Neurons perform three basic tasks –Receive information –Carry the information –Pass the information on to the next neuron

9 Neurons Neurons “fire” -- send an impulse down their length -- or they don’t “fire” Neurons come in a variety of shapes, sizes, etc.

10 Parts of the Neuron

11 Parts of the Neuron - Dendrites

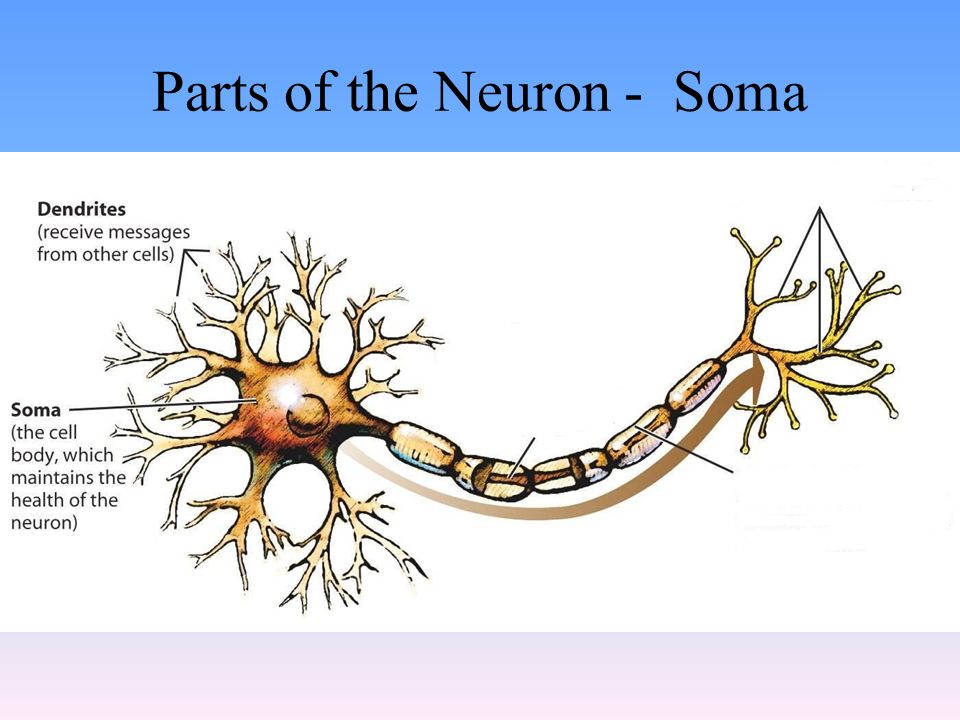

12 Parts of the Neuron - Soma

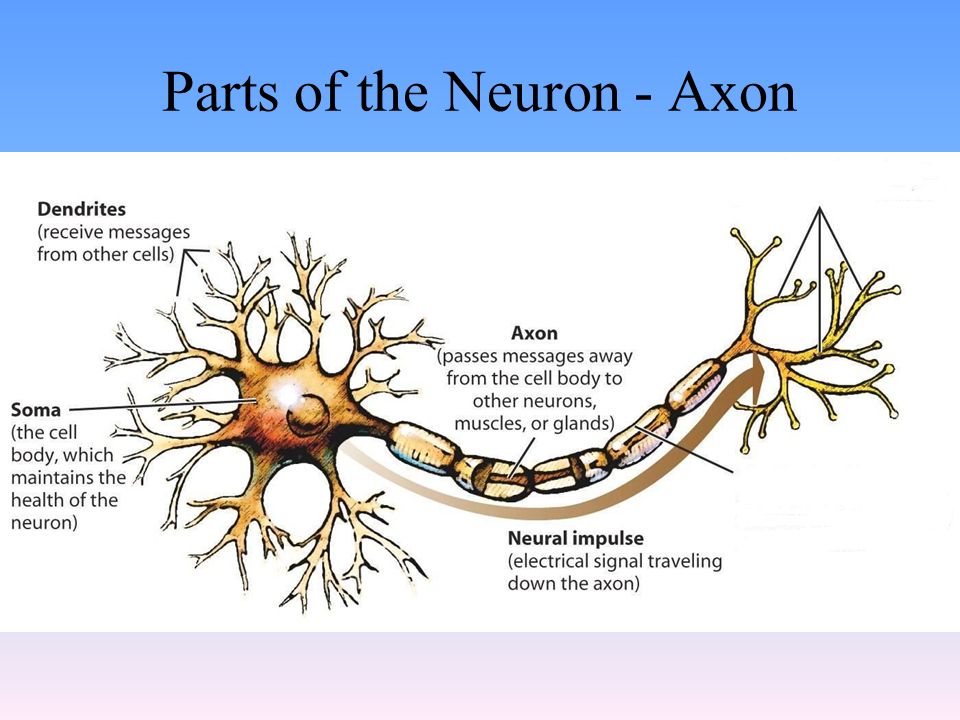

13 Parts of the Neuron - Axon

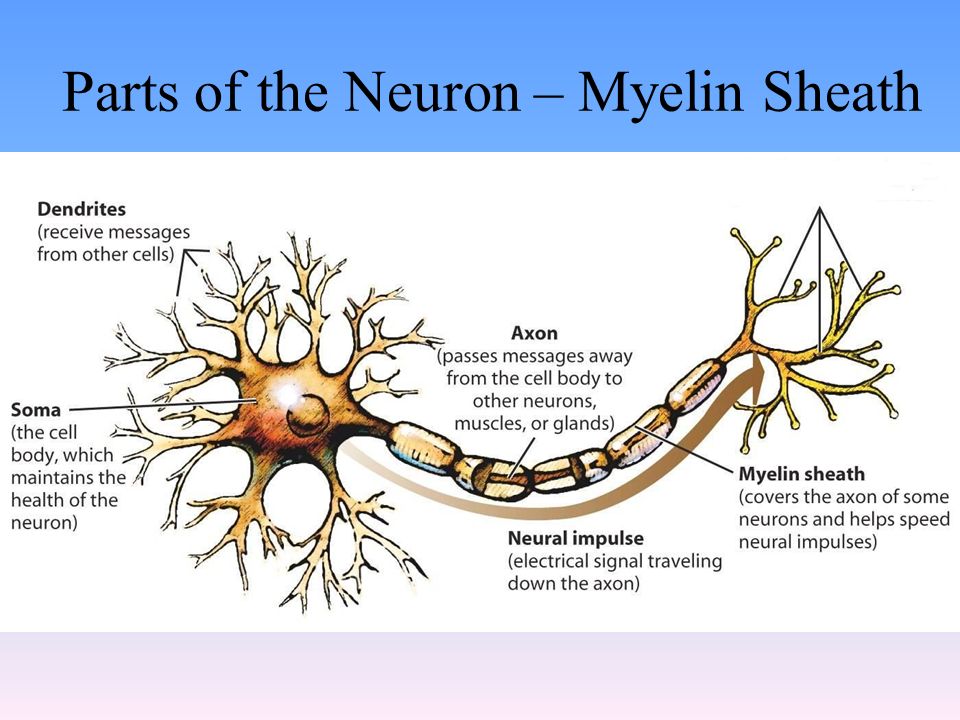

14 Parts of the Neuron – Myelin Sheath

15 Parts of the Neuron - Terminals

16 Time to Move Locate the person furthest from you Go to that person Introduce yourself

17 Pick an A and D A = Axon D= Dendrite With your partner explain the relationship between neurons

18 Neuron

19

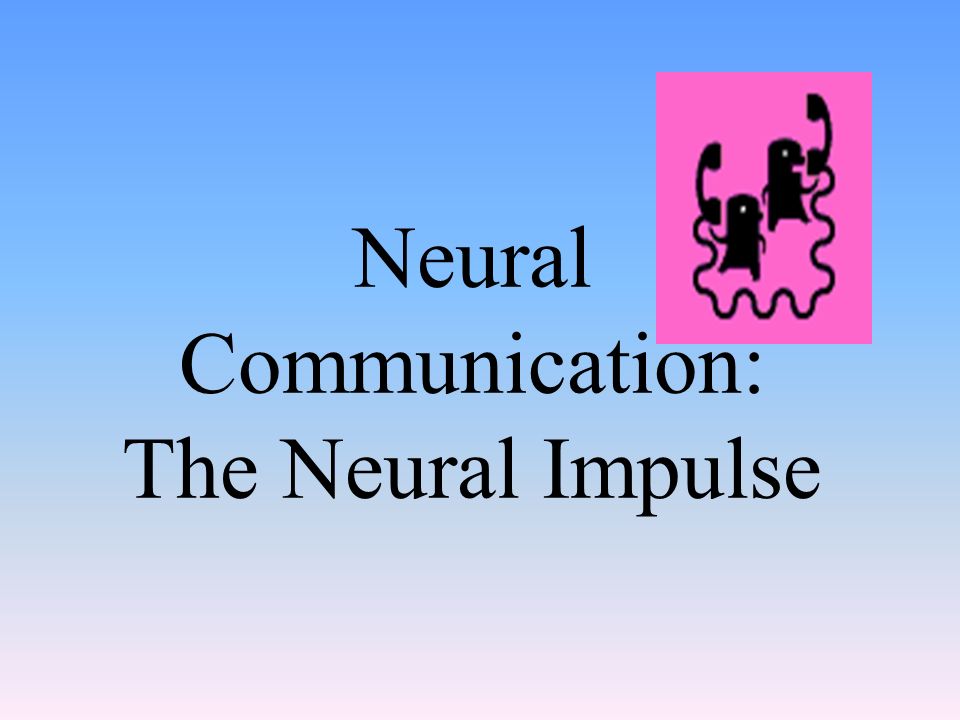

20 Neural Communication: The Neural Impulse

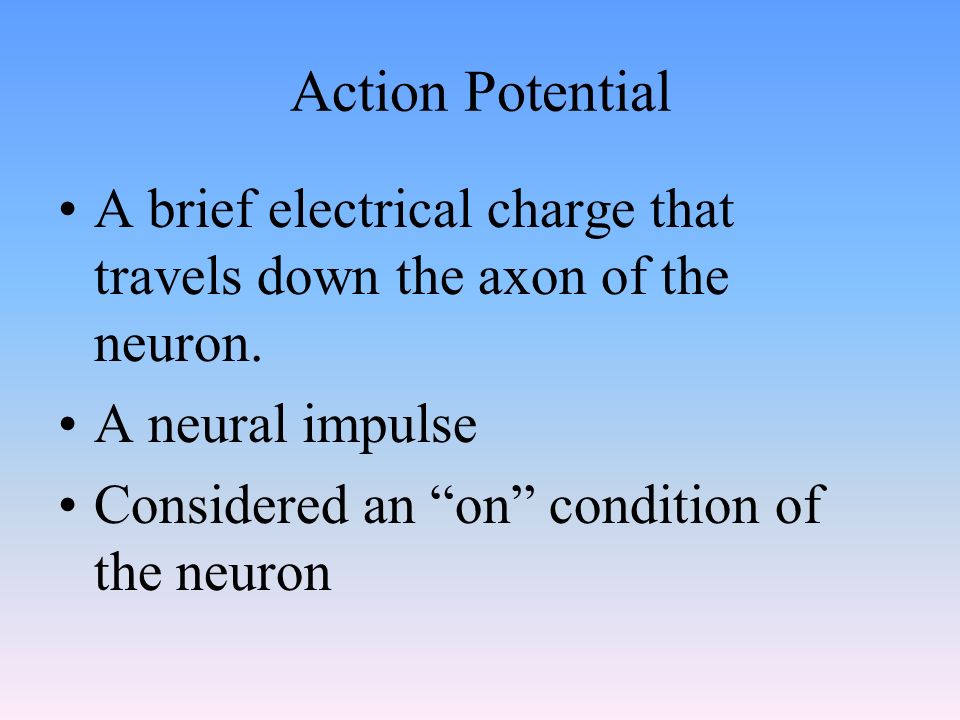

21 Action Potential A brief electrical charge that travels down the axon of the neuron. A neural impulse Considered an “on” condition of the neuron

22 Refractory Period The “recharging phase” when a neuron, after firing, cannot generate another action potential Once the refractory period is complete the neuron can fire again

23 Resting Potential The state of a neuron when it is at rest and capable of generating an action potential The neuron is set and ready to fire

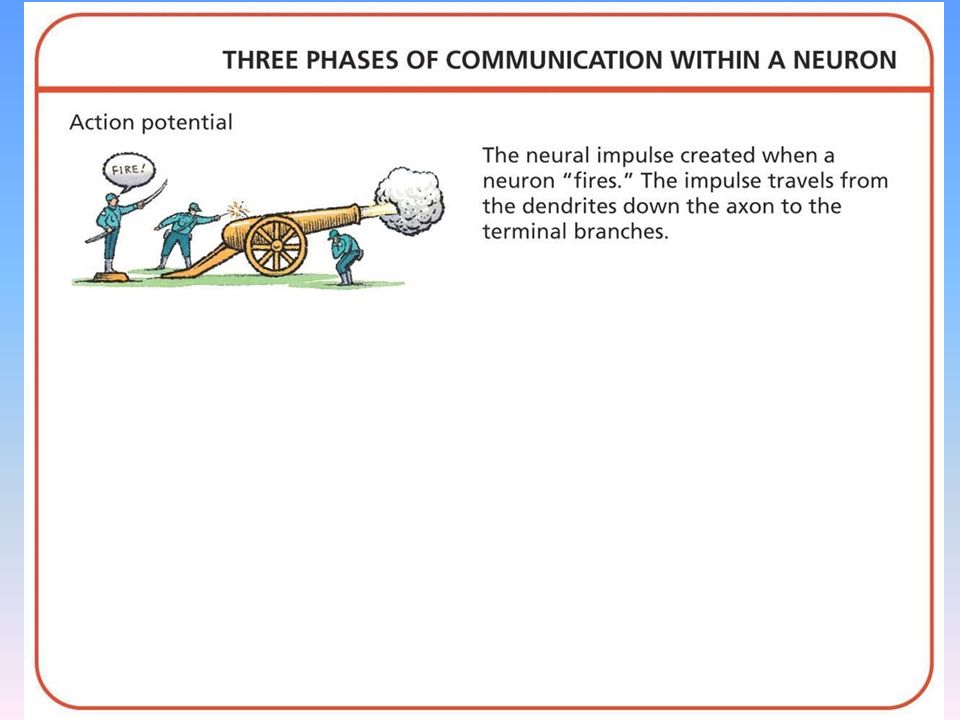

24

25

26

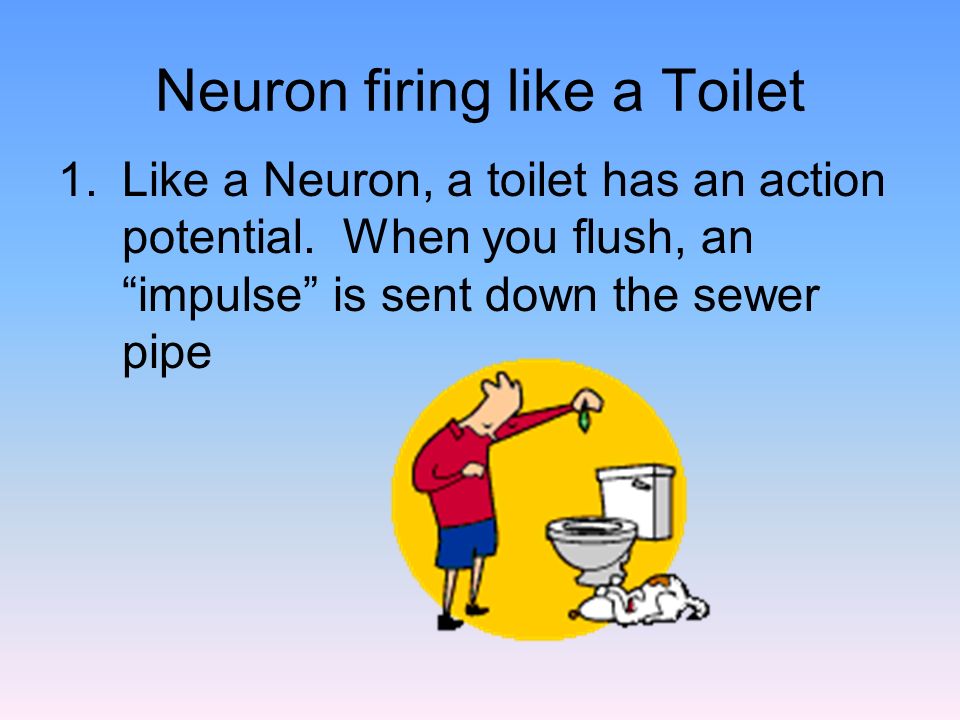

27 Neuron firing like a Toilet 1.Like a Neuron, a toilet has an action potential. When you flush, an “impulse” is sent down the sewer pipe

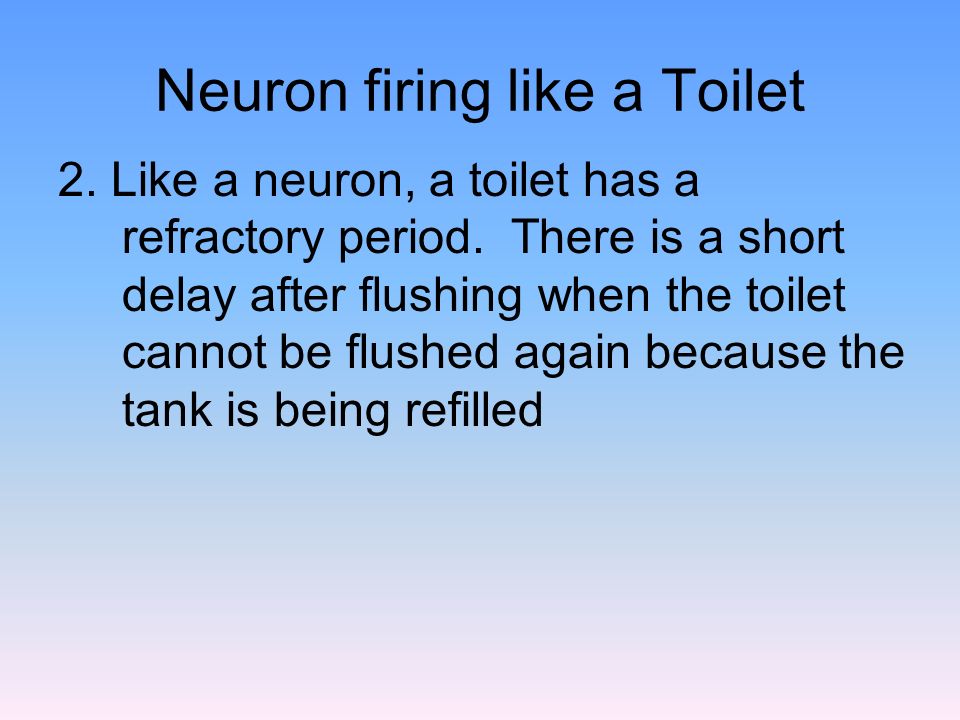

28 Neuron firing like a Toilet 2. Like a neuron, a toilet has a refractory period. There is a short delay after flushing when the toilet cannot be flushed again because the tank is being refilled

29 Neuron firing like a Toilet 3.Like a Neuron, a toilet has a resting potential. The toilet is “charged” when there is water in the tank and it is capable of being flushed again 4.Like a Neuron, a toilet operates on the all-or-none principle – it always flushes with the same intensity, no matter how much force you apply to the handle

30 All-or-None Principle The principle that if a neuron fires it will always fire at the same intensity All action potentials are of the same strength. A neuron does NOT fire at 30%, 45% or 90% but at 100% each time it fires.

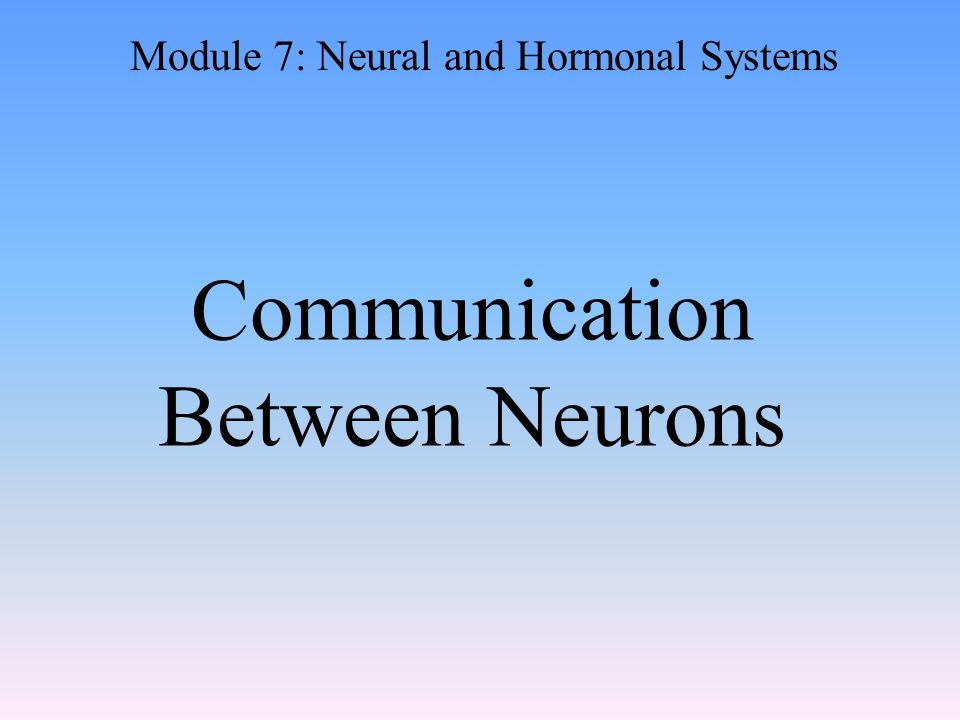

31 Communication Between Neurons Module 7: Neural and Hormonal Systems

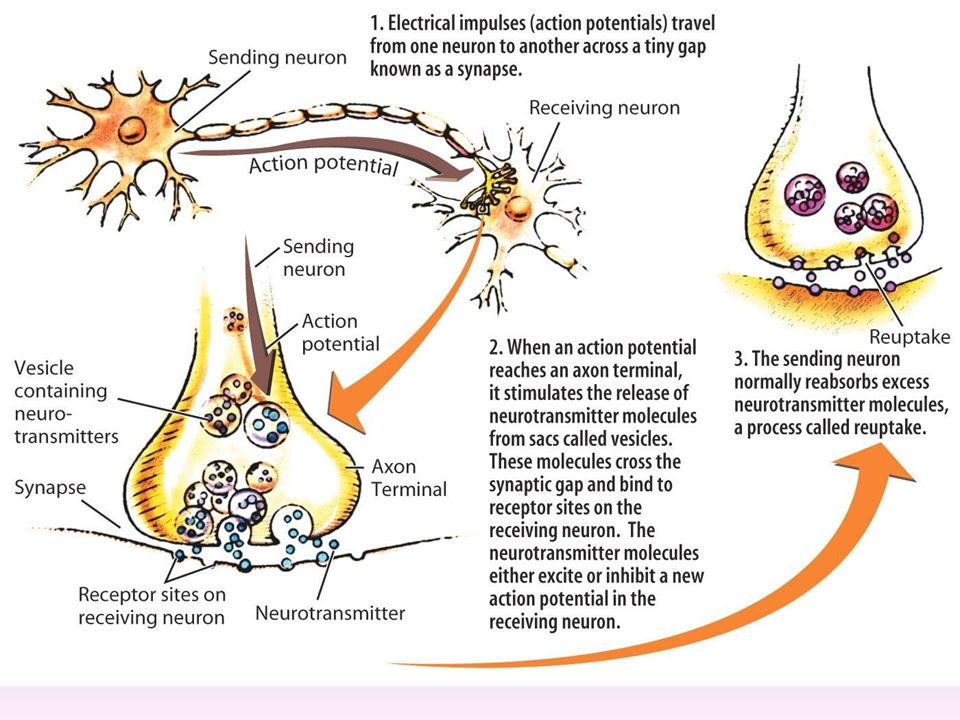

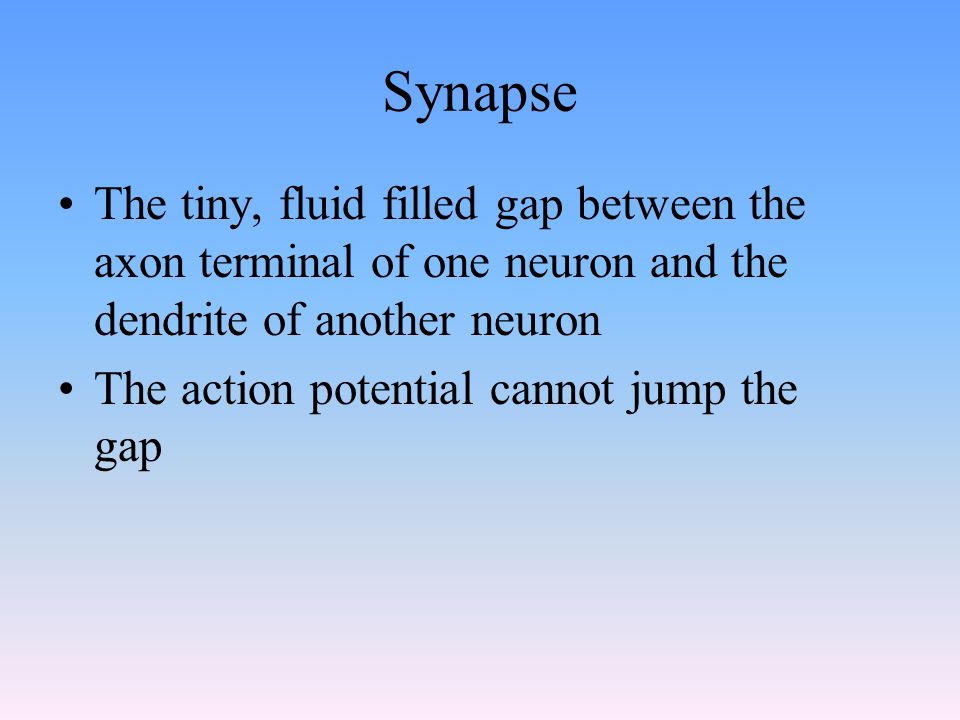

32 Synapse The tiny, fluid filled gap between the axon terminal of one neuron and the dendrite of another neuron The action potential cannot jump the gap

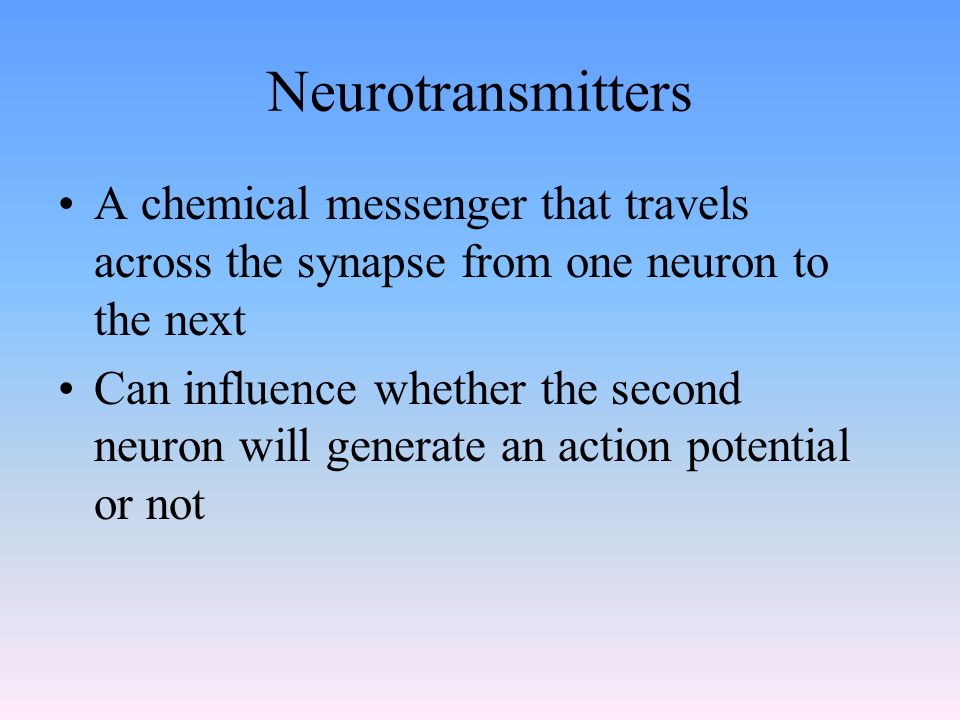

33 Neurotransmitters A chemical messenger that travels across the synapse from one neuron to the next Can influence whether the second neuron will generate an action potential or not

34 Neurotransmitters

35

36

37

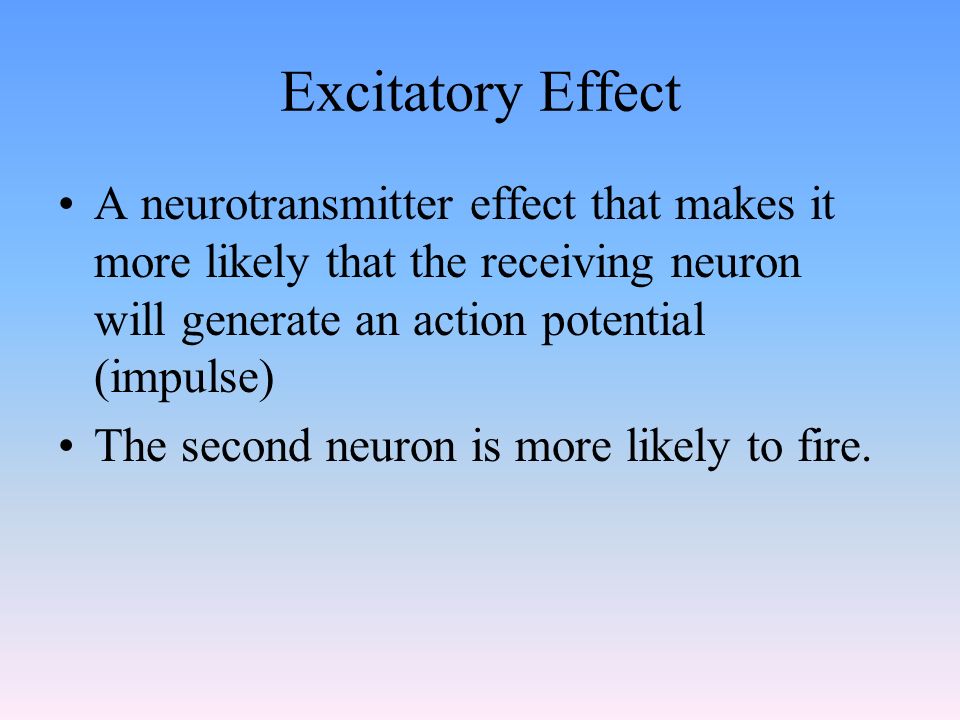

38 Excitatory Effect A neurotransmitter effect that makes it more likely that the receiving neuron will generate an action potential (impulse) The second neuron is more likely to fire.

39 Inhibitory Effect A neurotransmitter effect that makes it less likely that the receiving neuron will generate an action potential (impulse) The second neuron is less likely to fire.

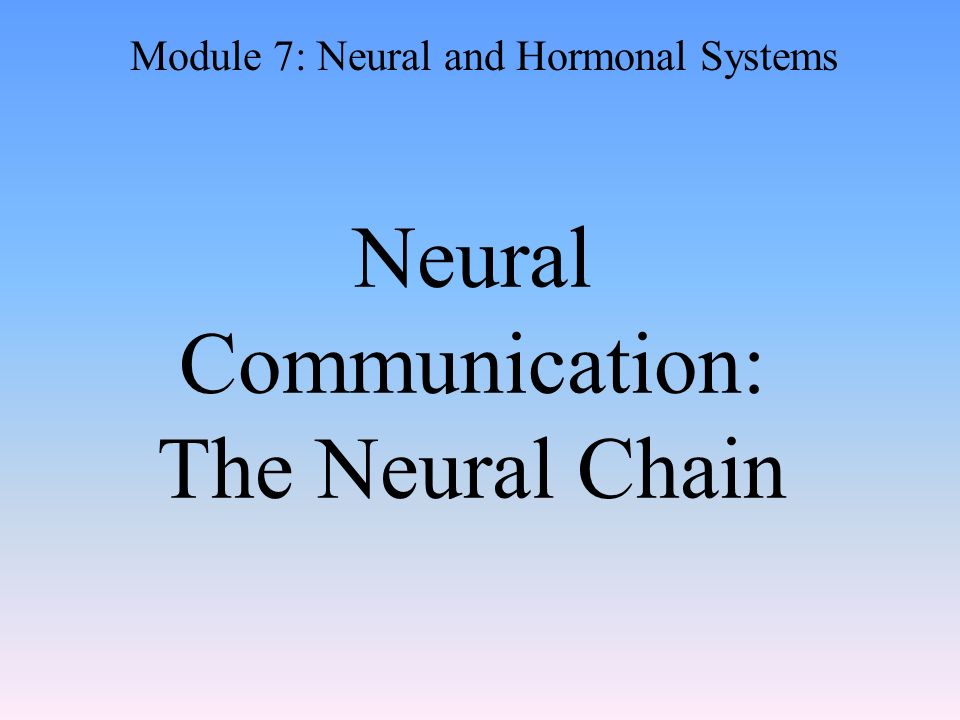

40 Neural Communication: The Neural Chain Module 7: Neural and Hormonal Systems

41 Receptor Cells Specialized cells in the sensory systems of the body that can turn other kinds of energy into action potentials that the nervous system can process Receptor cells in the eye turn light into a neural impulse the brain understands.

42 Sensory Nerves Nerves that carry information to the central nervous system Connect the sense organs to the brain and spinal cord

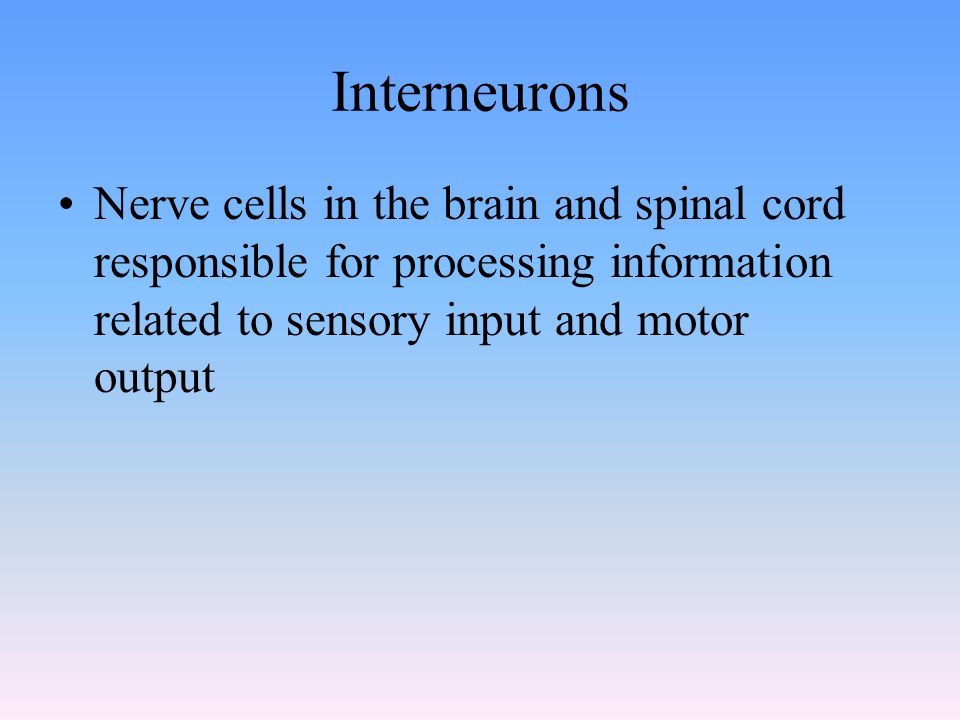

43 Interneurons Nerve cells in the brain and spinal cord responsible for processing information related to sensory input and motor output

44 Motor Nerves Nerves that carry information from the central nervous system Carries messages from the brain and spinal cord to other parts of your body

45 A Neural Chain

46

47

48

49

50 The Structure of the Nervous System Module 7: Neural and Hormonal Systems

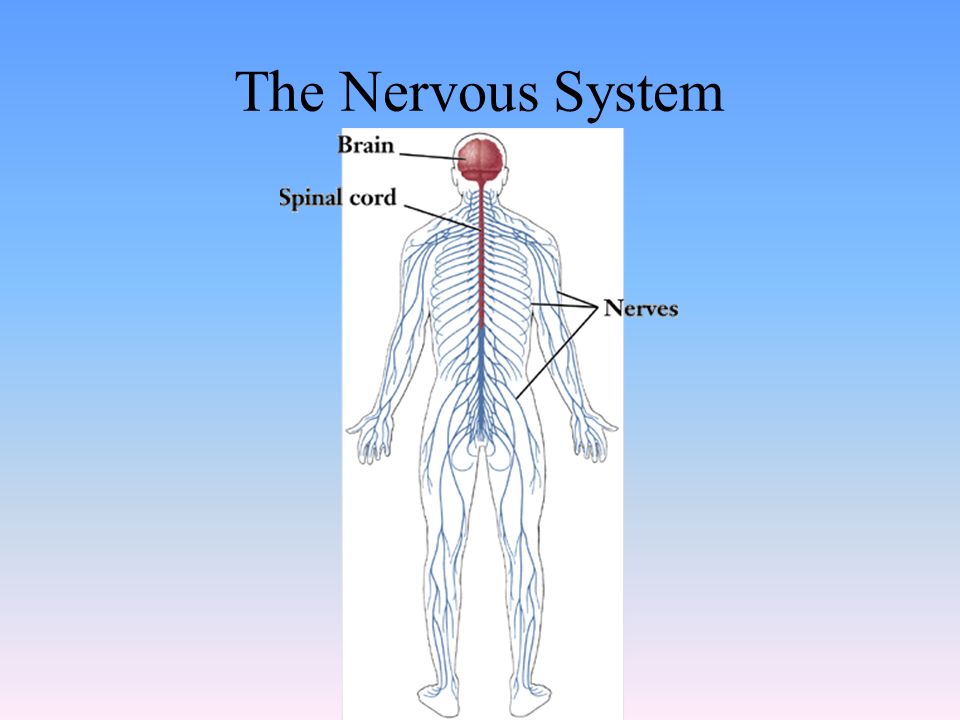

51 The Nervous System

52 Central Nervous System (CNS) The brain and spinal cord The brain is the location of most information processing. The spinal cord is the main pathway to and from the brain.

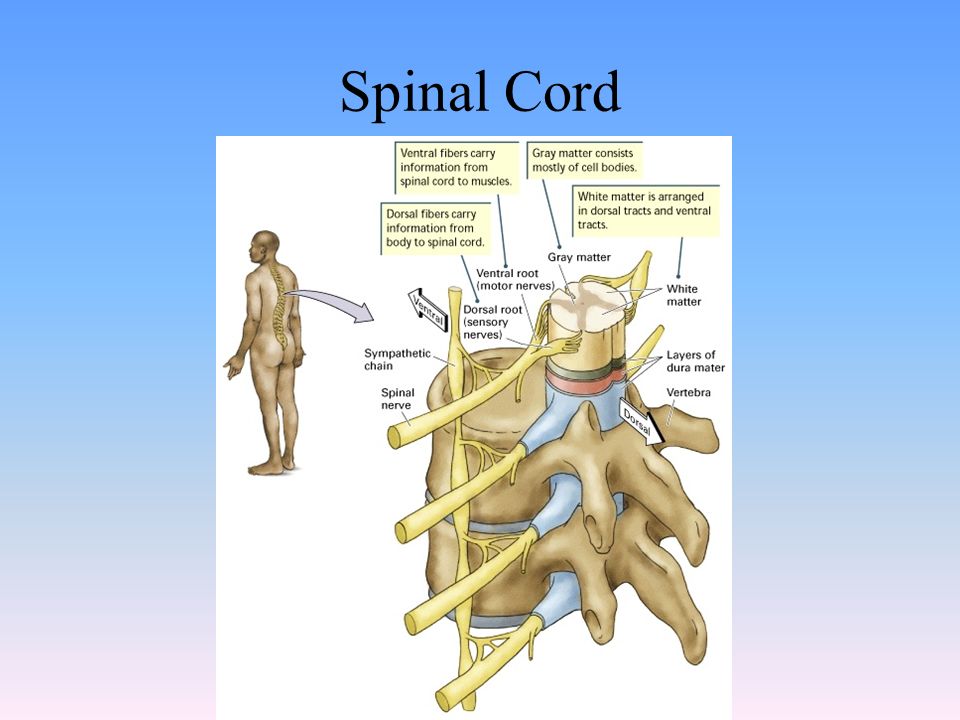

53 Spinal Cord

54 Divisions of the Nervous System

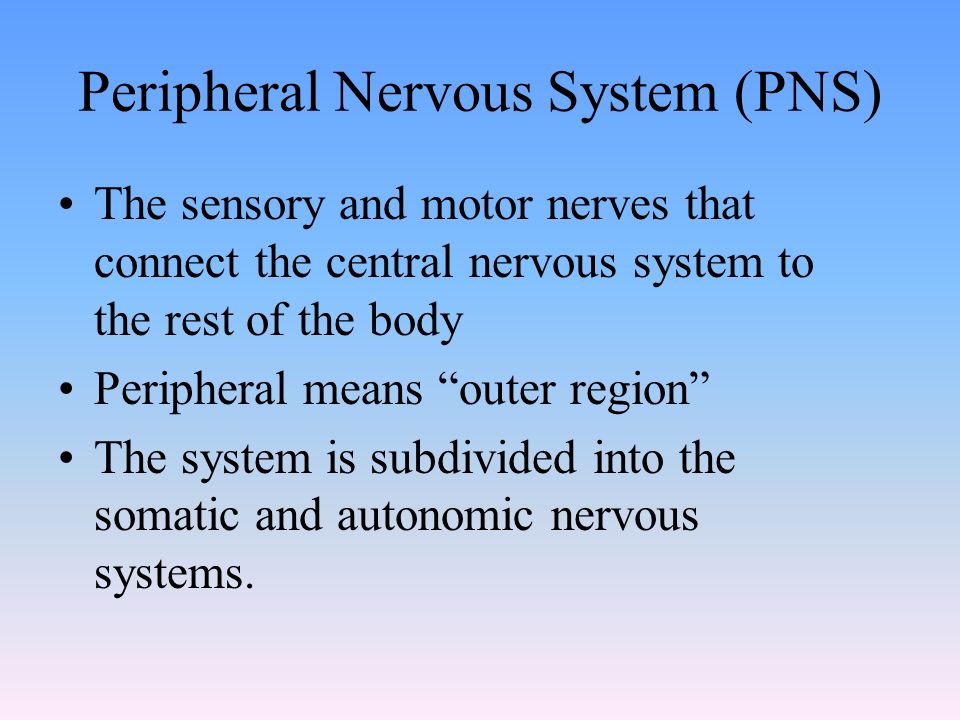

55 Peripheral Nervous System (PNS) The sensory and motor nerves that connect the central nervous system to the rest of the body Peripheral means “outer region” The system is subdivided into the somatic and autonomic nervous systems.

56 Divisions of the Nervous System

57 Somatic Nervous System The division of the peripheral nervous system that controls the body’s skeletal muscles Contains the motor nerves needed for the voluntary muscles

58 Divisions of the Nervous System

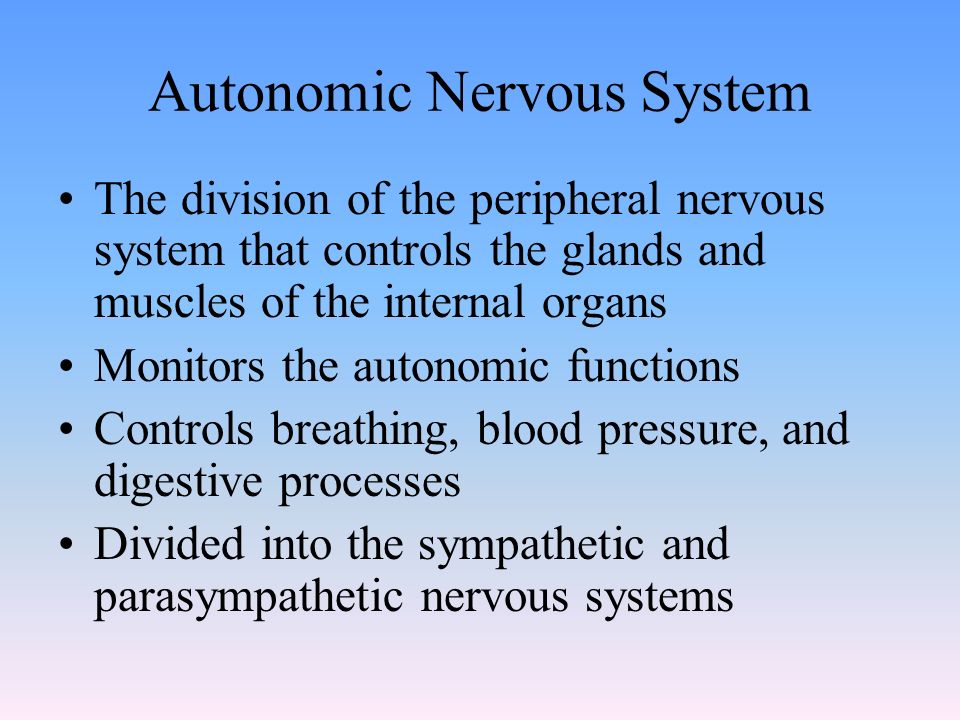

59 Autonomic Nervous System The division of the peripheral nervous system that controls the glands and muscles of the internal organs Monitors the autonomic functions Controls breathing, blood pressure, and digestive processes Divided into the sympathetic and parasympathetic nervous systems

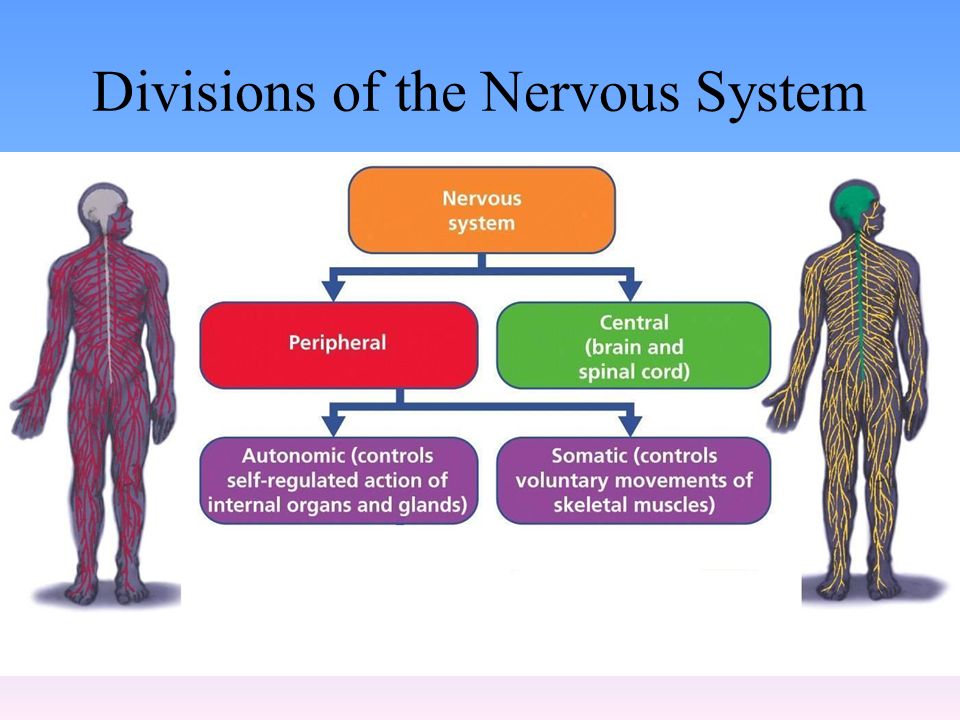

60 Divisions of the Nervous System

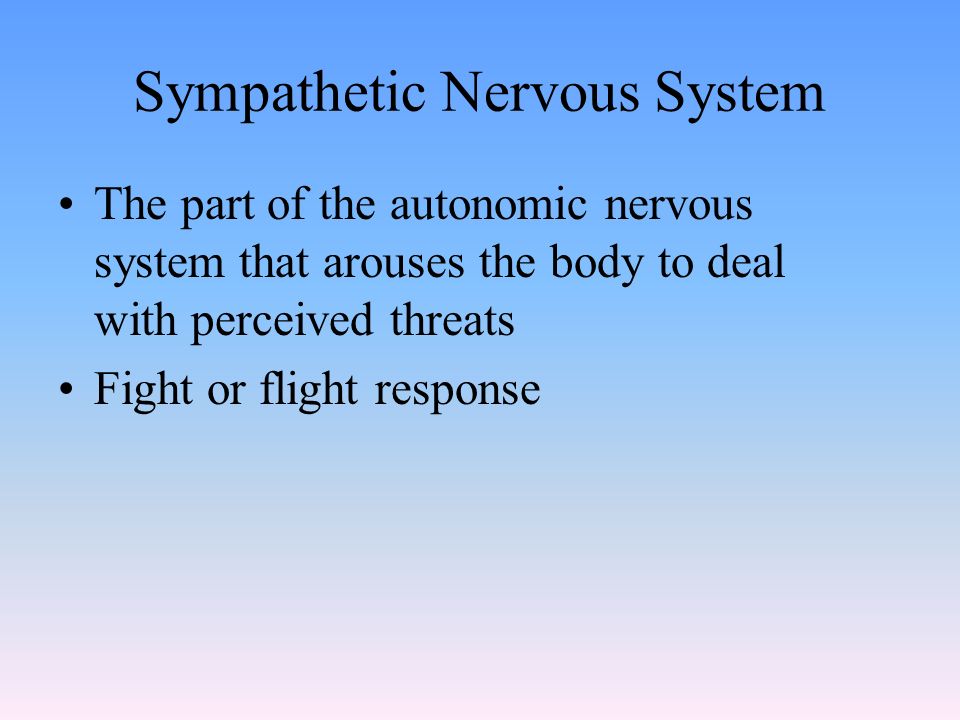

61 Sympathetic Nervous System The part of the autonomic nervous system that arouses the body to deal with perceived threats Fight or flight response

62 Divisions of the Nervous System

63 Parasympathetic Nervous System The part of the autonomic nervous system that calms the body Brings the body back down to a relaxed state

64 Divisions of the Nervous System

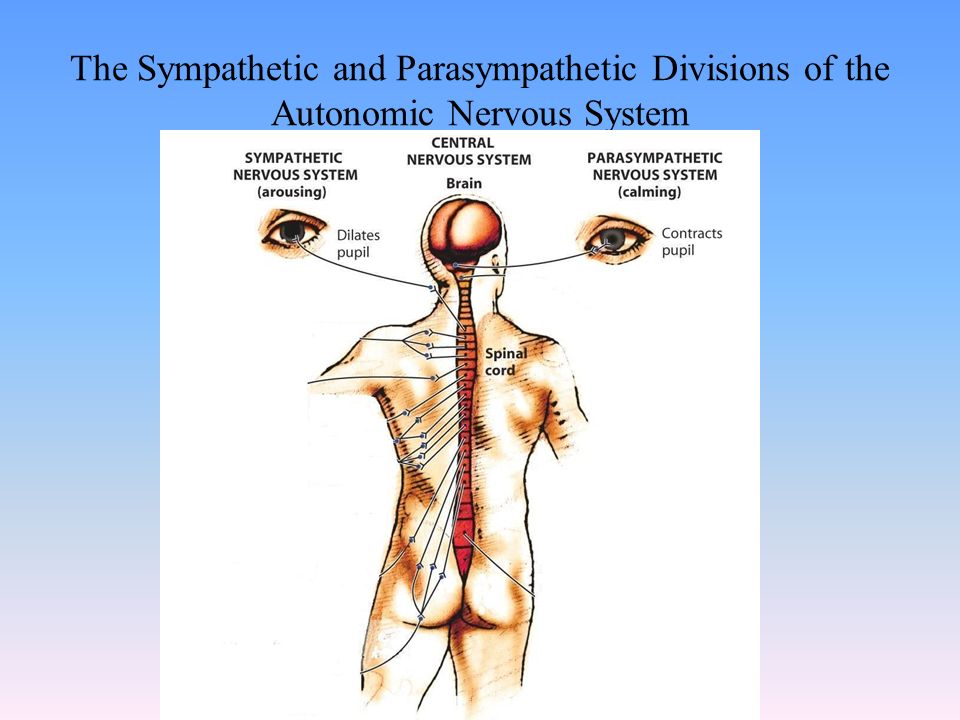

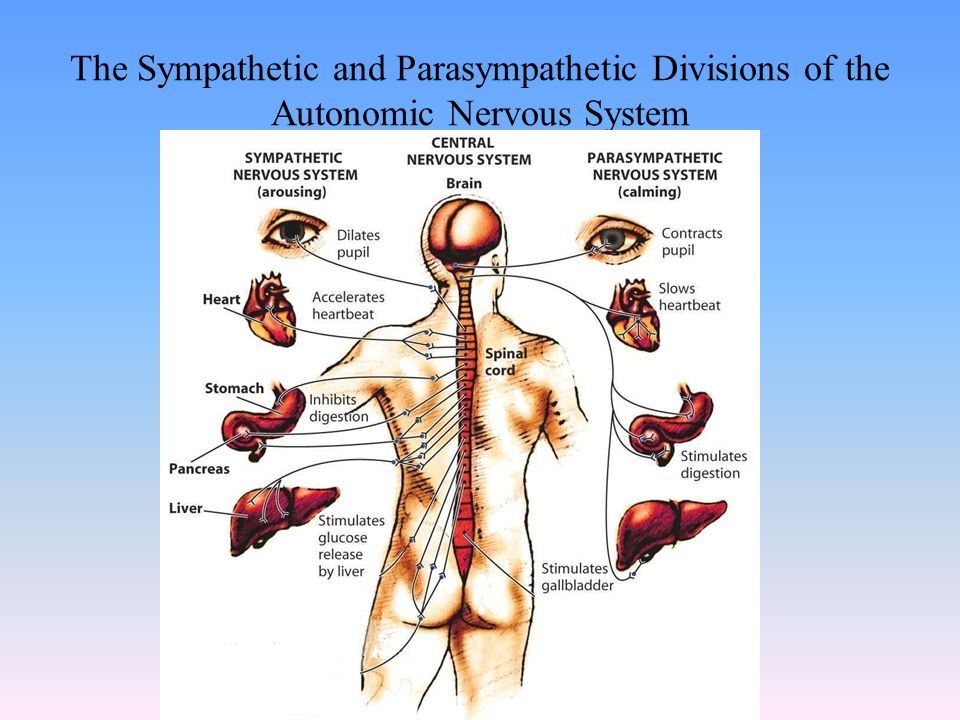

65 The Sympathetic and Parasympathetic Divisions of the Autonomic Nervous System

66

67

68

69

70

71
