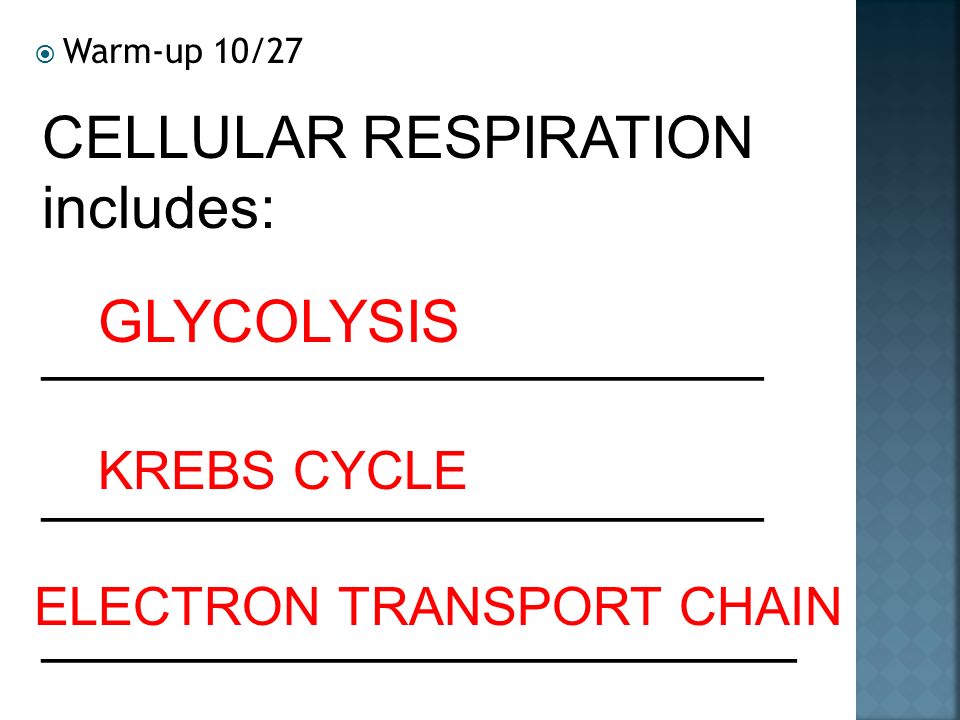

2. CELLULAR RESPIRATION includes: ______________________ _______________________  Warm-up 10/27 GLYCOLYSIS ELECTRON TRANSPORT CHAIN KREBS CYCLE

3.  Cellular Respiration Review  Fermentation  HW: pp. 12-14, p.18  PRE-STANDARD p. 19-21 Due Wednesday  Standard 3A Thursday

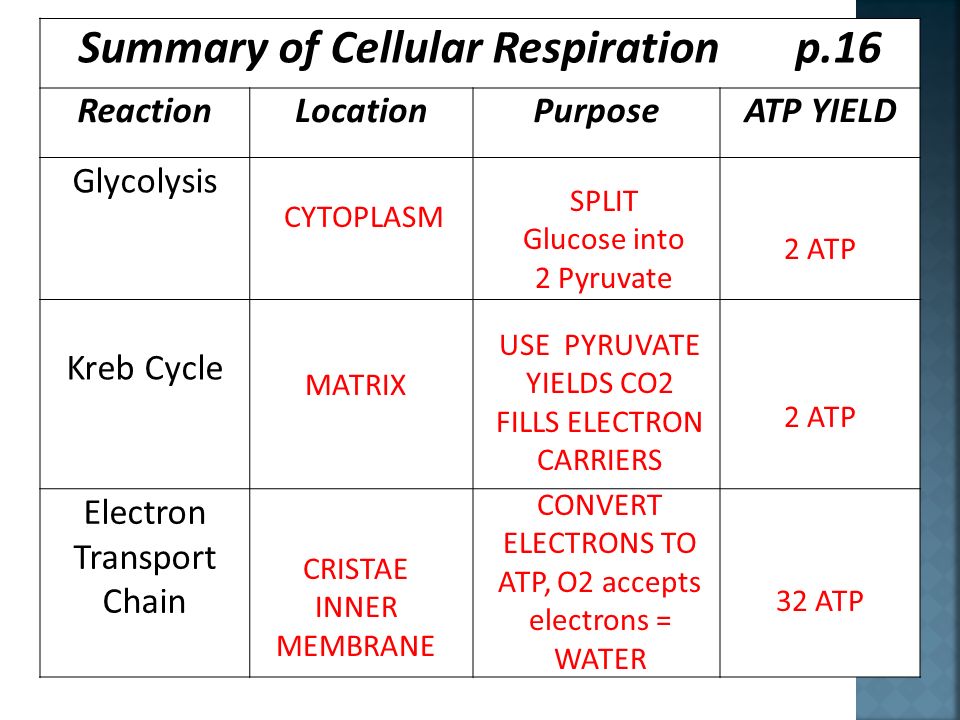

4. Summary of Cellular Respiration p.16 ReactionLocationPurposeATP YIELD Glycolysis Kreb Cycle Electron Transport Chain CYTOPLASM SPLIT Glucose into 2 Pyruvate 2 ATP MATRIX USE PYRUVATE YIELDS CO2 FILLS ELECTRON CARRIERS 2 ATP CRISTAE INNER MEMBRANE 32 ATP CONVERT ELECTRONS TO ATP, O2 accepts electrons = WATER

5. Glucose Glycolysis Cytoplasm Pyruvic acid Electrons carried in NADH Krebs Cycle Electrons carried in NADH and FADH 2 Electron Transport Chain Mitochondrion WHATS THE BIG PICTURE? 2232 Total 36

6. GLYCOLYSIS Happens in ___________ Breaks down ________ into ________________ Produces _______ __________ 2 CYTOPLASM outside mitochondria 1 glucose 2 2 pyruvic acid (pyruvate)

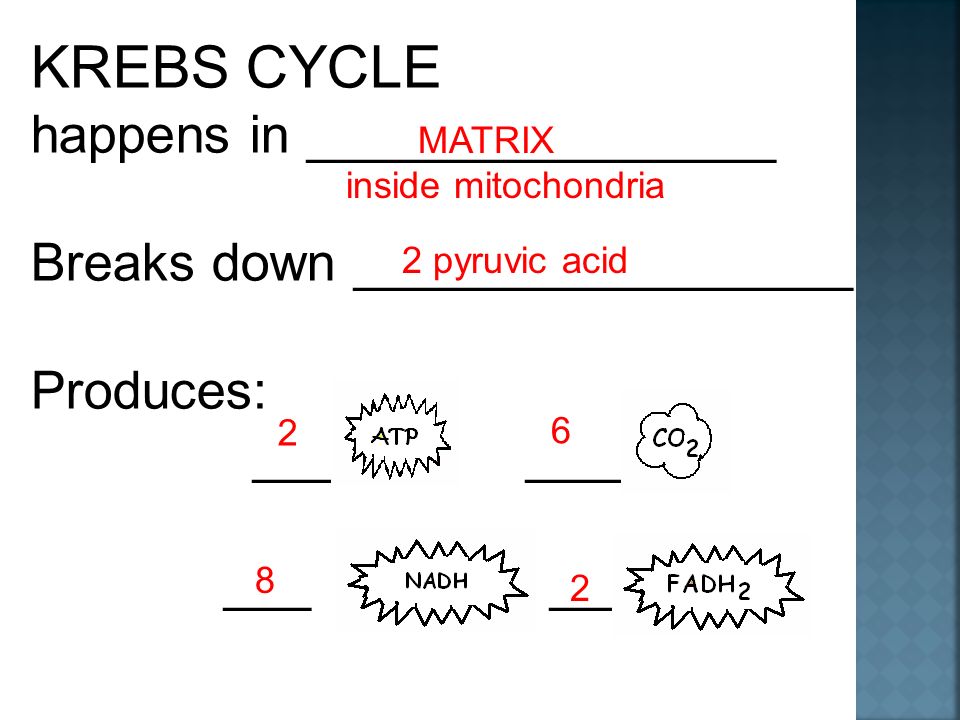

7. KREBS CYCLE happens in ________________ Breaks down _________________ Produces: ____ ____ ___ ___ MATRIX inside mitochondria 2 pyruvic acid 2 6 8 2

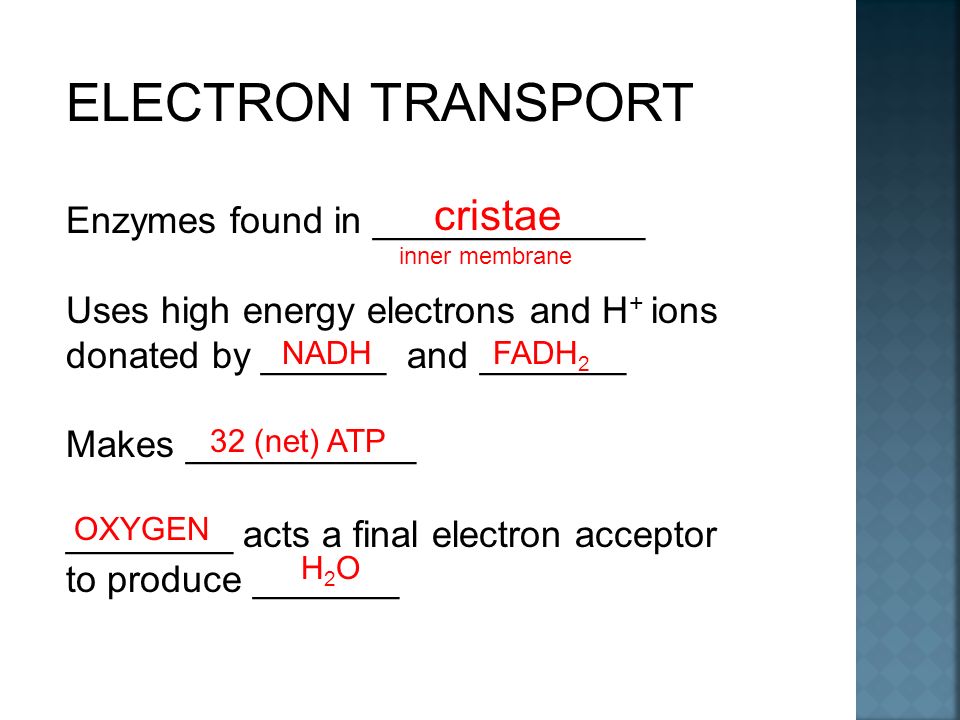

8. ELECTRON TRANSPORT Enzymes found in _____________ Uses high energy electrons and H + ions donated by ______ and _______ Makes ___________ ________ acts a final electron acceptor to produce _______ cristae inner membrane NADH FADH 2 OXYGEN H 2 O 32 (net) ATP

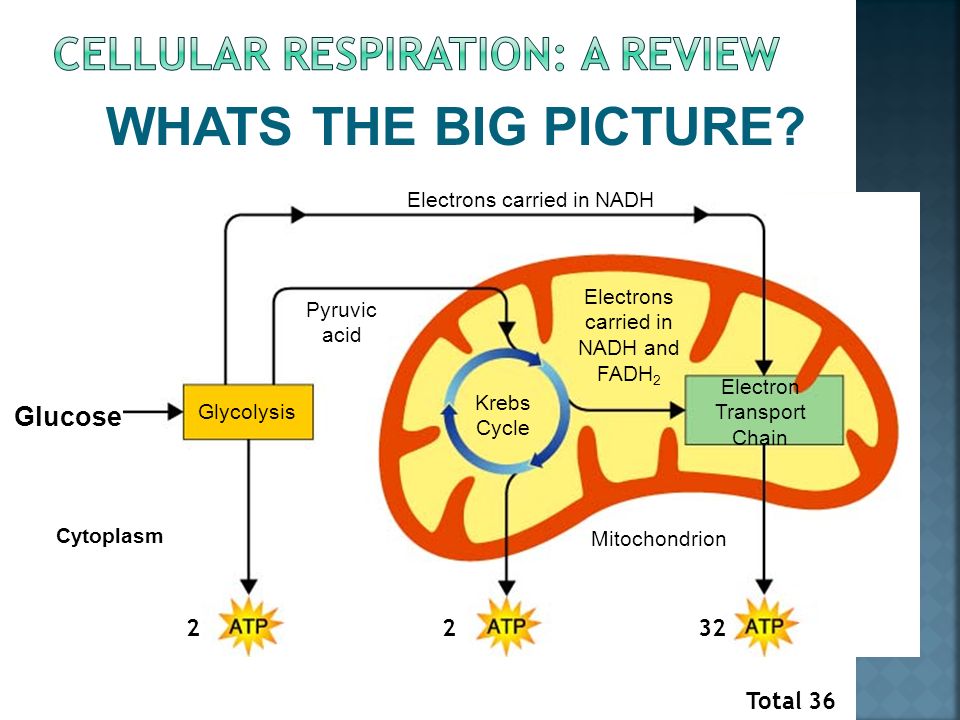

9. Glucose Glycolysis Cytoplasm Pyruvic acid Electrons carried in NADH Krebs Cycle Electrons carried in NADH and FADH 2 Electron Transport Chain Mitochondrion WHATS THE BIG PICTURE? 2232 Total 36

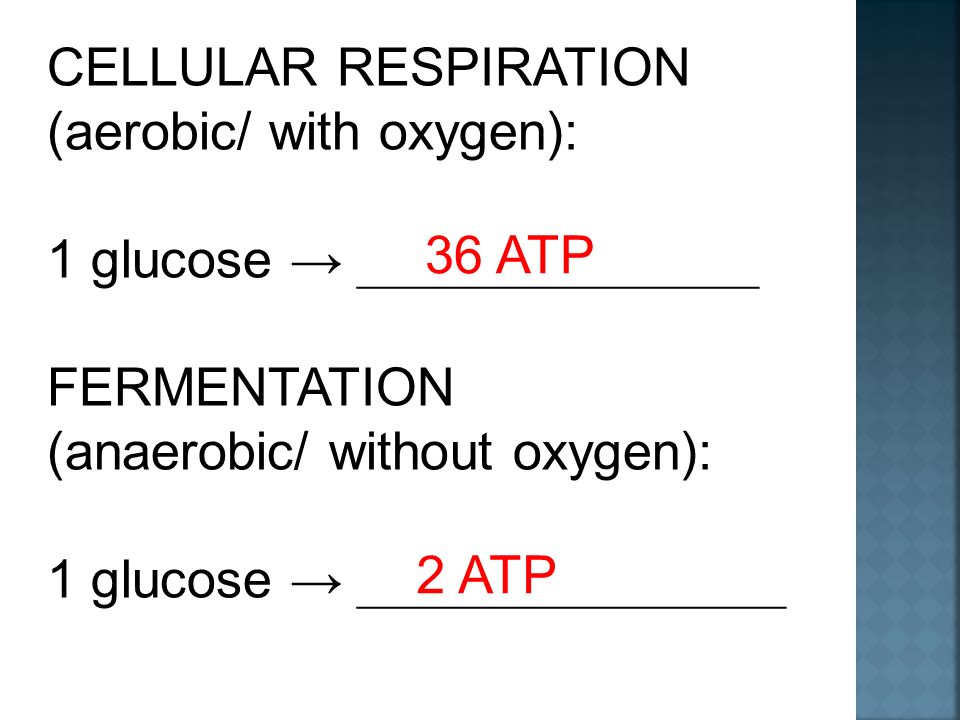

10. CELLULAR RESPIRATION (aerobic/ with oxygen): 1 glucose → _______________ FERMENTATION (anaerobic/ without oxygen): 1 glucose → ________________ 36 ATP 2 ATP

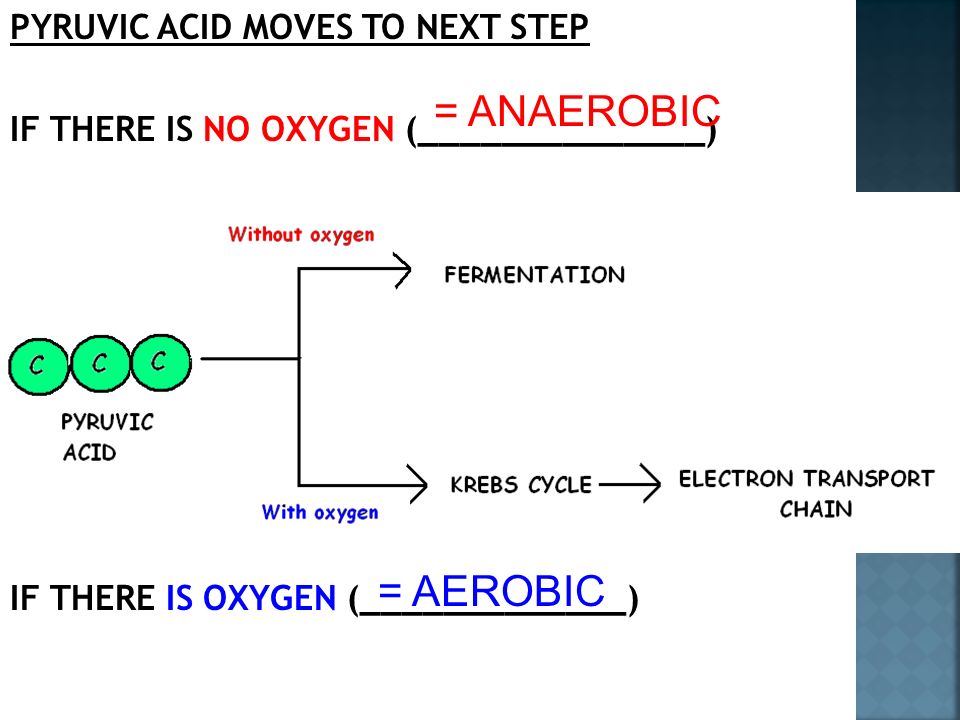

11. PYRUVIC ACID MOVES TO NEXT STEP IF THERE IS NO OXYGEN (______________) IF THERE IS OXYGEN (_____________) = ANAEROBIC = AEROBIC

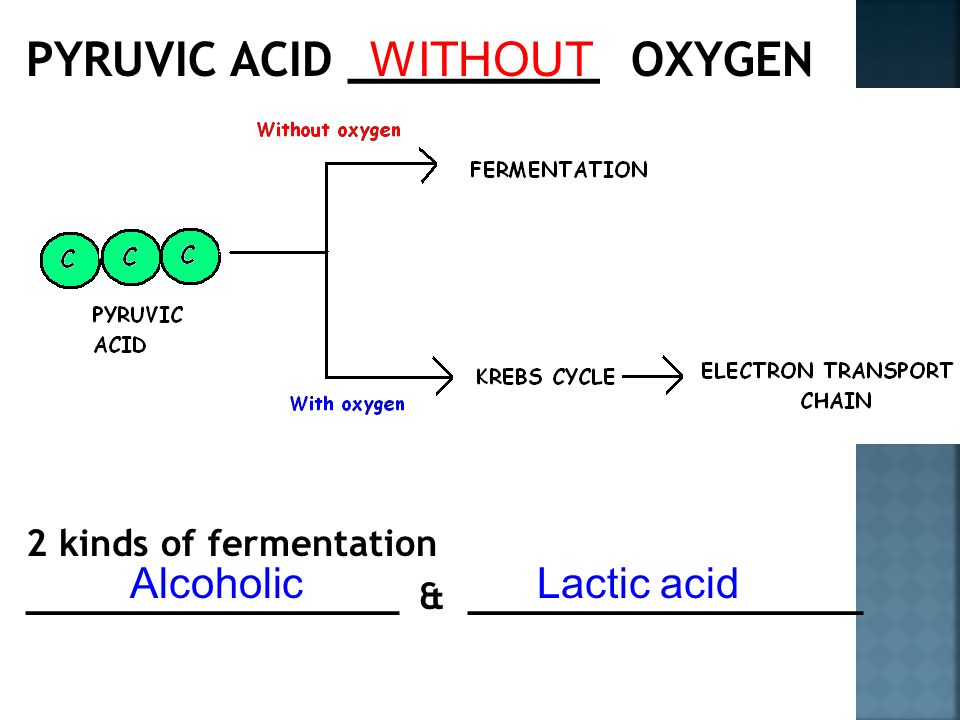

12. PYRUVIC ACID _________ OXYGEN 2 kinds of fermentation _________________ & __________________ ANAEROBIC Alcoholic Lactic acid WITHOUT

13. _______ +_______ →______________ + ________ LACTIC ACID FERMENTATION PYRUVIC ACID LACTIC ACID Happens in ________ during ________ when body can’t get oxygen to tissues fast enough. Lactic acid builds up in muscles causing soreness NAD + http://www.miranda.com/library.en/Images/Pictures/girls-runners.jpg exercisemuscles

14. ________ +_______ →______________ + ________ LACTIC ACID FERMENTATION PYRUVIC ACID LACTIC ACID Happens when bacteria are used to make ______ and _______ _____ like: Yogurt, buttermilk, sauerkraut, pickles, cheese sour cream, & kimchi NAD + http://chronicle.augusta.com/images/headlines/032200/DANNON_YOGURT.jpg http://www.reillydairy.com/natural_cheese.html food beverages

15. 1. Lactic Acid Fermentation  Produced by muscles for short bursts of energy  Used to make cheese, yogurt, sauerkraut

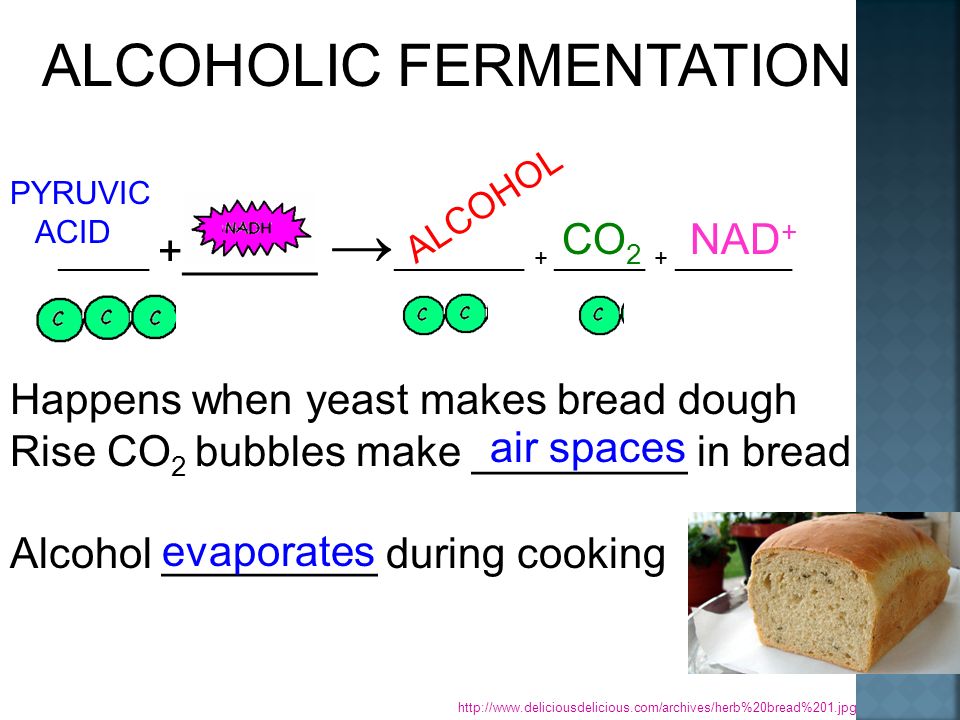

16. _______ + _____ → __________ + _______ + _________ ALCOHOLIC FERMENTATION PYRUVIC ACID ALCOHOL Happens when yeast makes bread dough Rise CO 2 bubbles make _________ in bread Alcohol _________ during cooking CO 2 NAD + http://www.deliciousdelicious.com/archives/herb%20bread%201.jpg air spaces evaporates

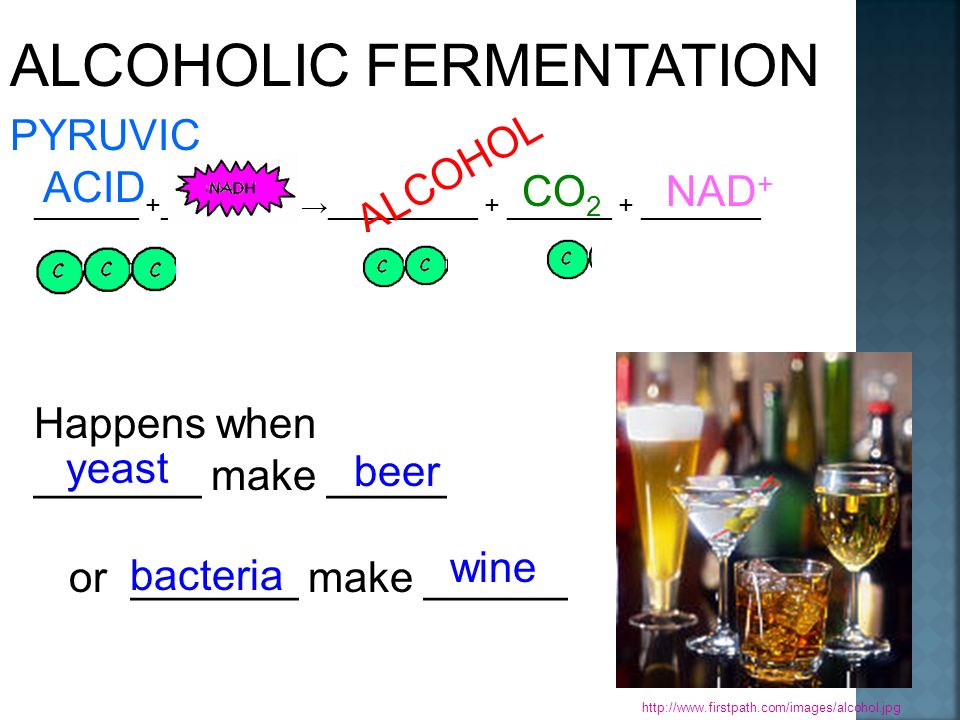

17. _______ +_________ →__________ + _______ + ________ ALCOHOLIC FERMENTATION PYRUVIC ACID ALCOHOL Happens when _______ make _____ or _______ make ______ CO 2 NAD + http://www.firstpath.com/images/alcohol.jpg yeast beer bacteria wine

18. 2. Alcoholic Fermentation  Produced by bacteria and yeast when no O2  Used to make beer and wine

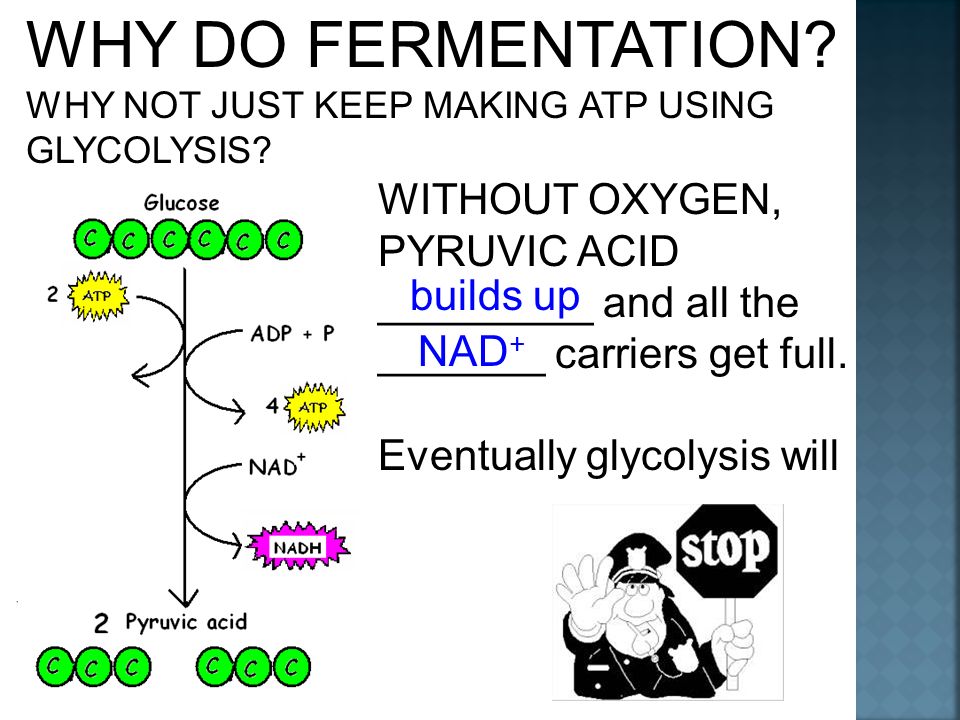

19. WHY DO FERMENTATION? WHY NOT JUST KEEP MAKING ATP USING GLYCOLYSIS? builds up NAD + WITHOUT OXYGEN, PYRUVIC ACID _________ and all the _______ carriers get full. Eventually glycolysis will

20. ______ +_____ →__________ + ____ + _____ FERMENTATION HAPPENS so cells can ___________________ needed to keep glycolysis going PYRUVIC ACID ALCOHOL → CO 2 NAD + REGENERATE the NAD + LACTIC ACID NAD + → You get the NAD + carriers back ______

21. © 2012 Pearson Education, Inc. Animation: Fermentation Overview Right click on animation / Click play

22.  Crash Course  http://youtu.be/00jbG_cfGuQ http://youtu.be/00jbG_cfGuQ  Bozeman  http://youtu.be/Gh2P5CmCC0M http://youtu.be/Gh2P5CmCC0M

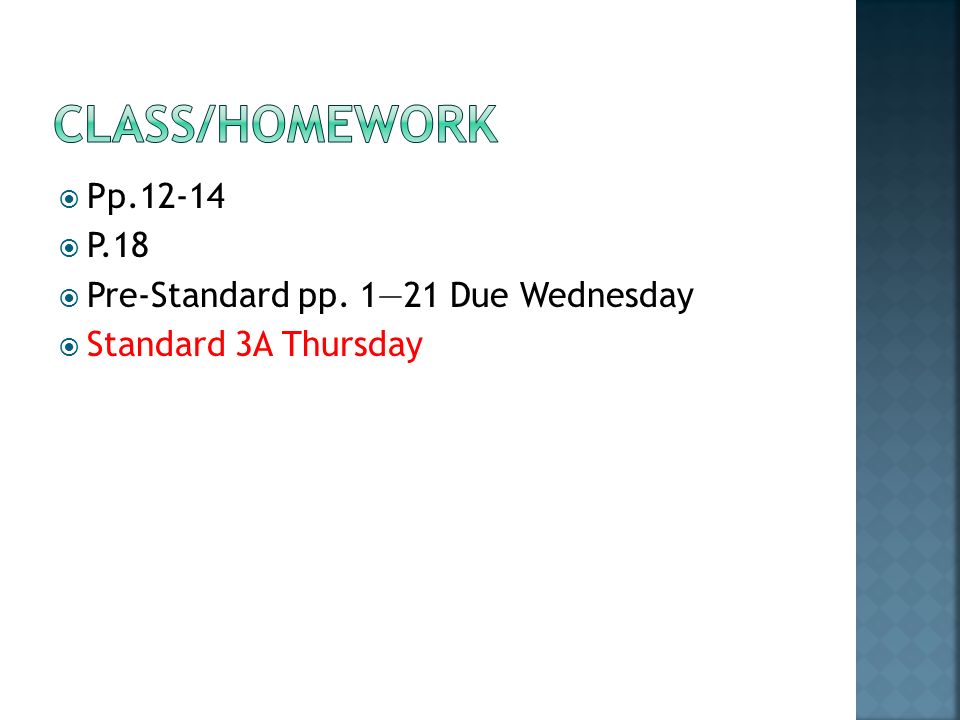

23.  Pp.12-14  P.18  Pre-Standard pp. 1—21 Due Wednesday  Standard 3A Thursday

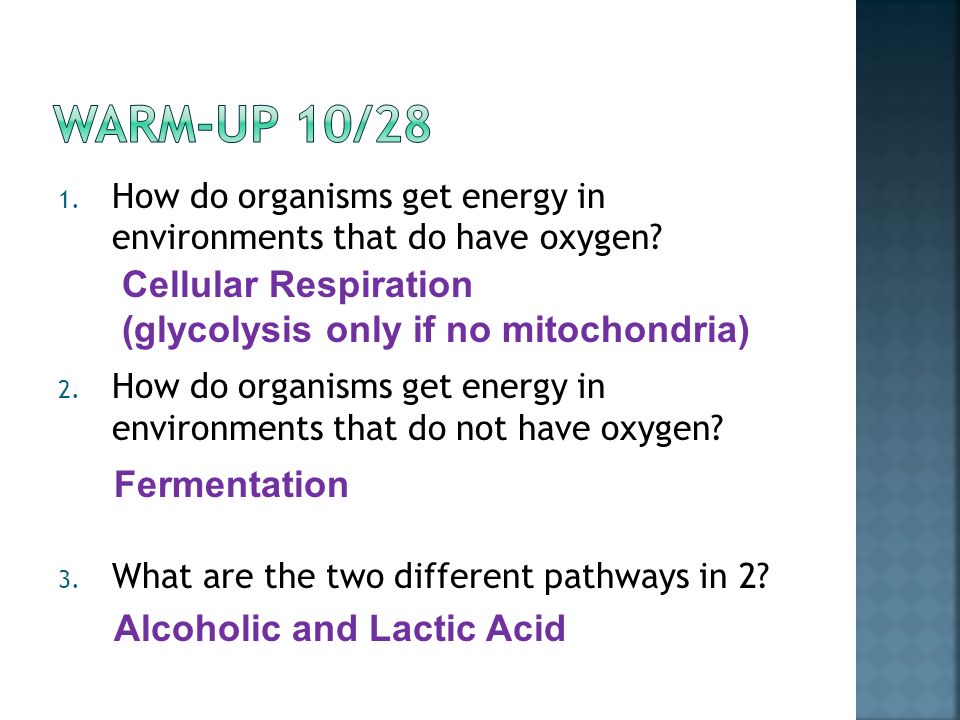

24. 1. How do organisms get energy in environments that do have oxygen? 2. How do organisms get energy in environments that do not have oxygen? 3. What are the two different pathways in 2? Cellular Respiration (glycolysis only if no mitochondria) Fermentation Alcoholic and Lactic Acid

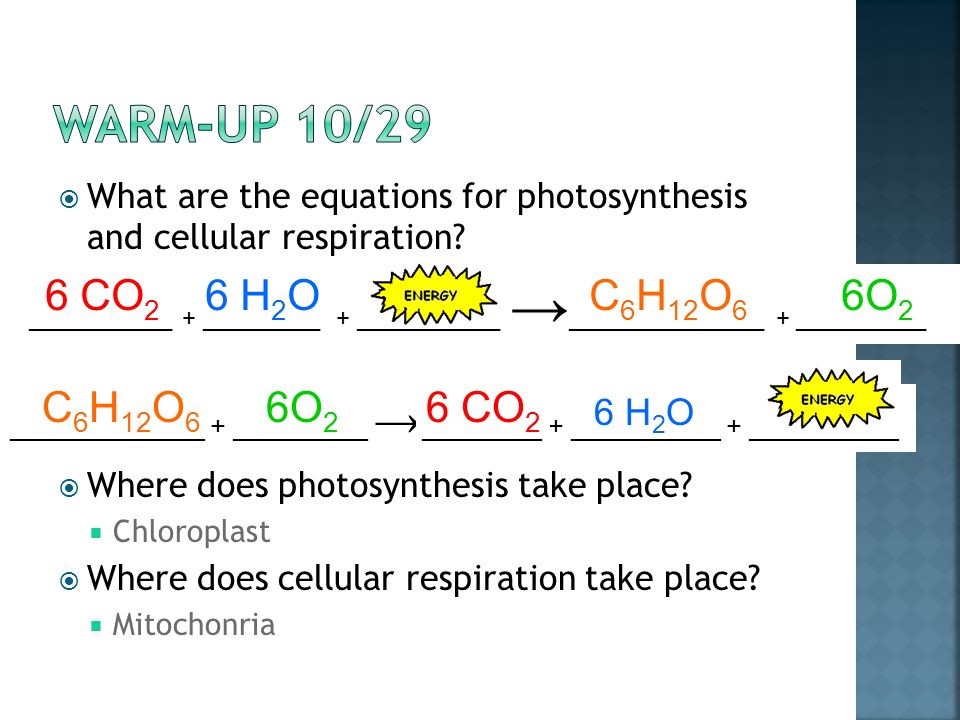

25.  What are the equations for photosynthesis and cellular respiration?  Where does photosynthesis take place?  Chloroplast  Where does cellular respiration take place?  Mitochonria ___________ + _________ + ___________ → _______________ + __________ 6 CO 2 6 H 2 OC 6 H 12 O 6 6O 2 _____________ + _________ → ________ + __________ + __________ C 6 H 12 O 6 6O 2 6 CO 2 6 H 2 O

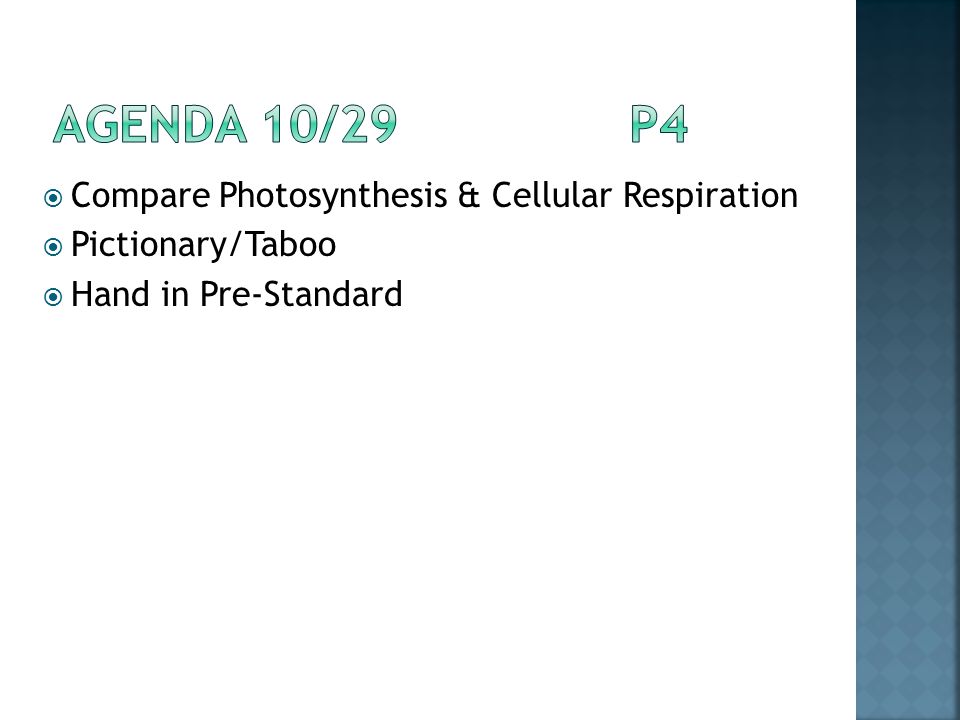

26.  Compare Photosynthesis & Cellular Respiration  Pictionary/Taboo  Hand in Pre-Standard

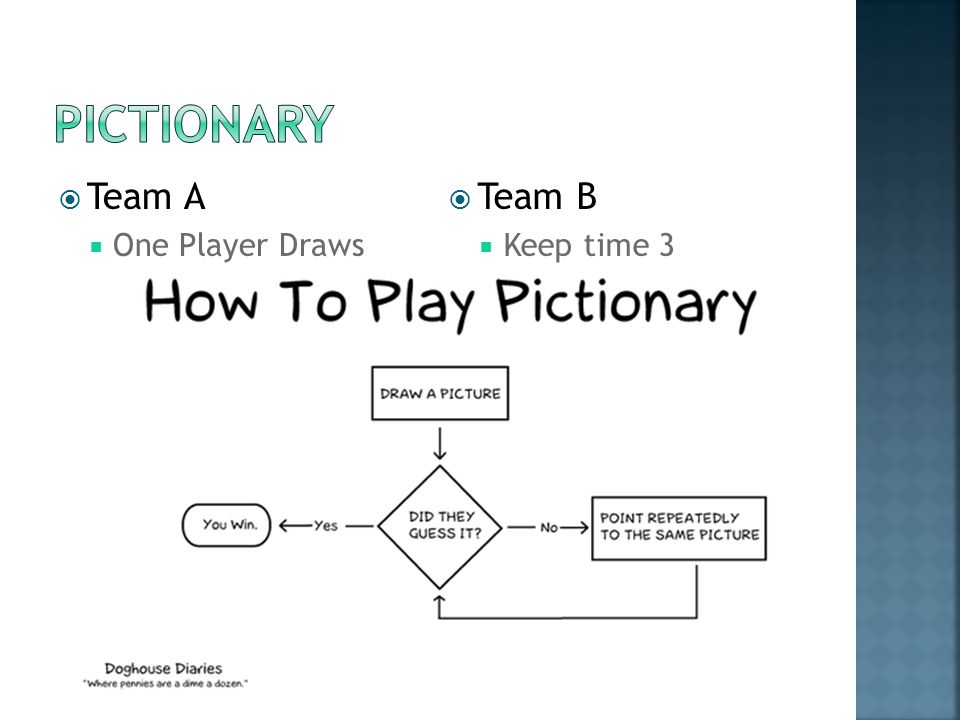

27.  Team A  One Player Draws  Others Guess  Keep cards that are guessed  Return cards not guessed to pile  Team B  Keep time 3 minutes  Make sure no talking or gesturing from drawer  Can participate on All play words

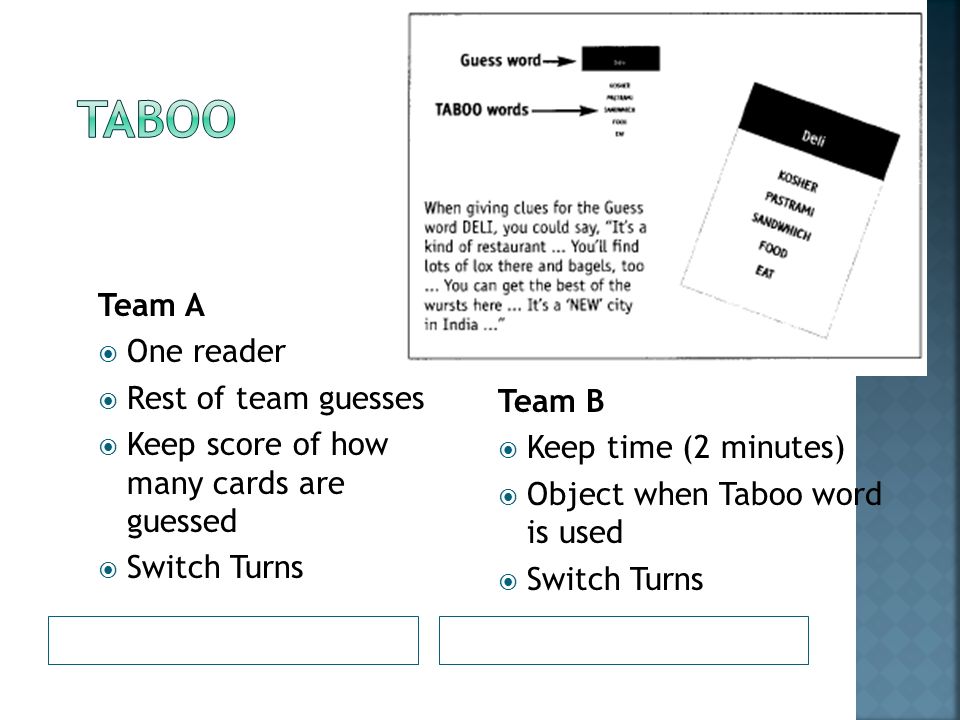

28. Team A  One reader  Rest of team guesses  Keep score of how many cards are guessed  Switch Turns Team B  Keep time (2 minutes)  Object when Taboo word is used  Switch Turns

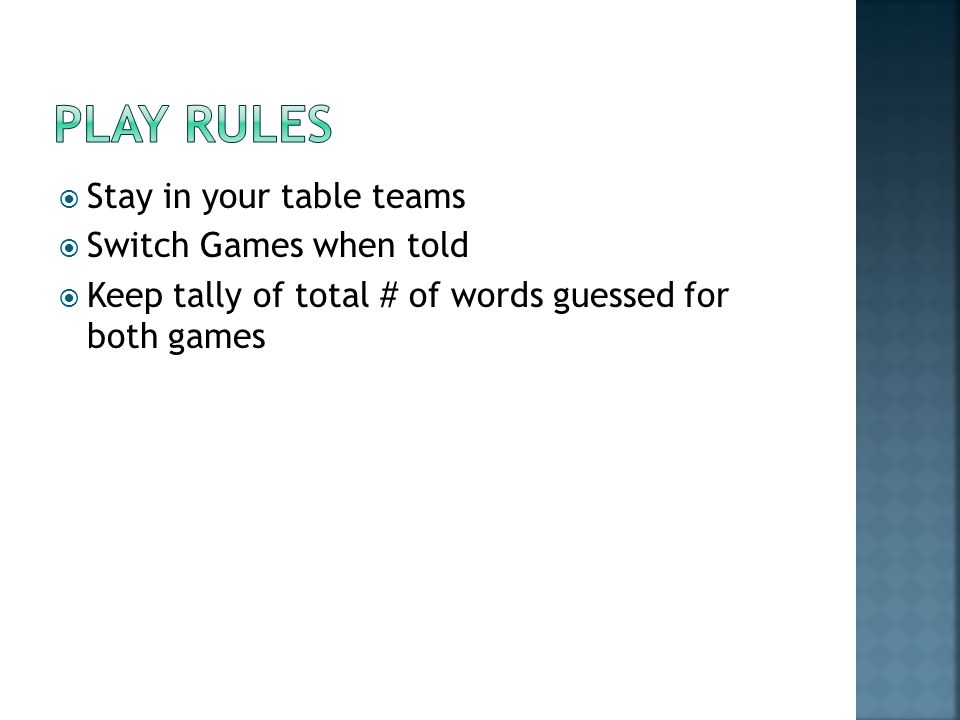

29.  Stay in your table teams  Switch Games when told  Keep tally of total # of words guessed for both games

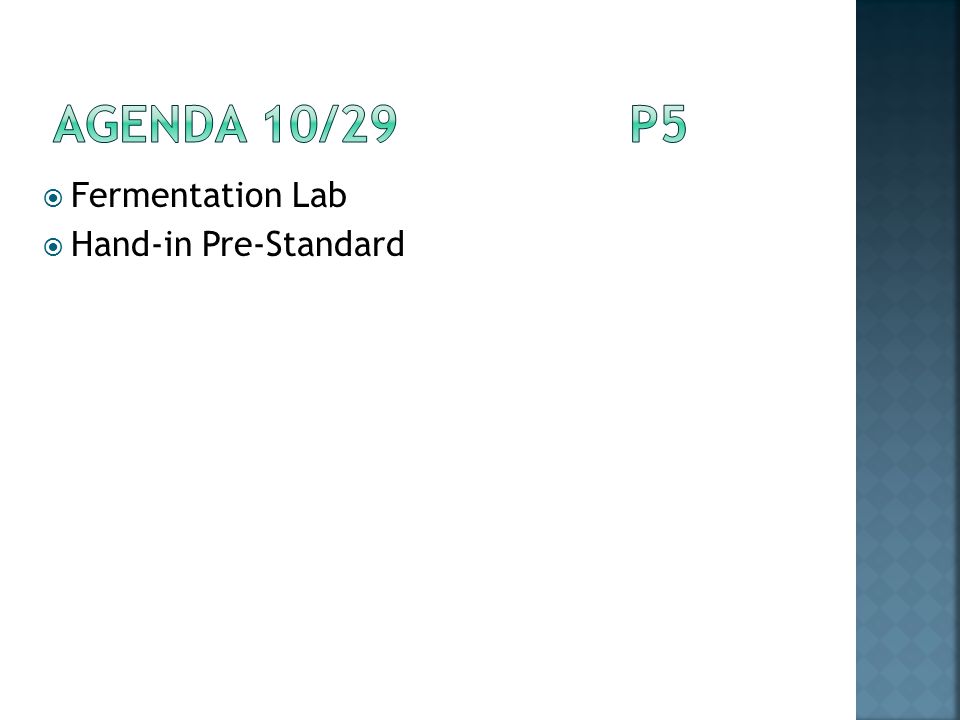

30.  Fermentation Lab  Hand-in Pre-Standard

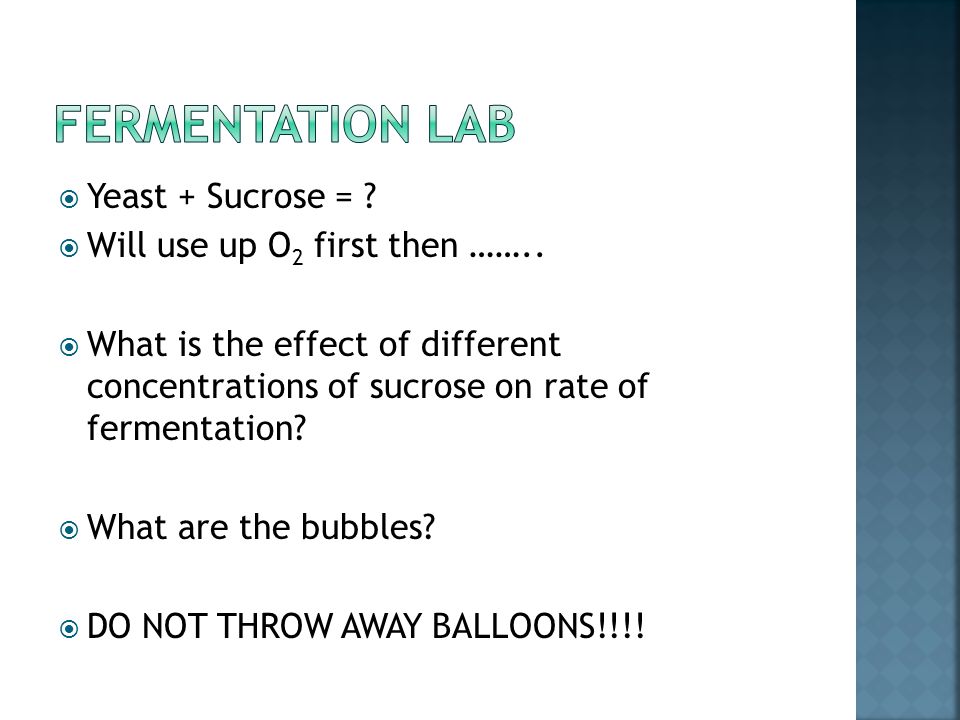

31.  Yeast + Sucrose = ?  Will use up O 2 first then ……..  What is the effect of different concentrations of sucrose on rate of fermentation?  What are the bubbles?  DO NOT THROW AWAY BALLOONS!!!!

32. _______ +_________ →__________ + _______ + ________ ALCOHOLIC FERMENTATION PYRUVIC ACID ALCOHOL Happens when _______ make _____ or _______ make ______ CO 2 NAD + http://www.firstpath.com/images/alcohol.jpg yeast beer bacteria wine

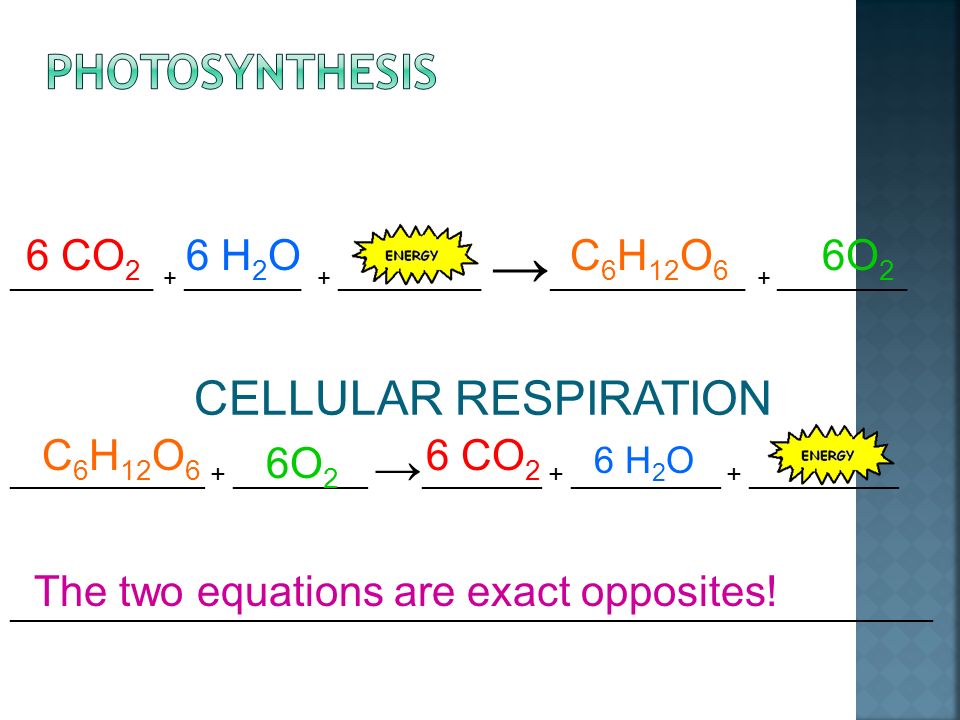

34. ___________ + _________ + ___________ → _______________ + __________ 6 CO 2 6 H 2 OC 6 H 12 O 6 6O 2 _____________ + _________ → ________ + __________ + __________ ______________________________________________________________ CELLULAR RESPIRATION C 6 H 12 O 6 6O 2 6 CO 2 6 H 2 O The two equations are exact opposites!

35. Label reactants and products for photosynthesis: #1 = ___________________ #2 = ___________________ #3 = ___________________ #4 = ___________________ #5 = ___________________ Carbon dioxide WATER OXYGEN SUGAR Light energy

36.  Fermentation Lab  3A Standard Thursday 10/30  HW: PRE-STANDARD pp.19-21  DUE Wednesday  To be handed in

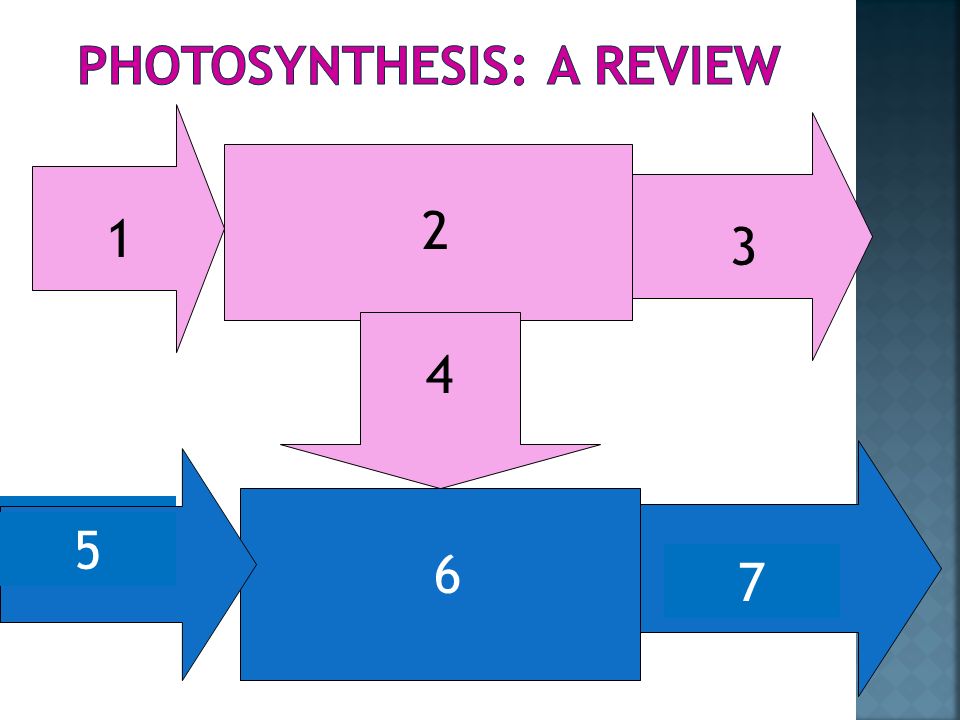

37. 2 6 13 4 Carbon Dioxide 7 5

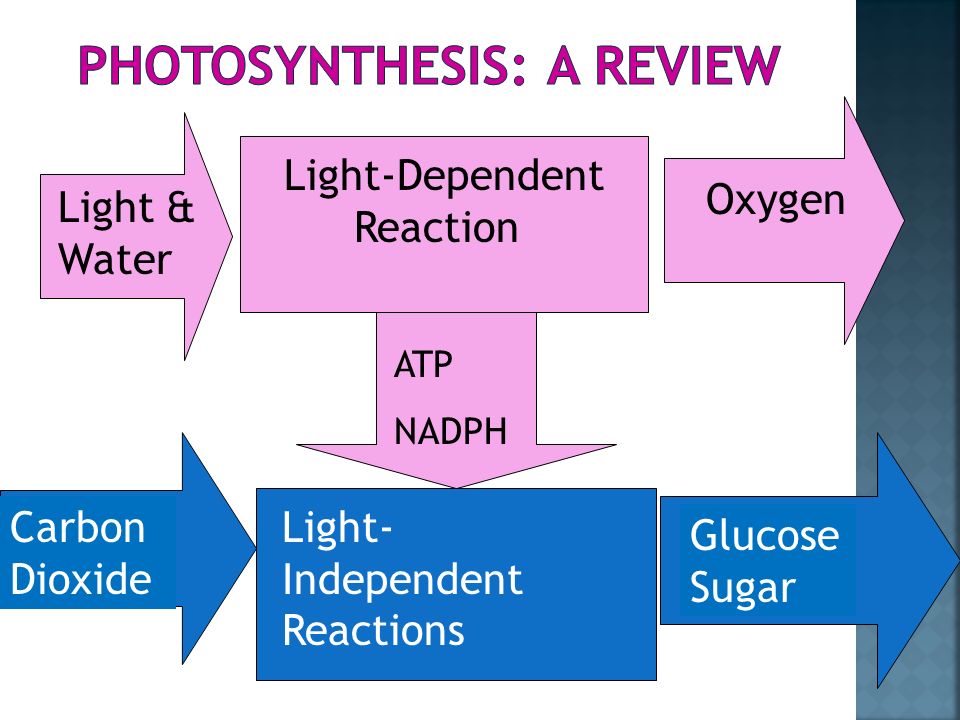

38. Light-Dependent Reaction Light- Independent Reactions Light & Water Oxygen ATP NADPH Carbon Dioxide Glucose Sugar Carbon Dioxide

39. LIGHT DEPENDENT REACTION Requires ______________ Molecules are part of ________________ Made up of __________________ connected by ______________________ & ___________________ Uses light energy to change ADP + P → _______ NADP + + 2e - + H + → _________ Breaks apart ______ molecules and releases _____________ LIGHT ATP THYLAKOID membranes PHOTOSYSTEMS II & I ELECTRON TRANSPORT CHAIN NADPH H20H20 oxygen ATP SYNTHASE

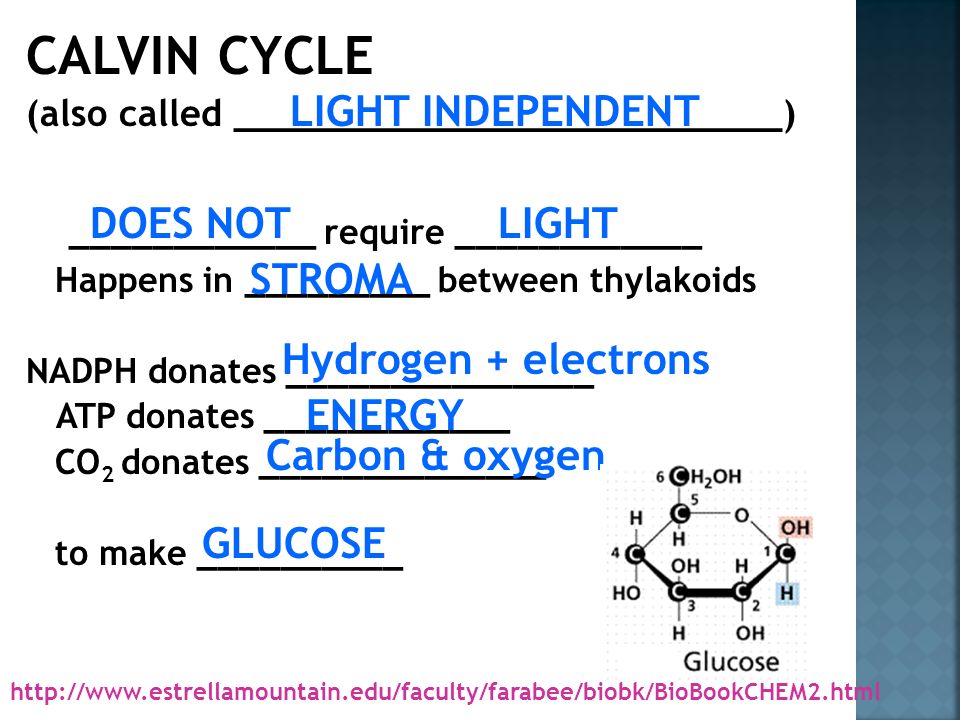

40. CALVIN CYCLE (also called _________________________) ____________ require ____________ Happens in _________ between thylakoids NADPH donates _______________ ATP donates ____________ CO 2 donates ______________ to make __________ LIGHT LIGHT INDEPENDENT ENERGY STROMA Hydrogen + electrons Carbon & oxygen GLUCOSE http://www.estrellamountain.edu/faculty/farabee/biobk/BioBookCHEM2.html DOES NOT

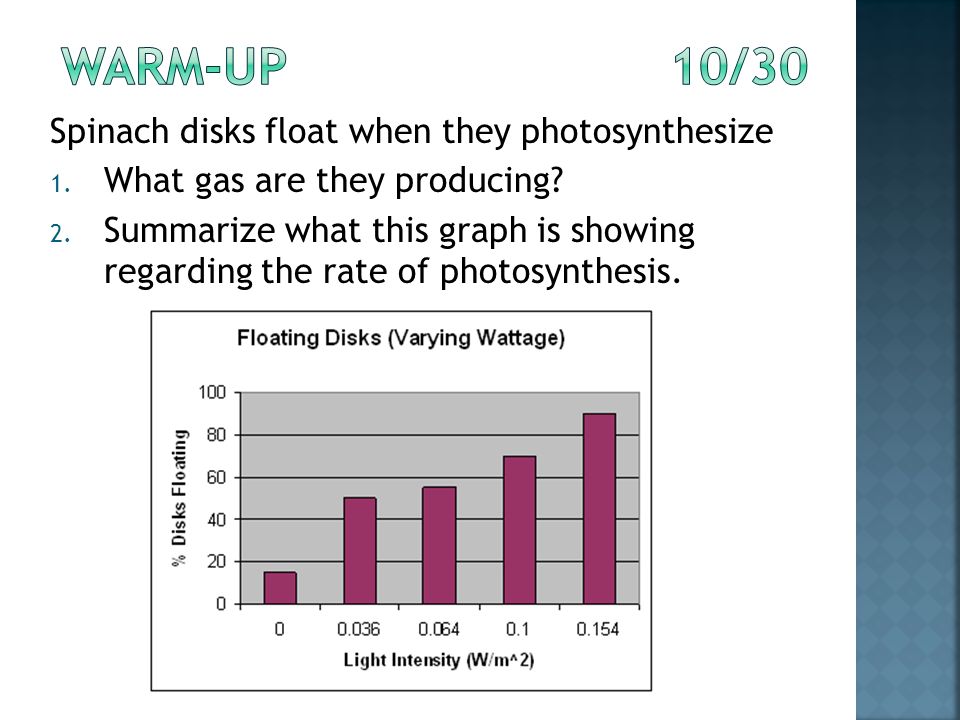

41. Spinach disks float when they photosynthesize 1. What gas are they producing? 2. Summarize what this graph is showing regarding the rate of photosynthesis.

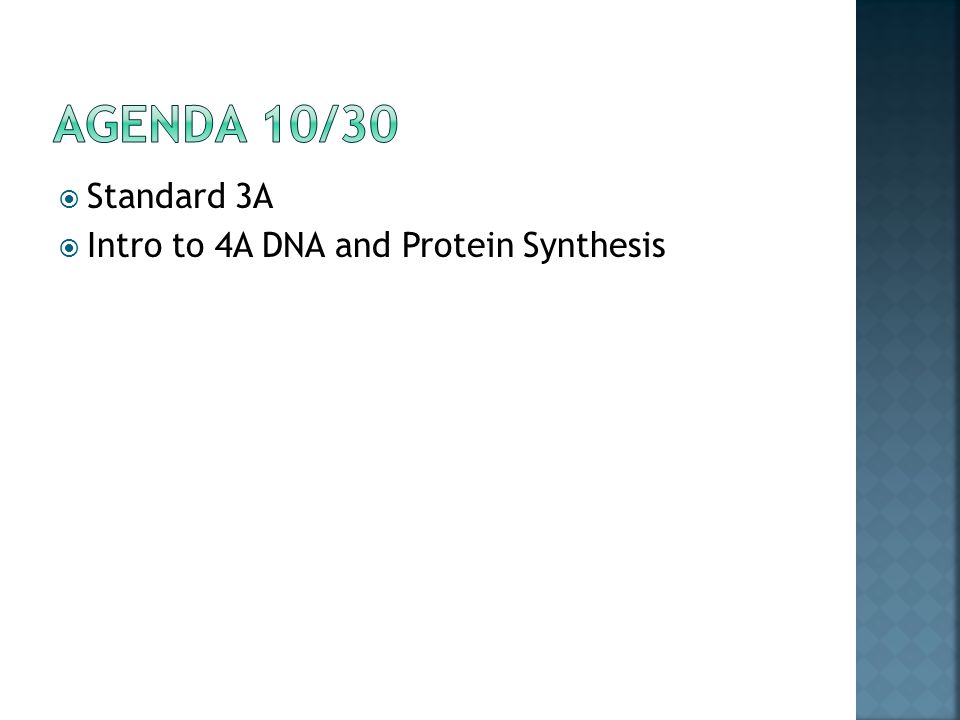

42.  Standard 3A  Intro to 4A DNA and Protein Synthesis
