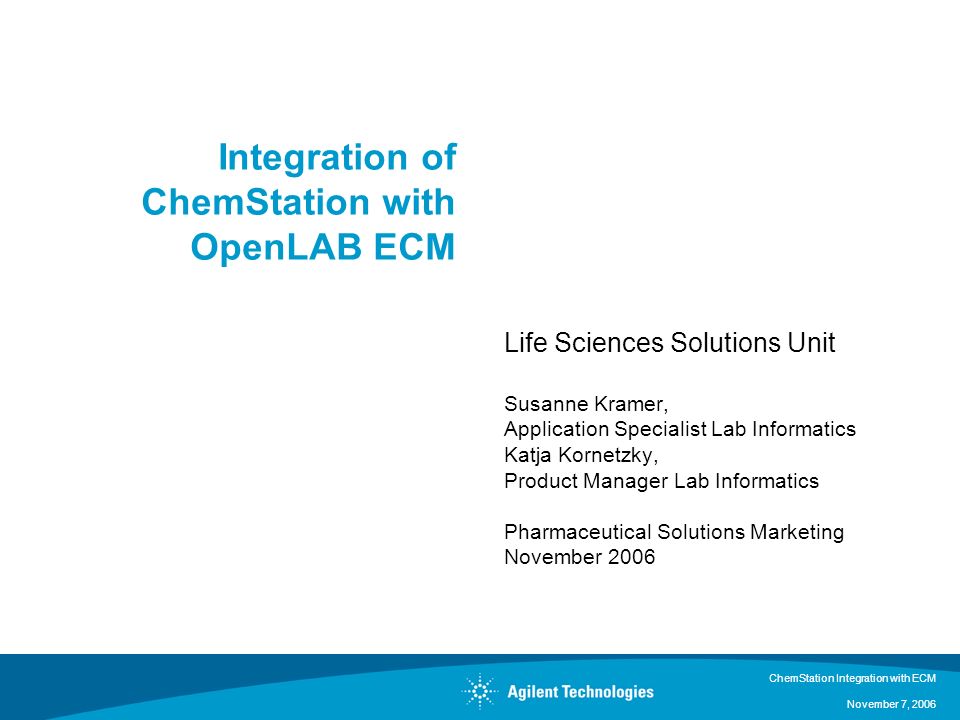

1. ChemStation Integration with ECM November 7, 2006 Integration of ChemStation with OpenLAB ECM Life Sciences Solutions Unit Susanne Kramer, Application Specialist Lab Informatics Katja Kornetzky, Product Manager Lab Informatics Pharmaceutical Solutions Marketing November 2006

2. ChemStation Integration with ECM November 7, 2006 Topics Overview ChemStation ECM Integration Requirements & Installation Summary

3. ChemStation Integration with ECM November 7, 2006 What Is ECM? Enterprise Content Manager is a web-based electronic library that collects, organizes, indexes, stores, archives, and shares any electronic file – from analytical raw data and lab reports to compliance records, molecular drawings, Adobe Acrobat documents, Microsoft Office documents, web pages, pictures, video and audio. ECM allows users to easily search and review all of their data. ECM automatically extracts searchable metadata from files and provides powerful search capabilities.

4. ChemStation Integration with ECM November 7, 2006 ChemStation Integration with ECM Automatic transfer of sequence containers (including raw data, methods, and results) and single runs to ECM after acquisition and reprocessing. Allows you to directly save data, master methods, and sequence templates from ChemStation into ECM. Allows you to directly load data, master methods, and sequence templates from ECM into ChemStation. All data in ECM are protected with user authentication.

5. ChemStation Integration with ECM November 7, 2006 Advantages of ChemStation/ ECM Integration Central data management: Store and organize data from multiple ChemStation installations in one central ECM repository. Quickly search and retrieve data for review or reprocessing in ChemStation. Restrict access to ChemStation data and reports stored in ECM based on access rights. Securely store ChemStation data and reports in ECM under revision-control.

6. ChemStation Integration with ECM November 7, 2006 Topics Overview ChemStation ECM Integration Requirements & Installation Summary

7. ChemStation Integration with ECM November 7, 2006 ChemStation/ ECM Integration The ChemStation ECM integration adds a pull-down menu and some ECM icons to the ChemStation interface. Store data, master methods, and sequence templates from ChemStation directly to ECM, similar to a local directory. Open data, master methods, and sequence templates stored in ECM directly into ChemStation. The ECM node in the Explorer shows the last sequence uploaded from ECM to ChemStation, or the last master method or sequence template, respectively.

8. ChemStation Integration with ECM November 7, 2006 Directly access Master Methods and Sequence Templates stored in ECM All templates are securely stored in ECM. The ECM node in the Explorer shows the last master method or sequence template uploaded from ECM. Master methods and sequence templates can be selected from the Method or Sequence drop-down menu.

9. ChemStation Integration with ECM November 7, 2006 Data Flow in the ChemStation/ ECM system

10. ChemStation Integration with ECM November 7, 2006 Settings for Data Transfer to ECM Data in ECM are organized in a four- level hierarchy. Users can define within ChemStation where data are stored in ECM. Data can be automatically uploaded after acquisition or re- processing.

11. ChemStation Integration with ECM November 7, 2006 Data Storage All data acquired in one sequence are packaged in a single checksum- protected container. All raw data, meta data and results are unbreakably linked.

12. ChemStation Integration with ECM November 7, 2006 Search ChemStation Data Stored in ECM \ Search for those ChemStation files you need and open them in ChemStation. Indexing makes key information searchable. Searches can be general or very focused. Find exactly what you need – fast!!

13. ChemStation Integration with ECM November 7, 2006 Topics Overview ChemStation ECM Integration Requirements & Installation Summary

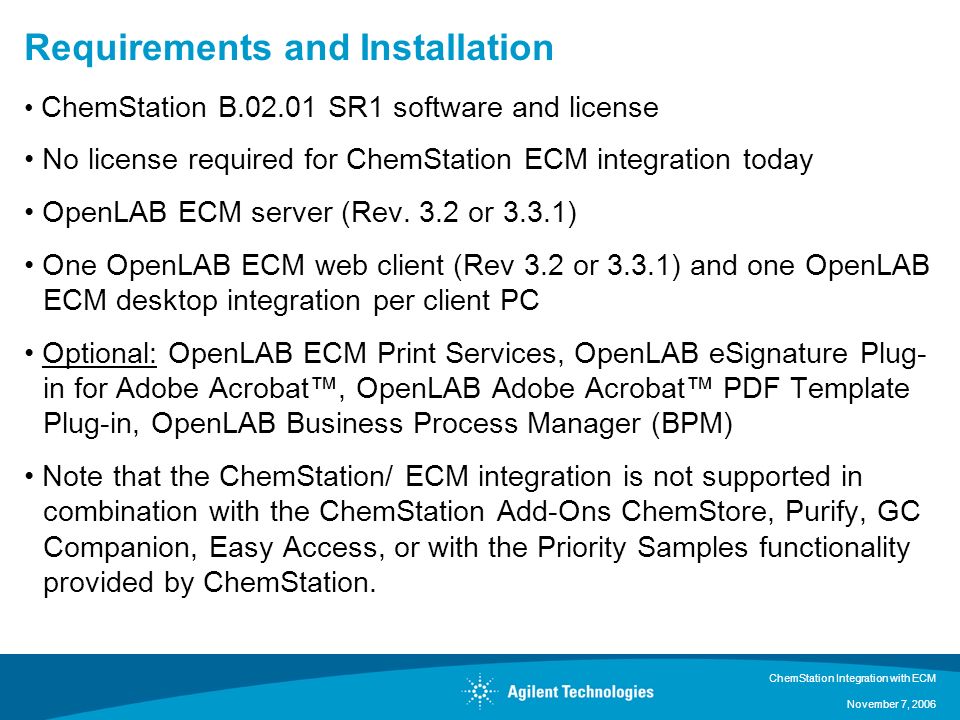

14. ChemStation Integration with ECM November 7, 2006 Requirements and Installation ChemStation B.02.01 SR1 software and license No license required for ChemStation ECM integration today OpenLAB ECM server (Rev. 3.2 or 3.3.1) One OpenLAB ECM web client (Rev 3.2 or 3.3.1) and one OpenLAB ECM desktop integration per client PC Optional: OpenLAB ECM Print Services, OpenLAB eSignature Plug- in for Adobe Acrobat™, OpenLAB Adobe Acrobat™ PDF Template Plug-in, OpenLAB Business Process Manager (BPM) Note that the ChemStation/ ECM integration is not supported in combination with the ChemStation Add-Ons ChemStore, Purify, GC Companion, Easy Access, or with the Priority Samples functionality provided by ChemStation.

15. ChemStation Integration with ECM November 7, 2006 Topics Overview ChemStation ECM Integration Requirements & Installation Summary

16. ChemStation Integration with ECM November 7, 2006 Advantages of ChemStation/ ECM Integration Central data management: Store and organize data from multiple ChemStation installations in one central ECM repository. Quickly search and retrieve data for review or reprocessing in ChemStation. Restrict access to ChemStation data and reports stored in ECM based on access rights. Securely store ChemStation data and reports in ECM under revision-control.

17. ChemStation Integration with ECM November 7, 2006 Learn More about ECM & ChemStation ECM Integration LSM Homepage: http://lsbu.marketing.agilent.com/sb/sbshow.asp?nav_id=478 ECM Product Page: http://www.chem.agilent.com/scripts/pds.asp?lpage=16769 Technical Note “Integration of ChemStation with Agilent OL ECM” (P/N 5989-5552EN) ChemStation ECM Interface manual (P/N G2170-90030) Further Reading: Technical Overview “Cerity ECM – Attribute Extraction Services for ChemStation XML Data” (5989-3800EN) White Paper “Agilent OL Data Viewers” (5989-4909EN) Data Sheet “ChemStation B.02.01 Feature Overview of Revision B.02.01.SR1 (5989-5036EN)
