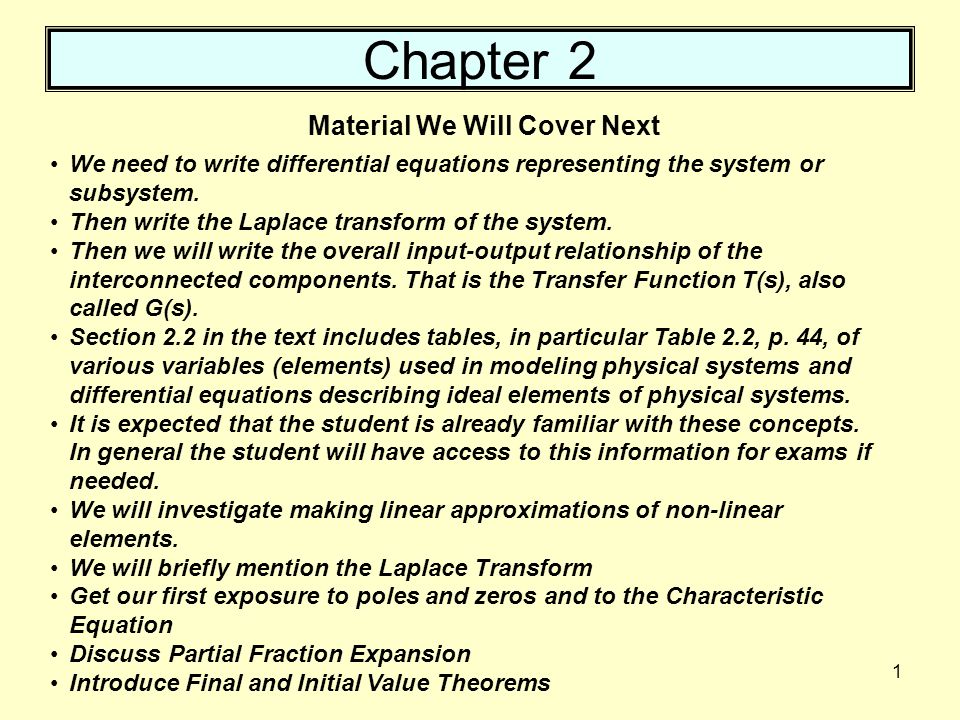

1. 1 Chapter 2 We need to write differential equations representing the system or subsystem. Then write the Laplace transform of the system. Then we will write the overall input-output relationship of the interconnected components. That is the Transfer Function T(s), also called G(s). Section 2.2 in the text includes tables, in particular Table 2.2, p. 44, of various variables (elements) used in modeling physical systems and differential equations describing ideal elements of physical systems. It is expected that the student is already familiar with these concepts. In general the student will have access to this information for exams if needed. We will investigate making linear approximations of non-linear elements. We will briefly mention the Laplace Transform Get our first exposure to poles and zeros and to the Characteristic Equation Discuss Partial Fraction Expansion Introduce Final and Initial Value Theorems Material We Will Cover Next

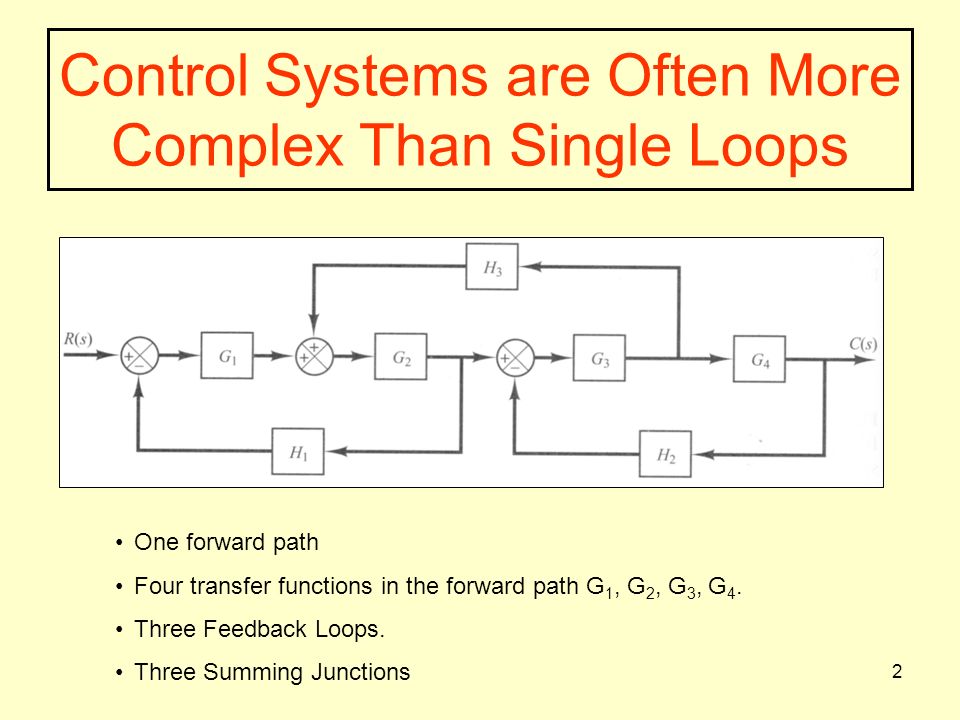

2. 2 Control Systems are Often More Complex Than Single Loops One forward path Four transfer functions in the forward path G 1, G 2, G 3, G 4. Three Feedback Loops. Three Summing Junctions

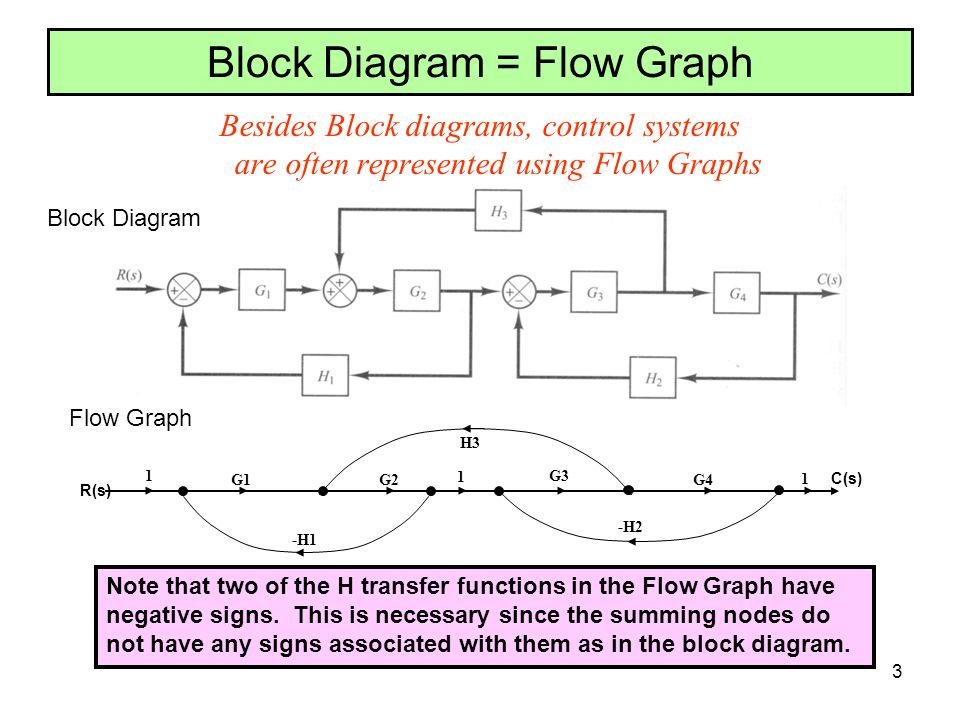

3. 3 Block Diagram = Flow Graph Besides Block diagrams, control systems are often represented using Flow Graphs R(s) C(s) G1G2 1 1 -H1 G3 1 G4 H3 -H2 Block Diagram Flow Graph Note that two of the H transfer functions in the Flow Graph have negative signs. This is necessary since the summing nodes do not have any signs associated with them as in the block diagram.

4. 4 Solve For The Transfer Function Solution: C(s) = G 1 E (1) F = C(s)H (2) E = R(s)-F (3) E = R(s)- C(s)H (4) C(s) = G 1 [R(s)- C(s)H] (5) C(s) +C(s)HG 1 = G1(R(s) C(s)[1 + HG 1 ] = G1(R(s) C(s)/R(s)=G 1 /(1+G 1 H) G 1 H _ +R(S) E C(s) F

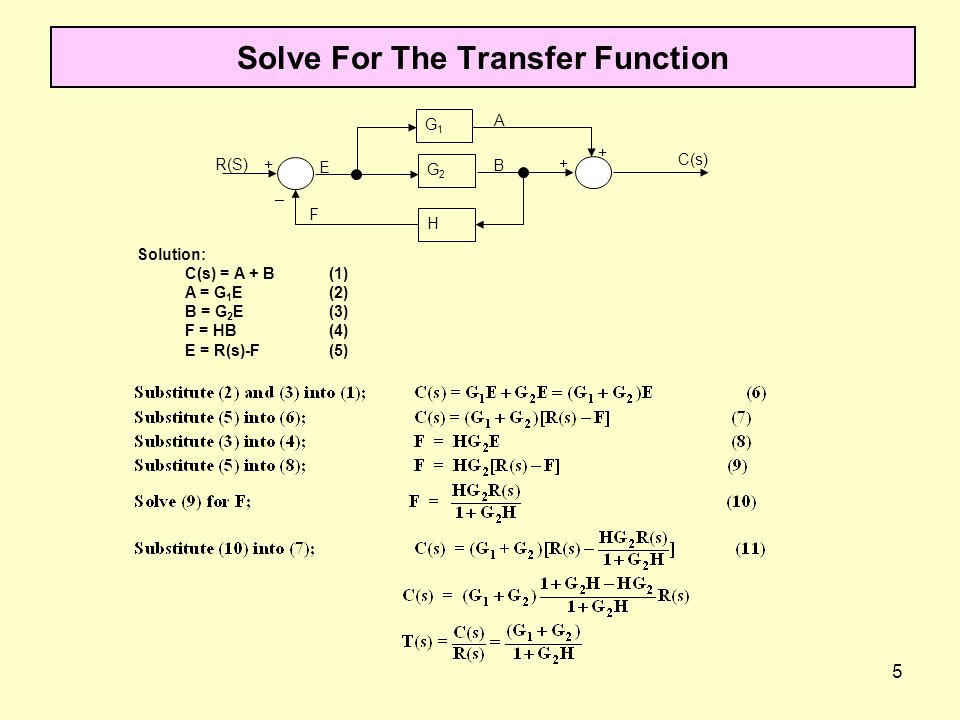

5. 5 Solve For The Transfer Function Solution: C(s) = A + B(1) A = G 1 E(2) B = G 2 E(3) F = HB(4) E = R(s)-F(5) G1G1 G2G2 H + + _ +R(S) A E C(s) B F

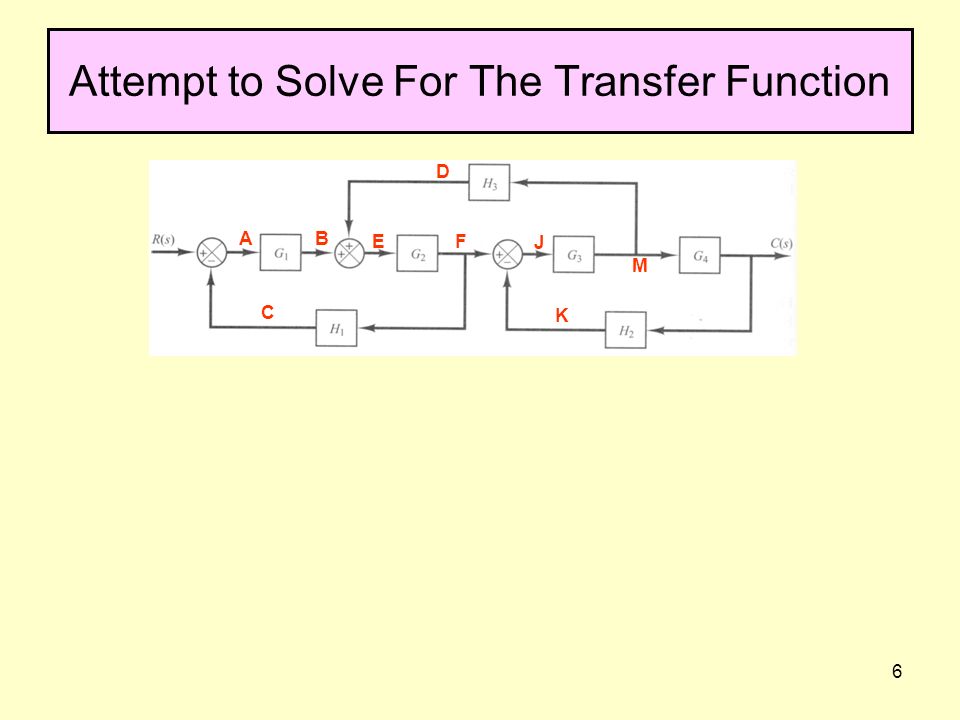

6. 6 Attempt to Solve For The Transfer Function AB C D EF K J M

7. 7 Overall Transfer Function Mason’s Gain Rule The overall Transfer function can be obtained from the formula: M k is the transmittance of each forward path between a source and a sink node ∑L 1 is the sum of the transmittances of each closed path. ∑L 2 is the sum of the product of the transmittances of all possible combinations of two non-touching loops. ∑L 3 is the sum of the product of the transmittances of all possible combinations of three non-touching loops. ∆k is the cofactor of M k. It is the determinant of the remaining sub-graph when the forward path which produces M k is removed. Thus it does not include any loops which touch the forward path in question. It is equal to unity when the forward path touches all the loops in the graph of when the graph contains no loops.

8. 8 Applying Mason’s Gain Rule R(s) C(s) G1G2 1 1 -H1 G3 1 G4 H3 -H2

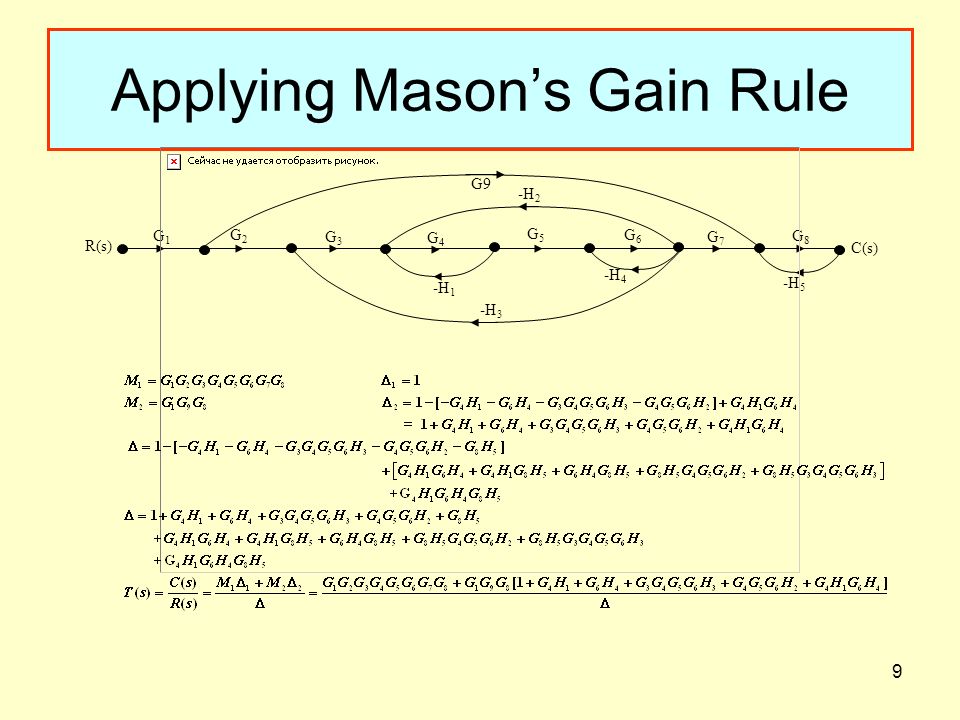

9. 9 Applying Mason’s Gain Rule R(s) C(s) G1G1 G2G2 G3G3 G7G7 G6G6 G8G8 G5G5 G4G4 G9 -H 2 -H 1 -H 3 -H 5 -H 4

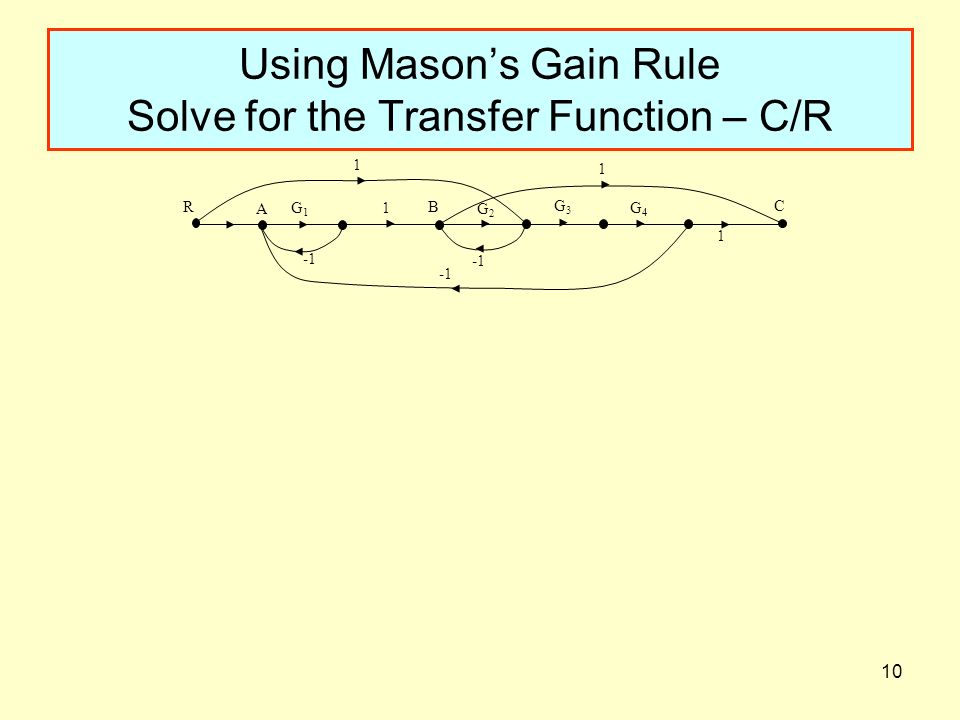

10. 10 Using Mason’s Gain Rule Solve for the Transfer Function – C/R 1 1 G4G4 G2G2 G3G3 G1G1 1 1 A C BR

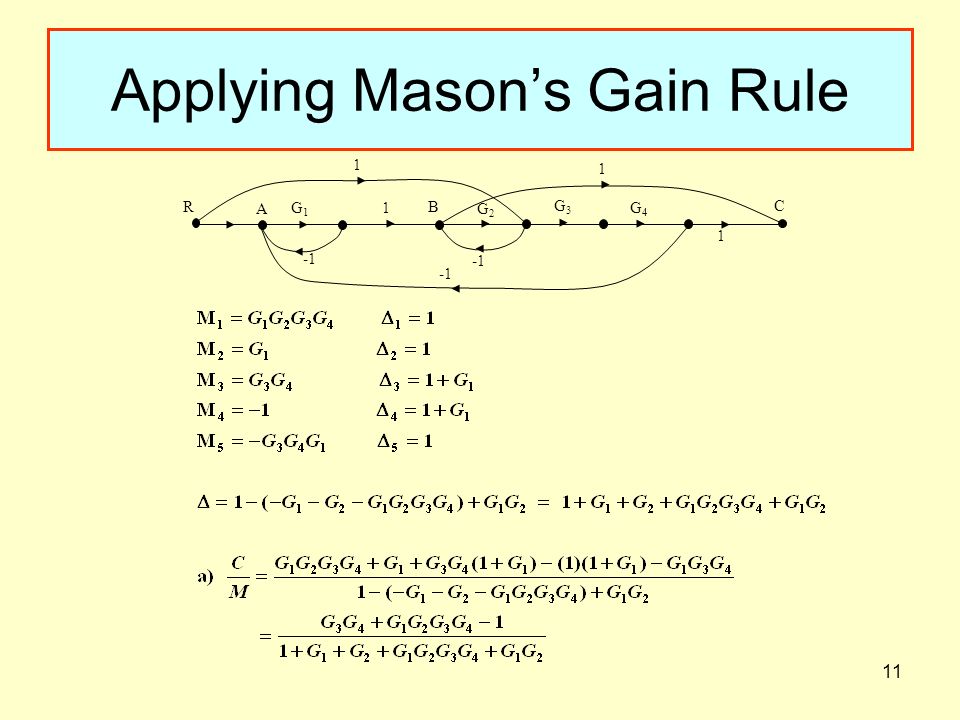

11. 11 Applying Mason’s Gain Rule 1 1 G4G4 G2G2 G3G3 G1G1 1 1 A C BR

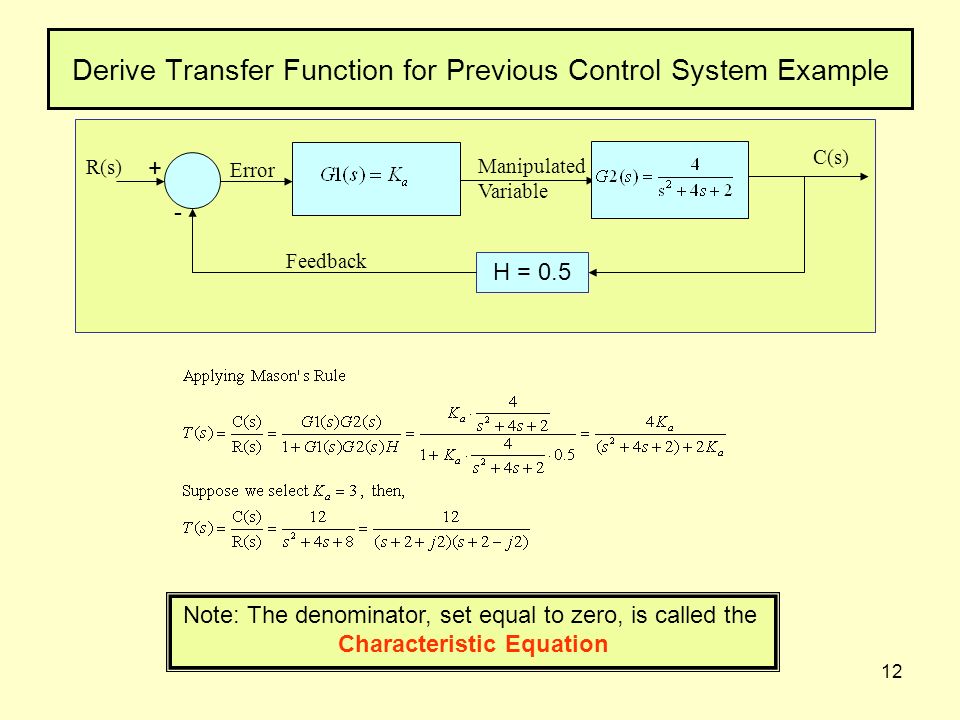

12. 12 Derive Transfer Function for Previous Control System Example H = 0.5 - + R(s) Error Feedback Manipulated Variable C(s) Note: The denominator, set equal to zero, is called the Characteristic Equation

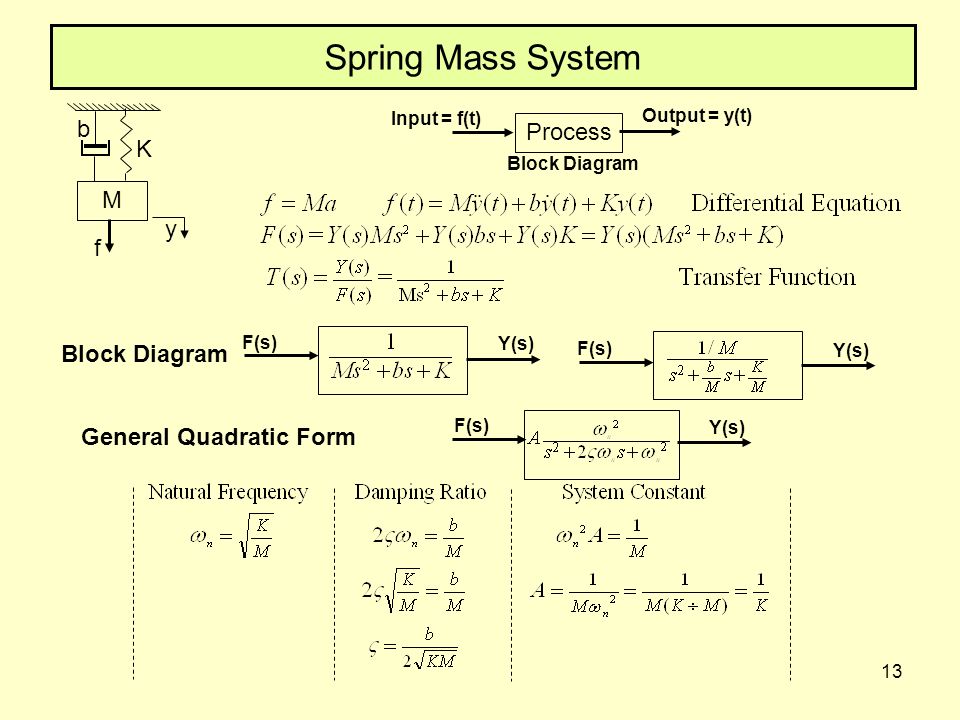

13. 13 Spring Mass System Input = f(t) Process Output = y(t) Block Diagram Y(s) F(s) Block Diagram Y(s) F(s) Y(s) F(s) General Quadratic Form M b f y K

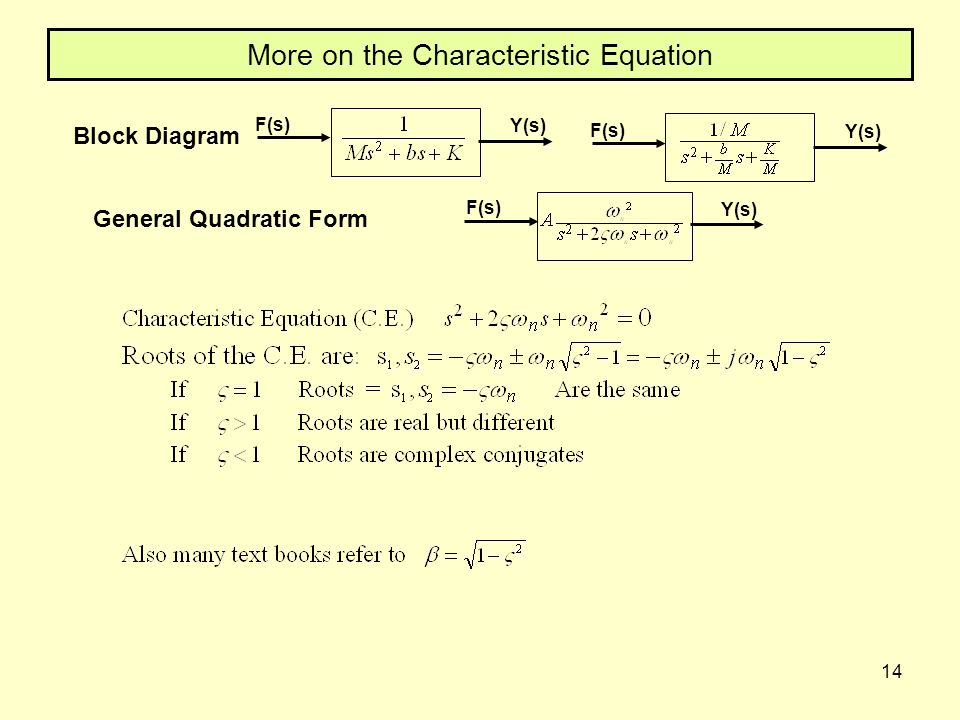

14. 14 More on the Characteristic Equation Y(s) F(s) Block Diagram Y(s) F(s) Y(s) F(s) General Quadratic Form

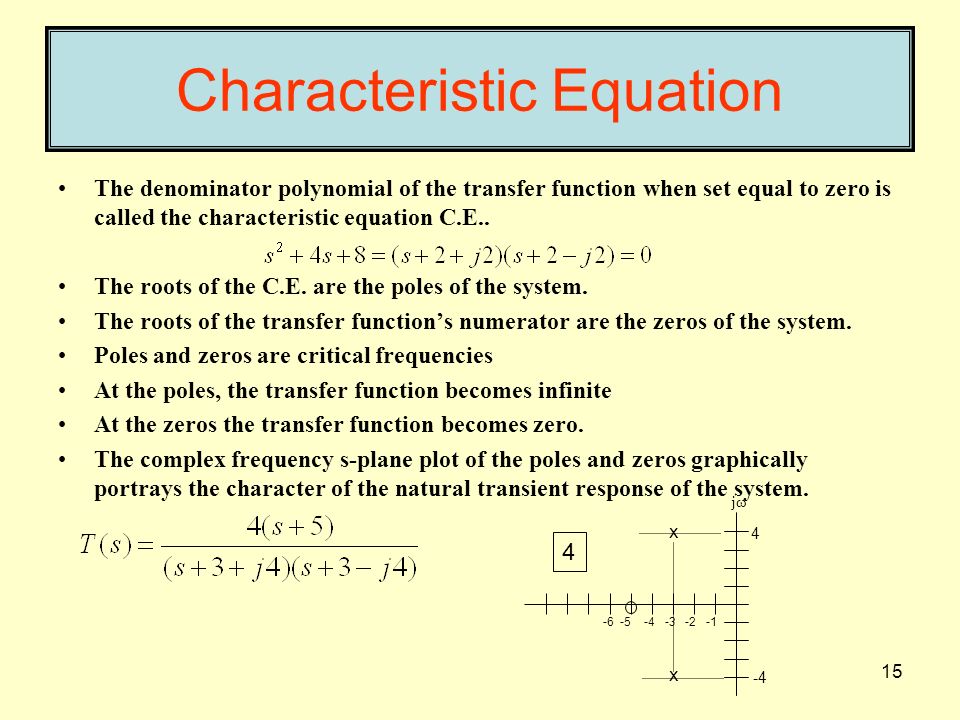

15. 15 Characteristic Equation The denominator polynomial of the transfer function when set equal to zero is called the characteristic equation C.E.. The roots of the C.E. are the poles of the system. The roots of the transfer function’s numerator are the zeros of the system. Poles and zeros are critical frequencies At the poles, the transfer function becomes infinite At the zeros the transfer function becomes zero. The complex frequency s-plane plot of the poles and zeros graphically portrays the character of the natural transient response of the system. jω x x 4 -4 -6 -5 -4 -3 -2 -1 4

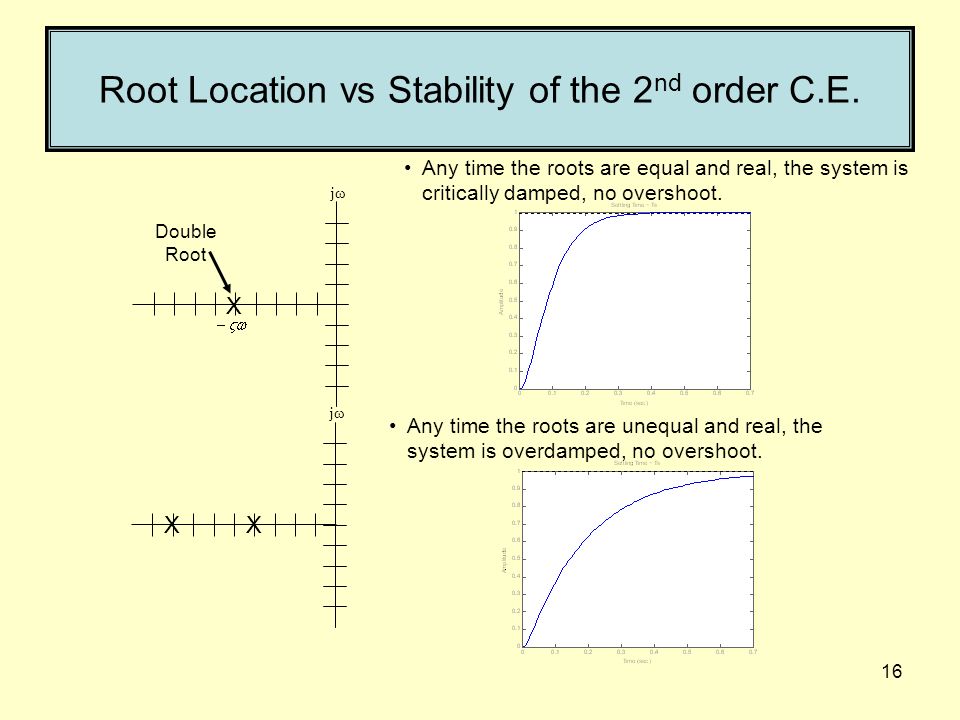

16. 16 Root Location vs Stability of the 2 nd order C.E. jω X Double Root Any time the roots are equal and real, the system is critically damped, no overshoot. Any time the roots are unequal and real, the system is overdamped, no overshoot. jω X X

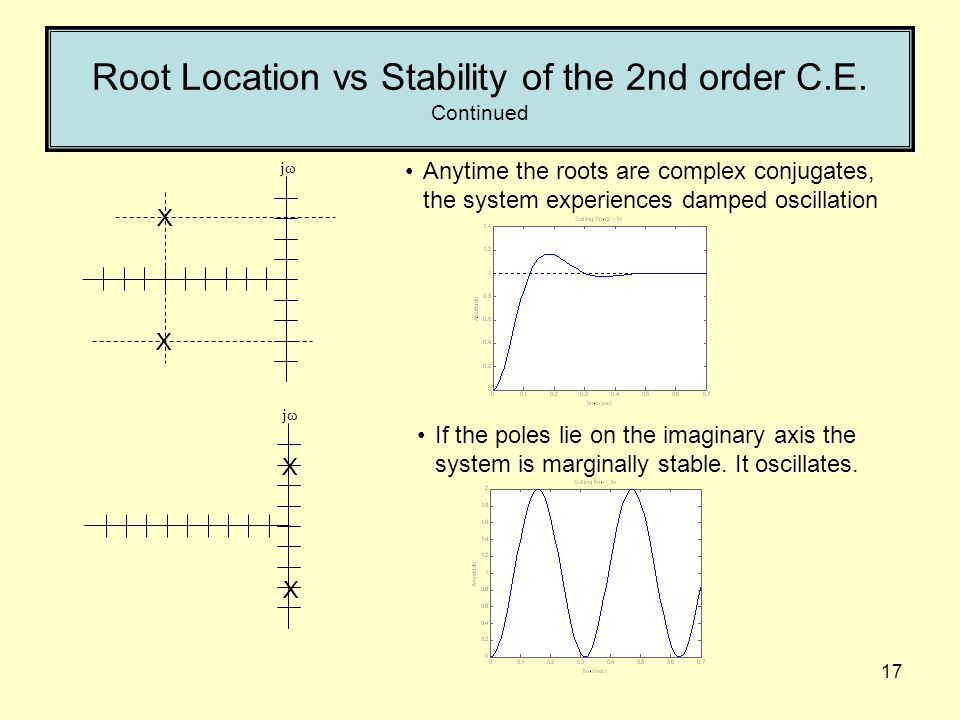

17. 17 Root Location vs Stability of the 2nd order C.E. Continued Anytime the roots are complex conjugates, the system experiences damped oscillation jω X X X X If the poles lie on the imaginary axis the system is marginally stable. It oscillates.

18. 18 Root Location vs Stability of the 2nd order C.E. Continued Anytime the roots are in the RHP the system is unstable and diverges jω X X X X

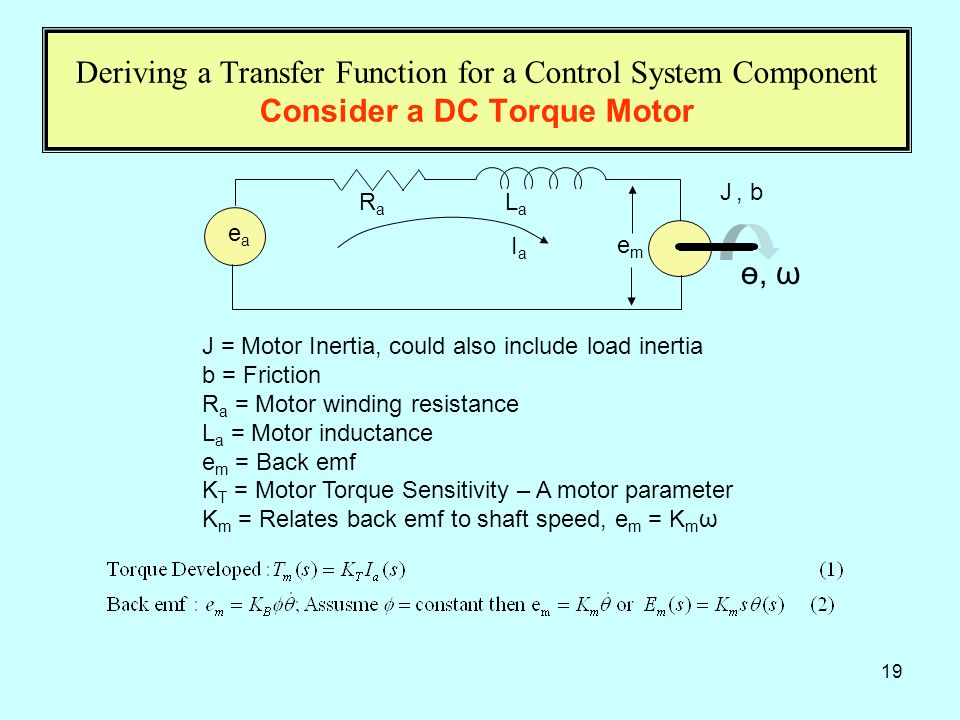

19. 19 Deriving a Transfer Function for a Control System Component Consider a DC Torque Motor eaea R a L a emem ө, ω J, b IaIa J = Motor Inertia, could also include load inertia b = Friction R a = Motor winding resistance L a = Motor inductance e m = Back emf K T = Motor Torque Sensitivity – A motor parameter K m = Relates back emf to shaft speed, e m = K m ω

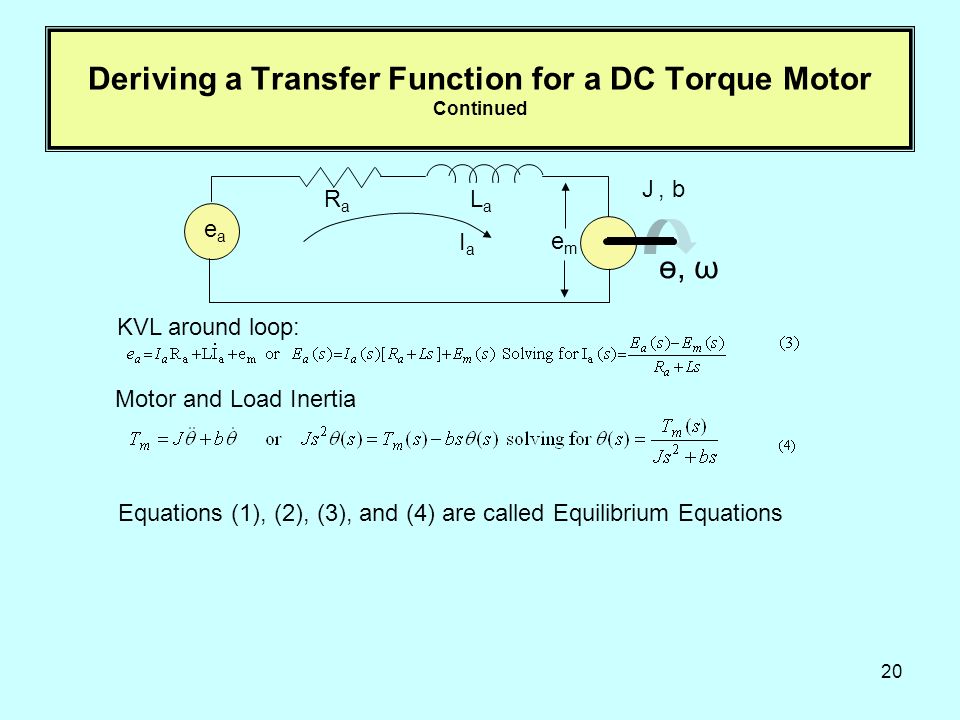

20. 20 Deriving a Transfer Function for a DC Torque Motor Continued eaea R a L a emem ө, ω J, b IaIa KVL around loop: Motor and Load Inertia Equations (1), (2), (3), and (4) are called Equilibrium Equations

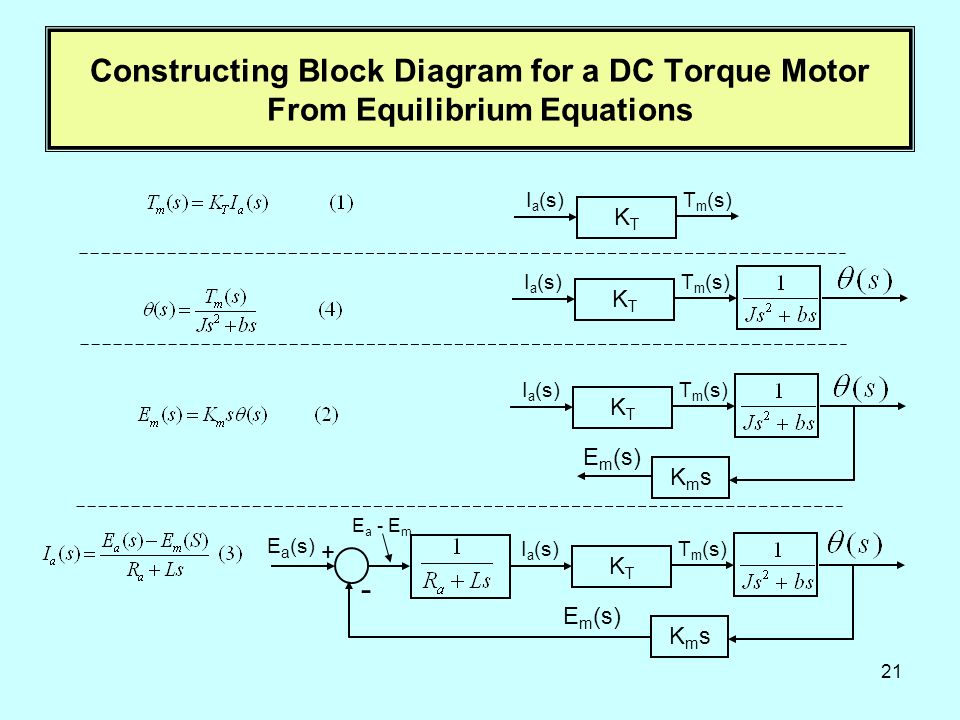

21. 21 Constructing Block Diagram for a DC Torque Motor From Equilibrium Equations K T T m (s)I a (s) K T T m (s)I a (s) K T T m (s)I a (s) KmsKms E m (s) K T T m (s)I a (s) KmsKms E m (s) + - E a (s) E a - E m

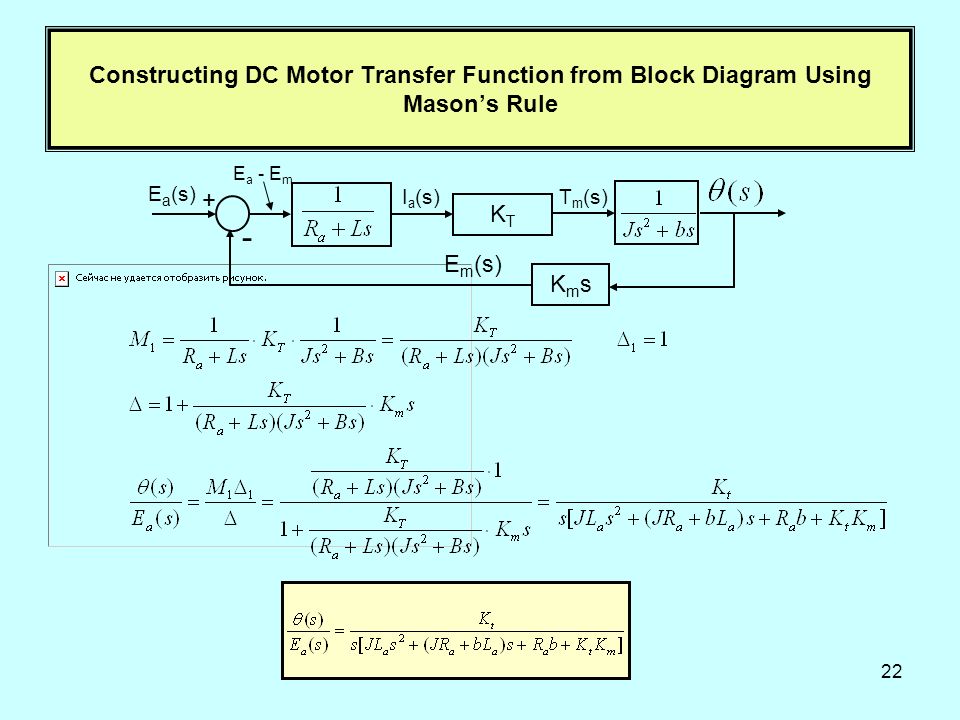

22. 22 Constructing DC Motor Transfer Function from Block Diagram Using Mason’s Rule K T T m (s)I a (s) KmsKms E m (s) + - E a (s) E a - E m
