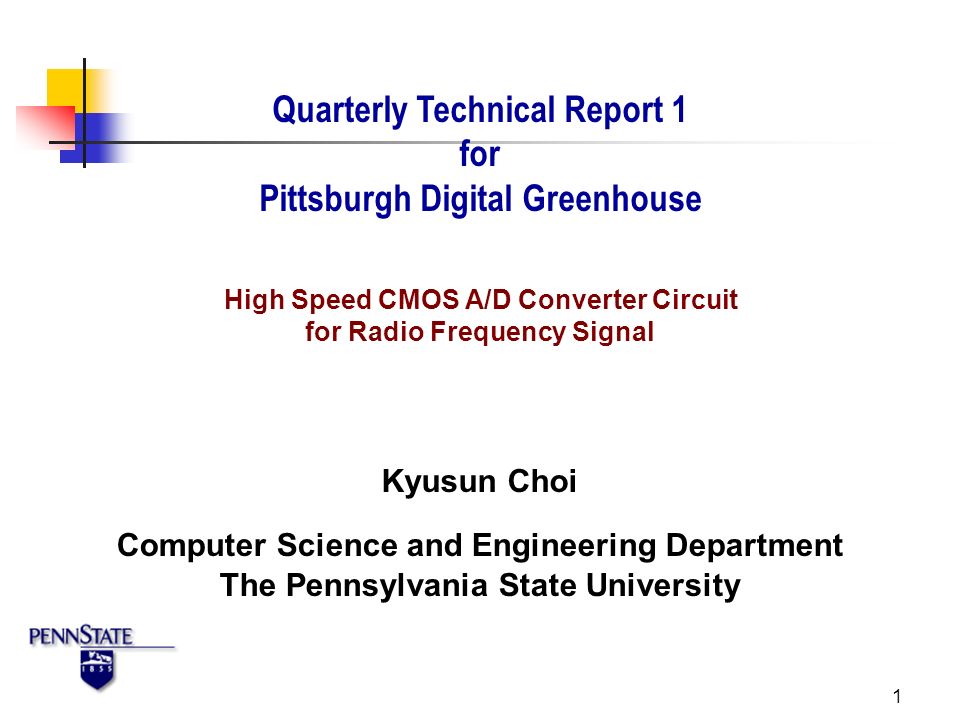

1 1 Quarterly Technical Report 1 for Pittsburgh Digital Greenhouse Kyusun Choi The Pennsylvania State University Computer Science and Engineering Department High Speed CMOS A/D Converter Circuit for Radio Frequency Signal

2 2 Project goals for this quater 1.Design a 6 and 8 bit TIQ based flash ADC circuits and CMOS layouts 2.Design the first prototype chip: 6 and 8 bit flash ADC 3. Chip fabrication submission

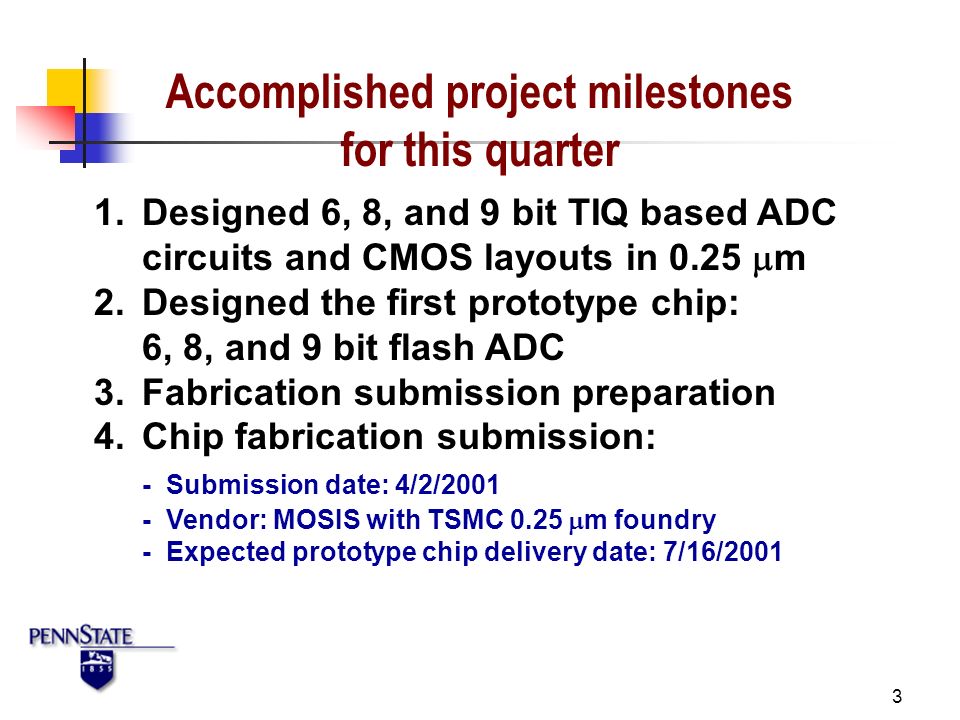

3 3 Accomplished project milestones for this quarter 1.Designed 6, 8, and 9 bit TIQ based ADC circuits and CMOS layouts in 0.25  m 2.Designed the first prototype chip: 6, 8, and 9 bit flash ADC 3.Fabrication submission preparation 4.Chip fabrication submission: - Submission date: 4/2/2001 - Vendor: MOSIS with TSMC 0.25  m foundry - Expected prototype chip delivery date: 7/16/2001

4 4 1.Systematic Variation Approach - Systematic Parameter Variation (SPV) 2.CAD Tools - MAX for layout - SUE for schematic capture - HSPICE for circuit simulation - Custom designed a set of C programs 3. Experiment base, Spice Model Base Design Method

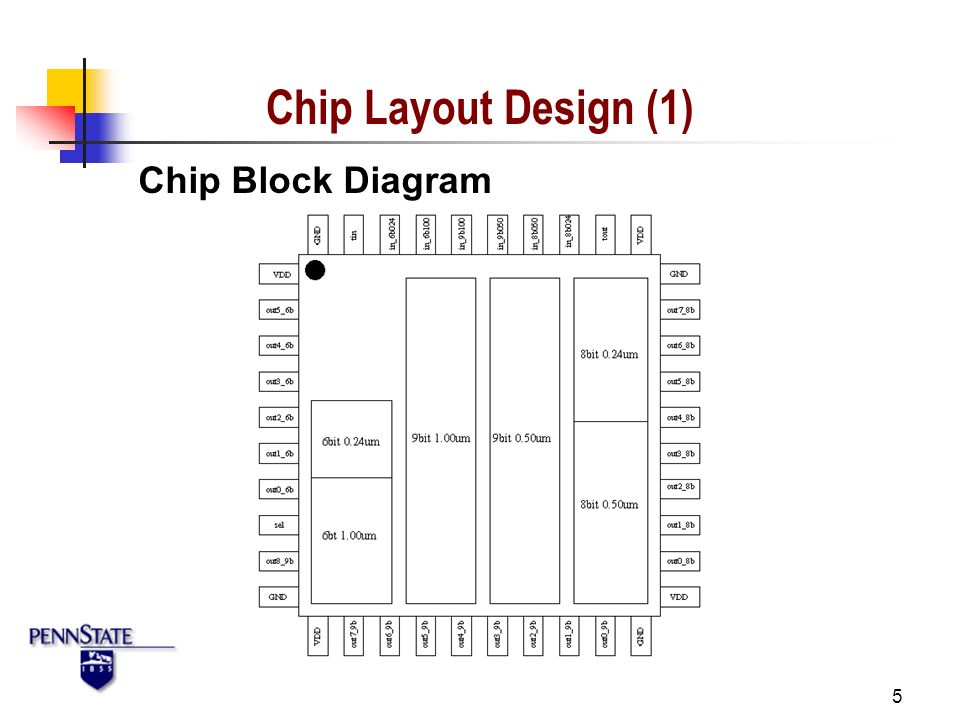

5 5 Chip Block Diagram Chip Layout Design (1)

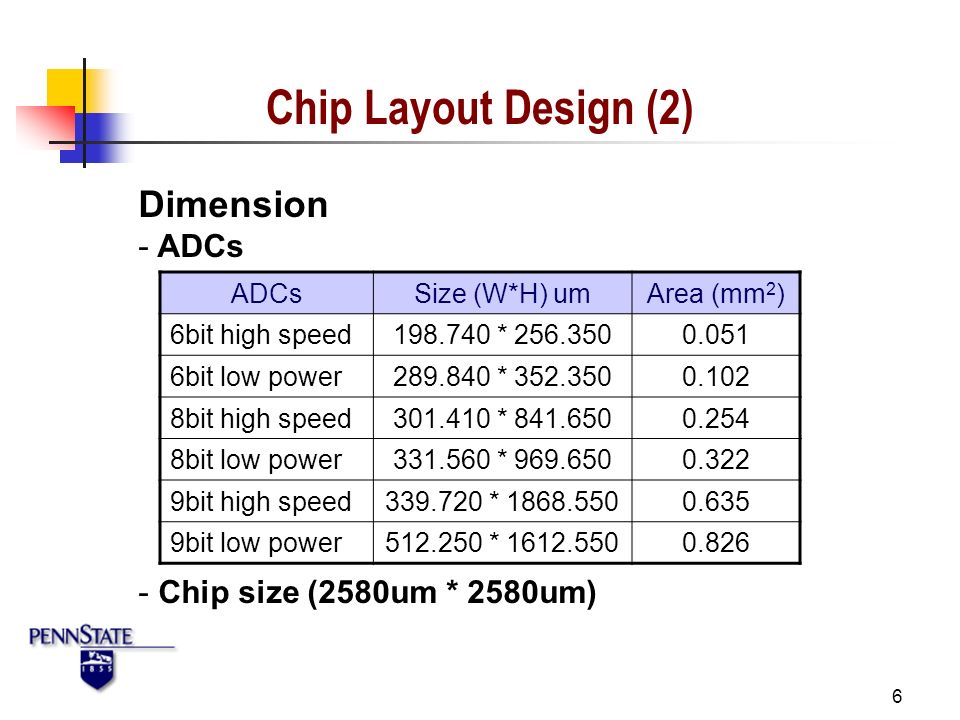

6 6 Dimension - ADCs - Chip size (2580um * 2580um) Chip Layout Design (2) ADCsSize (W*H) umArea (mm 2 ) 6bit high speed198.740 * 256.3500.051 6bit low power289.840 * 352.3500.102 8bit high speed301.410 * 841.6500.254 8bit low power331.560 * 969.6500.322 9bit high speed339.720 * 1868.5500.635 9bit low power512.250 * 1612.5500.826

7 7 Layout - 6bit (0.24 um) Chip Layout Design (3)

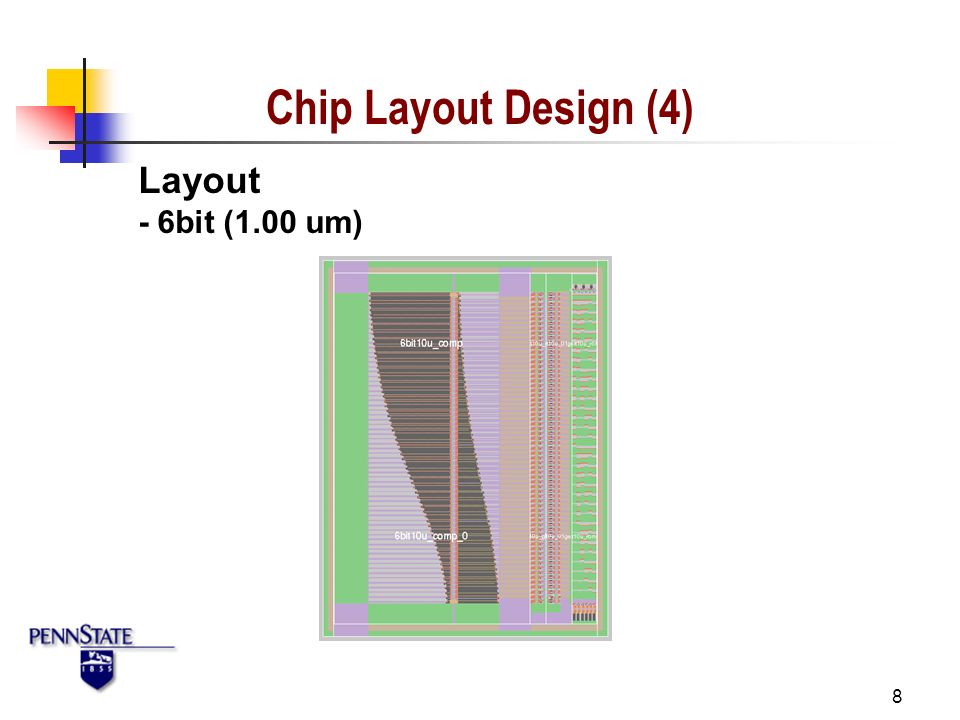

8 8 Layout - 6bit (1.00 um) Chip Layout Design (4)

9 9 Layout - 8bit (0.24 um) Chip Layout Design (5)

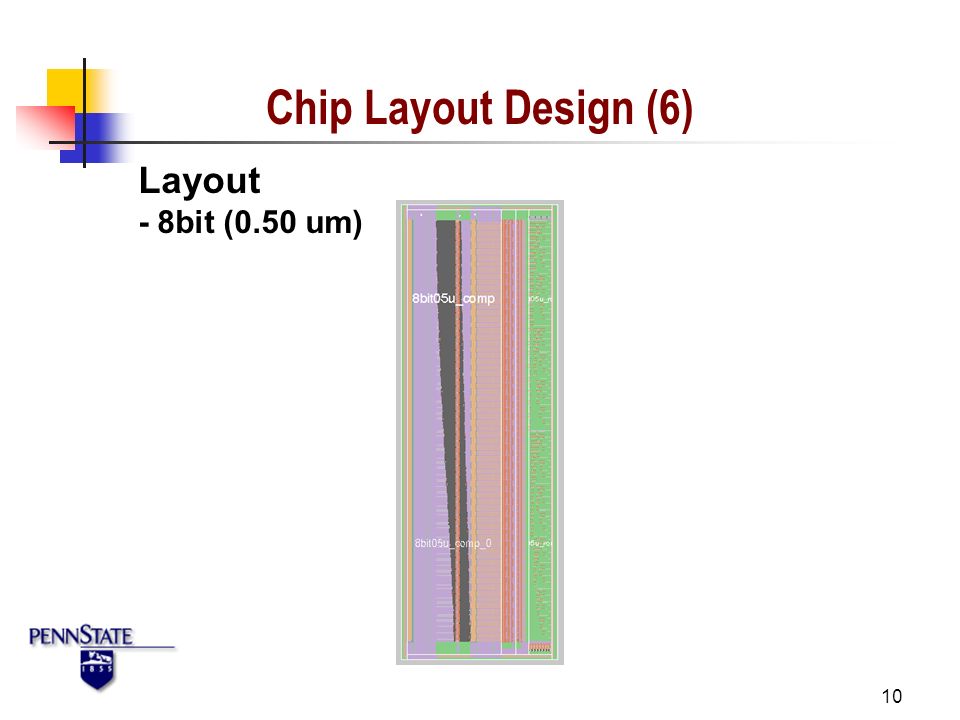

10 10 Layout - 8bit (0.50 um) Chip Layout Design (6)

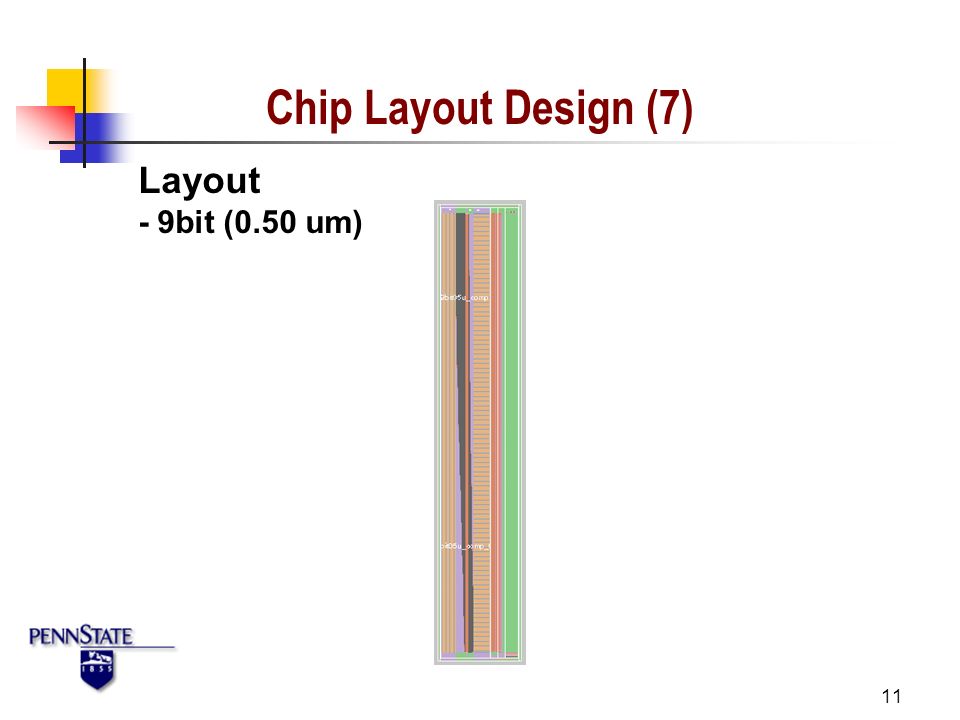

11 11 Layout - 9bit (0.50 um) Chip Layout Design (7)

12 12 Layout - 9bit (1.00 um) Chip Layout Design (8)

13 13 Layout - Pad Chip Layout Design (9)

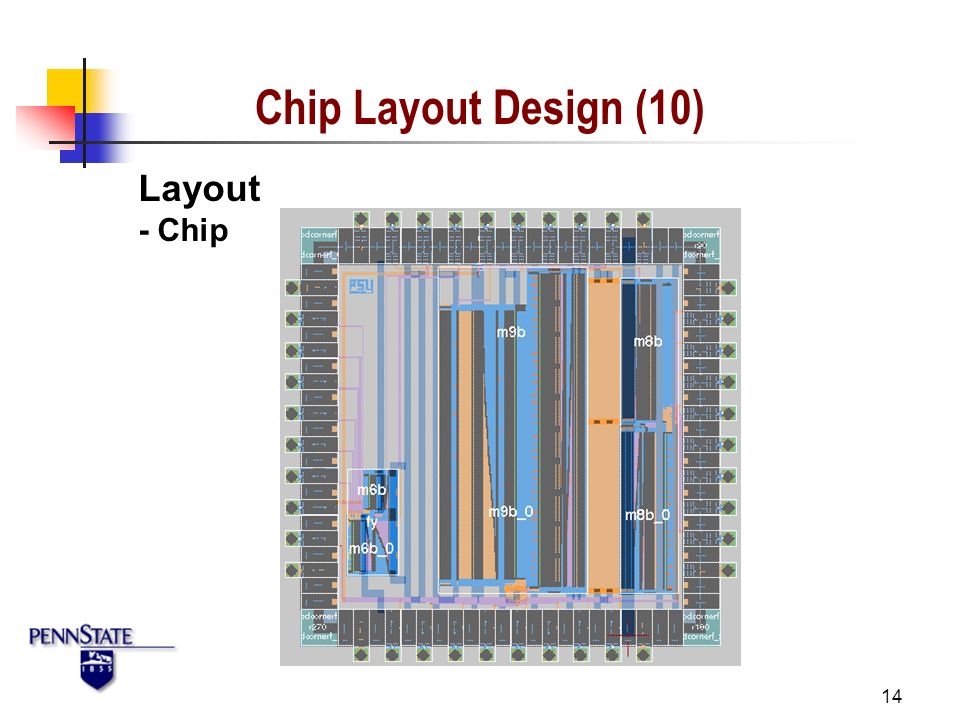

14 14 Layout - Chip Chip Layout Design (10)

15 15 Simulation Results (1) ADCs Max. Speed (MSPS) Max. Current (mA) Avg. Power (mW) Max. Power (mW) 6bit (0.24um)100041.8068.98102.76 6bit (1.00um)40029.3637.5770.03 8bit (0.24um)667139.08254.76353.78 8bit (0.50um)50099.34165.29254.87 9bit (0.50um)250166.79317.40469.46 9bit (1.00um)200145.38260.11417.15 - pad delay : 0.864 ns

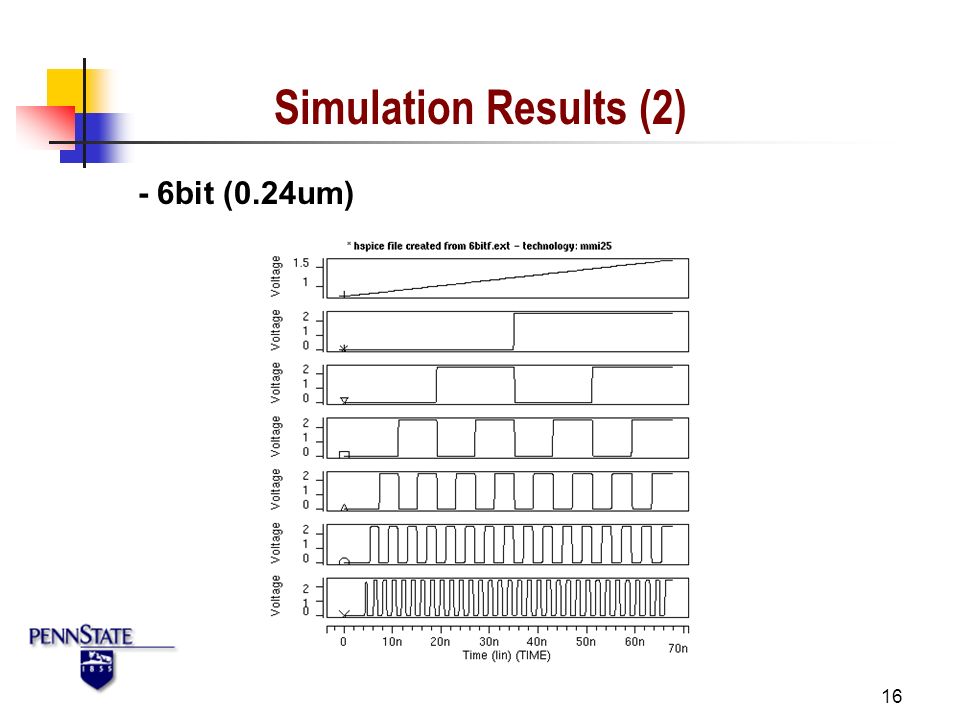

16 16 Simulation Results (2) - 6bit (0.24um)

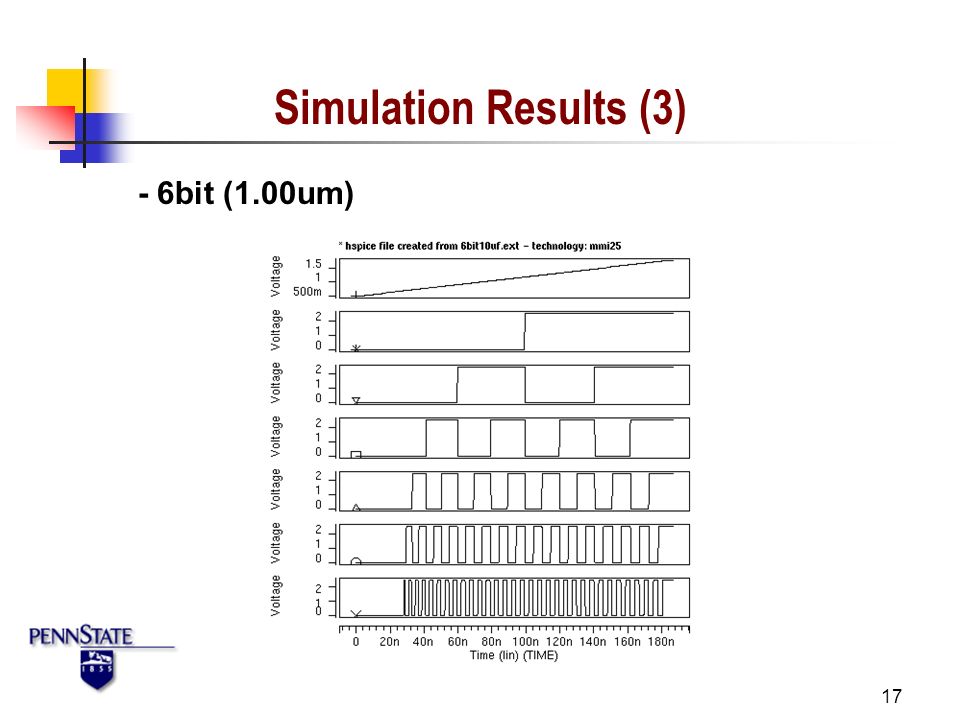

17 17 Simulation Results (3) - 6bit (1.00um)

18 18 Simulation Results (4) - 8bit (0.24um)

19 19 Simulation Results (5) - 8bit (0.50um)

20 20 Simulation Results (6) - 9bit (0.50um)

21 21 Simulation Results (7) - 9bit (1.00um)

22 22 1.High Speed 2.Relatively small area 3. Relatively low-power Features of the TIQ based ADC

23 23 1. Dynamic fine-tuning 2. Supply voltage variation compensation 3. Temperature variation compensation 4. Process variation compensation 5. Lower power 6. FIFO design for on-chip high-speed data acquisition Issues to Be Addressed in Future

24 24 2 GSPS with 0.18um CMOS Custom layout CAD tool 10bit and 12bit ADC Low power Dynamic calibration Offset Gain Temperature Power supply voltage Process parameter variation Innovation Challenges

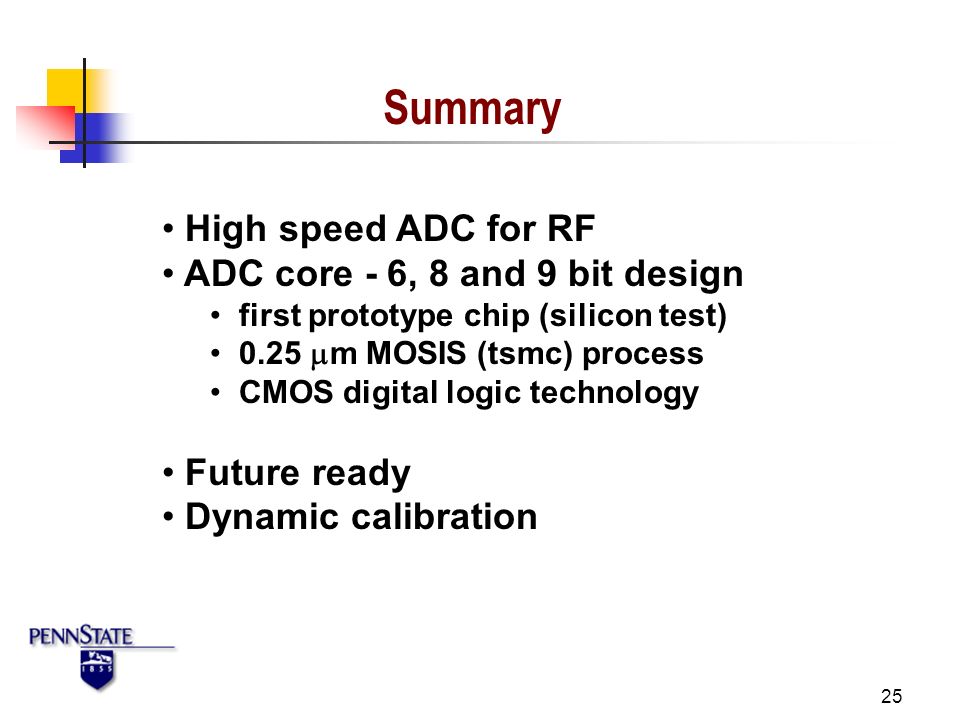

25 25 High speed ADC for RF ADC core - 6, 8 and 9 bit design first prototype chip (silicon test) 0.25  m MOSIS (tsmc) process CMOS digital logic technology Future ready Dynamic calibration Summary
