1. 1 Upgrading to the Power of OpenServer 6

2. 2 Agenda  Migrating from OSR5  Changes to be aware of  Configuring the new features  SCO Global Services

3. Migrating from OSR5 Hardware configuration User accounts Mail User and application data Network configuration

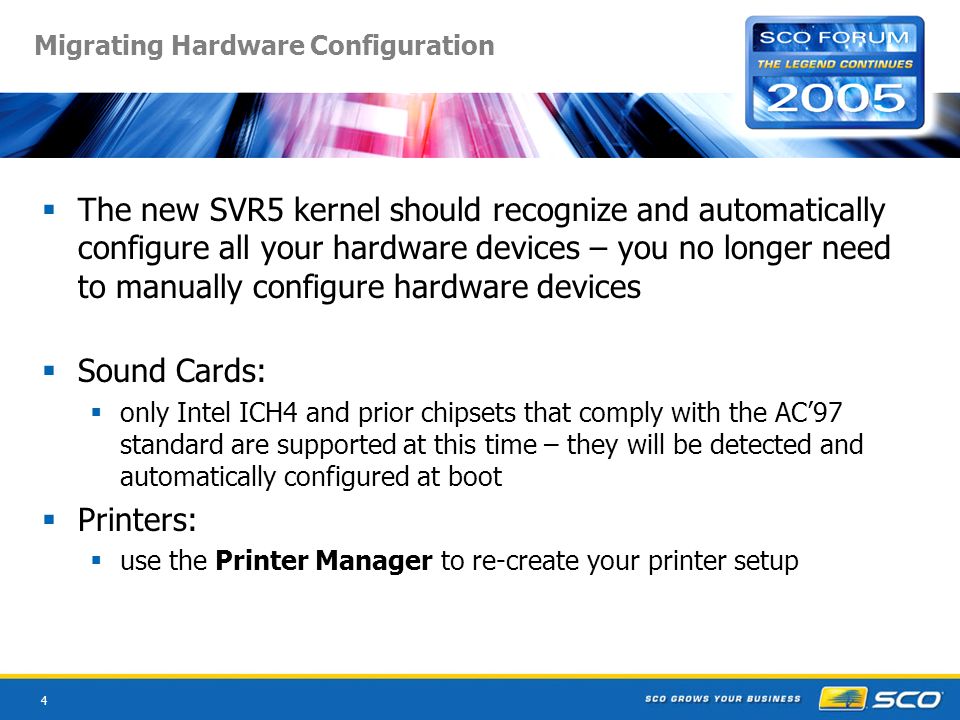

4. 4 Migrating Hardware Configuration  The new SVR5 kernel should recognize and automatically configure all your hardware devices – you no longer need to manually configure hardware devices  Sound Cards:  only Intel ICH4 and prior chipsets that comply with the AC’97 standard are supported at this time – they will be detected and automatically configured at boot  Printers:  use the Printer Manager to re-create your printer setup

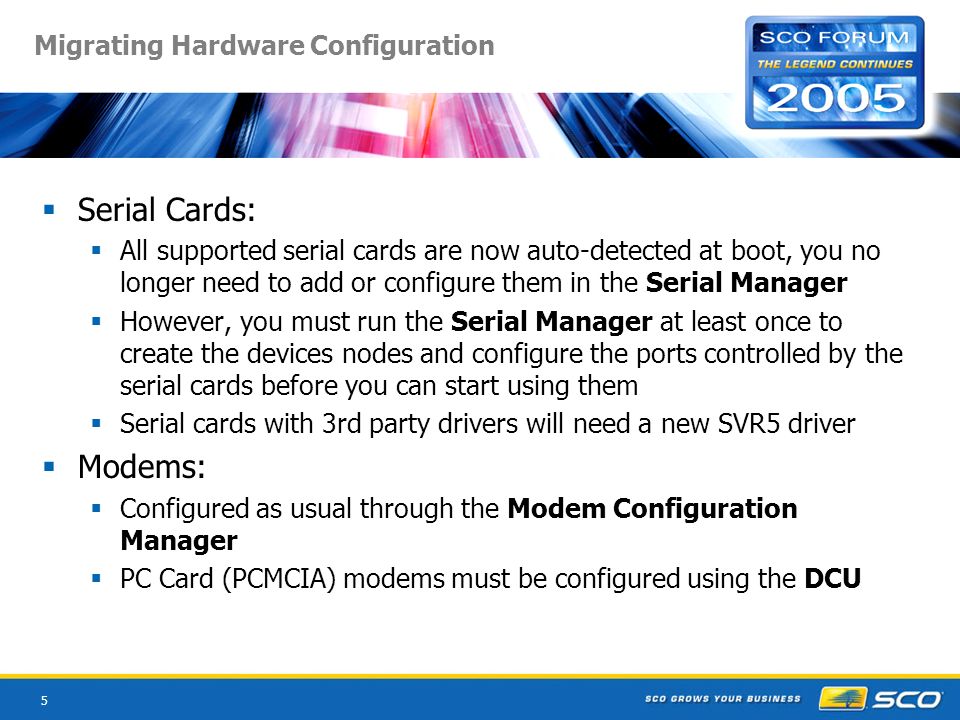

5. 5 Migrating Hardware Configuration  Serial Cards:  All supported serial cards are now auto-detected at boot, you no longer need to add or configure them in the Serial Manager  However, you must run the Serial Manager at least once to create the devices nodes and configure the ports controlled by the serial cards before you can start using them  Serial cards with 3rd party drivers will need a new SVR5 driver  Modems:  Configured as usual through the Modem Configuration Manager  PC Card (PCMCIA) modems must be configured using the DCU

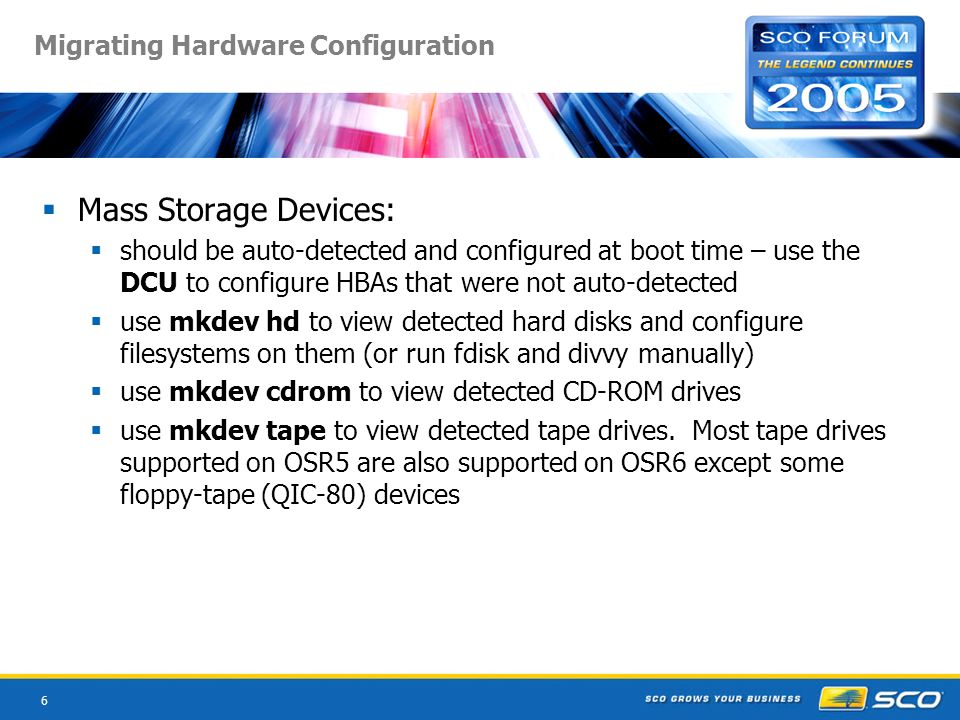

6. 6 Migrating Hardware Configuration  Mass Storage Devices:  should be auto-detected and configured at boot time – use the DCU to configure HBAs that were not auto-detected  use mkdev hd to view detected hard disks and configure filesystems on them (or run fdisk and divvy manually)  use mkdev cdrom to view detected CD-ROM drives  use mkdev tape to view detected tape drives. Most tape drives supported on OSR5 are also supported on OSR6 except some floppy-tape (QIC-80) devices

7. 7 Migrating Hardware Configuration – Device Nodes  In general OSR6 supports both OSR5-style and SVR5-style (UnixWare) device nodes  For hard disk nodes, a combination is used:  Partitions are OSR5-style: /dev/[r]hdXYX is the physical disk number /dev/dsk/XsYY is the partition number  Divisions (slices) are SVR5-style: /dev/[r]dsk/cXbXtXdXsZ /dev/[r]dsk/cXbXtXdXpYsZ X is the SCSI address as output by /etc/scsi/sdiconfig –l Y is the partition number Z is the division (slice) number

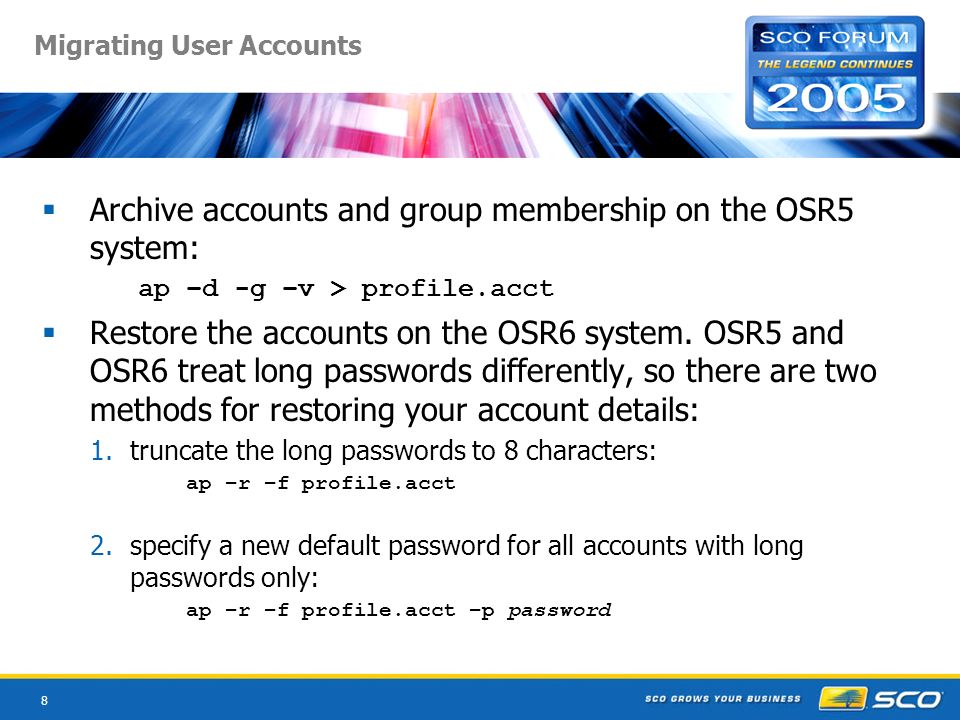

8. 8 Migrating User Accounts  Archive accounts and group membership on the OSR5 system: ap –d -g –v > profile.acct  Restore the accounts on the OSR6 system. OSR5 and OSR6 treat long passwords differently, so there are two methods for restoring your account details: 1.truncate the long passwords to 8 characters: ap –r –f profile.acct 2.specify a new default password for all accounts with long passwords only: ap –r –f profile.acct –p password

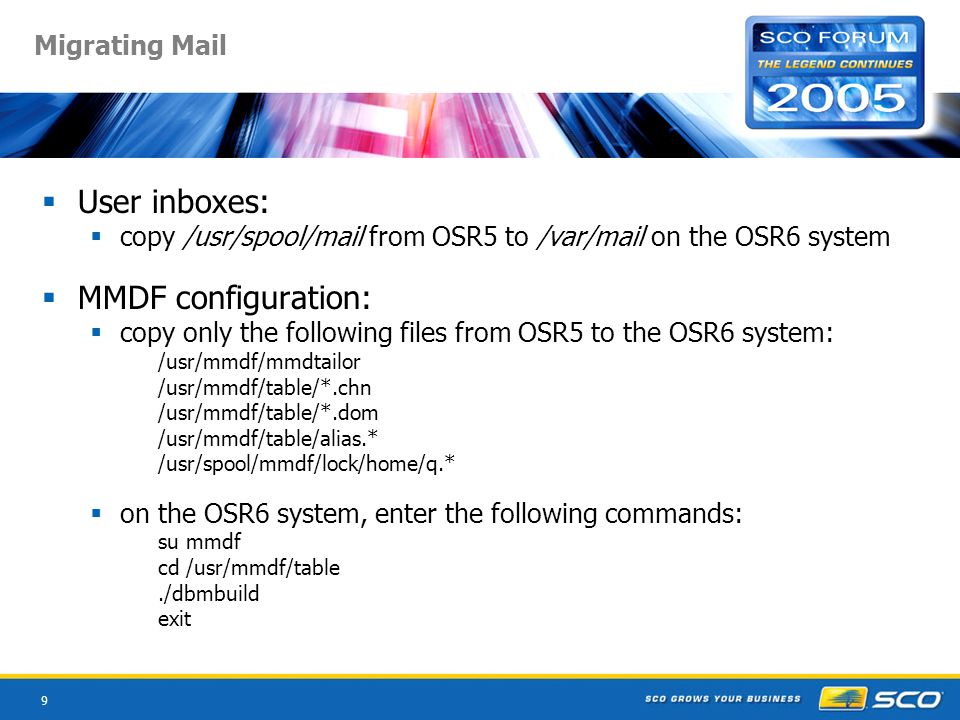

9. 9 Migrating Mail  User inboxes:  copy /usr/spool/mail from OSR5 to /var/mail on the OSR6 system  MMDF configuration:  copy only the following files from OSR5 to the OSR6 system: /usr/mmdf/mmdtailor /usr/mmdf/table/*.chn /usr/mmdf/table/*.dom /usr/mmdf/table/alias.* /usr/spool/mmdf/lock/home/q.*  on the OSR6 system, enter the following commands: su mmdf cd /usr/mmdf/table./dbmbuild exit

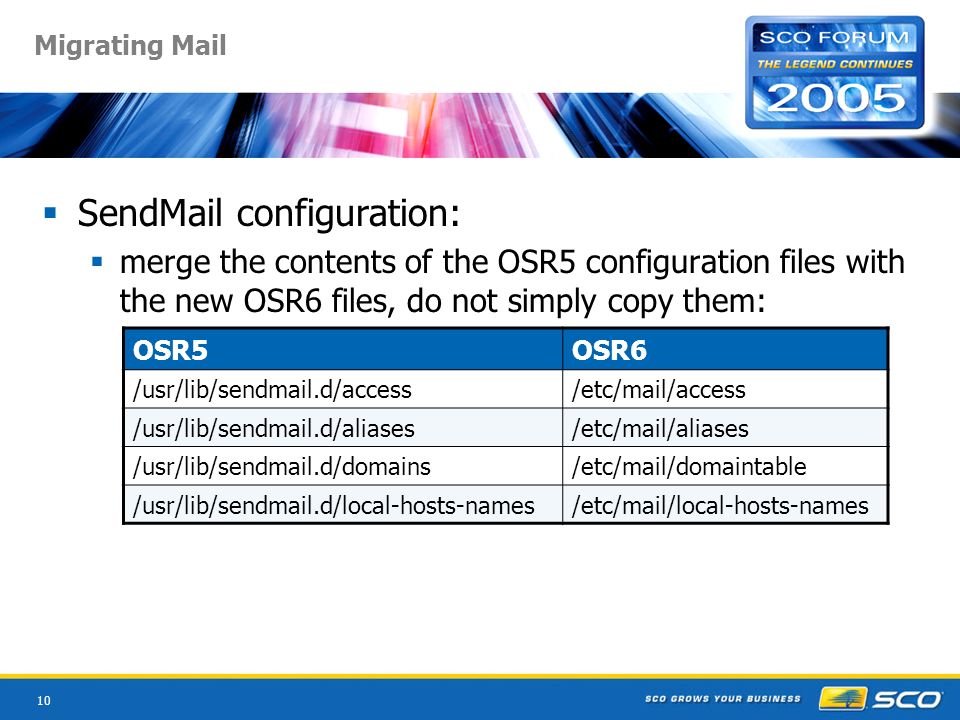

10. 10 Migrating Mail  SendMail configuration:  merge the contents of the OSR5 configuration files with the new OSR6 files, do not simply copy them: OSR5OSR6 /usr/lib/sendmail.d/access/etc/mail/access /usr/lib/sendmail.d/aliases/etc/mail/aliases /usr/lib/sendmail.d/domains/etc/mail/domaintable /usr/lib/sendmail.d/local-hosts-names/etc/mail/local-hosts-names

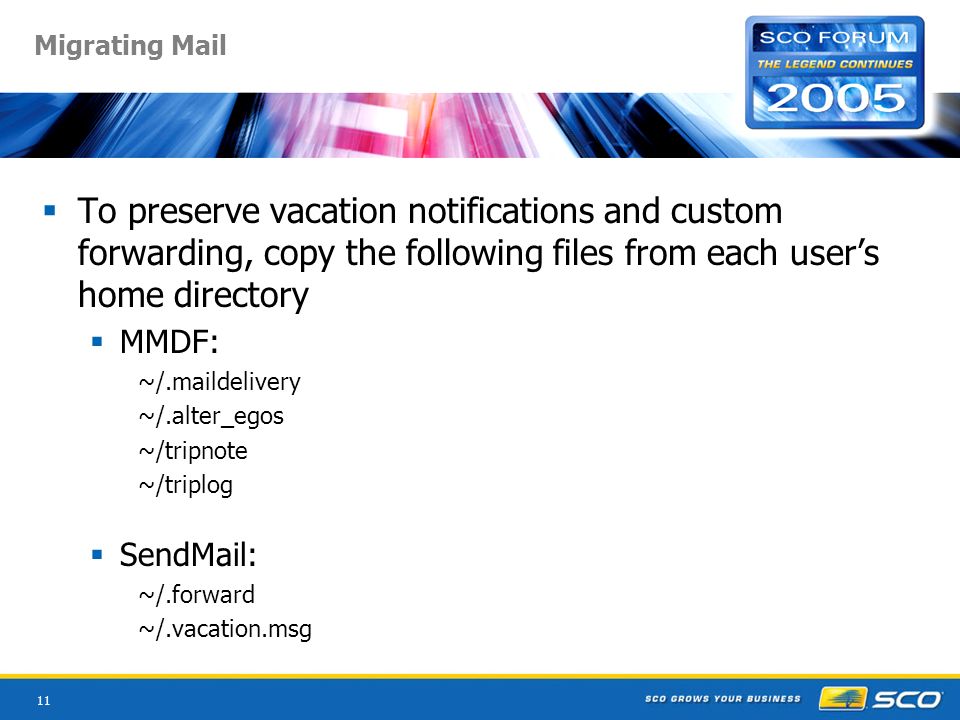

11. 11 Migrating Mail  To preserve vacation notifications and custom forwarding, copy the following files from each user’s home directory  MMDF: ~/.maildelivery ~/.alter_egos ~/tripnote ~/triplog  SendMail: ~/.forward ~/.vacation.msg

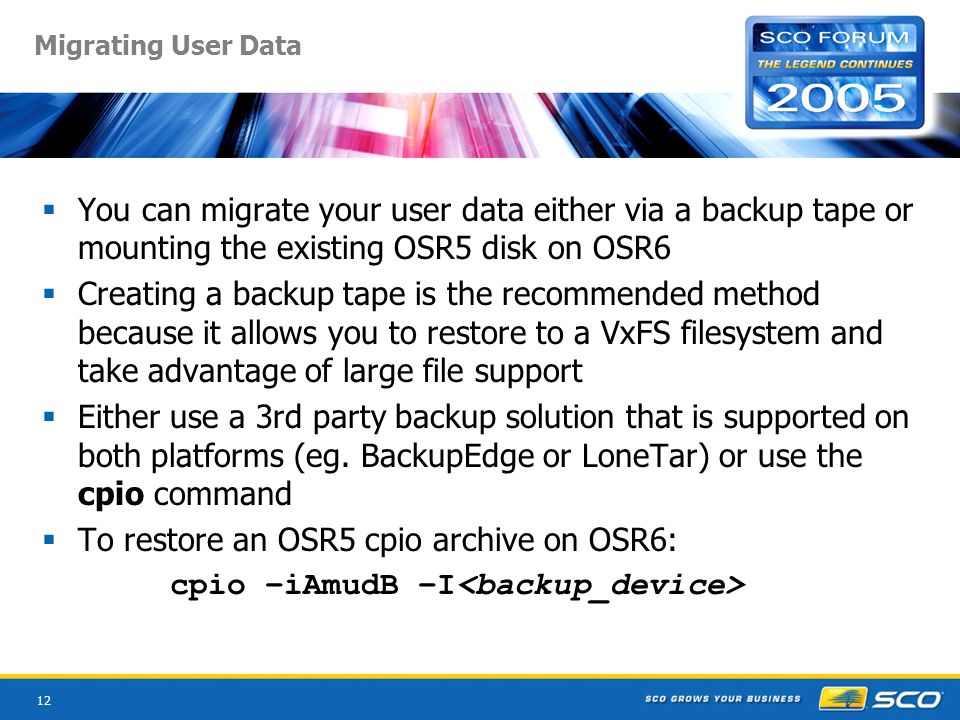

12. 12 Migrating User Data  You can migrate your user data either via a backup tape or mounting the existing OSR5 disk on OSR6  Creating a backup tape is the recommended method because it allows you to restore to a VxFS filesystem and take advantage of large file support  Either use a 3rd party backup solution that is supported on both platforms (eg. BackupEdge or LoneTar) or use the cpio command  To restore an OSR5 cpio archive on OSR6: cpio –iAmudB –I

13. 13 Migrating User Data – Mount OSR5 disk  To mount an existing OSR5 disk (5.0.6 or 5.0.7 only), you must first install the wd Supplement on the OSR5 system  Connect the drive to the OSR6 system  After booting, login as root and run the command getlclfsdev to determine the /dev/dsk device nodes for the filesystems on the disk  Use the Filesystem Manager to mount the filesystems

14. 14 Migrating Networking  The loopback interface is no longer presented in the Network Configuration Manager  The “Add New WAN Connection” menu item has been removed from the Network Configuration Manager  SCO PPP is no longer supported, PPP is provided by Morning Star PPP  SLIP is no longer supported  Netware and IPX/SPX are no longer supported

15. 15 Migrating Networking: TCP/IP  On the OSR5 system, use the netstat –rn command and note the hostname, domain name, IP address, netmask, broadcast address and frame type of the existing network interfaces  On the OSR6 system, enter these values at ISL or via the Network Configuration Manager after ISL  Migrate the following configuration files (merge with existing files, do not simply copy): /etc/hostsHostnames and IP addresses /etc/default/tcpTCP/IP configuration file /etc/tcpTCP/IP configuration file /etc/inetd.confServices available through inetd

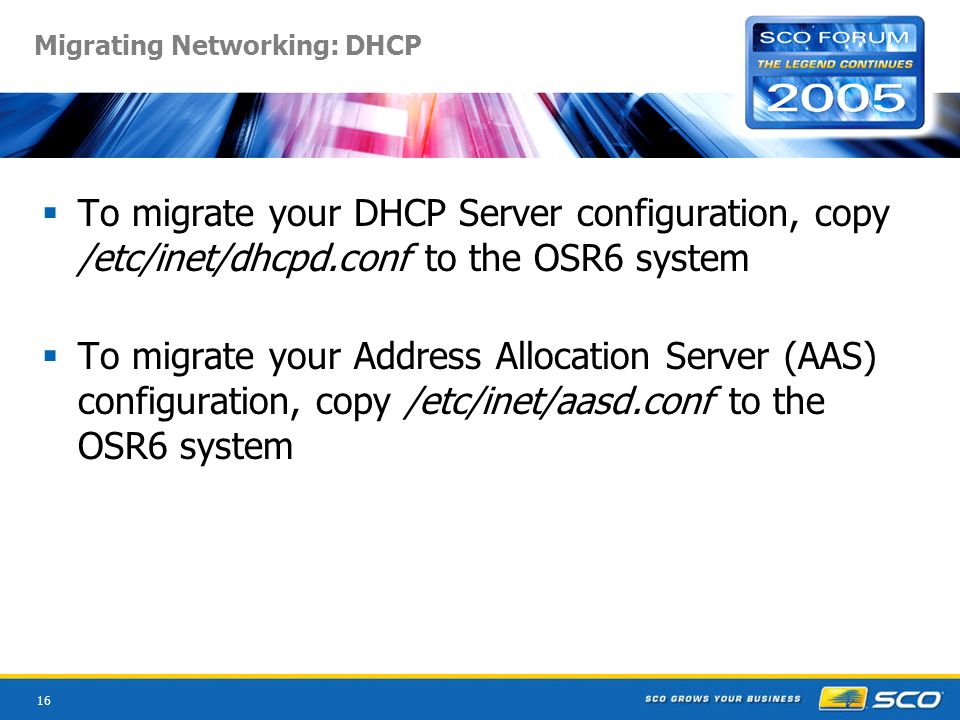

16. 16 Migrating Networking: DHCP  To migrate your DHCP Server configuration, copy /etc/inet/dhcpd.conf to the OSR6 system  To migrate your Address Allocation Server (AAS) configuration, copy /etc/inet/aasd.conf to the OSR6 system

17. 17 Migrating Networking: Routing  gated and routed have been updated in OSR6. The new routed adds RIPv2 support and both can do router discovery  The new command rtquery allows you to query the routing daemons and provides additional control over routed  Migrate the following configuration files: /etc/gated.confgated configuration – do not simply copy, changes are needed, see gated.conf(SFF) /etc/gatewaysrouted configuration, copy to /etc/inet/gateways – supports many more keywords, see routed(ADMN) /etc/gated.bgpBGP configuration /etc/gated.egpEGP configuration /etc/gated.ospfOSPF configuration /etc/gated.ripRIP configuration

18. 18 Migrating Networking: DNS  DNS has been updated to BIND 8.4.4 in OSR6, which includes security fixes and new features  Copy the following configuration files:  Then use the ndc restart command to restart named /etc/named.confnamed configuration /etc/resolv.confResolver configuration /etc/named.d/*DNS data files

19. 19 Migrating NIS  NIS is unchanged in OSR6  There are no configuration files to migrate over (assuming you already migrated over the user accounts using ap).  Run the ypinit command to configure NIS: -m configure as a master server -s master configure as a slave server -c master configure as a copy-only server -C configure as a client

20. 20 Migrating UUCP  UUCP is unchanged in OSR6  Copy the following configuration files: /usr/lib/uucp/Devices /usr/lib/uucp/Permissions /usr/lib/uucp/Poll /usr/lib/uucp/Systems

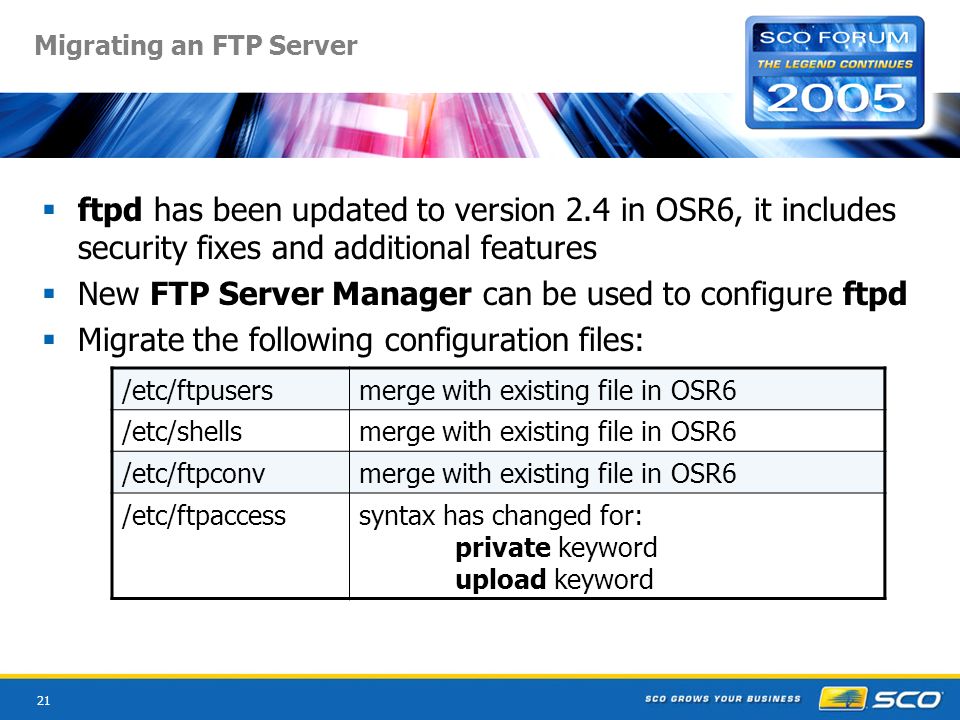

21. 21 Migrating an FTP Server  ftpd has been updated to version 2.4 in OSR6, it includes security fixes and additional features  New FTP Server Manager can be used to configure ftpd  Migrate the following configuration files: /etc/ftpusersmerge with existing file in OSR6 /etc/shellsmerge with existing file in OSR6 /etc/ftpconvmerge with existing file in OSR6 /etc/ftpaccesssyntax has changed for: private keyword upload keyword

22. 22 Migrating NFS  NFS has been updated to NFSv3 in OSR6, its substantially different from the NFSv2 in OSR5  automount no longer looks at the NIS auto.master map file unless the following line is added to /etc/auto.master +auto.master  Use the information in the OSR5 configurations files to edit the OSR6 files, you cannot simply copy the configuration files from OSR5 to OSR6: /etc/default/filesysUsed by client to define the systems to be mounted. The device names will differ on OSR6. /etc/exportfsUsed by the server to define filesystems that clients can mount. The device names will differ on OSR6. /etc/auto.masterLists initial automount configuration /etc/auto.directLists direct automount configuration /etc/auto.indirectLists indirect automount configuration

23. 23 Migrating NTP  NTP is basically the same on OSR5 and OSR6  The default configuration file (ntp.conf) is the same on both platforms, but is now located in /etc/inet/ntp.conf instead of /etc/ntp.conf  You will also need to copy over any files containing authentication keys and create any log files defined in ntp.conf

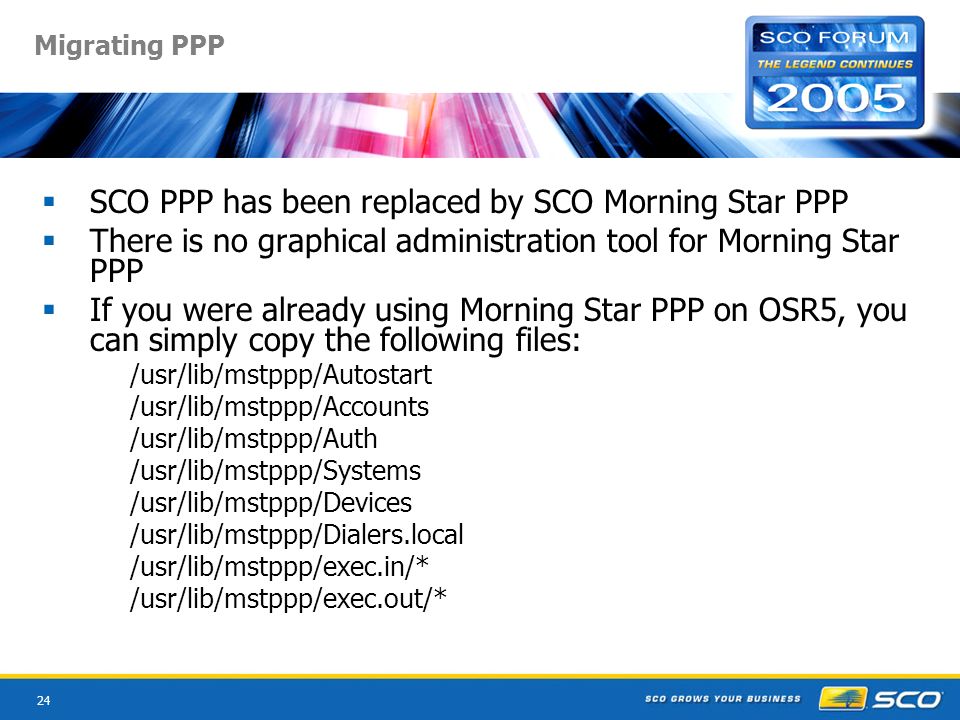

24. 24 Migrating PPP  SCO PPP has been replaced by SCO Morning Star PPP  There is no graphical administration tool for Morning Star PPP  If you were already using Morning Star PPP on OSR5, you can simply copy the following files: /usr/lib/mstppp/Autostart /usr/lib/mstppp/Accounts /usr/lib/mstppp/Auth /usr/lib/mstppp/Systems /usr/lib/mstppp/Devices /usr/lib/mstppp/Dialers.local /usr/lib/mstppp/exec.in/* /usr/lib/mstppp/exec.out/*

25. 25 Migrating PPP  To migrate from SCO PPP to Morning Star PPP, save the following files from the OSR5 system for reference: /etc/ppphosts /etc/pppauth  For outbound connections:  use the host entries in the OSR5 /etc/ppphosts file when editing the /usr/lib/mstppp/Systems OSR6 file  use the PAP/CHAP information in the OSR5 /etc/pppauth file for the /usr/lib/mstppp/Auth OSR6 file  For inbound connections:  use the host entries in the OSR5 /etc/ppphosts file when editing the /usr/lib/mstppp/Accounts OSR6 file  use the PAP/CHAP information in the OSR5 /etc/pppauth file for the /usr/lib/mstppp/Auth OSR6 file

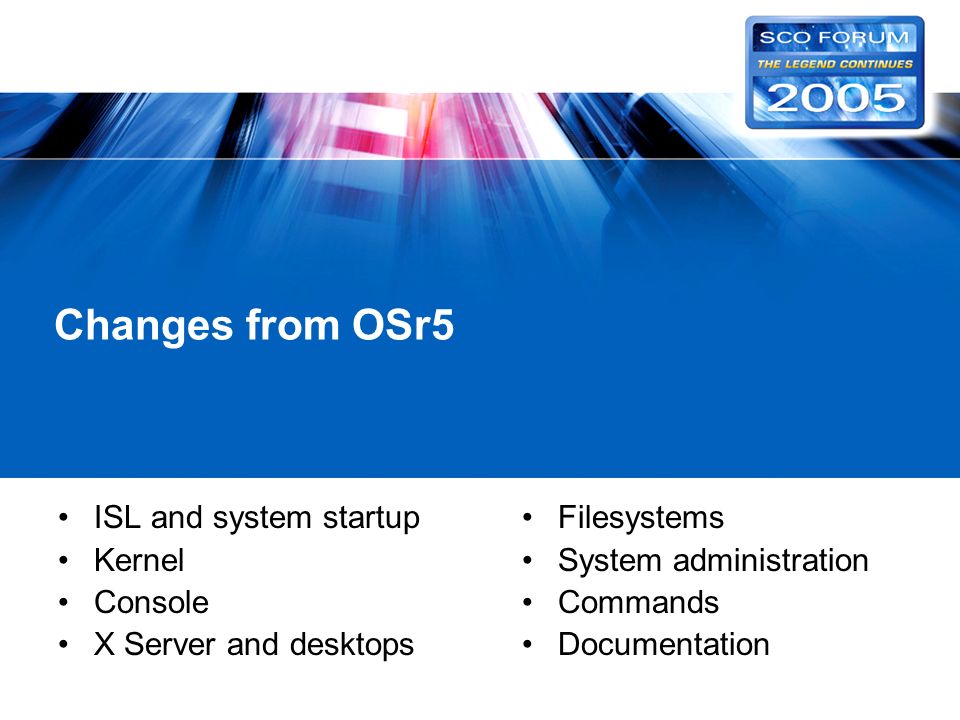

26. Changes from OSr5 ISL and system startup Kernel Console X Server and desktops Filesystems System administration Commands Documentation

27. 27 Changes – ISL  OSR6 uses the “no-emulation” boot cd method instead of “floppy-emulation” – may not work with very old systems that only support floppy-emulation  Supports installing above 1024 cylinders/8GB boundary  Prompts for installing additional HBAs during ISL  Supports HBAs on CDs in addition to floppies  Can defer licensing to get an eval license (press on the license screen)  A mouse can be configured and tested during ISL  The date and time can be set during ISL  Video cards are no longer configured during ISL, they are autodetected and configured on first reboot

28. 28 Changes – System Startup  OSR6 autoboots by default with a [boot] prompt with a twenty- second countdown instead of the Boot: prompt in OSR5  A graphical SCO OpenServer Release 6 logo replaces the hwconfig- style hardware listing  /etc/inittab is built from /etc/conf/init.d/kernel instead of /etc/conf/cf.d/init.base  OSR6 is SMP-ready out of the box  Auto-detects multiple CPUs at boot  Licensing controls how many can be utilized  Hyper-threaded and multi-core CPUs need just one license  Enter PSM=atup at the boot prompt to force uni-processor only  NOTE: the /etc/default/boot parameters have changed considerably, see boot(HW) for details

29. 29 Changes – Kernel  Dynamically loadable drivers:  Allows loading of drivers without a kernel relink and reboot  modadmin -s lists the loaded drivers  modadmin -l mod_name loads a driver  Drivers are located in /etc/conf/mod.d  Kernel linking is deferred by default until reboot, use /etc/conf/bin/idbuild -B to build the kernel immediately  Kernel is autotuned based on the amount of memory detected at boot  OSR5 drivers will not work with the new kernel, must use SVR5 drivers  /dev/table and /dev/strings no longer present, use hw(ADM) and sdiconfig(ADM) to view hardware configuration

30. 30 Changes – Kernel  scodb has been replaced with the kdb kernel debugger  Managing multi-processors has changed:  psradm(ADM) for processor configuration  psrinfo(ADM) for displaying processor information  rtpm(ADM) for performance monitoring  pbind(ADM) for locking a process to a specific CPU  processors are numbered from 0 instead of 1

31. 31 Changes – Console  Console termtype has changed from scoansi to at386-ie  Applications with “hard wired” scoansi escape sequences will not work directly on the OSR6 console (but will work in a scoterm or remote login from an OSR5 system)  Applications that use terminfo/termcap will work just fine

32. 32 Changes – X Server  OSR6 has a brand new X Server: X.org X11R6  It is configured via /etc/xorg.conf  Most video cards are automatically detected and the X Server attempts to use the highest possible resolution for your video card and monitor  If you are having trouble getting the X server to run at a good resolution, try editing /etc/xorg.conf to enter the exact horizontal and vertical refresh rates for your monitor: Section “Monitor” HorizSync 31.5 – 60 VertRefresh40 - 60

33. 33 Changes – Desktops  In addition to the OSR5 xdt3 desktop, OSR6 has the new KDE desktop  xdt3 desktop is the default  Switch to the KDE desktop for all users by changing XDESKTOP in /etc/default/X11: XDESKTOP=kde3  Individual users can specify their desktop preference by setting XDESKTOP in their shell startup scripts  Valid values are “xdt3” or “kde3” – they are defined in /etc/default/xdesktops, so you can add additional desktop options to this file

34. 34 Changes – Filesystems  OSR6 updates support for the following filesystems:  VxFS (new – supports large files, the default root filesystem)  HTFS (updated – journaling and versioning no longer supported)  CDFS (replaces HS filesystem, updated to support Joliet)  DOSFS (updated to support FAT32 and VFAT)  MEMFS (new – memory/RAM filesystem)  NFS (updated to v3)  All the filesystems now support up to 16 divisions per partition and can be encrypted via the new -c option to the marry(ADM) command  The DTFS and XENIX filesystems are no longer supported

35. 35 Changes – Filesystems  The Virtual Disk Manager is no longer supported  AFPS is no longer supported, it has been replaced by Samba  divvy now supports up to 15 user-defined divisions on each partition  badblk & badtrk commands removed, their operations are now handled transparently by the system  dparam & dkinit commands removed, you can no longer change or override the hard disk parameters, they will always be as set by the system BIOS

36. 36 Changes – Large File Support  Only supported on the VxFS filesystem  Enabled by default  Commands that are Large File Aware: cat(1), du(1), pathchk(1), chgrp(1), ff(1M) pax(1), chmod(1), find(1), pwd(1), chown(1) fsck(1M), cksum(1), fsdb(1M), rm(1) cmp(1), ln(1), rmdir(1), compress(1), ls(C), sum(1) cp(1), mkdir(1), rcp(1), touch(1), cpio(1), mkfs(1M), ulimit(1) dd(1M), mv(1), uncompress(1), df(1M), ncheck(1M), zcat(1) cpio(C)  All except cpio(C) and ls(C) are found in /u95/bin  Note: no shell support for LFS

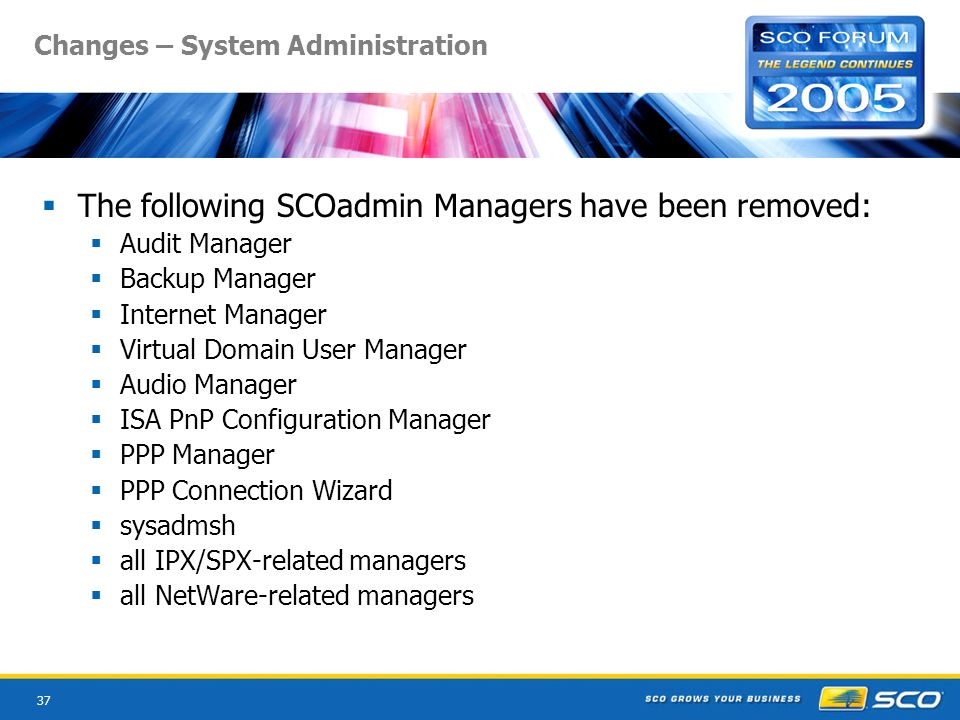

37. 37 Changes – System Administration  The following SCOadmin Managers have been removed:  Audit Manager  Backup Manager  Internet Manager  Virtual Domain User Manager  Audio Manager  ISA PnP Configuration Manager  PPP Manager  PPP Connection Wizard  sysadmsh  all IPX/SPX-related managers  all NetWare-related managers

38. 38 Changes – System Administration  New FTP Server Manager for configuring ftpd, including one- click setup of anonymous FTP  New Hot Plug Manager for managing Hot Plug devices (memory, CPUs. etc)  New Video Configuration Manager based on xorgcfg(1)  The License Manager “Add Users/CPUs/Products” menu items replaced by a single “Add License” option. Plus it only shows licenses installed on the system, it no longer shows unlicensed products.  most mkdev scripts are no longer needed and display information only  See also the “OSR6 Diagnostics and Troubleshooting” presentation (Room 103, 3pm Tues)

39. 39 Changes – Web  Netscape FastTrack Server no longer supported, replaced by Apache 1.3  Netscape Communicator no longer supported, replaced by Mozilla

40. 40 Changes – Commands  OSR6 distributes basic system commands into three main directories:  For different behaviors, set your PATH as follows: /bincommands inherited from OSR5 /u95/bincommands that conform to the UNIX95 standard, including LFS support /udk/bincommands inherited from UW7 /binTraditional OSR5 user /u95/bin:binOSR5 user who wants LFS support /udk/bin:/u95/bin:/binUser running UW7 apps

41. 41 Changes – Documentation  Online documentation no longer organized by books, but by topics, which allows for tighter integration of third-party documentation  DocView can now print an entire topic instead of just a single section  select which sections you want and DocView will display all the selected sections as one page for printing from the browser  can also elect to generate a PDF or postscript file

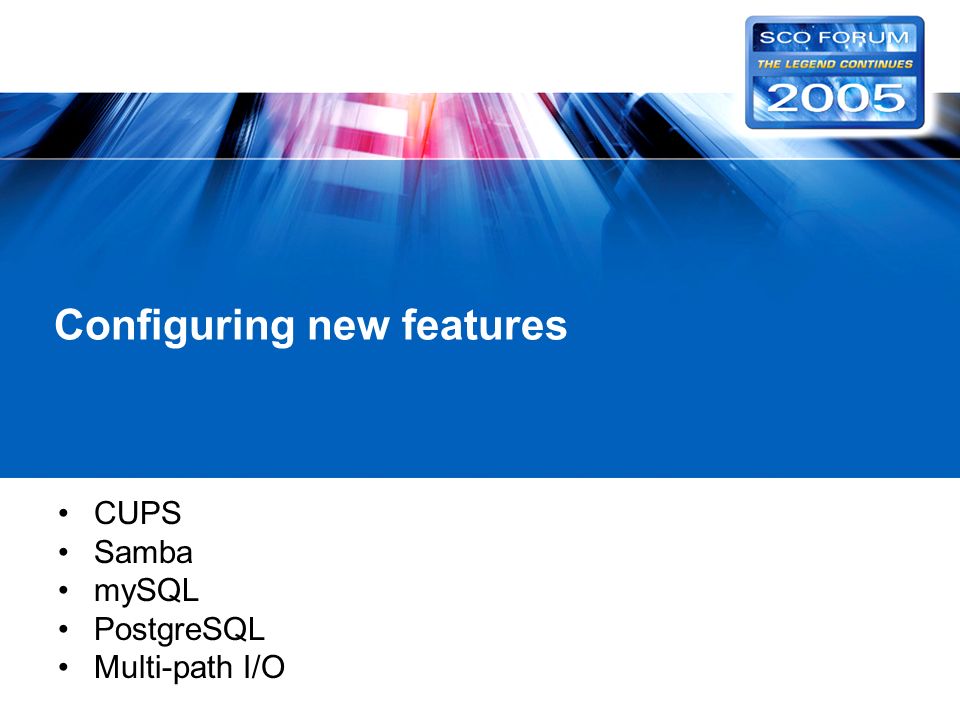

42. Configuring new features CUPS Samba mySQL PostgreSQL Multi-path I/O

43. 43 Configuring CUPS Printers  To use just CUPS:  edit /etc/default/lpd PRINTER_SYSTEM=CUPS  the Printer Manager will automatically launch the CUPS web-based administration tool  login as root and use root’s password  To use both CUPS and SYSV lp (default) :  edit /etc/default/lpd PRINTER_SYSTEM=SYSV  the Printer Manager will manage the SYSV lp printers and to configure CUPS printers, enter the following URL in a browser: http://localhost:631  login as root and use root’s password  NOTE: the CUPS administration tool only allows alpha-numeric characters in the password, so you will have to change root’s password if it contains non-alphanumeric characters

44. 44 Configuring Samba  Initial configuration is done via mkdev samba:  workgroup name  WINS configuration  Security Domain or Active Directory configuration  Enable and activate Samba daemon  The Samba configuration file can be found in /etc/samba/smb.conf  For much more info, go to the “Installing and Configuring Samba 3” presentation (Room 104, 10:15am Tues)

45. 45 Configuring mySQL  Initial configuration is done via mkdev mysql:  define the mysql database owner and password  enable/disable the server  stop/start the server processes  define the database location and initialize the database  The mysql(1) command provides a curses-based client for connecting to a mySQL database  The mysqladmin(1) command provides some administration options  The mySQL configuration file can be found in /etc/my.cnf

46. 46 Configuring PostgreSQL  Initial configuration is done via mkdev pgsql:  define the postmaster owner and password  enable/disable the server  stop/start the server processes  define the database location and initialize the database

47. 47 Multi-Path I/O  MPIO allows multiple HBAs to be connected to the same hard disk  Usually requires either a dual-ported device or some form of networked storage  Provides redundancy, availability and load balancing  A path is associated with a disk stamp and SCSI address  OSR6 recognizes if a target has multiple access paths by enumerating different disk SCSI addresses with the same disk stamp  Disabled by default, turn on with mkdev mpio  Administered using sdipath(ADM)

48. SCO Global Services SCO Services Capabilities Professional Services and Consulting for OpenServer 6 Bundled Support Education Why SCO Services

49. 49 SCO Services Capabilities  Global reach  24x7 Follow the Sun  Award winning capability  High level expertise  “One stop shop” for professional services, consulting and support

50. 50 OpenServer 6 Implementation Services ASSESSMENT PORTING TRAINING MAINTENANCE AND SUPPORT DEPLOYMENT

51. 51 Assessment Service An SCO Professional Services Consultant will:  Gather information and assess system status  Evaluate current environment and discuss strategic goals  Work with third party application and hardware vendors, if necessary  Deliver a comprehensive assessment results report

52. 52 Assessment Service Components Complete assessment of existing or proposed hardware and software environment including:  OS and application environment  User accounts and data  Printing requirements  System load  Security and Authentication  Data Storage and backup  Networking

53. 53 Porting Service  Analyze your current environment including applications  Make appropriate code changes to your application / libraries  Collaborate with 3rd party application vendors (if necessary)  Re-compile your application on OpenServer 6.  Test the new application

54. 54 Deployment Service  Install OpenServer 6 on your hardware  Configure the kernel appropriately for your environment  Customize storage layout  Set up network and networking services  Configure printers and terminals  Migrate user accounts and application data.  Assess and implement system security requirements  Deploy system using Mass Installation Toolkit (MIT) if applicable

55. 55 Training Service  Instructor-led interactive sessions  Easy-to-follow student guides  Customized education materials  Comprehensive reference documentation  Onsite training available  Training options range from 1 day of OpenServer 6 intensive training to 2 weeks of a comprehensive set of training courses

56. 56 Support Bundles  Six month unlimited technical support  OpenServer 6  UnixWare 7.1.4  Multitude of upgrade options to suit business requirements  Single registration for product and support

57. 57 SCO Education Curriculum  Ideal tool to assist in getting most benefits from SCO’s reliable operating systems  Developed by experienced SCO professionals  Consists of admin I and II, and networking guides  Convenient/flexible ordering system – delivered on media of your choice  Discounts for multiple sets  Available for resale by education partners SCO OpenServer 6 education curriculum available now!

58. 58 Why SCO Services  Most experienced engineers in the industry Average tenure - 14 years  Extension of partner’s own services organization  “Sell through” SCO services @ 30% margin: Option for partner to maintain control of end user relationship

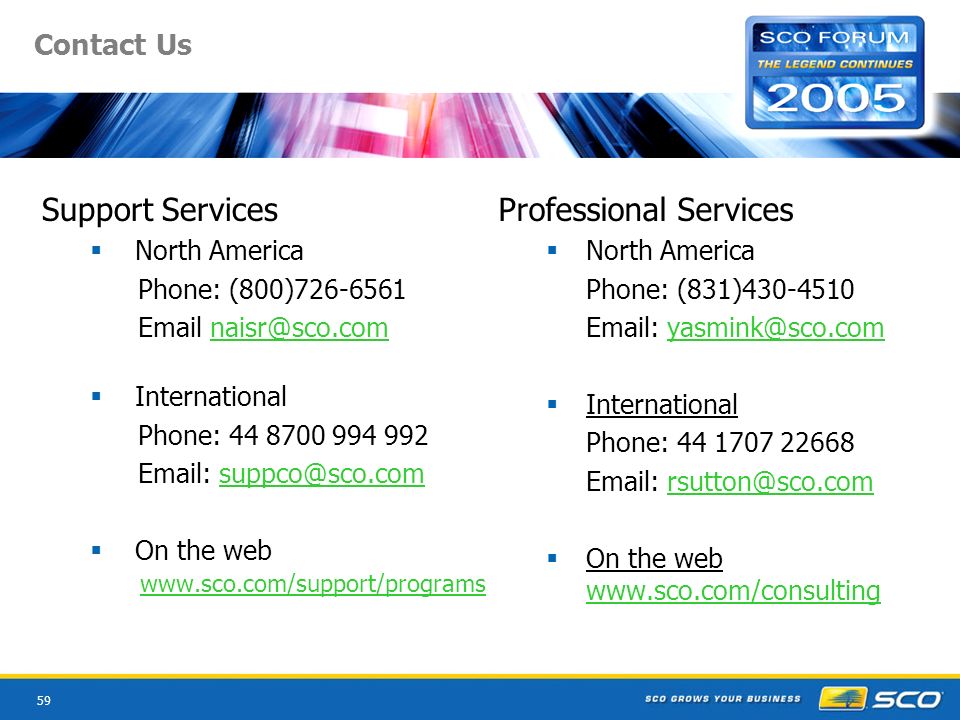

59. 59 Contact Us Support Services  North America Phone: (800)726-6561 Email naisr@sco.comnaisr@sco.com  International Phone: 44 8700 994 992 Email: suppco@sco.comsuppco@sco.com  On the web www.sco.com/support/programs www.sco.com/support/programs Professional Services  North America Phone: (831)430-4510 Email: yasmink@sco.comyasmink@sco.com  International Phone: 44 1707 22668 Email: rsutton@sco.comrsutton@sco.com  On the web www.sco.com/consulting www.sco.com/consulting
