1. EECE 310: Software Engineering Lecture 2: Understanding Objects in Java and Types

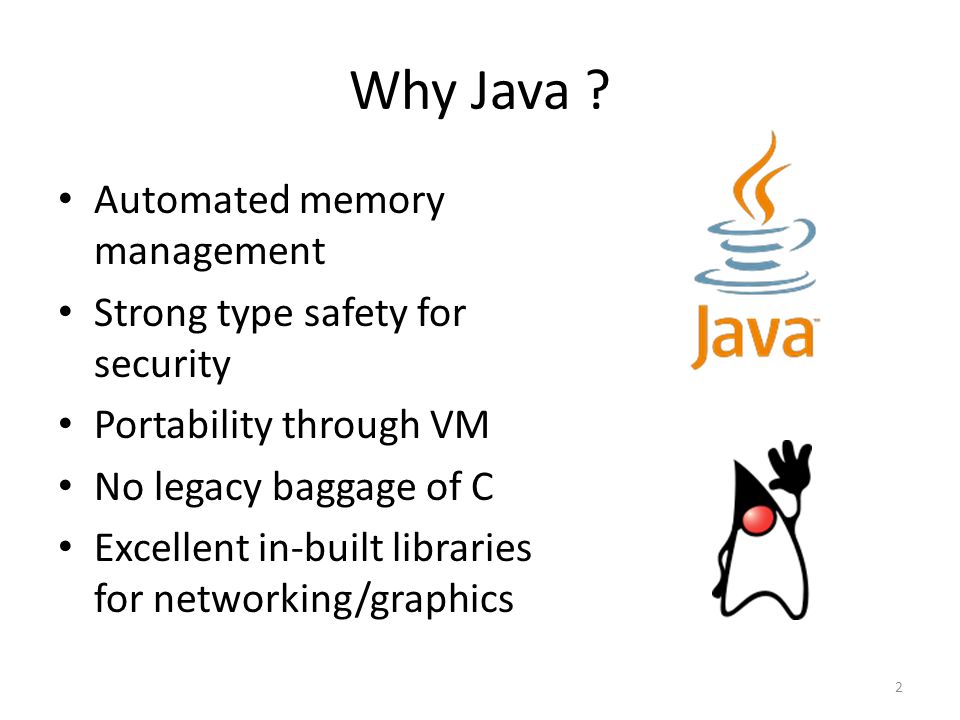

2. Why Java ? Automated memory management Strong type safety for security Portability through VM No legacy baggage of C Excellent in-built libraries for networking/graphics 2

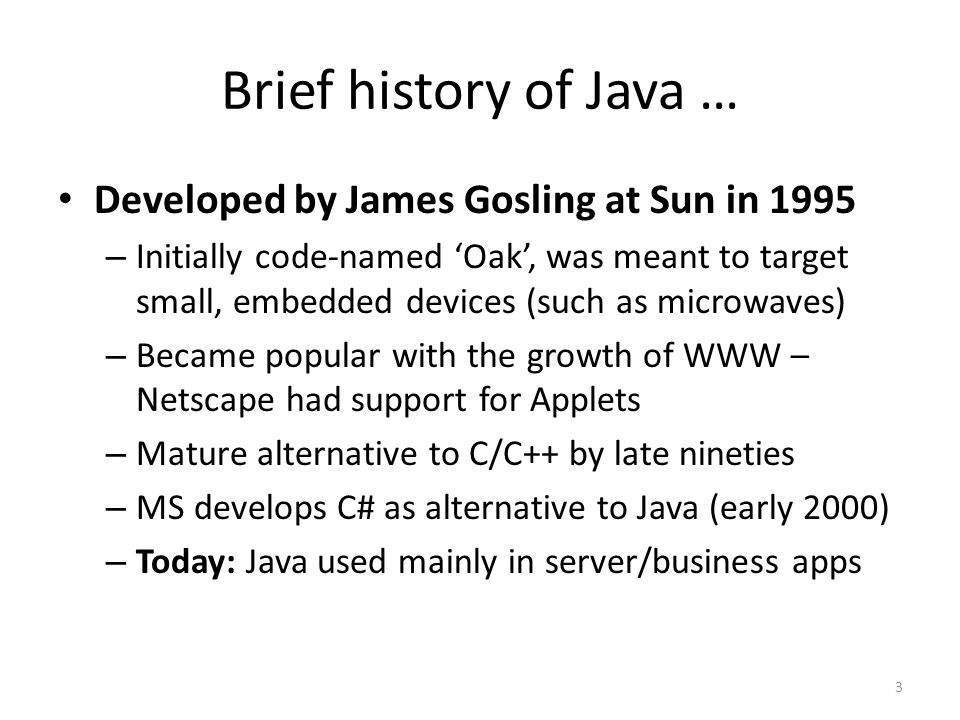

3. Brief history of Java … Developed by James Gosling at Sun in 1995 – Initially code-named ‘Oak’, was meant to target small, embedded devices (such as microwaves) – Became popular with the growth of WWW – Netscape had support for Applets – Mature alternative to C/C++ by late nineties – MS develops C# as alternative to Java (early 2000) – Today: Java used mainly in server/business apps 3

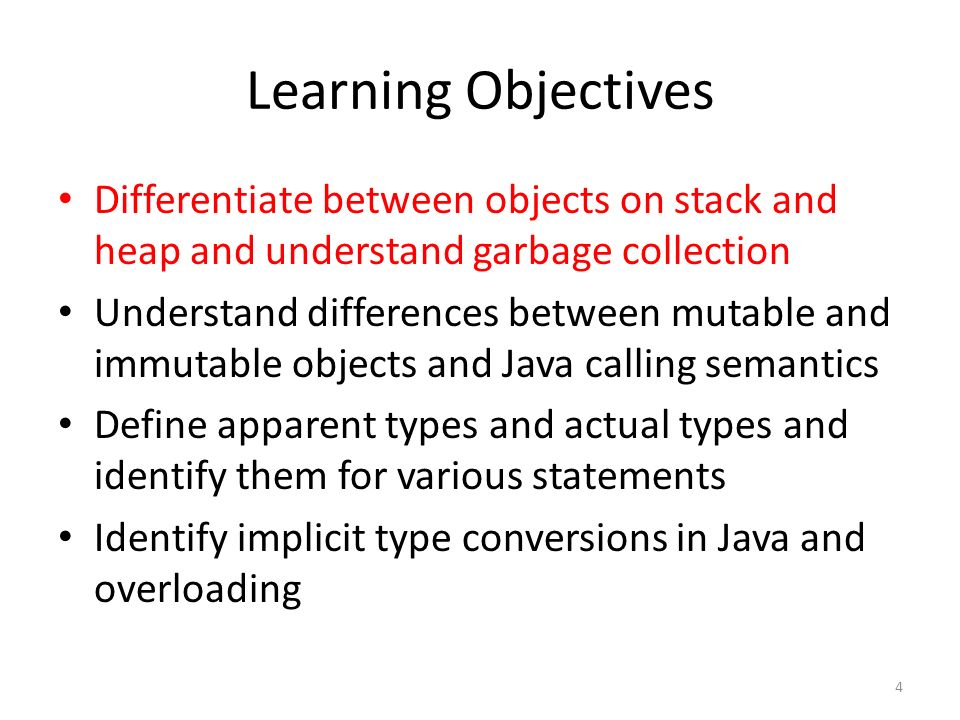

4. Learning Objectives Differentiate between objects on stack and heap and understand garbage collection Understand differences between mutable and immutable objects and Java calling semantics Define apparent types and actual types and identify them for various statements Identify implicit type conversions in Java and overloading 4

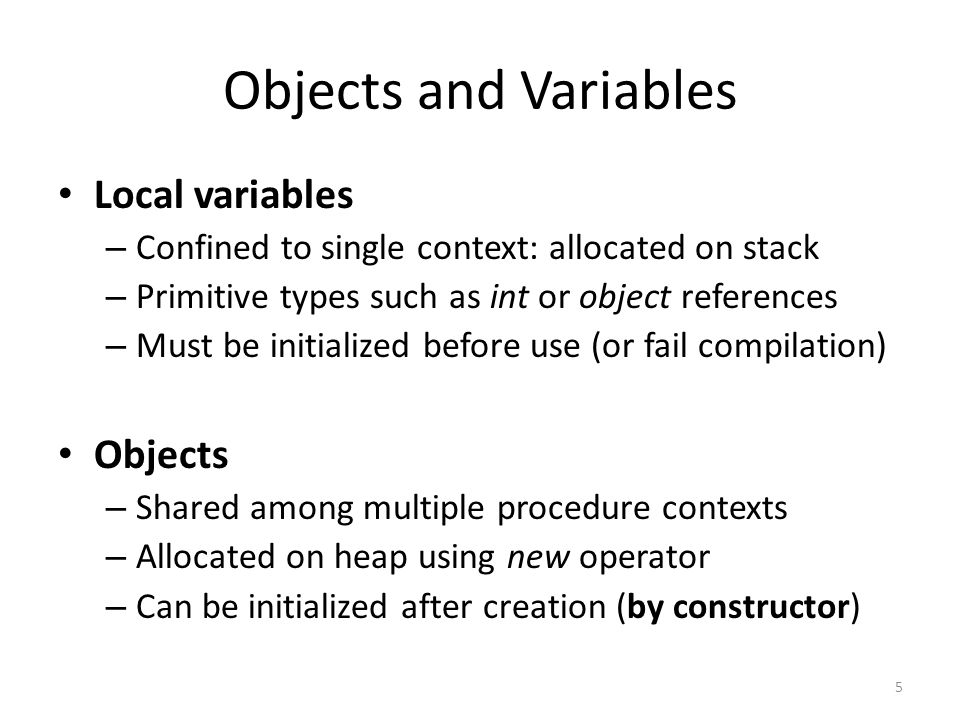

5. Objects and Variables Local variables – Confined to single context: allocated on stack – Primitive types such as int or object references – Must be initialized before use (or fail compilation) Objects – Shared among multiple procedure contexts – Allocated on heap using new operator – Can be initialized after creation (by constructor) 5

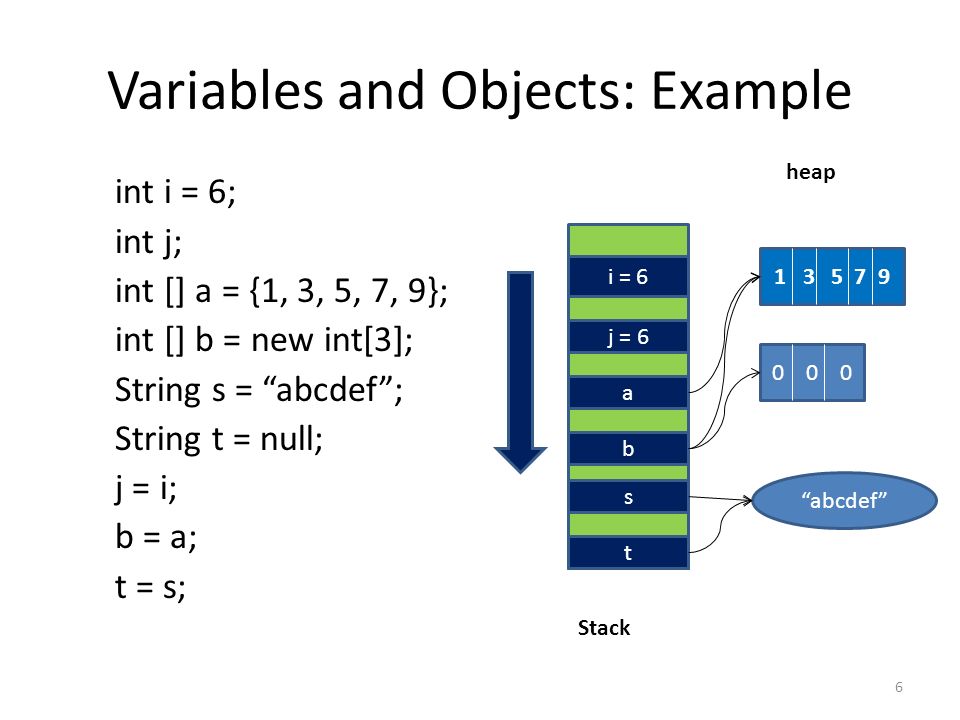

6. Variables and Objects: Example int i = 6; int j; int [] a = {1, 3, 5, 7, 9}; int [] b = new int[3]; String s = “abcdef”; String t = null; j = i; b = a; t = s; Stack i = 6 j a b s t = null 1 3 5 7 9 heap 0 0 0 “abcdef” j = 6 t 6

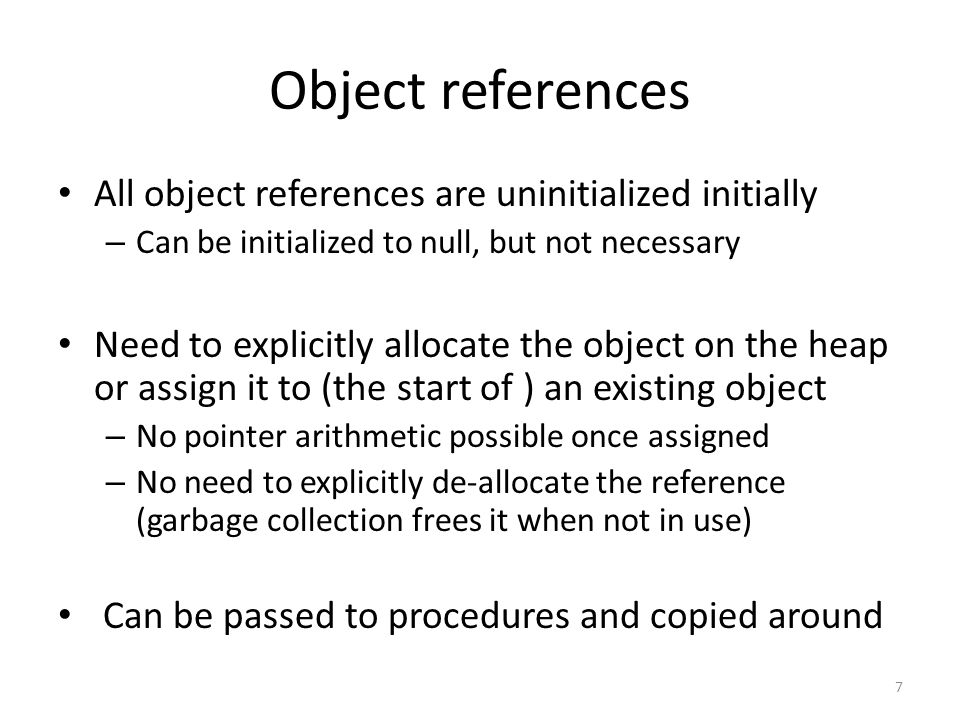

7. Object references All object references are uninitialized initially – Can be initialized to null, but not necessary Need to explicitly allocate the object on the heap or assign it to (the start of ) an existing object – No pointer arithmetic possible once assigned – No need to explicitly de-allocate the reference (garbage collection frees it when not in use) Can be passed to procedures and copied around 7

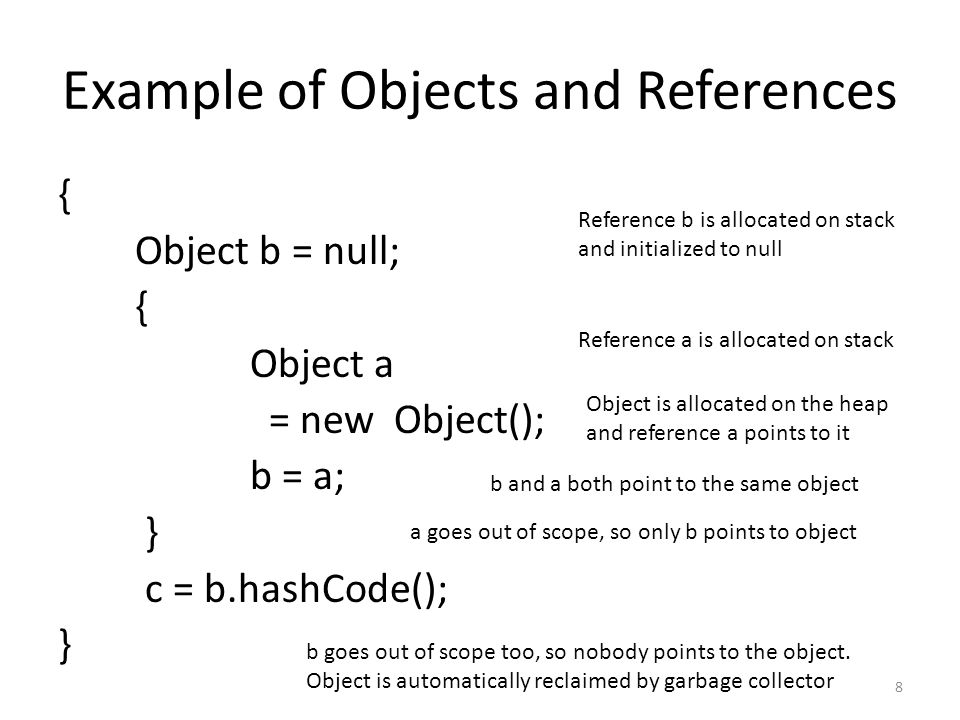

8. Example of Objects and References { Object b = null; { Object a = new Object(); b = a; } c = b.hashCode(); } 8 Reference b is allocated on stack and initialized to null Reference a is allocated on stack Object is allocated on the heap and reference a points to it b and a both point to the same object a goes out of scope, so only b points to object b goes out of scope too, so nobody points to the object. Object is automatically reclaimed by garbage collector

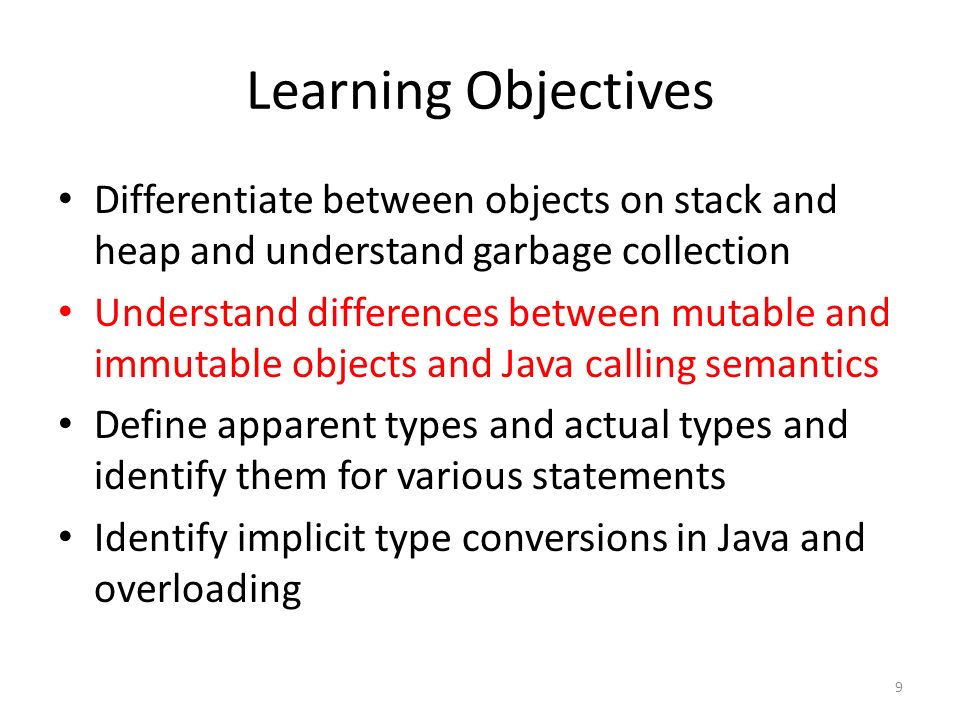

9. Learning Objectives Differentiate between objects on stack and heap and understand garbage collection Understand differences between mutable and immutable objects and Java calling semantics Define apparent types and actual types and identify them for various statements Identify implicit type conversions in Java and overloading 9

10. 1 3 5 7 91 3 5 -1 9 Object Mutability By default, Java objects are mutable – Modifications made through one reference will be visible when the object is accessed through another reference to the object Example: Arrays – int [] a = {1, 3, 5, 7, 9}; – a[3] = -1; – b = a; – b[4] = -2; 1 3 5 -1 -2 10

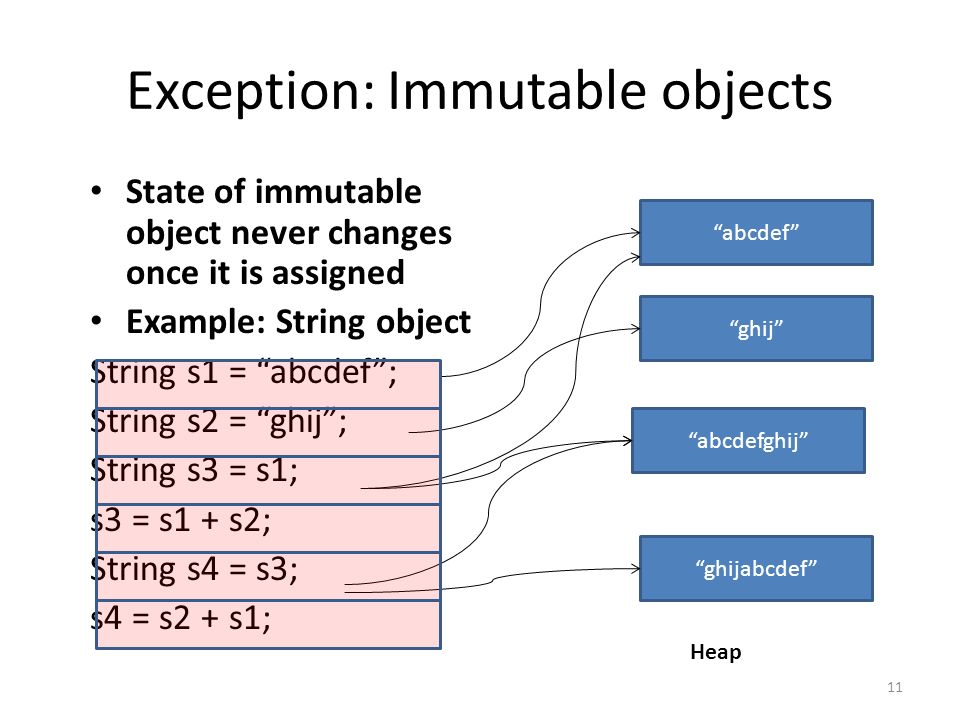

11. Exception: Immutable objects State of immutable object never changes once it is assigned Example: String object String s1 = “abcdef”; String s2 = “ghij”; String s3 = s1; s3 = s1 + s2; String s4 = s3; s4 = s2 + s1; “abcdef” “ghij” “abcdefghij” “ghijabcdef” 11 Heap

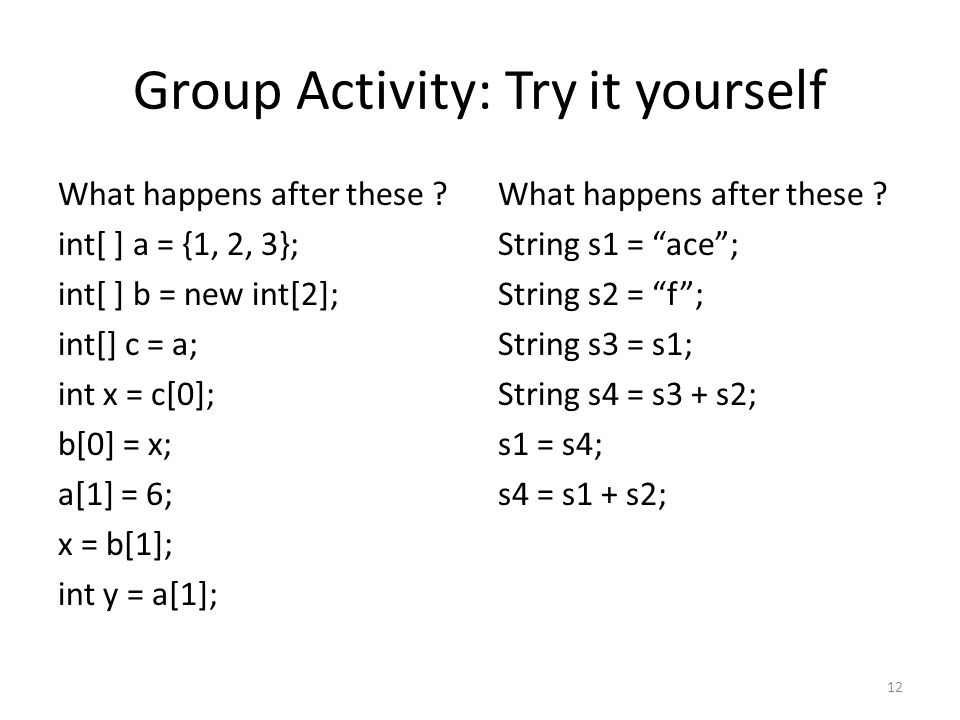

12. Group Activity: Try it yourself What happens after these ? int[ ] a = {1, 2, 3}; int[ ] b = new int[2]; int[] c = a; int x = c[0]; b[0] = x; a[1] = 6; x = b[1]; int y = a[1]; What happens after these ? String s1 = “ace”; String s2 = “f”; String s3 = s1; String s4 = s3 + s2; s1 = s4; s4 = s1 + s2; 12

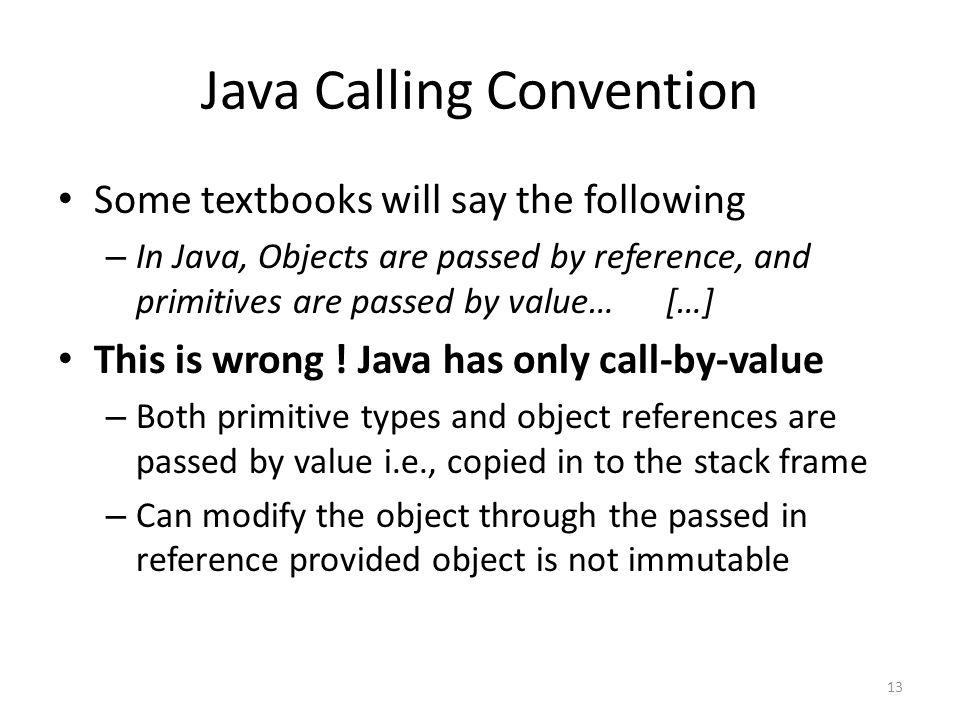

13. Java Calling Convention Some textbooks will say the following – In Java, Objects are passed by reference, and primitives are passed by value… […] This is wrong ! Java has only call-by-value – Both primitive types and object references are passed by value i.e., copied in to the stack frame – Can modify the object through the passed in reference provided object is not immutable 13

14. Calling convention: Call-by-value void foo(int a, int[] b) { a = a + 1; b[0] = 3; } 14 a = 10 b p = 10 q 0 0 0 heap stack a = 11 3 int[] q = new int[3]; int p = 10; foo (p, q); // What are p and q’s value ?

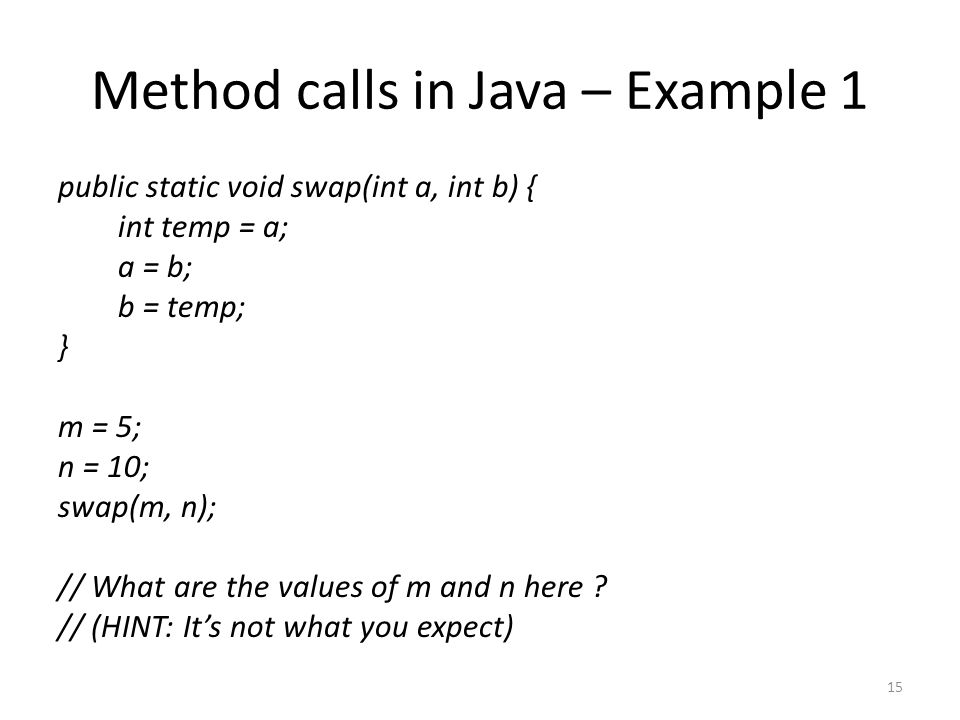

15. Method calls in Java – Example 1 public static void swap(int a, int b) { int temp = a; a = b; b = temp; } m = 5; n = 10; swap(m, n); // What are the values of m and n here ? // (HINT: It’s not what you expect) 15

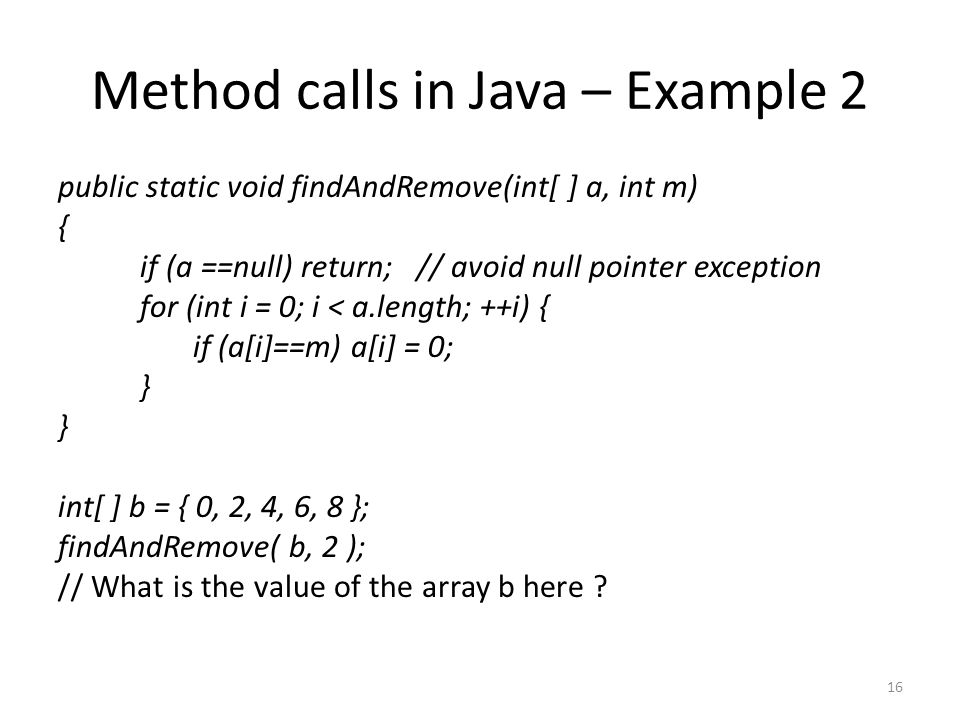

16. Method calls in Java – Example 2 public static void findAndRemove(int[ ] a, int m) { if (a ==null) return; // avoid null pointer exception for (int i = 0; i < a.length; ++i) { if (a[i]==m) a[i] = 0; } int[ ] b = { 0, 2, 4, 6, 8 }; findAndRemove( b, 2 ); // What is the value of the array b here ? 16

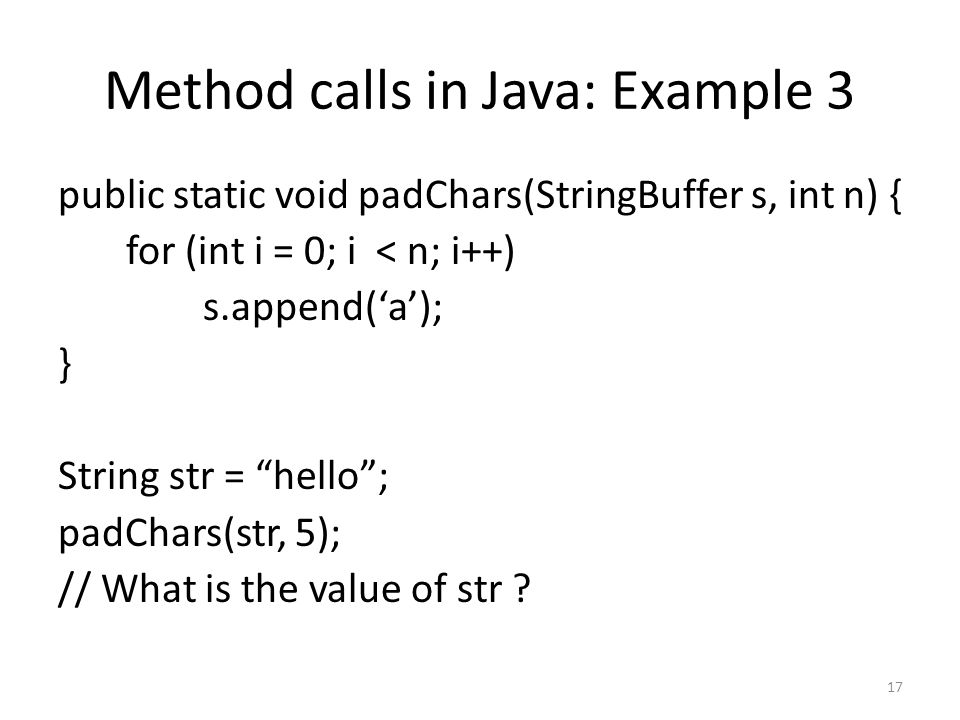

17. Method calls in Java: Example 3 public static void padChars(StringBuffer s, int n) { for (int i = 0; i < n; i++) s.append(‘a’); } String str = “hello”; padChars(str, 5); // What is the value of str ? 17

18. Learning Objectives Differentiate between objects on stack and heap and understand garbage collection Understand differences between mutable and immutable objects and Java calling semantics Define apparent types and actual types and identify them for various statements Identify implicit type conversions in Java and overloading 18

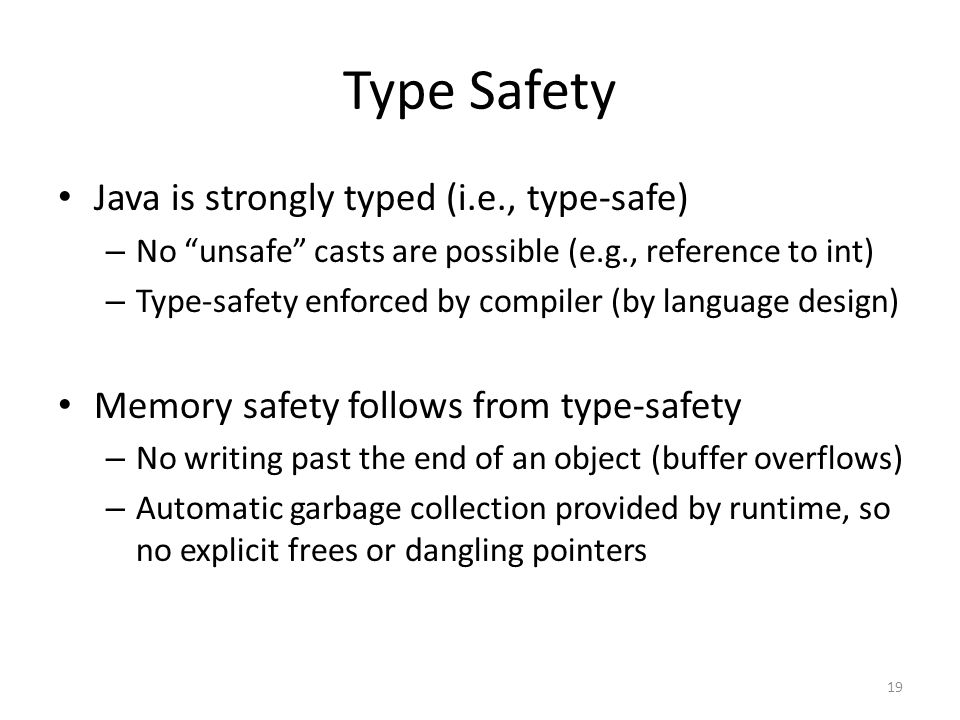

19. Type Safety Java is strongly typed (i.e., type-safe) – No “unsafe” casts are possible (e.g., reference to int) – Type-safety enforced by compiler (by language design) Memory safety follows from type-safety – No writing past the end of an object (buffer overflows) – Automatic garbage collection provided by runtime, so no explicit frees or dangling pointers 19

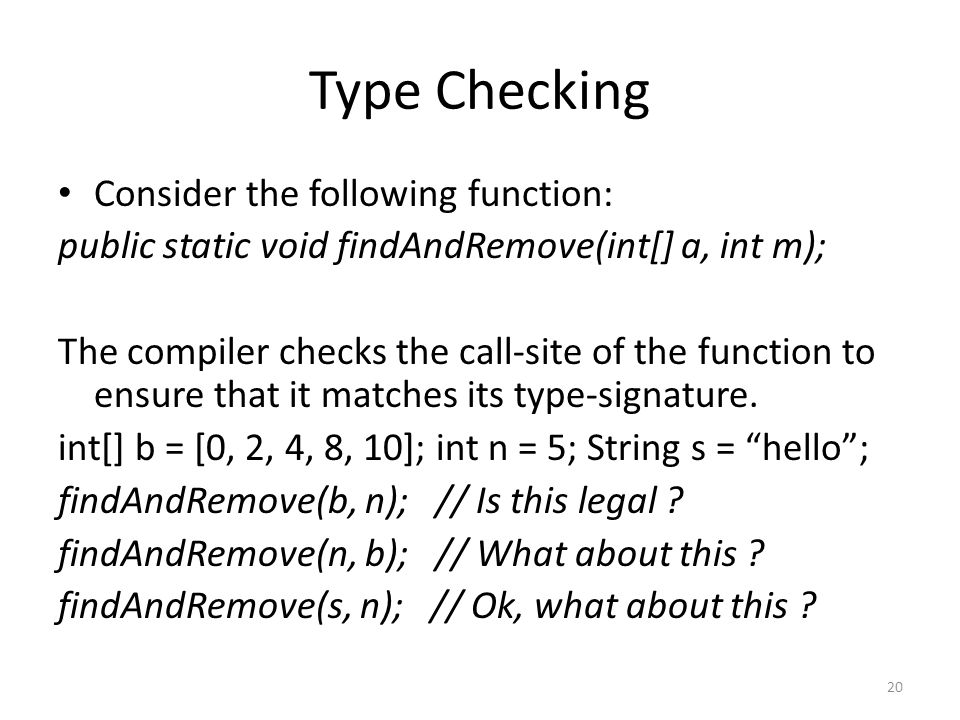

20. Type Checking Consider the following function: public static void findAndRemove(int[] a, int m); The compiler checks the call-site of the function to ensure that it matches its type-signature. int[] b = [0, 2, 4, 8, 10]; int n = 5; String s = “hello”; findAndRemove(b, n); // Is this legal ? findAndRemove(n, b); // What about this ? findAndRemove(s, n); // Ok, what about this ? 20

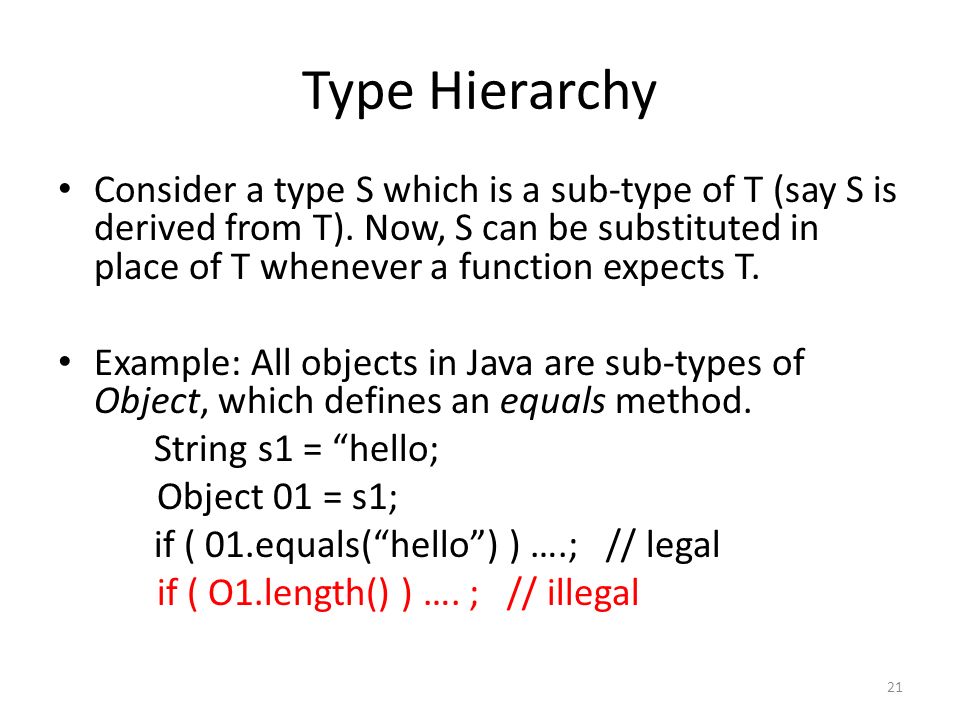

21. Type Hierarchy Consider a type S which is a sub-type of T (say S is derived from T). Now, S can be substituted in place of T whenever a function expects T. Example: All objects in Java are sub-types of Object, which defines an equals method. String s1 = “hello; Object 01 = s1; if ( 01.equals(“hello”) ) ….; // legal if ( O1.length() ) …. ; // illegal 21

22. StatementApparent typeActual type String s = “abcdef”;String Object o = s;ObjectString s = o;Illegal ! s = (String)o;String int [] a = {0, 1, 2};Int[] o = a;Objectint[] a [2] = 3;Int Apparent vs. Actual type Apparent type -- the type inferred from declarations Actual type -- the type received at (object) creation NOTE: Apparent type is a super-type of the actual type 22

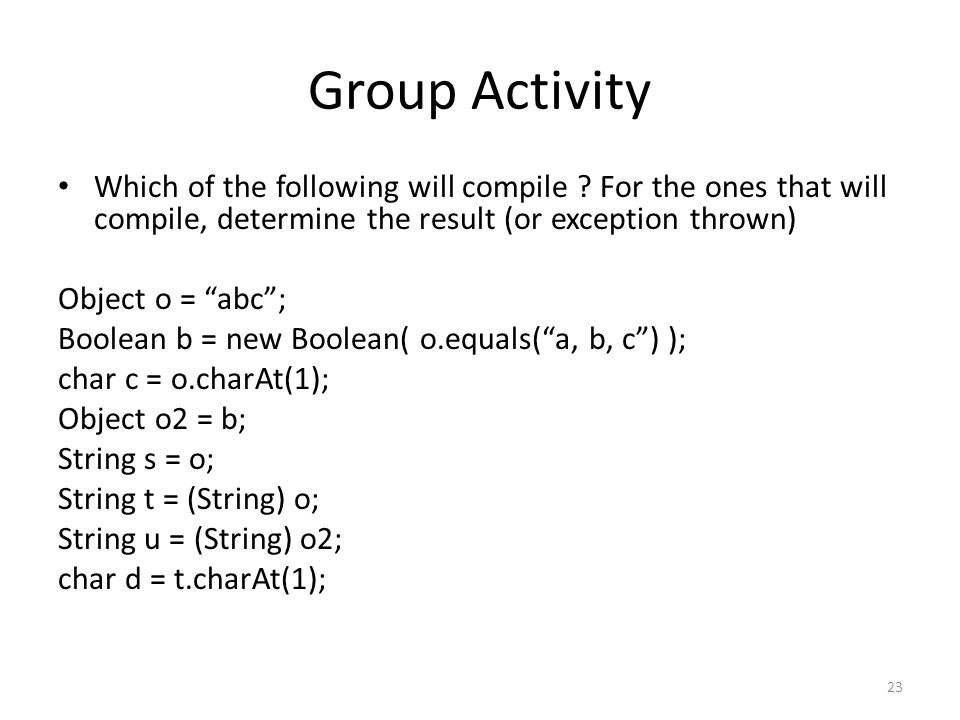

23. Group Activity Which of the following will compile ? For the ones that will compile, determine the result (or exception thrown) Object o = “abc”; Boolean b = new Boolean( o.equals(“a, b, c”) ); char c = o.charAt(1); Object o2 = b; String s = o; String t = (String) o; String u = (String) o2; char d = t.charAt(1); 23

24. Learning Objectives Differentiate between objects on stack and heap and understand garbage collection Understand differences between mutable and immutable objects and Java calling semantics Define apparent types and actual types and identify them for various statements Identify implicit type conversions in Java and overloading 24

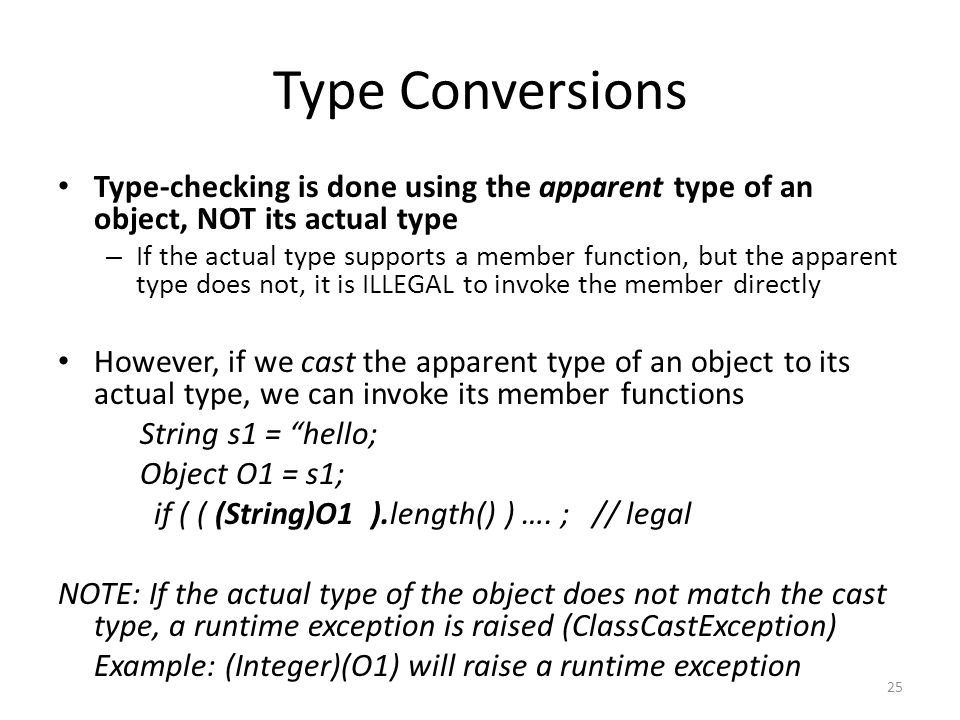

25. Type Conversions Type-checking is done using the apparent type of an object, NOT its actual type – If the actual type supports a member function, but the apparent type does not, it is ILLEGAL to invoke the member directly However, if we cast the apparent type of an object to its actual type, we can invoke its member functions String s1 = “hello; Object O1 = s1; if ( ( (String)O1 ).length() ) …. ; // legal NOTE: If the actual type of the object does not match the cast type, a runtime exception is raised (ClassCastException) Example: (Integer)(O1) will raise a runtime exception 25

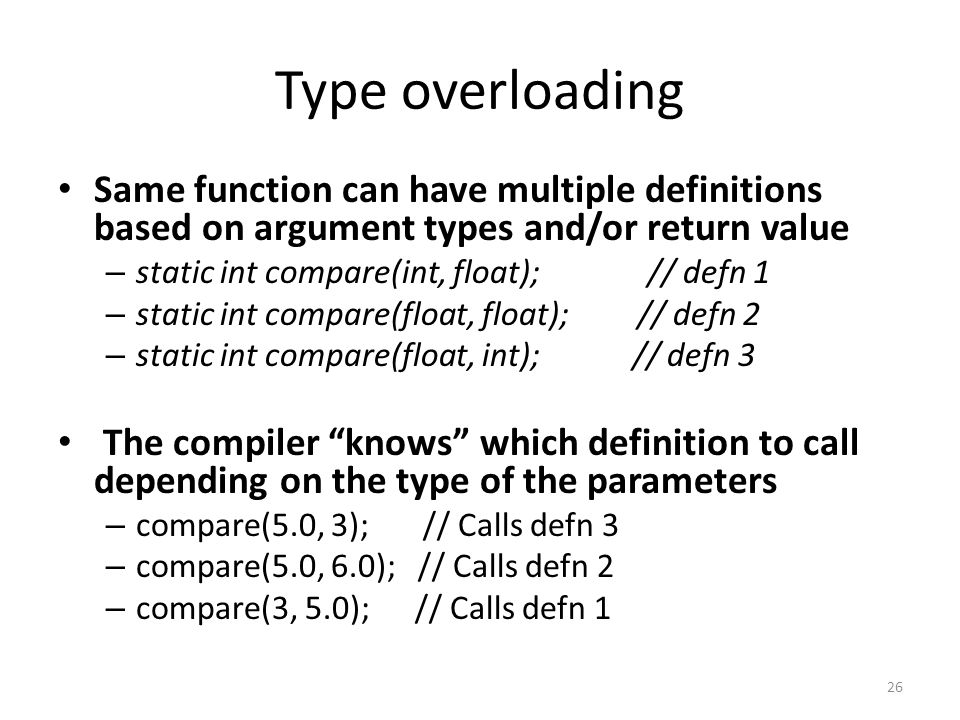

26. Type overloading Same function can have multiple definitions based on argument types and/or return value – static int compare(int, float); // defn 1 – static int compare(float, float); // defn 2 – static int compare(float, int); // defn 3 The compiler “knows” which definition to call depending on the type of the parameters – compare(5.0, 3); // Calls defn 3 – compare(5.0, 6.0); // Calls defn 2 – compare(3, 5.0); // Calls defn 1 26

27. Implicit Type Conversions Often, the compiler will implicitly convert one primitive type to another (widening) – int => float – int => long – But long => int, float=>int NOT possible So which version of compare do these call ? – compare(3, 5.0); // Definition 1 or Definition 2 ? – compare(5.0, 6); // Definition 2 or Definition 3 ? 27

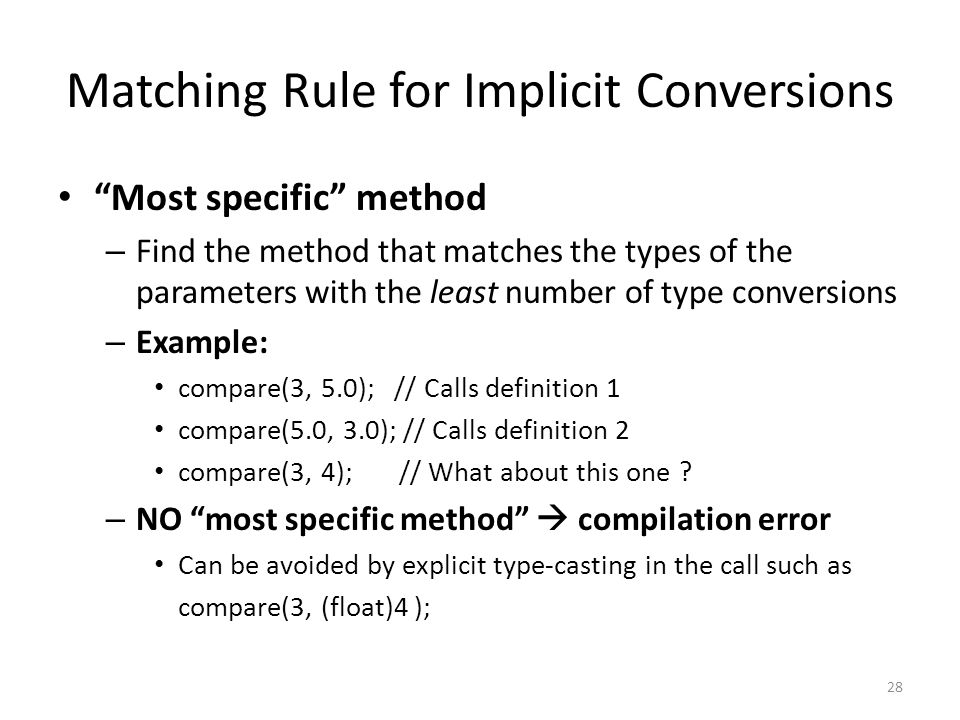

28. Matching Rule for Implicit Conversions “Most specific” method – Find the method that matches the types of the parameters with the least number of type conversions – Example: compare(3, 5.0); // Calls definition 1 compare(5.0, 3.0); // Calls definition 2 compare(3, 4); // What about this one ? – NO “most specific method”  compilation error Can be avoided by explicit type-casting in the call such as compare(3, (float)4 ); 28

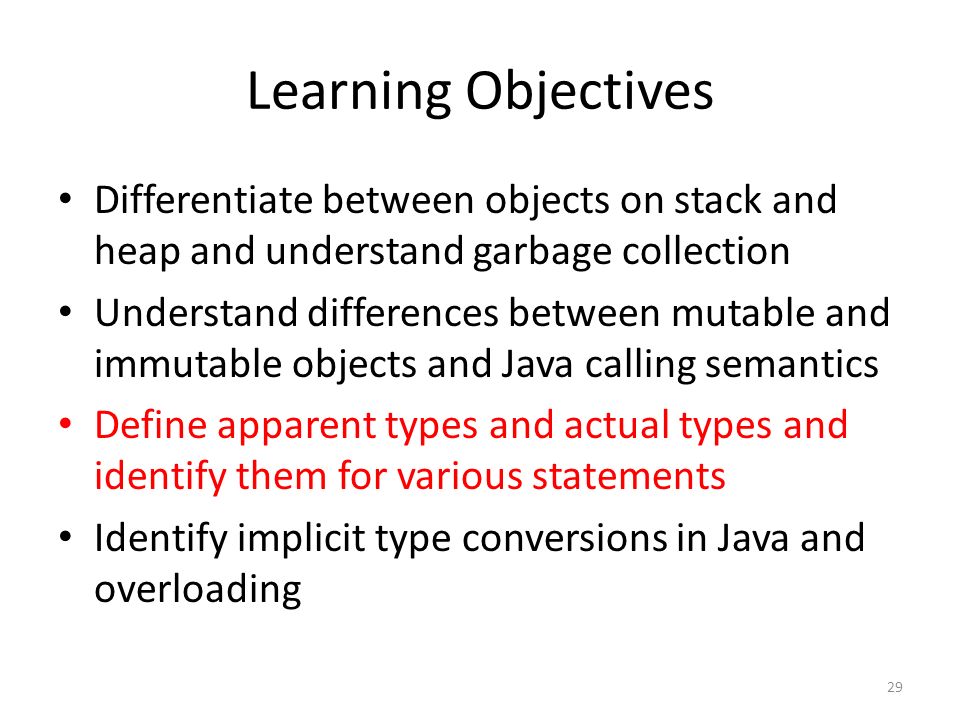

29. Learning Objectives Differentiate between objects on stack and heap and understand garbage collection Understand differences between mutable and immutable objects and Java calling semantics Define apparent types and actual types and identify them for various statements Identify implicit type conversions in Java and overloading 29

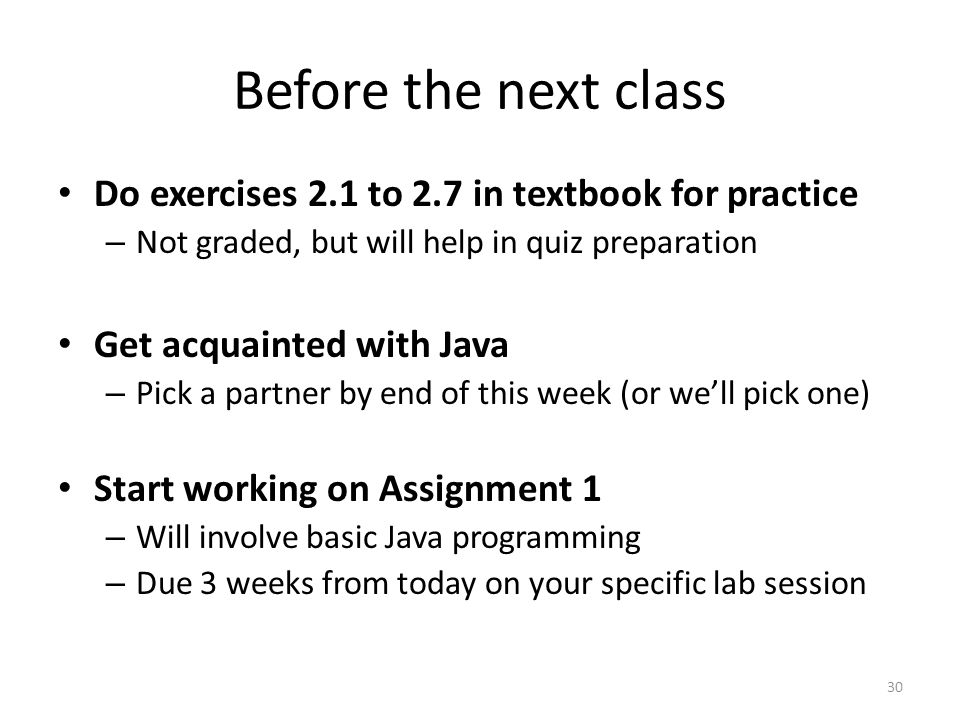

30. Before the next class Do exercises 2.1 to 2.7 in textbook for practice – Not graded, but will help in quiz preparation Get acquainted with Java – Pick a partner by end of this week (or we’ll pick one) Start working on Assignment 1 – Will involve basic Java programming – Due 3 weeks from today on your specific lab session 30
