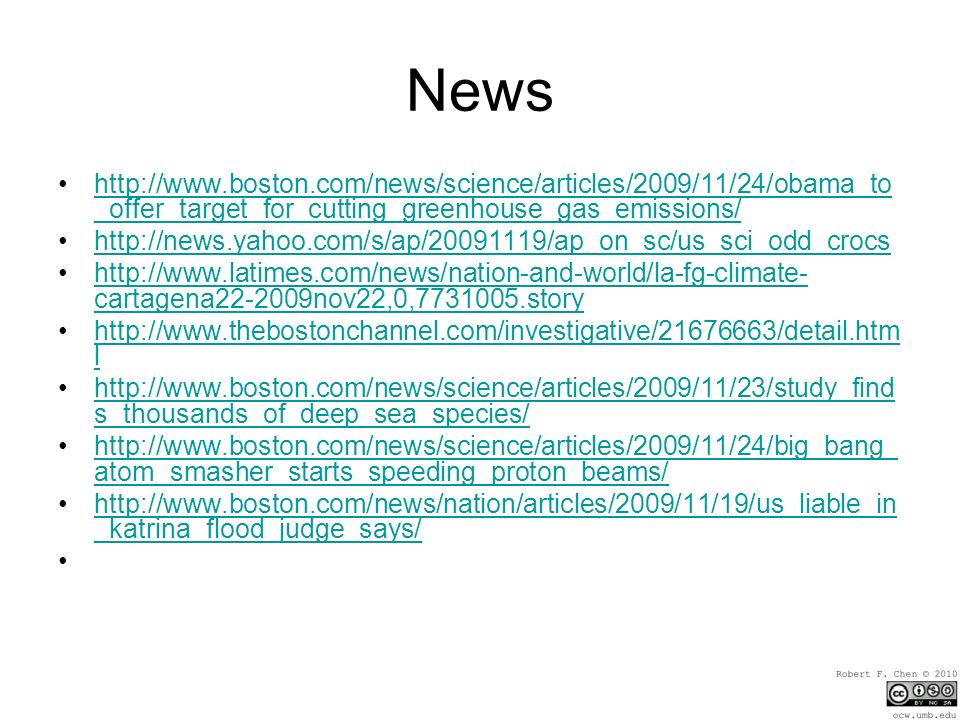

1. News http://www.boston.com/news/science/articles/2009/11/24/obama_to _offer_target_for_cutting_greenhouse_gas_emissions/http://www.boston.com/news/science/articles/2009/11/24/obama_to _offer_target_for_cutting_greenhouse_gas_emissions/ http://news.yahoo.com/s/ap/20091119/ap_on_sc/us_sci_odd_crocs http://www.latimes.com/news/nation-and-world/la-fg-climate- cartagena22-2009nov22,0,7731005.storyhttp://www.latimes.com/news/nation-and-world/la-fg-climate- cartagena22-2009nov22,0,7731005.story http://www.thebostonchannel.com/investigative/21676663/detail.htm lhttp://www.thebostonchannel.com/investigative/21676663/detail.htm l http://www.boston.com/news/science/articles/2009/11/23/study_find s_thousands_of_deep_sea_species/http://www.boston.com/news/science/articles/2009/11/23/study_find s_thousands_of_deep_sea_species/ http://www.boston.com/news/science/articles/2009/11/24/big_bang_ atom_smasher_starts_speeding_proton_beams/http://www.boston.com/news/science/articles/2009/11/24/big_bang_ atom_smasher_starts_speeding_proton_beams/ http://www.boston.com/news/nation/articles/2009/11/19/us_liable_in _katrina_flood_judge_says/http://www.boston.com/news/nation/articles/2009/11/19/us_liable_in _katrina_flood_judge_says/

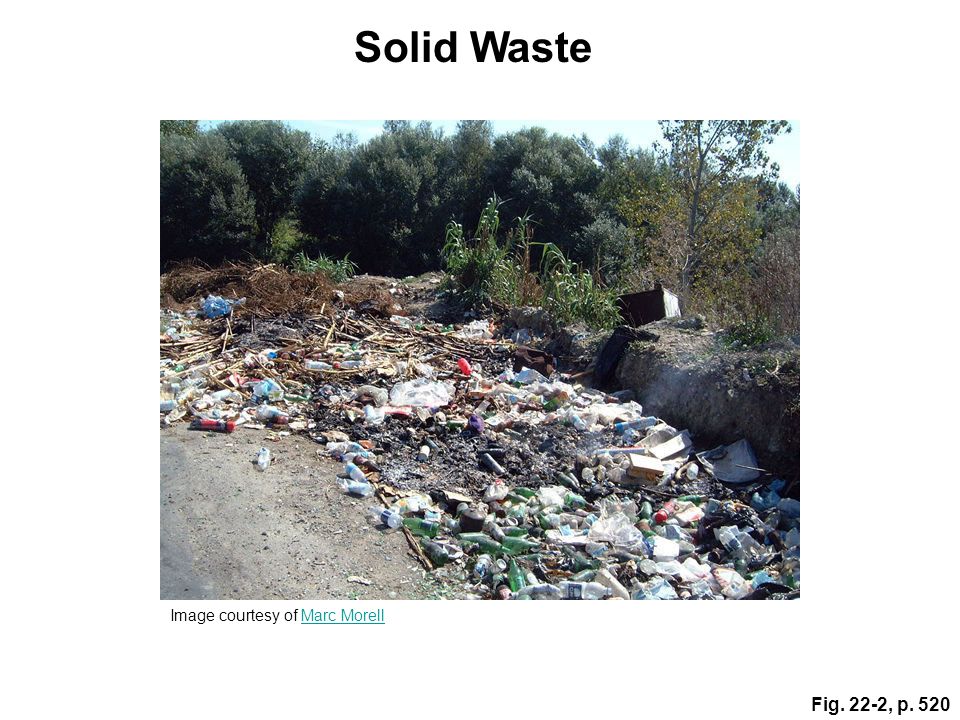

2. Fig. 22-2, p. 520 Solid Waste Image courtesy of Marc MorellMarc Morell

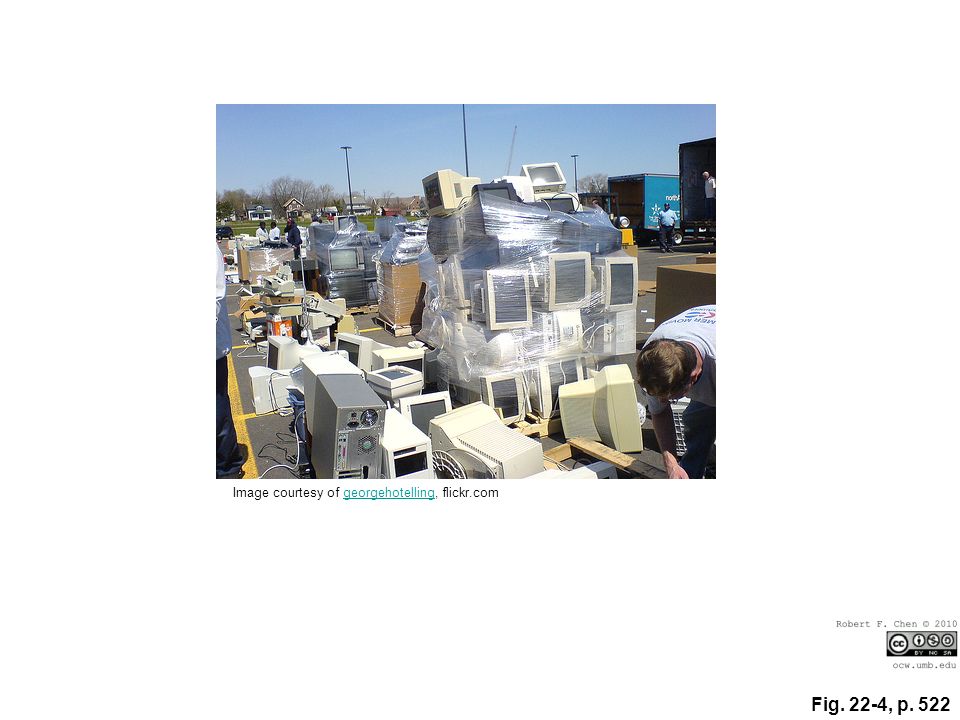

3. Fig. 22-4, p. 522 Image courtesy of georgehotelling, flickr.comgeorgehotelling

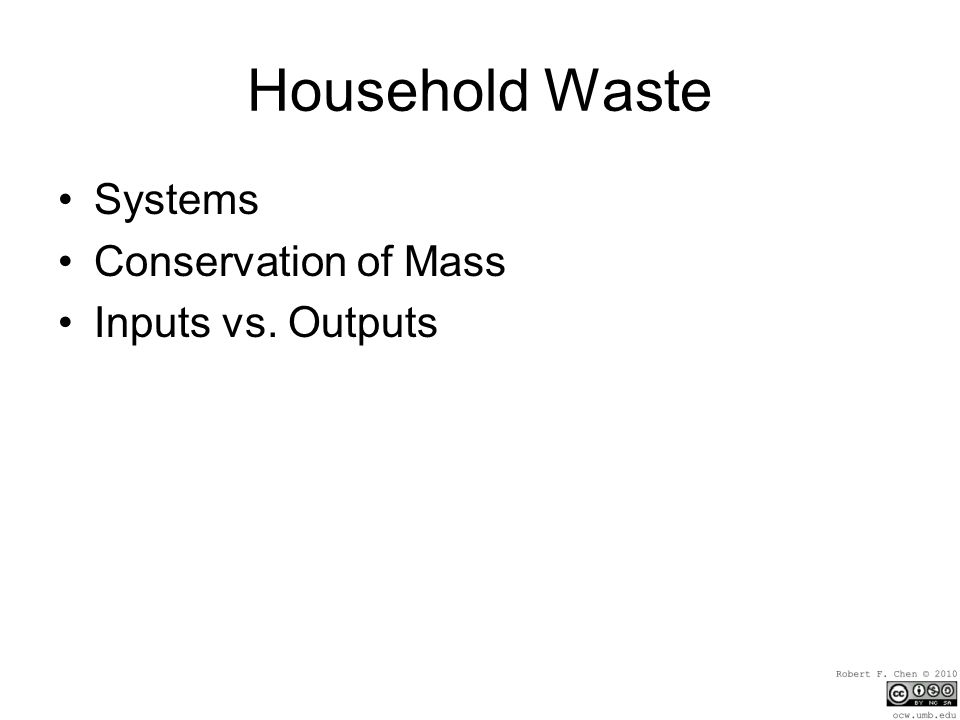

4. Household Waste Systems Conservation of Mass Inputs vs. Outputs

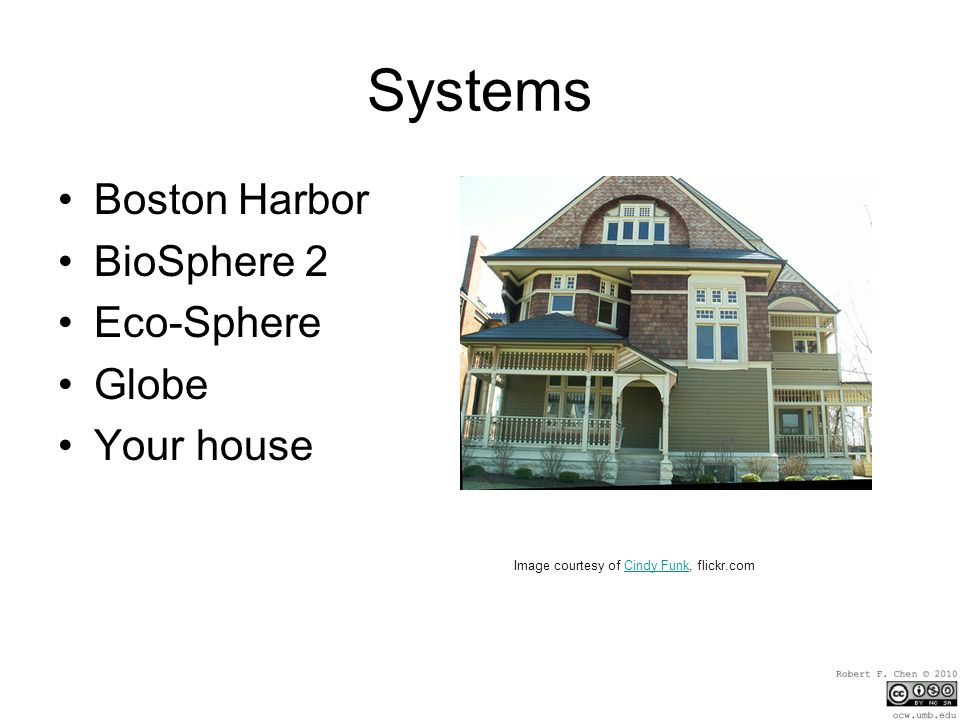

5. Systems Boston Harbor BioSphere 2 Eco-Sphere Globe Your house Image courtesy of Cindy Funk, flickr.comCindy Funk

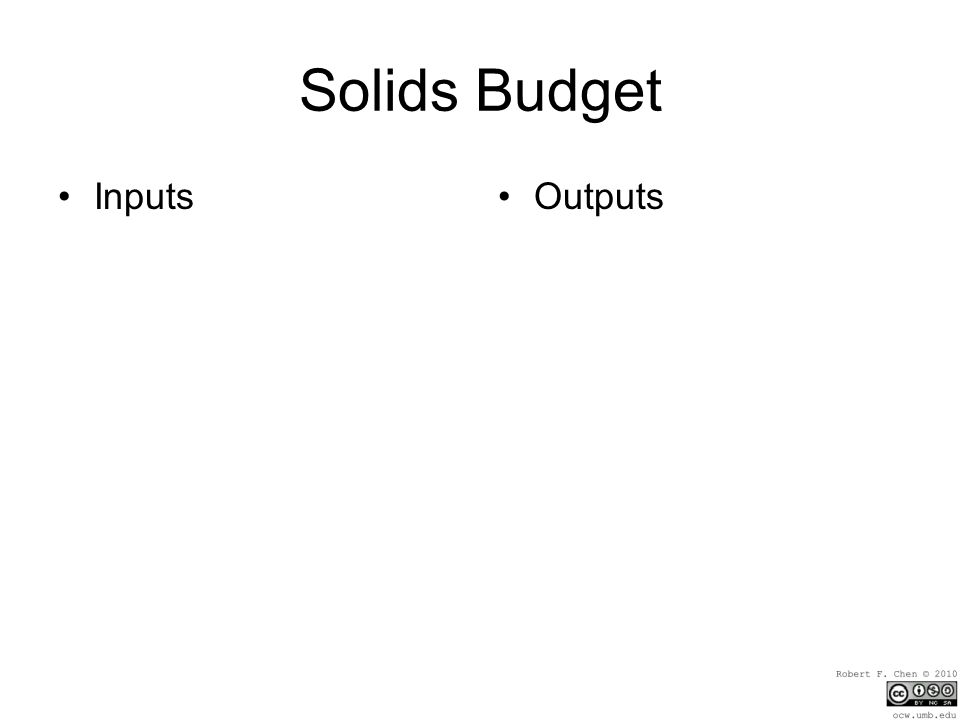

6. Solids Budget InputsOutputs

7. Budget Groceries (food) –Packaging –Beverages Books, newspapers, magazines Clothing Furniture Yardwaste Water Fuel Garbage disposal, sewage, compost, trash, recycle Recycle, trash Reuse, trash Compost, degrade, dump Sewage Carbon dioxide

8. Figure by UMB OpenCourseWare

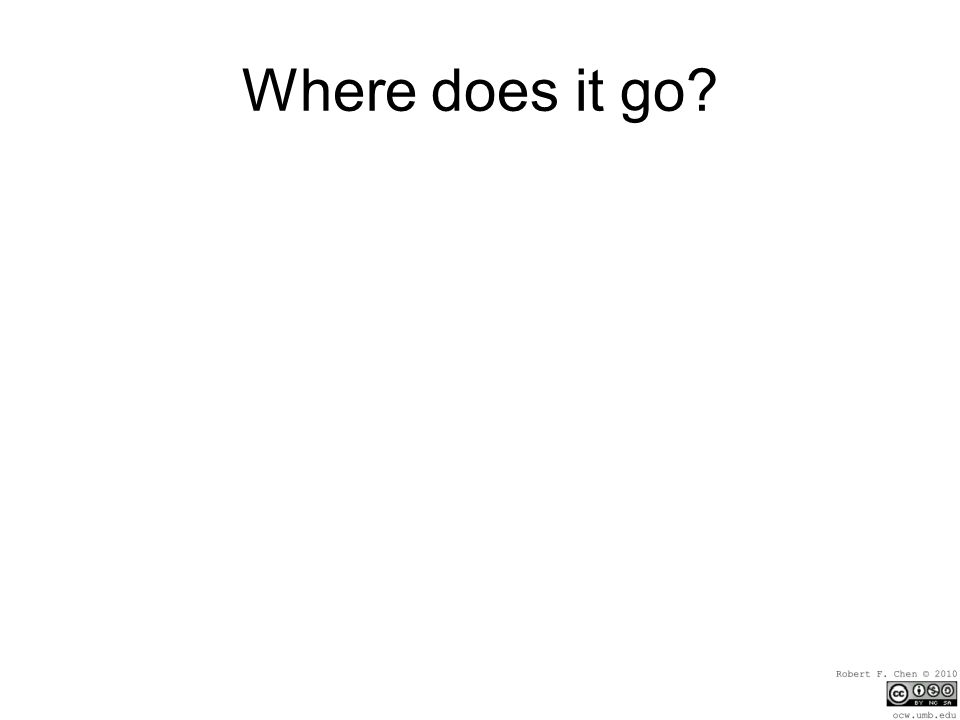

10. Where does it go?

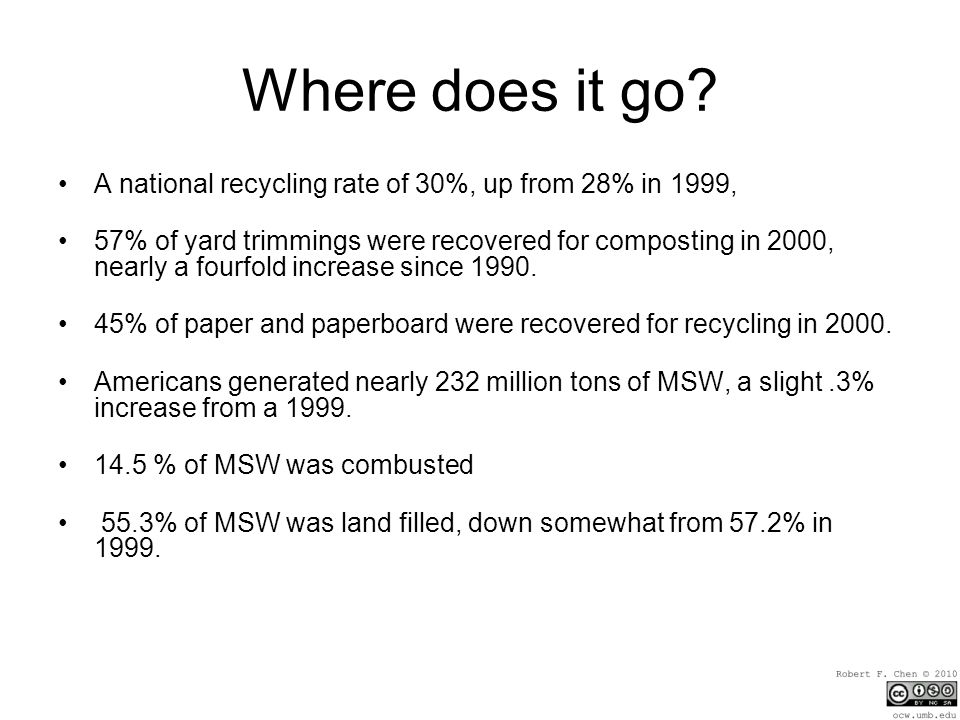

11. A national recycling rate of 30%, up from 28% in 1999, 57% of yard trimmings were recovered for composting in 2000, nearly a fourfold increase since 1990. 45% of paper and paperboard were recovered for recycling in 2000. Americans generated nearly 232 million tons of MSW, a slight.3% increase from a 1999. 14.5 % of MSW was combusted 55.3% of MSW was land filled, down somewhat from 57.2% in 1999.

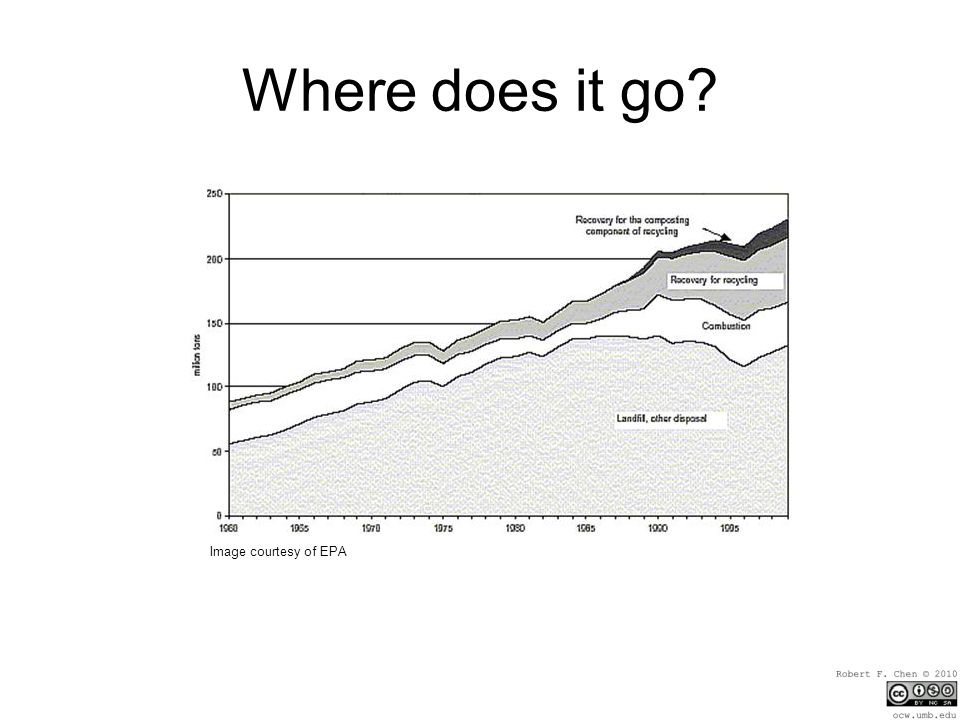

12. Where does it go? Image courtesy of EPA

13. US Disposal Figure by UMB OpenCourseWare

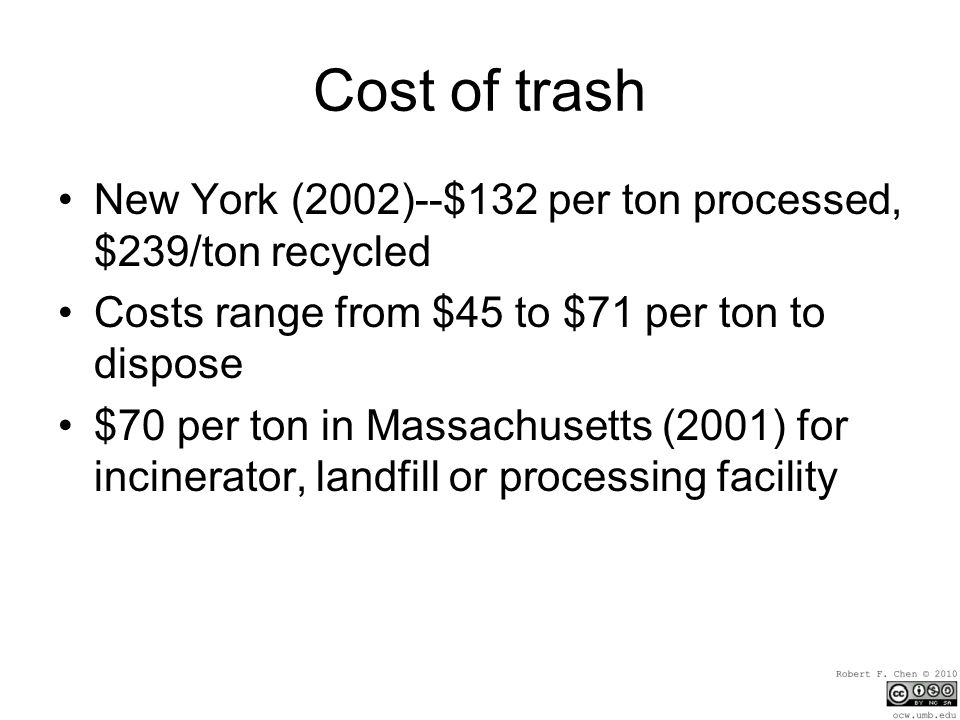

14. Cost of trash New York (2002)--$132 per ton processed, $239/ton recycled Costs range from $45 to $71 per ton to dispose $70 per ton in Massachusetts (2001) for incinerator, landfill or processing facility

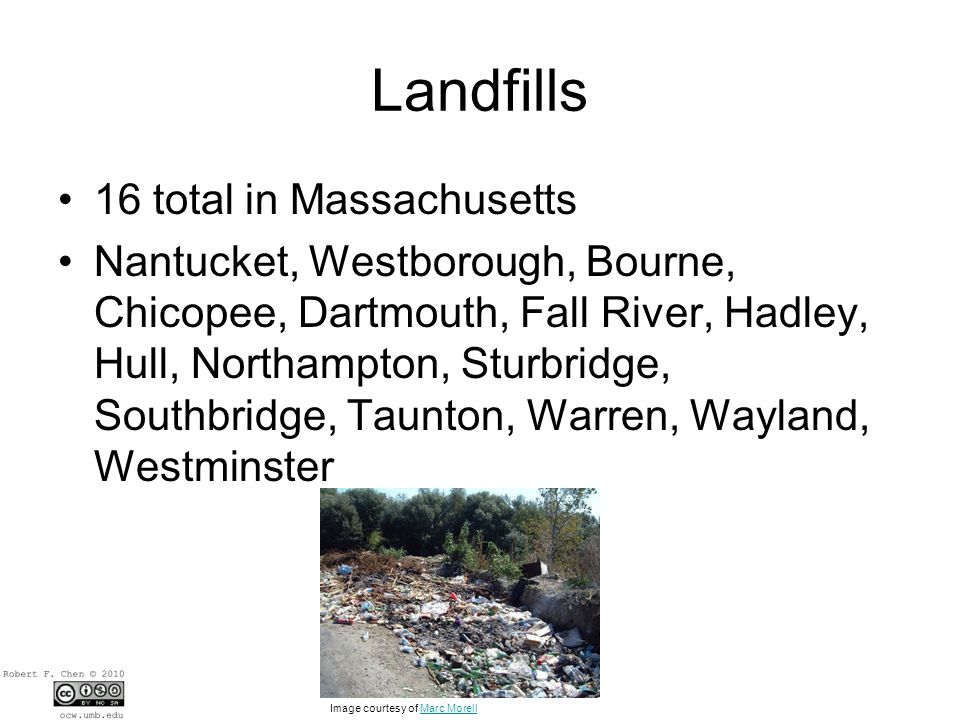

15. Landfills 16 total in Massachusetts Nantucket, Westborough, Bourne, Chicopee, Dartmouth, Fall River, Hadley, Hull, Northampton, Sturbridge, Southbridge, Taunton, Warren, Wayland, Westminster Image courtesy of Marc MorellMarc Morell

16. Fig. 22-12, p. 532 Sand When landfill is full, layers of soil and clay seal in trash Methane storage and compressor building Leachate storage tank Leachate monitoring well Groundwater monitoring well Electricity generator building Leachate treatment system Methane gas recovery well Compacted solid waste Leachate pipes Leachate pumped up to storage tank for safe disposal Groundwater Clay and plastic lining to prevent leaks; pipes collect leachate from bottom of landfill Topsoil Sand Clay Subsoil Probes to detect methane leaks Garbage Synthetic liner Sand Clay Pipes collect explosive methane as used as fuel to generate electricity Images removed due to copyright restrictions.

17. Incinerators Agawam Haverhill Millbury North Andover Rochester Image courtesy of USEPA

18. Fig. 22-10, p. 530 Crane Hazardous waste landfill Waste treatment Conventional landfill Waste pit Bottom ash Fly ash Conveyor Water added Dirty water Furnace Wet scrubber Electrostatic precipitator Boiler Smokestack Electricity Steam Turbine Generator Images removed due to copyright restrictions.

19. Conservation Reduce –Fewer inputs Reuse –Fewer inputs, fewer outputs Recycle –Have others use –Reduce production wastes

20. Recycling Rates Figure by UMB OpenCourseWare

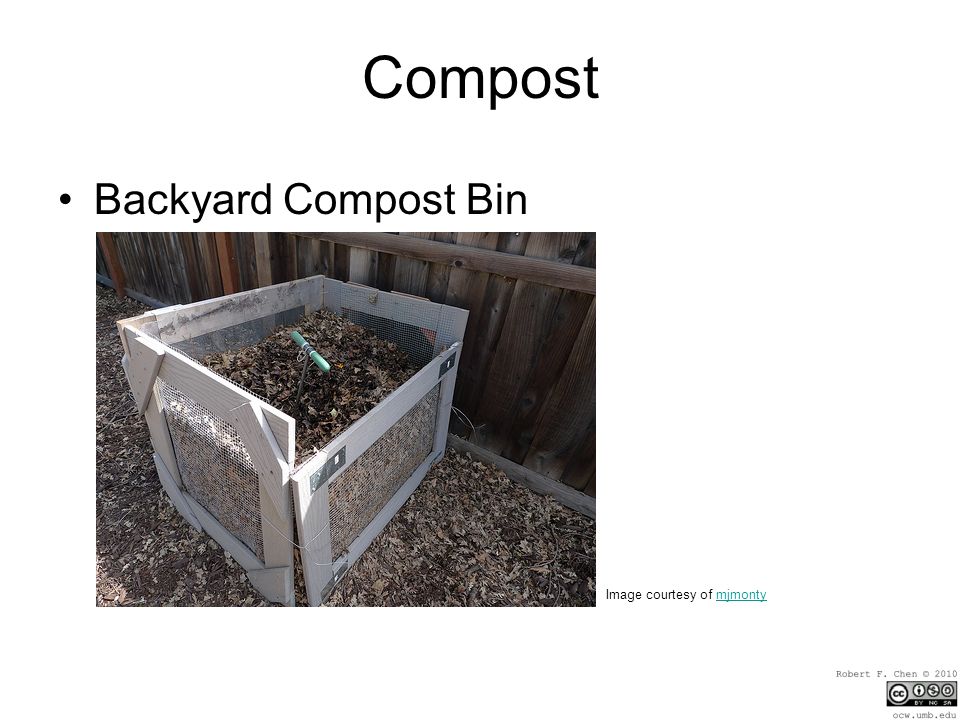

21. Compost Backyard Compost Bin Image courtesy of mjmontymjmonty

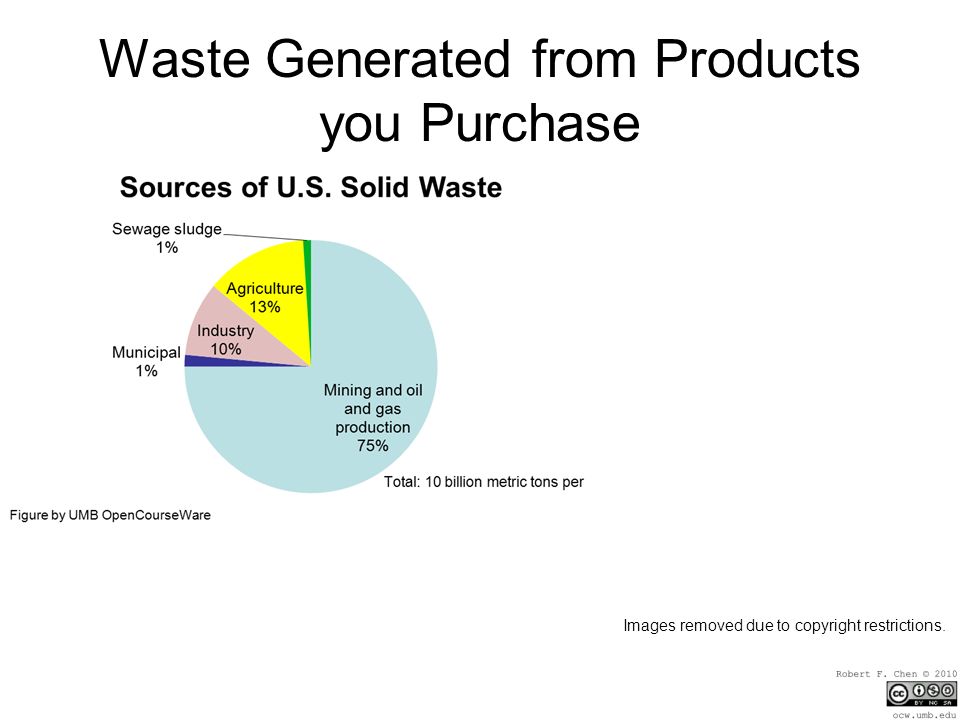

22. Waste Generated from Products you Purchase Images removed due to copyright restrictions.

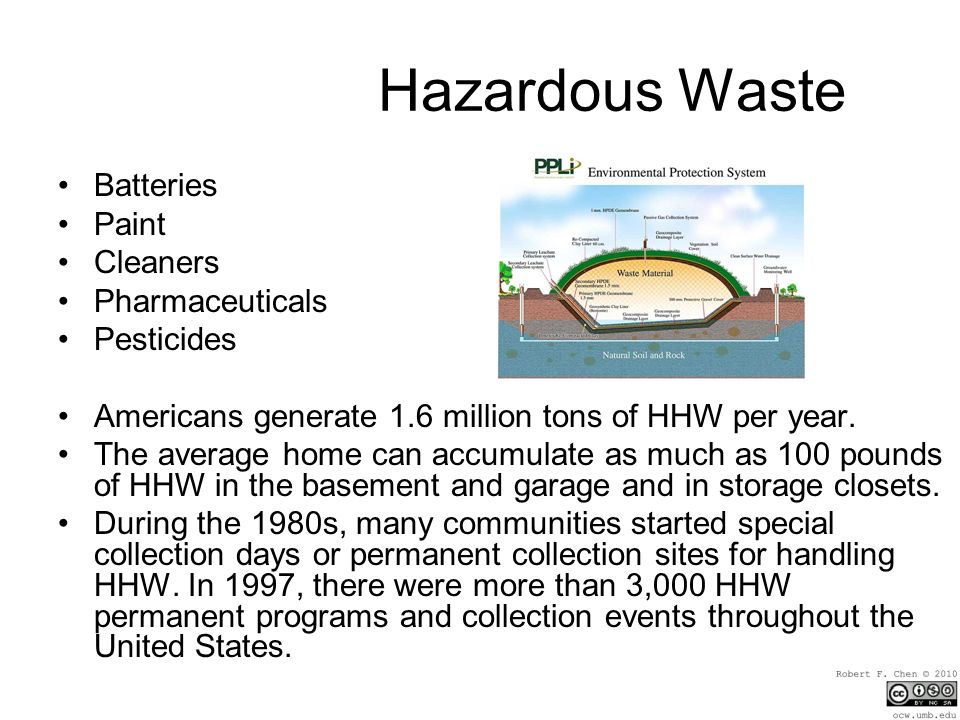

23. Hazardous Waste Batteries Paint Cleaners Pharmaceuticals Pesticides Americans generate 1.6 million tons of HHW per year. The average home can accumulate as much as 100 pounds of HHW in the basement and garage and in storage closets. During the 1980s, many communities started special collection days or permanent collection sites for handling HHW. In 1997, there were more than 3,000 HHW permanent programs and collection events throughout the United States.

24. Fig. 22-22, p. 540 Bulk waste Gas vent Topsoil Earth Plastic cover Clay cap Double leachate collection system Plastic double liner Impervious clay cap Leak detection system Reactive wastes in drums Groundwater monitoring well Groundwater Water table Earth Impervious clay Sand Images removed due to copyright restrictions.

25. Problems and Solutions Conservation of Mass –There is no “away” –Not in my backyard Pollution –Water pollution (leaching landfills) –Air pollution (incinerators) –Hazardous wastes Costs –Full cost accounting Reduce, reuse, recycle

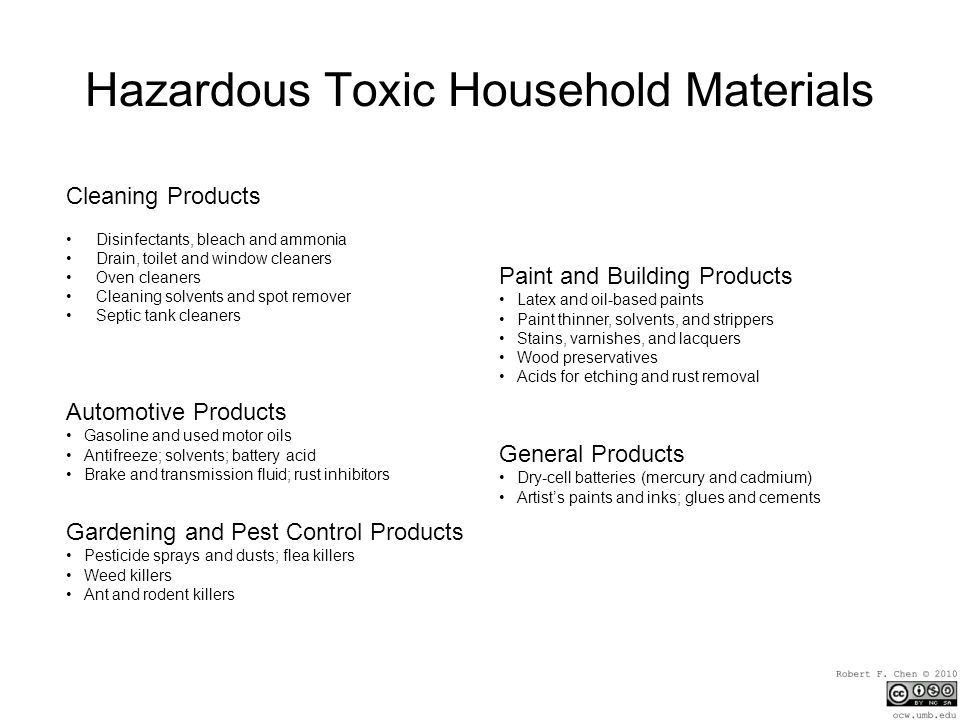

27. Hazardous Toxic Household Materials Cleaning Products Disinfectants, bleach and ammonia Drain, toilet and window cleaners Oven cleaners Cleaning solvents and spot remover Septic tank cleaners Paint and Building Products Latex and oil-based paints Paint thinner, solvents, and strippers Stains, varnishes, and lacquers Wood preservatives Acids for etching and rust removal Gardening and Pest Control Products Pesticide sprays and dusts; flea killers Weed killers Ant and rodent killers Automotive Products Gasoline and used motor oils Antifreeze; solvents; battery acid Brake and transmission fluid; rust inhibitors General Products Dry-cell batteries (mercury and cadmium) Artist’s paints and inks; glues and cements

29. Images removed due to copyright restrictions.
