The Complexity of Electronic Systems in Vehicles Meinrad Staudenmaier, Heiko Bauer CarMediaLab 10.22.03
2

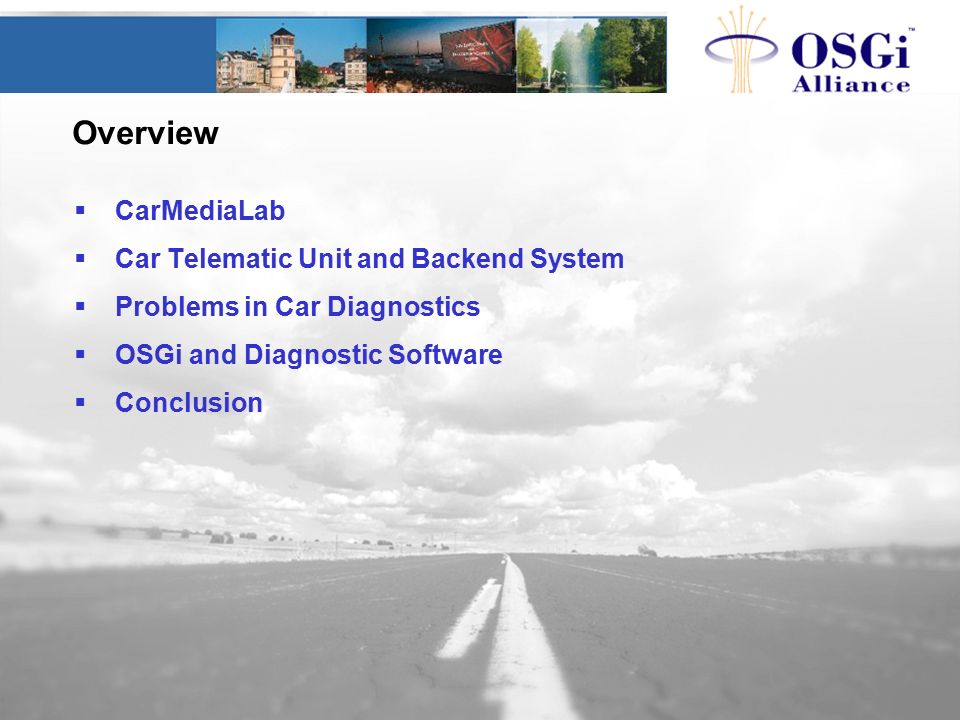

Overview CarMediaLab Car Telematic Unit and Backend System Problems in Car Diagnostics OSGi and Diagnostic Software Conclusion
3

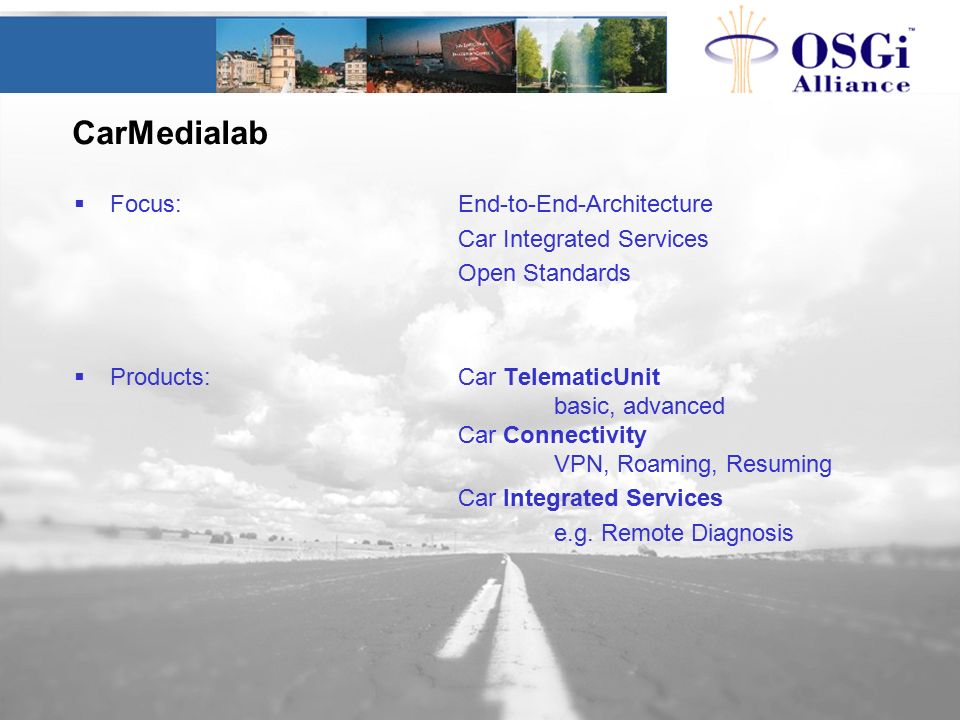

CarMedialab Focus:End-to-End-Architecture Car Integrated Services Open Standards Products: Car TelematicUnit basic, advanced Car Connectivity VPN, Roaming, Resuming Car Integrated Services e.g. Remote Diagnosis
4

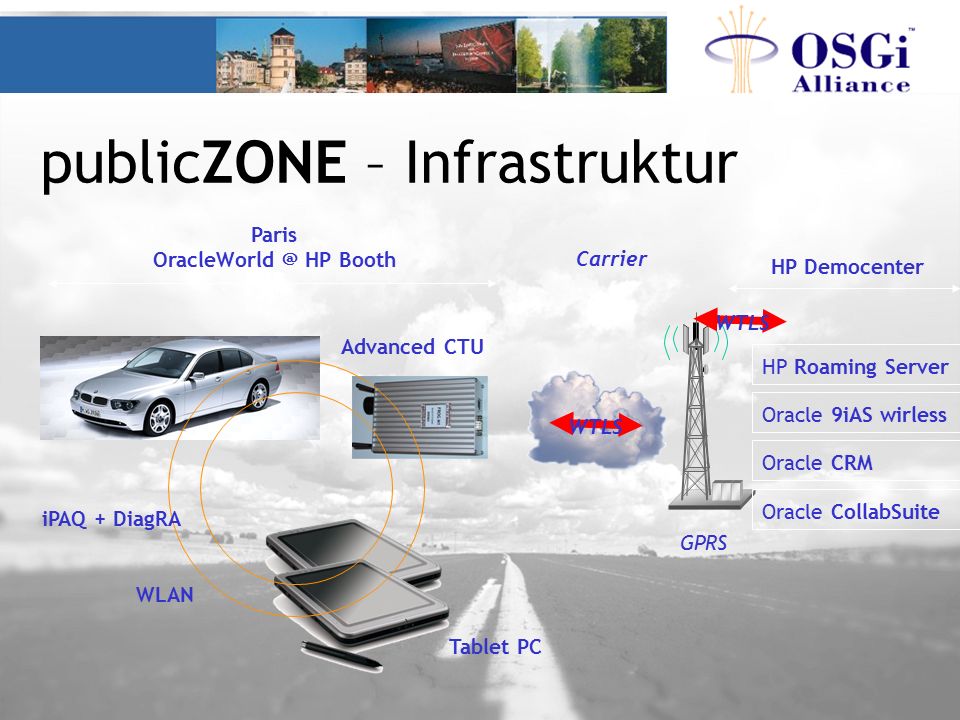

publicZONE – Infrastruktur WTLS GPRS Advanced CTU WLAN Carrier iPAQ + DiagRA Tablet PC Paris OracleWorld @ HP Booth HP Democenter HP Roaming Server Oracle 9iAS wirless Oracle CRM WTLS Oracle CollabSuite
5

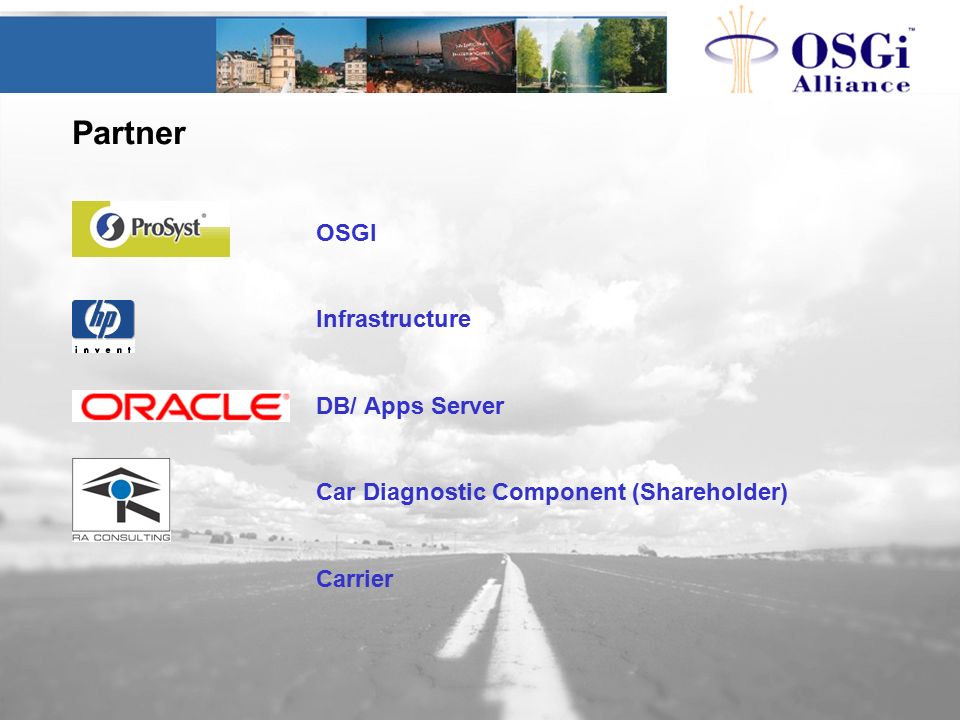

Partner OSGI Infrastructure DB/ Apps Server Car Diagnostic Component (Shareholder) Carrier
6

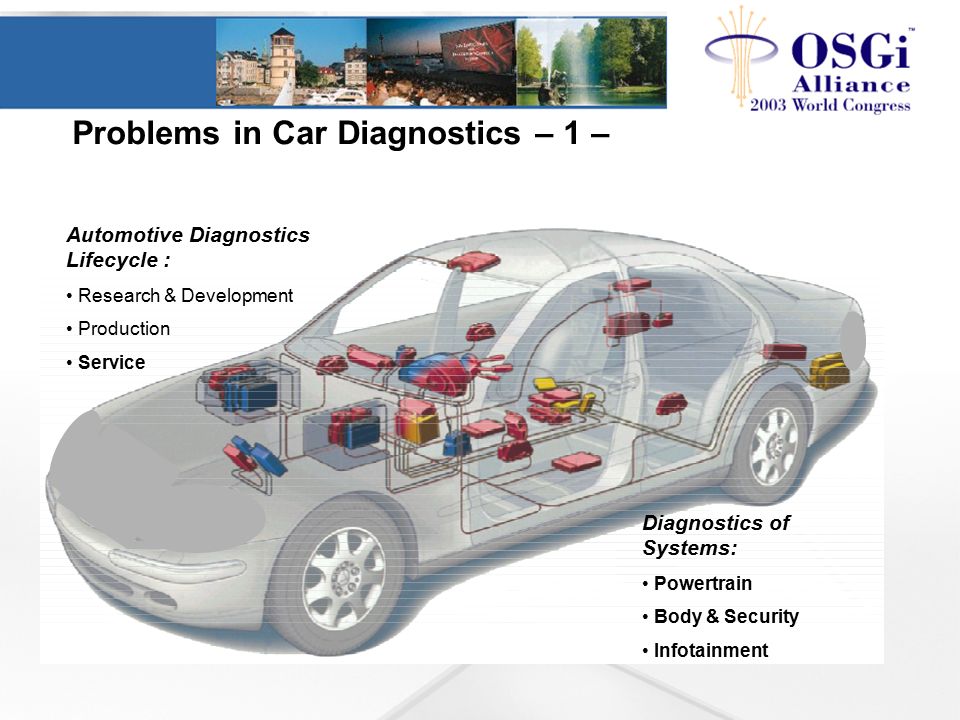

Problems in Car Diagnostics – 1 – Automotive Diagnostics Lifecycle : Research & Development Production Service Diagnostics of Systems: Powertrain Body & Security Infotainment
7
Problems in Car Diagnostics – 2 – Increasing number of… ECUs (up to 80/Vehicle) functions across ECUs (e.g. ESP) official and OEM specific standards (buses, protocols, data formats,…)
8
Problems in Car Diagnostics – 3 – Standars still leave room for interpretation OEM specific usage and extensions Customer specific requirements
9

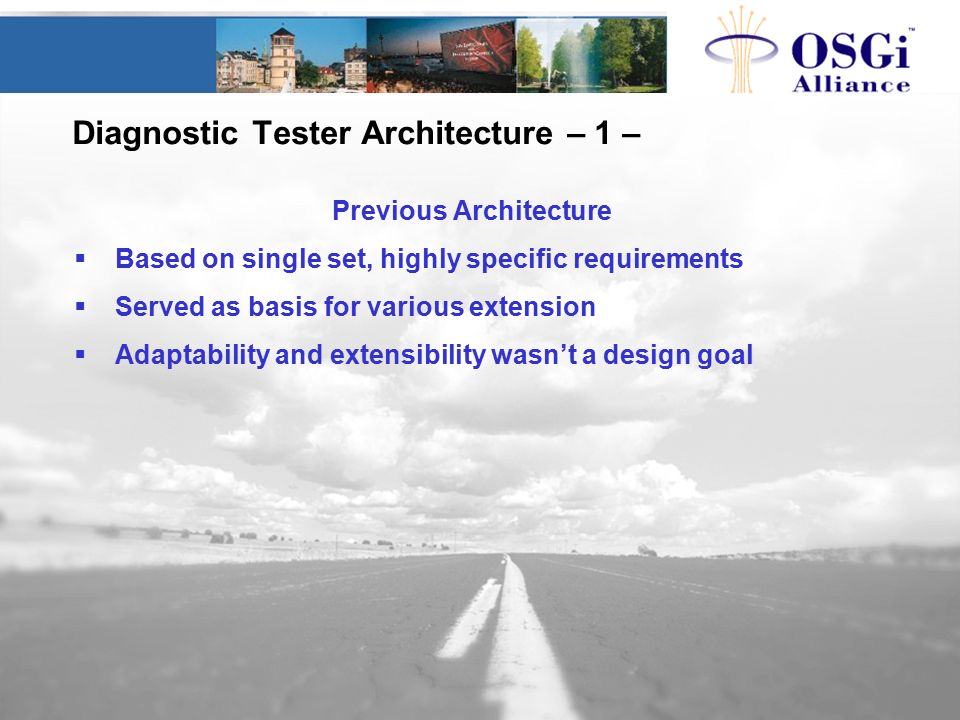

Diagnostic Tester Architecture – 1 – Previous Architecture Based on single set, highly specific requirements Served as basis for various extension Adaptability and extensibility wasn’t a design goal
10

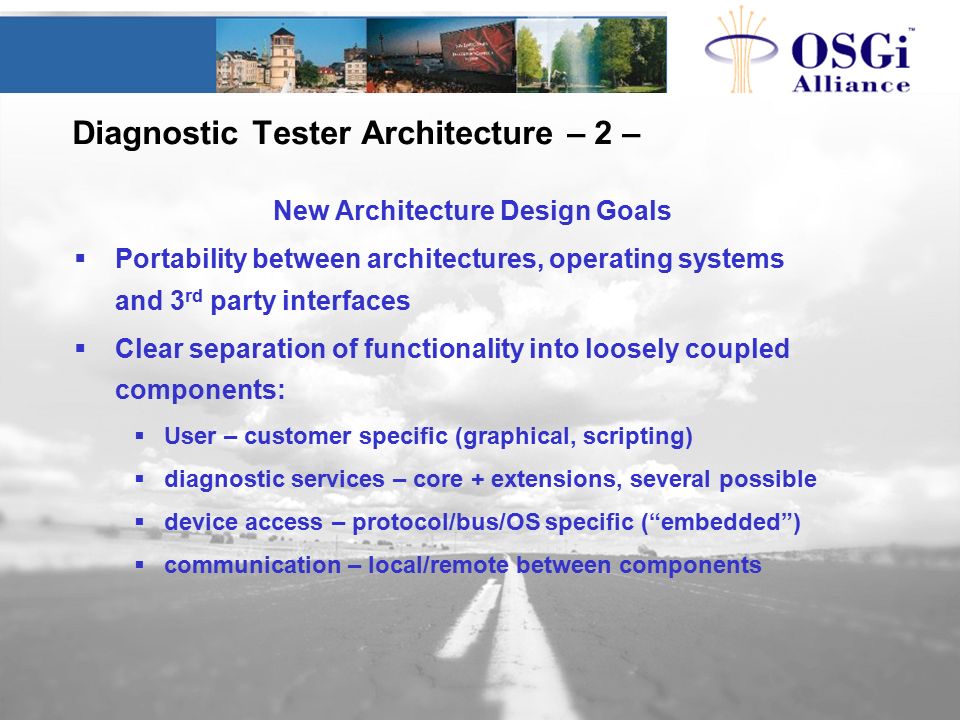

Diagnostic Tester Architecture – 2 – New Architecture Design Goals Portability between architectures, operating systems and 3 rd party interfaces Clear separation of functionality into loosely coupled components: User – customer specific (graphical, scripting) diagnostic services – core + extensions, several possible device access – protocol/bus/OS specific (“embedded”) communication – local/remote between components
11
Diagnostic Tester Architecture – 3 – ECU Protocol/Bus Embedded-Device Embedded Architektur protocol/bus service OS/3rd party Communication Communication-API Service-API Service-Application Service Architectur Config Service-Interpreter Physical Access Dependencies
12

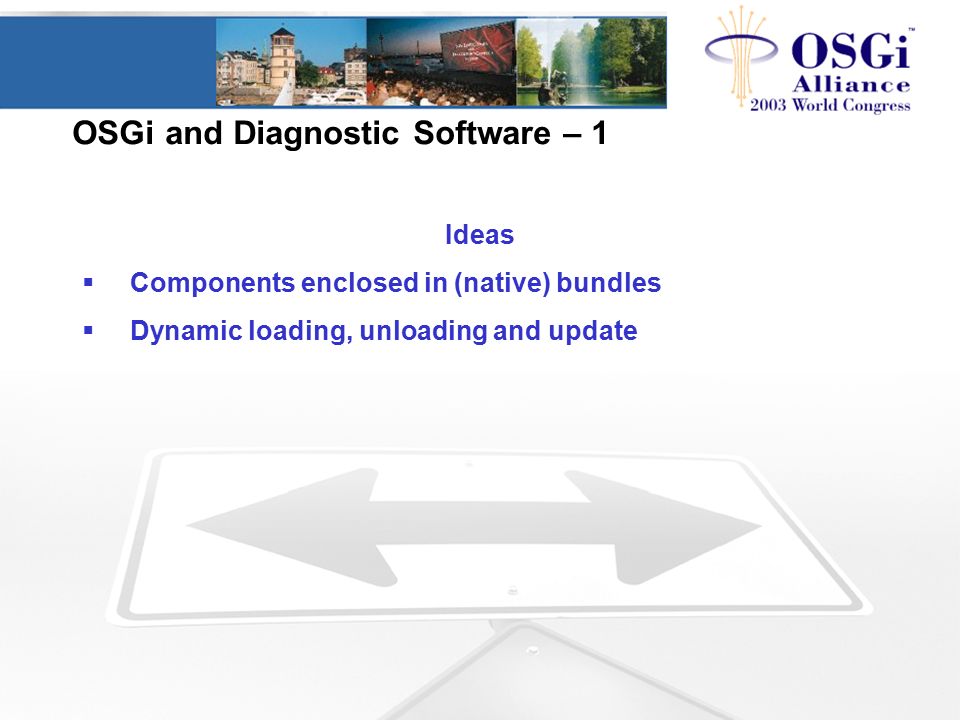

OSGi and Diagnostic Software – 1 Ideas Components enclosed in (native) bundles Dynamic loading, unloading and update
13

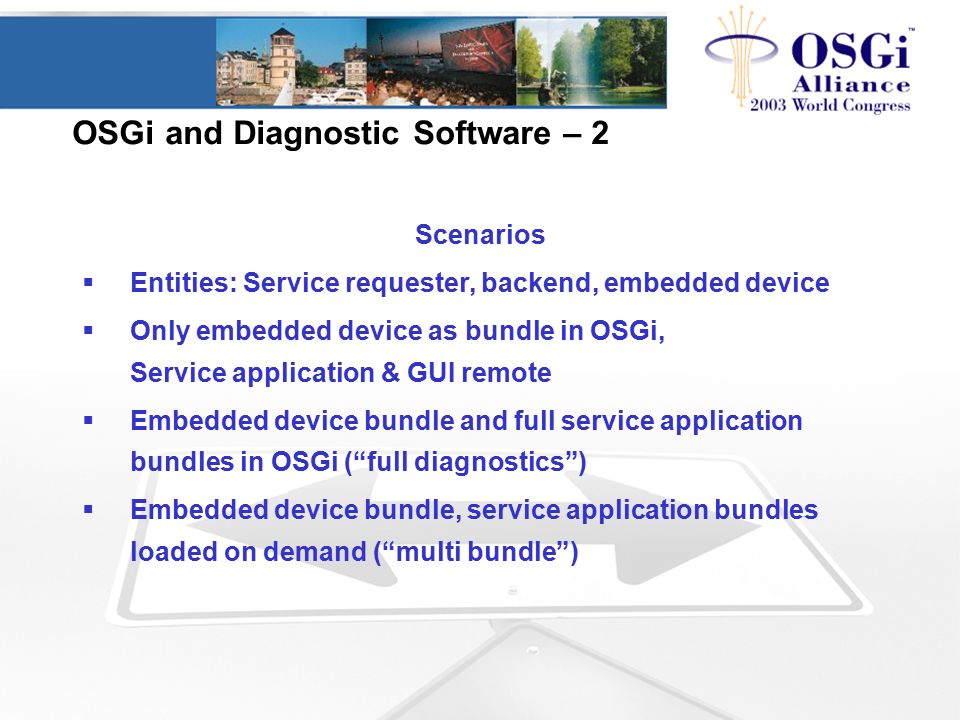

OSGi and Diagnostic Software – 2 Scenarios Entities: Service requester, backend, embedded device Only embedded device as bundle in OSGi, Service application & GUI remote Embedded device bundle and full service application bundles in OSGi (“full diagnostics”) Embedded device bundle, service application bundles loaded on demand (“multi bundle”)
14

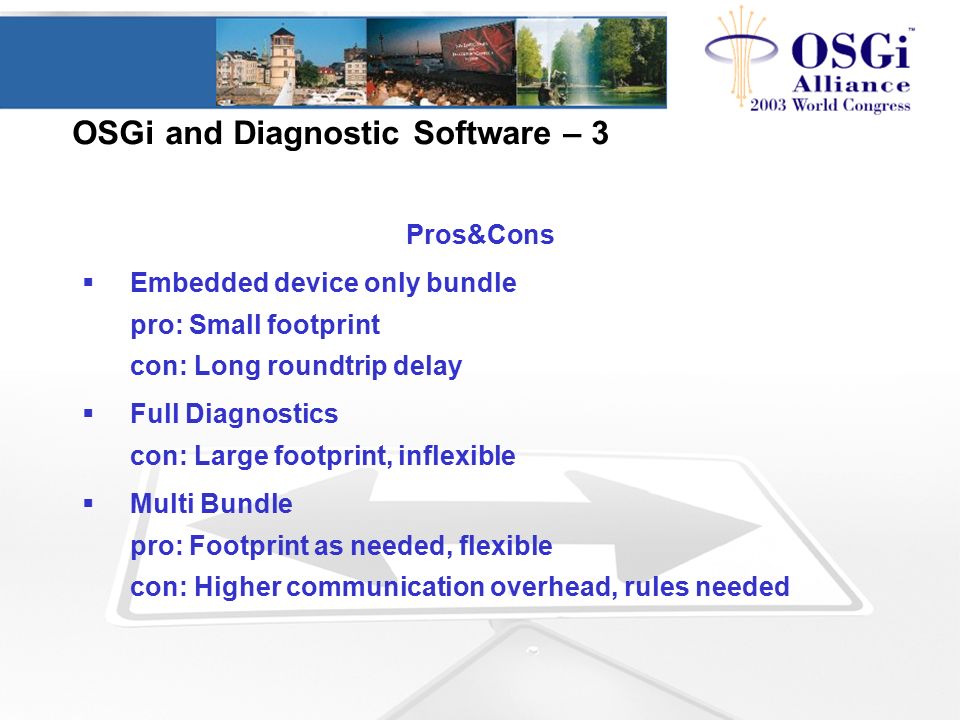

OSGi and Diagnostic Software – 3 Pros&Cons Embedded device only bundle pro: Small footprint con: Long roundtrip delay Full Diagnostics con: Large footprint, inflexible Multi Bundle pro: Footprint as needed, flexible con: Higher communication overhead, rules needed
15
OSGi and Diagnostic Software – 4 Problems & Issues Programming language boundaries Java C++ Are device access bundles delivered with OSGi powerful enough Impact on existing sourcecode
16

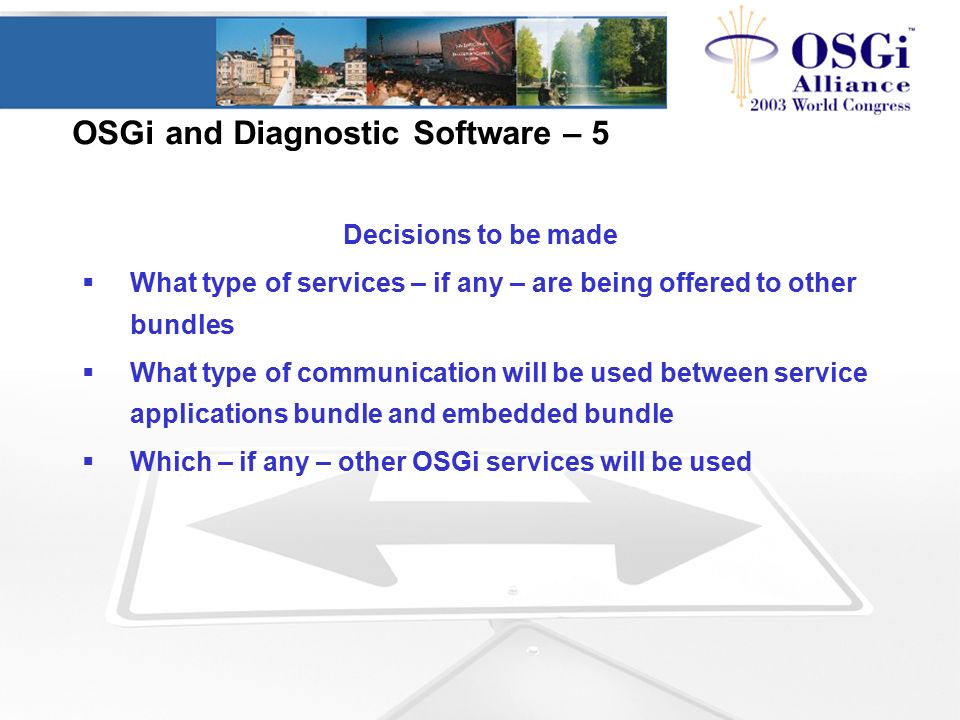

OSGi and Diagnostic Software – 5 Decisions to be made What type of services – if any – are being offered to other bundles What type of communication will be used between service applications bundle and embedded bundle Which – if any – other OSGi services will be used
17

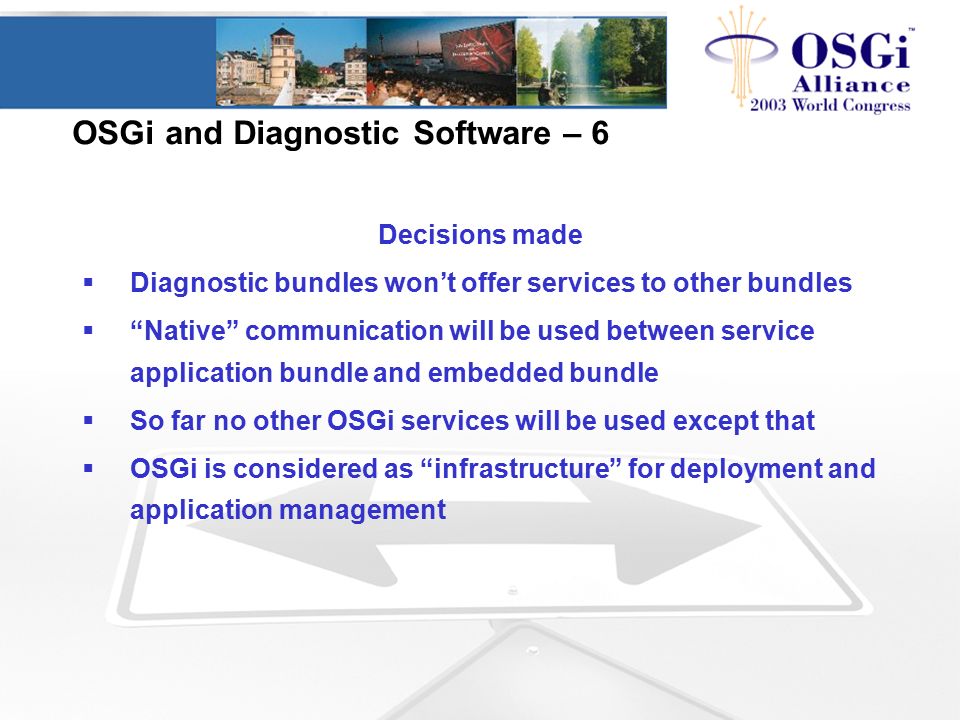

OSGi and Diagnostic Software – 6 Decisions made Diagnostic bundles won’t offer services to other bundles “Native” communication will be used between service application bundle and embedded bundle So far no other OSGi services will be used except that OSGi is considered as “infrastructure” for deployment and application management
18
Conclusion & Plans Components facilitate integration into OSGi, but there still remains a lot of work to do Basic CTU HP OpenView integration on Advanced CTU Tighter integration Diagnostics/OSGi by offering more services
19
Questions?
