1. 1 Cloudscape – Past and Present Frank Koconis Advisory Software Engineer/IBM Informix User Forum 2005 Moving Forward With Informix Atlanta, Georgia December 8-9, 2005

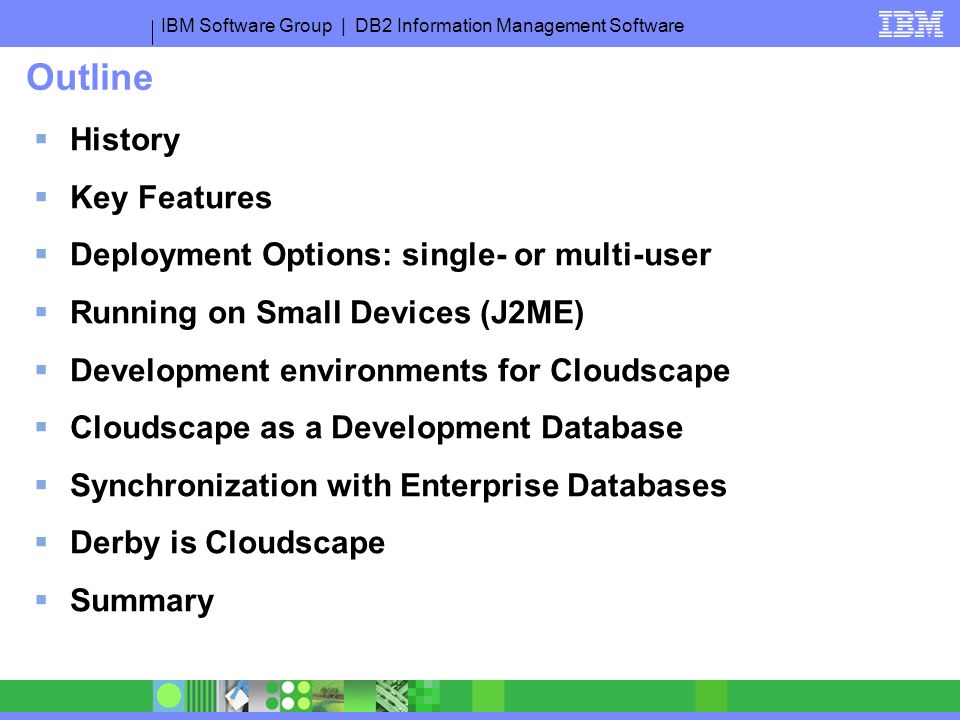

2. IBM Software Group | DB2 Information Management Software Outline  History  Key Features  Deployment Options: single- or multi-user  Running on Small Devices (J2ME)  Development environments for Cloudscape  Cloudscape as a Development Database  Synchronization with Enterprise Databases  Derby is Cloudscape  Summary

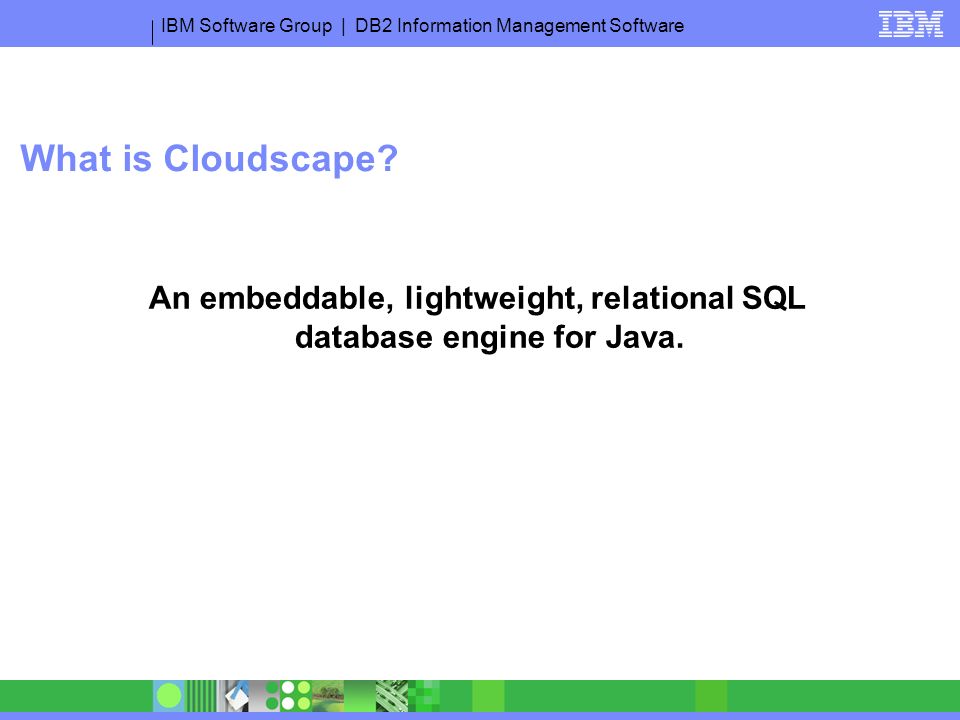

3. IBM Software Group | DB2 Information Management Software What is Cloudscape? An embeddable, lightweight, relational SQL database engine for Java.

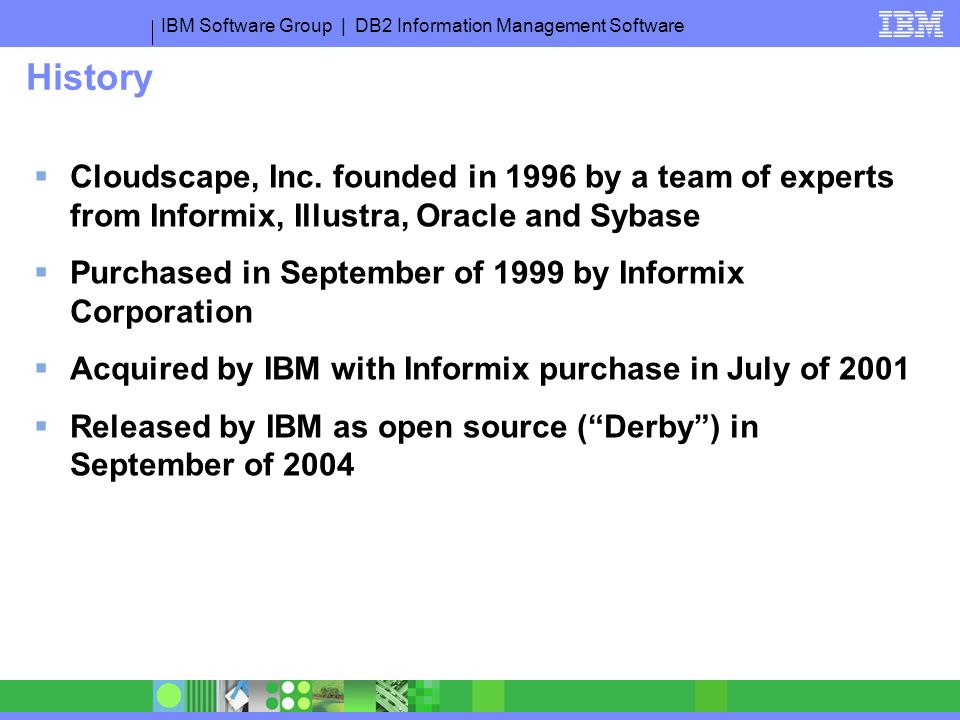

4. IBM Software Group | DB2 Information Management Software History  Cloudscape, Inc. founded in 1996 by a team of experts from Informix, Illustra, Oracle and Sybase  Purchased in September of 1999 by Informix Corporation  Acquired by IBM with Informix purchase in July of 2001  Released by IBM as open source (“Derby”) in September of 2004

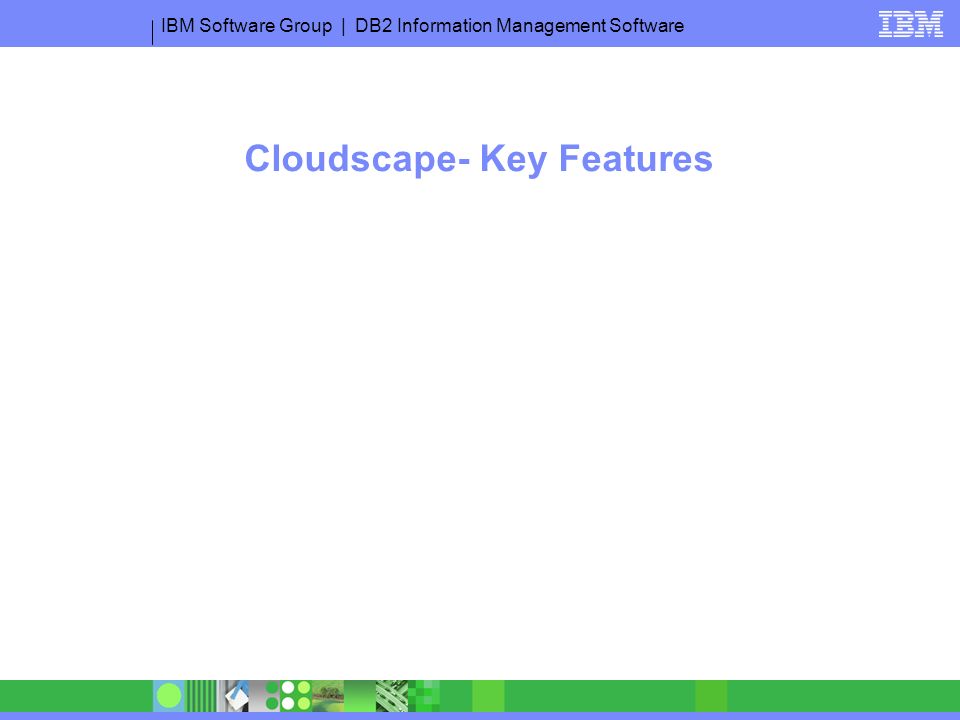

5. IBM Software Group | DB2 Information Management Software Cloudscape- Key Features

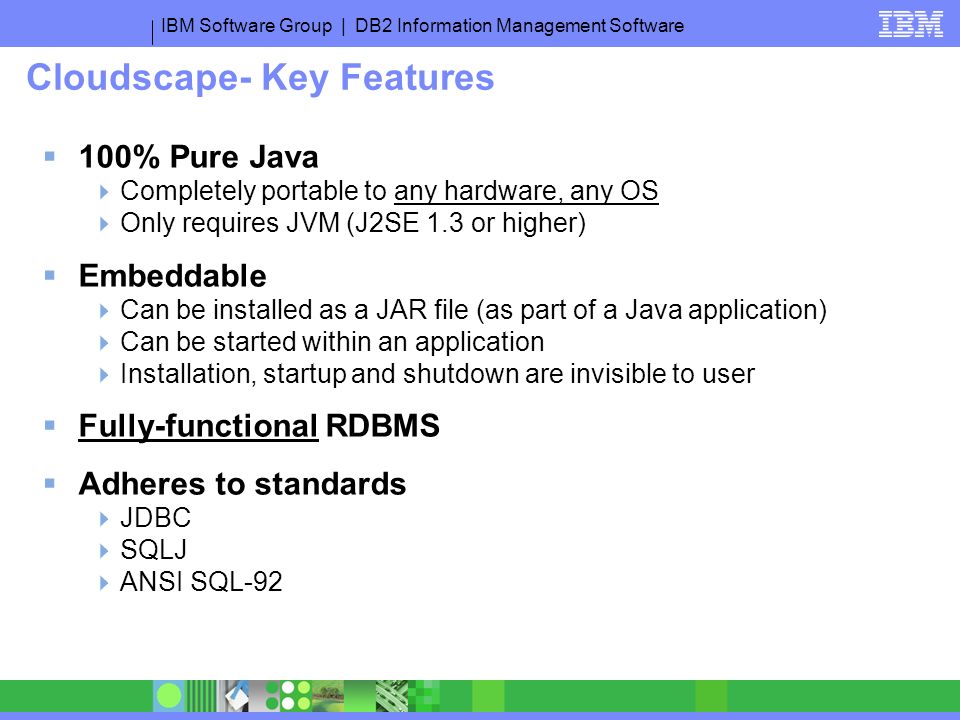

6. IBM Software Group | DB2 Information Management Software Cloudscape- Key Features  100% Pure Java  Completely portable to any hardware, any OS  Only requires JVM (J2SE 1.3 or higher)  Embeddable  Can be installed as a JAR file (as part of a Java application)  Can be started within an application  Installation, startup and shutdown are invisible to user  Fully-functional RDBMS  Adheres to standards  JDBC  SQLJ  ANSI SQL-92

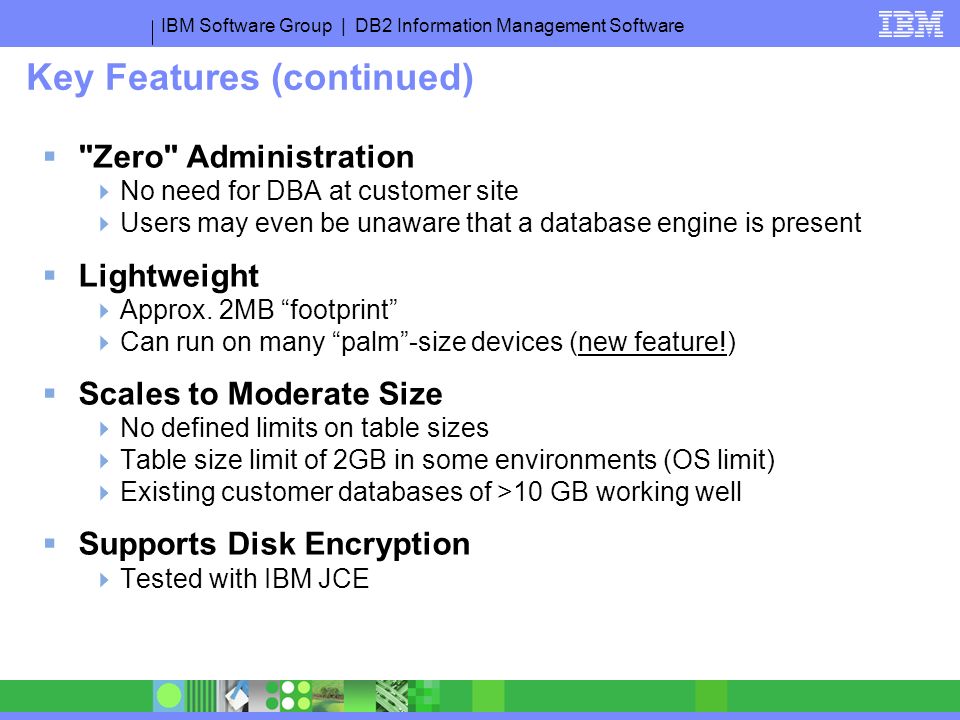

7. IBM Software Group | DB2 Information Management Software Key Features (continued)  "Zero" Administration  No need for DBA at customer site  Users may even be unaware that a database engine is present  Lightweight  Approx. 2MB “footprint”  Can run on many “palm”-size devices (new feature!)  Scales to Moderate Size  No defined limits on table sizes  Table size limit of 2GB in some environments (OS limit)  Existing customer databases of >10 GB working well  Supports Disk Encryption  Tested with IBM JCE

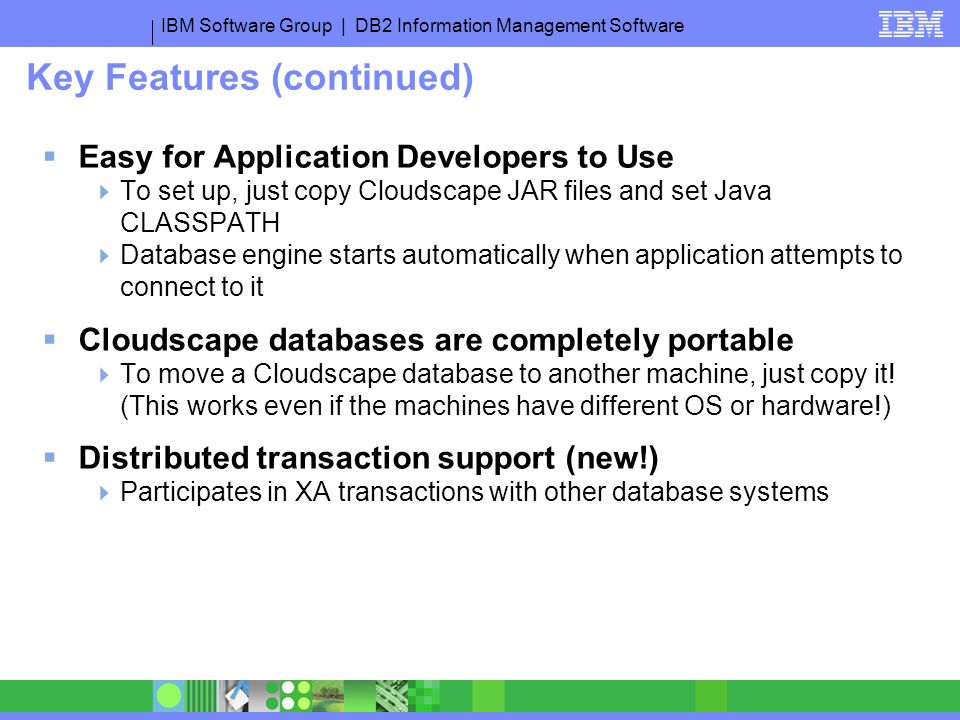

8. IBM Software Group | DB2 Information Management Software Key Features (continued)  Easy for Application Developers to Use  To set up, just copy Cloudscape JAR files and set Java CLASSPATH  Database engine starts automatically when application attempts to connect to it  Cloudscape databases are completely portable  To move a Cloudscape database to another machine, just copy it! (This works even if the machines have different OS or hardware!)  Distributed transaction support (new!)  Participates in XA transactions with other database systems

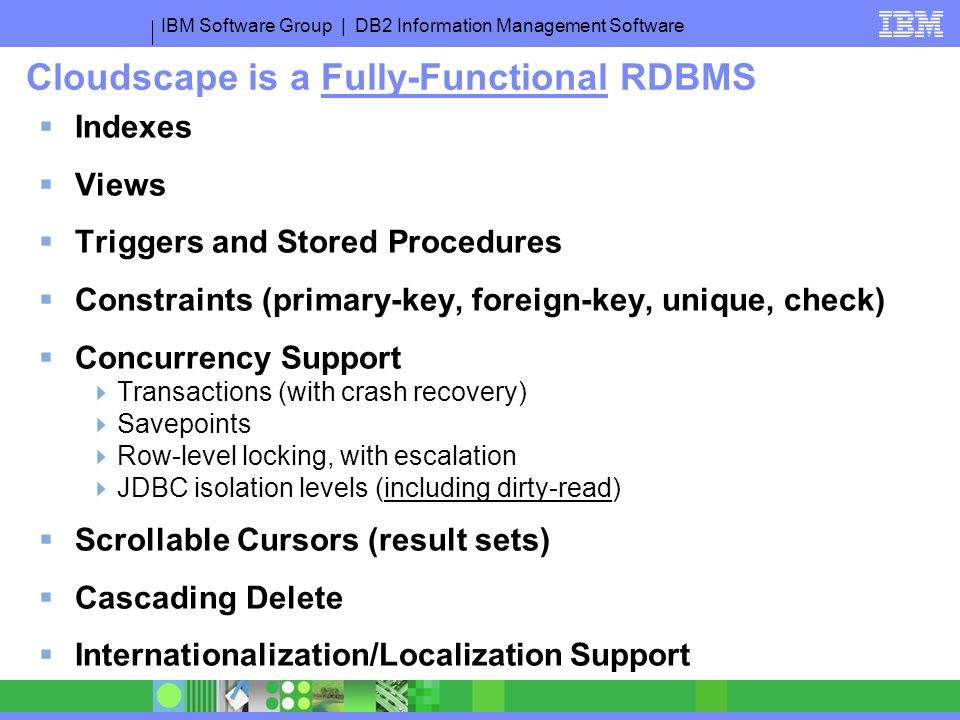

9. IBM Software Group | DB2 Information Management Software Cloudscape is a Fully-Functional RDBMS  Indexes  Views  Triggers and Stored Procedures  Constraints (primary-key, foreign-key, unique, check)  Concurrency Support  Transactions (with crash recovery)  Savepoints  Row-level locking, with escalation  JDBC isolation levels (including dirty-read)  Scrollable Cursors (result sets)  Cascading Delete  Internationalization/Localization Support

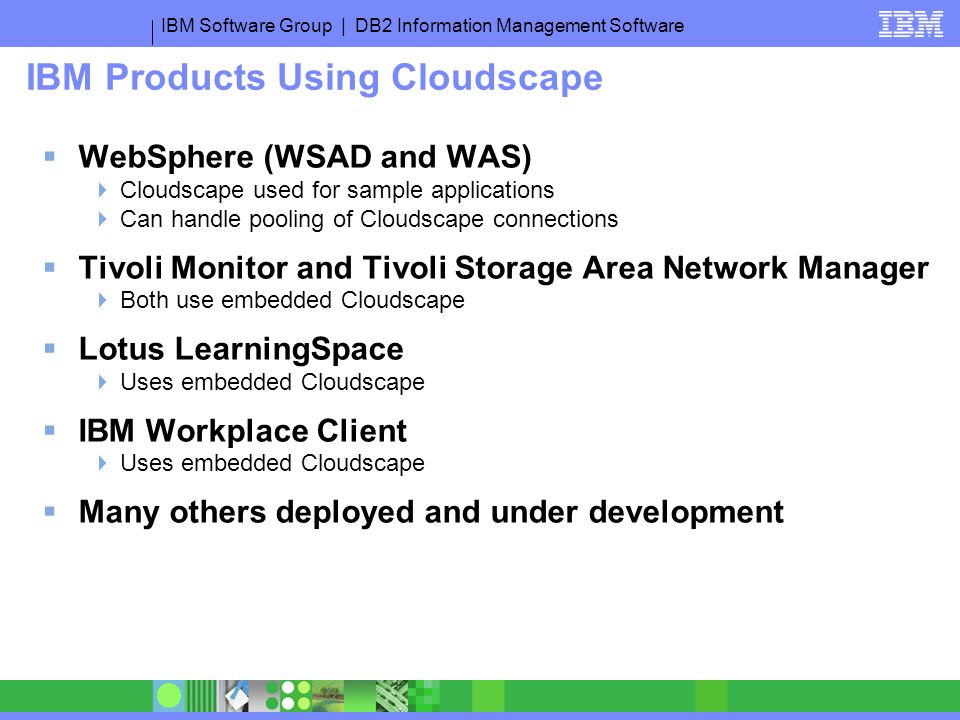

10. IBM Software Group | DB2 Information Management Software IBM Products Using Cloudscape  WebSphere (WSAD and WAS)  Cloudscape used for sample applications  Can handle pooling of Cloudscape connections  Tivoli Monitor and Tivoli Storage Area Network Manager  Both use embedded Cloudscape  Lotus LearningSpace  Uses embedded Cloudscape  IBM Workplace Client  Uses embedded Cloudscape  Many others deployed and under development

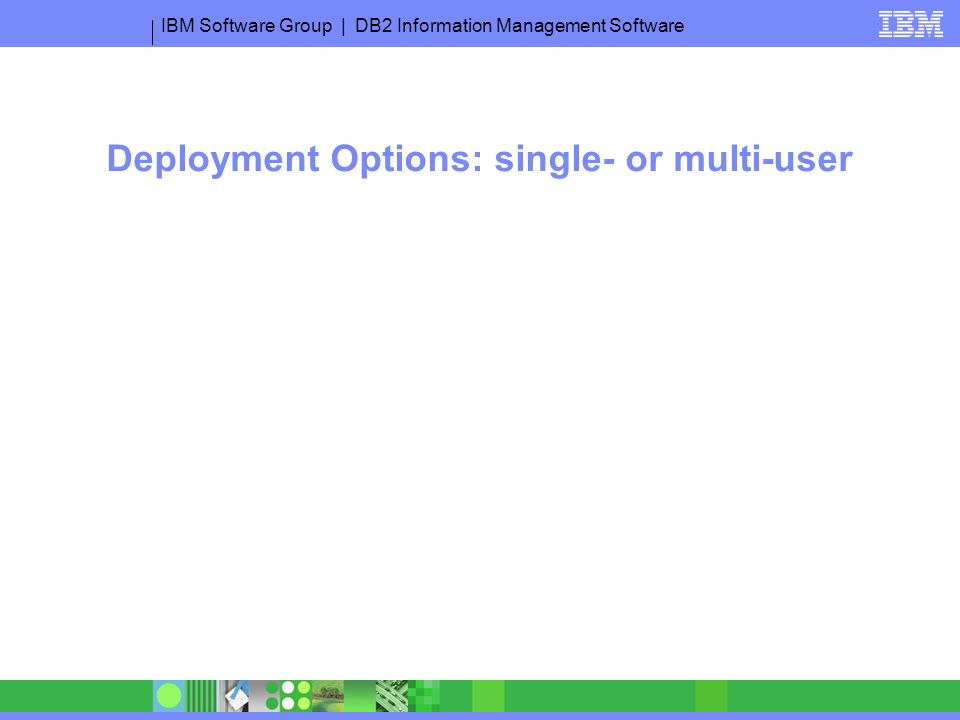

11. IBM Software Group | DB2 Information Management Software Deployment Options: single- or multi-user

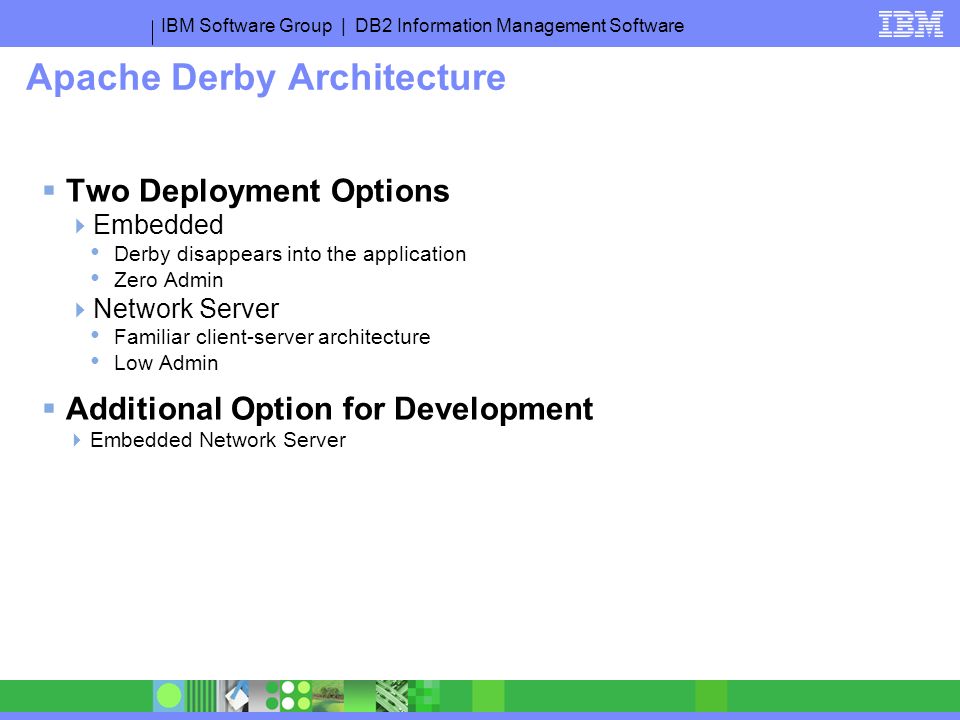

12. IBM Software Group | DB2 Information Management Software Apache Derby Architecture  Two Deployment Options  Embedded Derby disappears into the application Zero Admin  Network Server Familiar client-server architecture Low Admin  Additional Option for Development  Embedded Network Server

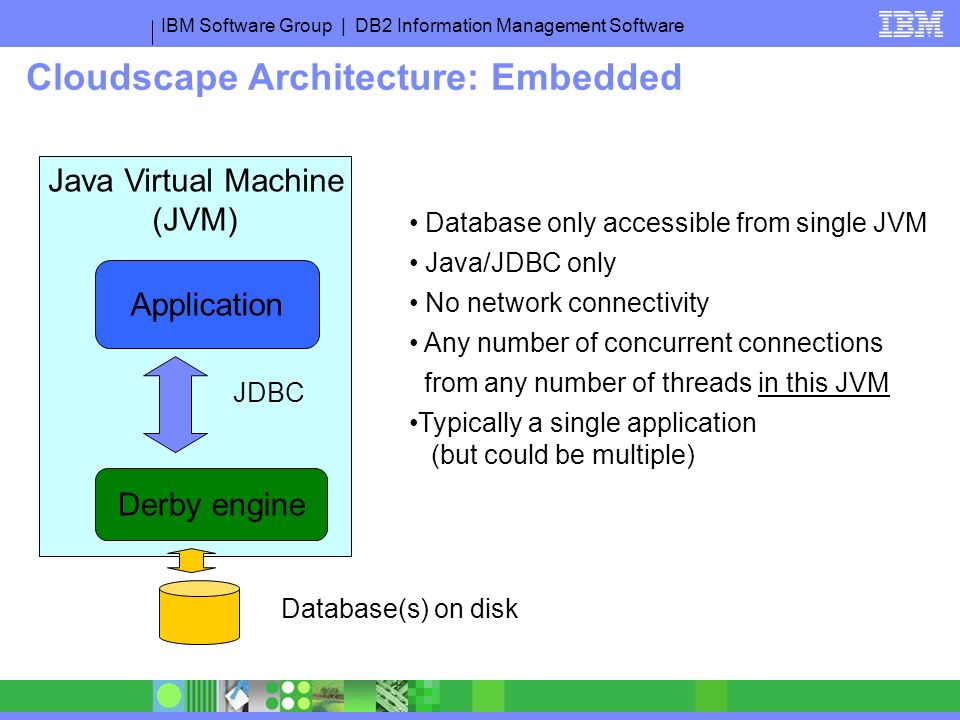

13. IBM Software Group | DB2 Information Management Software Cloudscape Architecture: Embedded Java Virtual Machine (JVM) Derby engine Database(s) on disk Application JDBC Database only accessible from single JVM Java/JDBC only No network connectivity Any number of concurrent connections from any number of threads in this JVM Typically a single application (but could be multiple)

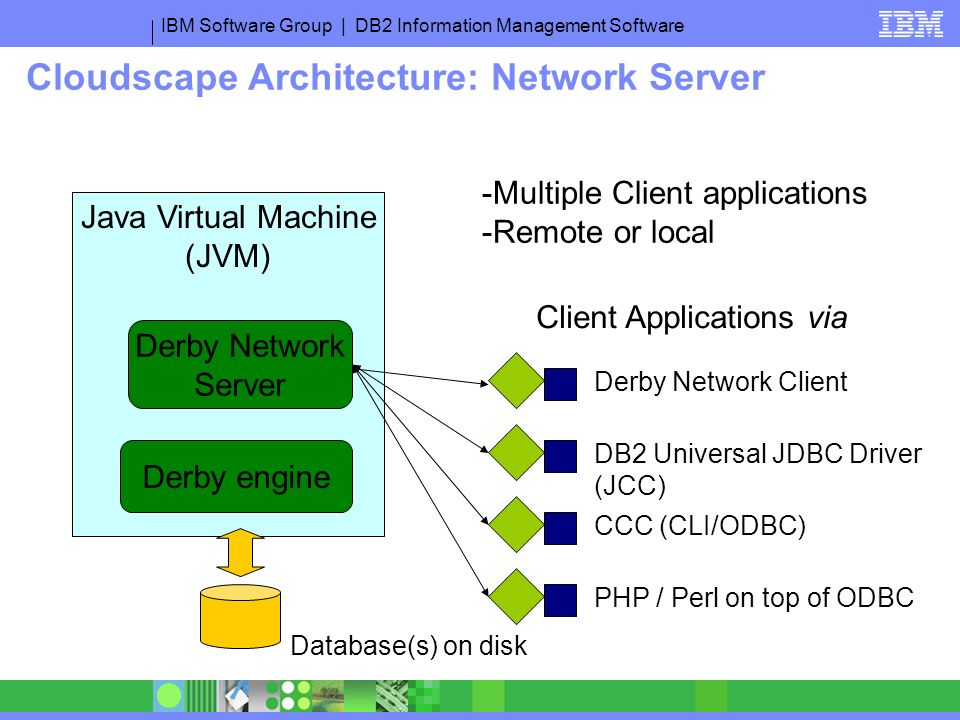

14. IBM Software Group | DB2 Information Management Software Cloudscape Architecture: Network Server Java Virtual Machine (JVM) Derby engine Derby Network Server DB2 Universal JDBC Driver (JCC) CCC (CLI/ODBC) -Multiple Client applications -Remote or local PHP / Perl on top of ODBC Client Applications via Derby Network Client Database(s) on disk

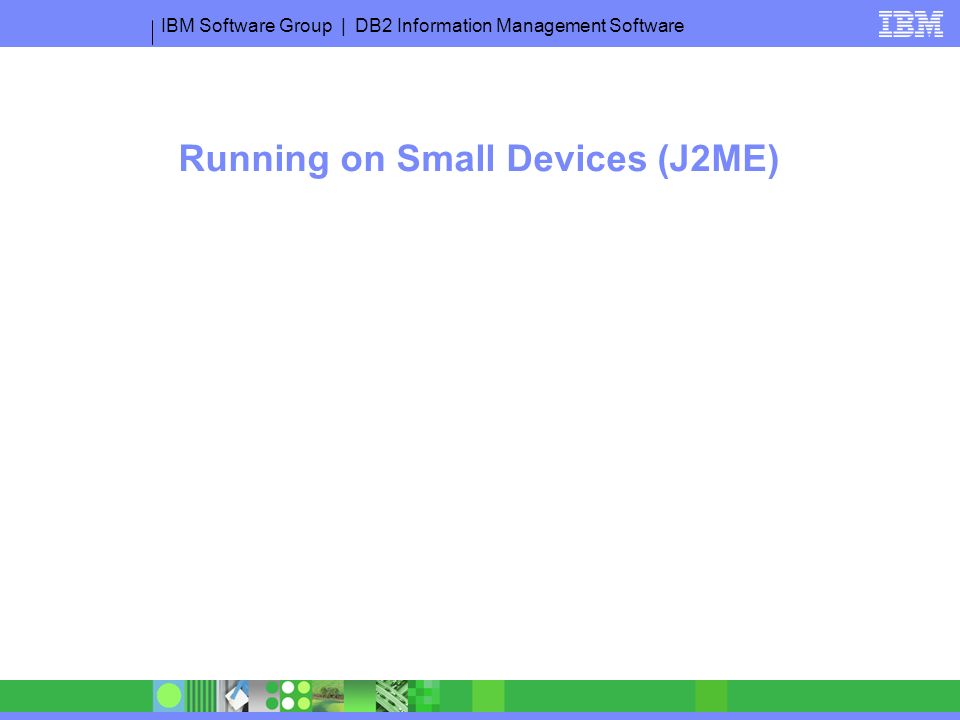

15. IBM Software Group | DB2 Information Management Software Running on Small Devices (J2ME)

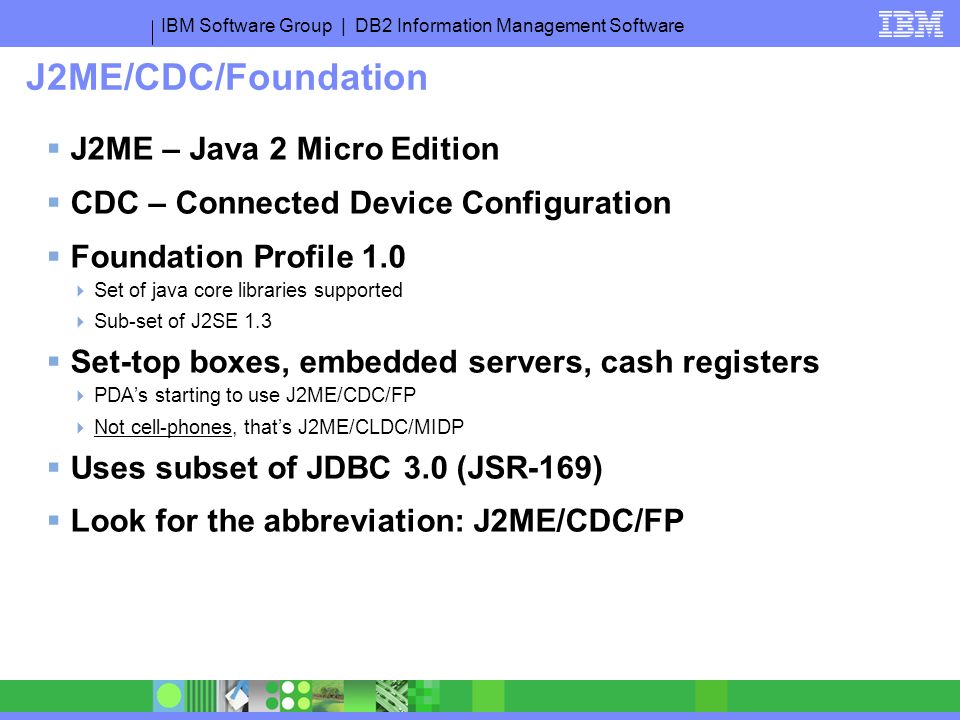

16. IBM Software Group | DB2 Information Management Software J2ME/CDC/Foundation  J2ME – Java 2 Micro Edition  CDC – Connected Device Configuration  Foundation Profile 1.0  Set of java core libraries supported  Sub-set of J2SE 1.3  Set-top boxes, embedded servers, cash registers  PDA’s starting to use J2ME/CDC/FP  Not cell-phones, that’s J2ME/CLDC/MIDP  Uses subset of JDBC 3.0 (JSR-169)  Look for the abbreviation: J2ME/CDC/FP

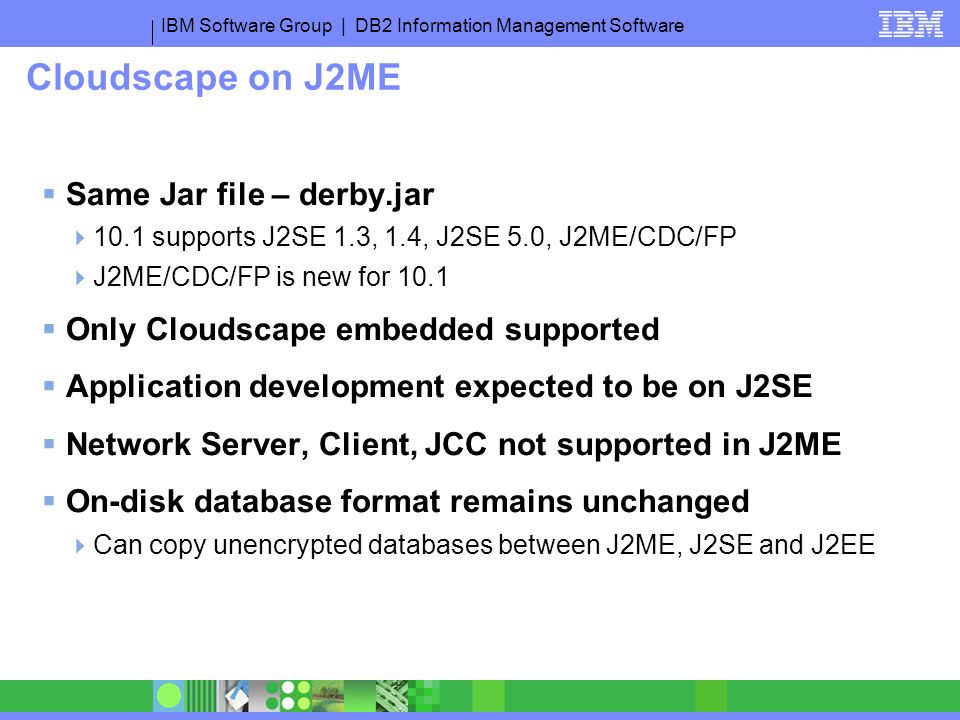

17. IBM Software Group | DB2 Information Management Software Cloudscape on J2ME  Same Jar file – derby.jar  10.1 supports J2SE 1.3, 1.4, J2SE 5.0, J2ME/CDC/FP  J2ME/CDC/FP is new for 10.1  Only Cloudscape embedded supported  Application development expected to be on J2SE  Network Server, Client, JCC not supported in J2ME  On-disk database format remains unchanged  Can copy unencrypted databases between J2ME, J2SE and J2EE

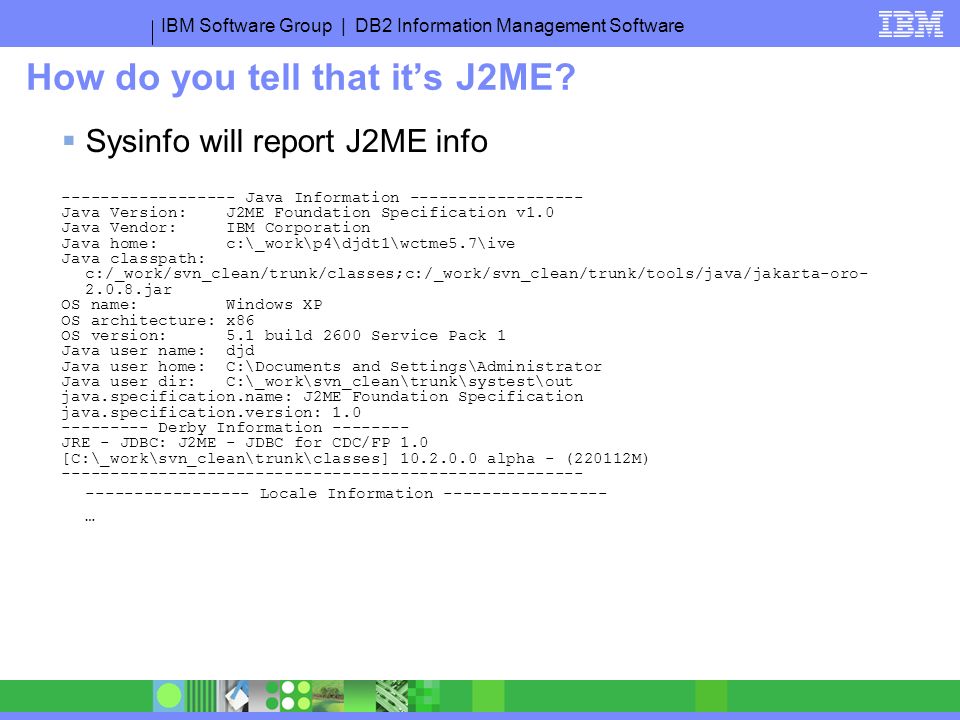

18. IBM Software Group | DB2 Information Management Software How do you tell that it’s J2ME?  Sysinfo will report J2ME info ------------------ Java Information ------------------ Java Version: J2ME Foundation Specification v1.0 Java Vendor: IBM Corporation Java home: c:\_work\p4\djdt1\wctme5.7\ive Java classpath: c:/_work/svn_clean/trunk/classes;c:/_work/svn_clean/trunk/tools/java/jakarta-oro- 2.0.8.jar OS name: Windows XP OS architecture: x86 OS version: 5.1 build 2600 Service Pack 1 Java user name: djd Java user home: C:\Documents and Settings\Administrator Java user dir: C:\_work\svn_clean\trunk\systest\out java.specification.name: J2ME Foundation Specification java.specification.version: 1.0 --------- Derby Information -------- JRE - JDBC: J2ME - JDBC for CDC/FP 1.0 [C:\_work\svn_clean\trunk\classes] 10.2.0.0 alpha - (220112M) ------------------------------------------------------ ----------------- Locale Information ----------------- …

19. IBM Software Group | DB2 Information Management Software Development Environments for Cloudscape

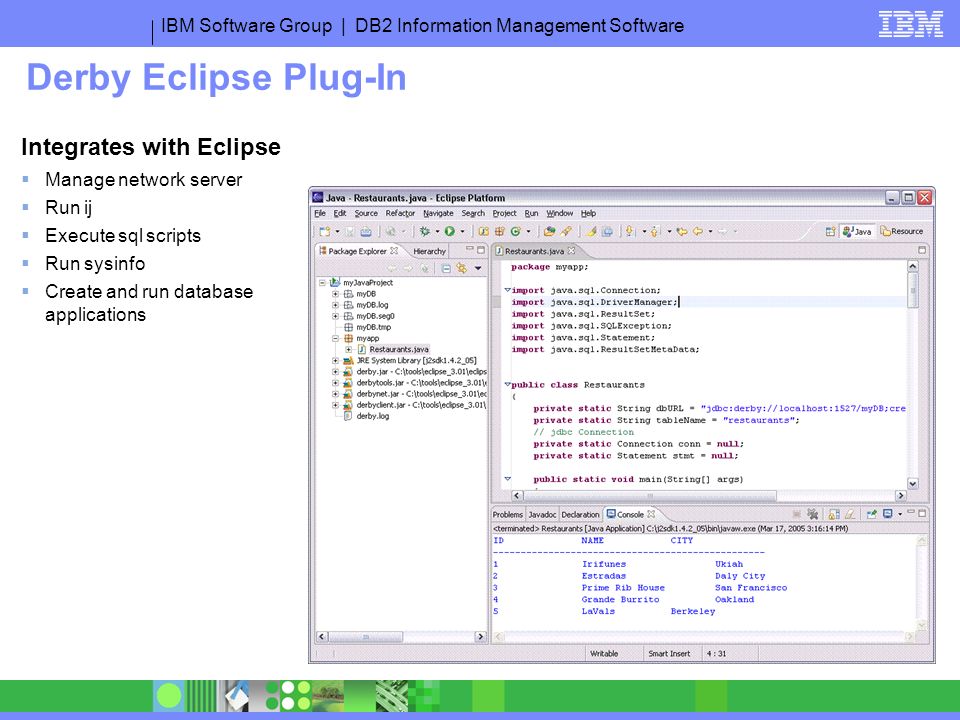

20. IBM Software Group | DB2 Information Management Software Derby Eclipse Plug-In Integrates with Eclipse  Manage network server  Run ij  Execute sql scripts  Run sysinfo  Create and run database applications

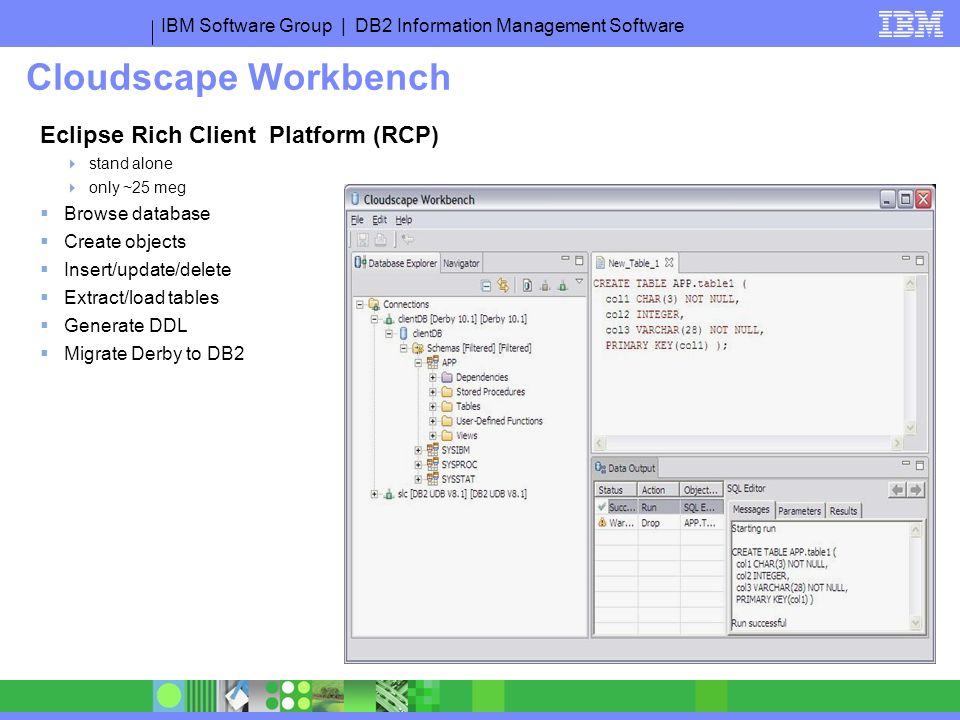

21. IBM Software Group | DB2 Information Management Software Cloudscape Workbench Eclipse Rich Client Platform (RCP)  stand alone  only ~25 meg  Browse database  Create objects  Insert/update/delete  Extract/load tables  Generate DDL  Migrate Derby to DB2

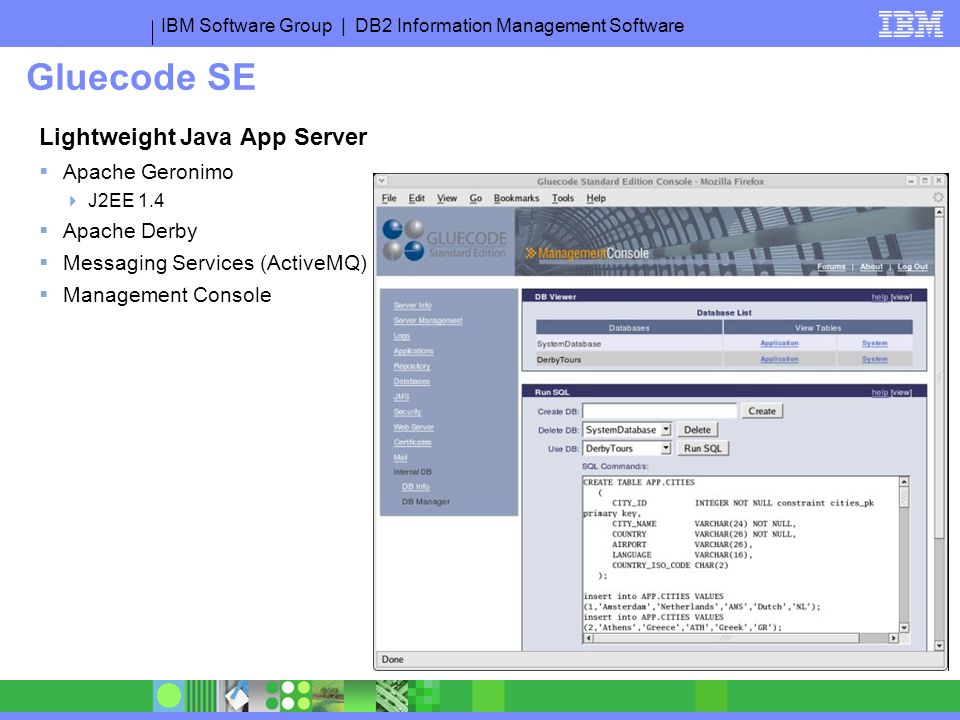

22. IBM Software Group | DB2 Information Management Software Gluecode SE Lightweight Java App Server  Apache Geronimo  J2EE 1.4  Apache Derby  Messaging Services (ActiveMQ)  Management Console

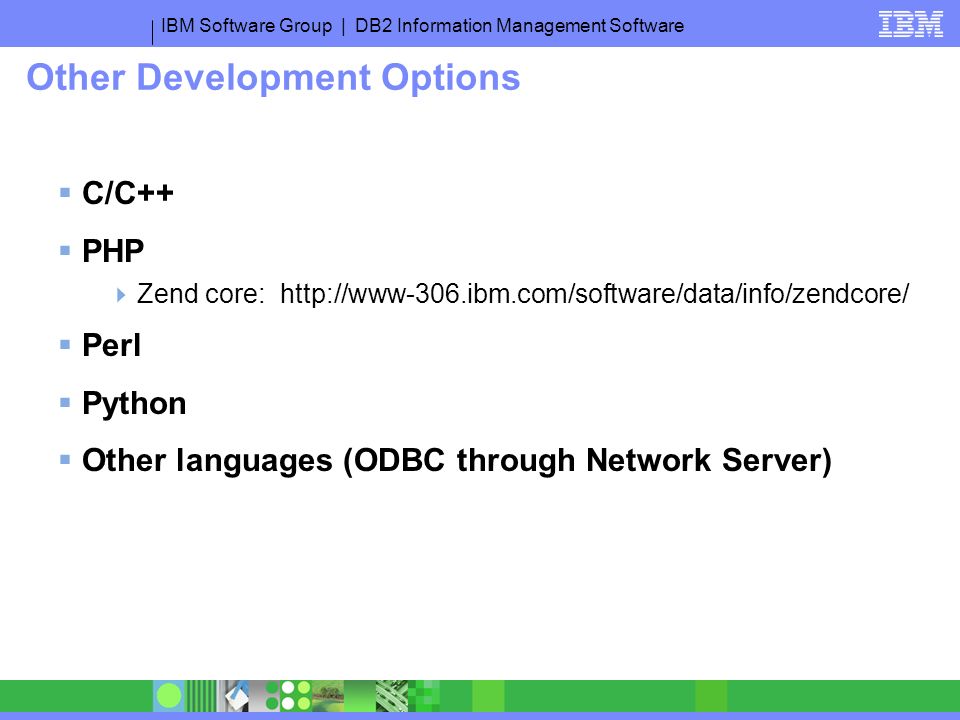

23. IBM Software Group | DB2 Information Management Software Other Development Options  C/C++  PHP  Zend core: http://www-306.ibm.com/software/data/info/zendcore/  Perl  Python  Other languages (ODBC through Network Server)

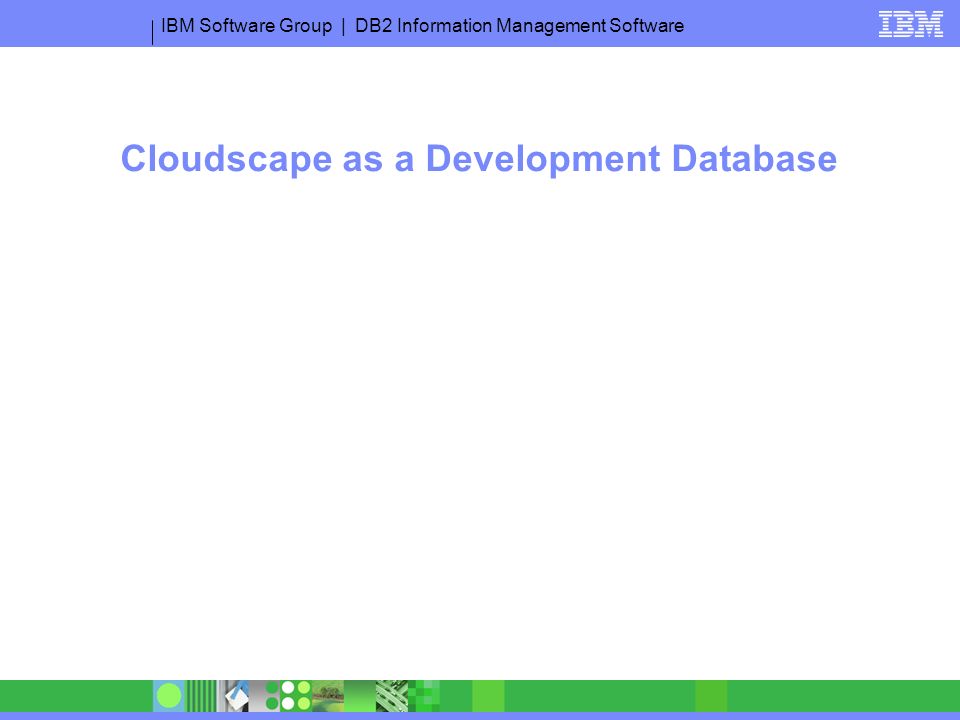

24. IBM Software Group | DB2 Information Management Software Cloudscape as a Development Database

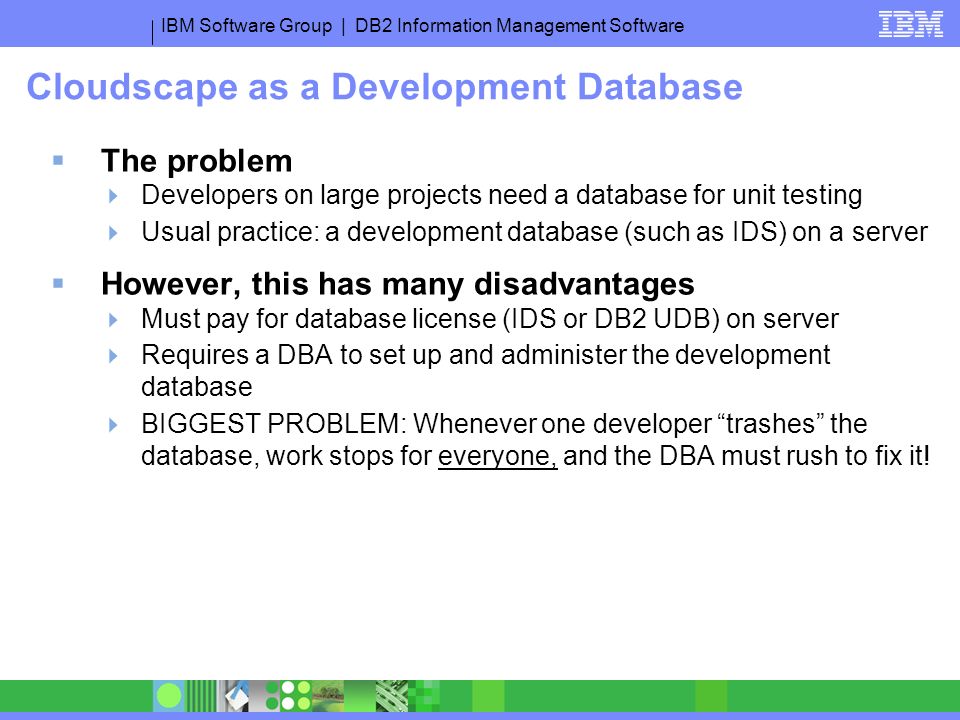

25. IBM Software Group | DB2 Information Management Software Cloudscape as a Development Database  The problem  Developers on large projects need a database for unit testing  Usual practice: a development database (such as IDS) on a server  However, this has many disadvantages  Must pay for database license (IDS or DB2 UDB) on server  Requires a DBA to set up and administer the development database  BIGGEST PROBLEM: Whenever one developer “trashes” the database, work stops for everyone, and the DBA must rush to fix it!

26. IBM Software Group | DB2 Information Management Software Cloudscape as a Development Database (cont.)  A better solution: A Cloudscape database for each developer  Create a “master” database, then copy onto developer workstations  If any developer “trashes” it, he/she just re-copies from the master!  No DBA required, and other developers are not affected!  Later, when modules are integrated, switch to “enterprise” database (IDS, DB2 UDB, Oracle, etc.)

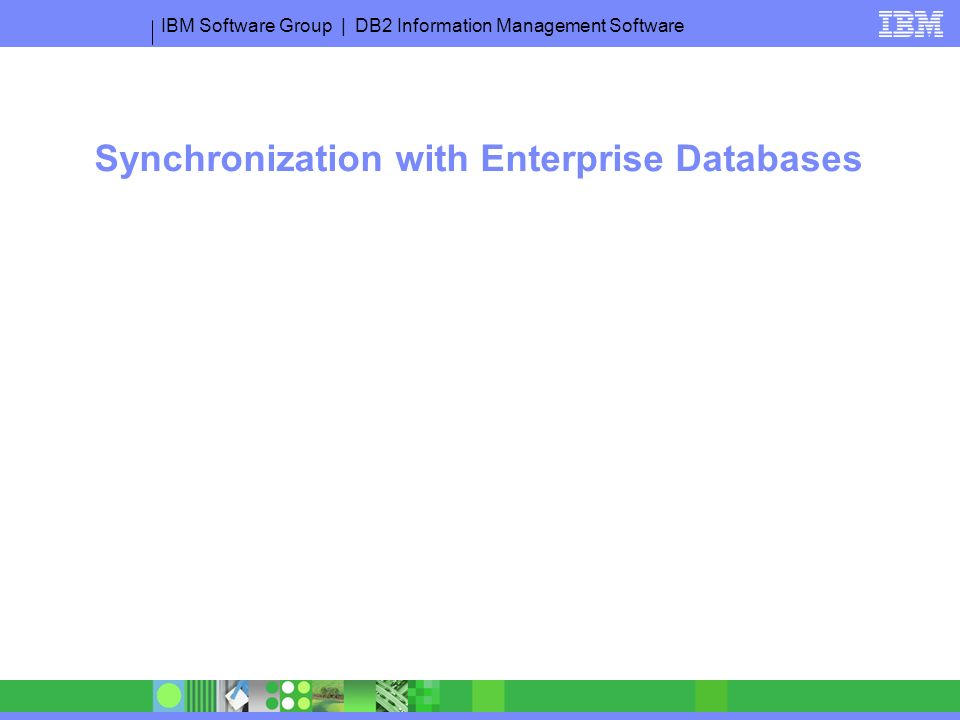

27. IBM Software Group | DB2 Information Management Software Synchronization with Enterprise Databases

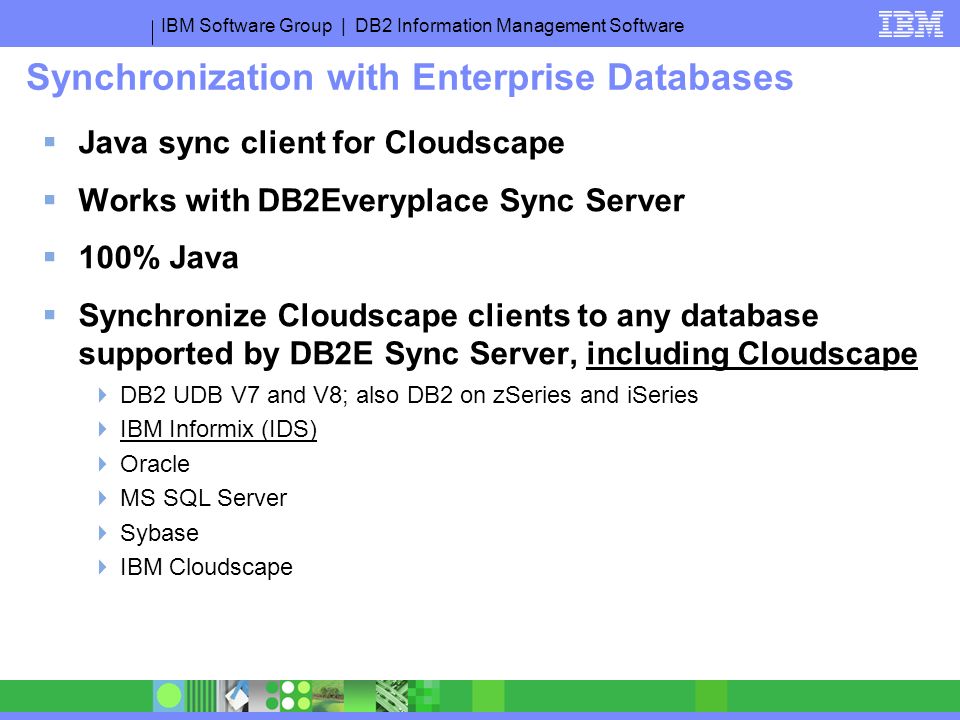

28. IBM Software Group | DB2 Information Management Software Synchronization with Enterprise Databases  Java sync client for Cloudscape  Works with DB2Everyplace Sync Server  100% Java  Synchronize Cloudscape clients to any database supported by DB2E Sync Server, including Cloudscape  DB2 UDB V7 and V8; also DB2 on zSeries and iSeries  IBM Informix (IDS)  Oracle  MS SQL Server  Sybase  IBM Cloudscape

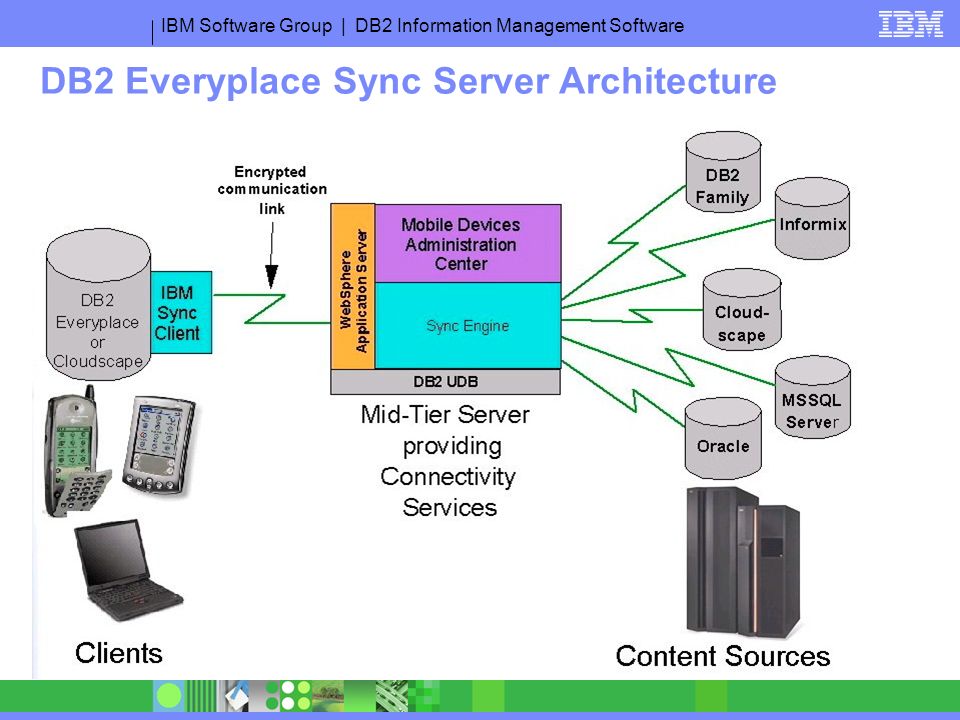

29. IBM Software Group | DB2 Information Management Software DB2 Everyplace Sync Server Architecture

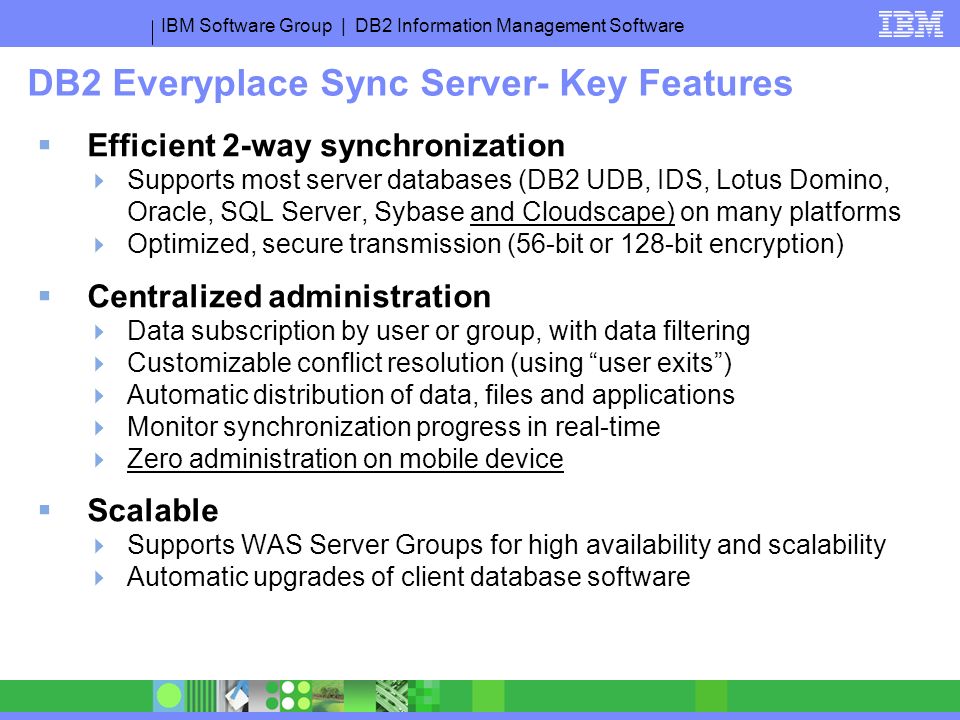

30. IBM Software Group | DB2 Information Management Software DB2 Everyplace Sync Server- Key Features  Efficient 2-way synchronization  Supports most server databases (DB2 UDB, IDS, Lotus Domino, Oracle, SQL Server, Sybase and Cloudscape) on many platforms  Optimized, secure transmission (56-bit or 128-bit encryption)  Centralized administration  Data subscription by user or group, with data filtering  Customizable conflict resolution (using “user exits”)  Automatic distribution of data, files and applications  Monitor synchronization progress in real-time  Zero administration on mobile device  Scalable  Supports WAS Server Groups for high availability and scalability  Automatic upgrades of client database software

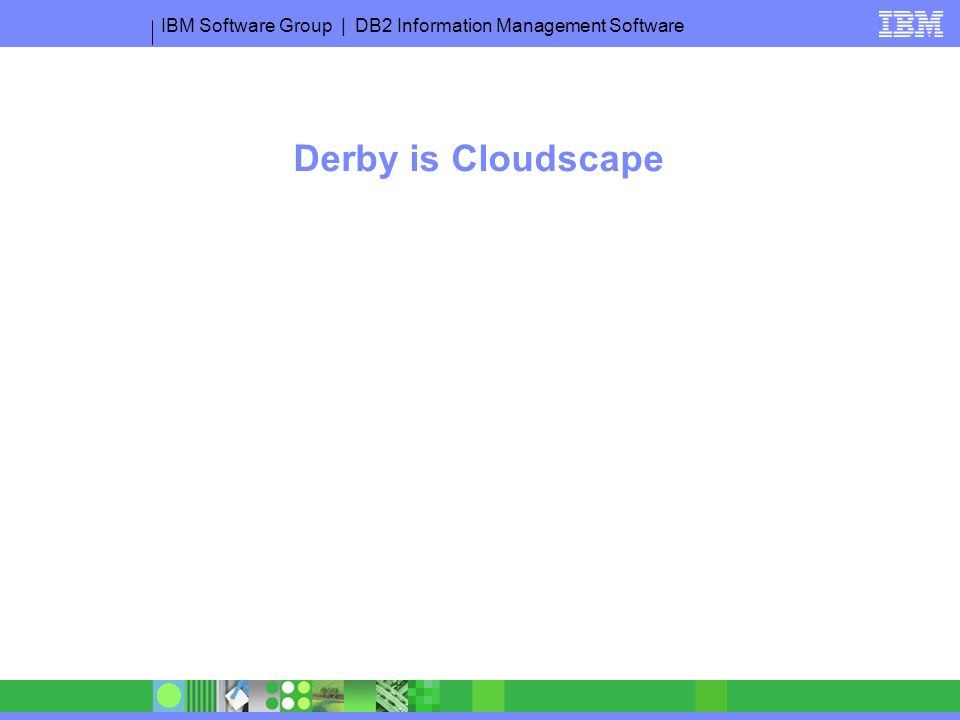

31. IBM Software Group | DB2 Information Management Software Derby is Cloudscape

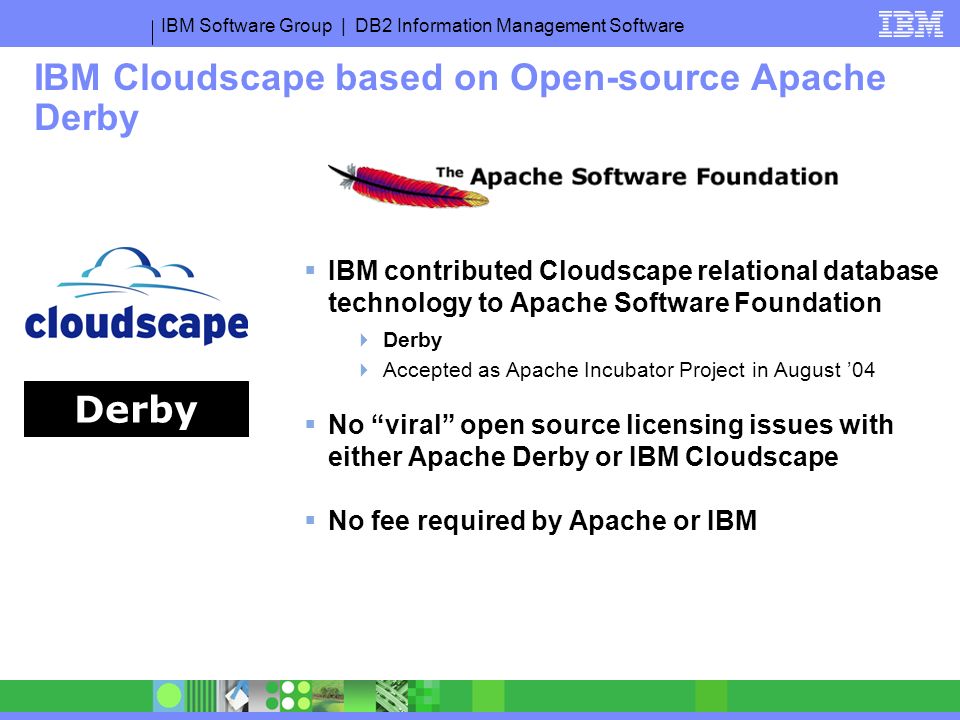

32. IBM Software Group | DB2 Information Management Software IBM Cloudscape based on Open-source Apache Derby  IBM contributed Cloudscape relational database technology to Apache Software Foundation  Derby  Accepted as Apache Incubator Project in August ’04  No “viral” open source licensing issues with either Apache Derby or IBM Cloudscape  No fee required by Apache or IBM Derby

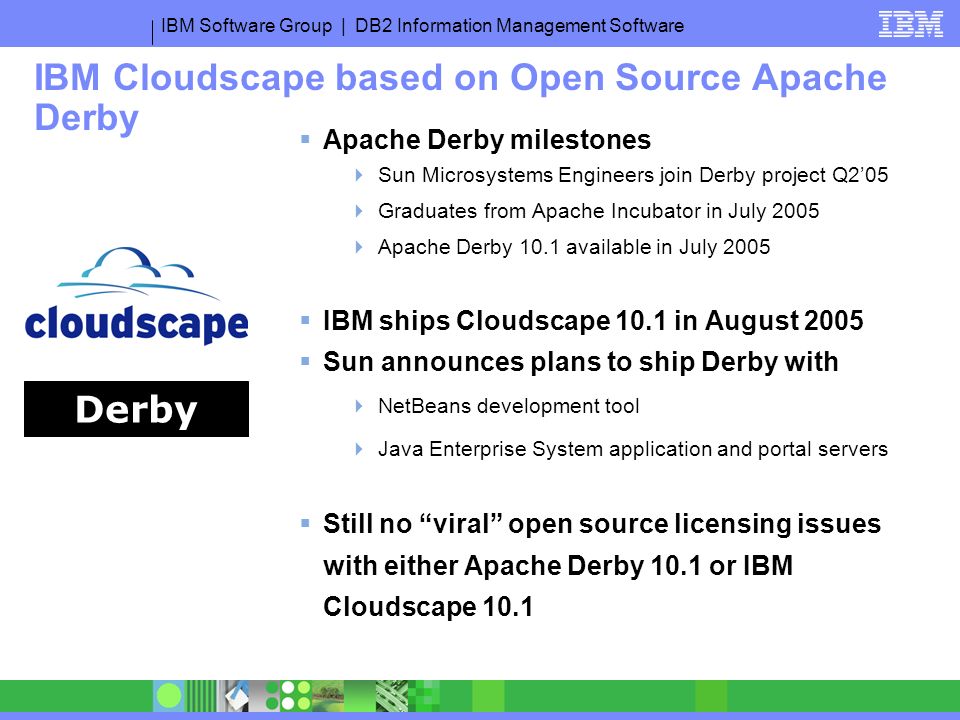

33. IBM Software Group | DB2 Information Management Software IBM Cloudscape based on Open Source Apache Derby  Apache Derby milestones  Sun Microsystems Engineers join Derby project Q2’05  Graduates from Apache Incubator in July 2005  Apache Derby 10.1 available in July 2005  IBM ships Cloudscape 10.1 in August 2005  Sun announces plans to ship Derby with  NetBeans development tool  Java Enterprise System application and portal servers  Still no “viral” open source licensing issues with either Apache Derby 10.1 or IBM Cloudscape 10.1 Derby

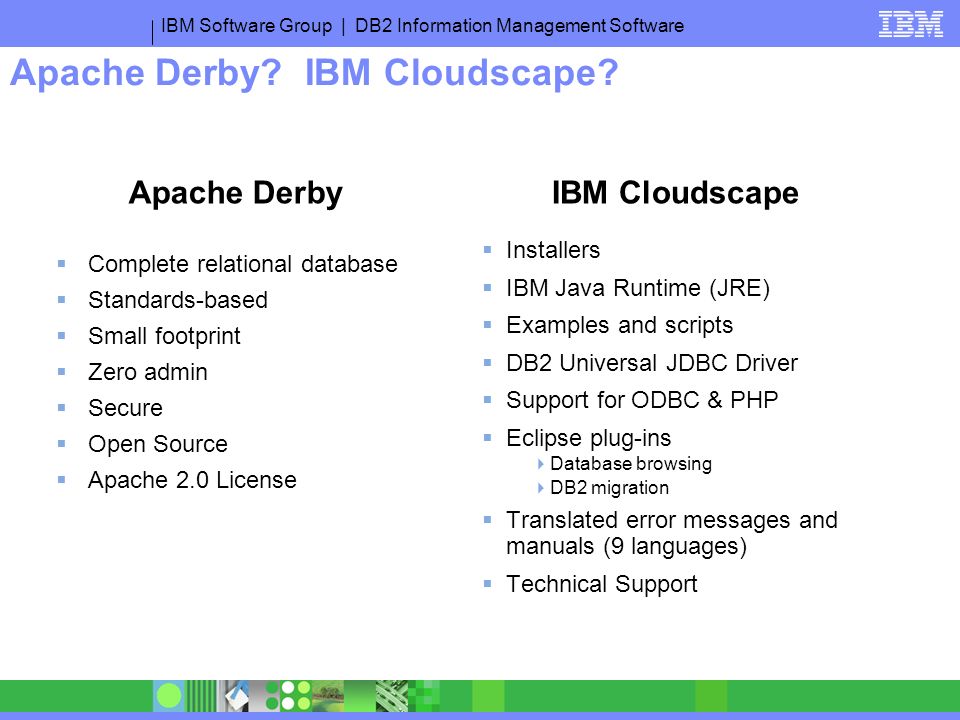

34. IBM Software Group | DB2 Information Management Software Apache Derby? IBM Cloudscape? Apache Derby  Complete relational database  Standards-based  Small footprint  Zero admin  Secure  Open Source  Apache 2.0 License IBM Cloudscape  Installers  IBM Java Runtime (JRE)  Examples and scripts  DB2 Universal JDBC Driver  Support for ODBC & PHP  Eclipse plug-ins  Database browsing  DB2 migration  Translated error messages and manuals (9 languages)  Technical Support

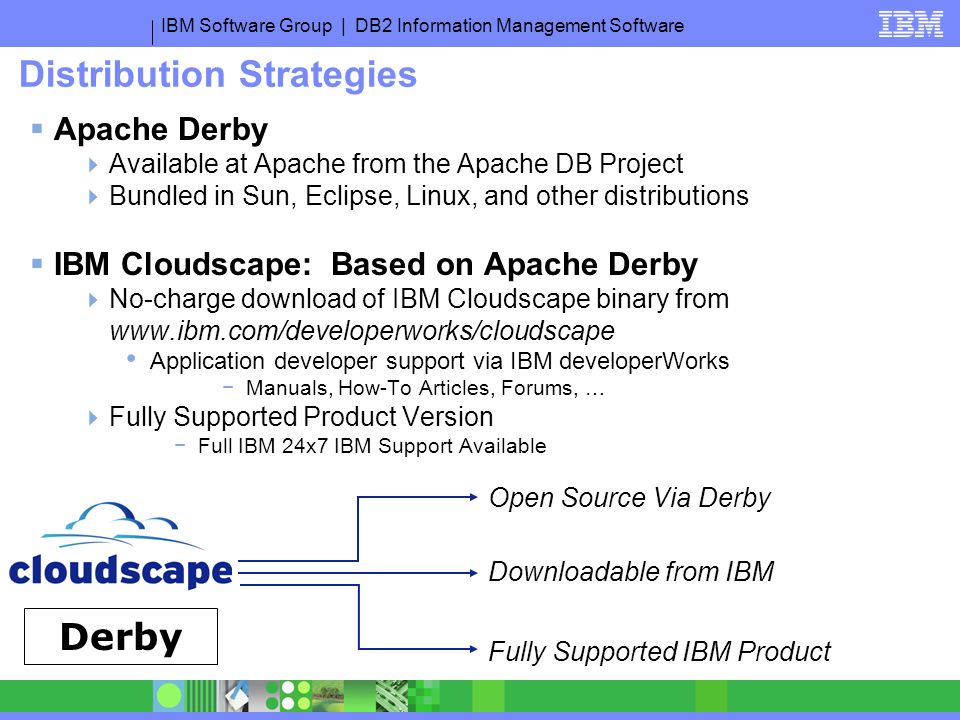

35. IBM Software Group | DB2 Information Management Software Distribution Strategies  Apache Derby  Available at Apache from the Apache DB Project  Bundled in Sun, Eclipse, Linux, and other distributions  IBM Cloudscape: Based on Apache Derby  No-charge download of IBM Cloudscape binary from www.ibm.com/developerworks/cloudscape Application developer support via IBM developerWorks −Manuals, How-To Articles, Forums, …  Fully Supported Product Version −Full IBM 24x7 IBM Support Available Downloadable from IBM Fully Supported IBM Product Derby Open Source Via Derby

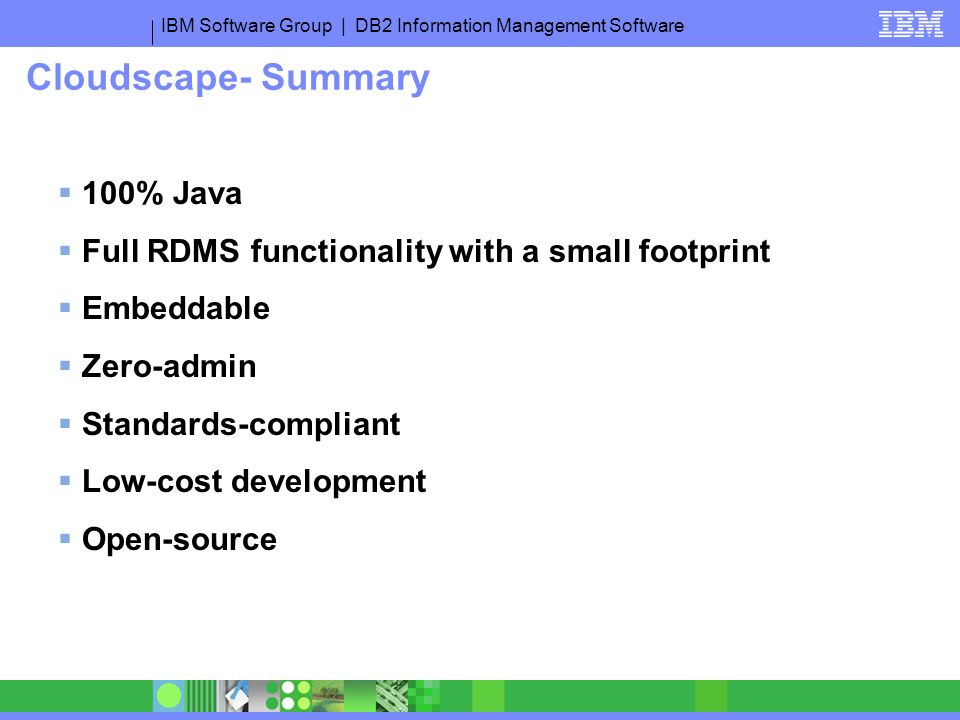

36. IBM Software Group | DB2 Information Management Software Cloudscape- Summary  100% Java  Full RDMS functionality with a small footprint  Embeddable  Zero-admin  Standards-compliant  Low-cost development  Open-source

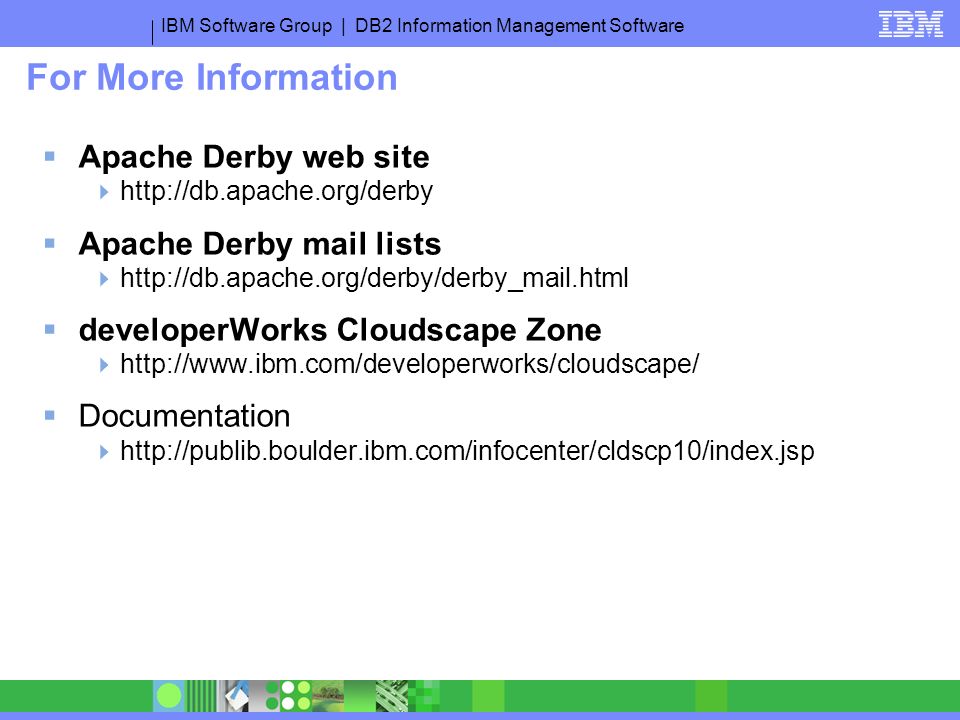

37. IBM Software Group | DB2 Information Management Software For More Information  Apache Derby web site  http://db.apache.org/derby  Apache Derby mail lists  http://db.apache.org/derby/derby_mail.html  developerWorks Cloudscape Zone  http://www.ibm.com/developerworks/cloudscape/  Documentation  http://publib.boulder.ibm.com/infocenter/cldscp10/index.jsp

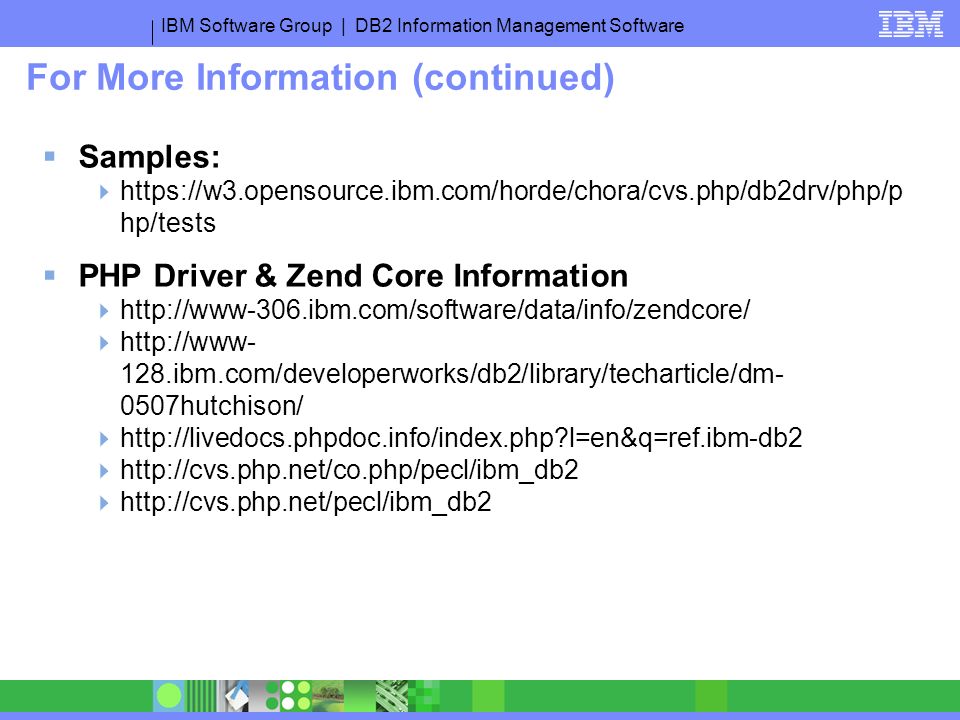

38. IBM Software Group | DB2 Information Management Software For More Information (continued)  Samples:  https://w3.opensource.ibm.com/horde/chora/cvs.php/db2drv/php/p hp/tests  PHP Driver & Zend Core Information  http://www-306.ibm.com/software/data/info/zendcore/  http://www- 128.ibm.com/developerworks/db2/library/techarticle/dm- 0507hutchison/  http://livedocs.phpdoc.info/index.php?l=en&q=ref.ibm-db2  http://cvs.php.net/co.php/pecl/ibm_db2  http://cvs.php.net/pecl/ibm_db2

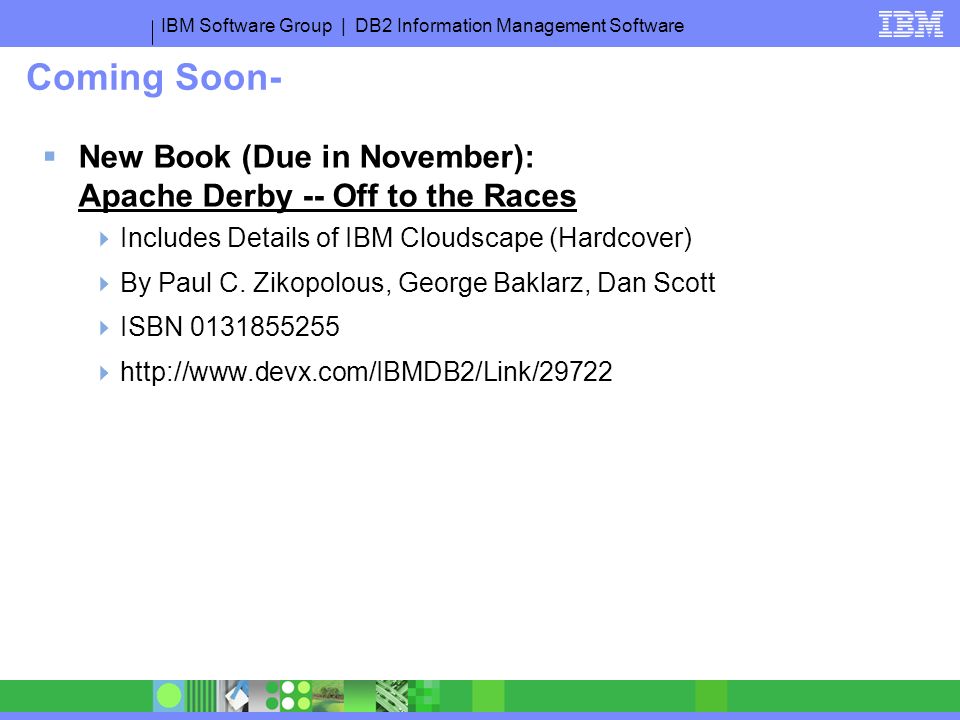

39. IBM Software Group | DB2 Information Management Software Coming Soon-  New Book (Due in November): Apache Derby -- Off to the Races  Includes Details of IBM Cloudscape (Hardcover)  By Paul C. Zikopolous, George Baklarz, Dan Scott  ISBN 0131855255  http://www.devx.com/IBMDB2/Link/29722

40. 40 Cloudscape – Past and Present Frank Koconis fkoconis@us.ibm.com Informix User Forum 2005 Moving Forward With Informix Atlanta, Georgia December 8-9, 2005
