1 Biomedical Engineering Design Course Content: Industrial v Academic Viewpoints Paul King, Vanderbilt University Richard Fries, Datex-Ohmeda Corp.

2 Why? ABET requires a capstone design course. No BME Design Textbook exists. No BME Specific Design Taxonomy Exists. Are Industrial & Academia Viewpoints different? Are there any suggestions regarding additions?

3 ABET Statement: Criterion 4 “Students must be prepared for engineering practice through the curriculum culminating in a major design experience based upon the knowledge and skills acquired in earlier coursework and incorporating engineering standards and realistic constraints that include most of the following considerations: economic; environmental; sustainability; manufacturability; ethical; health and safety; social; and political.”

4 ABET Criteria for BME Design One course, primarily design, preferably senior (Jr acceptable) More than ½ engineering design Must require prerequisite(s) Reference: 2000-2001 Criteria for Engineering Programs – ABET p14,15

5 No BME Design Textbook exists Teaching notes: Mixture of ME/EE/NSF Proposal to Whittaker (Outline)->Reject Fries: Reliable Design of Medical Devices K&F -> Whittaker (Outline) ->Accept 4 Chapters -> Whittaker -> Reject

6 No BME Specific Taxonomy Exists. NSF ERC in Bioengineering Education has a Design Thrust, part of the work to be done involves development of a Taxonomy of Design Education. Can we determine this taxonomy via scrutiny of the literature and a survey of industry and academia?

7 Survey 42 Topics, H,M,L,X & ask for additions Industry (Fries) Academia (US, King, see: http://vubme.vuse.vanderbilt.edu/King/de sign_education.htm ) http://vubme.vuse.vanderbilt.edu/King/de sign_education.htm

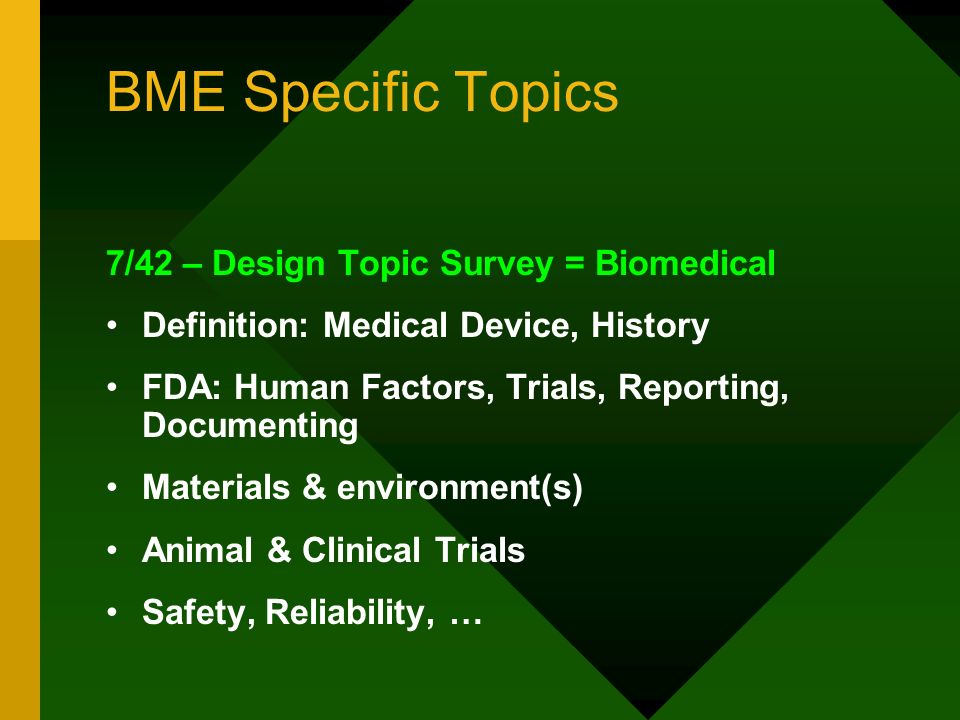

8 BME Specific Topics 7/42 – Design Topic Survey = Biomedical Definition: Medical Device, History FDA: Human Factors, Trials, Reporting, Documenting Materials & environment(s) Animal & Clinical Trials Safety, Reliability, …

9 Results: 17 Academic Responses (47US) 9 Industrial (8 Industries) H=3, M=2, L=1, X=0, averages & t-test … to date

10 Highest Rated (Academia) Product Definition Issues – Initial Specification Issues – 2.88 (out of 3) Progress Reports – Expectations for Written Reports – 2.76 Product Specification – Requirements, Design, Reliability, Tracking – 2.65 Design Examples – 2.53

11 Highest Rated - Industry Product Specification – Requirements, Design, Reliability, Tracking AND Risk Analysis/Hazard Analysis – 2.89 Design Examples – 2.78 Product Definition Issues – Initial Specification AND Design Documentation Requirements - 2.67

12 Lowest - Academia Professional Societies and Licensure AND Business Plan Development 1.24 AND The Future of the Design Process Reverse Engineering – Software and Hardware –1.17 Poster Presentation Basics AND History of Biomedical Engineering Devices- 1.06 Accident Reconstruction – 1.00

13 Lowest - Industry Industrial Design Group Construction and Management AND Accident Reconstruction – 1.0 Gannt and Pert Charts and Related Software -.89 Professional Societies and Licensure AND Business Plan Development - 78

14 Maximum Difference: Industry- Academic Software and Process Design Considerations +.76 (p=0.12) Risk Analysis/Hazard Analysis +.71 (p=0.01) Brainstorming/Idea Generation –.75 (p=.05) Gannt and Pert Charts & Related Software AND Progress Reports – Expectations -.87 (p=0.03)

15 Maximum Agreement: Industry:Academic Accident Reconstruction 1.0 p=1.0 QFD (1.89) & Decision Matrix (2.1) p=.99 Future of the Design Process (1.2:1.2) p=.97 Estimating Life Cycle Costs (1.6) p=.94 Formal design (1.8) AND Reverse Engineering (2.2) AND DFMA (1.9) AND FDA/ISO (2.2) p=.9 Product Safety & Liability (2.2) p=.88

16 Maximum Disagreement: Industry:Academic Animal/Clinical Trials, GLP (2.2:1.6) AND Medical Device Definition (2.6:1.9) AND IP Considerations (1.4:2) p=.1 Brainstorming (1.6:2.4) p=.05 Written Progress Reports (1.9:2.8) p=.04 CAD(2.1:1.4) AND Gannt/Pert (.9:1.8) p=.03 Risk/Hazard Analysis (2.9:2.1) p=.01

17 Comments Gathered:... the course should prepare students to manage projects in the medical device industry. They should learn about project management and be given the opportunity to develop their interpersonal and communication skills. They should also learn something about business and how a company functions. At Marquette, we are presenting lectures to help prepare them for their careers by including topics such as professional development, career survival and management, and personal finance.

18 Comments, Continued …Nonetheless, I am a big believer in process, and think the students should leave a design course understanding that design is primarily a decision making process (i.e. Decision-based design) and that by following a process successful designs will be achieved. SUNY-SB

19 Suggested Additions Ethics (7!) Economics/Cost/benefit analysis (2) Experimental design Clinical experiences Top-down design, Systems engineering OOPs, FOI, Large system errors …

20 To Be Done More Industrial Responses needed International Survey? Report at ASEE Report at BMES Report in journal form

21 Summary Preliminary results indicate a fair amount of academic-industrial agreement. Academics emphasize training for reporting (oral/written) and overall project planning v Industry expects reporting ability and delegates planning elsewhere.
