1. Dr. R.P.Pandey Scientist F

2. NIH- Nodal Agency

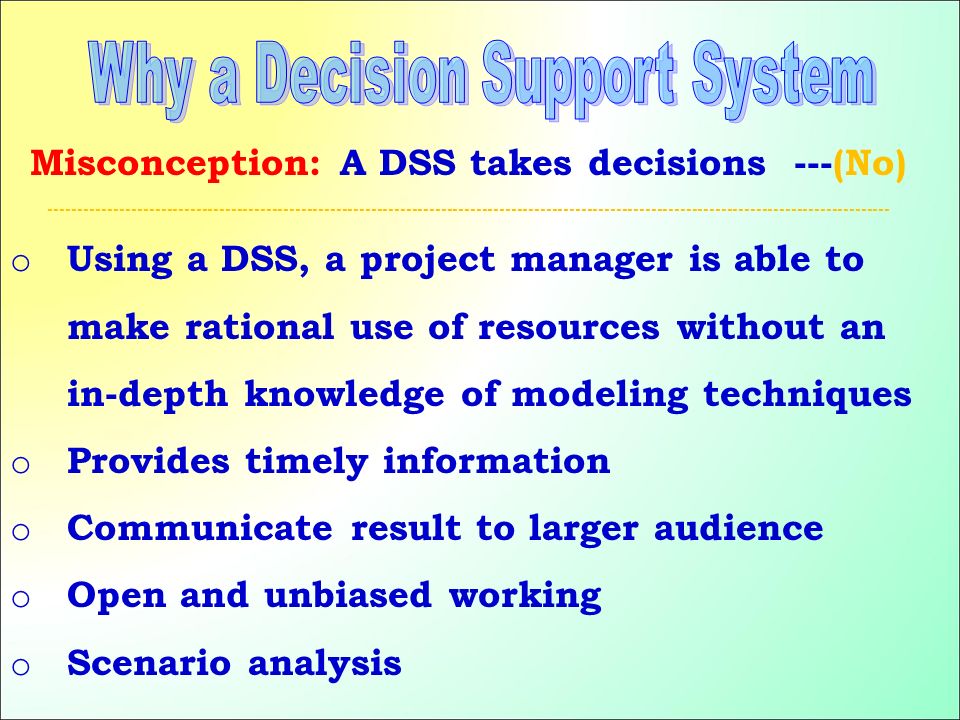

4. Misconception: A DSS takes decisions ---(No) ------------------------------------------------------------------------------------------------------------------------------------------------ o Using a DSS, a project manager is able to make rational use of resources without an in-depth knowledge of modeling techniques o Provides timely information o Communicate result to larger audience o Open and unbiased working o Scenario analysis

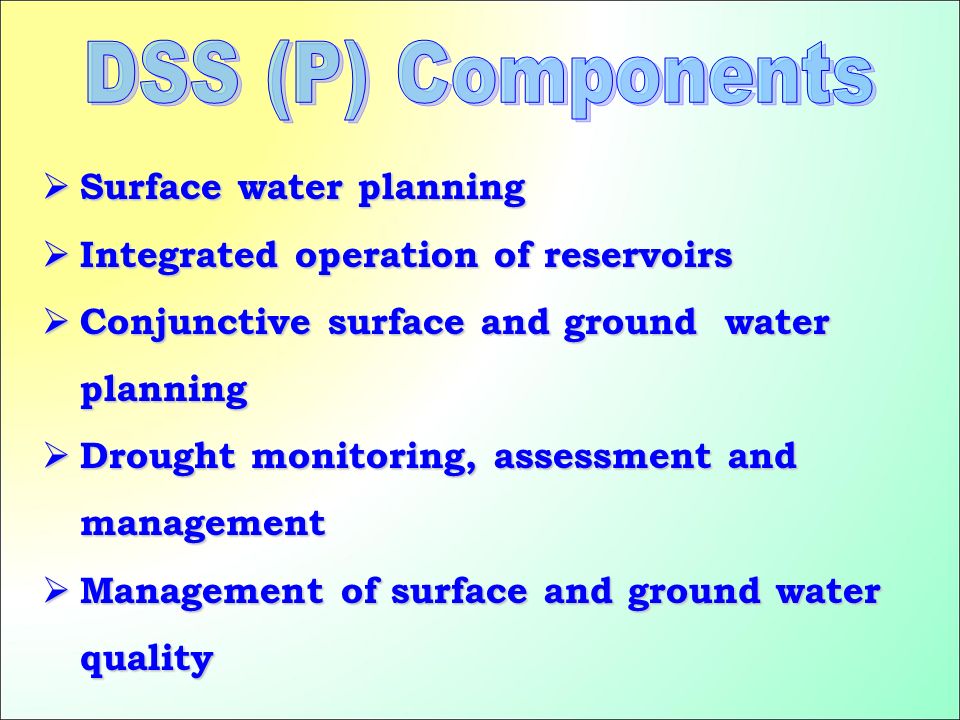

5.  Surface water planning  Integrated operation of reservoirs  Conjunctive surface and ground water planning  Drought monitoring, assessment and management  Management of surface and ground water quality

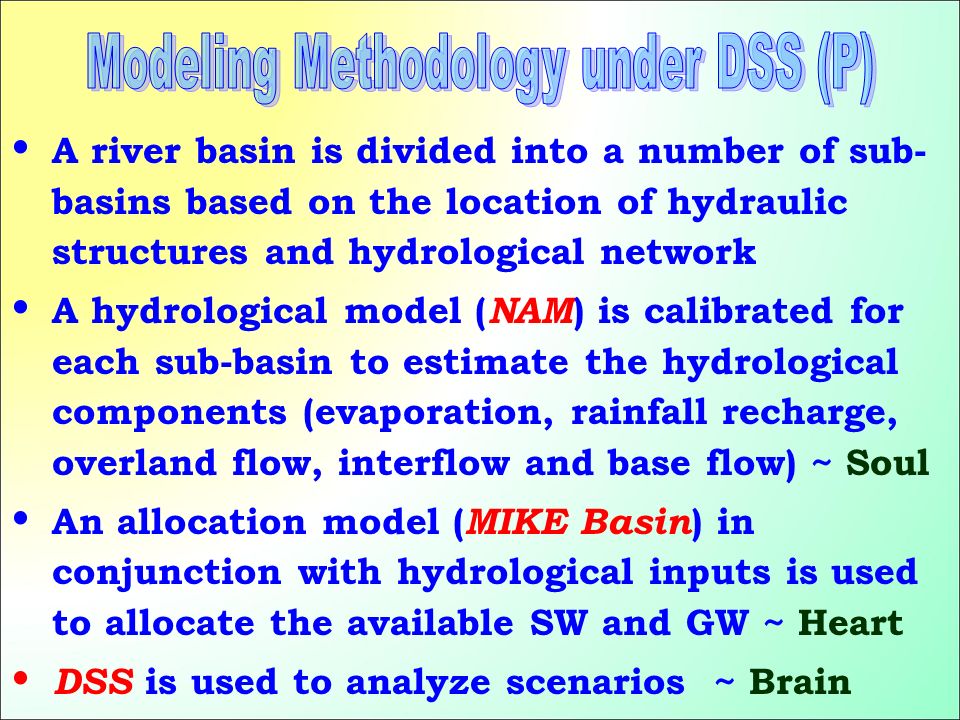

8. A river basin is divided into a number of sub- basins based on the location of hydraulic structures and hydrological network A hydrological model ( NAM ) is calibrated for each sub-basin to estimate the hydrological components (evaporation, rainfall recharge, overland flow, interflow and base flow) ~ Soul An allocation model ( MIKE Basin ) in conjunction with hydrological inputs is used to allocate the available SW and GW ~ Heart DSS is used to analyze scenarios ~ Brain

9. Objective NAM model provides a conceptual representation of land phase of hydrological cycle and simulates rainfall-runoff processes at the catchment scale. Basic data requirements Precipitation time series Temperature time series (for snow melt modeling) Evapo-transpiration time series Observed discharge time series Basic model outputs Catchment runoff Subsurface contributions (base flow, interflow) Actual evapo-transpiration Groundwater recharge and levels Soil moisture storage content

18. Process and analyse GIS and time series informationProcess and analyse GIS and time series information Publish selected information (general, drought, flood..)Publish selected information (general, drought, flood..) Model applications for long-term/short-term planningModel applications for long-term/short-term planning

19. Model explorer Model structure Properties Tools

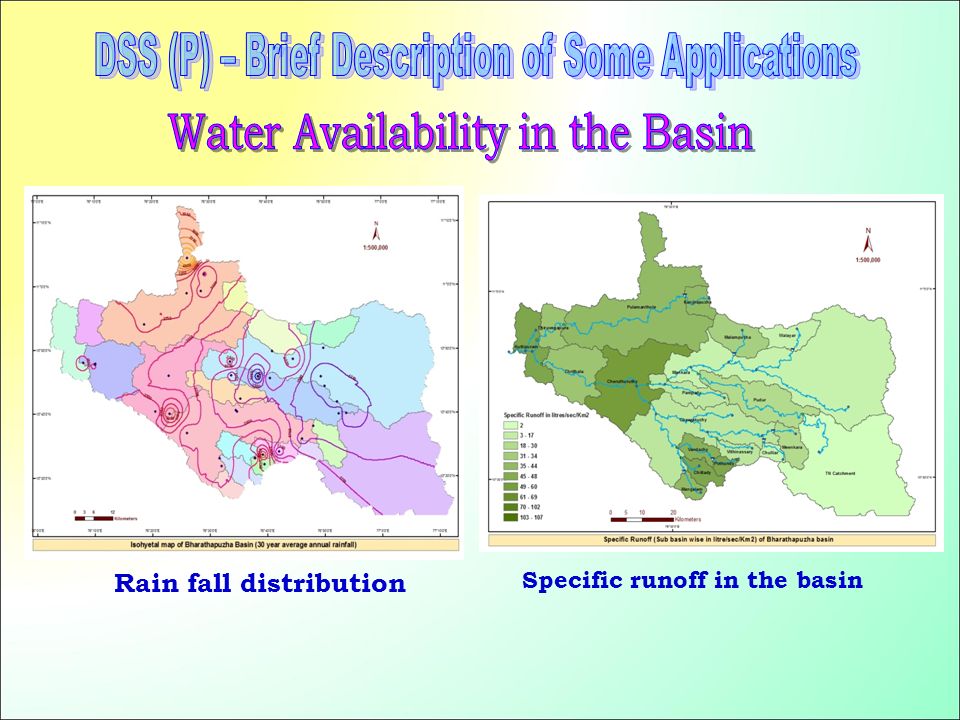

24. Specific runoff in the basin Rain fall distribution

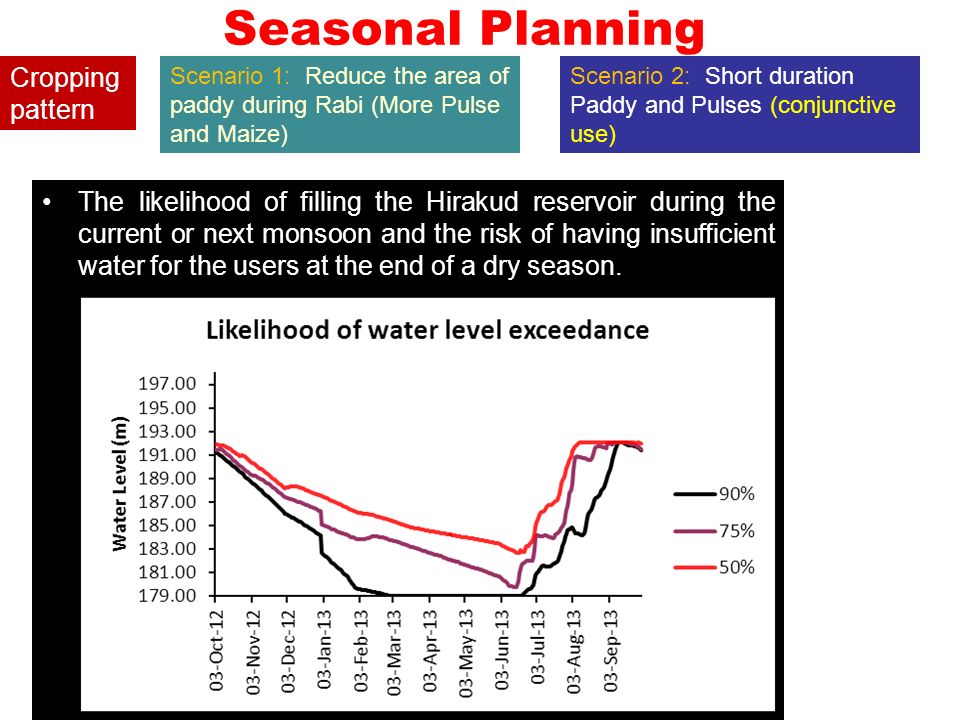

26. Seasonal Planning The likelihood of filling the Hirakud reservoir during the current or next monsoon and the risk of having insufficient water for the users at the end of a dry season. Cropping pattern Scenario 1: Reduce the area of paddy during Rabi (More Pulse and Maize) Scenario 2: Short duration Paddy and Pulses (conjunctive use)

27. For given scenarios of planned water allocation:  What is the risk of reaching critically low levels in coming dry season?  What is the likelihood of filling the reservoir in the coming wet season?

28. Combined use of SW & GW in Sri Ram Sagar Project Scenario I: no restriction on SW use Scenario II: limited SW abstraction by head and middle section users permitted GWT in m

29.  Drought Indicators  Assessing the impact of check dams and artificial recharge measures

30. Combined management of reservoirs and water transfers within Sriramsagar project area including its Stage-II extension Providing water for all sectors considering the increased demands Crop selection and corresponding water requirement of command area Balancing head end and tail end abstractions Groundwater seasonal planning and artificial recharge

31. Assessment of surface and ground Water availability in Wainganga basin Seasonal planning of Sanjay Sarovar reservoir project Impact of changes in cropping pattern, particularly in dry years Impact of rehabilitation of infrastructure Identification of efficient use of existing and under-construction projects

32.  Operation analysis of Tandula reservoir  Conjunctive use in command areas  Benefits of changes in cropping pattern and canal lining  Inter basin Transfer (from RSP to Tandula Tank)  Groundwater seasonal planning and artificial recharge

33.  Conjunctive use of SW & GW in Hirakud command  Mitigation of water logging through increased GW pumping in Hirakud command  Benefits of changing cropping pattern in Hirakud command  Benefits of changing cropping pattern in Upper Tel basin  Drought management measures in Upper Tel basin

34. Drought management measures in Palar basin Impact of changing cropping pattern and artificial recharge in Palar basin Climate change application for one sub- catchment in Palar basin Conjunctive use of SW & GW in Tungabhadra command Seasonal planning of Tungabhadra reservoir Tungabhadra Dam Palar River Basin

35. Evaluate and compare scenarios for water management in basin Inter-basin transfer for conjunctive use Impact of artificial recharge in a sub-basin Impact of changing cropping pattern Sustainable environmental flows for ensuring acceptable water quality Hydropower analysis

36. Impact of increasing efficiency of water management Water management scenarios in drought-prone areas Reduced periods of inundation in low-sloping command areas through conjunctive use, weather forecasts, improved drainage Assessment and monitoring of surface and GW quality Seasonal planning for Patadungri command

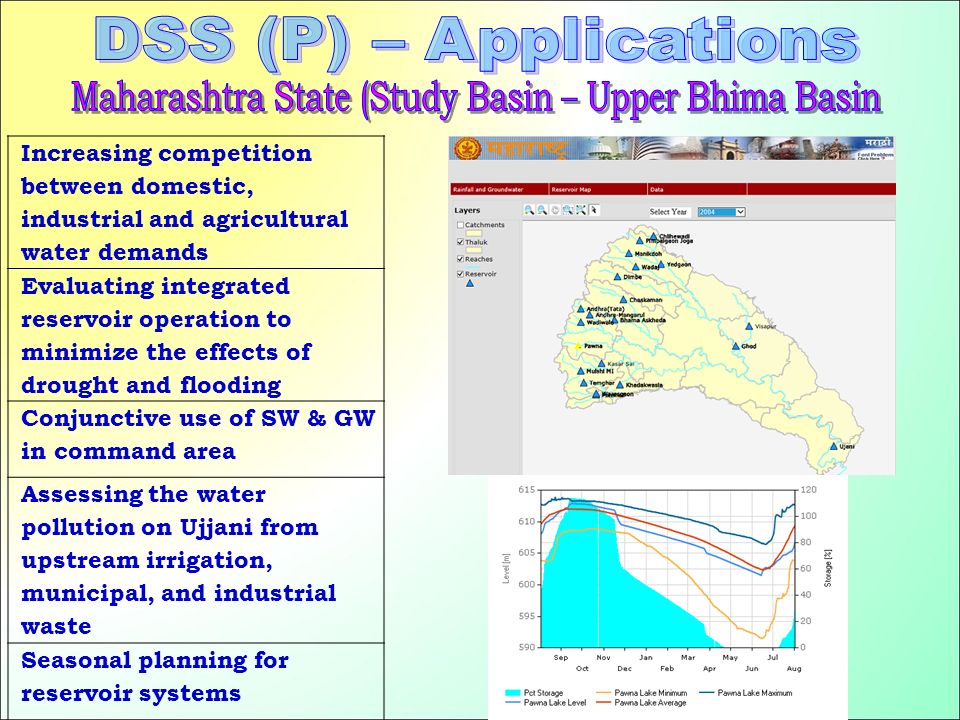

37. Increasing competition between domestic, industrial and agricultural water demands Evaluating integrated reservoir operation to minimize the effects of drought and flooding Conjunctive use of SW & GW in command area Assessing the water pollution on Ujjani from upstream irrigation, municipal, and industrial waste Seasonal planning for reservoir systems

39. A number of tanks in the catchment area o Maximum efforts made for setting up of Mike SHE model for the selected basins

41. Training courses o 20 training courses o Total duration: 38 weeks o Two courses in Denmark (6/3 weeks) o Detailed ToT for NIH Core Group

44. THANKS
