1. Remote Sensing on the Nez Perce Reservation Nez Perce Tribe -Land Services Laurie Ames Remote Sensing Analyst By asking for the impossible we obtain the best possible. ~Italian Proverb GIS on Fire! Coeur d’Alene, Idaho May 9 – 13, 2005

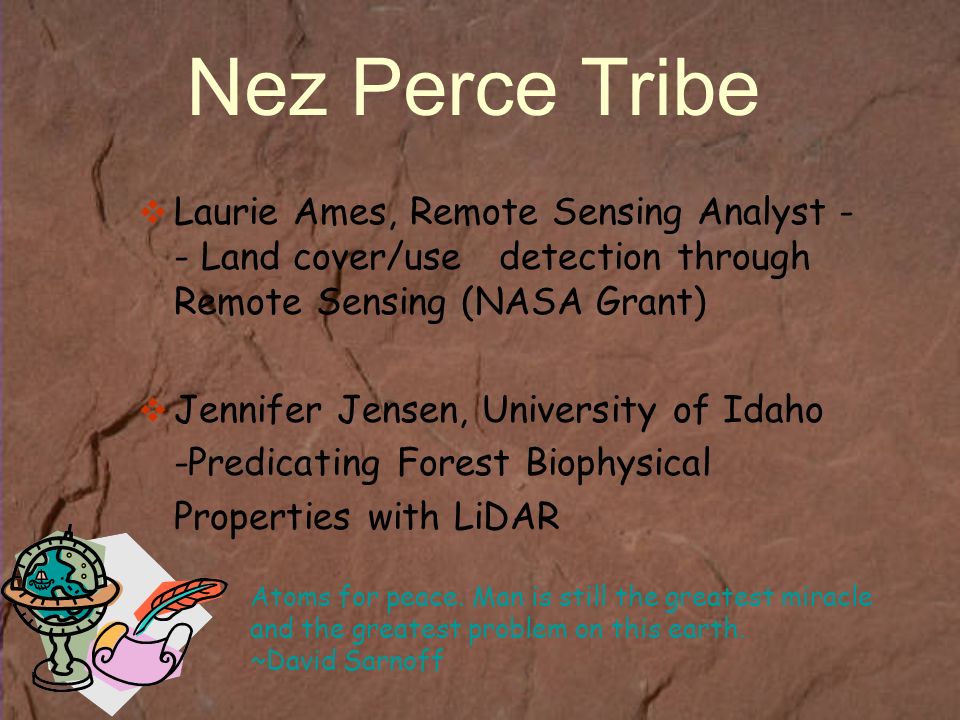

2.  Laurie Ames, Remote Sensing Analyst - - Land cover/use detection through Remote Sensing (NASA Grant)  Jennifer Jensen, University of Idaho -Predicating Forest Biophysical Properties with LiDAR Nez Perce Tribe Atoms for peace. Man is still the greatest miracle and the greatest problem on this earth. ~David Sarnoff

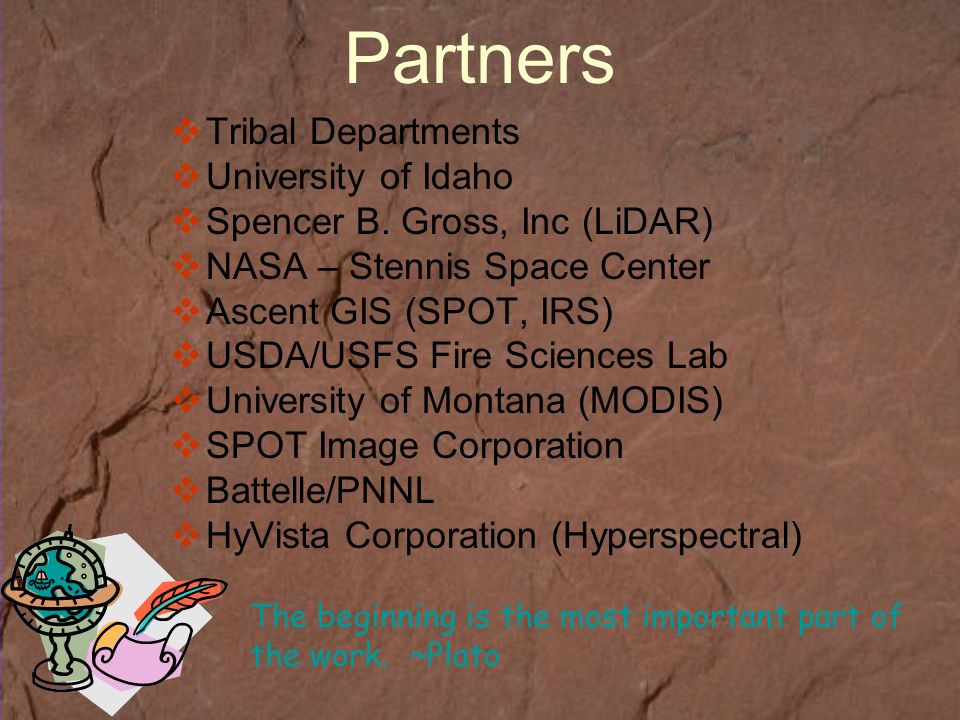

3. Partners  Tribal Departments  University of Idaho  Spencer B. Gross, Inc (LiDAR)  NASA – Stennis Space Center  Ascent GIS (SPOT, IRS)  USDA/USFS Fire Sciences Lab  University of Montana (MODIS)  SPOT Image Corporation  Battelle/PNNL  HyVista Corporation (Hyperspectral) The beginning is the most important part of the work. ~Plato

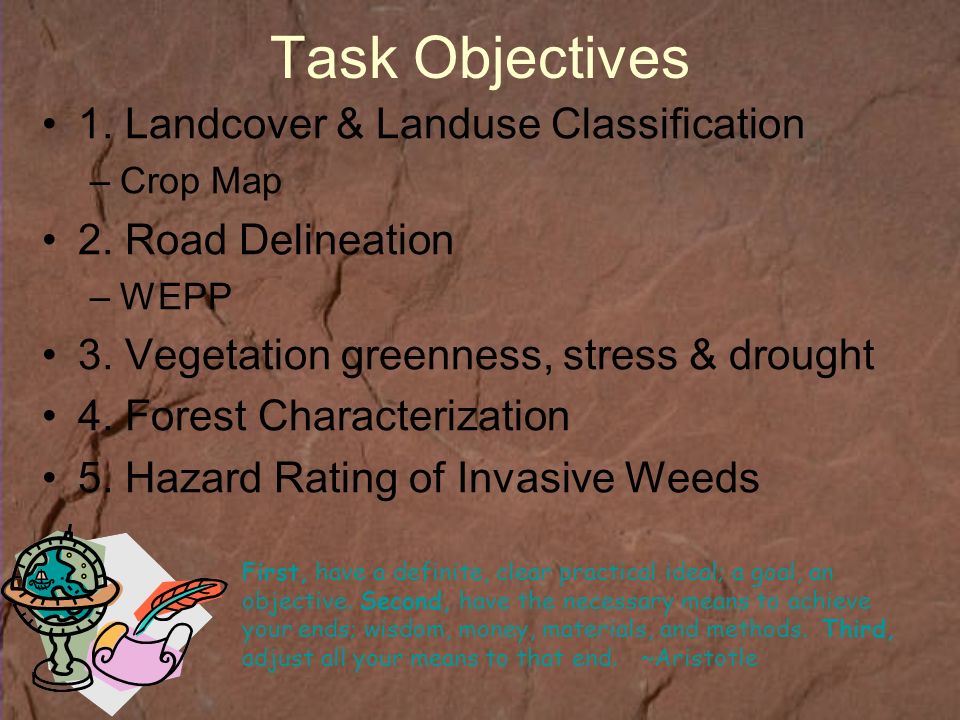

4. Task Objectives 1. Landcover & Landuse Classification –Crop Map 2. Road Delineation –WEPP 3. Vegetation greenness, stress & drought 4. Forest Characterization 5. Hazard Rating of Invasive Weeds First, have a definite, clear practical ideal; a goal, an objective. Second, have the necessary means to achieve your ends; wisdom, money, materials, and methods. Third, adjust all your means to that end. ~Aristotle

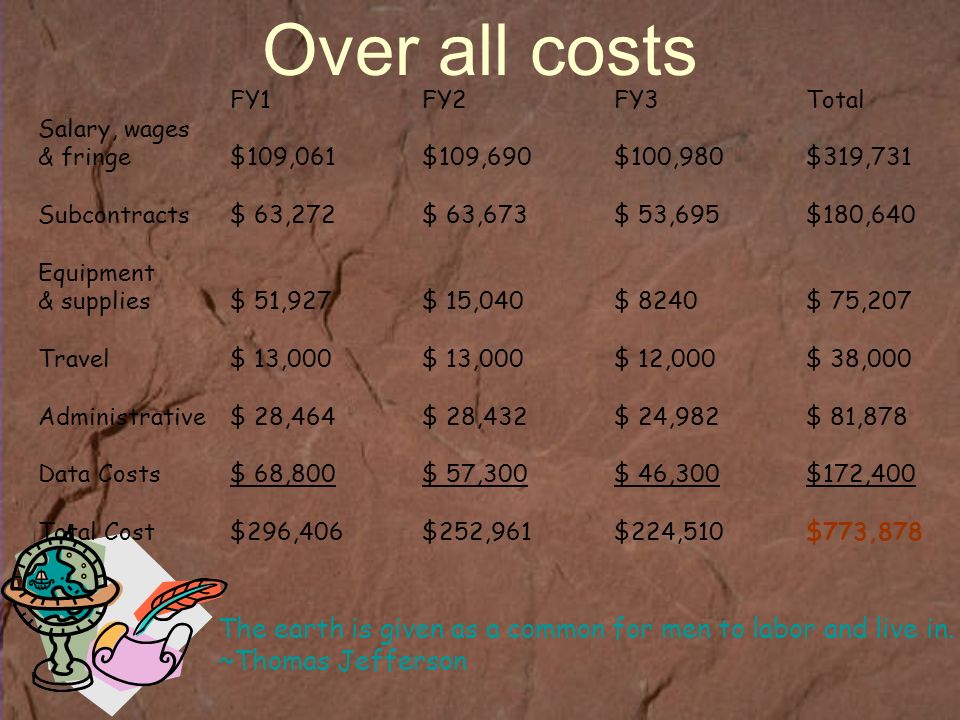

5. Over all costs The earth is given as a common for men to labor and live in. ~Thomas Jefferson FY1FY2FY3Total Salary, wages & fringe $109,061$109,690$100,980$319,731 Subcontracts$ 63,272$ 63,673$ 53,695$180,640 Equipment & supplies$ 51,927$ 15,040$ 8240$ 75,207 Travel$ 13,000$ 13,000$ 12,000$ 38,000 Administrative$ 28,464$ 28,432$ 24,982$ 81,878 Data Costs$ 68,800$ 57,300$ 46,300$172,400 Total Cost$296,406$252,961$224,510$773,878

6. 1. Land-cover/Land-use/Crop Maps  Landsat satellite multispectral imagery.  7 bands of information. 30 meter resolution.  Multi-temporal  3 scenes each year. Spring, End of Summer, Late Fall (leaf off).  7 classes  Urban, crop, grass, brush, mixed forest, coniferous forest, water.  Land use & Crop Maps  Range, crops and forest monitoring.

7. Landcover Maps Landsat 7 Image Feature Analyst Preliminary Landcover Classification N N

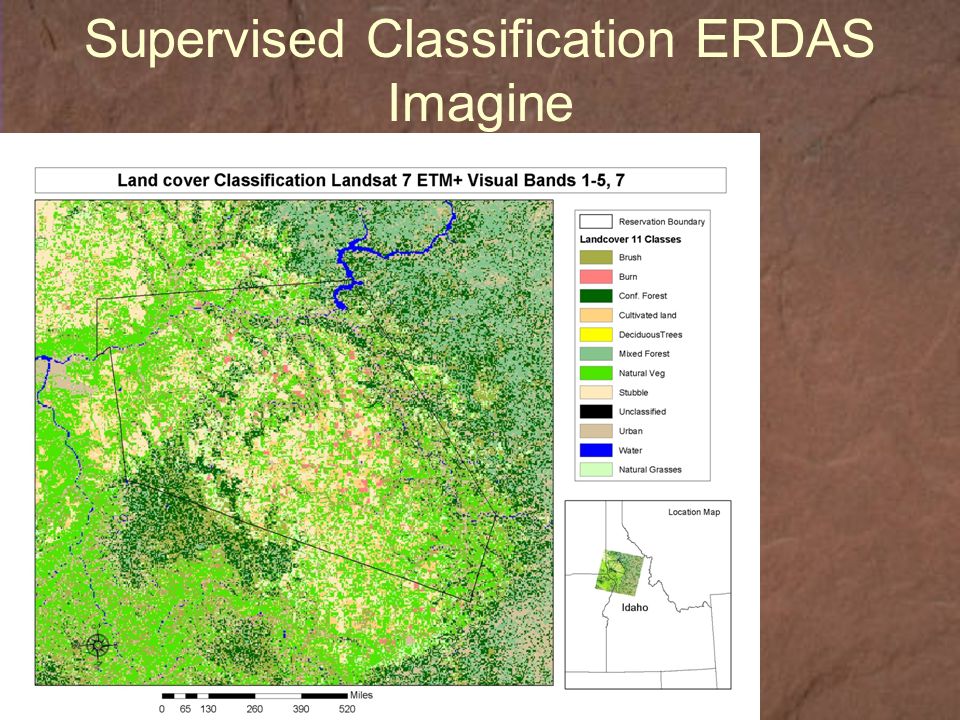

8. Supervised Classification ERDAS Imagine

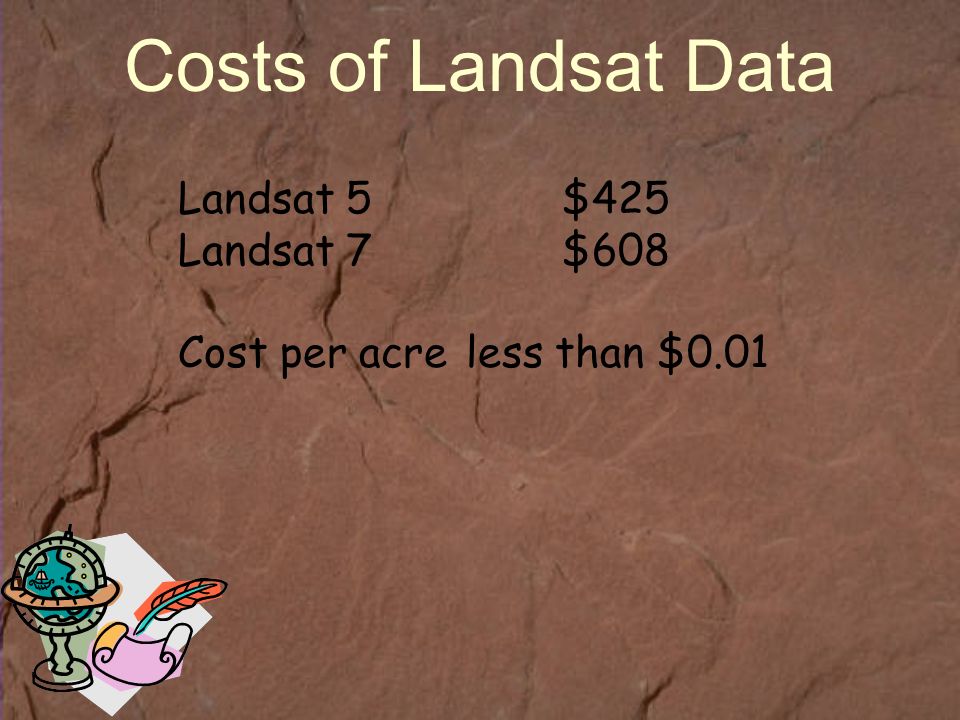

9. Costs of Landsat Data Landsat 5$425 Landsat 7$608 Cost per acreless than $0.01

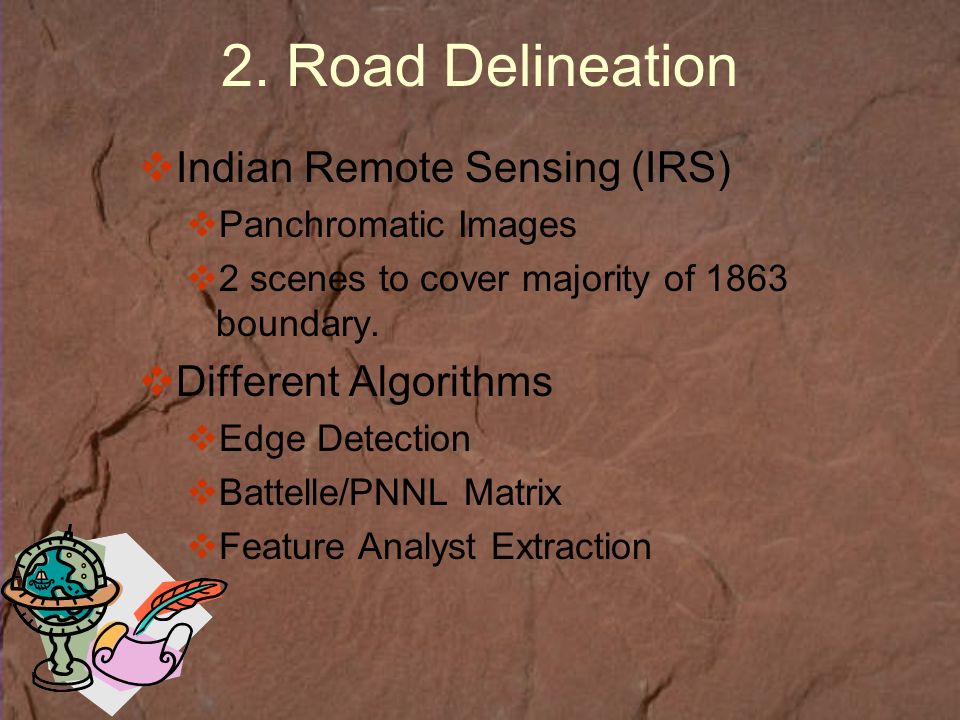

10. 2. Road Delineation  Indian Remote Sensing (IRS)  Panchromatic Images  2 scenes to cover majority of 1863 boundary.  Different Algorithms  Edge Detection  Battelle/PNNL Matrix  Feature Analyst Extraction

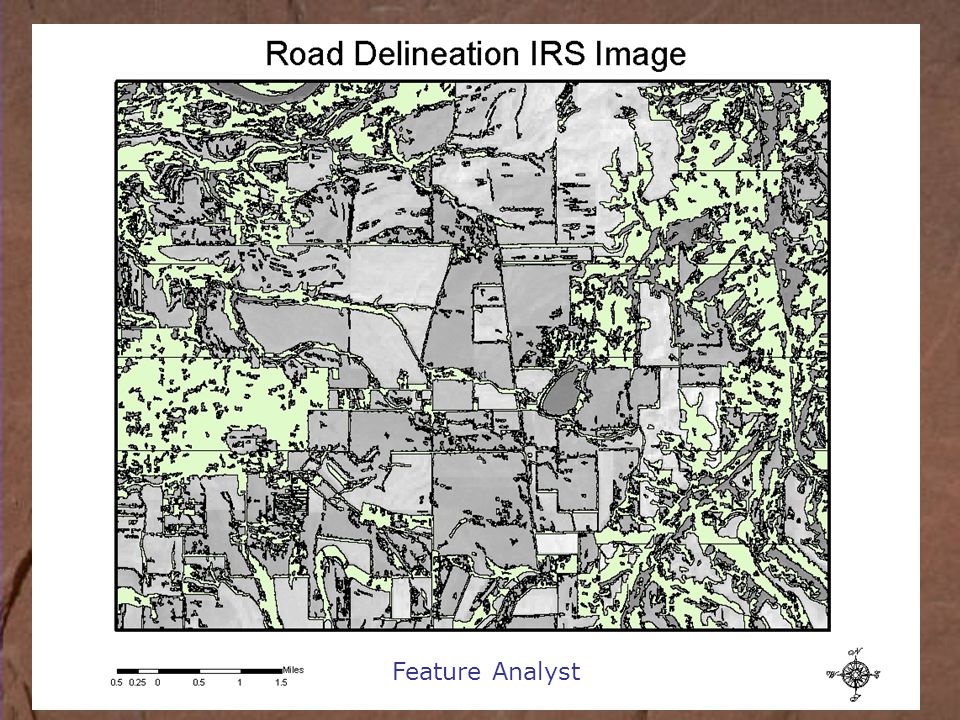

11. Feature Analyst

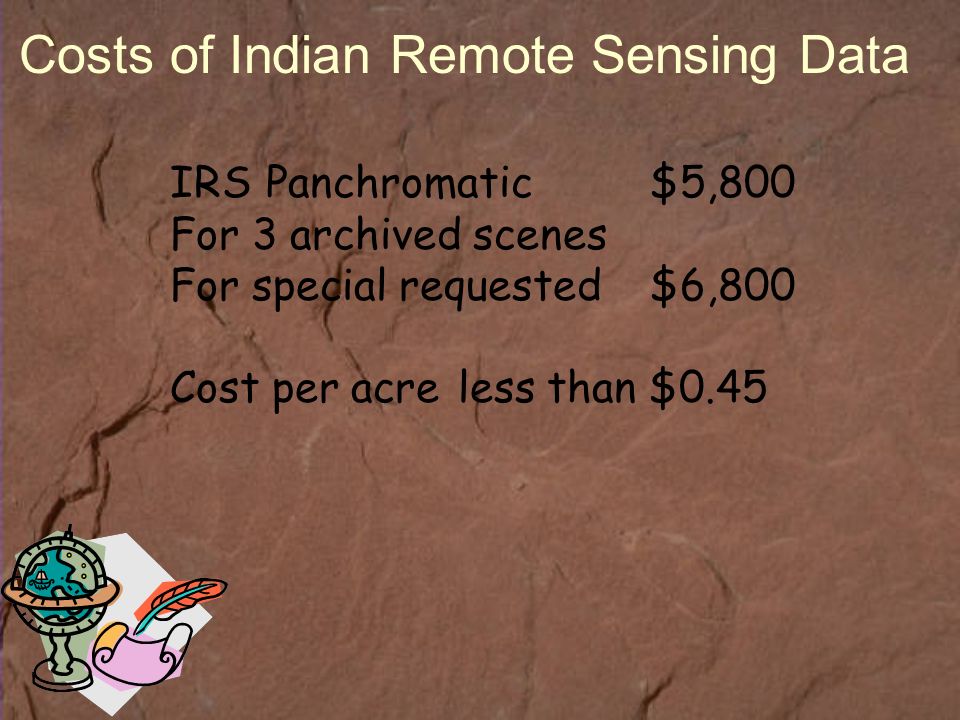

12. Costs of Indian Remote Sensing Data IRSPanchromatic$5,800 For 3 archived scenes For special requested$6,800 Cost per acreless than $0.45

13. 3. MODIS Products  MODIS  Vegetation Indices (MOD13)  EVI & NDVI  LAI (MOD15)  FPAR (MOD15)  GPP (MOD17)  NPP (MOD17)  Large Scale  250m, 1km in size.  Shows plant health, moisture, snow melt.

14. MODIS Leaf Area Index - Amount of leaf area that covers a given unit of ground. Helps to estimate active growing vegetation. Pixel size: 1 km Composite every 8 days

15. 4. Monitoring & Characterization of Forest Lands Forest Characterization –Species composition –Stand stress –Insect infestation –Fuel load estimation Imagery Used: –LiDAR -Active system (current work) –Landsat & SPOT –Hyperspectral –Ikonos 1m

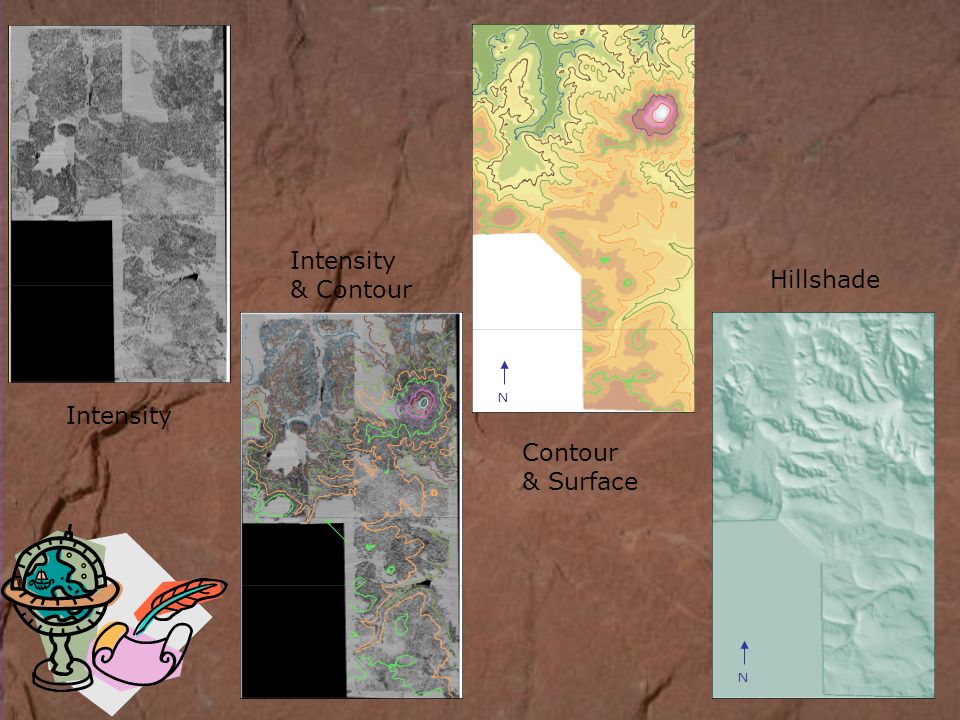

16. Intensity & Contour Contour & Surface Hillshade N N N N

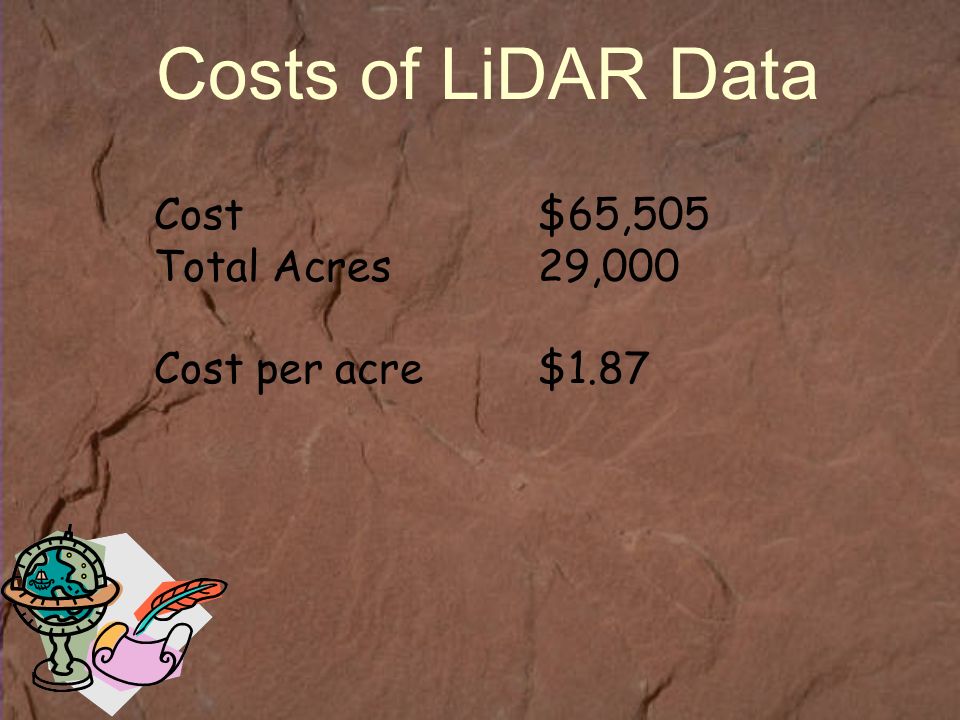

17. Costs of LiDAR Data Cost$65,505 Total Acres 29,000 Cost per acre$1.87

18. WIAP1 satellite image matrix IKONOS MultispectralIRS2 Panchromatic L73 PanchromaticL73 MultispectralSPOT Multispectral Cost ($)highmoderatelow moderate Data source (see contact info below) Space Imaging Corporation USGS Eros Data Center SPOT Image Corporation Spatial Resolution (m)45153020 Spectral Resolution visible, near infraredvisible visible, near & middle infrared # of data channels41163 or 4 Radiometric Resolution 8 or 11 bit quantization8 bit quantization Temporal Resolution (days)acquired as tasked48-5016 acquired as tasked Footprint (km)minimum of 570185 60 Defined as cloud free<20%NA listed in 10% increments NA Delivery timevariable approximately 2 weeks generally <1 week variable Data formatGEOTiff4BSQ5GEOTiff4 BIL6 Data storage requirementshigh moderatelow Appropriate project scalelocal regional Appropriate for visual interpretationyes Appropriate for computer interpretationyesno yes Appropriate for wetland mappingyeslimited yes Cost Per Acre Comparison

19. 5. Hazard Rating & Monitoring of Invasive Weeds  SPOT 10 & 20m multispectral data  Sub-ecosystem map  Areas of susceptibility  MODIS Vegetation products

20. Costs of SPOT Data SPOT 20 m$5,600 Total Acres 17297 Cost per acre$0.15 SPOT 10m$10,800 Total Acres5683 Cost per acre$0.45

21. Thank You Contact:Laurie Ames ext. 2619 lames@nezperce.org Nothing in the world can take the place of persistence. Talent will not; nothing is more common than unsuccessful men with talent. Genius will not; unrewarded genius is almost a proverb. Education will not the world is full of educated derelicts. Persistence and determination alone are omnipotent. The slogan, 'Press on,' has solved and always will solve the problems of the human race. ~Calvin Coolidge
