1. EUC3158 VMware Zimbra: Better than Exchange Name, Title, Company

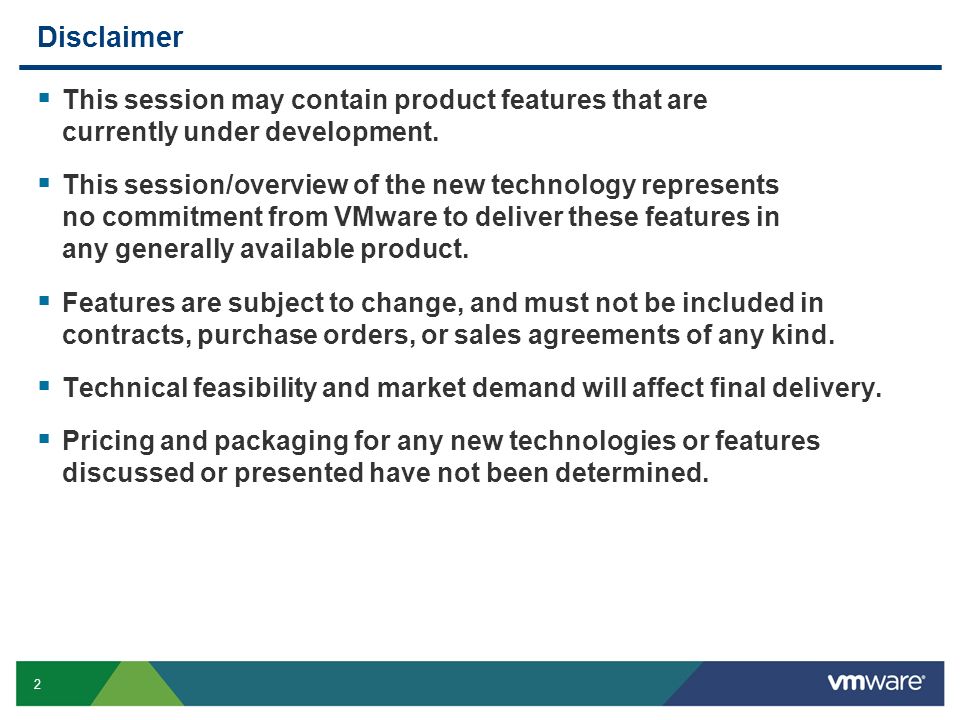

2. 2 Disclaimer  This session may contain product features that are currently under development.  This session/overview of the new technology represents no commitment from VMware to deliver these features in any generally available product.  Features are subject to change, and must not be included in contracts, purchase orders, or sales agreements of any kind.  Technical feasibility and market demand will affect final delivery.  Pricing and packaging for any new technologies or features discussed or presented have not been determined.

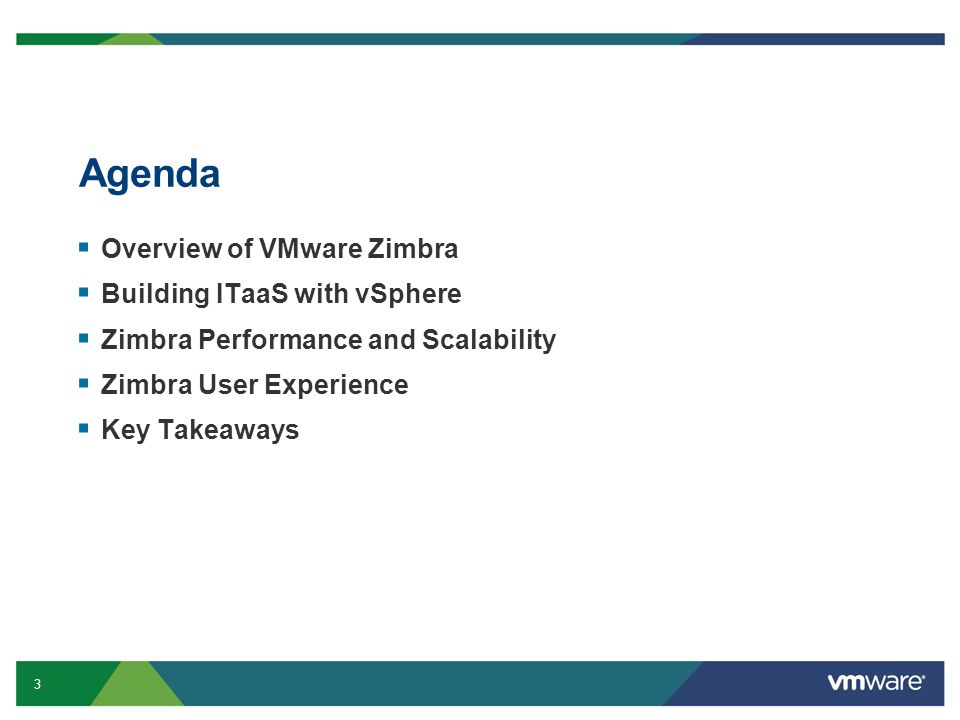

3. 3 Agenda  Overview of VMware Zimbra  Building ITaaS with vSphere  Zimbra Performance and Scalability  Zimbra User Experience  Key Takeaways

4. 4 Key Takeaway's 1.Plug and Play with todays cloud infrastructure of choice, VMware vSphere. 2.Designed for massive scalability and mailboxes without boundaries. 3.Policy driven administration and extensibility with 3 rd Party Applications and APIs.

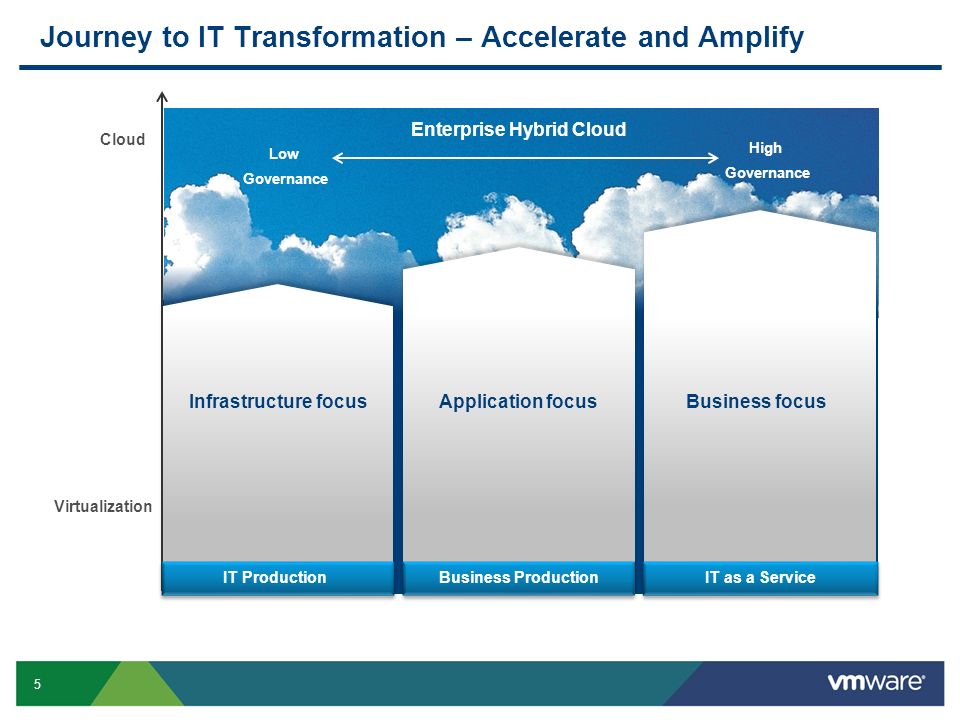

5. 5 Cloud Journey to IT Transformation – Accelerate and Amplify Infrastructure focusApplication focusBusiness focus Business ProductionIT as a Service Virtualization Low Governance High Governance Enterprise Hybrid Cloud IT Production

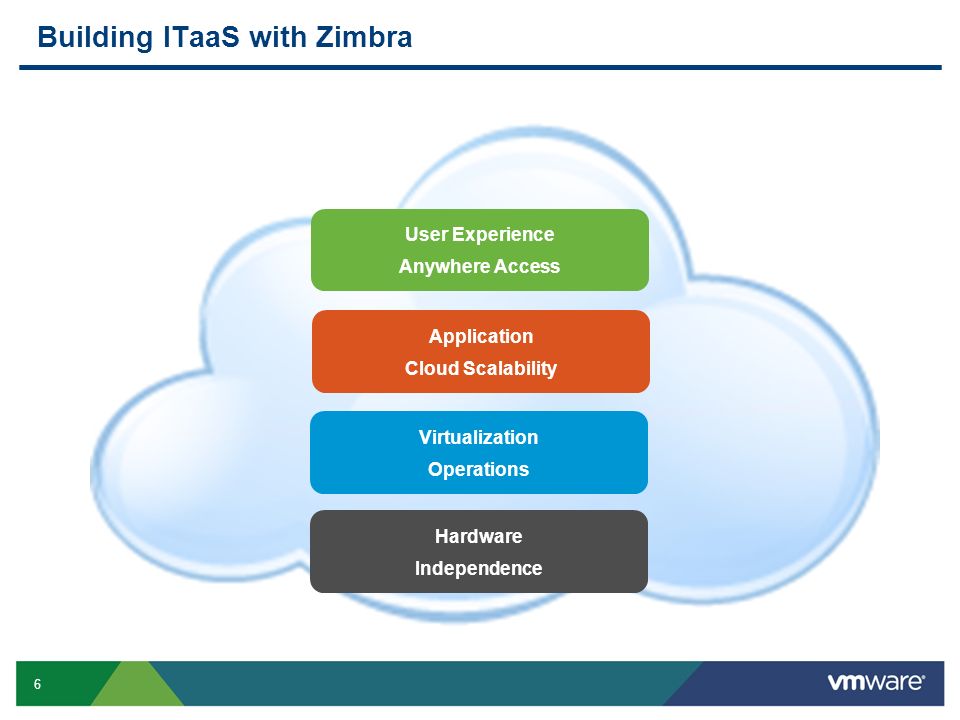

6. 6 Building ITaaS with Zimbra Virtualization Operations User Experience Anywhere Access Application Cloud Scalability Hardware Independence

7. 7 Zimbra Web Client Zimbra Desktop SOAP VMware Zimbra 7 Product Overview Zimbra Server Exchange Server Exchange Server LDAP, WebDAV Active Directory Standards Clients Apple Desktop POP, IMAP, CardDAV, CalDAV MS Outlook MAPI BES, Browser BlackBerry ActiveSync, Mobile Browser iPhone AndroidWindowsTablets

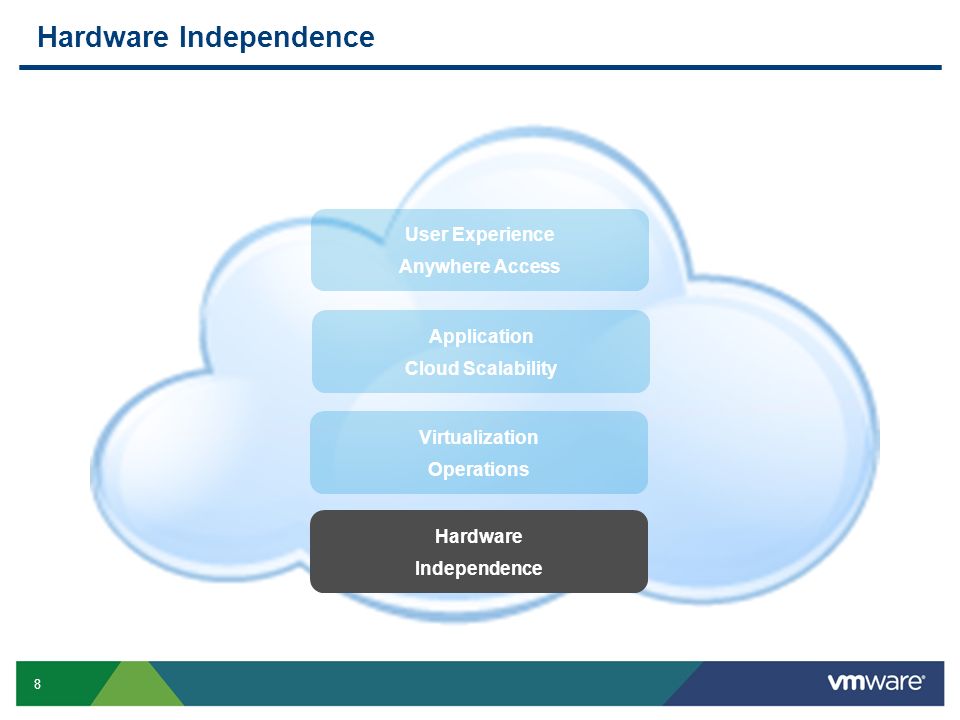

8. 8 Hardware Independence Virtualization Operations User Experience Anywhere Access Application Cloud Scalability Hardware Independence

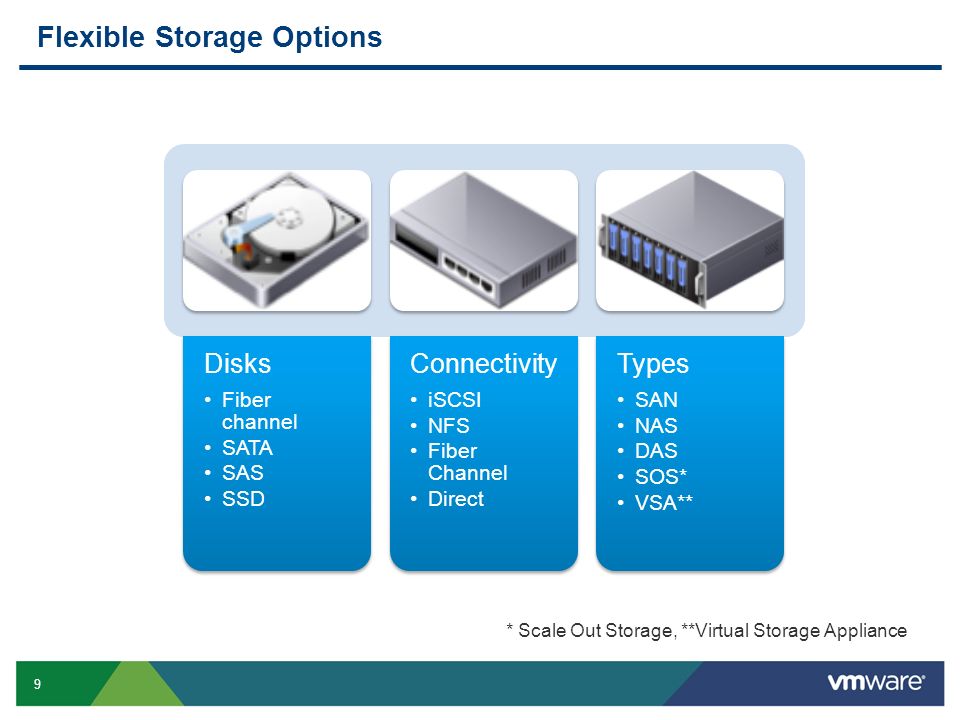

9. 9 Flexible Storage Options Disks Fiber channel SATA SAS SSD Connectivity iSCSI NFS Fiber Channel Direct Types SAN NAS DAS SOS* VSA** * Scale Out Storage, **Virtual Storage Appliance

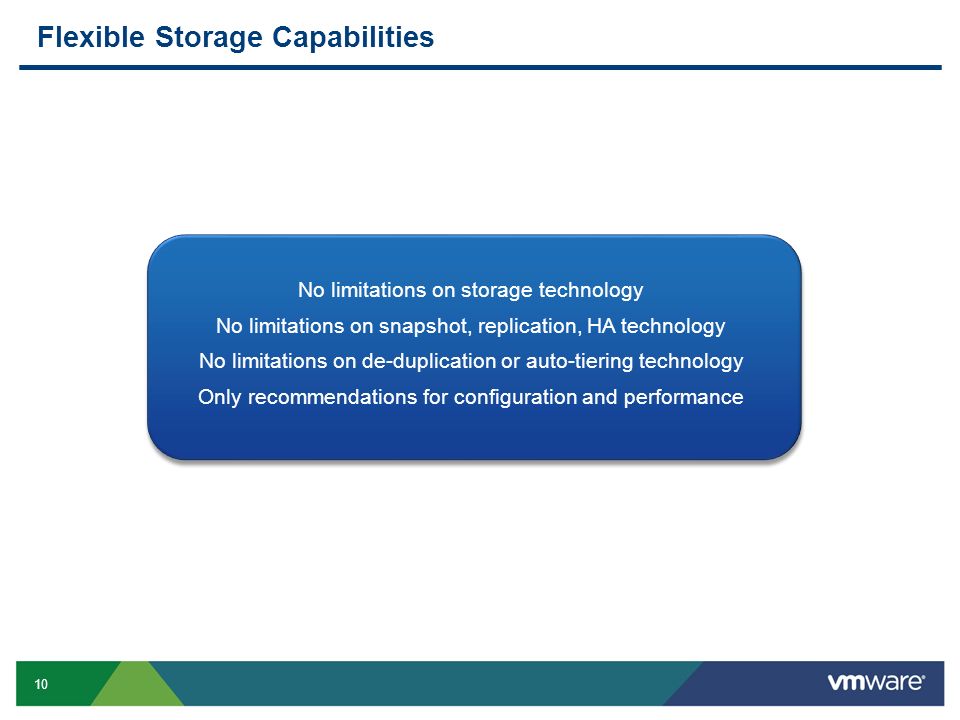

10. 10 Flexible Storage Capabilities No limitations on storage technology No limitations on snapshot, replication, HA technology No limitations on de-duplication or auto-tiering technology Only recommendations for configuration and performance

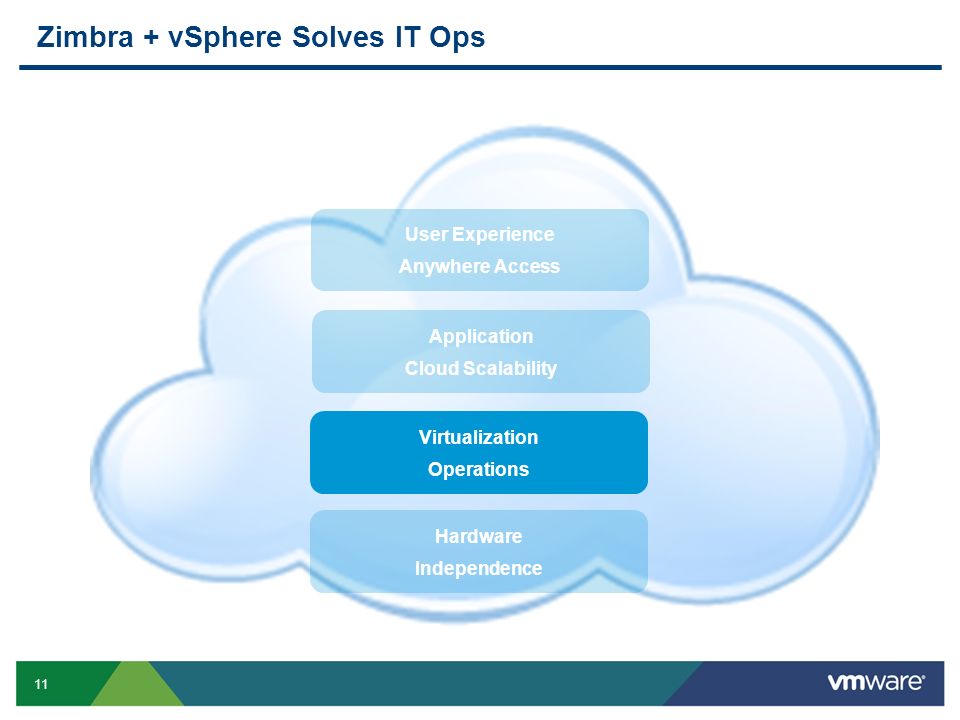

11. 11 Zimbra + vSphere Solves IT Ops Virtualization Operations User Experience Anywhere Access Application Cloud Scalability Hardware Independence

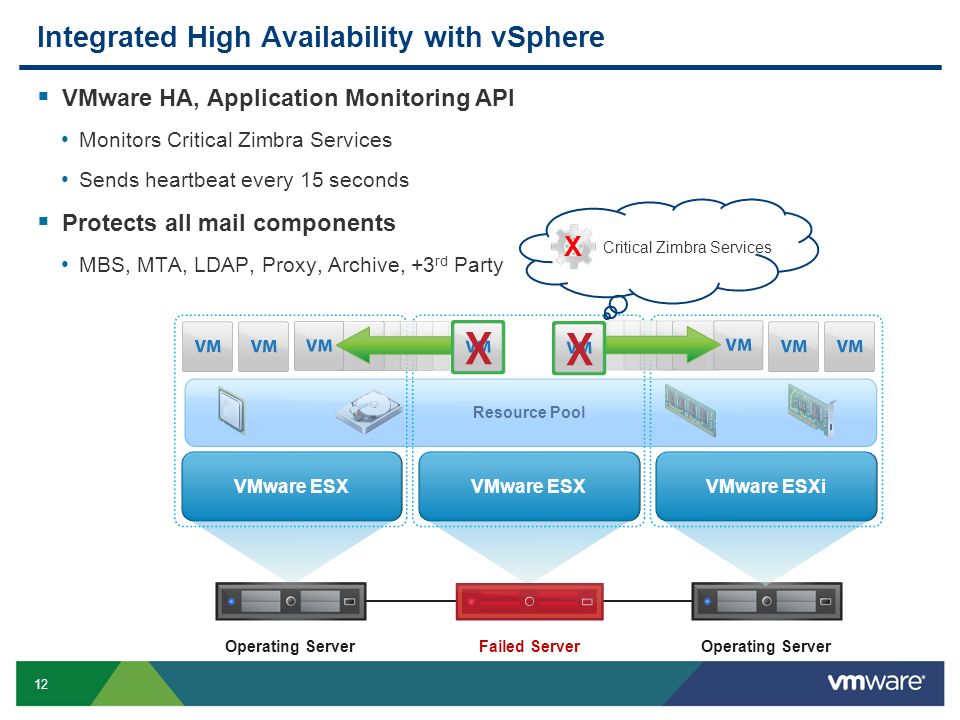

12. 12 Integrated High Availability with vSphere  VMware HA, Application Monitoring API Monitors Critical Zimbra Services Sends heartbeat every 15 seconds  Protects all mail components MBS, MTA, LDAP, Proxy, Archive, +3 rd Party VMware ESX VMware ESXi Resource Pool Failed ServerOperating Server Critical Zimbra Services X

13. 13 High Availability Setup Step 1: start heartbeat on Zimbra VM /opt/zimbra/libexec/vmware-heartbeat start Step 3: enable app monitoring in vSphere Client /etc/init.d/zimbra_heartbeat Step 2 : add heartbeat to startup scripts

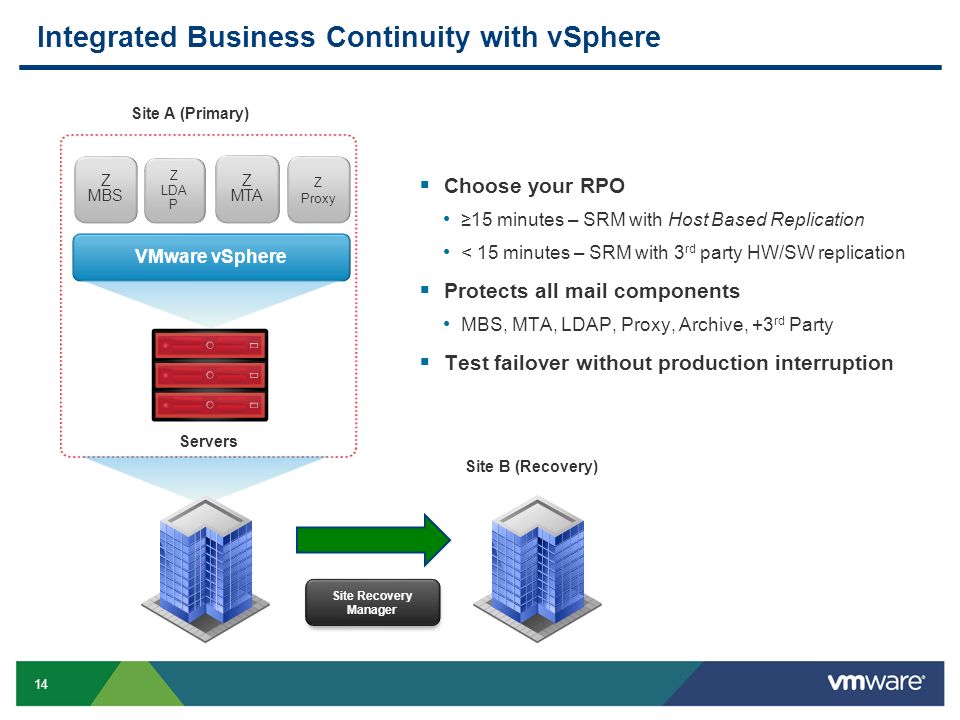

14. 14 Integrated Business Continuity with vSphere  Choose your RPO ≥15 minutes – SRM with Host Based Replication < 15 minutes – SRM with 3 rd party HW/SW replication  Protects all mail components MBS, MTA, LDAP, Proxy, Archive, +3 rd Party  Test failover without production interruption VMware vSphere Site Recovery Manager Site A (Primary) Site B (Recovery) Servers Z MTA Z MBS Z Proxy Z LDA P

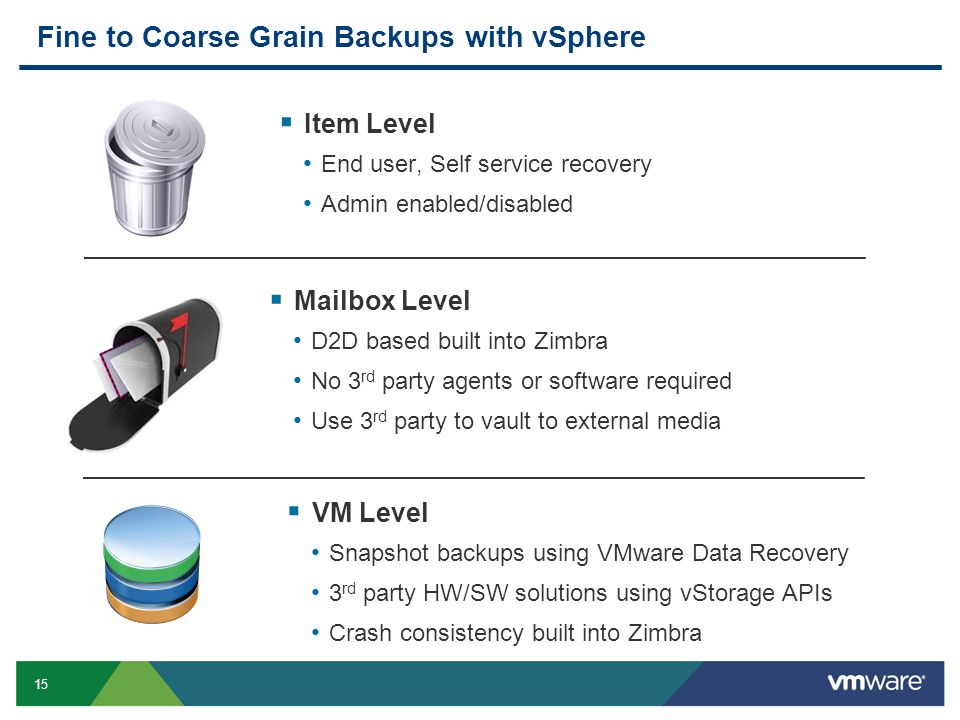

15. 15 Fine to Coarse Grain Backups with vSphere  Item Level End user, Self service recovery Admin enabled/disabled  Mailbox Level D2D based built into Zimbra No 3 rd party agents or software required Use 3 rd party to vault to external media  VM Level Snapshot backups using VMware Data Recovery 3 rd party HW/SW solutions using vStorage APIs Crash consistency built into Zimbra

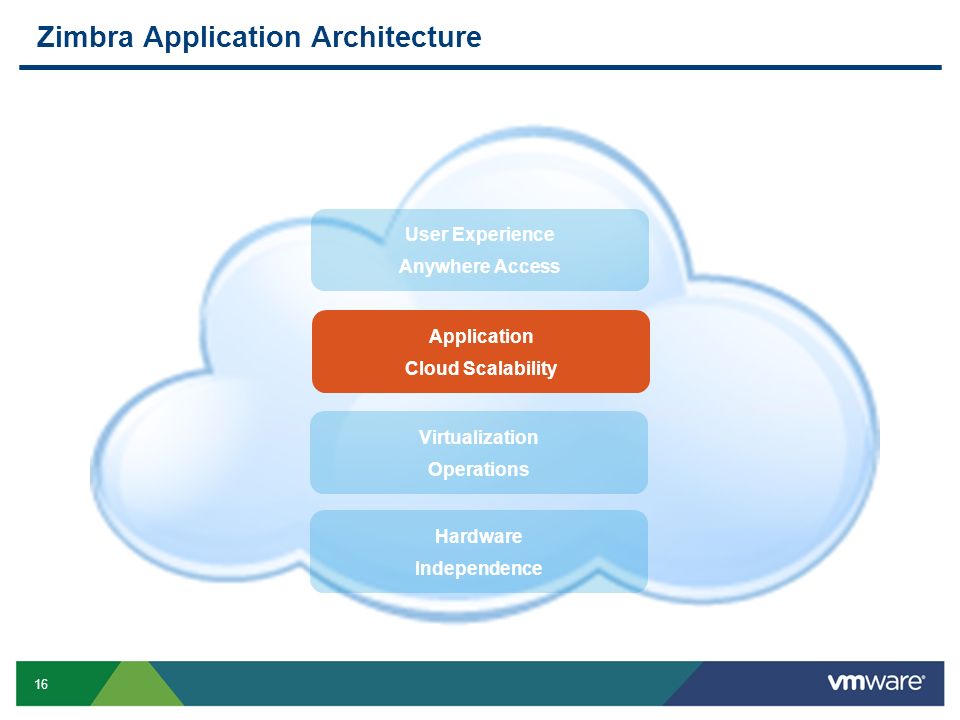

16. 16 Zimbra Application Architecture Virtualization Operations User Experience Anywhere Access Application Cloud Scalability Hardware Independence

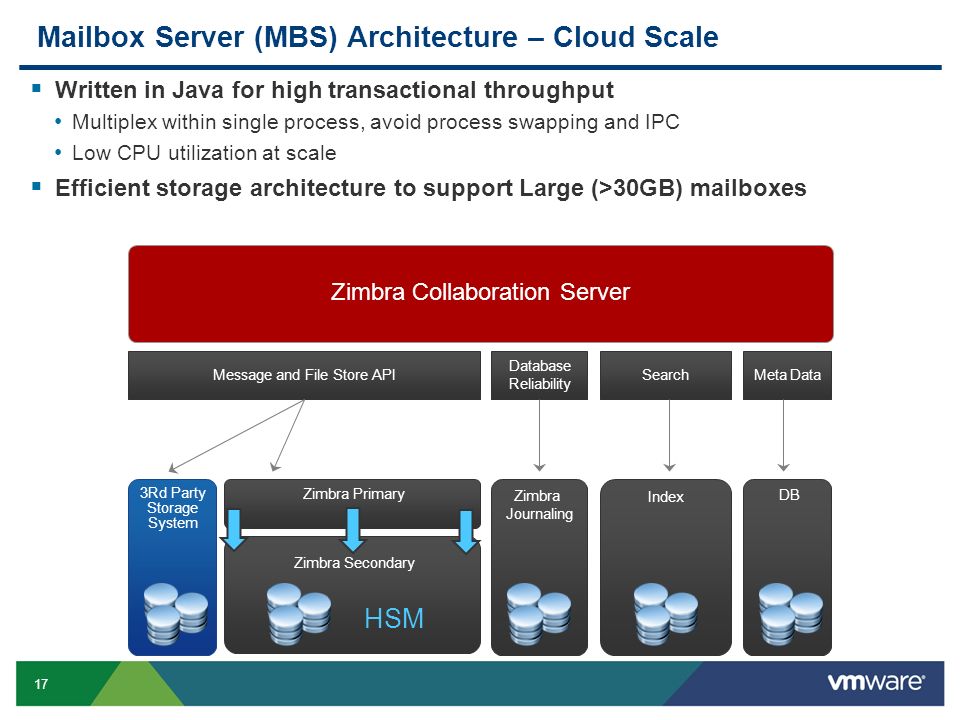

17. 17 3Rd Party Storage System Zimbra Primary DB Index Zimbra Journaling Mailbox Server (MBS) Architecture – Cloud Scale Zimbra Collaboration Server Message and File Store APIMeta DataSearch Database Reliability Zimbra Secondary HSM  Written in Java for high transactional throughput Multiplex within single process, avoid process swapping and IPC Low CPU utilization at scale  Efficient storage architecture to support Large (>30GB) mailboxes

18. 18 Zimbra with NetApp NFS on vSphere  10K user workload 90 percent SOAP users, 10 percent IMAP users 21 receive/hour, 7 send/hour (per user) 120KB average message size 25% messages with 500KB attachment 100% Concurrency PrimarySecondaryJournalIndexDB Capacity10-20%80-90% Primary ÷ 15 Primary × 35% 5MB per mbx IOPS/user0.030.010.02 0.06 (w/ attachments) 0.04 IO PatternWrite/ReadRead/WriteWriteWrite/ReadRead/Write  Workload Requirements 60-70% write IO for MBS 1700 IOPS total for MBS 200 IOPS total for MTA server Detailed MBS Storage Profile

19. 19 Scale Out on vSphere 5 *Dell R910, 4 socket x 8 core x 2.27 GHz Xeon X7350 (Nehalem-EX), 256 GB  Result 21% host CPU utilization @ 32K users. Hypothesis: can double users per VM from 4K – 8K

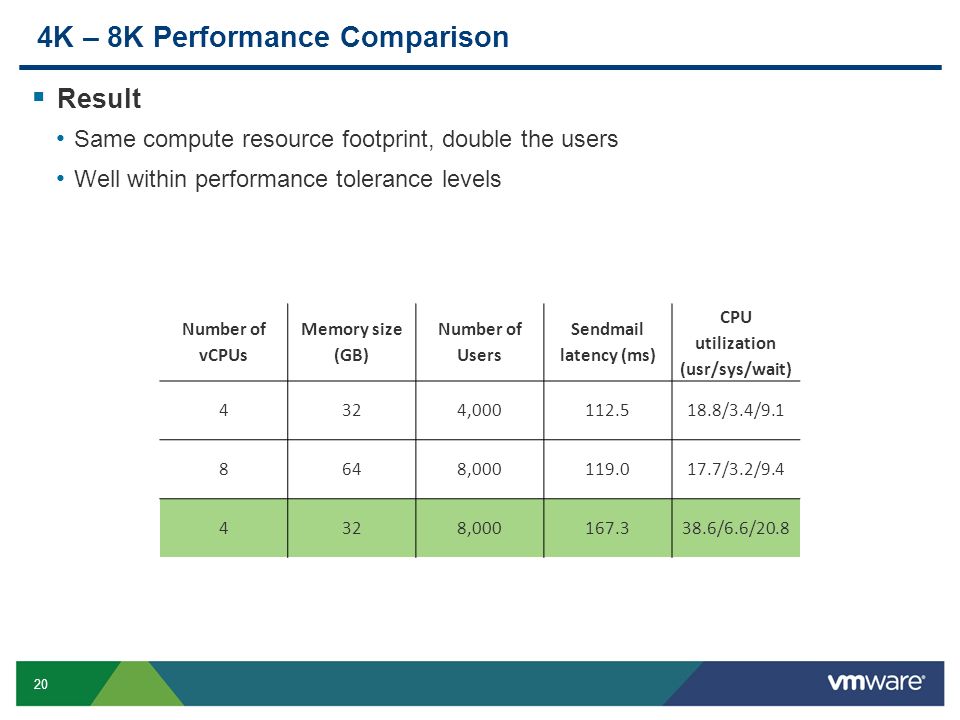

20. 20 4K – 8K Performance Comparison Number of vCPUs Memory size (GB) Number of Users Sendmail latency (ms) CPU utilization (usr/sys/wait) 4324,000112.518.8/3.4/9.1 8648,000119.017.7/3.2/9.4 4328,000167.338.6/6.6/20.8  Result Same compute resource footprint, double the users Well within performance tolerance levels

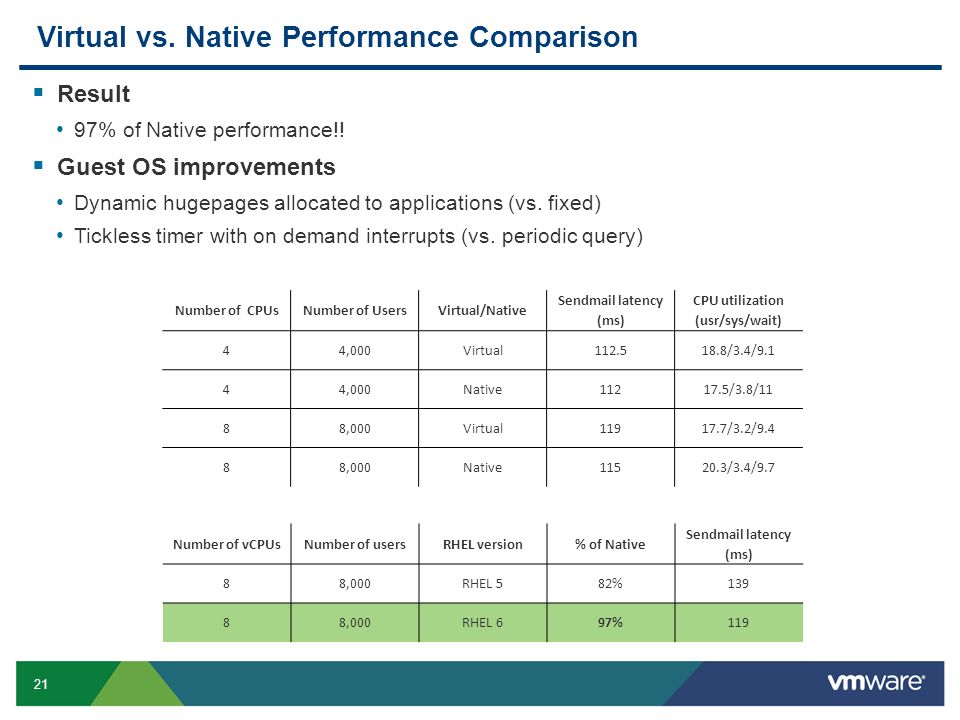

21. 21 Virtual vs. Native Performance Comparison Number of CPUsNumber of UsersVirtual/Native Sendmail latency (ms) CPU utilization (usr/sys/wait) 44,000Virtual112.518.8/3.4/9.1 44,000Native11217.5/3.8/11 88,000Virtual11917.7/3.2/9.4 88,000Native11520.3/3.4/9.7 Number of vCPUsNumber of usersRHEL version% of Native Sendmail latency (ms) 88,000RHEL 582%139 88,000RHEL 697%119  Result 97% of Native performance!!  Guest OS improvements Dynamic hugepages allocated to applications (vs. fixed) Tickless timer with on demand interrupts (vs. periodic query)

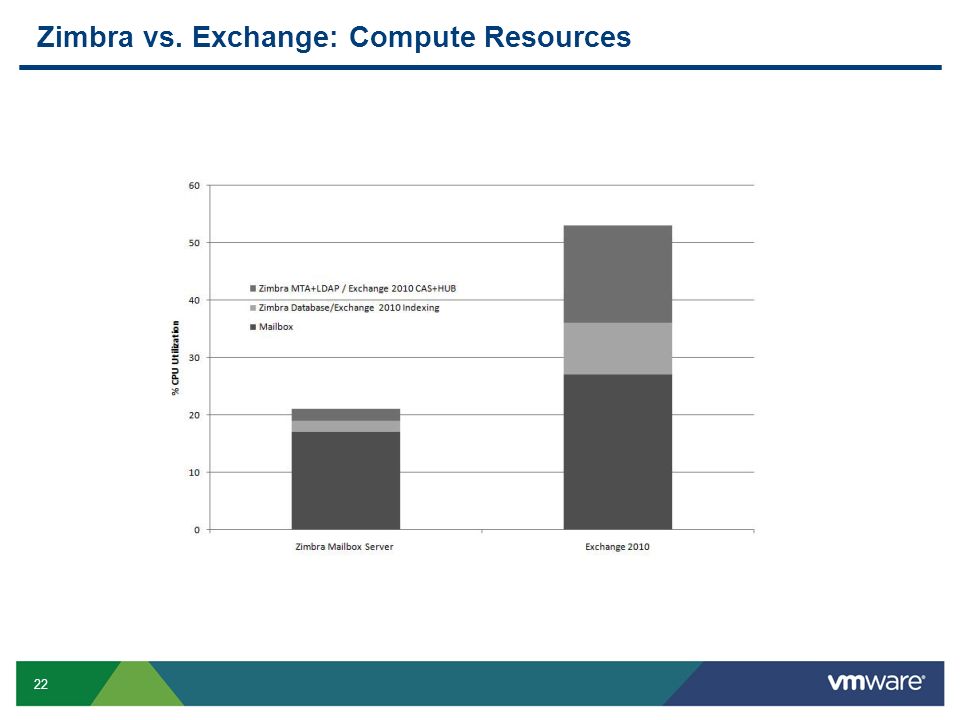

22. 22 Zimbra vs. Exchange: Compute Resources

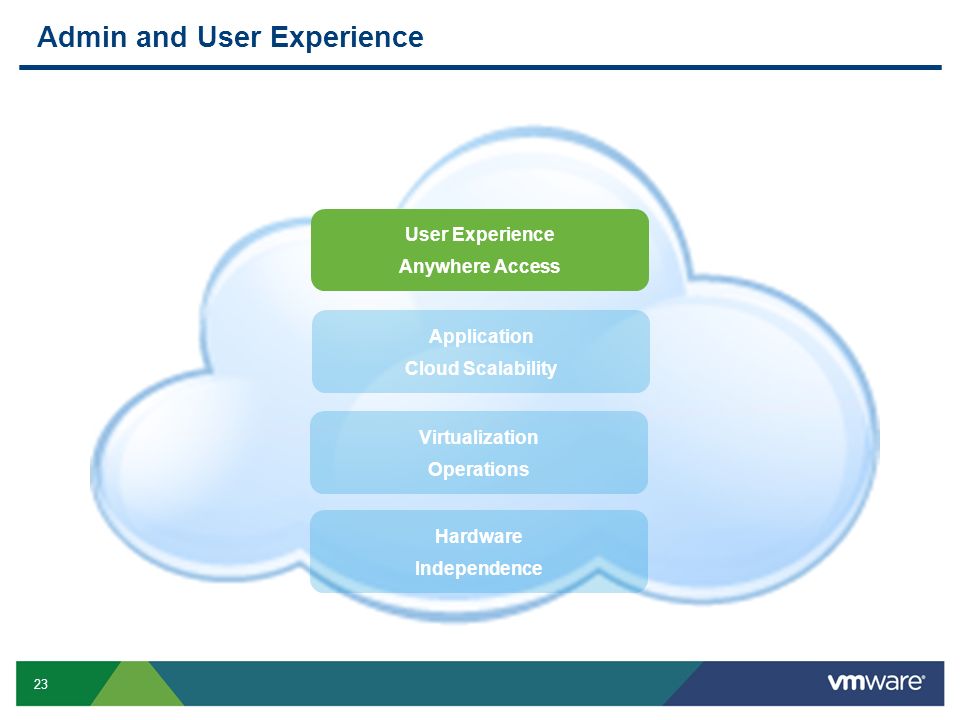

23. 23 Admin and User Experience Virtualization Operations User Experience Anywhere Access Application Cloud Scalability Hardware Independence

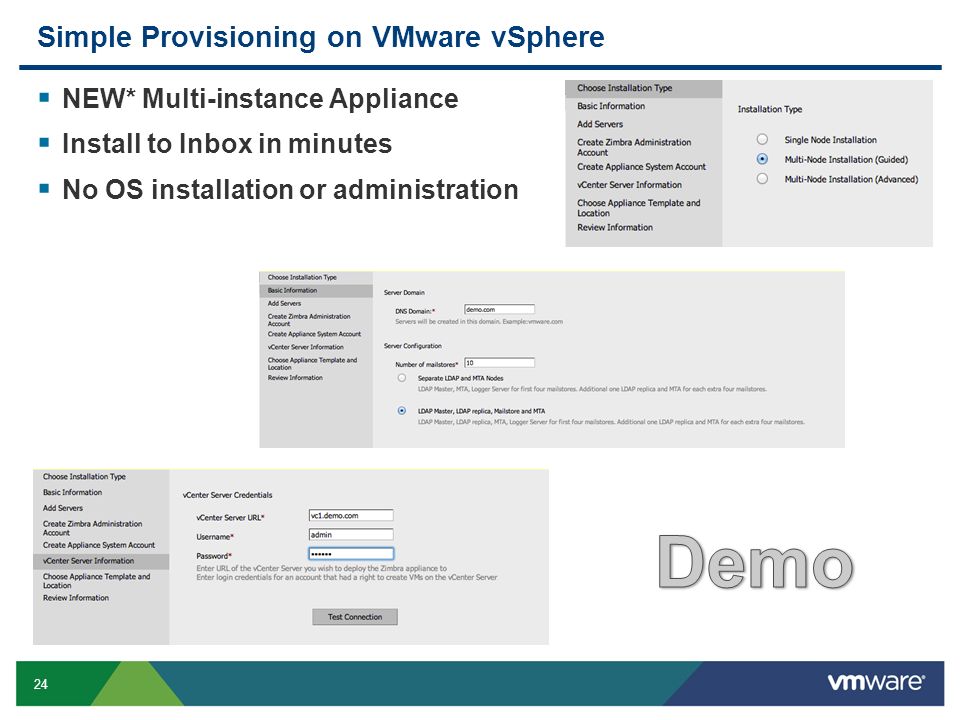

24. 24 Simple Provisioning on VMware vSphere  NEW* Multi-instance Appliance  Install to Inbox in minutes  No OS installation or administration

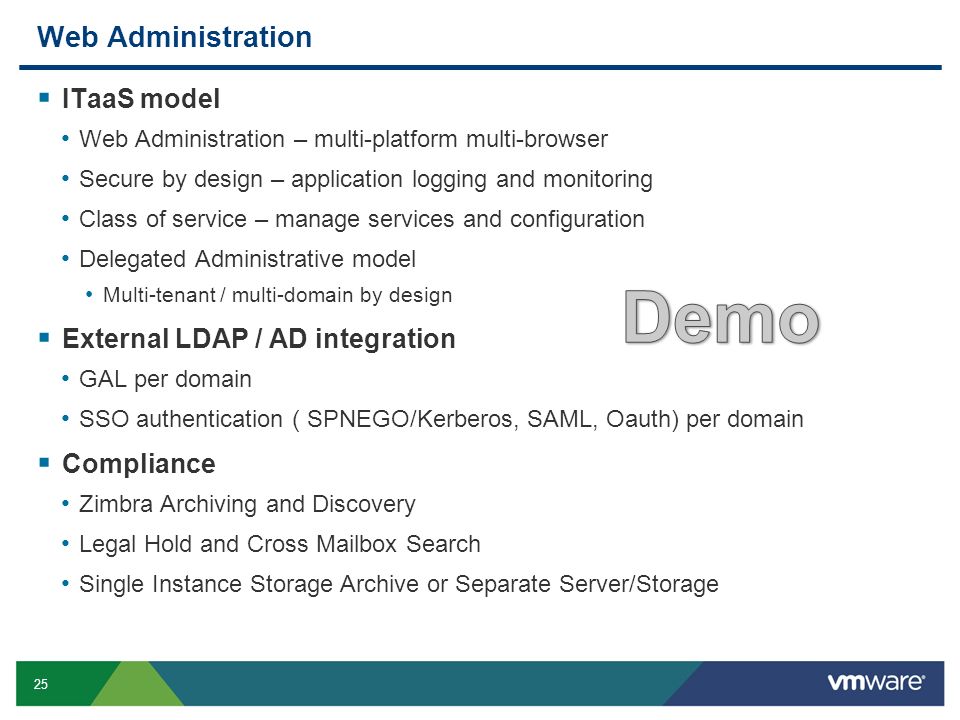

25. 25 Web Administration  ITaaS model Web Administration – multi-platform multi-browser Secure by design – application logging and monitoring Class of service – manage services and configuration Delegated Administrative model Multi-tenant / multi-domain by design  External LDAP / AD integration GAL per domain SSO authentication ( SPNEGO/Kerberos, SAML, Oauth) per domain  Compliance Zimbra Archiving and Discovery Legal Hold and Cross Mailbox Search Single Instance Storage Archive or Separate Server/Storage

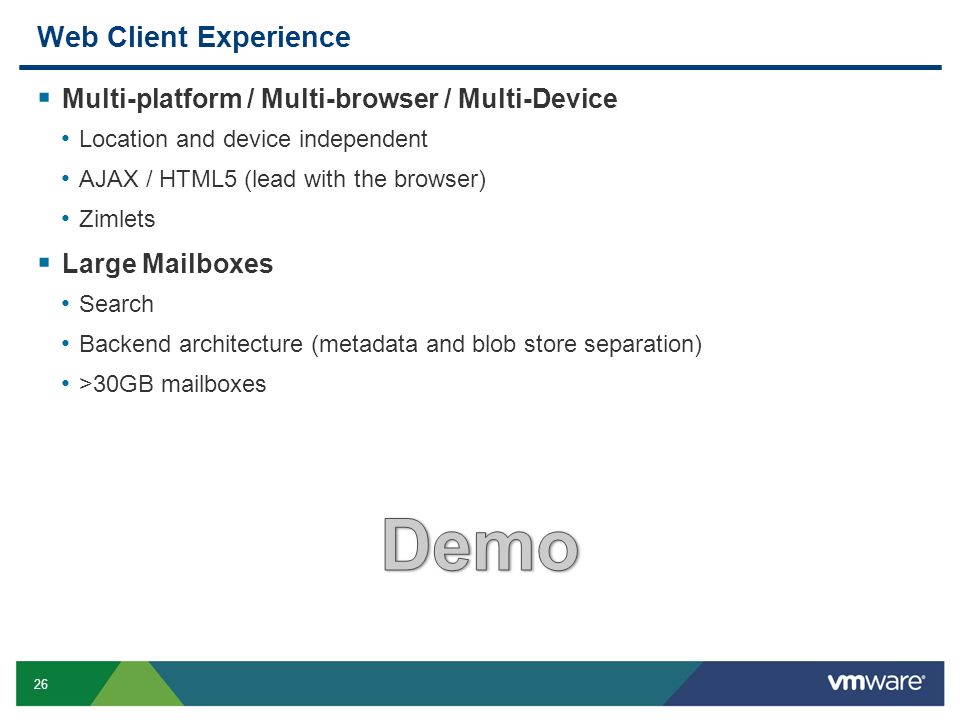

26. 26 Web Client Experience  Multi-platform / Multi-browser / Multi-Device Location and device independent AJAX / HTML5 (lead with the browser) Zimlets  Large Mailboxes Search Backend architecture (metadata and blob store separation) >30GB mailboxes

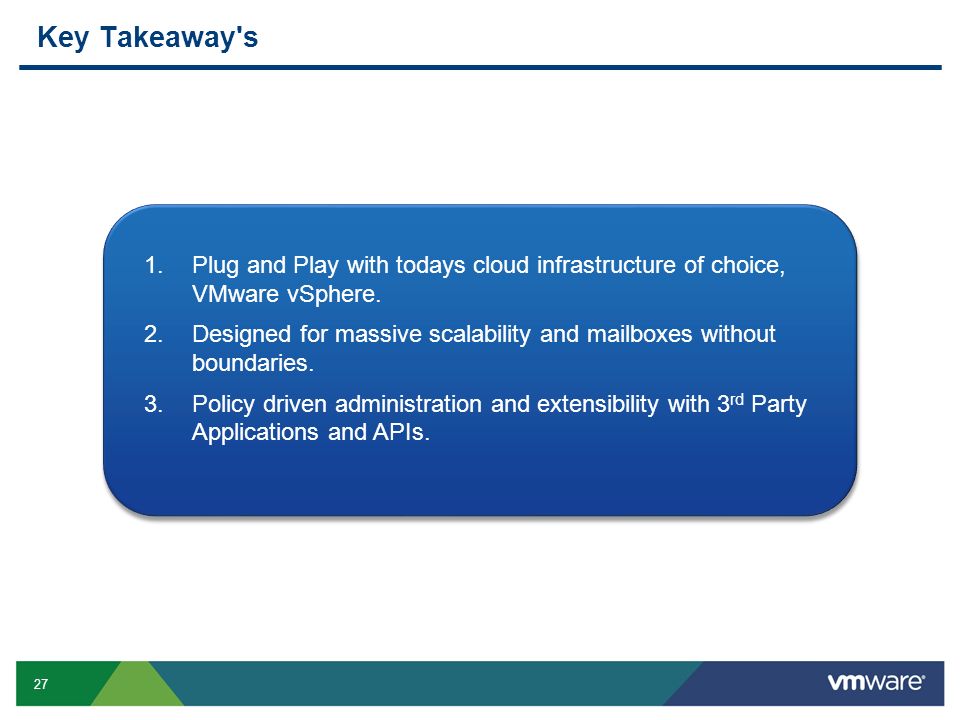

27. 27 Key Takeaway's 1.Plug and Play with todays cloud infrastructure of choice, VMware vSphere. 2.Designed for massive scalability and mailboxes without boundaries. 3.Policy driven administration and extensibility with 3 rd Party Applications and APIs.
