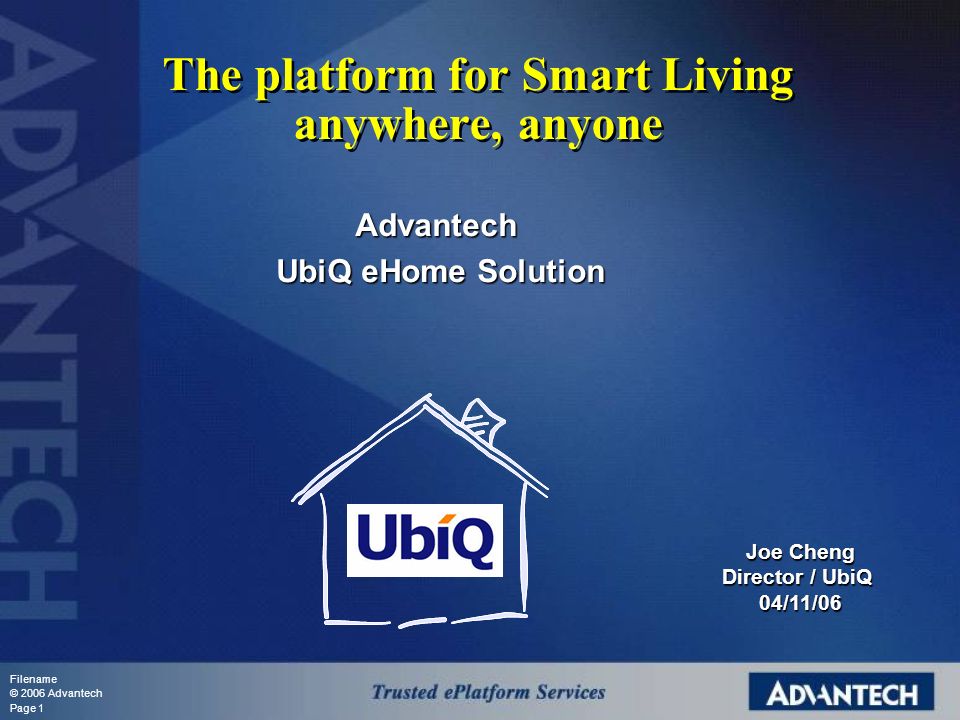

1. Filename © 2006 Advantech Page 1 Joe Cheng Director / UbiQ 04/11/06 The platform for Smart Living anywhere, anyone Advantech UbiQ eHome Solution UbiQ eHome Solution

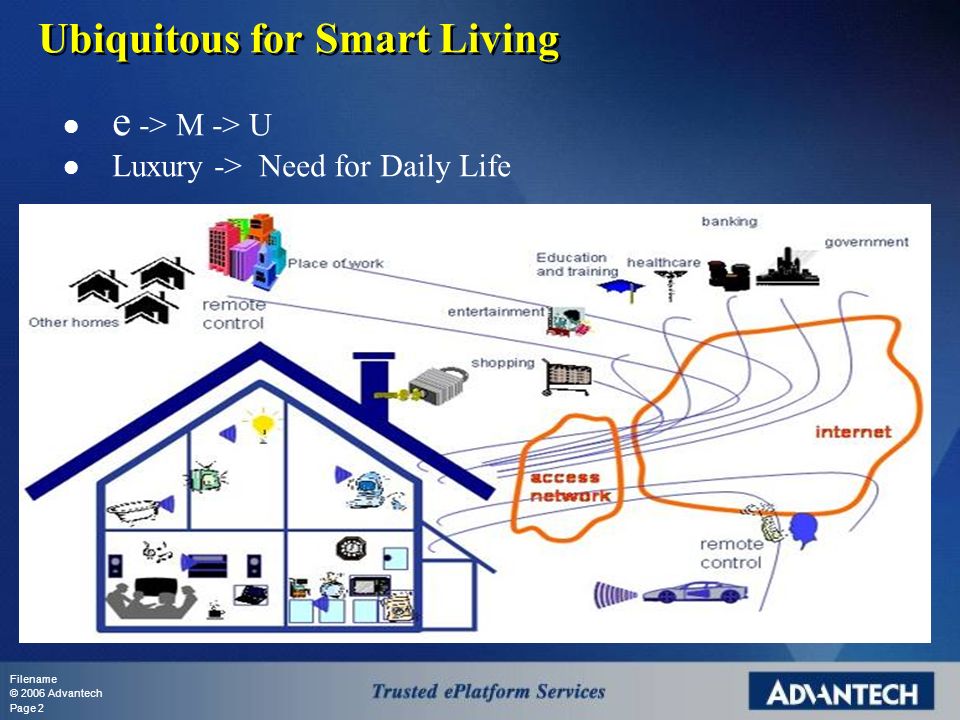

2. Page 2 Filename © 2006 Advantech Ubiquitous for Smart Living e -> M -> U Luxury -> Need for Daily Life

3. Page 3 Filename © 2006 Advantech UbiQ eHome Solution Digitization Automation Integration Smart Service Affordable UbiQ eHome Solution Technology Life Pleasure (eHome) Residential Service (eHotel) Commercial Service (eOffice) Commercial Service (eCare) Commercial Service

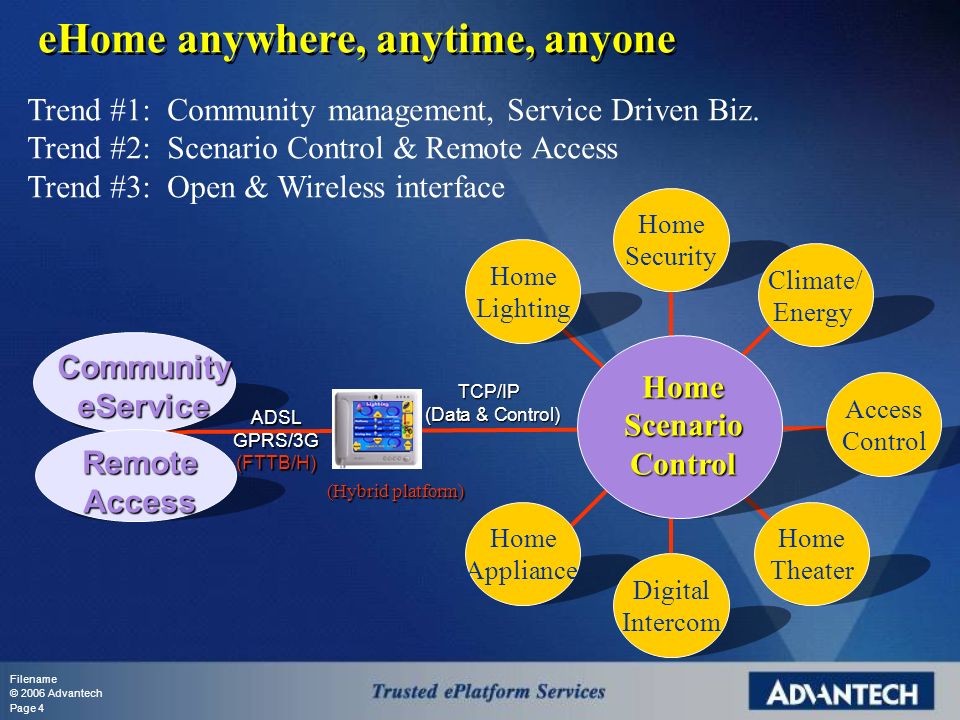

4. Page 4 Filename © 2006 Advantech eHome anywhere, anytime, anyone Trend #1: Community management, Service Driven Biz. Trend #2: Scenario Control & Remote Access Trend #3: Open & Wireless interface Home Security ADSLGPRS/3G(FTTB/H) Home Lighting Climate/ Energy Home Appliance Digital Intercom Access Control Home Theater Community eService Remote Access TCP/IP (Data & Control) (Hybrid platform) Home Scenario Control

5. File Name Version No. ©2005 Advantech 5 User Segment & Environment Diversify UI terminal is expected by color / ID / Function to fulfill personalization pleasure

6. Page 6 Filename © 2006 Advantech Advantech eHome Show case - Taiwan

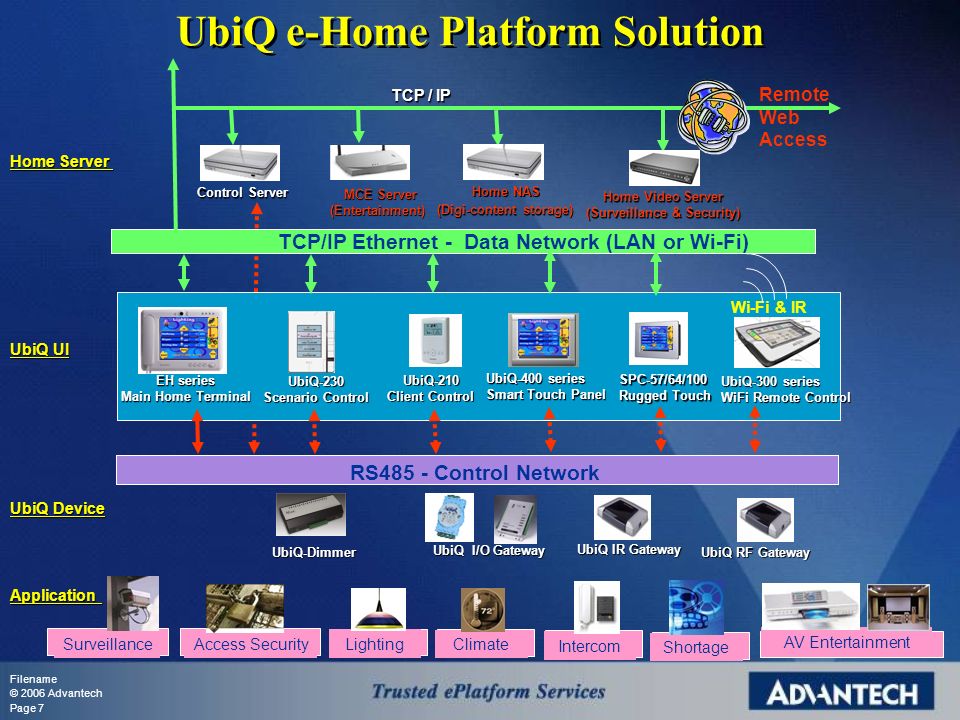

7. Page 7 Filename © 2006 Advantech UbiQ e-Home Platform Solution TCP/IP Ethernet - Data Network (LAN or Wi-Fi) TCP / IP (Digi-content storage) Home NAS RS485 - Control Network UbiQ I/O Gateway UbiQ IR Gateway Wi-Fi & IR UbiQ-230 Scenario Control EH series Main Home Terminal UbiQ-400 series Smart Touch Panel SPC-57/64/100 Rugged Touch UbiQ-210 Client Control UbiQ-300 series WiFi Remote Control UbiQ-Dimmer Home Video Server (Surveillance & Security) MCE Server (Entertainment) Home Server UbiQ UI UbiQ Device Remote Web Access UbiQ RF Gateway Control Server Surveillance Access Security Lighting Climate Intercom Shortage AV Entertainment Application

8. Page 8 Filename © 2006 Advantech UbiQ Remote Manager The value added mechanism for SI application development

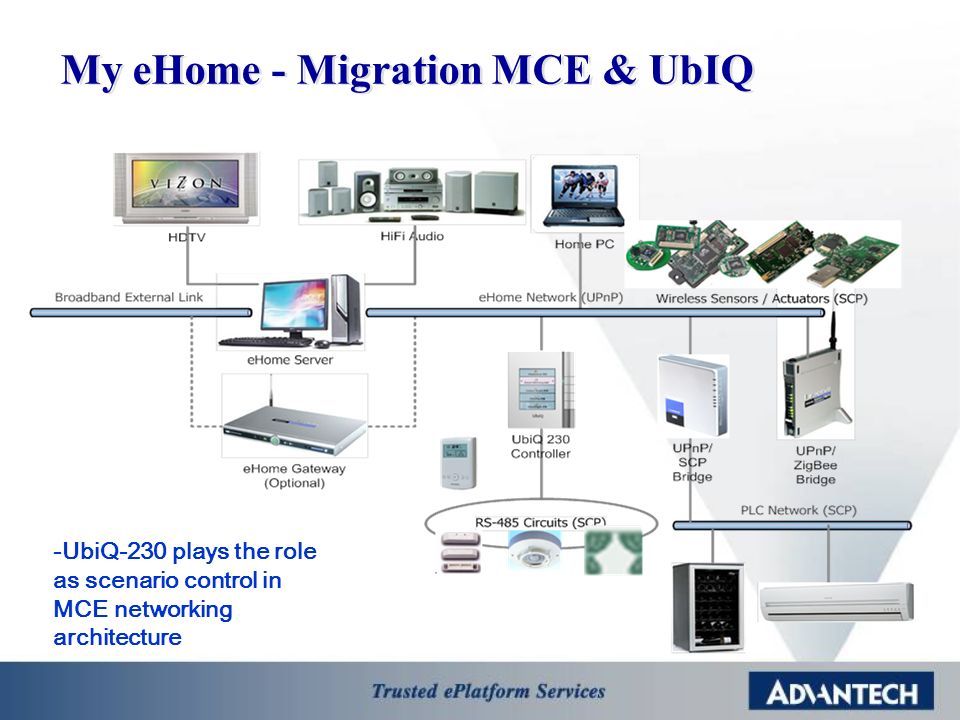

9. My eHome - Migration MCE & UbIQ -UbiQ-230 plays the role as scenario control in MCE networking architecture

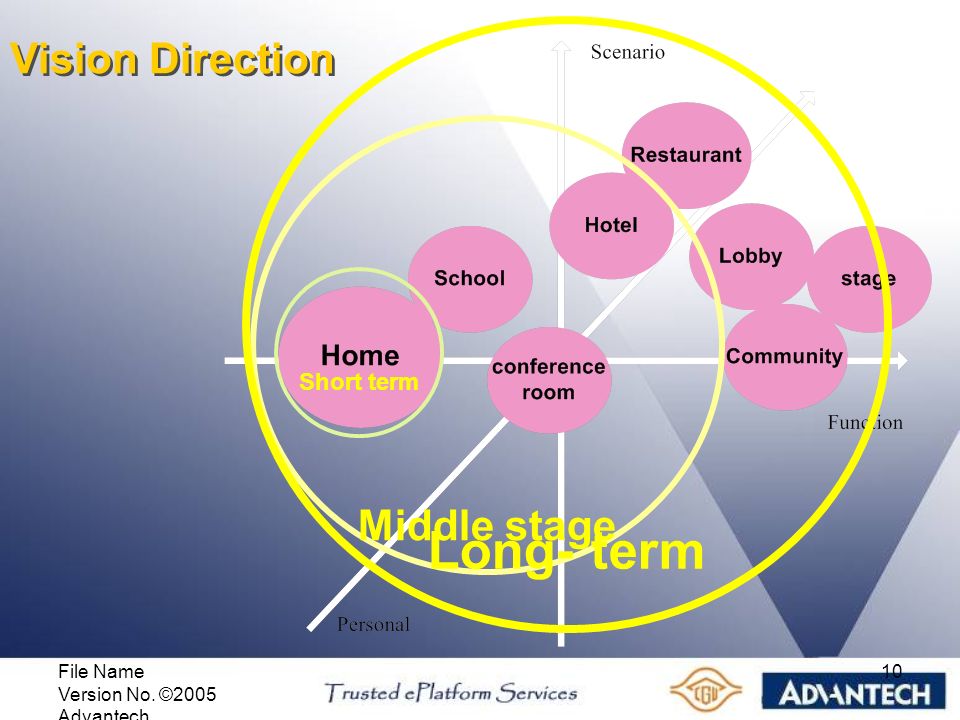

10. File Name Version No. ©2005 Advantech 10 Short term Middle stage Long- term Vision Direction

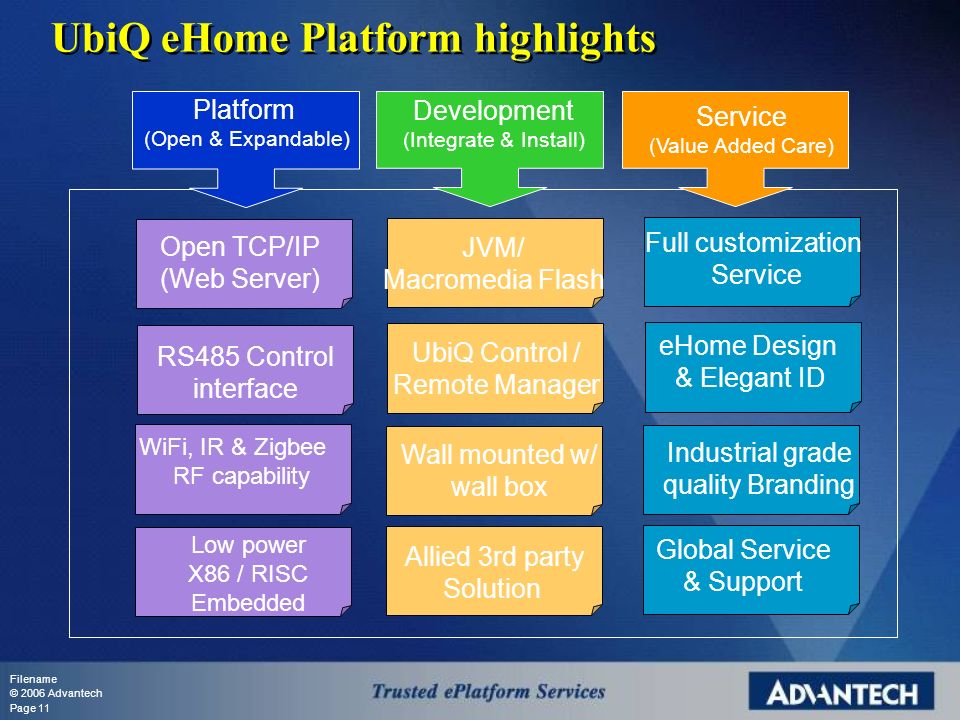

11. Page 11 Filename © 2006 Advantech UbiQ eHome Platform highlights Open TCP/IP (Web Server) RS485 Control interface JVM/ Macromedia Flash Wall mounted w/ wall box UbiQ Control / Remote Manager Allied 3rd party Solution eHome Design & Elegant ID Global Service & Support Industrial grade quality Branding Platform (Open & Expandable) Development (Integrate & Install) Service (Value Added Care) Full customization Service Low power X86 / RISC Embedded WiFi, IR & Zigbee RF capability

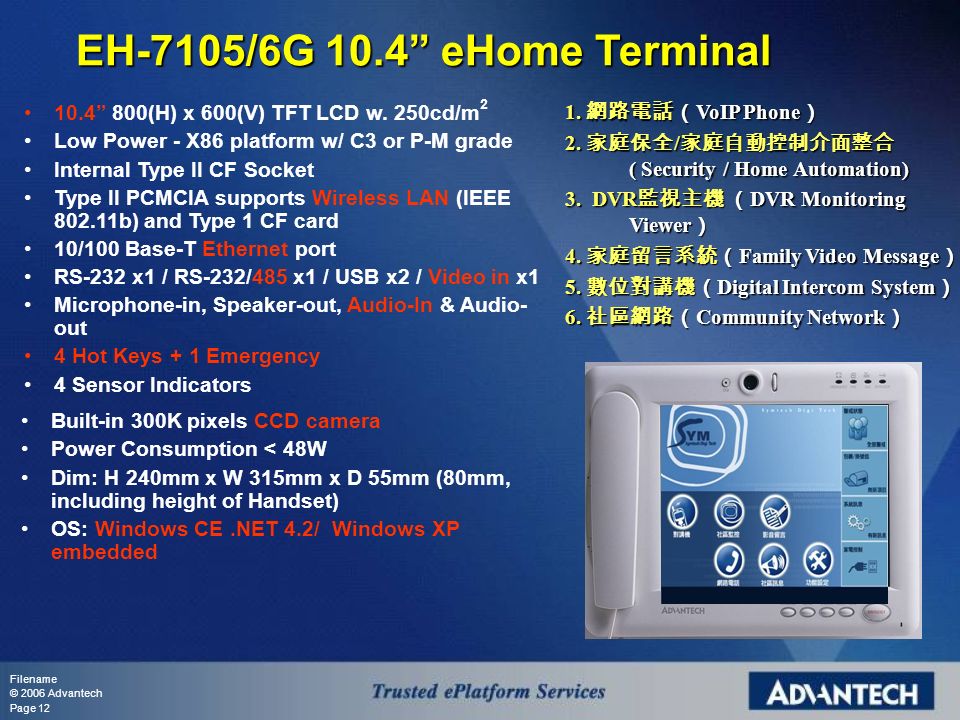

12. Page 12 Filename © 2006 Advantech 10.4” 800(H) x 600(V) TFT LCD w. 250cd/m 2 Low Power - X86 platform w/ C3 or P-M grade Internal Type II CF Socket Type II PCMCIA supports Wireless LAN (IEEE 802.11b) and Type 1 CF card 10/100 Base-T Ethernet port RS-232 x1 / RS-232/485 x1 / USB x2 / Video in x1 Microphone-in, Speaker-out, Audio-In & Audio- out 4 Hot Keys + 1 Emergency 4 Sensor Indicators Built-in 300K pixels CCD camera Power Consumption < 48W Dim: H 240mm x W 315mm x D 55mm (80mm, including height of Handset) OS: Windows CE.NET 4.2/ Windows XP embedded EH-7105/6G 10.4” eHome Terminal 1. 網路電話（ VoIP Phone ） 2. 家庭保全 / 家庭自動控制介面整合 ( Security / Home Automation) 3. DVR 監視主機 （ DVR Monitoring Viewer ） 4. 家庭留言系統（ Family Video Message ） 5. 數位對講機（ Digital Intercom System ） 6. 社區網路（ Community Network ）

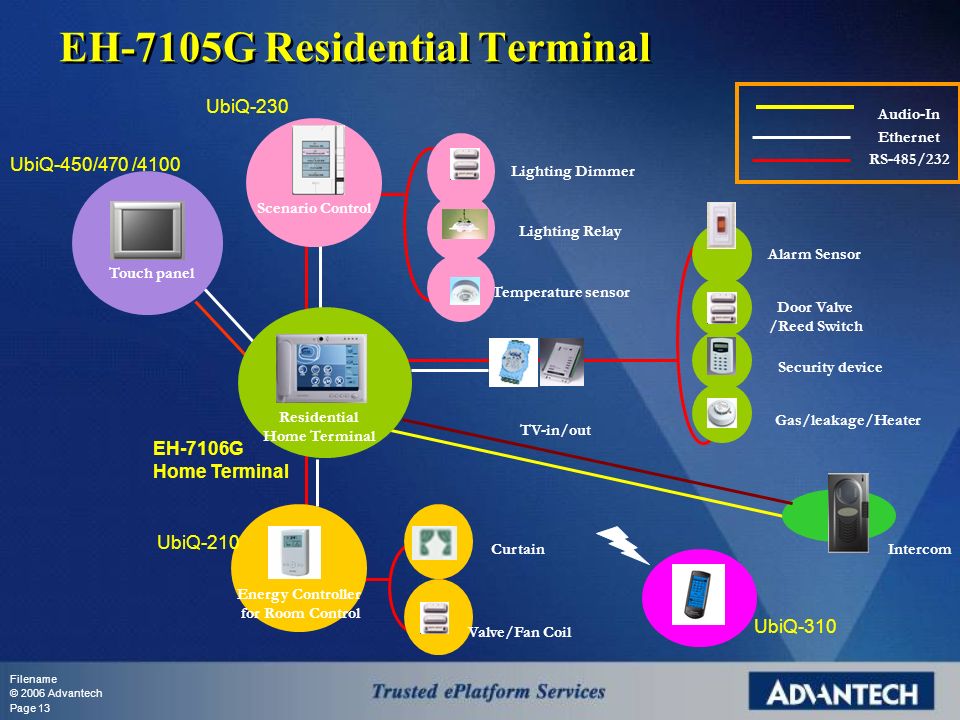

13. Page 13 Filename © 2006 Advantech EH-7105G Residential Terminal Residential Home Terminal Touch panel Energy Controller for Room Control Curtain Valve/Fan Coil Temperature sensor Alarm Sensor Security device Door Valve /Reed Switch Gas/leakage/Heater Ethernet RS-485/232 Scenario Control Lighting Dimmer Lighting Relay Intercom Audio-In EH-7106G Home Terminal UbiQ-450/470 /4100 UbiQ-210 UbiQ-310 TV-in/out UbiQ-230

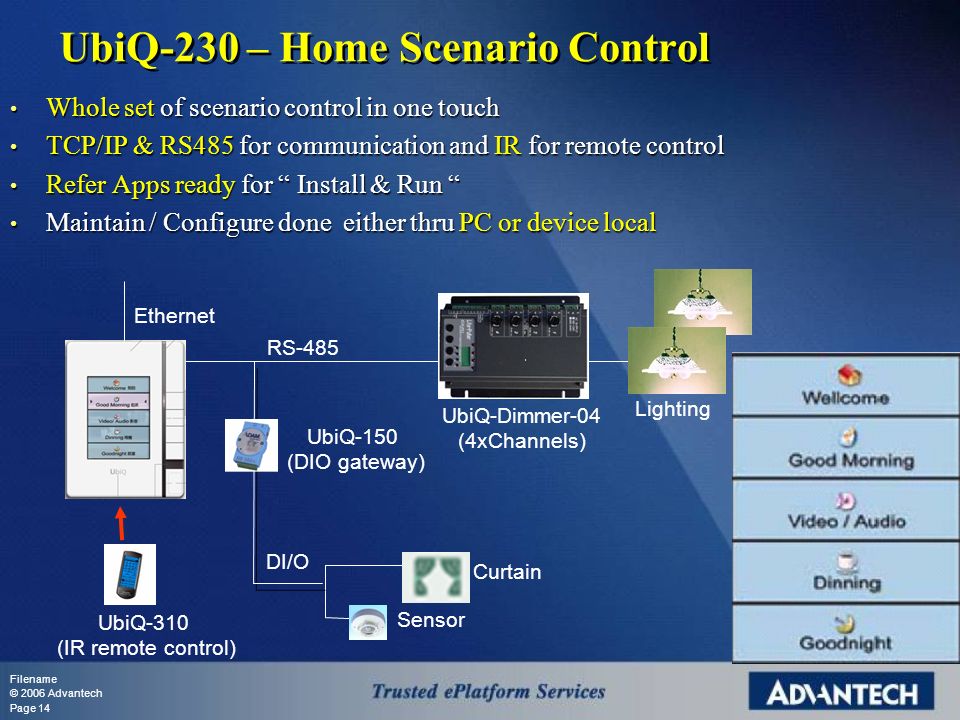

14. Page 14 Filename © 2006 Advantech UbiQ-230 – Home Scenario Control Whole set of scenario control in one touch Whole set of scenario control in one touch TCP/IP & RS485 for communication and IR for remote control TCP/IP & RS485 for communication and IR for remote control Refer Apps ready for “ Install & Run “ Refer Apps ready for “ Install & Run “ Maintain / Configure done either thru PC or device local Maintain / Configure done either thru PC or device local Curtain Lighting RS-485 DI/O Sensor UbiQ-Dimmer-04 (4xChannels) UbiQ-310 (IR remote control) UbiQ-150 (DIO gateway) Ethernet

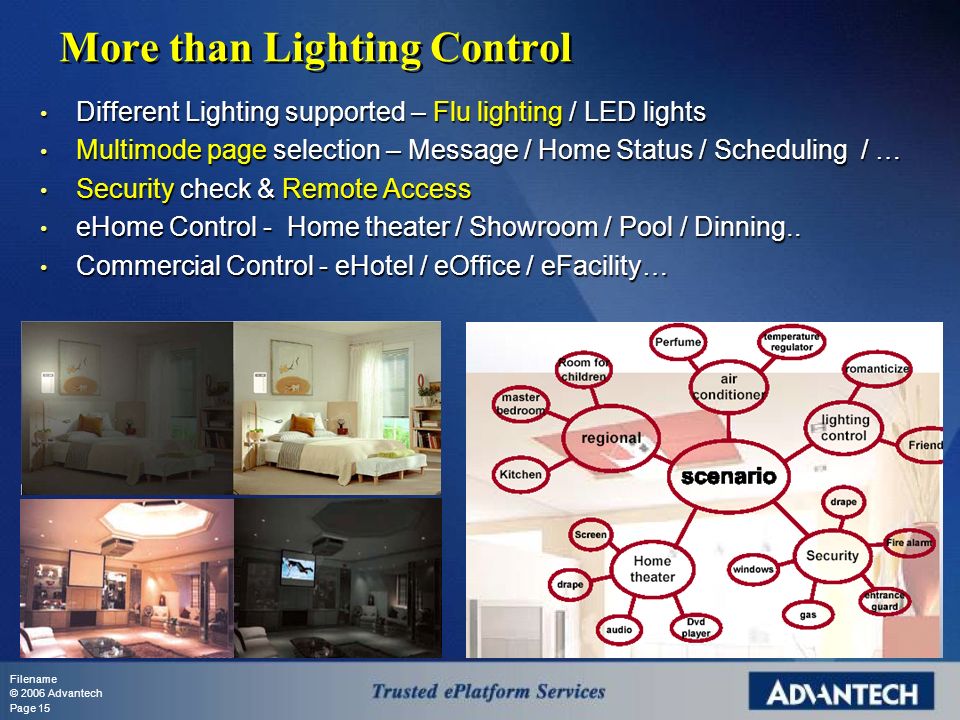

15. Page 15 Filename © 2006 Advantech More than Lighting Control Different Lighting supported – Flu lighting / LED lights Different Lighting supported – Flu lighting / LED lights Multimode page selection – Message / Home Status / Scheduling / … Multimode page selection – Message / Home Status / Scheduling / … Security check & Remote Access Security check & Remote Access eHome Control - Home theater / Showroom / Pool / Dinning.. eHome Control - Home theater / Showroom / Pool / Dinning.. Commercial Control - eHotel / eOffice / eFacility… Commercial Control - eHotel / eOffice / eFacility…

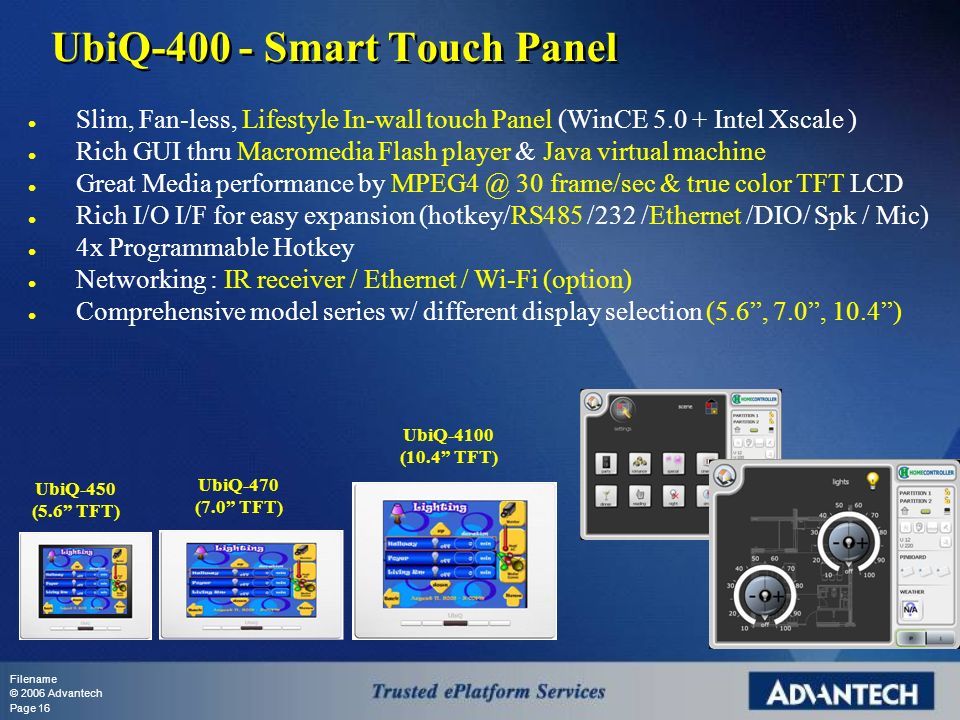

16. Page 16 Filename © 2006 Advantech UbiQ-400 - Smart Touch Panel Slim, Fan-less, Lifestyle In-wall touch Panel (WinCE 5.0 + Intel Xscale ) Rich GUI thru Macromedia Flash player & Java virtual machine Great Media performance by MPEG4 @ 30 frame/sec & true color TFT LCD Rich I/O I/F for easy expansion (hotkey/RS485 /232 /Ethernet /DIO/ Spk / Mic) 4x Programmable Hotkey Networking : IR receiver / Ethernet / Wi-Fi (option) Comprehensive model series w/ different display selection (5.6”, 7.0”, 10.4”) UbiQ-450 (5.6” TFT) UbiQ-470 (7.0” TFT) UbiQ-4100 (10.4” TFT)

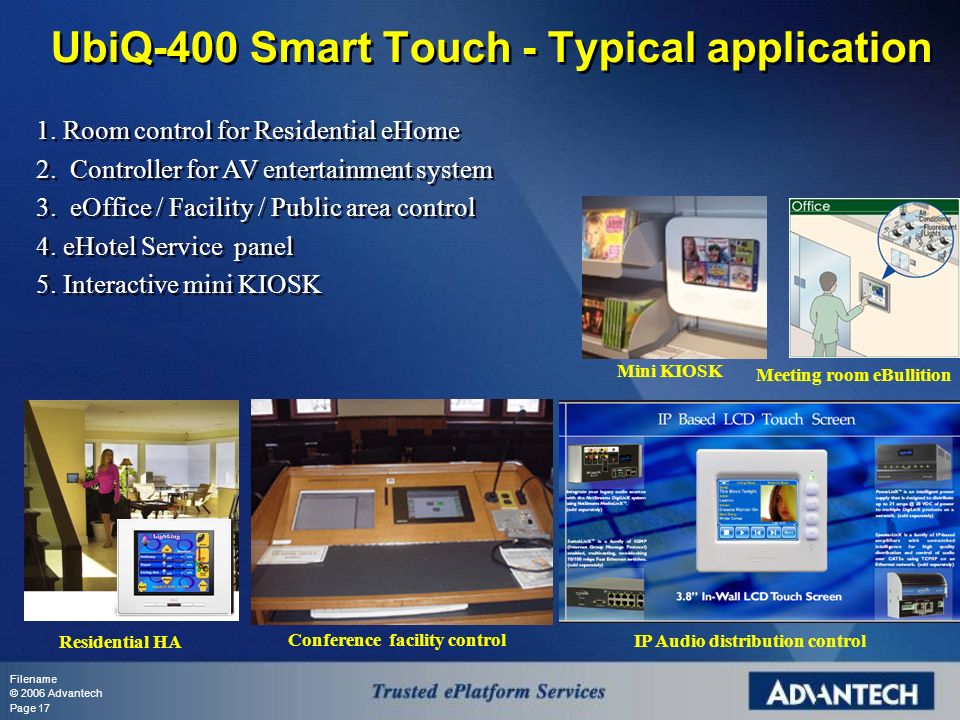

17. Page 17 Filename © 2006 Advantech UbiQ-400 Smart Touch - Typical application 1. Room control for Residential eHome 2. Controller for AV entertainment system 3. eOffice / Facility / Public area control 4. eHotel Service panel 5. Interactive mini KIOSK Residential HA Conference facility control IP Audio distribution control Meeting room eBullition Mini KIOSK

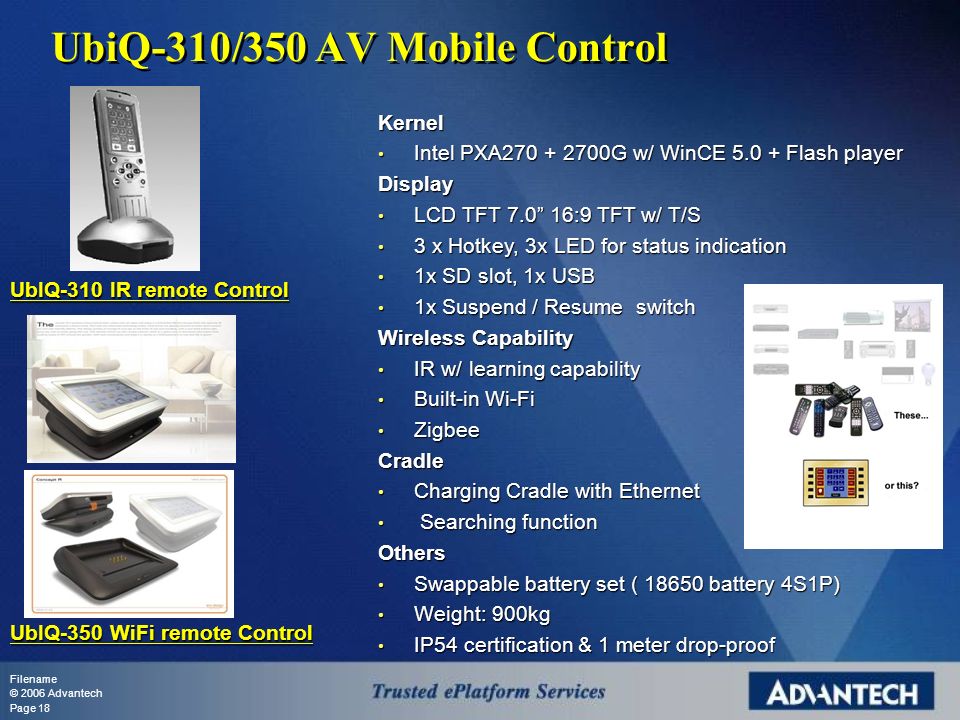

18. Page 18 Filename © 2006 Advantech UbiQ-310/350 AV Mobile Control Kernel Intel PXA270 + 2700G w/ WinCE 5.0 + Flash player Intel PXA270 + 2700G w/ WinCE 5.0 + Flash playerDisplay LCD TFT 7.0” 16:9 TFT w/ T/S LCD TFT 7.0” 16:9 TFT w/ T/S 3 x Hotkey, 3x LED for status indication 3 x Hotkey, 3x LED for status indication 1x SD slot, 1x USB 1x SD slot, 1x USB 1x Suspend / Resume switch 1x Suspend / Resume switch Wireless Capability IR w/ learning capability IR w/ learning capability Built-in Wi-Fi Built-in Wi-Fi Zigbee ZigbeeCradle Charging Cradle with Ethernet Charging Cradle with Ethernet Searching function Searching functionOthers Swappable battery set ( 18650 battery 4S1P) Swappable battery set ( 18650 battery 4S1P) Weight: 900kg Weight: 900kg IP54 certification & 1 meter drop-proof IP54 certification & 1 meter drop-proof UbIQ-310 IR remote Control UbIQ-350 WiFi remote Control

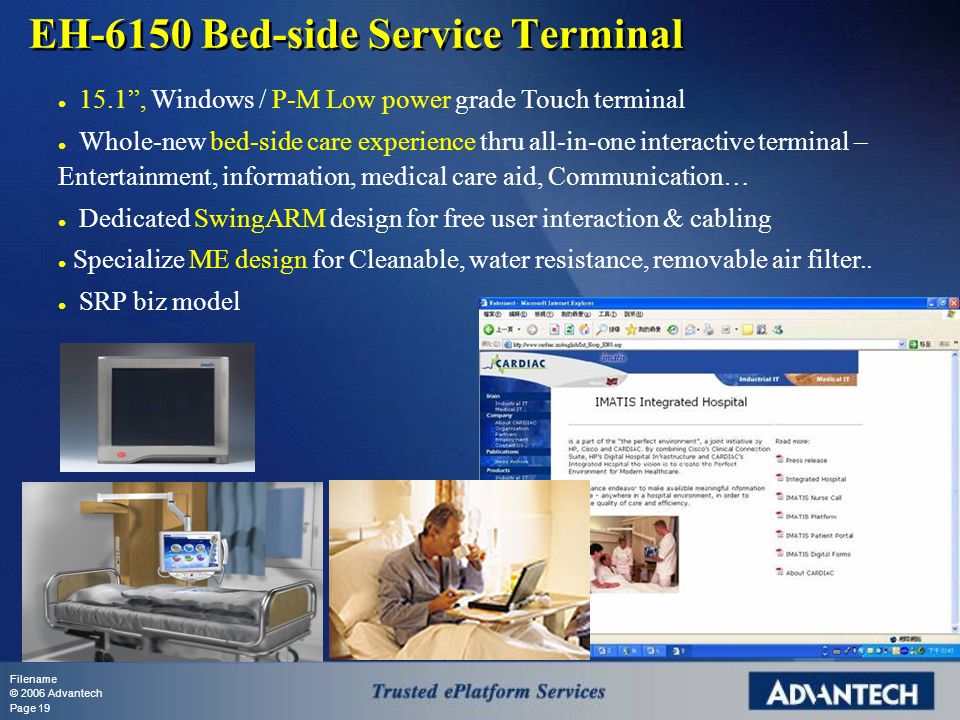

19. Page 19 Filename © 2006 Advantech EH-6150 Bed-side Service Terminal 15.1”, Windows / P-M Low power grade Touch terminal Whole-new bed-side care experience thru all-in-one interactive terminal – Entertainment, information, medical care aid, Communication… Dedicated SwingARM design for free user interaction & cabling Specialize ME design for Cleanable, water resistance, removable air filter.. SRP biz model

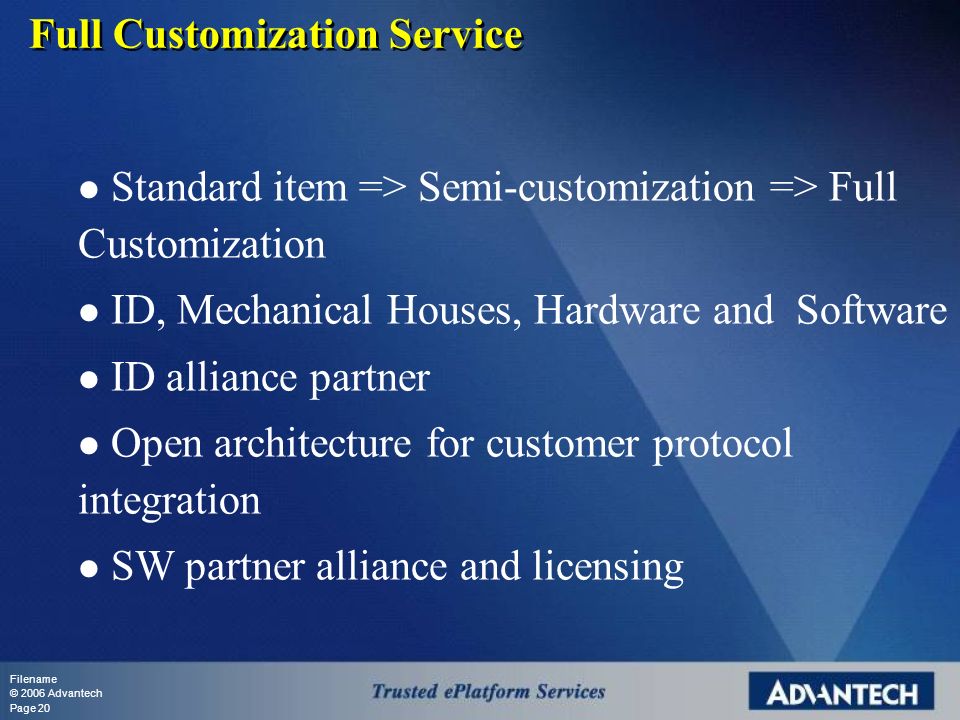

20. Page 20 Filename © 2006 Advantech Full Customization Service Standard item => Semi-customization => Full Customization ID, Mechanical Houses, Hardware and Software ID alliance partner Open architecture for customer protocol integration SW partner alliance and licensing

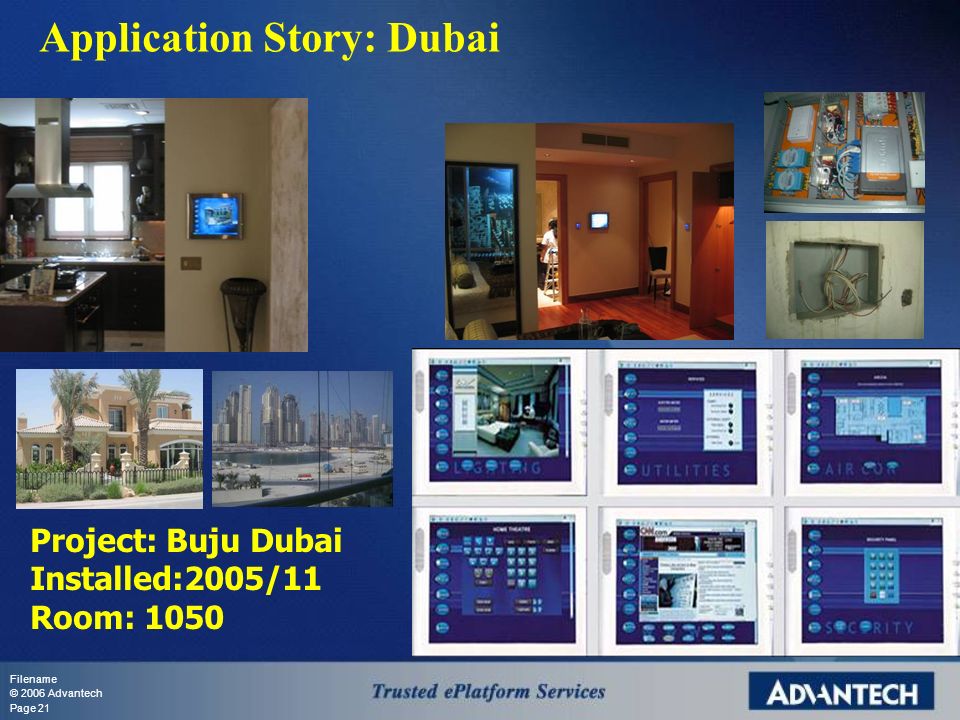

21. Page 21 Filename © 2006 Advantech Application Story: Dubai Project: Buju Dubai Installed:2005/11 Room: 1050

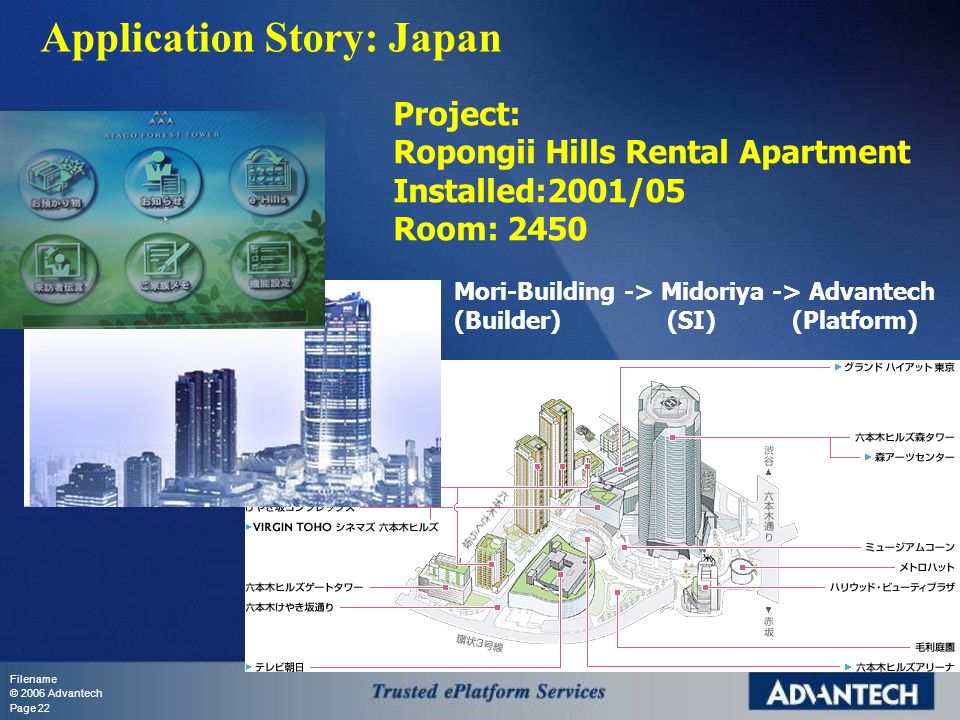

22. Page 22 Filename © 2006 Advantech Application Story: Japan Project: Ropongii Hills Rental Apartment Installed:2001/05 Room: 2450 Mori-Building -> Midoriya -> Advantech (Builder) (SI) (Platform)

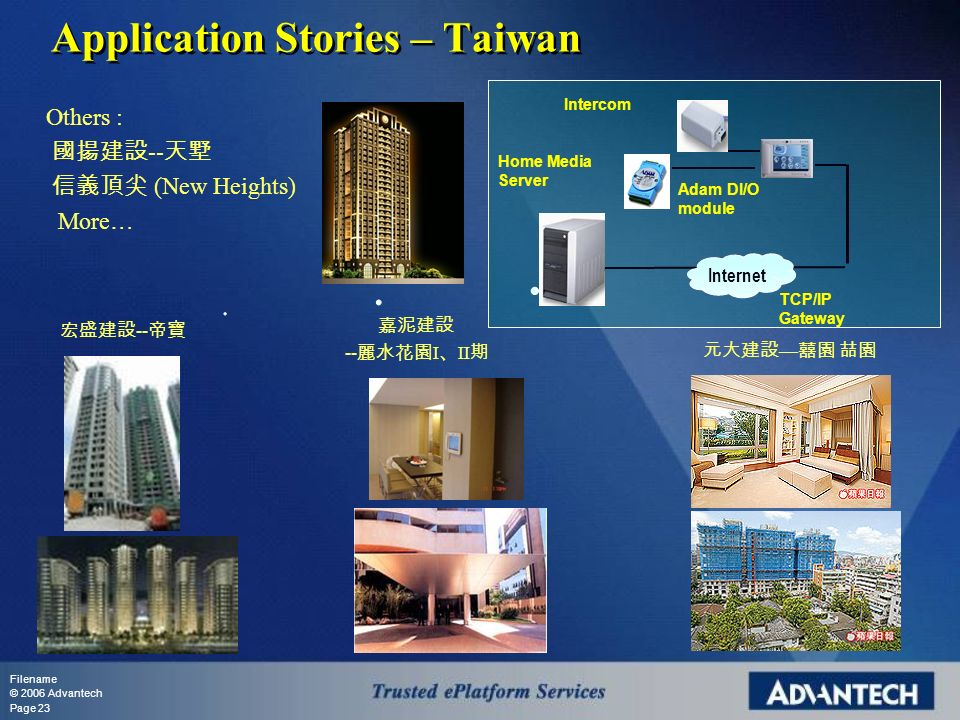

23. Page 23 Filename © 2006 Advantech Application Stories – Taiwan 宏盛建設 -- 帝寶 嘉泥建設 -- 麗水花園 I 、 II 期 元大建設 — 囍園 喆園 Others : 國揚建設 -- 天墅 信義頂尖 (New Heights) More… Internet TCP/IP Gateway Home Media Server Adam DI/O module Intercom

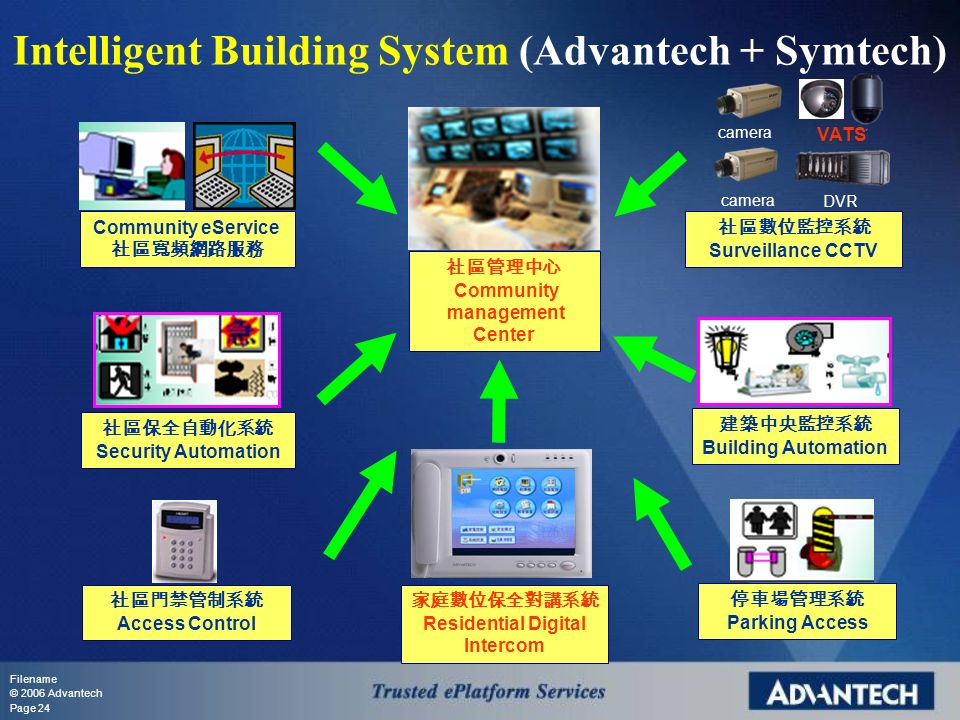

24. Page 24 Filename © 2006 Advantech 社區管理中心 Community management Center Community eService 社區寬頻網路服務 camera VATS DVR 社區數位監控系統 Surveillance CCTV 社區保全自動化系統 Security Automation 社區門禁管制系統 Access Control 建築中央監控系統 Building Automation 停車場管理系統 Parking Access Intelligent Building System (Advantech + Symtech) 家庭數位保全對講系統 Residential Digital Intercom

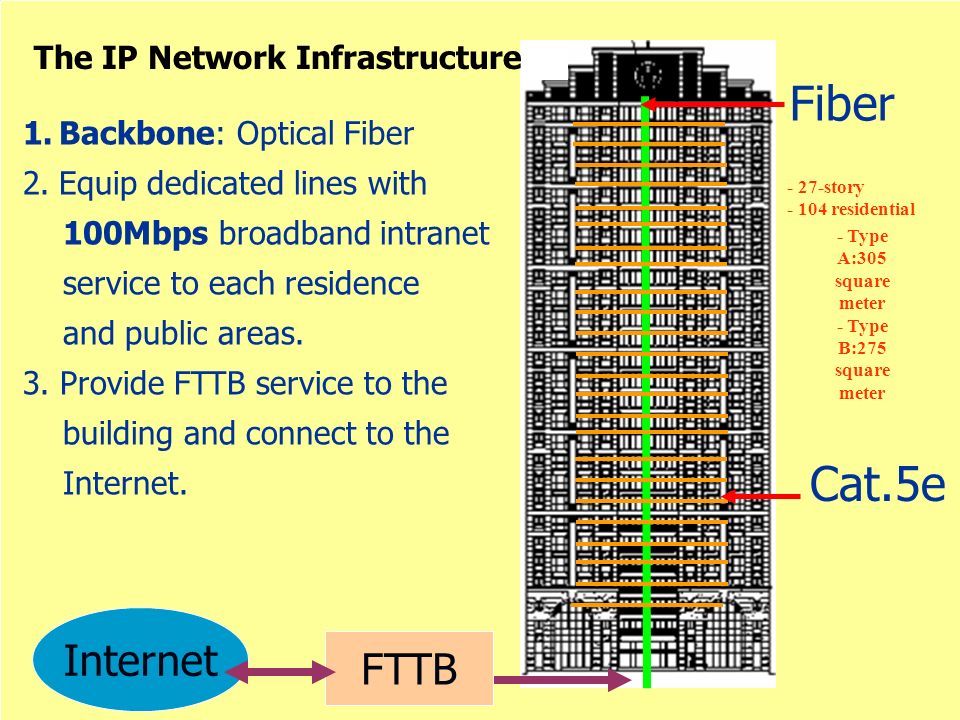

25. Page 25 Filename © 2006 Advantech Fiber Cat.5e 1.Backbone: Optical Fiber 2.Equip dedicated lines with 100Mbps broadband intranet service to each residence and public areas. 3. Provide FTTB service to the building and connect to the Internet. The IP Network Infrastructure FTTB Internet - 27-story - 104 residential - Type A:305 square meter - Type B:275 square meter

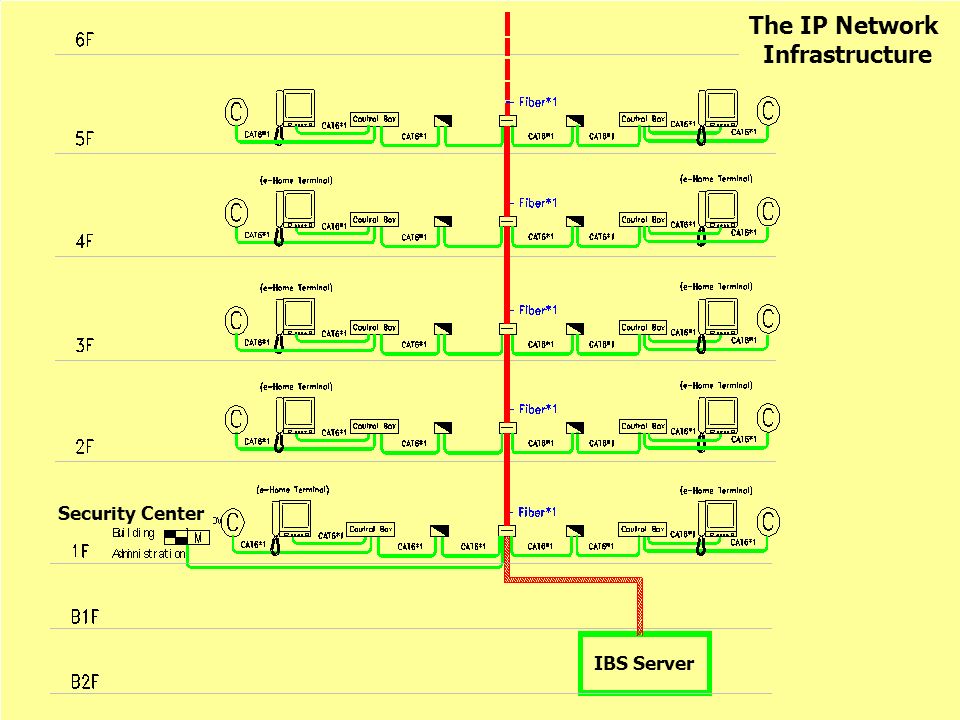

26. Page 26 Filename © 2006 Advantech IBS Server Security Center The IP Network Infrastructure

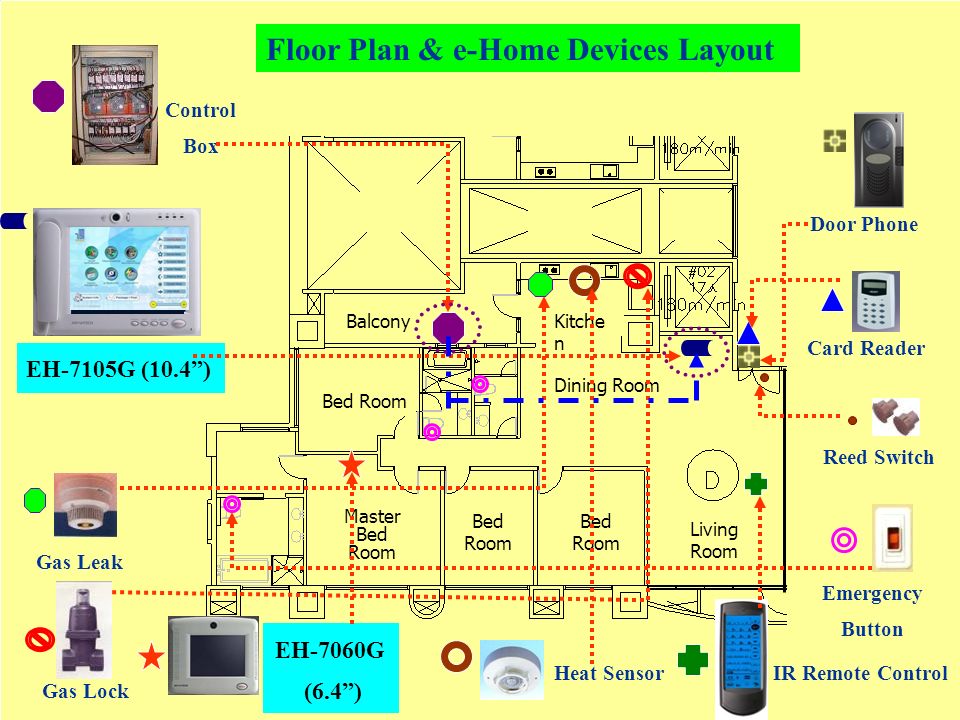

27. Page 27 Filename © 2006 Advantech Dining Room Kitche n Living Room Balcony Bed Room Master Bed Room Floor Plan & e-Home Devices Layout Bed Room Control Box EH-7105G (10.4”) Gas Leak EH-7060G (6.4”) Heat Sensor Gas Lock IR Remote Control Door Phone Reed Switch Card Reader Emergency Button

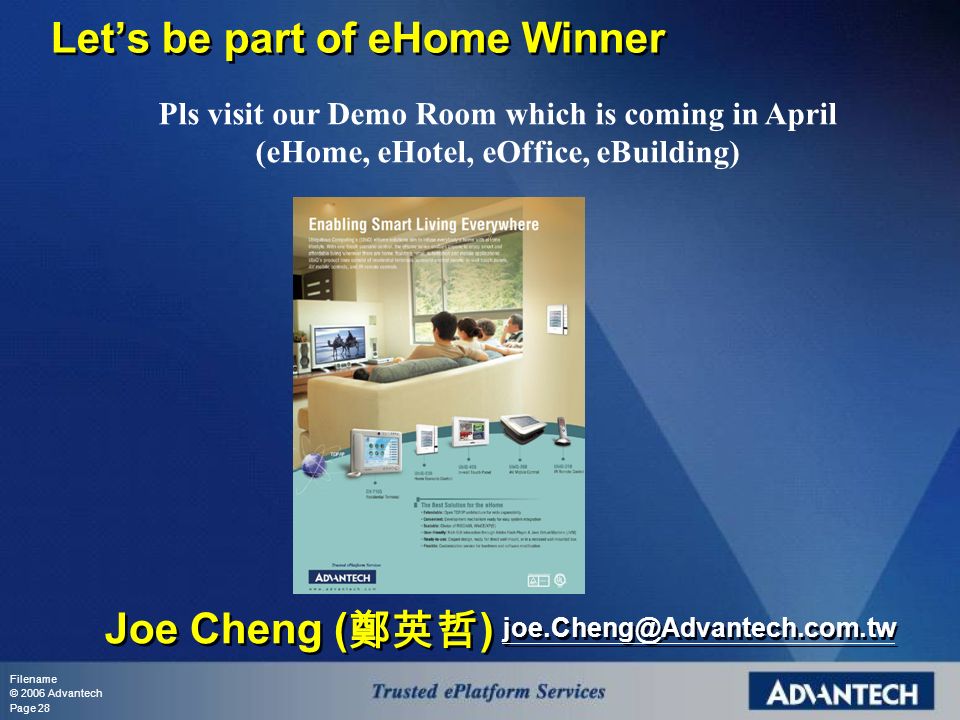

28. Page 28 Filename © 2006 Advantech Let’s be part of eHome Winner Joe Cheng ( 鄭英哲 ) joe.Cheng@Advantech.com.tw Pls visit our Demo Room which is coming in April (eHome, eHotel, eOffice, eBuilding)
