Adelaide Bank IT Solution Delivery

Similar presentations


Presentation on theme: "Adelaide Bank IT Solution Delivery"— Presentation transcript:

1 Adelaide Bank IT Solution Delivery
Presentation to Adelaide University Computer Science Students August 2007

2 Agenda Overview of Adelaide Bank Structure of IS and Projects Office
ABL Systems and Technologies Overview of ABL Project Methodology / SDLC Business Analysis Solution Design Development Testing Questions

3

4 Division: Information Services Department: Information Services
General Manager Information Services Senior Manager Solution Delivery Senior Manager Infrastructure & Services Senior Manager IS Governance and Security Office of General Manager Server Development Mainframe Development Application Support (pool) Margin Lending Development Service Desk Service Support Computer Operations Capacity & Availability Planning Information Security IS Governance Audit Liaison IS BCP & Service Continuity Risk Management Regulatory Compliance Continuous Improvement & Reporting Policies & procedures Planning & Architecture IS Finance & Asset Management IS HR Executive Assistant Networks Windows Mainframe Quality Assurance Technical QA Solution Design Owner: Rob McKeon Vesion:1 Date:09/05 /07 FTE:

5 Senior Manager Solution Delivery
Retail – Solution Delivery Manager Mortgage – Solution Delivery Manager Business Lending & Wealth - Solution Delivery Manager Corporate - Solution Delivery Manager Application Support Lead Designers Solution Architect Systems Analyst Design and Infrastructure Lead Infrastructure Server and Mocom Lead Server Developers Analyst Programmer & Programmer Mainframe Developers Analyst Programmer & Programmer Mainframe Lead Testing Test Designer Testing Analyst Test Lead

6 Division: Group Strategy Department: Business Transformation
General Manager Business Transformation Business Strategy Manager – Project Managers Manager – Business Analysts Business Transformation Managers Senior Project Managers Project Managers Senior Business Analysts Business Analysts Owner: Rob McKeon Vesion:1 Date:09/05 /07 FTE:

7 ABL Technology Mainframe Windows Servers Windows PCs/Laptops Databases
Datacom, SQL Server, Access Programming Languages .Net , CICS/Cobol, Microfocus Cobol Applications In-house, third party developed, COTS, hybrid

8 ABL Applications mapped to Business Capabilities

9 ABL Applications

10 Adelaide Bank Project Methodology / Systems Development Lifecycle (SDLC)
Concept Start-Up Analysis Development Implementation Closure Concept Brief (CB) Business Case (BC) Project Statement (PS) Project Schedule (Sched) UAT Test Plan (UATP) UAT Test Scripts (UATS) & SAT Scripts UAT Testing SAT Testing Production Acceptance Document (PAD) Appendix – Post Imp’n Issue Register Closing Report (CR) Key Project Documents Training & Comms Plan (TCP) Project Release Doc (PRD) Post Imp’n Review (PIR) Business Requirements Document (BRD) Business Implementation Plan (BIP) Realised Benefits Review (BIR) Estimation Worksheet High Level Solution Design Functional Specification Document (FSD) QA Test Plan QA Problem Register QA Final Report PCR (to CAB with Production Status) IS Documents IS Implementation Plan (feeds into BIP) Production Acceptance Checklist Project Document Checklist (PDC) Admin Risk & Issue Register (RIR), Project Change Request (PCR) Program &/or Project Status Report (PSR), Meeting Agenda (MA), Meeting Minutes (MM) Concept Estimate +100%, -50% Planning Estimate +50%, -25% Detailed Estimate +20%, -10% Filename: App E_Project Document Flow_1.1.ppt Confidential to Adelaide Bank Ltd.

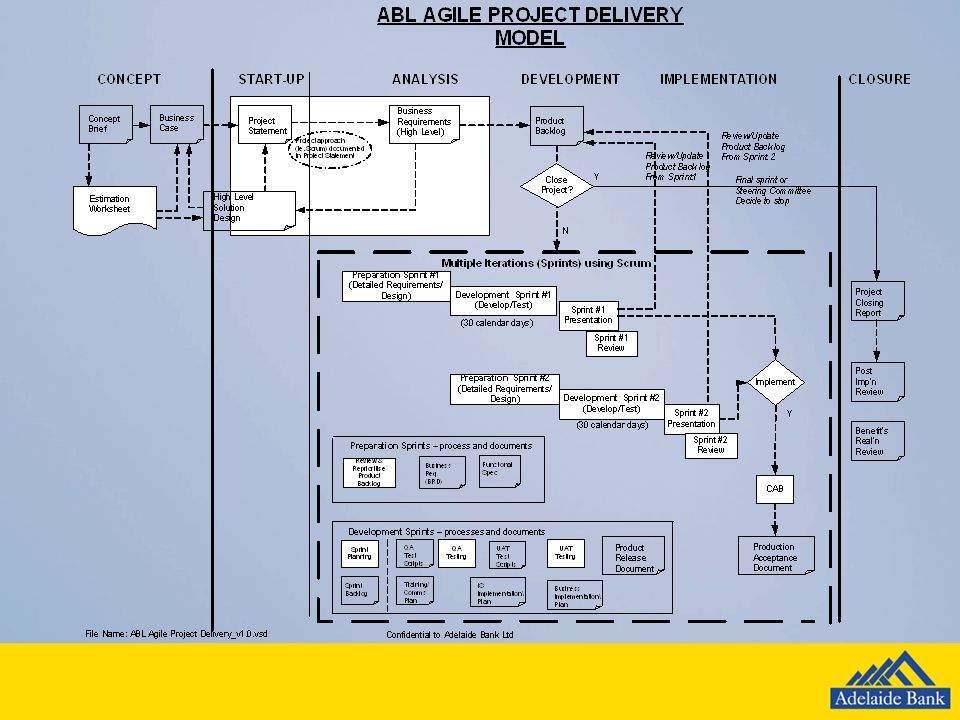

11

12 Any Questions???

13 Heather Fitch (Senior Business Analyst)
Business Analysis Heather Fitch (Senior Business Analyst)

14 WHAT DOES A BUSINESS ANALYST DO?
Understand existing process / technologies Create Current State and Future State Process Maps Process Re-engineering Gather and Document Business Requirements Liaise with developers and QA UAT Plans and Scripts Support UAT Testing Training and Communication Implementation Support Site Acceptance Testing Stakeholder Management (managing expectations) Peer Reviews Input to Project Schedule

15 BUSINESS ANALYSIS PHASES:
Initiation / Conceptualise (15%) Concept Brief / Business Case Executive Sponsor / Scope / Case for Action / Voice of the customer As Is / Orient (20%) Understanding current business practice To Be / Organise (35%) BRD / Functional Spec Transformation / Convert (30%) Implementation / Post implementation support Institutionalise the new way

16 BA TECHNIQUES Benchmarking existing processes
Observe the task being completed Interviews Facilitation Team discussion to help those taking part to think about a particular aspect of their work and consider their experience as well as the practice of others Setting up / running workshops ensure the right participants define the aim take charge provide an agenda (and stick to it) environment – is the room conducive to meeting needs; too hot / cold; comfortable seating, white boards, brown paper, markers, post it notes, layout of room etc….

17 BA TECHNIQUES CONT…. Informal coffee sessions
Brainstorming techniques – promotes creative, non-lateral thinking in a safe, non-judgemental environment Listening – be interested, inquire, stay focussed, paraphrase, evaluate message What, why, when, where, who and how What and Why clarify “As Is” When, Where, Who & How are used for the “To Be”

18 Requirements A GOOD BUSINESS REQUIREMENTS NEED TO BE: Verifiable
Ranked for importance and stability Modifiable Traceable Understandable Accurate Complete Consistent Clear NEED TO CONSIDER NON-FUNCTIONAL REQUIREMENTS: Usability – “look and feel”, consistency, supporting documentation Reliability – Frequency / severity of failure, recoverability and audit standards Performance – speed, efficiency and No. of users Supportability – is the system configurable? Maintainable?

19 BA DELIVERABLES Process Maps Business Requirement Document
Functional Specification Procedure Manuals Training Material UAT Test Plans UAT Test Scripts Site Acceptance Test Scripts

20 Any Questions???

21 Chris Owen (Solution Design Manager)

22 Solution Design High Level Solution Design Functional Specification
Input to business case (costs) Framework for rest of design Stakeholders are business, development, test, infratsructure, production services, enterprise architects, security, etc Functional Specification Describes functionally how the system will work. (Screen designs, flow diagrams, business rules) Technical Specifications Detailed designs of infrastructure, application components, messaging etc.

23 Any Questions???

24 Mark Lockwood (Server Development Manager)

25 Development Process Environments Technology Resourcing
Application Support

26 Development Process What is Development?
Development takes ‘outputs’ from Analysis/Design phase and creates ‘outputs’ ready to be tested.

27 Development Environments Development Quality Assurance User Acceptance
(also known as Regions) Development Unit Testing Quality Assurance Integration Testing User Acceptance Regression Testing Production ‘Live’ system

28 Development Environments
Developers involvement (in principle) should end once code leaves the Development environment. Developers are responsible for establishing scripts to migrate code (executables) as well Database changes between environments. Developers will assist with the final implementation (to production).

29 Development Technology Server Mainframe Microsoft core technologies
CICS COBOL

30 Development Technology (Server) Past Current Visual Basic 6.0
Visual Interdev ASP (Active Server Pages) .Net Framework 1.0, 1.1 Microsoft Access (97,2000) Cold Fusion Ingress Current Visual Studio 2005 .Net Framework 2.0 VB.Net, ASP.Net SQL Server 2000 and 2005 Biztalk Server 2004

31 Development Technology (Server) Future Visual Studio 2008 (Orcas)
.Net Framework 3.5 WPF (Windows Presentation Foundation) WWF (Windows Workflow Foundation) WCF (Windows Communication Foundation) VB.Net, ASP.Net SQL Server 2005 and 2008 Biztalk Server 2006 R2

32 Development Resourcing Factors to consider; Skills Training
Specialist (Guru) Vs Generalist (Jack of all trades, master of none) Past (for Application Support), Current and Future Technlogies Key-man risk reduction

33 Development Application Support
Support of ‘live’ code is critical to ongoing business success. Facts of life; Death Taxes Support ‘burden’ has significant implications on Application Lifecycle.

34 Any Questions???

35 Anne-marie Marchioro (QA officer)
Testing Anne-marie Marchioro (QA officer)

36 SOLUTION DELIVERY STAGES
Analysis Development Testing Implementation Closure Analysis – with Solution Designer – QA can get involved (making recommendations), depending on project. This is where QA would start thinking about how we are going to test. Development – developer makes necessary changes and unit tests Testing – QA test system changes – UAT ensures changes meet business requirements

37 USER ACCEPTANCE TESTING
Ensure user has appropriate access to USER environment Assist user with any queries relating to the system or changes Manipulate dates for data output

38 PRODUCTION SUPPORT Existing problems that arise in PROD are forwarded to QA: Ability to copy the customer into USE4 Knowledge base Testing experience

39 Promote to PROD on Wednesday - between 2am and 5am
IMPLEMENTATION Promote to PROD on Wednesday - between 2am and 5am Reduces customer impact: Low usage of ABL facilities Branches open at 10am Wednesday

40 CLOSURE Record and store results appropriately (either hard copies or QA Director) Ensure business unit are happy with testing and receive their sign off Provide sign off to developer Sign off for developer is needed for CAB Hard copies are kept for letter changes, etc.

41 TESTING ENVIRONMENTS DEV – 4 environments – used by developers for coding TEST – 2 environments – used by developers for unit testing QUAL – 10 environments – used by QA USER – 6 environments – used for UAT All used for mainframe development, however: QUAL – Q9 used for loan testing – which involves Tower software amongst others (Fast Track, etc.) USER – U4 dedicated for OLB (programming outsourced to Sandstone) USER – U9 dedicated to UAT for Loan Software Applications (when moved from Q9)

42 ENVIRONMENTS QA are responsible for all QUAL and USER testing environments. This involves: Ensuring they are refreshed regularly to reflect the existing PROD coding Ensuring there is sufficient customer records to perform testing Ensuring QUAL and USER environments contain the changed software that will replace PROD

43 TOOLS Compuware QA Director
Information Technology Infrastructure Library (ITIL) ISTQB certification IEEE standards

44 COMPUWARE QA DIRECTOR Allows for manual or automated testing.
Automated testing is particularly useful for: Online Banking (regression testing) Loan Centre Applications Service Recovery Testing

45 CAB PROCESS Request for Change - due Friday noon
Status changed to ready to assess Reviewed by CAB members CAB meeting to discuss - Tues Result - approved / declined Request for Change - logged on CAB site by change owner Change Advisory Board

46 FREEZES ABL have a policy that enables IS to make a decision to stop all changes being promoted to PROD when: There is an extended holiday Major changes have been made in other applications that may affect promotes End of financial year

47 Any Questions???
