1. GV-Mobile Server V1.3.0.0 2012.05.25

2. 1. Introduction 2. Mobile Server Structure 2. Key Feature 3. Spec 4. Case 5. Demonstration 6. Q & A. Process

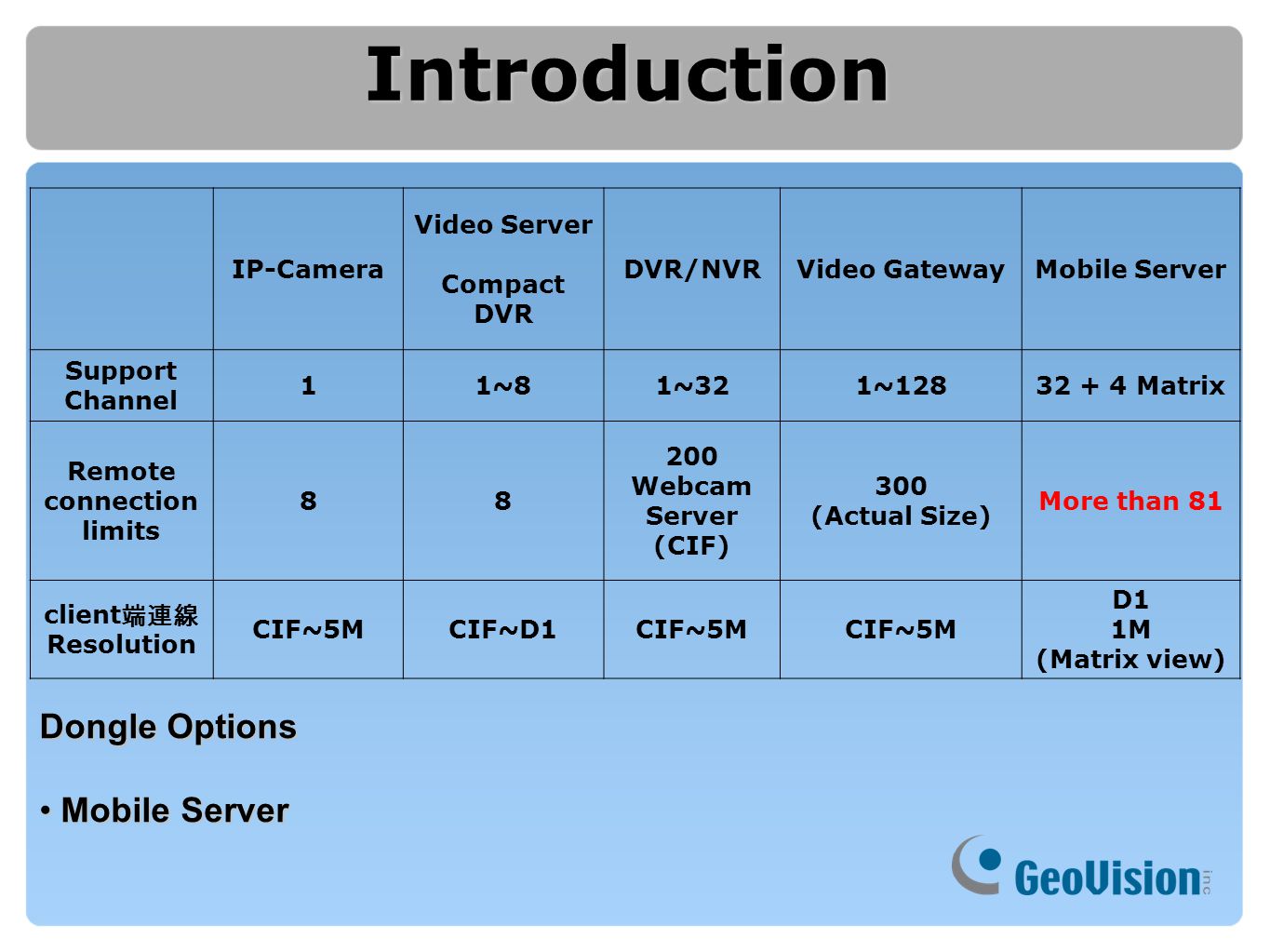

3. Introduction IP-Camera Video Server Compact DVR DVR/NVRVideo GatewayMobile Server Support Channel 11~81~321~12832 + 4 Matrix Remote connection limits 88 200 Webcam Server (CIF) 300 (Actual Size) More than 81 client 端連線 Resolution CIF~5MCIF~D1CIF~5M D1 1M (Matrix view) Dongle Options Mobile Server Mobile Server

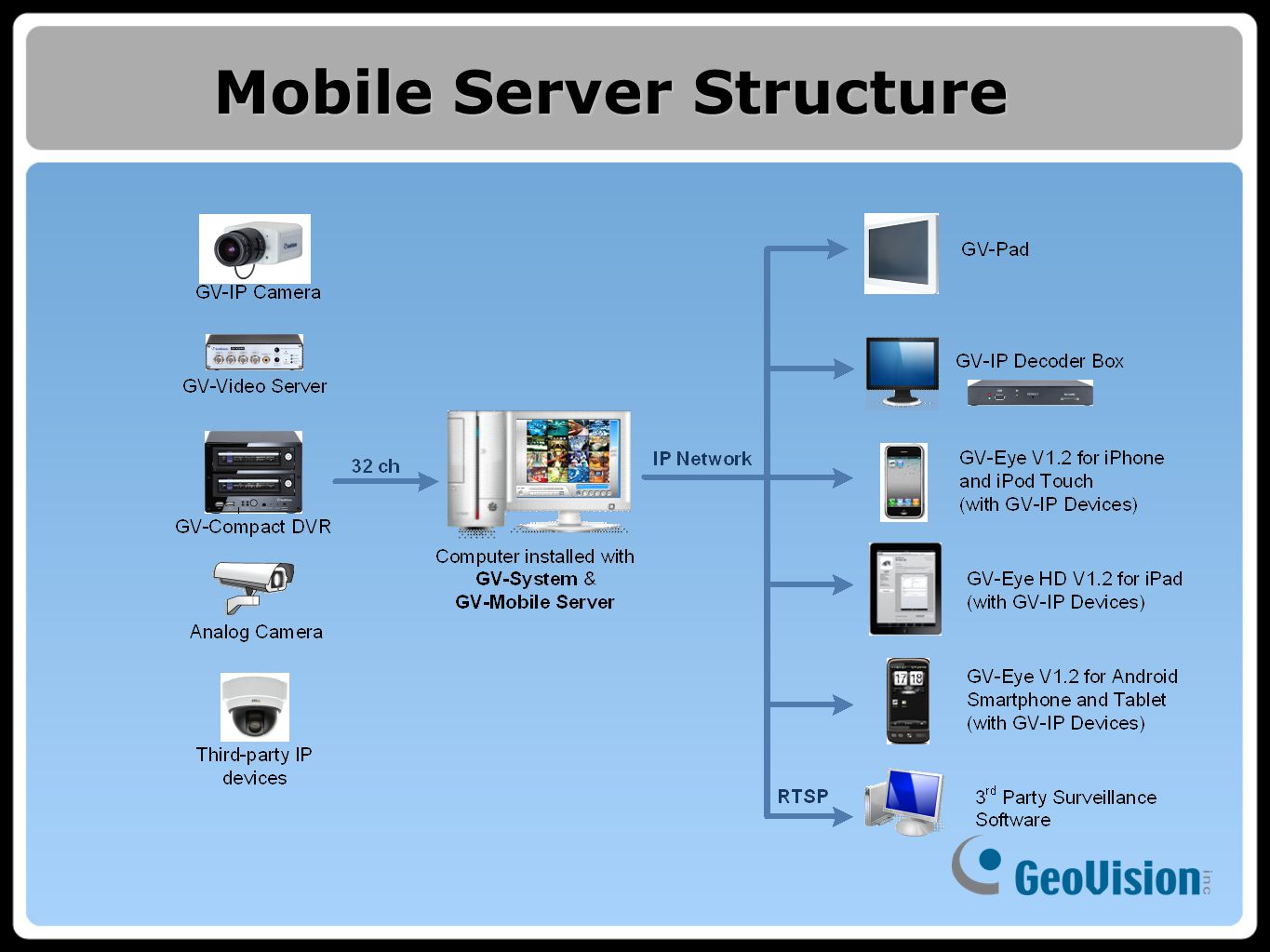

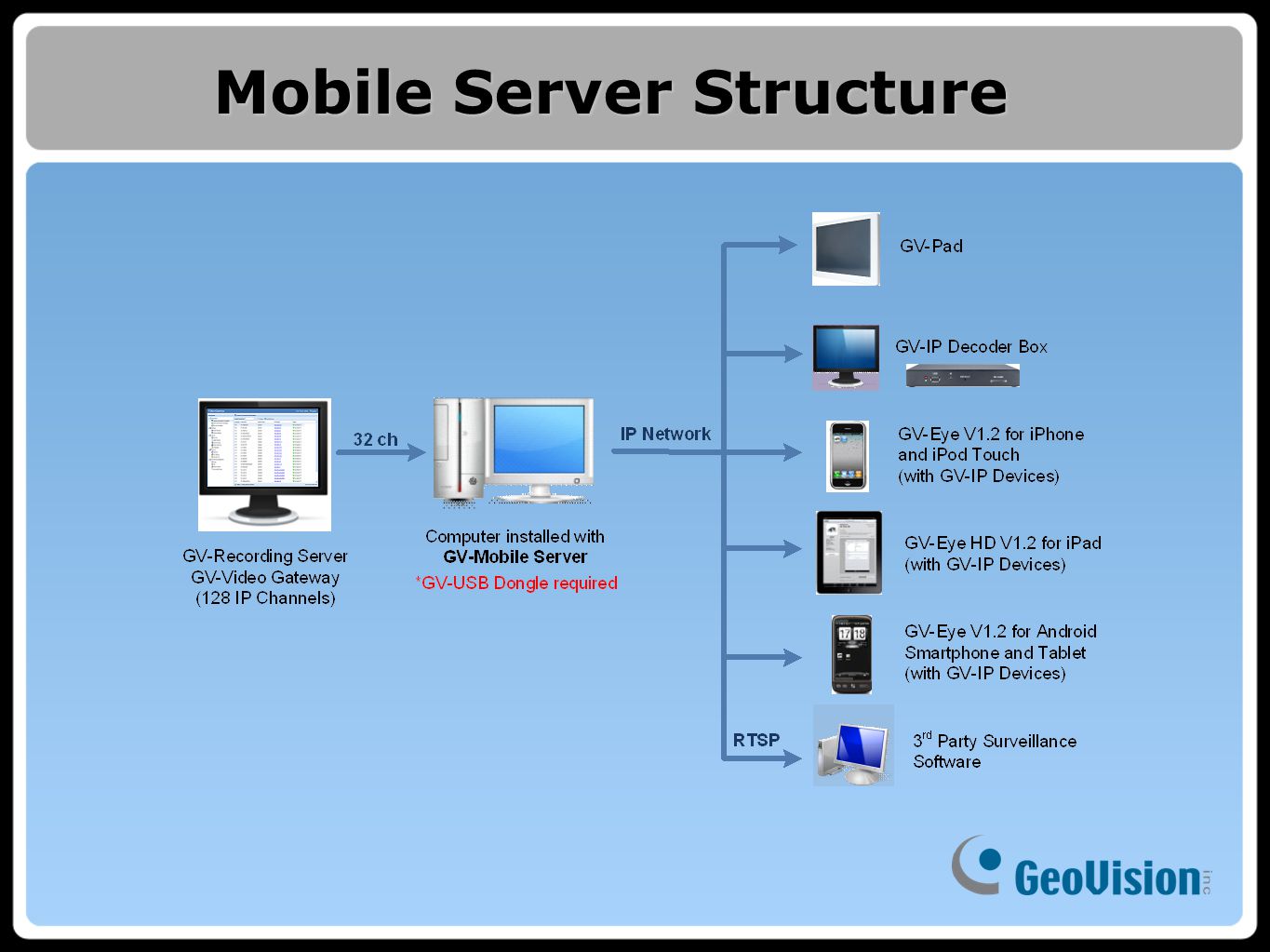

4. Mobile Server Structure

7. 1. 1. Encode up to 32 video channels 2. 2. Live view access of up to 4 user-selectable matrix channels 3. 3. Provides for dual streams 4. Support Live View access from GV-Pad, GV-IP Decoder box 5. Support through RTSP 5. Support Third-party surveillance software connect through RTSP 6. Support 6. Support live view in MJPEG codec using non-IE browsers. Support Live View access from 7. Support Live View access from Mobile Application* *V1300 Support Key Feature

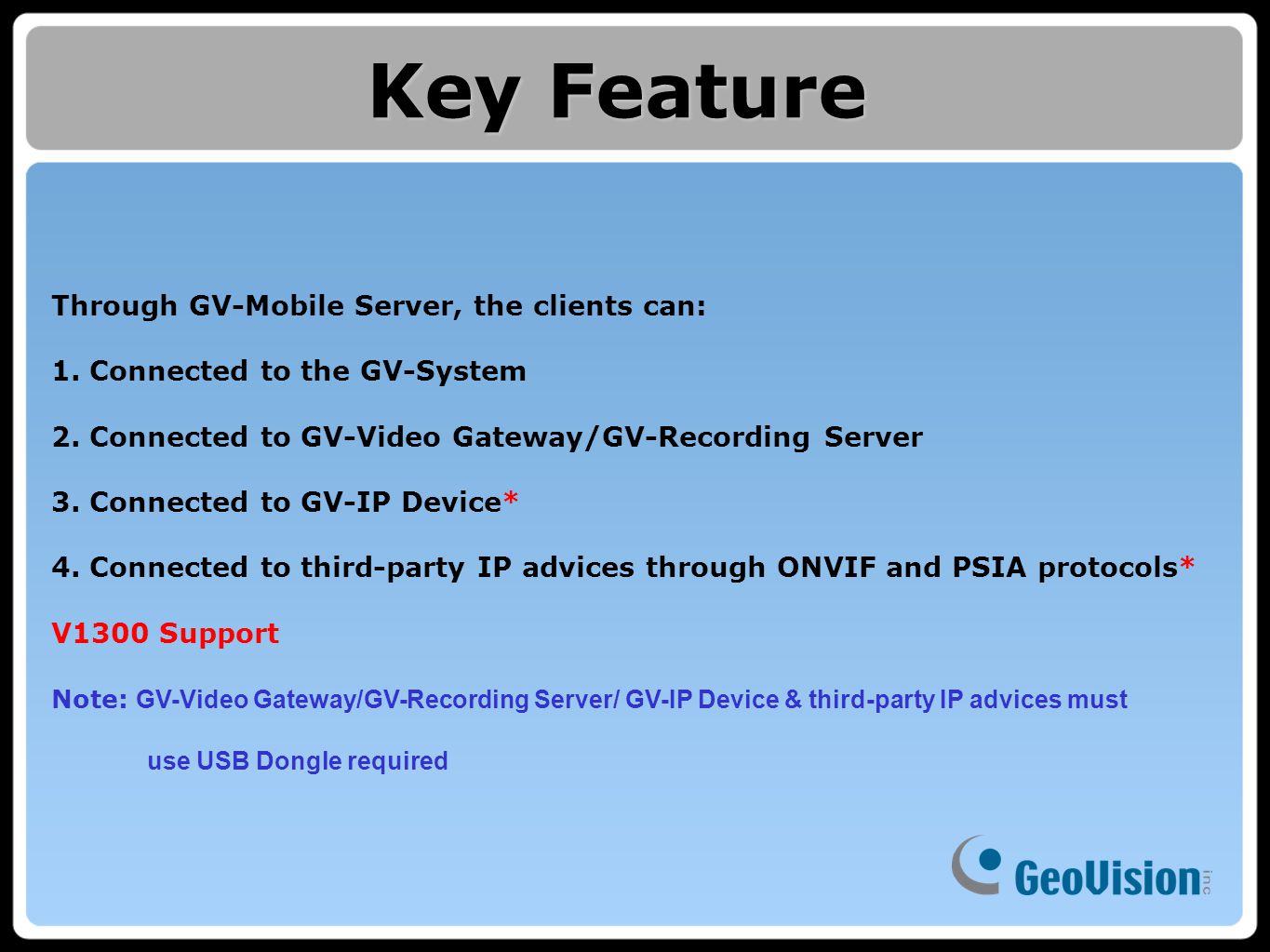

8. Through GV-Mobile Server, the clients can: 1. Connected to the GV-System 2. Connected to GV-Video Gateway/GV-Recording Server 3. Connected to GV-IP Device* 4. Connected to third-party IP advices through ONVIF and PSIA protocols* V1300 Support Note: GV-Video Gateway/GV-Recording Server/ GV-IP Device & third-party IP advices must use USB Dongle required Key Feature

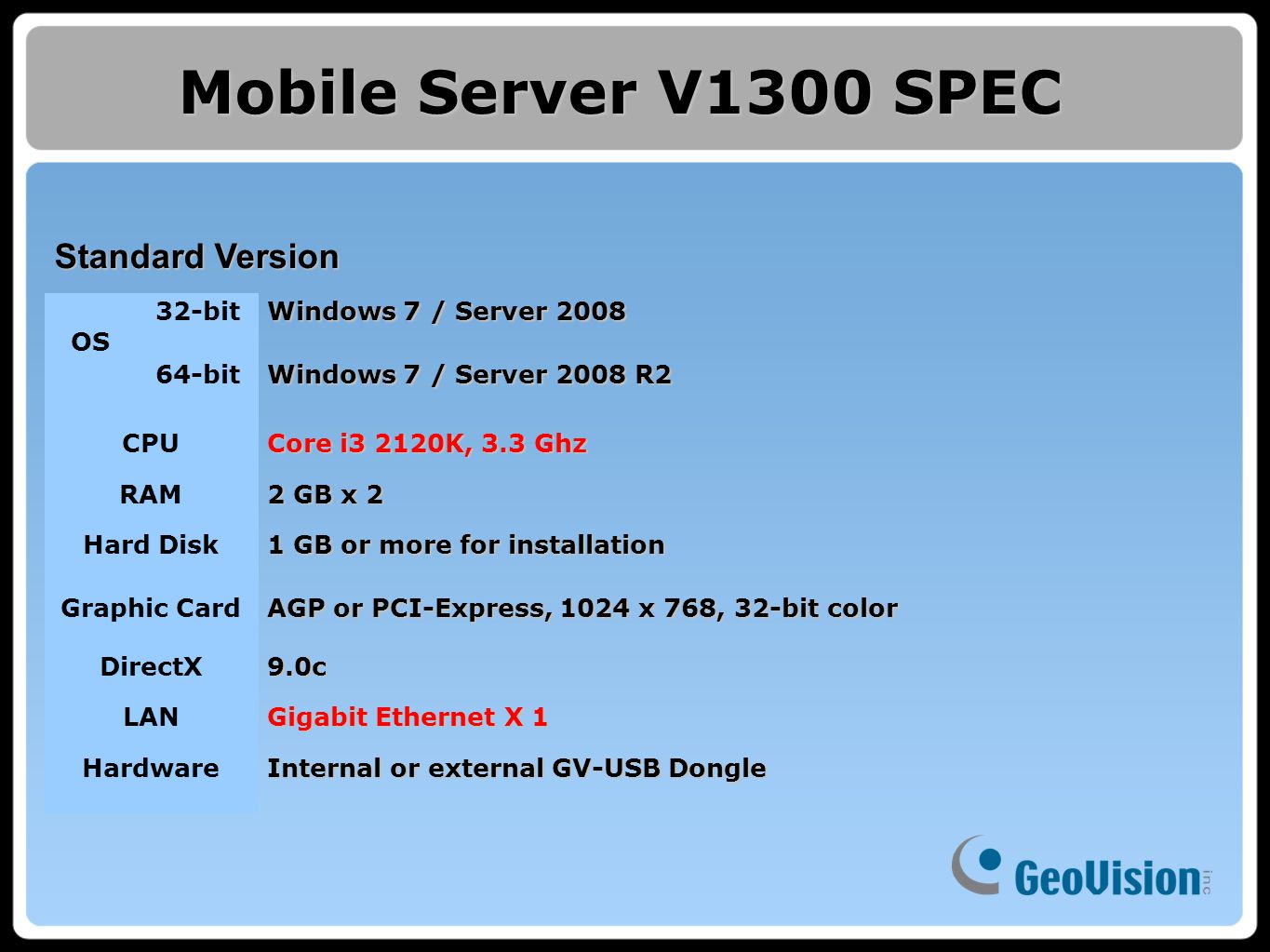

9. Mobile Server V1300 SPEC Standard Version OS 32-bit Windows 7 / Server 2008 64-bit Windows 7 / Server 2008 R2 CPU Core i3 2120K, 3.3 Ghz RAM 2 GB x 2 Hard Disk 1 GB or more for installation Graphic Card AGP or PCI-Express, 1024 x 768, 32-bit color DirectX9.0c LAN Gigabit Ethernet X 1 Hardware Internal or external GV-USB Dongle

10. Mobile Server V1300 SPEC Advanced Version OS64-bit Windows 7 / Server 2008 R2 CPU Core i7 2600K, 3.4 Ghz RAM 2 GB x 2 Hard Disk 1 GB or more for installation Graphic Card AGP or PCI-Express, 1024 x 768, 32-bit color DirectX9.0c LAN Gigabit Ethernet x 2 Hardware Internal or external GV-USB Dongle

11. Mobile Server V1300 SPEC 前端影像連線數超過以下規格時, 建議使用 Advanced Version ResolutionCodec No. of Connected Channels CIFH.26432 VGAH.264 12 or more D1H.264 11 or more 1 MP H.264 5 or more 2 MP H.264 3 or more 3 MP H.264 3 or more 4 MP H.264 3 or more 5 MP H.264 6 or more

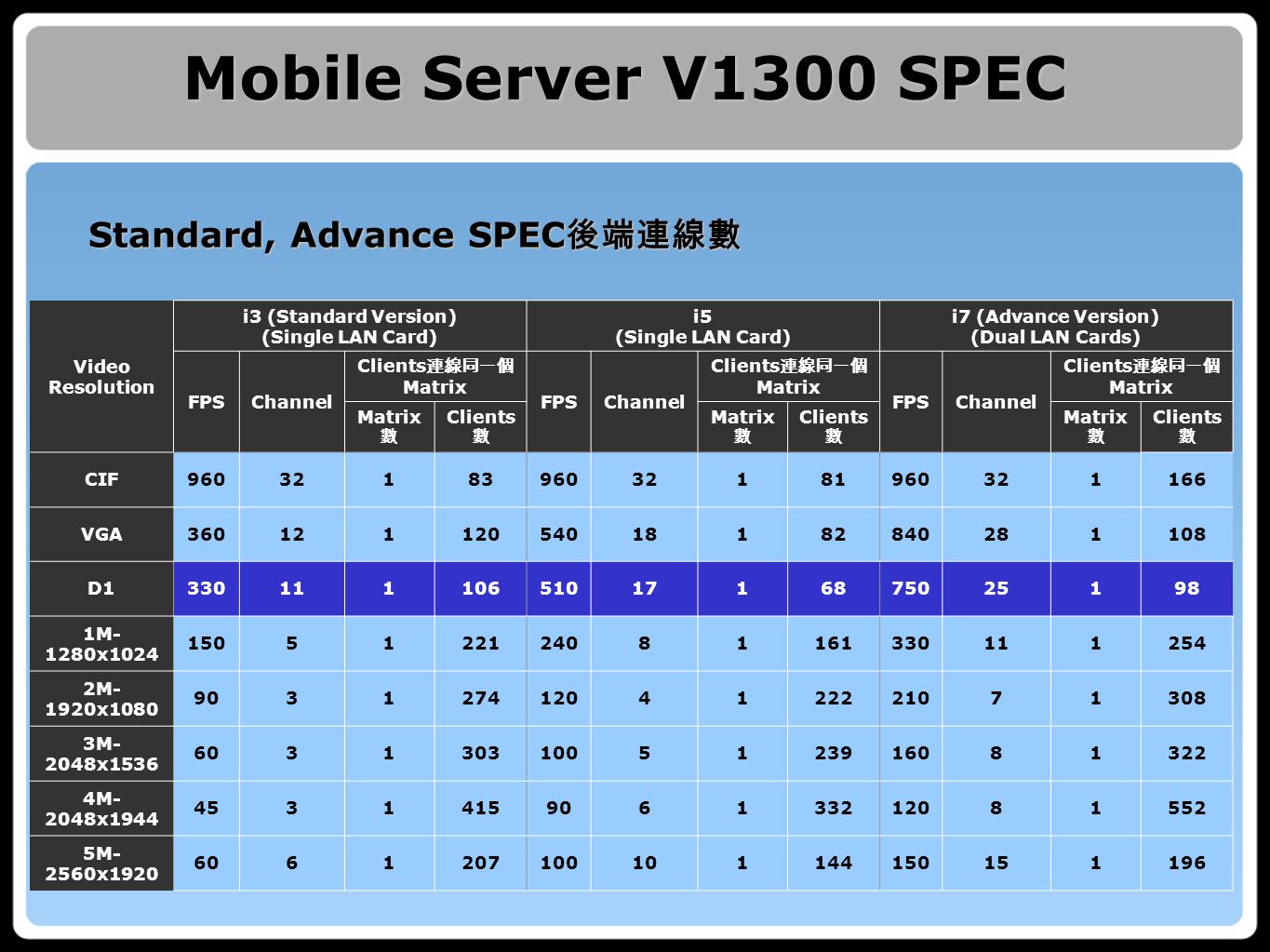

12. Mobile Server V1300 SPEC Standard, Advance SPEC 後端連線數 Video Resolution i3 (Standard Version) (Single LAN Card) i5 (Single LAN Card) i7 (Advance Version) (Dual LAN Cards) FPSChannel Clients 連線同一個 Matrix FPSChannel Clients 連線同一個 Matrix FPSChannel Clients 連線同一個 Matrix Matrix 數 Clients 數 Matrix 數 Clients 數 Matrix 數 Clients 數 CIF9603218396032181960321166 VGA36012112054018182840281108 D13301111065101716875025198 1M- 1280x1024 1505122124081161330111254 2M- 1920x1080 90312741204122221071308 3M- 2048x1536 60313031005123916081322 4M- 2048x1944 4531415906133212081552 5M- 2560x1920 6061207100101144150151196

13. Case1. Community MJPEG mode by non-IE Browser (Community Website) Mobile Server Security guard Resident

14. Case2. Hospital MJPEG mode by non-IE Browser (Hospital Website) Mobile Server Nursery Family

15. Process Demonstration.

16. Q & A. Q & A. Process

17. Thank You!
