1 AIR SPACE Airspace and Airports

2 Canada’s Airspace CANADA’S AIRSPACE Flight Information Regions Domestic airspace Sparsely Settled Areas Altimeter Regions Air Defense Identification Zones High and Low Level Airspace Classification of Canadian Airspace

3 FLIGHT INFORMATION REGIONS (FIR)

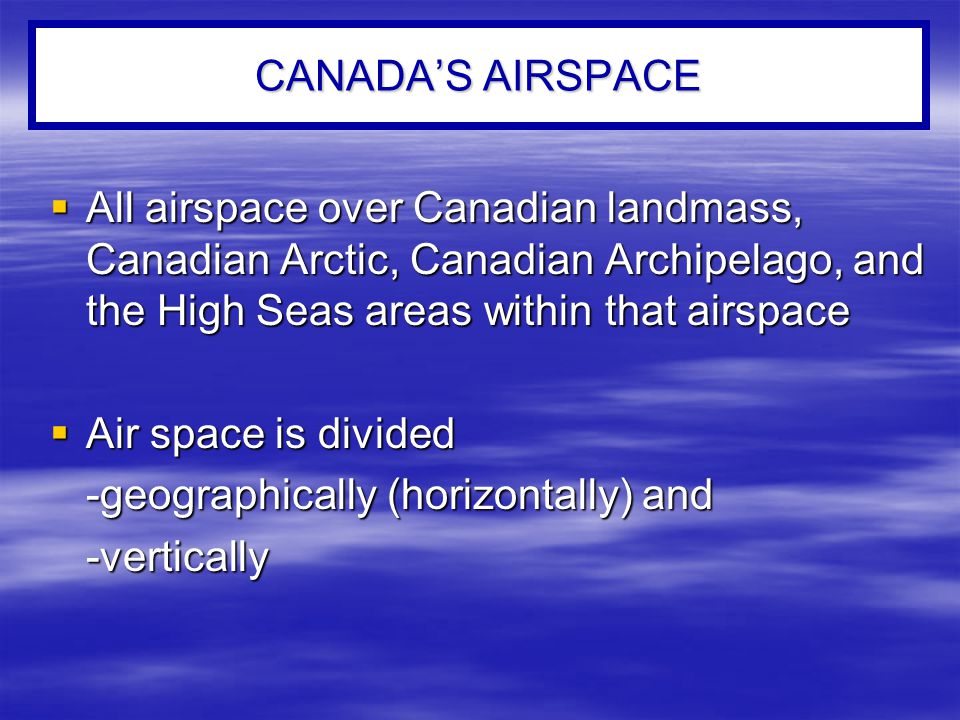

4 CANADA’S AIRSPACE All airspace over Canadian landmass, Canadian Arctic, Canadian Archipelago, and the High Seas areas within that airspace Air space is divided -geographically (horizontally) and -vertically

5 COMPASS ERRORS all airspace
ANDS Northerly turning error sluggish in North quadrant headings lively in South quadrant no turning error on West or East headings

6 CANADIAN DOMESTIC AIRSPACE

7 NORTHERN DOMESTIC AIRSPACE
Magnetic North Pole near centre of NDA Erratic magnetic compass readings All headings are TRUE Sparsely settled area

8 SOUTHERN DOMESTIC AIRSPACE
All headings are MAGNETIC

9 Standard Pressure Region 29.92”
ALTIMETER REGIONS Standard Pressure Region ” - All airspace above 18,000’ - Altitude is called “Flight Level” - Northern Canada Altimeter Setting Region Station pressure - Southern Canada below 18,000’ - for departure, enroute, arrival

10 ALTIMETER REGIONS

11 DESIGNATED MOUNTAINOUS REGIONS

12 AIR DEFENCE IDENTIFICATION ZONE ADIZ
PURPOSE IFR or DVFR flight plan filed with ATC or the Northern Warning System No deviation from flight plan Must include estimated time of penetration Functioning two-way radio required +20 NM or +5 minutes tolerances Notify ATC immediately of any changes

13 AIR DEFENCE IDENTIFICATION ZONE - ADIZ

14 All airspace above the low level airspace
HIGH LEVEL AIRSPACE All airspace above the low level airspace LOW LEVEL AIRSPACE From the ground up to but not including 18,000’ ASL or the base of the High Level Airspace

15 HIGH LEVEL AIRSPACE

16 HIGH LEVEL AIRSPACE

17 LOW LEVEL CONTROLLED AIRSPACE
Control Zones - 3, 5, 7 NM radius - ground to 3000’ (AGL) Transition Area - defined dimensions - 700’ AGL to base of overlying airspace - normally 15 NM radius of airport Terminal Control Area - around busy airports to facilitate IFR control - 45 NM radius1200/2200 AGL Control Area Extension - around a high volume airport to facilitate IFR control - dimensions determined by requirements

18 LOW LEVEL AIRWAYS From 2,200’ AGL up to but not including 18,000’ ASL

19 LOW LEVEL CONTROLLED AIRSPACE

20 AIRSPACE CLASSIFICATION
Seven Classifications: A to G Classification governs flight rules in that airspace Specific information on a given airspace is supplemented in the VFR Nav Chart and Canada Flight Supplement Classification is related to: traffic density, speed, use of airspace

21 Class G Airspace Uncontrolled airspace ATC has NO authority or responsibility ATC may provide an information service SD Airspace: surface up to 18,000’ ASL or the base of any other class of airspace ND Airspace: surface up to the base of the high level airspace

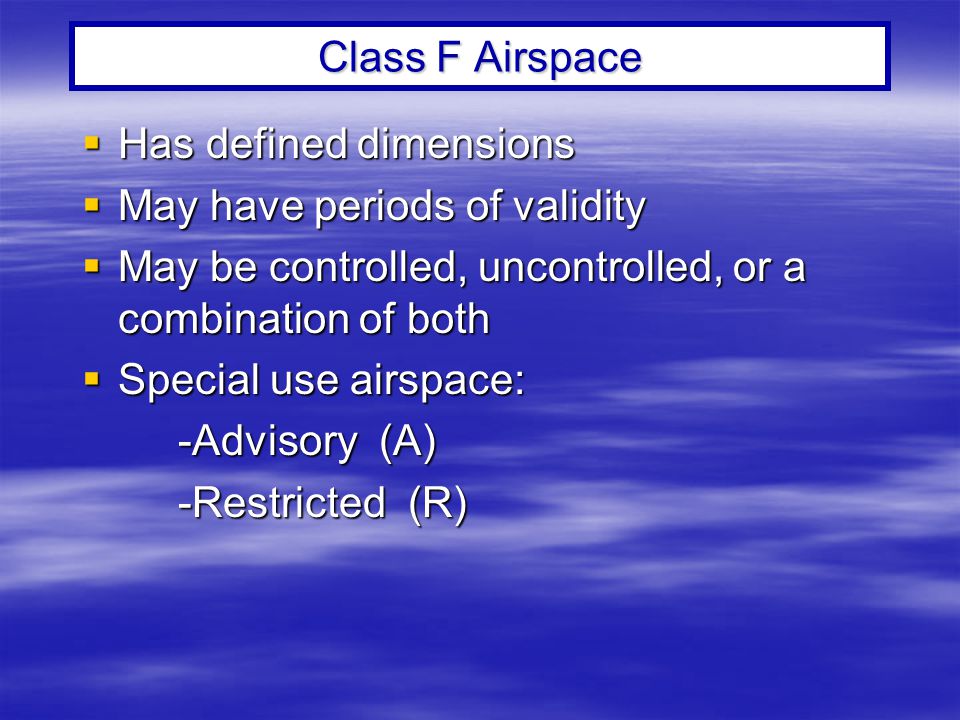

22 Class F Airspace Has defined dimensions May have periods of validity May be controlled, uncontrolled, or a combination of both Special use airspace: -Advisory (A) -Restricted (R)

23 Class F Airspace CYA113(A) CY – Canada A – Alert R – Restricted
D – Danger (international waters) 113 – area locator A – aerobatic F – aircraft test H – hang gliding M – military ops P – parachuting S – soaring T - training

24 Class F Airspace

25 Class F Airspace Advisory Airspace: -non-participating pilots should be aware of it -no specific restriction, however -encouraged to avoid -exercise extra vigilance Restricted Airspace: -do not enter without permission Niagara Falls

26 Class E Airspace Where there is a need for controlled airspace other than A, B, C or D IFR clx, VFR Includes all Low Level Airways below 12,500 Includes all airspace above FL600 Can include control zones Includes control area extensions and transition zones Control Zones, QA, PQ / LL Airways

27 Class E Airspace

28 Control Area Extension – class E

29 Class E Airspace

30 Class D Airspace IFR - clearance required
VFR - must establish radio comm with ATC prior to entry into class D airspace (must obtain clx prior to entry) Maintain VFR at all times, maintain separation from other traffic and obstacles Radio required, comm failure procedures Must comply with ATC clx and instructions Reverts to class E if ATC is not available Tower Control Zones (CYKZ, CYOO, CYTZ)

31 CLASS D

32 Class C Airspace IFR clx, VFR clx Must obtain clx prior to entry
Maintain VFR at all times, maintain separation from other traffic and obstacles ATC provides separation to IFR and as necessary to VFR aircraft Radio required, comm failure procedures Mode C transponder required Reverts to Class E if ATC is not available Terminal Control Areas, TRSA, CYYZ Zone

33 CLASS C Zone and TCA

34 Must obtain clx prior to entry ATC provides separation to IFR and CVFR
Class B Airspace IFR clx, VFR clx (CVFR) Must obtain clx prior to entry ATC provides separation to IFR and CVFR Controlled airspace 12,500’ to 18,000’ on airways and airspace so designated CVFR – no special endorsements VFR at all times Flight plan, radio, Mode C transponder

35 Class B Airspace above the E

36 Low Level Airways VOR or Victor Airways (V194) Based at 2200’ AGL Up to 12,500’ASL = Class E airway AND 12,500’ to 18,000’ ASL = Class B airway VFR on airway below 12,500’, not subject to ATC control

37 Class A Airspace IFR clx, No VFR 18,000’ (NCA FL230, ACA FL280) up to FL600 Require mode C transponder

38 HIGH LEVEL AIRSPACE Class A Airspace

39 SPECIAL PURPOSE AIRSPACE
Special purposes airspace May also designate an airspace for the purposes of: - protecting an existing structure - any other surface based activity May be declared via NOTAM Air shows, Olympics, prisons, forest fires – 5 NM/3000’ AGL

40 Transponder Airspace

41 IFR & VFR SUMMARY
