1
© 2011 Autodesk MA4712-P Simulation PowerTrack Working with Any CAD Format and Autodesk Simulation Luke Mihelcic Product Marketing Manager | Digital Simulation
2
© 2011 Autodesk Course Outline Welcome and Introduction Manipulation and Preparation Simplification Tools Best Practices Working with non-Native CAD Importing / exporting Best practices Direct Modeling Crash course Tool Best practices Geometry Challenges with simulation models
3
© 2011 Autodesk Class Summary Learn how multi-CAD engineering organizations are using Autodesk Simulation tools. Autodesk Inventor® Fusion allows the integration of virtually any CAD model into Autodesk Simulation. Learning Objectives At the end of this class, you will be able to: Use Inventor Fusion to manipulate and prepare simulation models Work with CAD models from virtually any system Realize the benefits of direct modeling Identify and overcome typical CAD challenges when working with various CAD systems
4
© 2011 Autodesk Welcome Email: luke.mihelcic@autodesk.comluke.mihelcic@autodesk.com Twitter: https://twitter.com/lmihelcichttps://twitter.com/lmihelcic Facebook: http://www.facebook.com/pages/Autodesk- Simulation/134510189984528http://www.facebook.com/pages/Autodesk- Simulation/134510189984528 Questions for the audience……. Do you use Inventor, Pro/E, SW, NX…..? Do you simulate? Do you simplify? Do you create simulation only models?
5

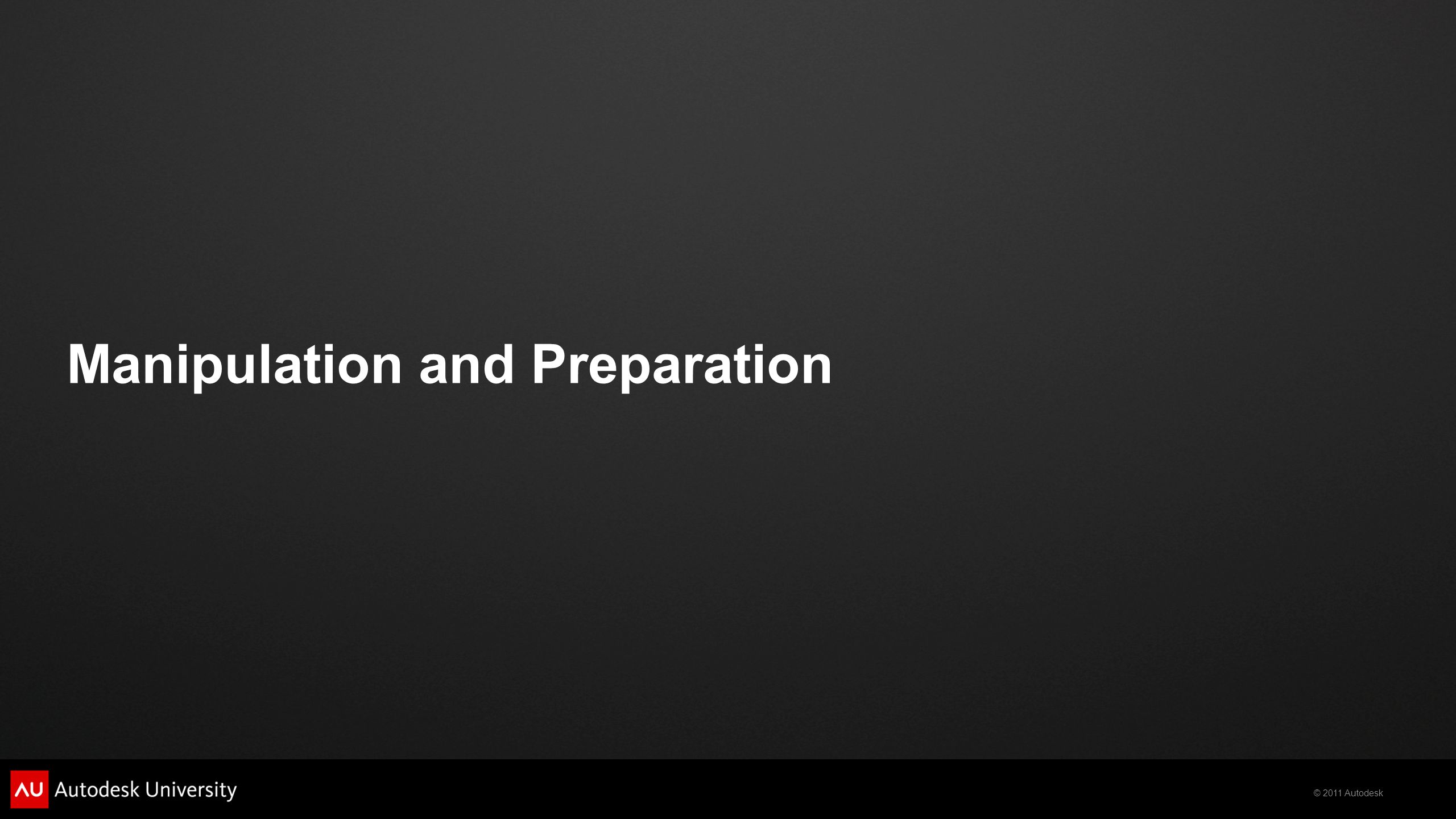

© 2011 Autodesk Manipulation and Preparation
6
© 2011 Autodesk Tools at your disposal Simplify Fillets Constant size Fillet or Round Chamfers Equal length Holes Thru holes Counter bore Actions Delete Create favorite Select
7
© 2011 Autodesk Tools at your disposal Find Features Fillets Holes Chamfers Extrudes Revolves Patterns Mirrors
8
© 2011 Autodesk Working with non-Native CAD
9

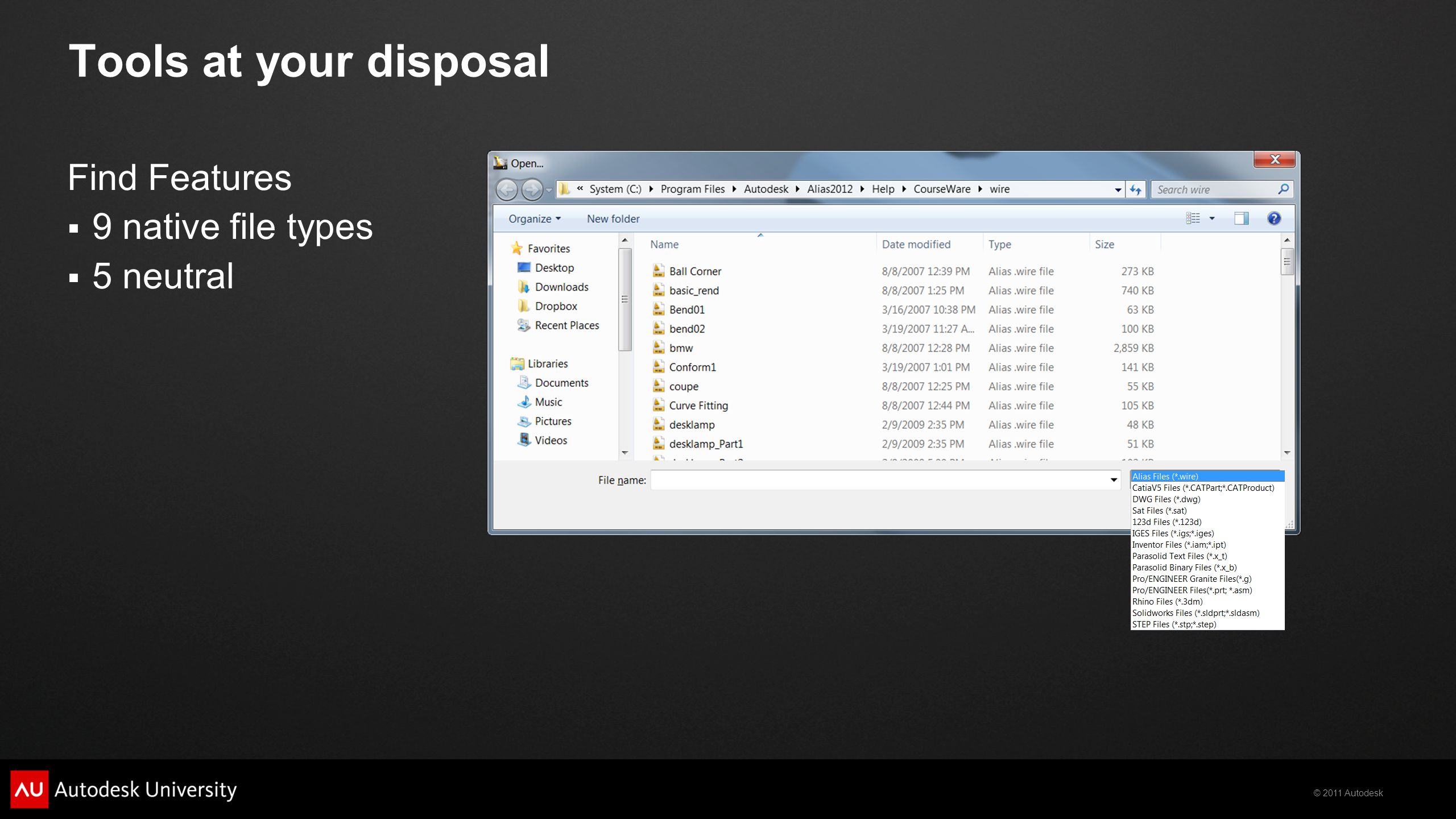

© 2011 Autodesk Tools at your disposal Find Features 9 native file types 5 neutral
10
© 2011 Autodesk Direct Modeling for Simulation
11
© 2011 Autodesk Fusion Modeling Tips for Simulation No gap No overlaps Avoid no-critical features Fillets Chamfers Holes Close proximity features Patterns
12

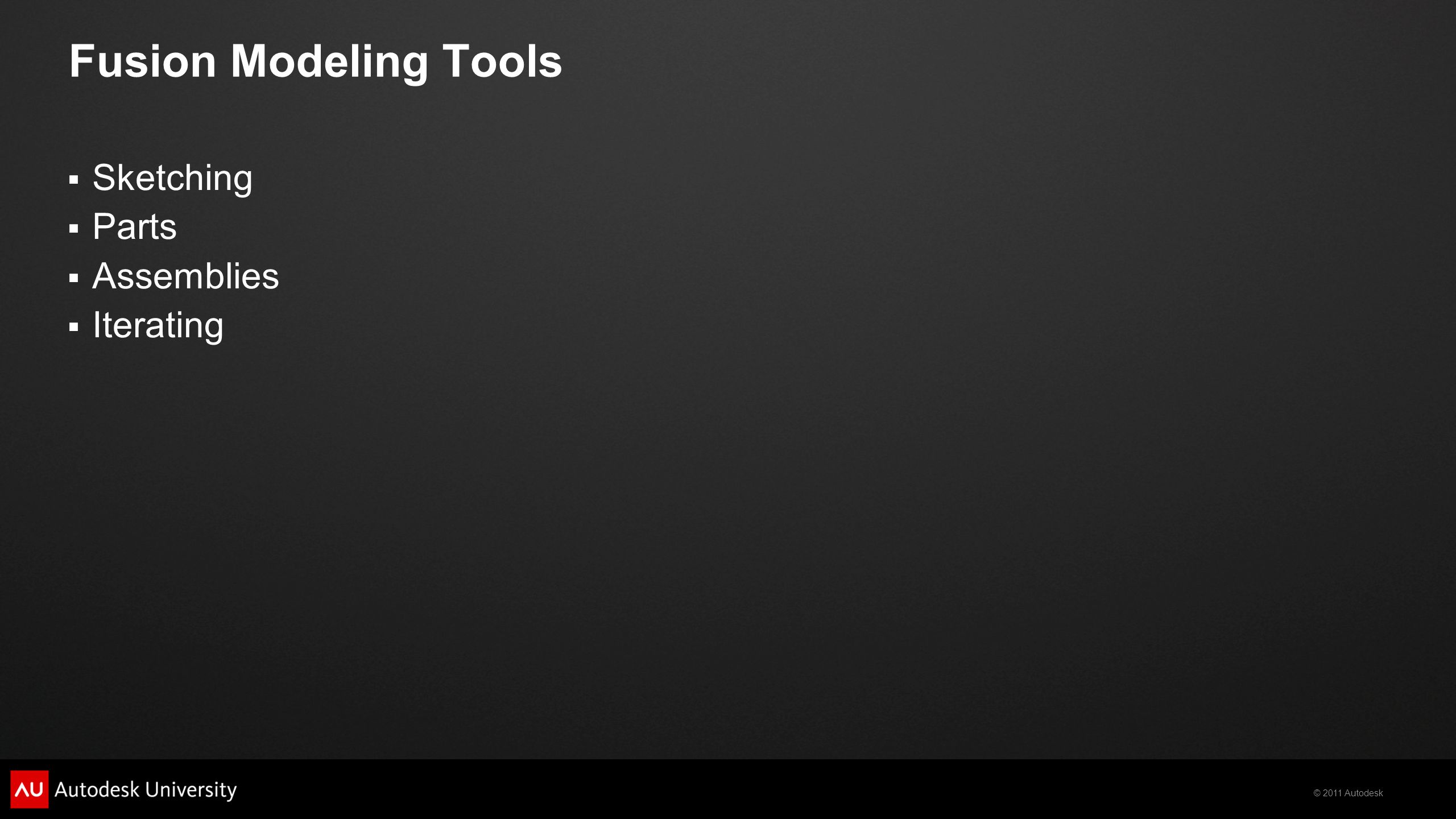

© 2011 Autodesk Fusion Modeling Tools Sketching Parts Assemblies Iterating
13

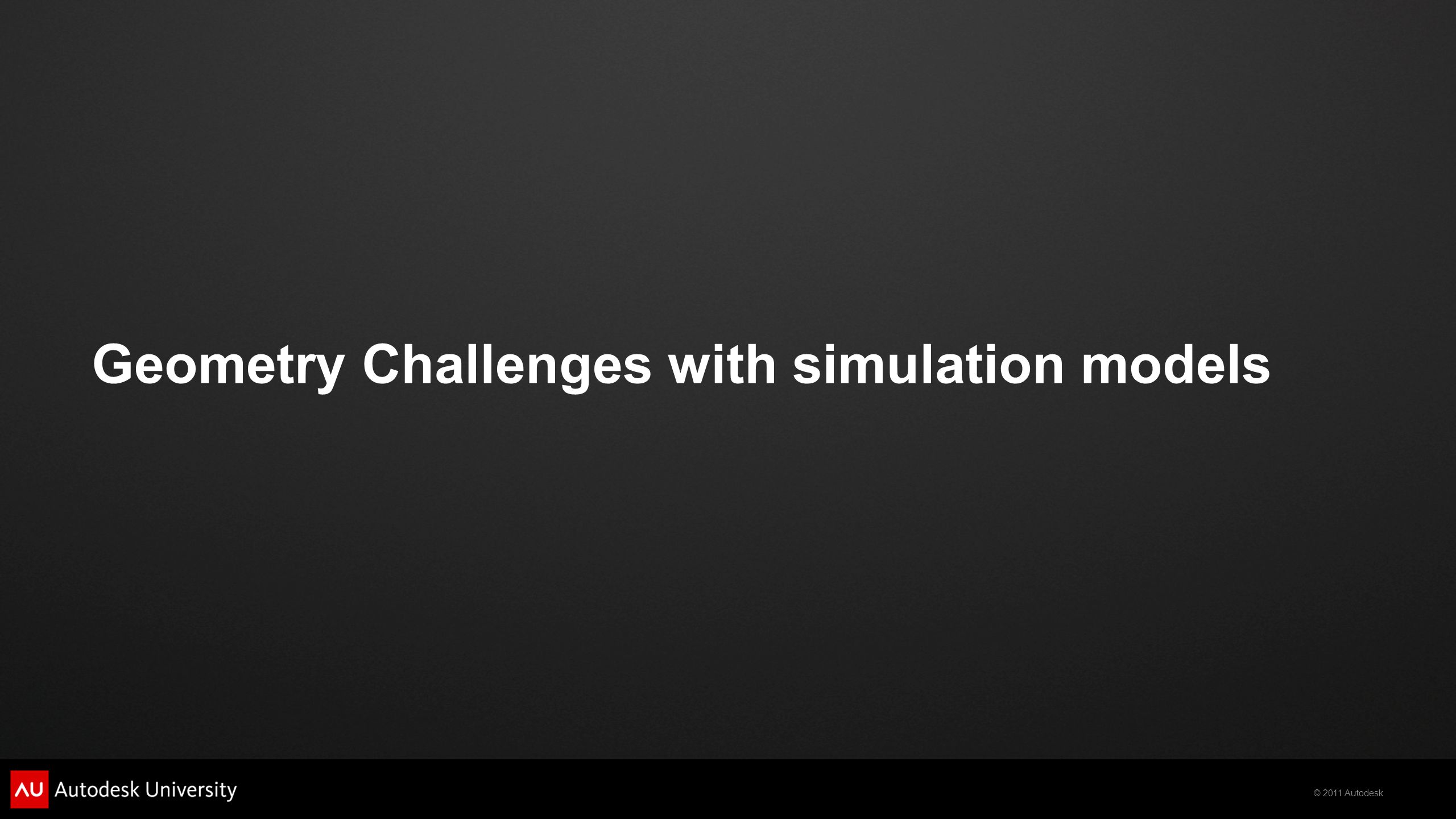

© 2011 Autodesk Geometry Challenges with simulation models
14

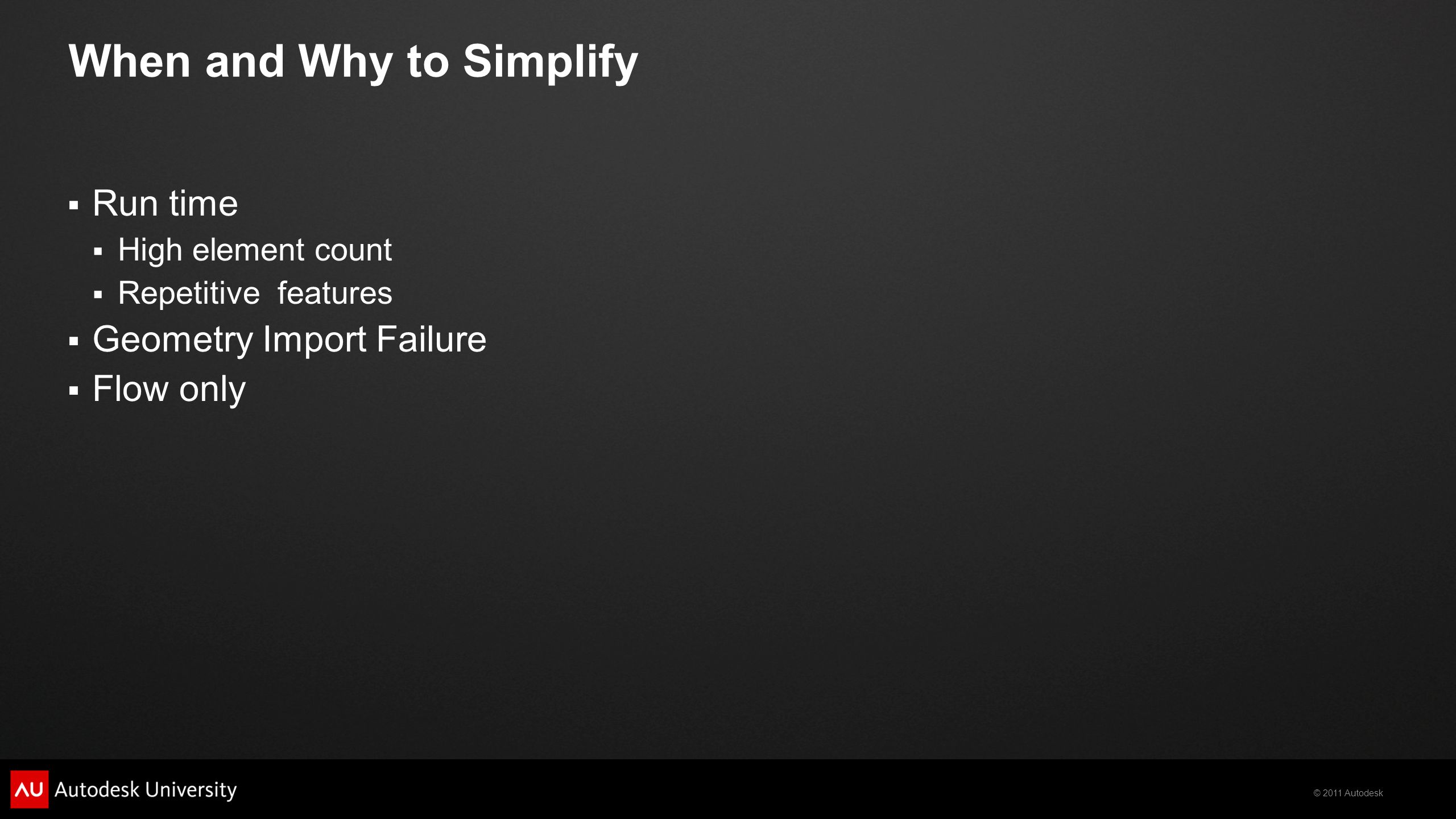

© 2011 Autodesk When and Why to Simplify Run time High element count Repetitive features Geometry Import Failure Flow only
15
© 2011 Autodesk Q & A
16
© 2011 Autodesk Autodesk University Session Feedback Your feedback is very important to Autodesk. You can complete the session survey on your mobile device, PC, or at a survey station. Each completed session survey enters you in that day’s drawing for a free AU 2012 pass. You can help make AU 2012 better! Complete the AU Conference Survey at a survey station and receive an AU 2011 T-Shirt.
17
© 2011 Autodesk Autodesk, AutoCAD* [*if/when mentioned in the pertinent material, followed by an alphabetical list of all other trademarks mentioned in the material] are registered trademarks or trademarks of Autodesk, Inc., and/or its subsidiaries and/or affiliates in the USA and/or other countries. All other brand names, product names, or trademarks belong to their respective holders. Autodesk reserves the right to alter product and services offerings, and specifications and pricing at any time without notice, and is not responsible for typographical or graphical errors that may appear in this document. © 2011 Autodesk, Inc. All rights reserved.
