1. © 2011 Autodesk Charging on from Schematics to Panels in AutoCAD ® Electrical (MA4757-L) Todd Schmoock Solutions Engineer - Synergis Technologies, Inc.

2. © 2011 Autodesk Before getting started  Turn cell phones to silent!  Our lab assistants are:  Kevin Smedley  Greg Shaffer  Randy Brunette  Some questions:  How many currently use AutoCAD ® Electrical?  How many are using the schematic tools?  How many are using the panel tools?

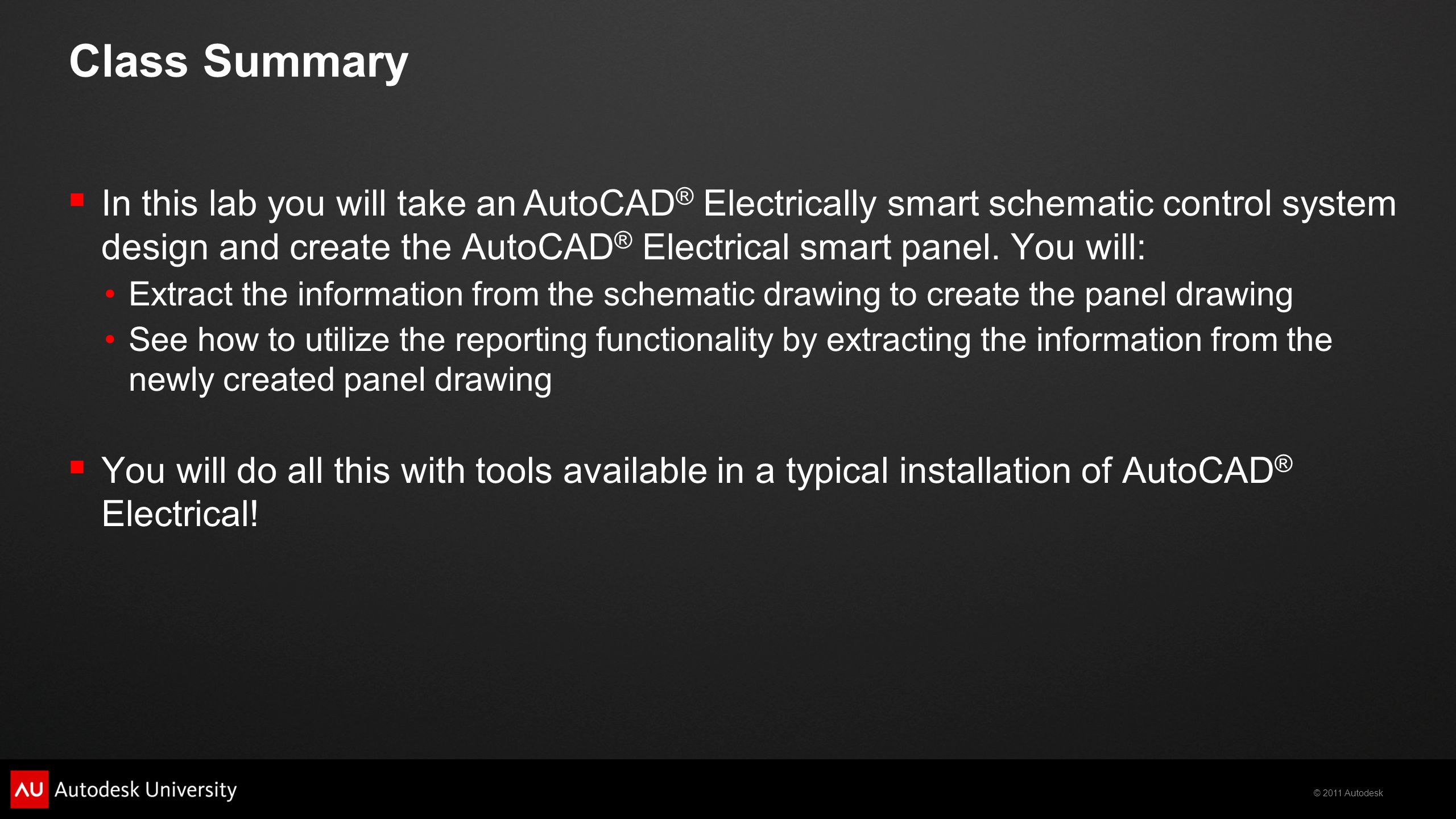

3. © 2011 Autodesk Class Summary  In this lab you will take an AutoCAD ® Electrically smart schematic control system design and create the AutoCAD ® Electrical smart panel. You will: Extract the information from the schematic drawing to create the panel drawing See how to utilize the reporting functionality by extracting the information from the newly created panel drawing  You will do all this with tools available in a typical installation of AutoCAD ® Electrical!

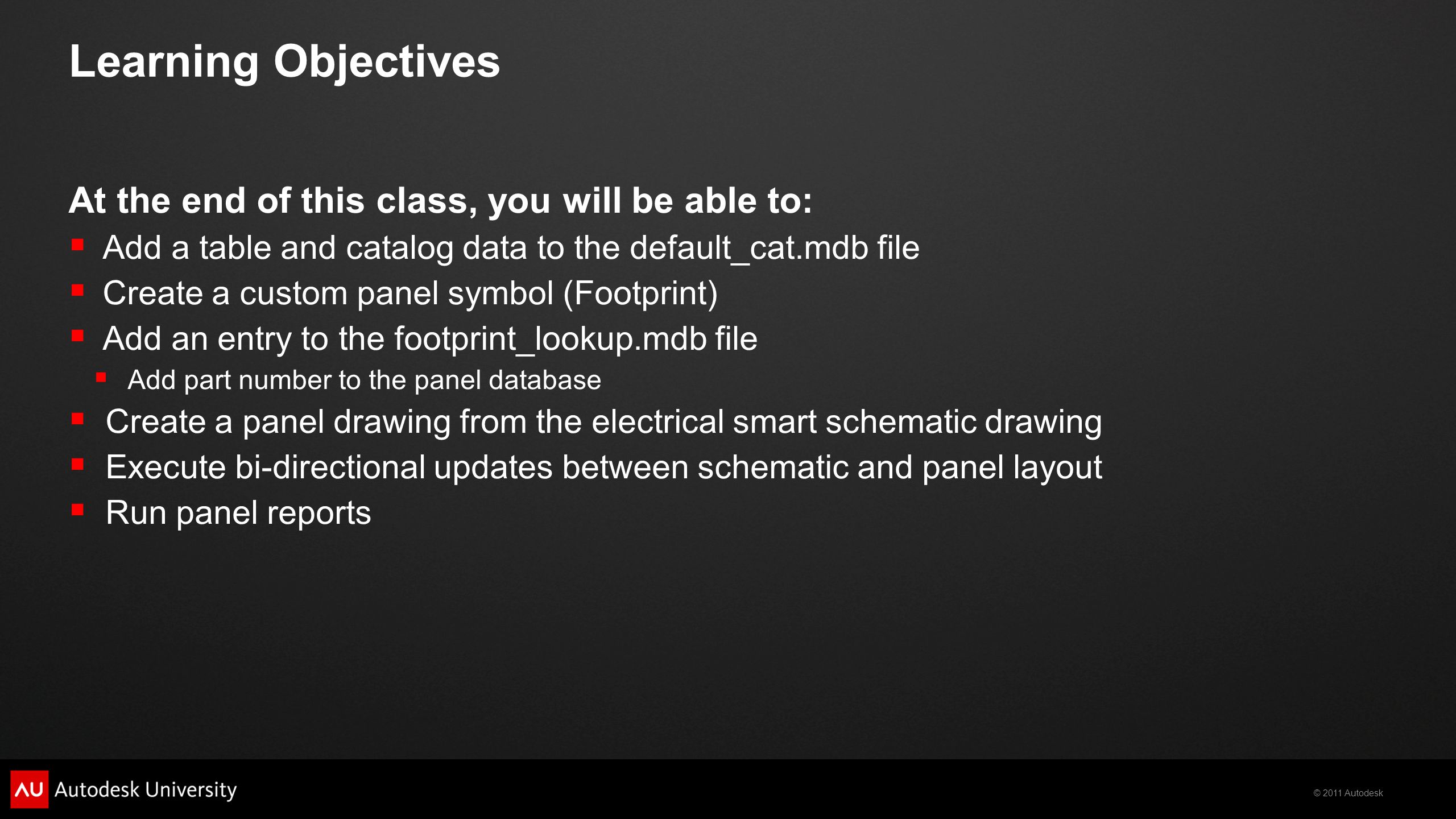

4. © 2011 Autodesk Learning Objectives At the end of this class, you will be able to:  Add a table and catalog data to the default_cat.mdb file  Create a custom panel symbol (Footprint)  Add an entry to the footprint_lookup.mdb file  Add part number to the panel database  Create a panel drawing from the electrical smart schematic drawing  Execute bi-directional updates between schematic and panel layout  Run panel reports

5. © 2011 Autodesk Class Setup

6. © 2011 Autodesk Class Setup:  Activate the AutoCAD ® Electrical project “MA4757-L  Note: The file will be located in a folder called "MA47572-L" which is the Autodesk University lab name for this class.

7. © 2011 Autodesk Add a table and catalog data to the default_cat.mdb file

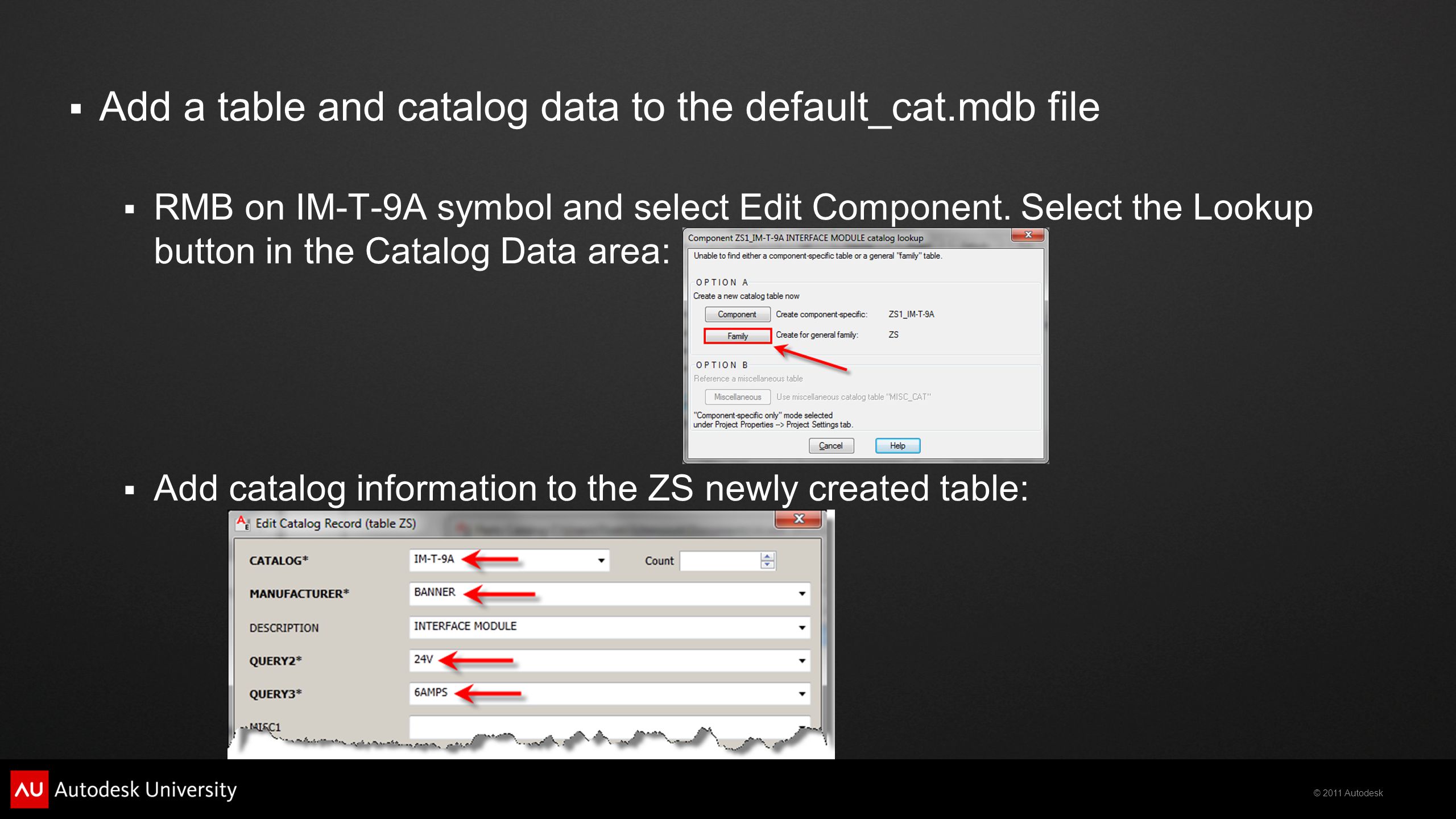

8. © 2011 Autodesk  Add a table and catalog data to the default_cat.mdb file  RMB on IM-T-9A symbol and select Edit Component. Select the Lookup button in the Catalog Data area:  Add catalog information to the ZS newly created table:

9. © 2011 Autodesk Create a custom panel symbol (footprint)

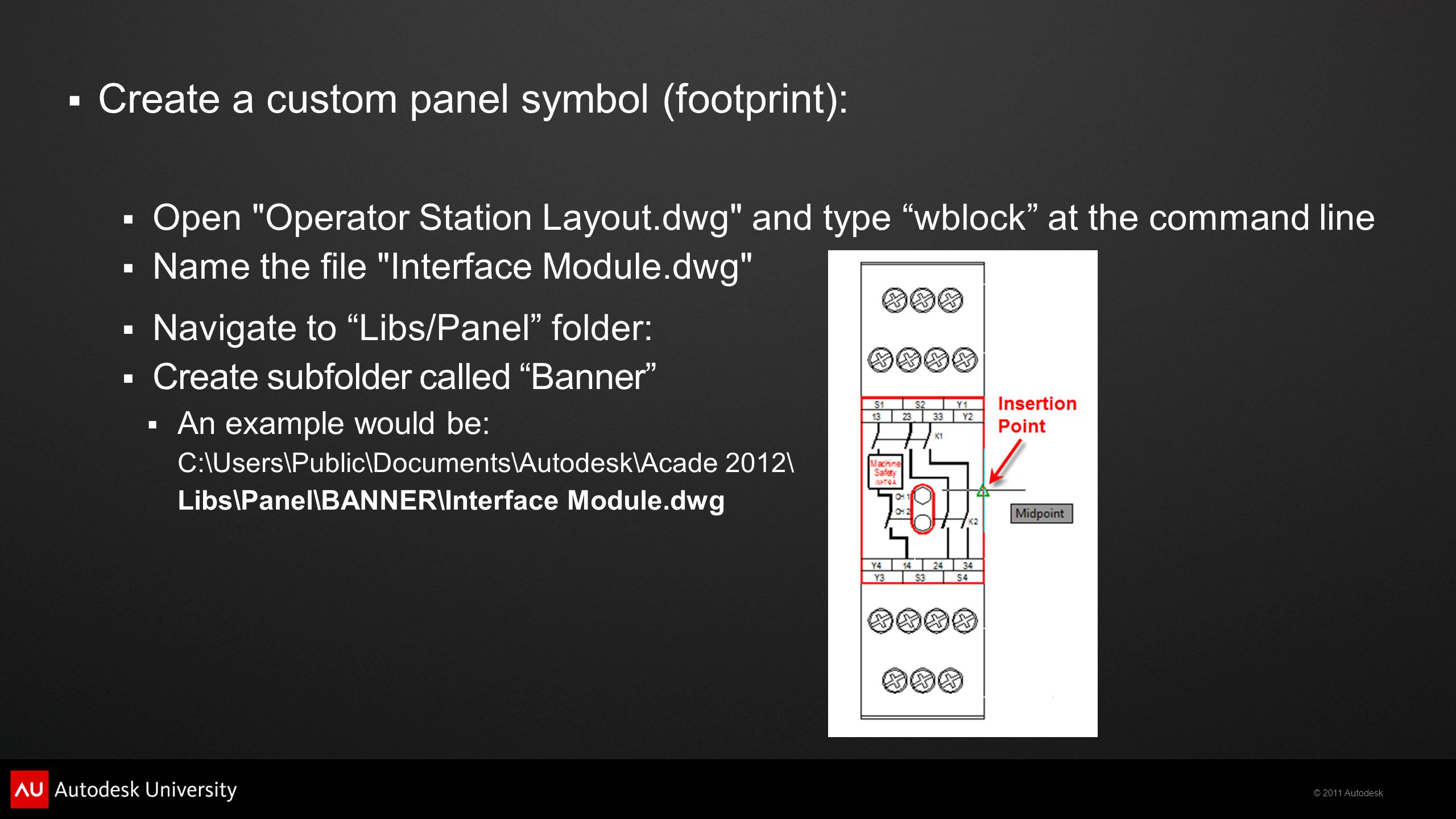

10. © 2011 Autodesk  Create a custom panel symbol (footprint):  Open "Operator Station Layout.dwg" and type “wblock” at the command line  Name the file "Interface Module.dwg"  Navigate to “Libs/Panel” folder:  Create subfolder called “Banner”  An example would be: C:\Users\Public\Documents\Autodesk\Acade 2012\ Libs\Panel\BANNER\Interface Module.dwg

11. © 2011 Autodesk Add an entry to the footprint_lookup.mdb file

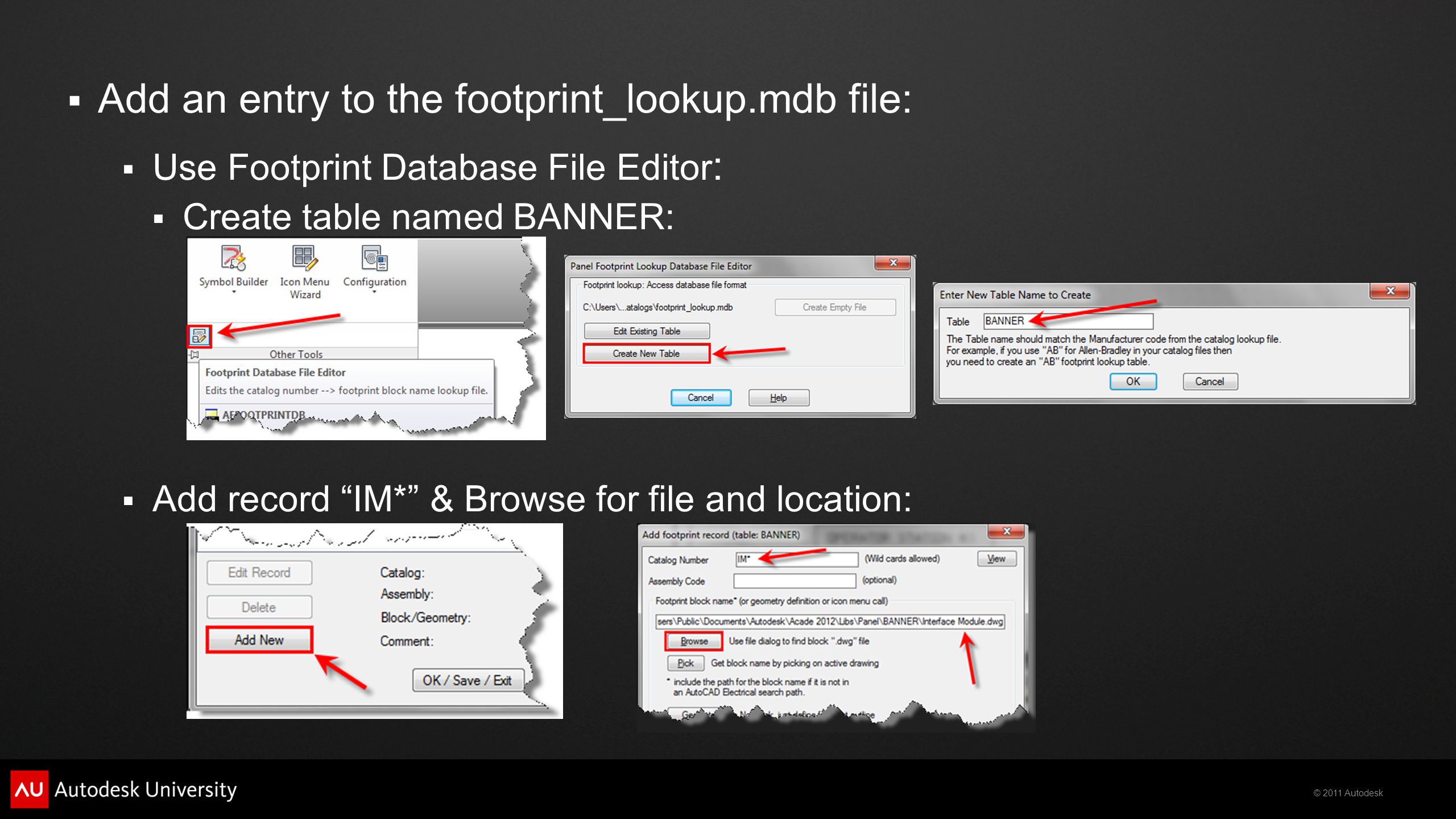

12. © 2011 Autodesk  Add an entry to the footprint_lookup.mdb file:  Use Footprint Database File Editor :  Create table named BANNER:  Add record “IM*” & Browse for file and location:

13. © 2011 Autodesk Create a panel drawing from the electrical smart schematic drawing

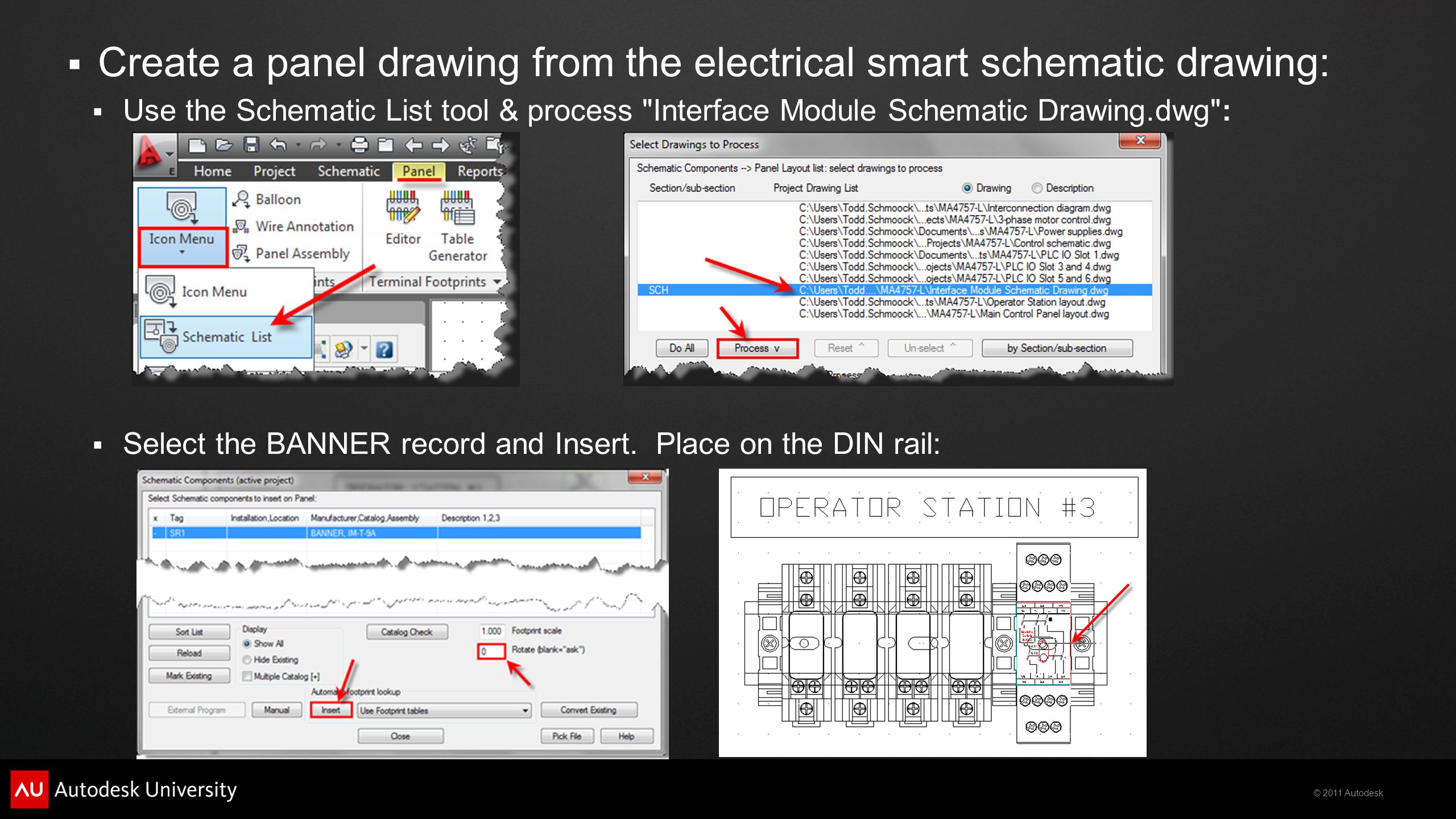

14. © 2011 Autodesk  Create a panel drawing from the electrical smart schematic drawing:  Use the Schematic List tool & process "Interface Module Schematic Drawing.dwg":  Select the BANNER record and Insert. Place on the DIN rail:

15. © 2011 Autodesk Execute bi-directional updates between schematic and panel layout

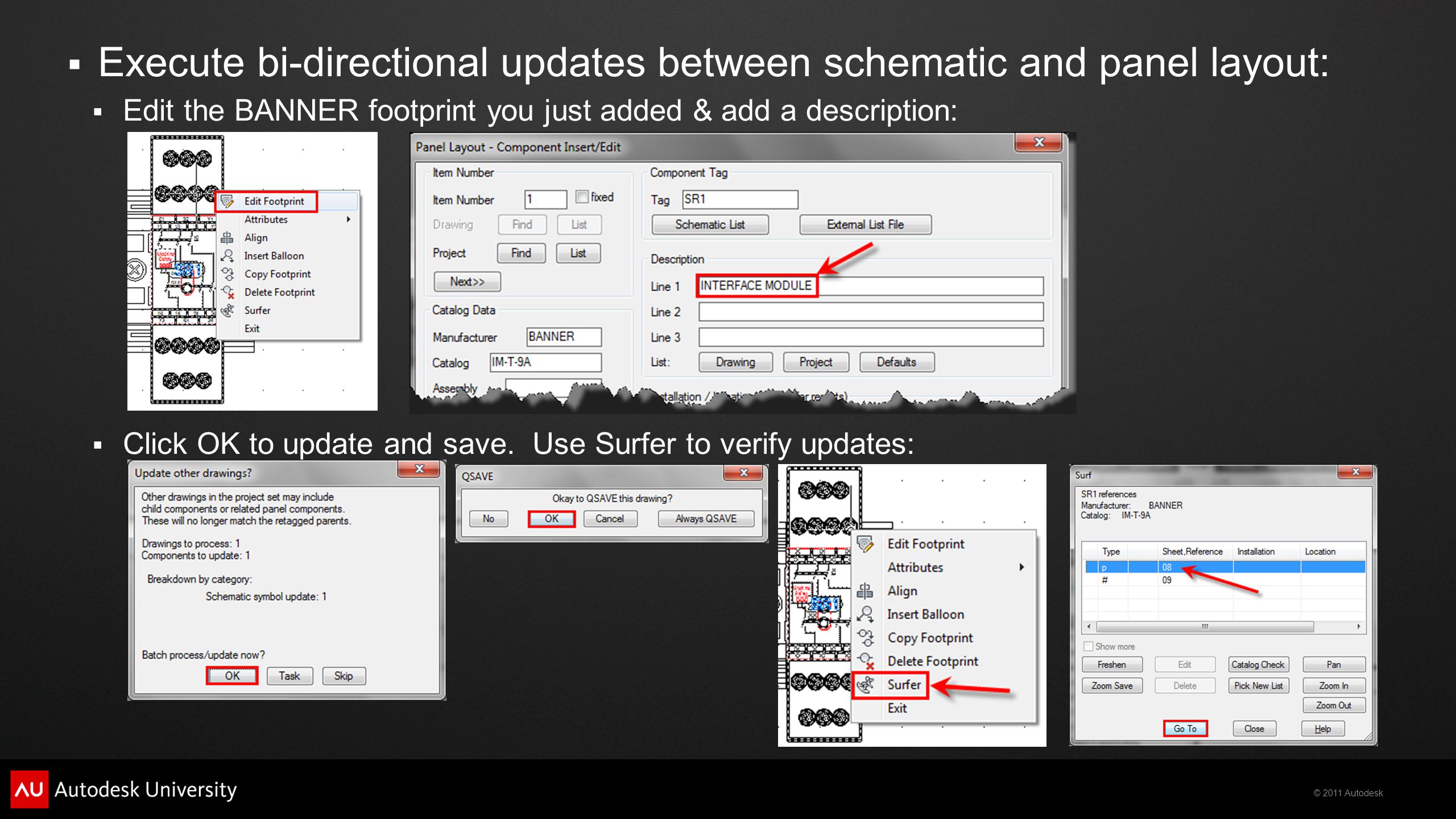

16. © 2011 Autodesk  Execute bi-directional updates between schematic and panel layout:  Edit the BANNER footprint you just added & add a description:  Click OK to update and save. Use Surfer to verify updates:

17. © 2011 Autodesk Run a Panel Report

18. © 2011 Autodesk  Run a Panel Report:  Run a Bill of Material report on the Active drawing to view the new footprint added:
