1 1 Load Forecast and Scenarios David Bailey Customer Energy & Forecasting Manager Soyean Kim Rate Design Manager

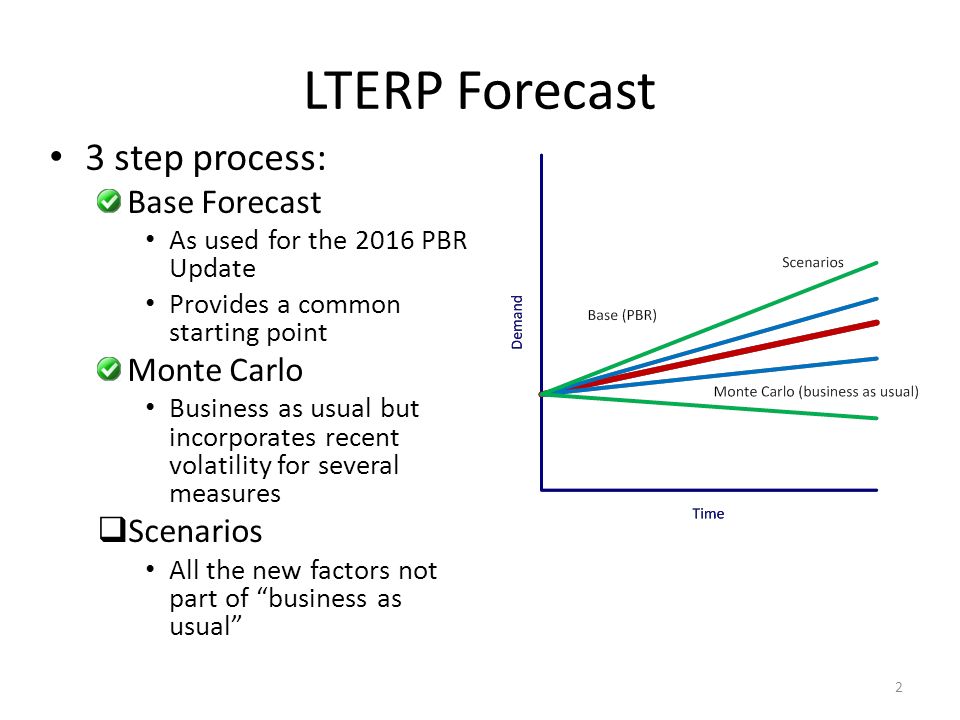

2 LTERP Forecast 3 step process: Base Forecast As used for the 2016 PBR Update Provides a common starting point Monte Carlo Business as usual but incorporates recent volatility for several measures  Scenarios All the new factors not part of “business as usual” 2

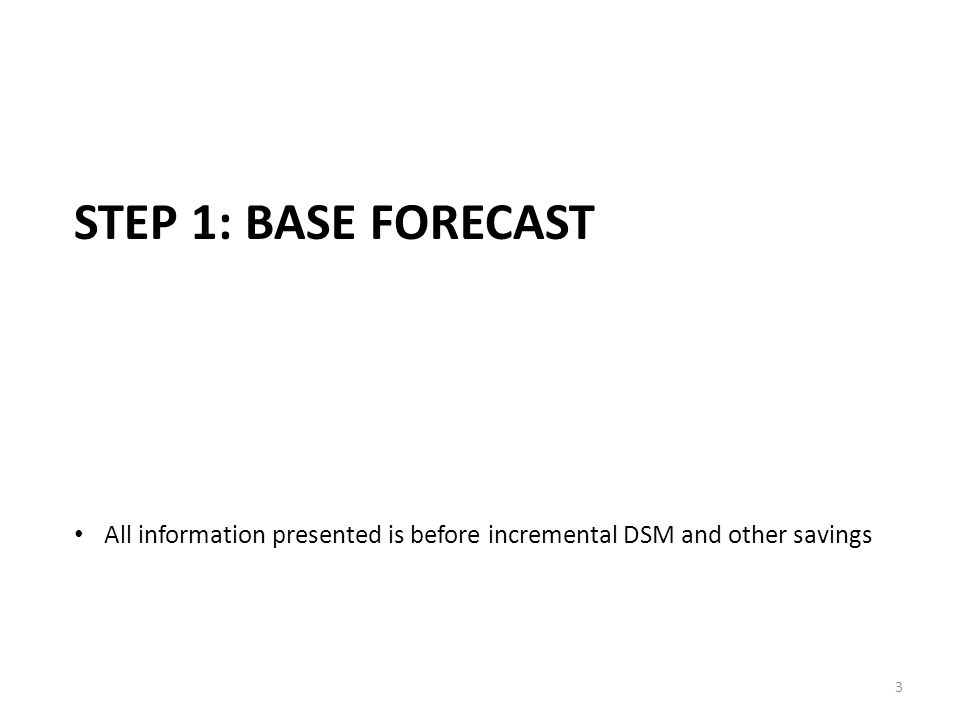

3 STEP 1: BASE FORECAST 3 All information presented is before incremental DSM and other savings

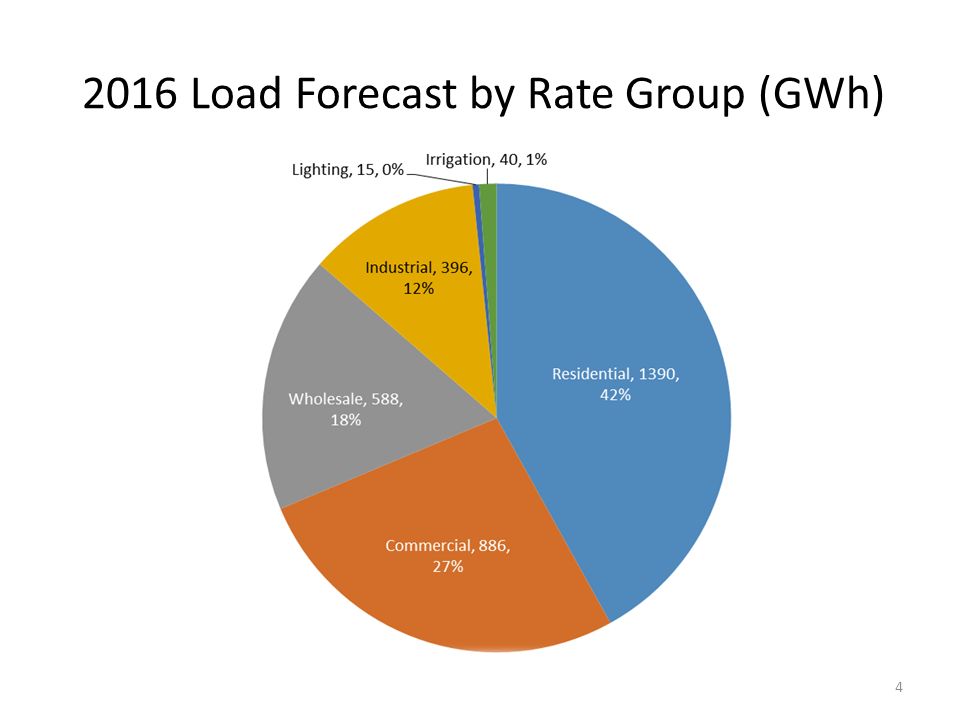

4 2016 Load Forecast by Rate Group (GWh) 4

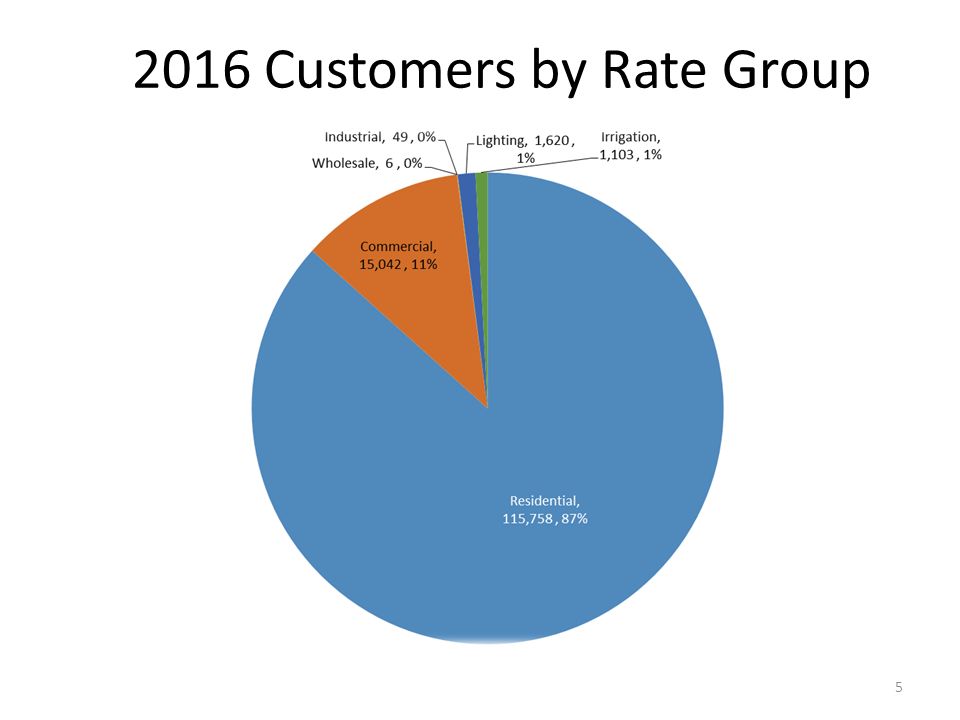

5 2016 Customers by Rate Group 5

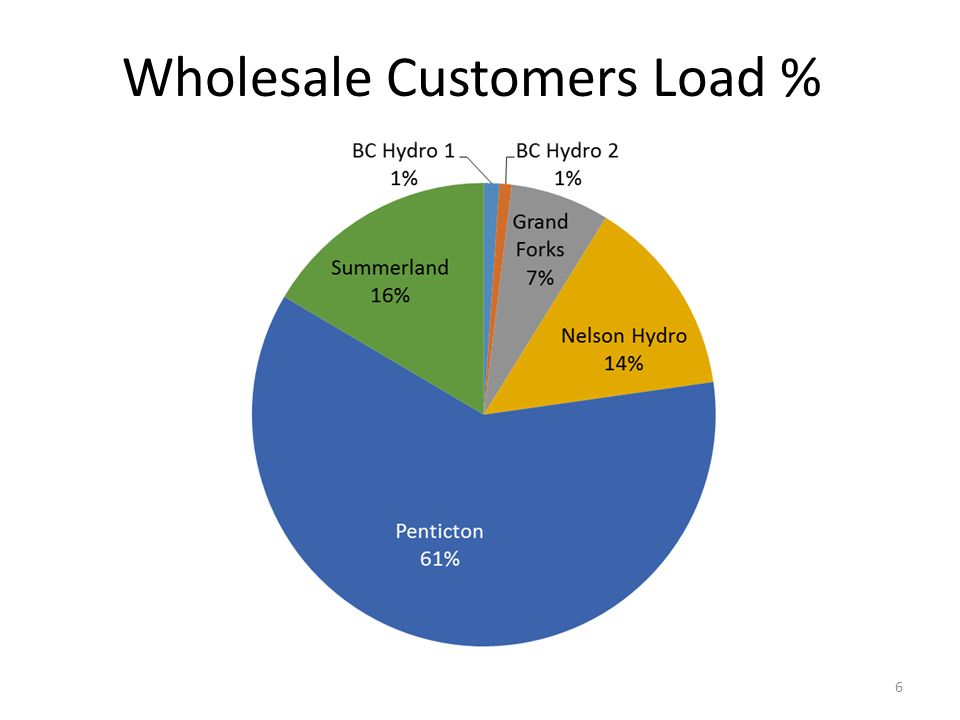

6 Wholesale Customers Load % 6

7 7 Annual Load Forecast

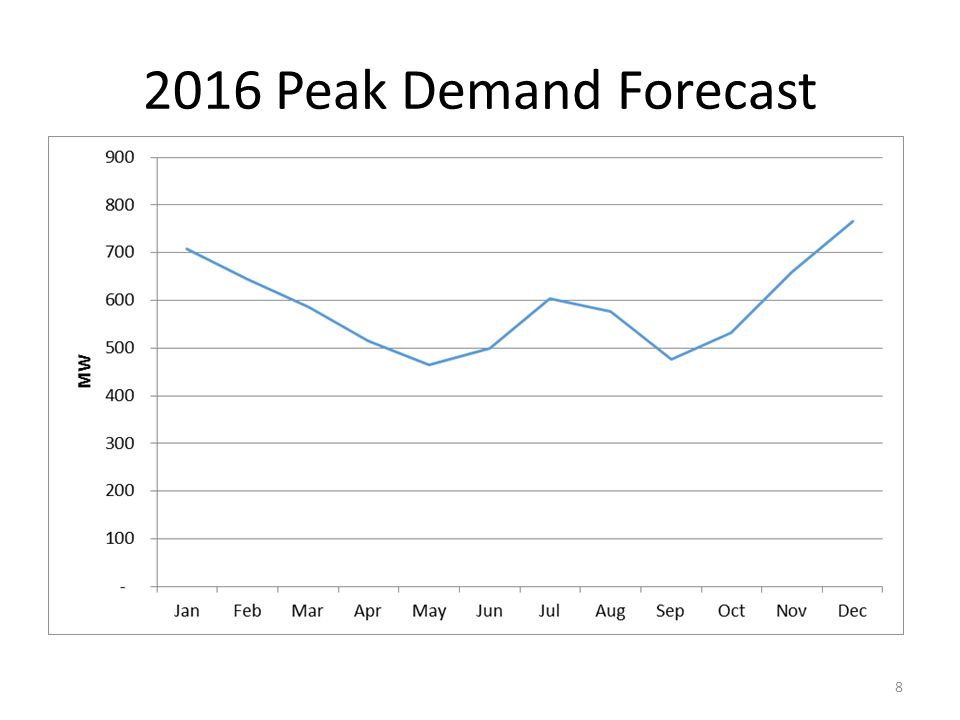

8 2016 Peak Demand Forecast 8

9 STEP 2: MONTE CARLO 9 All information presented is before incremental DSM and other savings

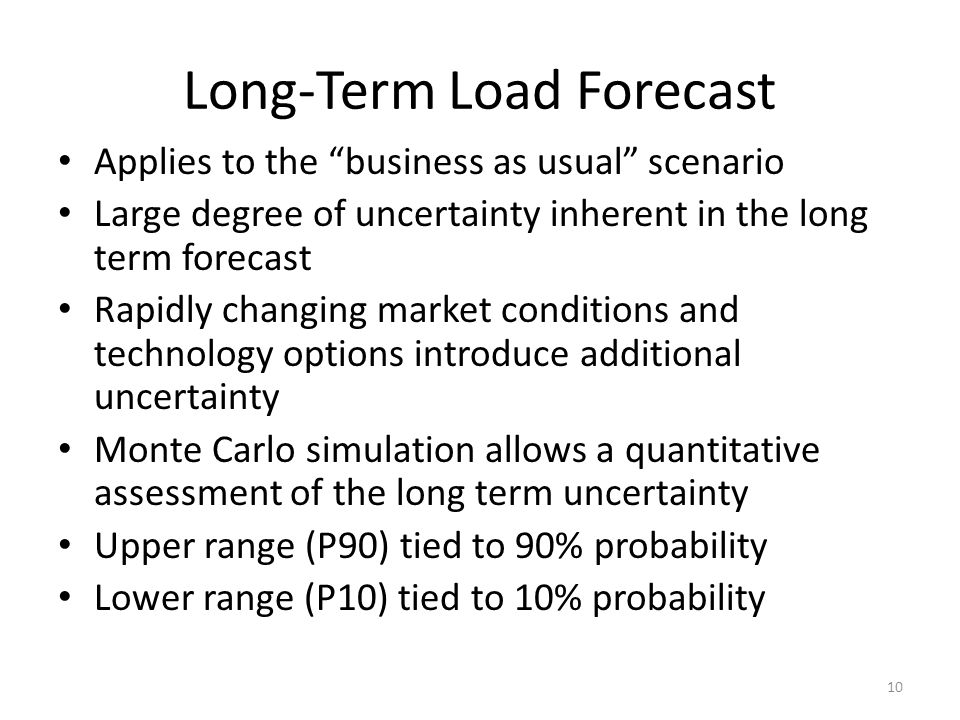

10 Long-Term Load Forecast Applies to the “business as usual” scenario Large degree of uncertainty inherent in the long term forecast Rapidly changing market conditions and technology options introduce additional uncertainty Monte Carlo simulation allows a quantitative assessment of the long term uncertainty Upper range (P90) tied to 90% probability Lower range (P10) tied to 10% probability 10

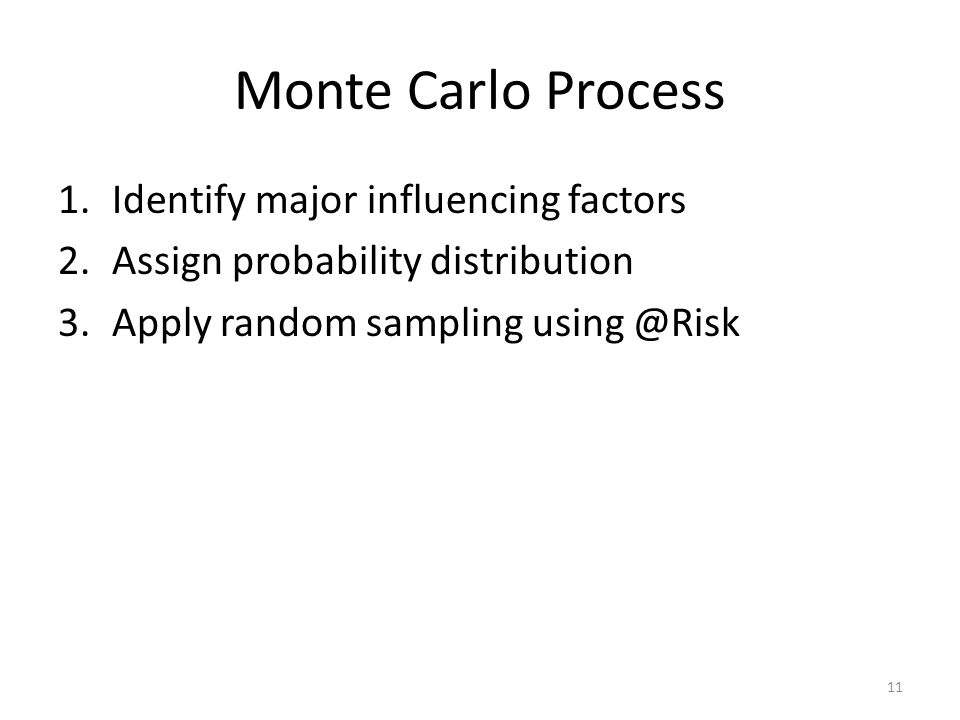

11 Monte Carlo Process 1.Identify major influencing factors 2.Assign probability distribution 3.Apply random sampling using @Risk 11

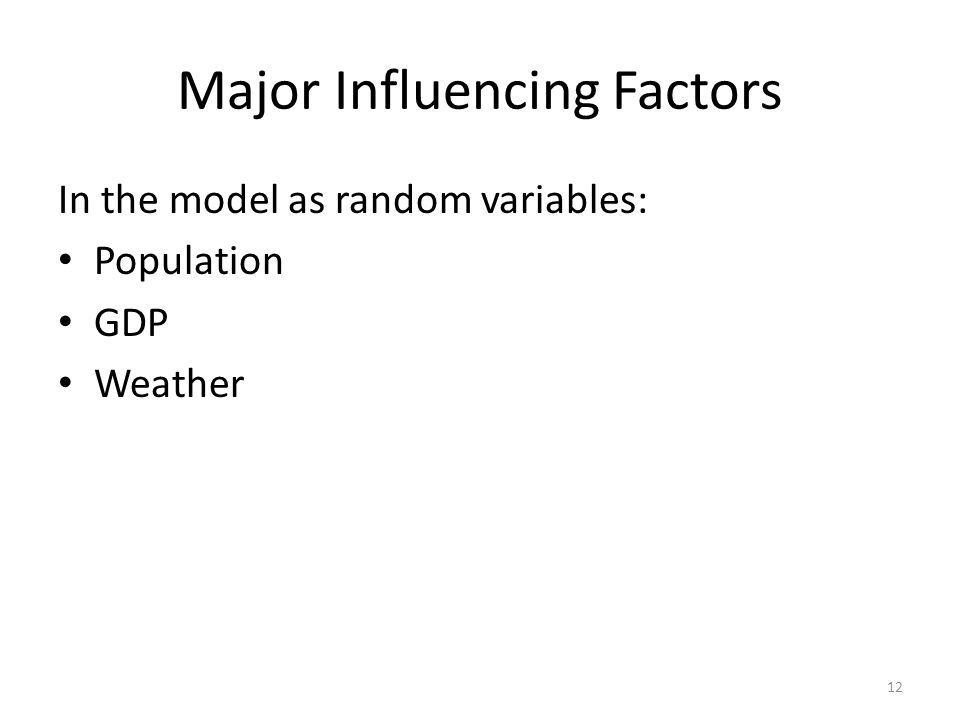

12 Major Influencing Factors In the model as random variables: Population GDP Weather 12

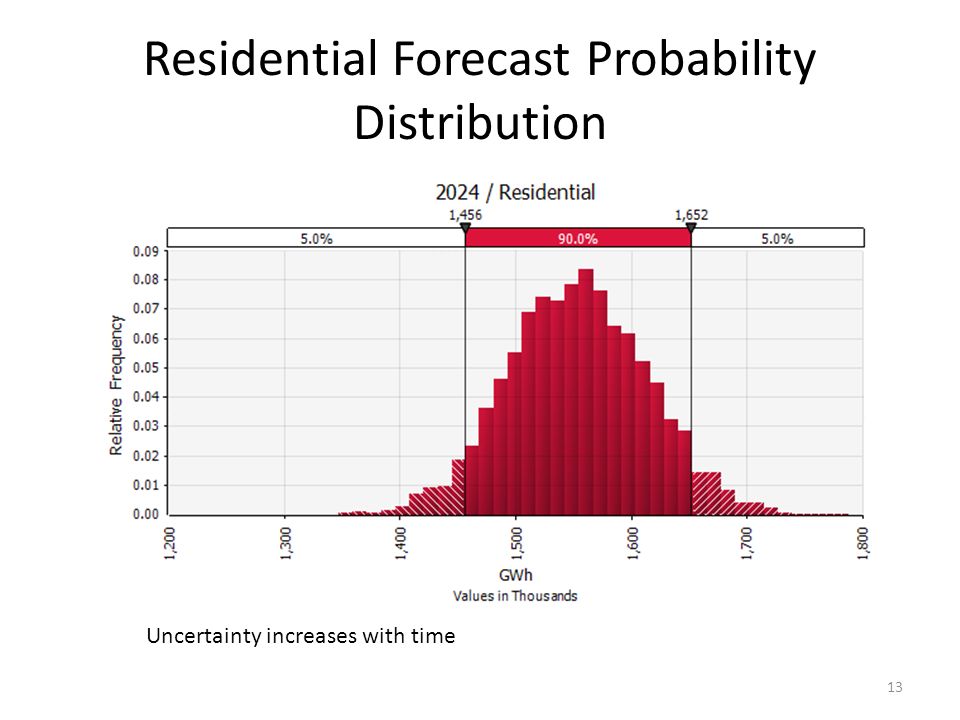

13 Residential Forecast Probability Distribution 13 Uncertainty increases with time

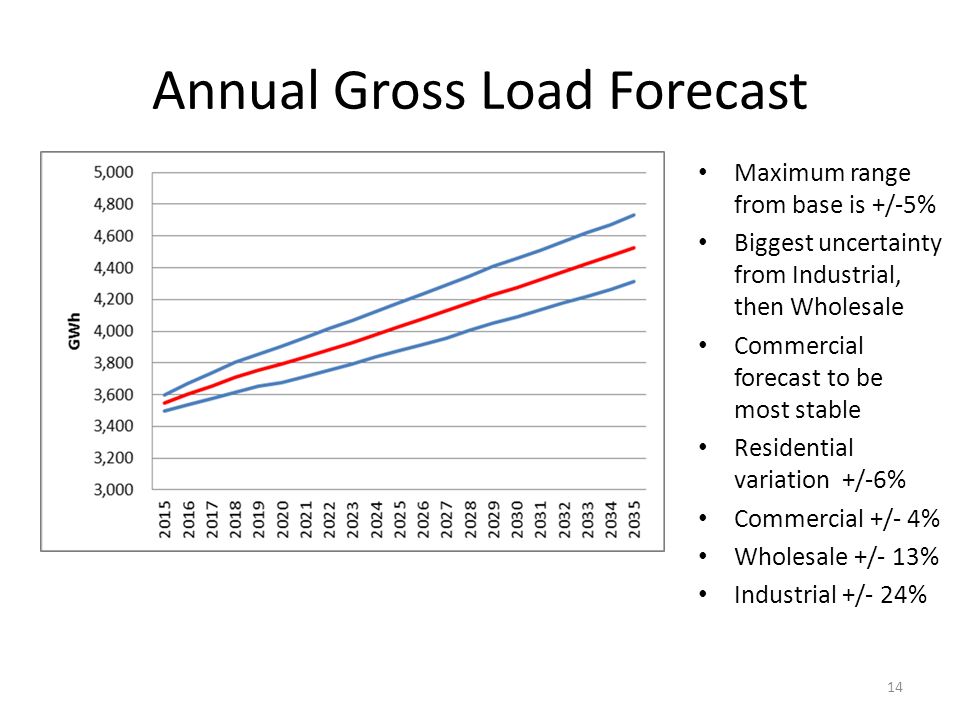

14 Annual Gross Load Forecast 14 Maximum range from base is +/-5% Biggest uncertainty from Industrial, then Wholesale Commercial forecast to be most stable Residential variation +/-6% Commercial +/- 4% Wholesale +/- 13% Industrial +/- 24%

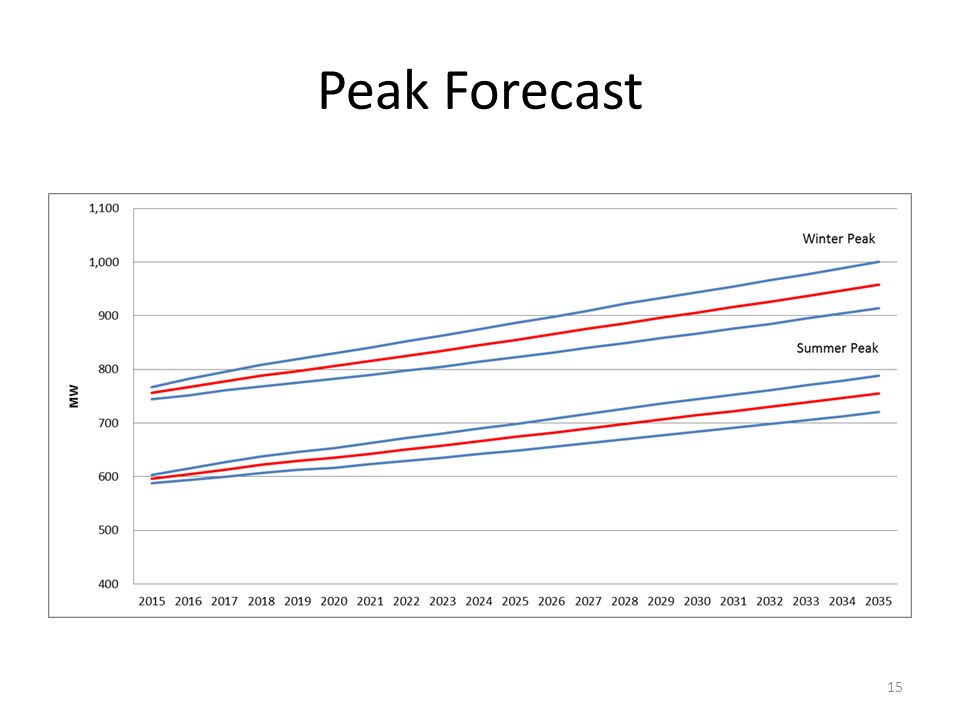

15 Peak Forecast 15

16 STEP 3: SCENARIOS 16

17 Scenarios We will add scenarios to the Monte Carlo (MC) results Some future scenarios will increase load and some will reduce load Additions will be added to the high MC case while deductions will be removed from the low MC case Hybrid scenarios (eg. some EV and some DG) will land somewhere in the middle 17

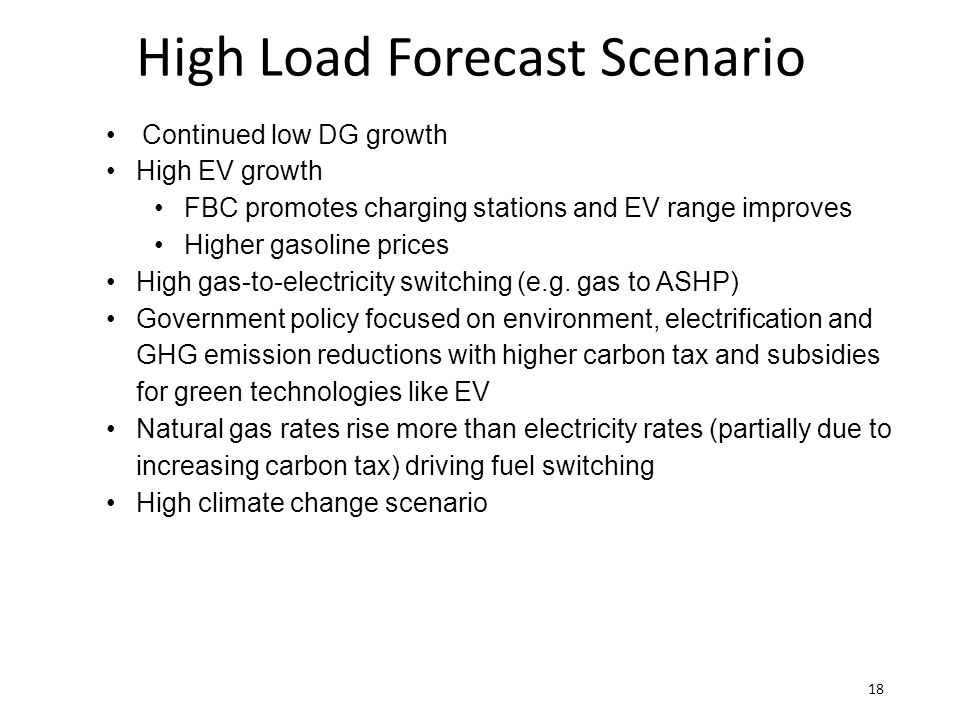

18 18 High Load Forecast Scenario Continued low DG growth High EV growth FBC promotes charging stations and EV range improves Higher gasoline prices High gas-to-electricity switching (e.g. gas to ASHP) Government policy focused on environment, electrification and GHG emission reductions with higher carbon tax and subsidies for green technologies like EV Natural gas rates rise more than electricity rates (partially due to increasing carbon tax) driving fuel switching High climate change scenario

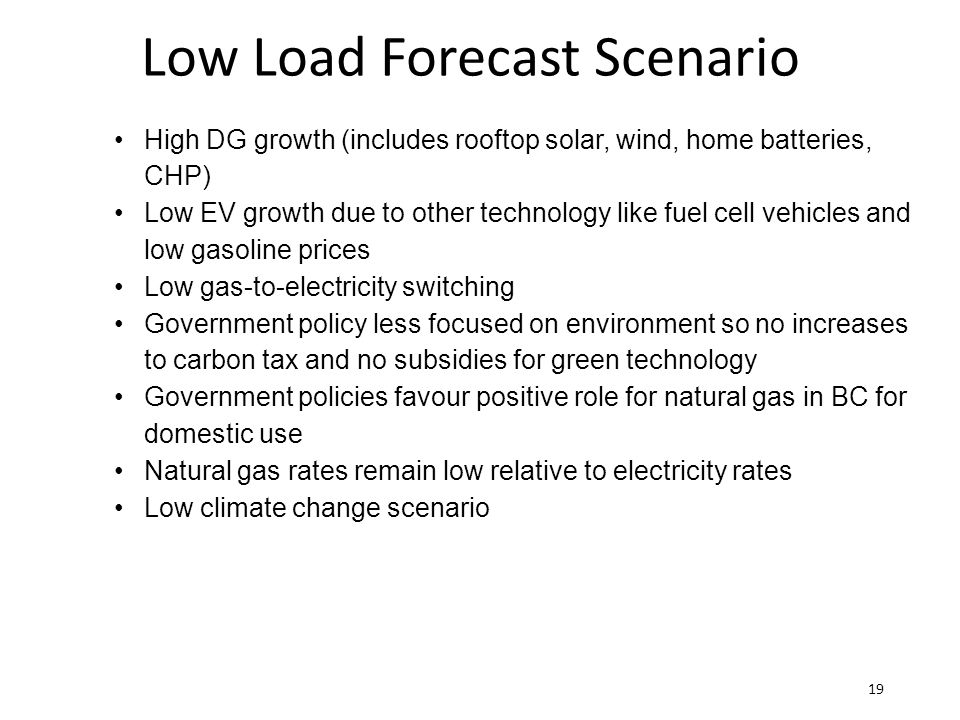

19 19 Low Load Forecast Scenario High DG growth (includes rooftop solar, wind, home batteries, CHP) Low EV growth due to other technology like fuel cell vehicles and low gasoline prices Low gas-to-electricity switching Government policy less focused on environment so no increases to carbon tax and no subsidies for green technology Government policies favour positive role for natural gas in BC for domestic use Natural gas rates remain low relative to electricity rates Low climate change scenario

20 20 Questions? Feedback on scenarios?

21 21 Backup Slides

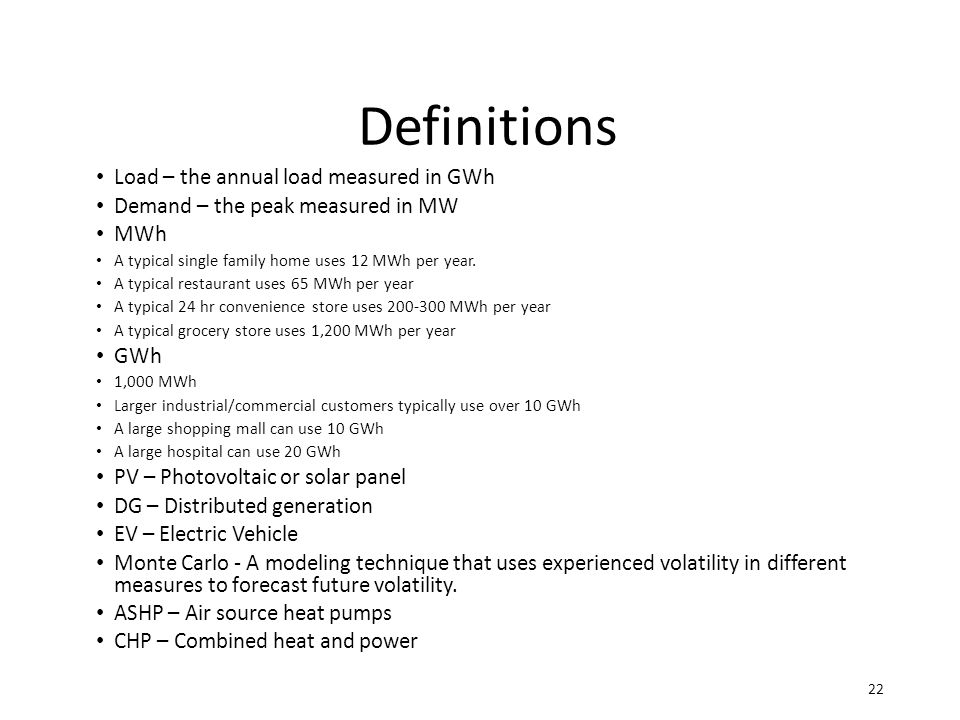

22 22 Definitions Load – the annual load measured in GWh Demand – the peak measured in MW MWh A typical single family home uses 12 MWh per year. A typical restaurant uses 65 MWh per year A typical 24 hr convenience store uses 200-300 MWh per year A typical grocery store uses 1,200 MWh per year GWh 1,000 MWh Larger industrial/commercial customers typically use over 10 GWh A large shopping mall can use 10 GWh A large hospital can use 20 GWh PV – Photovoltaic or solar panel DG – Distributed generation EV – Electric Vehicle Monte Carlo - A modeling technique that uses experienced volatility in different measures to forecast future volatility. ASHP – Air source heat pumps CHP – Combined heat and power

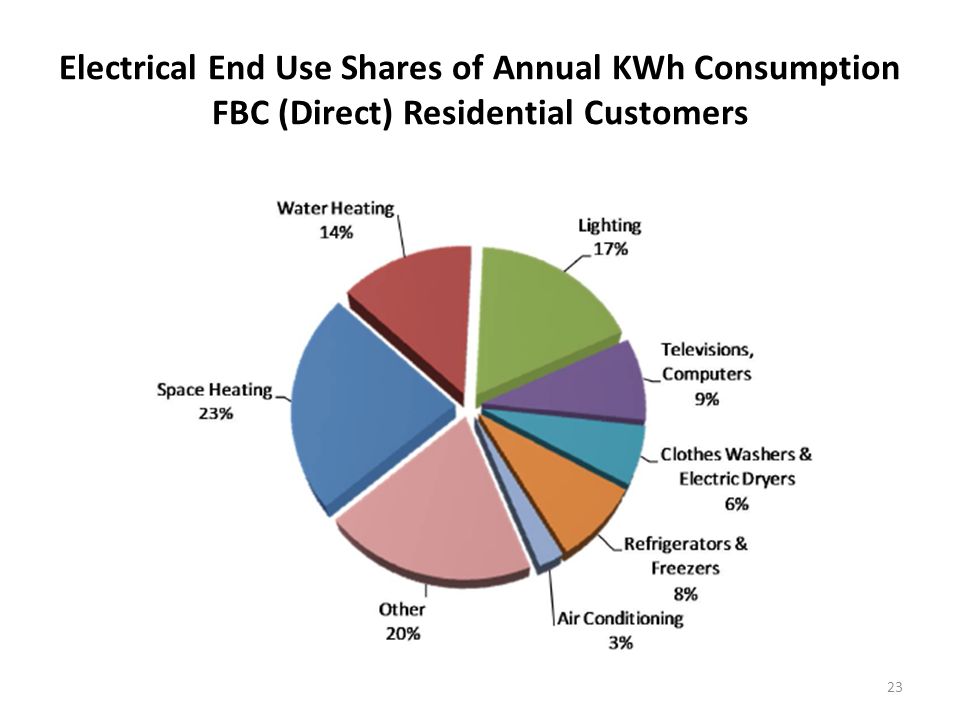

23 Electrical End Use Shares of Annual KWh Consumption FBC (Direct) Residential Customers 23

24 Base Methodology Overview Load ClassCustomersUPCLoad% of Total ResidentialBC STATS regression 3 year average of normalized actuals Calculated UPC X Customers 39.4% CommercialCBOC GDP regression Calculated Load/Customers Regression using CBOC GDP forecast 22.8% WholesaleSurvey28.1% IndustrialSurvey + Sector GDP 9.1% LightingTrend Analysis0.4% Irrigation5 Year Average1.2%

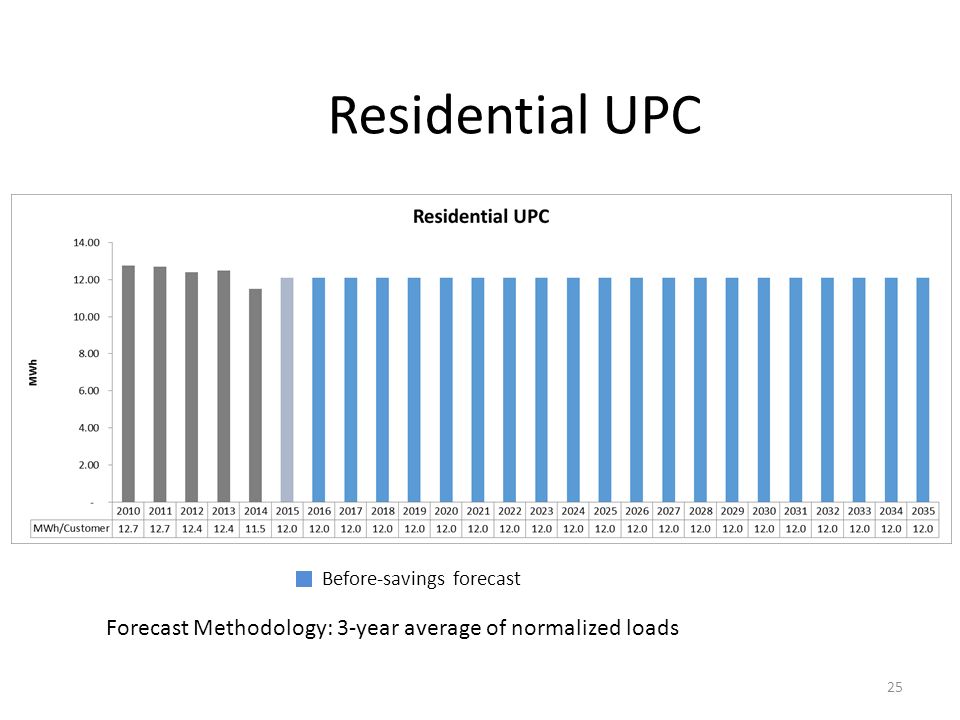

25 Residential UPC 25 Before-savings forecast Forecast Methodology: 3-year average of normalized loads

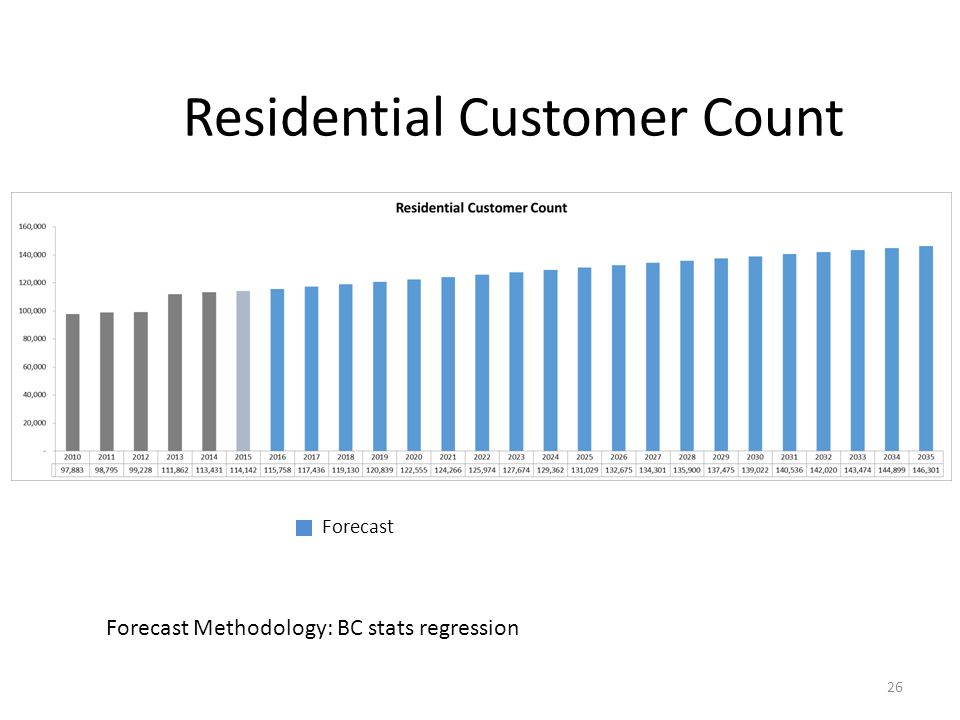

26 Residential Customer Count 26 Forecast Forecast Methodology: BC stats regression

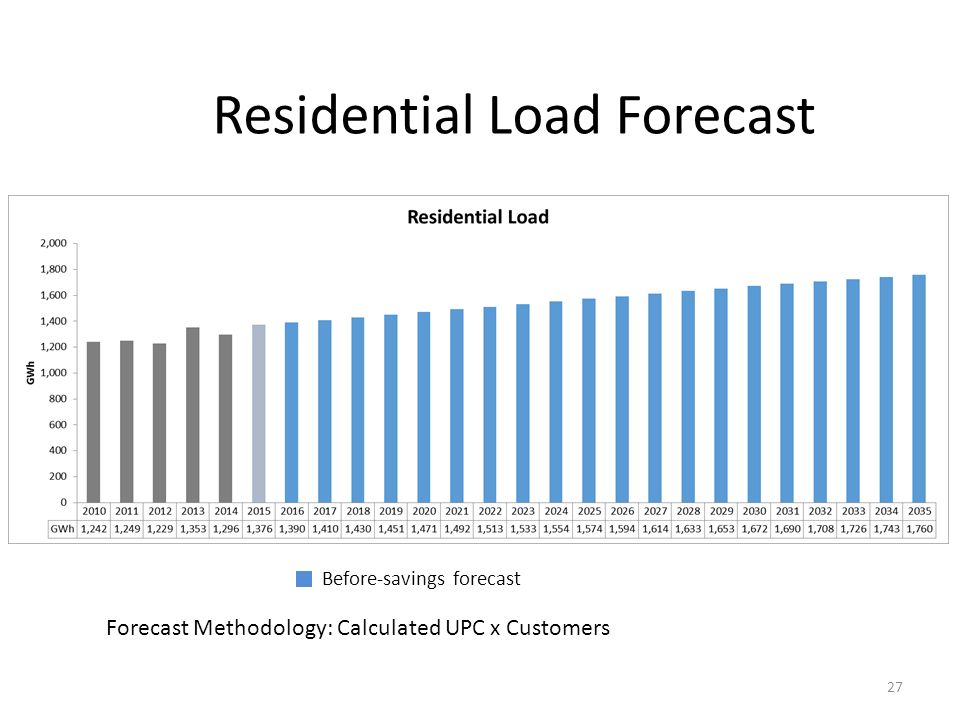

27 Residential Load Forecast 27 Before-savings forecast Forecast Methodology: Calculated UPC x Customers

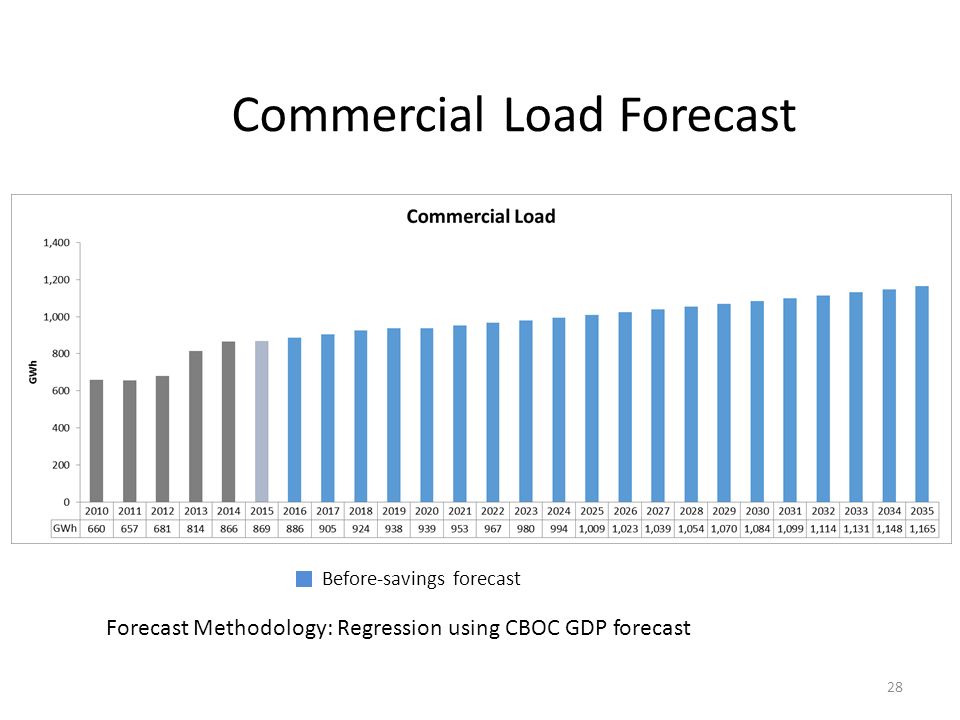

28 Commercial Load Forecast 28 Before-savings forecast Forecast Methodology: Regression using CBOC GDP forecast

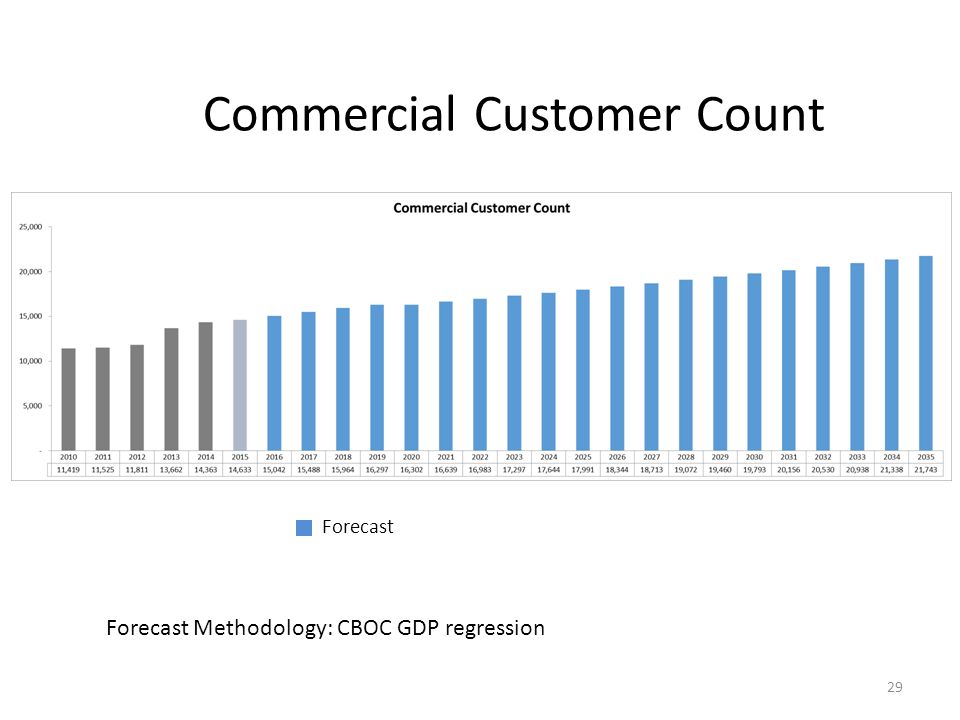

29 Commercial Customer Count 29 Forecast Methodology: CBOC GDP regression Forecast

30 Industrial Load Forecast 30 Before-savings forecast Forecast Methodology: Survey and CBOC Sector GDP

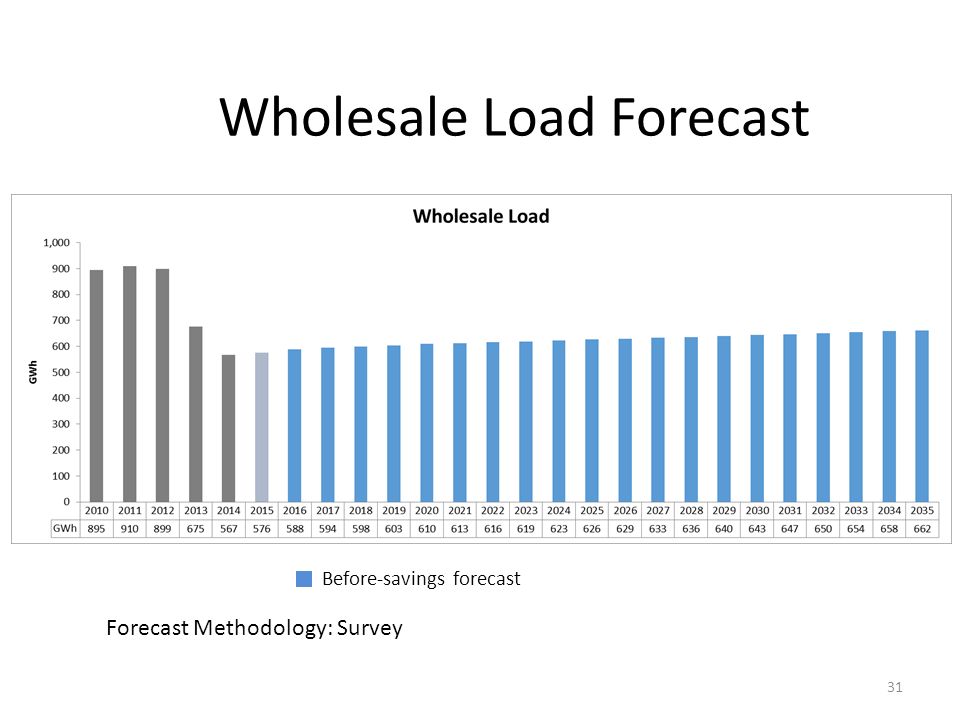

31 Wholesale Load Forecast 31 Before-savings forecast Forecast Methodology: Survey

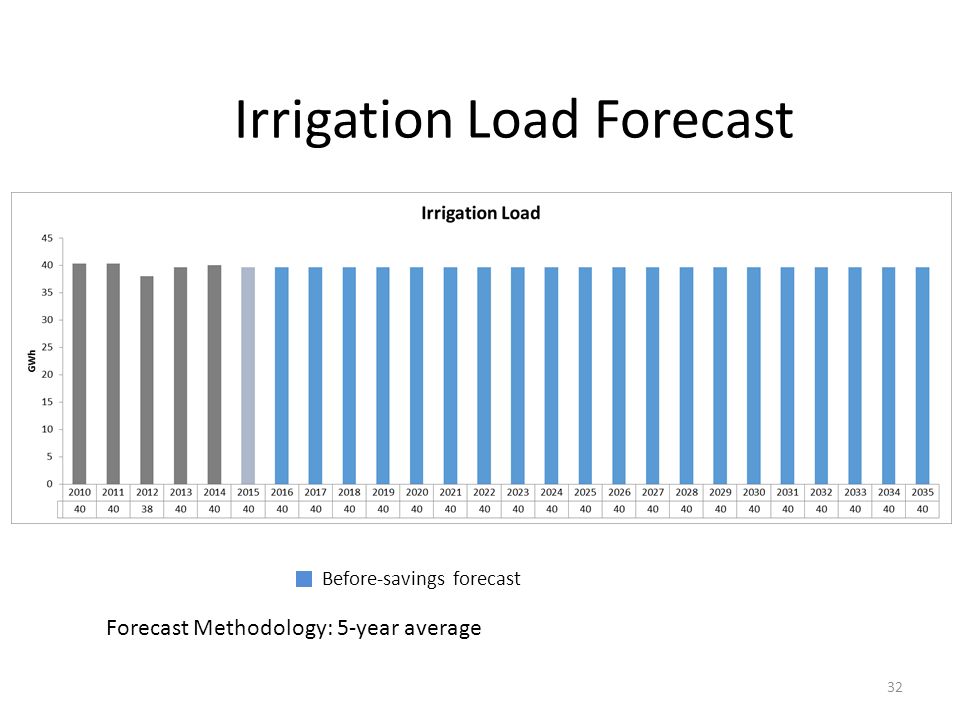

32 Irrigation Load Forecast 32 Before-savings forecast Forecast Methodology: 5-year average

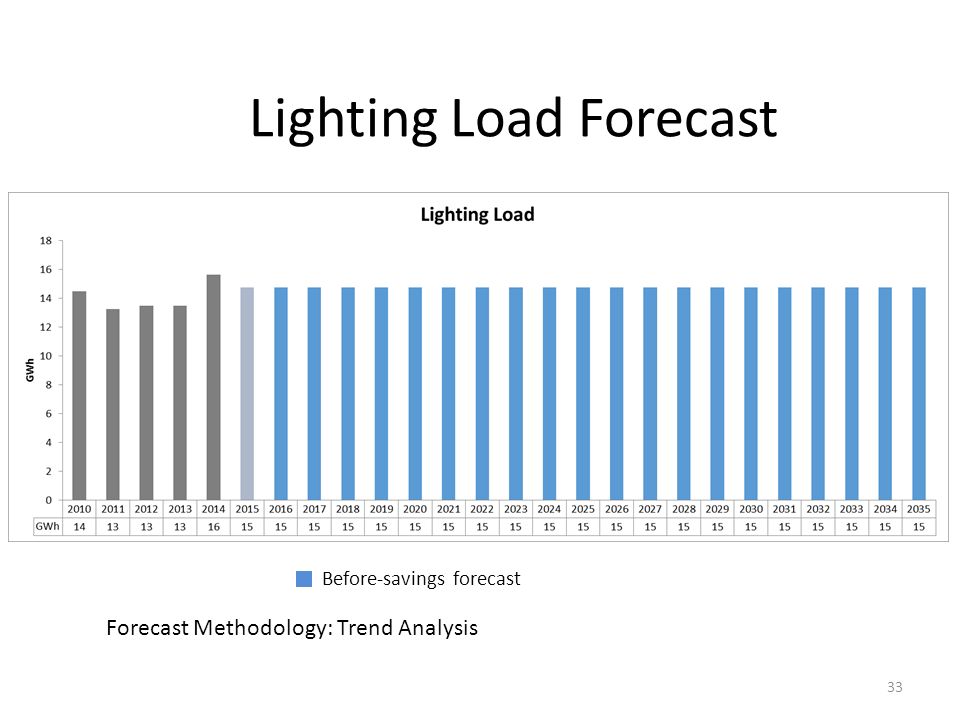

33 Lighting Load Forecast 33 Before-savings forecast Forecast Methodology: Trend Analysis

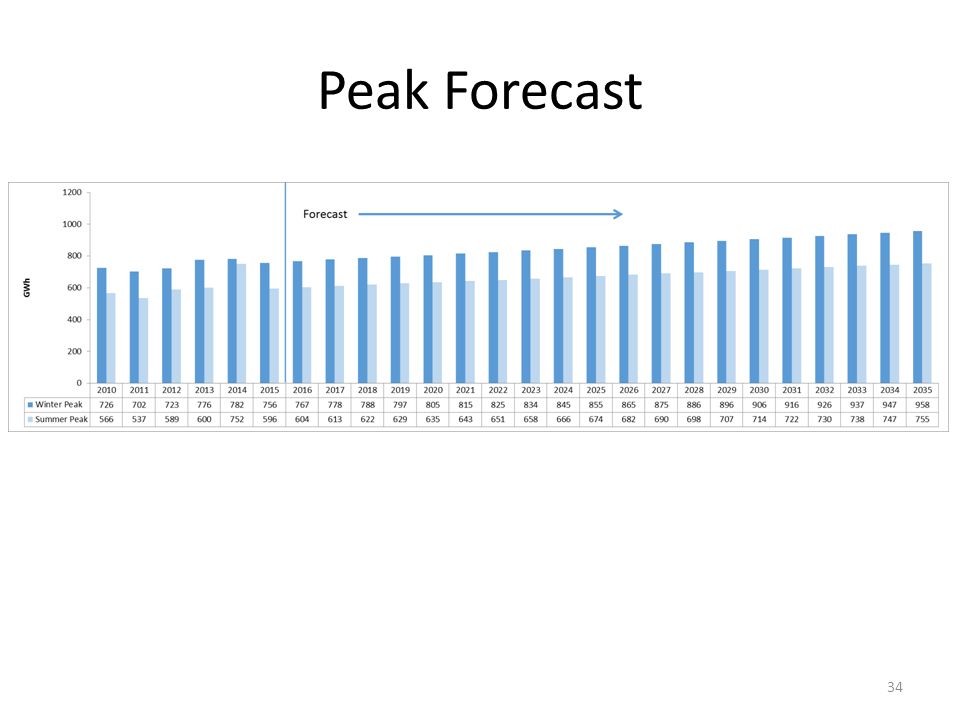

34 Peak Forecast 34

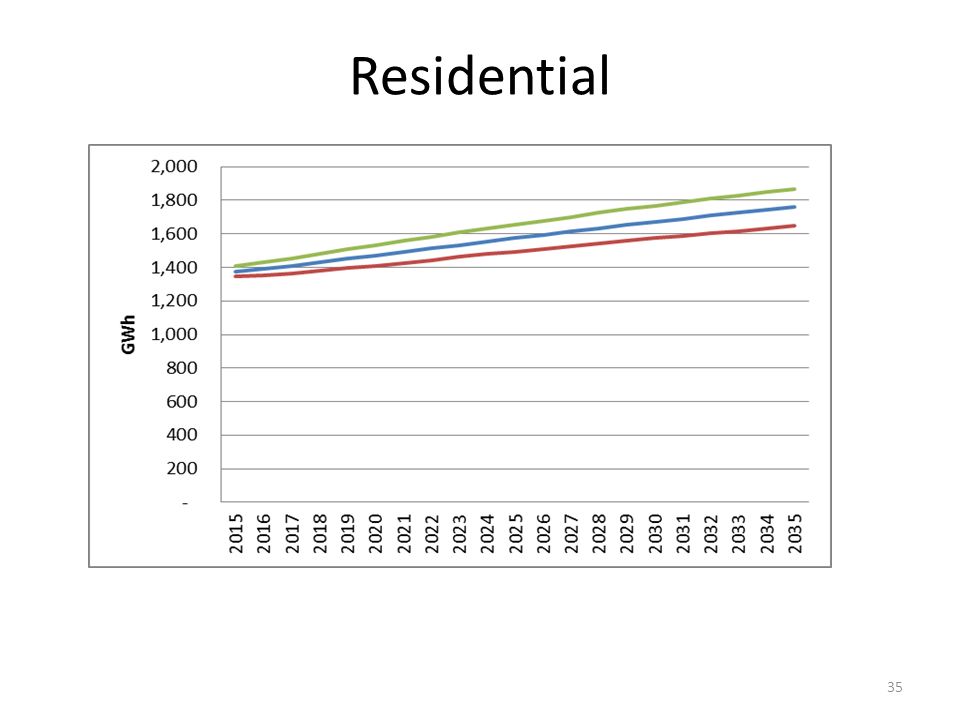

35 Residential 35

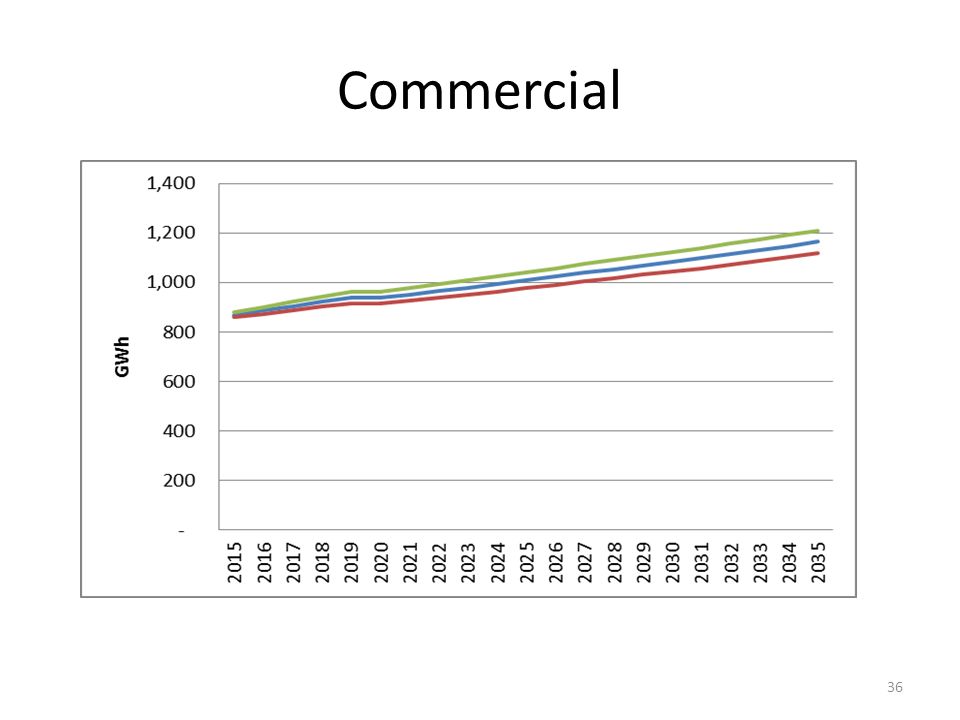

36 Commercial 36

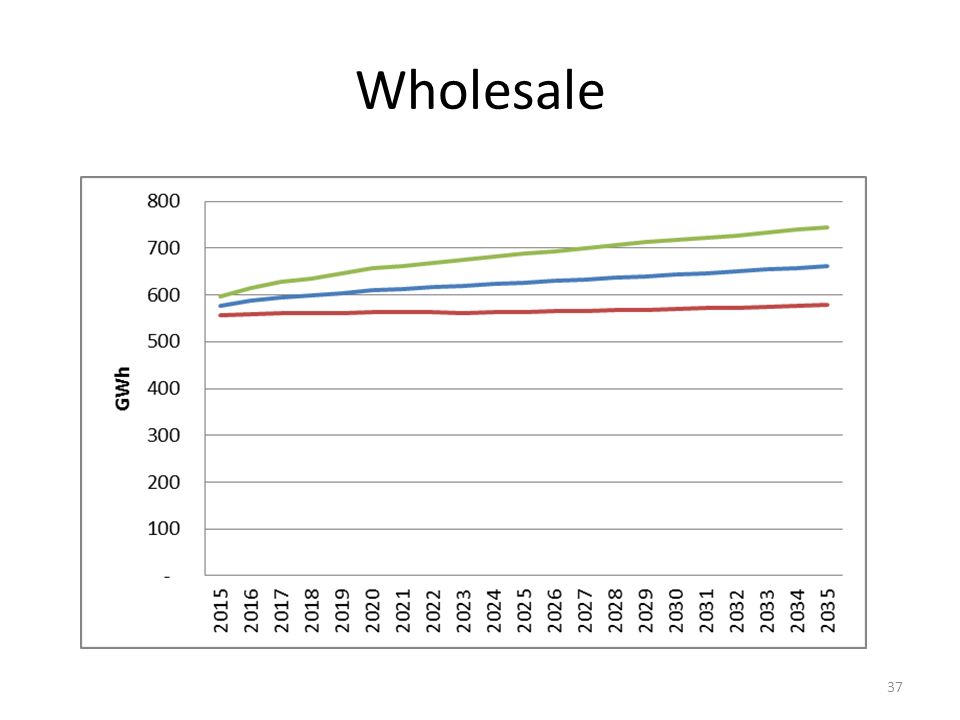

37 Wholesale 37

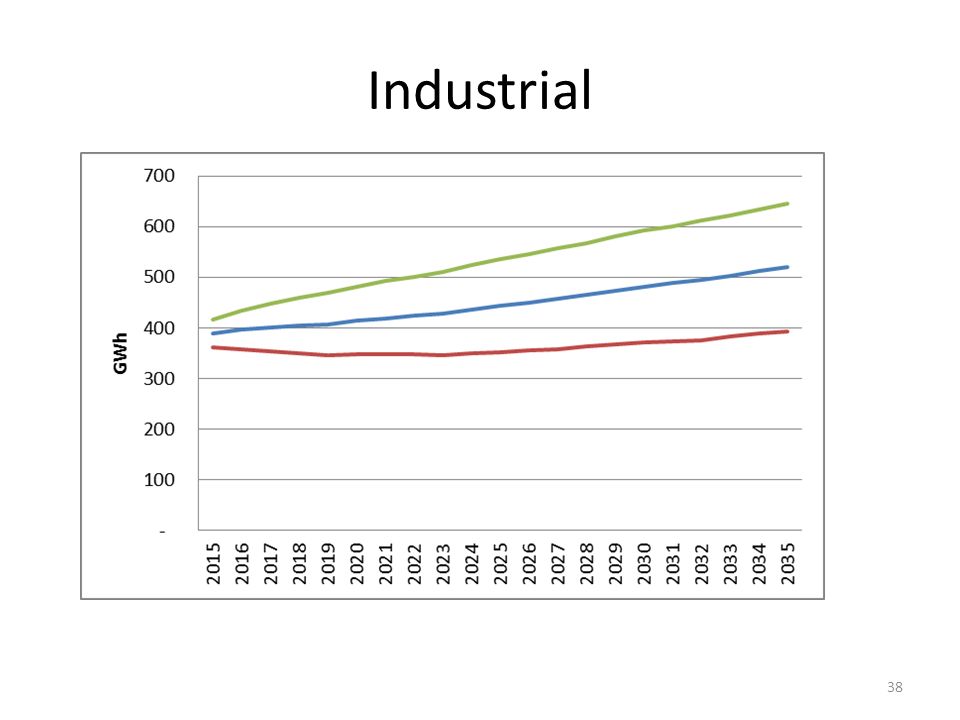

38 Industrial 38

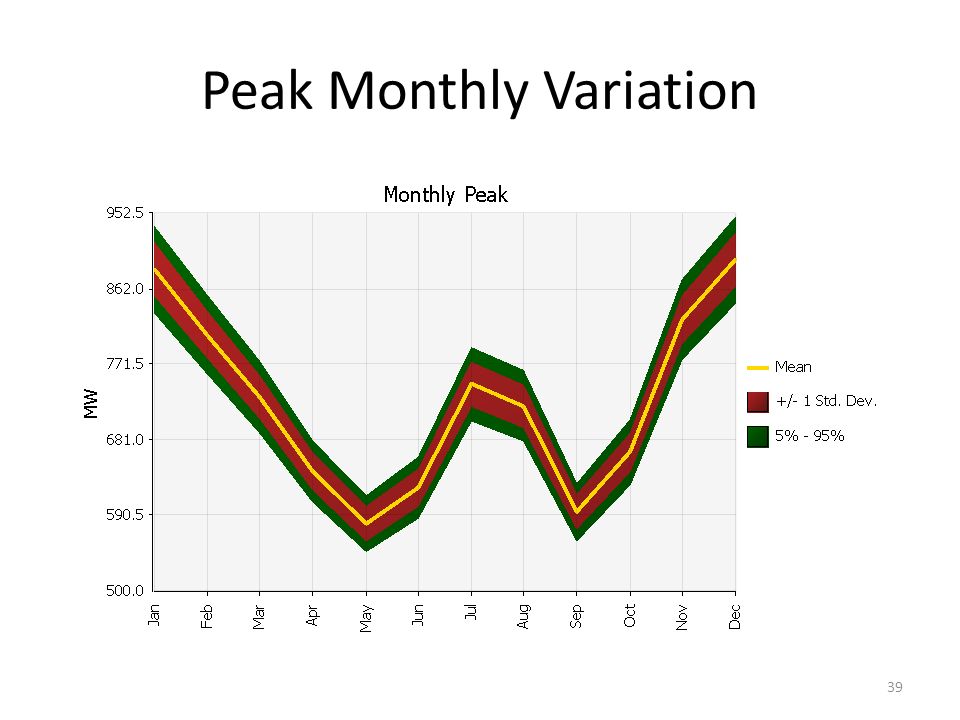

39 Peak Monthly Variation 39

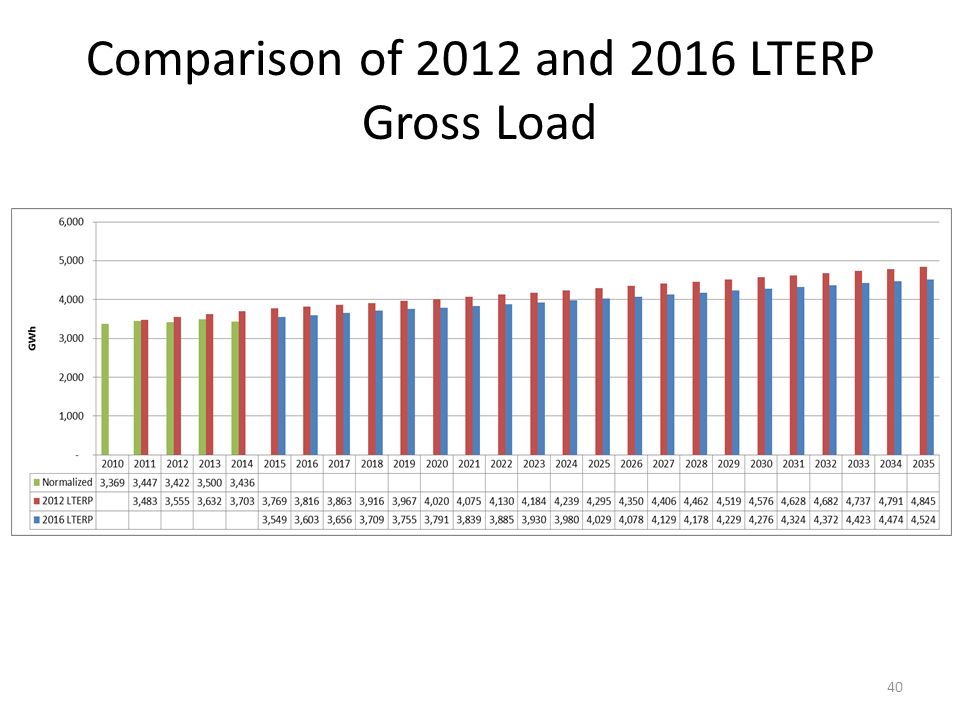

40 Comparison of 2012 and 2016 LTERP Gross Load 40

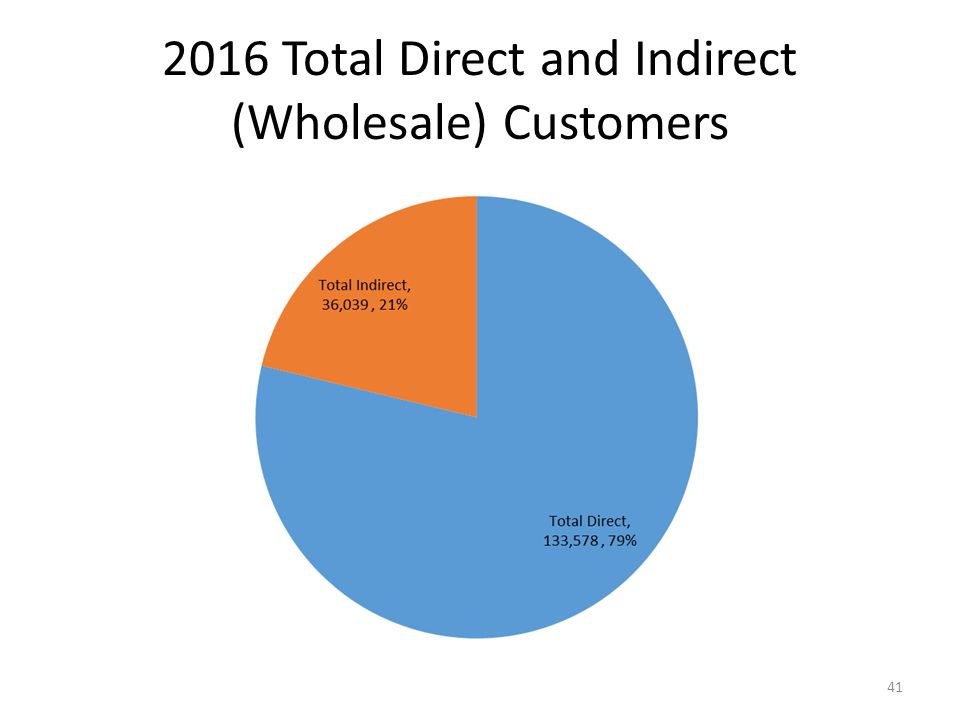

41 2016 Total Direct and Indirect (Wholesale) Customers 41
