1. DSL 305 Series ADSL Modem

2. Types of DSL305 series DSL305E ADSL Modem  PPP Half-Bridge (Default)  Transparent Bridge DSL305EU ADSL Router/Modem

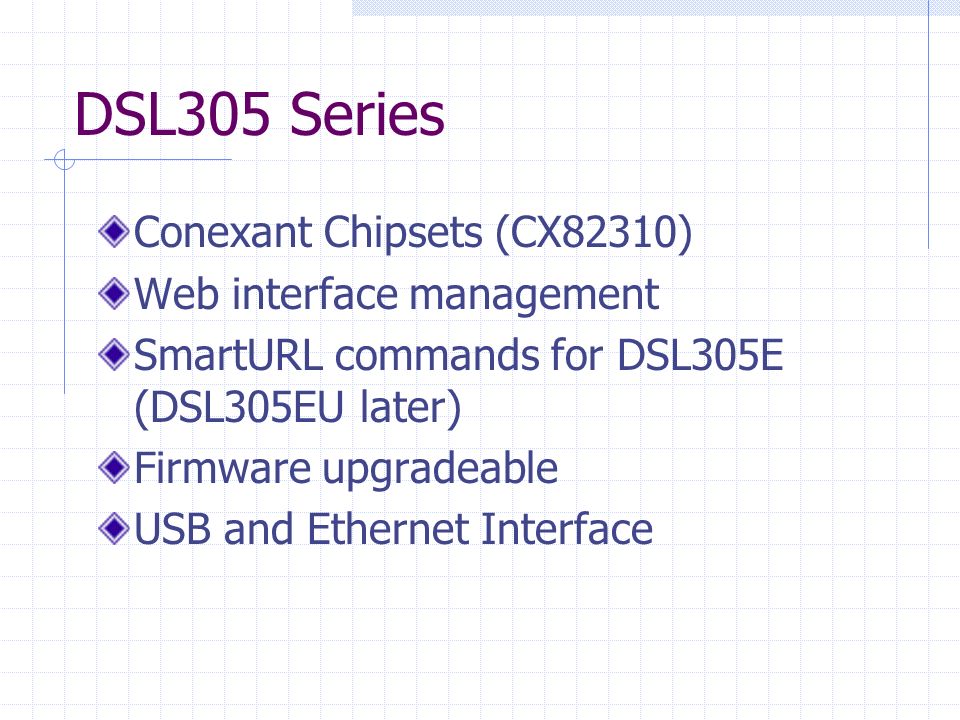

3. DSL305 Series Conexant Chipsets (CX82310) Web interface management SmartURL commands for DSL305E (DSL305EU later) Firmware upgradeable USB and Ethernet Interface

4. DSL305E/EU physical appearance Eth/Act – Ethernet connection status. ‘On’ – Ethernet connection good ‘Off’ – Ethernet connection bad ‘Blinking’ – DSL Activity DSL – DSL connection status ‘On’ – Connected to ATM ‘Blinking’- Training with ATM Power – Power status ‘On’ – Power good ‘Off’ – No power, power off USB – USB connection status. For DSL305EU ‘On’ – USB connection good ‘Off’ – USB connection bad

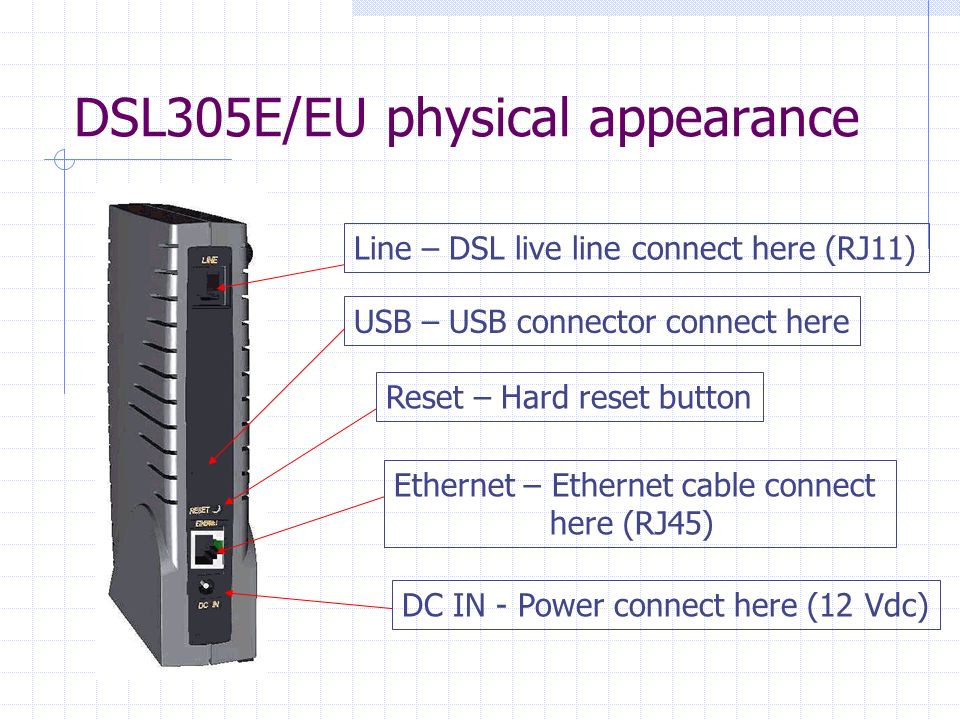

5. DSL305E/EU physical appearance Line – DSL live line connect here (RJ11) Reset – Hard reset button Ethernet – Ethernet cable connect here (RJ45) DC IN - Power connect here (12 Vdc) USB – USB connector connect here

6. Firmware Code Guide: Ex: aa.bb.cc aa – product type. 20 for DSL305E, 21 for DSL305EU bb – customer code. 20 for PacNet, 6 for SingNet cc – firmware revision DSL305E Screen Shots Generic Firmware: Current V20.2.2 Customize Firmware: SingNet Current V20.6.4 PacNet Current V20.20.3

7. DSL305E Screen Shots Connection Status PPP connection status to ISP Information on packets status ADSL / WAN Status ADSL Line connection status WAN IP address Subnet Address Mac Address PVC values Protocol and Encapsulation Mode

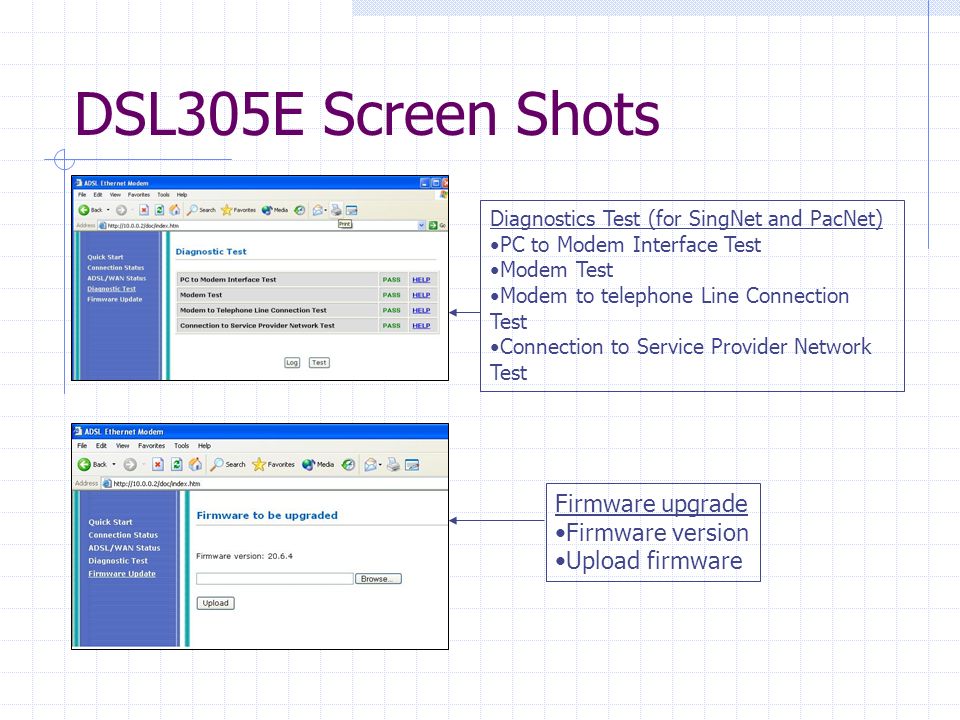

8. DSL305E Screen Shots Diagnostics Test (for SingNet and PacNet) PC to Modem Interface Test Modem Test Modem to telephone Line Connection Test Connection to Service Provider Network Test Firmware upgrade Firmware version Upload firmware

9. SmartURL commands (DSL305E) startmodem / login – To go to the ‘Quick Start’ page. Logout – To log out of ISP ppp – To go to ‘Connection Status’ page. diagnostics – To go to ‘Diagnostic Test’ page. syslog – To go to ‘System Log’ page. connectrouter – To set the modem to transparent bridge mode. Once in this mode, you will not able to log in to the modem. Hard reset the modem to set it back to default factory mode. IP address of Modem : 10.0.0.2

10. Multi-user Mode for DSL305E Use ‘connectrouter’ SmartURL command to set modem to transparent bridge mode. Theoretically, we can connect DSL305E (in transparent bridge mode) to a broadband router. Note: User need to hard rest the modem to get back to single user mode

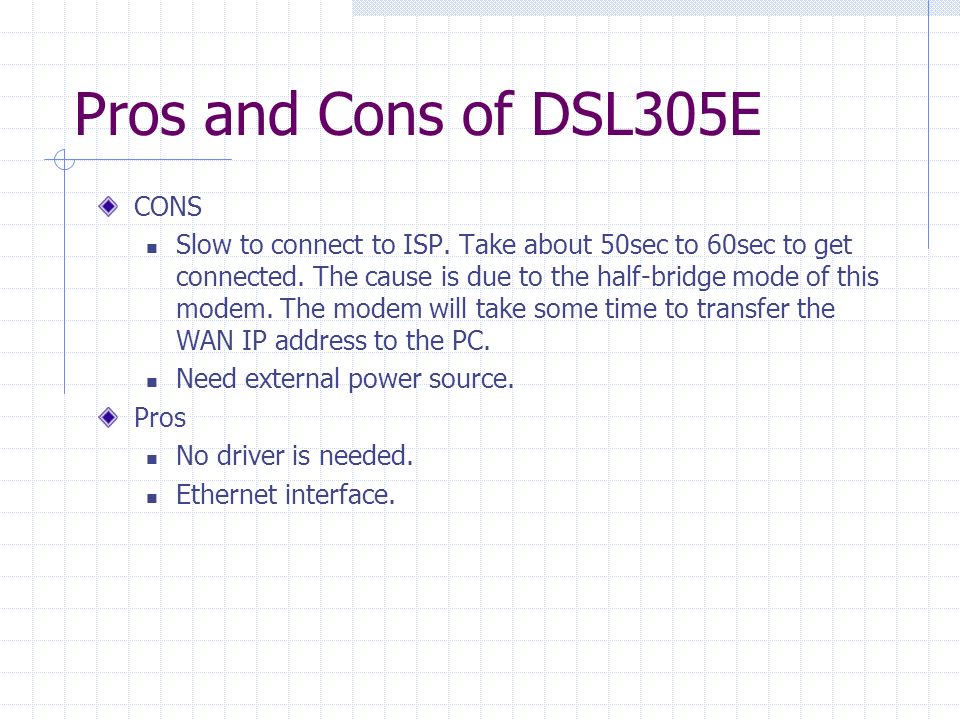

11. Pros and Cons of DSL305E CONS Slow to connect to ISP. Take about 50sec to 60sec to get connected. The cause is due to the half-bridge mode of this modem. The modem will take some time to transfer the WAN IP address to the PC. Need external power source. Pros No driver is needed. Ethernet interface.

12. Differences between SingNet and PacNet firmware. SingNet (Stock Code : 812-D64101-A41 ) User ID and Password will be saved in memory when logout. SingNet DSL Test : Connection to Service Provider Network Test will pass even user is not connected to ISP. PacNet (Stock Code : 812-D64011-A41) User ID and Password will not be saved in memory when logout. PacNet DSL Test : Connection to Service Provider Network Test will not pass when user is not connected to ISP.

13. Q&A for DSL305E Q: Can’t used SmartURL command. A: SmartURL uses DNS methodology. Check if there are two network cards. Check the DNS server. See below figure. Must be *.Hasbani.com to work

14. Q&A for DSL305E Q: Cannot Surf the Internet even connected to ISP. A: Check proxy is turn off. Make sure proxy is off. Q: Ethernet light is on but I can’t log in to the modem A: Check if the NIC is assign to Obtain an IP automatically. Q: Ethernet light is not on even cable is plug in. A: Check the type of cable used. Should be straight if connect to PC. Check driver of the NIC is properly installed.

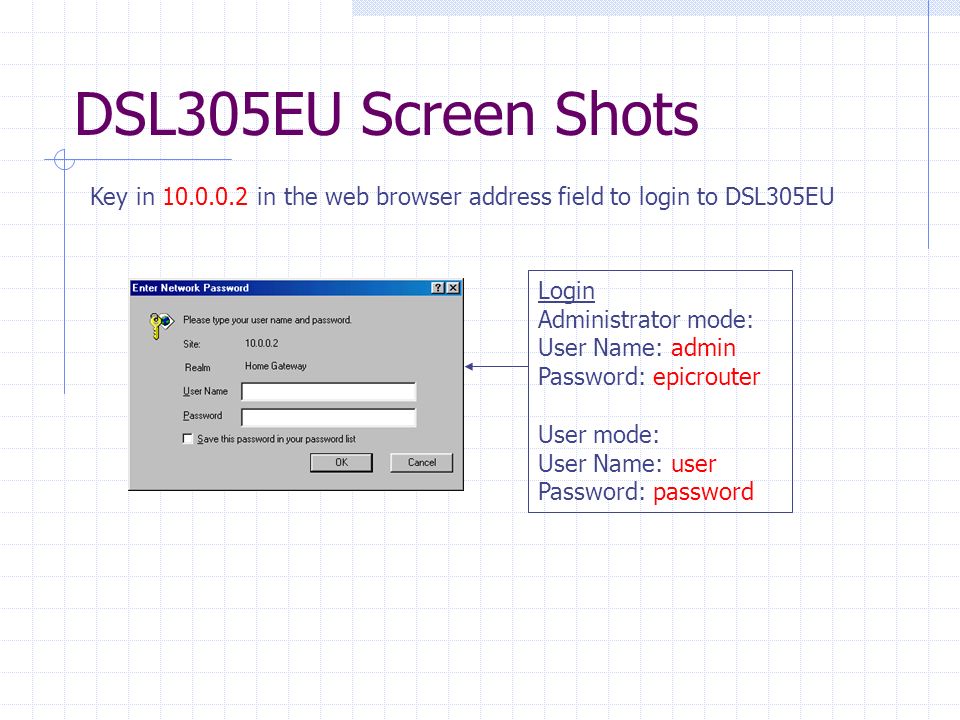

15. DSL305EU Screen Shots Login Administrator mode: User Name: admin Password: epicrouter User mode: User Name: user Password: password Key in 10.0.0.2 in the web browser address field to login to DSL305EU

16. DSL305EU Screen Shots Home Page, Easy Mode

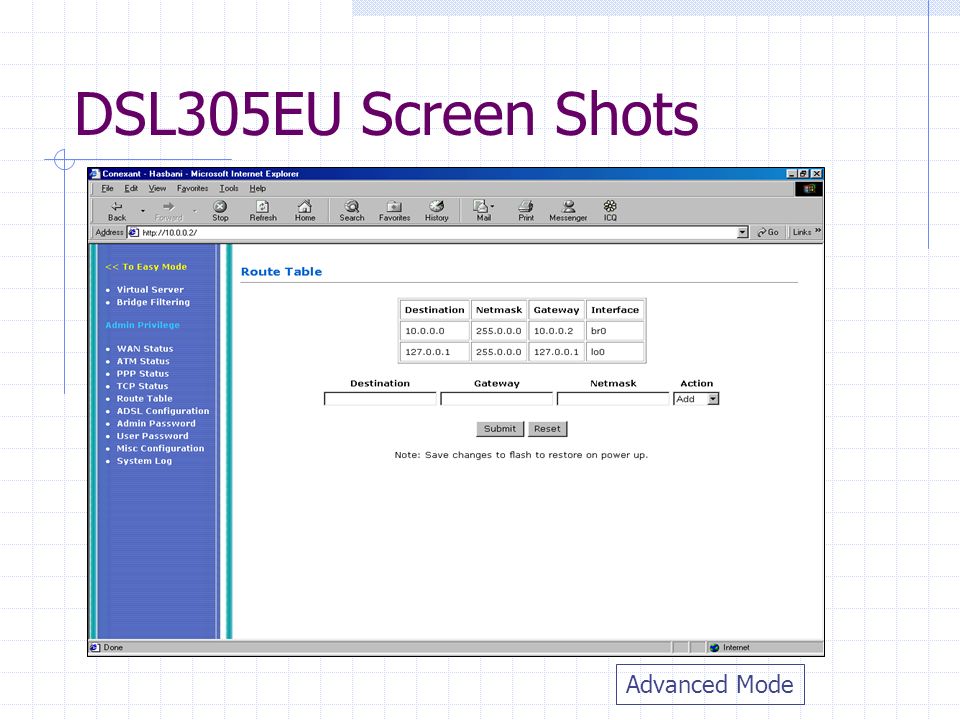

17. DSL305EU Screen Shots Advanced Mode

18. Configure DSL305EU Click on WAN to set the PVC values and other important settings.

19. Configure DSL305EU Enter Username and password under PPP section Click Submit to save data to memory. You need to click Save configuration and reboot the router for changes to take effect.

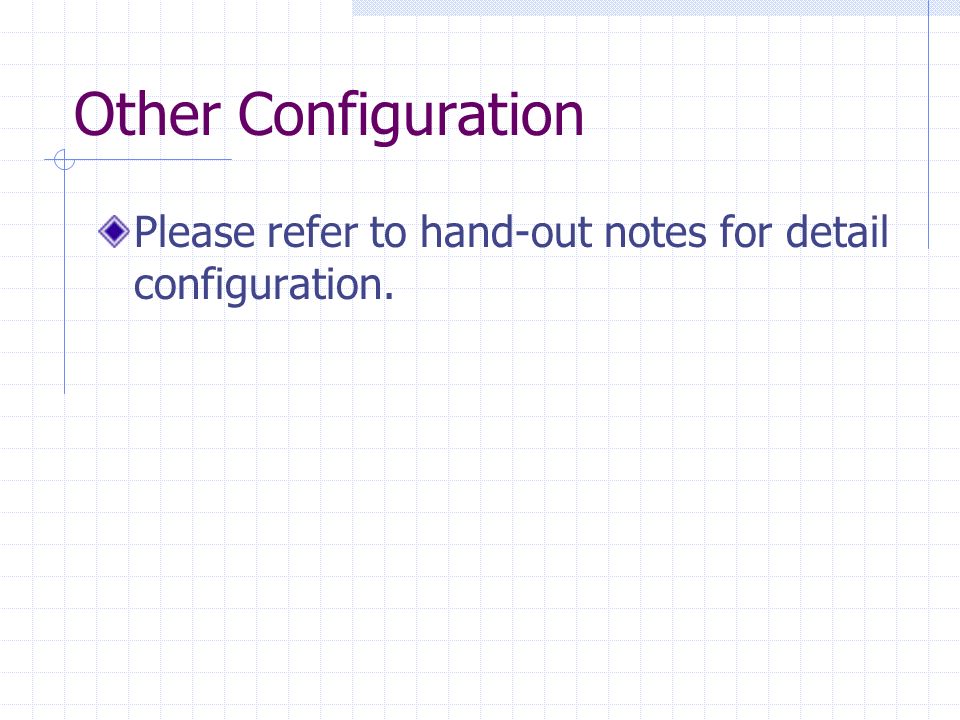

20. Other Configuration Please refer to hand-out notes for detail configuration.

21. DSL305EU Characteristic Multiple PVC Protocol / Encapsulation selection DHCP Server NAT / NAPT Virtual Server / Bridge Filtering DNS Configuration WAN side HTTP server FTP/TFTP Server DMZ IGMP PPP Half Bridge PPP reconnect on WAN access Disconnect Timeout Automatic Reconnection selection Simultaneous USB and Ethernet operation.

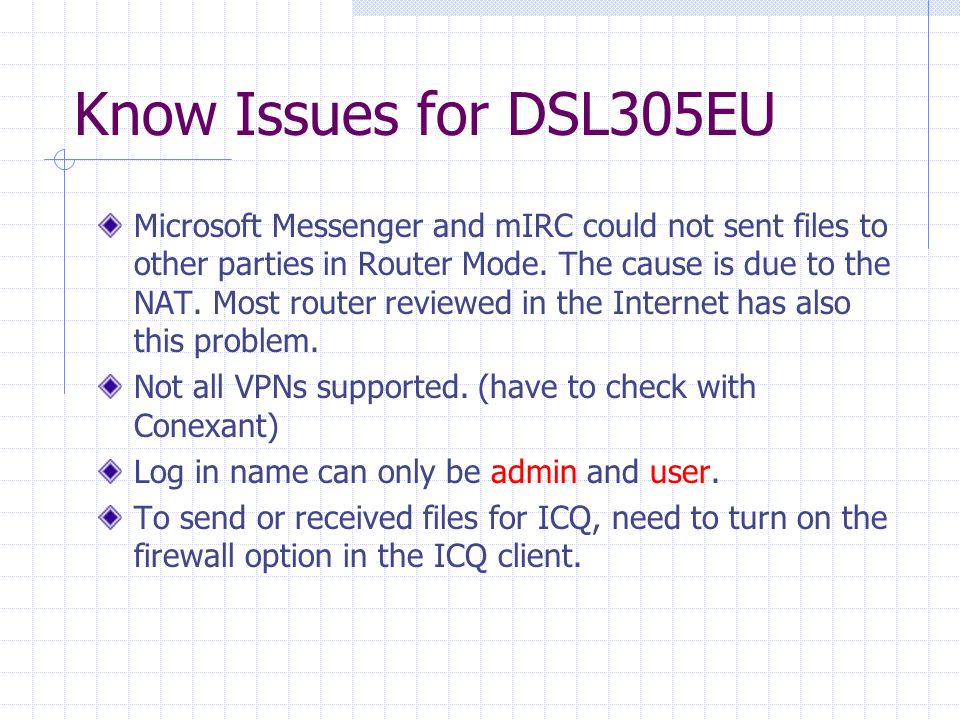

22. Know Issues for DSL305EU Microsoft Messenger and mIRC could not sent files to other parties in Router Mode. The cause is due to the NAT. Most router reviewed in the Internet has also this problem. Not all VPNs supported. (have to check with Conexant) Log in name can only be admin and user. To send or received files for ICQ, need to turn on the firewall option in the ICQ client.

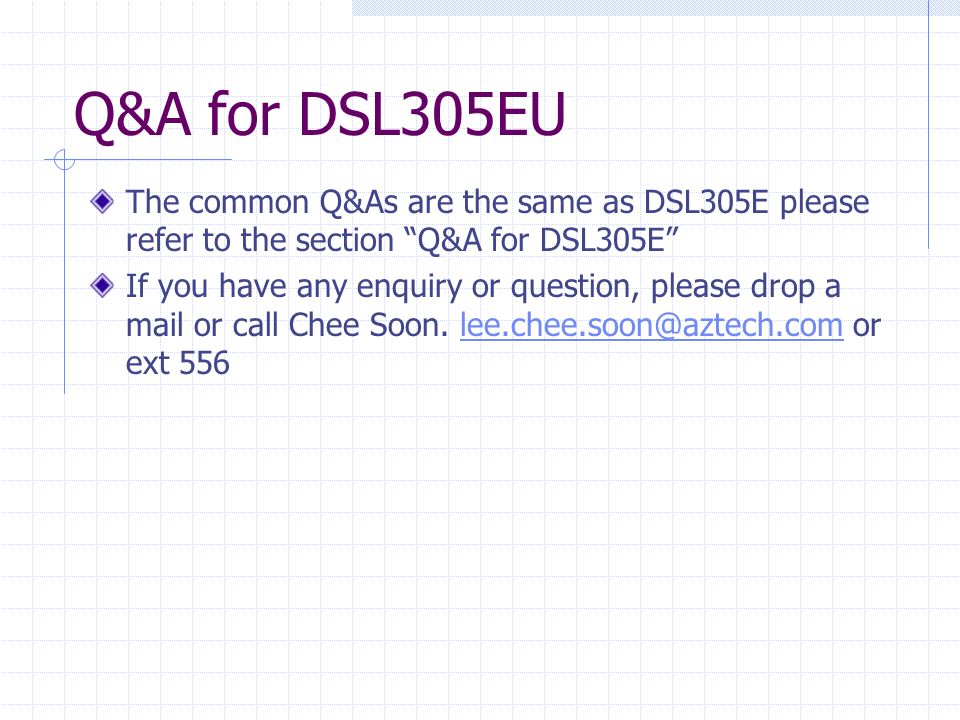

23. Q&A for DSL305EU The common Q&As are the same as DSL305E please refer to the section “Q&A for DSL305E” If you have any enquiry or question, please drop a mail or call Chee Soon. lee.chee.soon@aztech.com or ext 556lee.chee.soon@aztech.com
