2. Made in United States of America emit.descoindustries.com EMIT Zero Volt Ionizer

3. Made in United States of America emit.descoindustries.com Benefits The primary functions of ionizers are to: Neutralize process necessary insulators that can charge ESDS devices/ assemblies via induction, thus creating potential CDM damage Neutralize ESDS devices / assemblies that are not grounded, and therefore are a floating conductor, thus creating potential CDM damage Neutralize insulators where particulate contamination can cause visual defects (EX – dust on plastic or glass lenses, attracted to / held in place by electrostatic attraction) EMIT Zero Volt Ionizer

4. Made in United States of America emit.descoindustries.com Description The Zero Volt Benchtop is a compact and lightweight dual steady state DC auto-balancing benchtop ionizer. The unit is normally placed at one end of the workbench or area to be neutralized. It may also be wall used in conjunction with an ionizer mounting arm to save valuable workspace. The ionizer's neutralization time will be best approximately 12” to 36” directly in front of the ESDS device. Decay times will increase as the distance from the unit increases. Ion Offset Voltage (Balance) feedback sensors “Ionizers utilized as air ion sources are designed to provide balanced amount of positive and negative ions. Many of them feature an internal feedback system (with ion sensors usually incorporated into a grill of the ionizer’s outlet) to sense and correct air ion imbalances.” (ESD Association working group 3 Proceedings of 27th EOS/ESD Symposium) EMIT Benchtop Zero Volt Ionizer

5. Made in United States of America emit.descoindustries.com Features The best balancing ionizer available Offset voltage balance controlled to ±3 Volts typical tested per ANSI/ESD S3.1 Fast discharge times and offset voltage well below < +/- 50 volt required limit of ANSI/ESD S20.20 Features steady state DC ionization and EMIT's patented Sense Feedback balancing Sealed "Thru-Tunnel" air flow design CSA certified 5-year Limited Warranty Low Ozone Emissions – tests well below the OSHA limit of 0.05 ppm ozone RS-485 communication for use with EMIT SIM SoftwareEMIT SIM Software EMIT Benchtop Zero Volt Ionizer

6. Made in United States of America emit.descoindustries.com Operation Set the fan speed switch on the rear of the unit to the LOW, MED, or HI position. Higher airflow will result in faster neutralization rates. Position the unit so that the maximum airflow is directed at the items or area to be neutralized. Turn the unit ON. When the unit is first turned on, it conducts a self-test. The audible alarm will sound and then the LED will cycle through RED, YELLOW, and then GREEN. The LED will remain GREEN during normal operation. EMIT Benchtop Zero Volt Ionizer

7. Made in United States of America emit.descoindustries.com Description The Overhead Zero Volt Ionizer combines the effectiveness of steady- state DC ionization with ease of adjustability, communication capability, and the flexibility of a microcontroller based design to produce a versatile and stable ionization system. Available in both two or three fan. Three fans produce extended ionization coverage, and are ideal for areas where bench space is limited. Ion Offset Voltage (Balance) feedback sensors “Ionizers utilized as air ion sources are designed to provide balanced amount of positive and negative ions. Many of them feature an internal feedback system (with ion sensors usually incorporated into a grill of the ionizer’s outlet) to sense and correct air ion imbalances.” (ESD Association working group 3 Proceedings of 27th EOS/ESD Symposium) EMIT Overhead Zero Volt Ionizer

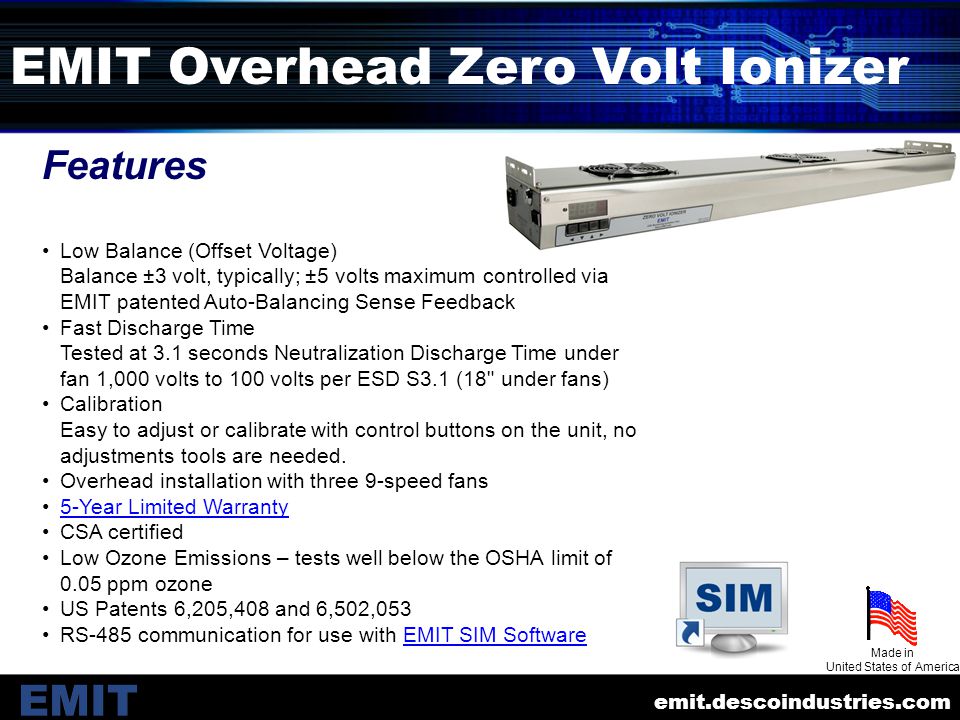

8. Made in United States of America emit.descoindustries.com Features Low Balance (Offset Voltage) Balance ±3 volt, typically; ±5 volts maximum controlled via EMIT patented Auto-Balancing Sense Feedback Fast Discharge Time Tested at 3.1 seconds Neutralization Discharge Time under fan 1,000 volts to 100 volts per ESD S3.1 (18" under fans) Calibration Easy to adjust or calibrate with control buttons on the unit, no adjustments tools are needed. Overhead installation with three 9-speed fans 5-Year Limited Warranty CSA certified Low Ozone Emissions – tests well below the OSHA limit of 0.05 ppm ozone US Patents 6,205,408 and 6,502,053 RS-485 communication for use with EMIT SIM SoftwareEMIT SIM Software EMIT Overhead Zero Volt Ionizer

9. Made in United States of America emit.descoindustries.com Operation The unit is powered on and off by using the keys supplied with the unit. The key switch is located on the left end of the unit along with the RS485 input/output ports for the optional ZVI software package. The control buttons along with the LED display are located on the front of the unit. EMIT Overhead Zero Volt Ionizer

10. Made in United States of America emit.descoindustries.com ANSI/ESD S20.20 “Necessary non-conductors in the environment cannot lose their electrostatic charge by attachment to ground. Ionization systems provide neutralization of charges on these necessary non-conductive items (circuit board materials and some device packages are examples of necessary non-conductors). Assessment of the ESD hazard created by electrostatic charges on the necessary nonconductors in the work place is required to ensure that appropriate actions are implemented, commensurate with risk to ESDS (ESD sensitive) items”. (ANSI/ESDS20.20-2007 Foreword) “In order to mitigate field-induced CDM [Charged Device Model] damage, the ESD program shall include a plan for the handling of process-required insulators. If the field exceeds 2,000 volts/inch, steps shall be taken to either: A) Separate the insulator from the ESD-sensitive device by a distance of 30 cm (12 inches); or B) Use ionization or other charge mitigating techniques to neutralize the charge.” (ANSI/ESDS20.20-2007 section 8.3) EMIT Zero Volt Ionizer

11. Made in United States of America emit.descoindustries.com ANSI/ESD S20.20 ANSI/ESD S20.20-2007 section 7.3 “Compliance verification records shall be established and maintained to provide evidence of conformity to the technical requirements.” Process Control “Activities involved in ensuring a process is predictable, stable, and consistently operating at the target level of performance with only normal variation.” EMIT Zero Volt Ionizer

12. Made in United States of America emit.descoindustries.com EMIT ZVI and SIM

13. Made in United States of America emit.descoindustries.com  EMIT SIM (Smart Ionization & Monitoring) is software designed to monitor and record the activity of EMIT’s line of Smart Products  This list of products includes:  Zero Volt Ionizer(Bench Top and Overhead)  Zero Volt Monitor(Dual Operator and Workstation)  Zero Volt Monitor Solo(Single Operator and Workstation)  Dual Programmable Monitor  Ultra Low Voltage Monitor  EMIT SIM uses serial number tracking to manage re-calibration schedules for each device  All monitoring is done via a 2 wire serial RS-485 daisy-chained bus. Total cable length of each loop must be less than 1,200 meters (~4,000 feet).  Supported Operating Systems: Windows XP, Windows Vista, Windows 7 (32-bit and 64-bit) What is EMIT SIM? EMIT SIM

14. Made in United States of America emit.descoindustries.com  Unsupervised Reliability  Ionizers and monitors sometimes have alarms which may go unnoticed by the line of workers  EMIT SIM will record and display failures to notify supervisors or engineers when a device needs attention  Eliminates the need to rely on people to physically check the devices every day  Quickly Identify Failure Types  All alarms and exceptions are automatically recorded  Use the logs stored in EMIT SIM to identify any exceptional events that occurred during the assembly of a failed product  Manage Calibration and Maintenance Schedules  Customize your maintenance schedule to automatically display notification when any one group of devices need calibration or maintenance Why EMIT SIM? EMIT SIM “Compliance verification records shall be established and maintained to provide evidence of conformity to the technical requirements.” (ANSI/ESD S20.20-2007 section 7.3)

15. Made in United States of America emit.descoindustries.com EMIT SIM  EMIT SIM polls and records the status of all EMIT smart devices via RS-485 technology  Use the “Current Fault” filter to display when failures occur at a workstation  Track the device type, its operator and location, type of failure, date, time and duration Poll and Record Device Activity

16. Made in United States of America emit.descoindustries.com EMIT SIM  Click the device buttons to see device-specific poll data  Device poll screens display the current status of the selected device type (PASS, FAIL, NOT CONNECTED)

17. Made in United States of America emit.descoindustries.com  Generate reports that list device details and their pass / fail activity  Filter reports by device type, date range and ‘fault only’ data  Reports display event duration, allowing users to quickly identify and address problem areas  Reports can be output in Excel, Word, and PDF formats EMIT SIM Report Generator

18. Made in United States of America emit.descoindustries.com  Manually or automatically archive data  Auto Archive your data by date or file size  Schedule archives daily, weekly or monthly EMIT SIM Data Archive

19. Made in United States of America emit.descoindustries.com EMIT SIM  Use the Calibration Log to manage device serial numbers and their calibration dates  EMIT SIM periodically checks all calibration dates to determine if the device is due for re-calibration  Set calibration frequency settings for each device type (1 -12 months)  EMIT SIM will send an e-mail and display an alert when a device is due for calibration Calibration Schedule Management

20. Made in United States of America emit.descoindustries.com EMIT SIM Calibration E-mail Alerts  EMIT SIM contains an E-mail Alert feature tied into its calibration tracking module  Automated e-mail alerts are sent to a predefined list of supervisors when a device is due for calibration

21. Made in United States of America emit.descoindustries.com EMIT SIM Hardware Setup – Ionizers Only

22. Made in United States of America emit.descoindustries.com EMIT SIM Hardware Setup – Monitors and Ionizers

23. Made in United States of America emit.descoindustries.com Need More Information? For a demonstration contact EMIT for your local sales representative emit.descoindustries.com or 909-664-9980 emit.descoindustries.com EMIT SIM
