CISCO产品介绍
北京新脉远望科技有限公司 版权所有 Beijing Cyberplus Technology Co., Ltd.

2. Agenda CISCO hardware products CISCO IOS software Router
Catalyst switch
WLAN
Security
CISCO IOS software

3. Campus network Architectures

4. Router
Midrang routers

5. ISR Redundant Fixed chassis or modular
internal or external power supplies
On-board and Advanced Integration Module (AIM)-VPN
Power over Ethernet support
Integrated firewall/Intrusion Prevention System (IPS)
Integrated IP communications
Support for many interface and module types

6. WIC/VIC/VWIC/HWIC WIC: WIC-1T, WIC-2T, WIC-1ADSL VIC:
VIC2-2FXO, VIC2-2FXS, VIC2-4FXO
VWIC:
VWIC2-2MFT-T1/E1, VWIC-2MFT-G703
HWIC:
HWIC-1FE, HWIC-2FE, HWIC-1GE-SFP, HWIC-4T, HWIC-1ADSL, HWIC-1CE1T1-PRI, HWIC-2CE1T1-PRI, HWIC-4T1/E1

7. AIM/NM Network Modules
NM-16ESW, NM-4T, NM-1T3/E3, NM-1A-T3/E3, NM-1FE2W-V2, NME-IPS-K9, NME-WAE-522-K9, NME-NAM-120S, NME-AIR-WLC6-K9, NME-AIR-WLC8-K9, NME-AIR-WLC12-K9, NME-AIR-WLC25-K9
Advanced Integration Modules
AIM-ATM, AIM-IPS-K9, AIM-VPN/SSL-3, AIM-CUE, AIM2-CUE-K9, AIM-TPO-1, AIM-TPO-2

8. ISR 3800 user side On board Gigabit Ethernet HWIC slot
Console/AUX slot
NM slot

9. ASR 1000
Carrier Class Route chassis Design with Redundant FP, RP, and Cisco IOS® Capabilities and Designed for 40-Gbps and Beyond Forwarding
Separate Hardware Modules for RP and FP, Providing Additional Level of Resilience Against Hardware and Software Failures.
Allows Deployment in Timing-Sensitive Environments—IPRAN
Multi-Processor Multi-Threaded QFP Chip Processing of Up to 160 Packets in Parallel

10. Chassis comparison Model Cisco ASR 1002 Cisco ASR 1004 Cisco ASR 1006
Shared port adapters
3 SPA slots
8 SPA slots
12 SPA slots
Cisco ASR Series Embedded Services Processor (ESP)
1 ESP slot
2 ESP slots
Route processor
Integrated in chassis
1 route-processor slot
2 route-processor slots
Number of SIPs supported 2 3
Redundancy
Yes, software
Yes, hardware
Built-in Gigabit Ethernet ports
Yes, 4 Gigabit Ethernet (SFP) ports

11. Cisco 7600
High performance, with up to 720 Gbps in a single chassis, or 40 Gbps capacity per slot
Supports the full Catalyst® 6000 Series of high-density/high-speed Ethernet module
Supports FlexWAN module for evolution from the Cisco 7500 to the Cisco 7600
Supports Broad range of WAN interfaces
Supervisor engine support:
– Cisco Route Switch Processor 720
– Cisco Catalyst 6500 Supervisor Engine 32
– Cisco Catalyst 6500 Supervisor Engine 720

12. SIP 200/400/600 SIP Product Number Description Maximum Number of SPAs
Cisco 7600 SIP- 200
7600-SIP-200
622-Mbps SPA interface processor 4
Cisco 7600 SIP- 400
7600-SIP-400
2.5-Gbps SPA interface processor
Cisco 7600 SIP- 600
7600-SIP-600
1 x 10-Gbps SPA Interface Processor 1

13. GSR 12000 Device components： Chassis Alarm card CSC, SFC power supply
fan tray
Line card , SIP, SPA
Product Specification
Cisco XR and Series 16-Slot Chassis
Cisco XR and Series 10-Slot Chassis
Cisco XR and Series 6- Slot Chassis
Cisco XR and Series 4-Slot Chassis
Slot capacity
16 slots
10 slots
6 slots
4 slots
Aggregate switching capacity
Cisco 12016: 80 Gbps
Cisco 12416: 320 Gbps
Cisco 12816: 1280 Gbps
Cisco 12010: 50 Gbps
Cisco 12410: 200 Gbps
Cisco12810: 800 Gbps
Cisco 12006: 30 Gbps
Cisco 12406: Gbps
Cisco 12404: 80 Gbps
Full-duplex throughput per slot
Cisco 12016: 2.5 Gbps/slot
Cisco 12416: 10 Gbps/slot
Cisco 12816: 40 Gbps/slot
Cisco 12010: 2.5 Gbps/slot
Cisco 12410: 10 Gbps/slot
Cisco 12810: 40 Gbps/slot
Cisco 12006: Gbps/slot
Cisco 12406: 10 Gbps/slot
Cisco 12404: 10 Gbps/slot

14. Catalyst switch

15. Catalyst Switch 6500
Modular chassis in a variety of form factors 3, 4, 6, 9,
and 13-slot versions
Enhanced (“E”) chassis offer higher system power capacity
and better signal integrity
3, 4, 6, and 9-slot versions
Classic switching bus traces/connectors
Crossbar fabric traces/connectors
Redundant power supplies
Fan tray for system cooling
NEB-A and V-E chassis have vertical slot alignment, dual fan trays, front-to-back air flow, air filtration system

16. Supervisor Engine 720 Name WS-SUP720-3B WS-SUP720- 3BXL
VS-S720-10G- 3C
VS-S720-10G- 3CXL
VSS No
Yes
Uplinks
2 Gigabit
2 SFP based gigabit
1 10/100/100
2 10Gb
2 SFP based gigabit
IPv4 Routing
In hardware
Up to 400 Mpps**
Up to 450 Mpps**
IPv6 Routing
Up to 200 Mpps**
Up to 225 Mpps**
L2 Bridging
MPLS
Up to 1024 VRFs with a total of up to 256,000 routes per system.
Up to 1024 VRFs with a total of up to 1,000,000 routes per system.
Up to 1024 VRFs with a total of up to 1,000,000 routes per system.
MAC Entries
64,000
96,000
Routes
256,000 (IPv4); 128,000 (IPv6)
1,000,000 (IPv4); 500,000 (IPv6)
Netflow Entries
128,000
256,000

17. Supervisor engine 32 Feature Supervisor Engine 32
Supervisor Engine 32 PISA
Uplinks
 • Eight Gigabit Ethernet ports, SFP based + one 10/100/1000 RJ-45 port OR
• Two 10 Gigabit Ethernet ports, XENPAK based + one 10/100/1000 RJ-45 port
• Eight Gigabit Ethernet ports, SFP based + one 10/100/1000 RJ-45 port
Backplane
 32 Gbps shared bus
32 Gbps shared bus
Performance
 Up to 15 Mpps IPv4 services
Up to 15 Mpps IPv4 services
Deep Packet Inspection Performance (NBAR, FPM)
 N/A
2Gbps
Cisco Express Forwarding
 Hardware-based
Hardware-based and PISA assisted for features like NBAR and FPM
Distributed Cisco Express Forwarding
 No No
Hardware-Based Forwarding Engine
 PFC3B onboard
PFC3B onboard
MSFC Daughter Card Version
 MSFC2A
PISA(MSFC2A integrated)

18. PFC & DFC
Provides the key components enabling high performance hardware packet processing 􀂃
Supervisor 32 (all variants) supports PFC3B
Supervisor 720 supports:
PFC3A
PFC3B
PFC3BXL
Supervisor G supports:
PFC3C
PFC3CXL
The DFC utilizes the same ASICs as those found on the PFC so it supports local Layer 2 and Layer 3 switching

19. Power Supply Power Supply (Part Number) Cisco Catalyst 6503
Cisco Catalyst NEB
Cisco Catalyst NEB-A
Cisco Catalyst
950WDC (PWR 950-DC) X
1300WDC (WS CDC-1300W)
1400WAC (PWR 1400W-AC)
2500WDC (WS CDC-2500W)
3000WAC (WS CAC-3000W)
4000WAC (WS CAC-4000W)
4000WDC (PWR 4000DC)
6000WAC (WS CAC-6000W)
8700WAC (WS CAC-8700W-E)

20. Fan tray

21. 10-gigabit Ethernet module
Feature
WS-X GE
WS-X G-3C
WS-X G-3CXL
WS-X G-3C
WS-X G-3CXL
Ports 4 8 16
Optics
XENPAK X2
Oversubscription
1:1
2:1
4:1

22. Gigabit Ethernet Primary Applications Product Number
Interface Module Class
Ports/Optics Interface Type
High Performance Distribution, Core Layer and Data Center
WS-X6748-SFP
CEF720
48, SFP
WS-X6748-GE-TX
48, RJ-45
WS-X6724-SFP
24, SFP
Data Center and Server Farm
WS-X6816-GBIC
dCEF256
16, GBIC
WS-X6516A-GBIC
CEF256
Base Server Farm
WS-X6516-GBIC
WS-X6416-GBIC
Classic
Wiring closet
WS-X6148A-GE-TX
WS-X6148A-GE-45AF
48, PoE RJ-45
WS-X6548-GE-45AF
CEF 256

23. GBIC Device Type Wavelength (nm) Fiber Type Core Size (Micron)
Cable Distance
WS-G5484
1000BASE-SX
850
MMF
62.5
50.0
220 m
550 m
WS-G5486
1000BASE-LX/LH
1310
SMF
9/10
10km
WS-G5487
1000BASE-ZX
1550
70 to 100 km

24. SFP SFP Wavelength Maximum Distance GLC-SX-MM 850nm
275m：62.5μm multimode fiber (MMF) 550m：50μm MMF
GLC-LH-SM
1310nm
550m：50/62.5μm MMF  10KM：9/10 μm single-mode fiber (SMF)
GLC-ZX-SM
1550nm
70Km：9/10μm SMF  100Km：8μm dispersion shifted fiber

25. 10GE module 10 GE Physical Interface X2 Product ID XENPAK Product ID
Operating Range Over:
62.5 micron Multi-Mode Fiber (FDDI-grade)
50 micron Multi-Mode Fiber (MMF)
10 micron Single Mode Fiber (SMF)
10GBASE-SR
X2-10GB-SR
XENPAK-10GB-SR
26m-33m
66m-300m -
10GBASE-LX4
X2-10GB-LX4
XENPAK-10GB-LX4
300m
240m-300m
10GBASE-LR
X2-10GB-LR
XENPAK-10GB-LR+
10 km
10GBASE-ER
X2-10GB-ER
XENPAK-10GB-ER+
40 km
10GBASE-ZR
XENPAK-10GB-ZR
80 km

26. Service module WiSM: IDS: WS-SVC-WISM-1-K9 WS-SVC-IDS2-BUN-K9,
Application Control Engine :
ACE20-MOD-K9,
Anomaly Detection Module:
WS-SVC-ADM-1-K9,
Anomaly Guard Module :
WS-SVC-AGM-1-K9,
Firewall:
WS-SVC-FWM-1-K9,
IDS:
WS-SVC-IDS2-BUN-K9,
Network Analysis Module
WS-SVC-NAM-1-250S
WS-SVC-NAM-2-250S
Content Switching Module:
WS-X6066-SLB-S-K9

27. Catalyst 4500-E and 4500 Series 24 Gbps per slot
Chassis support 2.2(31)SGA6
onwards
E-Series and Classic supervisors
E-Series and Classic line cards
6 Gbps per slot
E-Series and Classic supervisors
Classic line cards

28. Detailed Cisco Catalyst 4500 Supervisor Matrix
Supervisor Engine
Detailed Cisco Catalyst 4500 Supervisor Matrix
Supervisor Engines
Layer 2/3/4 Services
Bandwidth/ Throughput
Chassis Support
Line Card support
Supervisor 6-E
Full Layer 2/3/4
320 Gbps / 250 mpps
All
E-Series and Classic
4 GE or 2 10 GbE (TwinGig)
Supervisor V-10GE
136 Gbps/ 102mpps
Classic
4GE and 2 10GbE
Supervisor V
96 Gbps/ 72mpps
2GE
Supervisor IV
64 Gbps/ 48mpps
4507R-E, 4507-R, 4506-E, 4506, 4503-E, 4503
Supervisor 6L-E
Basic Layer 2/3/4
280 Gbps/ 225 mpps
4GE and 2 10GE (TwinGig)
Supervisor II-Plus-10GE
108 Gbps/ 81mpps
Supervisor II-Plus

29. Line Card Line-Card Type Per Slot Bandwidth Chassis Support
Supervisor Support
Cisco Catalyst E-Series Line Cards
24 Gbps
Cisco Catalyst 4503-E, E, 4507R-E, and R-E
Supervisor Engine 6-E,
Supervisor Engine 6L-E,
Cisco Catalyst Series Classic Line Cards
6 Gbps
Cisco Catalyst 4503, , 4507R, and R1 Switches
Cisco Catalyst 4503-E, E, 4507R-E, and R-E Switches
Supervisor Engine V-10GE,
Supervisor Engine V,
Supervisor Engine IV,
Supervisor II-Plus-10GE,
Supervisor Engine II-Plus, Supervisor Engine II-Plus-TS2
E-Series Line Cards
WS-X4648-RJ45V+E WS-X4648-RJ45V-E WS-X4624-SFP-E WS-X4606-X2-E
Classic Gigabit over Copper PoE Line Cards
WS-X4548-RJ45V+ WS-X4548-GB-RJ45V WS-X4524-GB-RJ45V
Classic Gigabit Ethernet (Copper) Line Cards
WS-X4548-GB-RJ45 WS-X4448-GB-RJ45 WS-X4424-GB-RJ45
Classic Gigabit Ethernet (GBIC or SFP) Line Cards
WS-X4302-GB WS-X4306-GB WS-X4418-GB WS-X4448-GB-LX WS-X4448-GB-SFP WS-X4506-GB-T

30. Catalyst switch2960/3560/3750

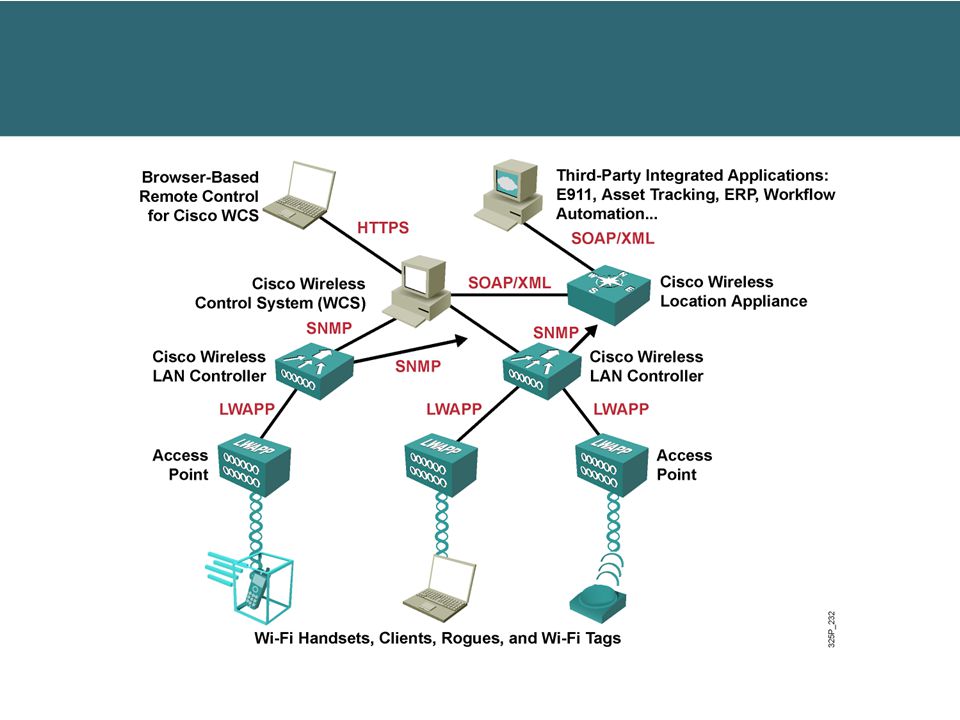

31. WLAN
WLC
Cisco unified wireless LAN controllers aggregrate WLAN client traffic and control the wireless network
APs
Lightweight access points are used in all unified wireless architectures and provides client wireless access, and tunneling to the WLC
WCS
Cisco wireless control system provides centralized management, RF planning and visualization tools, and location services

33. AP Aironet 1130AG Series Dual-band 802.11a/b/g access points
support indoor Wireless Mesh
Aironet 1140 Series
802.11n access point
Aironet 1240AG Series
802.11a/b/g dual-band access point
support Wireless Mesh
Aironet 1250 Series
Aironet 1520 Series
Multiple-radio support (802.11a, b/g)
Multiple uplink options
Aironet 1300 Series
Single-band b/g outdoor access points and bridges
Aironet 1400 Series
High-speed, high-performance outdoor bridge
Available in an Standalone version only

34. WLC

35. WCS
WCS is the management platform for Cisco’s controller-based solution
WCS is used for:
Network planning and ongoing monitoring
Real-time visibility and control of the air space
Unified policies that are centrally managed and enforced
Management of Cisco controllers, lightweight APs, Cisco IOS®
Access points
Autonomous to LWAPP/CAPWAP migration tool
Provisioning and configuration of Context Aware Services and
applications
WCS is optional, but highly recommended when:
Multiple controllers are deployed, supporting numerous APs
Advanced WLAN services are deployed (wIDS, location, voice, …)
Google Map integration, aIOS, Spectrum analysis Client Troubleshooting

36. Security
Firewall—ASA & FWSM
IDS/IPS
ACS

37. Firewall

38. IDS/IPS

39. ACS Key Scenarios Device Administration Remote Access
Wireless and 802.1x
Compliance Features
Authentication policy (e.g. require
complex password)
Authorization enforcement (e.g.
network access, device command
authorization)
Accounting

40. Additional resources Product datasheet
EoS/EoL announcement

41. Cisco IOS Release Naming
Example:

42. Cisco IOS Packaging Base—entry level image (IP Base, Enterprise Base)
Services—addition of IP Telephony Service, MPLS, Voice over IP (VoIP), Voice over Frame Relay (VoFR), and ATM (SP Services, Enterprise Services)
Advanced—addition of VPN, Cisco IOS Firewall, 3DES encryption, SSH, Cisco IOS IPsec and Intrusion Detection Systems (IDS) (Advanced Security, Advanced IP Services)
Enterprise—addition of multi-protocols, including IBM, IPX, AppleTalk (Enterprise Base, Enterprise Services)

43. Additional resources Bug Toolkit Software Advisor
Search for software bugs
Software Advisor
Choose appropriate software for your network device

45. Rival products 华为
Juniper 迈普
阿尔卡特-朗讯
H3C 中兴

46. Router comparison Cisco Huawei ISR 800 AR 18-12/18 AR 18-20 ISR 1800
AR-28-1X
ISR 2800
AR-28-40/80
ISR 3800
AR46
Cisco 7200
NE 20
Cisco 7600
NE 80E

47. Switch comparison Cisco Huawei Catalyst 2918 Quidway S2300
Catalyst 3560E
Quidway S5600
Catalyst 3750 Catalyst3750E
H3C Quidway S5600
Catalyst 4500
Quidway S6500
Catalyst 6500
Quidway S8500
