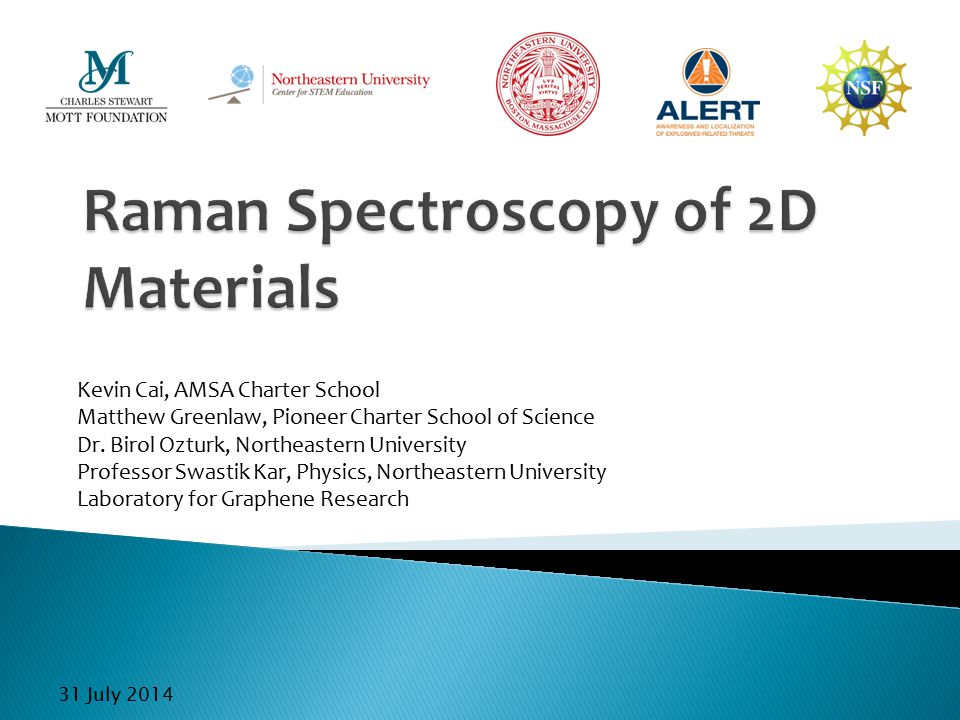

1 Kevin Cai, AMSA Charter School Matthew Greenlaw, Pioneer Charter School of Science Dr. Birol Ozturk, Northeastern University Professor Swastik Kar, Physics, Northeastern University Laboratory for Graphene Research 31 July 2014

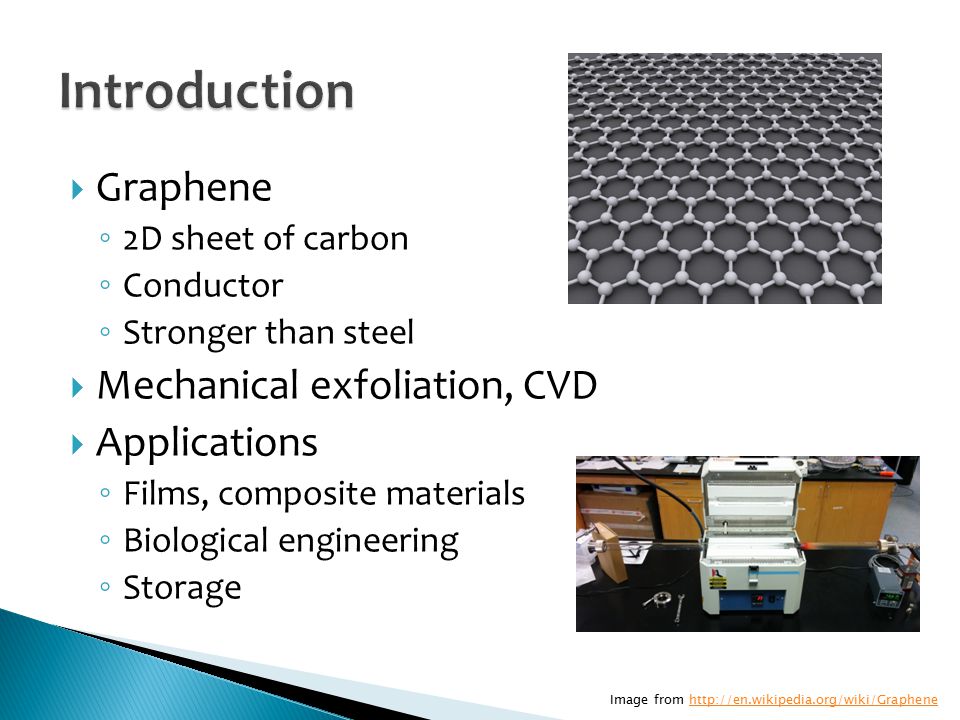

2  Graphene ◦ 2D sheet of carbon ◦ Conductor ◦ Stronger than steel  Mechanical exfoliation, CVD  Applications ◦ Films, composite materials ◦ Biological engineering ◦ Storage Image from http://en.wikipedia.org/wiki/Graphenehttp://en.wikipedia.org/wiki/Graphene

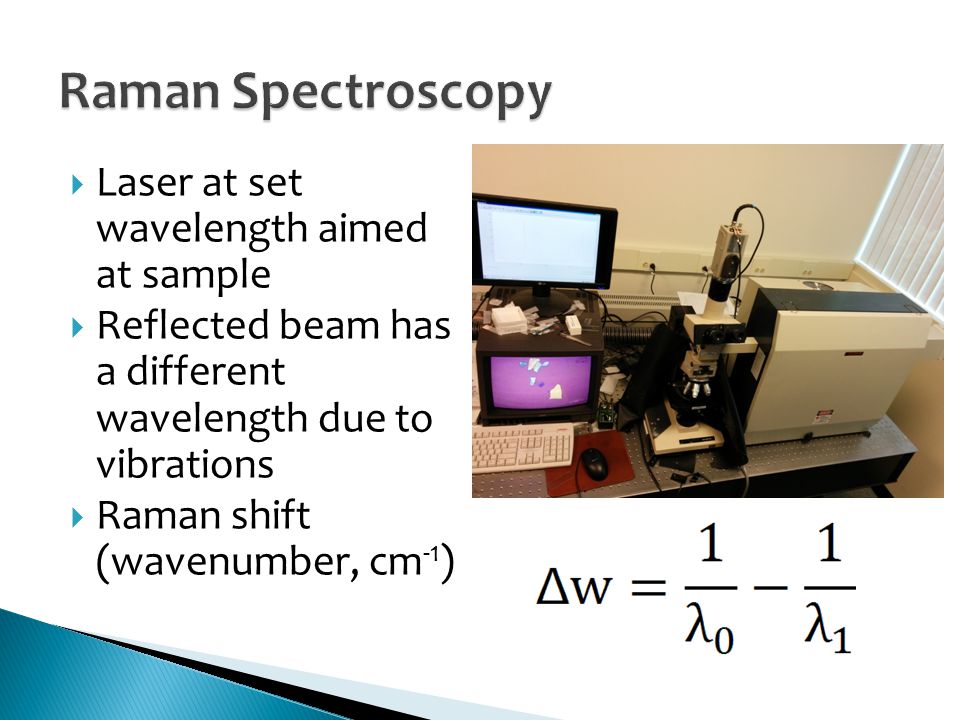

3  Laser at set wavelength aimed at sample  Reflected beam has a different wavelength due to vibrations  Raman shift (wavenumber, cm -1 )

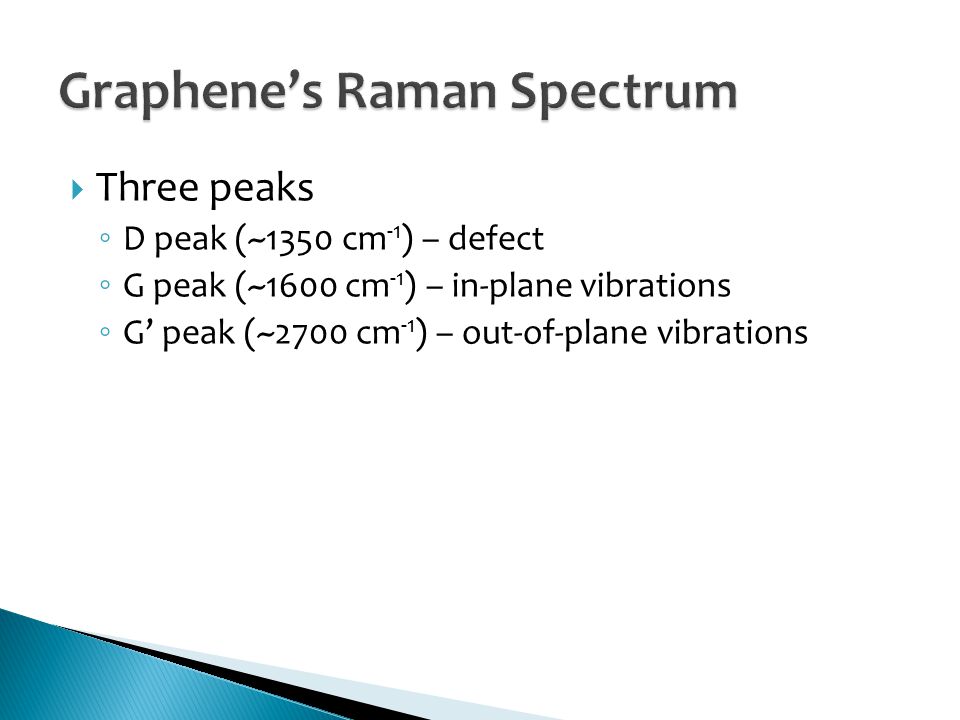

4  Three peaks ◦ D peak (~1350 cm -1 ) – defect ◦ G peak (~1600 cm -1 ) – in-plane vibrations ◦ G’ peak (~2700 cm -1 ) – out-of-plane vibrations

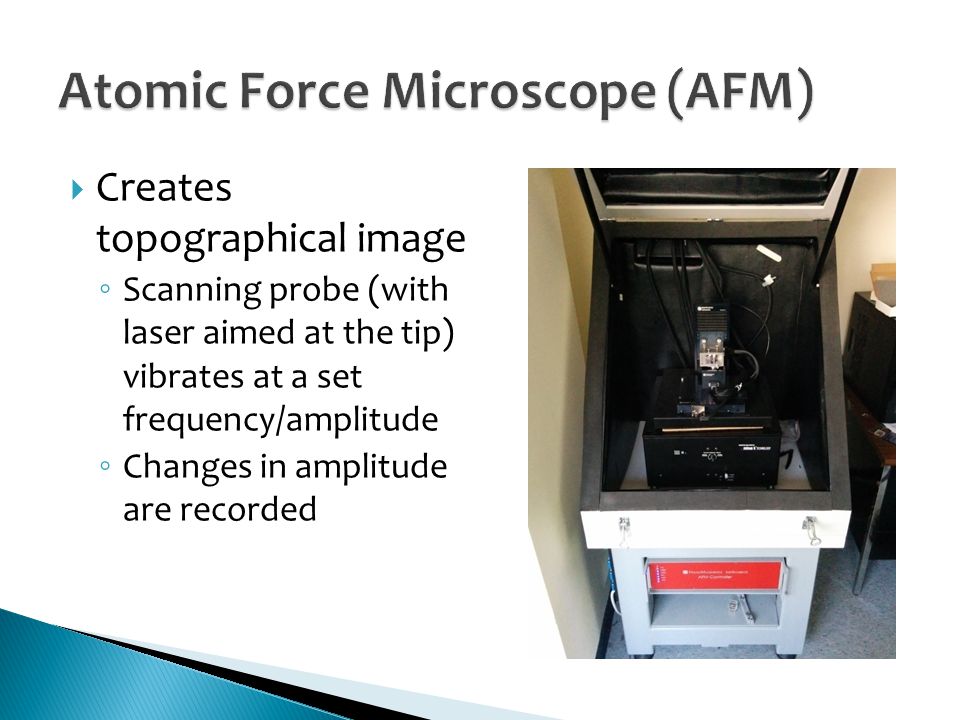

5  Creates topographical image ◦ Scanning probe (with laser aimed at the tip) vibrates at a set frequency/amplitude ◦ Changes in amplitude are recorded

6 ~4 nm

7 1. How does the thickness of a graphene sample correlate to its Raman spectrum? 2. How does O 2 flow rate affect the doping of graphene with boron nitride?

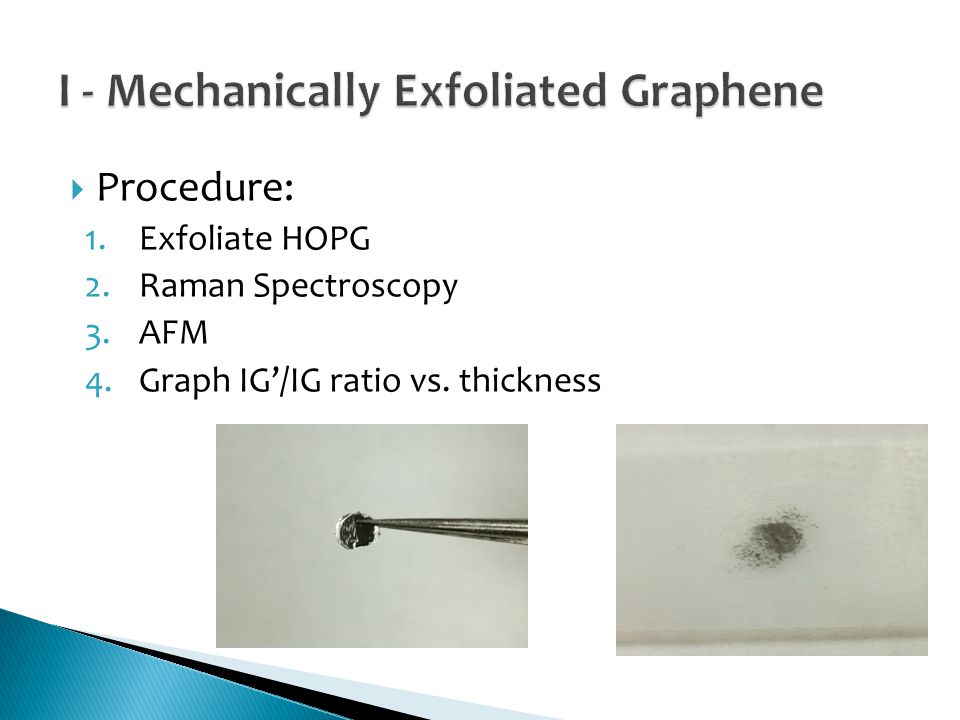

8  Procedure: 1.Exfoliate HOPG 2.Raman Spectroscopy 3.AFM 4.Graph IG’/IG ratio vs. thickness

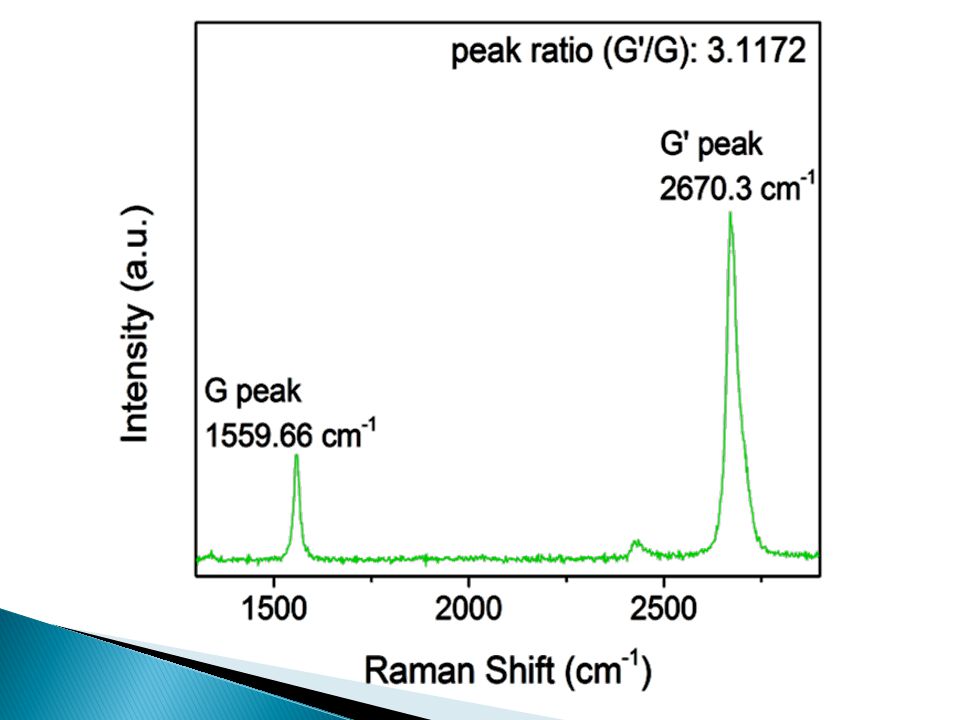

9

10

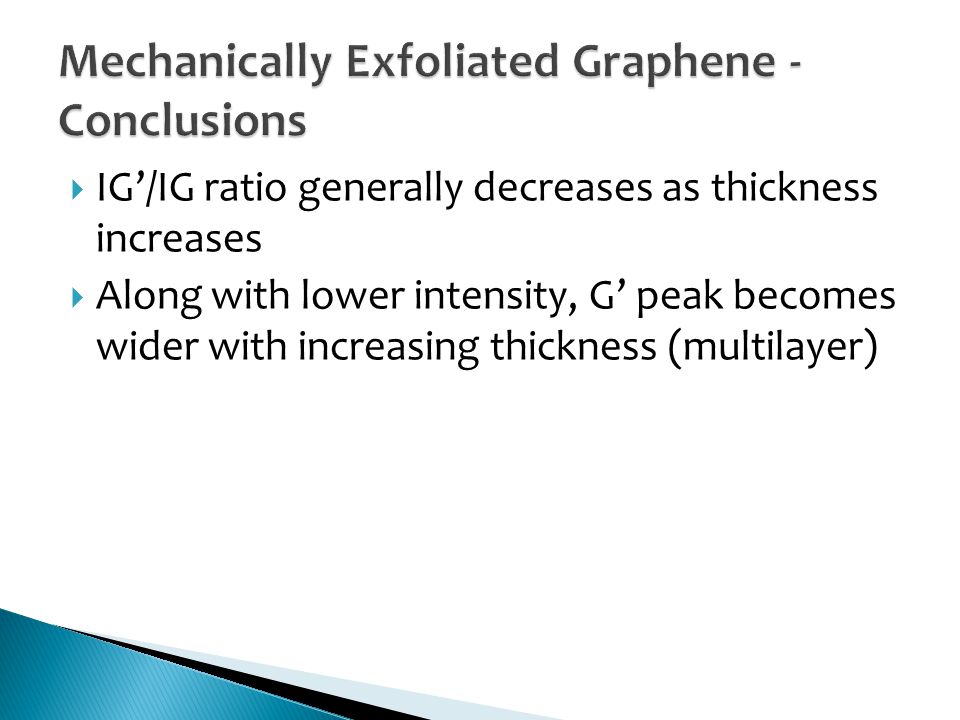

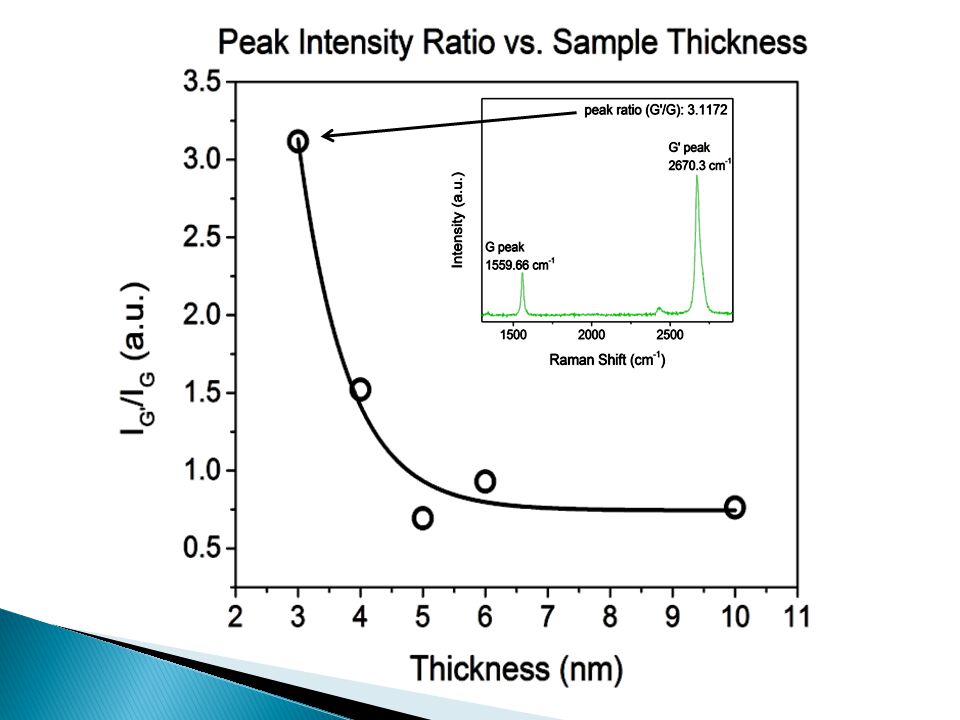

11  IG’/IG ratio generally decreases as thickness increases  Along with lower intensity, G’ peak becomes wider with increasing thickness (multilayer)

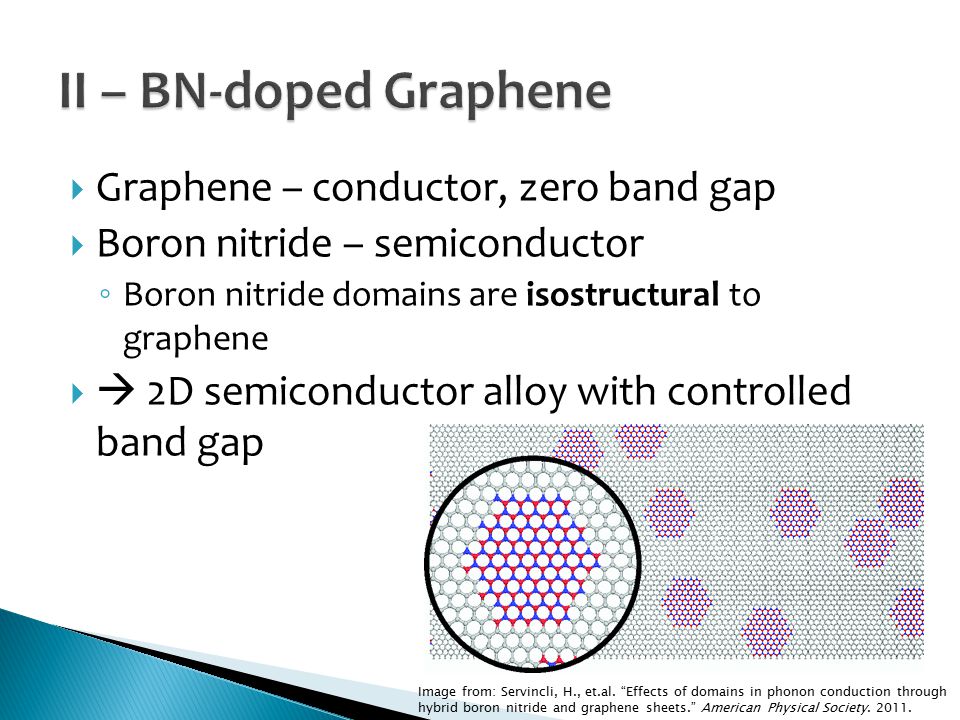

12  Graphene – conductor, zero band gap  Boron nitride – semiconductor ◦ Boron nitride domains are isostructural to graphene   2D semiconductor alloy with controlled band gap Image from: Servincli, H., et.al. “Effects of domains in phonon conduction through hybrid boron nitride and graphene sheets.” American Physical Society. 2011.

13  Procedure ◦ Samples grown by CVD; B, N, C, and O present  O 2 flow rates (sccm): 0, 2, 4, …, 10 ◦ Raman Spectroscopy ◦ Broad peak at ~1355 cm -1 decomposed  1330 cm -1 (B-C peak), 1352 cm -1 (D peak), 1368 cm -1 (h-BN peak)

14

15

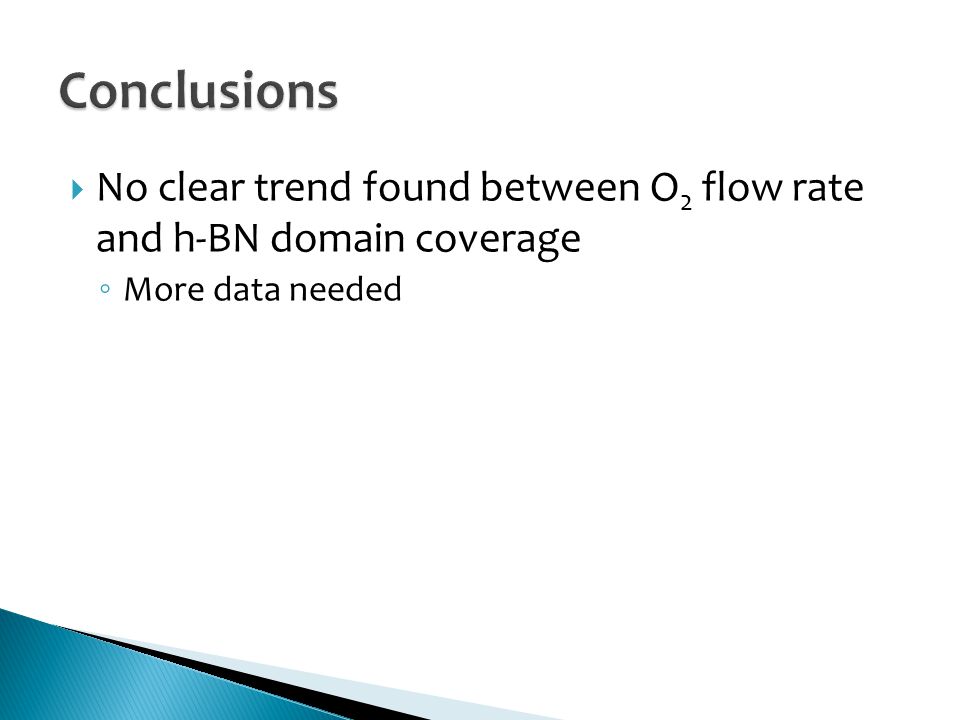

16  No clear trend found between O 2 flow rate and h-BN domain coverage ◦ More data needed

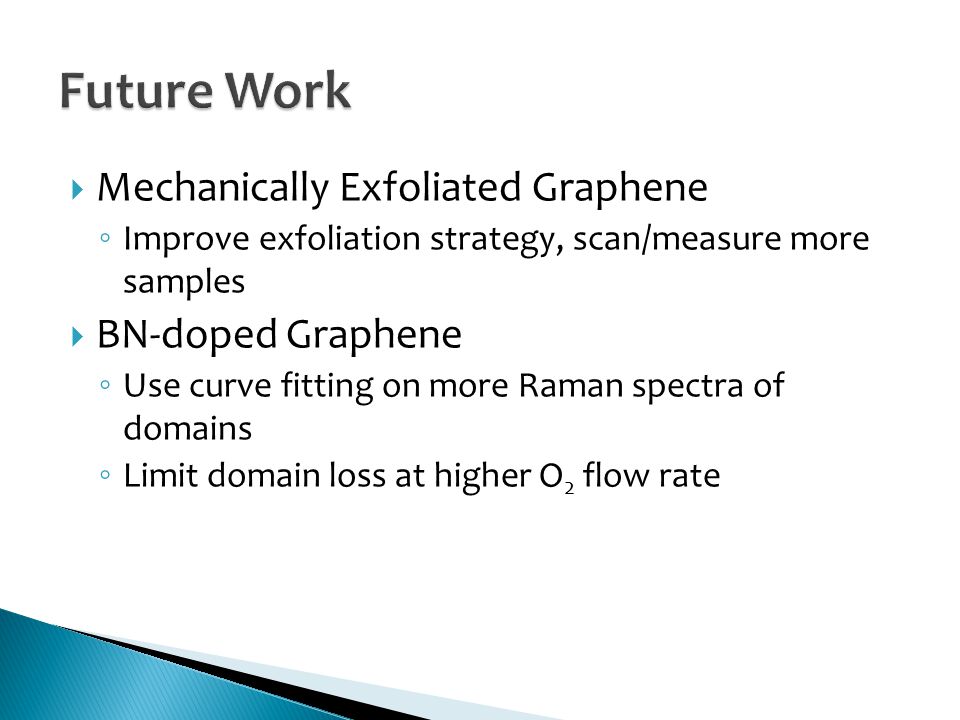

17  Mechanically Exfoliated Graphene ◦ Improve exfoliation strategy, scan/measure more samples  BN-doped Graphene ◦ Use curve fitting on more Raman spectra of domains ◦ Limit domain loss at higher O 2 flow rate
