1. Spatial Dynamical Modeling with TerraME Tiago Carneiro Gilberto Câmara Pedro Andrade Licence: Creative Commons ̶̶̶̶ By Attribution ̶̶̶̶ Non Commercial ̶̶̶̶ Share Alike http://creativecommons.org/licenses/by-nc-sa/2.5/

2. What models are needed to describe human actions? Modelling human-environment interactions

3. Clocks, clouds or ants? Clocks: deterministic equations Clouds: statistical distributions Ants: emerging behaviour

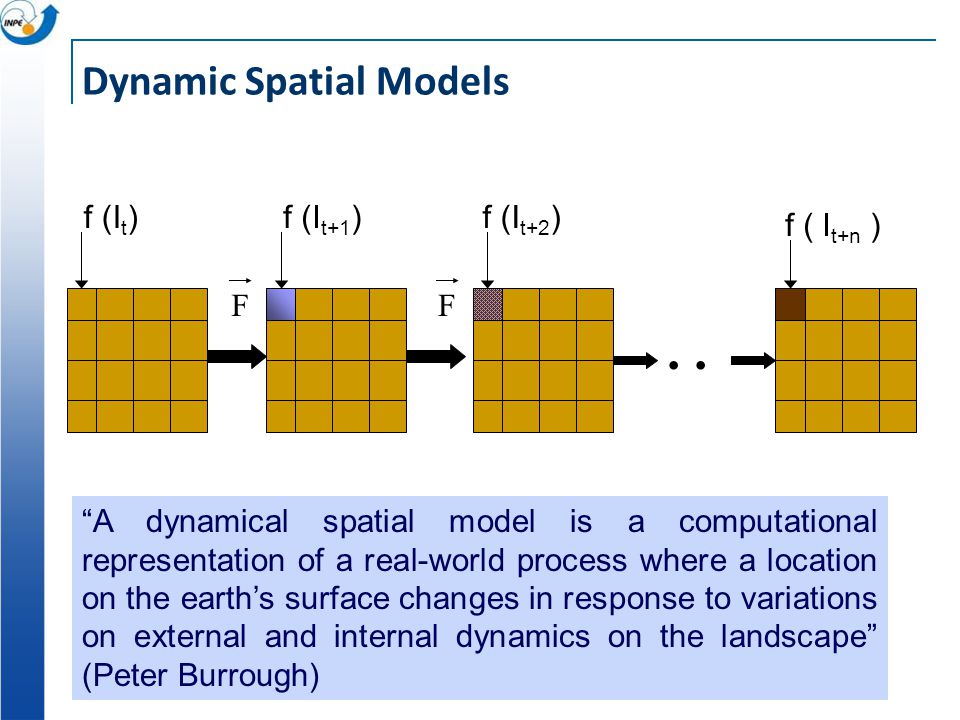

4. f ( I t+n ). FF f (I t )f (I t+1 )f (I t+2 ) Dynamic Spatial Models “A dynamical spatial model is a computational representation of a real-world process where a location on the earth’s surface changes in response to variations on external and internal dynamics on the landscape” (Peter Burrough)

5. Nature-society modelling with TerraME Nature: Physical equations Describe processes Society: Decisions on how to Use Earth´s resources

6. Nature-society modelling with TerraME Nature: Physical equations Describe processes Society: Decisions on how to Use Earth´s resources Nature: Cellular spaceSociety: Agents

7. Agent Space Space Agent Benenson and Torrens, “Geographic Automata Systems”, IJGIS, 2005 (but many questions remain...) Modelling collective spatial actions

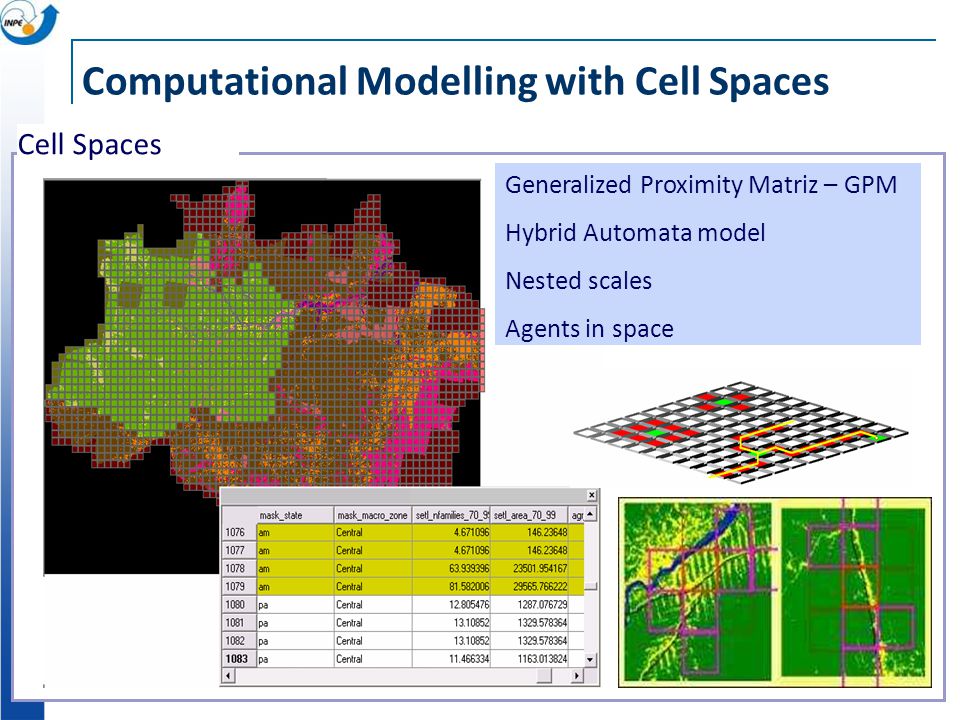

8. Computational Modelling with Cell Spaces Cell Spaces Generalized Proximity Matriz – GPM Hybrid Automata model Nested scales Agents in space

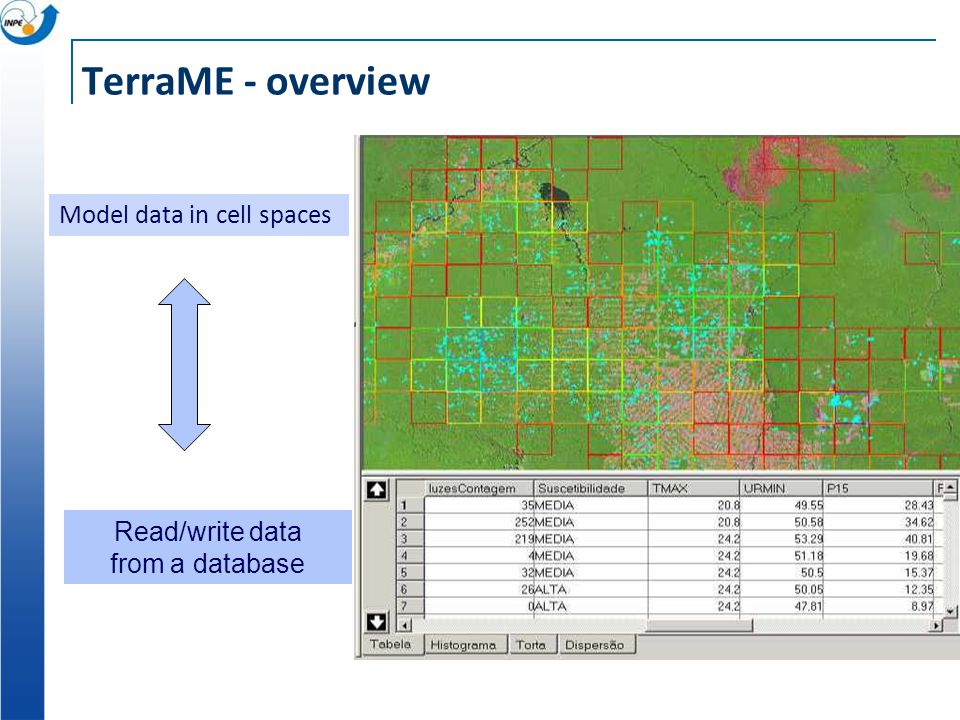

9. TerraME - overview Model data in cell spaces Read/write data from a database

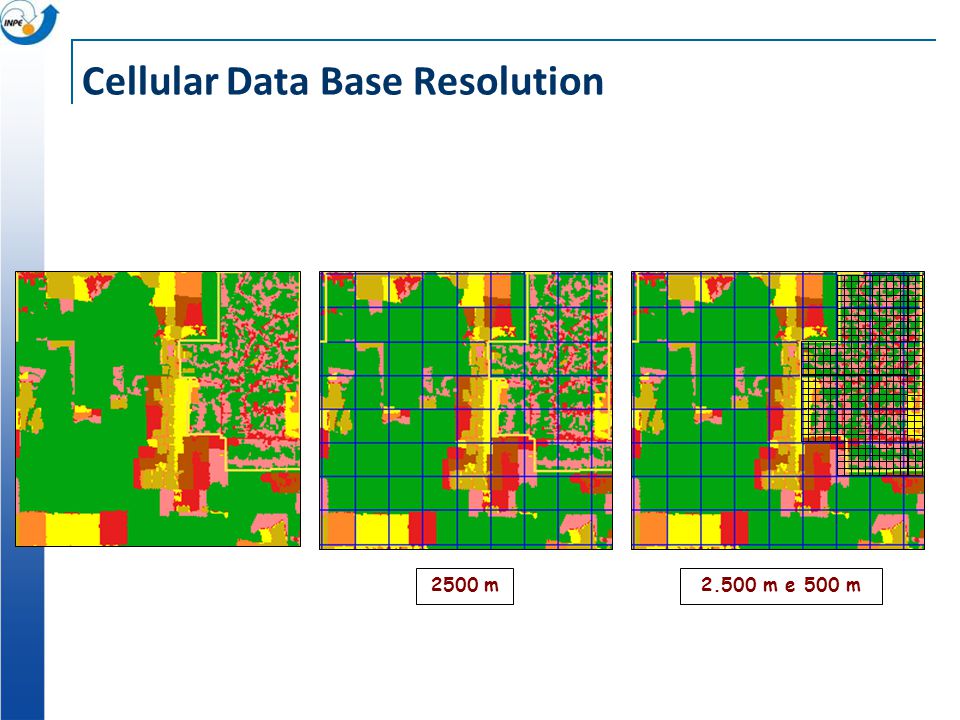

10. 2500 m2.500 m e 500 m Cellular Data Base Resolution

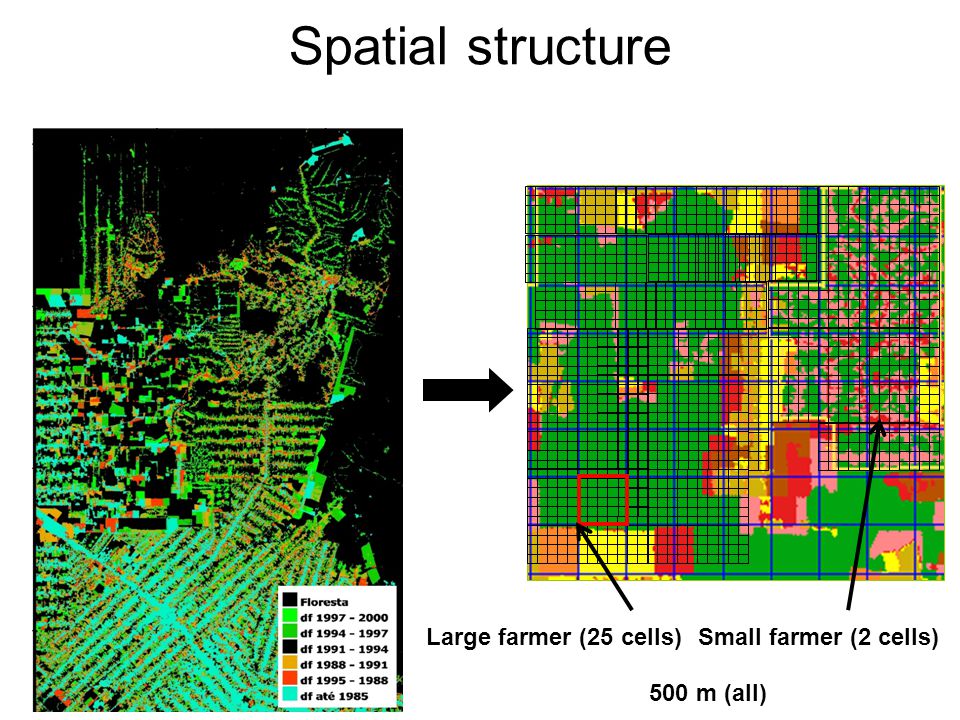

11. Large farmer (25 cells) 500 m (all) Small farmer (2 cells) Spatial structure

12. Behavior is non-homogeneous in space and time

13. Phase transitions Newly implanted Deforesting Slowing down latency > 6 years Deforestation > 80% Iddle Year of creation Deforestation = 100% Multi-scale modelling Express anisotropy y=a 0 + a 1 x 1 + a 2 x 2 +... +a i x i +E Statistics and agents

14. Tools for observing simulations

15. TerraME functionality

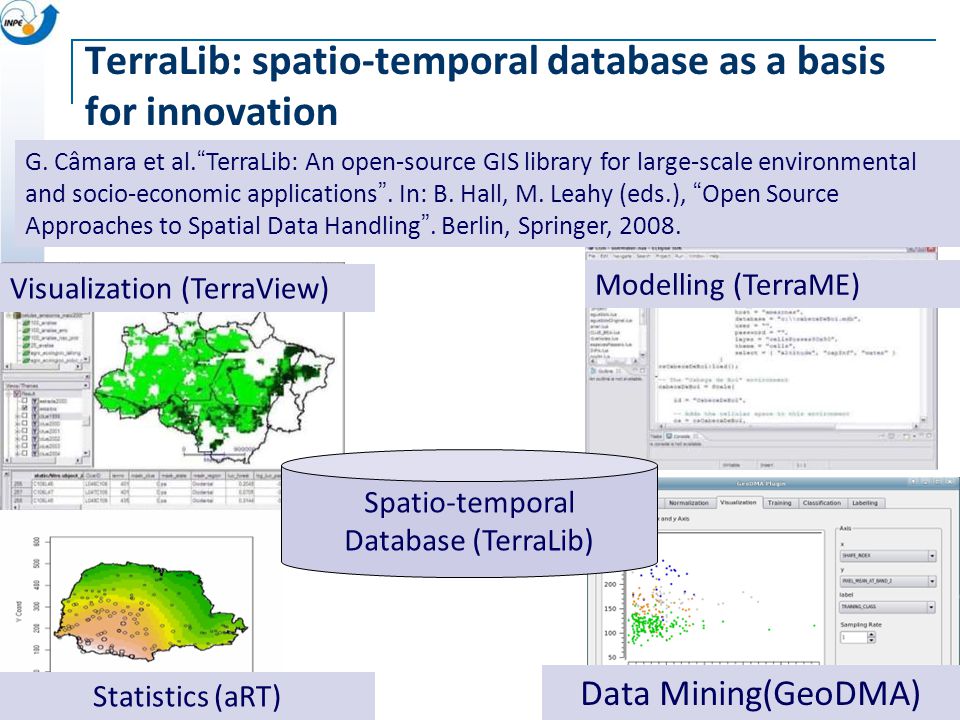

16. TerraLib: spatio-temporal database as a basis for innovation Visualization (TerraView) Spatio-temporal Database (TerraLib) Modelling (TerraME) Data Mining(GeoDMA) Statistics (aRT) G. Câmara et al.“TerraLib: An open-source GIS library for large-scale environmental and socio-economic applications”. In: B. Hall, M. Leahy (eds.), “Open Source Approaches to Spatial Data Handling”. Berlin, Springer, 2008.

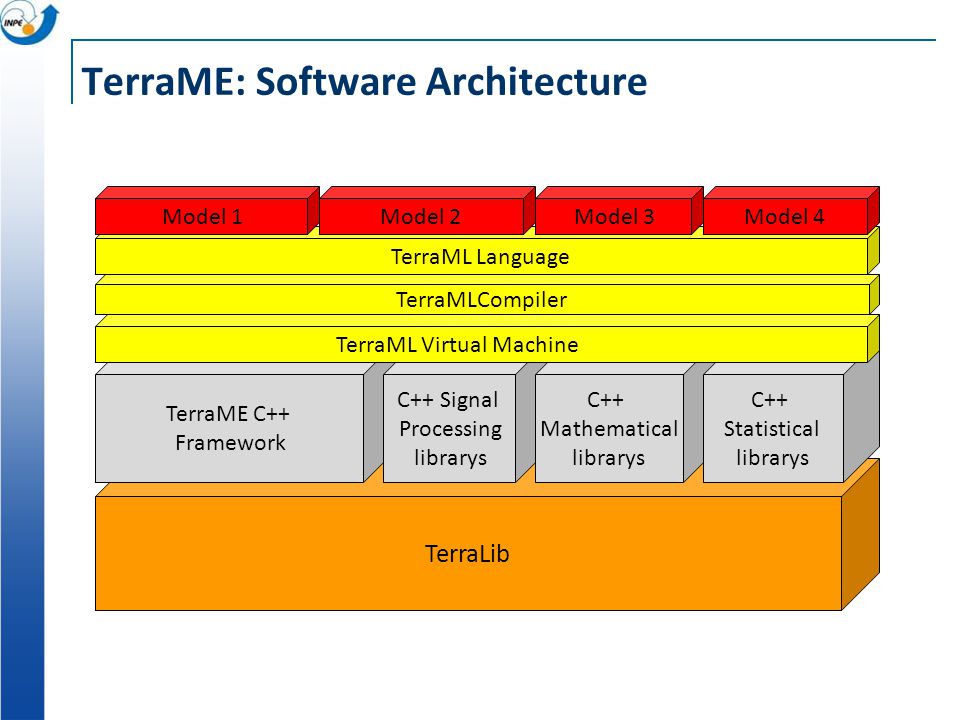

17. TerraLib TerraME C++ Framework C++ Signal Processing librarys C++ Mathematical librarys C++ Statistical librarys TerraML Virtual Machine TerraME: Software Architecture TerraMLCompiler TerraML Language Model 1Model 2 Model 3Model 4

18. Lua and the Web Where is Lua?  Inside Brazil  Petrobras, the Brazilian Oil Company  Embratel (the main telecommunication company in Brazil)  many other companies  Outside Brazil  Lua is used in hundreds of projects, both commercial and academic  CGILua still in restricted use  until recently all documentation was in Portuguese TerraME Programming Language: Extension of Lua Lua is the language of choice for computer games [Ierusalimschy et al, 1996] source: the Lua team

19. Lua Roberto Ierusalimschy PUC-Rio, Brazil

20. What is Lua?  Yet Another Scripting Language  an “extension” language  implemented as a library in ANSI C Host Program Lua Interpreter -- a Lua script color = RED b = button { label = ‘OK’, x = 10, y = 20}

21. Why Lua?  Simple and flexible  “Simple things simple, complex things possible”  Small, Efficient, Portable  Whole library written in ANSI C, compiles the same source code in all platforms  Typical uses: MS-DOS, Windows (3.1, 95, NT), Unix (Linux, Solaris, IRIX, AIX, ULTRIX), Next, OS/2, Mac

22. How is Lua?  Pascal-like Syntax.  Interpreter executes sequence of statements.  function definitions are also statements (see later)  Six types: numbers, tables, functions, strings, userdata, nil function fat (n) if n == 0 then return 1 else return n*fat(n-1) end

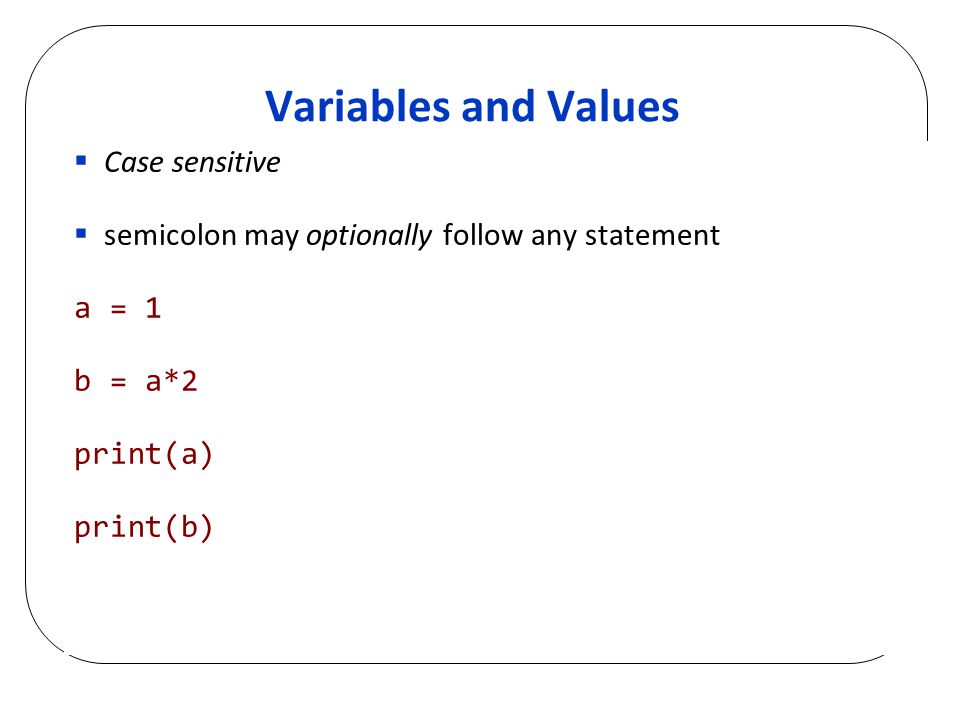

23. Variables and Values  Case sensitive  semicolon may optionally follow any statement a = 1 b = a*2 print(a) print(b)

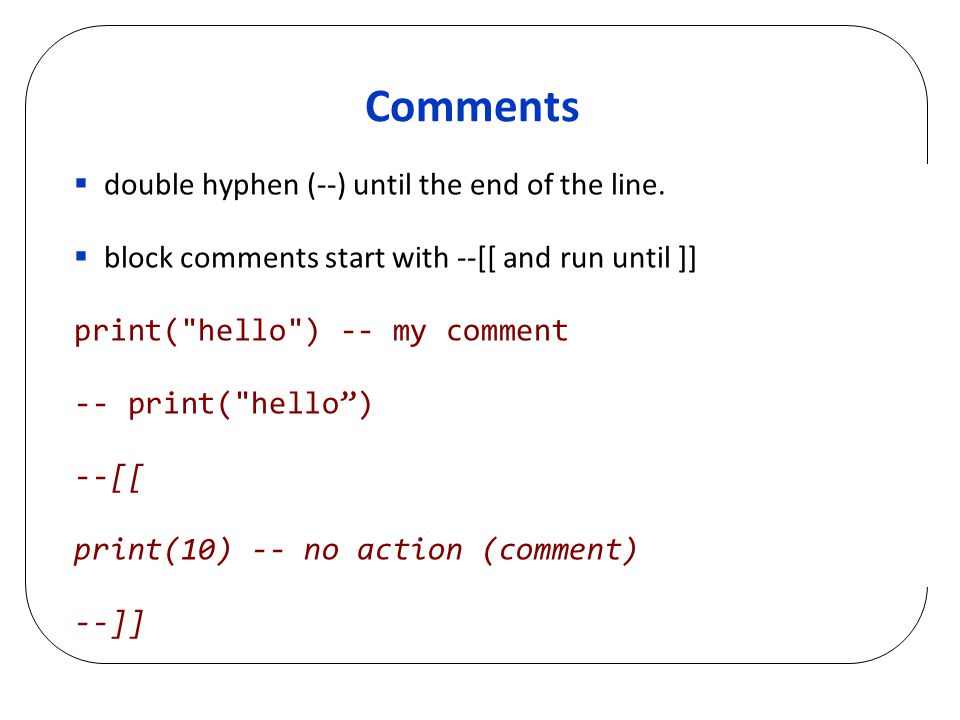

24. Comments  double hyphen (--) until the end of the line.  block comments start with --[[ and run until ]] print("hello") -- my comment -- print("hello”) --[[ print(10) -- no action (comment) --]]

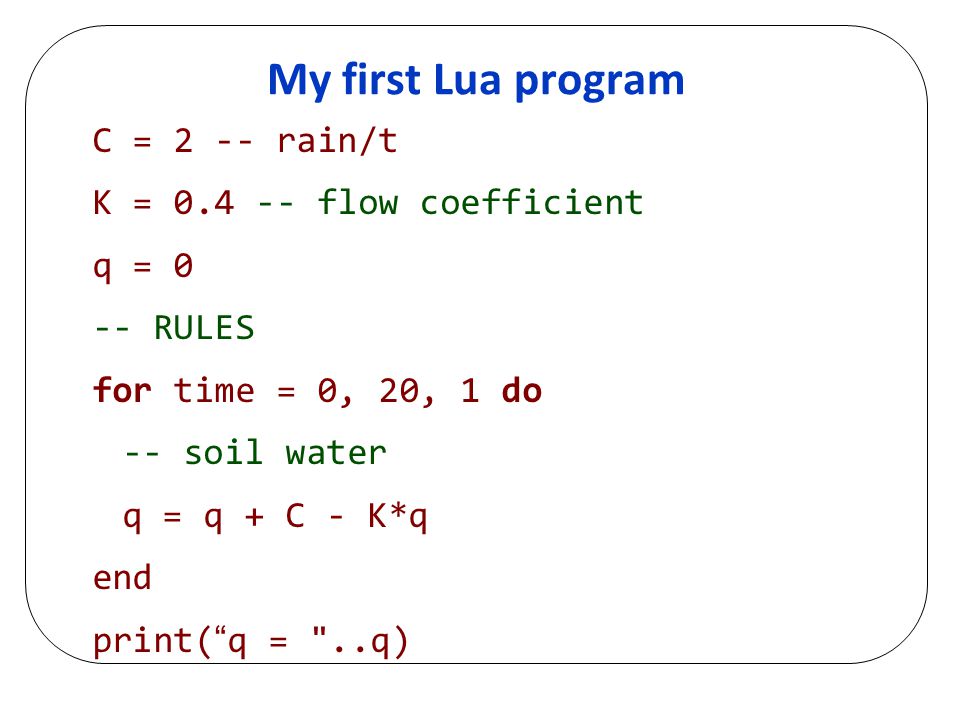

25. My first Lua program C = 2 -- rain/t K = 0.4 -- flow coefficient q = 0 -- RULES for time = 0, 20, 1 do -- soil water q = q + C - K*q end print(“q = "..q)

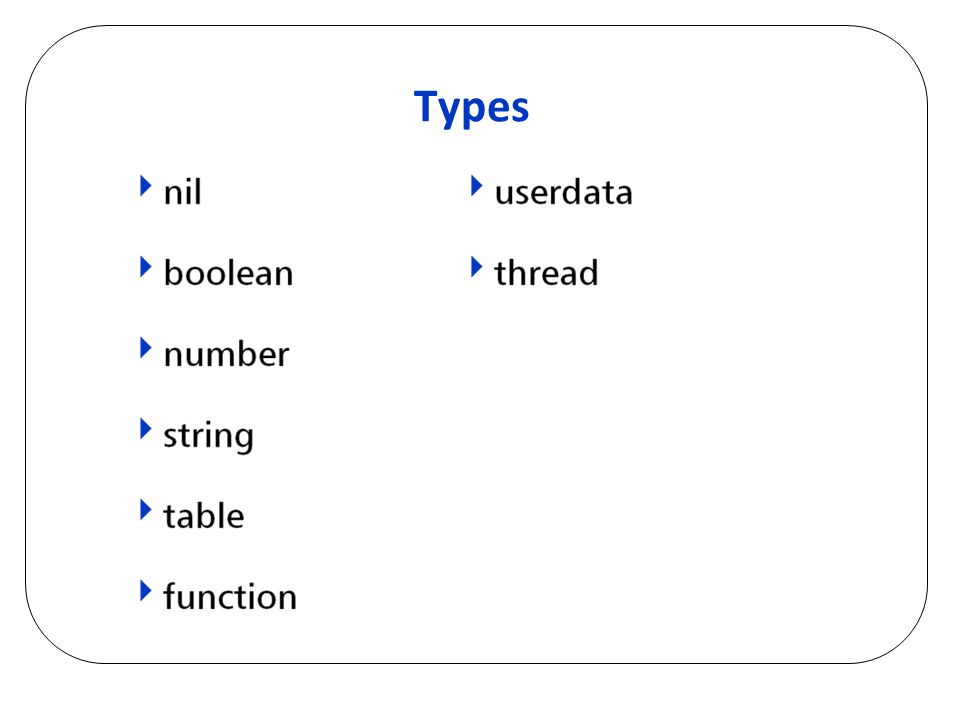

26. Types

27. Type nil Different from everything else Default variable type Also acts as false (boolean)

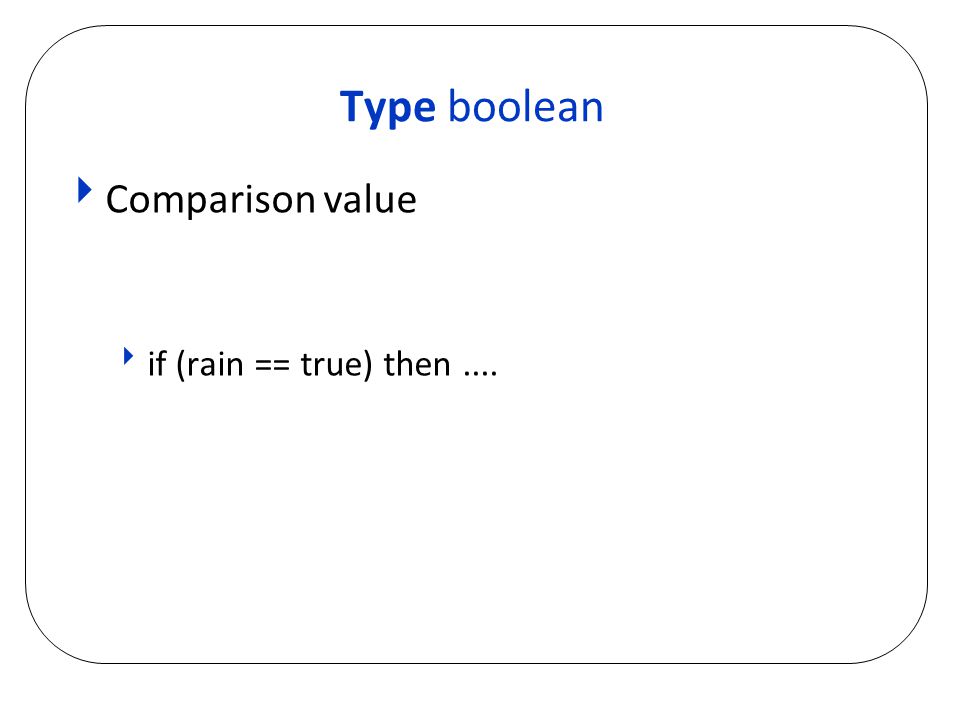

28. Type boolean  Comparison value  if (rain == true) then....

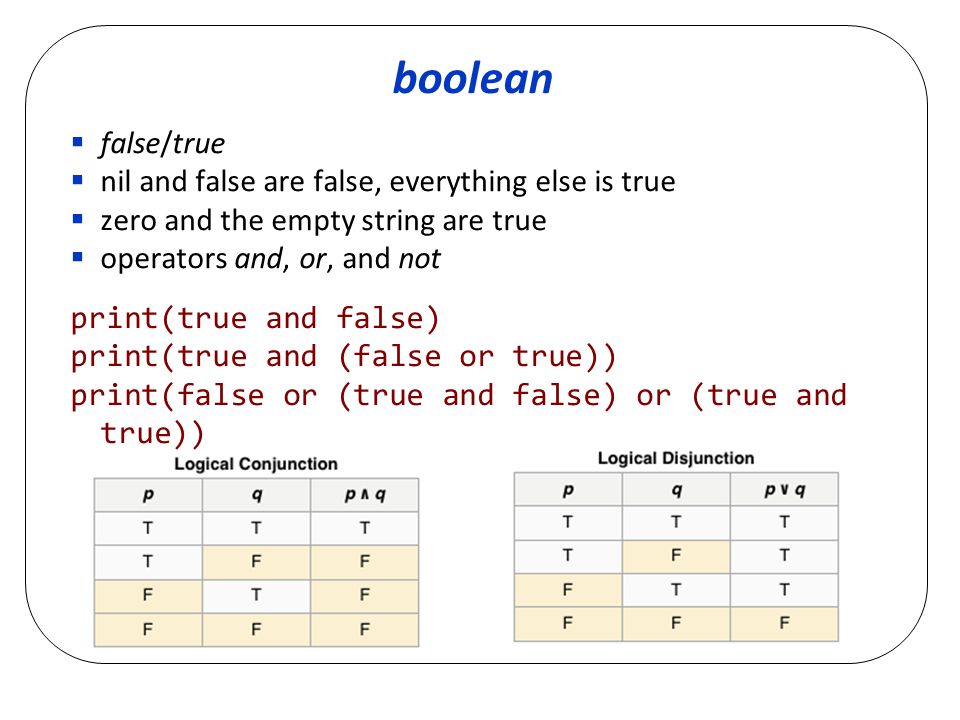

29. boolean  false/true  nil and false are false, everything else is true  zero and the empty string are true  operators and, or, and not print(true and false) print(true and (false or true)) print(false or (true and false) or (true and true))

30. number  the only type for numeric values  double-precision floating-point number  arithmetic operators: +, –, *, /  exponent (^) and modulus (%)  boolean operators (, =, ~=, and ==) A = 6 + 2.2 * 4e+3 a = A ^ 2 b = A % 7 print(a > b) print(b ~= 2)

31. Parentheses Always optional (except in the case of function call) When in doubt, use parentheses a+-i (a + (-i)) < ((b/2)+1) 5+x^2*8 5 + ( (x^2)*8 ) a (a < y) and (y <= z) –x^y^z –(x^(y^z))

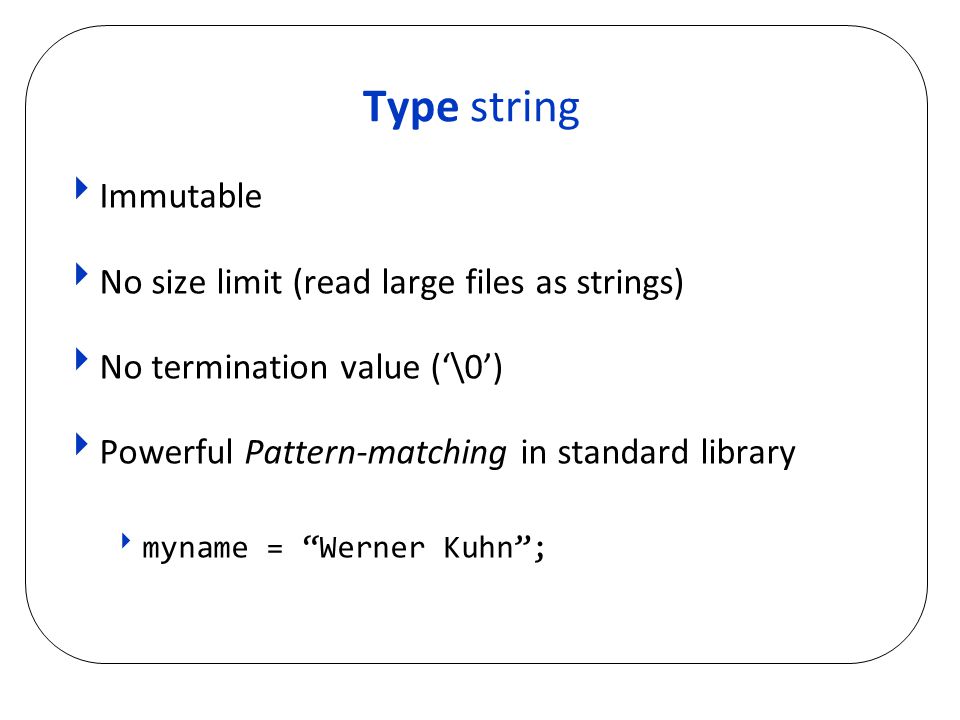

32. Type string  Immutable  No size limit (read large files as strings)  No termination value (‘\0’)  Powerful Pattern-matching in standard library  myname = “Werner Kuhn”;

33. if statement An if statement tests condition and executes its then-part or its else-part (optional) accordingly a = 6; b = 5 if a < b then print("a < b") elseif a < b + 5 then print("b <= a < b+5") else print("a > b+5") end

34. for statement for var = exp1, exp2, exp3 do something end  Execute something for each value of var from exp1 to exp2, using exp3 as the step to increment var. This third expression is optional (default is 1). for i = 1, 10 do print(i) end for i = 1, 10, 2 do print(i) end

35. Tables  Implement associative arrays:  any value (including functions and other tables) can be used both for indices and values t = {} -- creates an empty table t[1] = "hello" t.x = print -- t.x is sugar for t[‘x’] t.x(t[1]) -- prints ‘hello’ t.next = t -- circular list

36. table  Tables can be indexed not only with numbers, but also with strings or any other value of the language, except nil loc = { cover = "forest", distRoad = 0.3, distUrban = 2 } print(loc["cover"]) print(loc.cover) loc.distRoad = loc.distRoad^2 loc.distTotal = loc.distRoad + loc.distUrban loc.deforestationPot = 1/loc.distTotal

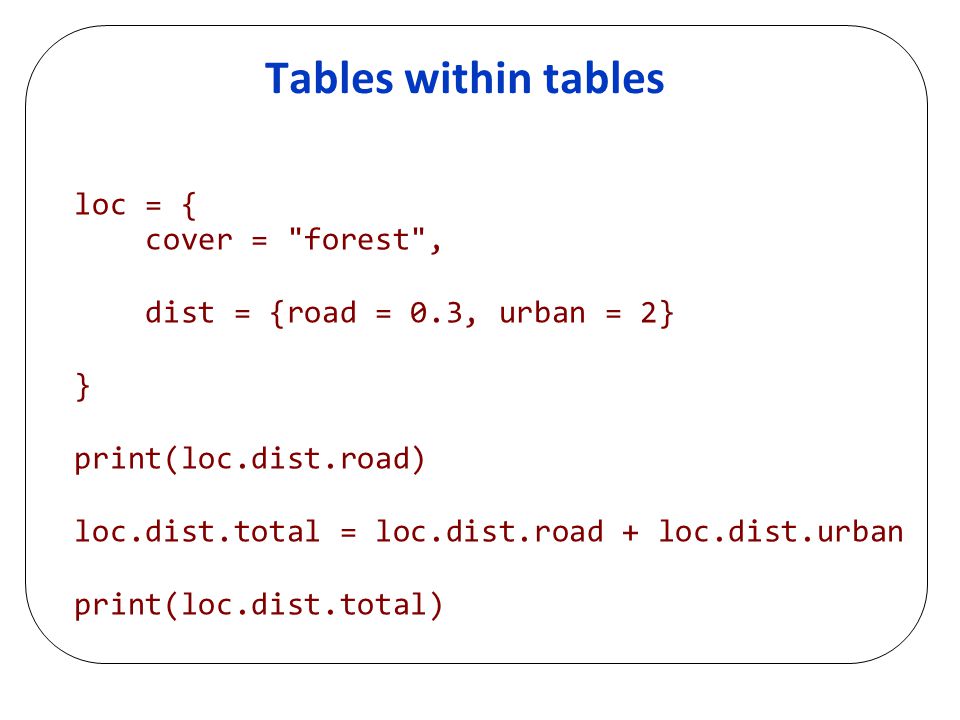

37. Tables within tables loc = { cover = "forest", dist = {road = 0.3, urban = 2} } print(loc.dist.road) loc.dist.total = loc.dist.road + loc.dist.urban print(loc.dist.total)

38. Constructors: Create and init tables  Record style  point={x=10,y=20}  print(point.y) --> 20  List style  days={ " Sun ", " Mon ", " Tue ", " Wed”, Sat " }  print(days[3]) --> Tue  Mixed style  points={{x=0,y=0}, point, n=2}  print(points[points.n].y) --> 20

39. Lua and the Web Constructors article{ author="F.P.Brooks", title="The Mythical Man-Month", year=1975, } news = { {text = "New version 2.0", date = "21/05/1997"}, {text = "New example", date = "21/05/1997"}, {text = "New version: 2.1",date = "17/06/1997"}, } calls function “article”

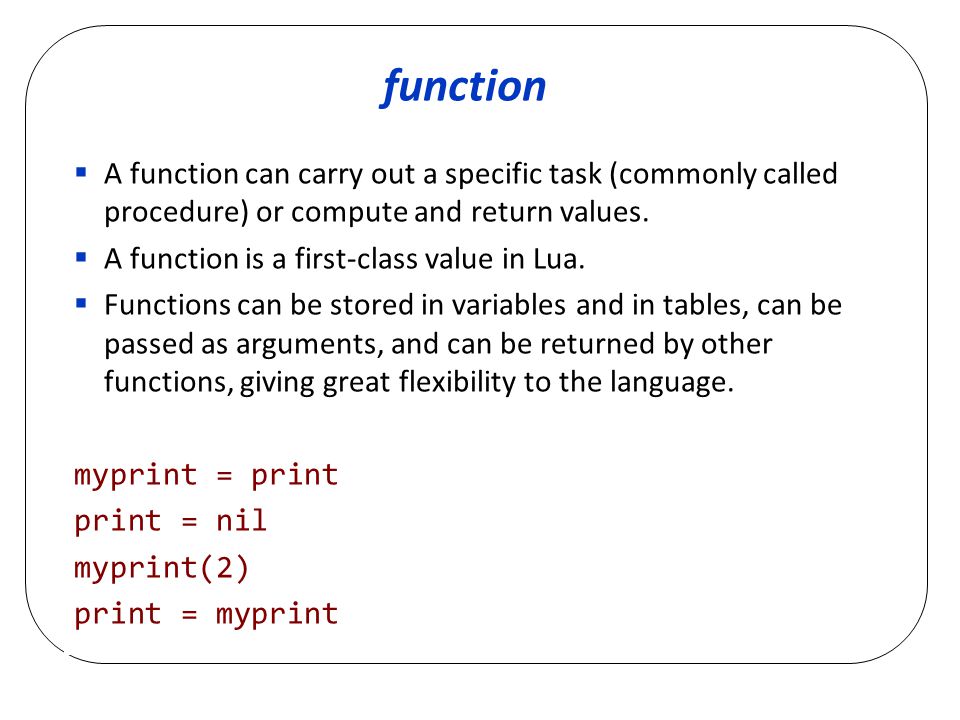

40. function  A function can carry out a specific task (commonly called procedure) or compute and return values.  A function is a first-class value in Lua.  Functions can be stored in variables and in tables, can be passed as arguments, and can be returned by other functions, giving great flexibility to the language. myprint = print print = nil myprint(2) print = myprint

41. Functions in Lua function fat (n) if n == 0 then return 1 else return n*fat(n-1) end

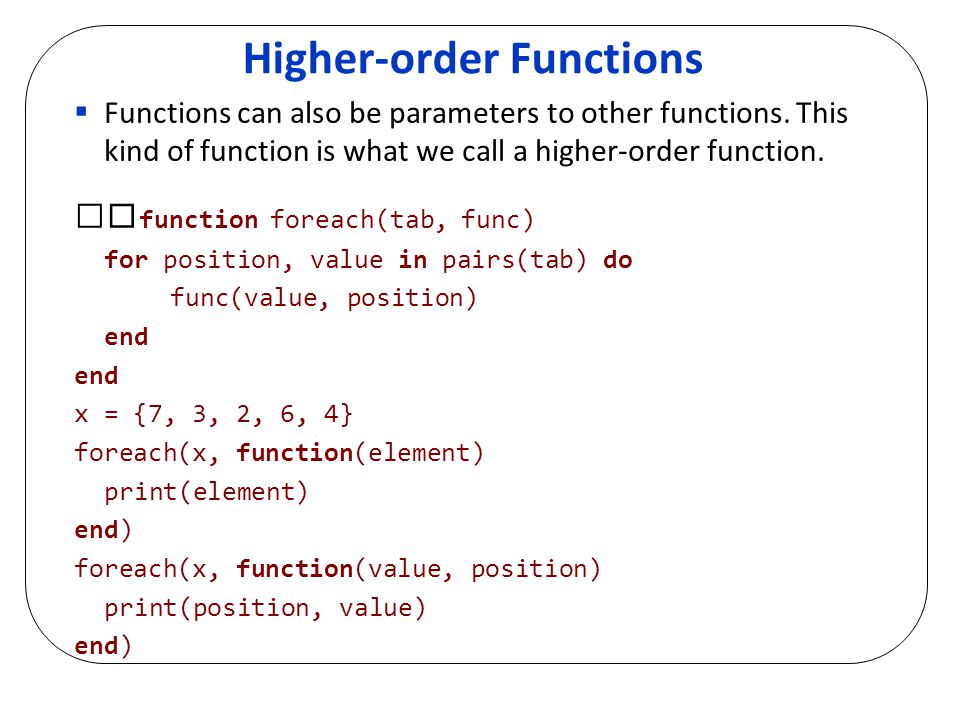

42. Higher-order Functions  Functions can also be parameters to other functions. This kind of function is what we call a higher-order function. function foreach(tab, func) for position, value in pairs(tab) do func(value, position) end x = {7, 3, 2, 6, 4} foreach(x, function(element) print(element) end) foreach(x, function(value, position) print(position, value) end)

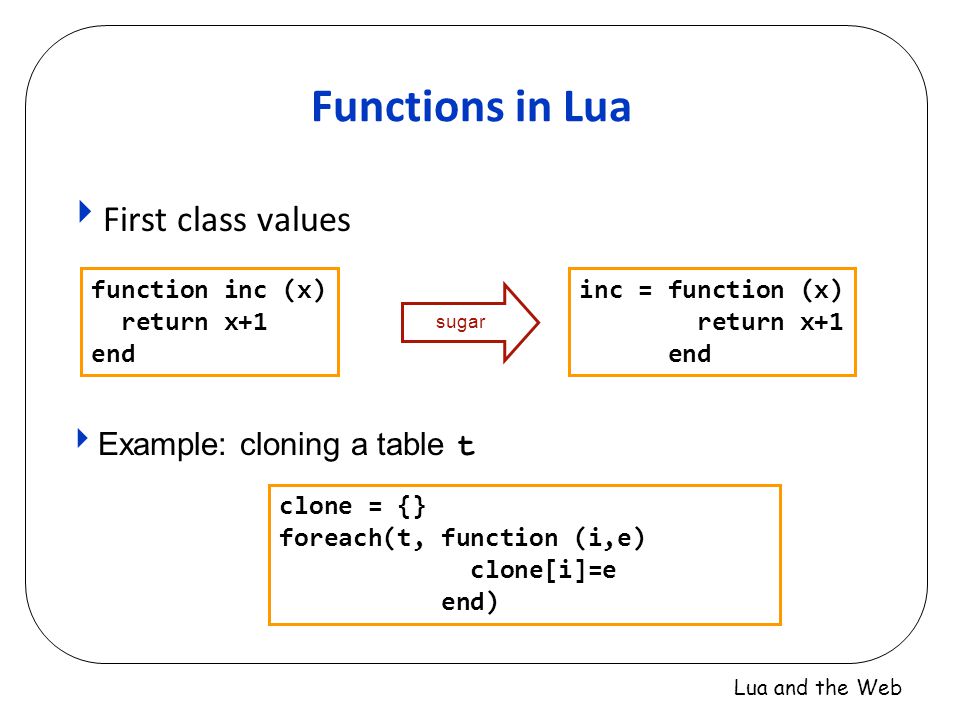

43. Lua and the Web Functions in Lua  First class values function inc (x) return x+1 end inc = function (x) return x+1 end sugar clone = {} foreach(t, function (i,e) clone[i]=e end)  Example: cloning a table t

44. Functions and Tables w = { redraw = function ()... end, pick = function (x,y)... end, } if w.pick(x,y) then w.redraw() end

45. Tables with functions Tables may have their own functions. loc = { cover = "forest", distRoad = 0.3, distUrban = 2, deforestPot = function(myloc) return 1/(myloc.distRoad + myloc.distUrban) end } print(loc.deforestPot(loc)) print(loc:deforestPot())

46. Tables with functions  We can declare a “class” in Lua by creating a function that takes a table constructor as argument. function MyLocation(locdata) locdata.covertype = "forest" locdata.deforPot = function(self) return 1/(self.distRoad + self.distUrban) end return locdata end loc = MyLocation({distRoad = 0.3, distUrban = 2}) loc = MyLocation{distRoad = 0.3, distUrban = 2} print(loc.covertype) print(loc:deforPot())

47. Tables x Objects  Tables are dynamically created objects. list value - v next - old list... list = {value=v, next=list}

48. Objects  First-class functions+ tables = almost OO  Tables can have functions as fields  Sugar for method definition and call  Implicit parameter self a.foo(a,x)a:foo(x) a.foo = function (self,x)... end function a:foo (x)... end sugar

49. My second Lua program C = 2; -- rain/t K = 0.4; -- flow coefficient q = 0; -- function rain (t) if (t < 10) then return 4 – 4*math.cos(math.pi*t/10); else return 4 – 4*math.cos(math.pi*(t-10)/10); end -- for time = 0, 20, 1 do -- soil water q = q + rain(time) - K*q; end -- report print(“q = "..q);

50. Standard libraries Basic String Table Math IO OS Debug Coroutine

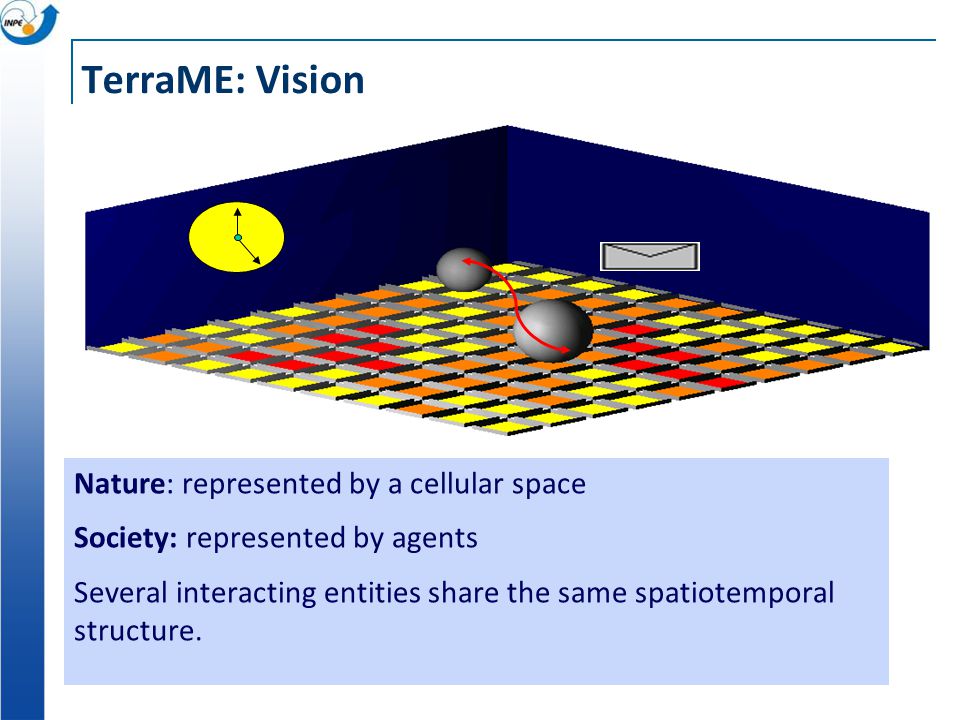

51. TerraME: Vision Nature: represented by a cellular space Society: represented by agents Several interacting entities share the same spatiotemporal structure.

52. rain N Itacolomi do Itambé Peak Lobo’s Range My third Lua program Define a two-dimensional grid Make it rain on the grid Let water flow downwards

53. TerraME Runtime Environment

54. TerraME allows nested scales

55. Nested scales are necessary for human- environment models Diverse space partitions can have different scales

56. Cellular Space A geographical area of interest, divided into a grid. Each cell in the grid has one or more attributes. Stored and retrieved from a TerraLib database

57. Loading Data -- Loads the TerraLib cellular space csCabecaDeBoi = CellularSpace { dbType = "ADO", host = “localhost", database = "c:\\cabecaDeBoi.mdb", user = "", password = "", layer = "cellsLobo90x90", theme = "cells", select = { “height", “soilWater", “capInf" } } csCabecaDeBoi:load(); csCabecaDeBoi:loadMooreNeighbourhood; GIS

58. Creating temporary cellular spaces game = CellularSpace { xdim = N, ydim = N }

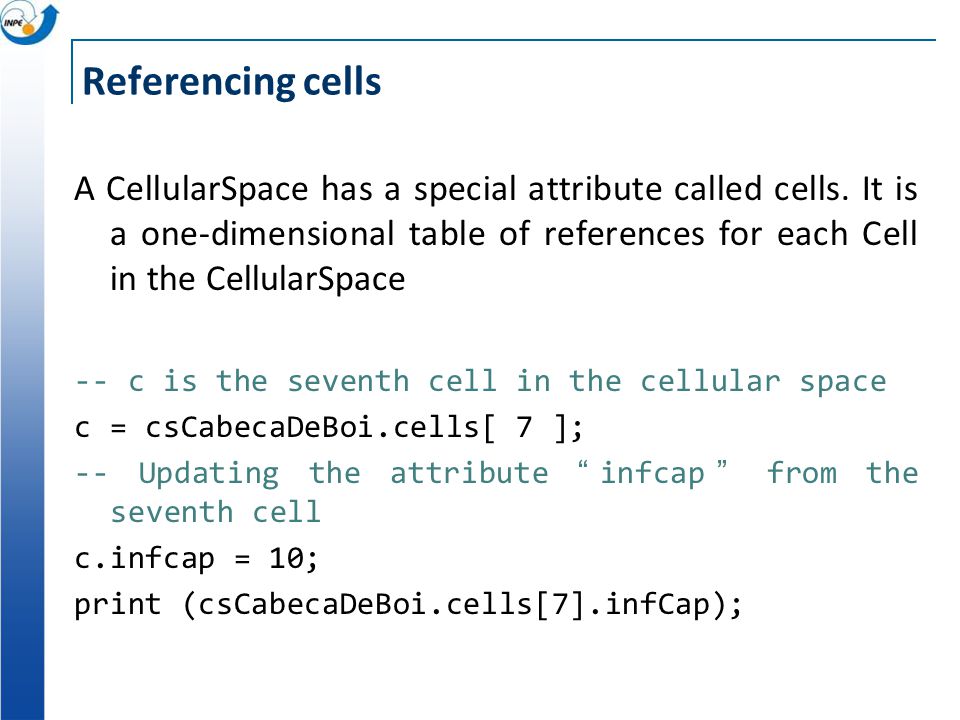

59. Referencing cells A CellularSpace has a special attribute called cells. It is a one-dimensional table of references for each Cell in the CellularSpace -- c is the seventh cell in the cellular space c = csCabecaDeBoi.cells[ 7 ]; -- Updating the attribute “infcap” from the seventh cell c.infcap = 10; print (csCabecaDeBoi.cells[7].infCap);

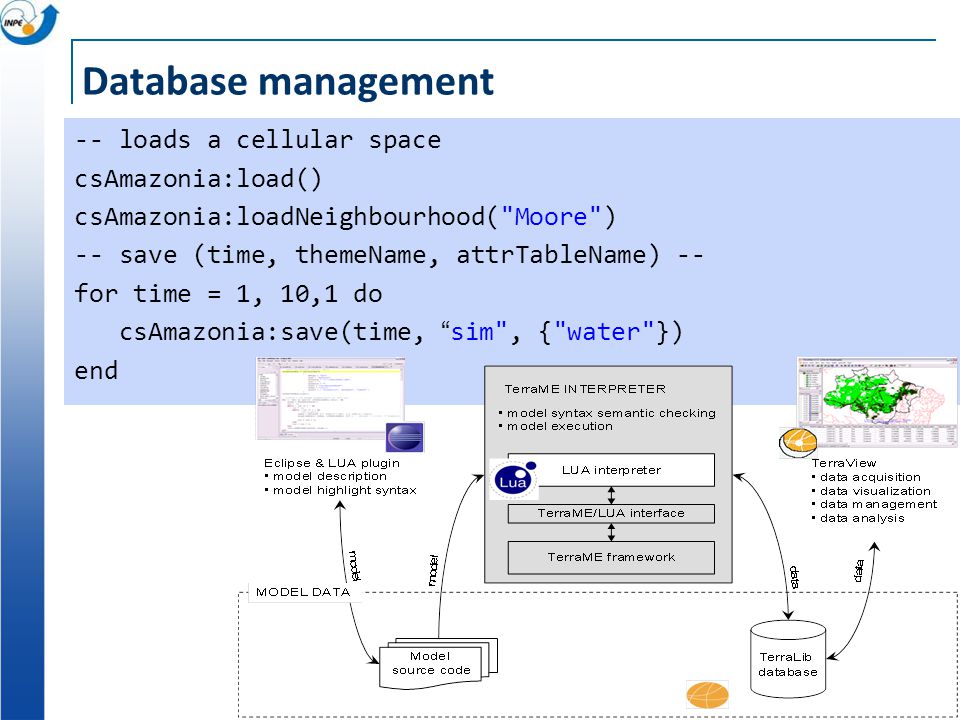

60. Database management -- loads a cellular space csAmazonia:load() csAmazonia:loadNeighbourhood("Moore") -- save (time, themeName, attrTableName) -- for time = 1, 10,1 do csAmazonia:save(time, “sim", {"water"}) end

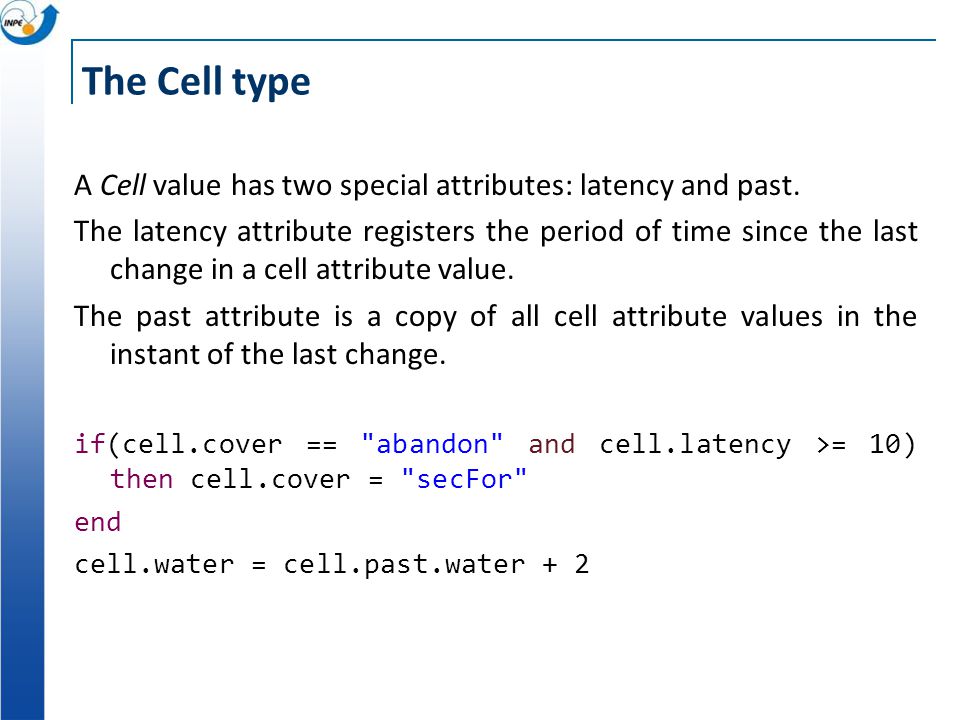

61. The Cell type A Cell value has two special attributes: latency and past. The latency attribute registers the period of time since the last change in a cell attribute value. The past attribute is a copy of all cell attribute values in the instant of the last change. if(cell.cover == "abandon" and cell.latency >= 10) then cell.cover = "secFor" end cell.water = cell.past.water + 2

62. Traversing a Cell Space forEachCell(cs, function()) Applies the chosen function to each cell of the cellular space. This function enables using different rules in a cellular space. forEachCell(csQ, function(cell) cell.Water = cell.past.Water + 2 return true end )

63. Von Neumann Neighborhood Moore Neighborhood Isotropic neighbourhoods in cell spaces

64. Traversing a Neighbourhood csq:loadNeighbourhood(“Moore”); forEachCell(csQ, function(cell) count = 0; forEachNeighbour(cell, 0, function(cell, neigh) if (neigh.past.value == 1 and neigh ~= cell) then count = count + 1; end end; ); -- for each neighbor

65. for i, cell ipairs( csValeDoAnary ) do end count = 0 ; print(“Number of deforested cells: ”.. count); if ( cell.past.sim_cover == 1 ) then cell.sim_cover = 0; count = count + 1 ; end cell.synchronize( ); Synchronizing a cell space tntn t n+1 rule ?

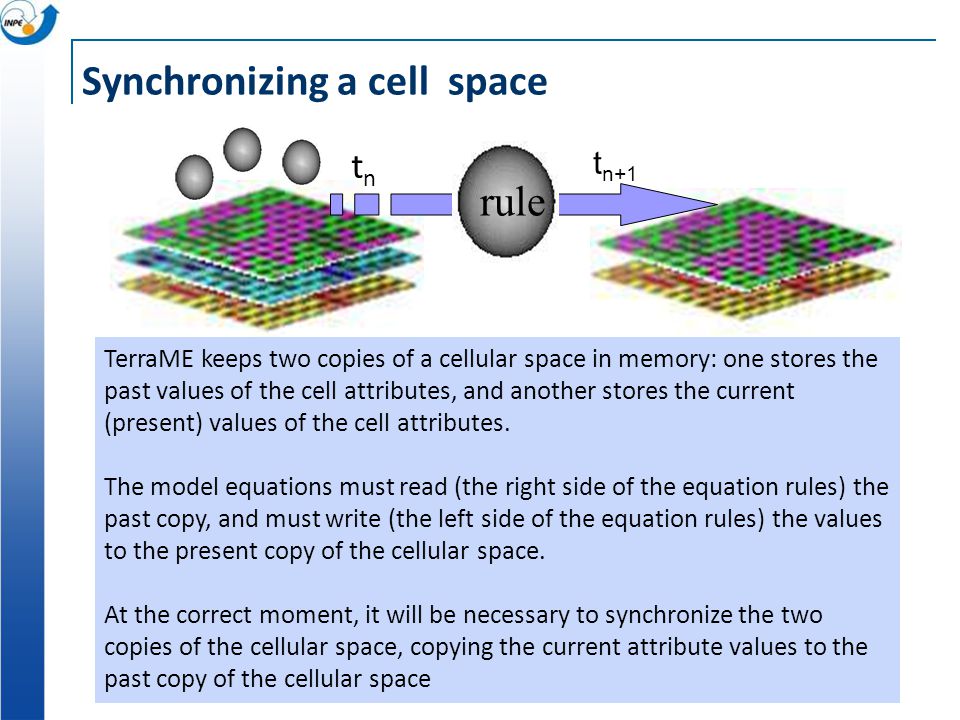

66. Synchronizing a cell space tntn t n+1 rule TerraME keeps two copies of a cellular space in memory: one stores the past values of the cell attributes, and another stores the current (present) values of the cell attributes. The model equations must read (the right side of the equation rules) the past copy, and must write (the left side of the equation rules) the values to the present copy of the cellular space. At the correct moment, it will be necessary to synchronize the two copies of the cellular space, copying the current attribute values to the past copy of the cellular space

67. Synchronization Always read from the past Always write to the present …. csQ:syncronize();

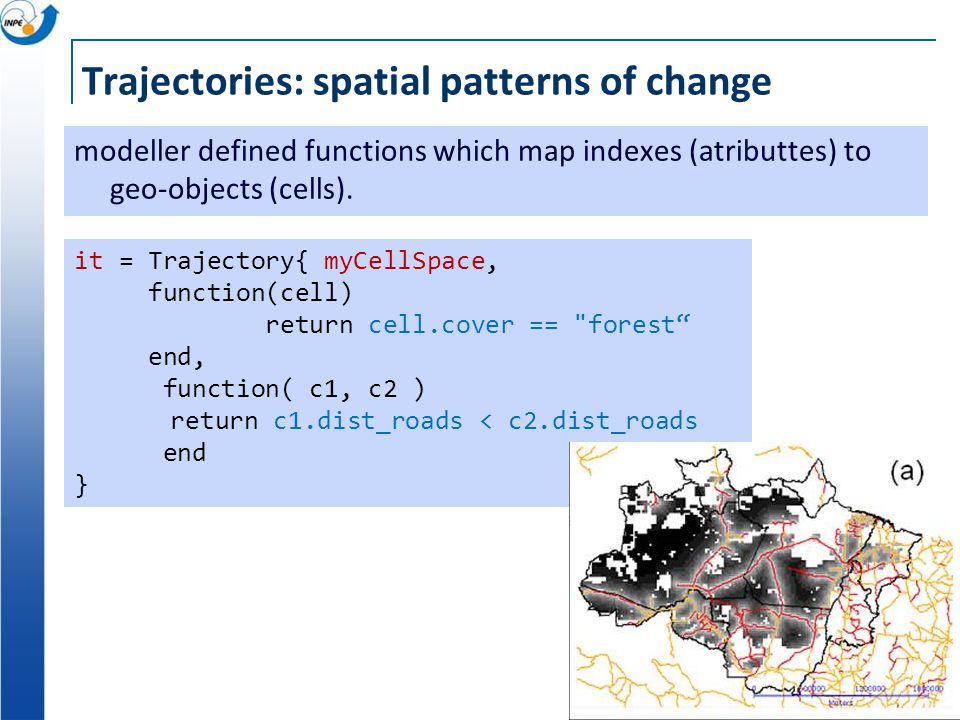

68. Trajectories: spatial patterns of change modeller defined functions which map indexes (atributtes) to geo-objects (cells). it = Trajectory{ myCellSpace, function(cell) return cell.cover == "forest“ end, function( c1, c2 ) return c1.dist_roads < c2.dist_roads end }

69. Which objects are nearest to each other?

70. Using Generalized Proximity Matrices (GPM) Consolidated areaEmergent area

71. TerraME neighborhoods are graphs Euclidean space Open network Closed network D2 D1 [Aguiar et al., 2003]

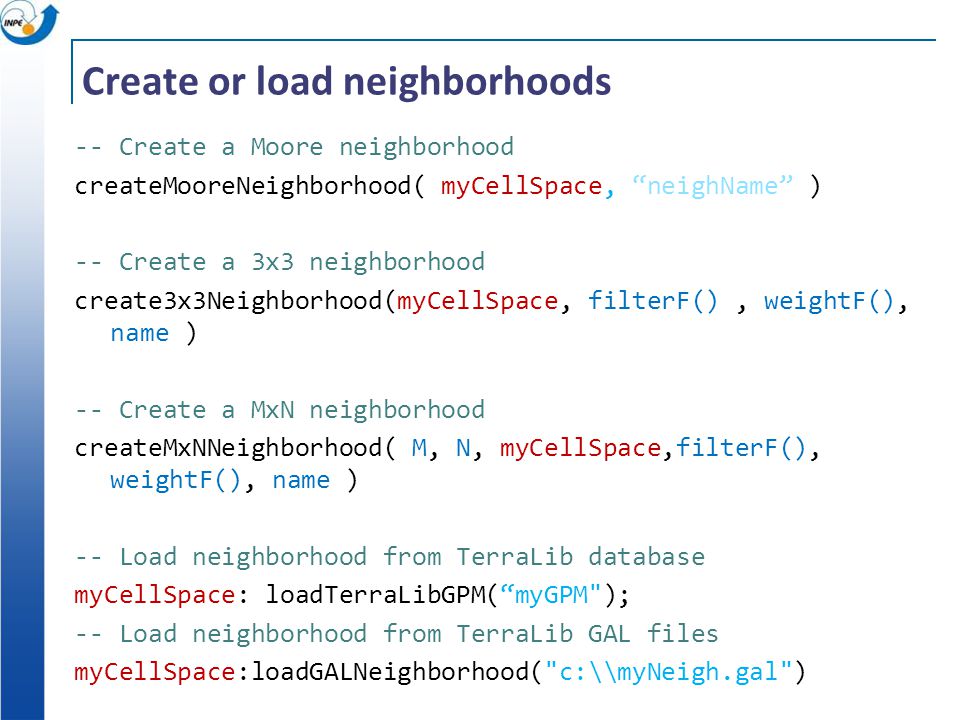

72. Create or load neighborhoods -- Create a Moore neighborhood createMooreNeighborhood( myCellSpace, “neighName” ) -- Create a 3x3 neighborhood create3x3Neighborhood(myCellSpace, filterF(), weightF(), name ) -- Create a MxN neighborhood createMxNNeighborhood( M, N, myCellSpace,filterF(), weightF(), name ) -- Load neighborhood from TerraLib database myCellSpace: loadTerraLibGPM(“myGPM"); -- Load neighborhood from TerraLib GAL files myCellSpace:loadGALNeighborhood("c:\\myNeigh.gal")

73. Building neighborhoods between cell spaces spatialCoupling( M, N, cs1,cs2, filterF, weightF, name ) filterF(cell, neigh)  Boolean wheighF(cell, neigh)  Real

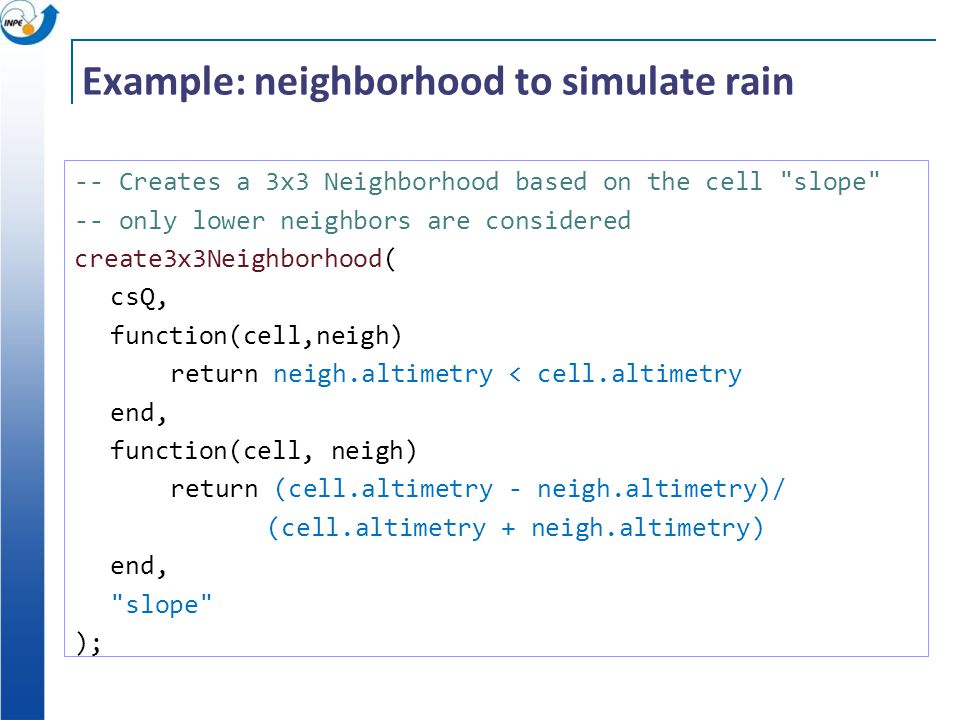

74. Example: neighborhood to simulate rain -- Creates a 3x3 Neighborhood based on the cell "slope" -- only lower neighbors are considered create3x3Neighborhood( csQ, function(cell,neigh) return neigh.altimetry < cell.altimetry end, function(cell, neigh) return (cell.altimetry - neigh.altimetry)/ (cell.altimetry + neigh.altimetry) end, "slope" );

75. “GPM” Plugin TerraView 3.2.0 “FillCell” Plugin TerraView 3.2.0 TerraME integration with GIS (TerraView) TerraLib Database

76. Conversion from GIS data to cell spaces Vector geospatial data Cell space Real world

77. The mixed pixel problem How can you transform from vectors to cell attributes?

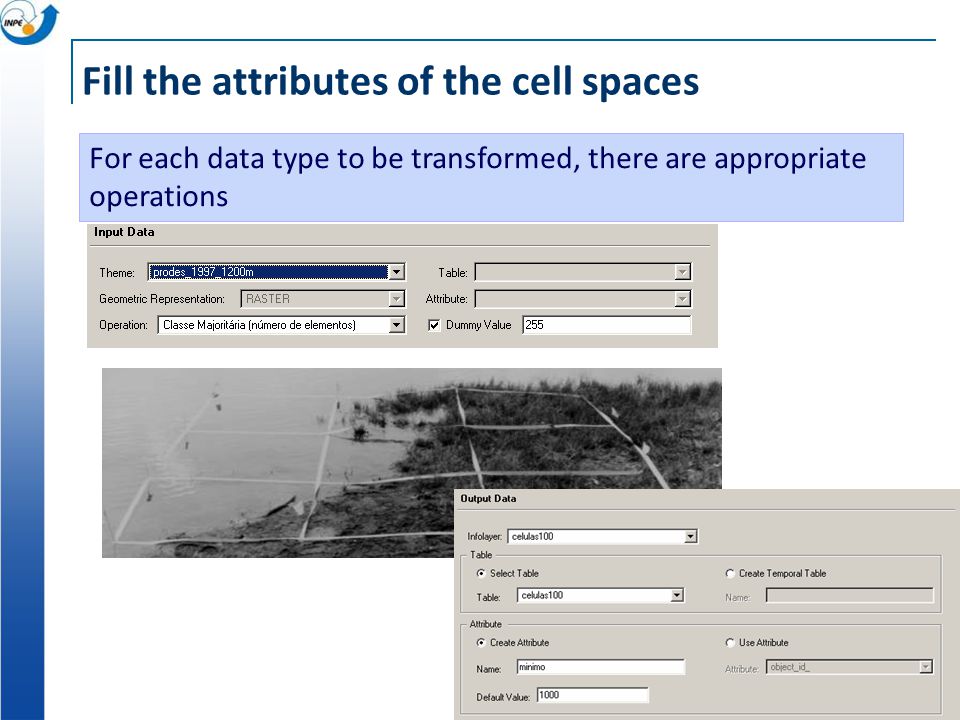

78. Fill the attributes of the cell spaces For each data type to be transformed, there are appropriate operations

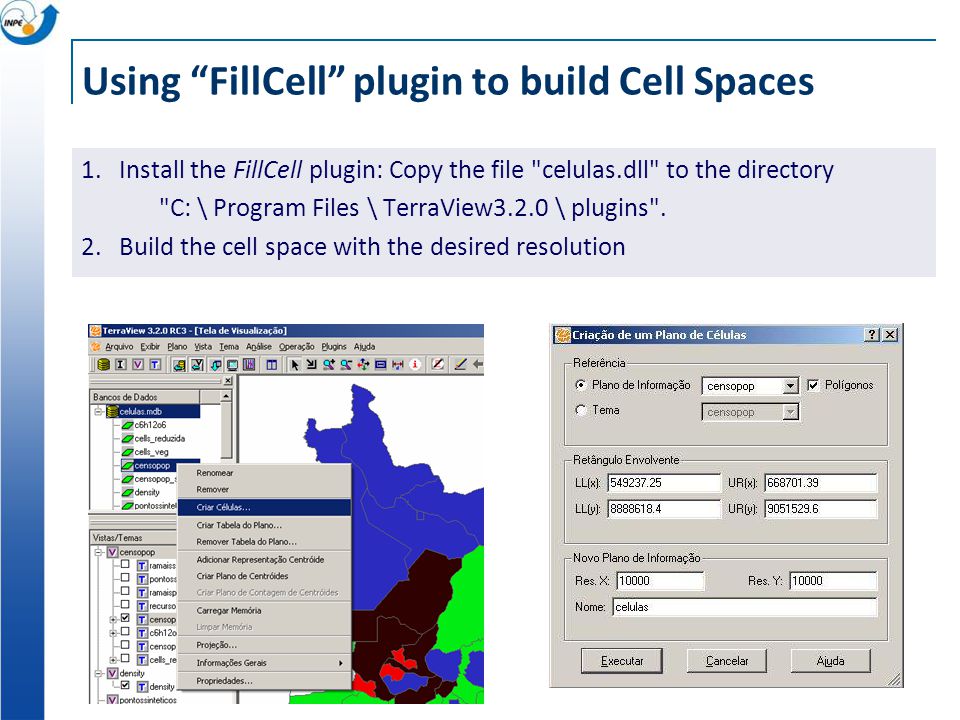

79. Using “FillCell” plugin to build Cell Spaces 1. Install the FillCell plugin: Copy the file "celulas.dll" to the directory "C: \ Program Files \ TerraView3.2.0 \ plugins". 2. Build the cell space with the desired resolution

80. Filling Cells from vector data Numerical areas (polygons, cells) Categorical areas (polygons, cells) Lines and points Min, max, average, sum, standard dev Majority class (by number or by area) Percentage of each class, Percentage of majority class, area of majority class Average/Sum intersection- weighted Presence, minimum distance, count

81. rain N Itacolomi do Itambé Peak Lobo’s Range

82. Picture direction Itacolomi do Itambé Peak Lobo’s Range

83. Demo: Rain Drainage Model Database: c:\\TerraME\\Database\\CabecadeBoi.mdb Model: c:\\TerraME\\Modelos\\demo4_chuva_geoBD.lua Model: c:\\TerraME\\Modelos\\demo7_chuva_geoBD.lua

84. Simulation Result (36 min.)

85. Demo: Fire propagation Database: c:\\TerraME\\Database\\db_emas.mdb Model: c:\\TerraME\\Modelos\\demo6_FireSpreadModel.lua CA 1CA 2CA 3CA 4CA 5 CA 1 0.1000.2500.2610.2730.285 CA 2 0.1130.2530.2640.2760.288 CA 3 0.1160.2560.2670.2790.291 CA 4 0.1190.2590.2700.2820.294 CA 5 0.1220.2620.2730.2850.297 QUEIMANDO INERTE

86. Demo: Amazon deforestation Database: c:\\TerraME\\Database\\amazonia.mdb Model: c:\\TerraME\\Modelos\\demo3_desflorestamento_save.lua

87. References Carneiro, T., 2006. Nested-CA: a foundation for multiscale modeling of land use and land change., in PhD Thesis in Computer Science. National Institute of Space Research: São José dos Campos, Brazil. Carneiro, T.; Câmara, G., 2007. A Gentle Introduction to TerraME. INPE Report, 2007. Ierusalimschy, R. 2006. Programming in Lua (2 nd edition). Rio de Janeiro, Lua.Org.
