Scientific Tools & Techniques Compound Light Microscope Uses light Image appears upside down and backwards Under Low Power field of view is larger (4.

Similar presentations


Presentation on theme: "Scientific Tools & Techniques Compound Light Microscope Uses light Image appears upside down and backwards Under Low Power field of view is larger (4."— Presentation transcript:

1

2 Scientific Tools & Techniques

3 Compound Light Microscope Uses light Image appears upside down and backwards Under Low Power field of view is larger (4 times) Under High Power field of view is smaller (4 times)

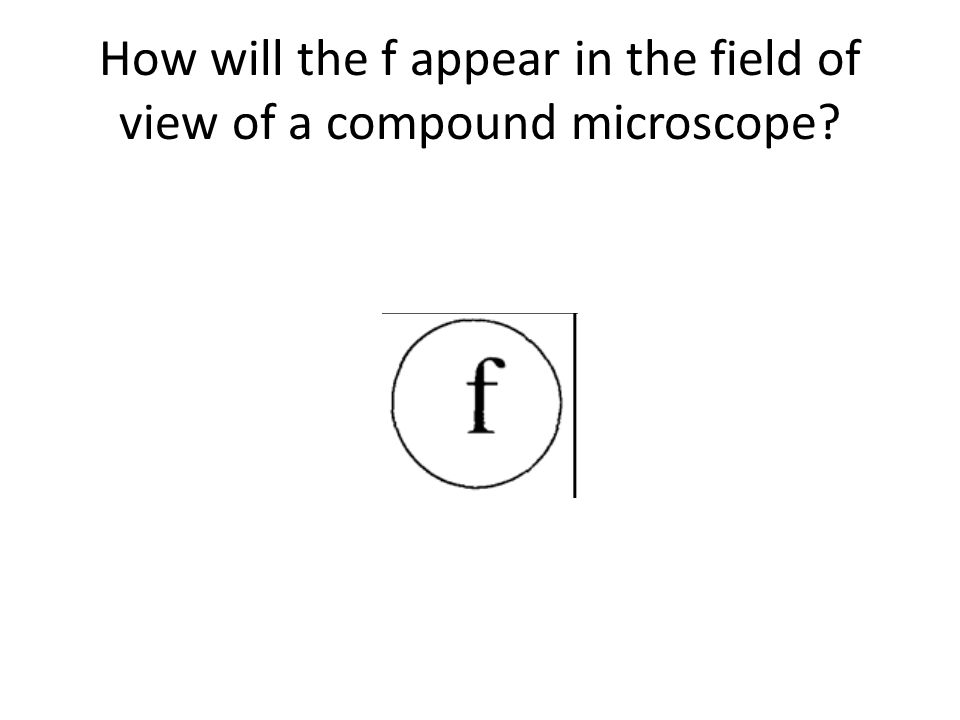

4 How will the f appear in the field of view of a compound microscope?

5 Upside Down and Backwards

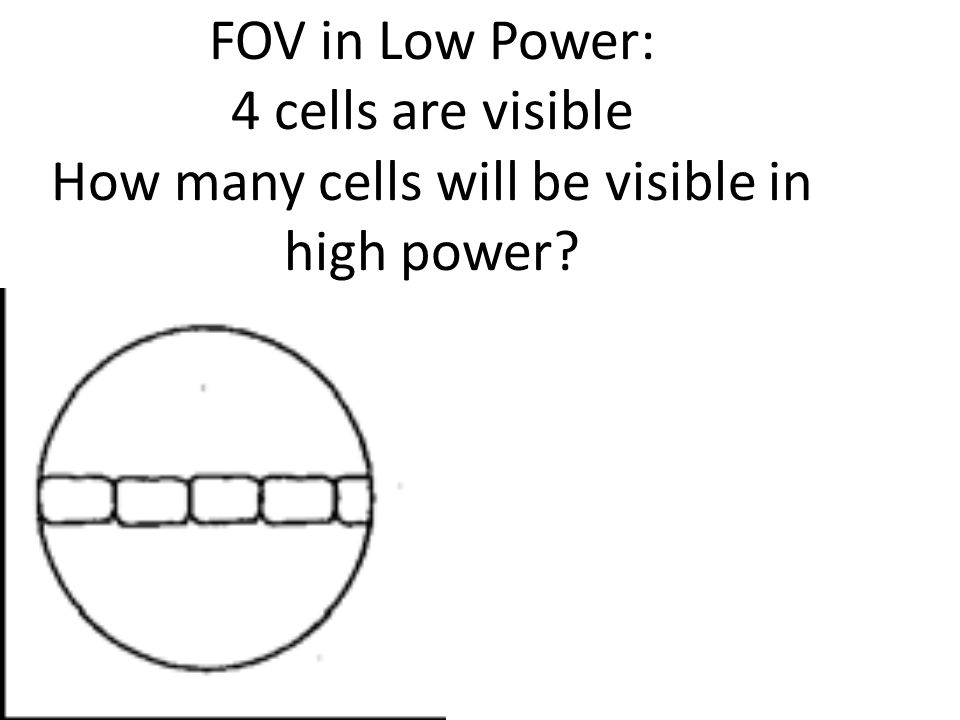

6 FOV in Low Power: 4 cells are visible How many cells will be visible in high power?

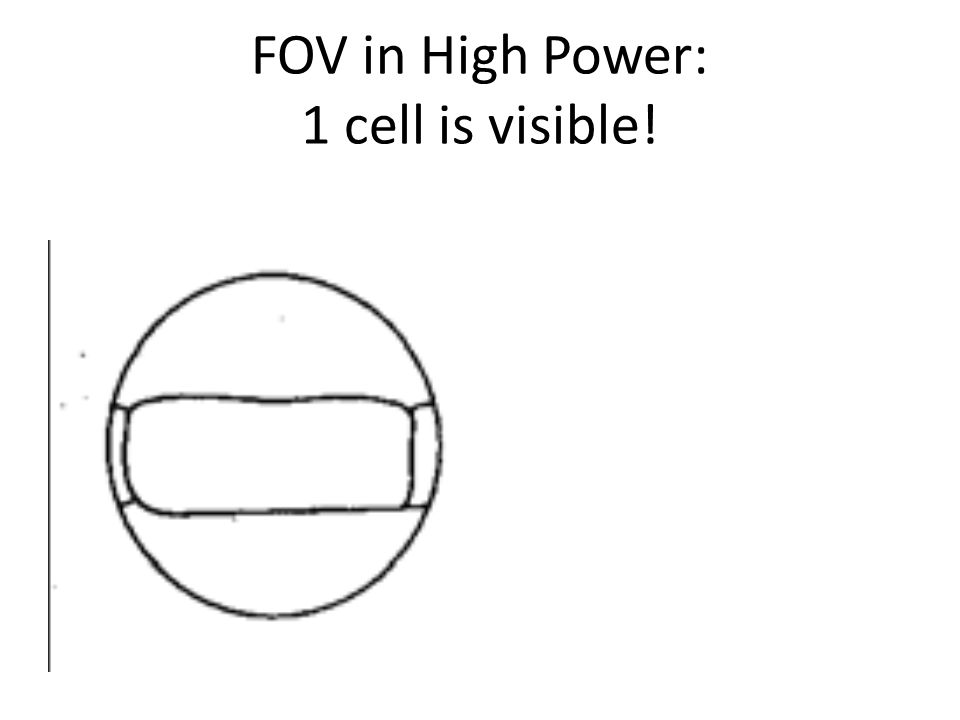

7 FOV in High Power: 1 cell is visible!

8 Microscope Rules: Always start with low power – Field of view is large and bright – Helps you find specimen – Use the coarse adjustment knob to focus

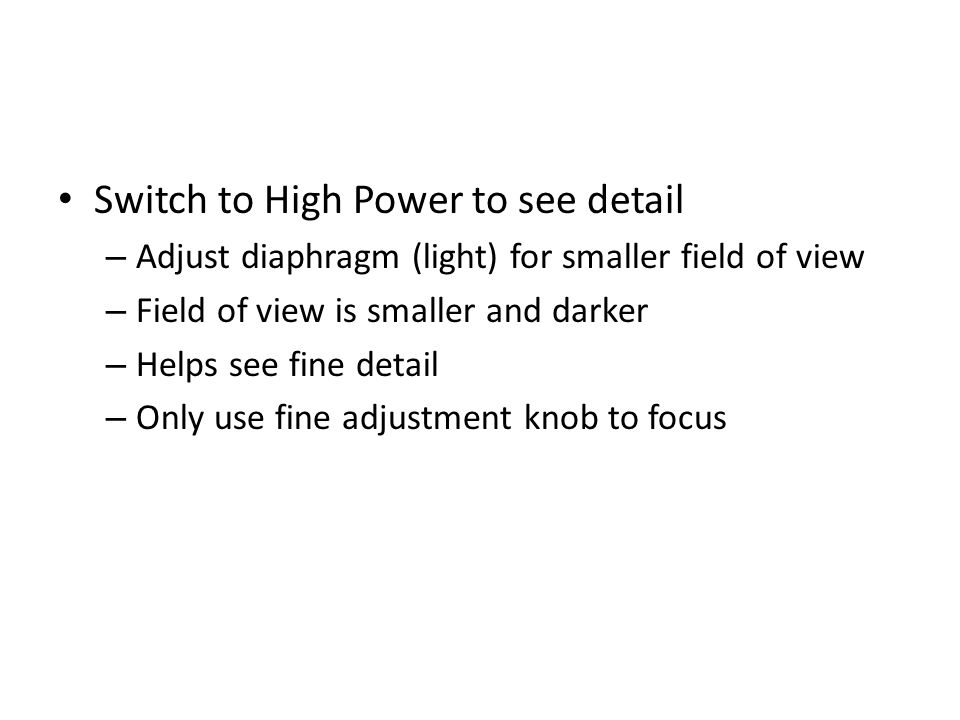

9 Switch to High Power to see detail – Adjust diaphragm (light) for smaller field of view – Field of view is smaller and darker – Helps see fine detail – Only use fine adjustment knob to focus

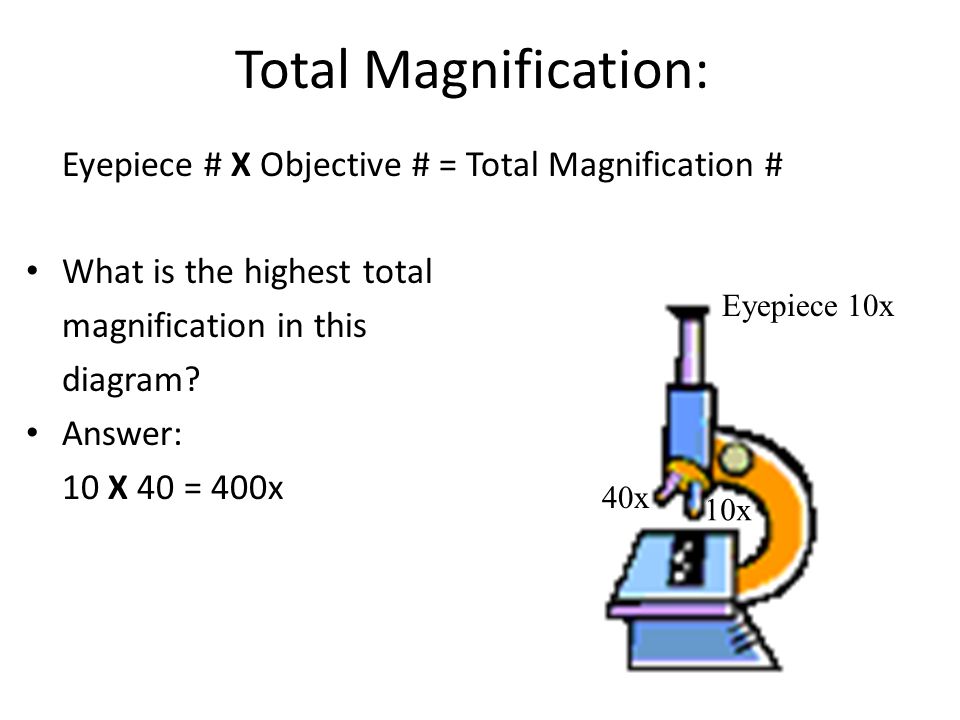

10 Total Magnification: Eyepiece # X Objective # = Total Magnification # What is the highest total magnification in this diagram? Answer: 10 X 40 = 400x Eyepiece 10x 40x 10x

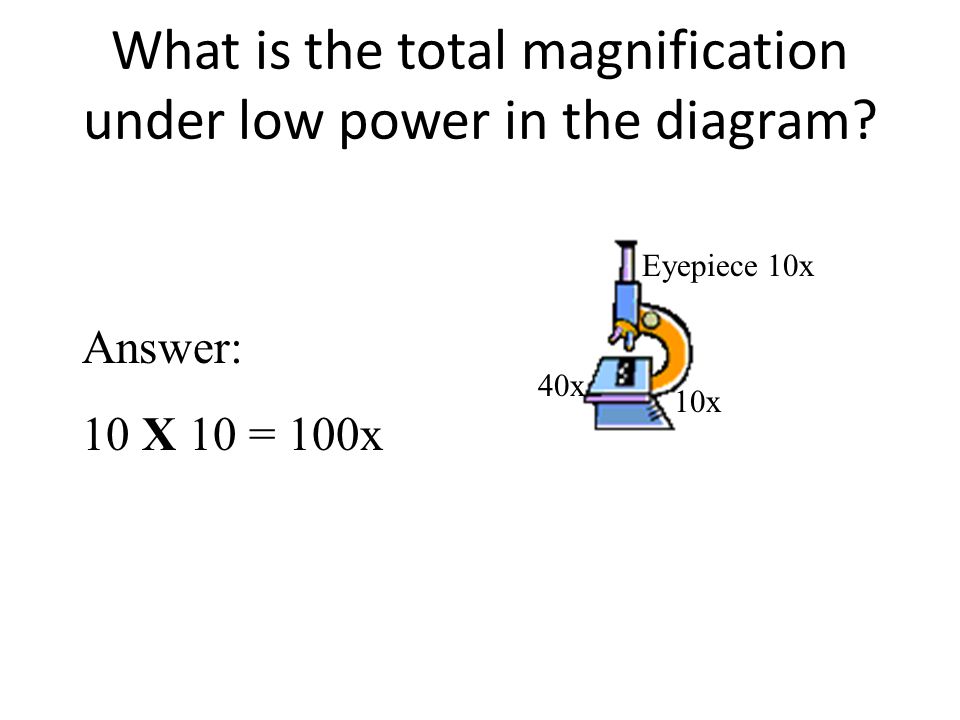

11 What is the total magnification under low power in the diagram? Eyepiece 10x 40x 10x Answer: 10 X 10 = 100x

12 Electron Microscope A major breakthrough because they can magnify 250,000 x’s Shows much more detail than compound light microscopes Shows great detail of inner structures Ex) The inside of mitochondria in a cell!

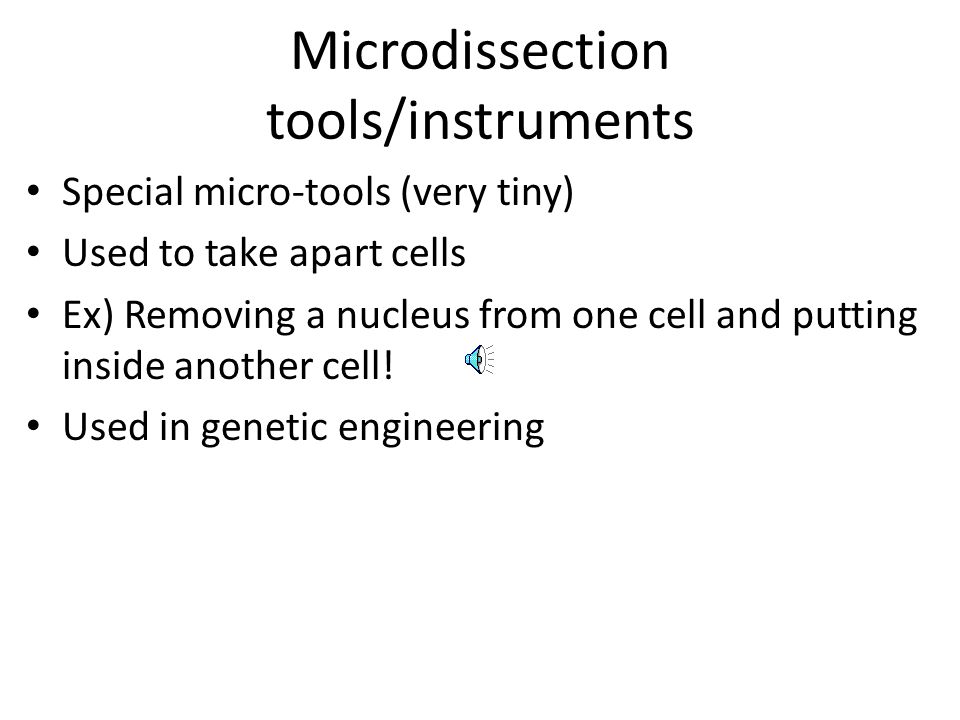

13 Microdissection tools/instruments Special micro-tools (very tiny) Used to take apart cells Ex) Removing a nucleus from one cell and putting inside another cell! Used in genetic engineering

14 Use of Staining Staining allows for cell parts to be seen The nucleus for example becomes more visible under the microscope when a stain is used Iodine is often used to stain cells

15 Centrifuge (Ultracentrifuge) Spins at high speeds to separate substances by density Heavier particles end up in the bottom of the test tube

16 Chromatography Separates colors Chromatography paper is used Ex) Plant pigments can be separated using chromatography

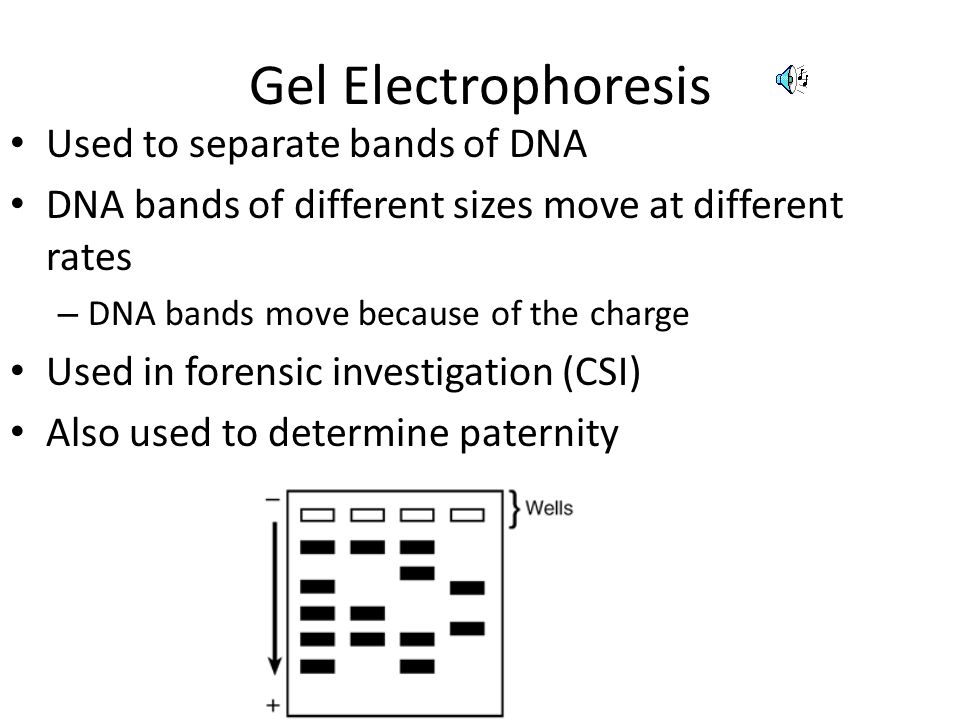

17 Gel Electrophoresis Used to separate bands of DNA DNA bands of different sizes move at different rates – DNA bands move because of the charge Used in forensic investigation (CSI) Also used to determine paternity

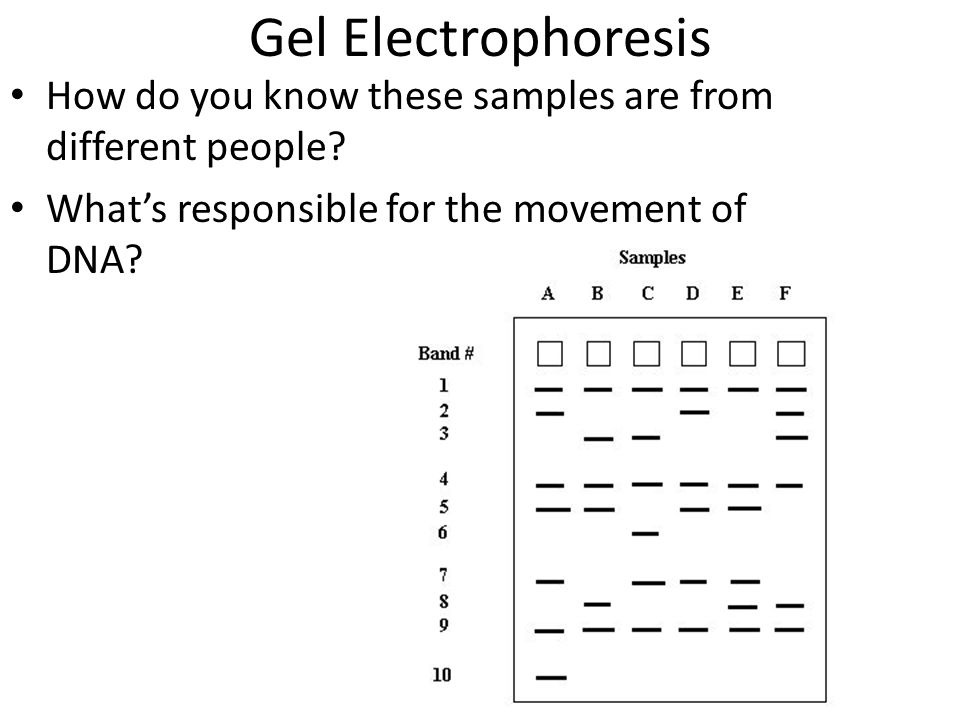

18 Gel Electrophoresis How do you know these samples are from different people? What’s responsible for the movement of DNA?

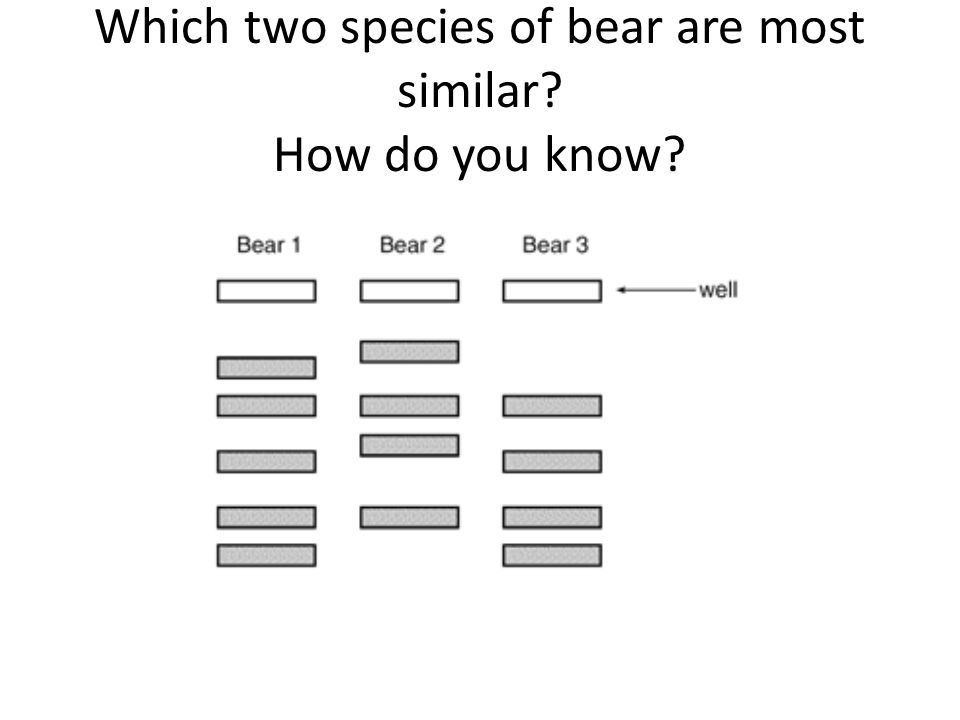

19 Which two species of bear are most similar? How do you know?

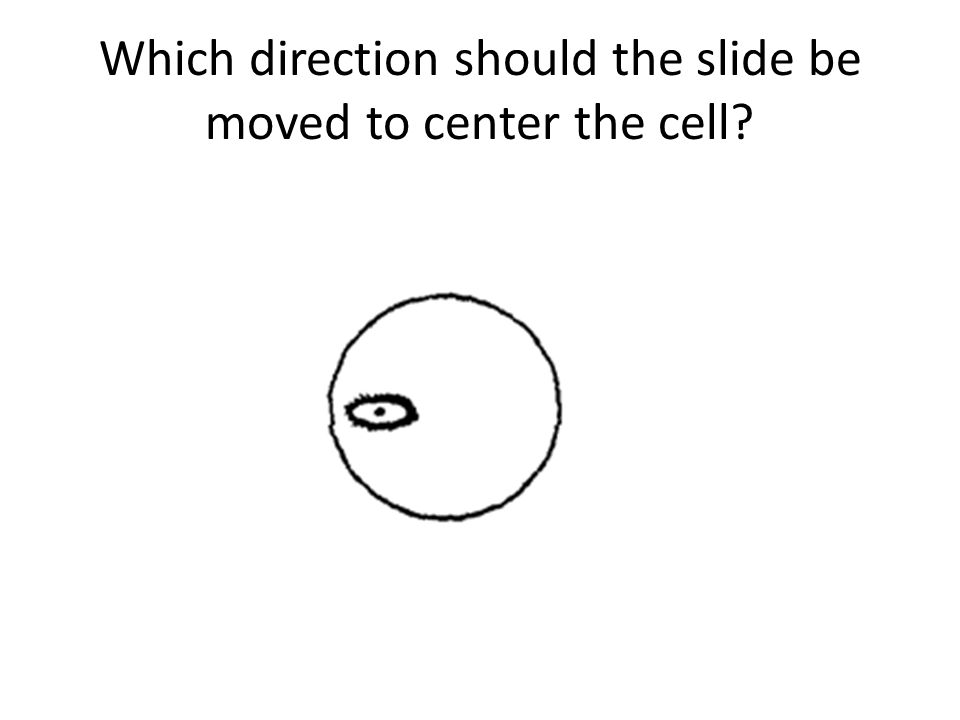

20 Which direction should the slide be moved to center the cell?

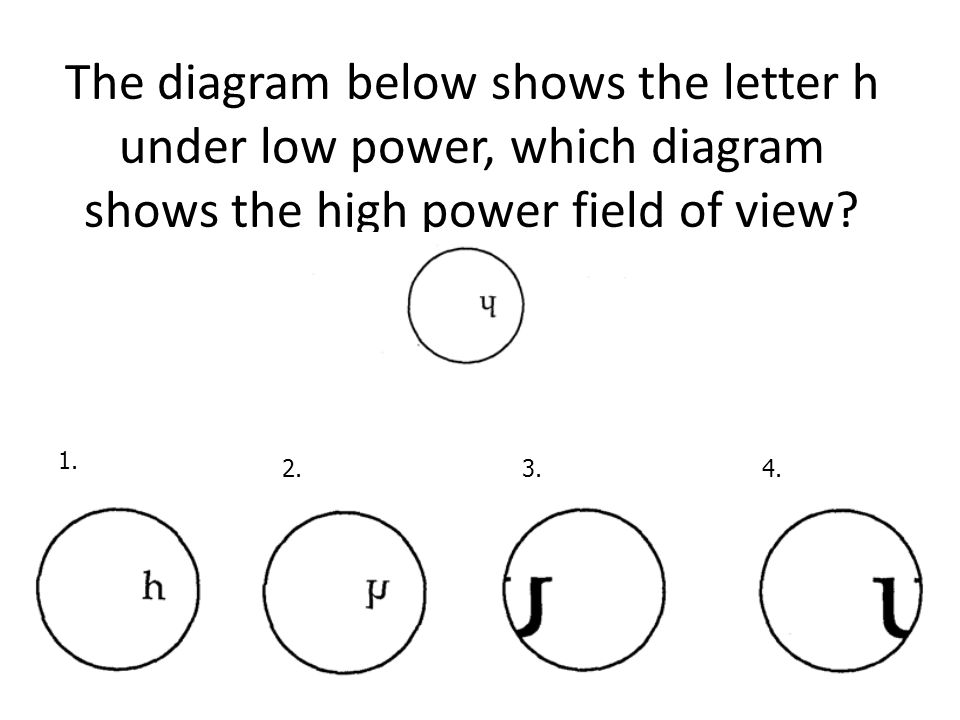

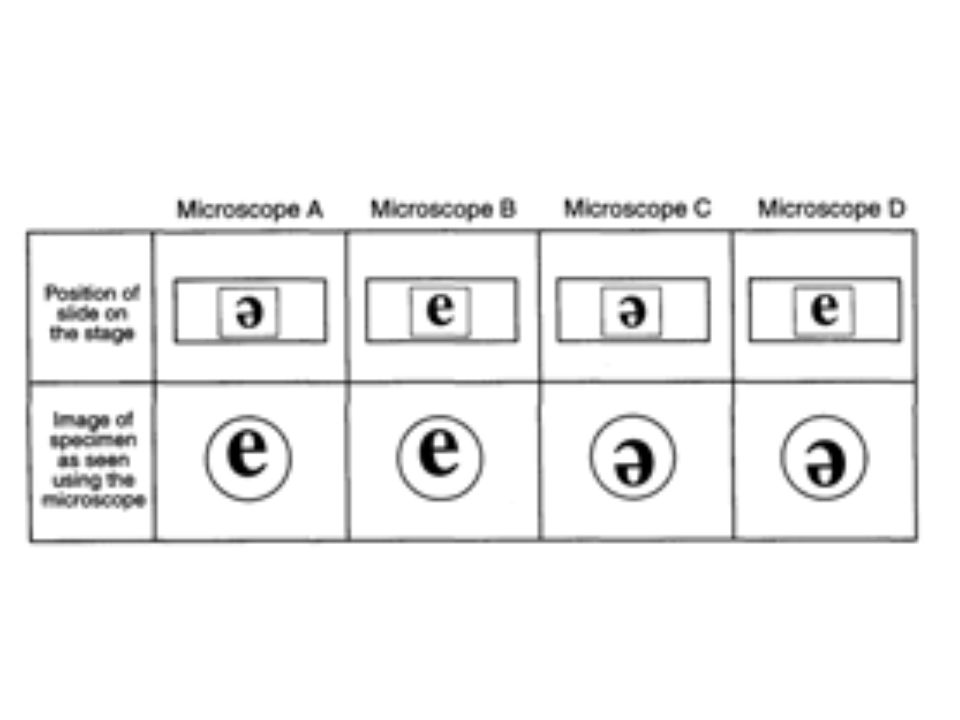

21 The diagram below shows the letter h under low power, which diagram shows the high power field of view? 1. 2.3.4.

22 How many micrometers in diameter does each cell measure?

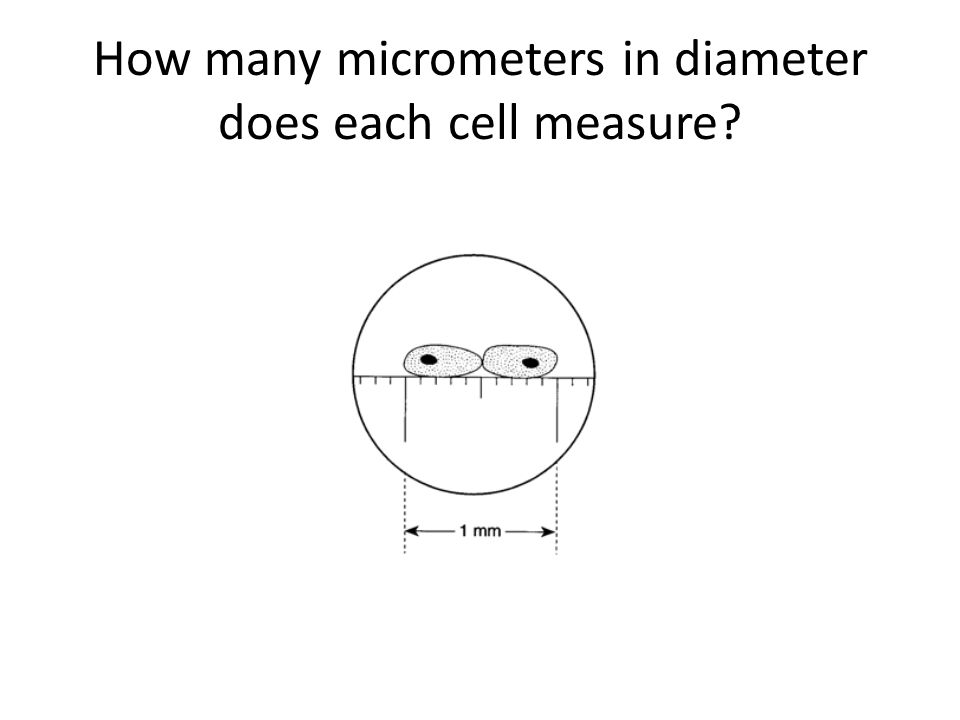

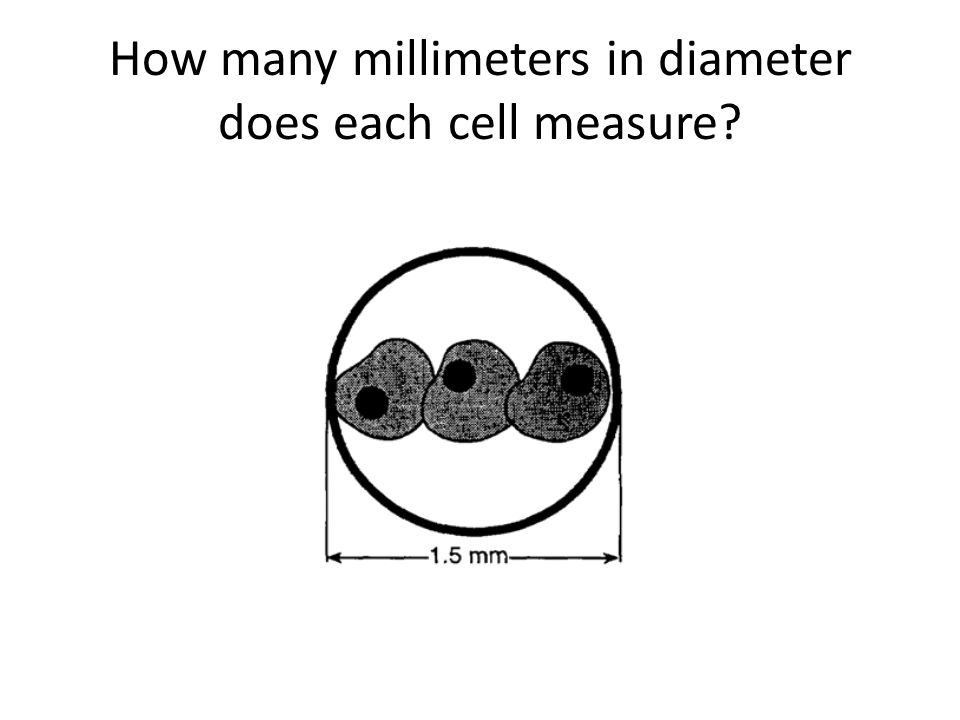

23 How many millimeters in diameter does each cell measure?

24

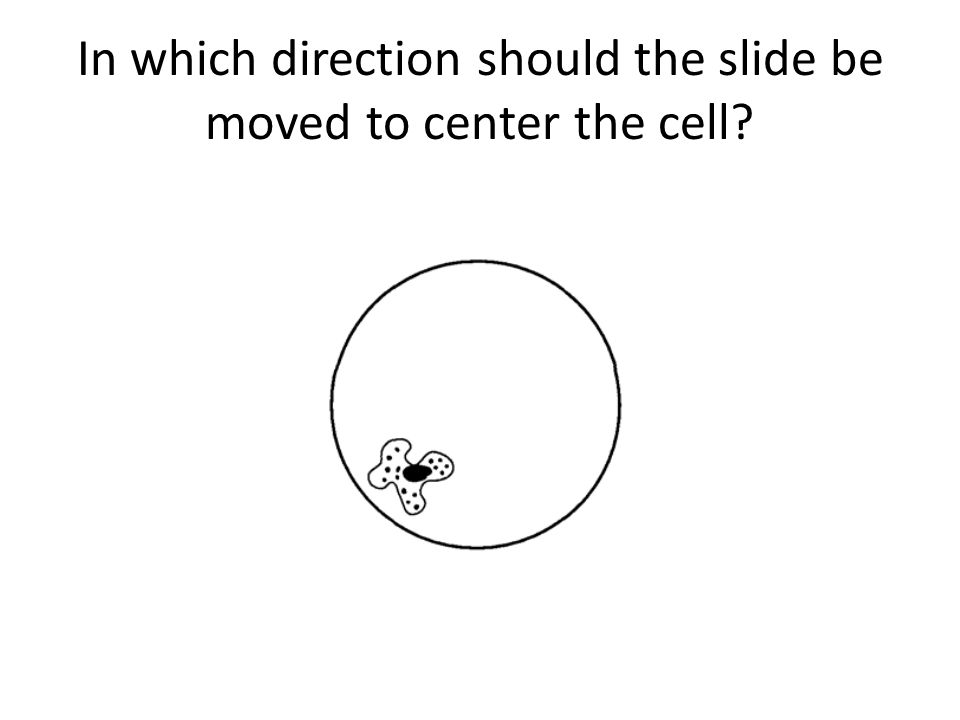

25 In which direction should the slide be moved to center the cell?

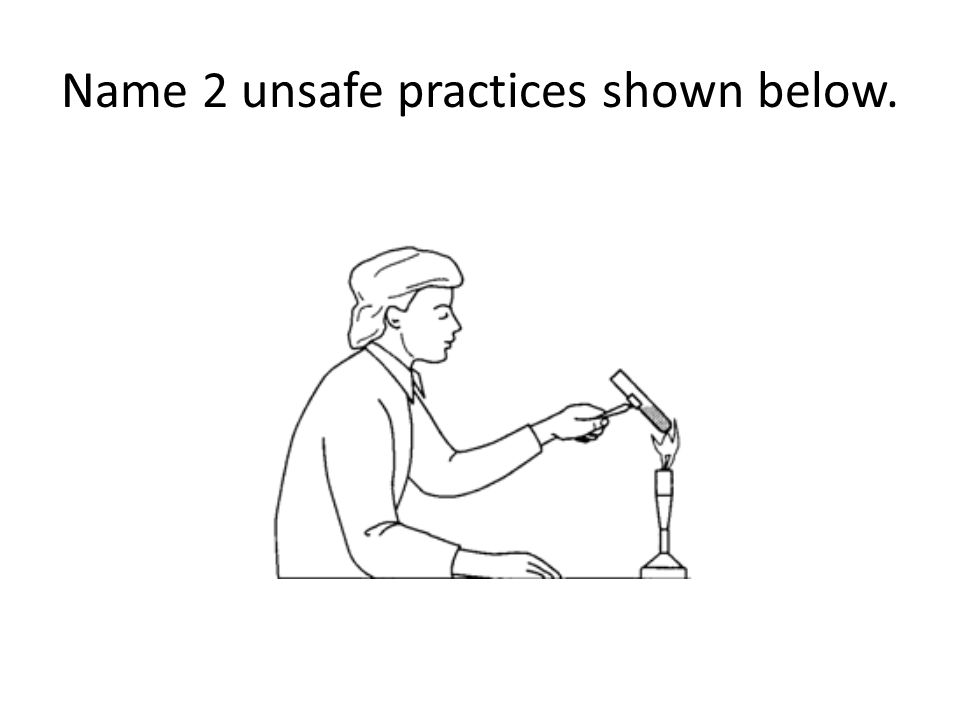

26 Name 2 unsafe practices shown below.

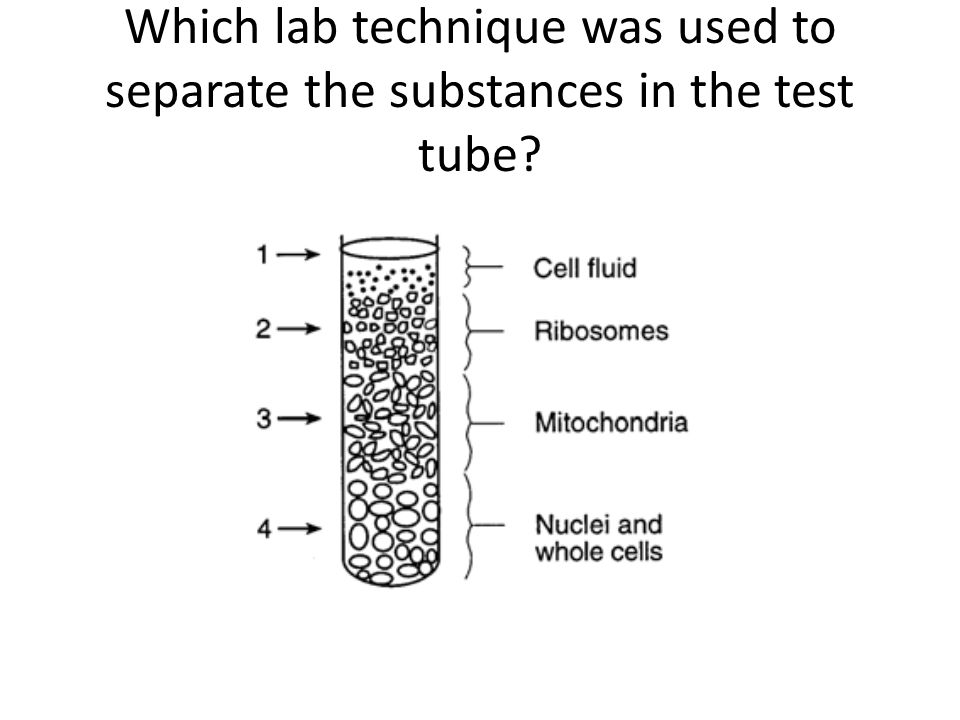

27 Which lab technique was used to separate the substances in the test tube?


Download ppt "Scientific Tools & Techniques Compound Light Microscope Uses light Image appears upside down and backwards Under Low Power field of view is larger (4."
