2. Advantages of using R.PC.R Software Now that you know some of the advantage let’s take a look at the software … Reliable and Comprehensive Reporting Recording of cycle information to any PC on your network Convenient access to graphs and tables Easily generate PDF reports No need to file printouts, saving you time Data can be accessed when autoclaves are offline Real-Time Remote Monitoring (Bacsoft) See the real-time autoclave display on your PC Monitor all activity for up to 8 autoclaves

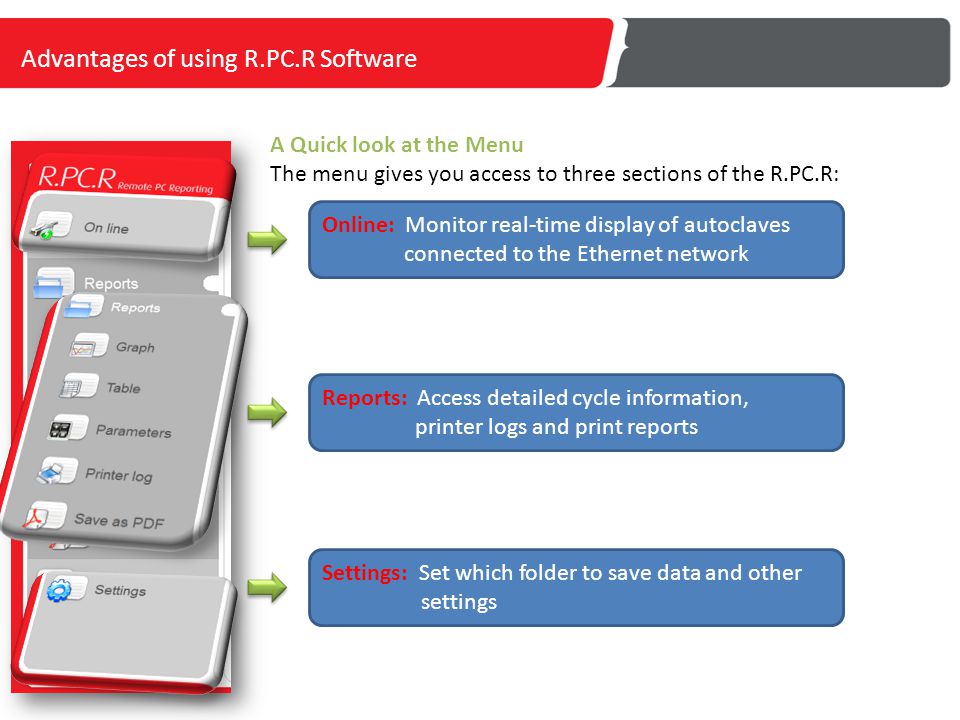

3. Advantages of using R.PC.R Software A Quick look at the Menu The menu gives you access to three sections of the R.PC.R: Online: Monitor real-time display of autoclaves connected to the Ethernet network Reports: Access detailed cycle information, printer logs and print reports Settings: Set which folder to save data and other settings

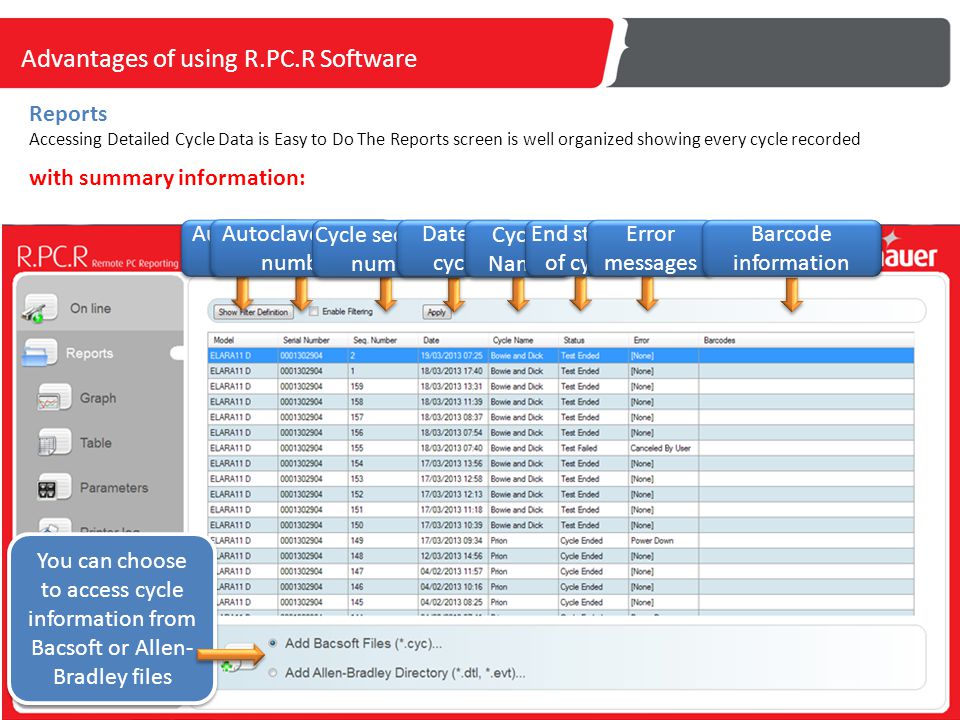

4. Reports Accessing Detailed Cycle Data is Easy to Do The Reports screen is well organized showing every cycle recorded with summary information: You can choose to access cycle information from Bacsoft or Allen- Bradley files Autoclave Model Autoclave Serial number Cycle sequence number Date of cycle Cycle Name End status of cycle Error messages Barcode information Advantages of using R.PC.R Software

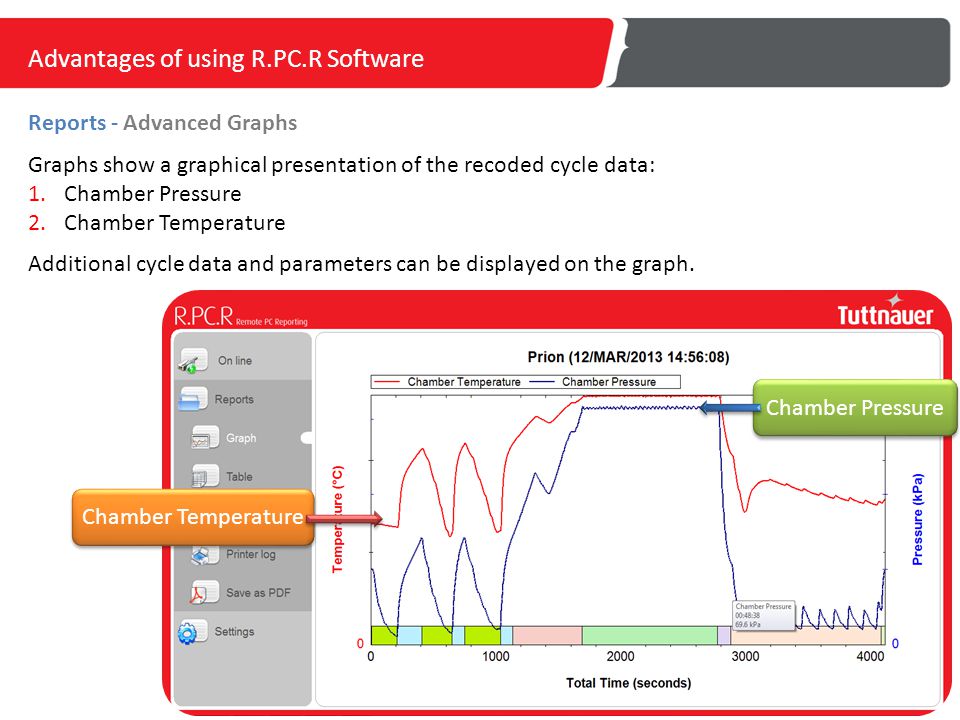

5. Reports - Advanced Graphs Graphs show a graphical presentation of the recoded cycle data: 1.Chamber Pressure 2.Chamber Temperature Additional cycle data and parameters can be displayed on the graph. Chamber Pressure Chamber Temperature

6. Advantages of using R.PC.R Software Reports - Advanced Graph Options When clicking the graph legend a window appears where you can select information to show on the graph, including: Analog inputs, and Digital input & outputs

7. Advantages of using R.PC.R Software Reports - Advanced Graphs Horizontal Line The Vertical line displays all parameter values recorded at a specific point of time, as well as the cycle stage (like sterilization stage) and the time the values were recorded (e.g. 31 minutes into the cycle).

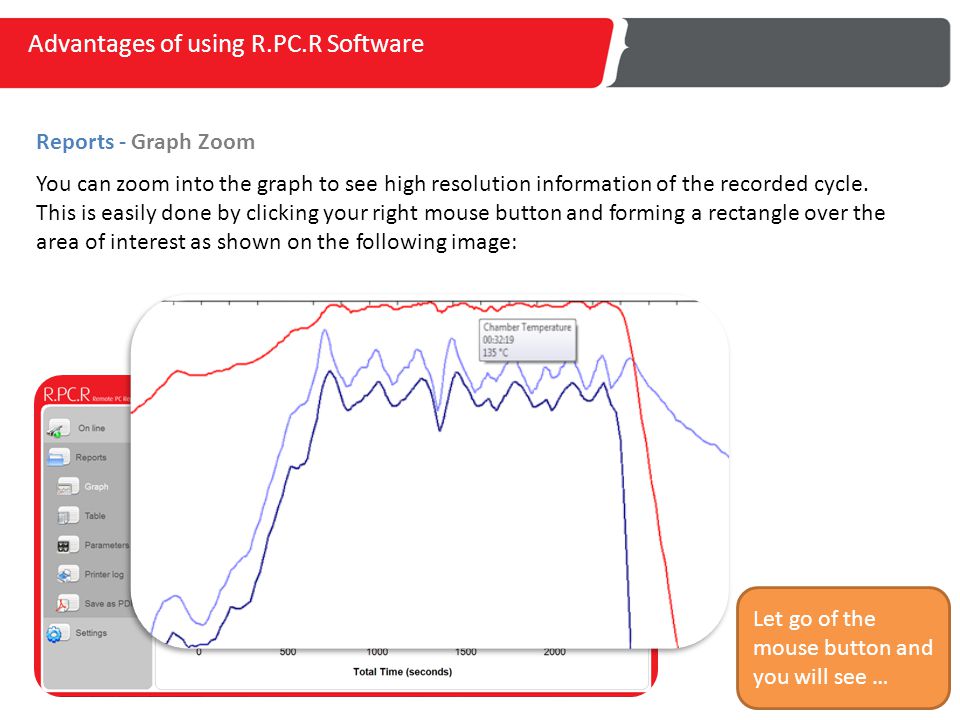

8. Advantages of using R.PC.R Software Reports - Graph Zoom You can zoom into the graph to see high resolution information of the recorded cycle. This is easily done by clicking your right mouse button and forming a rectangle over the area of interest as shown on the following image: Let go of the mouse button and you will see …

9. Advantages of using R.PC.R Software Reports - Graph Zoom In zoom mode the specific values of each graph point are shown if you move your mouse pointer onto a graph line.

10. Advantages of using R.PC.R Software Reports - Tables Tables show the numerical data recorded for each cycle: Time Stage Chamber temperature Chamber Pressure Generator Pressure

11. Advantages of using R.PC.R Software Reports - Parameters Parameters show the settings for various program cycle parameters: Parameter Name Current Value Current Value Max Value Min Value Default value Who changed a parameter and when Stage when the parameter is used

12. Advantages of using R.PC.R Software Reports - Printer Log The printer log shows the identical text printed on paper at the end of a cycle. This can be copied to a file or reprinted.

13. Advantages of using R.PC.R Software Reports - Save as PDF Make PDFs of Graphs, Printer Logs and Parameters Tables. - Add comments to the PDF files - Select where to save the PDF files

14. Advantages of using R.PC.R Software Online Monitoring (Bacsoft) Up to 8 autoclave connected to the Ethernet can be monitor simultaneously with R.PC.R software. The autoclaves displays are shown on the screen and updated in real-time. A user can connect to an autoclave either by specifying its IP address or using the Auto Search feature.

15. Your sterilization and infectioncontrol partners Thank You RPCR P. 26.5.13
