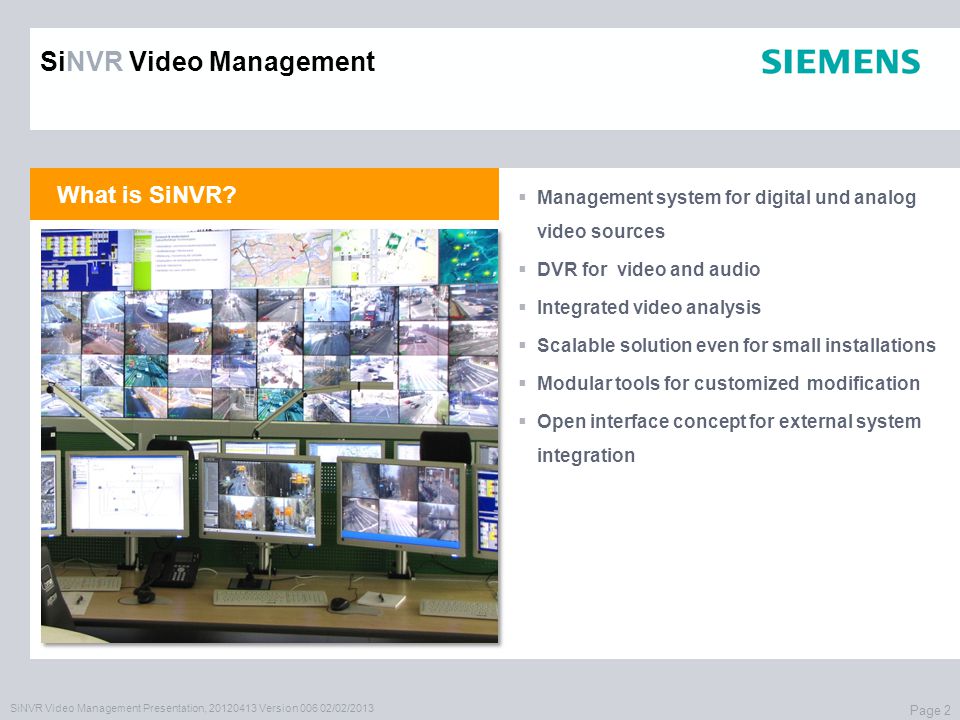

2. SiNVR Video Management Presentation, 20120413 Version 006 02/02/2013 Page 2  Management system for digital und analog video sources  DVR for video and audio  Integrated video analysis  Scalable solution even for small installations  Modular tools for customized modification  Open interface concept for external system integration What is SiNVR? SiNVR Video Management

3. SiNVR Video Management Presentation, 20120413 Version 006 02/02/2013 Page 3 Philosophy  SiNVR is based on standards  SiNVR patches seamlessly into IT-structures  SiNVR offers open interfaces for external systems  SiNVR is a client/server structure without a central pedency  SiNVR connects the world of analogue and digital video  SiNVR integrates facility and security technology  SiNVR offers optimized processes for large installation SiNVR Video Management

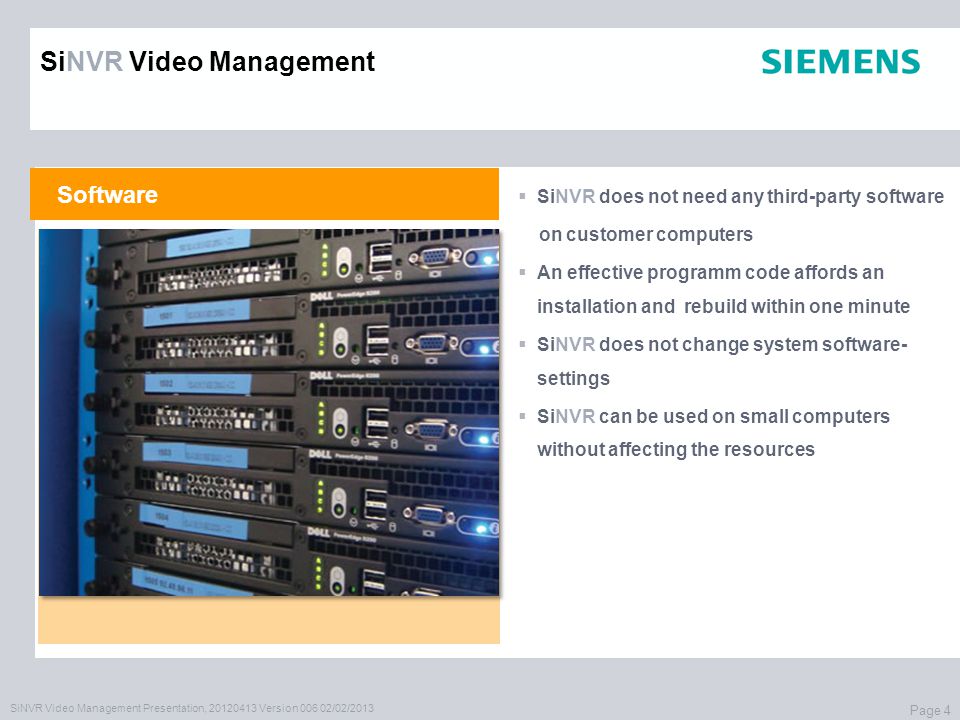

4. SiNVR Video Management Presentation, 20120413 Version 006 02/02/2013 Page 4 Software  SiNVR does not need any third-party software on customer computers  An effective programm code affords an installation and rebuild within one minute  SiNVR does not change system software- settings  SiNVR can be used on small computers without affecting the resources SiNVR Video Management

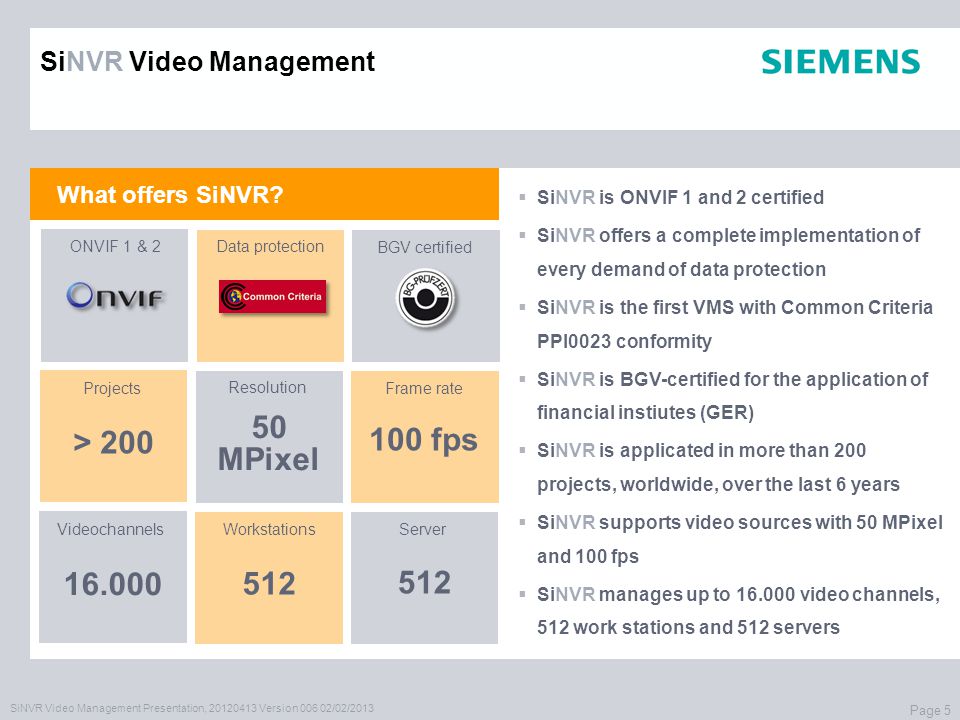

5. SiNVR Video Management Presentation, 20120413 Version 006 02/02/2013 Page 5 What offers SiNVR?  SiNVR is ONVIF 1 and 2 certified  SiNVR offers a complete implementation of every demand of data protection  SiNVR is the first VMS with Common Criteria PPI0023 conformity  SiNVR is BGV-certified for the application of financial instiutes (GER)  SiNVR is applicated in more than 200 projects, worldwide, over the last 6 years  SiNVR supports video sources with 50 MPixel and 100 fps  SiNVR manages up to 16.000 video channels, 512 work stations and 512 servers Projects Resolution Frame rate > 200 Videochannels Workstations ONVIF 1 & 2 Data protection BGV certified Server 16.000 512 SiNVR Video Management 50 MPixel 100 fps

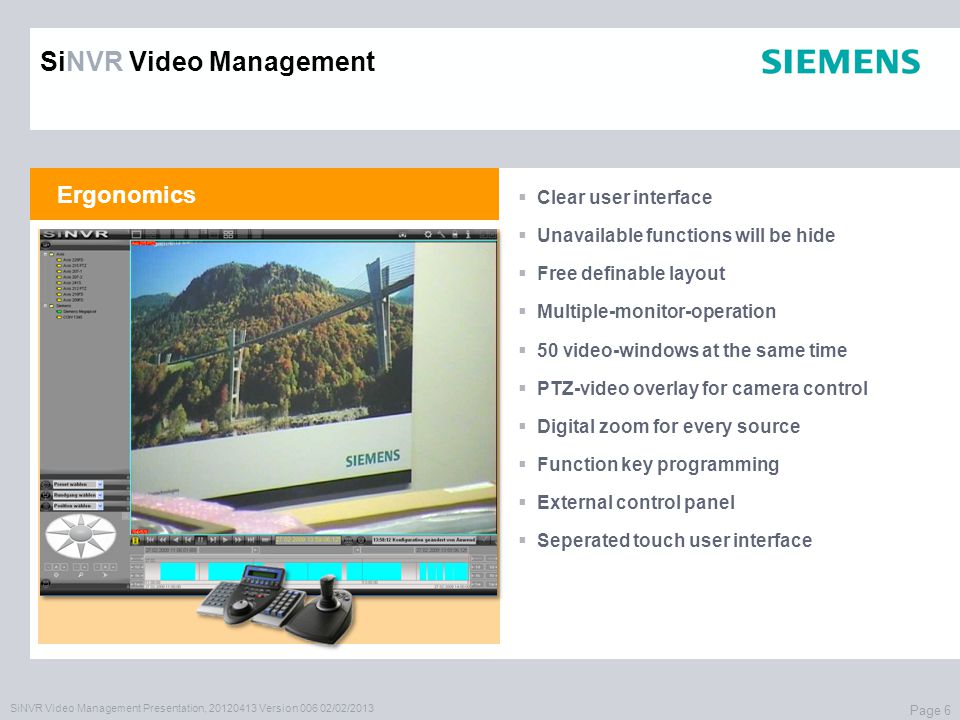

6. SiNVR Video Management Presentation, 20120413 Version 006 02/02/2013 Page 6 Ergonomics  Clear user interface  Unavailable functions will be hide  Free definable layout  Multiple-monitor-operation  50 video-windows at the same time  PTZ-video overlay for camera control  Digital zoom for every source  Function key programming  External control panel  Seperated touch user interface SiNVR Video Management

7. SiNVR Video Management Presentation, 20120413 Version 006 02/02/2013 Page 7 Video interface  Interface to more than 400 digitale videosystems of every significant producer  ONVIF version 1 and 2  Integrated encoder for NTSC/PAL and HD-SDI  Integration of digital video recorder  Remote-PC screen as video source  Decoder for analog conversion  Video wall and video matrix control  Analogue PTZ-protocol  Video format MJPEG, MPEG-4 and H.264  Audio support for AAC, G.711, G.726 and MPEG-Audio IP-Cameras IP-EncoderIP-Decoder DVRs Video matrix HD-SDI Encoder Video walls Analogue-PTZ Remote PCs SiNVR Video Management

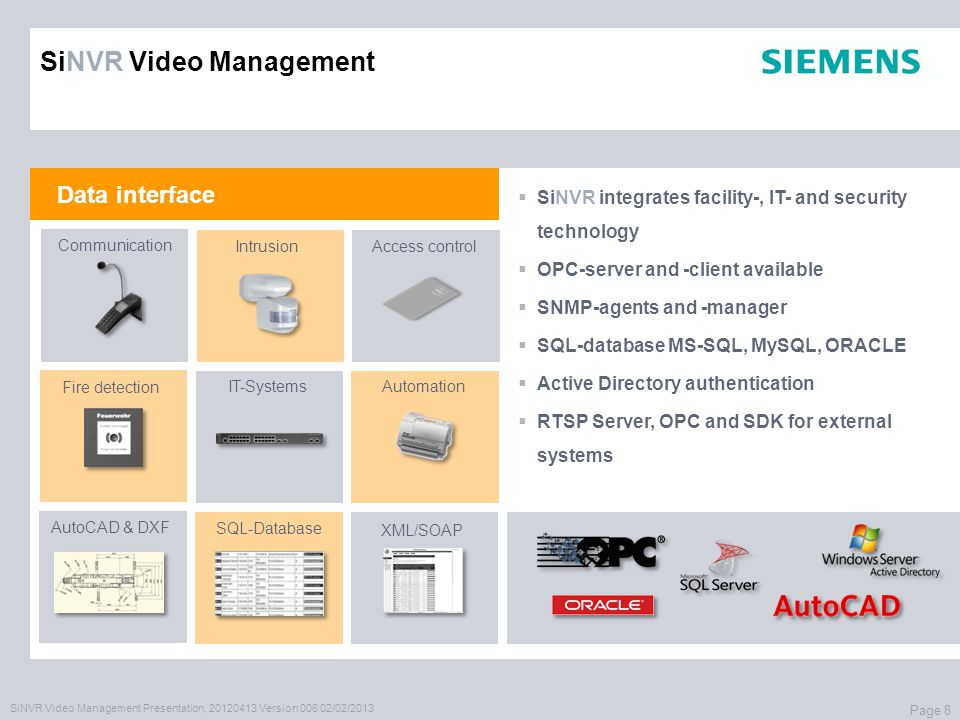

8. SiNVR Video Management Presentation, 20120413 Version 006 02/02/2013 Page 8 Data interface  SiNVR integrates facility-, IT- and security technology  OPC-server and -client available  SNMP-agents and -manager  SQL-database MS-SQL, MySQL, ORACLE  Active Directory authentication  RTSP Server, OPC and SDK for external systems Communication IntrusionAccess control Fire detection IT-Systems AutoCAD & DXF SQL-Database Automation XML/SOAP SiNVR Video Management

9. SiNVR Video Management Presentation, 20120413 Version 006 02/02/2013 Page 9 Integration into the IT world  SiNVR patches seamlessly into IT-world  Operating system Windows from XP 32/64 Bit to Server 2008  Servers available for Linux and MacOS  Virtual environments are supported  Hardened operating system Windows 7 Embedded avoid updates and virus protection  SQL-database selectable by customer  SNMP monitores network compenents  SNMP-agents provides every status  Integrated hard disk monitoring for temperature and defect sectors SiNVR Video Management

10. SiNVR Video Management Presentation, 20120413 Version 006 02/02/2013 Page 10 Components SiNVR Video Management  SiNVR is a modular management system  Components build an individual customer solution  All systems communicate via documented standard interfaces  Interface server communicates with the outside world  Additional Services, such as cloud- and forensic server complete this solution Video server WorkstationsVideo walls Touch-PCs WEB-Clients Interfaces Video analysis Management Services

11. SiNVR Video Management Presentation, 20120413 Version 006 02/02/2013 Page 11 Video server  Collecting video- and audio streams  Storing media data  Monitoring and managing of video sources  Distributing media streams  Controlled transfer to external systems  Encoding of transmissions  Unicast/Multicast conversion  Optional with 32 analogue encoders per server  64 channels, multiple in virtual enviroments  Dual-streaming support  Archiving on internal disks, SAN, NAS  Archiving with up to 16 TBytes per channel XXXX SiNVR Server SiNVR Video Management scrambling convert control archive

12. SiNVR Video Management Presentation, 20120413 Version 006 02/02/2013 Page 12 SiNVR DVR 32/64  Digital Hybrid recorder with up to 32 analogue and 32 digital video inputs  800 frames/second with 4 CIF for analog inputs (32 x 25 fps)  FBAS/NTSC und optional HD-SDI inputs  Individual MJPEG/MPEG-4/H.264 encoding  Full integration into SiNVR management  Economic encoder for digitalisation of analogue technologies XXXX SiNVR DVR SiNVR Video Management 32 x Analogue 32 x Digital

13. SiNVR Video Management Presentation, 20120413 Version 006 02/02/2013 Page 13 High availability  SiNVR offers flexible backup-strategies  In a 1:1 redundancy main- and backupserver are in operation  Video streams from backup can be deliverd by mainserver  In a N:M redundancy backupserver is in standby-mode  Via 1:1 redundancy also load balancing  A mixed operation of 1:1 and N:M is possible  Time of redirect is less than 10 seconds  Additional emergency operation with direct access to sources is possible SiNVR Video Management Mainserver Backupserver Mainserver Backupserver 1:1 redundancy N:M redundancy

14. SiNVR Video Management Presentation, 20120413 Version 006 02/02/2013 Page 14 Work stations  SiNVR work stations support multiple- displays  Notification management, graphical display, layout drawning and GIS-Client available SiNVR Video Management Main screen Secondary screen Graphic displayGIS/Site plans

15. SiNVR Video Management Presentation, 20120413 Version 006 02/02/2013 Page 15 Touch- and web clients  SiNVR offers optional work stations for touch-application and WEB-Browser SiNVR Video Management

16. SiNVR Video Management Presentation, 20120413 Version 006 02/02/2013 Page 16 Video wall  Video wall contol available on any workstation  Video streams can be dragged to video walls, decoders and work-stations  Interfaces supports AXIS decoders, Barco and Eyevis walls and others SiNVR Video Management

17. SiNVR Video Management Presentation, 20120413 Version 006 02/02/2013 Page 17 Message management  Integrated message and alert management based on SQL database  Secured XML-transmission without driver installation on Client  Access via user-defined queries  Direct request of recoded event records  Acknowledging and commenting of alerts  Compilation of play-back-layouts for multiple monitoring as a live- and archive-display SiNVR Video Management Video system Third party Interfaces Card numbers Scanner data Video analysis States Events Alerts Alarmes States Events Alerts Alarmes

18. SiNVR Video Management Presentation, 20120413 Version 006 02/02/2013 Page 18 Management server  Central monitoring of every component  Directory service for configuration-backup and user data  PTZ-prioritization  User management with Active Directory  Common Criteria user logging  Central status database  Update management  Archive of installation for servers and clients  Interface to external system and data-sources  Fail-proof due to data redundancy of server and work-stations SiNVR Video Management XXXX Management Monitoring Rights management Backup services PTZ-Verwaltung Database Video system Third party

19. SiNVR Video Management Presentation, 20120413 Version 006 02/02/2013 Page 19 Communication server  Scalable high-performance data server  Integration of every technical system  Processing up to 100000 data points with cycles < 1 ms  Processing of every data-type  OPC- and SOAP-interface  Seamless access to video system  Interface to external system SiNVR Video Management XXXX Communication Monitoring Control Rule engine Calculation Video system Interfaces Thrird party

20. SiNVR Video Management Presentation, 20120413 Version 006 02/02/2013 Page 20 EU Common Criteria Protection Profile  SiNVR is Common Criteria PPI0023 conformant SiNVR Video Management User Inquiry Export Revisor Inquiry Delete sequences Workstations Administrator System set up Maintenance Sequence-Export Authentification & Encryption Integrity check Encryption Video server Protocol server User action protocolFailure protocol Hardened OS Authentic video signals Video sources

21. SiNVR Video Management Presentation, 20120413 Version 006 02/02/2013 Page 21 Privacy protection  SiNVR offers pixelated and hide function of picture content  Protection of privacy in public and private sectors  The function is useable within every video source and user account dependent SiNVR Video Management

22. SiNVR Video Management Presentation, 20120413 Version 006 02/02/2013 Page 22 Large project set up and maintanance  The complete configuration of video sources can be maintained via MS Excel™  The server holds automatically back ups for system recovery  The server supplies installation-packages for server and client set up  The server controls all clients, server, video sources and hard disks SiNVR Video Management Management Clients Servers Services

23. SiNVR Video Management Presentation, 20120413 Version 006 02/02/2013 Page 23 Site plans  SiNVR can directly read and display AutoCAD™ and DXF™ -files  The site plan can be zoomed and scrolled  Layers can be individually hided  Dynamic elements are overlayed automatically  The site map can be directly allocated from the CAD-system to the VMS-work-stations  The function offers a fast and exact construction of dynamical layout plans SiNVR Video Management Kamera 1010

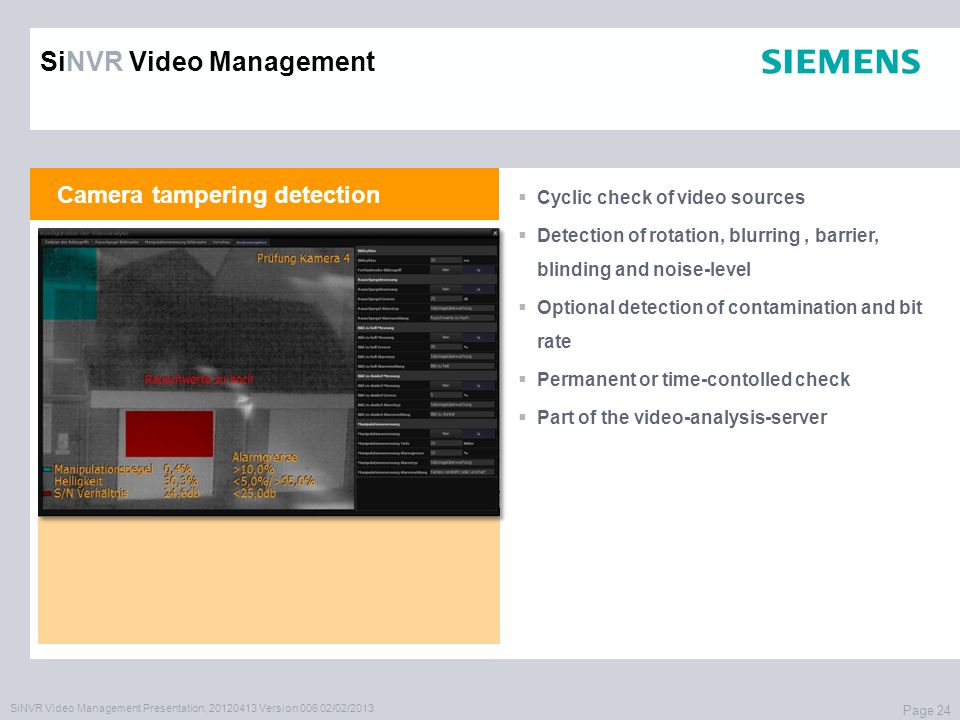

24. SiNVR Video Management Presentation, 20120413 Version 006 02/02/2013 Page 24 Camera tampering detection  Cyclic check of video sources  Detection of rotation, blurring, barrier, blinding and noise-level  Optional detection of contamination and bit rate  Permanent or time-contolled check  Part of the video-analysis-server SiNVR Video Management

25. SiNVR Video Management Presentation, 20120413 Version 006 02/02/2013 Page 25 Video analysis  SiNVR video analysis occurs on the video- server or seperate systems  Camera tampering detection  Smoke detection  Parking-area-management  Motion analysis  License plate recognition  Object lost and found algorithm  Seamless integration of Siemens Siveillance and third-party analysis such as Aimetis, Bosch, iOmniscient, Viasys SiNVR Video Management

26. SiNVR Video Management Presentation, 20120413 Version 006 02/02/2013 Page 26 Video forensics  Storage of video analysis meta-data on seperated server  Search and playback of any event SiNVR Video Management

27. SiNVR Video Management Presentation, 20120413 Version 006 02/02/2013 Page 27 SiNVR Command PSIM version of SiNVR Additional functionalities  Native AutoCAD-Client  GIS-Client for GEO-Daten  Automatic grafic layout  Forensic client  Extended message management  Dynamic message commentaries  Individual acknowledgement requests SiNVR Video Management

28. SiNVR Video Management Presentation, 20120413 Version 006 02/02/2013 Page 28 Typical system configuration SiNVR Video Management Workstations Video server 1 Video sources Video server-backup 1 Videoserver N Video sources Video server-backup N Communication server Management server Access control Communication I/O … Users Third party systems Max 512 video servers Max 64 video sources per Server Max 512 workstations Redundancy al cluster Storage on location/central

29. SiNVR Video Management Presentation, 20120413 Version 006 02/02/2013 Page 29 SiNVR key features  400 video-interfaces, ONVIF, DVRs, audio, analogue technology, HD-SDI and encoder  Integration of facility-, security-, communications- and information technology  Seamless integration to third party systems  Ergonomically and high effectively Software  Integrates video analysis and forensics, automatical control of sabotage  Flexible Backup strategies  Automatical construcion of layout plan Video interfaces Data interfacesSystem integration Software Data protection Large projects High available Video analysis GIS/Site plans SiNVR Video Management

30. SiNVR Video Management Presentation, 20120413 Version 006 02/02/2013 Page 30 References  More than 200 installations worldwide SiNVR Video Management Bayer Healthcare BLG Car terminals Credit Suisse EON Energy Formula One Course Portugal HDI Insurance Hugger Logistics IBM Zurich IWC Schaffhausen IKEA Ulm Nestlé Singen Police Braunschweig Police Hildesheim City of Frankfurt Swisscom Volkswagen AG Football stadium Bremen
