1 March 2011 Elo TouchSystems Interactive Digital Signage (IDS) Product Family VarTech Miami - 2011

2 August 14, 2015page 2 / Contents Product Overview Features and Specifications Part Numbers Appendix

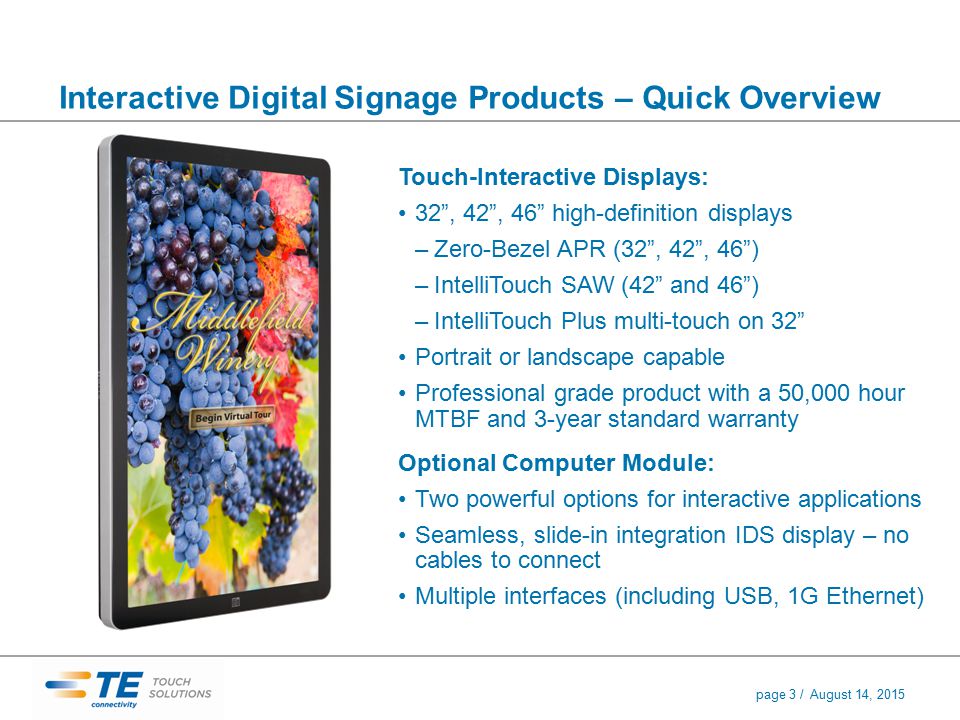

3 August 14, 2015page 3 / Interactive Digital Signage Products – Quick Overview Touch-Interactive Displays: 32”, 42”, 46” high-definition displays –Zero-Bezel APR (32”, 42”, 46”) –IntelliTouch SAW (42” and 46”) –IntelliTouch Plus multi-touch on 32” Portrait or landscape capable Professional grade product with a 50,000 hour MTBF and 3-year standard warranty Optional Computer Module: Two powerful options for interactive applications Seamless, slide-in integration IDS display – no cables to connect Multiple interfaces (including USB, 1G Ethernet)

4 August 14, 2015page 4 / Interactivity Can Drive Significant Enhancements to Digital Signage Messaging Elevate Customer Engagement “Pull” vs. “Push” Content Users can “control” content Deliver Value-added Services Platform for providing information and customer service Ability to transact with users Capture Metrics Tracking user responses to content Real-time feedback Enhanced ability to target messaging

5 August 14, 2015page 5 / Example 1: Advertising-based Interactive Digital Signage “Traditional” Digital SignageInteractive Digital Signage Displays an advertisement Customized by location and time May show other “informative” messages One-way communication Displays an advertisement and additionally may also provide a specific service – hence heightening the public attraction Advertising shown can be influenced by user’s activity = significant increase in relevance = more Return on Marketing Investment ABC Sporting Goods

6 August 14, 2015page 6 / Example 2: Interactive Digital Signage in Retail “Traditional” Digital Signage Interactive Digital Signage Showcase specific products (potentially advertising-model based) Increase brand awareness/ use as tool to communicate brand Communicate promotions/ sales All of the above, plus: Invite customers to browse products/ sizes Suggest complementary products Identify customers using RFID-based loyalty cards to target specific messages = Targeted, engaging messaging = More Sales!

7 August 14, 2015page 7 / A broad range of applications, primarily in Retail and Hospitality industries are driving the growth trend In-Store Self-Service / Entertainment Shopping Malls, Hotels Education

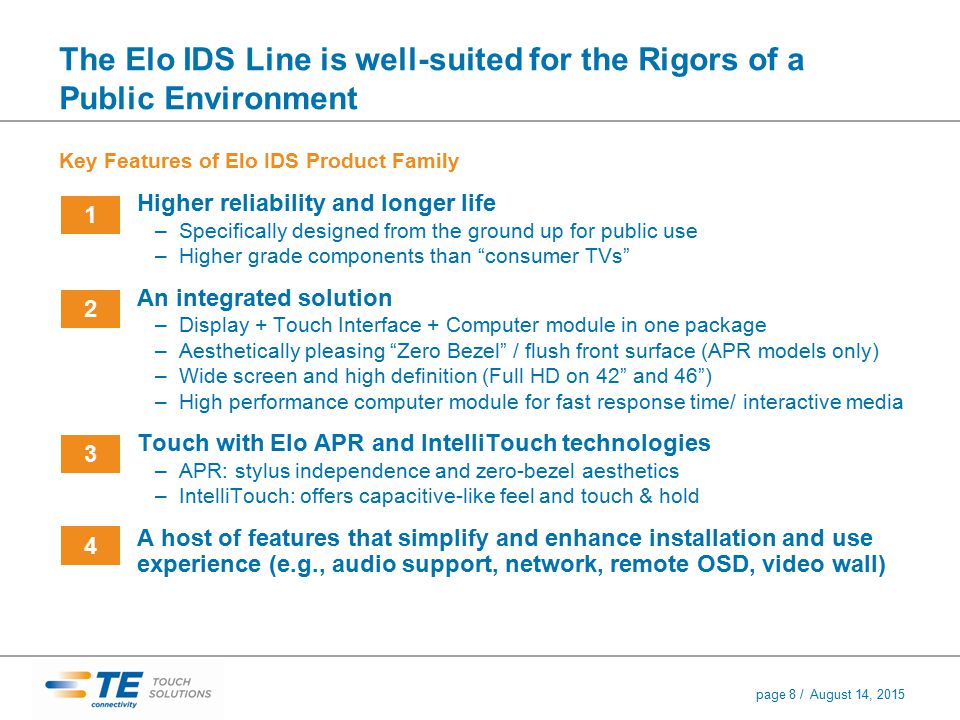

8 August 14, 2015page 8 / The Elo IDS Line is well-suited for the Rigors of a Public Environment Higher reliability and longer life –Specifically designed from the ground up for public use –Higher grade components than “consumer TVs” An integrated solution –Display + Touch Interface + Computer module in one package –Aesthetically pleasing “Zero Bezel” / flush front surface (APR models only) –Wide screen and high definition (Full HD on 42” and 46”) –High performance computer module for fast response time/ interactive media Touch with Elo APR and IntelliTouch technologies –APR: stylus independence and zero-bezel aesthetics –IntelliTouch: offers capacitive-like feel and touch & hold A host of features that simplify and enhance installation and use experience (e.g., audio support, network, remote OSD, video wall) 1 2 3 4 Key Features of Elo IDS Product Family

9 August 14, 2015page 9 / APR vs. IntelliTouch Technology Positioning on IDS: “Two options to meet differing needs and preferences” APRIT Touch Performance Recognizes touch by the sound of finger (or any object) touching the screen Works with any stylus Excellent drag Recent TE innovation, offered on Elo Touch Solutions products only Uses a surface wave pattern on the glass surface Needs a soft stylus Excellent touch and hold TE Touch Solution innovation, market adopted for over 15 years Multi-touch capable for 32” Aesthetics/ Design Available in “Zero-Bezel” fully flat glass front surface, creates an appealing look and an easy to clean surface Available with a bezel. Rest of the monitor design is identical for both APR and IT versions Flexibility Due to the acoustic sensitivity of the touch screen glass, mounting hardware can not mechanically contact the glass Touch screen glass protected inside bezel, no similar mounting restriction Touch Driver requires minimal performance cycles on host CPU

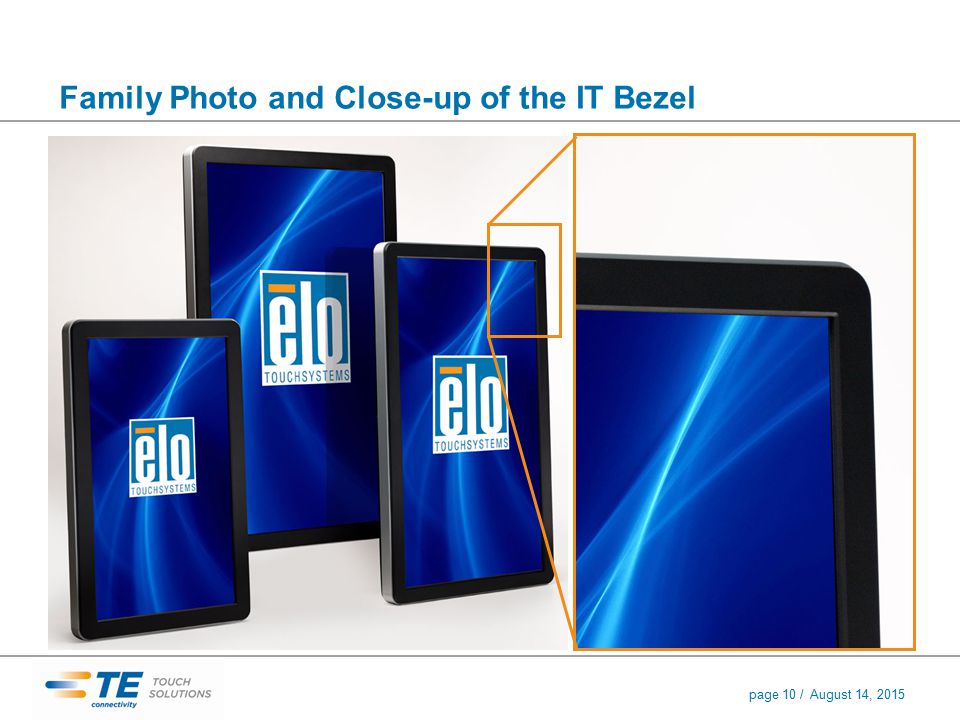

10 August 14, 2015page 10 / Family Photo and Close-up of the IT Bezel

11 August 14, 2015page 11 / Contents Overview Features and Specifications Part Numbers Appendix

12 August 14, 2015page 12 / Feature Summary Zero-Bezel and Integrated Design1 Digital Signage LCD panels vs. TV Panels 2 Monitor Connections 3 Computer Module: Specifications and Installation 4 Speakers 5 Multiple (up to 100) Display Control 6 Mounting: Wall-mount and Optional Stand 7 Portrait Mode and OSD Display Rotation8

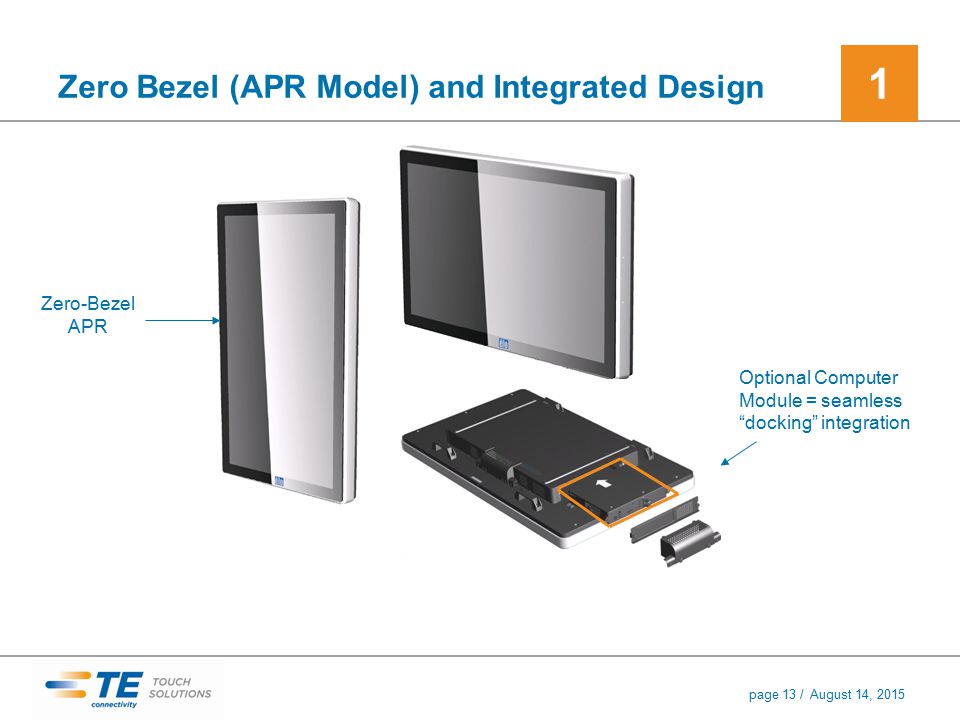

13 August 14, 2015page 13 / Zero Bezel (APR Model) and Integrated Design Optional Computer Module = seamless “docking” integration Zero-Bezel APR 1

14 August 14, 2015page 14 / Digital Signage Panels or Consumer TV panels? Interactive digital signage displays require a level of performance that television panels cannot meet –High reliability –Heavy use –Portrait or landscape mounting –Longer product life – TV panels change every 6 – 8 months –Improved technology is required for Digital Signage WarrantyUsagePortrait ModePrice TV Panel<1 yearLight duty 4 – 8 Hrs /day Not recommended Lower Digital Signage Panel 3 yearsHeavy dutyYesHigher TV panels cannot meet the demands of the digital signage market – Elo products are built with industrial grade Digital Signage panels 2

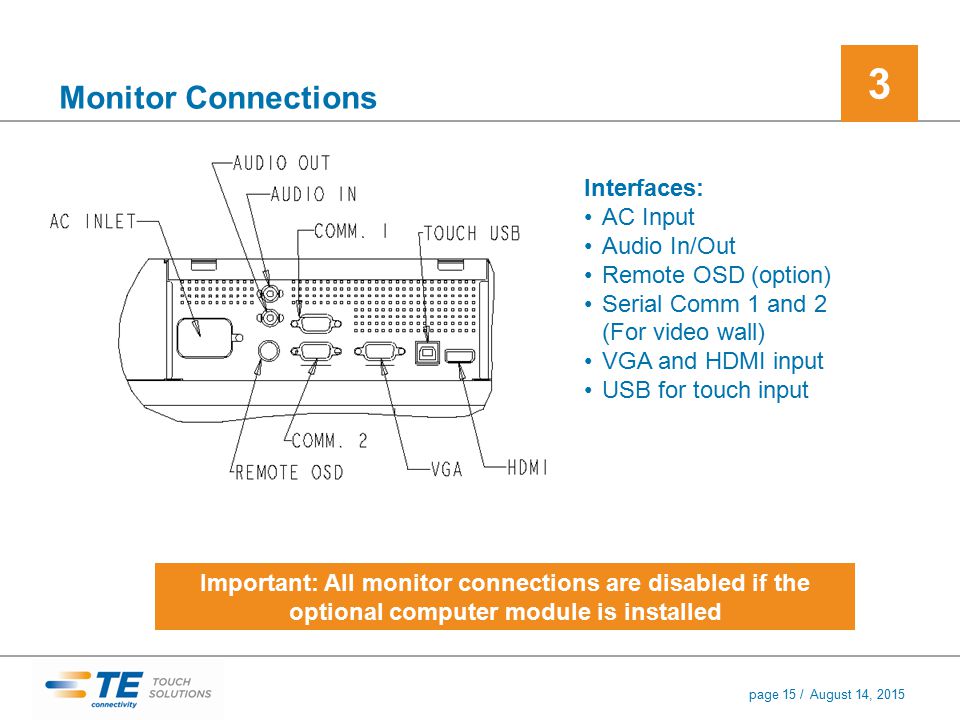

15 August 14, 2015page 15 / Monitor Connections Interfaces: AC Input Audio In/Out Remote OSD (option) Serial Comm 1 and 2 (For video wall) VGA and HDMI input USB for touch input Important: All monitor connections are disabled if the optional computer module is installed 3

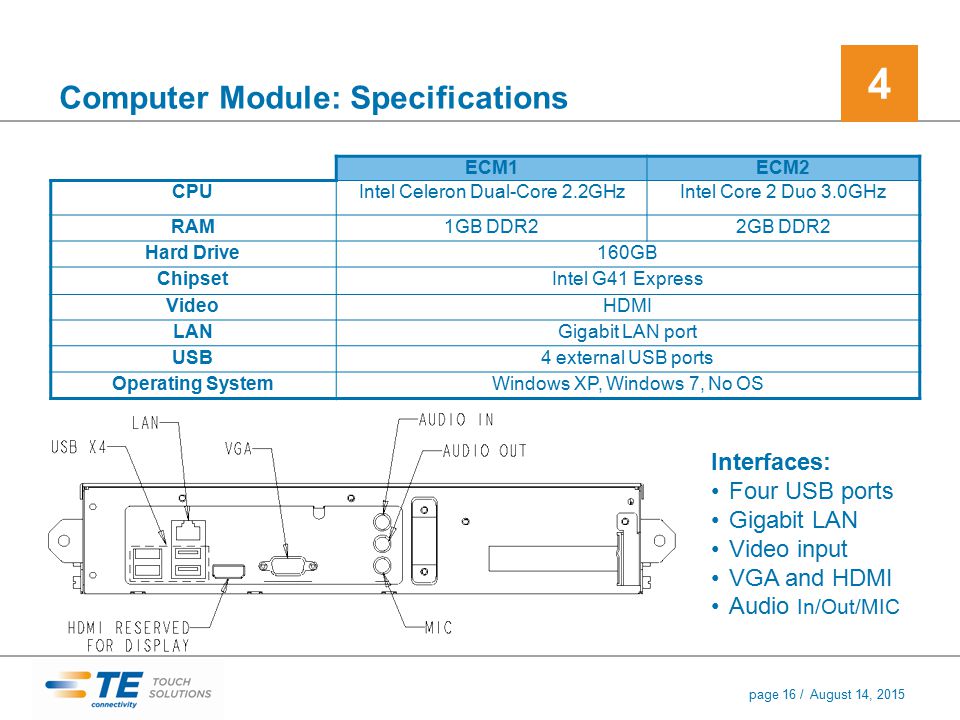

16 August 14, 2015page 16 / Computer Module: Specifications ECM1ECM2 CPUIntel Celeron Dual-Core 2.2GHzIntel Core 2 Duo 3.0GHz RAM1GB DDR22GB DDR2 Hard Drive160GB ChipsetIntel G41 Express VideoHDMI LANGigabit LAN port USB4 external USB ports Operating SystemWindows XP, Windows 7, No OS Interfaces: Four USB ports Gigabit LAN Video input VGA and HDMI Audio In/Out/MIC 4

17 August 14, 2015page 17 / Computer Module: Installation Easily slides in from the side Held in place by two thumb screws Choice of operating system support –No OS –Windows XP –Windows 7 Mounting plate Cable management cover 4

18 August 14, 2015page 18 / Computer Module: Installation Easily slides in from the side Held in place by two thumb screws 4

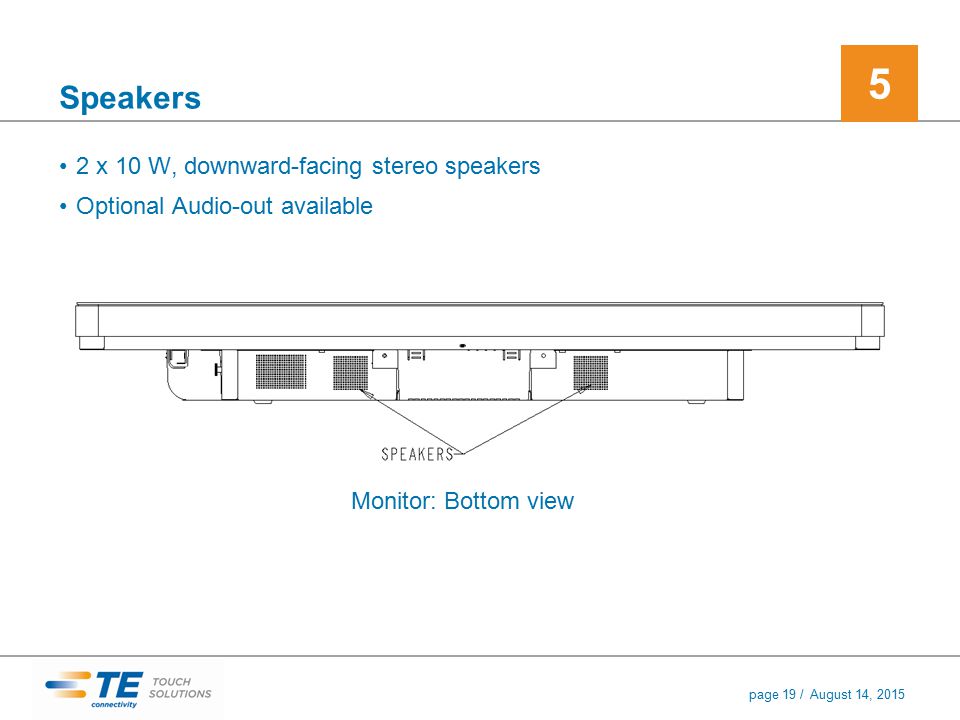

19 August 14, 2015page 19 / Speakers 2 x 10 W, downward-facing stereo speakers Optional Audio-out available Monitor: Bottom view 5

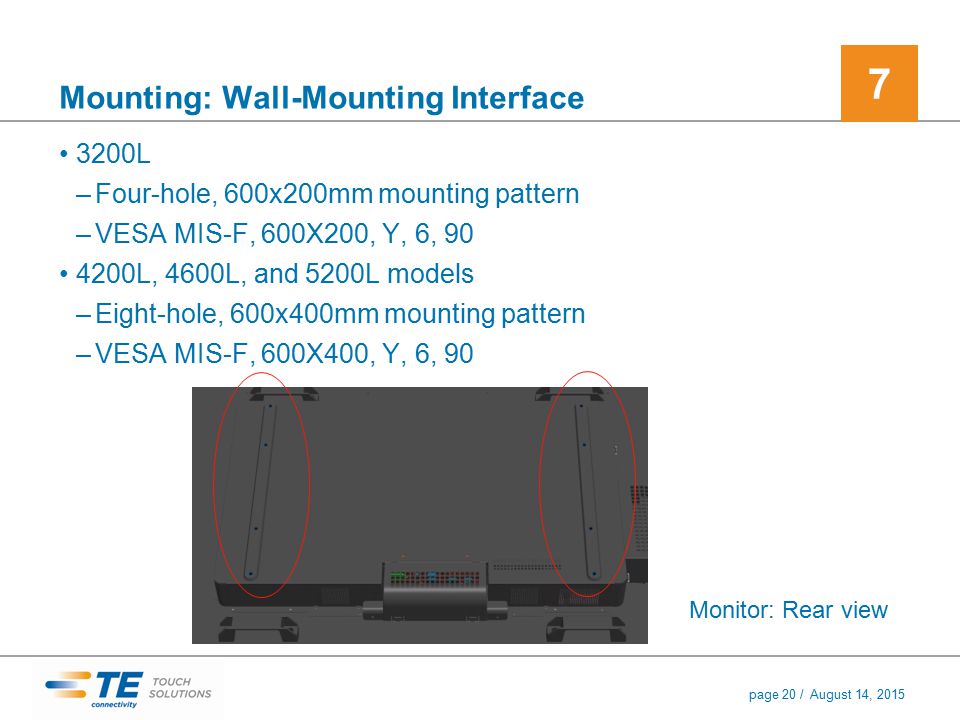

20 August 14, 2015page 20 / Mounting: Wall-Mounting Interface 3200L –Four-hole, 600x200mm mounting pattern –VESA MIS-F, 600X200, Y, 6, 90 4200L, 4600L, and 5200L models –Eight-hole, 600x400mm mounting pattern –VESA MIS-F, 600X400, Y, 6, 90 Monitor: Rear view 7

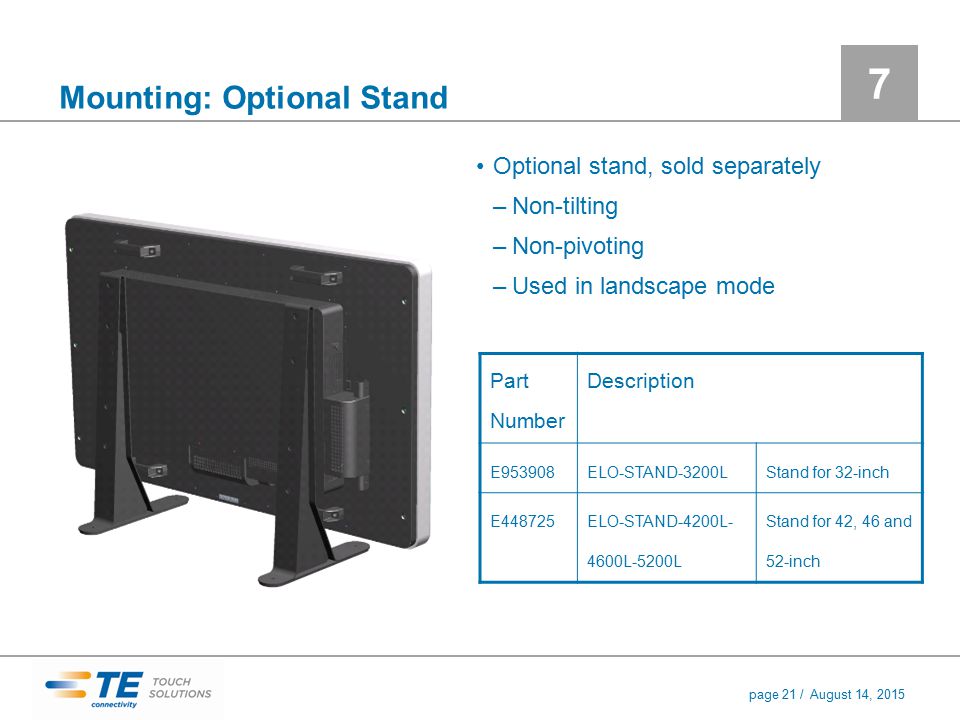

21 August 14, 2015page 21 / Mounting: Optional Stand Optional stand, sold separately –Non-tilting –Non-pivoting –Used in landscape mode Part Number Description E953908ELO-STAND-3200LStand for 32-inch E448725ELO-STAND-4200L- 4600L-5200L Stand for 42, 46 and 52-inch 7

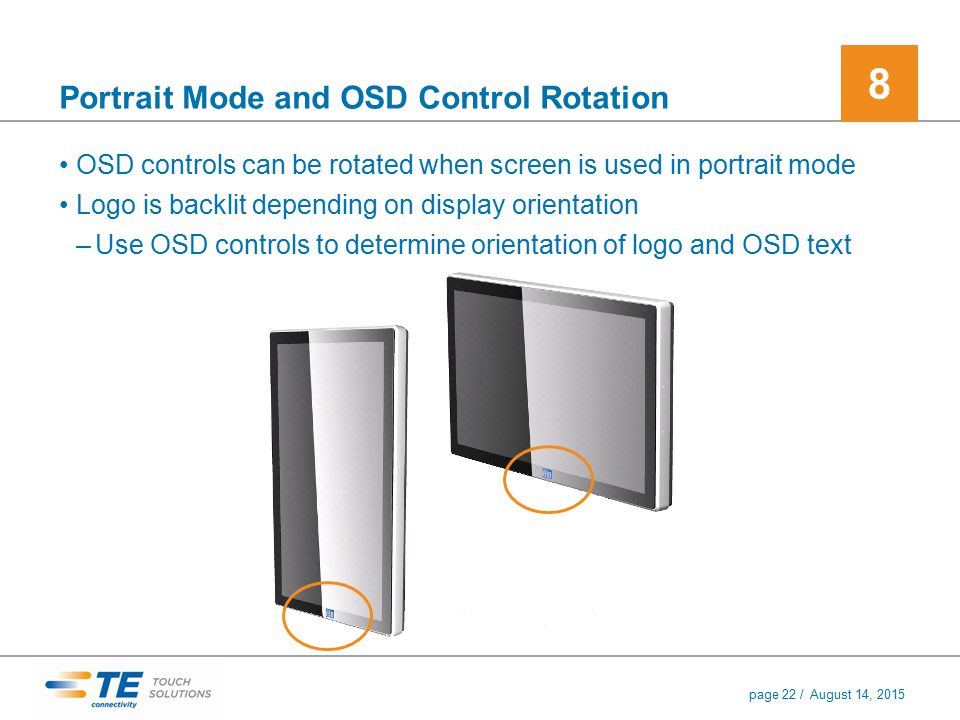

22 August 14, 2015page 22 / Portrait Mode and OSD Control Rotation OSD controls can be rotated when screen is used in portrait mode Logo is backlit depending on display orientation –Use OSD controls to determine orientation of logo and OSD text 8

23 August 14, 2015page 23 / Contents Overview Features and Specifications Part Numbers Appendix

24 August 14, 2015page 24 / Part Numbers – Monitors and Computer Module APR Zero BezelIntelliTouchRegion 3200LE554632E994558 (IntelliTouch Plus) Americas EMEA ASIA Japan 4200LE967142E841203 4600LE508680E960985 ECM1 – 2.2 GHzECM2 – 3.0 GHzRegion No Operation system E587119E057911Americas EMEA ASIA Japan Windows XPE370690E268268 Windows 7E077771E588755

25 August 14, 2015page 25 / Accessories – Ship with the Display APR TouchTools CD APR installation File USB drive User Guide Quick Install Guide Japanese Class B Regulatory & Warranty Information Pamphlet (1) Black, 1.8m, HDMI cable (Type A plug to Type A plug) (1) Black, 1.8m, VGA cable (DE-15 male to DE-15 male) (1) Black, 1.8m, USB cable (Type A plug to Type B plug) (1) Black, 1.8m, null modem serial cable (DB-9 female to DB-9 female) (1) Black, 1.8m, audio cable (3.5mm TRS plug to 3.5mm TRS plug) (1) Black, 1.8m, power cable, IEC 60320-C13 to North America plug (1) Black, 1.8m, power cable, IEC 60320-C13 to European Union plug (1) Black, 1.8m, power cable, IEC 60320-C13 to United Kingdom plug (1) Black, 1.8m, power cable, IEC 60320-C13 to Argentina plug (1) Black, 1.8m, power cable, IEC 60320-C13 to China plug (1) Black, 1.8m, power cable, IEC 60320-C13 to Japan plug (1) 3-pin to 2-pin adapter for Japan power cable

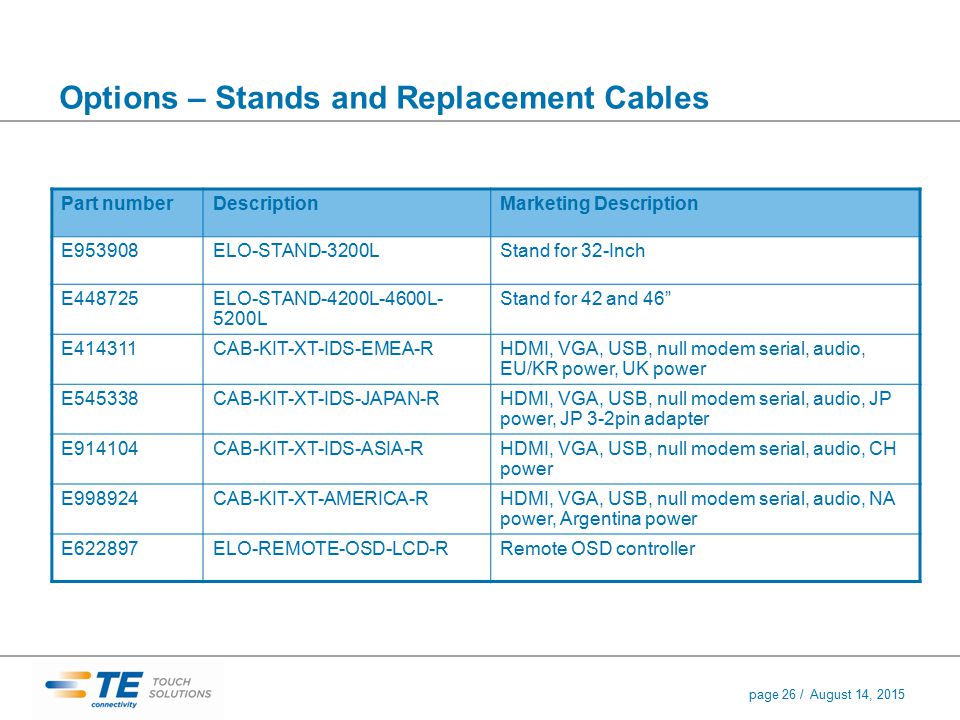

26 August 14, 2015page 26 / Options – Stands and Replacement Cables Part numberDescriptionMarketing Description E953908ELO-STAND-3200LStand for 32-Inch E448725ELO-STAND-4200L-4600L- 5200L Stand for 42 and 46” E414311CAB-KIT-XT-IDS-EMEA-RHDMI, VGA, USB, null modem serial, audio, EU/KR power, UK power E545338CAB-KIT-XT-IDS-JAPAN-RHDMI, VGA, USB, null modem serial, audio, JP power, JP 3-2pin adapter E914104CAB-KIT-XT-IDS-ASIA-RHDMI, VGA, USB, null modem serial, audio, CH power E998924CAB-KIT-XT-AMERICA-RHDMI, VGA, USB, null modem serial, audio, NA power, Argentina power E622897ELO-REMOTE-OSD-LCD-RRemote OSD controller

27 August 14, 2015page 27 / Contents Overview Features and Specifications Part Numbers Appendix

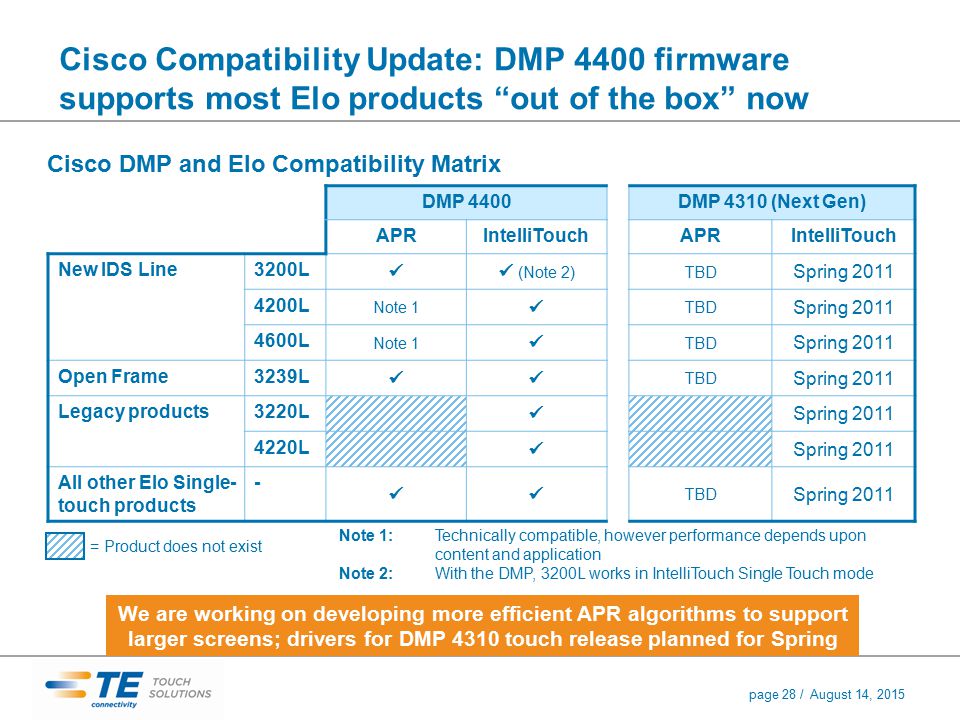

28 August 14, 2015page 28 / Cisco Compatibility Update: DMP 4400 firmware supports most Elo products “out of the box” now DMP 4400DMP 4310 (Next Gen) APRIntelliTouchAPRIntelliTouch New IDS Line3200L (Note 2) TBD Spring 2011 4200L Note 1 TBD Spring 2011 4600L Note 1 TBD Spring 2011 Open Frame3239L TBD Spring 2011 Legacy products3220L Spring 2011 4220L Spring 2011 All other Elo Single- touch products - TBD Spring 2011 = Product does not exist Note 1:Technically compatible, however performance depends upon content and application Note 2:With the DMP, 3200L works in IntelliTouch Single Touch mode Cisco DMP and Elo Compatibility Matrix We are working on developing more efficient APR algorithms to support larger screens; drivers for DMP 4310 touch release planned for Spring

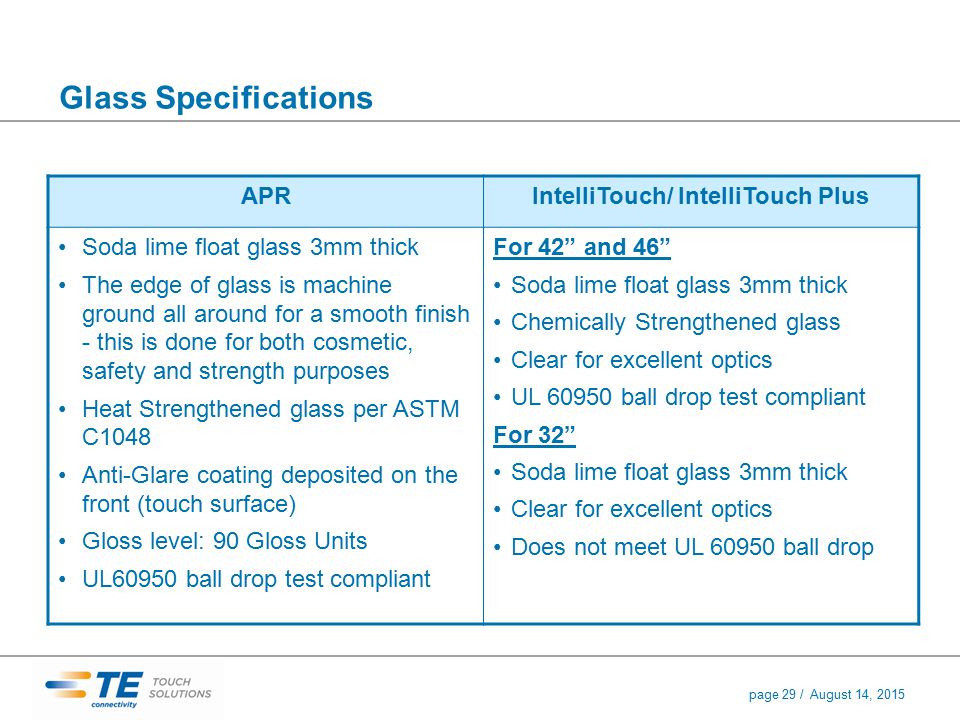

29 August 14, 2015page 29 / Glass Specifications APRIntelliTouch/ IntelliTouch Plus Soda lime float glass 3mm thick The edge of glass is machine ground all around for a smooth finish - this is done for both cosmetic, safety and strength purposes Heat Strengthened glass per ASTM C1048 Anti-Glare coating deposited on the front (touch surface) Gloss level: 90 Gloss Units UL60950 ball drop test compliant For 42” and 46” Soda lime float glass 3mm thick Chemically Strengthened glass Clear for excellent optics UL 60950 ball drop test compliant For 32” Soda lime float glass 3mm thick Clear for excellent optics Does not meet UL 60950 ball drop
