1. “…connect your engineering data with EPICOR production data directly…”

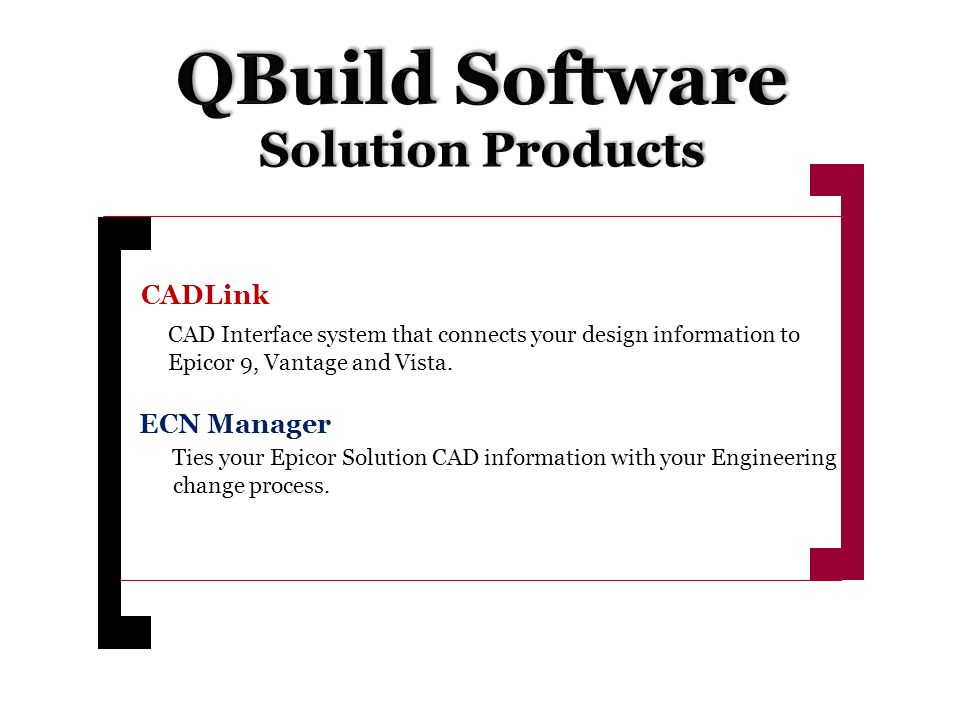

2. CADLink CAD Interface system that connects your design information to. Epicor 9, Vantage and Vista. ECN Manager Ties your Epicor Solution CAD information with your Engineering change process.

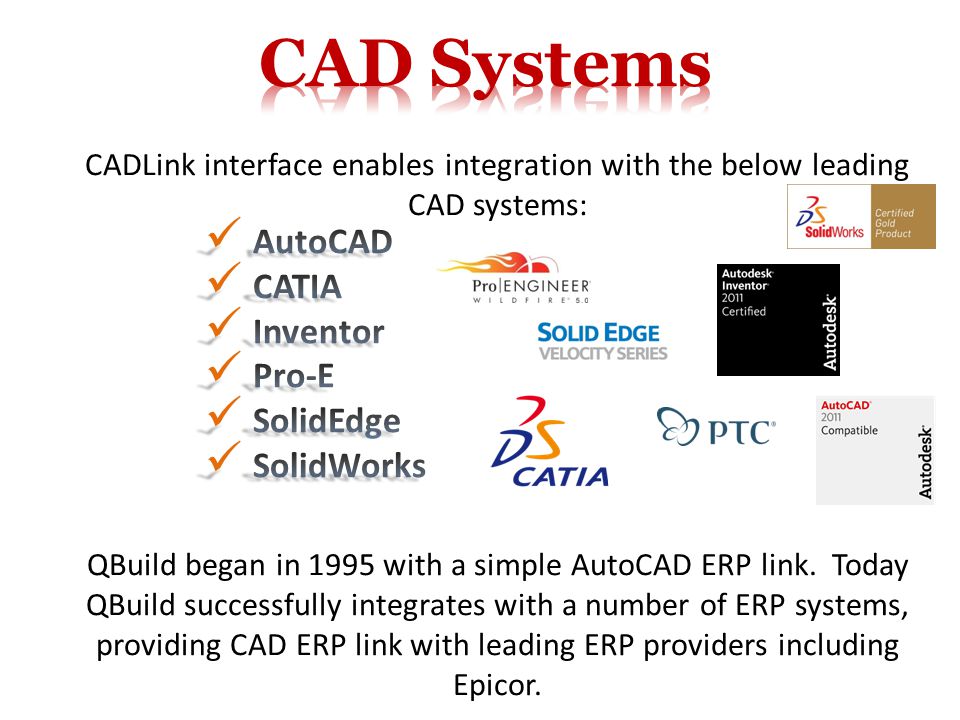

3. CADLink interface enables integration with the below leading CAD systems: QBuild began in 1995 with a simple AutoCAD ERP link. Today QBuild successfully integrates with a number of ERP systems, providing CAD ERP link with leading ERP providers including Epicor.

4. Linking Epicor and CAD Data

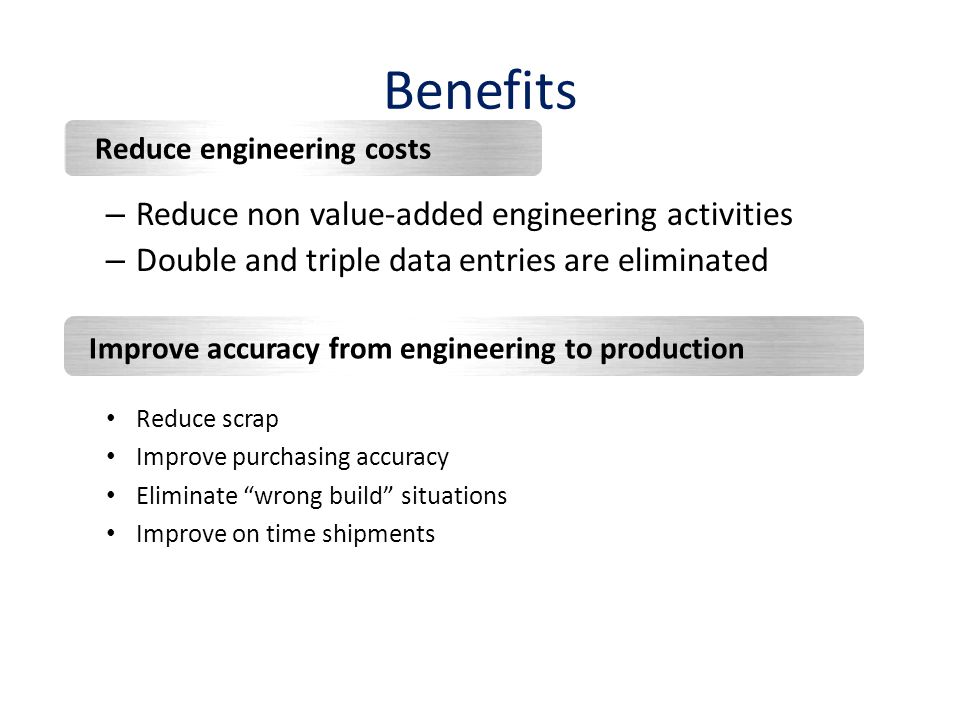

5. – Reduce non value-added engineering activities – Double and triple data entries are eliminated Benefits Reduce engineering costs Reduce scrap Improve purchasing accuracy Eliminate “wrong build” situations Improve on time shipments Improve accuracy from engineering to production

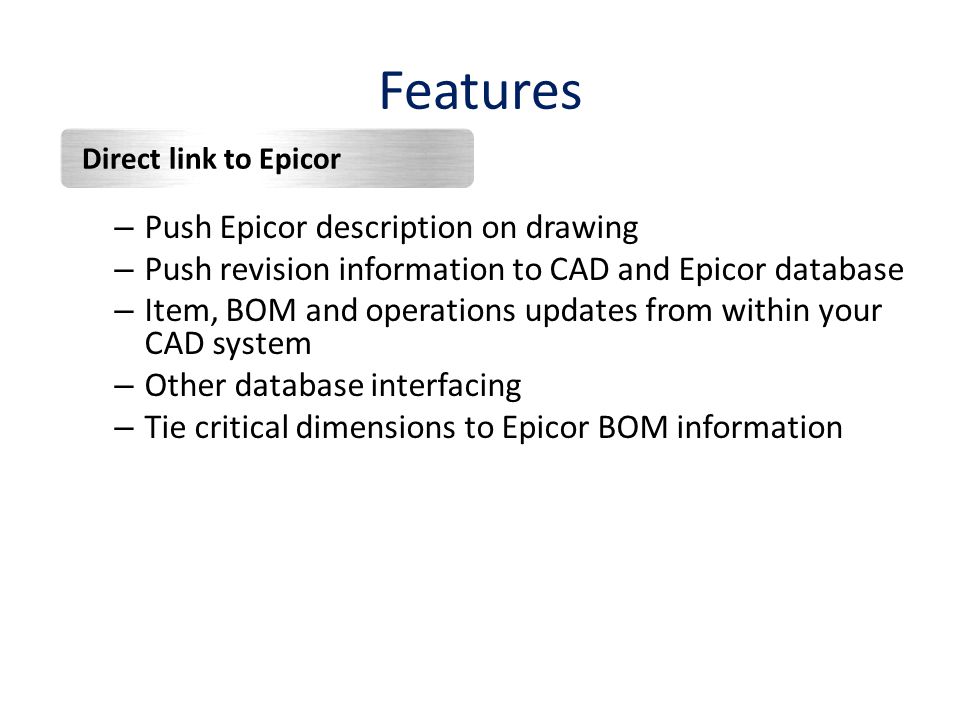

6. – Push Epicor description on drawing – Push revision information to CAD and Epicor database – Item, BOM and operations updates from within your CAD system – Other database interfacing – Tie critical dimensions to Epicor BOM information Features Direct link to Epicor

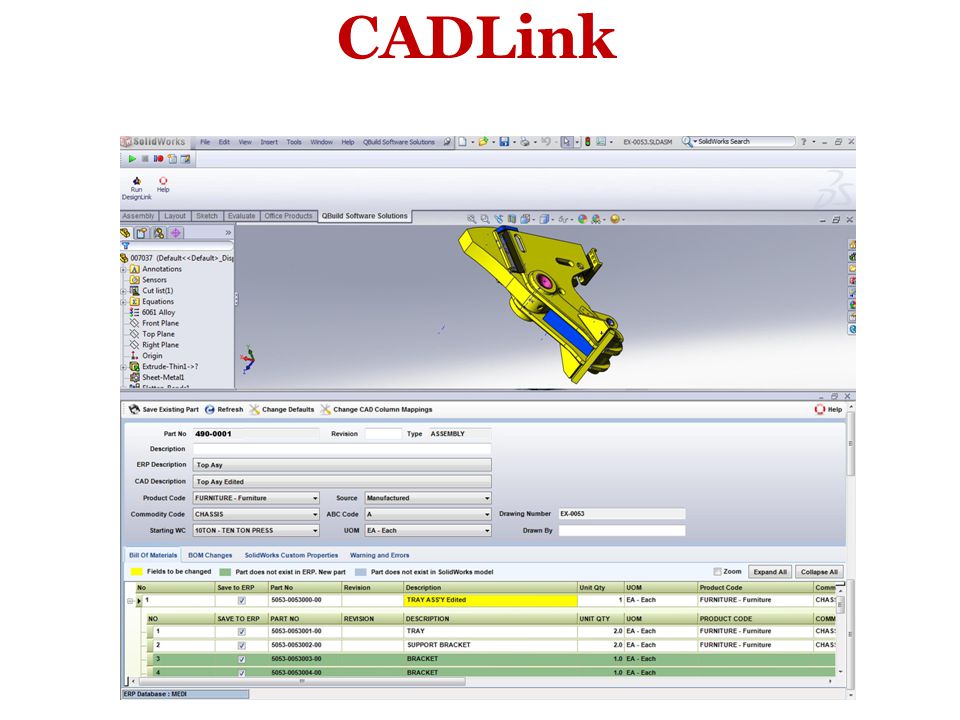

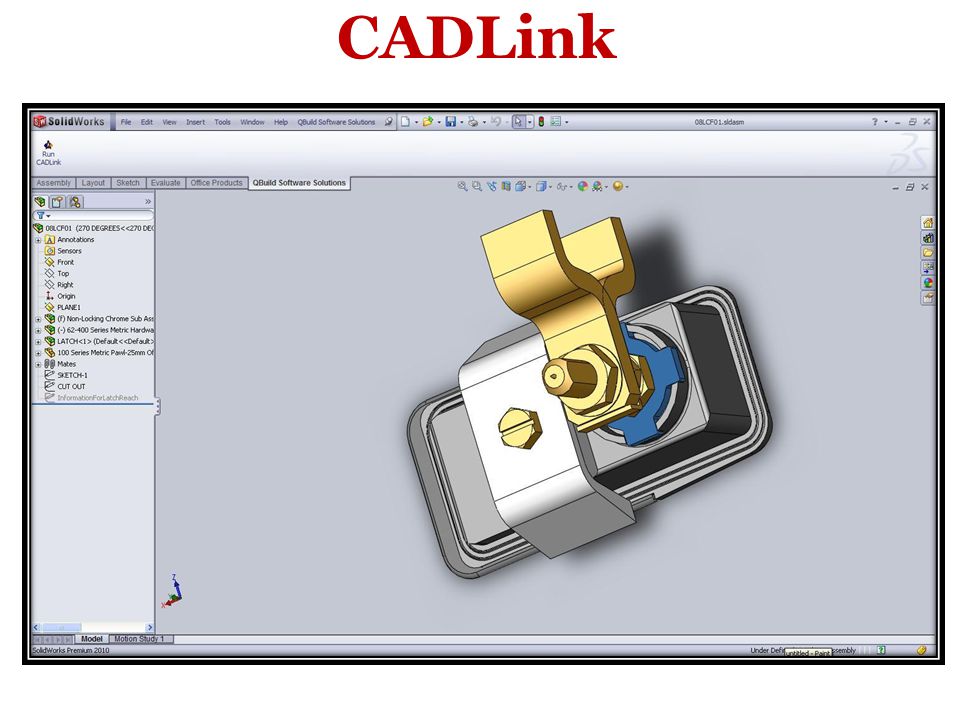

7. CADLink

9. Bill Of Material information is pulled from Models or Drawings and displayed for the Engineer in this grid. Discrepancy between CAD and Epicor Data are highlighted

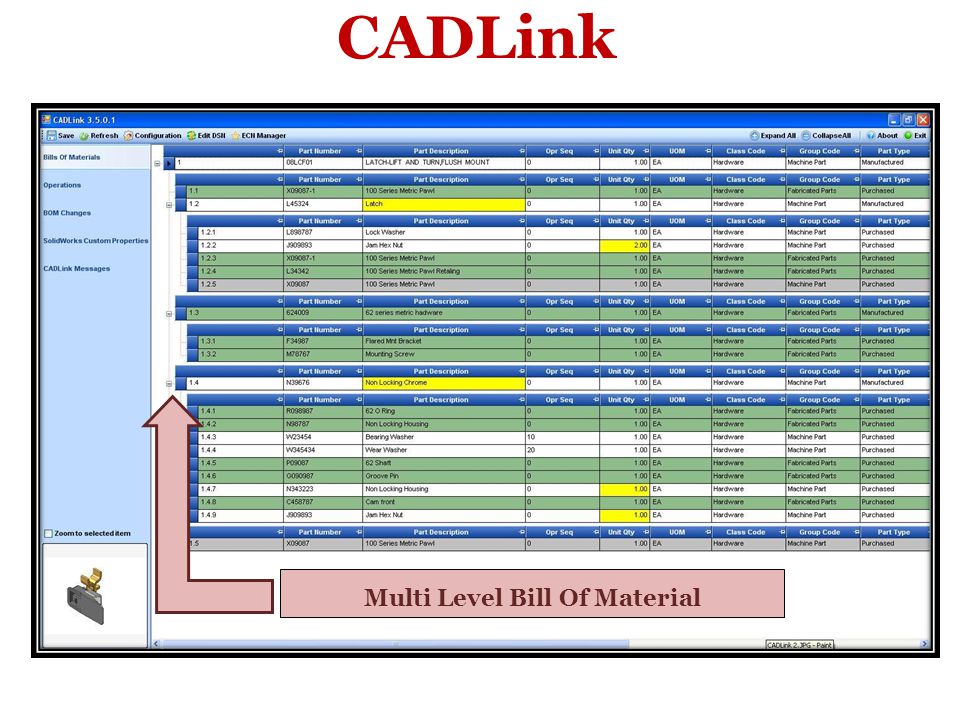

10. CADLink Multi Level Bill Of Material

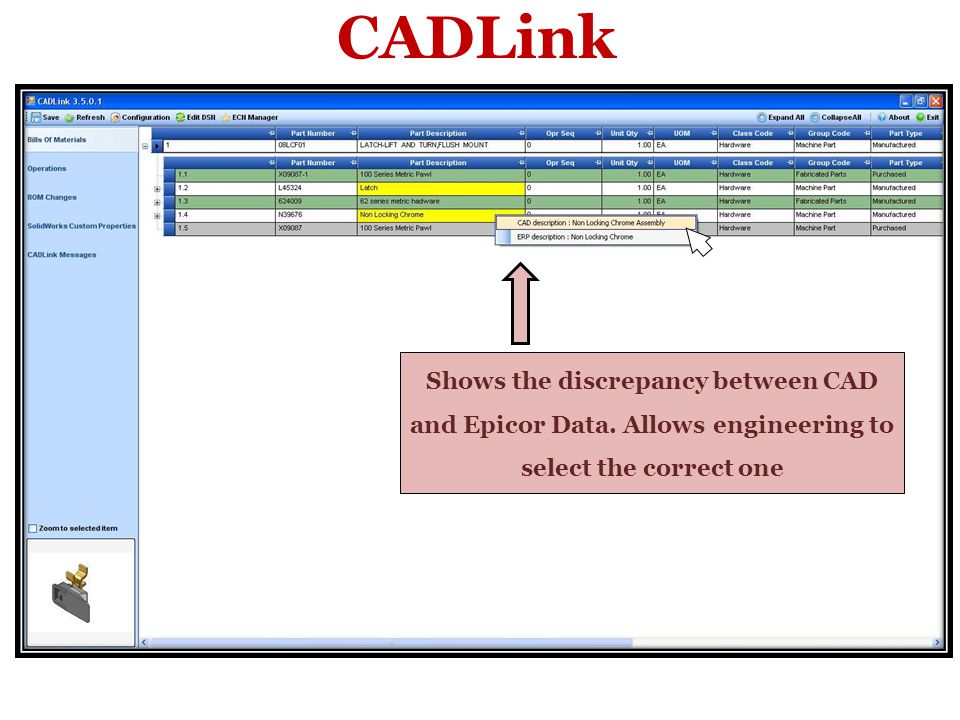

11. CADLink Shows the discrepancy between CAD and Epicor Data. Allows engineering to select the correct one

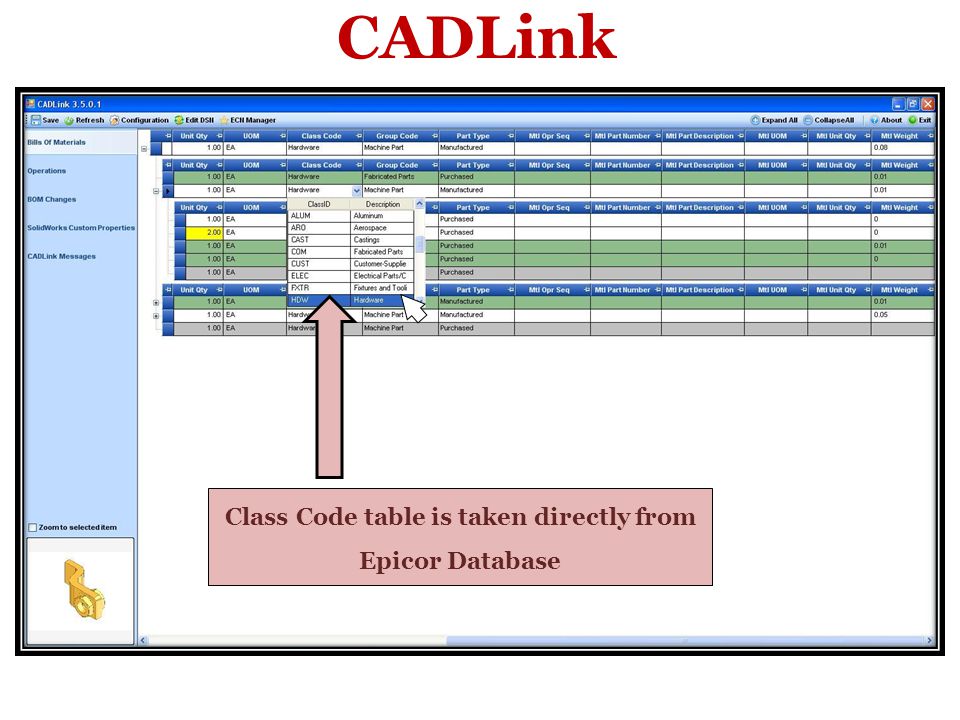

12. CADLink Class Code table is taken directly from Epicor Database

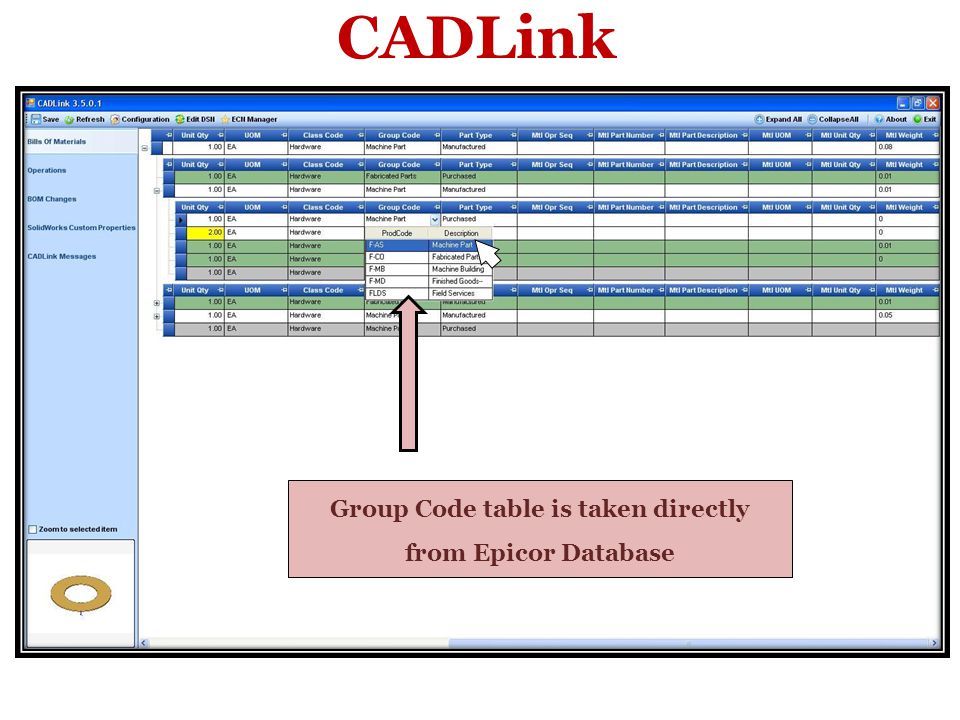

13. CADLink Group Code table is taken directly from Epicor Database

14. CADLink Epicor Raw Material data is accessible directly from CADLink

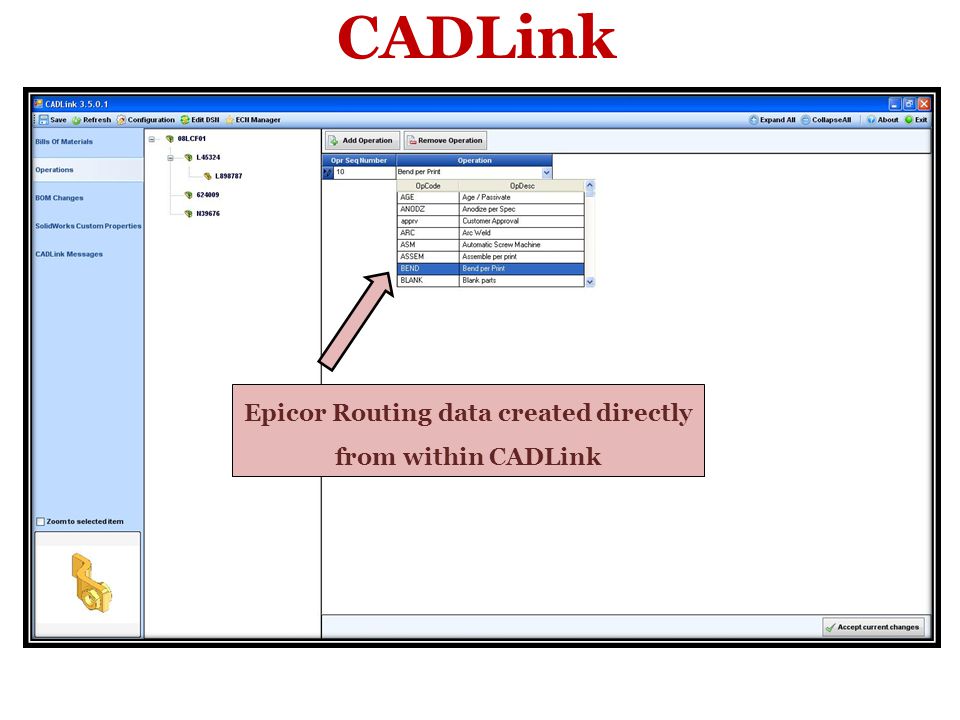

15. CADLink Epicor Routing data created directly from within CADLink

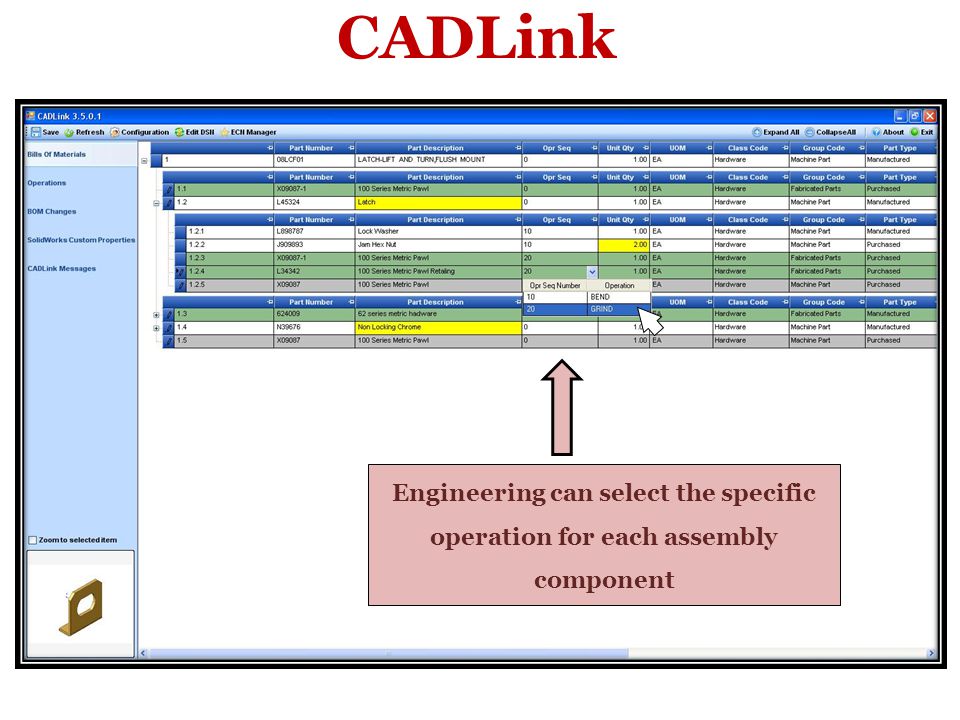

16. CADLink Engineering can select the specific operation for each assembly component

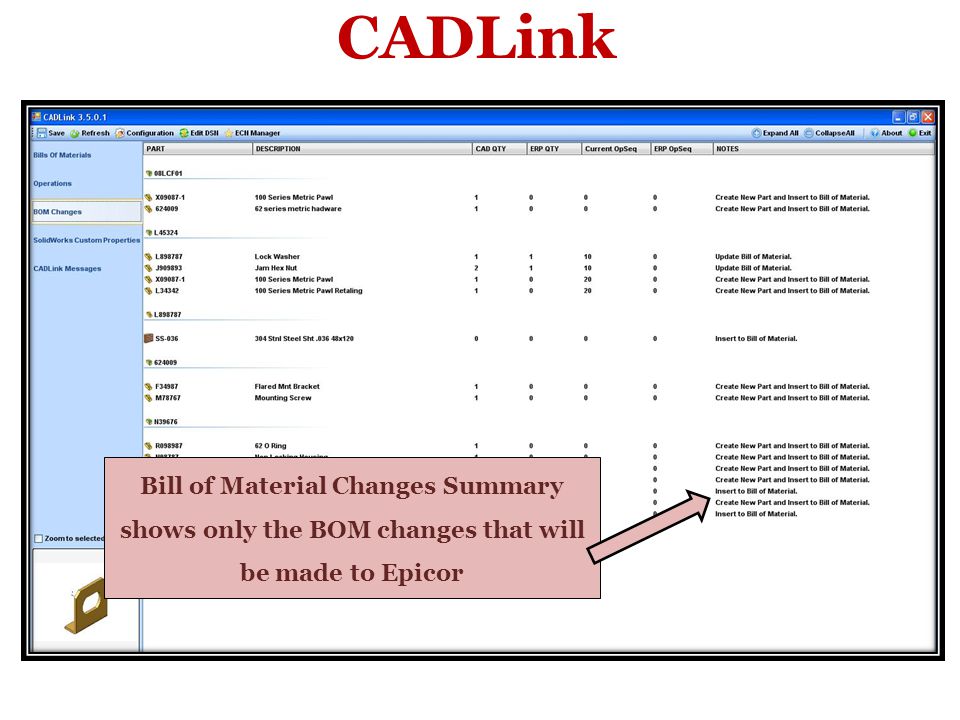

17. CADLink Bill of Material Changes Summary shows only the BOM changes that will be made to Epicor

18. CADLink SolidWorks Custom Properties for the entire assembly conveniently summarized in a single tab

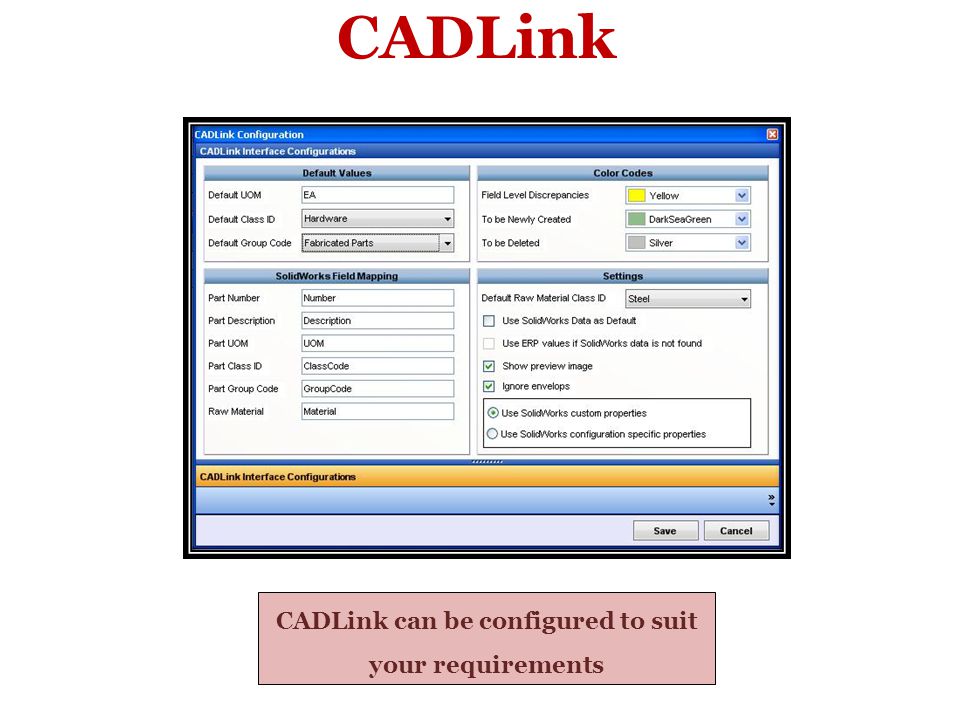

19. CADLink CADLink can be configured to suit your requirements

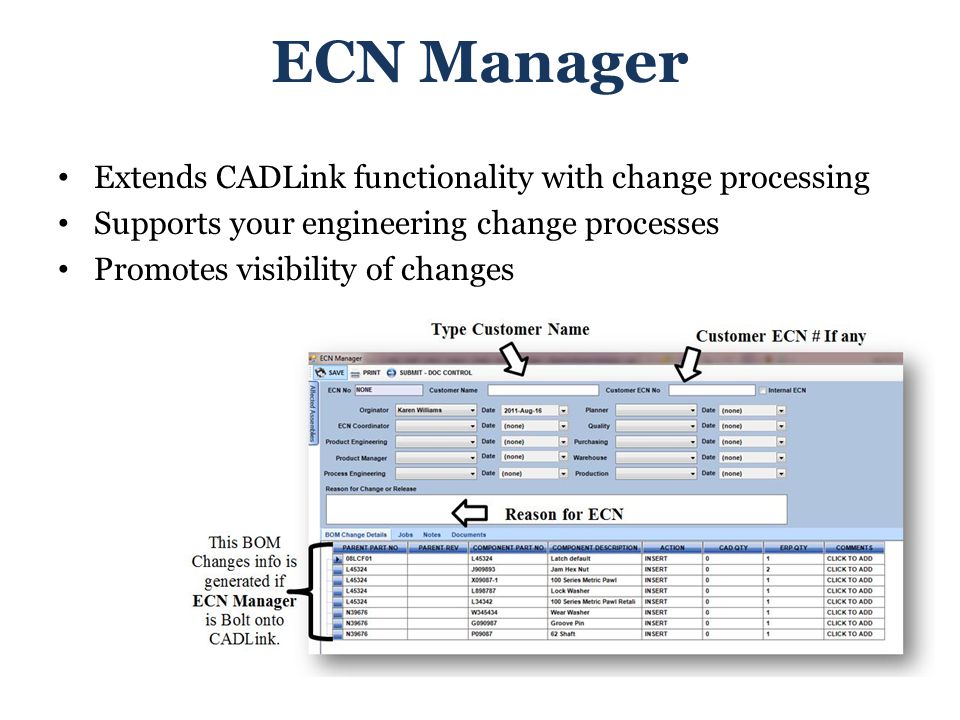

20. Extends CADLink functionality with change processing Supports your engineering change processes Promotes visibility of changes ECN Manager

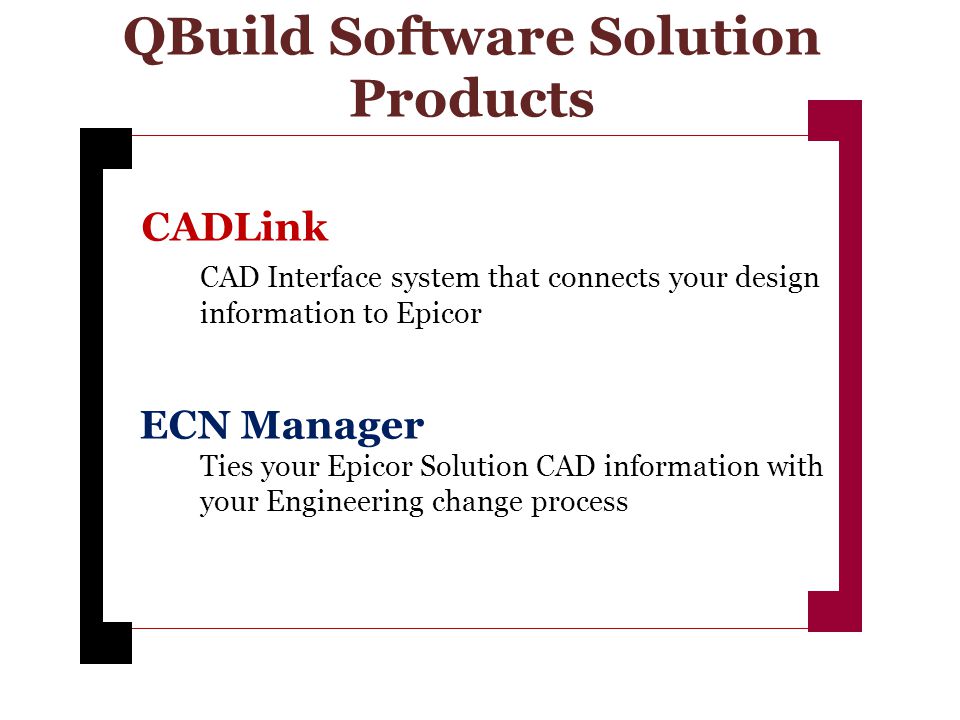

21. QBuild Software Solution Products CADLink CAD Interface system that connects your design information to Epicor ECN Manager Ties your Epicor Solution CAD information with your Engineering change process

22. Contact for Sales and Consulting: Geovanna Pazmino Applications Engineer QBuild C O R P O R A T I O N 145 Renfrew Drive, Unit 140 | Markham, ON L3R 9R6 | CANADA Phone +1 905 479 7811 EXT 224 Fax +1 905 479 2636 Email: geovanna.pazmino@qbuildsoftware.comgeovanna.pazmino@qbuildsoftware.comwww.qbuildsoftware.com
