1. Rtizen ‘s Introduction to EDA Solutions It’s a software tool to make error free engineering drawings (both 2d & 3d) in a cost effective way

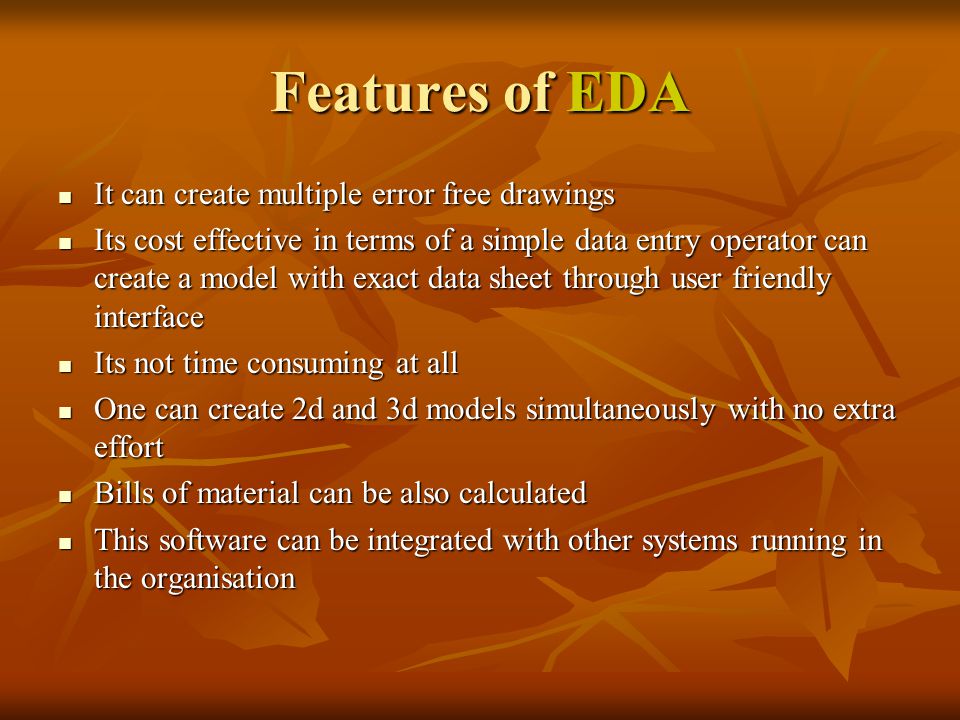

2. Features of EDA It can create multiple error free drawings It can create multiple error free drawings Its cost effective in terms of a simple data entry operator can create a model with exact data sheet through user friendly interface Its cost effective in terms of a simple data entry operator can create a model with exact data sheet through user friendly interface Its not time consuming at all Its not time consuming at all One can create 2d and 3d models simultaneously with no extra effort One can create 2d and 3d models simultaneously with no extra effort Bills of material can be also calculated Bills of material can be also calculated This software can be integrated with other systems running in the organisation This software can be integrated with other systems running in the organisation

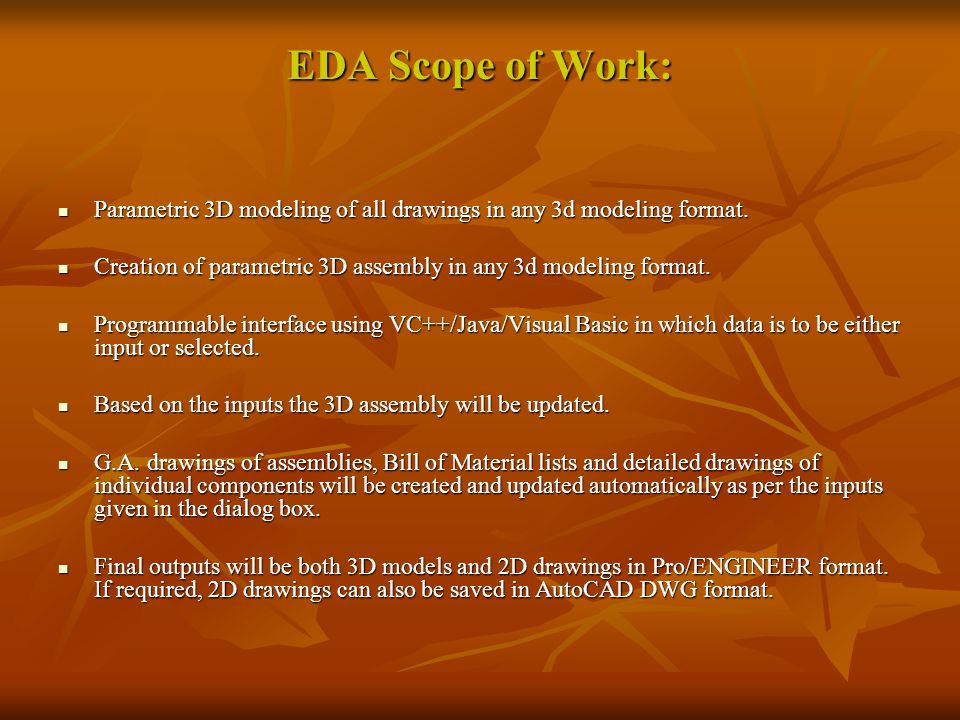

3. EDA Scope of Work: Parametric 3D modeling of all drawings in any 3d modeling format. Parametric 3D modeling of all drawings in any 3d modeling format. Creation of parametric 3D assembly in any 3d modeling format. Creation of parametric 3D assembly in any 3d modeling format. Programmable interface using VC++/Java/Visual Basic in which data is to be either input or selected. Programmable interface using VC++/Java/Visual Basic in which data is to be either input or selected. Based on the inputs the 3D assembly will be updated. Based on the inputs the 3D assembly will be updated. G.A. drawings of assemblies, Bill of Material lists and detailed drawings of individual components will be created and updated automatically as per the inputs given in the dialog box. G.A. drawings of assemblies, Bill of Material lists and detailed drawings of individual components will be created and updated automatically as per the inputs given in the dialog box. Final outputs will be both 3D models and 2D drawings in Pro/ENGINEER format. If required, 2D drawings can also be saved in AutoCAD DWG format. Final outputs will be both 3D models and 2D drawings in Pro/ENGINEER format. If required, 2D drawings can also be saved in AutoCAD DWG format.

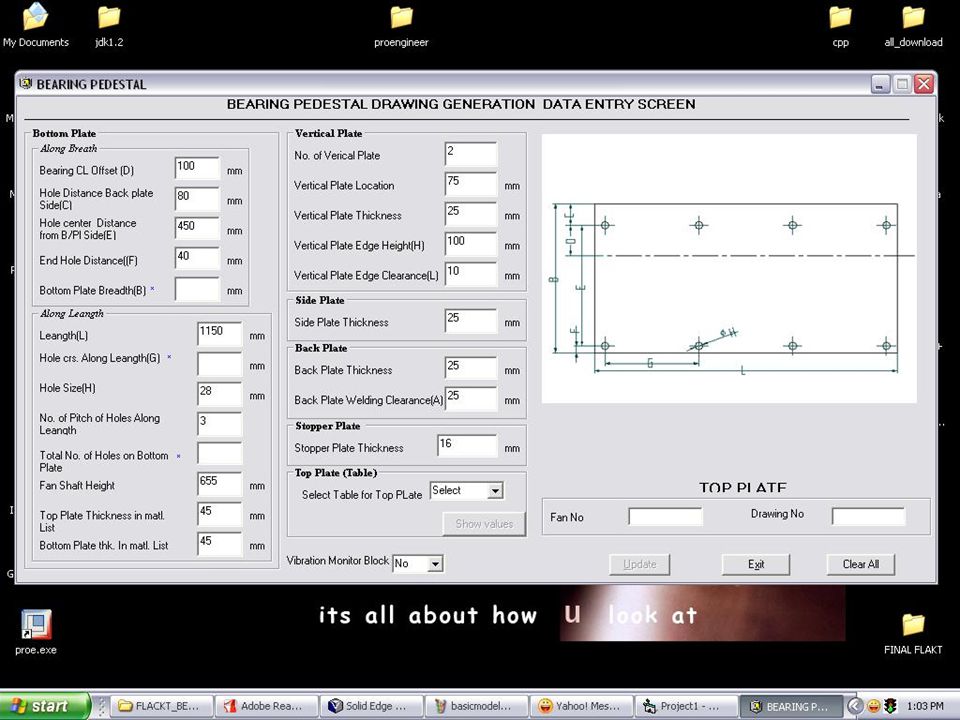

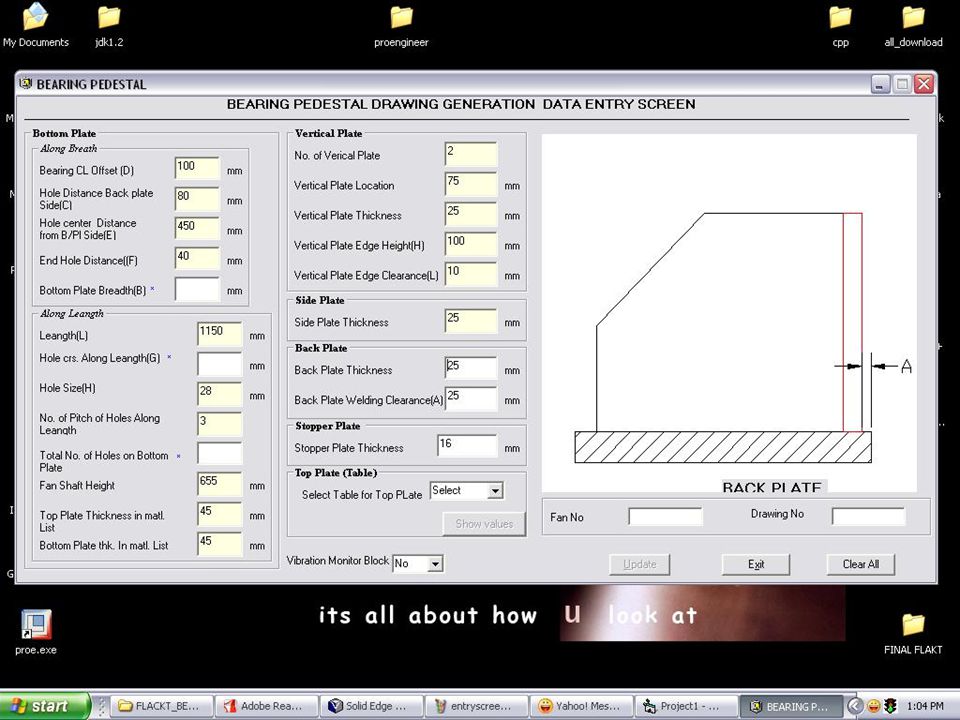

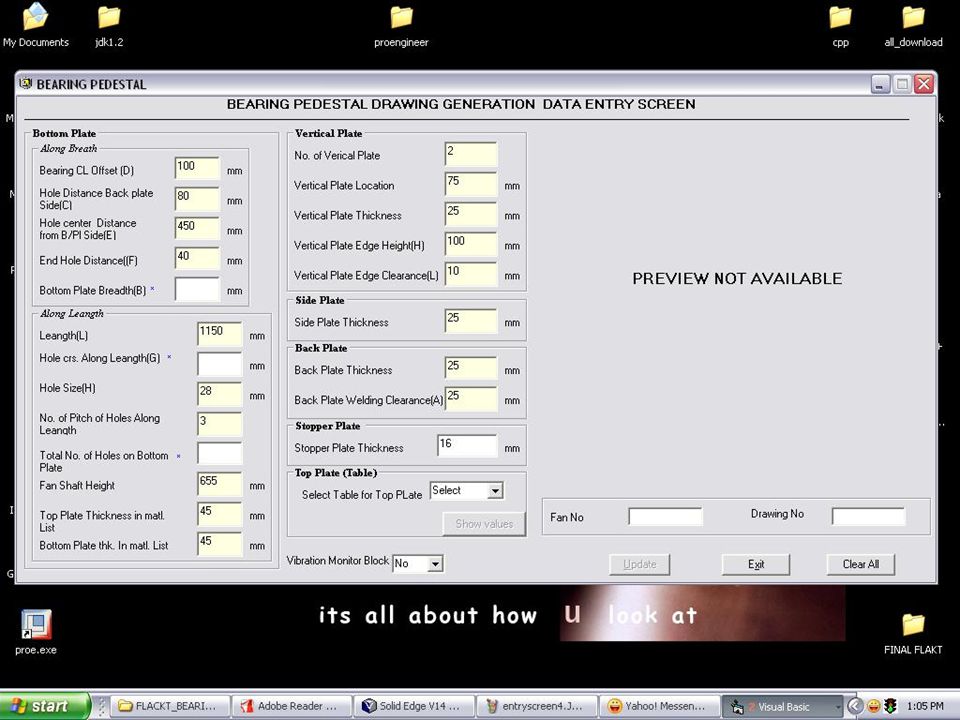

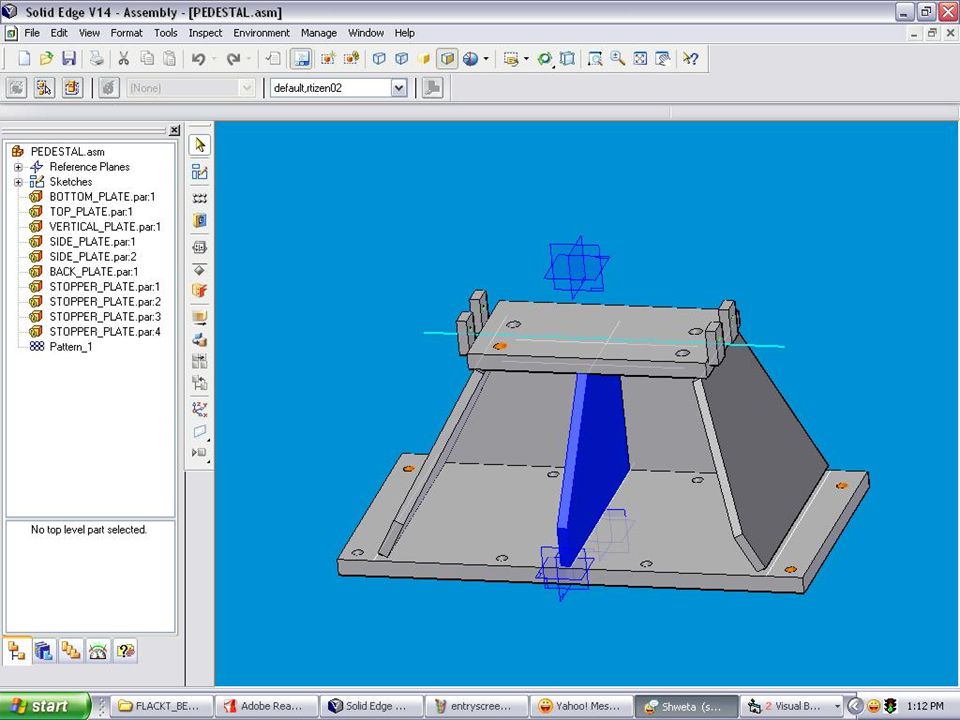

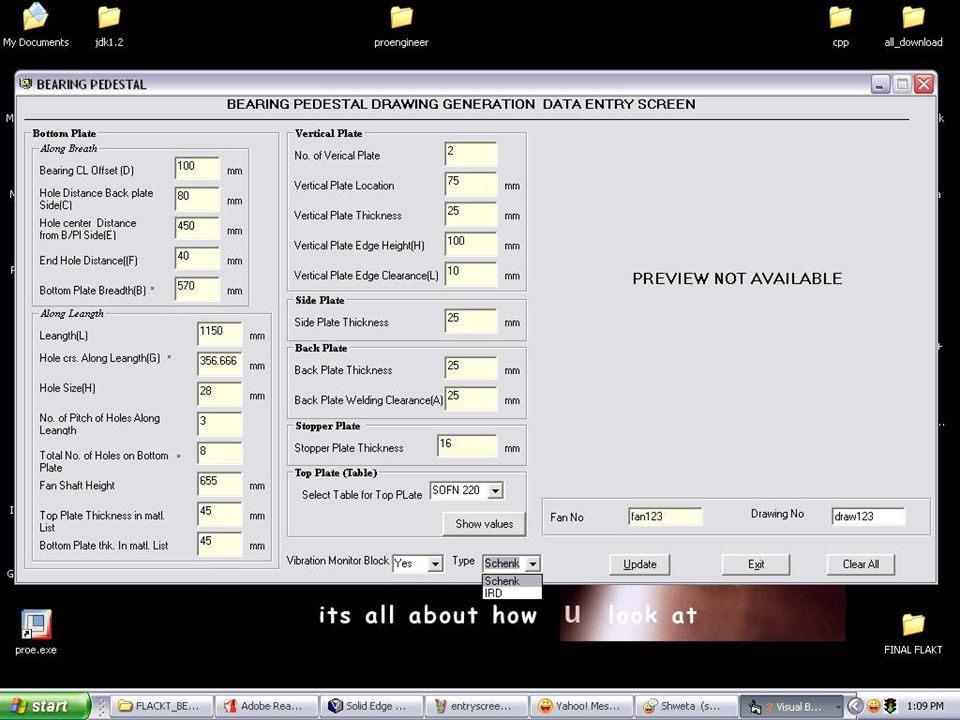

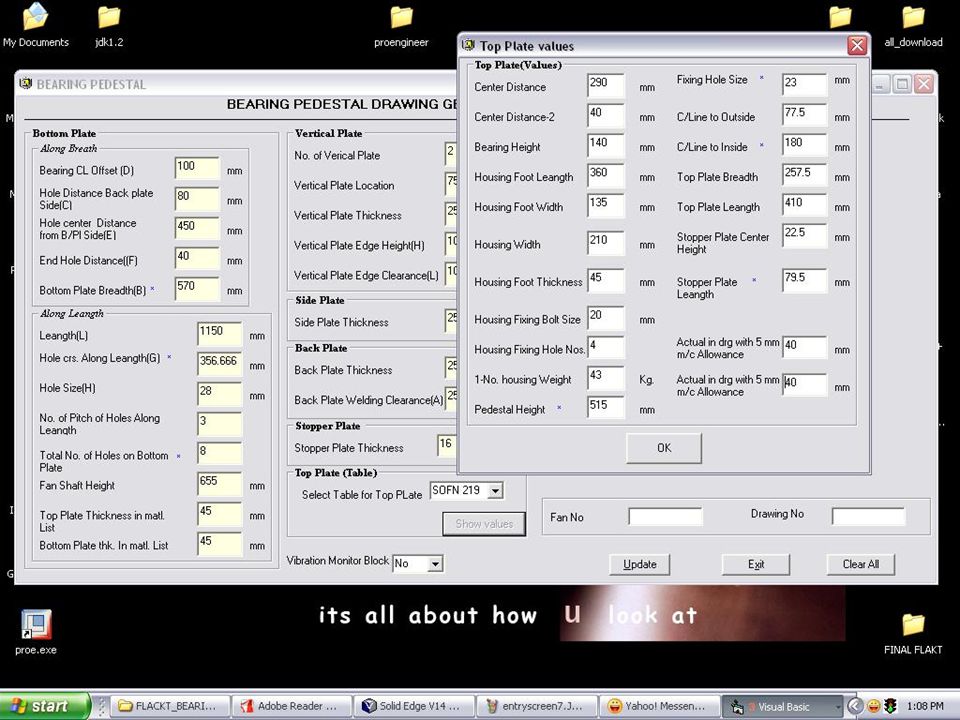

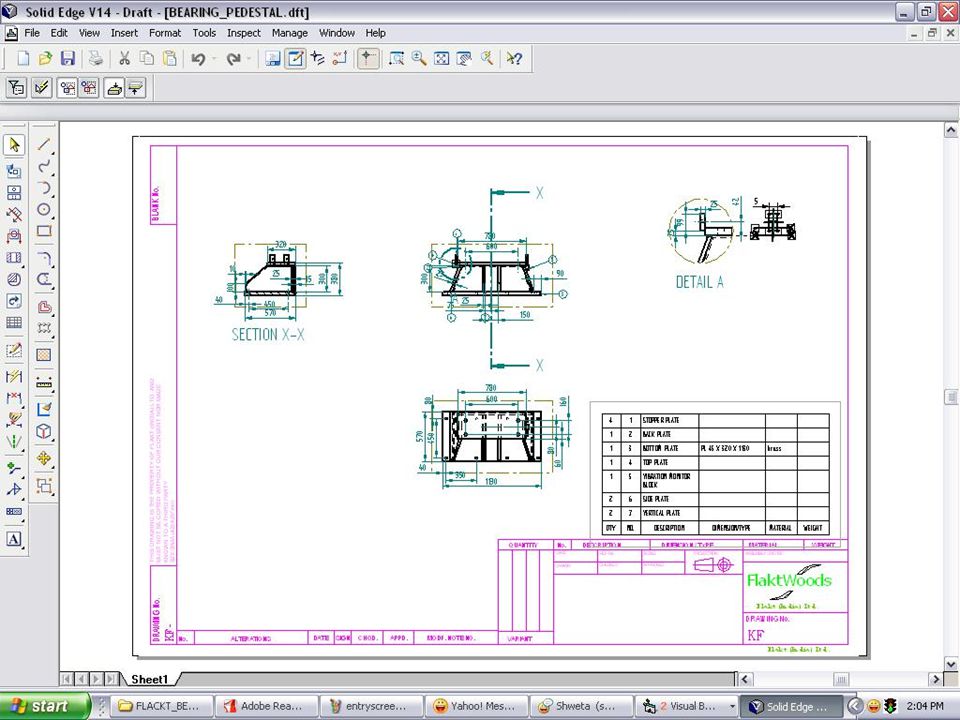

4. Here from the next slide we will show how EDA works with our interface with a solid modeling software

19. Thank You for being with us Let us begin our QA session
