1. TEW-691GR Training TEW-691GR Training TEW-691GR 450Mbps Wireless N Gigabit Router

2. TEW-691GR Training TEW-691GR Training

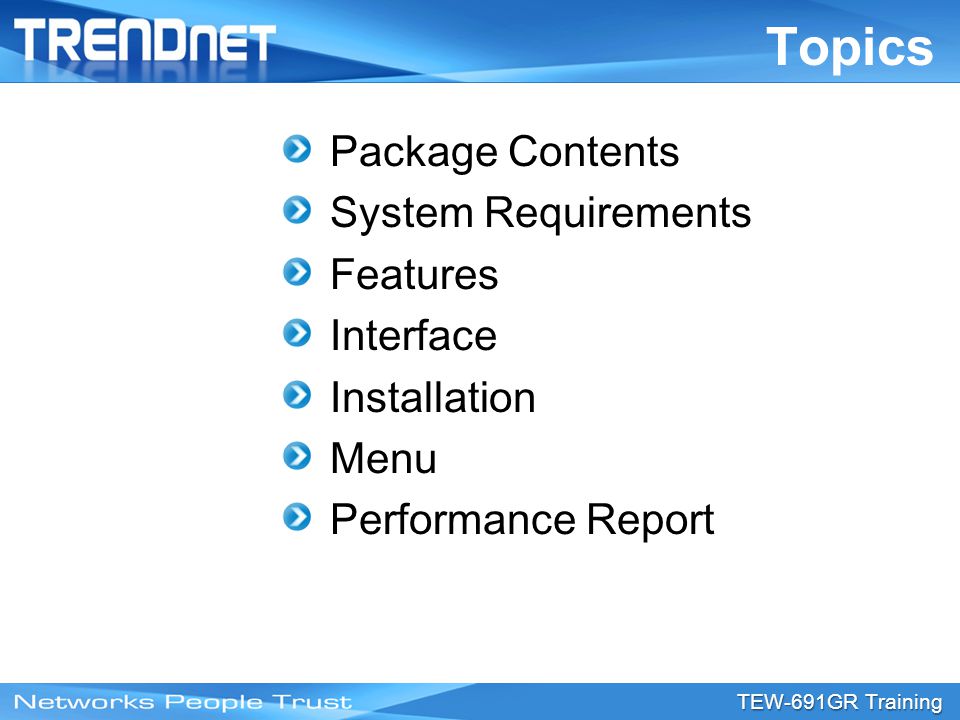

3. Package Contents System Requirements Features Interface Installation Menu Performance Report Topics

4. TEW-691GR Training TEW-691GR Training TEW-691GR 450Mbps Wireless N Gigabit Router CD ROM (User’s Guide) Multi-Language Quick Installation Guide Power Adapter (12V DC, 1A) Cat. 5 Ethernet Cable (1.5m/5ft) Package Contents

5. TEW-691GR Training TEW-691GR Training Computer with Web-Browser (Internet Explorer, Safari, Firefox, Opera etc.) Ethernet port on your PC or a Wireless client adapter External xDSL (ADSL) or Cable modem with an Ethernet port (RJ-45). System Requirements

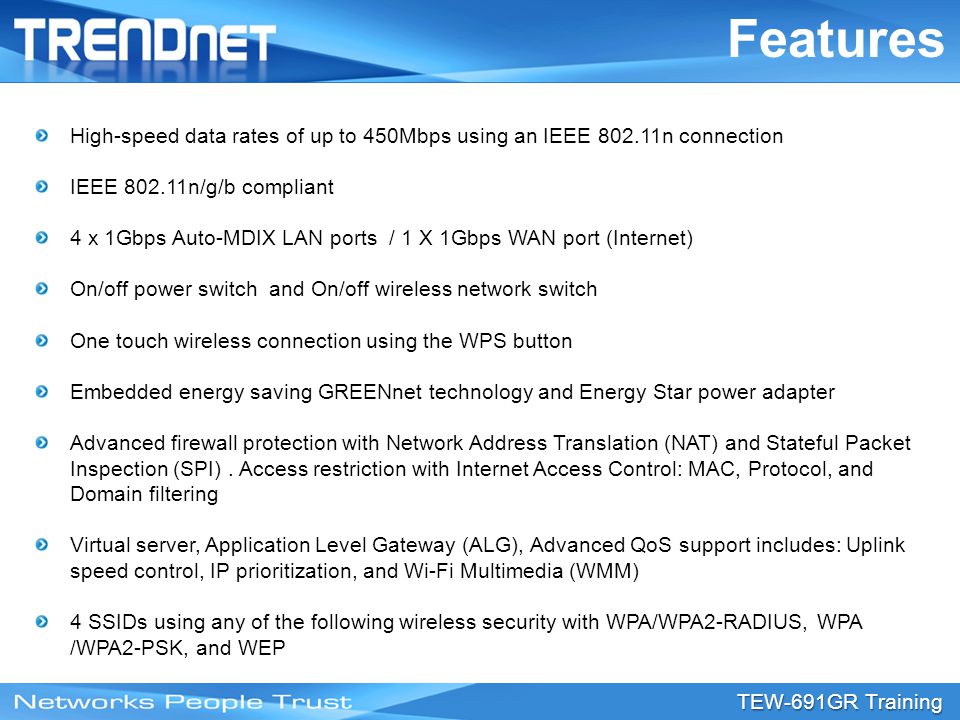

6. TEW-691GR Training TEW-691GR Training Features High-speed data rates of up to 450Mbps using an IEEE 802.11n connection IEEE 802.11n/g/b compliant 4 x 1Gbps Auto-MDIX LAN ports / 1 X 1Gbps WAN port (Internet) On/off power switch and On/off wireless network switch One touch wireless connection using the WPS button Embedded energy saving GREENnet technology and Energy Star power adapter Advanced firewall protection with Network Address Translation (NAT) and Stateful Packet Inspection (SPI). Access restriction with Internet Access Control: MAC, Protocol, and Domain filtering Virtual server, Application Level Gateway (ALG), Advanced QoS support includes: Uplink speed control, IP prioritization, and Wi-Fi Multimedia (WMM) 4 SSIDs using any of the following wireless security with WPA/WPA2-RADIUS, WPA /WPA2-PSK, and WEP

7. TEW-691GR Training TEW-691GR Training Interface POWER Green = On Off = Off WPS Blinking = Wait For WPS Request Off = Normal Operation WLAN Blinking = Wireless Data Transfer Off = Off LAN Green = 100mbps Orange = 1Gbps Off = Off WAN Blinking = Data Traffic Off = Normal Operation FRONT LEDs

8. TEW-691GR Training TEW-691GR Training Interface LAN Port Connect RJ-45 to network devices WLAN Switch WAN Port Connect RJ45 to Cable or xDSL modem. Power Jack Insert External Power Adapter Reset Button Press to reboot or 5~10 seconds to do factory default Power Switch 1 – On 0 - Off

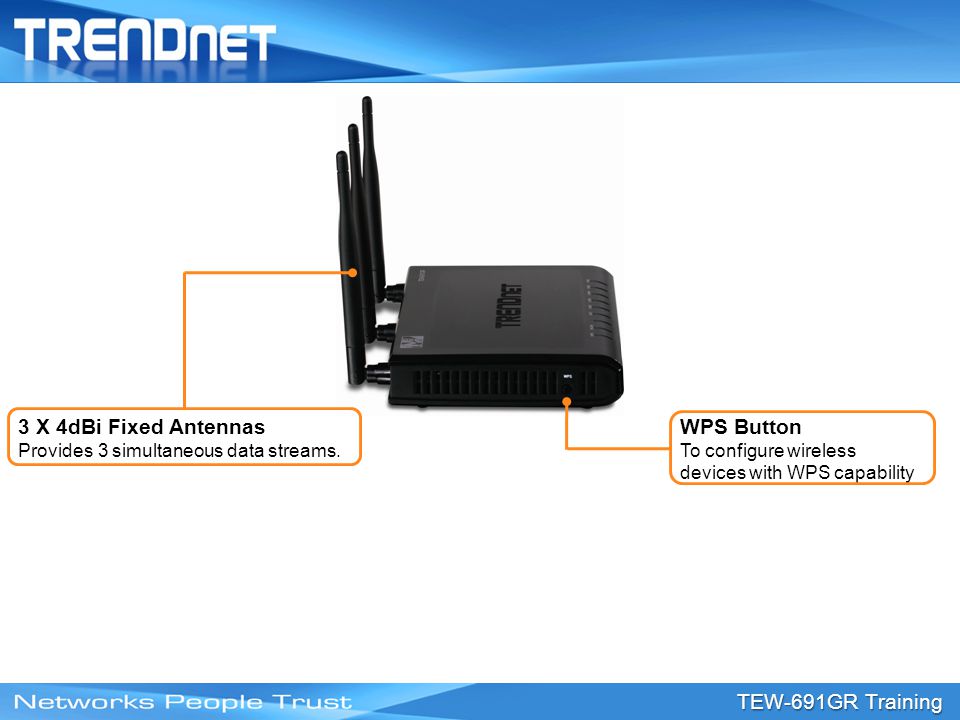

9. TEW-691GR Training TEW-691GR Training WPS Button To configure wireless devices with WPS capability 3 X 4dBi Fixed Antennas Provides 3 simultaneous data streams.

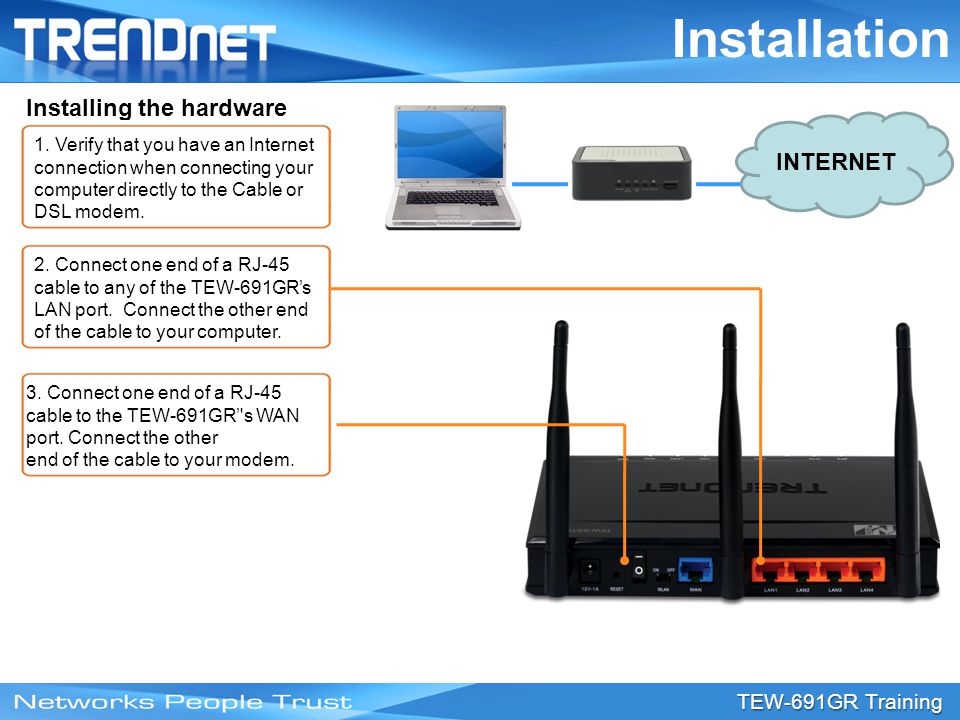

10. TEW-691GR Training TEW-691GR Training Installation Installing the hardware 1. Verify that you have an Internet connection when connecting your computer directly to the Cable or DSL modem. 2. Connect one end of a RJ-45 cable to any of the TEW-691GR’s LAN port. Connect the other end of the cable to your computer. INTERNET 3. Connect one end of a RJ-45 cable to the TEW-691GR’'s WAN port. Connect the other end of the cable to your modem.

11. TEW-691GR Training TEW-691GR Training Installation Installing the hardware 4. Connect the AC Power Adapter to the TEW-691GR and then to a power outlet. Power up your Cable or DSL modem. 5. Move the power switch to the On position. 6. Verify that the following panel lights are on: Power (on), LAN (blinking), WAN (blinking) and WLAN (blinking).

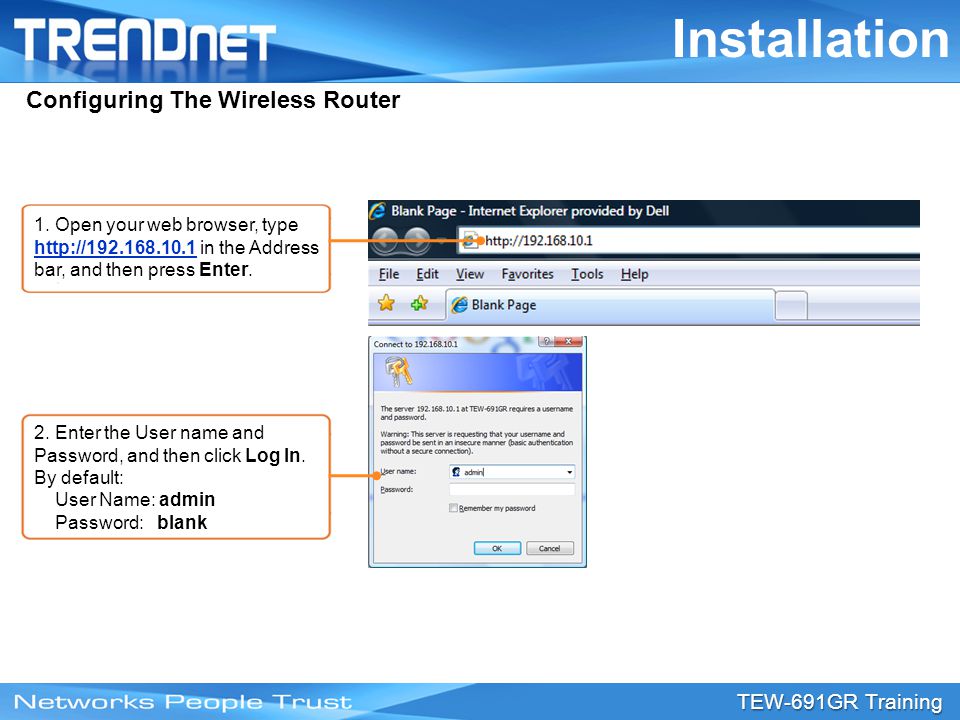

12. TEW-691GR Training TEW-691GR Training Installation Configuring The Wireless Router 1. Open your web browser, type http://192.168.10.1 in the Address bar, and then press Enter. 2. Enter the User name and Password, and then click Log In. By default: User Name: admin Password: blank

13. TEW-691GR Training TEW-691GR Training Installation Configuring The Wireless Router 3. Click Network and then click WAN Setting. Then select the proper Internet Connection Type. 4. Configure the settings based on information provided by your ISP. Then click Apply.

14. TEW-691GR Training TEW-691GR Training Installation Configuring The Wireless Router 5. Click Wireless and then click Basic. Enter the desired Wireless Name (SSID) and then click Apply. Note: The default Wireless Name (SSID) is TRENDnet691.

15. TEW-691GR Training TEW-691GR Training Installation Configuring The Wireless Router 6. Select the desired Security Mode. Fill in necessary security information then click Apply.

16. TEW-691GR Training TEW-691GR Training Installation Configuring The Wireless Router 7. Open up your browser and enter in a URL (e.g. www.trendnet.com) to verify that you have Internet connection.

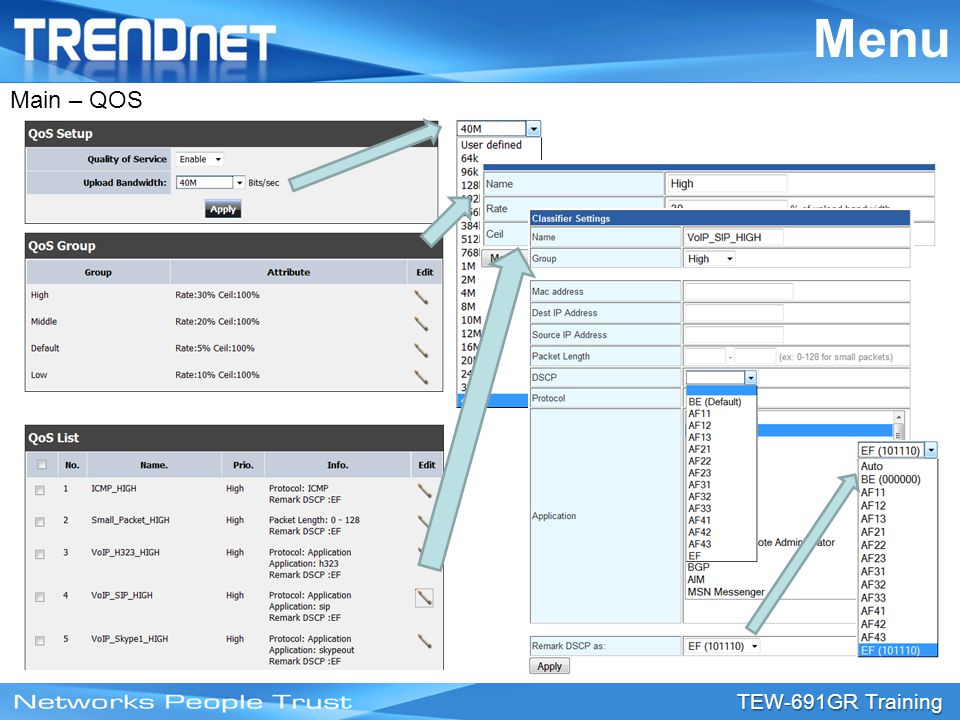

17. TEW-691GR Training TEW-691GR Training Menu Main – QOS

18. TEW-691GR Training TEW-691GR Training Menu Main – QOS Differentiated Services Code Point Note: TOS has been preceded by DS

19. TEW-691GR Training TEW-691GR Training Menu Main – QOS Differentiated Services Code Point

20. TEW-691GR Training TEW-691GR Training Menu Wireless-Basic 4 SSIDs

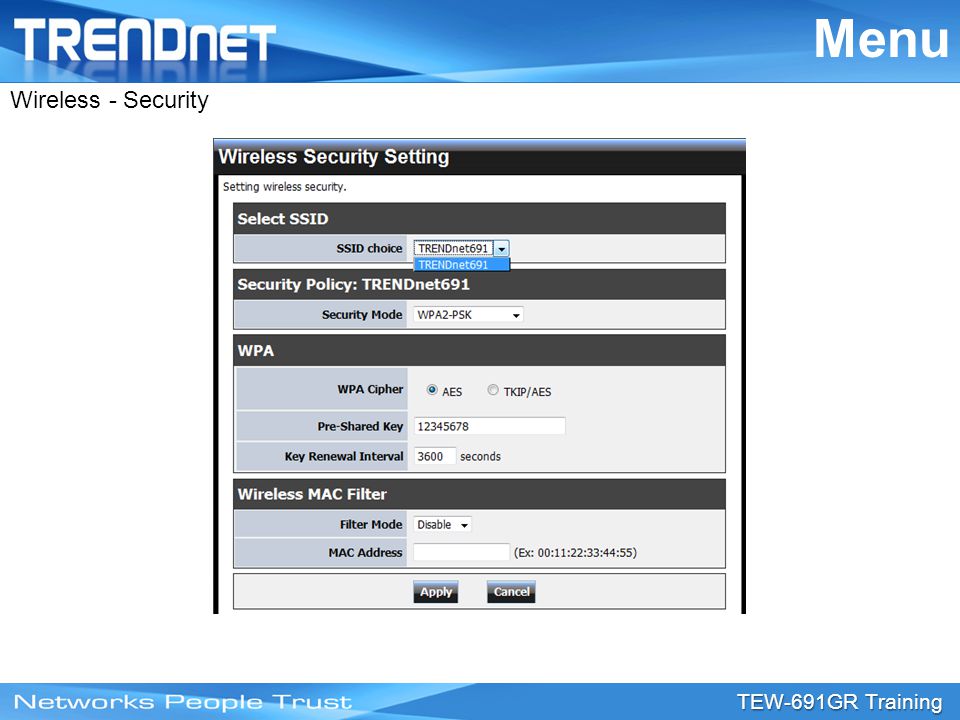

21. TEW-691GR Training TEW-691GR Training Menu Wireless - Security

22. TEW-691GR Training TEW-691GR Training Menu Advanced - Access Control A. Policy based on service and scheduleB. IP Address Filtering C. URL Filtering

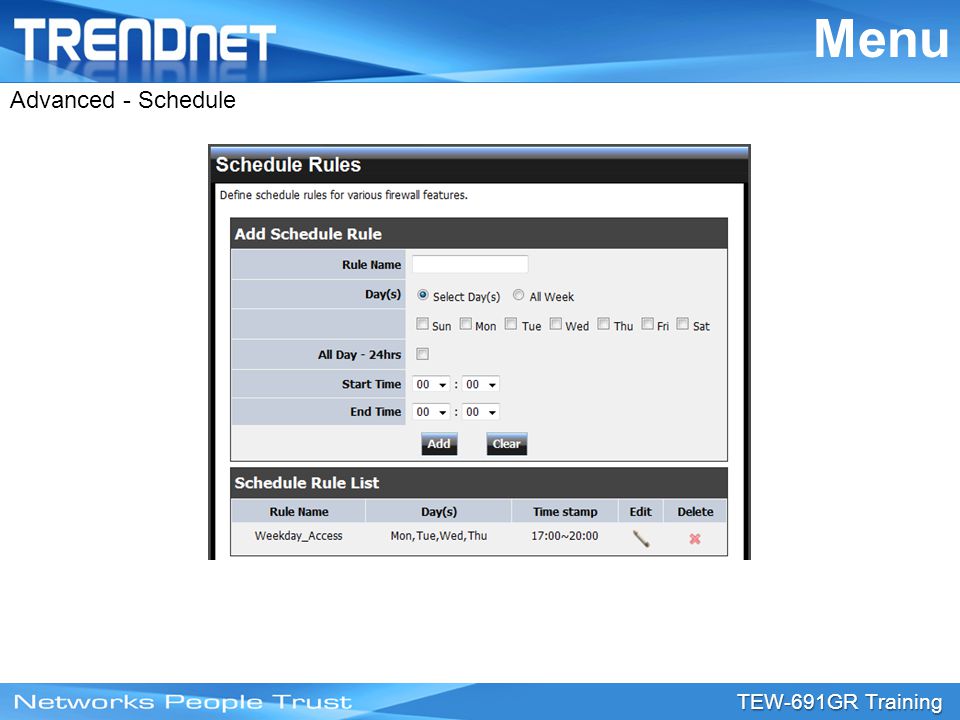

23. TEW-691GR Training TEW-691GR Training Menu Advanced - Schedule

24. TEW-691GR Training TEW-691GR Training Menu Advanced – Gaming Like Virtual Server, but with more ports and port range

25. TEW-691GR Training TEW-691GR Training Performance Report

26. TEW-691GR Training TEW-691GR Training Performance Report

27. TEW-691GR Training TEW-691GR Training Thank You
