1. EE 445S Real-Time Digital Signal Processing Lab Fall 2011 Lab #2 Generating a Sine Wave Using the Hardware & Software Tools for the TI TMS320C6748 DSP Debarati Kundu

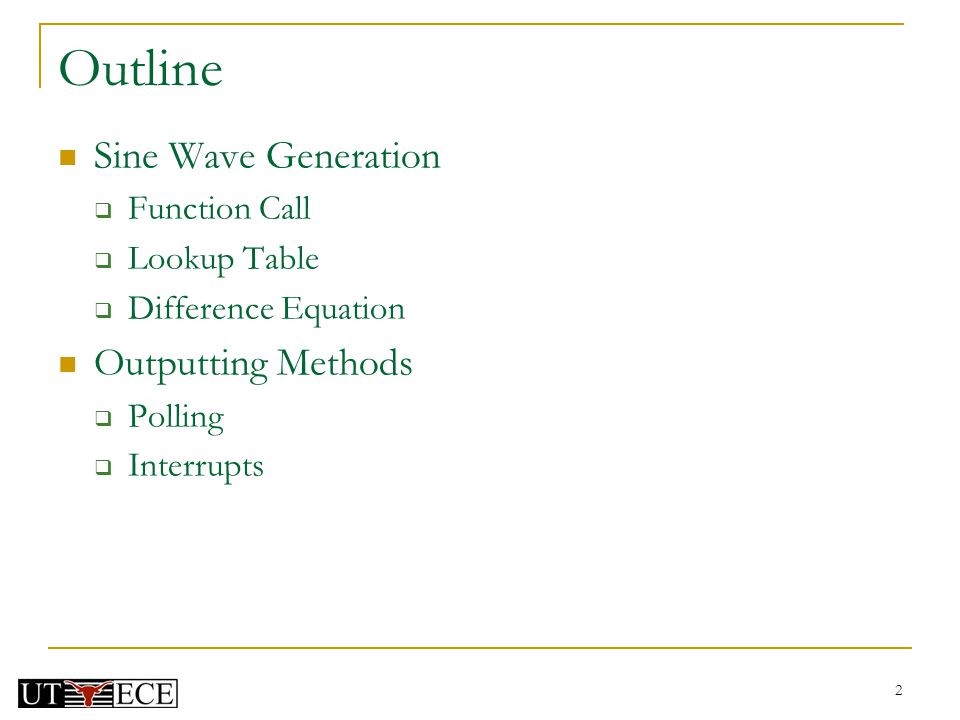

2. 2 Outline Sine Wave Generation  Function Call  Lookup Table  Difference Equation Outputting Methods  Polling  Interrupts

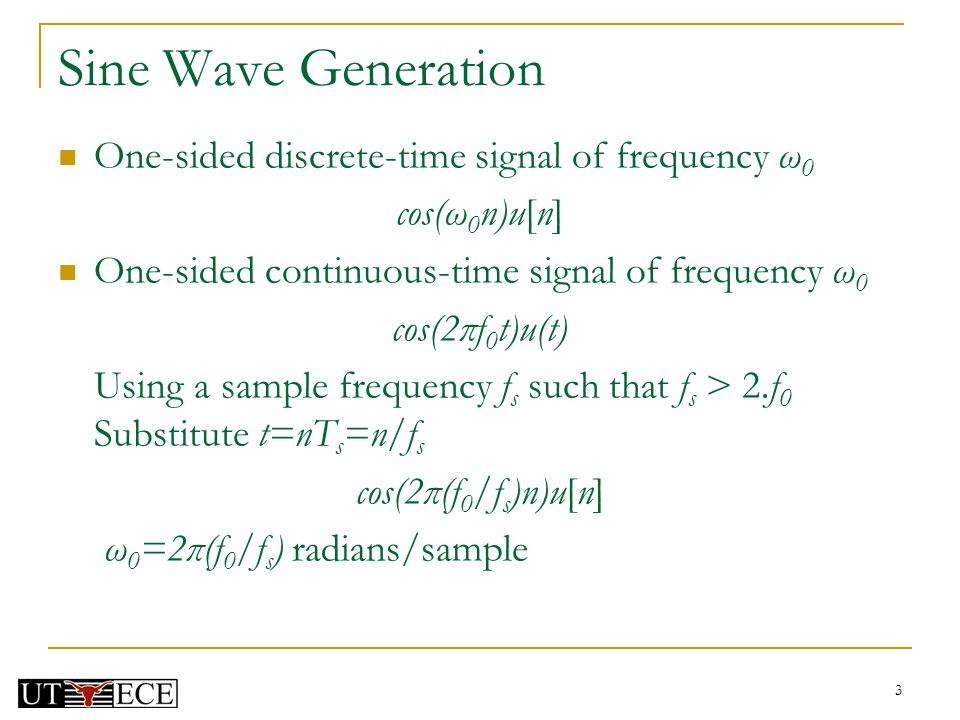

3. 3 Sine Wave Generation One-sided discrete-time signal of frequency ω 0 cos(ω 0 n)u[n] One-sided continuous-time signal of frequency ω 0 cos(2πf 0 t)u(t) Using a sample frequency f s such that f s > 2.f 0 Substitute t=nT s =n/f s cos(2π(f 0 /f s )n)u[n] ω 0 =2π(f 0 /f s ) radians/sample

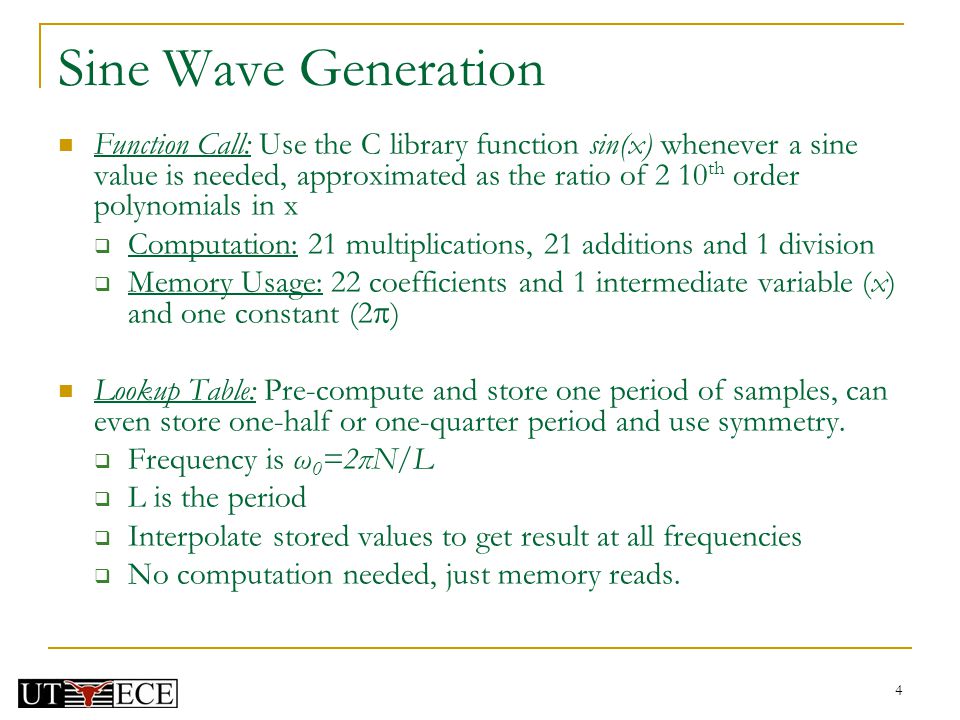

4. 4 Sine Wave Generation Function Call: Use the C library function sin(x) whenever a sine value is needed, approximated as the ratio of 2 10 th order polynomials in x  Computation: 21 multiplications, 21 additions and 1 division  Memory Usage: 22 coefficients and 1 intermediate variable (x) and one constant (2  ) Lookup Table: Pre-compute and store one period of samples, can even store one-half or one-quarter period and use symmetry.  Frequency is ω 0 =2πN/L  L is the period  Interpolate stored values to get result at all frequencies  No computation needed, just memory reads.

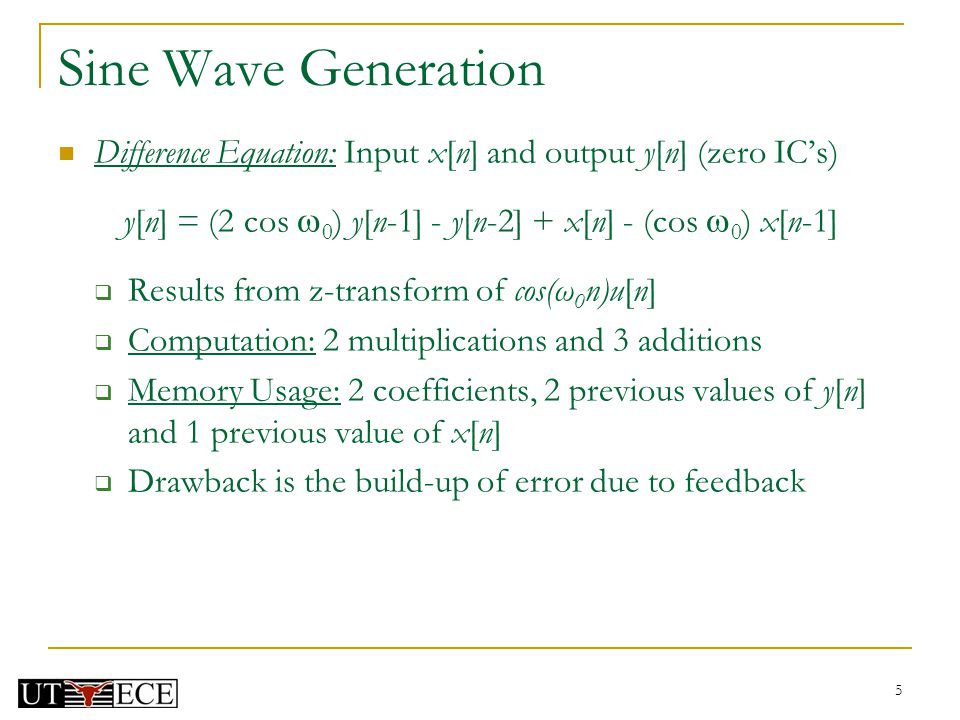

5. 5 Sine Wave Generation Difference Equation: Input x[n] and output y[n] (zero IC’s) y[n] = (2 cos  0 ) y[n-1] - y[n-2] + x[n] - (cos  0 ) x[n-1]  Results from z-transform of cos(ω 0 n)u[n]  Computation: 2 multiplications and 3 additions  Memory Usage: 2 coefficients, 2 previous values of y[n] and 1 previous value of x[n]  Drawback is the build-up of error due to feedback

6. Outputting Methods Polling: means constantly monitoring a device, a flag or a register until its value changes. Interrupts Enhanced Direct Memory Access 3 6

7. Polling: CPU Poll RRDY ADC McASP DAC SR12 SR11 Poll XRDY DATA AIC3106 Audio Codec READ SR12 WRITE SR11 Poll XRDY (transmit ready) bit of the McASP(Multi-Channel Audio Serial Port) until TRUE then write to XBUF11 register of the McASP. If XRDY is TRUE, function returns the sample and the value 1, If XRDY is FALSE, function returns immediately without sending a sample and return the value 0. 4

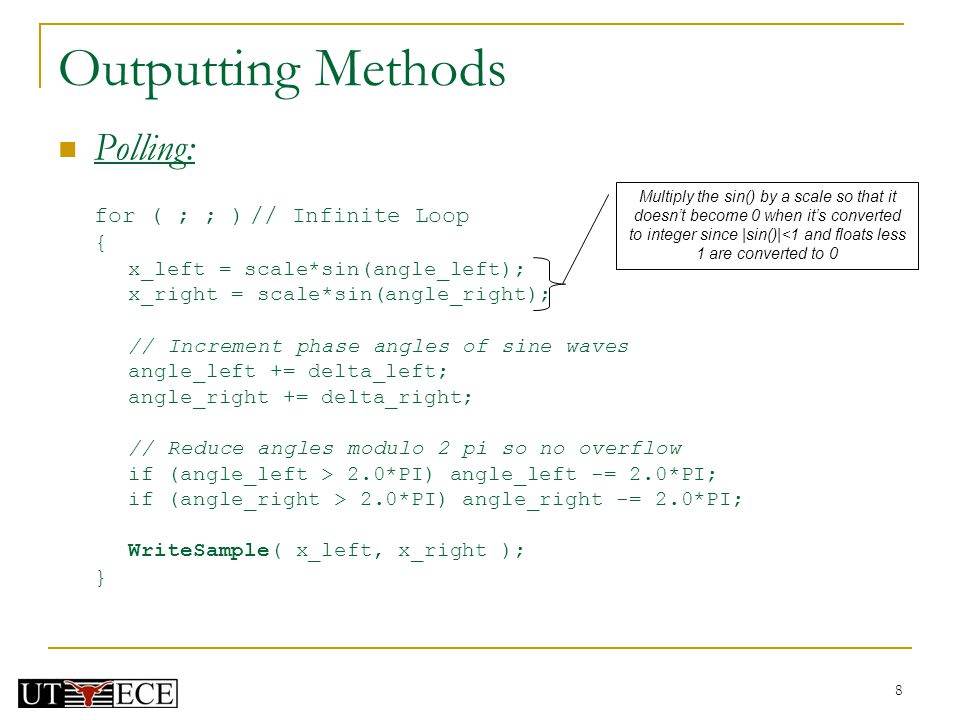

8. 8 Outputting Methods Polling: for ( ; ; )// Infinite Loop { x_left = scale*sin(angle_left); x_right = scale*sin(angle_right); // Increment phase angles of sine waves angle_left += delta_left; angle_right += delta_right; // Reduce angles modulo 2 pi so no overflow if (angle_left > 2.0*PI) angle_left -= 2.0*PI; if (angle_right > 2.0*PI) angle_right -= 2.0*PI; WriteSample( x_left, x_right ); } Multiply the sin() by a scale so that it doesn’t become 0 when it’s converted to integer since |sin()|<1 and floats less 1 are converted to 0

9. 9 Outputting Methods Polling: void WriteSample( float left, float right) { int32_t ileft = (int32_t) left; int32_t iright = (int32_t)right; int32_t dataOut32; /* Combine ileft and iright into a 32-bit word */ dataOut32 = (iright << 16) | (ileft & 0x0000ffff); /* Polls the Ready flag of the serial port and returns true/false to indicate success. */ while (!CHKBIT(MCASP->SRCTL11, XRDY)) {} MCASP->XBUF11 = dataOut32; } Poll SRCTL11 bit and write output to McASP Combine both samples into a 32-bit word to transmit via McASP Convert float to integer

10. Questions: How does the McASP get data from the AIC? Why replace polling with an interrupt? When would an interrupt likely be triggered? How do you configure an HWI in BIOS? Under what conditions will an INT make it to the CPU? Should we buffer the data? 10

11. 11 Outputting Methods Polling:  Most of the time in the polling method is spent in the infinite loop waiting for the XRDY flag to get set,  DSP is doing nothing,  A more efficient approach is to let DSP run tasks in background (modulating/demodulating, coding/decoding…),  So, serial port will interrupt background tasks when sample is received and needs to be transmitted.

12. 12 Outputting Methods Interrupts: are signals from hardware/software indicating the need for attention or change of execution. C6748 DSP has a vectored priority interrupt controller that can handle 16 different interrupts:  RESET interrupt has highest priority, cannot be masked,  NMI (Non-Maskable Interrupt) has the second highest priority (used to notify DSP of serious hardware errors),  2 reserved maskable interrupts come next,  12 additional maskable interrupts (INT4-INT15) have the lowest priority.

13. McASP Block Diagram CPU EDMA CFGBUSCFGBUS CLKR FSR CLKX FSX AXR0 XRSR McASP Control Registers XRBUF SRCTL AXRn R-FMT X-FMT Serializer (xmt or rcv) CLK Mgmt  McASP can have up to 16 serializers(can be xmt or rcv – unidirectional)  Word lengths: 8, 12, 16, 20, 24, 28, 32  All reads/writes are 32 bits  Format: mask, pad, rotate, bit-reverse  Our app: 16-bit word, ROR 16, I2S (1-bit delay), 2 serializers 6

14. CPU Interrupts from McASP “Ready to Read” CPU CODECCODEC McASP0_INT RDATA=1 XRBUF12XRSR XRBUF11XRSR XDATA=1 “Ready to Write”  RCV/XMT INTs combined into one interrupt:MCASP0_INT  RDATA triggers when XRBUF12 is filled (32 bits)  XDATA triggers when XRBUF11 is emptied (32 bits)  Warning: underrun on XMT? McASP dies… ! 7

15. How do Interrupts Work? 1. An interrupt occurs EDMA McASP Timer Ext’l pins 2. Interrupt Selector 124+4 12 3. Sets flag in Interrupt Flag Register (IFR) … 4. Is this specific interrupt enabled? (IER) 5. Are interrupts globally enabled? (GIE/NMIE) 6. CPU Acknowledge Auto hardware sequence HWI Dispatcher (vector) Branch to ISR 7. Interrupt Service Routine (ISR) Context Save, ISR, Context Restore  User is responsible for setting up the following: #2 – Interrupt Selector (choose which 12 of 128 interrupt sources to use) #4 – Interrupt Enable Register (IER) – individually enable the proper interrupt sources #5 – Global Interrupt Enable (GIE/NMIE) – globally enable all interrupts #6 – Hardware Interrupt (HWI) Dispatcher – the vector to the ISR 12

16.  C6748 has 128 possible interrupt sources (but only 12 CPU interrupts)  4-Step Programming: Interrupt Selector 0. MCASP0_INT. 127 0 HWI 4 1 HWI 5 0 HWI 15...... IFRIERGIE Vector Table 1.Interrupt Selector – choose which of the 128 sources are tied to the 12 CPU ints 2. IER enable 3. GIE enable 3. Use the HWI Dispatcher to perform context save/restore 1234 Note: NMIE must also be enabled. DSP/BIOS automatically sets NMIE=1. If DSP/BIOS is NOT used, the user must turn on both GIE and NMIE manually. 13

17. 3-Step Example – Tie McASP0_INT to the CPU’s HWI 5 1 Configure Interrupt Selector & Vector for MCASP_INT0 (Evt #61) 2 Set the appropriate IER bit (for HWI 5 ) IER |= (1 << 5); 3 Turn on the HWI Dispatcher (ISR context save/restore) _isrAudio 61 15

18. Hardware Interrupt Events So, how do you know the names of the interrupt events and their corresponding event numbers? Ref: SPRS590 (pg 200-201) – here’s an excerpt: 17

19. Preemption via Dispatcher Using HWI Dispatcher  Select Dispatcher tab  Click Use Dispatcher  Default Mask is Self, this means all interrupts will preempt except this one  Select another mask option, if you prefer All:Best choice if ISR is short & fast None:Dangerous Make sure ISR code is re- entrant Bitmask:Allows custom mask 20

20. 20 Example Interrupt Service Routine void isrAudio(void) { float myLeft, myRight; ReadSample(&myLeft,&myRight); // Reading the data in //Please insert signal processing code here WriteSample(myLeft,myRight); //Writing the data out }
