2. Agenda Victrex Overview Technical information on VICTREX®
Market and Application Review
AptivTMFilms
VicoteTMCoatings
Discussions

3. Who is Victrex Plc?
Manufacturer of VICTREX® PEEK™ and PEEK-HT® Polymers
Public, London Stock Exchange (VCT)
£ million 2008 Revenue
500+ Employees, 90+ Global Employees
Three Manufacturing Sites (all UK based)

4. Driving Market Growth with Around the World…..
Victrex’s strengths:
Focus and dedication to the development and innovation of VICTREX® PEEK™ polymers.
Proactive strategy to engage with customers and end users to develop new applications for high performance polymers, supported by extensive application technology - “win-win” mentality.
Global footprint, relationship-driven culture.
Passion, Innovation, Performance - for and with our customers.
Passionately exploring new products, applications,
and business opportunities – creating the future!
VICTREX® is a registered trademark of Victrex Manufacturing Limited. PEEK™ and PEEK-HT™ are trademarks of Victrex plc.

5. VTC
A Global Resource
AITC

6. Victrex Sales by Industry
Aerospace
Automotive

7. VICTREX® PEEK™ polymer
Wear at elevated temp
Oil and Gas seals
T Series
MAX- Series
Performance
VICTREX
PEEK-HT®
VICTREX®
PEEK™
polymer
Down hole connectors
Back up rings and seals
Chip trays and carriers
non-ESD
$40/lbs
$120/lbs
Value to Performance for Victrex Products

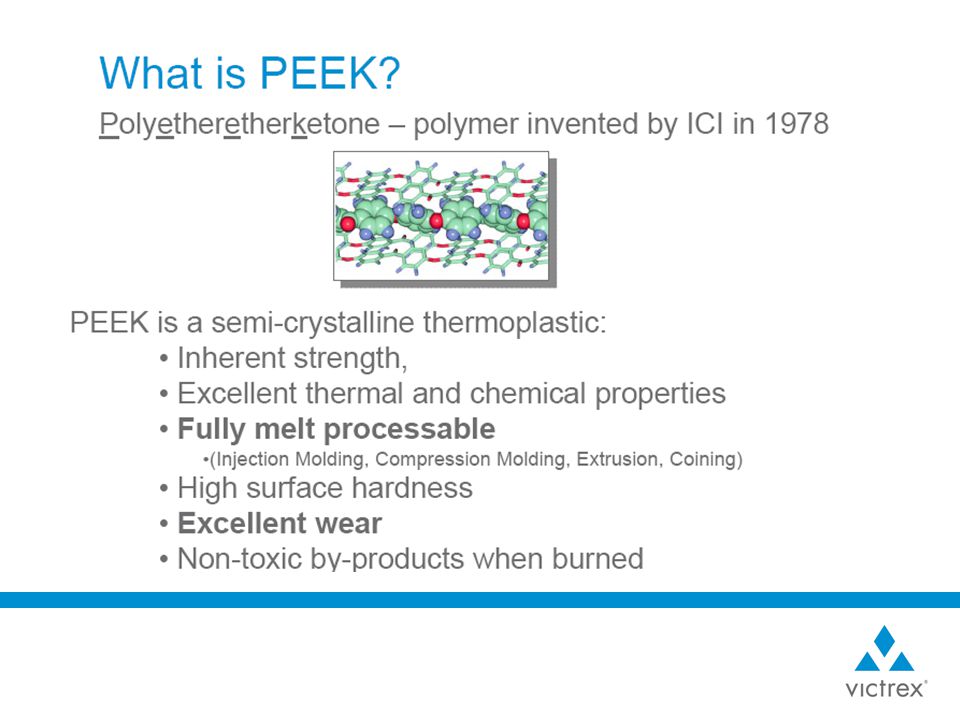

9. Polymer Hierarchy Continuous Use Temperature UL 746B
PBI (polybenzimidazole)
PI (Polyimide)
Victrex PEEK™ Tseries
600°F
Victrex PEEK™ polymer
Temperature Performance
400°F
PAI (Polyamide imide)
PEI (Polyetherimide)
PPS (Polyphenylene sulfide)
200°F
PES (polyether sulfone)
PPA (polyphthalamide)
Nylon
Amorphous Crystalline

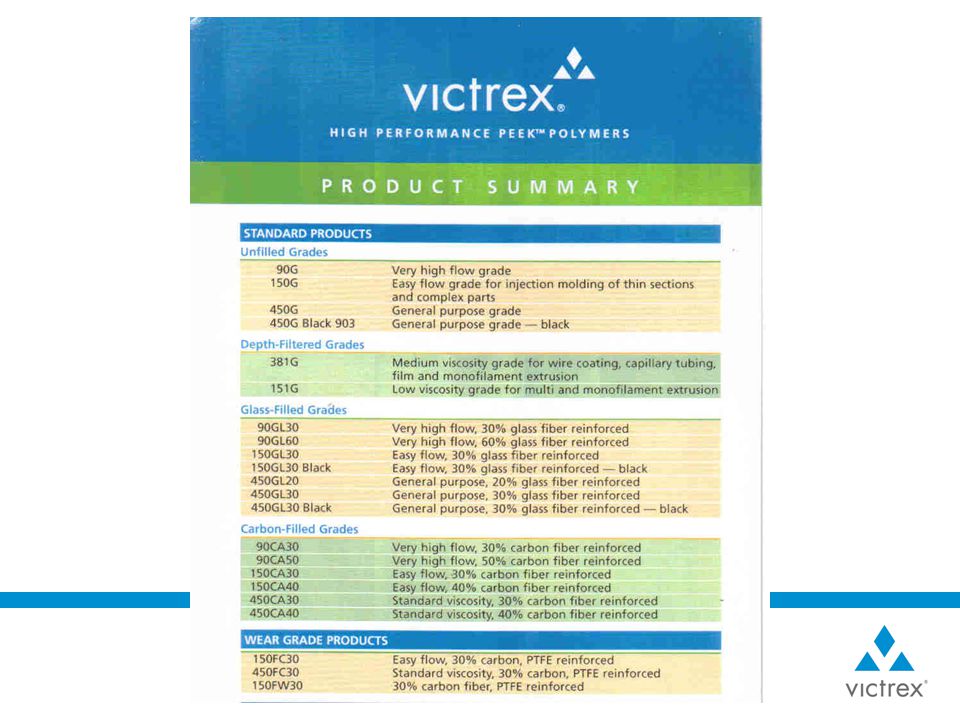

11. VICTREX® PEEK Properties
VICTREX PLC MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, WITHOUT LIMITATION, A WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE OR OF INTELLECTUAL PROPERTY NON-INFRINGEMENT, INCLUDING, BUT NOT LIMITED TO PATENT NON-INFRINGEMENT, WHICH ARE EXPRESSLY DISCLAIMED, WHETHER EXPRESS OR IMPLIED, IN FACT OR BY LAW. FURTHER, VICTREX PLC MAKES NO WARRANTY TO YOUR CUSTOMERS OR AGENTS, AND HAS NOT AUTHORIZED ANYONE TO MAKE ANY REPRESENTATION OR WARRANTY OTHER THAN AS PROVIDED ABOVE.  VICTREX PLC SHALL IN NO EVENT BE LIABLE FOR ANY GENERAL, INDIRECT, SPECIAL, CONSEQUENTIAL, PUNITIVE, INCIDENTAL OR SIMILAR DAMAGES, INCLUDING WITHOUT LIMITATION, DAMAGES FOR HARM TO BUSINESS, LOST PROFITS OR LOST SAVINGS, EVEN IF VICTREX HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES, REGARDLESS OF THE FORM OF ACTION.

12. Mechanical properties of VICTREX grades
property
unit
450G
450GL30
450CA30
tensile strength
MPa
100
156
224
elongation at break %
100
2.7 2
flexural strength
MPa
131
250
355
flexural modulus
GPa
3.9 10
20.2
Izod impact (notched)
J/m 83
100 90
hardness (Rockwell) R
126
124
132
thermal expansion 10 -5
/°C
4.7
2.2
1.5
density
g/cm³
1.32
1.49
1.44
HDT 1.8MPa °C
152
315
315

13. VICTREX® PEEK CTE versus other Polymers
VICTREX® PEEK expands with temperature significantly less than other engineering thermoplastics and can be used over a wider temperature range.

14. Relative Thermal Index (RTI)

15. HDT – Unfilled & 30% Glass Filled

16. Tensile Strength vs Temperature

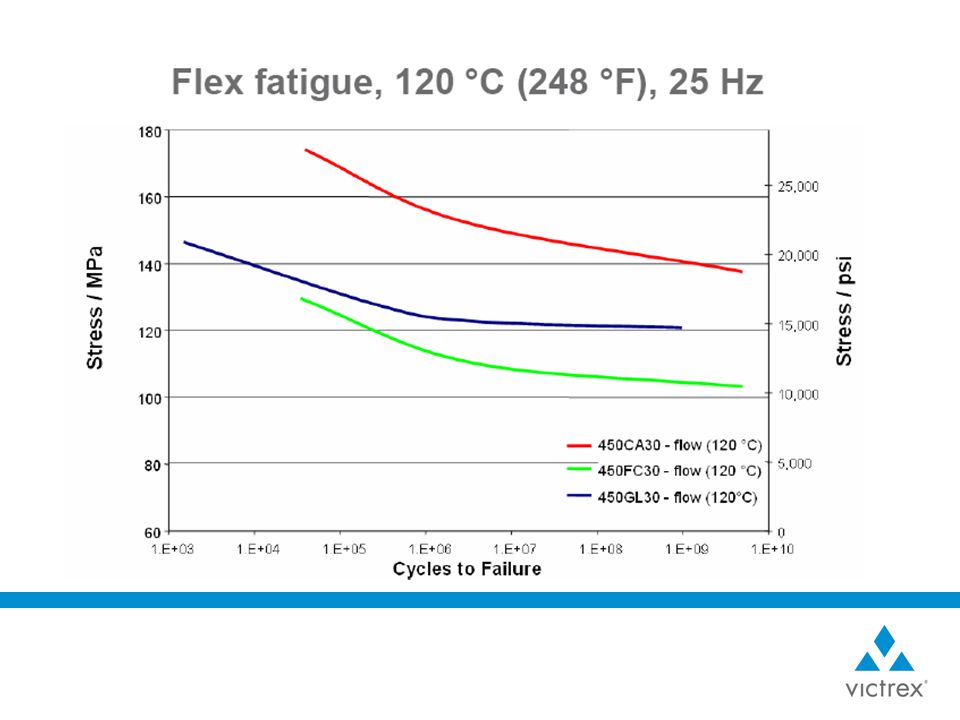

18. VICTREX® PEEK Electrical Properties
Volume Resistivity Versus Electrification Time VICTREX 450G
Surface Resistivities for Various Engineering
Polymers Tested at 25°C (77°F) with 50% Humidity

19. Lpv Comparison for Various Materials

20. Forced Combustion Smoke Chamber Results
Smoke & Toxicity
Forced Combustion Smoke Chamber Results

21. Key Application Requirements
excellent hydrolysis resistance
temperature resistance
Victrex® PEEK™
wear resistance
electrical properties
purity
radiation resistance
easy processing
FDA
fire resistance,low smoke and toxicity
excellent chemical resistance
Most VICTREX applications require a combination of three or more properties

22. VICTREX® PEEK Processing Methods
VICTREX® PEEK is available in numerous forms:
Injection molded parts
Extruded shapes (machined)
Films
Compression molded parts
Composites
Filaments
Fabrics
Powder Coatings

23. Processing
Victrex® PEEK™ can be processed by all thermoplastic techniques:
Injection molding
Extrusion
Sheet, Profile, Tube, Rod
Mono-, and Multi-Filament
Film
Capillary
Wire coating
Compression molding
Coating
Powder and Dispersion

24. Applications Application for Pumps
The Pump market can be divided into three segments
Chemical and Off Shore pumps
PEEK is not unknown in this market, the world biggest pump manufactures like KSB, Wilden-Pumps,
Allweiler, Ingersoll Dresser pumps etc have already PEEK in charge or working with.
Very low quantities, mostly machined from stock shapes.
Off shore pumps are used in UK, Norway and The Netherland. 3P Uk is doing very well by using Xytrex from EGC in Texas.
Chemical pumps are more seen in Germany, Switzerland and France
Automotive fuel, oil and waterpumps
PEEK is new due to it’s high price level, and is interesting for water and oil pumps
Because of the high using temperature. The market is very big and is the most interesting.
Oil pumps for Volkswagen( Salzgitter) MAV 12 tons,
Water pumps for Daimler Chrysler (Berlin)MAV ca. 15 tons.
Vanes for Robert Bosch Italy MAV ca 4 tons, increasing up to prob. 12 tons
Vanes for LUK MAV tons
And others
Household-heating installations, Powerstation
PEEK is used as impeller, injection molded in side channel pumps, or as glide bushings,
as for Wilo and Speck.
Quantities are very low and divided in several dimensions.
The range of customers is nearly the same as for chemical and off shore pumps due to
Lab, chevron seals

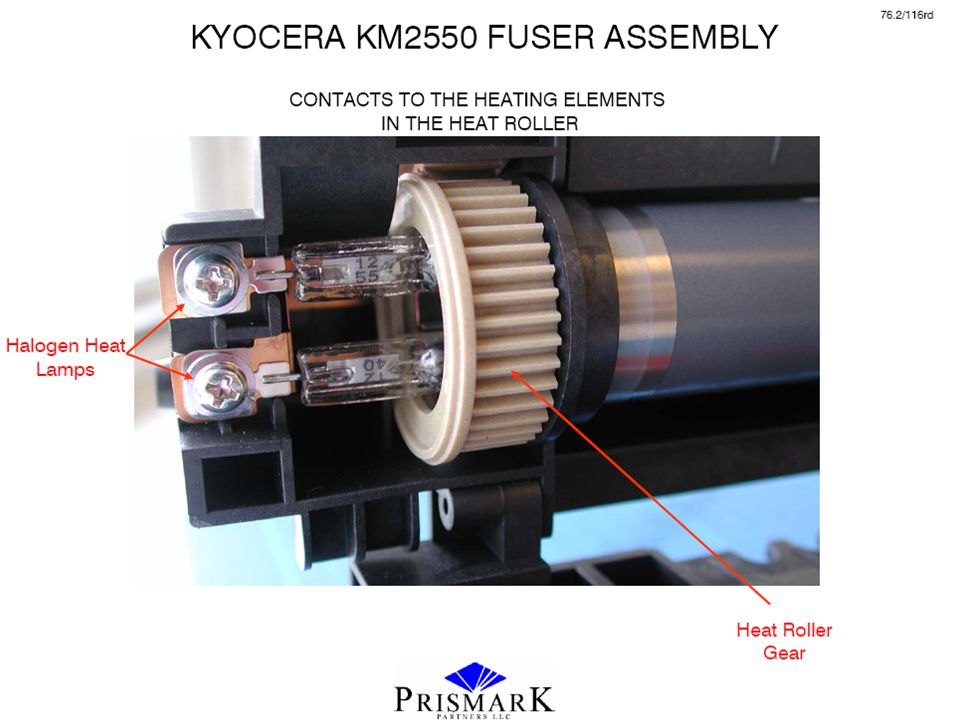

25. Gears/Split Fingers for Copier Machines/Printers
Application: Gears for copier machine
( heating roller, skiving roller)
Product: G, 450CA30
KER s:
Heat resistance ( around ℃)
Mechanical strength against high torque
Better wear friction property
SPLIT FINGERS
Application: Split Finger
Product: PEEK HT
KER s:
Able to sustain PFA coating processing temperature (330~360 oC) for color printers
High toughness
Superior wear performance

27. Gears For Copiers OVERVIEW Customer: Juraron HK
Model 2FB 2293
Customer: Juraron HK
OEM/End-user:Kyocera Mita HK
Application: High speed copier gear
Product: 450CA30
KERs:
Dim stability at 220C and torque under high speed, 50ppm or above.
Life test 2million cycles.
Able to sustain high wear, high stress, high torque, as so on.

28. Value Added PEEK Applications
Challenge:
Replace labor-intensive threaded connectors and specified torque limits
Withstand high pressures at high temperatures
Reduce creep under load
Value Added PEEK Solution:
Snap connector in place and O-rings seal the joint; no need for torque equipment
Eliminate maintenance and process controls required to ensure a good seal
PEEK meets high pressure loads under temperature and vibration without degradation of performance over time
Quick Disconnect Retainer

29. RFID
Aircraft
Manufacturing
Oil & Gas

30. Communications/Electronics
Requirements
replace aluminum
MIL-STD-38999
creep resistance
dimensional stability
VICTREX PEEK Benefits
reduced weight
molded-in threads
metal platable
custom compoundable
Details
System: composite interconnect
Application: connector shell, nut
Material: carbon fiber reinforced
VICTREX PEEK

31. Value Added PEEK Applications
Challenge:
Replace and outperform traditional metal P-clamps and saddle clamps
Simplify installation process
Improve strength and reduce weight
Value Added PEEK Solution:
Unlike metal, clamp is completely non-corrosive and non-conductive
A “lock-open” feature keeps the clamp open and a second “lock-closed” feature keeps the clamp closed
PEEK offers strength advantages at lower weights than metals resulting in reduced fuel costs for aircraft
High Performance Clamp

32. Industrial Requirements temperature max. 250°C
high mechanical strength
chemical resistance
high insulation properties
Details
System: down-hole
Application: connector housing
Material: PEEK™ 450GL30
PEEK™ Benefits
longer lifetime
corrosion resistance
chemical resistance
product optimisation

33. Diesel Exhaust Gas Sensor Connector
Requirements
Temperature >250° C
Resistance to Diesel Exhaust Gases
HI-STAT LEXINGTON, A Stoneridge Company
Victrex® PEEK™ Benefits
Impact resistance
Heat Resistance
Chemical Resistance
Details
System: Exhaust Gas Sensor
Application: Electrical Connector Housing
Material: Victrex® PEEK™ 150GL30

34. FPC connectors Requirements High-temp for lead-free solders
Superior weld strength to LCP
Impact strength
Stiffness
Processability
PEEK™ Benefits
Thermal resistance
Superior weld strength and impact to LCP
High modulus
Able to fill the tool with 0.1-mm thickness
Details
Application: FPC Connector
Material: Victrex® PEEK™ 90GL30

35. Mobile Phone Co-axial Connectors
Requirements
Mechanical strength
Creep resistance
Temperature resistance up to 260°C
Frequency up to 6 GHz
Partweight 0,01 gr
Details
System: Mobile Phone Plug
Application: Coaxial plug
Material: Victrex® PEEK™ 150GL30
Victrex® PEEK™ Benefits
Longer product life
Lower part cost (smaller part size)
Product optimisation

36. Mobile Phone Hinge Mobile Phone Hinge Requirements
Superior wear & fatique performance
Stiffness
Mechanical strength
PEEK™ Benefits
High wear & fatique performance
High stiffness for carbon filled grades
Details
System: Mobile Phone
Application: Hinge
Material: PEEK™ 150CA30

37. Mobile Phone Hinge – Torque Loss Comparison
Materials Tested
POM 500P, 500CL (w/ PTFE)
Metal (MIM, metal powder inj.)
PEEK 450G
Test Result (1-stop hinge)
torque
against cycles loss%
Metal powder inj. same 100K %
Mg injection same 100K %
POM 500P P 100K %
450G G 100K %
Requirement
< 20~30% loss in torque, 100K cycles.

38. Teletronics Requirements Hydrolysis resistance Dimensional stability
Food contact approval
PEEK™ Benefits
longer lifetime
cost reduction
FDA and EEC approval
Details
System: Coffee machine
Application: Filter plate
Material: PEEK™ 450G

39. Teletronics Requirements high mechanical strength low wear
thermal performance
dimensional stability
PEEK™ Benefits
longer lifetime
optimises system function
no lubrication necessary
cost reduction
Details
System: domestic oven
Application: guide
Material: PEEK™ 450FC30

41. Available Victrex films & formats
Film types
Unfilled PEEK film in amorphous or crystalline
Mineral filled films for property enhancement
Modulus, wear, dimensional stability
Black film
Film thickness / width capabilities
Thickness range of – to 0.03 inches (5 – 750 µm) (1/4 to 30 mil)
Standard widths of 650 and 1500 mm (25 to 60 inches)
Others
Matte / Gloss is standard surface finish
Slitting available to 45 mm roll width
Plasma surface treatment available

42. APTIV film Conversion Examples
Composite
film structures (carbon or glass)
Laser machining and
laser printing
Metallization -
(5 um to 35 um copper)
Die cutting / stamping
Thermoforming – (6 to 750 µm)
Laminating – metal substrate
Adhesive film-backed tapes
Heat sealing

43. APTIV film Properties

44. Tensile Modulus @ 23°C (73°F)

45. Dielectric Constant at 23°C (73°F)

46. Dielectric Strength - 50 µm film, 23°C (73°F)

47. Moisture Uptake @ 50% RH, 23°C (73°F)

48. Water Vapor Permeation @ 23°C 100% RH

49. Hydrolysis Resistance – 5 days @ 150°C (302°F), 100% RH
Hydrolysis Resistance – 5 150°C (302°F), 100% RH. (Measured change in key mechanical properties)

50. Taber Abrasion Wear Resistance

51. Puncture Resistance

52. Tear Strength

53. Oxygen Transmission at 23°C, 0% RH

54. Radiation Resistance

55. APTIV film - Case Study Alternator armature wedge & slot liner
Key requirements:
High temperature capable – 280 C max temp.
Electrically insulating at >200 amps
Excellent mechanicals to survive challenging assembly process
420 µm thickness
APTIV film benefits:
Single layer of APTIV film replaced 3 layer system of NOMEX™/PET/NOMEX
Single layer of APTIV film provided manufacturing yield benefits.
Low friction of APTIV film aids assembly process

56. APTIV film - Case Study Thrust Washer for CD/DVD Spindle Motor
Key requirements:
Wear resistance at over 5,000 rpm
Electrical insulation
Various film thicknesses 100 – 450 µm
Tight thickness tolerance
APTIV film benefits:
Combination of wear life and tight thickness tolerance provide customer with best performing wear surface. APTIV film reduces chance of read/write errors in CD/DVD drives.

57. APTIV film – Case Study
Speaker tweeter dome using mineral filled APTIV film
Key requirements:
Exacting acoustic characteristics
Thermo-formable
High temperature performance
Excellent fatigue properties
APTIV film benefits:
Cabasse required a film which met a challenging set of requirements. It had to have extremely high modulus with light weight for excellent sound characteristics while being formable in standard processing equipment.

58. Mobile Phone – Speaker Diaphragm
Requirements
Temp. range at 204~260oC for both manufacturing process and full power operation.
Chemical resistance
Extreme dynamic fatiques over the lifetime
Low moisture absorption
PEEK™ Benefits
High heat performance
Superior resistance to chemicals
Great fatique performance
Low mositure absorption vs. PI
Processability vs. PI
Details
System: Mobile Phone
Application: Speaker Diaphragm
Material: PEEK™ Film

59. APTIV film – Case Study Surface Mount Condenser Microphone
Key Requirements:
25 micron film with tight thickness tolerance
High temp. capable – Must survive lead-free soldering operations
Excellent dielectric properties
Chemical resistance to surface mount assembly products.
Ease of manufacturing - 4 million units / month
APTIV film benefits:
APTIV film provided a solution to the challenges of high temperature surface mount soldering operations while allowing the customer to meet competitive market pricing for their finished surface mount microphones.

60. APTIV film – Case Study Tennvac® Film Antenna Key Requirements:
Excellent electrical properties across range of temperature and humidity levels.
Strong chemical resistance
High mechanical properties including higher tear strength versus polyimide film.
High temperature performance, up to 260 C
Excellent bond strength with vapor deposited metals.
APTIV film benefits:
APTIV film provides Tennvac with a film which can be thermally bonded directly to a metal substrate without an adhesive. This improves bond strength, performance and reliability of the device.

61. The Next Generation of Coatings for Durability and Long Life

62. Coatings applications
Electrostatic (powder) Coating:
Powders are sprayed directly onto a heated substrate. Powders melt to form the coating typically 100 – 1000 microns dft (4-40 mil dft).
Typical applications – Pans, rice cookers, dampers, bushings, cylinder head gaskets, bearings, parts for corrosion resistance
Vicote 700 series products
Dispersion Coating
The formulated aqueous based coating is sprayed onto the substrate which is subsequently heated to form a thin film on the substrate ( dft).
Typical applications – cookware, irons, engine piston rings, bearings, large parts in chemical plants for corrosion resistance, coating glass and Kevlar™ fabrics.
Vicote 700 (powder) or 800 (dispersions) series
Thermal Spray
Powder is passed through flame to melt and melt the polymer which adheres and solidifies on the cool surface. (Under development)
Potential Applications – Objects that can’t be heated in an oven.

63. Mobile Phone – Coating on Phone Sliding Rails
Requirements
Low noise generation
Low coefficient of friction
Wear resistance
Surface hardness > 4H
No particles generated after 100,000 cycles of sliding testing
PEEK™ Benefits
Low coefficient of friction
Superior wear performance
Surface hardness
Details
System: Mobile Phone
Application: Coting on phone sliding rails
Material: VICOTE 810

64. Cleaning Roller Gear OVERVIEW
Kyocera is using a-Si photoconductive drum in order to achieve longer file (resulted from higher wear resistance).
Oxide forms on the surface of the a-Si drum, which results in cleaning roller subjected to high torque while scrubbing the oxide films from the a-Si photoconductive drum.
The gears fabricated from Victrex PEEK materials had high mechanical strength and is able to with stand the torques without deformation.
Cleaning Roller Gear

65. Thank you!
