1. TENTATIVE 2008 HD HARD DISK CAMCORDER New Product Information TENTATIVE

2. 45% smaller ** than the GZ-HD7 The World’s Smallest 1920x1080 Full HD Hard Disk Camcorder * TENTATIVE * As of October 2007 ** As compared to GZ-HD5

3. TENTATIVE

4. TENTATIVE With the industry’s leading Ultimate Image Quality TENTATIVE

5. TENTATIVE 1080P Output HDMI 1.3 (x.v.Color) FUJINON HD Lens HD Gigabrid Engine New OIS (Optical Image Stabilizer) 3CCD System TENTATIVE With the industry’s leading Ultimate Image Quality

6. 2008 HD Everio Concept 1080P Output Functionality 3CCD for Super Fine Color Reproduction x.v.Color for a wider range of colors World’s Smallest HD HDD Camcorder New! Only1! New! Only1! New! TENTATIVE

7. Product Outline TENTATIVE Ultra Compact 1920 Full HD Camcorder Built-in 1080P output functionality HD Gigabrid Engine High Capacity HDD for Longer Recording New OIS (Optical Image Stabilizer) 3CCD System FUJINON HD Lens HDMI 1.3 (x.v.Color) Compatible with the Everio Share Station DVD Burner GZ-HD6 GZ-HD5 120 GB 60 GB

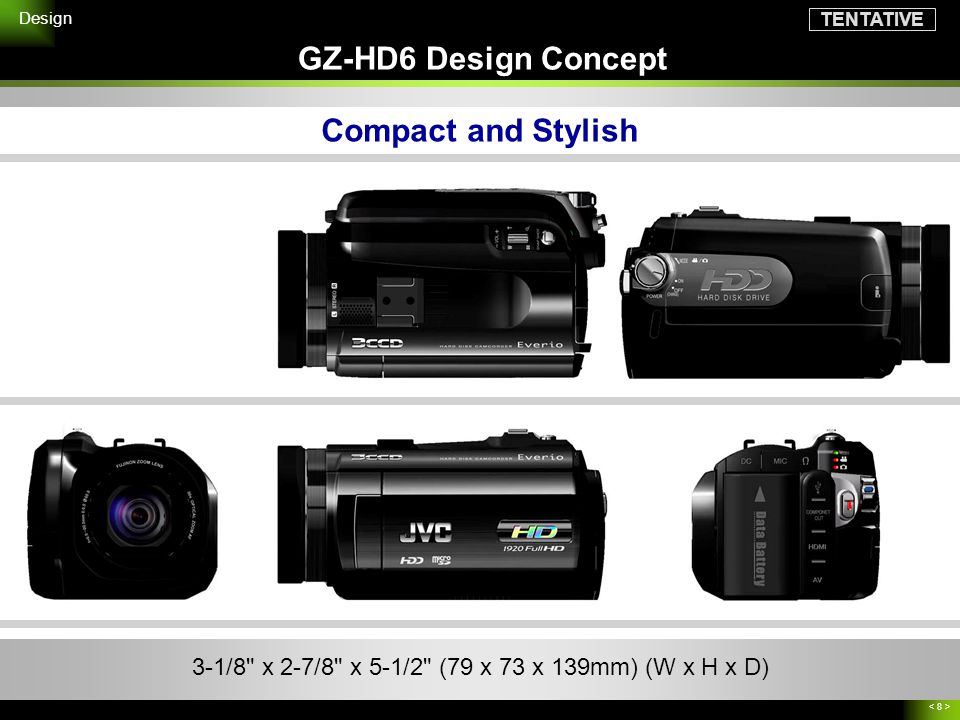

8. GZ-HD6 Design Concept Design 3-1/8" x 2-7/8" x 5-1/2" (79 x 73 x 139mm) (W x H x D) Compact and Stylish TENTATIVE

9. GZ-HD5 Design Concept Design 3-1/8" x 2-7/8" x 5-1/8" (78 x 73 x 130mm) (W x H x D) Compact and Stylish TENTATIVE

10. Size Comparison Design TENTATIVE 3-1/4 (81) 3 (75) 5-15/16 (149) 5-3/4 (144.5) 3-3/16 (79.5) 2-15/16 (74) 3 (75) 3-1/4 (81) 5-1/8 (129) 5-1/8 (130) 3-1/8 (78) 2-7/8 (73) JVC GZ-HD5: 5-1/8 x 3-1/8 x 2-7/8 (130 x 78 x 73) JVC GZ-HD3: 5-3/4 x 3-3/16 x 2-15/16 (144.5 x 79.5 x 74) SONY SR7: 5-15/16 x 3-1/4 x 3 (149 x 81 x 75) Canon HG10: 5-1/8 x 3-1/4 x 3 (129 x 81 x 75) Unit: inches (mm)

11. TENTATIVE Full HD 1920 X 1080 Recording Key Feature Information TENTATIVE 1920 Full HD Camera Block & Video Processing Technology 1080 1920

12. 1920 1080P 1080i video can be upconverted to 1080P for output, allowing users to enjoy uncompromising picture quality when connected to a TV that accepts 1080P input. Key Feature Information TENTATIVE 1080P Output Functionality New ! Only1! 1080P Output

13. Difference can be seen especially in greens and yellows. Colors that are closer to how the human eye perceives them HDMI 1.3 (x.v.Color) Key Feature Information TENTATIVE x.v.Color can display 100%! Traditional (sRGB) system can only display 55% of the existing colors… “x.v.Color” and are trademarks.

14. The GZ-HD6/HD5 uses a lens designed for high definition by FUJINON. FUJINON is the leader in professional camera lens for HD moving images. 10x Zoom Lens with almost the same brightness throughout the entire zoom range. Zoom RatioF-stopFocal Length Optical 10xF1.8-F1.9F=3.3mm-33mm TENTATIVE FUJINON HD Lens Key Feature Information TENTATIVE FUJINON Assures the optimum source for Full HD recording

15. Total2.27 Megapixel Effective2.14 Megapixel TENTATIVE Three 16:9 1/5” progressive scan CCDs for each primary color. Pixel Shift technology for Full HD image capture. High Precision Prism using 3-D mounting technology patented by FUJINON for pro camcorders. Key Feature Information TENTATIVE Advanced Progressive Scan 3CCD System Three 1/5-inch CCDs for Full HD image capture.

16. TENTATIVE Processes signals in full 1920 x 1080 progressive. Uses 5 digital noise-reduction algorithms as well as signal processing to improve vertical scan resolution by approx. 30%. HD Gigabrid Engine Key Feature Information TENTATIVE Progressive! Progressive processing is done throughout the length of this signal chain. R PS CCD G PS CCD B PS CCD 14bit AFE 14bit AFE 14bit CCD Image Interpolation Processing Chroma Signal Processing Luminance Signal Color Differential Signal Matrix Processing P / I Conversion Video Encoder 3D Noise Reduction Y Signal NR C Signal NR

17. OIS off OIS on TENTATIVE OIS (Optical Image Stabilizer) Key Feature Information TENTATIVE Superior accuracy using shift lens, original lens servo, and new camera shake-detection algorithm Capture stable HD Video even when it’s not possible to use a tripod None of the image quality degradation associated with digital image stabilization Improved

18. RECORDING MODE CODEC Video/Audio System Bit Rate Recording Time GZ-HD6 (Approx. ) Recording Time GZ-HD5 (Approx. ) FHD Mode 1920x1080i MPEG2-TS MP2 (MPEG1 Layer 2) VBR: Max. 30 Mbps Av. 26.6 Mbps 10hr.5hr. SP Mode 1440x1080i MPEG2-TS MP2 (MPEG1 Layer 2) VBR: Max. 22 Mbps Av. 19 Mbps 14hr.7hr. LP Mode 1440x1080i MPEG2-TS MP2 (MPEG1 Layer 2) VBR: Max. 15 Mbps Av. 11 Mbps 24hr.12hr. 1440 CBR Mode * 1440x1080i MPEG2-TS MP2 (MPEG1 Layer 2) CBR: 27 Mbps (Constant Bit Rate) 10hr.5hr. TENTATIVE Key Feature Information TENTATIVE 10 Hours of 1920 Full HD Recording (GZ-HD6) * for HDV compatible stream via i.LINK. New! GZ-HD6GZ-HD5 internal 120 GB HDD internal 60 GB HDD

19. nShutter Speed Priority nAperture Priority nExposure Control Focus Assist FunctionZebra Function Manual Functions Displays a striped pattern in the LCD monitor across highlight areas, helping manual exposure setting. The edge of the in-focus picture is outlined in colour, so the operator can tell which part of the subject is in focus in real time. nWhite Balance nProgram AE nSharpness Control Portrait Sports Twilight TENTATIVE Assist Functions Key Feature Information TENTATIVE Night Spotlight

20. HD MPEG2-TS DV SD HD : MPEG2 SD :DV Conv. USB2.0 *Copy*View *Copy*Edit DV Streaming Data *Copy*Edit *Copy MPEG2-TS Streaming Data (1440x1080i CBR 27 Mbps) i.LINK Y,Pb,Pr Video Component USB2.0 TENTATIVE Multiple Digital Interfaces Key Feature Information TENTATIVE Hybrid Design with microSD card slot MPEG2-TS File Data

21. Everio Share Station for HD CU-VD40 No PC required! TENTATIVE USB2.0 HDMI terminal Component (Y,Pb,Pr) output Audio/Video Easy HD data disc creation without using a PC. Direct connection with HD Everio via USB2.0 high-speed interface Playback function for Full HD data. Can also be used as a standard DVD burner with your PC. PC-less Archiving Solution with SHARE STATION Key Feature Information TENTATIVE Recommended disc: VD-RDL85EV

22. HD: Blu-ray Disc SD: DVD Video Disc nPowerDirector for HD video editing nPowerProducer for Next Blu-ray disc writing nPowerCinema for HD file management/playback File management/ Playback/Editing/ Blu-ray disc creation Convenient HD editing with archiving to Blu-ray Disc! Playback by conventional BD-ROM Player/BD Recorder TENTATIVE CyberLink BD Solution (for Windows) Key Feature Information TENTATIVE

23. iMovie HD 6 Final Cut Pro 5/6 QuickTime Component QuickTime Pro Converts to AIC (Apple Intermediate Codec) during import. 1920x1080i is treated the same as 1440x1080i. Import after converting to Final Cut Pro compatible format using QuickTime Pro. (1920x1080i can be used as-is.) TENTATIVE QuickTime Component for Everio plug-in software enables 1920x1080 Full HD to be used with Macintosh NLE applications QuickTime Component for Everio (for Macintosh) Key Feature Information TENTATIVE

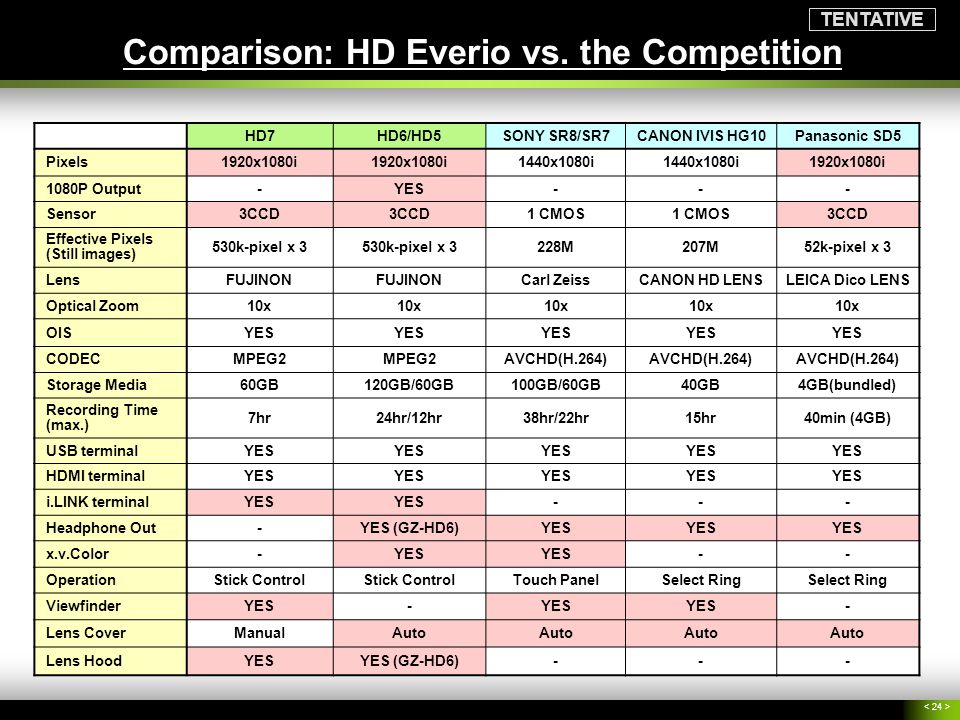

24. HD7HD6/HD5SONY SR8/SR7CANON IVIS HG10Panasonic SD5 Pixels1920x1080i 1440x1080i 1920x1080i 1080P Output-YES--- Sensor3CCD 1 CMOS 3CCD Effective Pixels (Still images) 530k-pixel x 3 228M207M52k-pixel x 3 LensFUJINON Carl ZeissCANON HD LENSLEICA Dico LENS Optical Zoom10x OISYES CODECMPEG2 AVCHD(H.264) Storage Media60GB120GB/60GB100GB/60GB40GB4GB(bundled) Recording Time (max.) 7hr24hr/12hr38hr/22hr15hr40min (4GB) USB terminalYES HDMI terminalYES i.LINK terminalYES --- Headphone Out-YES (GZ-HD6)YES x.v.Color-YES -- OperationStick Control Touch PanelSelect Ring ViewfinderYES- - Lens CoverManualAuto Lens HoodYESYES (GZ-HD6)--- TENTATIVE Comparison: HD Everio vs. the Competition TENTATIVE

25. 2008 HD Everio Optional Accessories TENTATIVE Starter Kit BN-VF808 Data Battery CB-VM70 Carrying Bag VU-VM90K Battery Charger AA-VF8 For charging BN-VF8 series Data Batteries Battery & Charger Standard Data Battery BN-VF808 7.2V, 730mAh Conversion Lens Carrying Bag DVD Burner High power Data Battery BN-VF815 7.2V, 1460mAh Extended power Data Battery BN-VF823 7.2V, 2190mAh Everio SHARE STATION GL-V0746 46.0mm Wide x0.7 GL-V1846 46.0mm Tele x1.8 CU-VD40 Stereo Microphone CB-VM70CB-VM50 MZ-V8 GL-V4346 step-up ring is required.
